A Robotics Ecosystem made for Python.

A Pythonic, open-source, and modern Robotics suite.

$ pip install roboticstoolbox-python

import spatialmath as sm sm.SE3.Rx(1.0)   1 0 0 0  0 0.5403 -0.8415 0  0 0.8415 0.5403 0  0 0 0 1

import roboticstoolbox as rtb rtb.models.Panda()   ERobot: panda (by Franka Emika), 7 joints (RRRRRRR), 1 gripper, geometry, collision  ┌─────┬──────────────┬───────┬─────────────┬────────────────────────────────────────────────┐  │link │ link │ joint │ parent │ ETS: parent to link │  ├─────┼──────────────┼───────┼─────────────┼────────────────────────────────────────────────┤  │ 0 │ panda_link0 │ │ BASE │ │  │ 1 │ panda_link1 │ 0 │ panda_link0 │ SE3(0, 0, 0.333) ⊕ Rz(q0) │  │ 2 │ panda_link2 │ 1 │ panda_link1 │ SE3(-90°, -0°, 0°) ⊕ Rz(q1) │  │ 3 │ panda_link3 │ 2 │ panda_link2 │ SE3(0, -0.316, 0; 90°, -0°, 0°) ⊕ Rz(q2) │  │ 4 │ panda_link4 │ 3 │ panda_link3 │ SE3(0.0825, 0, 0; 90°, -0°, 0°) ⊕ Rz(q3) │  │ 5 │ panda_link5 │ 4 │ panda_link4 │ SE3(-0.0825, 0.384, 0; -90°, -0°, 0°) ⊕ Rz(q4) │  │ 6 │ panda_link6 │ 5 │ panda_link5 │ SE3(90°, -0°, 0°) ⊕ Rz(q5) │  │ 7 │ panda_link7 │ 6 │ panda_link6 │ SE3(0.088, 0, 0; 90°, -0°, 0°) ⊕ Rz(q6) │  │ 8 │ @panda_link8 │ │ panda_link7 │ SE3(0, 0, 0.107) │  └─────┴──────────────┴───────┴─────────────┴────────────────────────────────────────────────┘   ┌─────┬─────┬────────┬─────┬───────┬─────┬───────┬──────┐  │name │ q0 │ q1 │ q2 │ q3 │ q4 │ q5 │ q6 │  ├─────┼─────┼────────┼─────┼───────┼─────┼───────┼──────┤  │ qr │ 0° │ -17.2° │ 0° │ -126° │ 0° │ 115° │ 45° │  │ qz │ 0° │ 0° │ 0° │ 0° │ 0° │ 0° │ 0° │  └─────┴─────┴────────┴─────┴───────┴─────┴───────┴──────┘

An image loaded using the machine vision toolbox, unaltered version displayed on left, blurred version displayed on the right

from swift import Swift import roboticstoolbox as rtb env = Swift() env.launch() panda = rtb.models.Panda() env.add(panda)

from machinevisiontoolbox import Image mona = Image.Read("monalisa.png") Image.Hstack([mona, mona.smooth(sigma=5)]).disp()

Comprehensive

The Python Robotics Ecosystem encompasses tools in manipulation, mobile robots, robotic vision, spatial mathemtics, simulation, and more.

Fast

We use C extensions in key places to enable lightning fast execution. Get forward kinematicsin less than 1µs and inverse kinematics in less than 20µs.

Pythonic

We follow the conventions and style set out by the Python community to produce software which is clear, consice, and easy to use.

Visualisations

We provide powerful visualisation tools to view the results of your algorithms through our simulator Swift and matplotlib.

The Robotics Toolbox for Python.

The Robotics Toolbox provides the robot-specific functionality and contributes tools for representing the kinematics and dynamics of manipulators, robot models, mobile robots, path planning algorithms, kinodynamic planning, localisation, map building and simultaneous localisation and mapping.

# Import the robotics toolbox import roboticstoolbox as rtb  # Make a Panda robot panda = rtb.models.Panda()  # Make a set of joint coordinates q # (7 joint angles) q = [0 , -0.3, 0, -2.2, 0, 2, 0.78]  # Compute the forward kinematics at q fk = panda.fkine(q)  # Compute the (base frame) Jacobian at q J = panda.jacob0(q)  # Print the results print(f"The forward kienmatics is:\n {fk}") print(f"\nThe Jacobian is:\n {J}")

The forward kinamtics at q is:  0.995 0 0.09983 0.484  0 -1 0 0  0.09983 0 -0.995 0.4126  0 0 0 1  The Jacobian at q is: [[ 6.46597923e-17 7.96297755e-02 4.35044282e-17 2.46636972e-01  1.37144864e-17 2.00563536e-01 0.00000000e+00]  [ 4.84046815e-01 2.96393192e-17 4.85959793e-01 1.88781536e-17  1.54695257e-01 -1.20466388e-18 0.00000000e+00]  [ 1.23259516e-32 -4.84046815e-01 1.20663347e-17 4.98615940e-01  -1.41699602e-17 1.08565317e-01 0.00000000e+00]  [ 0.00000000e+00 -3.08148791e-33 -2.95520207e-01 -3.61907875e-17  9.46300088e-01 -3.61907875e-17 9.98334166e-02]  [ 2.46519033e-32 1.00000000e+00 2.73485128e-18 -1.00000000e+00  -1.13507164e-16 -1.00000000e+00 -1.20329446e-16]  [ 1.00000000e+00 6.12323400e-17 9.55336489e-01 5.57626374e-17  -3.23289567e-01 5.57626374e-17 -9.95004165e-01]]

Learn More about the Robotics Toolbox

The Swift simulator and visualiser.

Swift is a robot simulator controlled by Python but displayed in a web browser using several web technologies, including React, Next.js, and Three.js. The entire simulator can be downloaded and installed from Python package managers PyPI or Conda-forge with no external downloads or installs.

# Import swift from swift import Swift  # Import the robotics toolbox import roboticstoolbox as rtb  # Make a Panda robot panda = rtb.models.Panda()  # Set the joint angles of the robot panda.q = [0 , -0.3, 0, -2.2, 0, 2, 0.78]  # Make and launch a Swift environment env = Swift() env.launch()  # Add the robot to the environment env.add(panda)

Learn More about Swift

The Spatial Maths toolbox.

Spatial Maths provides the ability to describe objects' position, orientation or pose in 2D or 3D spaces -- this capability underpins all of robotics. This package supports the Special Euclidean groups, Special Orthogonal groups, quaternions, twists, and various mathematical operations and conversions between them.

# Import spatialmath import spatialmath as sm  # Construct an SE(3) (a homogeneous transformation matrix) from a # rotation about the z-axis T1 = sm.SE3.Rz(1.0) print(f"T1:\n{T1}")  # Convert Euler angles to an SE(3) T2 = sm.SE3.Eul(0.1, 0.2, 0.3) T2.printline()  # Construct an SE(3) from an x, y, z translation T3 = sm.SE3.Trans(1.0, 2.0, 3.0) T3.printline()  # Find the 3D transfromation from T1 to the inverse of T2 to T3 result = T1 * T2.inv() * T3 print(f"Result:\n{result}")  # Extract the rotation from the result to RPY print(f"result RPY:\n{result.R}")

T1:  0.5403 -0.8415 0 0  0.8415 0.5403 0 0  0 0 1 0  0 0 0 1  t = 0, 0, 0; rpy/zyx = 3.43°, 10.9°, 23.2°  t = 1, 2, 3; rpy/zyx = 0°, 0°, 0°  result:  0.8102 -0.5662 -0.152 -0.778  0.5519 0.8241 -0.128 1.816  0.1977 0.01983 0.9801 3.178  0 0 0 1  result RPY: [ 0.02023447, -0.1989874 , 0.59798006]

Learn More about Spatial Maths

The Machine Vision toolbox.

The Machine Vision Toolbox provides many functions for robotic vision -- crucial for achieving robotics in the real-world. The included methods support monadic, dyadic, filtering, edge detection, mathematical morphology and feature extraction. A collection of camera projection classes for central (normal perspective), fisheye, catadioptric and spherical cameras. And some advanced algorithms in around multiview geometry, camera calibration, stereo vision, bundle adjustment, and bag of words.

# Import Image from the machine vision toolbox from machinevisiontoolbox import Image  ## Reading and displaying an Image # Read an image from a file mona = Image.Read("monalisa.png")  # Display the original and smoothed images side by side Image.Hstack([mona, mona.smooth(sigma=5)]).disp()  ## SURF features # Load two images and compute a set of SURF features for each view1 = Image.Read("eiffel-1.png", mono=True) view2 = Image.Read("eiffel-2.png", mono=True) sf1 = view1.SIFT() sf2 = view2.SIFT()  # Match features between images based purely on the similarity matches = sf1.match(sf2)  # display the correspondences matches.subset(100).plot("w")

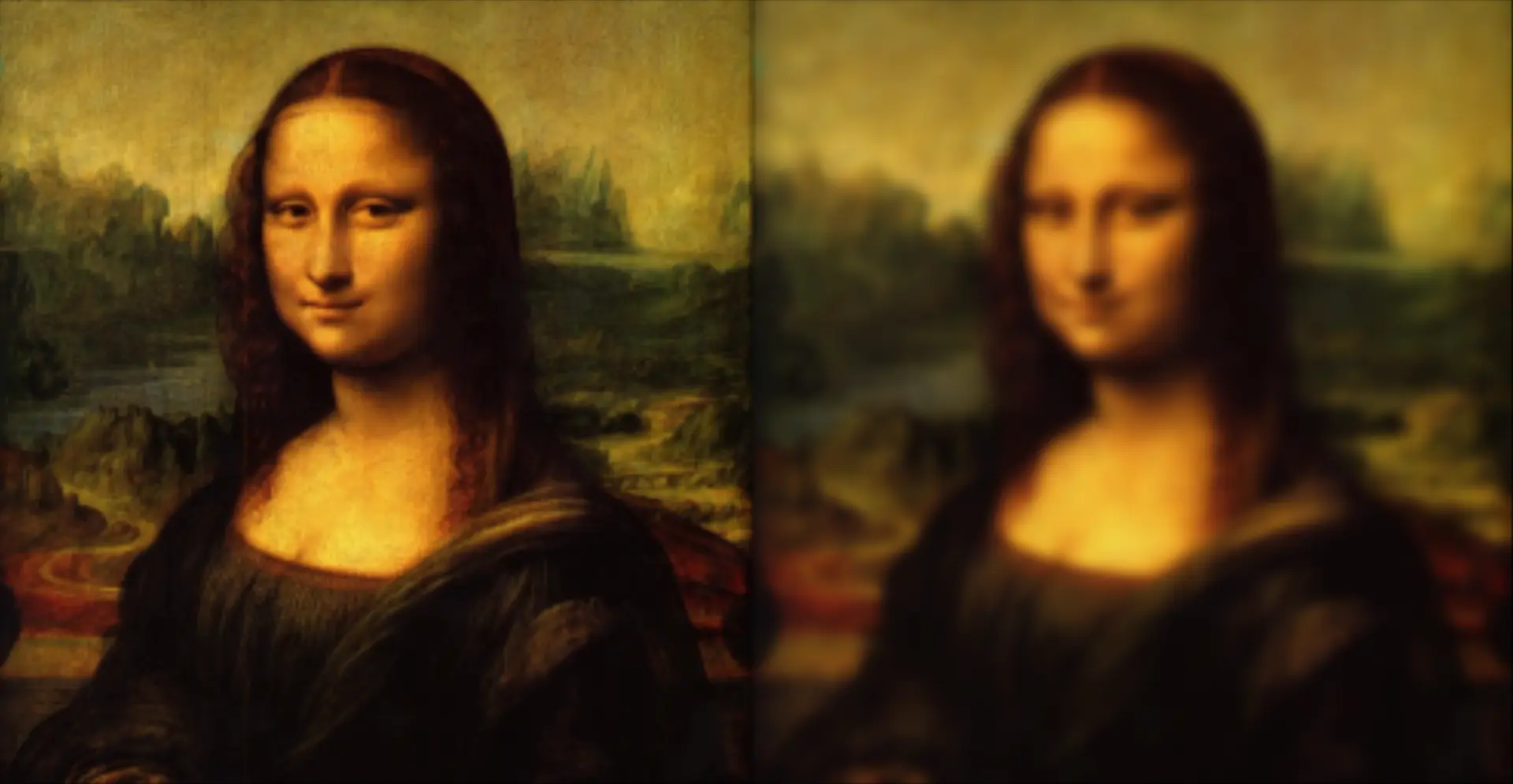

An image loaded using the machine vision toolbox as shown in the code on the left, unaltered version displayed on left, blurred version displayed on the right.

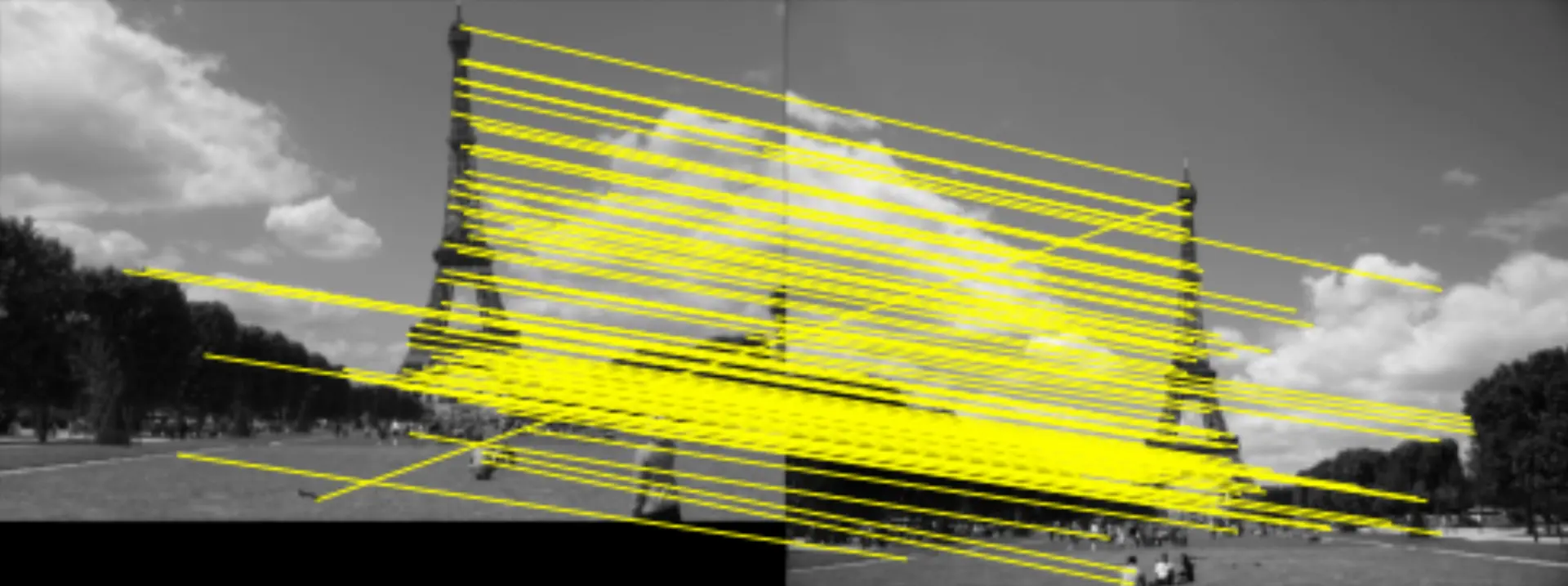

Two images from different viewpoints of a land mark, correspondances detected using SIFT features between the two images are shown with red lines.

Learn More about the Machine Vision Toolbox

Supported by Utility packages.

The Python Robotics ecosystem has strong foundations through our utility packages: Spatial Geometry, ANSItable and PGraph. Spatial Goemetry provides functionality for representing 3D geometry, pose graphs and collsion checking. We're big fans of console tools not GUIs but that doesn't mean we have do without graphics. The toolboxes use unicode characters and ANSItable helps create and display tables of data in a variety of formats. PGraph provides a class for creating, manipulating, and displaying of directed and non-directed graphs which are used for everthing from path planning to bundle adjustment.

import spatialgeometry as sg  # Make a cuboid and a sphere and check if they collide cuboid = sg.Cuboid([1.0, 1.0, 1.0]) sphere = sg.Sphere(1.0) print(cuboid.iscollided(sphere))

 True

Learn More about Spatial Geometry

import ansitable  # Make and print a table table = ANSITable(  "col1",  "column 2 long header",  "column 3",  border="thin") table.row("medium long", 2.2, 3) table.row("much longer than the other", 5.5, 6) table.row("short", 8.8, 9) table.print()

 ┌───────────────────────────┬──────────────────────┬──────────┐ │ col1 │ column 2 long header │ column 3 │ ├───────────────────────────┼──────────────────────┼──────────┤ │ medium long │ 2.2 │ 3 │ │much longer than the other │ 5.5 │ 6 │ │ short │ 8.8 │ 9 │ └───────────────────────────┴──────────────────────┴──────────┘

Learn More about ANSItable

import pgraph as pg  ## Make an undirected graph # Make a new vertex class class Foo(pg.UVertex):  # foo stuff goes here  pass  f1 = Foo() f2 = Foo()  # Make the graph g = pg.UGraph() g.add_vertex(f1) g.add_vertex(f2)  # Make and check the connections f1.connect(f2, cost=3) for f in f1.neighbours():  print(f"connected to {f}")

 connected to [#1]

Learn More about PGraph

Perfectly Interoperable.

Each of our packages have been designed to work in perfect harmony with each other. This allows for a seamless integration of all of our packages into your project.

# Import packages import roboticstoolbox as rtb import spatialgeometry as sg import spatialmath as sm  # Make a Panda robot panda = rtb.models.Panda()  # Set a goal pose for the panda using Spatial Maths Tep = sm.SE3.Trans(0.6, -0.3, 0.1) * \  sm.SE3.OA([0, 1, 0], [0, 0, -1])  # Make a goal axes using Spatial Geometry and set to # the goal pose goal_ax = sg.Axes(0.1, pose=Tep)  # Use inverse kinematics to find the joint angles # which achieve the goal sol = panda.ikine_LM(Tep)  # Plot the robot at the solution in Swift env = panda.plot(sol.q)  # Add our goal axes to the environment env.add(goal_ax)
