gorilla/mux

Create gorilla/mux server with rk-boot and rk-mux plugins.

Overview#

We will use rk-boot start gorilla/mux microservice and add /v1/greeter API into it.

Furthermore, we will enable bellow functionalities.

Functionality	Description
Swagger UI	Enable Swagger UI

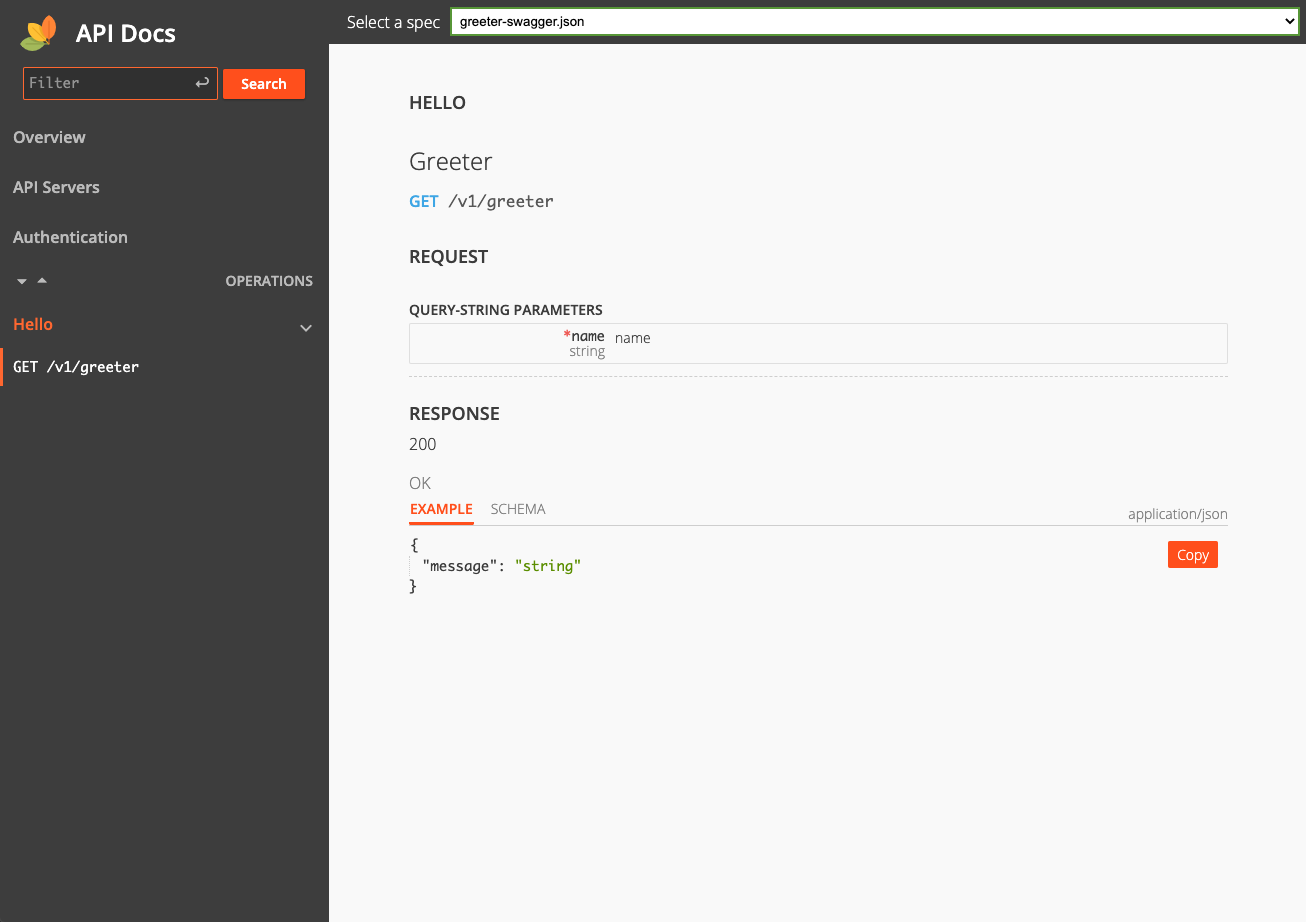

API Docs UI	Enable RapiDoc UI
Prometheus Client	Enable Prometheus Client
Logging middleware	Automatically record logs for every API calls
Prometheus middleware	Automatically record prometheus metrics for every API calls
Meta middleware	Automatically add requestID for every API response

Install#

go get github.com/rookie-ninja/rk-boot/v2 go get github.com/rookie-ninja/rk-mux

1. Create boot.yaml#

mux:  - name: greeter  port: 8080  enabled: true  sw:  enabled: true # Enable Swagger UI，default path: /sw  docs:  enabled: true # Enable API Doc UI，default path: /docs  prom:  enabled: true # Enable Prometheus Client，default path: /metrics  middleware:  logging:  enabled: true  prom:  enabled: true  meta:  enabled: true

2. Create main.go#

In order to generate swagger.json file, we add comments and generate swagger.json file with swag CLI.

// Copyright (c) 2021 rookie-ninja // // Use of this source code is governed by an Apache-style // license that can be found in the LICENSE file. package main import (  "context"  "fmt"  "github.com/rookie-ninja/rk-boot/v2"  "github.com/rookie-ninja/rk-mux/boot"  "github.com/rookie-ninja/rk-mux/middleware"  "net/http" ) // @title RK Swagger for Mux // @version 1.0 // @description This is a greeter service with rk-boot. func main() {  // Create a new boot instance.  boot := rkboot.NewBoot()  // Get MuxEntry  muxEntry := rkmux.GetMuxEntry("greeter")  // Use *mux.Router adding handler.  muxEntry.Router.NewRoute().Path("/v1/greeter").HandlerFunc(Greeter)  // Bootstrap  boot.Bootstrap(context.TODO())  boot.WaitForShutdownSig(context.TODO()) } // Greeter handler // @Summary Greeter service // @Id 1 // @version 1.0 // @produce application/json // @Param name query string true "Input name" // @Success 200 {object} GreeterResponse // @Router /v1/greeter [get] func Greeter(writer http.ResponseWriter, req *http.Request) {  rkmuxmid.WriteJson(writer, http.StatusOK, &GreeterResponse{  Message: fmt.Sprintf("Hello %s!", req.URL.Query().Get("name")),  }) } type GreeterResponse struct {  Message string }

3.Generate swagger.json#

$ swag init

4.Directory hierarchy#

$ tree . ├── boot.yaml ├── docs │ ├── swagger.json │ └── swagger.yaml ├── go.mod ├── go.sum └── main.go

5.Run main.go#

$ go run main.go 2022-05-09T19:13:00.327+0800 INFO boot/mux_entry.go:687 Bootstrap muxEntry {"eventId": "5eb9bc9a-90cf-4c0c-b918-06ec36fffbf6", "entryName": "greeter", "entryType": "MuxEntry"} 2022-05-09T19:13:00.329+0800 INFO boot/mux_entry.go:423 SwaggerEntry: http://localhost:8080/sw/ 2022-05-09T19:13:00.329+0800 INFO boot/mux_entry.go:426 DocsEntry: http://localhost:8080/docs/ 2022-05-09T19:13:00.329+0800 INFO boot/mux_entry.go:429 PromEntry: http://localhost:8080/metrics ------------------------------------------------------------------------ endTime=2022-05-09T19:13:00.329358+08:00 startTime=2022-05-09T19:13:00.327762+08:00 elapsedNano=1596076 timezone=CST ids={"eventId":"5eb9bc9a-90cf-4c0c-b918-06ec36fffbf6"} app={"appName":"rk","appVersion":"local","entryName":"greeter","entryType":"MuxEntry"} env={"arch":"amd64","domain":"*","hostname":"lark.local","localIP":"192.168.101.5","os":"darwin"} payloads={"docsEnabled":true,"docsPath":"/docs/","muxPort":8080,"promEnabled":true,"promPath":"/metrics","promPort":8080,"swEnabled":true,"swPath":"/sw/"} counters={} pairs={} timing={} remoteAddr=localhost operation=Bootstrap resCode=OK eventStatus=Ended EOE

6.Validate#

6.4 Send request#

$ curl -vs "localhost:8080/v1/greeter?name=rk-dev" * ... < X-Request-Id: d95d3b00-0d10-4784-83bf-bf392cf8bd77 < X-Rk-App-Domain: * < X-Rk-App-Name: rk < X-Rk-App-Unix-Time: 2022-04-14T17:04:39.458193+08:00 < X-Rk-App-Version: local < X-Rk-Received-Time: 2022-04-14T17:04:39.458193+08:00 < ... {"Message":"Hello rk-dev!"}

6.5 API Log#

rk-boot will use bellow format of logging. JSON is also supported, please see user guide for details.

------------------------------------------------------------------------ endTime=2022-05-09T19:13:21.975646+08:00 startTime=2022-05-09T19:13:21.975545+08:00 elapsedNano=101406 timezone=CST ids={"eventId":"57ae5290-b0e6-44ac-a614-c40b03fb90d0","requestId":"57ae5290-b0e6-44ac-a614-c40b03fb90d0"} app={"appName":"rk","appVersion":"local","entryName":"greeter","entryType":"MuxEntry"} env={"arch":"amd64","domain":"*","hostname":"lark.local","localIP":"192.168.101.5","os":"darwin"} payloads={"apiMethod":"GET","apiPath":"/v1/greeter","apiProtocol":"HTTP/1.1","apiQuery":"name=rk-dev","userAgent":"curl/7.64.1"} counters={} pairs={} timing={} remoteAddr=127.0.0.1:61069 operation=/v1/greeter resCode=200 eventStatus=Ended EOE

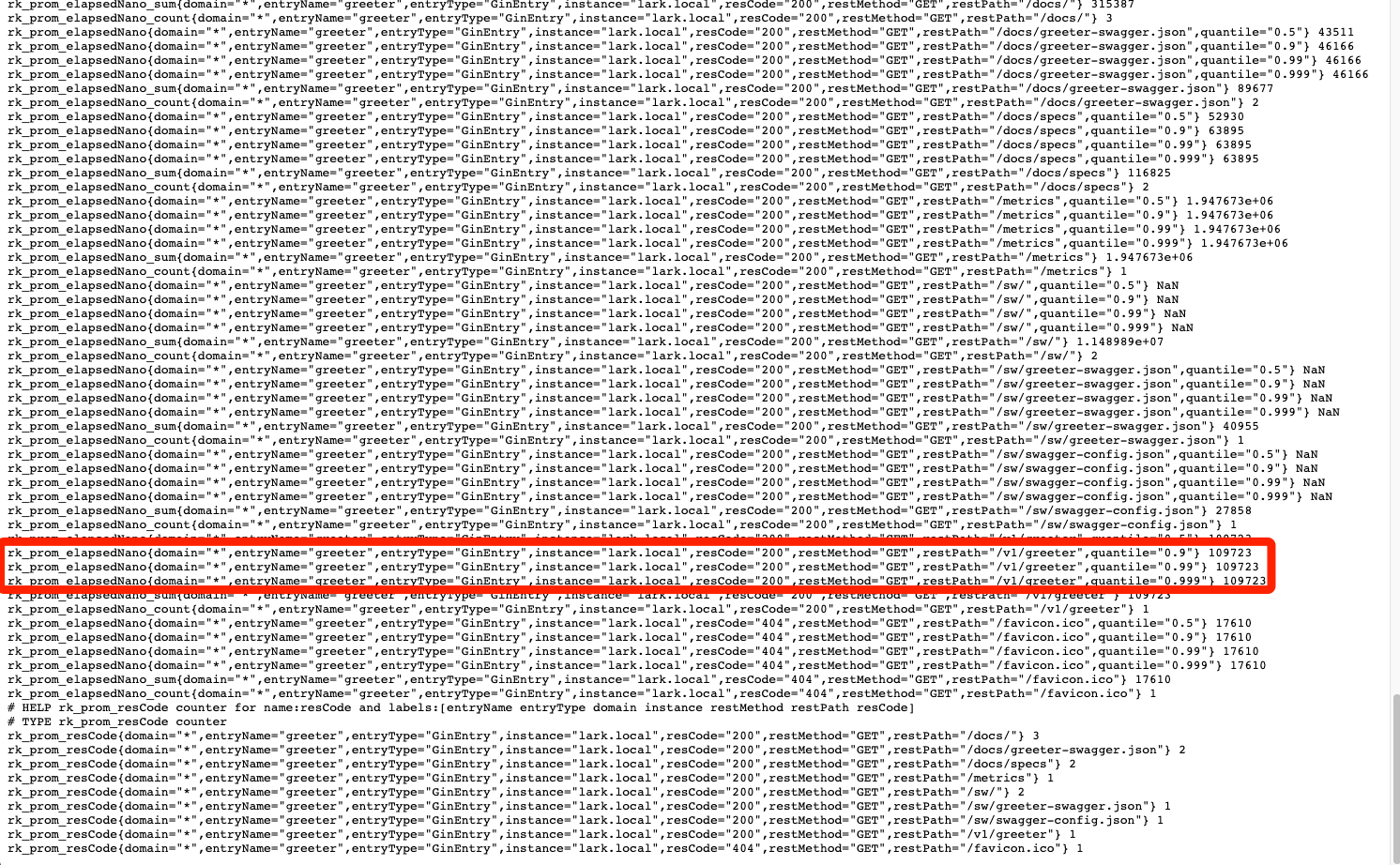

6.6 Prometheus Metrics#

Access http://localhost:8080/metrics
