• 1.
  Engr. Dheya AbdullahJAVA Overview
• 2.
  What will thistalk cover? Outline Brief History How Java Work Java Virtual Machine JVM JVM Architecture OOP Concepts Java features Java Libraries What is Java good for Hello world program in Java Java Applet
• 3.

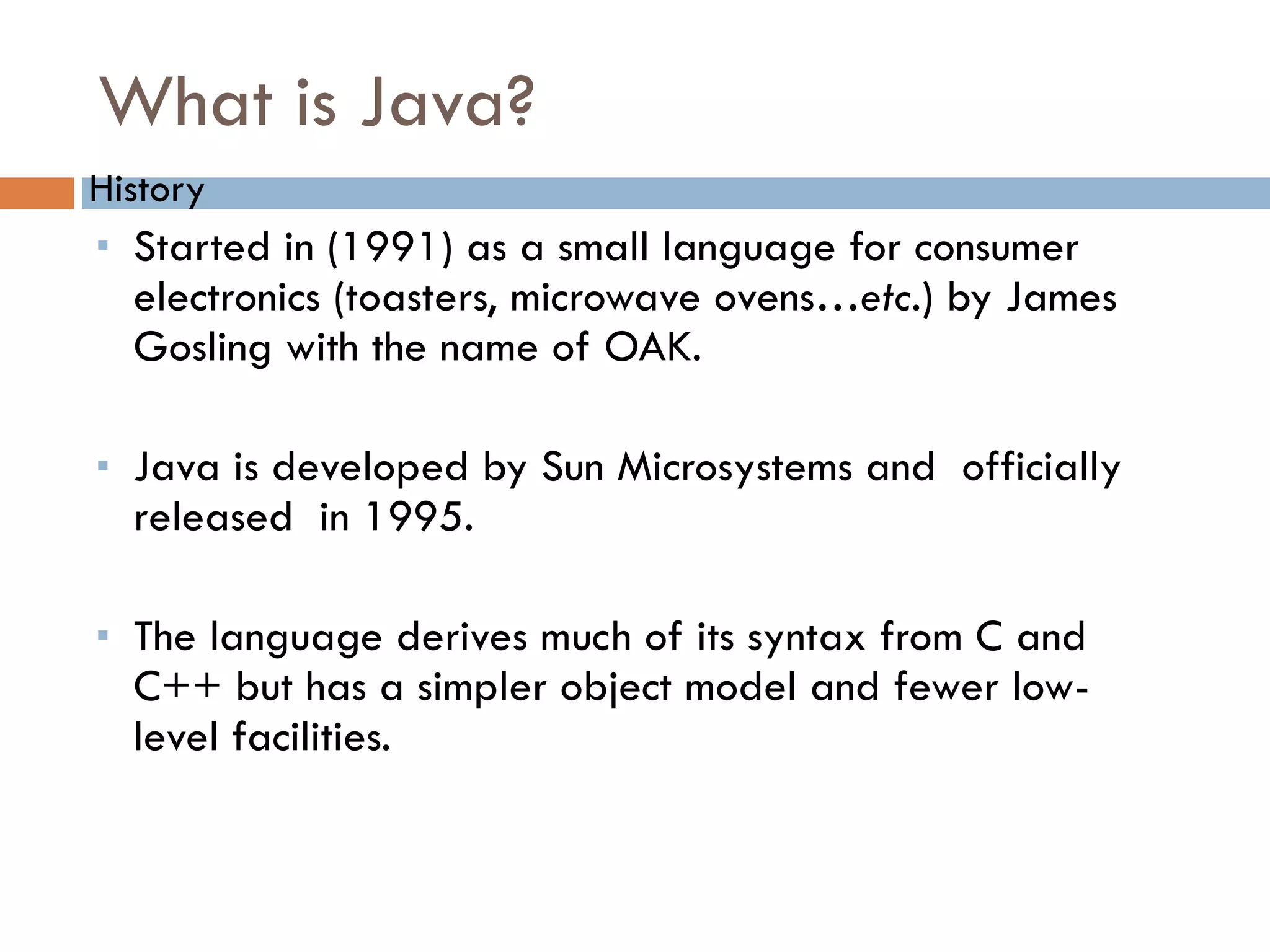

  What is Java?History Started in (1991) as a small language for consumer electronics (toasters, microwave ovens… etc. ) by James Gosling with the name of OAK. Java is developed by Sun Microsystems and officially released in 1995. The language derives much of its syntax from C and C++ but has a simpler object model and fewer low-level facilities.
• 4.

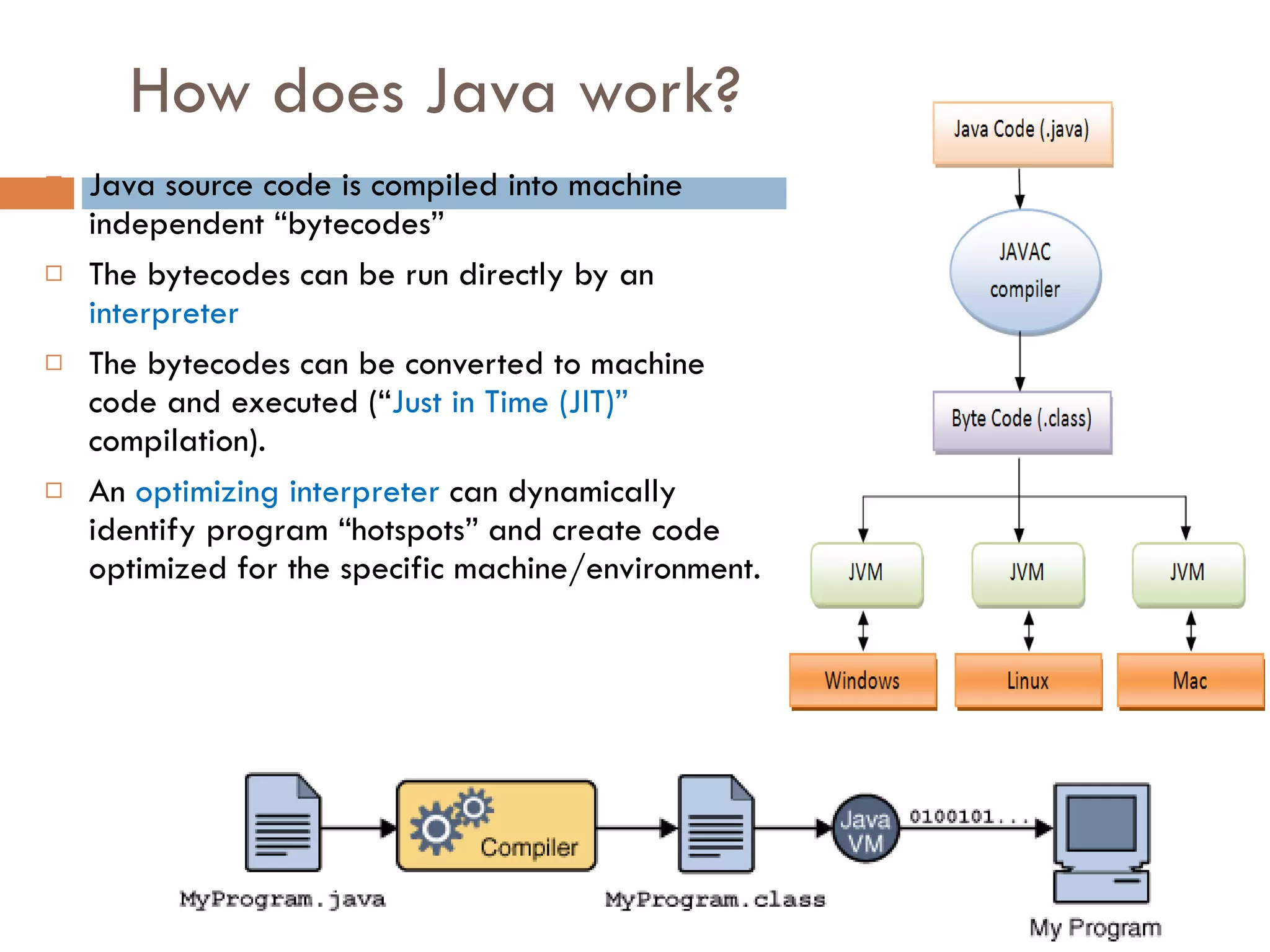

  How does Javawork? Java source code is compiled into machine independent “bytecodes” The bytecodes can be run directly by an interpreter The bytecodes can be converted to machine code and executed (“ Just in Time (JIT)” compilation). An optimizing interpreter can dynamically identify program “hotspots” and create code optimized for the specific machine/environment.
• 5.

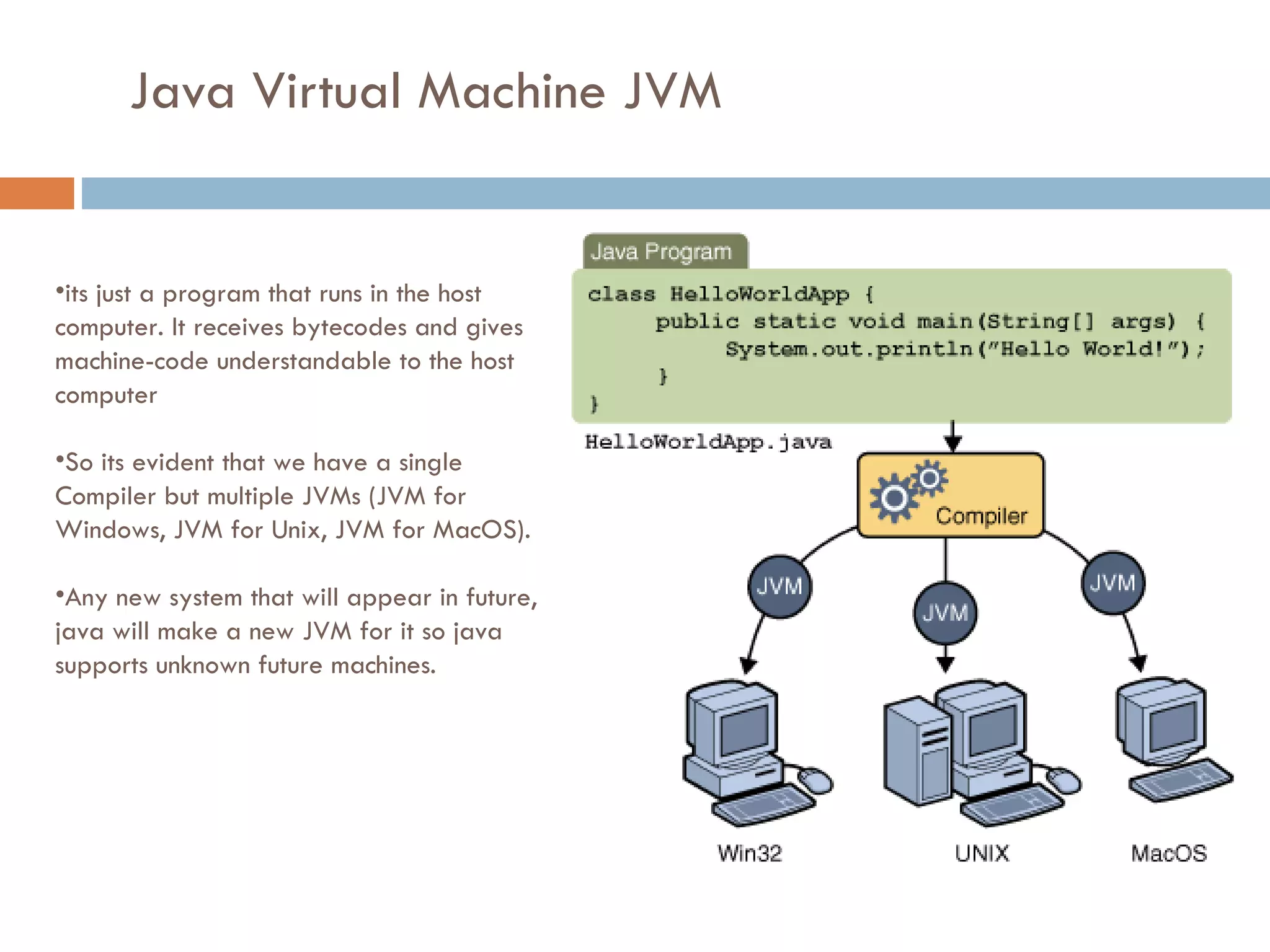

  Java Virtual MachineJVM its just a program that runs in the host computer. It receives bytecodes and gives machine-code understandable to the host computer So its evident that we have a single Compiler but multiple JVMs (JVM for Windows, JVM for Unix, JVM for MacOS). Any new system that will appear in future, java will make a new JVM for it so java supports unknown future machines.
• 6.

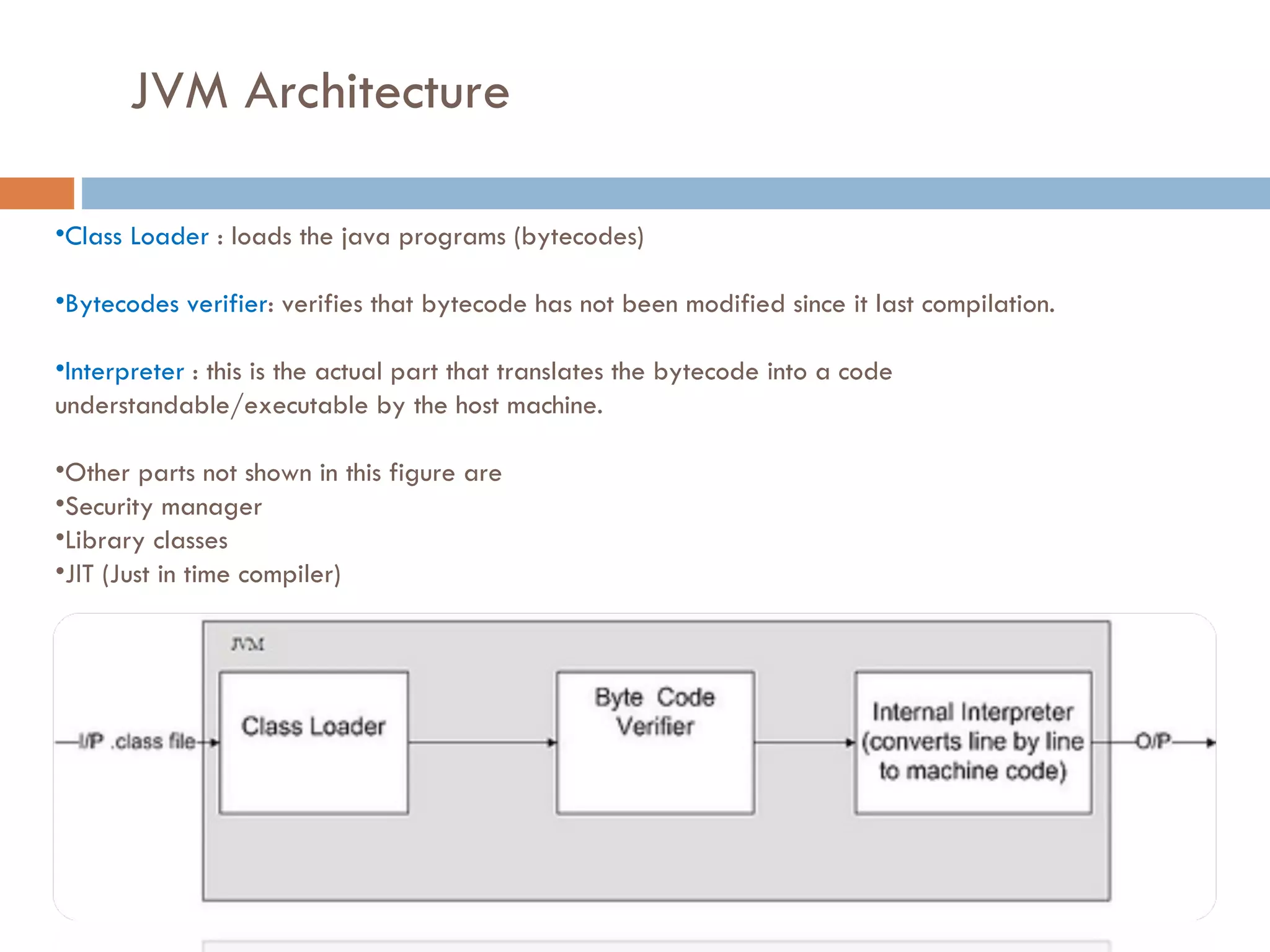

  JVM Architecture ClassLoader : loads the java programs (bytecodes) Bytecodes verifier : verifies that bytecode has not been modified since it last compilation. Interpreter : this is the actual part that translates the bytecode into a code understandable/executable by the host machine. Other parts not shown in this figure are Security manager Library classes JIT (Just in time compiler)
• 7.

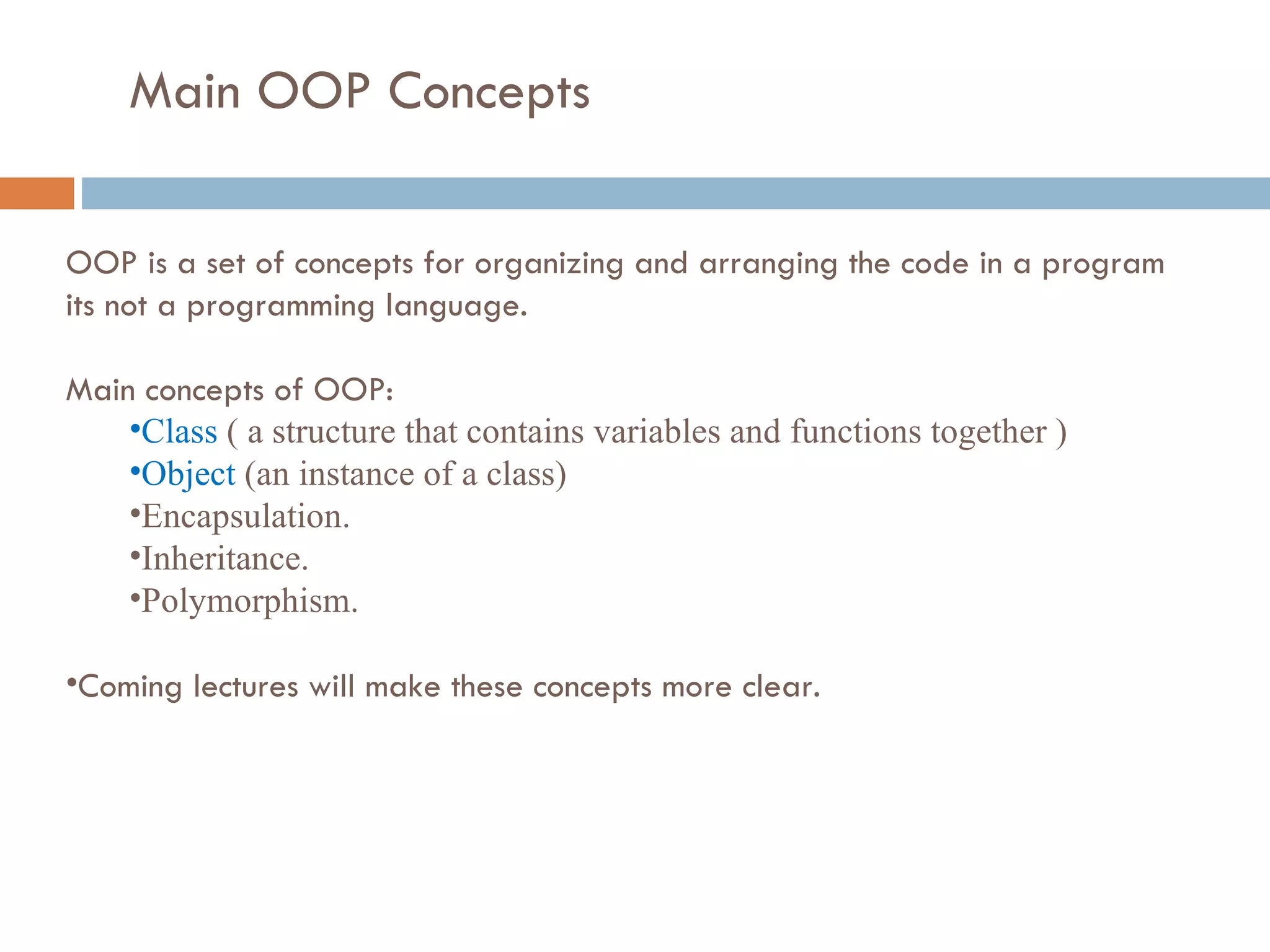

  Main OOP ConceptsOOP is a set of concepts for organizing and arranging the code in a program its not a programming language. Main concepts of OOP: Class ( a structure that contains variables and functions together ) Object (an instance of a class) Encapsulation. Inheritance. Polymorphism. Coming lectures will make these concepts more clear.
• 8.

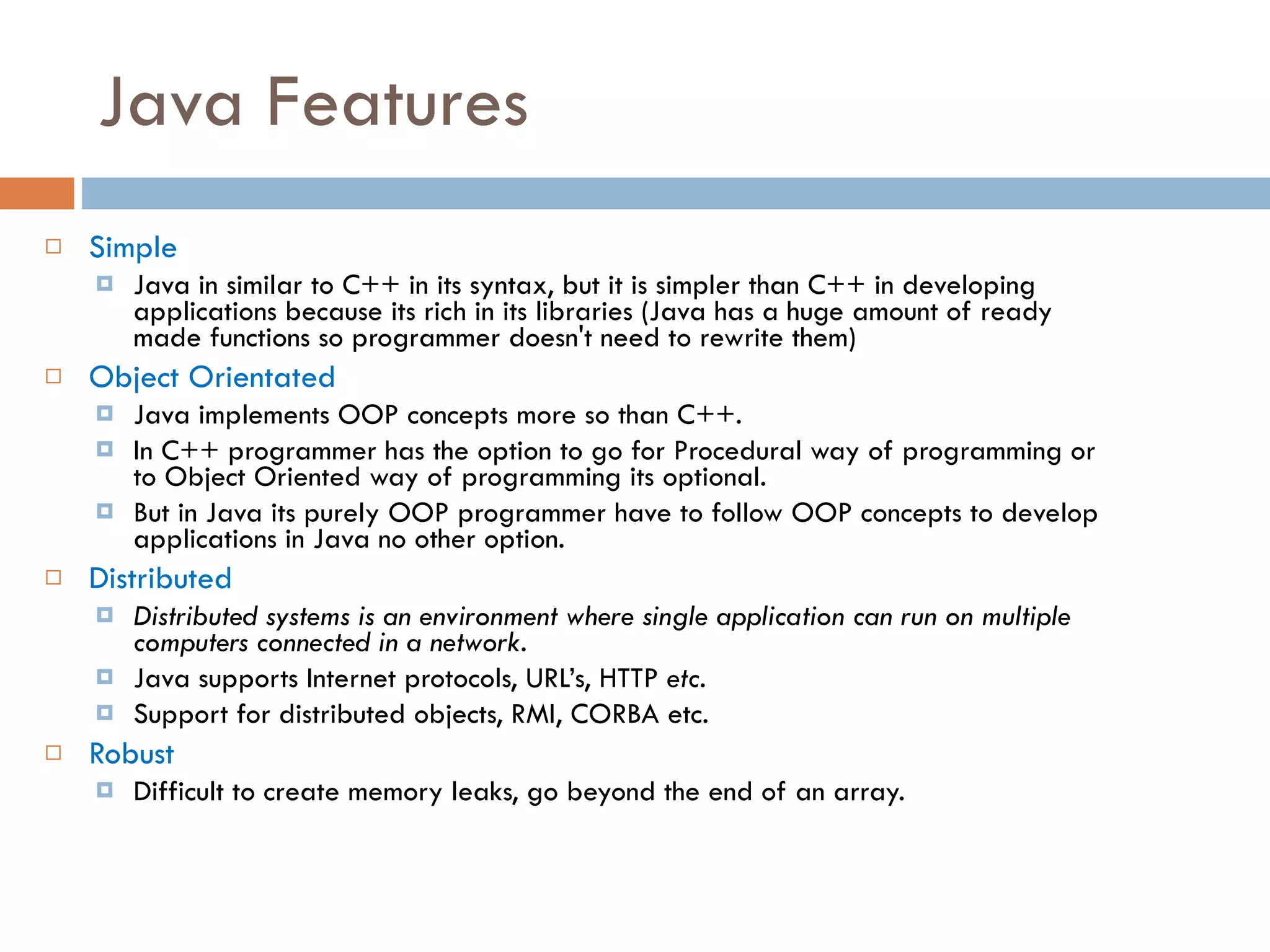

  Java Features SimpleJava in similar to C++ in its syntax, but it is simpler than C++ in developing applications because its rich in its libraries (Java has a huge amount of ready made functions so programmer doesn't need to rewrite them) Object Orientated Java implements OOP concepts more so than C++. In C++ programmer has the option to go for Procedural way of programming or to Object Oriented way of programming its optional. But in Java its purely OOP programmer have to follow OOP concepts to develop applications in Java no other option. Distributed Distributed systems is an environment where single application can run on multiple computers connected in a network. Java supports Internet protocols, URL’s, HTTP etc. Support for distributed objects, RMI, CORBA etc. Robust Difficult to create memory leaks, go beyond the end of an array.
• 9.

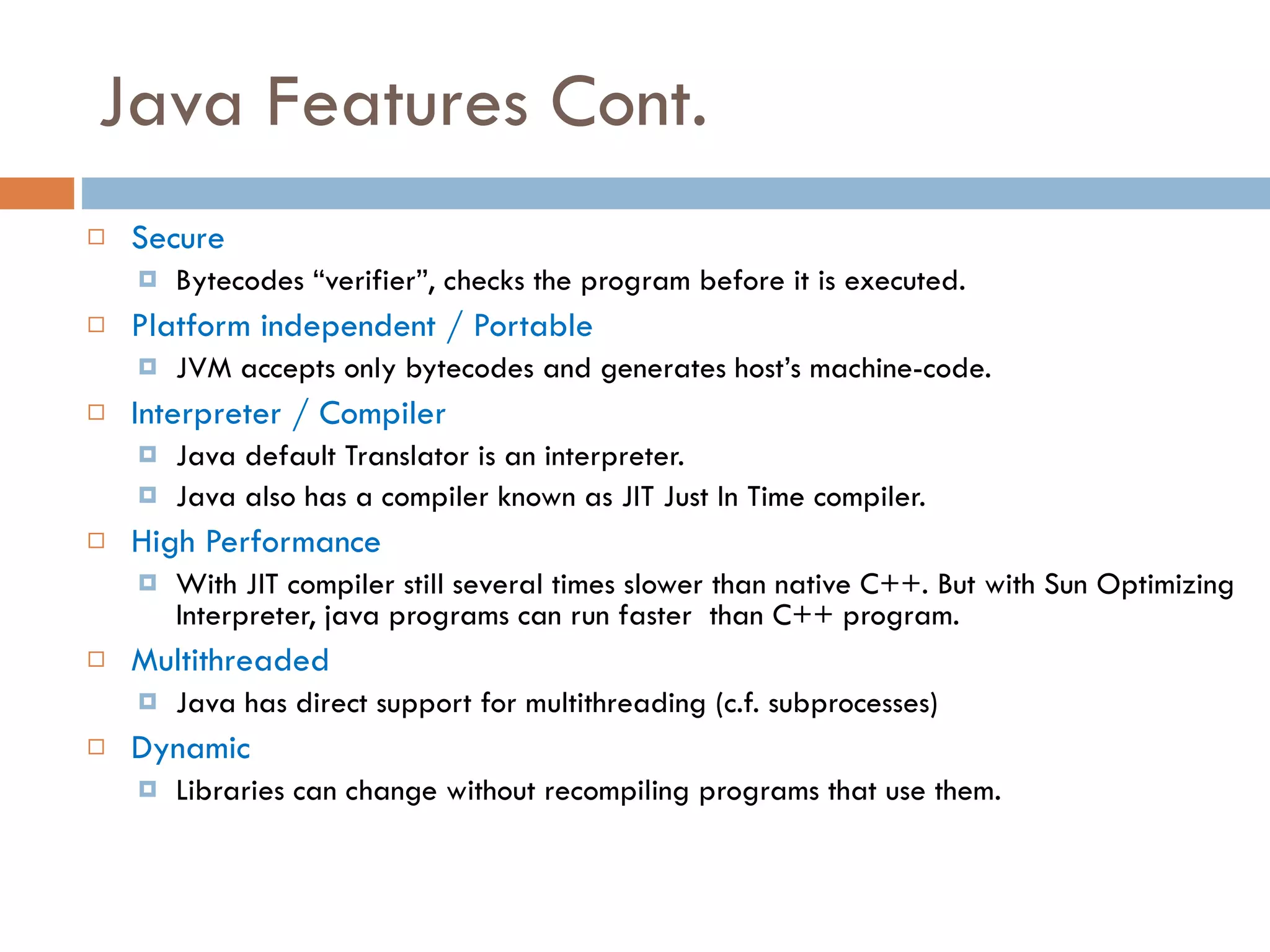

  Java Features Cont.Secure Bytecodes “verifier”, checks the program before it is executed. Platform independent / Portable JVM accepts only bytecodes and generates host’s machine-code. Interpreter / Compiler Java default Translator is an interpreter. Java also has a compiler known as JIT Just In Time compiler. High Performance With JIT compiler still several times slower than native C++. But with Sun Optimizing Interpreter, java programs can run faster than C++ program. Multithreaded Java has direct support for multithreading (c.f. subprocesses) Dynamic Libraries can change without recompiling programs that use them.
• 10.

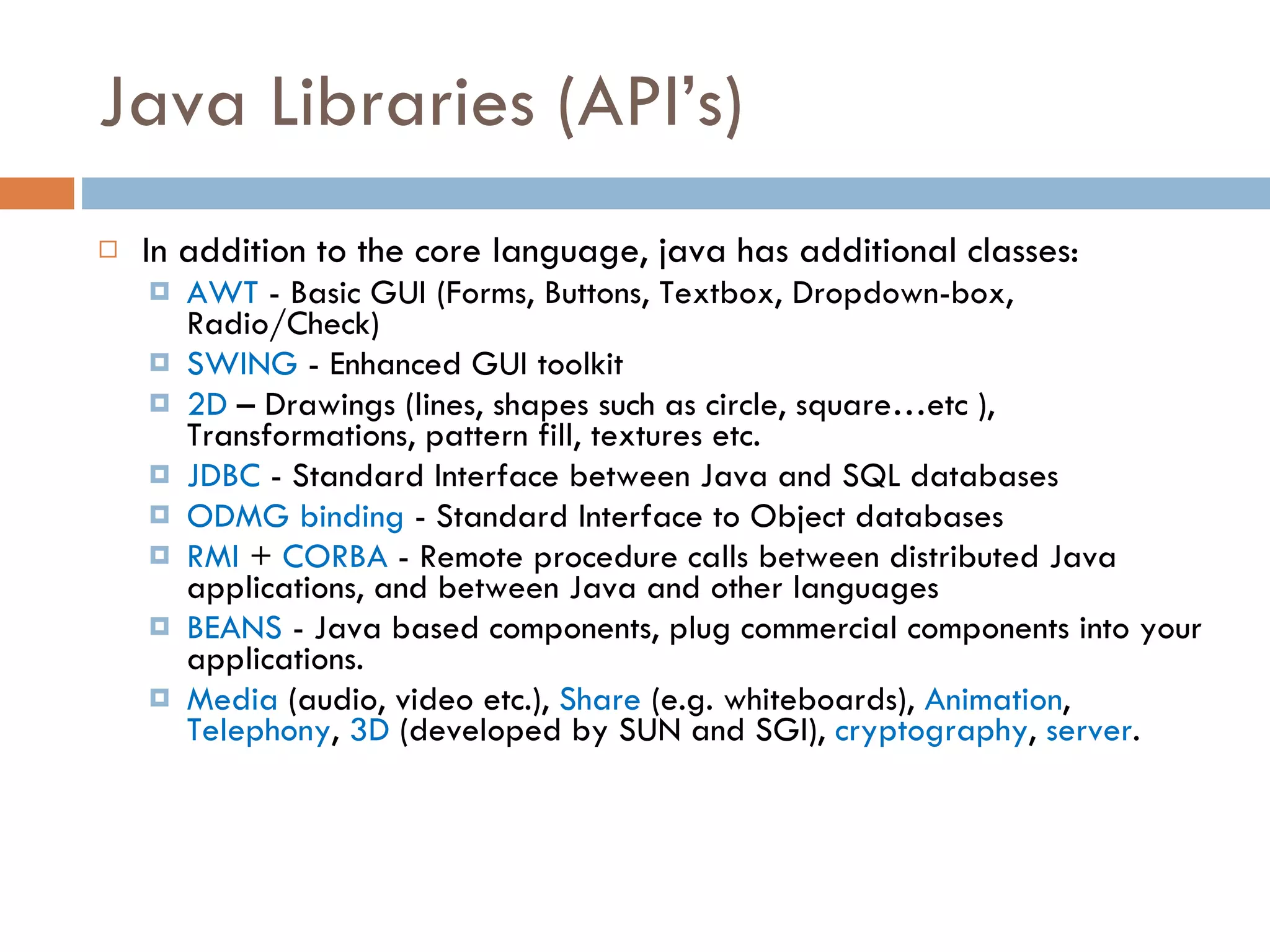

  Java Libraries (API’s)In addition to the core language, java has additional classes: AWT - Basic GUI (Forms, Buttons, Textbox, Dropdown-box, Radio/Check) SWING - Enhanced GUI toolkit 2D – Drawings (lines, shapes such as circle, square…etc ), Transformations, pattern fill, textures etc. JDBC - Standard Interface between Java and SQL databases ODMG binding - Standard Interface to Object databases RMI + CORBA - Remote procedure calls between distributed Java applications, and between Java and other languages BEANS - Java based components, plug commercial components into your applications. Media (audio, video etc.), Share (e.g. whiteboards), Animation , Telephony , 3D (developed by SUN and SGI), cryptography , server .
• 11.

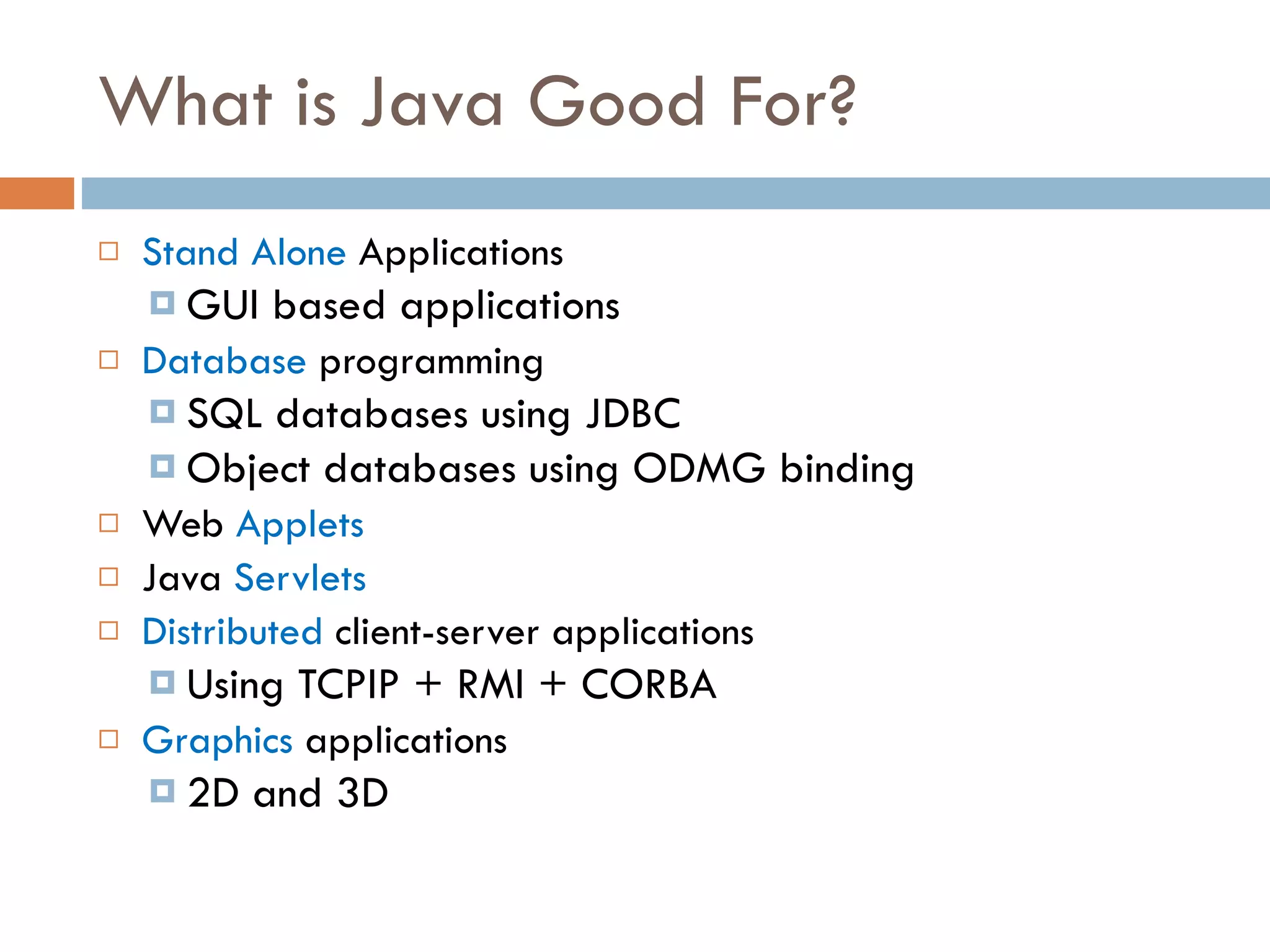

  What is JavaGood For? Stand Alone Applications GUI based applications Database programming SQL databases using JDBC Object databases using ODMG binding Web Applets Java Servlets Distributed client-server applications Using TCPIP + RMI + CORBA Graphics applications 2D and 3D
• 12.

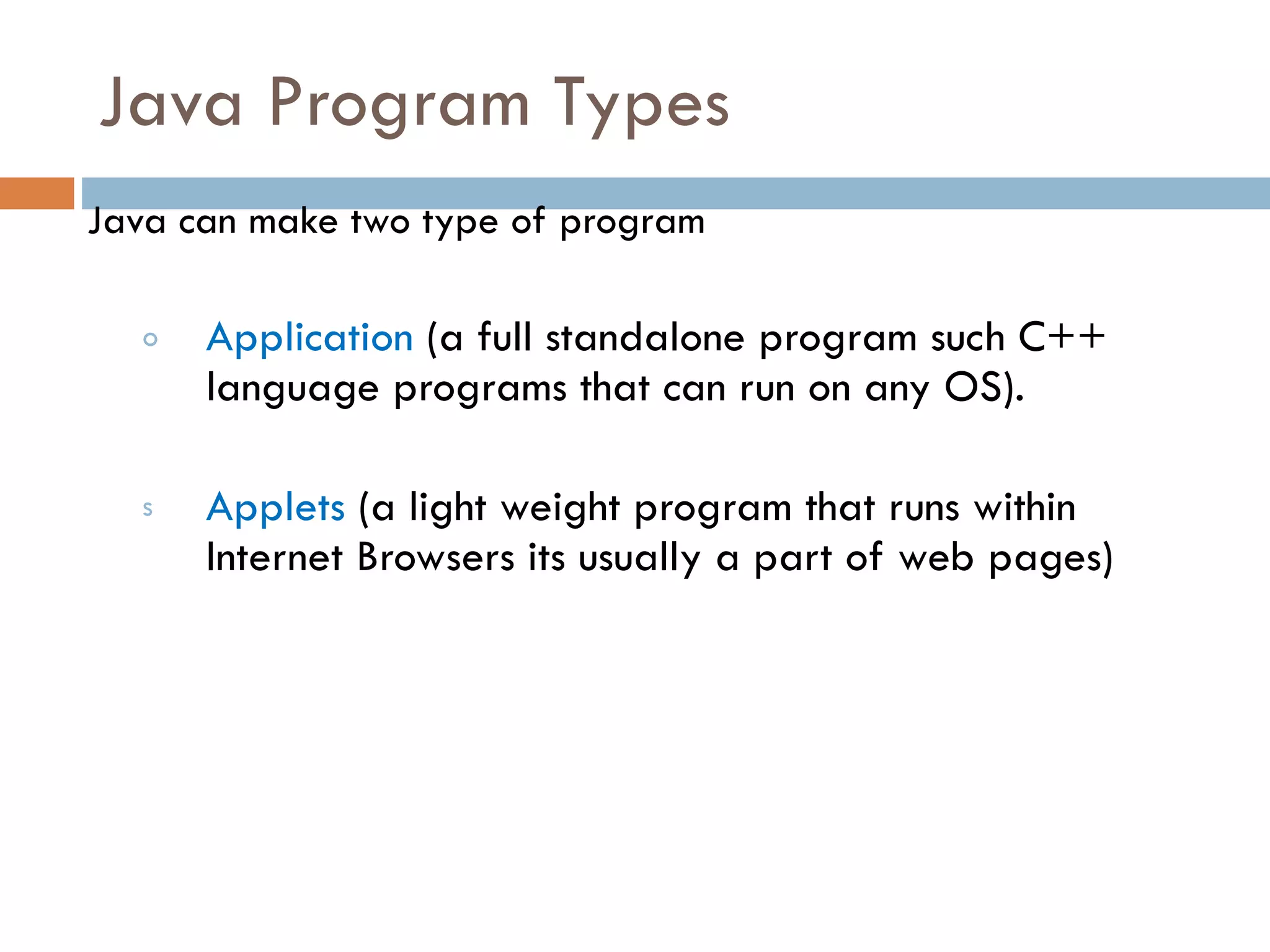

  Java Program TypesJava can make two type of program Application (a full standalone program such C++ language programs that can run on any OS). Applets (a light weight program that runs within Internet Browsers its usually a part of web pages)
• 13.

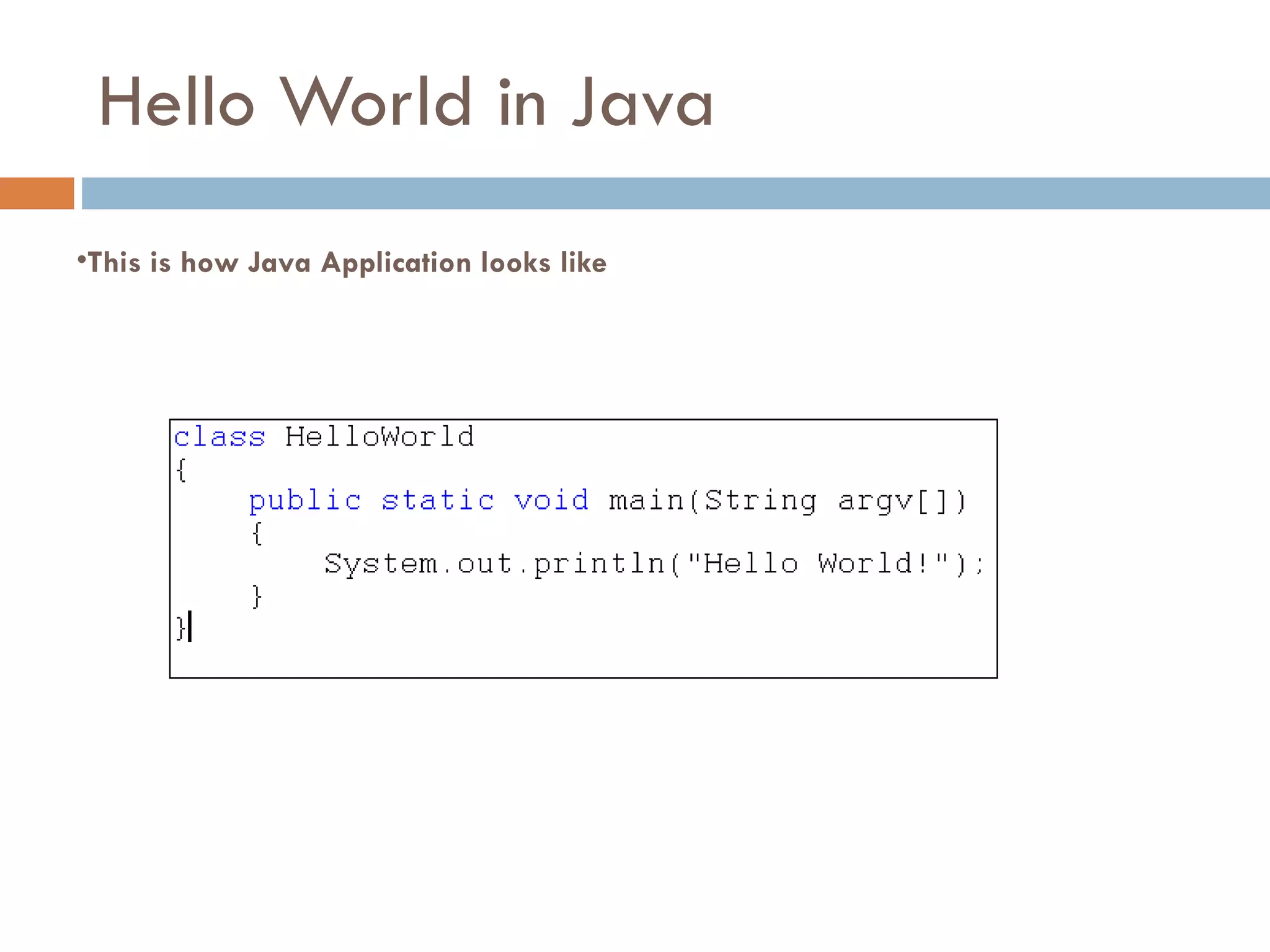

  Hello World inJava This is how Java Application looks like
• 14.

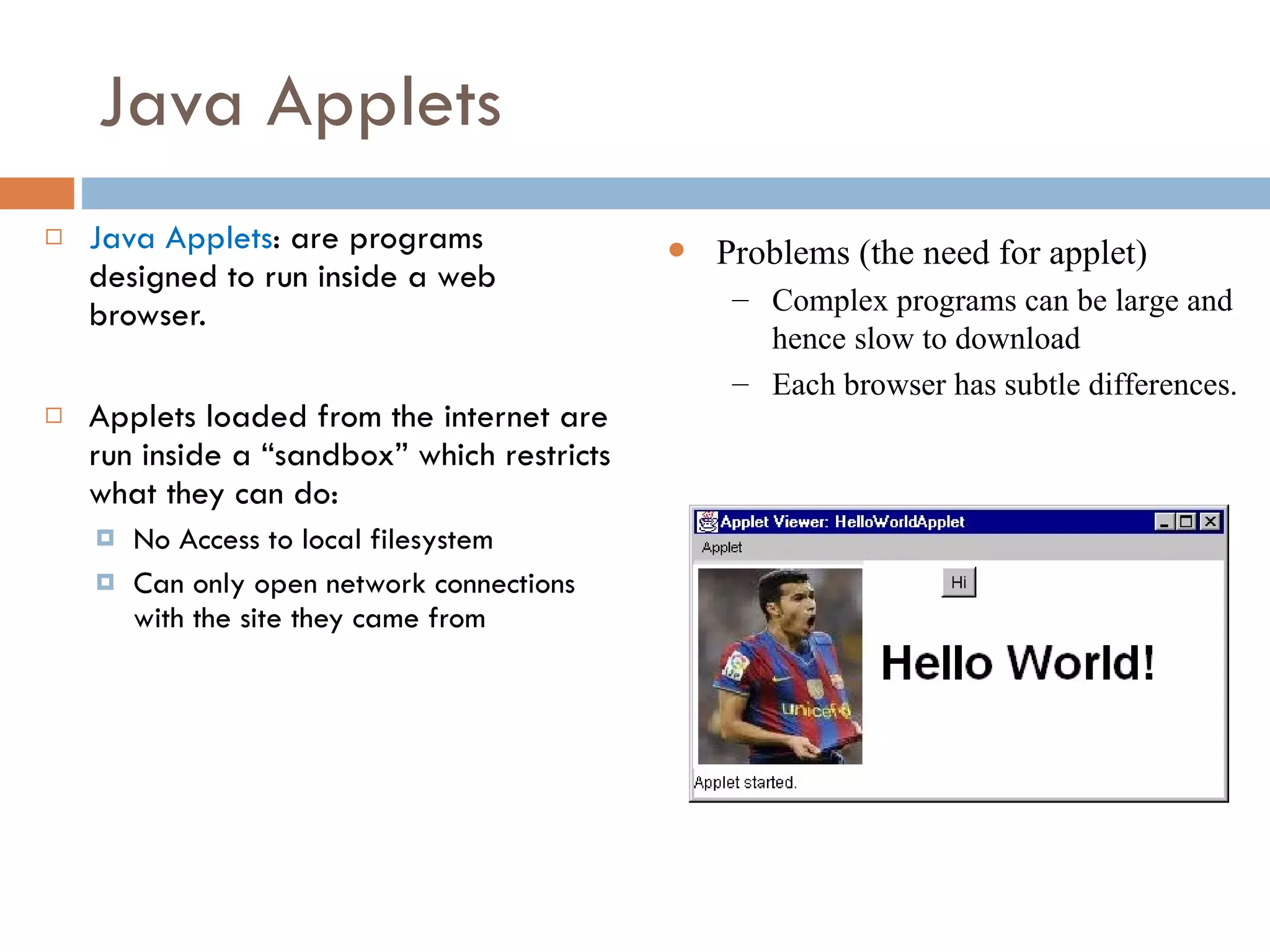

  Java Applets JavaApplets : are programs designed to run inside a web browser. Applets loaded from the internet are run inside a “sandbox” which restricts what they can do: No Access to local filesystem Can only open network connections with the site they came from Problems (the need for applet) Complex programs can be large and hence slow to download Each browser has subtle differences.
• 15.

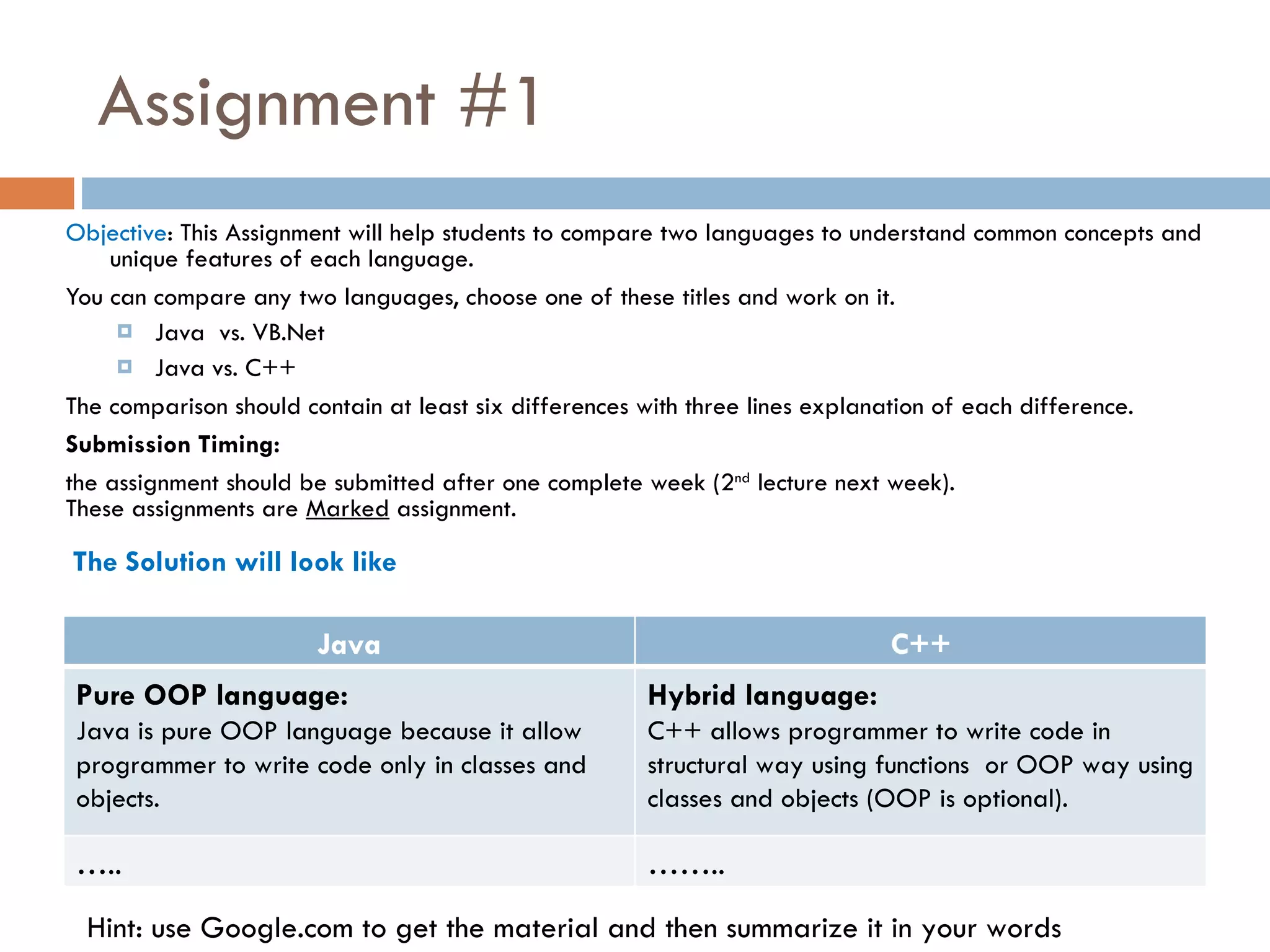

  Assignment #1 Objective: This Assignment will help students to compare two languages to understand common concepts and unique features of each language. You can compare any two languages, choose one of these titles and work on it. Java vs. VB.Net Java vs. C++ The comparison should contain at least six differences with three lines explanation of each difference. Submission Timing: the assignment should be submitted after one complete week (2 nd lecture next week). These assignments are Marked assignment. The Solution will look like Hint: use Google.com to get the material and then summarize it in your words Java C++ Pure OOP language: Java is pure OOP language because it allow programmer to write code only in classes and objects. Hybrid language: C++ allows programmer to write code in structural way using functions or OOP way using classes and objects (OOP is optional). … .. …… ..
• 16.

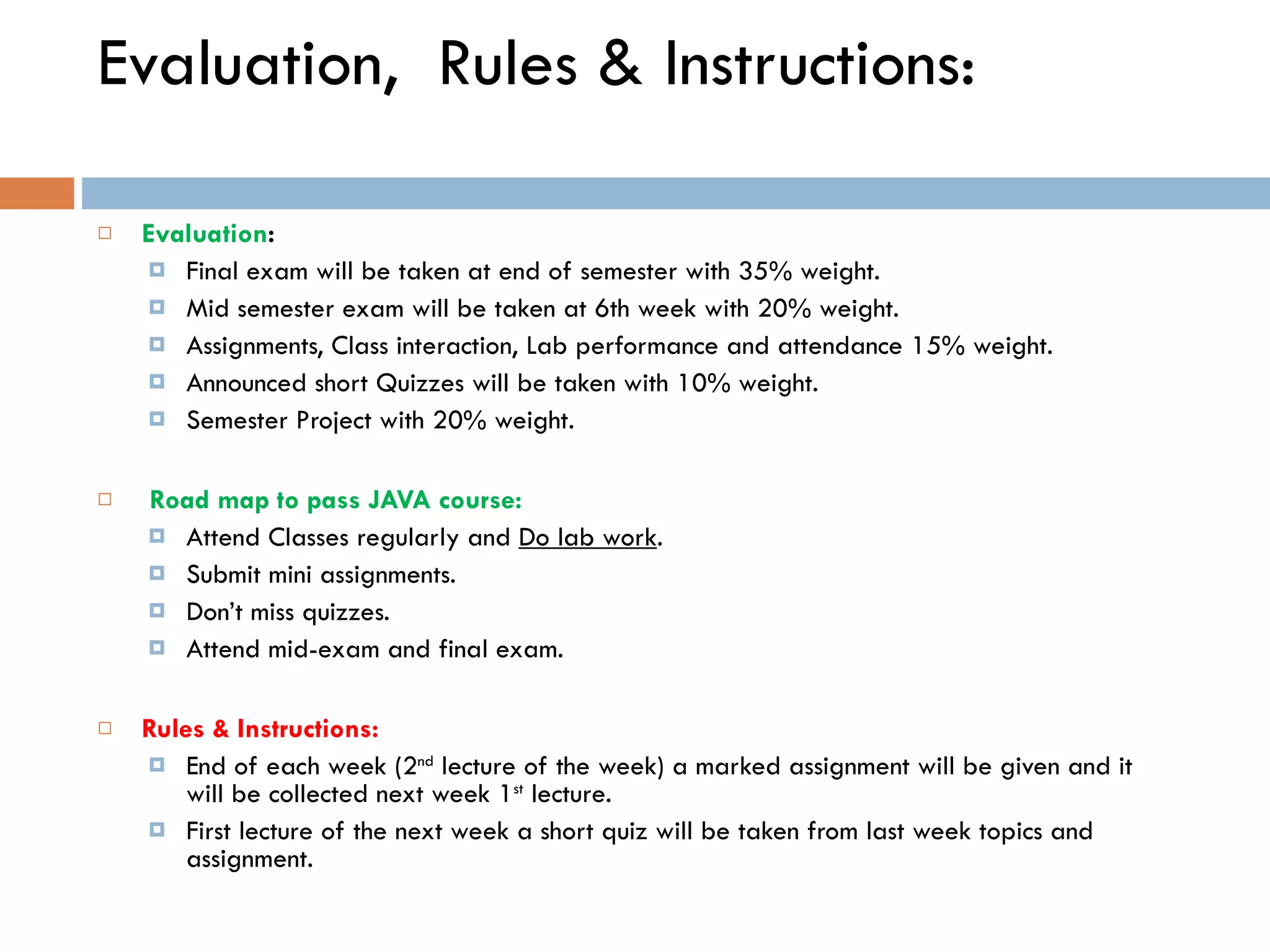

  Evaluation, Rules& Instructions: Evaluation : Final exam will be taken at end of semester with 35% weight. Mid semester exam will be taken at 6th week with 20% weight. Assignments, Class interaction, Lab performance and attendance 15% weight. Announced short Quizzes will be taken with 10% weight. Semester Project with 20% weight.   Road map to pass JAVA course: Attend Classes regularly and Do lab work . Submit mini assignments. Don’t miss quizzes. Attend mid-exam and final exam. Rules & Instructions: End of each week (2 nd lecture of the week) a marked assignment will be given and it will be collected next week 1 st lecture. First lecture of the next week a short quiz will be taken from last week topics and assignment.
• 17.

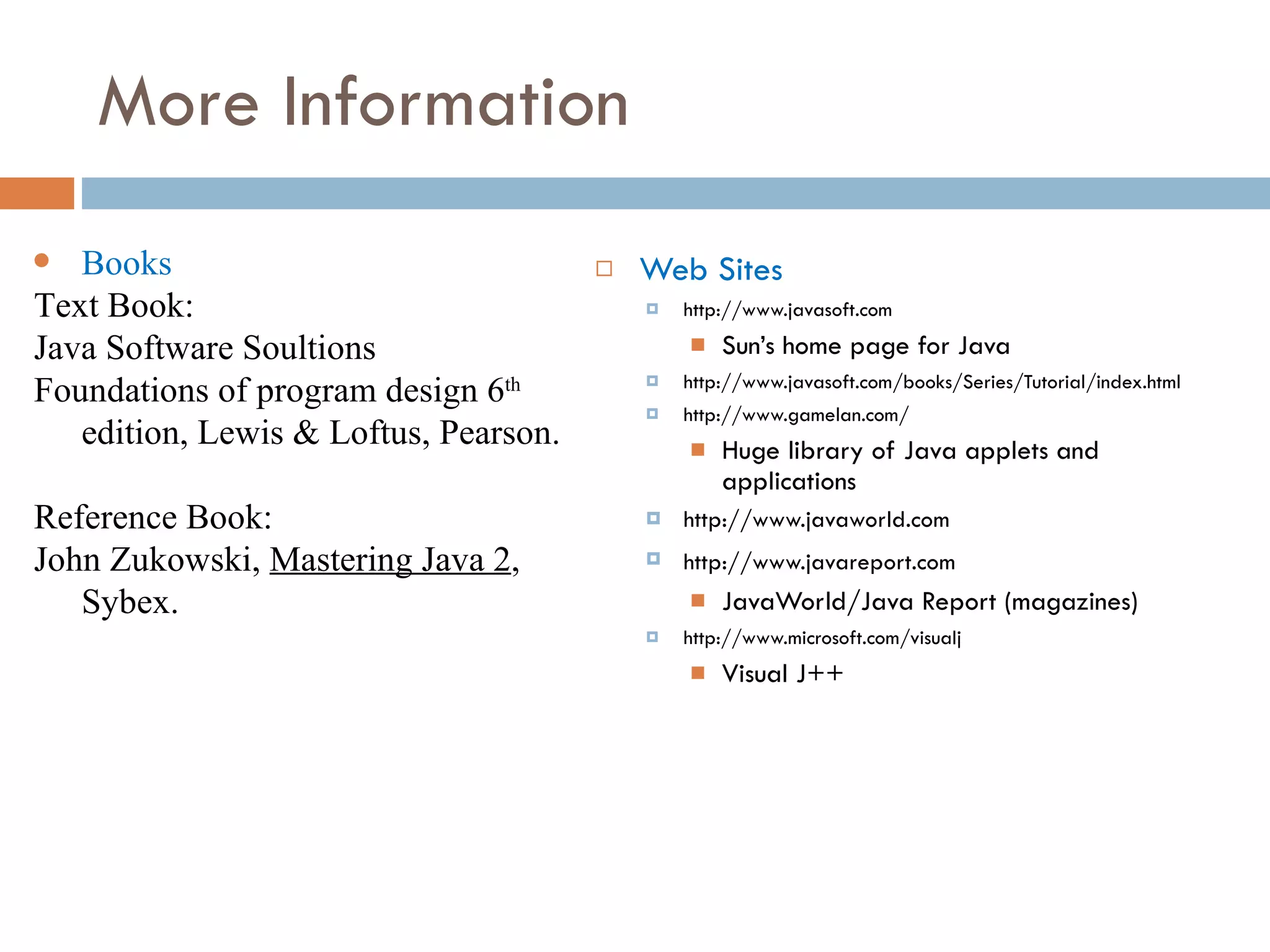

  More Information WebSites http://www.javasoft.com Sun’s home page for Java http://www.javasoft.com/books/Series/Tutorial/index.html http://www.gamelan.com/ Huge library of Java applets and applications http://www.javaworld.com http://www.javareport.com JavaWorld/Java Report (magazines) http://www.microsoft.com/visualj Visual J++ Books Text Book: Java Software Soultions Foundations of program design 6 th edition, Lewis & Loftus, Pearson. Reference Book: John Zukowski, Mastering Java 2 , Sybex.
• 18.

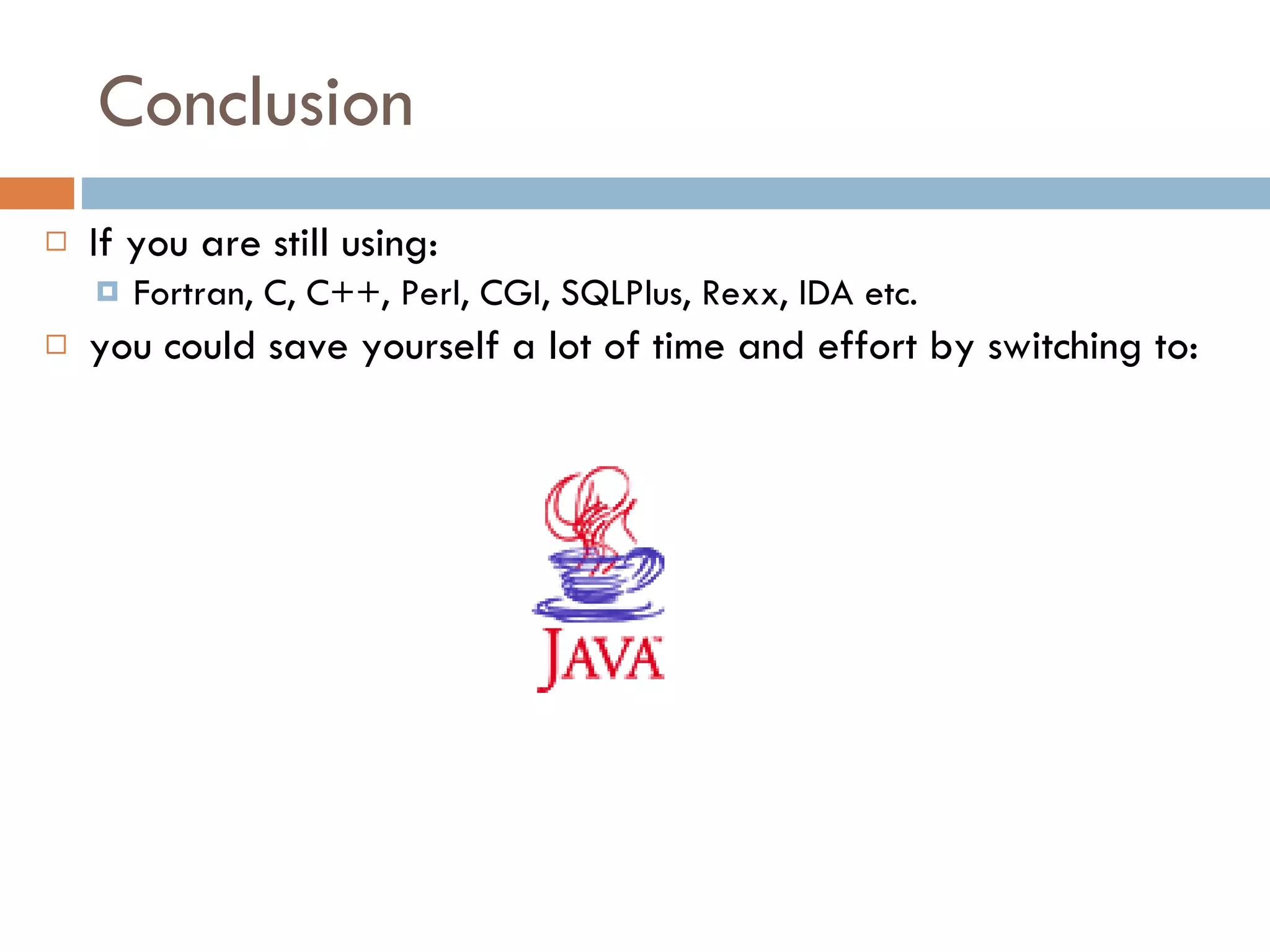

  Conclusion If youare still using: Fortran, C, C++, Perl, CGI, SQLPlus, Rexx, IDA etc. you could save yourself a lot of time and effort by switching to:
