  TELKOMNIKA Telecommunication, Computing,Electronics and Control Vol. 18, No. 2, April 2020, pp. 985~993 ISSN: 1693-6930, accredited First Grade by Kemenristekdikti, Decree No: 21/E/KPT/2018 DOI: 10.12928/TELKOMNIKA.v18i2.14889  985 Journal homepage: http://journal.uad.ac.id/index.php/TELKOMNIKA An improved electricity efficiency method based on microcontroller and IoT with infrared sensor Arif Ainur Rafiq1 , Sugeng Dwi Riyanto2 , Ratna Wardani3 1,2 Department of Electrical Engineering-Politeknik Negeri Cilacap, Indonesia 3 Department of Electronic and Informatics Education, Universitas Negeri Yogyakarta, Indonesia Article Info ABSTRACT Article history: Received Aug 11, 2019 Revised Jan 3, 2020 Accepted Feb 12, 2020 This paper proposes an improved electricity efficiency method using an infrared sensor and internet of things (IoT). Almost all field of human work require electrical energy, especially for household needs. The averages household has many lamps in each room, so if it is not controlled, it will be wasteful of energy. However, this work is carried out to gain a better understanding of a new method for saving energy. The main advantage of this work is the simplification of the sensor used, in which only the infrared sensor required. Although the proposed approach faces numerous challenges, it successfully provides result as parameters that it can be processed rapidly using low-cost microcontrollers. The idea is based on the microcontroller and internet implementation with infrared sensor to monitor the number of people in home to control the lamp light intensity. The idea is proven in two ways: design and experiment. In this paper, the implementation of Raspberry Pi and Arduino is created to monitor the number of people in room and control the lamp intensity through internet or web. Arduino uses for the sensor processing and Raspberry Pi as server. The web is used to display the monitoring result by retrieving data from database that created using MySQL. The result indicates that the electricity bill decreased between 7.7-8.2% over 2 months implementation. The conclusion of this study suggests that the research in this area could be directed toward to be used in saving electricity usage in human life, especially for household. Keywords: Electricity efficiency Infrared sensor IoT Microcontrollers Web This is an open access article under the CC BY-SA license. Corresponding Author: Arif Ainur Rafiq, Department of Electrical Engineering, Politeknik Negeri Cilacap, Indonesia. Email: arifainurrafiq@gmail.com 1. INTRODUCTION Indonesia is currenly included in the category of countries that are quite wasteful in energy use. Recorded energy use in Indonesia currenly reaches 1,131 million tons or equivalent of a barrel of oil. Some of the causes of high energy consumpsion are the use of electronic devices that are quite old and behavioral factors in energy use. The average waste of energy use are for household lighting and duration of use (hours) [1]. In the phenomenon that occurs in the electricity production carried out everyday by the State Electricity Company (PLN ~Ind.), is distributed to all circles of society. The use of households has the second highest ranking of electricity users as seen in the average selling price (IDR/kWh) as much as 557.76 with the number of customers is 31,095 thousands. Also, there are others that can cause the same dangerous things at home, for example, forgetting to turn off the lamp equipment in the house which can
• 2.
   ISSN: 1693-6930 TELKOMNIKATelecommun Comput El Control, Vol. 18, No. 2, April 2020: 985 - 993 986 cause the electrical short circuit/electric current, and then can cause fire, thus a system is needed to control the lamp from long distance or automatically controlled. Light application using internet for home automation is proposed in [2-4]. Technological advances continue to grow more rapidly following the times. Until now internet connection is one requirement that must be owned by almost everyone. Even, the public often not maximize the use of internet in the completion work. Application development tools, both on the hardware and software technologies to develop an automatic light relay application in the room are already widely used [5]. On the other hand, the internet of things (IoT) is ushering a set of novel applications and services to many vertical domains. Among them home automation represent an important market segment for smart home domain [6]. The smart home employs IoT technologies to equip home dwellers with increased comfort, energy effieciency, security and interaction with its appliance even when there is no one at home. Intelligence and communication modules embedded into these devices allow them to (i) exchange data with a data processing and storage unit, (ii) be controlled remotely through the internet, (iii) report their maintenance needs, (iv) manage themselves automatically and (v) optimize energy and resource usage [7]. Based on these discussion, it is clear that the use of the IoT and infrared sensor can be implemented as a technology for saving electricity. The key benefit of this paper are simplicity and low cost application. 2. RESEARCH METHOD The research methodology is the stages that must be defined before carrying out the research, so it can be done with focused, clear, efficient and effective. The block diagram was design of three parts which are the input, process, and output. In Figure 1, the circuit was constructed using infrared sensor and will be processed separately by Arduino and Raspberry. During data processing, Arduino and Raspberry will communicate using serial communication. After all data was accomplished and processed, it will be implemented on the output in the form of Lamp or Web Page. The Arduino and Raspberry will be used as the controller and data processing device. The database was processed by Raspberry Pi because it has a Linux operating system that can manage the database easily and sensor processing will be controlled by the Arduino. In Figure 2, when the system was turned on, Raspberry opened a serial port to get or transmit serial data. It obtained by Raspberry is later processed and used as input for the database. The data in the database will be displayed on the website as an indicator that the lamp are on or off. Every data changes or update in database, Raspberry will directly send data through serial communication to Arduino and it will process in reltime. 2.1. Internet of things IoT can be explained as a set of things that are connected to each other via the internet. Things here can be tags, sensors, humans, etc. IoT functions to collect data and information from the physical environment, these data will be processed so the meaning can be understood [8]. It describes a vision where everyday object become part of the Network where Intelligence added to them with other things in Network or Network itself, which has impact on our personal, professional and social environment [9, 10, 11] as shown in Figure 3. 2.2. Microcontroller serial communication Raspberry Pi can be used to do many things like a personal computer [12, 13]. It’s requires to store operating system and program files [14, 15]. In this research, the Raspberry Pi will be used as web and database server by connecting the infrared sensor in the room through the internet.In this research Arduino will process the data from infrared. The Arduino advantages are independent platform, construction robust and low price [16, 17]. The serial communication between Arduino and Raspberry used the serial communication with asynchronous type. This serial communication uses the (COM) port on the computer. The Raspberry Pi requires the installation of the package to communicate serially through Arduino [19]. The receiving node synthesizes the split message sent from the sending node. The split message include important information for reconstituting the original data frame [20] as shown in Figure 4. Raspberry Pi program will read serial, the command ser.read() is used, and in order to make the program easier, then the command variable data=ser.read() is needed. For the serial program on the Arduino, uses almost the same program command of Serial.read() as shown in Table 1. The data of the character sent via the serial communication.
• 3.

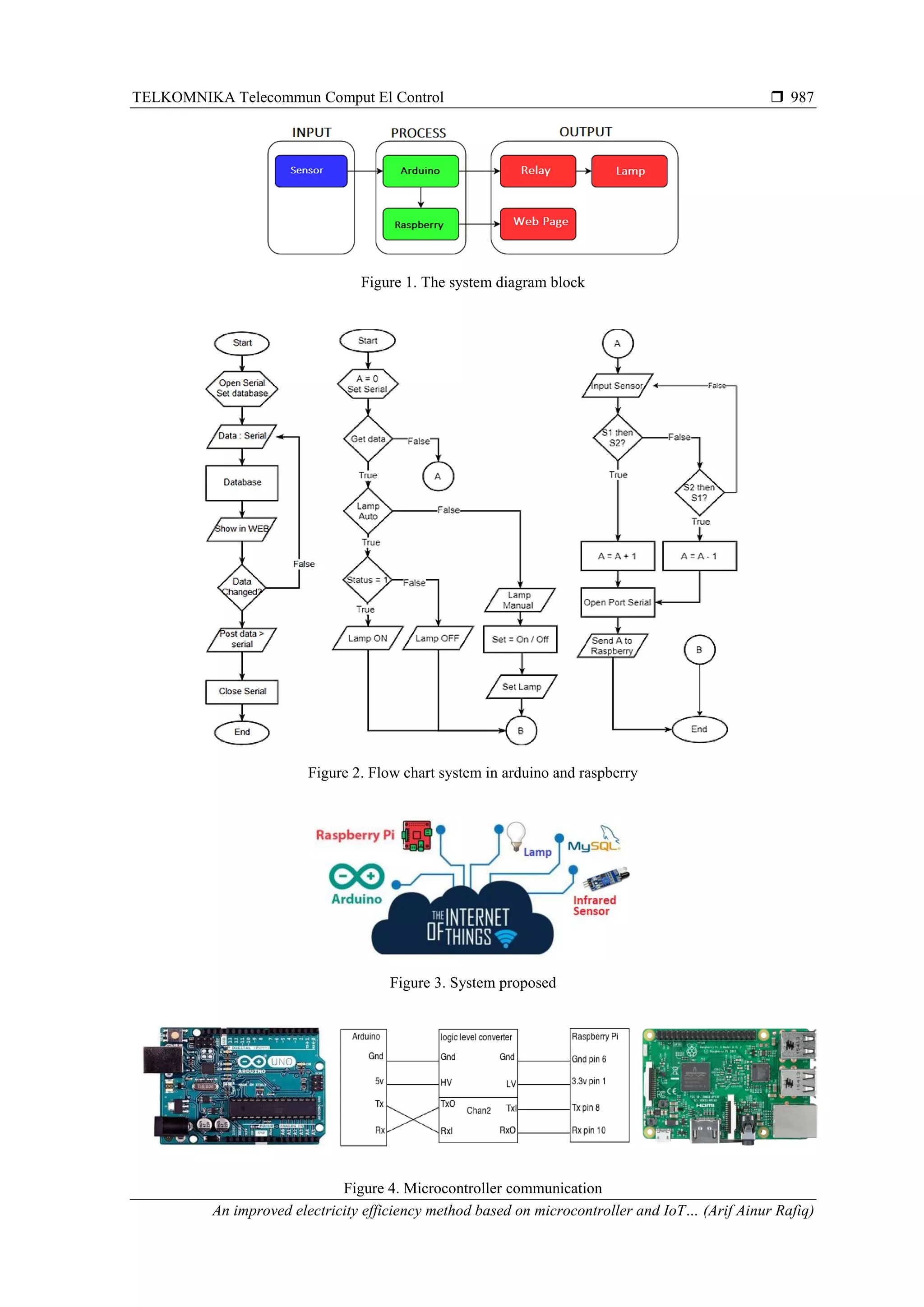

  TELKOMNIKA Telecommun ComputEl Control  An improved electricity efficiency method based on microcontroller and IoT… (Arif Ainur Rafiq) 987 Figure 1. The system diagram block Figure 2. Flow chart system in arduino and raspberry Figure 3. System proposed Figure 4. Microcontroller communication
• 4.

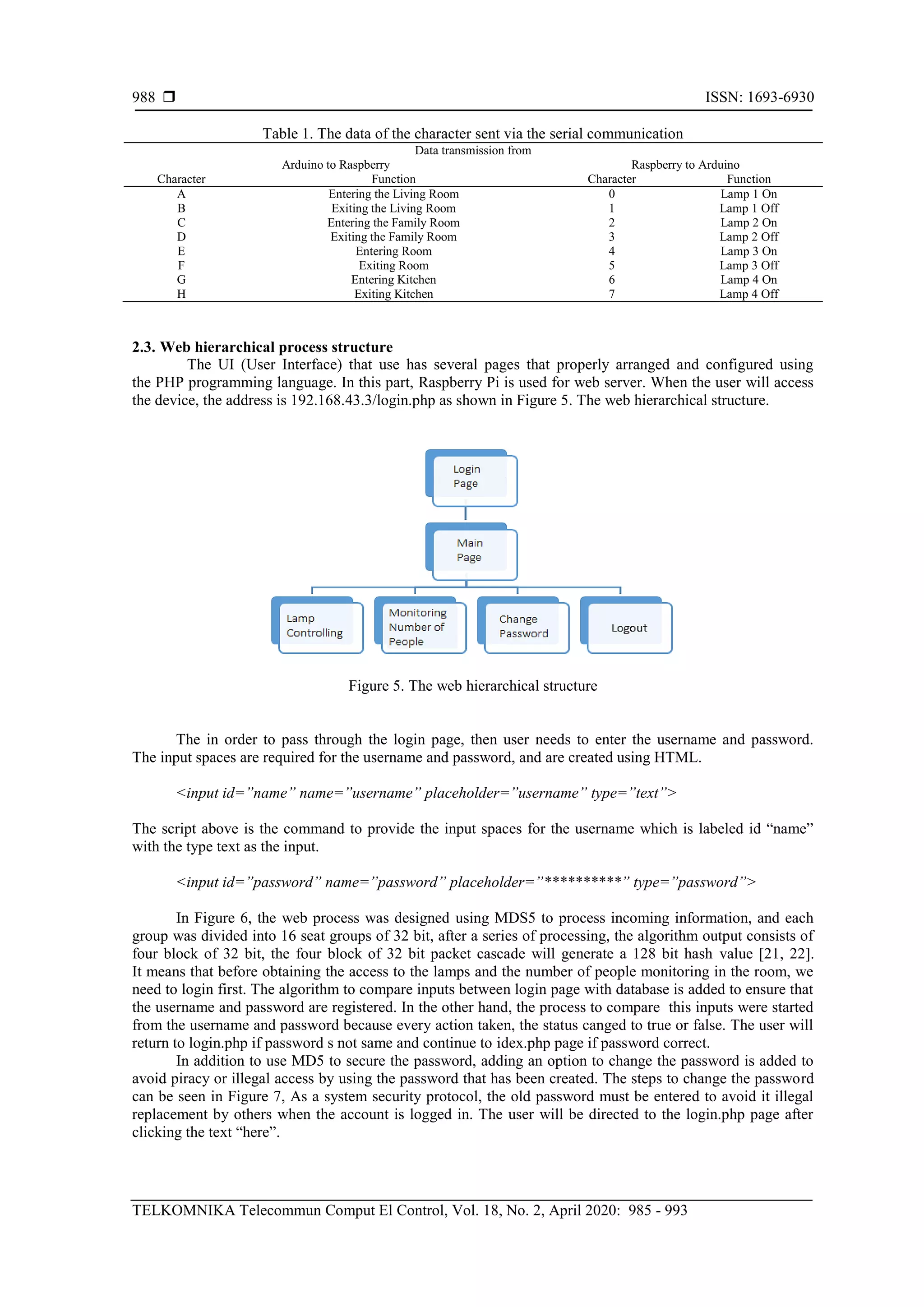

   ISSN: 1693-6930 TELKOMNIKATelecommun Comput El Control, Vol. 18, No. 2, April 2020: 985 - 993 988 Table 1. The data of the character sent via the serial communication Data transmission from Arduino to Raspberry Raspberry to Arduino Character Function Character Function A Entering the Living Room 0 Lamp 1 On B Exiting the Living Room 1 Lamp 1 Off C Entering the Family Room 2 Lamp 2 On D Exiting the Family Room 3 Lamp 2 Off E Entering Room 4 Lamp 3 On F Exiting Room 5 Lamp 3 Off G Entering Kitchen 6 Lamp 4 On H Exiting Kitchen 7 Lamp 4 Off 2.3. Web hierarchical process structure The UI (User Interface) that use has several pages that properly arranged and configured using the PHP programming language. In this part, Raspberry Pi is used for web server. When the user will access the device, the address is 192.168.43.3/login.php as shown in Figure 5. The web hierarchical structure. Figure 5. The web hierarchical structure The in order to pass through the login page, then user needs to enter the username and password. The input spaces are required for the username and password, and are created using HTML. <input id=”name” name=”username” placeholder=”username” type=”text”> The script above is the command to provide the input spaces for the username which is labeled id “name” with the type text as the input. <input id=”password” name=”password” placeholder=”**********” type=”password”> In Figure 6, the web process was designed using MDS5 to process incoming information, and each group was divided into 16 seat groups of 32 bit, after a series of processing, the algorithm output consists of four block of 32 bit, the four block of 32 bit packet cascade will generate a 128 bit hash value [21, 22]. It means that before obtaining the access to the lamps and the number of people monitoring in the room, we need to login first. The algorithm to compare inputs between login page with database is added to ensure that the username and password are registered. In the other hand, the process to compare this inputs were started from the username and password because every action taken, the status canged to true or false. The user will return to login.php if password s not same and continue to idex.php page if password correct. In addition to use MD5 to secure the password, adding an option to change the password is added to avoid piracy or illegal access by using the password that has been created. The steps to change the password can be seen in Figure 7, As a system security protocol, the old password must be entered to avoid it illegal replacement by others when the account is logged in. The user will be directed to the login.php page after clicking the text “here”.
• 5.

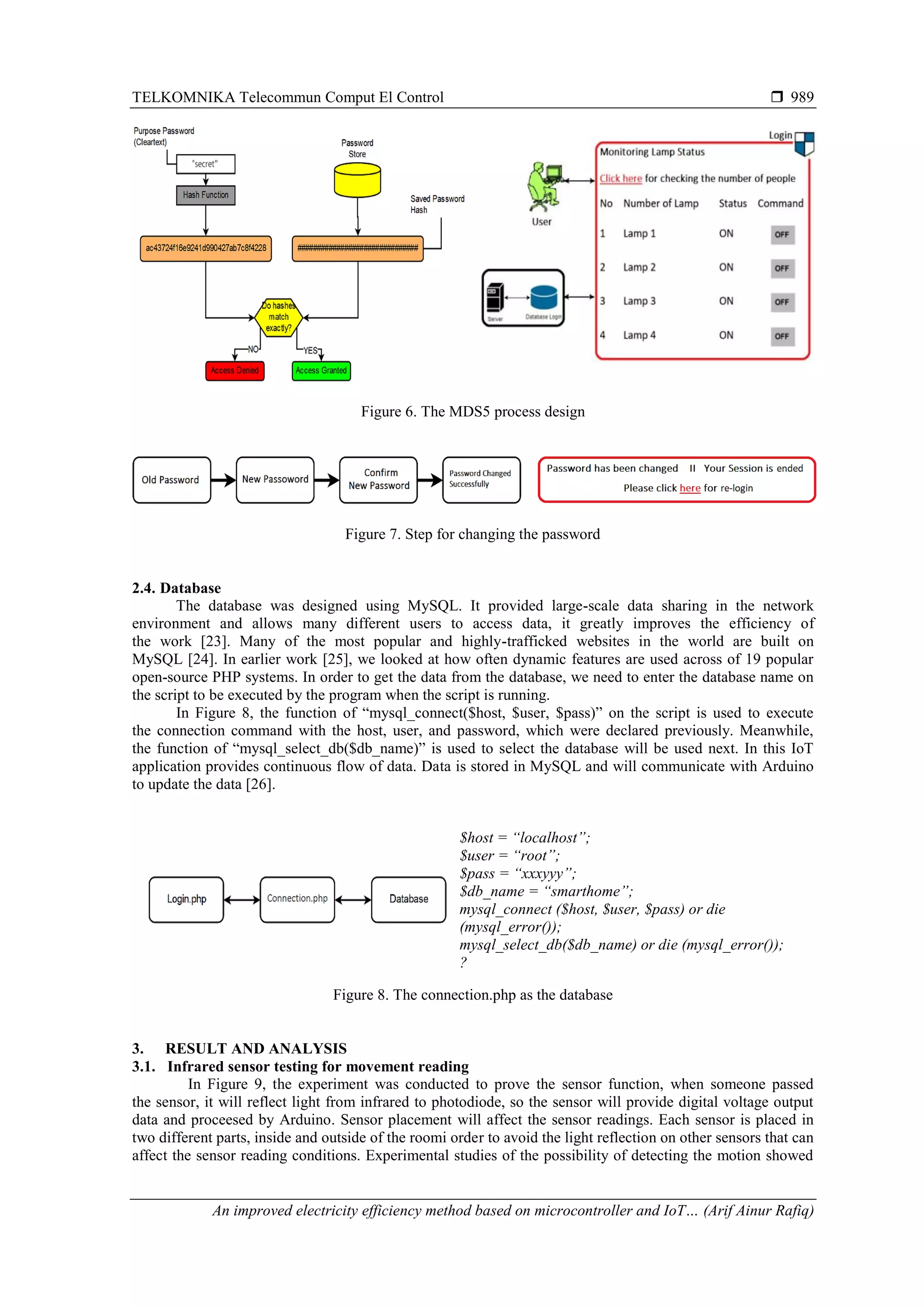

  TELKOMNIKA Telecommun ComputEl Control  An improved electricity efficiency method based on microcontroller and IoT… (Arif Ainur Rafiq) 989 Figure 6. The MDS5 process design Figure 7. Step for changing the password 2.4. Database The database was designed using MySQL. It provided large-scale data sharing in the network environment and allows many different users to access data, it greatly improves the efficiency of the work [23]. Many of the most popular and highly-trafficked websites in the world are built on MySQL [24]. In earlier work [25], we looked at how often dynamic features are used across of 19 popular open-source PHP systems. In order to get the data from the database, we need to enter the database name on the script to be executed by the program when the script is running. In Figure 8, the function of “mysql_connect($host, $user, $pass)” on the script is used to execute the connection command with the host, user, and password, which were declared previously. Meanwhile, the function of “mysql_select_db($db_name)” is used to select the database will be used next. In this IoT application provides continuous flow of data. Data is stored in MySQL and will communicate with Arduino to update the data [26]. $host = “localhost”; $user = “root”; $pass = “xxxyyy”; $db_name = “smarthome”; mysql_connect ($host, $user, $pass) or die (mysql_error()); mysql_select_db($db_name) or die (mysql_error()); ? Figure 8. The connection.php as the database 3. RESULT AND ANALYSIS 3.1. Infrared sensor testing for movement reading In Figure 9, the experiment was conducted to prove the sensor function, when someone passed the sensor, it will reflect light from infrared to photodiode, so the sensor will provide digital voltage output data and proceesed by Arduino. Sensor placement will affect the sensor readings. Each sensor is placed in two different parts, inside and outside of the roomi order to avoid the light reflection on other sensors that can affect the sensor reading conditions. Experimental studies of the possibility of detecting the motion showed
• 6.

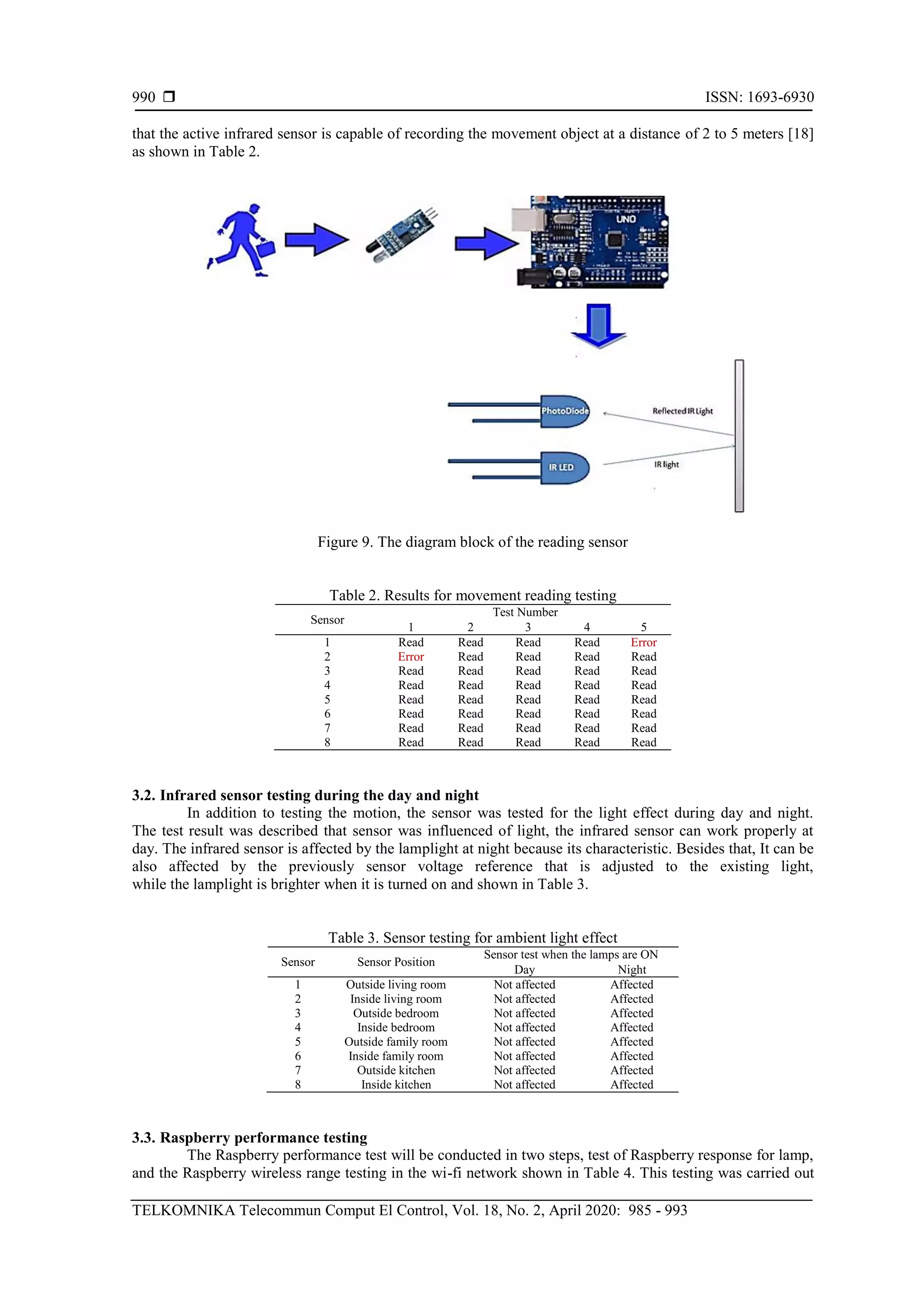

   ISSN: 1693-6930 TELKOMNIKATelecommun Comput El Control, Vol. 18, No. 2, April 2020: 985 - 993 990 that the active infrared sensor is capable of recording the movement object at a distance of 2 to 5 meters [18] as shown in Table 2. Figure 9. The diagram block of the reading sensor Table 2. Results for movement reading testing Sensor Test Number 1 2 3 4 5 1 Read Read Read Read Error 2 Error Read Read Read Read 3 Read Read Read Read Read 4 Read Read Read Read Read 5 Read Read Read Read Read 6 Read Read Read Read Read 7 Read Read Read Read Read 8 Read Read Read Read Read 3.2. Infrared sensor testing during the day and night In addition to testing the motion, the sensor was tested for the light effect during day and night. The test result was described that sensor was influenced of light, the infrared sensor can work properly at day. The infrared sensor is affected by the lamplight at night because its characteristic. Besides that, It can be also affected by the previously sensor voltage reference that is adjusted to the existing light, while the lamplight is brighter when it is turned on and shown in Table 3. Table 3. Sensor testing for ambient light effect Sensor Sensor Position Sensor test when the lamps are ON Day Night 1 Outside living room Not affected Affected 2 Inside living room Not affected Affected 3 Outside bedroom Not affected Affected 4 Inside bedroom Not affected Affected 5 Outside family room Not affected Affected 6 Inside family room Not affected Affected 7 Outside kitchen Not affected Affected 8 Inside kitchen Not affected Affected 3.3. Raspberry performance testing The Raspberry performance test will be conducted in two steps, test of Raspberry response for lamp, and the Raspberry wireless range testing in the wi-fi network shown in Table 4. This testing was carried out
• 7.

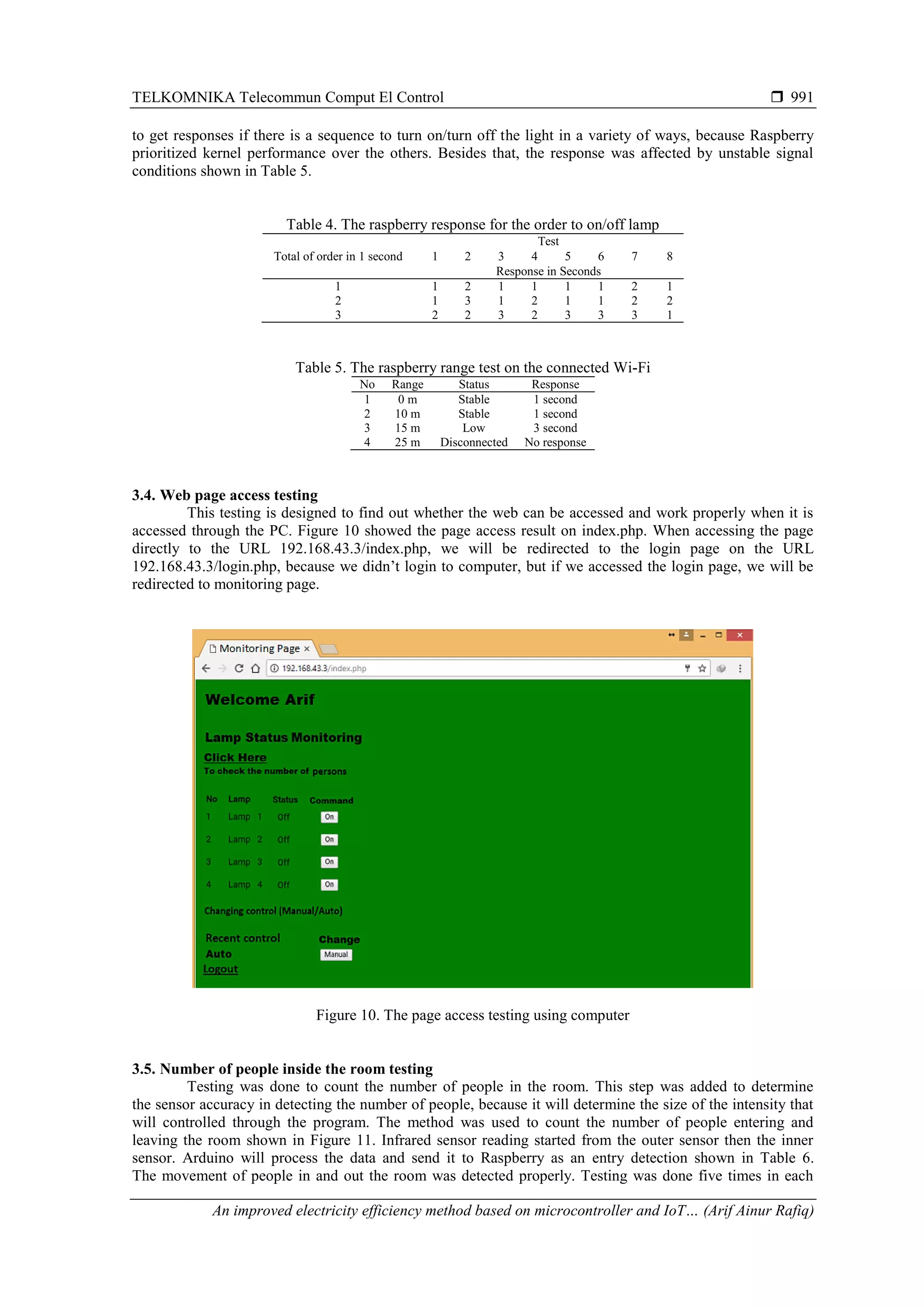

  TELKOMNIKA Telecommun ComputEl Control  An improved electricity efficiency method based on microcontroller and IoT… (Arif Ainur Rafiq) 991 to get responses if there is a sequence to turn on/turn off the light in a variety of ways, because Raspberry prioritized kernel performance over the others. Besides that, the response was affected by unstable signal conditions shown in Table 5. Table 4. The raspberry response for the order to on/off lamp Total of order in 1 second Test 1 2 3 4 5 6 7 8 Response in Seconds 1 1 2 1 1 1 1 2 1 2 1 3 1 2 1 1 2 2 3 2 2 3 2 3 3 3 1 Table 5. The raspberry range test on the connected Wi-Fi No Range Status Response 1 0 m Stable 1 second 2 10 m Stable 1 second 3 15 m Low 3 second 4 25 m Disconnected No response 3.4. Web page access testing This testing is designed to find out whether the web can be accessed and work properly when it is accessed through the PC. Figure 10 showed the page access result on index.php. When accessing the page directly to the URL 192.168.43.3/index.php, we will be redirected to the login page on the URL 192.168.43.3/login.php, because we didn’t login to computer, but if we accessed the login page, we will be redirected to monitoring page. Figure 10. The page access testing using computer 3.5. Number of people inside the room testing Testing was done to count the number of people in the room. This step was added to determine the sensor accuracy in detecting the number of people, because it will determine the size of the intensity that will controlled through the program. The method was used to count the number of people entering and leaving the room shown in Figure 11. Infrared sensor reading started from the outer sensor then the inner sensor. Arduino will process the data and send it to Raspberry as an entry detection shown in Table 6. The movement of people in and out the room was detected properly. Testing was done five times in each
• 8.

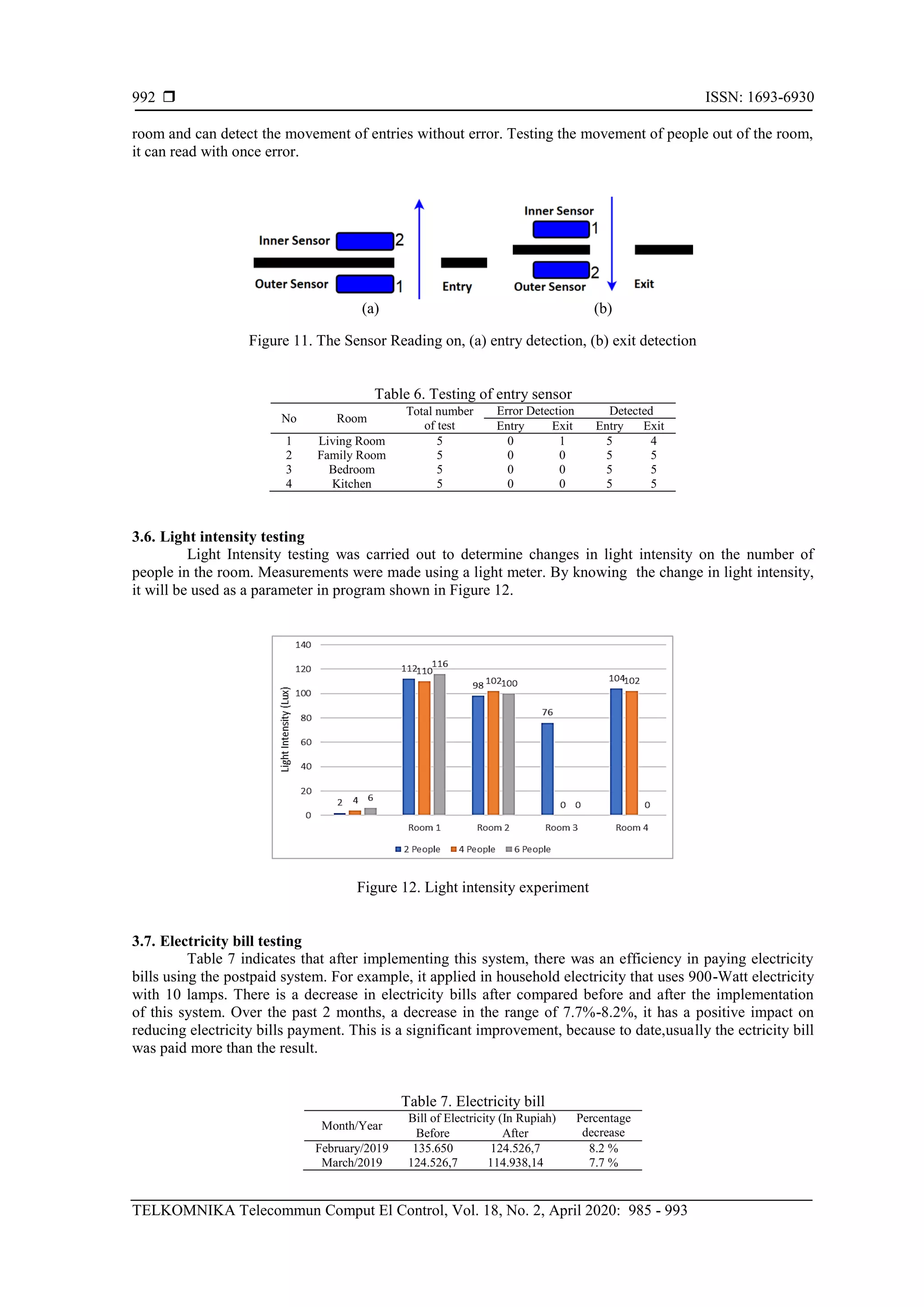

   ISSN: 1693-6930 TELKOMNIKATelecommun Comput El Control, Vol. 18, No. 2, April 2020: 985 - 993 992 room and can detect the movement of entries without error. Testing the movement of people out of the room, it can read with once error. (a) (b) Figure 11. The Sensor Reading on, (a) entry detection, (b) exit detection Table 6. Testing of entry sensor No Room Total number of test Error Detection Detected Entry Exit Entry Exit 1 Living Room 5 0 1 5 4 2 Family Room 5 0 0 5 5 3 Bedroom 5 0 0 5 5 4 Kitchen 5 0 0 5 5 3.6. Light intensity testing Light Intensity testing was carried out to determine changes in light intensity on the number of people in the room. Measurements were made using a light meter. By knowing the change in light intensity, it will be used as a parameter in program shown in Figure 12. Figure 12. Light intensity experiment 3.7. Electricity bill testing Table 7 indicates that after implementing this system, there was an efficiency in paying electricity bills using the postpaid system. For example, it applied in household electricity that uses 900-Watt electricity with 10 lamps. There is a decrease in electricity bills after compared before and after the implementation of this system. Over the past 2 months, a decrease in the range of 7.7%-8.2%, it has a positive impact on reducing electricity bills payment. This is a significant improvement, because to date,usually the ectricity bill was paid more than the result. Table 7. Electricity bill Month/Year Bill of Electricity (In Rupiah) Percentage decreaseBefore After February/2019 135.650 124.526,7 8.2 % March/2019 124.526,7 114.938,14 7.7 %
• 9.

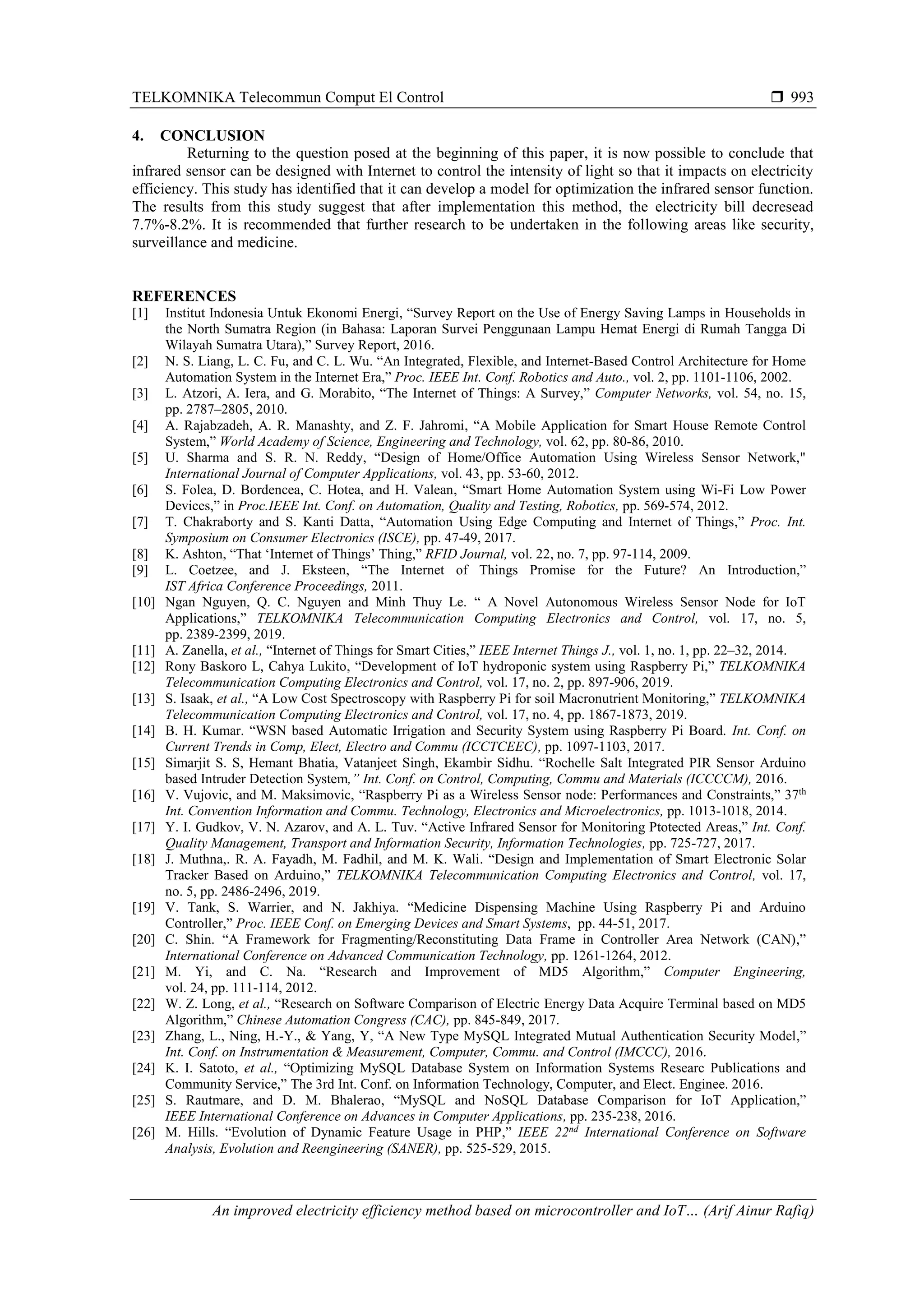

  TELKOMNIKA Telecommun ComputEl Control  An improved electricity efficiency method based on microcontroller and IoT… (Arif Ainur Rafiq) 993 4. CONCLUSION Returning to the question posed at the beginning of this paper, it is now possible to conclude that infrared sensor can be designed with Internet to control the intensity of light so that it impacts on electricity efficiency. This study has identified that it can develop a model for optimization the infrared sensor function. The results from this study suggest that after implementation this method, the electricity bill decresead 7.7%-8.2%. It is recommended that further research to be undertaken in the following areas like security, surveillance and medicine. REFERENCES [1] Institut Indonesia Untuk Ekonomi Energi, “Survey Report on the Use of Energy Saving Lamps in Households in the North Sumatra Region (in Bahasa: Laporan Survei Penggunaan Lampu Hemat Energi di Rumah Tangga Di Wilayah Sumatra Utara),” Survey Report, 2016. [2] N. S. Liang, L. C. Fu, and C. L. Wu. “An Integrated, Flexible, and Internet-Based Control Architecture for Home Automation System in the Internet Era,” Proc. IEEE Int. Conf. Robotics and Auto., vol. 2, pp. 1101-1106, 2002. [3] L. Atzori, A. Iera, and G. Morabito, “The Internet of Things: A Survey,” Computer Networks, vol. 54, no. 15, pp. 2787–2805, 2010. [4] A. Rajabzadeh, A. R. Manashty, and Z. F. Jahromi, “A Mobile Application for Smart House Remote Control System,” World Academy of Science, Engineering and Technology, vol. 62, pp. 80-86, 2010. [5] U. Sharma and S. R. N. Reddy, “Design of Home/Office Automation Using Wireless Sensor Network," International Journal of Computer Applications, vol. 43, pp. 53-60, 2012. [6] S. Folea, D. Bordencea, C. Hotea, and H. Valean, “Smart Home Automation System using Wi-Fi Low Power Devices,” in Proc.IEEE Int. Conf. on Automation, Quality and Testing, Robotics, pp. 569-574, 2012. [7] T. Chakraborty and S. Kanti Datta, “Automation Using Edge Computing and Internet of Things,” Proc. Int. Symposium on Consumer Electronics (ISCE), pp. 47-49, 2017. [8] K. Ashton, “That ‘Internet of Things’ Thing,” RFID Journal, vol. 22, no. 7, pp. 97-114, 2009. [9] L. Coetzee, and J. Eksteen, “The Internet of Things Promise for the Future? An Introduction,” IST Africa Conference Proceedings, 2011. [10] Ngan Nguyen, Q. C. Nguyen and Minh Thuy Le. “ A Novel Autonomous Wireless Sensor Node for IoT Applications,” TELKOMNIKA Telecommunication Computing Electronics and Control, vol. 17, no. 5, pp. 2389-2399, 2019. [11] A. Zanella, et al., “Internet of Things for Smart Cities,” IEEE Internet Things J., vol. 1, no. 1, pp. 22–32, 2014. [12] Rony Baskoro L, Cahya Lukito, “Development of IoT hydroponic system using Raspberry Pi,” TELKOMNIKA Telecommunication Computing Electronics and Control, vol. 17, no. 2, pp. 897-906, 2019. [13] S. Isaak, et al., “A Low Cost Spectroscopy with Raspberry Pi for soil Macronutrient Monitoring,” TELKOMNIKA Telecommunication Computing Electronics and Control, vol. 17, no. 4, pp. 1867-1873, 2019. [14] B. H. Kumar. “WSN based Automatic Irrigation and Security System using Raspberry Pi Board. Int. Conf. on Current Trends in Comp, Elect, Electro and Commu (ICCTCEEC), pp. 1097-1103, 2017. [15] Simarjit S. S, Hemant Bhatia, Vatanjeet Singh, Ekambir Sidhu. “Rochelle Salt Integrated PIR Sensor Arduino based Intruder Detection System,” Int. Conf. on Control, Computing, Commu and Materials (ICCCCM), 2016. [16] V. Vujovic, and M. Maksimovic, “Raspberry Pi as a Wireless Sensor node: Performances and Constraints,” 37th Int. Convention Information and Commu. Technology, Electronics and Microelectronics, pp. 1013-1018, 2014. [17] Y. I. Gudkov, V. N. Azarov, and A. L. Tuv. “Active Infrared Sensor for Monitoring Ptotected Areas,” Int. Conf. Quality Management, Transport and Information Security, Information Technologies, pp. 725-727, 2017. [18] J. Muthna,. R. A. Fayadh, M. Fadhil, and M. K. Wali. “Design and Implementation of Smart Electronic Solar Tracker Based on Arduino,” TELKOMNIKA Telecommunication Computing Electronics and Control, vol. 17, no. 5, pp. 2486-2496, 2019. [19] V. Tank, S. Warrier, and N. Jakhiya. “Medicine Dispensing Machine Using Raspberry Pi and Arduino Controller,” Proc. IEEE Conf. on Emerging Devices and Smart Systems, pp. 44-51, 2017. [20] C. Shin. “A Framework for Fragmenting/Reconstituting Data Frame in Controller Area Network (CAN),” International Conference on Advanced Communication Technology, pp. 1261-1264, 2012. [21] M. Yi, and C. Na. “Research and Improvement of MD5 Algorithm,” Computer Engineering, vol. 24, pp. 111-114, 2012. [22] W. Z. Long, et al., “Research on Software Comparison of Electric Energy Data Acquire Terminal based on MD5 Algorithm,” Chinese Automation Congress (CAC), pp. 845-849, 2017. [23] Zhang, L., Ning, H.-Y., & Yang, Y, “A New Type MySQL Integrated Mutual Authentication Security Model,” Int. Conf. on Instrumentation & Measurement, Computer, Commu. and Control (IMCCC), 2016. [24] K. I. Satoto, et al., “Optimizing MySQL Database System on Information Systems Researc Publications and Community Service,” The 3rd Int. Conf. on Information Technology, Computer, and Elect. Enginee. 2016. [25] S. Rautmare, and D. M. Bhalerao, “MySQL and NoSQL Database Comparison for IoT Application,” IEEE International Conference on Advances in Computer Applications, pp. 235-238, 2016. [26] M. Hills. “Evolution of Dynamic Feature Usage in PHP,” IEEE 22nd International Conference on Software Analysis, Evolution and Reengineering (SANER), pp. 525-529, 2015.
