Compiler Design Brief in Computer Application
- 1. Lex and Yacc COP- 3402
- 2. General Compiler Infra-structure Scanner (tokenizer) ParserSemantic Routines Analysis/ Transformations/ optimizations Code Generator Program source (stream of characters) Tokens Syntactic Structure IR: Intermediate Representation (1) Assembly code IR: Intermediate Representation (2) Symbol and Attribute Tables Lex Yacc

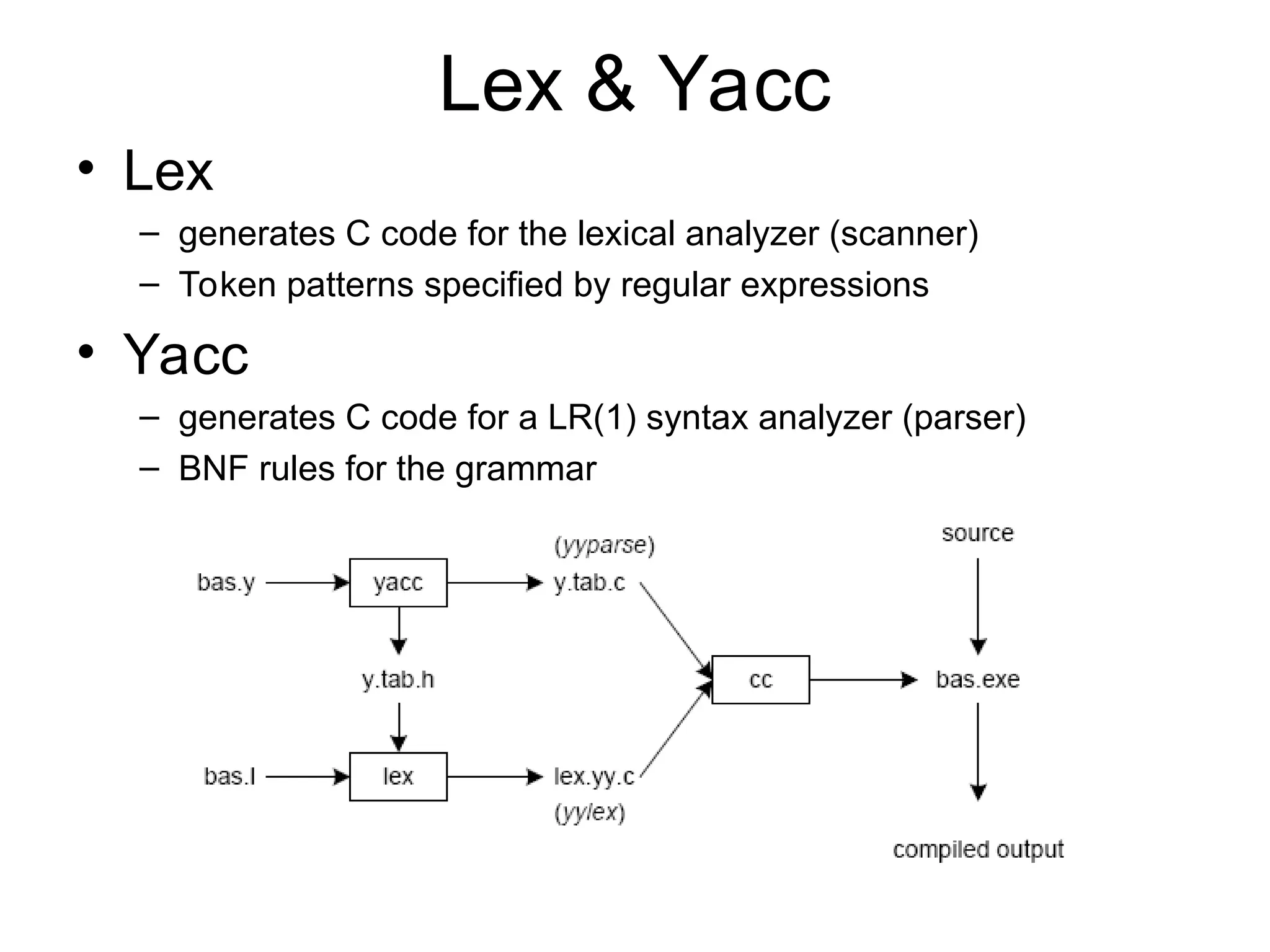

- 3. Lex & Yacc •Lex – generates C code for the lexical analyzer (scanner) – Token patterns specified by regular expressions • Yacc – generates C code for a LR(1) syntax analyzer (parser) – BNF rules for the grammar

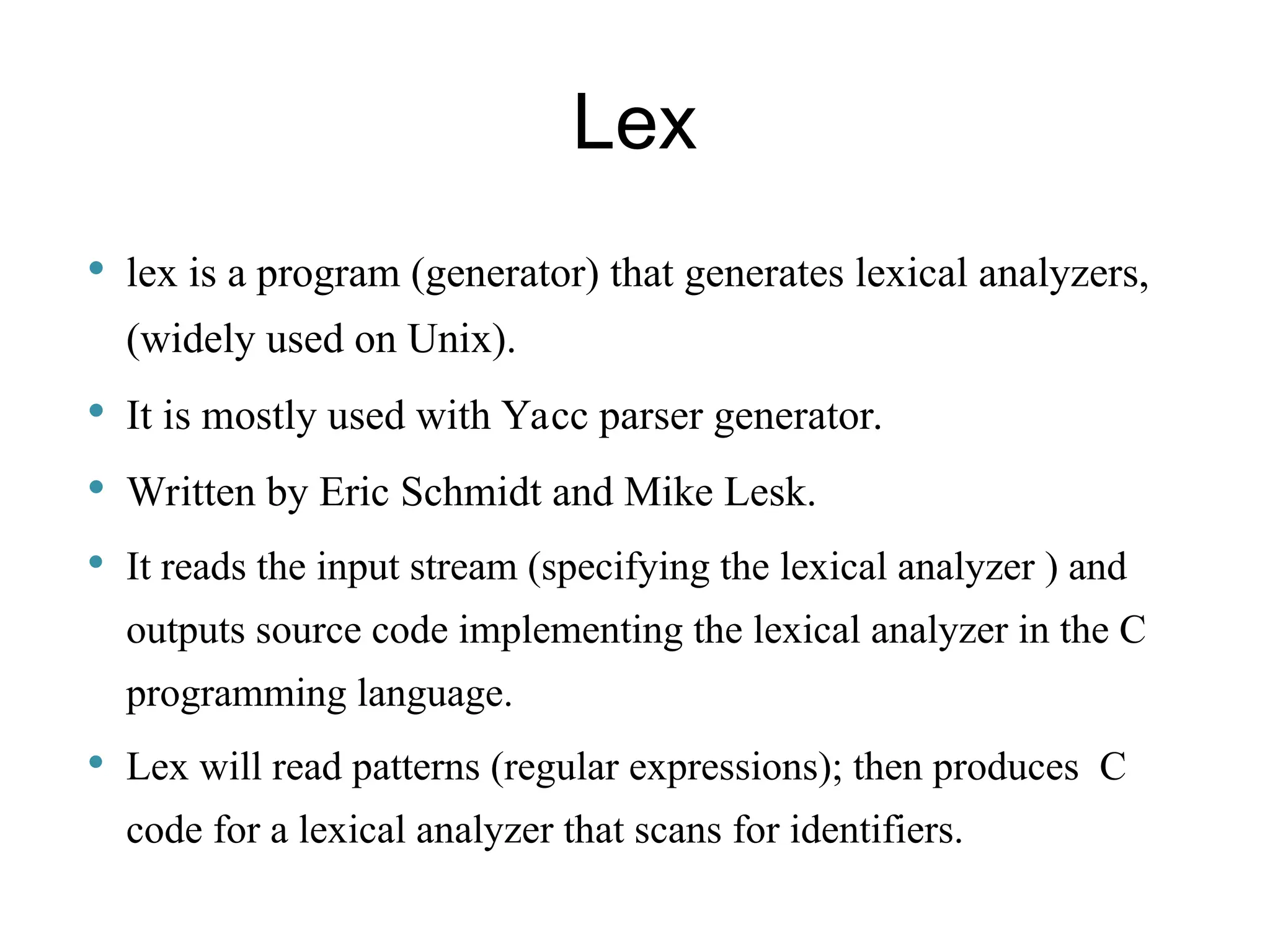

- 4. Lex lex isa program (generator) that generates lexical analyzers, (widely used on Unix). It is mostly used with Yacc parser generator. Written by Eric Schmidt and Mike Lesk. It reads the input stream (specifying the lexical analyzer ) and outputs source code implementing the lexical analyzer in the C programming language. Lex will read patterns (regular expressions); then produces C code for a lexical analyzer that scans for identifiers.

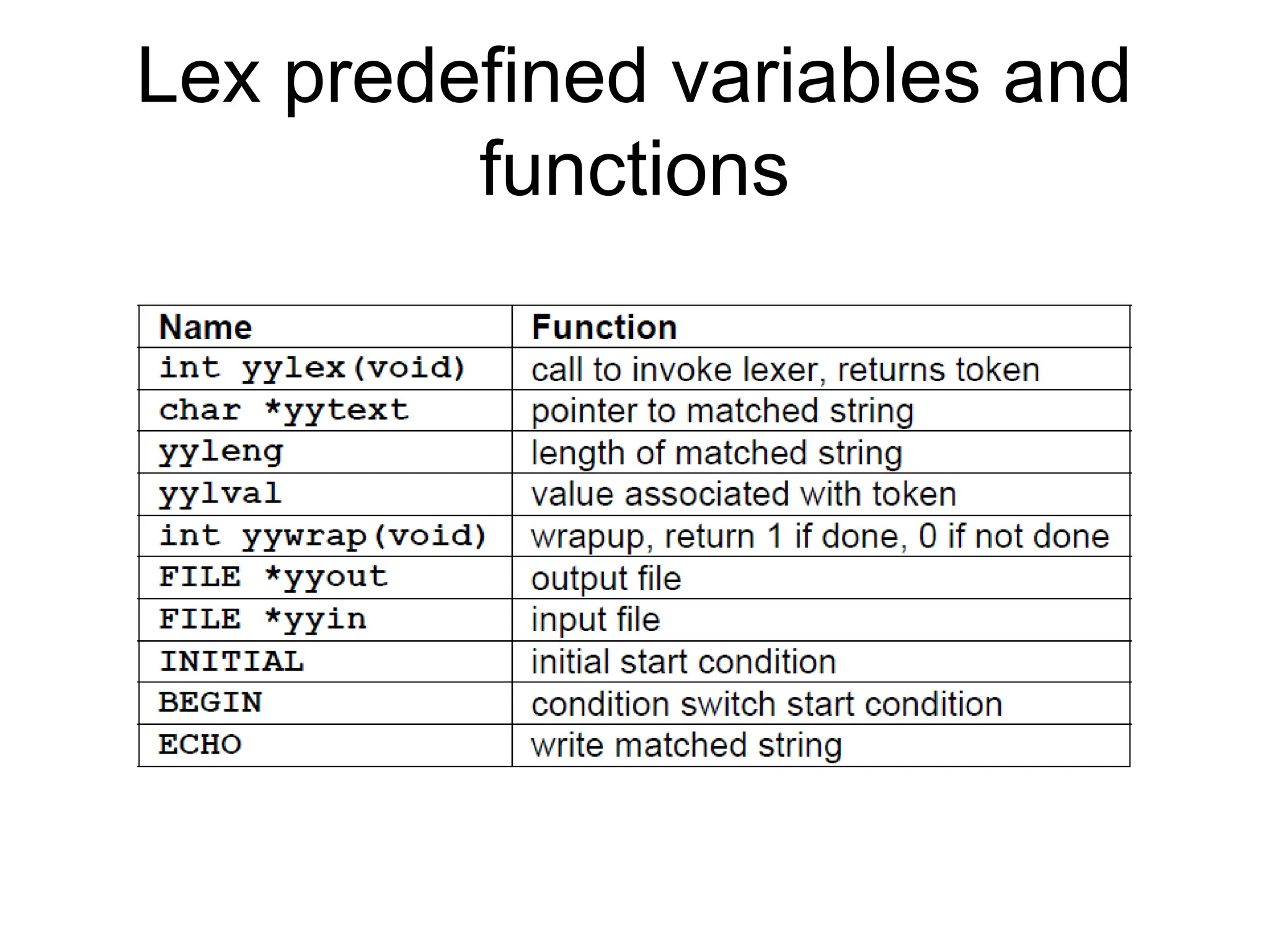

- 5. Lex predefined variablesand functions

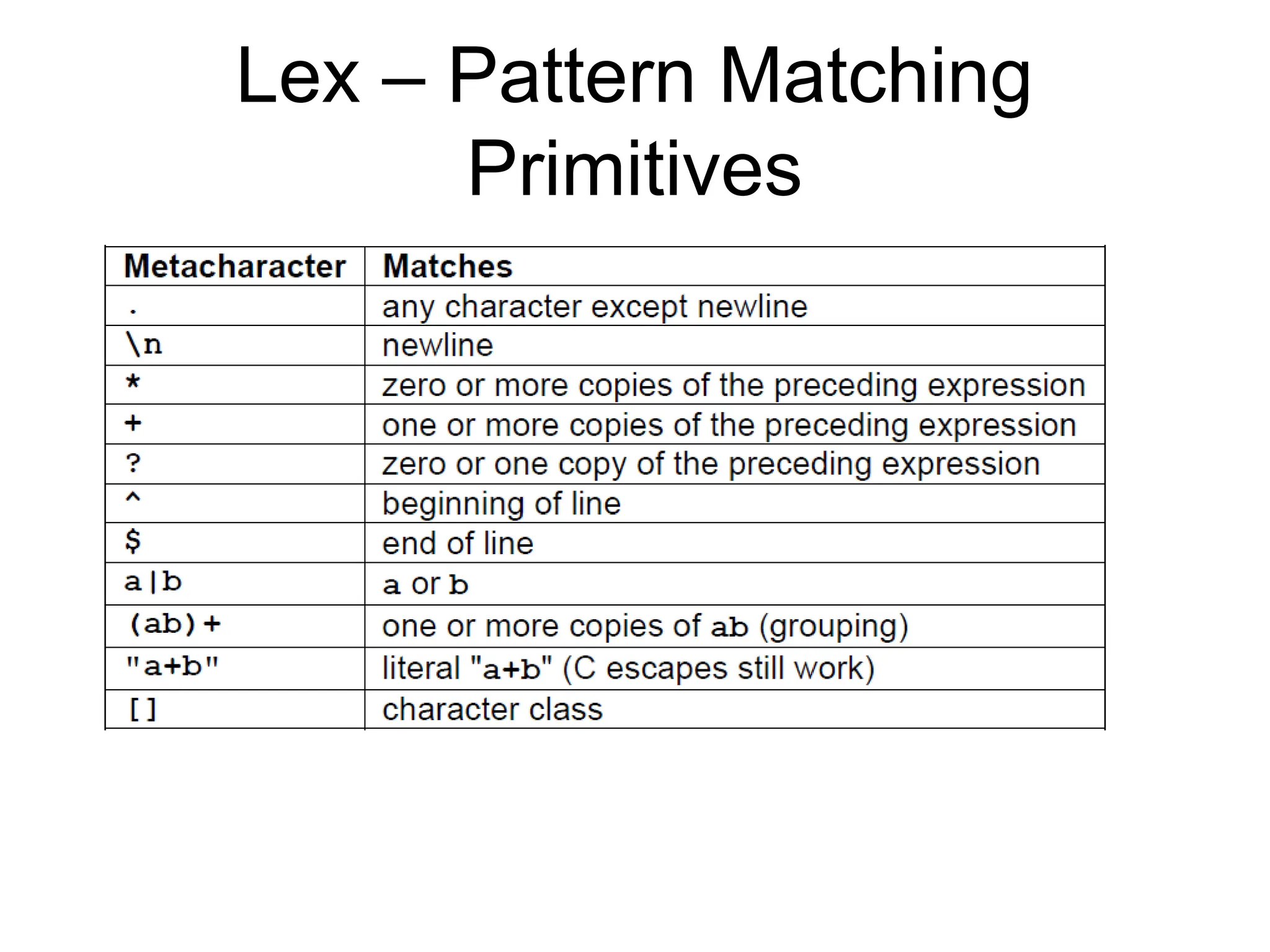

- 6. Lex – PatternMatching Primitives

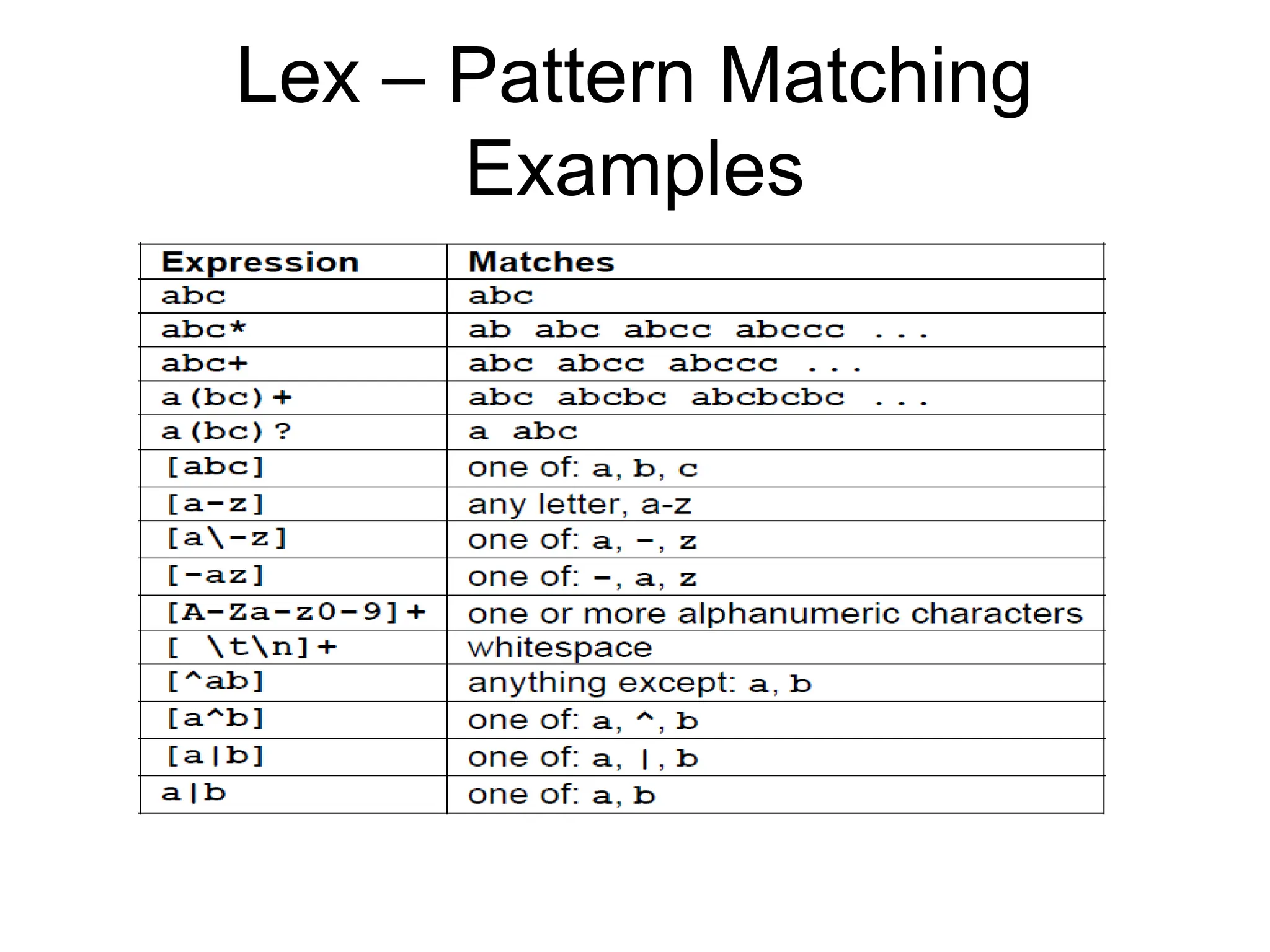

- 7. Lex – PatternMatching Examples
- 8. Example: Simple Calculator •Computes the basic arithmetic operations • Allows declaration of variables • Enough to illustrate the basic structure of Lex and Yacc programs

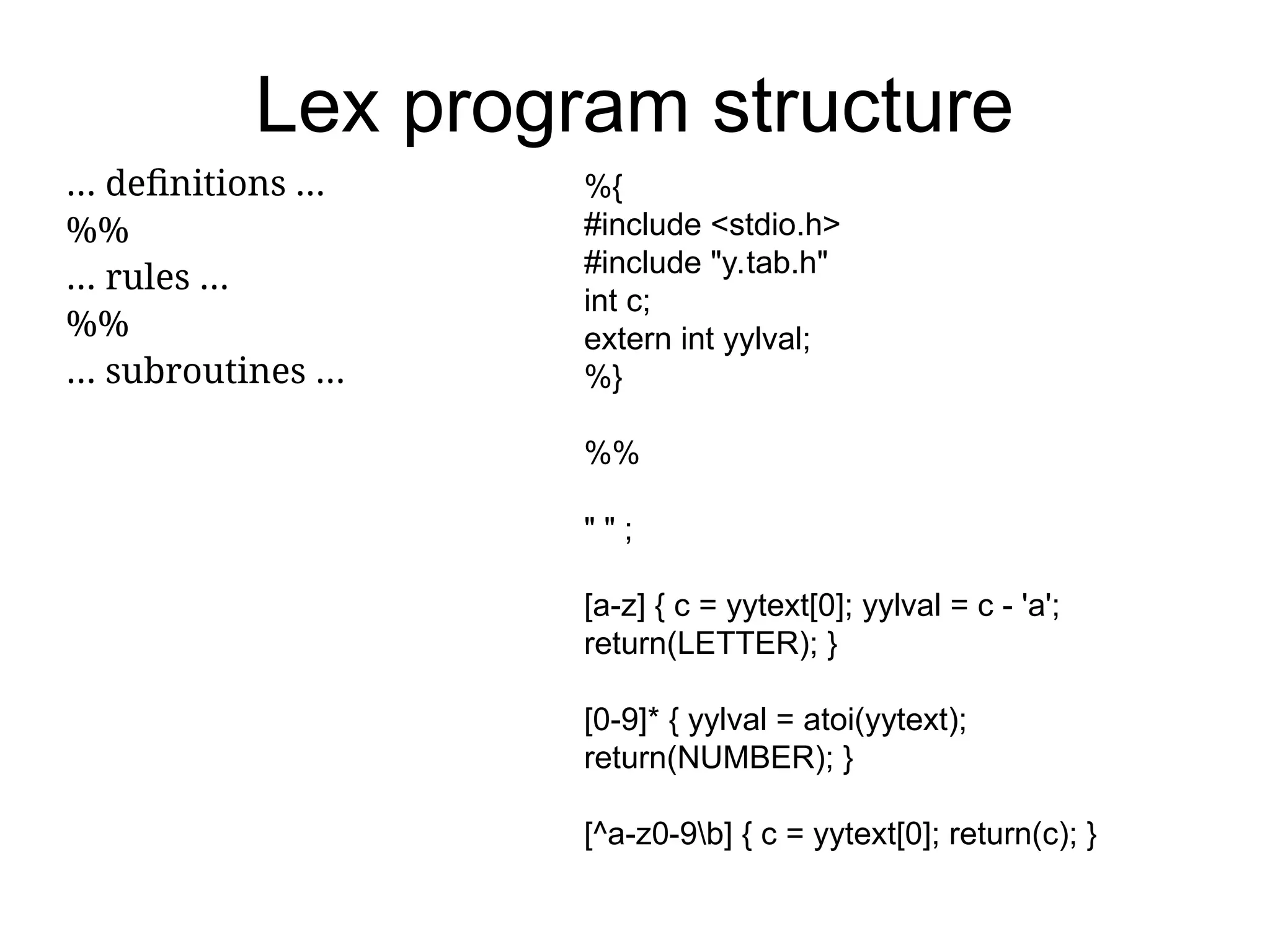

- 9. Lex program structure …definitions … %% … rules … %% … subroutines … %{ #include <stdio.h> #include "y.tab.h" int c; extern int yylval; %} %% " " ; [a-z] { c = yytext[0]; yylval = c - 'a'; return(LETTER); } [0-9]* { yylval = atoi(yytext); return(NUMBER); } [^a-z0-9b] { c = yytext[0]; return(c); }

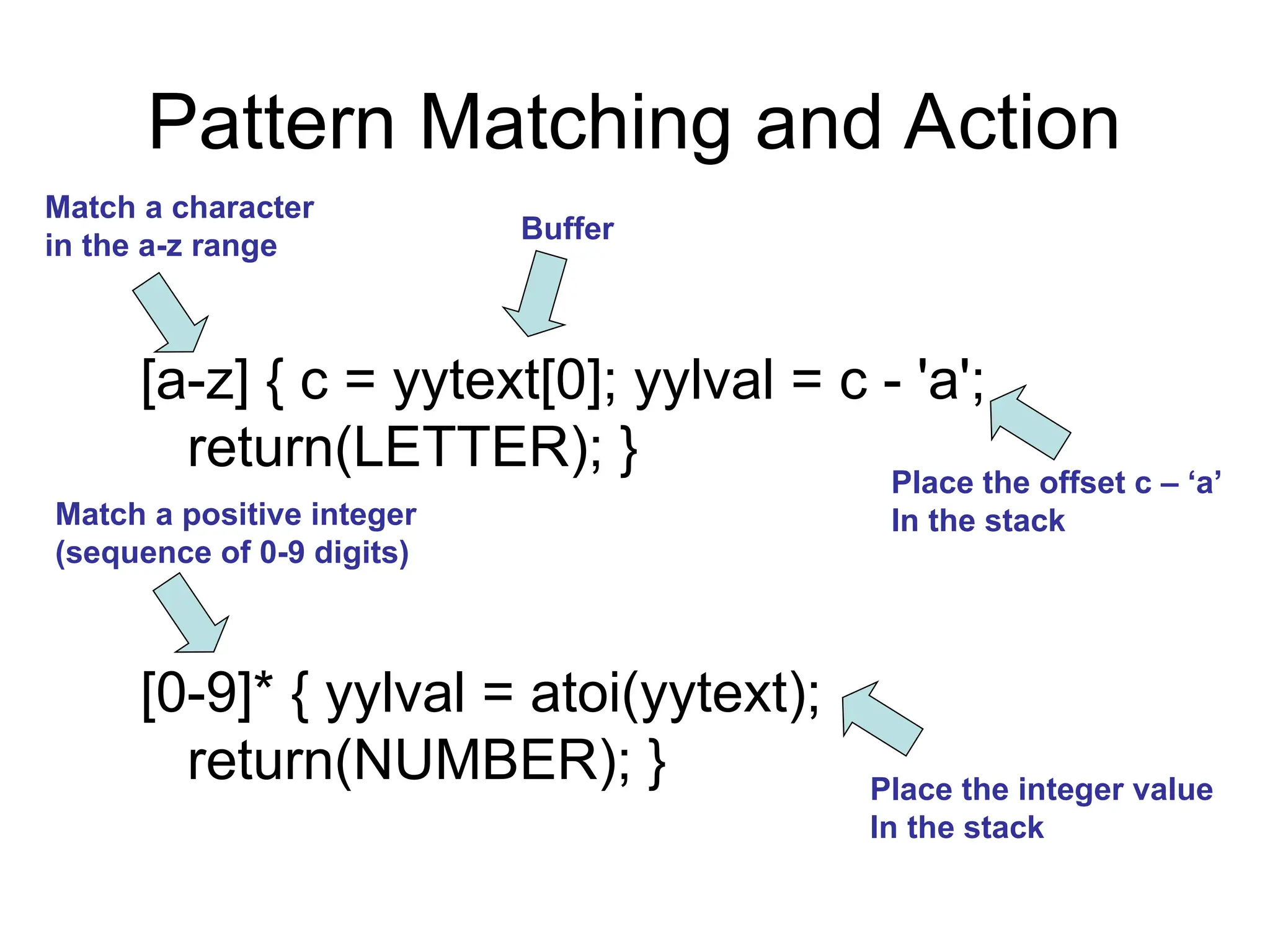

- 10. Pattern Matching andAction [a-z] { c = yytext[0]; yylval = c - 'a'; return(LETTER); } [0-9]* { yylval = atoi(yytext); return(NUMBER); } Match a character in the a-z range Match a positive integer (sequence of 0-9 digits) Place the offset c – ‘a’ In the stack Place the integer value In the stack Buffer

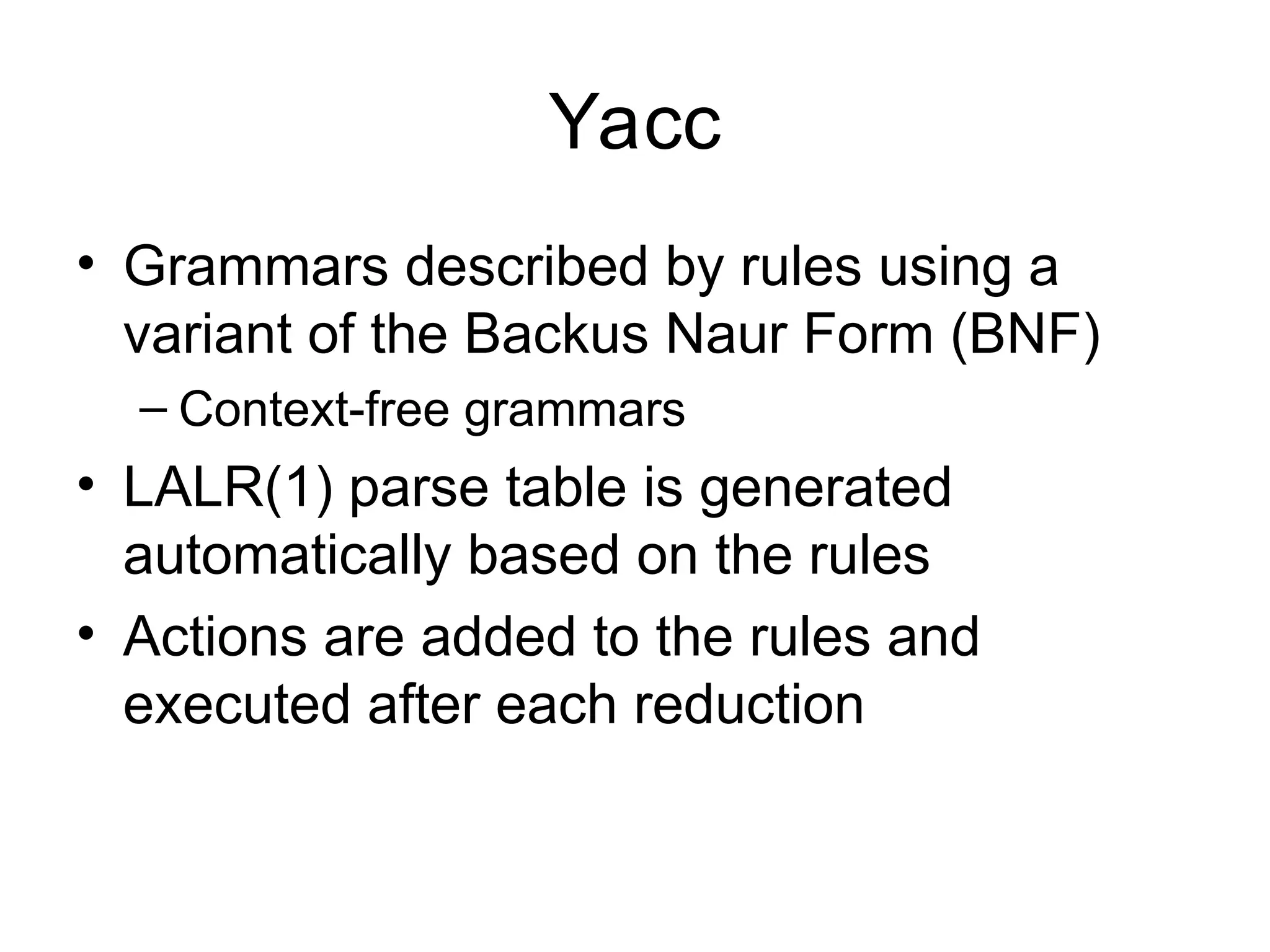

- 11. Yacc • Grammars describedby rules using a variant of the Backus Naur Form (BNF) – Context-free grammars • LALR(1) parse table is generated automatically based on the rules • Actions are added to the rules and executed after each reduction

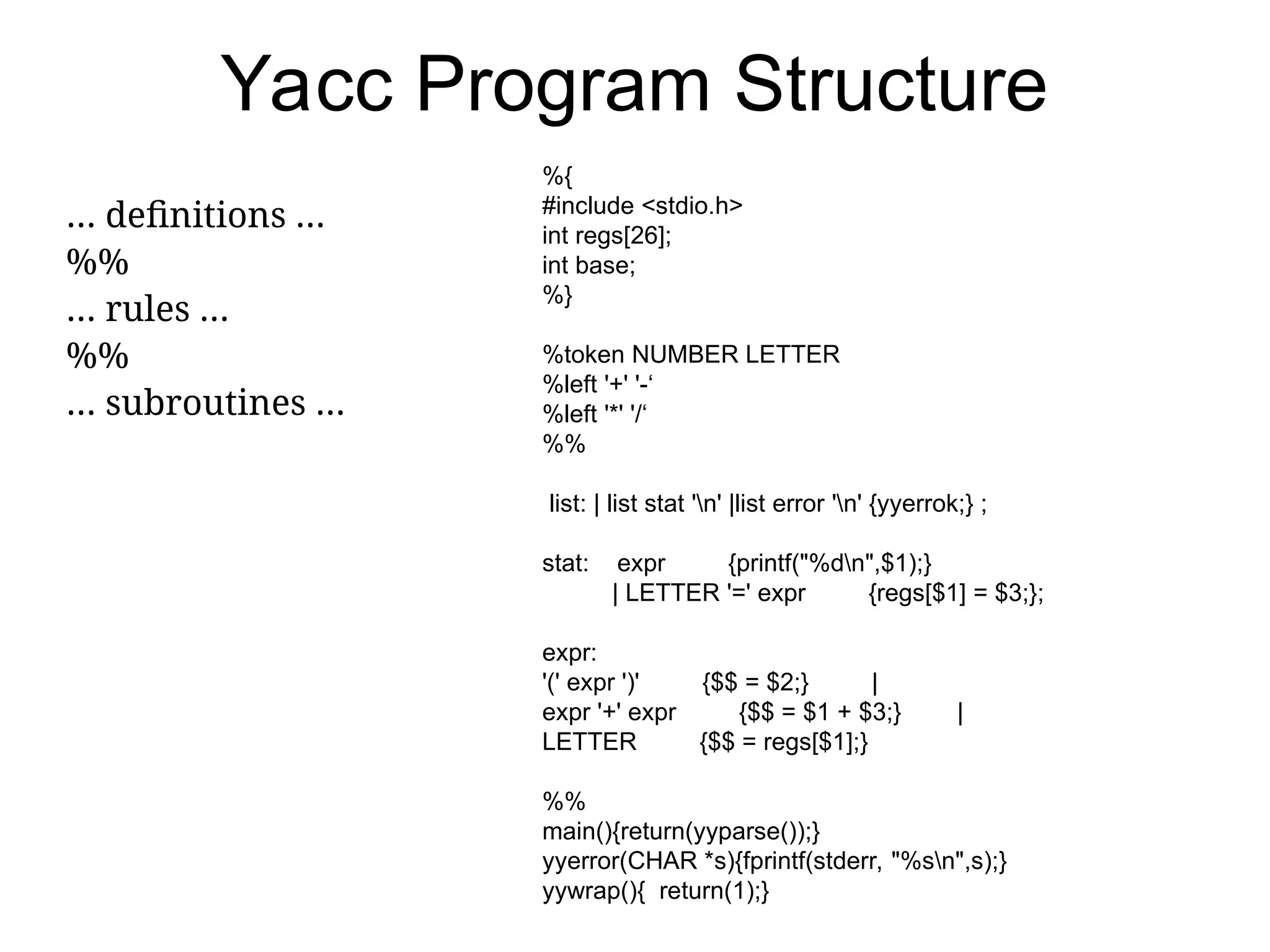

- 12. Yacc Program Structure %{ #include<stdio.h> int regs[26]; int base; %} %token NUMBER LETTER %left '+' '-‘ %left '*' '/‘ %% list: | list stat 'n' |list error 'n' {yyerrok;} ; stat: expr {printf("%dn",$1);} | LETTER '=' expr {regs[$1] = $3;}; expr: '(' expr ')' {$$ = $2;} | expr '+' expr {$$ = $1 + $3;} | LETTER {$$ = regs[$1];} %% main(){return(yyparse());} yyerror(CHAR *s){fprintf(stderr, "%sn",s);} yywrap(){ return(1);} … definitions … %% … rules … %% … subroutines …

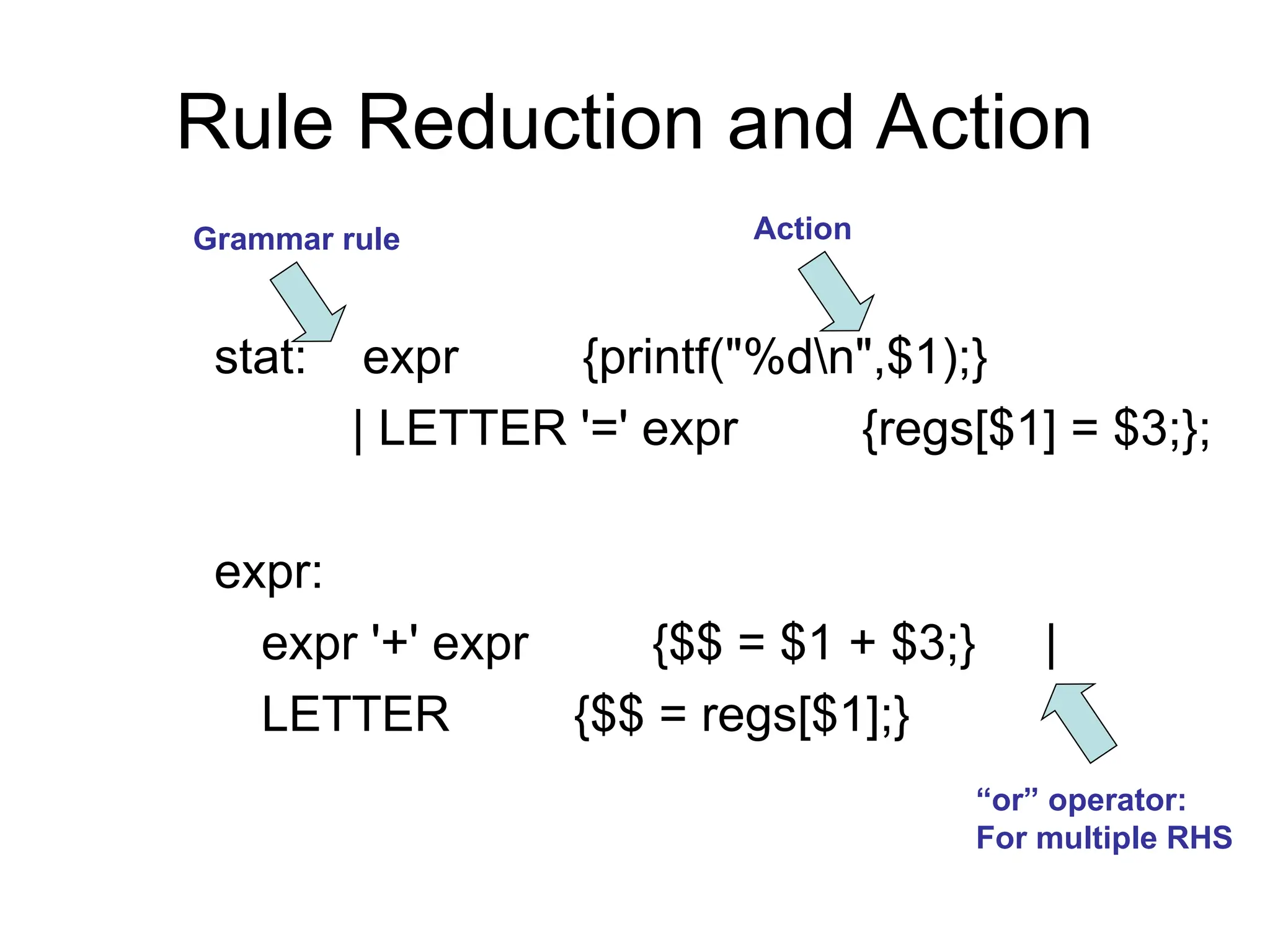

- 13. Rule Reduction andAction stat: expr {printf("%dn",$1);} | LETTER '=' expr {regs[$1] = $3;}; expr: expr '+' expr {$$ = $1 + $3;} | LETTER {$$ = regs[$1];} Grammar rule Action “or” operator: For multiple RHS

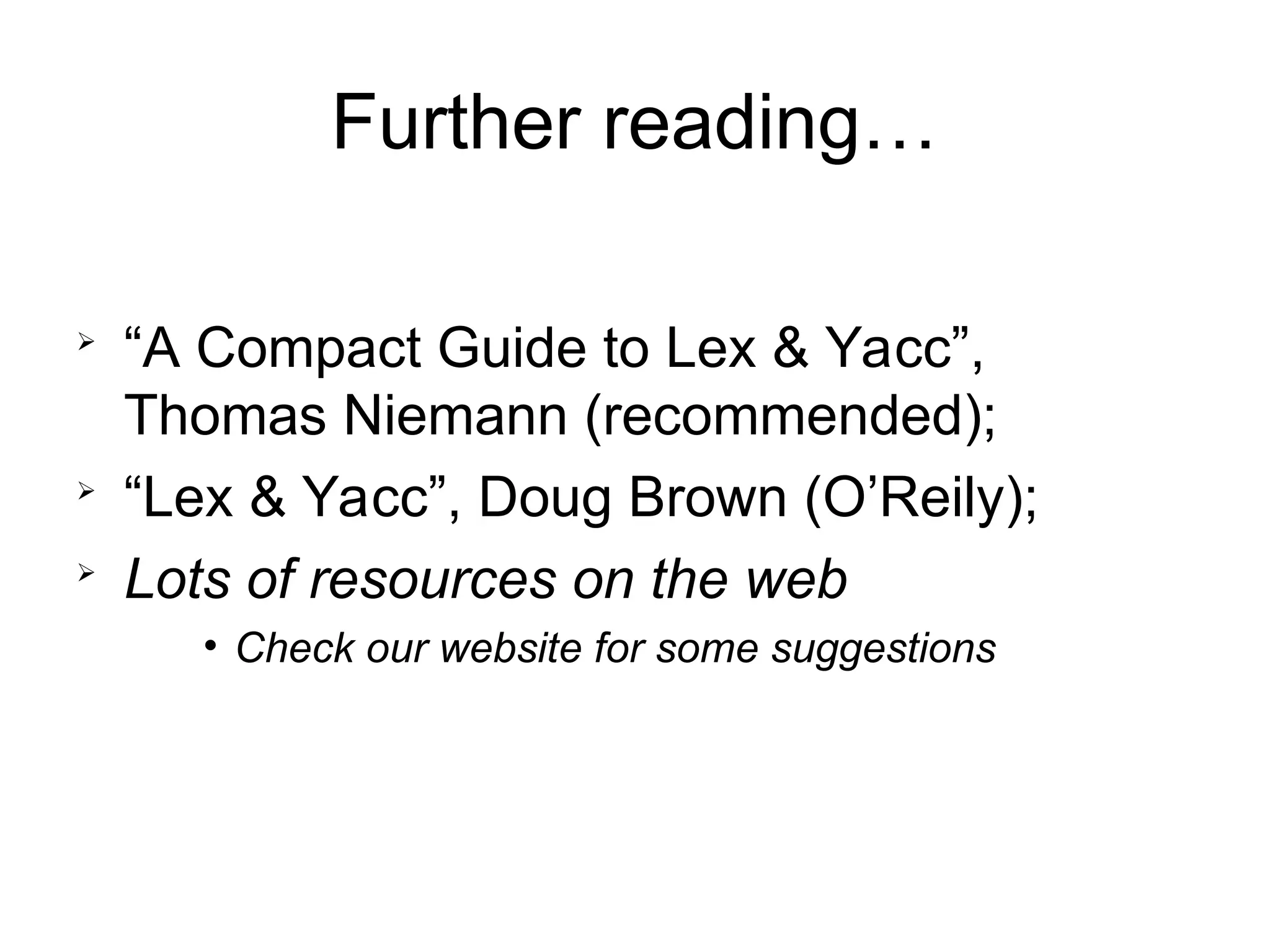

- 14. Further reading… “A CompactGuide to Lex & Yacc”, Thomas Niemann (recommended); “Lex & Yacc”, Doug Brown (O’Reily); Lots of resources on the web • Check our website for some suggestions

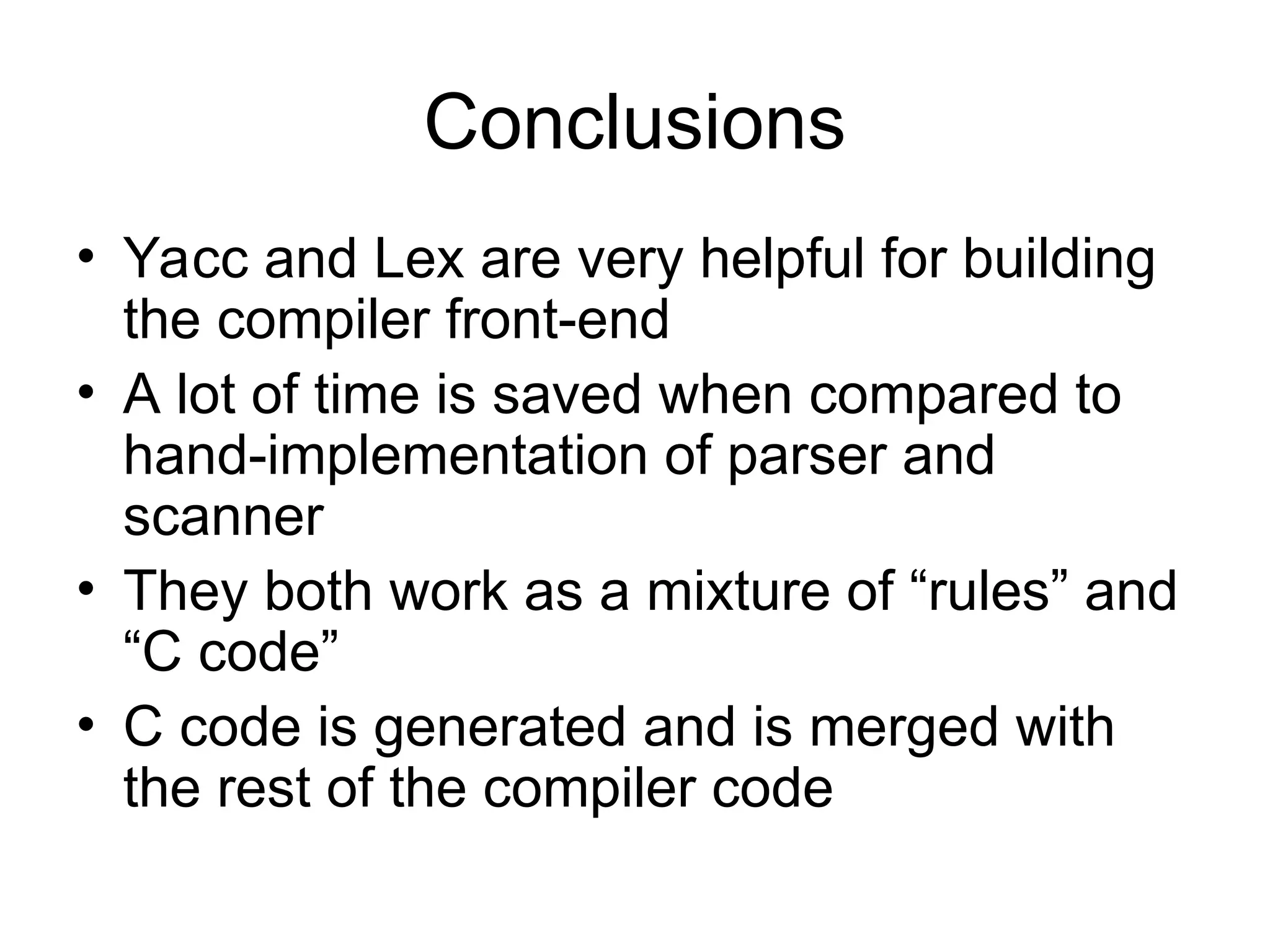

- 15. Conclusions • Yacc andLex are very helpful for building the compiler front-end • A lot of time is saved when compared to hand-implementation of parser and scanner • They both work as a mixture of “rules” and “C code” • C code is generated and is merged with the rest of the compiler code
