Linguagens e Tecnologias Web CSS Fundamentals: Selectors and Properties IMP.GE.87.0 Licenciatura em Informática 2º Ano, 1º Semestre Licenciatura em Tecnologias e Sistemas de Informação 3º Ano, 1º Semestre

Agenda CSS – Cascading Style Sheets CSS Rules CSS Selectors Inheritance & Cascade 2

CSS Cascading Style Sheets 3 Img src: http://blog.formstack.com

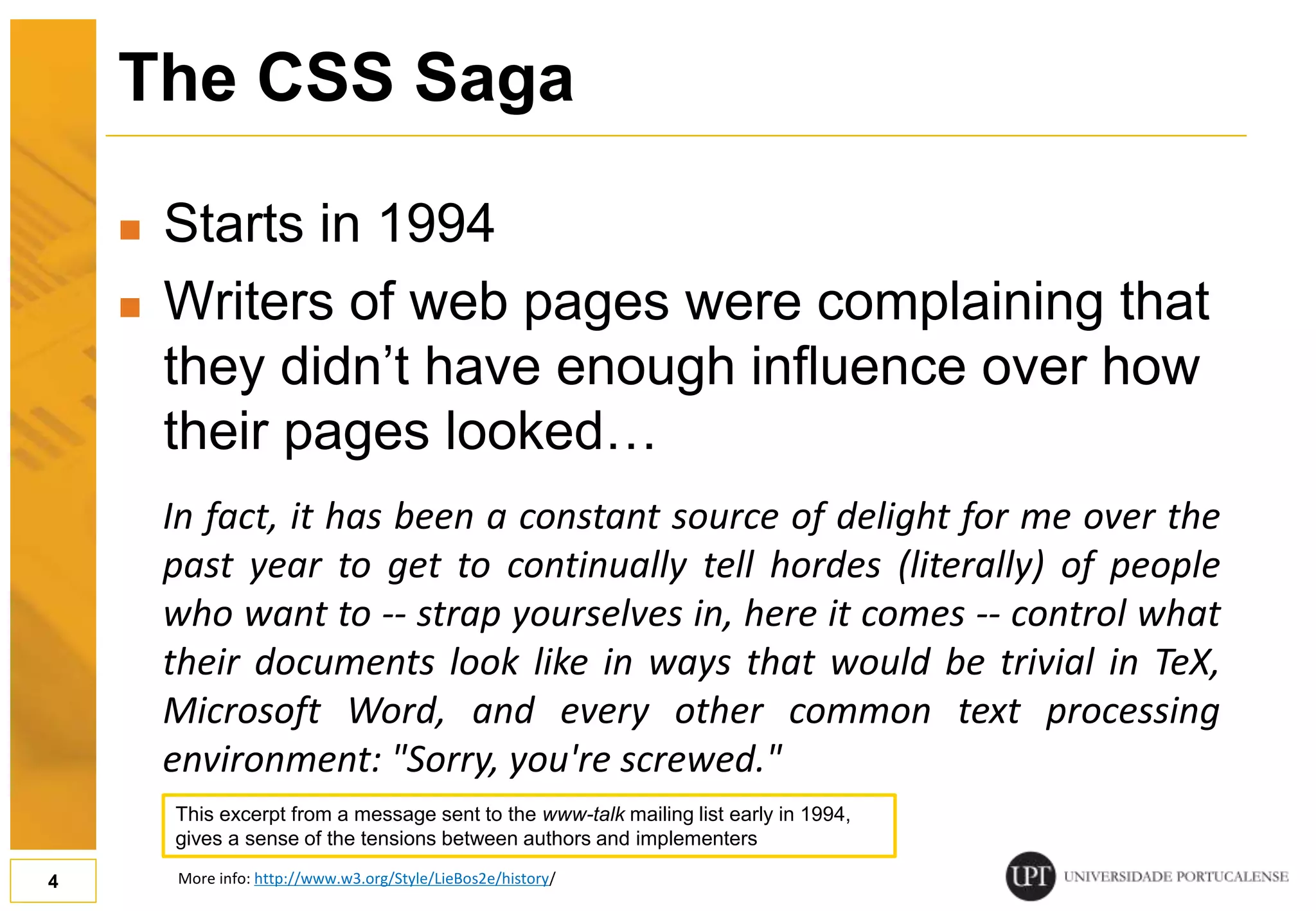

The CSS Saga  Starts in 1994  Writers of web pages were complaining that they didn’t have enough influence over how their pages looked… 4 In fact, it has been a constant source of delight for me over the past year to get to continually tell hordes (literally) of people who want to -- strap yourselves in, here it comes -- control what their documents look like in ways that would be trivial in TeX, Microsoft Word, and every other common text processing environment: "Sorry, you're screwed." This excerpt from a message sent to the www-talk mailing list early in 1994, gives a sense of the tensions between authors and implementers More info: http://www.w3.org/Style/LieBos2e/history/

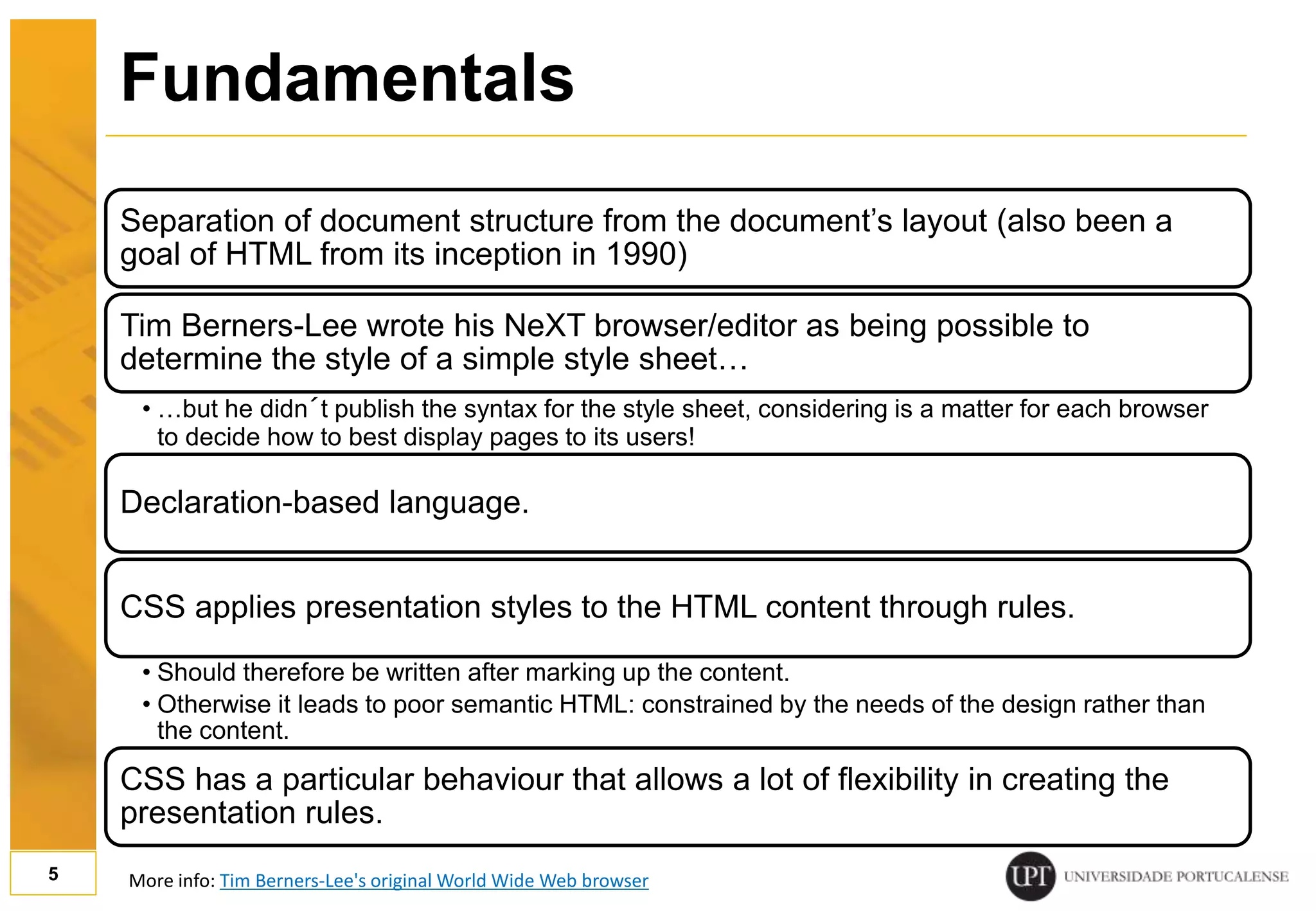

Fundamentals Separation of document structure from the document’s layout (also been a goal of HTML from its inception in 1990) Tim Berners-Lee wrote his NeXT browser/editor as being possible to determine the style of a simple style sheet… • …but he didn´t publish the syntax for the style sheet, considering is a matter for each browser to decide how to best display pages to its users! Declaration-based language. CSS applies presentation styles to the HTML content through rules. • Should therefore be written after marking up the content. • Otherwise it leads to poor semantic HTML: constrained by the needs of the design rather than the content. CSS has a particular behaviour that allows a lot of flexibility in creating the presentation rules. 5 More info: Tim Berners-Lee's original World Wide Web browser

Format  Textual  Pure CSS files have the .css extension.  The server sends CSS content with the text/css MIME-TYPE.  A page can have many CSS styles in many CSS files.  Comments can be added with: /* this is a CSS comment */ 6 http://www.w3schools.com/css/css_syntax.asp http://www.w3.org/TR/css-syntax-3/ https://developer.mozilla.org/en-US/docs/Web/CSS/Syntax

CSS3 Resources  Tutorials: http://docs.webplatform.org/wiki/css/tutorials http://www.css3maker.com/ http://dev.opera.com/ …more in the course’s website  Tools: http://jigsaw.w3.org/css-validator/ http://www.cleancss.com/ 7 Once again: there are no editors in the written tests!

 External file<link> Recommended solution. Best in nearly all situations.  Inside the <style> element For prototyping and rapid development in classes.  Inline in each element Should be avoided at all costs. 8 How to use CSS? Final Project You must use external files More info: Why Use CSS in Website Design

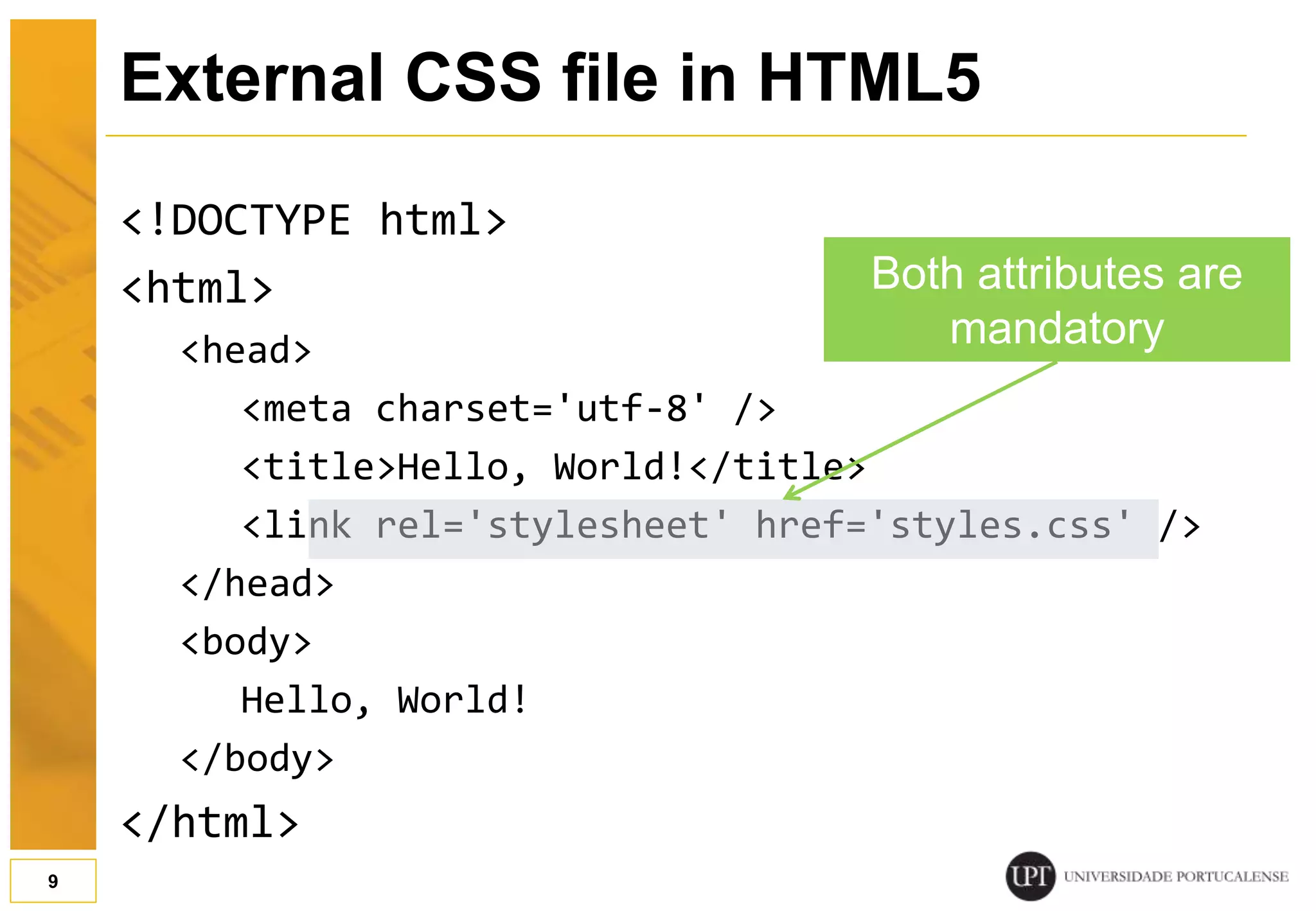

External CSS file in HTML5 <!DOCTYPE html> <html> <head> <meta charset='utf-8' /> <title>Hello, World!</title> <link rel='stylesheet' href='styles.css' /> </head> <body> Hello, World! </body> </html> 9 Both attributes are mandatory

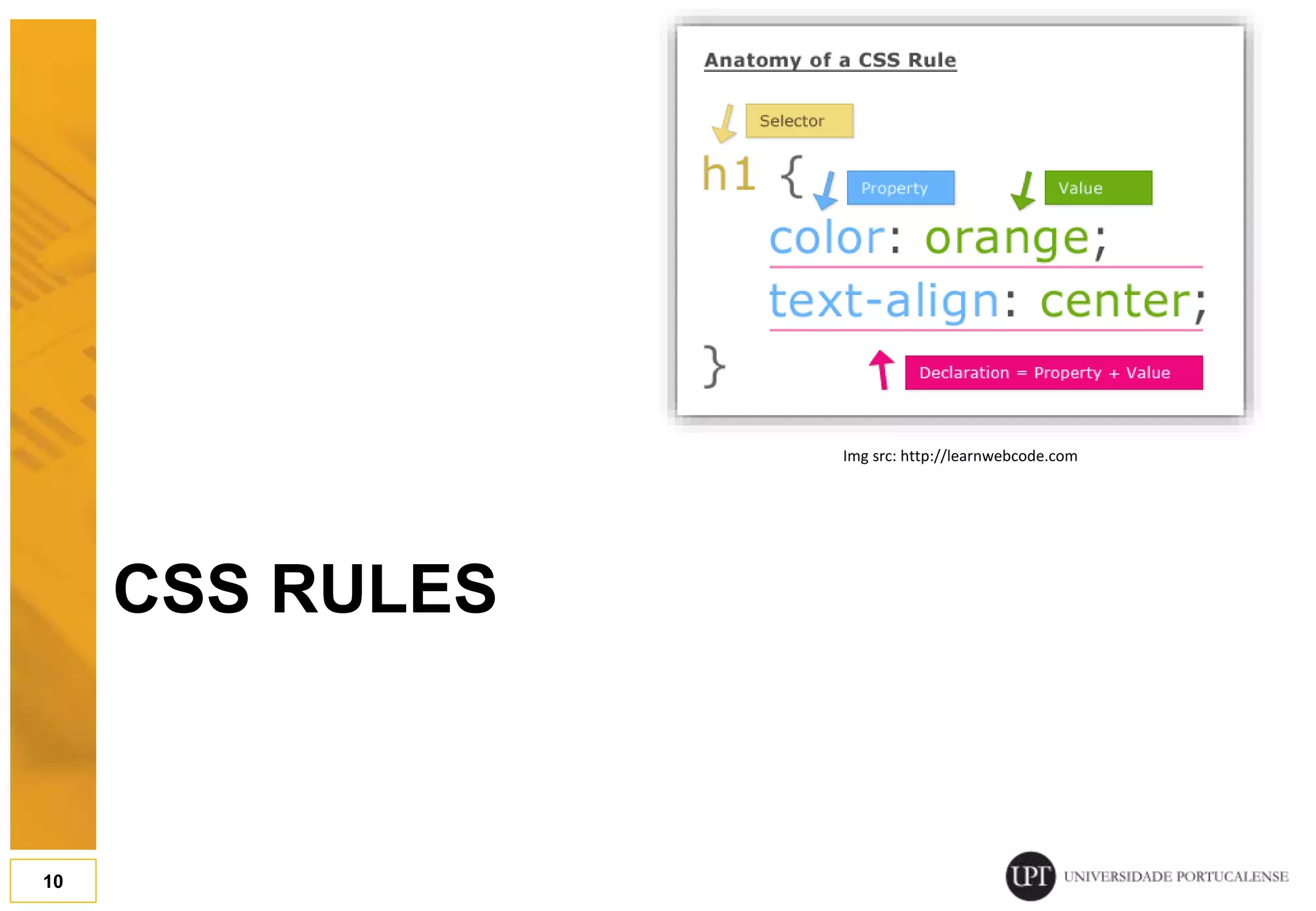

CSS RULES 10 Img src: http://learnwebcode.com

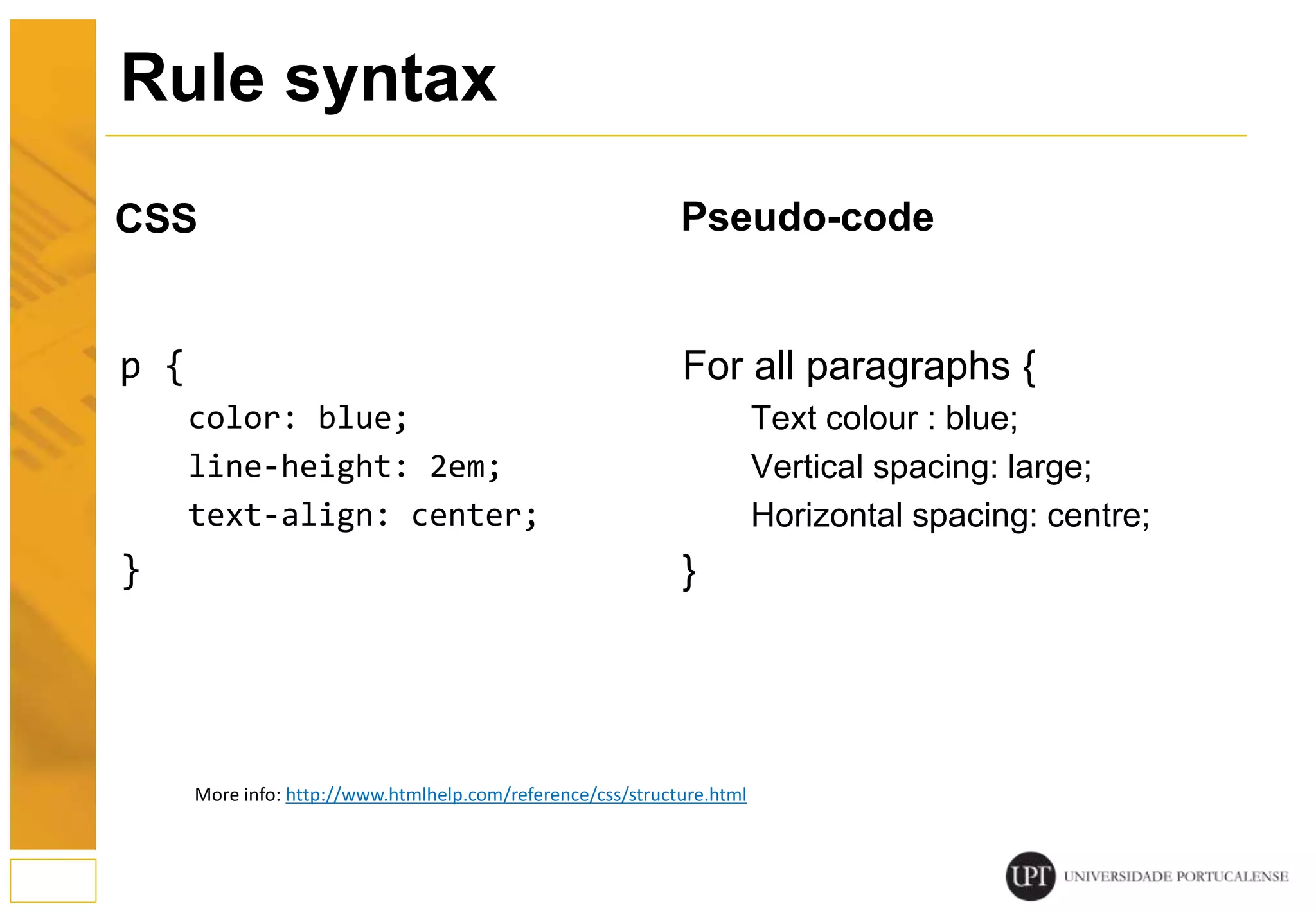

Pseudo-code p { color: blue; line-height: 2em; text-align: center; } CSS For all paragraphs { Text colour : blue; Vertical spacing: large; Horizontal spacing: centre; } 11 Rule syntax More info: http://www.htmlhelp.com/reference/css/structure.html

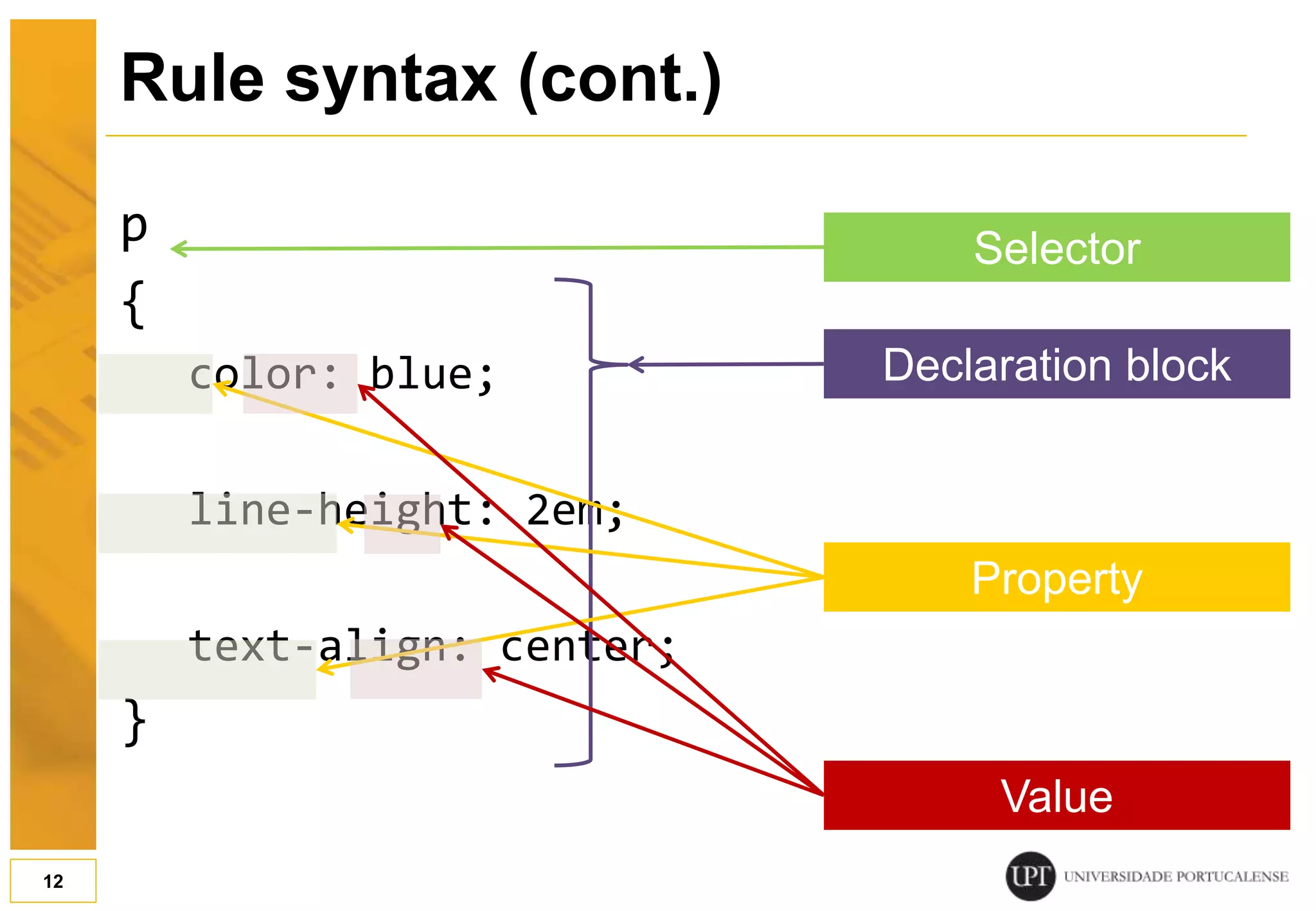

Rule syntax (cont.) p { color: blue; line-height: 2em; text-align: center; } 12 Selector Declaration block Property Value

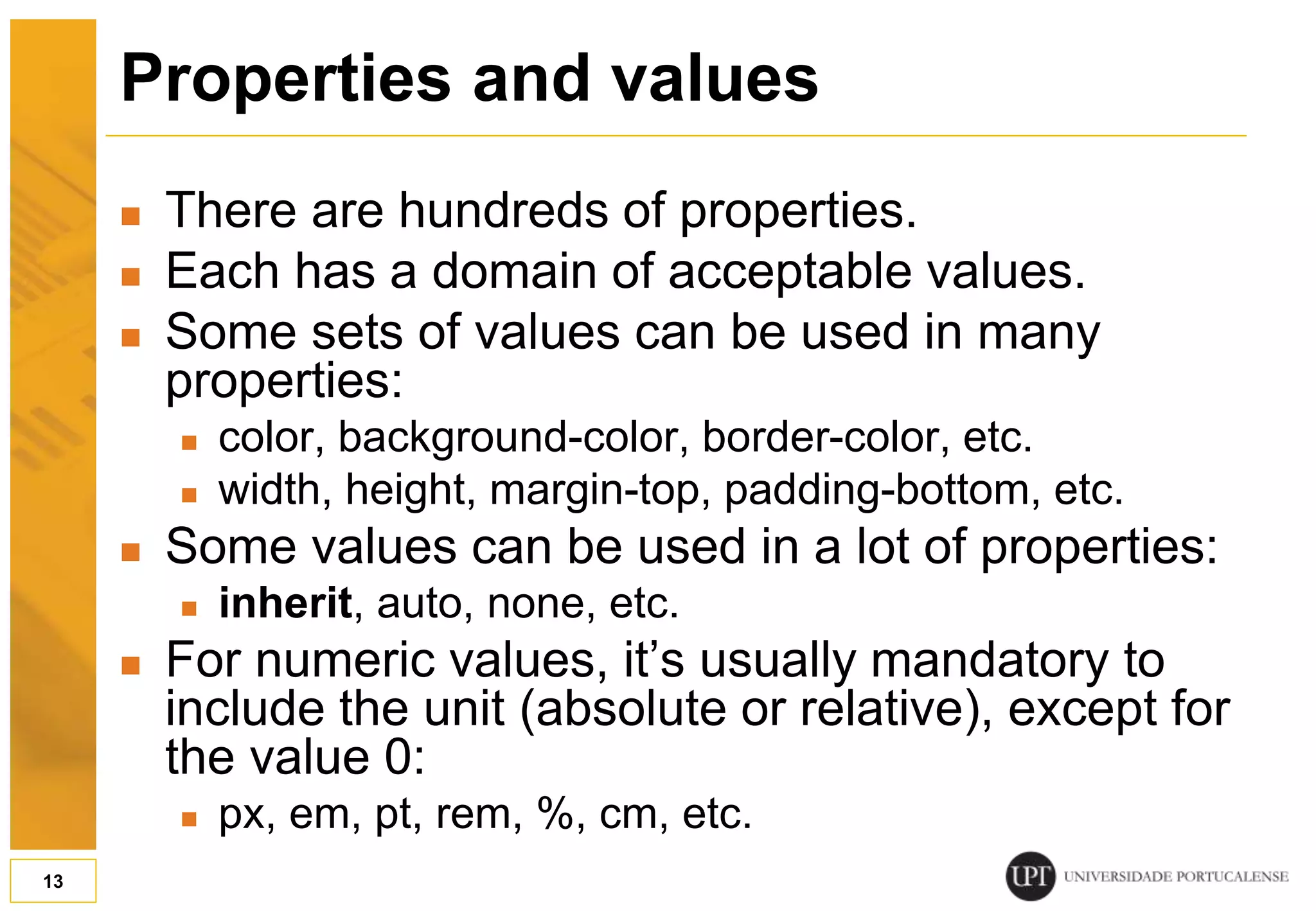

Properties and values  There are hundreds of properties.  Each has a domain of acceptable values.  Some sets of values can be used in many properties:  color, background-color, border-color, etc.  width, height, margin-top, padding-bottom, etc.  Some values can be used in a lot of properties:  inherit, auto, none, etc.  For numeric values, it’s usually mandatory to include the unit (absolute or relative), except for the value 0:  px, em, pt, rem, %, cm, etc. 13

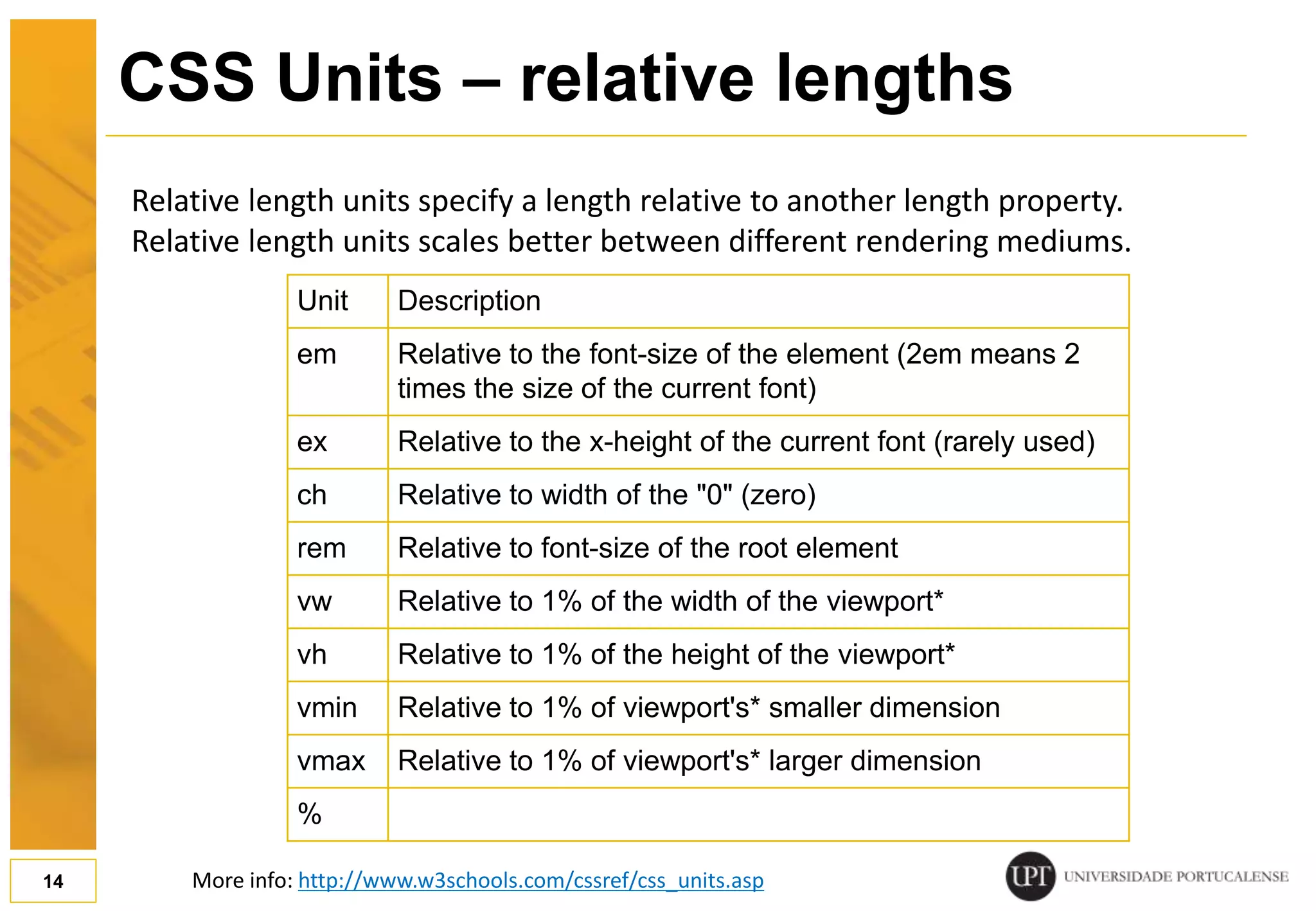

CSS Units – relative lengths Unit Description em Relative to the font-size of the element (2em means 2 times the size of the current font) ex Relative to the x-height of the current font (rarely used) ch Relative to width of the "0" (zero) rem Relative to font-size of the root element vw Relative to 1% of the width of the viewport* vh Relative to 1% of the height of the viewport* vmin Relative to 1% of viewport's* smaller dimension vmax Relative to 1% of viewport's* larger dimension % 14 Relative length units specify a length relative to another length property. Relative length units scales better between different rendering mediums. More info: http://www.w3schools.com/cssref/css_units.asp

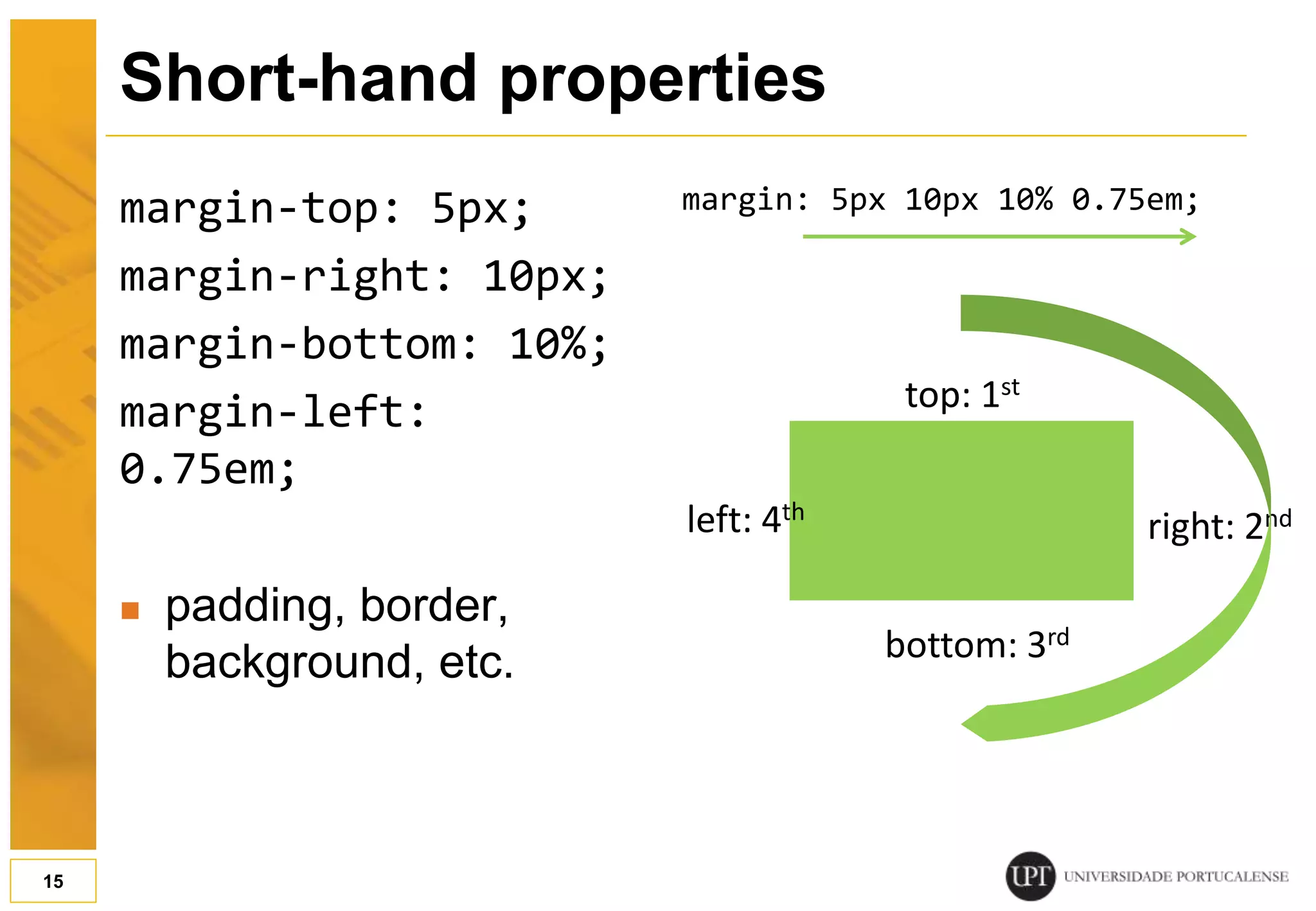

margin-top: 5px; margin-right: 10px; margin-bottom: 10%; margin-left: 0.75em;  padding, border, background, etc. margin: 5px 10px 10% 0.75em; 15 Short-hand properties top: 1st right: 2nd bottom: 3rd left: 4th

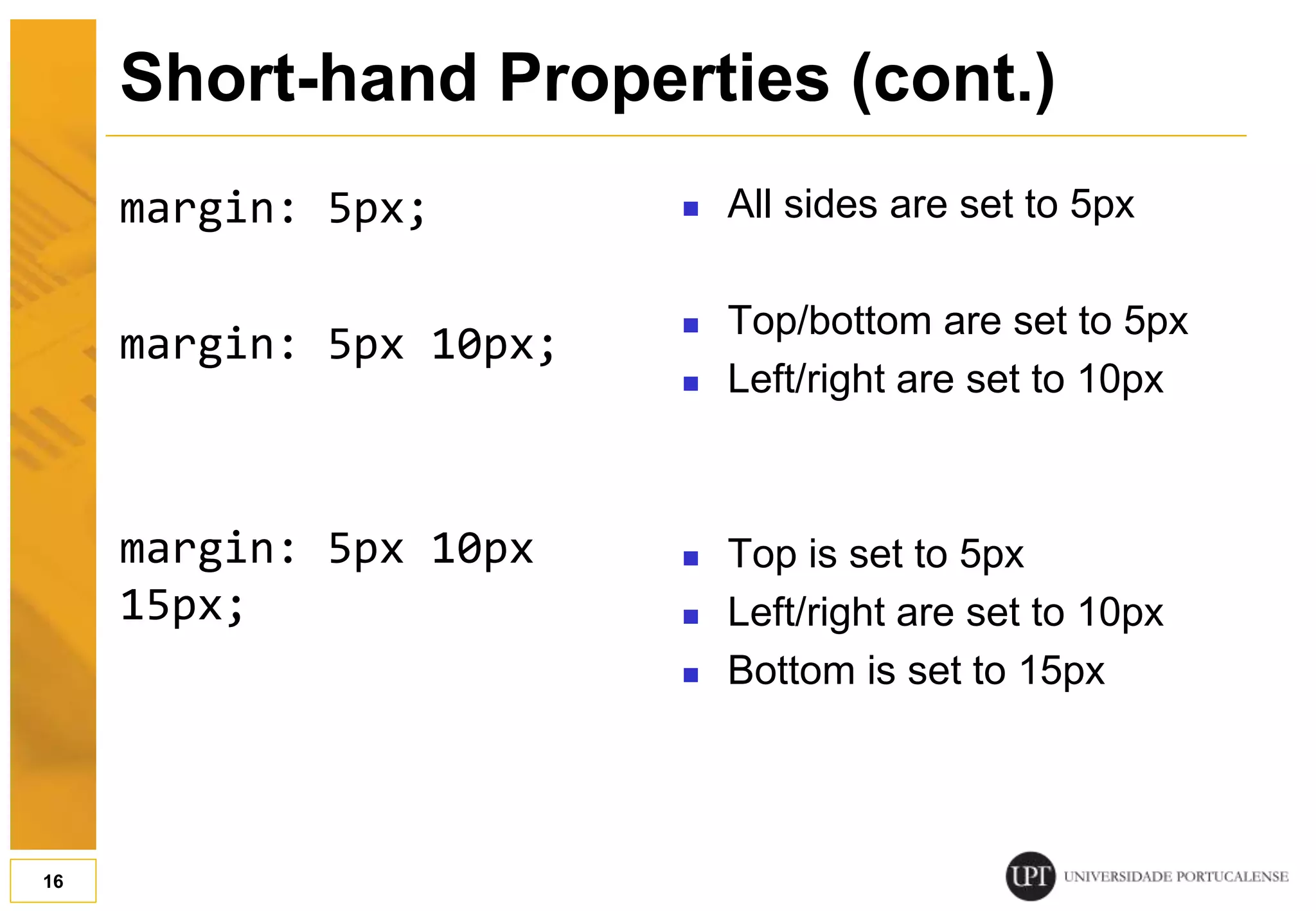

margin: 5px; margin: 5px 10px; margin: 5px 10px 15px;  All sides are set to 5px  Top/bottom are set to 5px  Left/right are set to 10px  Top is set to 5px  Left/right are set to 10px  Bottom is set to 15px 16 Short-hand Properties (cont.)

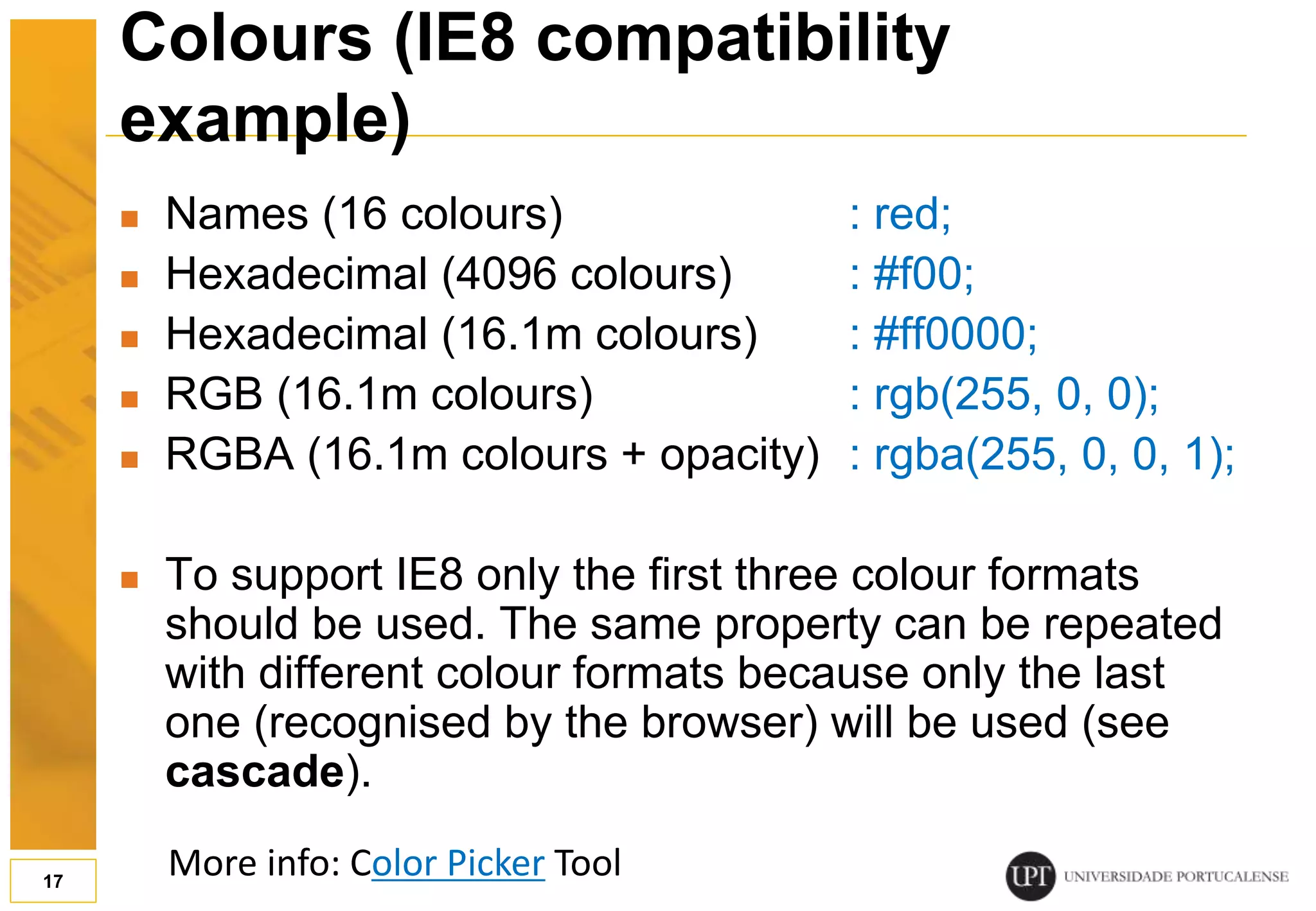

Colours (IE8 compatibility example)  Names (16 colours) : red;  Hexadecimal (4096 colours) : #f00;  Hexadecimal (16.1m colours) : #ff0000;  RGB (16.1m colours) : rgb(255, 0, 0);  RGBA (16.1m colours + opacity) : rgba(255, 0, 0, 1);  To support IE8 only the first three colour formats should be used. The same property can be repeated with different colour formats because only the last one (recognised by the browser) will be used (see cascade). 17 More info: Color Picker Tool

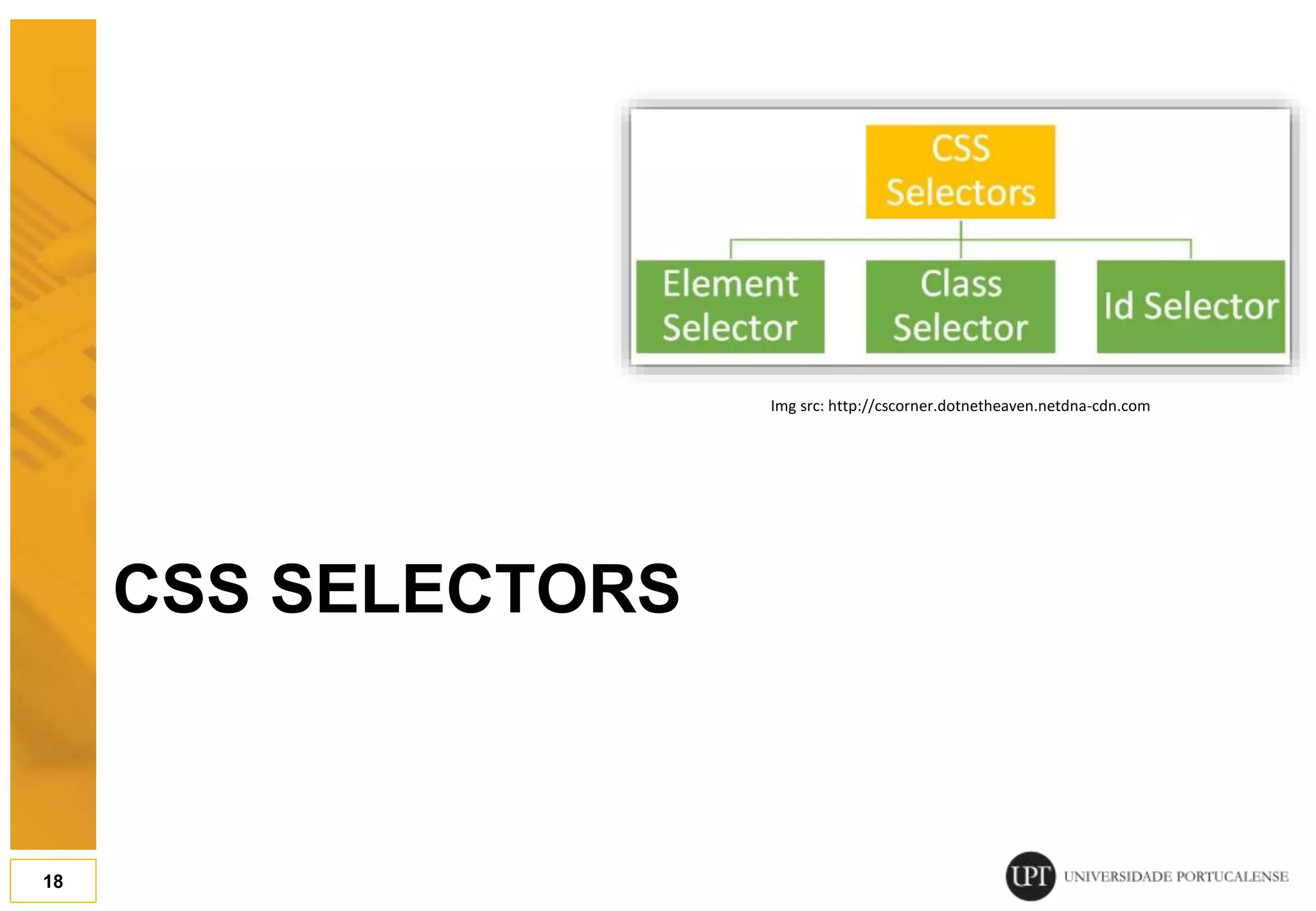

CSS SELECTORS 18 Img src: http://cscorner.dotnetheaven.netdna-cdn.com

 ELEMENT: Using only HTML elements.  CLASS: Using special names given to the class attribute of HTML elements.  ID: Using unique identifiers given to the id attribute of a single element. p { … } h2 { … } input { … } .special { … } .example { … } #hero { … } #user { … } 19 Types

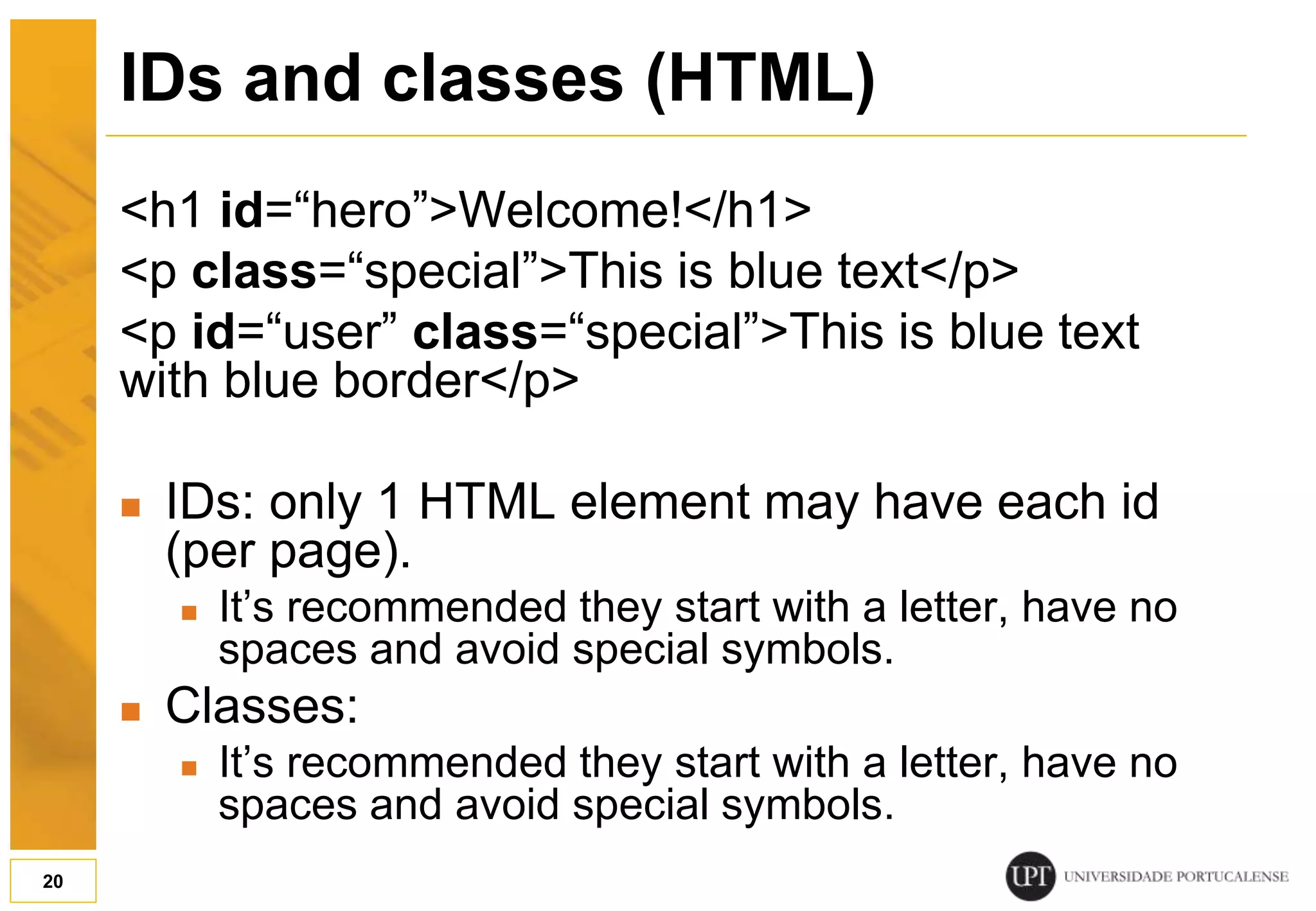

IDs and classes (HTML) <h1 id=“hero”>Welcome!</h1> <p class=“special”>This is blue text</p> <p id=“user” class=“special”>This is blue text with blue border</p>  IDs: only 1 HTML element may have each id (per page).  It’s recommended they start with a letter, have no spaces and avoid special symbols.  Classes:  It’s recommended they start with a letter, have no spaces and avoid special symbols. 20

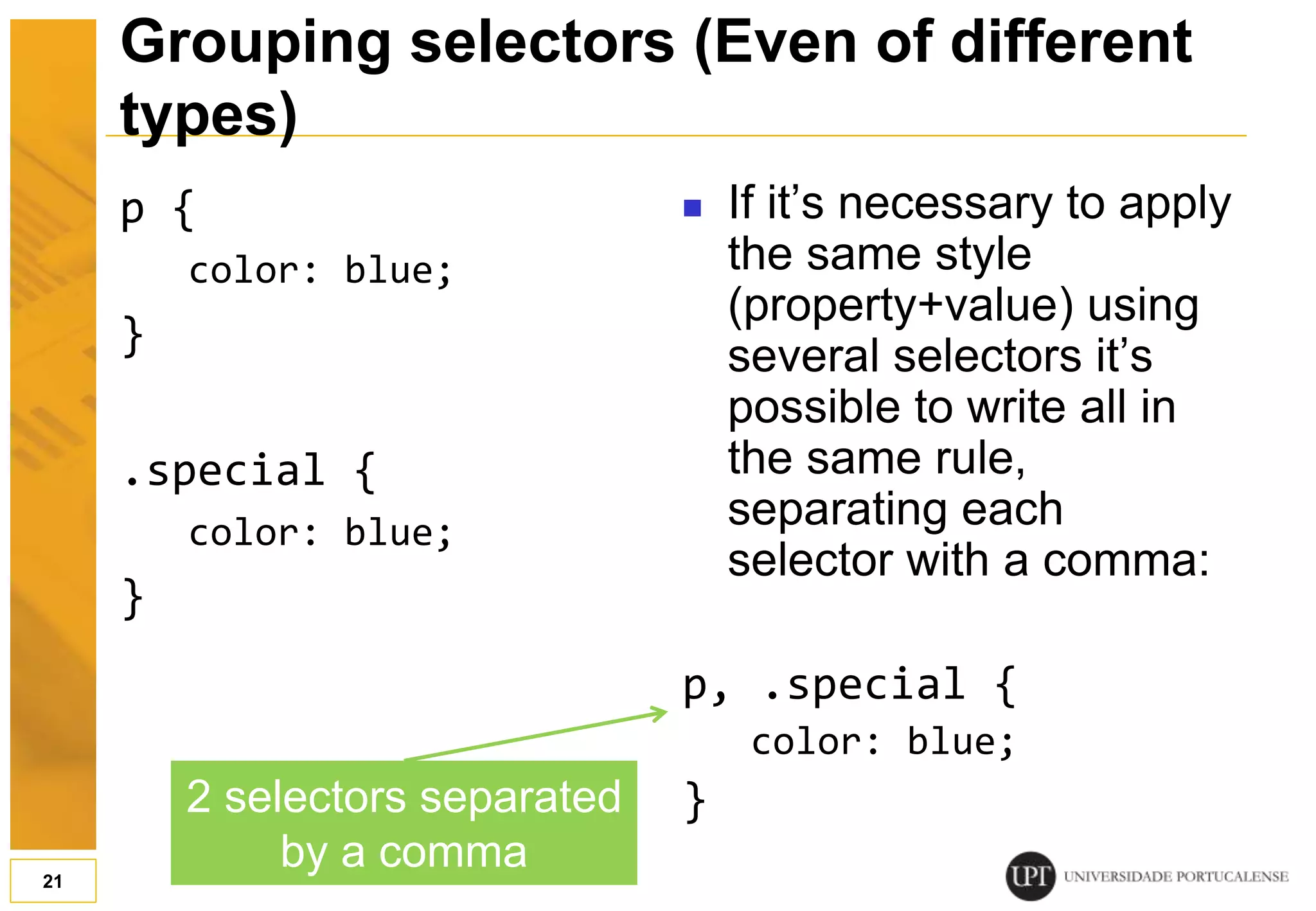

p { color: blue; } .special { color: blue; }  If it’s necessary to apply the same style (property+value) using several selectors it’s possible to write all in the same rule, separating each selector with a comma: p, .special { color: blue; } 21 Grouping selectors (Even of different types) 2 selectors separated by a comma

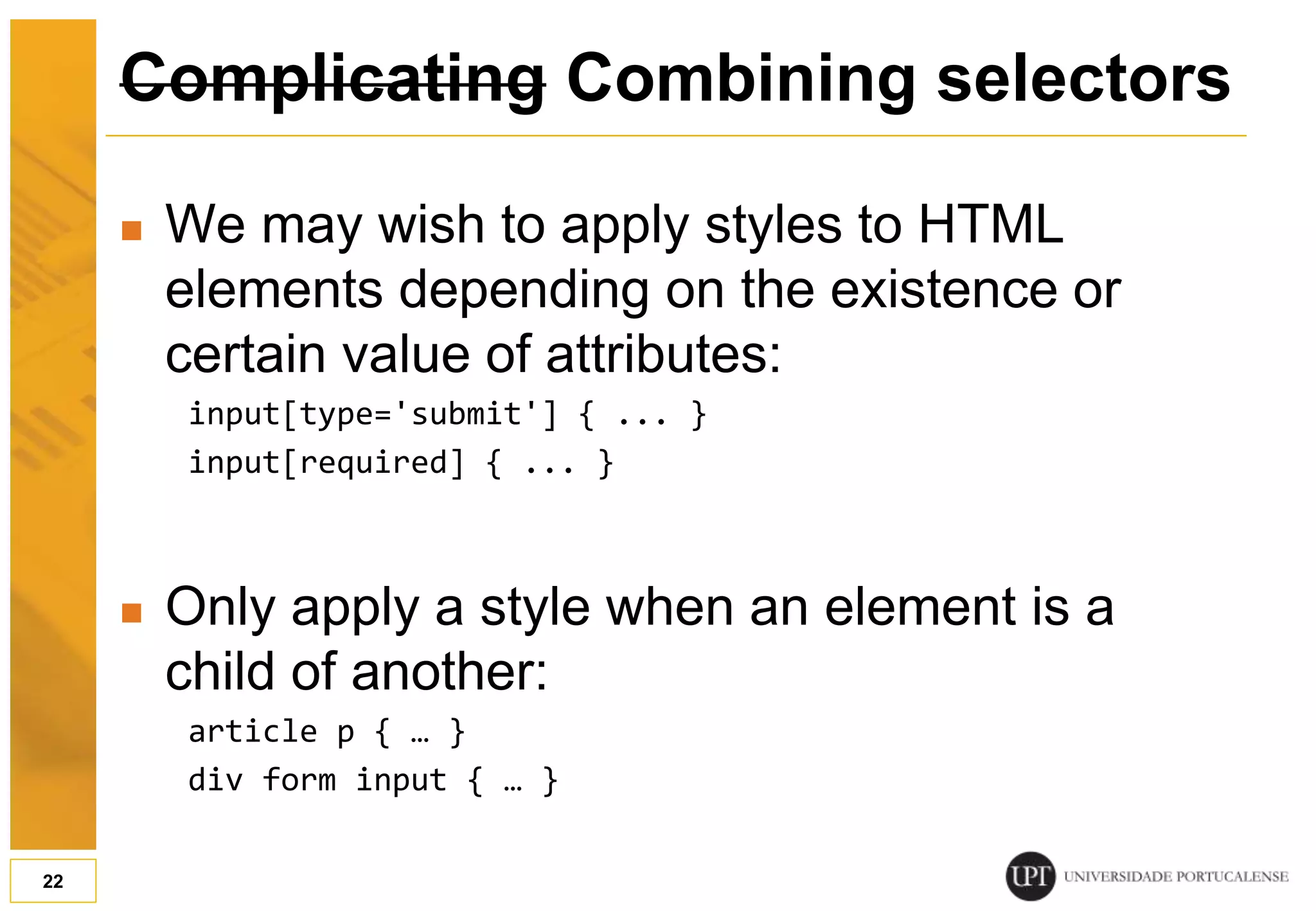

Complicating Combining selectors  We may wish to apply styles to HTML elements depending on the existence or certain value of attributes: input[type='submit'] { ... } input[required] { ... }  Only apply a style when an element is a child of another: article p { … } div form input { … } 22

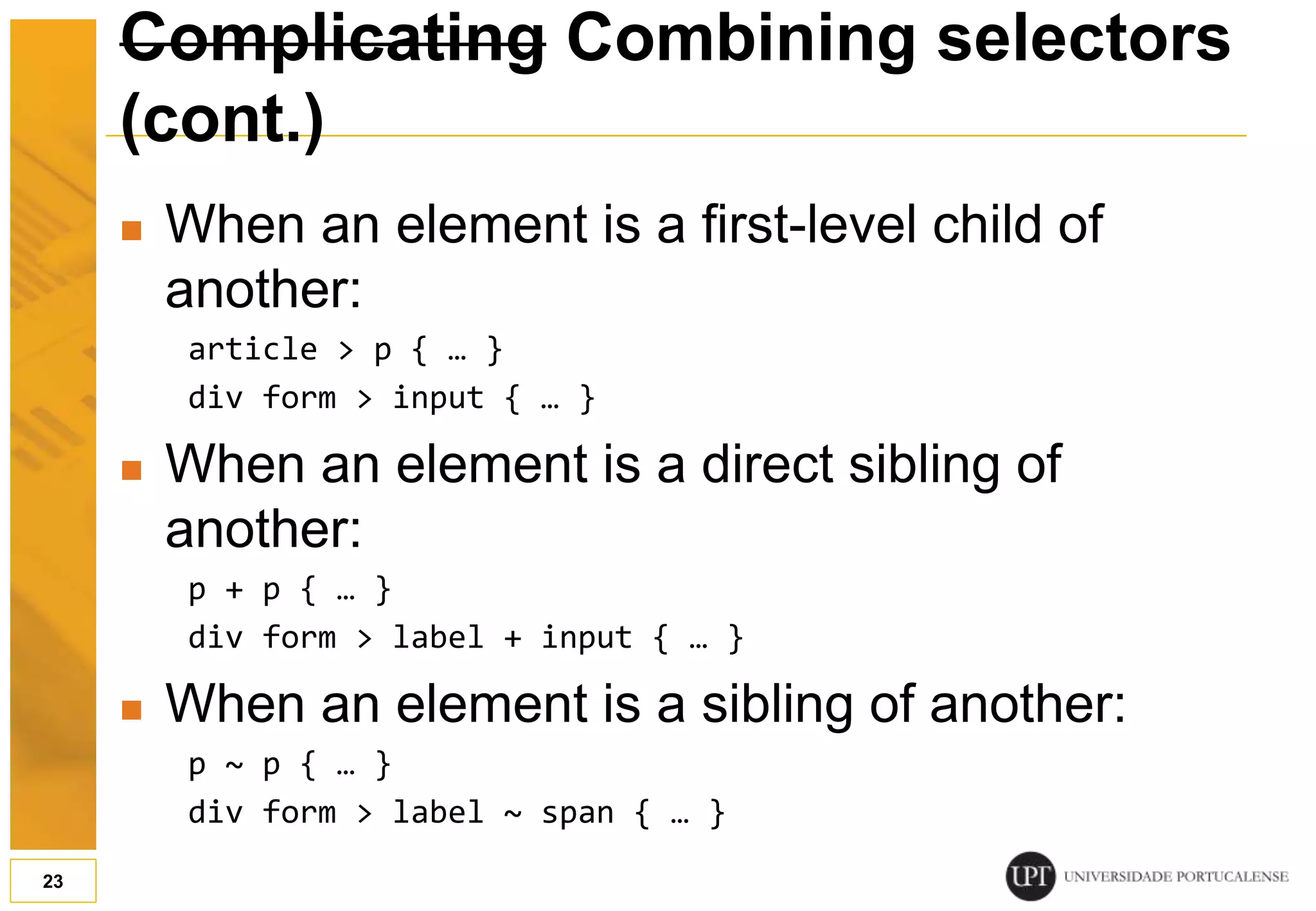

Complicating Combining selectors (cont.)  When an element is a first-level child of another: article > p { … } div form > input { … }  When an element is a direct sibling of another: p + p { … } div form > label + input { … }  When an element is a sibling of another: p ~ p { … } div form > label ~ span { … } 23

Complicating Combining selectors (cont.)  When an HTML element has a specific class or id: a#user { … } div.special { … }  When an HTML element with a specific class has a certain attribute and it’s a first- level child of another element which has a specific id: #user > .special[required] { … } 24

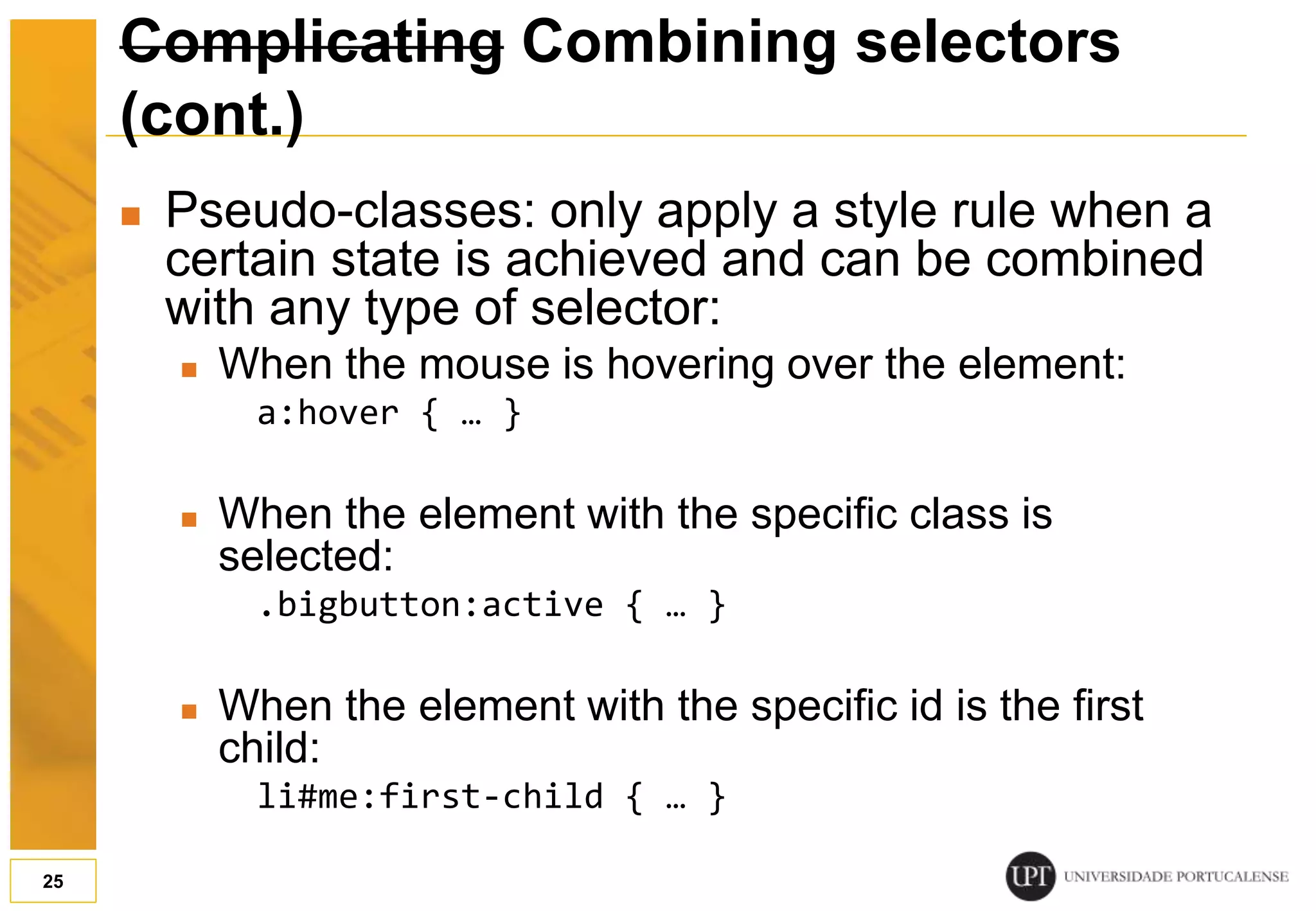

Complicating Combining selectors (cont.)  Pseudo-classes: only apply a style rule when a certain state is achieved and can be combined with any type of selector:  When the mouse is hovering over the element: a:hover { … }  When the element with the specific class is selected: .bigbutton:active { … }  When the element with the specific id is the first child: li#me:first-child { … } 25

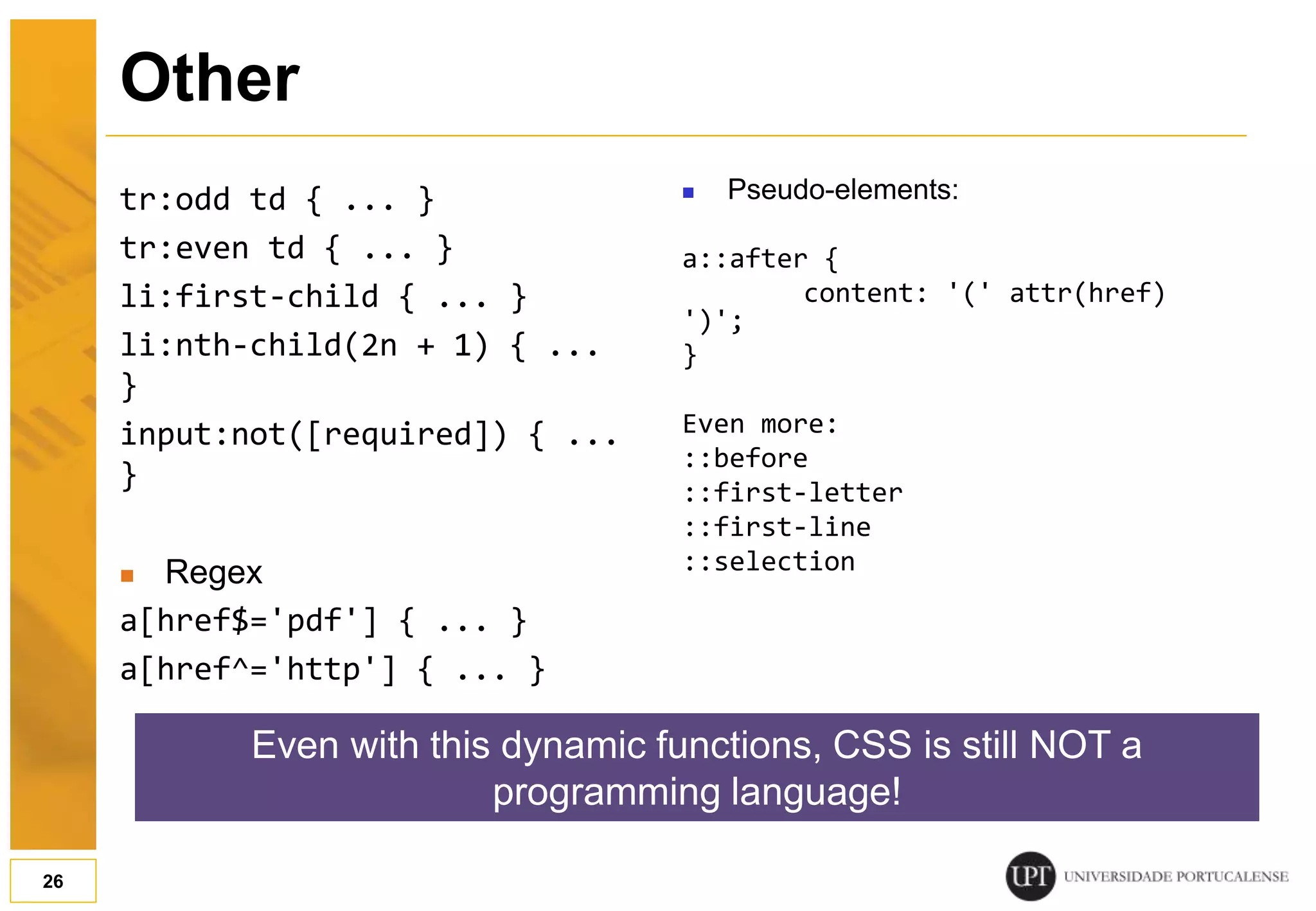

tr:odd td { ... } tr:even td { ... } li:first-child { ... } li:nth-child(2n + 1) { ... } input:not([required]) { ... }  Regex a[href$='pdf'] { ... } a[href^='http'] { ... }  Pseudo-elements: a::after { content: '(' attr(href) ')'; } Even more: ::before ::first-letter ::first-line ::selection 26 Other Even with this dynamic functions, CSS is still NOT a programming language!

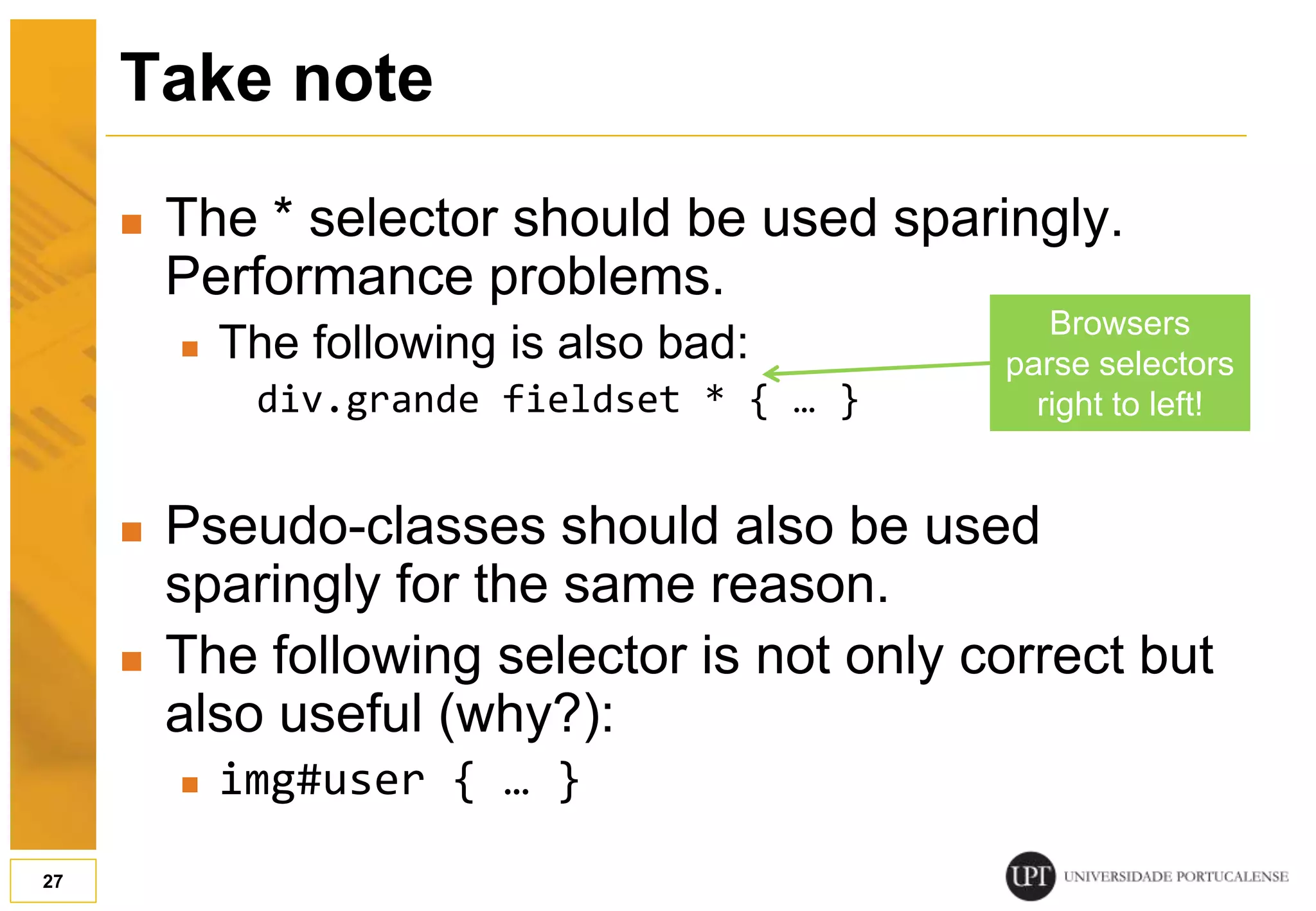

Take note  The * selector should be used sparingly. Performance problems.  The following is also bad: div.grande fieldset * { … }  Pseudo-classes should also be used sparingly for the same reason.  The following selector is not only correct but also useful (why?):  img#user { … } 27 Browsers parse selectors right to left!

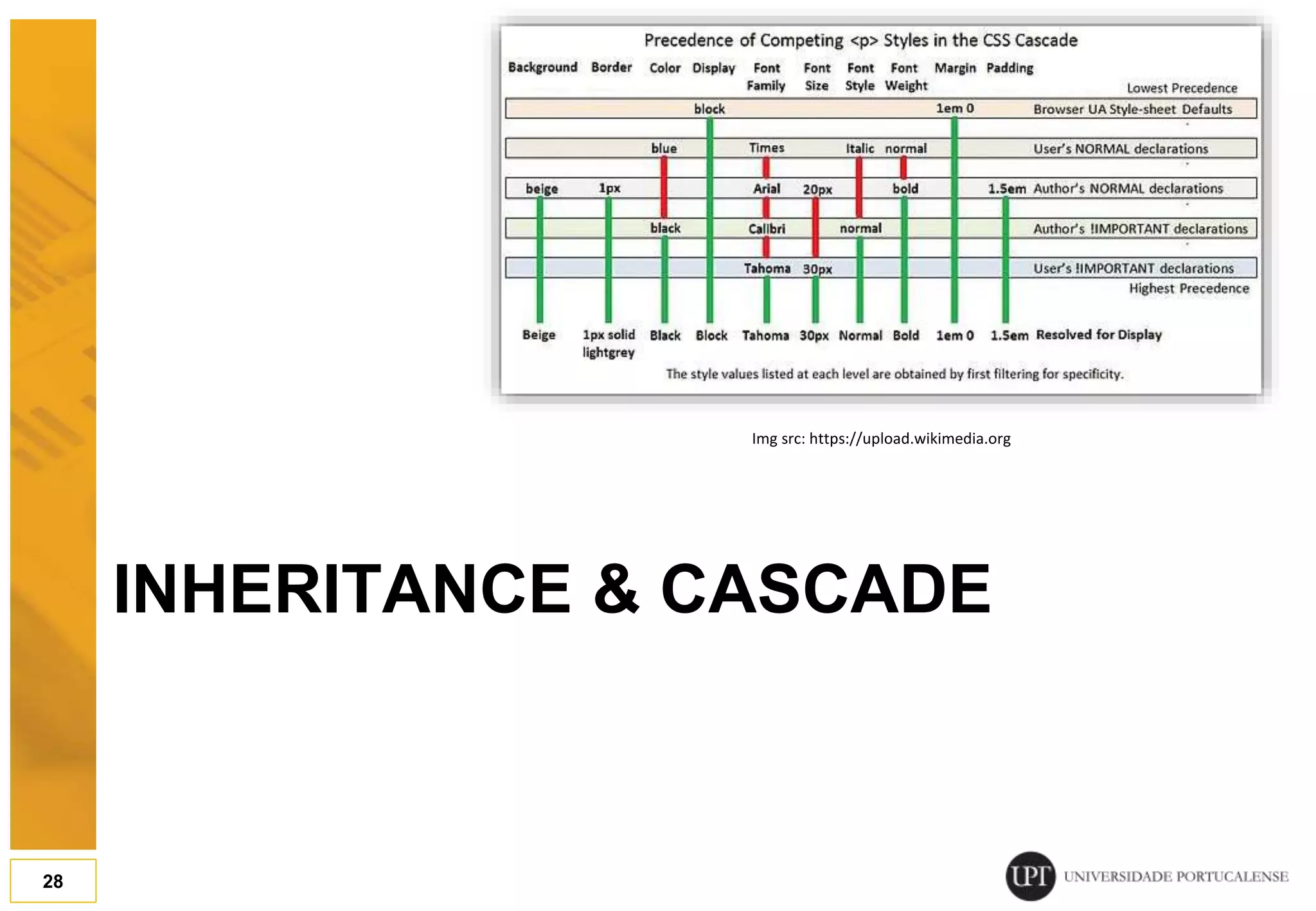

INHERITANCE & CASCADE 28 Img src: https://upload.wikimedia.org

Inheritance  In HTML elements are represented as as tree. The CSS styles of an element are, in most cases, inherited by its children.  This means that: <p>Hello <em>World</em>!</p> p { color: blue; }  Even the World word will be presented in blue, because the EM element is a child of the P element and the colour property in inherited. 29

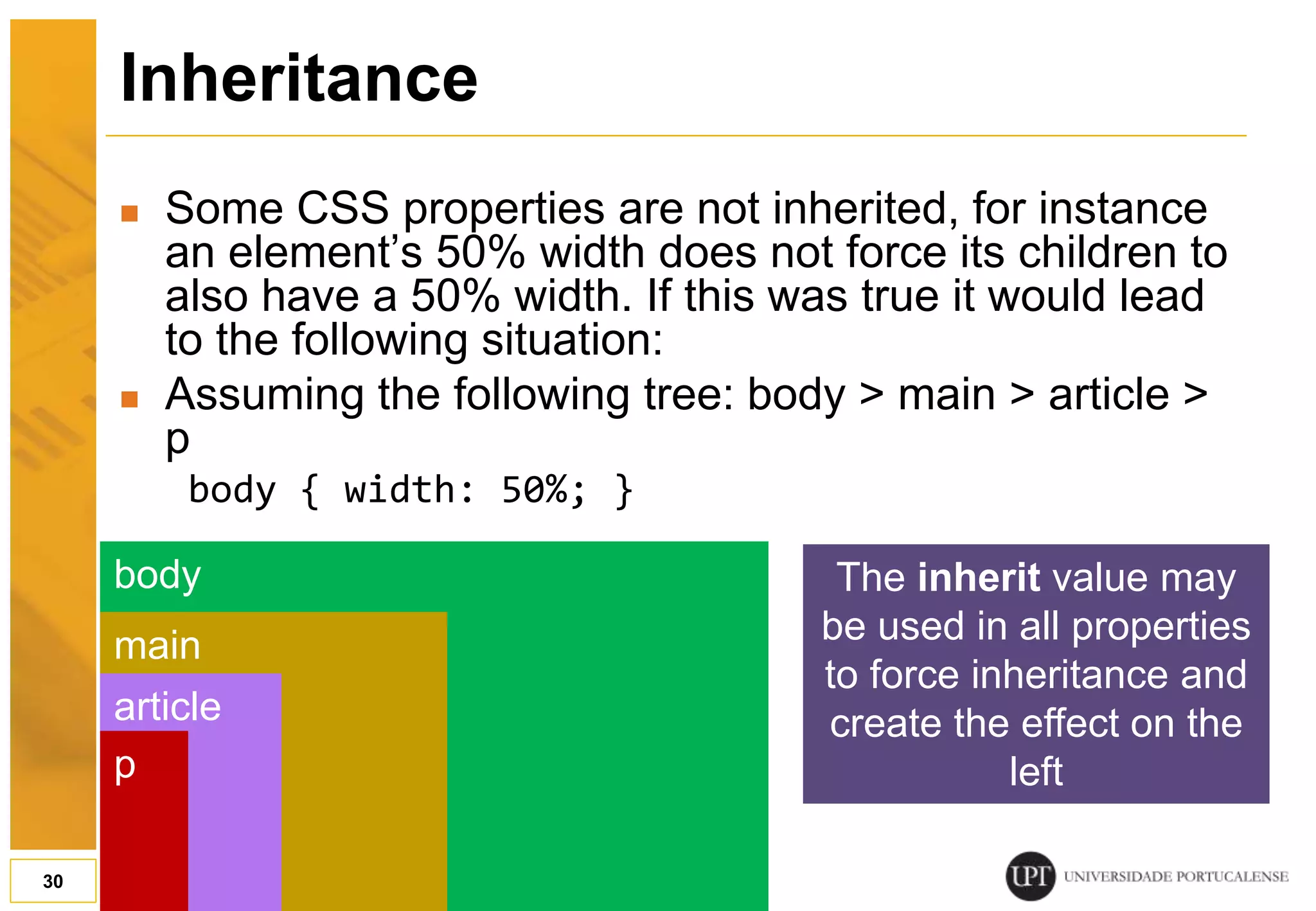

Inheritance  Some CSS properties are not inherited, for instance an element’s 50% width does not force its children to also have a 50% width. If this was true it would lead to the following situation:  Assuming the following tree: body > main > article > p body { width: 50%; } 30 body main article p The inherit value may be used in all properties to force inheritance and create the effect on the left

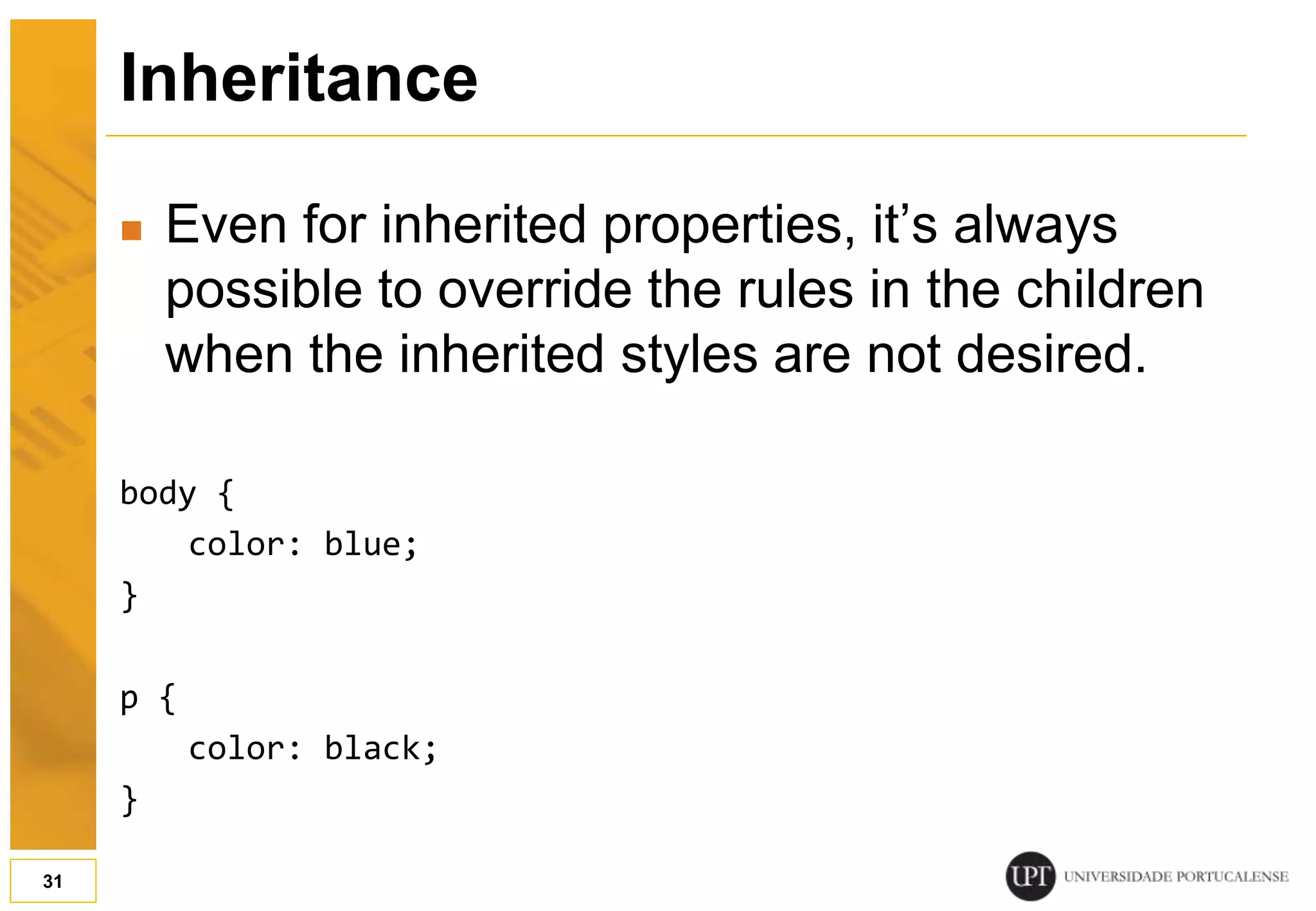

Inheritance  Even for inherited properties, it’s always possible to override the rules in the children when the inherited styles are not desired. body { color: blue; } p { color: black; } 31

Cascade  While inheritance shows how a single rule can be applied to many different elements depending on the HTML tree…  …the cascade shows how two or more contradictory rules are applied by browsers.  The cascade is influenced by the following mechanisms:  Importance  Specificity  Order 32

Cascade – Importance  Depends on where and how the rule is defined:  By the browser (called User Agent, or UA)  By the user with normal declarations  By the website (author) with normal declarations  By the website (author) with important declarations  By the user with important declarations 33 More important

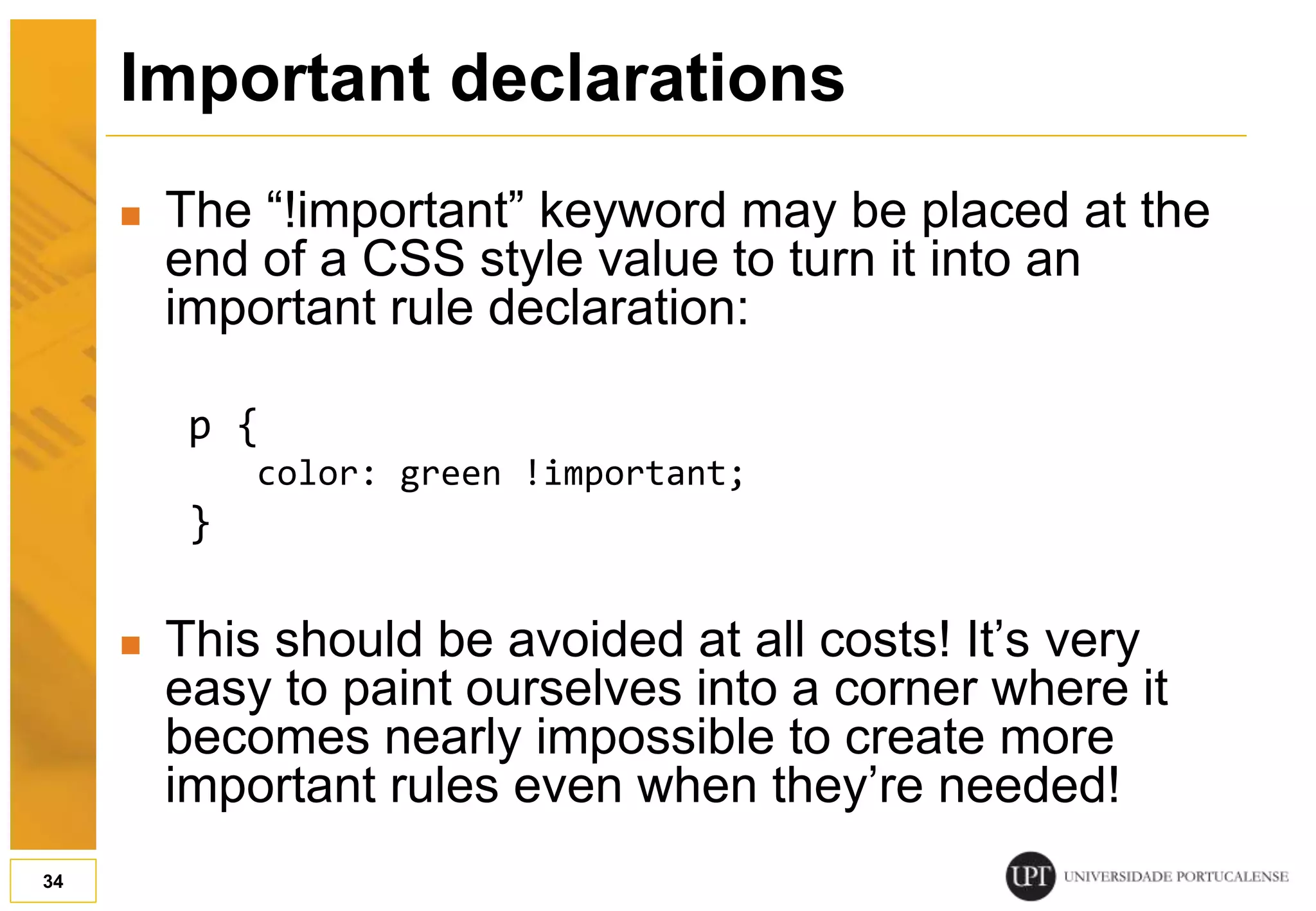

Important declarations  The “!important” keyword may be placed at the end of a CSS style value to turn it into an important rule declaration: p { color: green !important; }  This should be avoided at all costs! It’s very easy to paint ourselves into a corner where it becomes nearly impossible to create more important rules even when they’re needed! 34

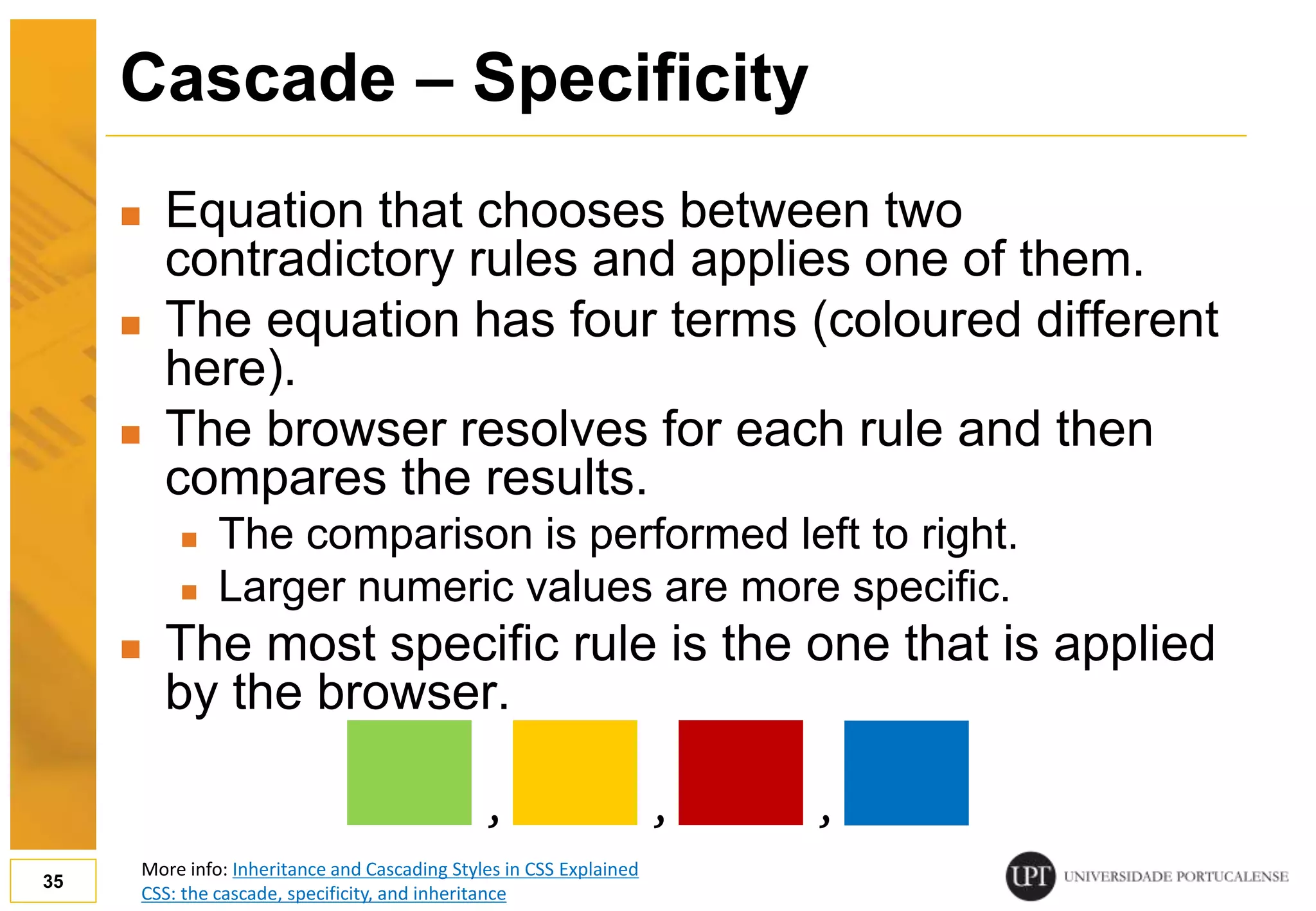

Cascade – Specificity  Equation that chooses between two contradictory rules and applies one of them.  The equation has four terms (coloured different here).  The browser resolves for each rule and then compares the results.  The comparison is performed left to right.  Larger numeric values are more specific.  The most specific rule is the one that is applied by the browser. 35 , , , More info: Inheritance and Cascading Styles in CSS Explained CSS: the cascade, specificity, and inheritance

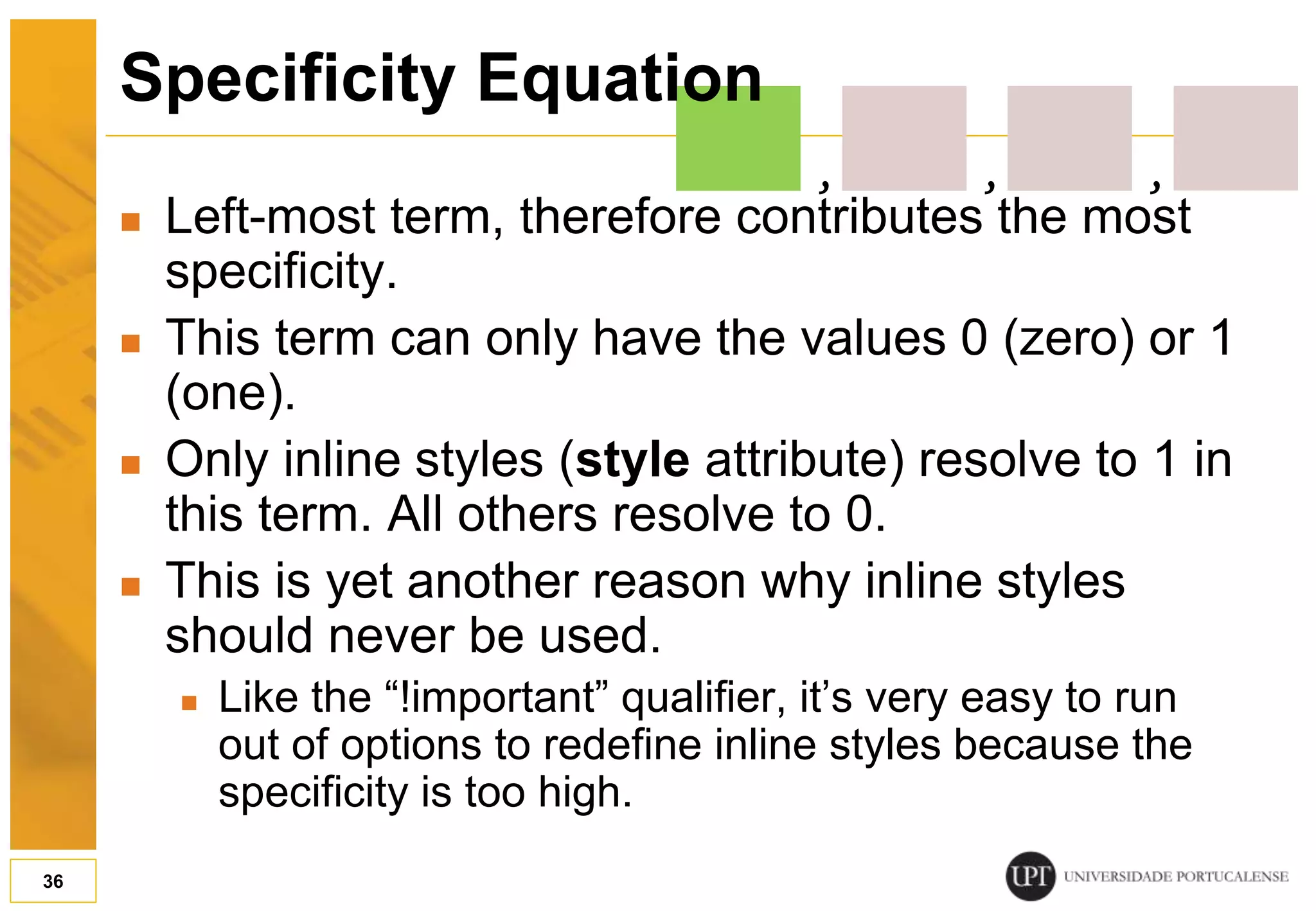

 Left-most term, therefore contributes the most specificity.  This term can only have the values 0 (zero) or 1 (one).  Only inline styles (style attribute) resolve to 1 in this term. All others resolve to 0.  This is yet another reason why inline styles should never be used.  Like the “!important” qualifier, it’s very easy to run out of options to redefine inline styles because the specificity is too high. 36 Specificity Equation , , ,

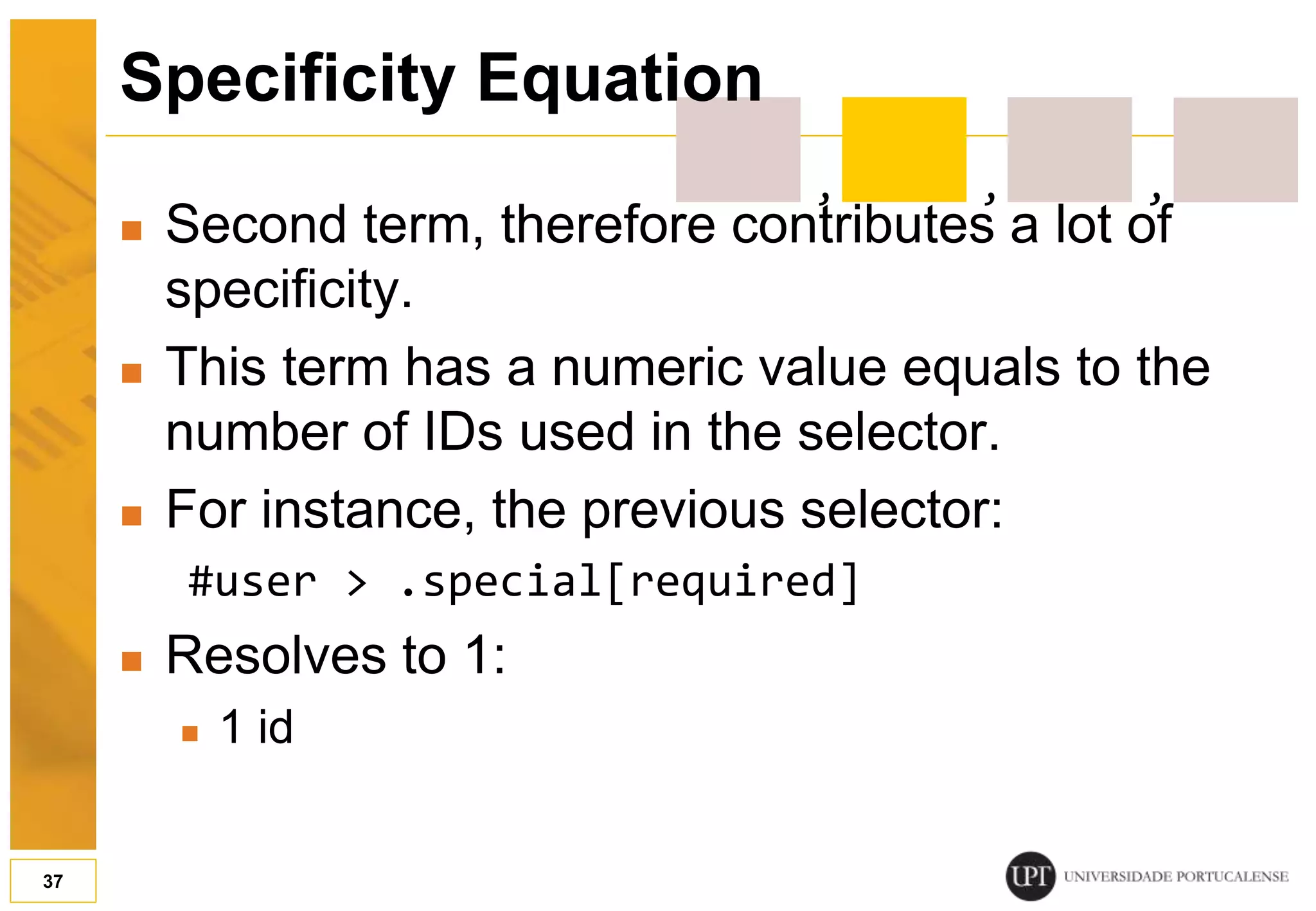

 Second term, therefore contributes a lot of specificity.  This term has a numeric value equals to the number of IDs used in the selector.  For instance, the previous selector: #user > .special[required]  Resolves to 1:  1 id 37 Specificity Equation , , ,

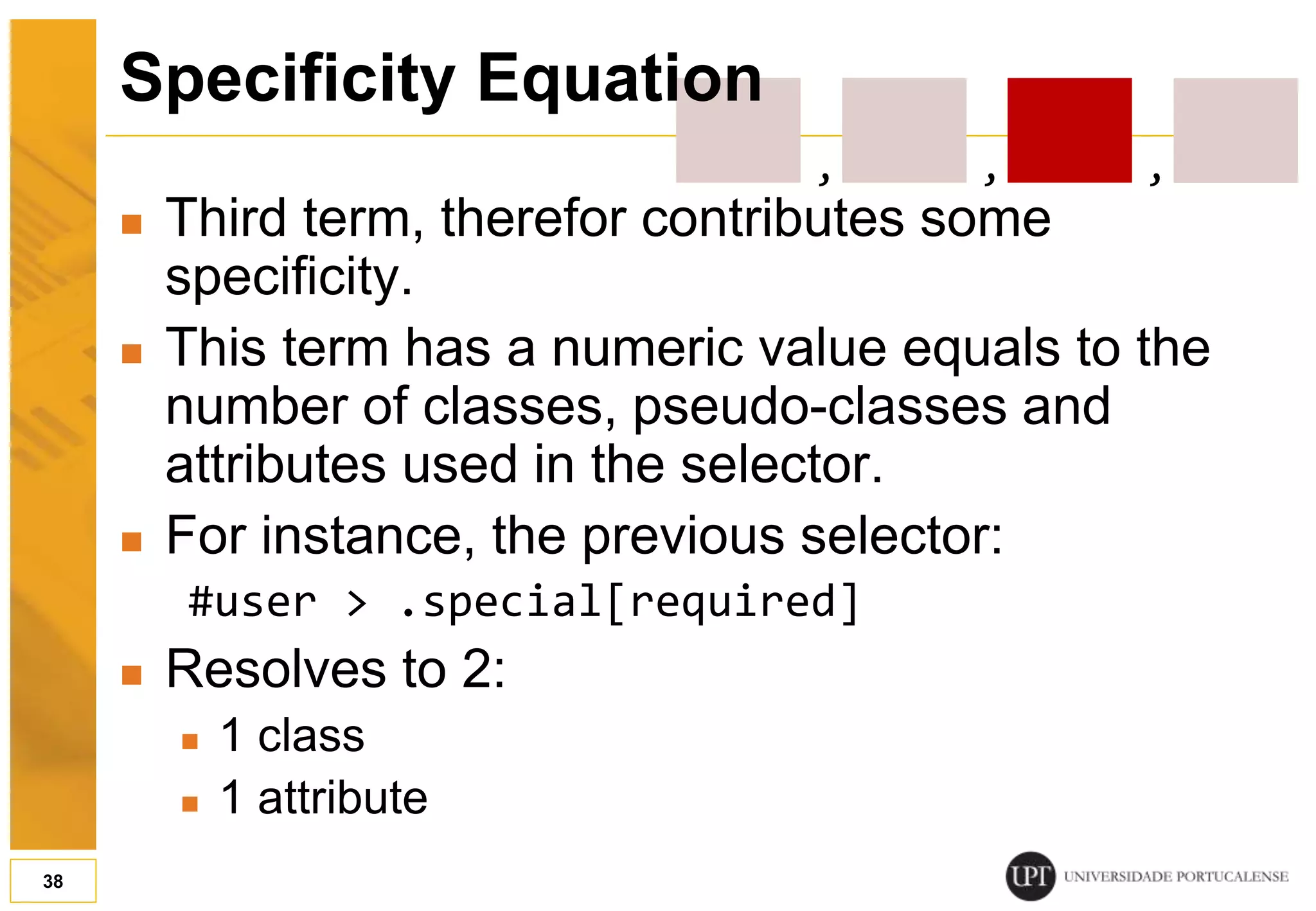

 Third term, therefor contributes some specificity.  This term has a numeric value equals to the number of classes, pseudo-classes and attributes used in the selector.  For instance, the previous selector: #user > .special[required]  Resolves to 2:  1 class  1 attribute 38 Specificity Equation , , ,

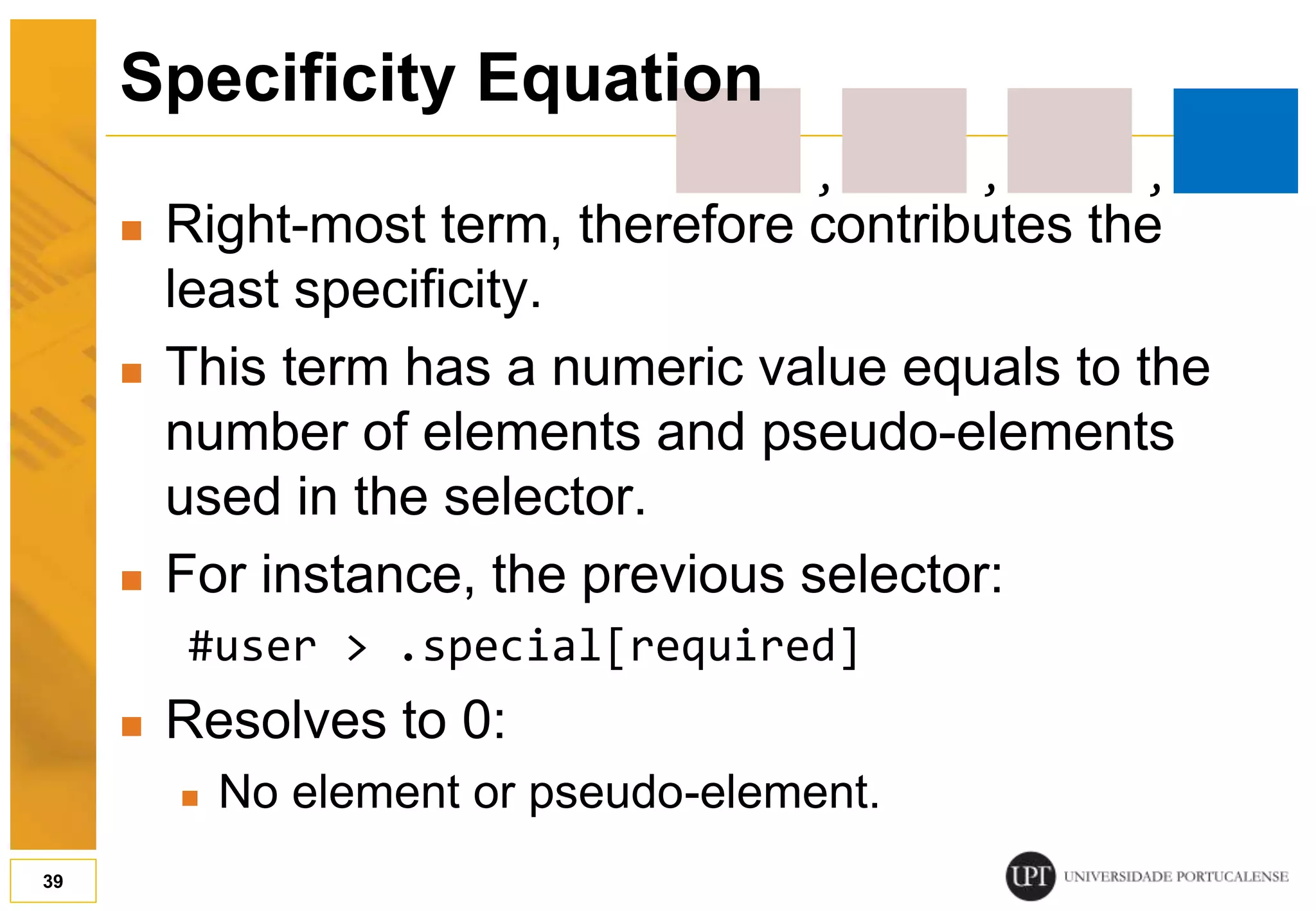

 Right-most term, therefore contributes the least specificity.  This term has a numeric value equals to the number of elements and pseudo-elements used in the selector.  For instance, the previous selector: #user > .special[required]  Resolves to 0:  No element or pseudo-element. 39 Specificity Equation , , ,

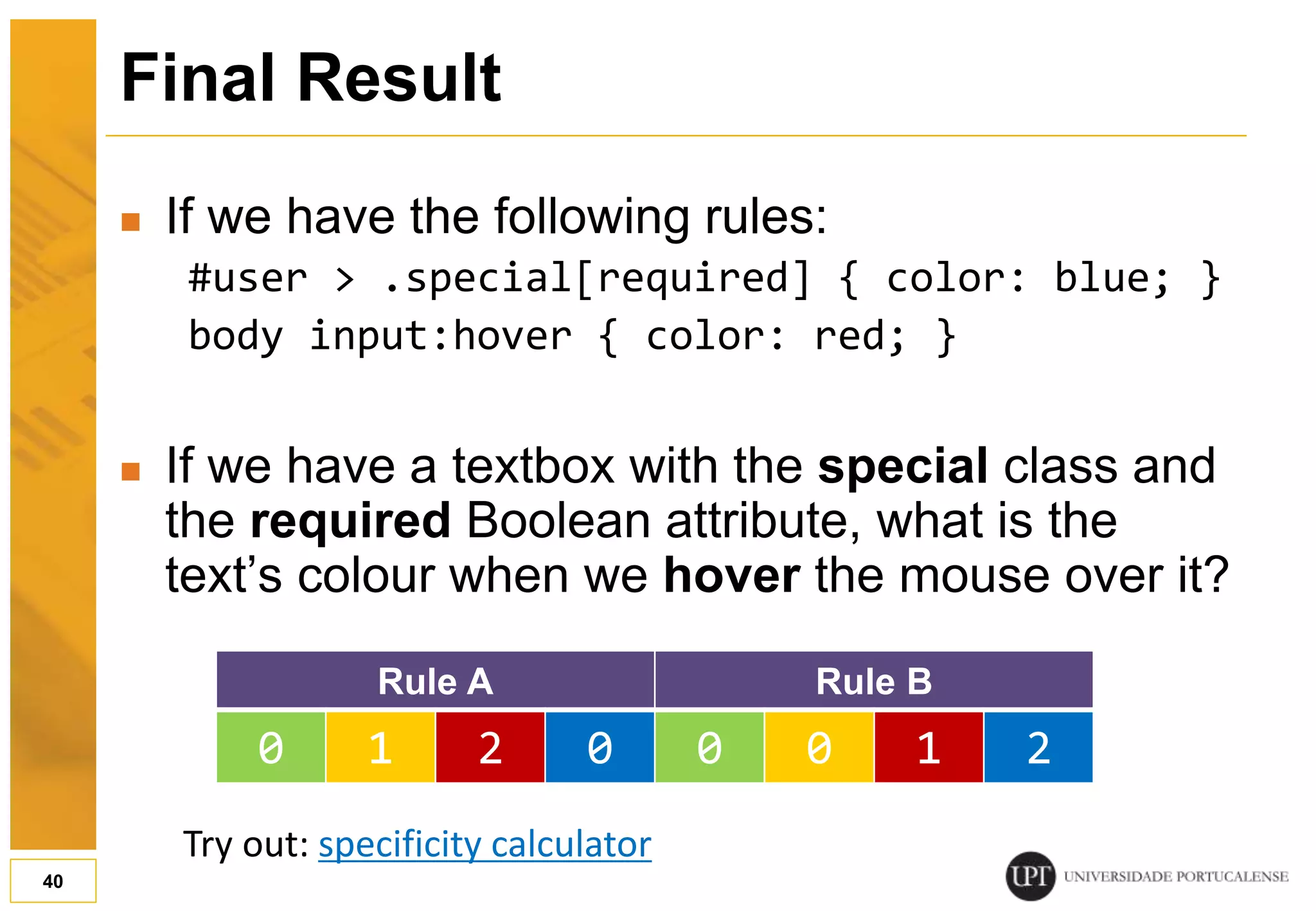

Final Result  If we have the following rules: #user > .special[required] { color: blue; } body input:hover { color: red; }  If we have a textbox with the special class and the required Boolean attribute, what is the text’s colour when we hover the mouse over it? 40 Rule A Rule B 0 1 2 0 0 0 1 2 Try out: specificity calculator

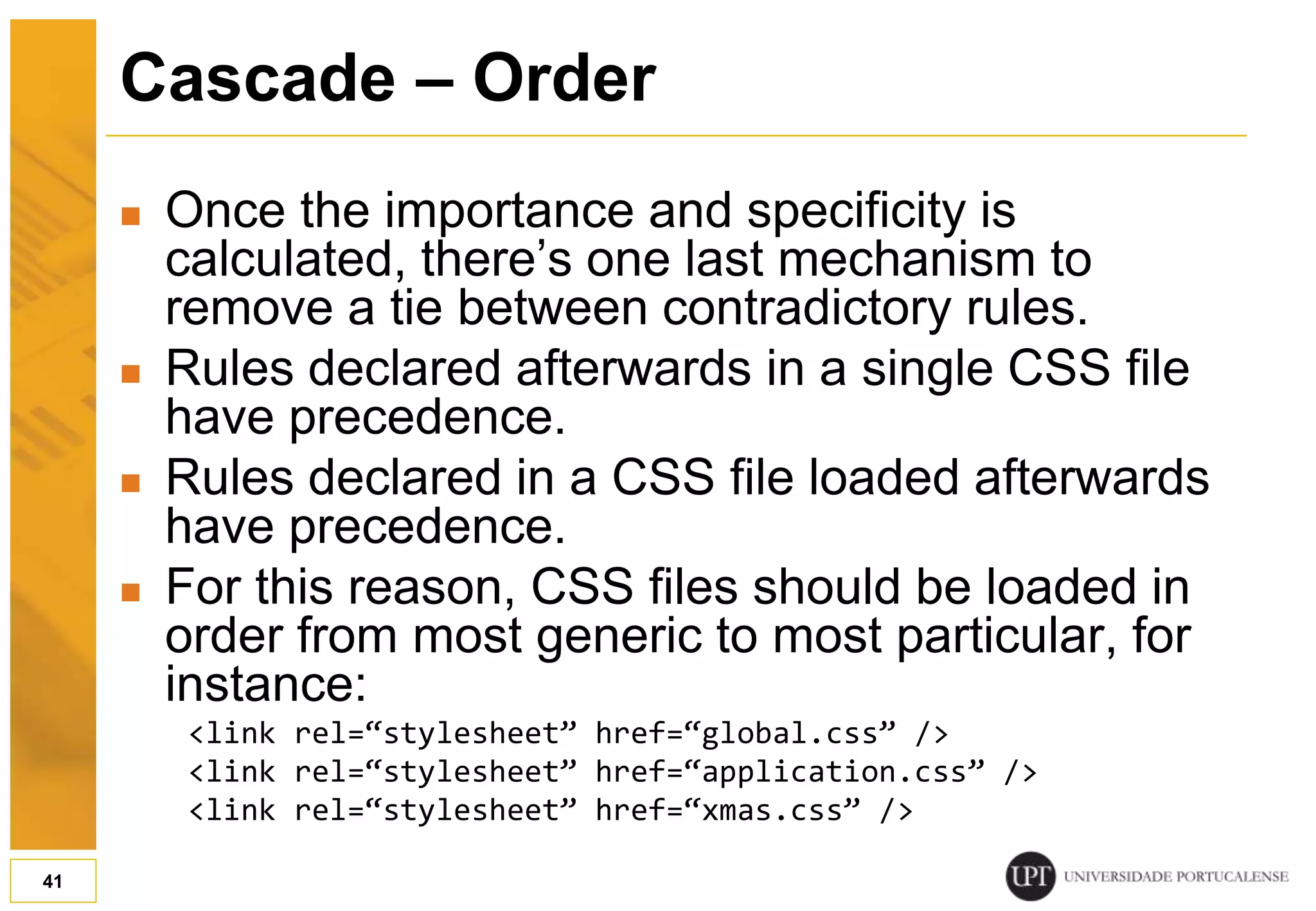

Cascade – Order  Once the importance and specificity is calculated, there’s one last mechanism to remove a tie between contradictory rules.  Rules declared afterwards in a single CSS file have precedence.  Rules declared in a CSS file loaded afterwards have precedence.  For this reason, CSS files should be loaded in order from most generic to most particular, for instance: <link rel=“stylesheet” href=“global.css” /> <link rel=“stylesheet” href=“application.css” /> <link rel=“stylesheet” href=“xmas.css” /> 41
