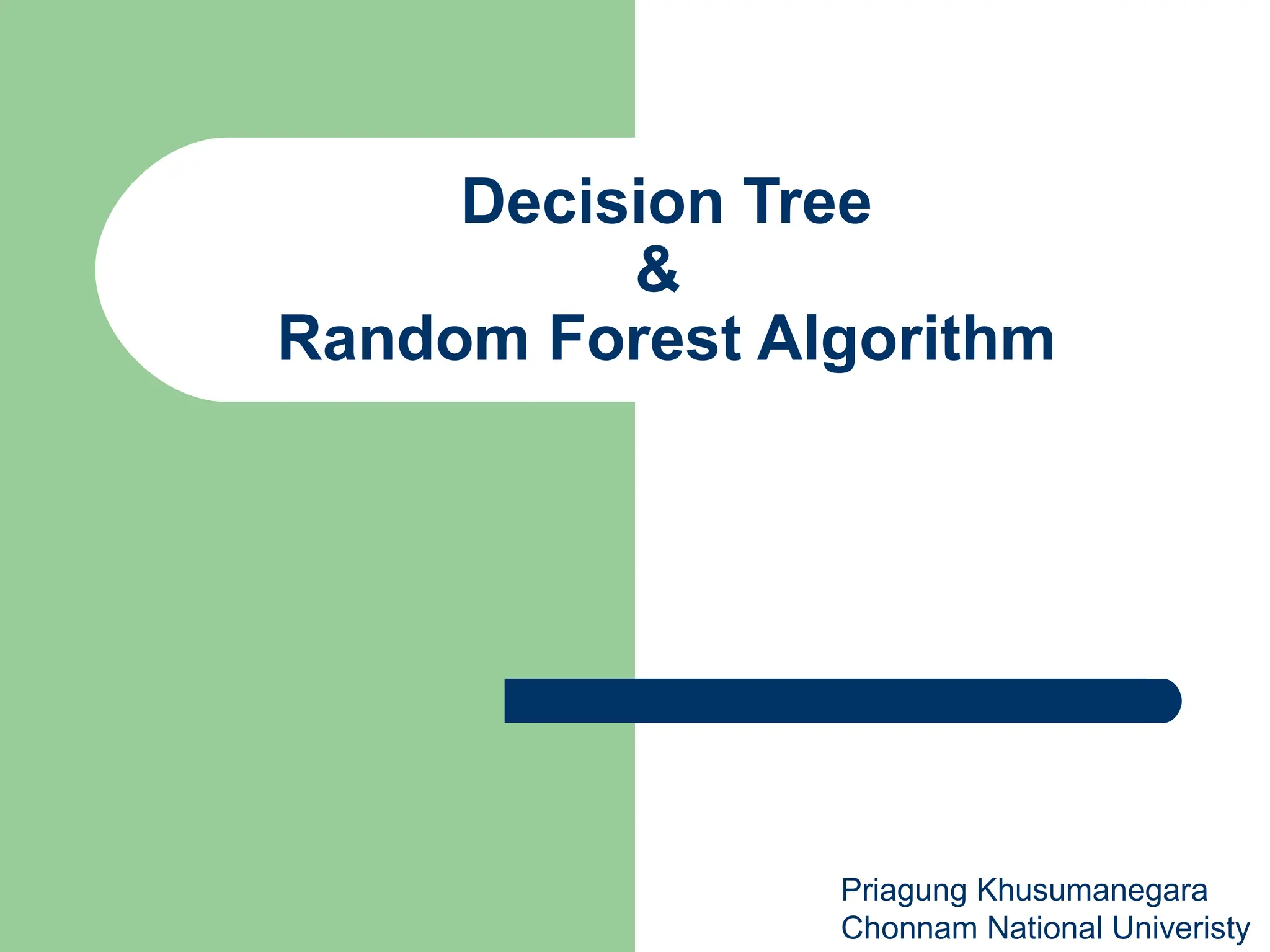

  Decision Tree & Random ForestAlgorithm Priagung Khusumanegara Chonnam National Univeristy
• 2.

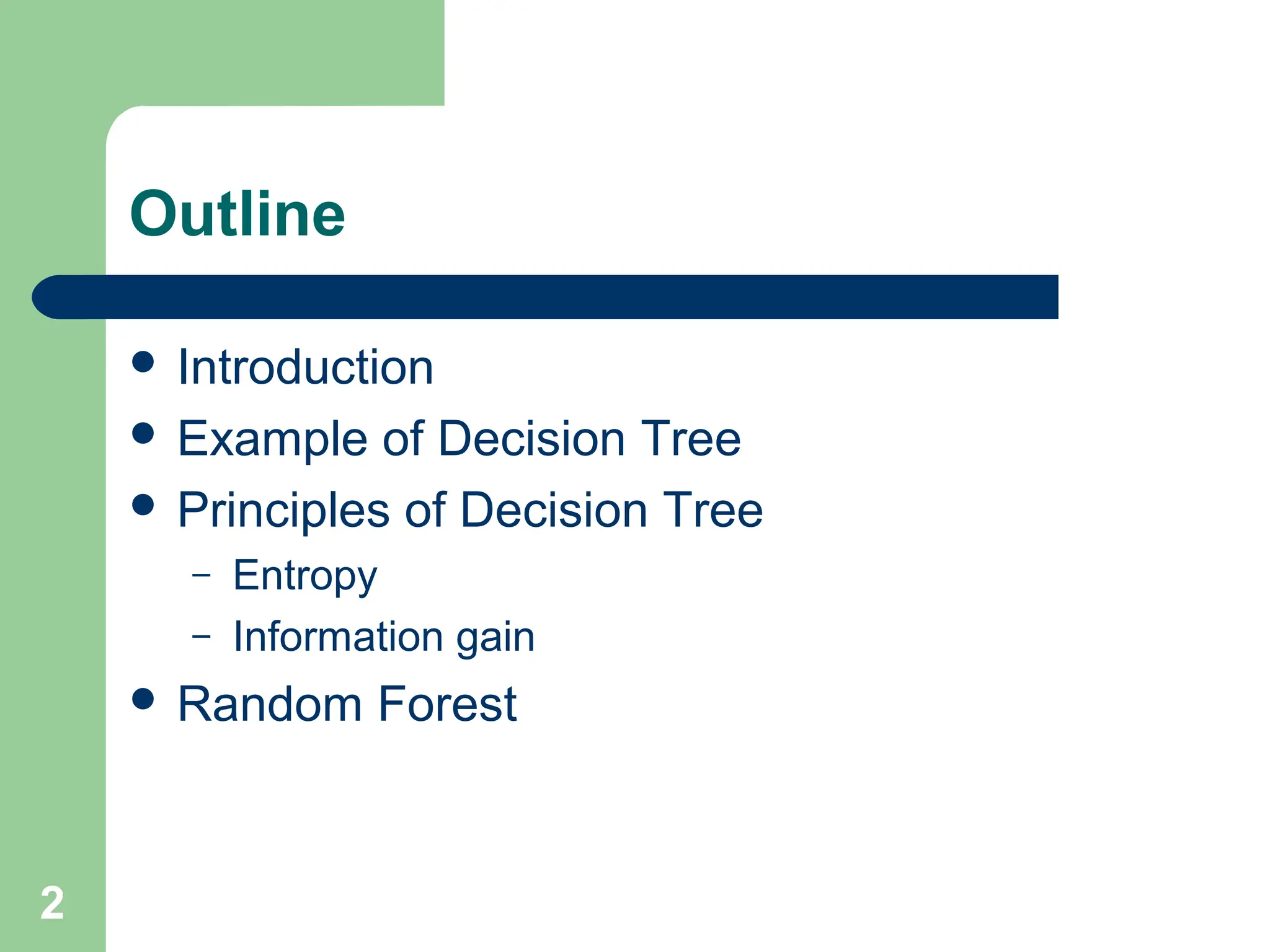

  Outline  Introduction  Exampleof Decision Tree  Principles of Decision Tree – Entropy – Information gain  Random Forest 2
• 3.

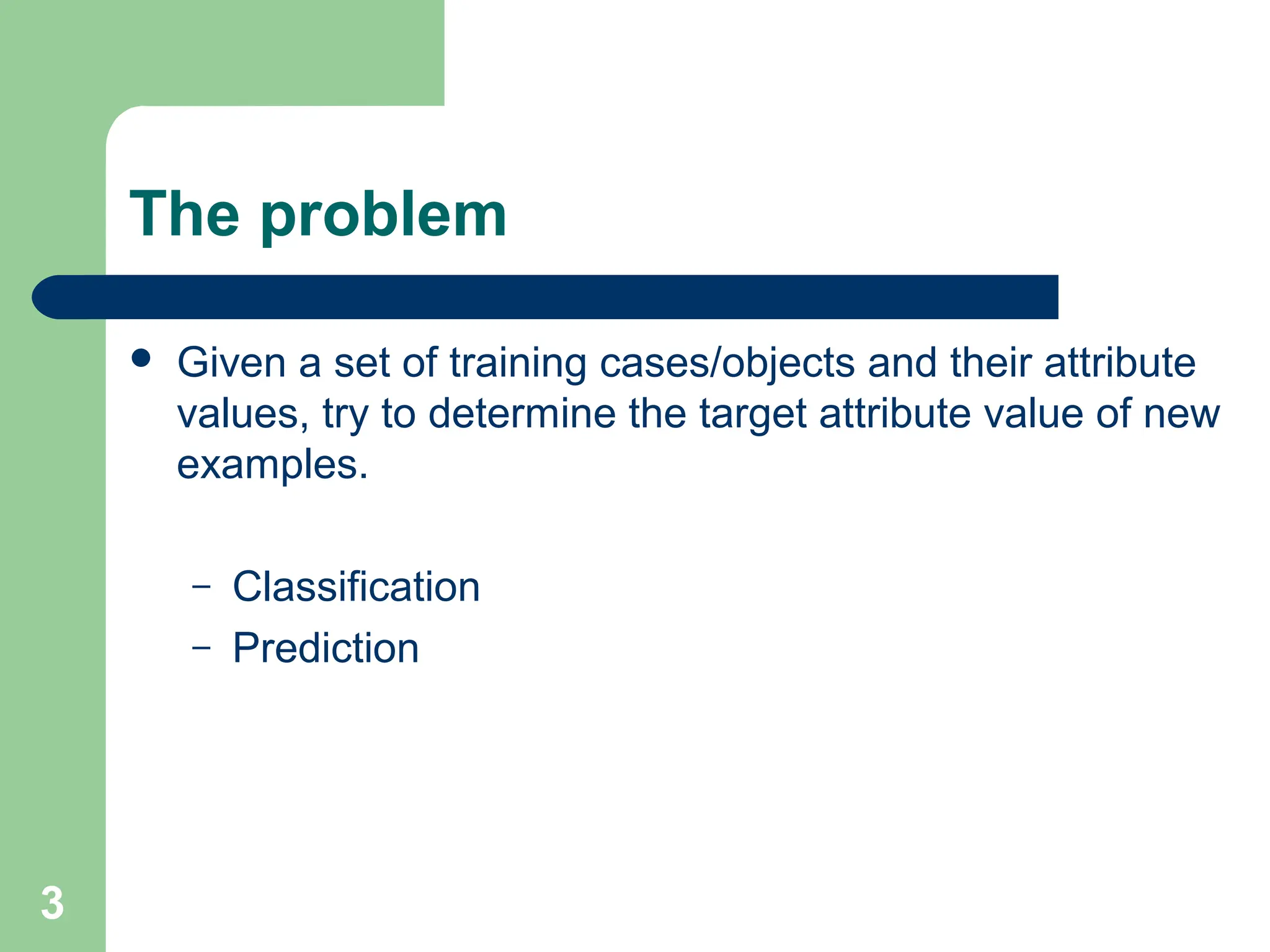

  The problem  Givena set of training cases/objects and their attribute values, try to determine the target attribute value of new examples. – Classification – Prediction 3
• 4.

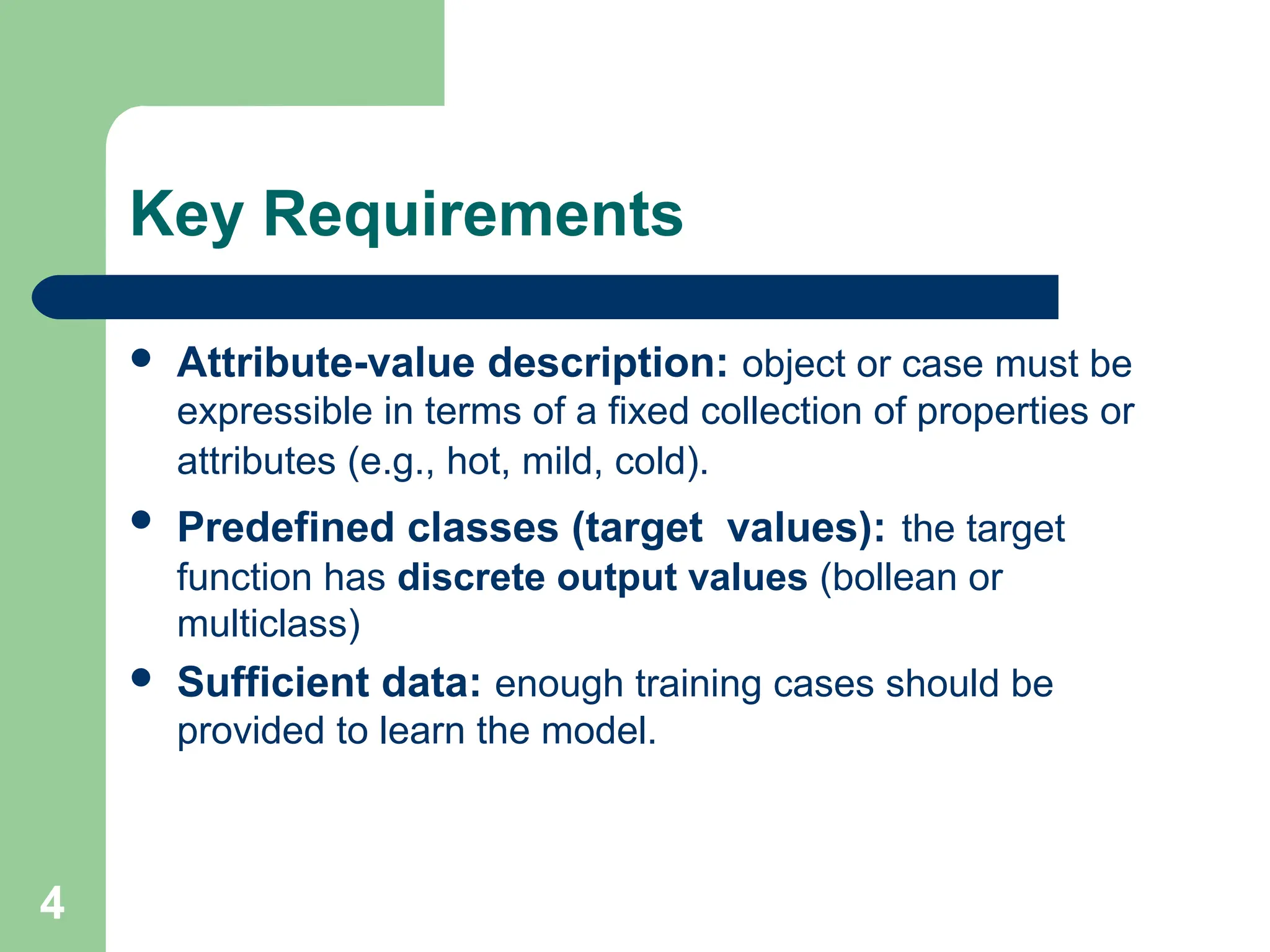

  Key Requirements  Attribute-valuedescription: object or case must be expressible in terms of a fixed collection of properties or attributes (e.g., hot, mild, cold).  Predefined classes (target values): the target function has discrete output values (bollean or multiclass)  Sufficient data: enough training cases should be provided to learn the model. 4
• 5.

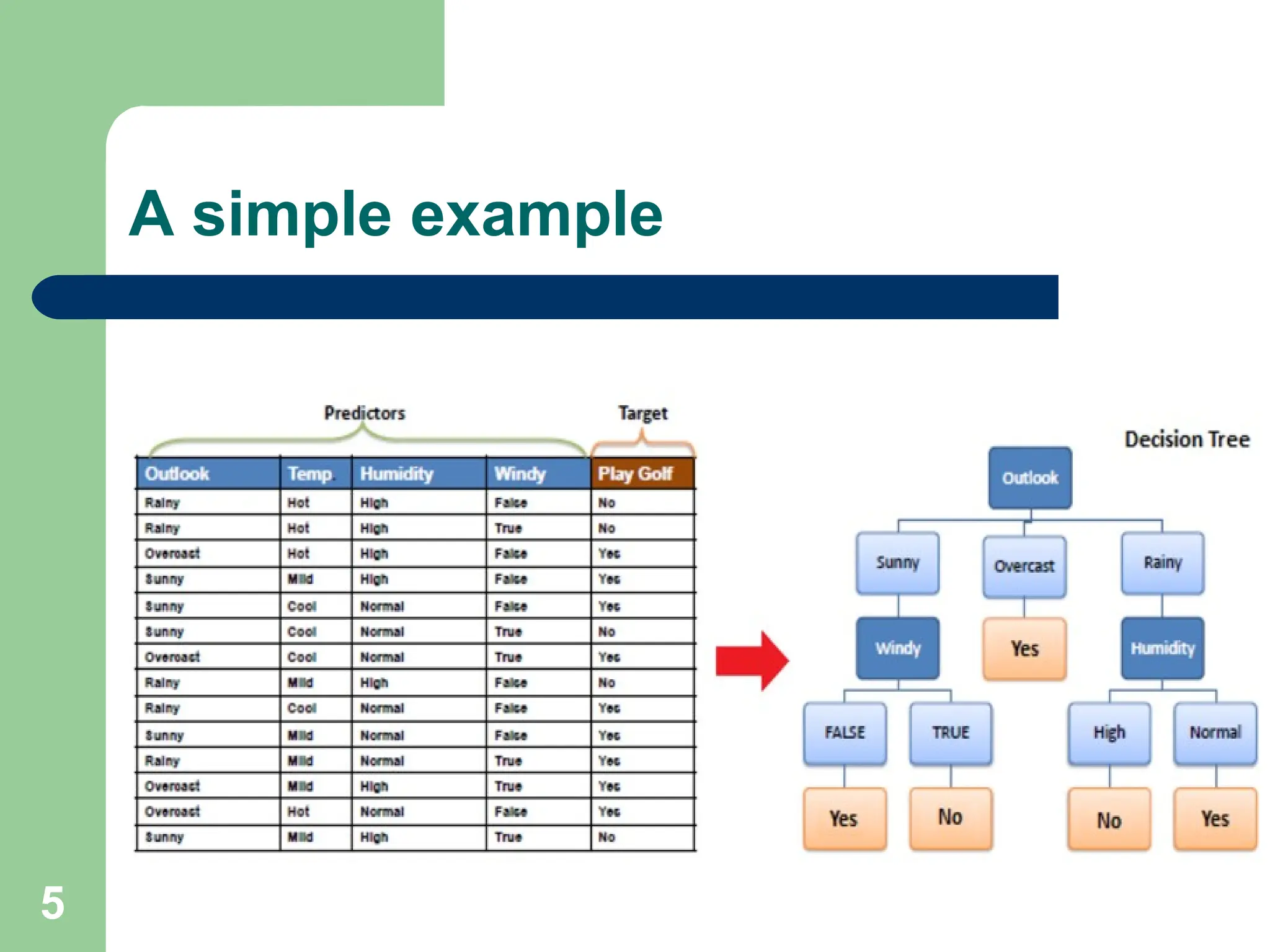

  A simple example 5
• 6.

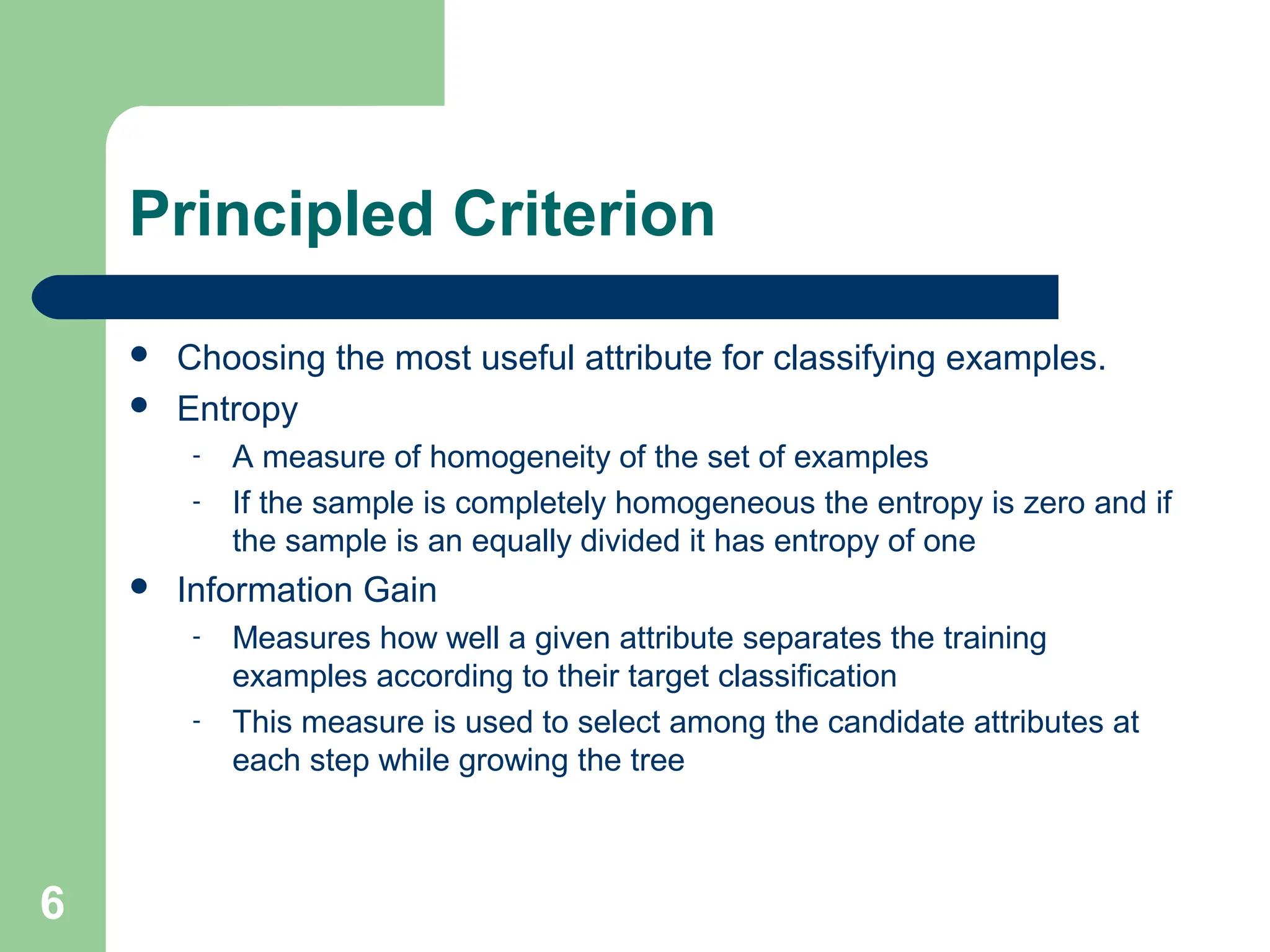

  Principled Criterion  Choosingthe most useful attribute for classifying examples.  Entropy - A measure of homogeneity of the set of examples - If the sample is completely homogeneous the entropy is zero and if the sample is an equally divided it has entropy of one  Information Gain - Measures how well a given attribute separates the training examples according to their target classification - This measure is used to select among the candidate attributes at each step while growing the tree 6
• 7.

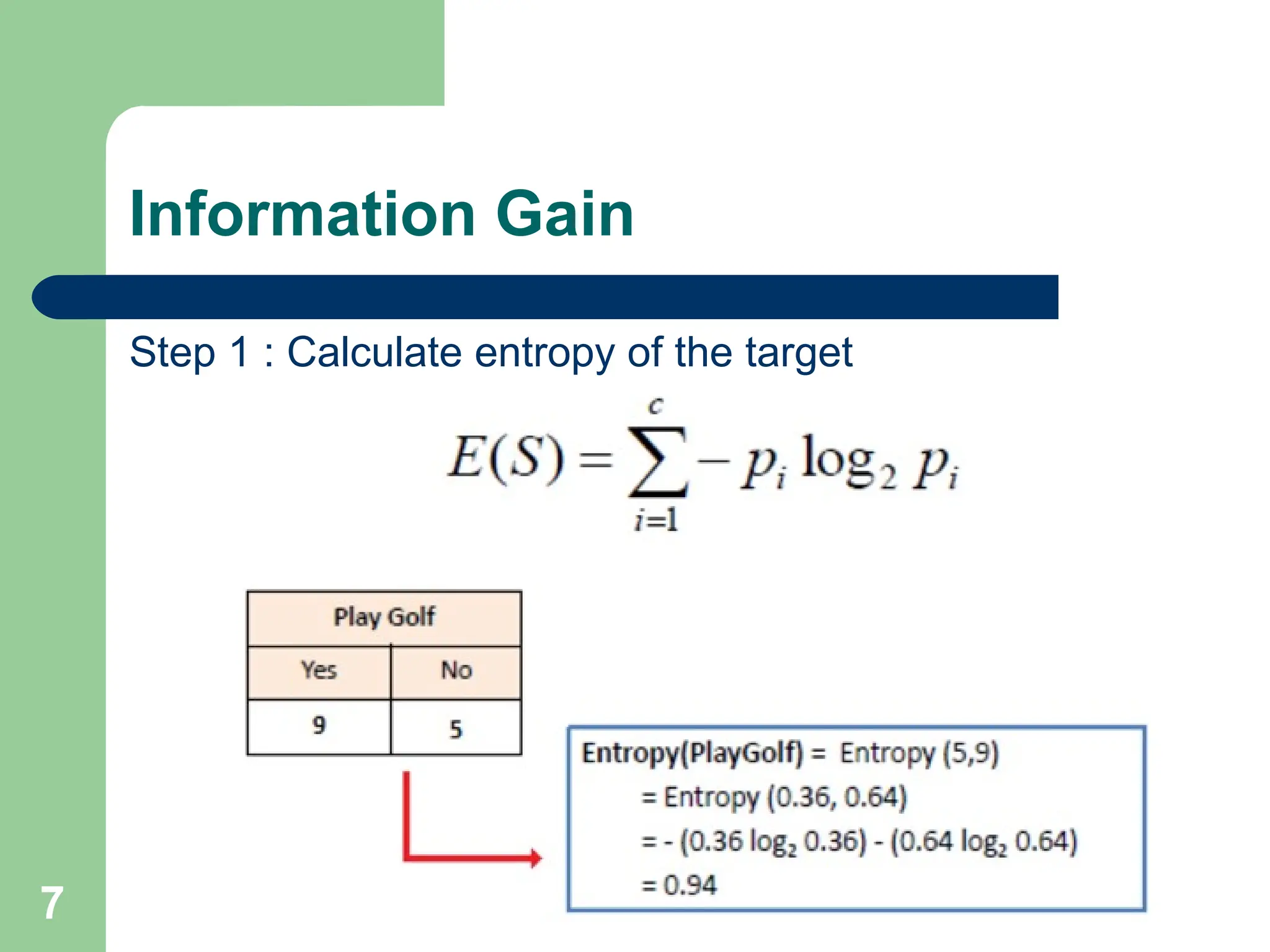

  Information Gain Step 1: Calculate entropy of the target 7
• 8.

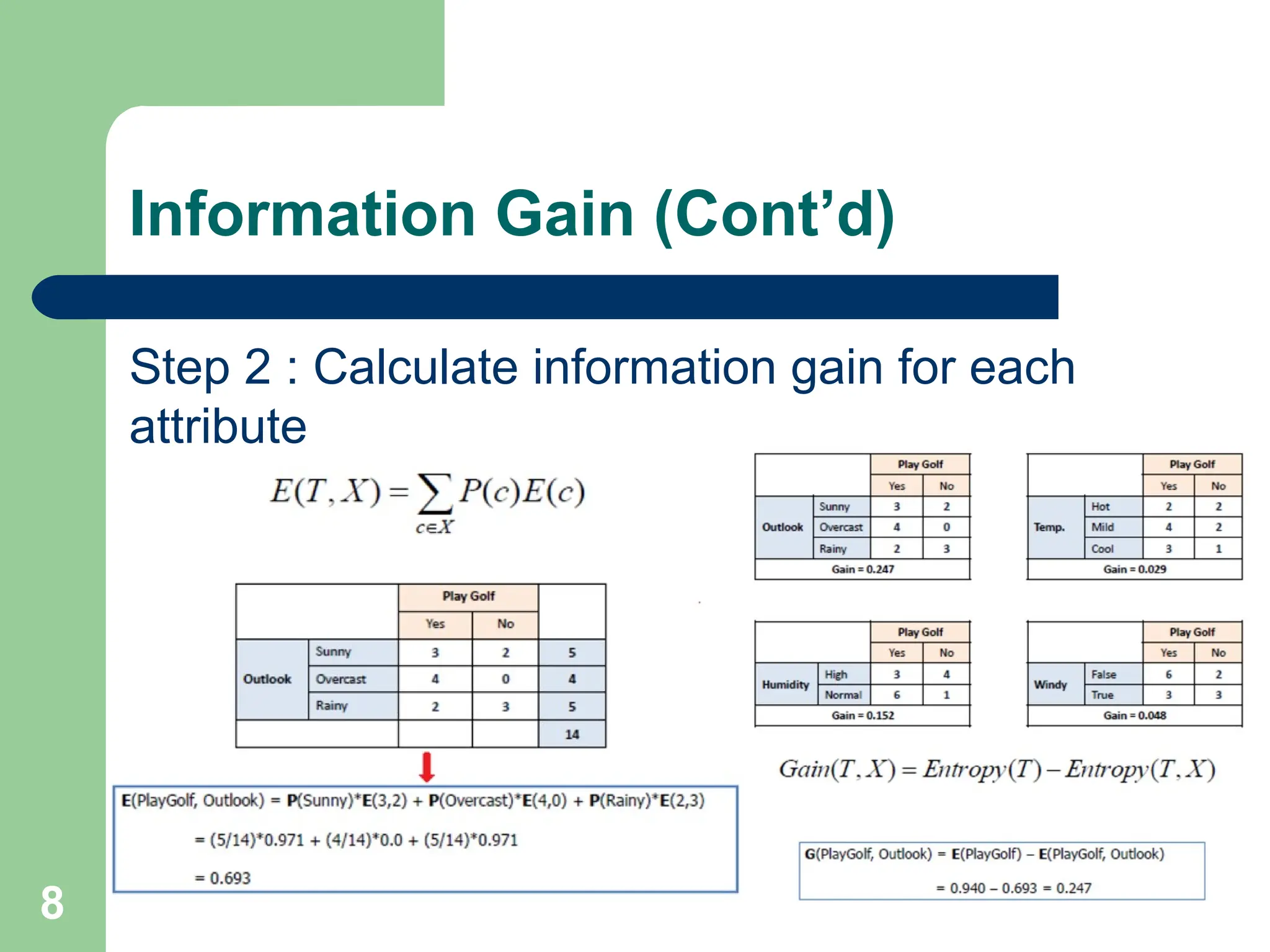

  Information Gain (Cont’d) Step2 : Calculate information gain for each attribute 8
• 9.

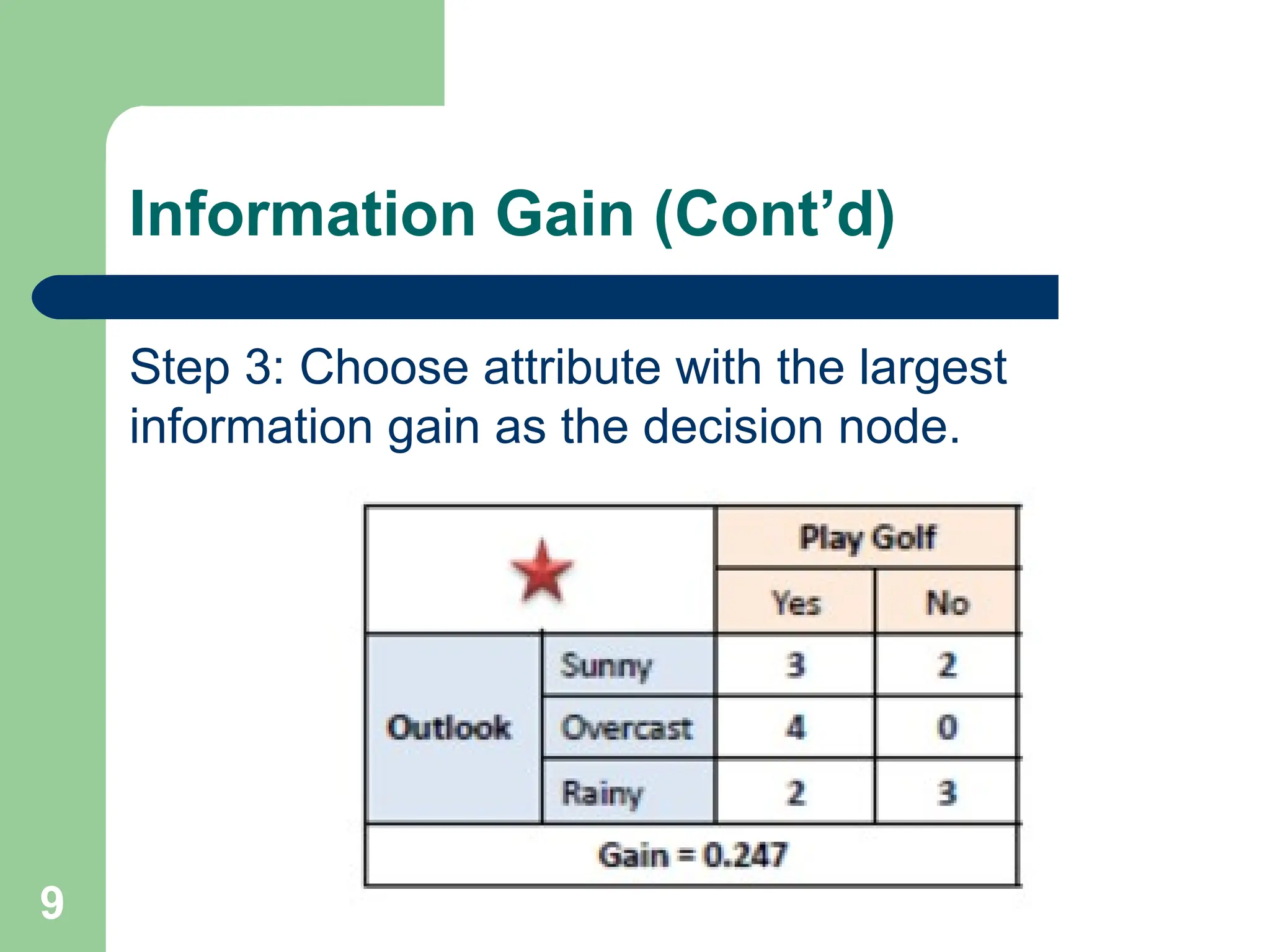

  Information Gain (Cont’d) Step3: Choose attribute with the largest information gain as the decision node. 9
• 10.

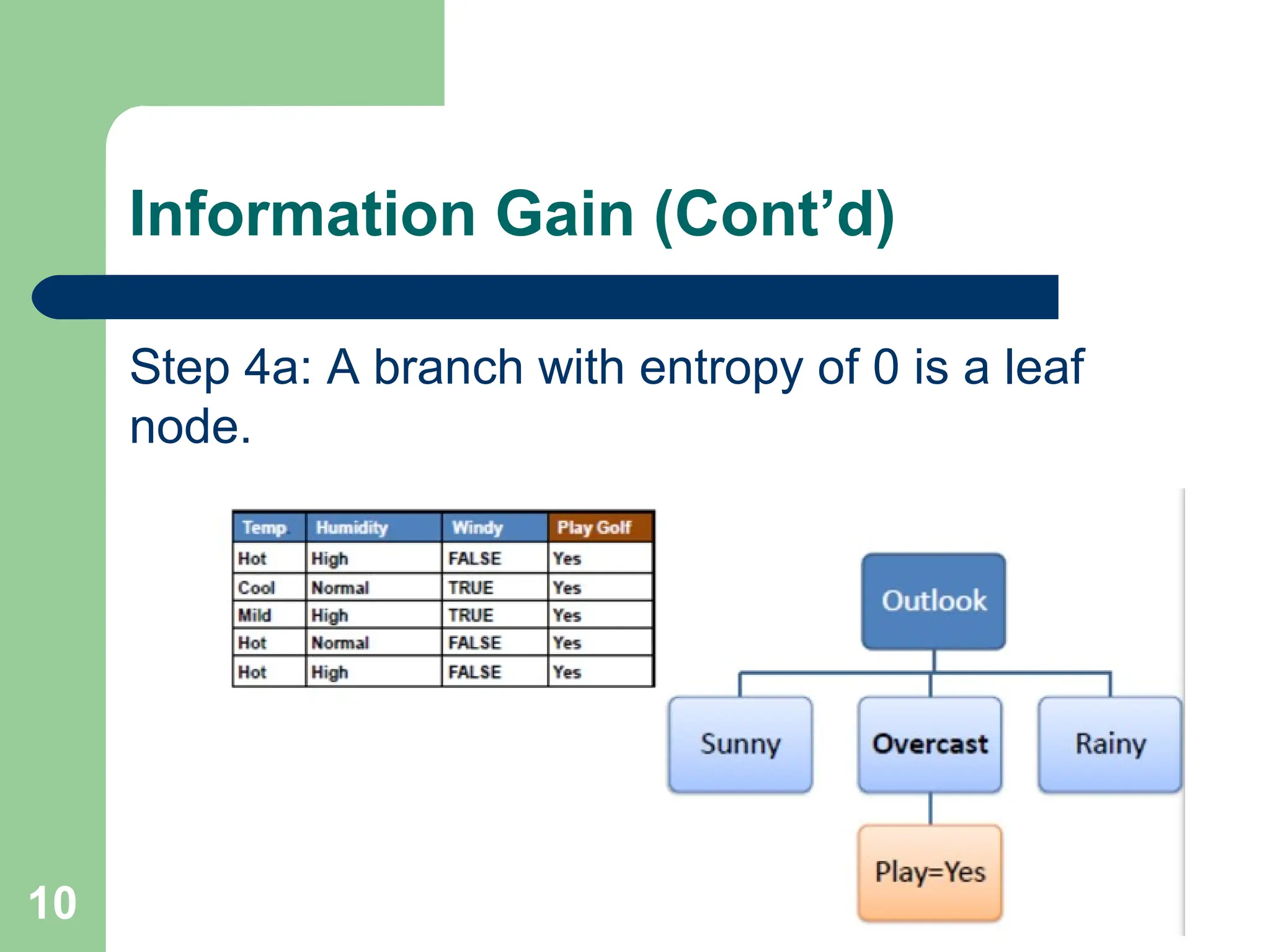

  Information Gain (Cont’d) Step4a: A branch with entropy of 0 is a leaf node. 10
• 11.

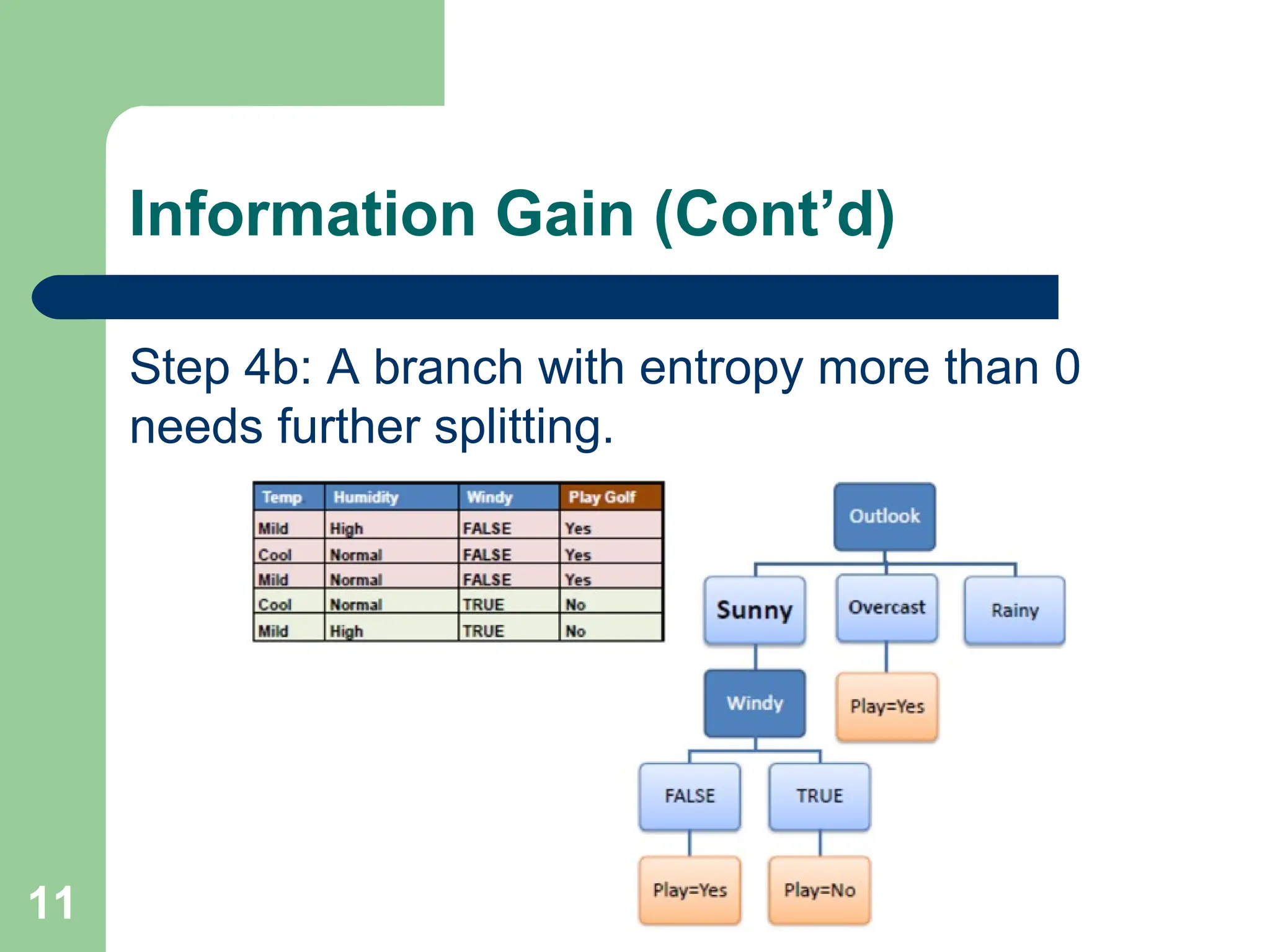

  Information Gain (Cont’d) Step4b: A branch with entropy more than 0 needs further splitting. 11
• 12.

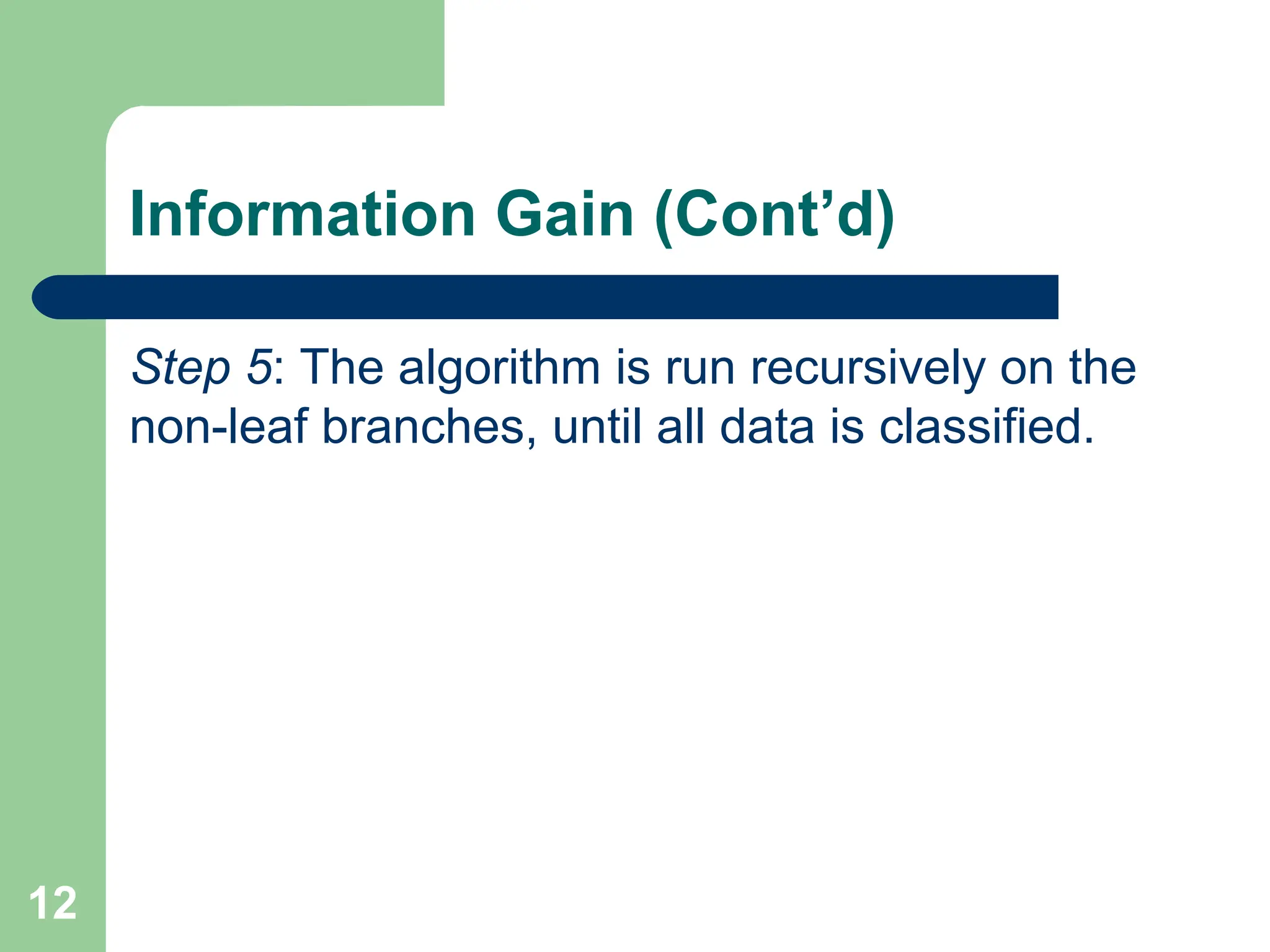

  Information Gain (Cont’d) Step5: The algorithm is run recursively on the non-leaf branches, until all data is classified. 12
• 13.

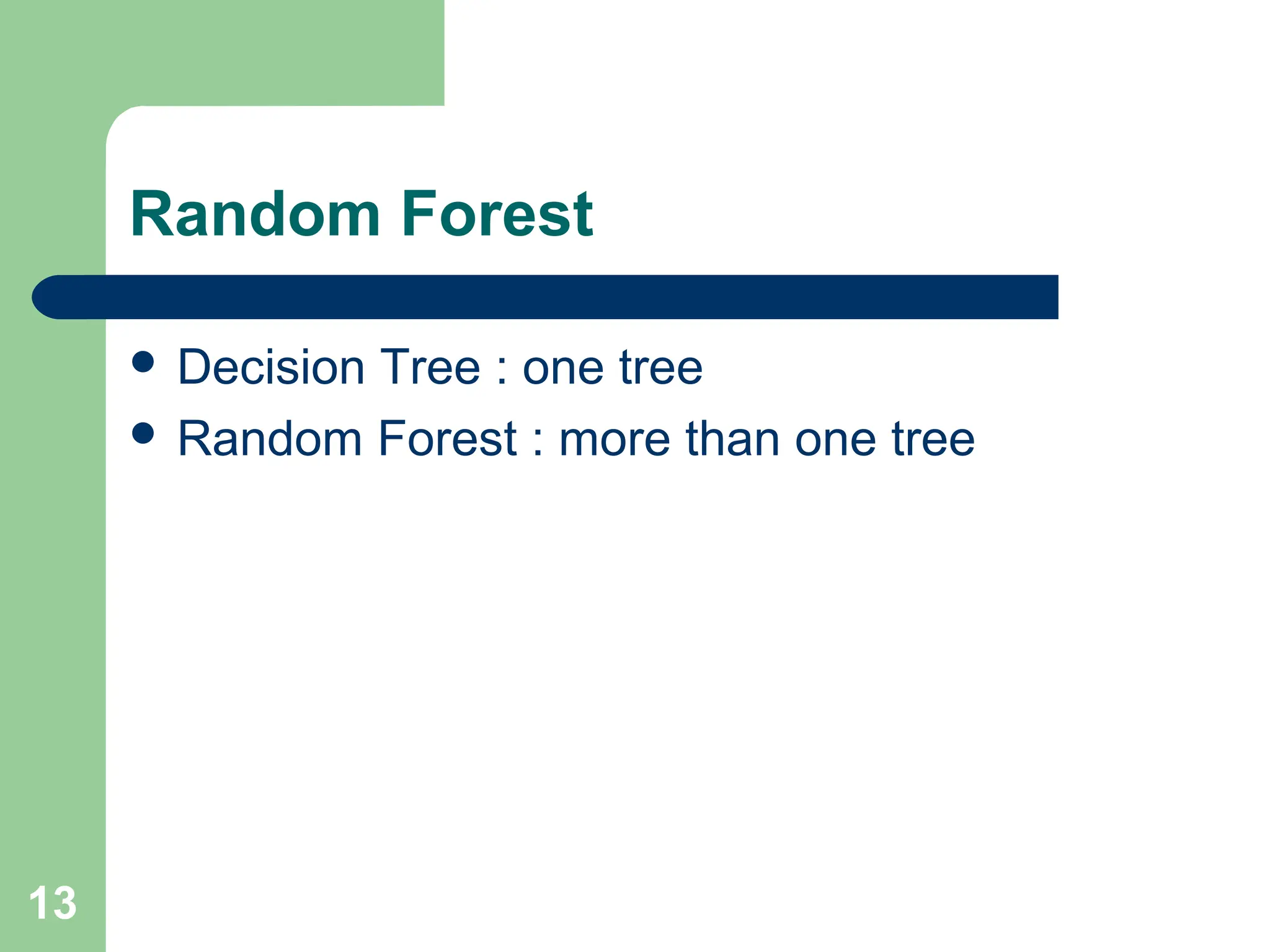

  Random Forest  DecisionTree : one tree  Random Forest : more than one tree 13
• 14.

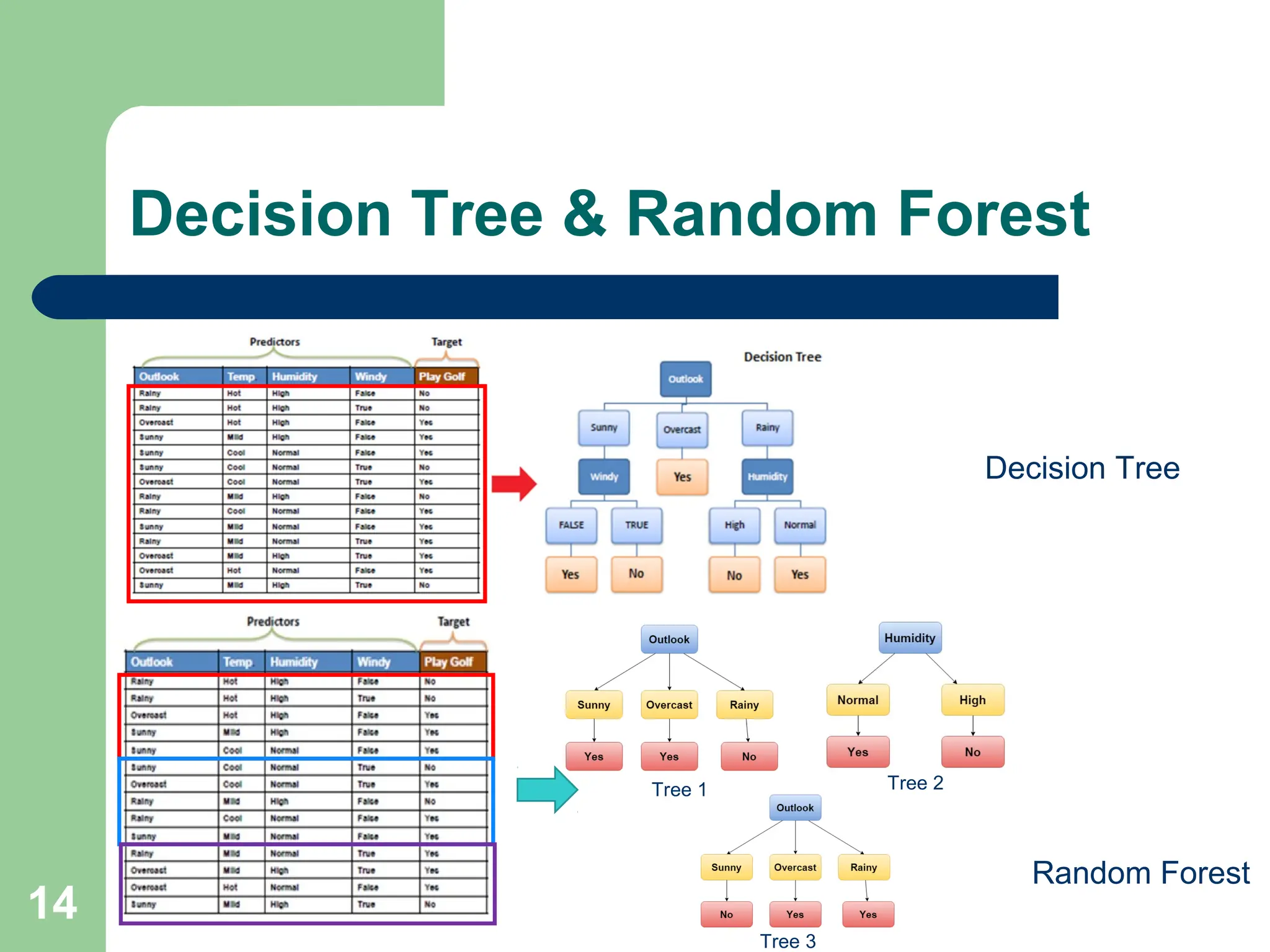

  Decision Tree &Random Forest 14 Decision Tree Random Forest Tree 1 Tree 2 Tree 3
• 15.

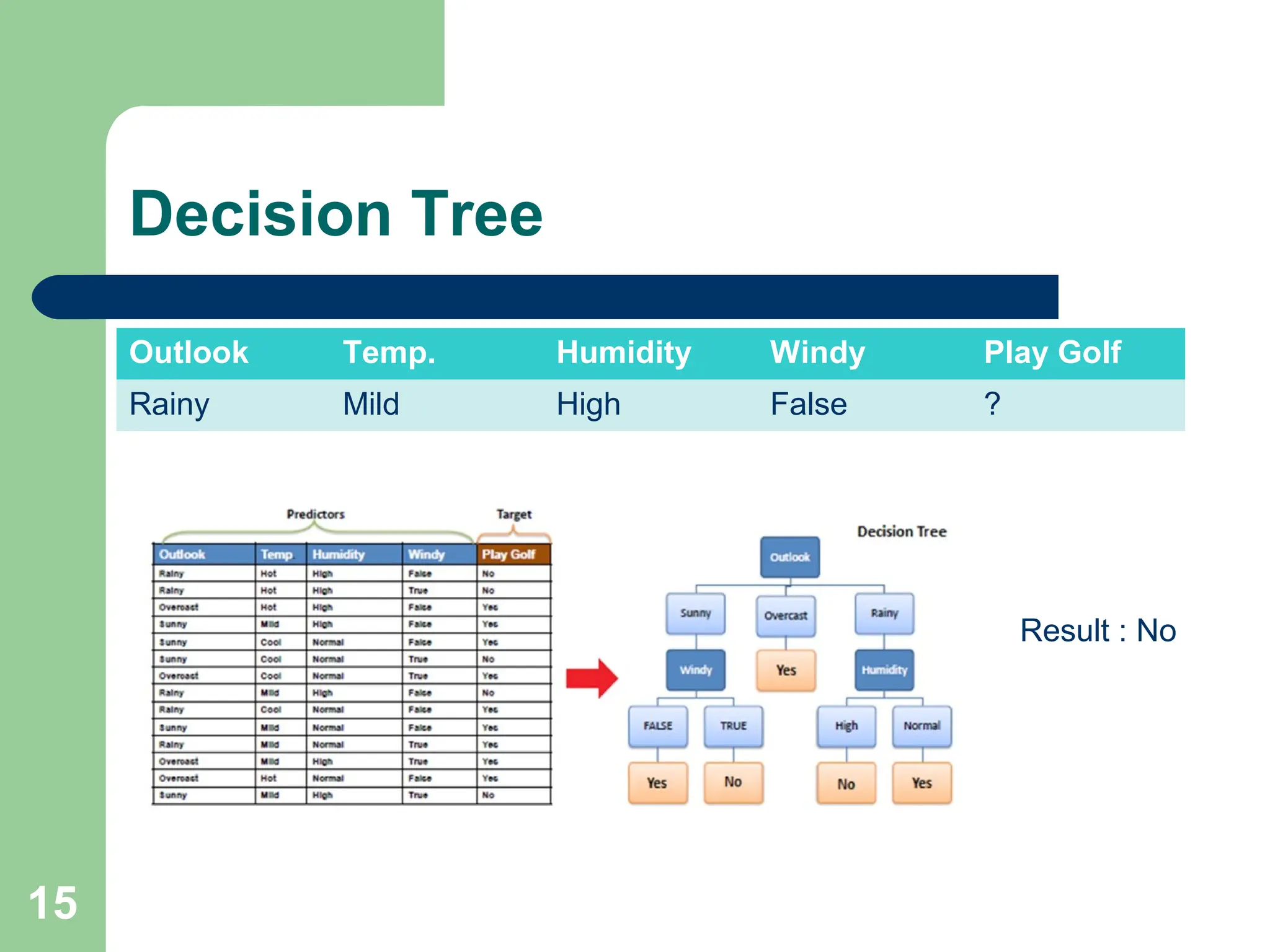

  Decision Tree Outlook Temp.Humidity Windy Play Golf Rainy Mild High False ? 15 Result : No
• 16.

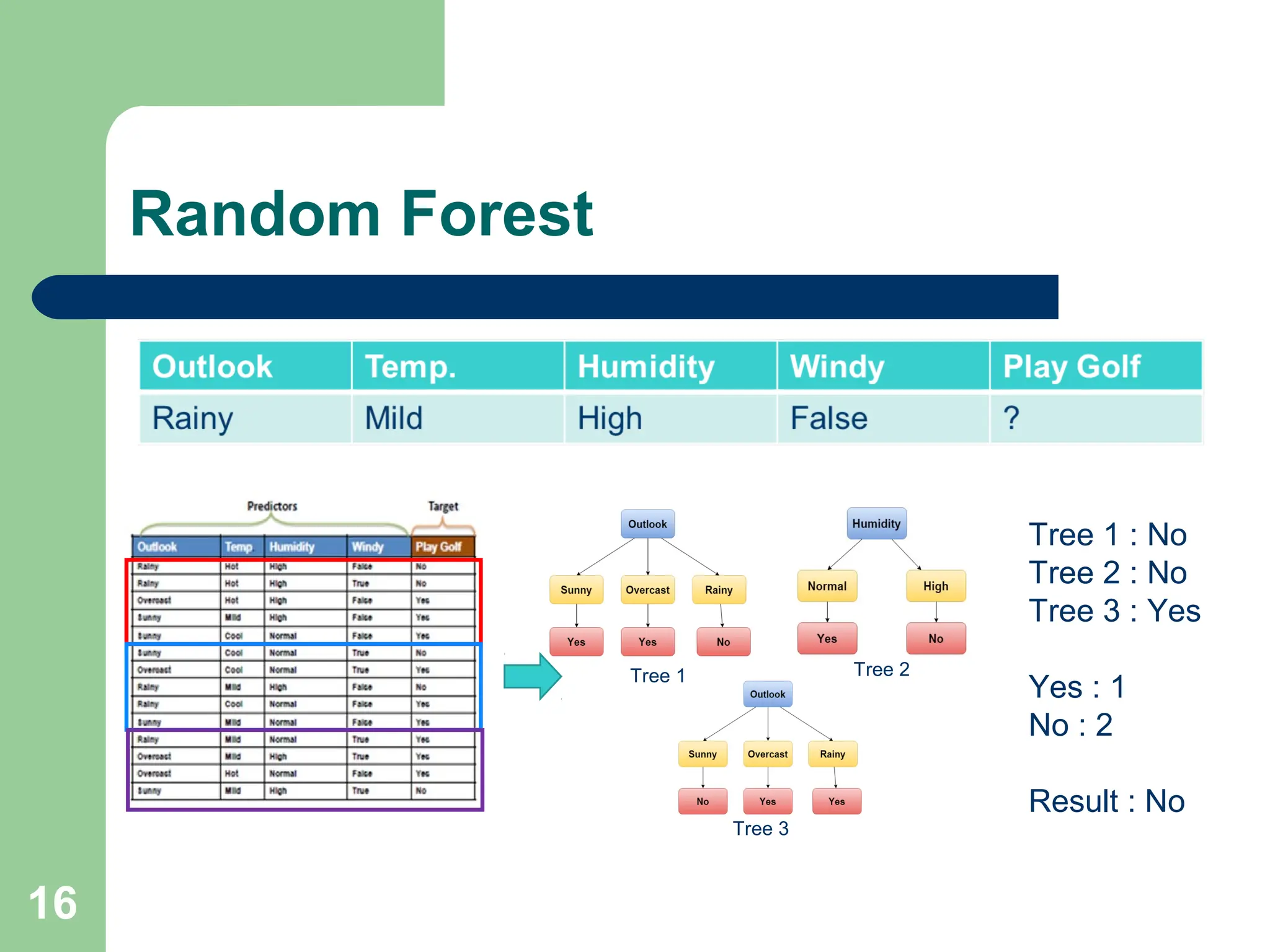

  Random Forest 16 Tree 1Tree 2 Tree 3 Tree 1 : No Tree 2 : No Tree 3 : Yes Yes : 1 No : 2 Result : No
• 17.

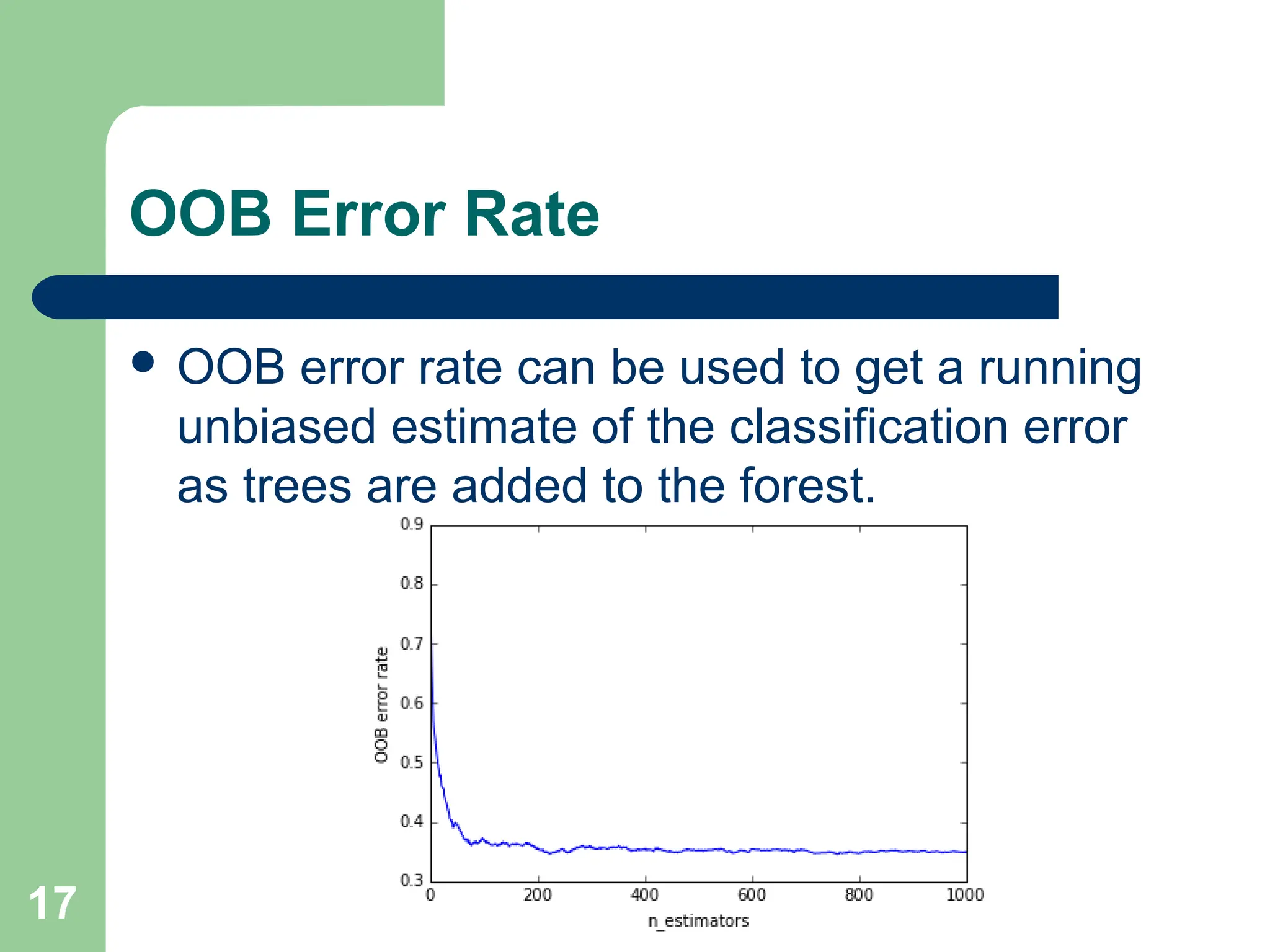

  OOB Error Rate OOB error rate can be used to get a running unbiased estimate of the classification error as trees are added to the forest. 17
