Digital VLSI Design Flow Dr Usha Mehta usha.mehta@nirmauni.ac.in 1/24/2019

Acknowledgement This presentation has been summarized from various books, papers, websites and presentations related to the topic all over the world. I couldn’t remember where these large pull of hints and work come from. However, I’d like to thank all professors and scientists who created such a good work on this emerging field. Without those efforts in this very emerging technology, these notes and slides can’t be finished.

• Suppose you have an idea/requirement/application…. • And you want to develop a Electronic System that works for it..

Typical Considerations… • Cost Constraints • Design Time • Component Supply • Prior Experience • Training • Contact Arrangement ( User Constraints) • Size/Volume/Weight Constraints • Power Source • Power Consumption Constraint • Rapid prototyping • In-service updatebility/product upgrade

The system will include • Mechanical Parts Package etc • Electronics Parts PCB IC Components Wires Connectors

Integrated Circuits • Based on Application Linear (Analog) – Digital - Mixed • Based on Fabrication Technology Monolithic - Hybrid • Based on Device BJT-CMOS • Based on Device Count SSI-MSI-LSI-VLSI-ULSI

When you are system developer…. You may use • Standard Product ICs Off – the-self electronic component that you purchase and use • Application Specific Integrated Circuits (ASICs) Specifically designed by you for your application requirements

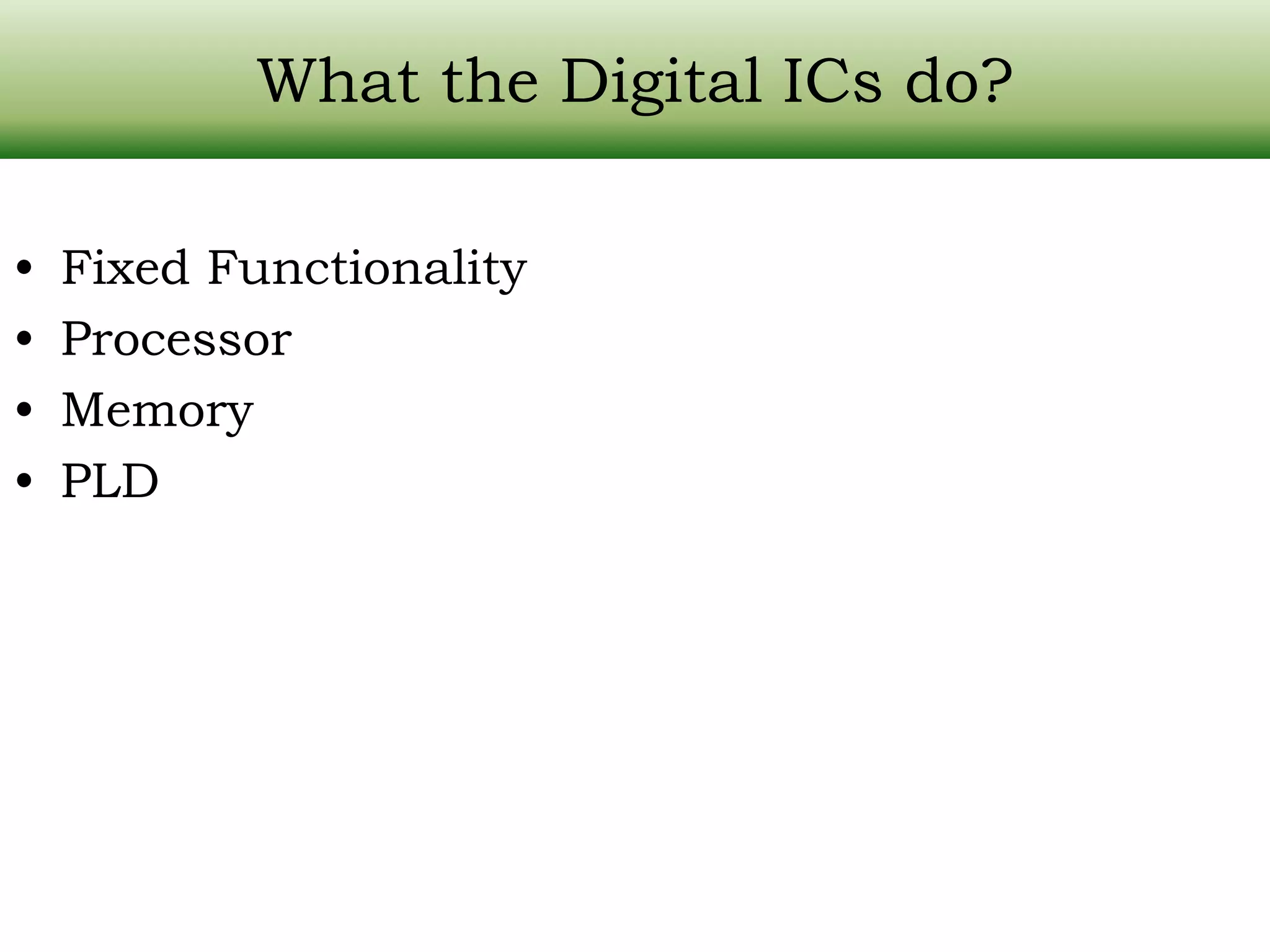

What the Digital ICs do? • Fixed Functionality • Processor • Memory • PLD

Integrated Circuits • Standard Products-ASIC • Fixed Logic-Programmable • Analog-Digital-Mixed Mode • Memory-Processor • CPLD-FPGA-Processor • Microprocessor-Microcontroller-Digital Signal Processor • ASIC-SoC-NoC • ……

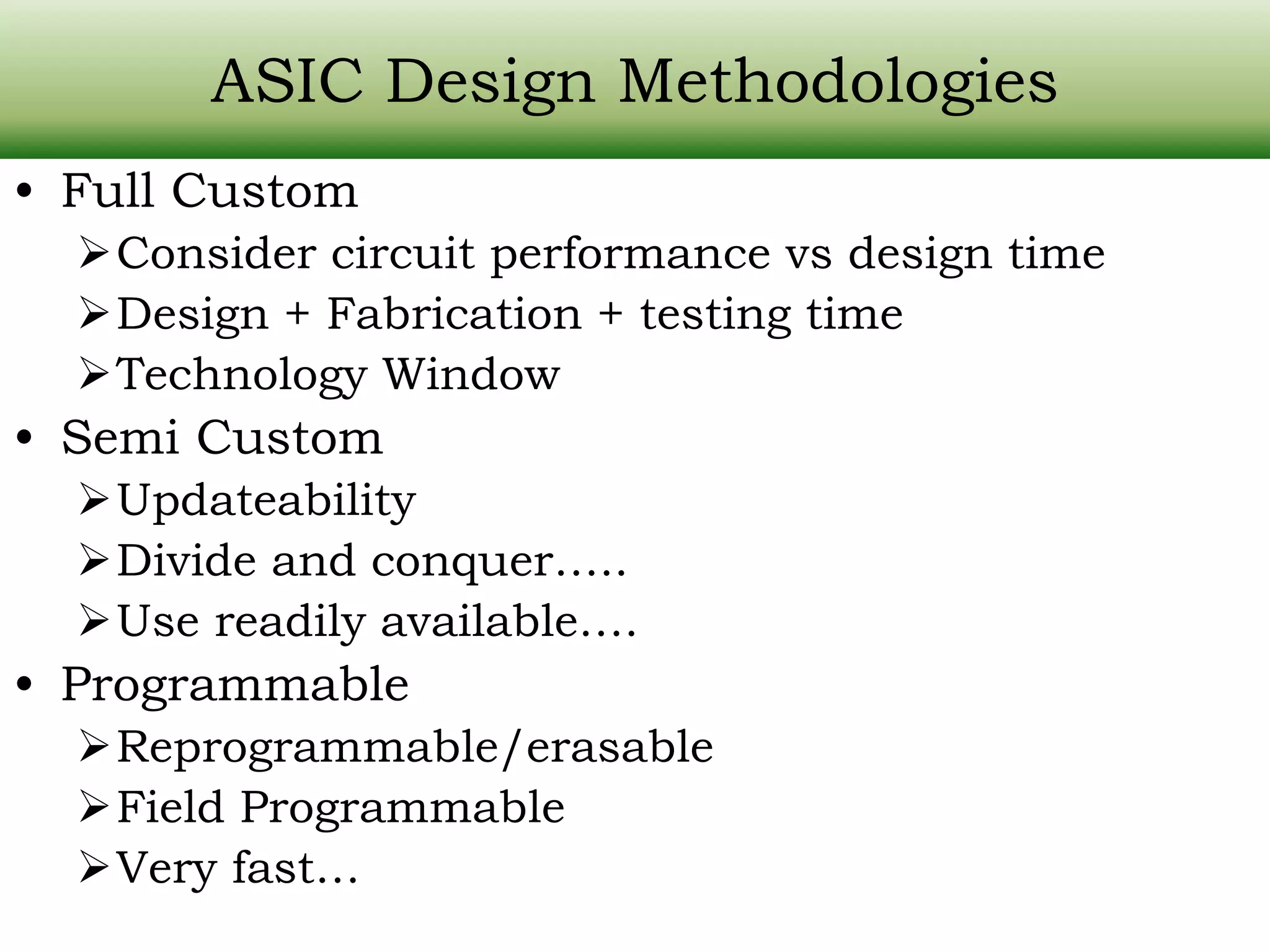

ASIC Design Methodologies • Full Custom Consider circuit performance vs design time Design + Fabrication + testing time Technology Window • Semi Custom Updateability Divide and conquer….. Use readily available…. • Programmable Reprogrammable/erasable Field Programmable Very fast…

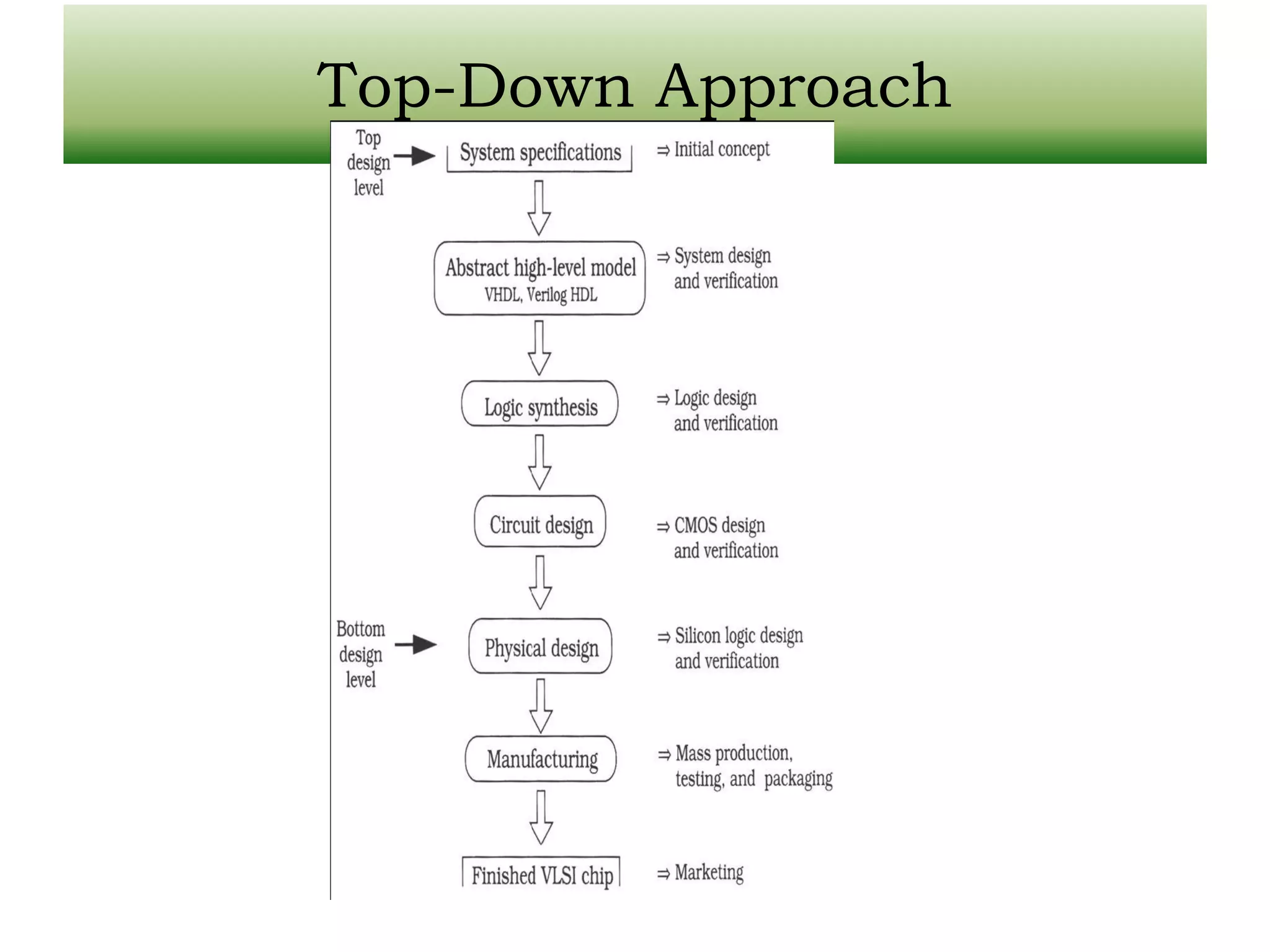

Design Hierarchy Top Down Design • The initial work is quite abstract and theoretical and there is no direct connections to silicon until many steps have been completed. • Acceptable in modern digital system design • Co-designing with H/W-S/W is critical Bottom-Up Design • Starts at the silicon or circuit level and builds primitive units such as logic gates, adders and registers as first step

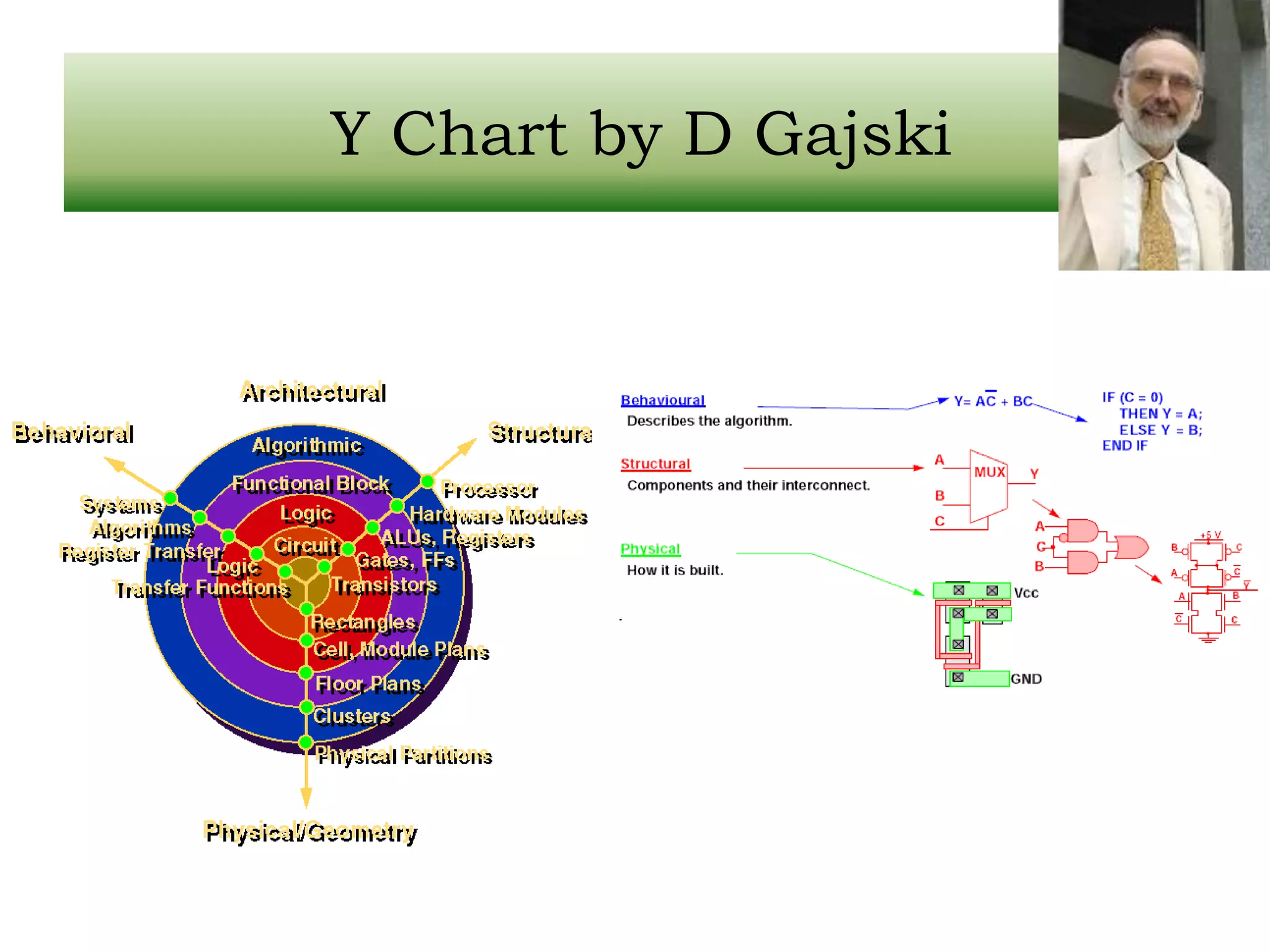

specification behavior register- transfer logic circuit layout English Executable program Sequential machines Logic gates transistors rectangles Throughput, design time Function units, clock cycles Literals, logic depth nanoseconds microns Design Abstractions specification behavior register- transfer logic circuit layout specification behavior register- transfer logic

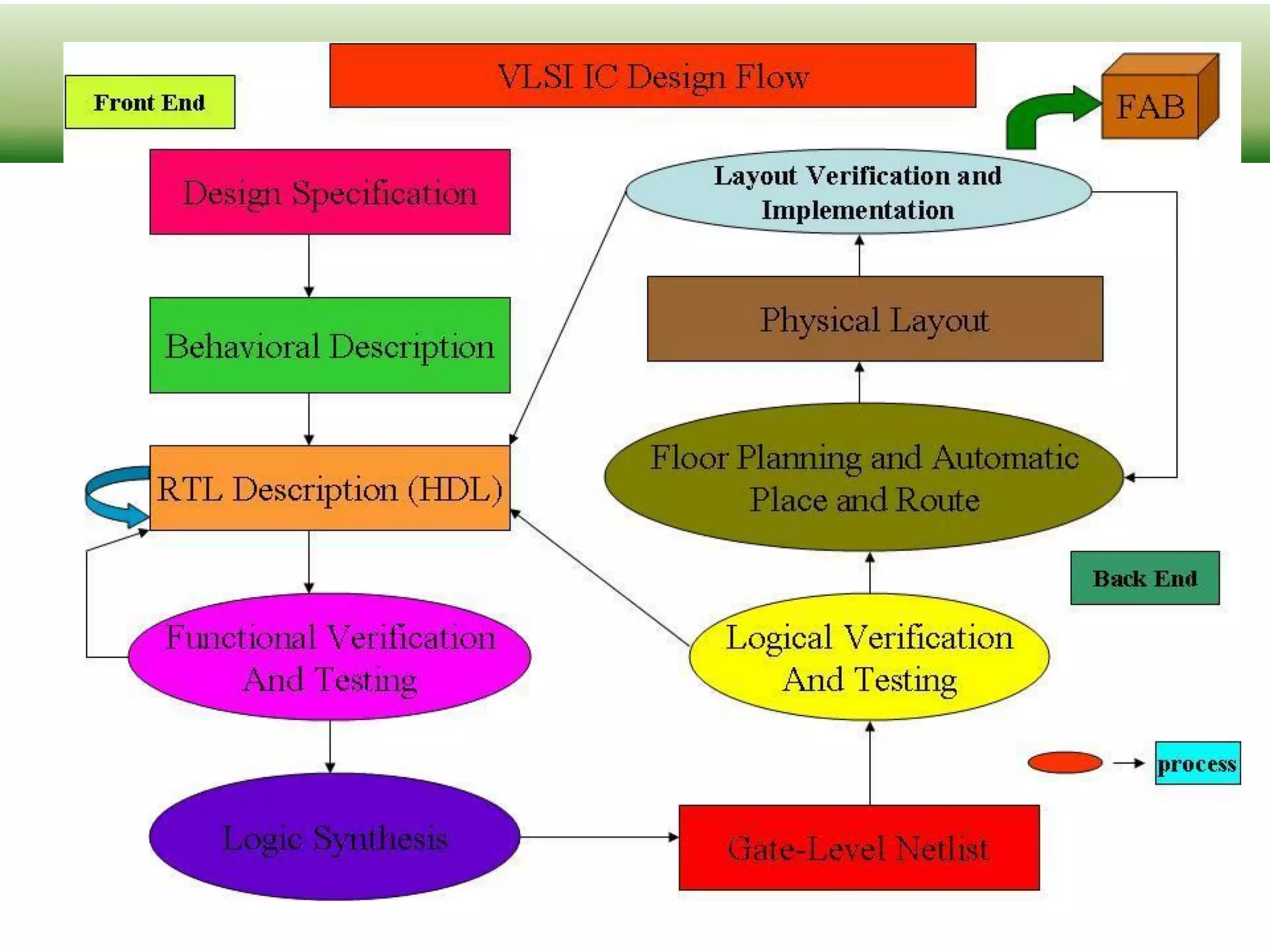

Specification • Specification of the size, speed, power and functionality of the VLSI system. • Decisions on the architecture, e.g., RISC/CISC, # of ALU’s, pipeline structure, cache size, etc. Such decisions can provide an accurate estimation of the system performance, die size, power consumption, etc. Architectural Design

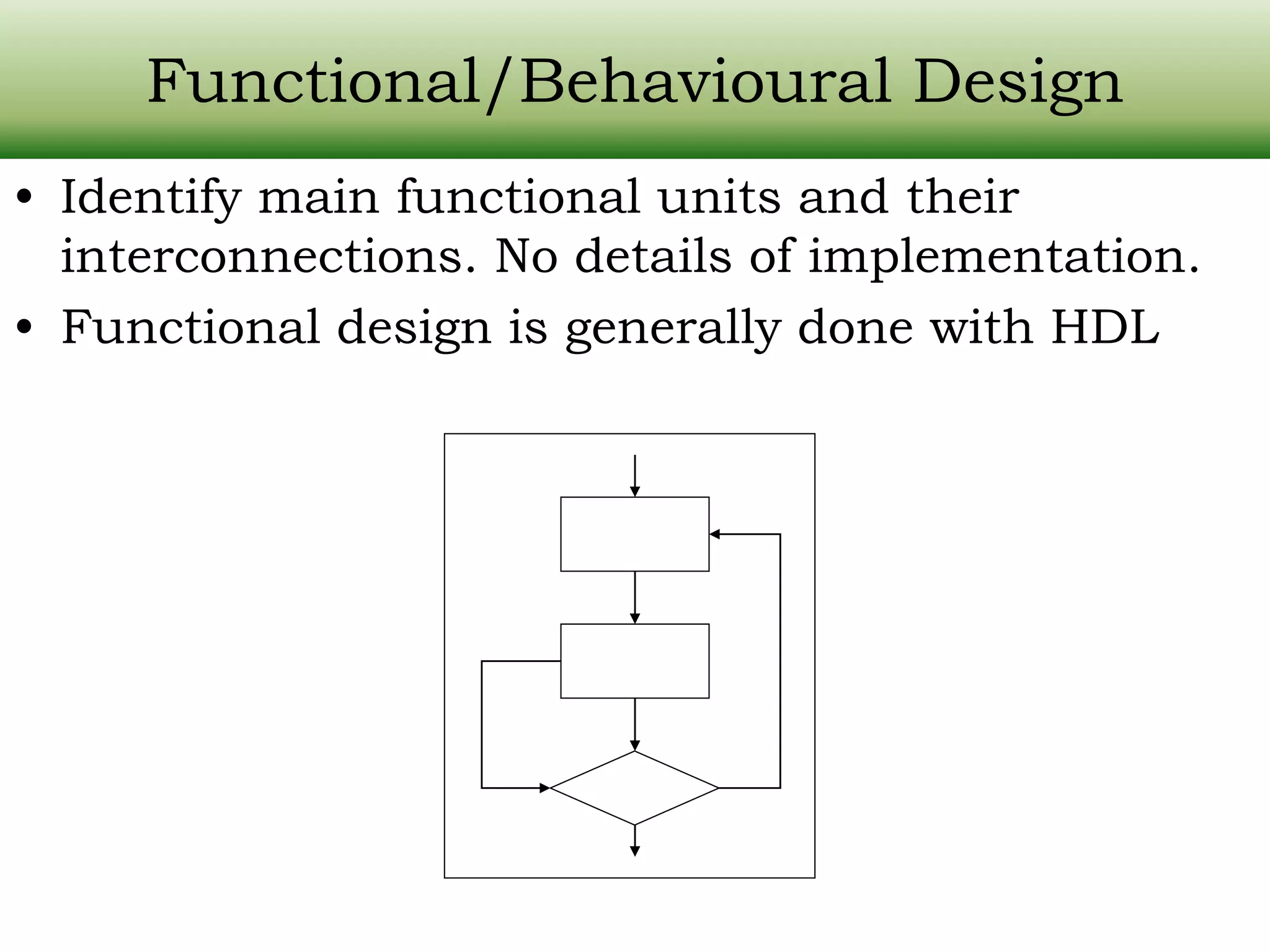

Functional/Behavioural Design • Identify main functional units and their interconnections. No details of implementation. • Functional design is generally done with HDL

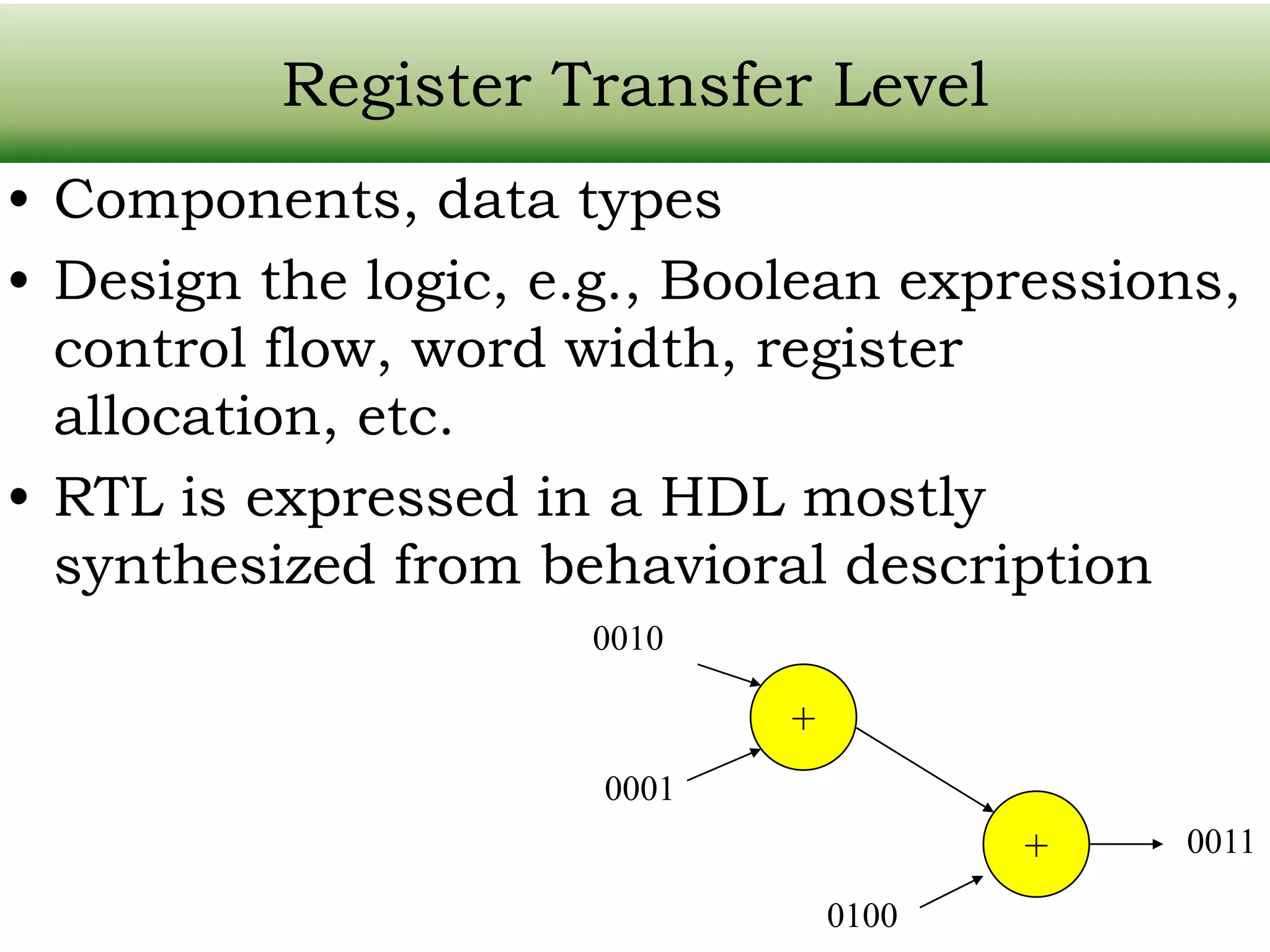

Register Transfer Level + + 0010 0001 0100 0011 • Components, data types • Design the logic, e.g., Boolean expressions, control flow, word width, register allocation, etc. • RTL is expressed in a HDL mostly synthesized from behavioral description

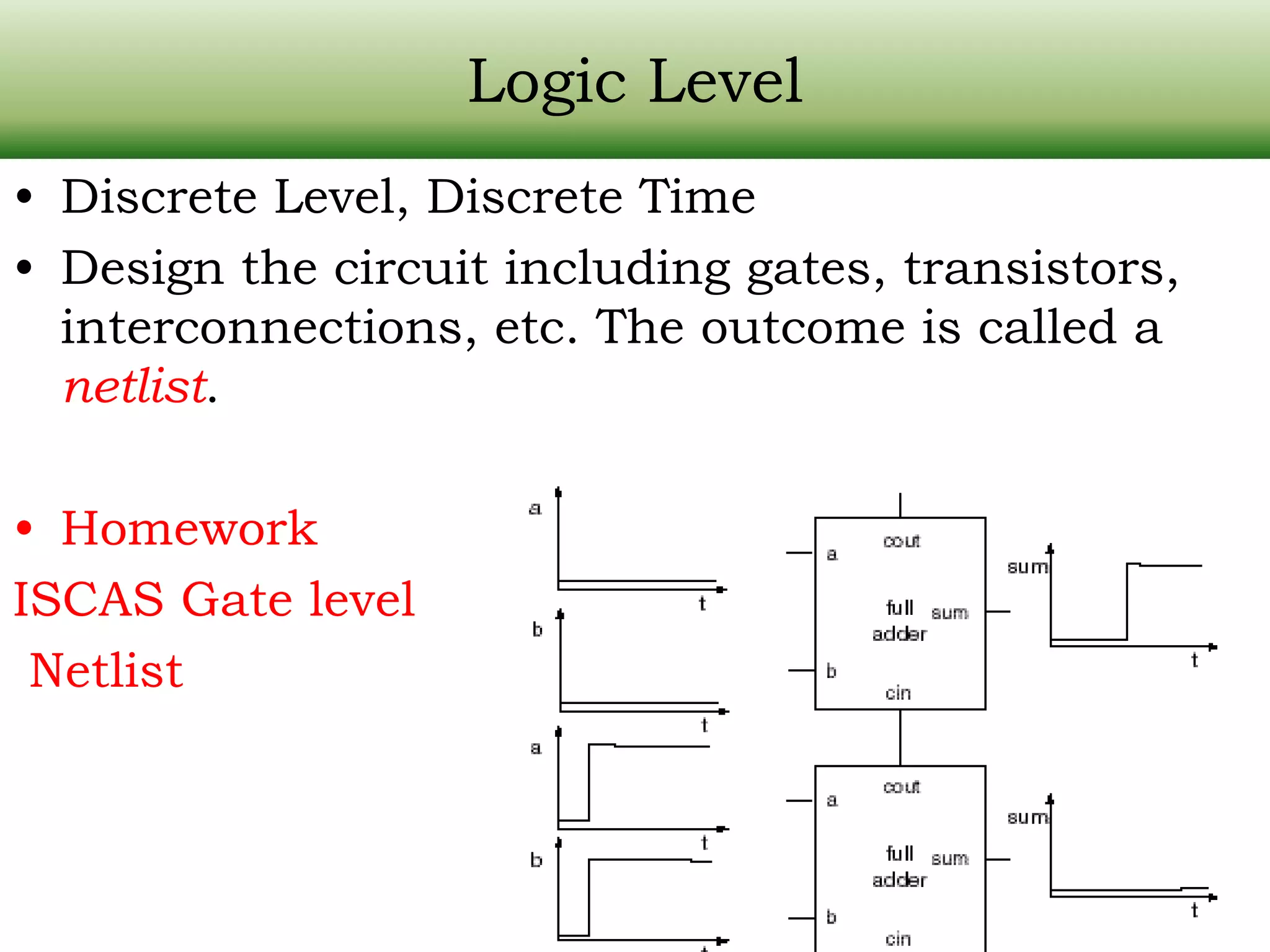

Logic Level • Discrete Level, Discrete Time • Design the circuit including gates, transistors, interconnections, etc. The outcome is called a netlist. • Homework ISCAS Gate level Netlist

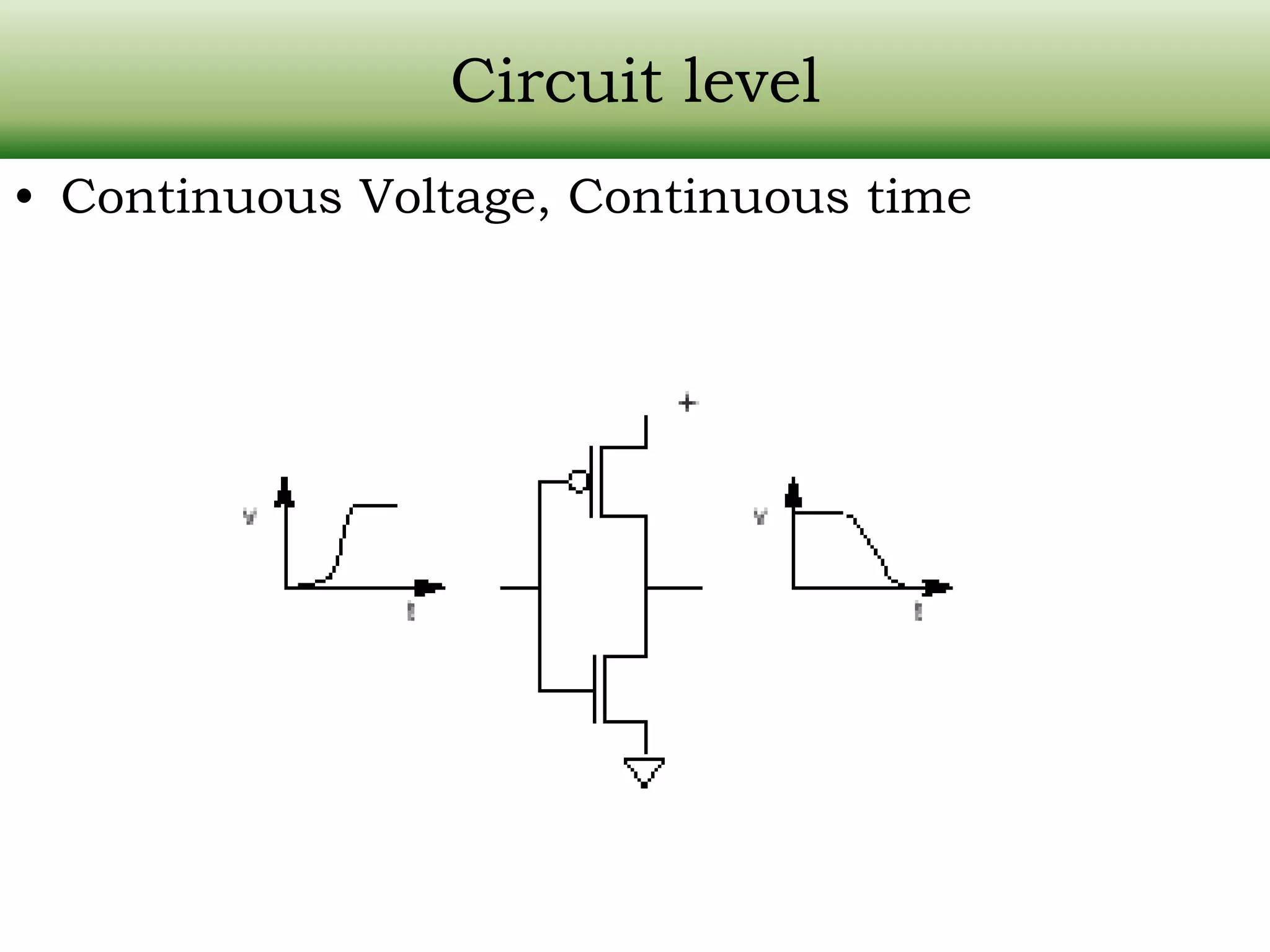

Circuit level • Continuous Voltage, Continuous time

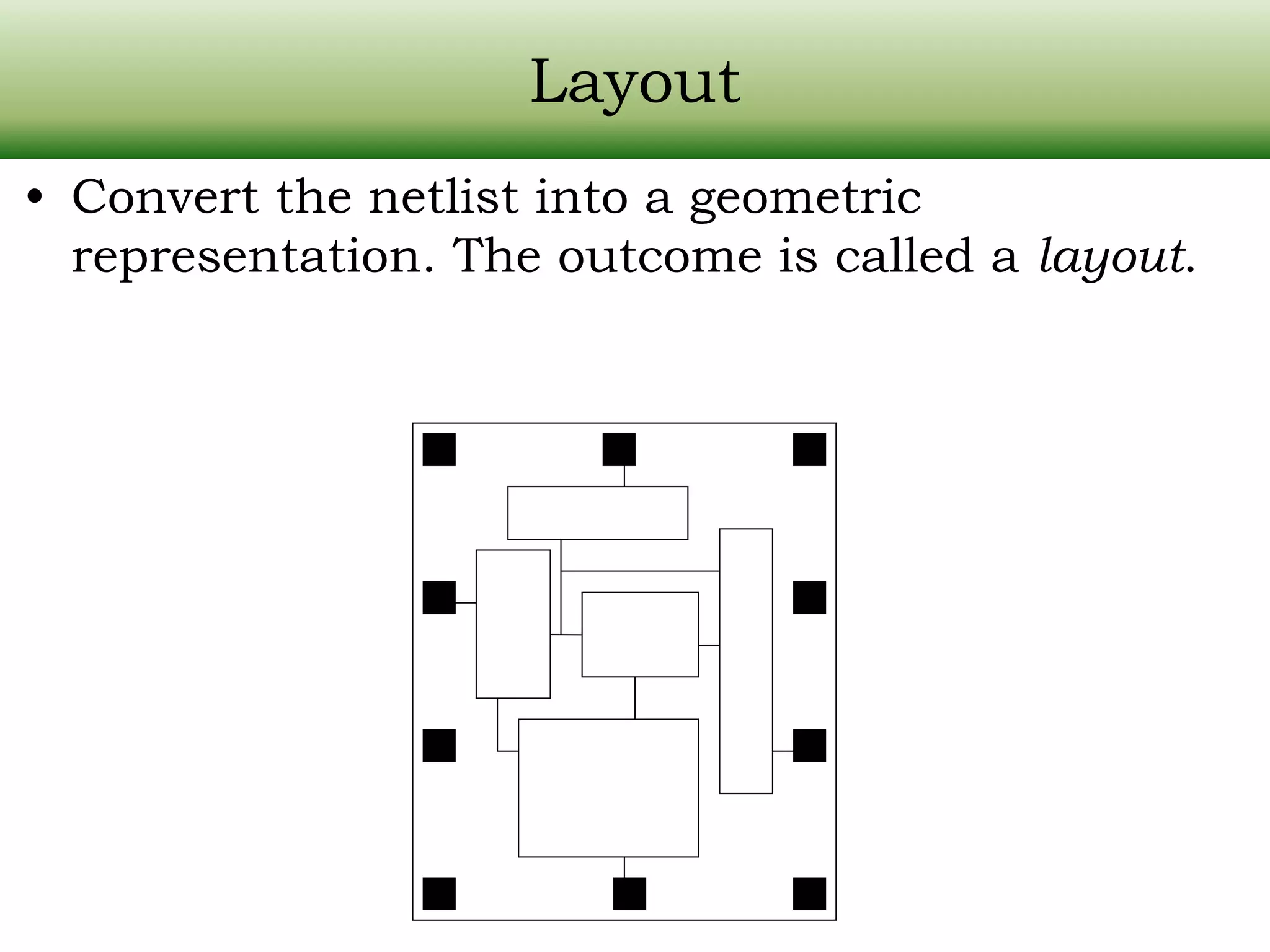

Layout • Convert the netlist into a geometric representation. The outcome is called a layout.

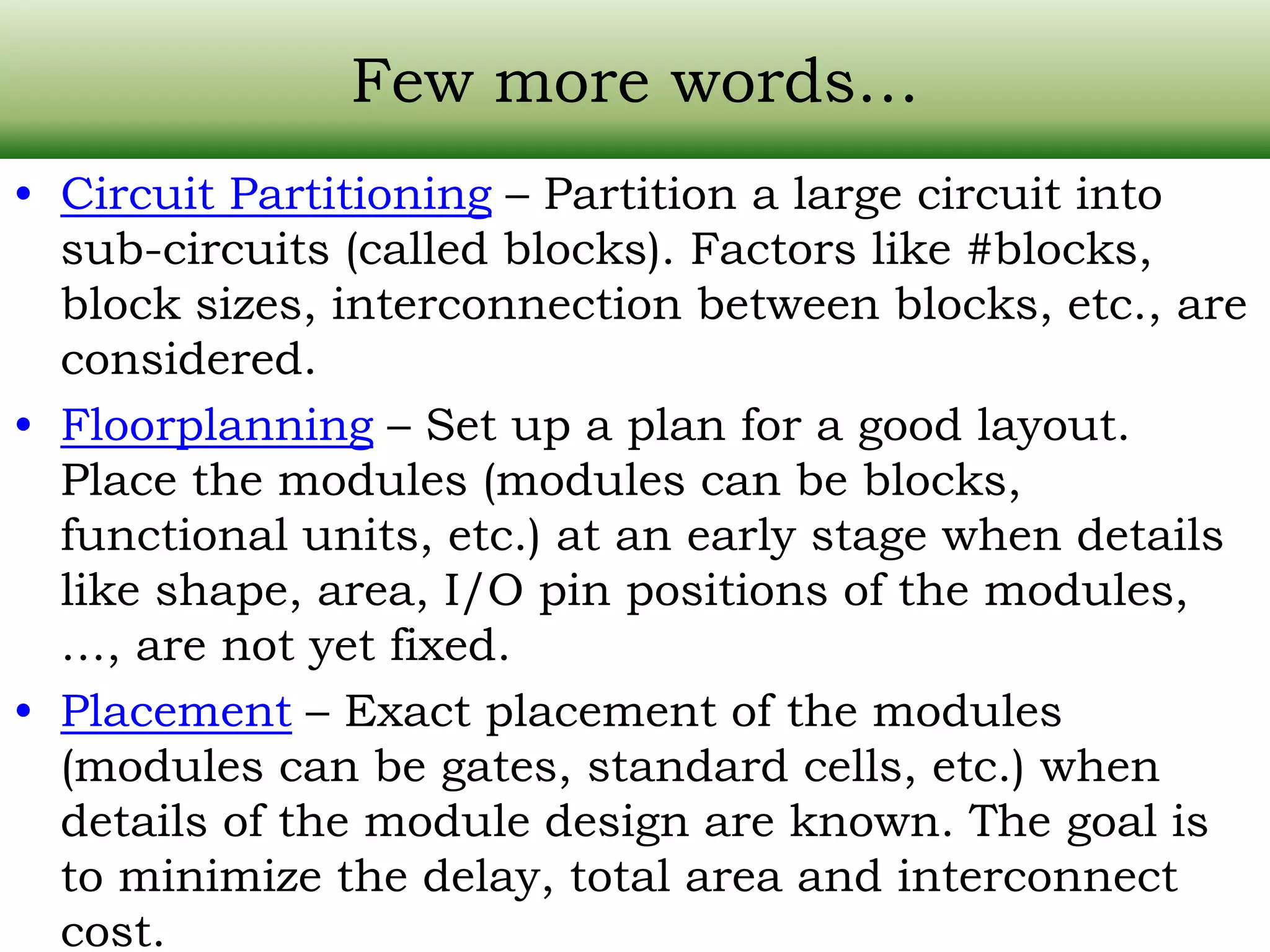

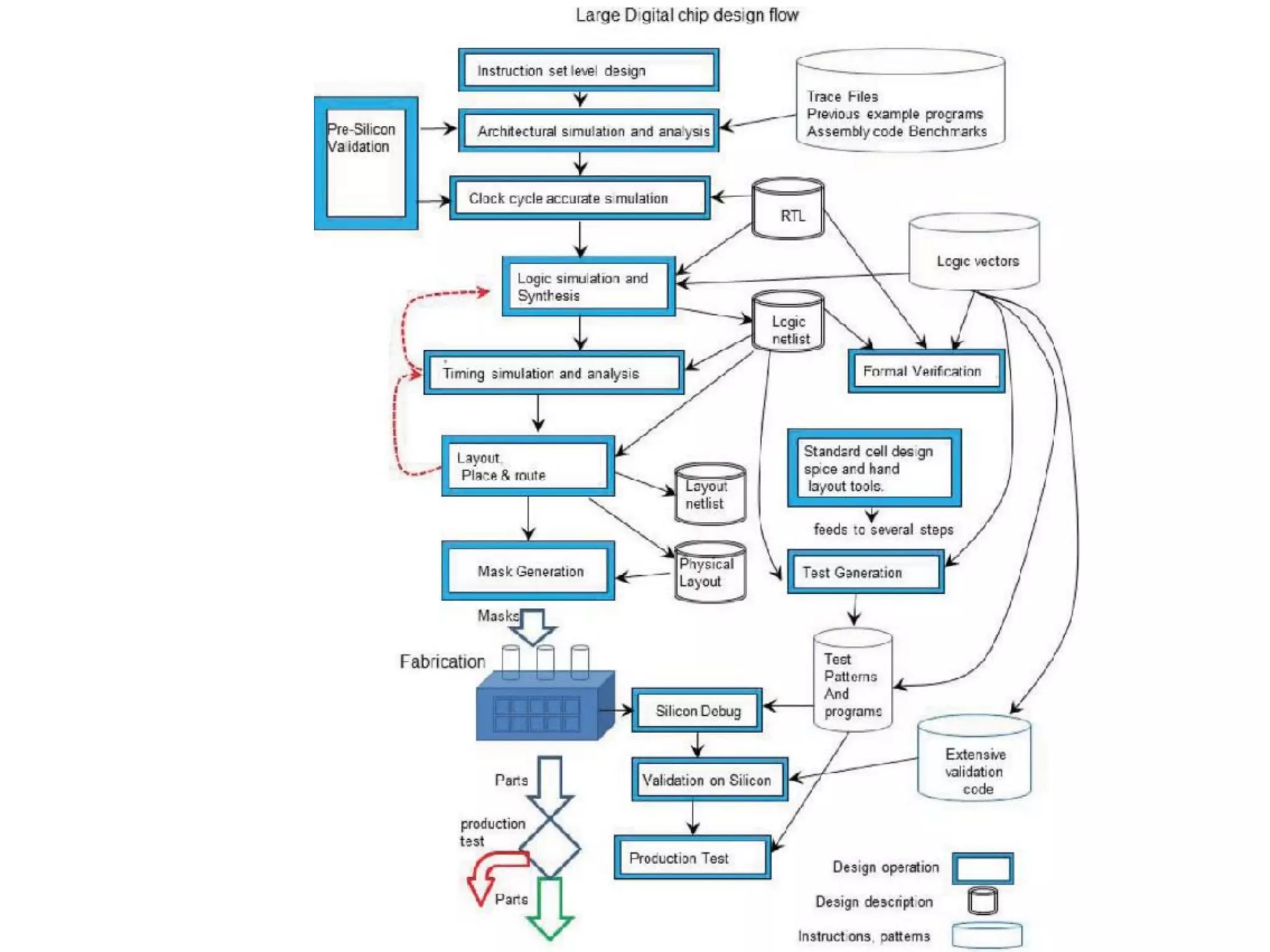

Few more words… • Circuit Partitioning – Partition a large circuit into sub-circuits (called blocks). Factors like #blocks, block sizes, interconnection between blocks, etc., are considered. • Floorplanning – Set up a plan for a good layout. Place the modules (modules can be blocks, functional units, etc.) at an early stage when details like shape, area, I/O pin positions of the modules, …, are not yet fixed. • Placement – Exact placement of the modules (modules can be gates, standard cells, etc.) when details of the module design are known. The goal is to minimize the delay, total area and interconnect cost.

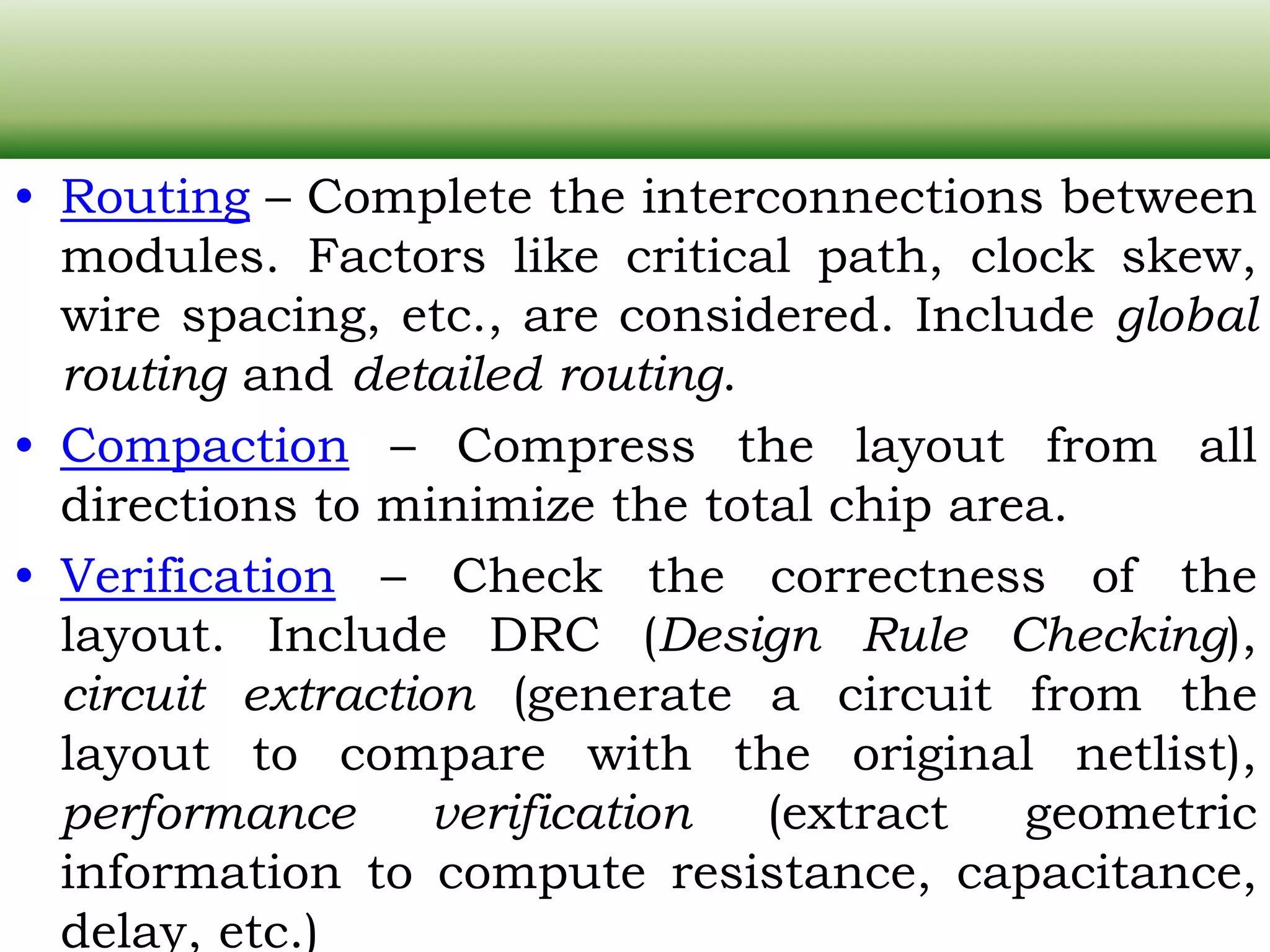

• Routing – Complete the interconnections between modules. Factors like critical path, clock skew, wire spacing, etc., are considered. Include global routing and detailed routing. • Compaction – Compress the layout from all directions to minimize the total chip area. • Verification – Check the correctness of the layout. Include DRC (Design Rule Checking), circuit extraction (generate a circuit from the layout to compare with the original netlist), performance verification (extract geometric information to compute resistance, capacitance, delay, etc.)

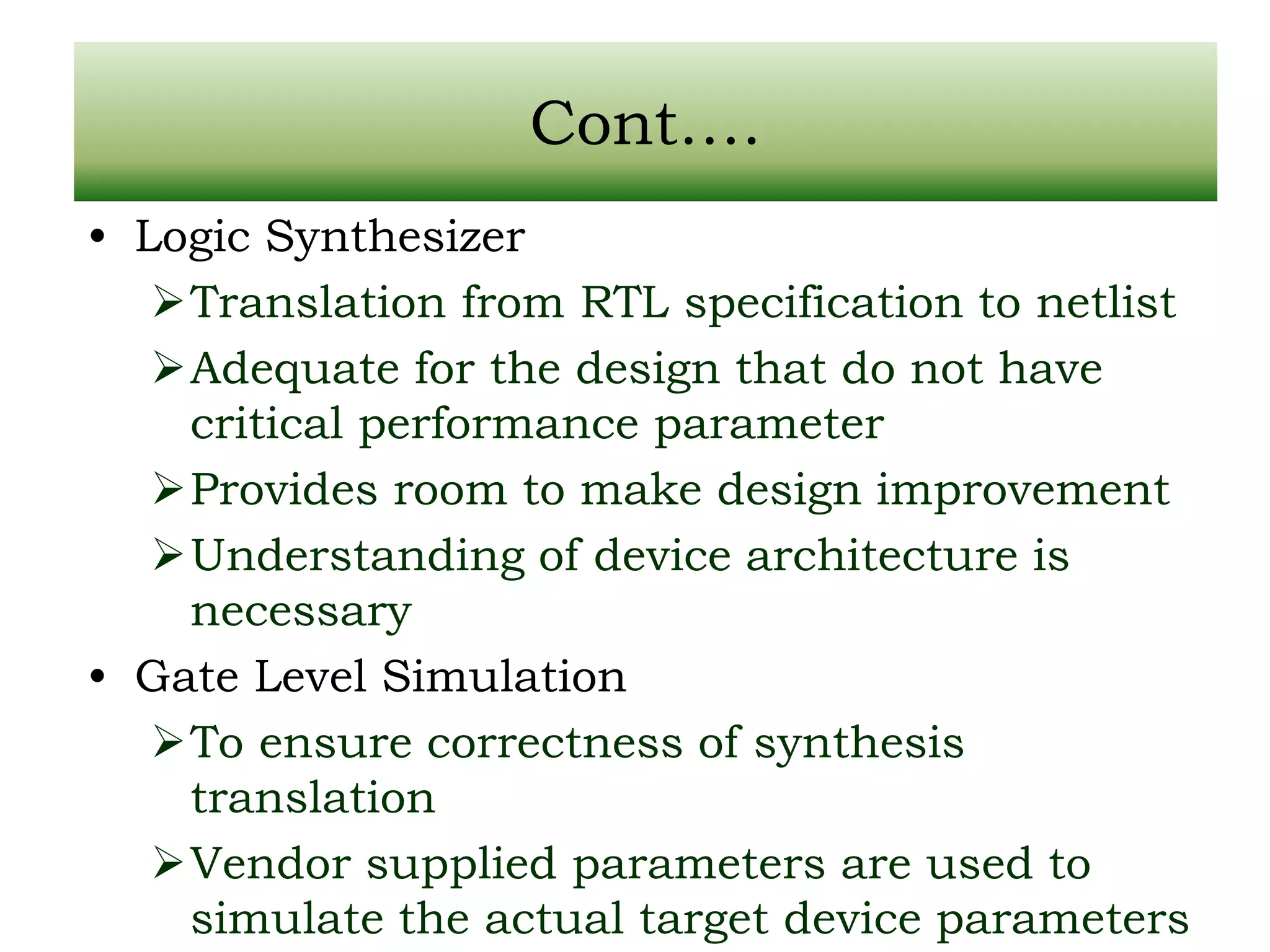

Cont…. • Logic Synthesizer Translation from RTL specification to netlist Adequate for the design that do not have critical performance parameter Provides room to make design improvement Understanding of device architecture is necessary • Gate Level Simulation To ensure correctness of synthesis translation Vendor supplied parameters are used to simulate the actual target device parameters

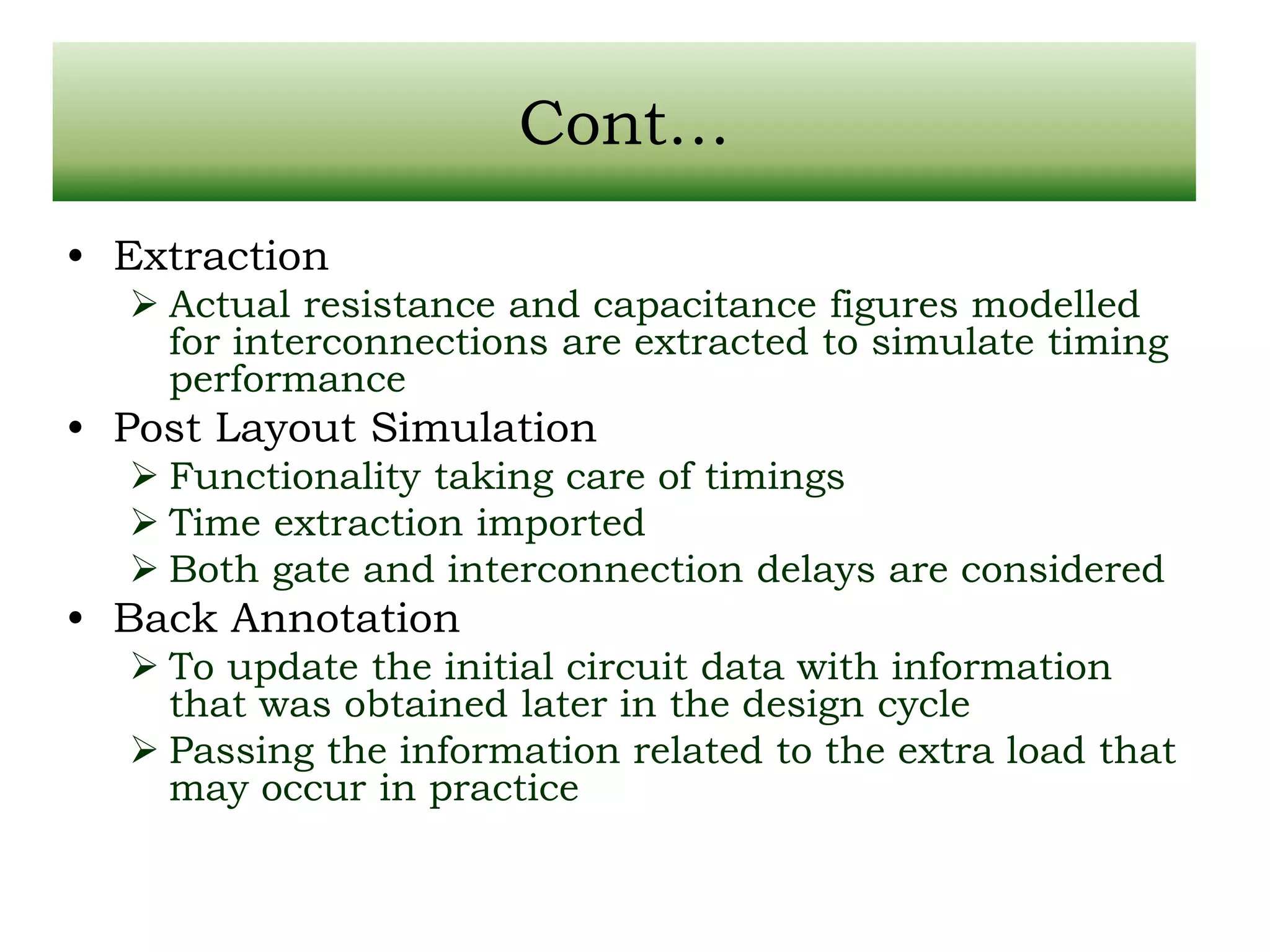

Cont… • Extraction  Actual resistance and capacitance figures modelled for interconnections are extracted to simulate timing performance • Post Layout Simulation  Functionality taking care of timings  Time extraction imported  Both gate and interconnection delays are considered • Back Annotation  To update the initial circuit data with information that was obtained later in the design cycle  Passing the information related to the extra load that may occur in practice

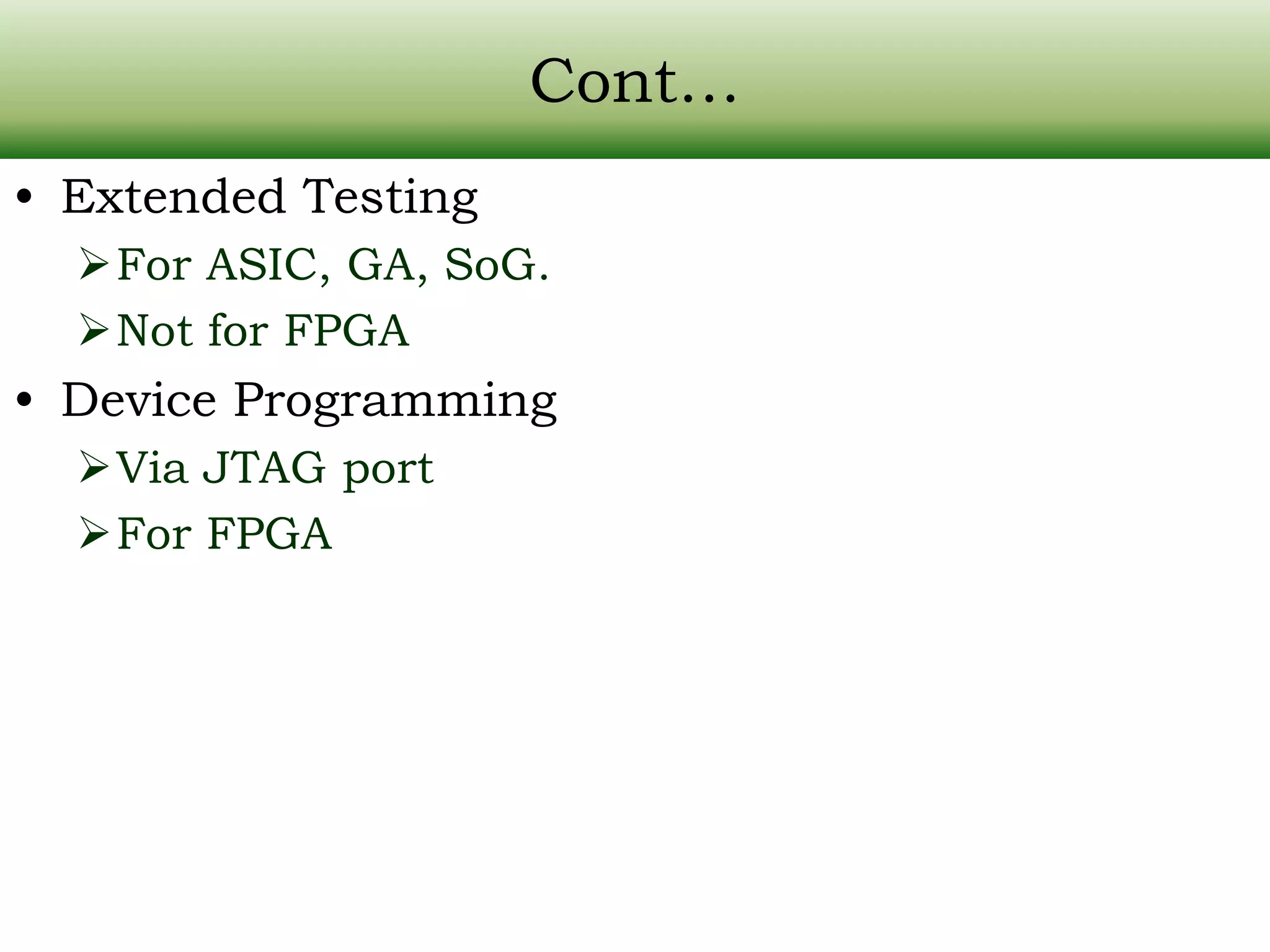

Cont… • Extended Testing For ASIC, GA, SoG. Not for FPGA • Device Programming Via JTAG port For FPGA

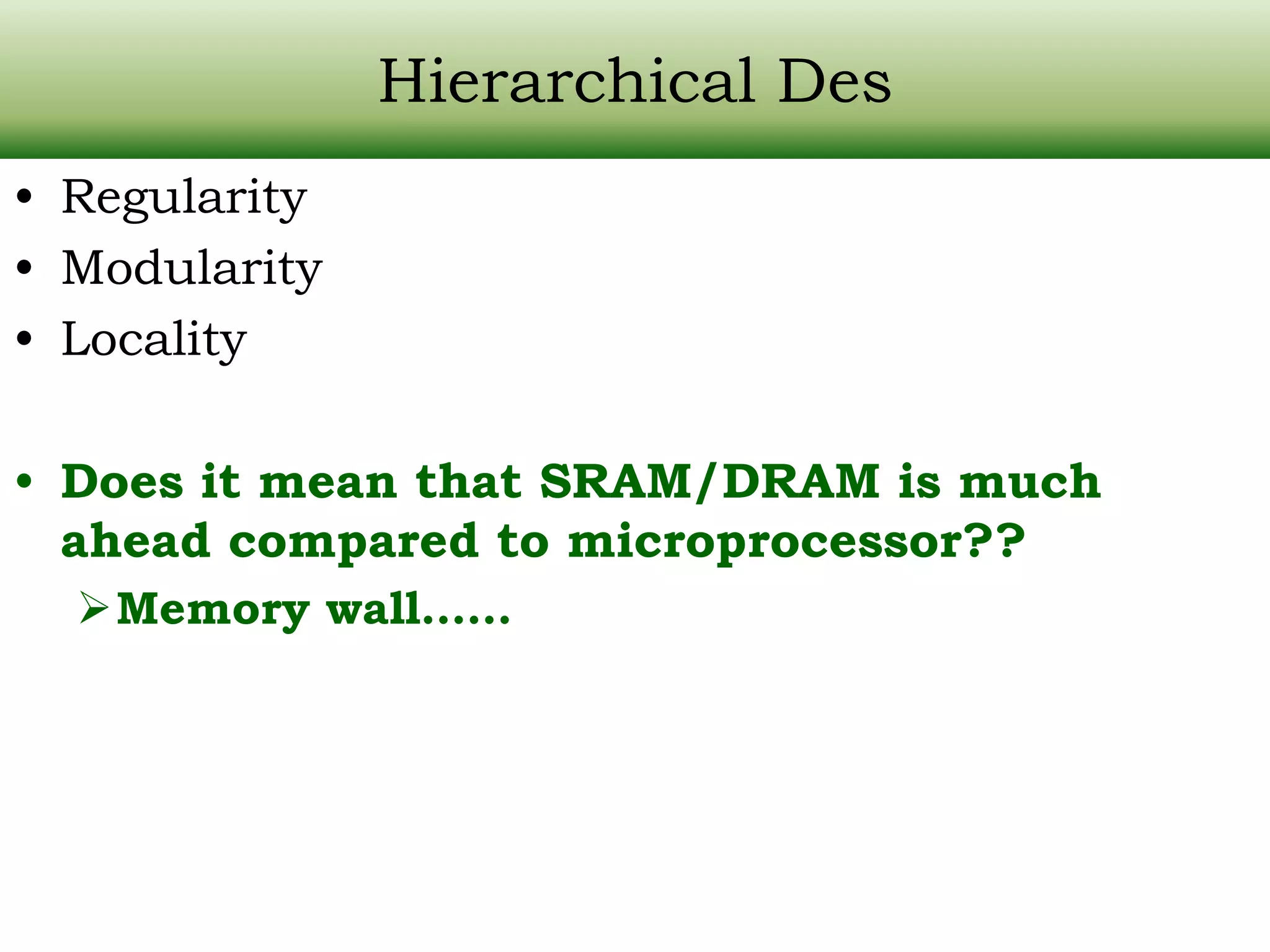

Hierarchical Des • Regularity • Modularity • Locality • Does it mean that SRAM/DRAM is much ahead compared to microprocessor?? Memory wall……

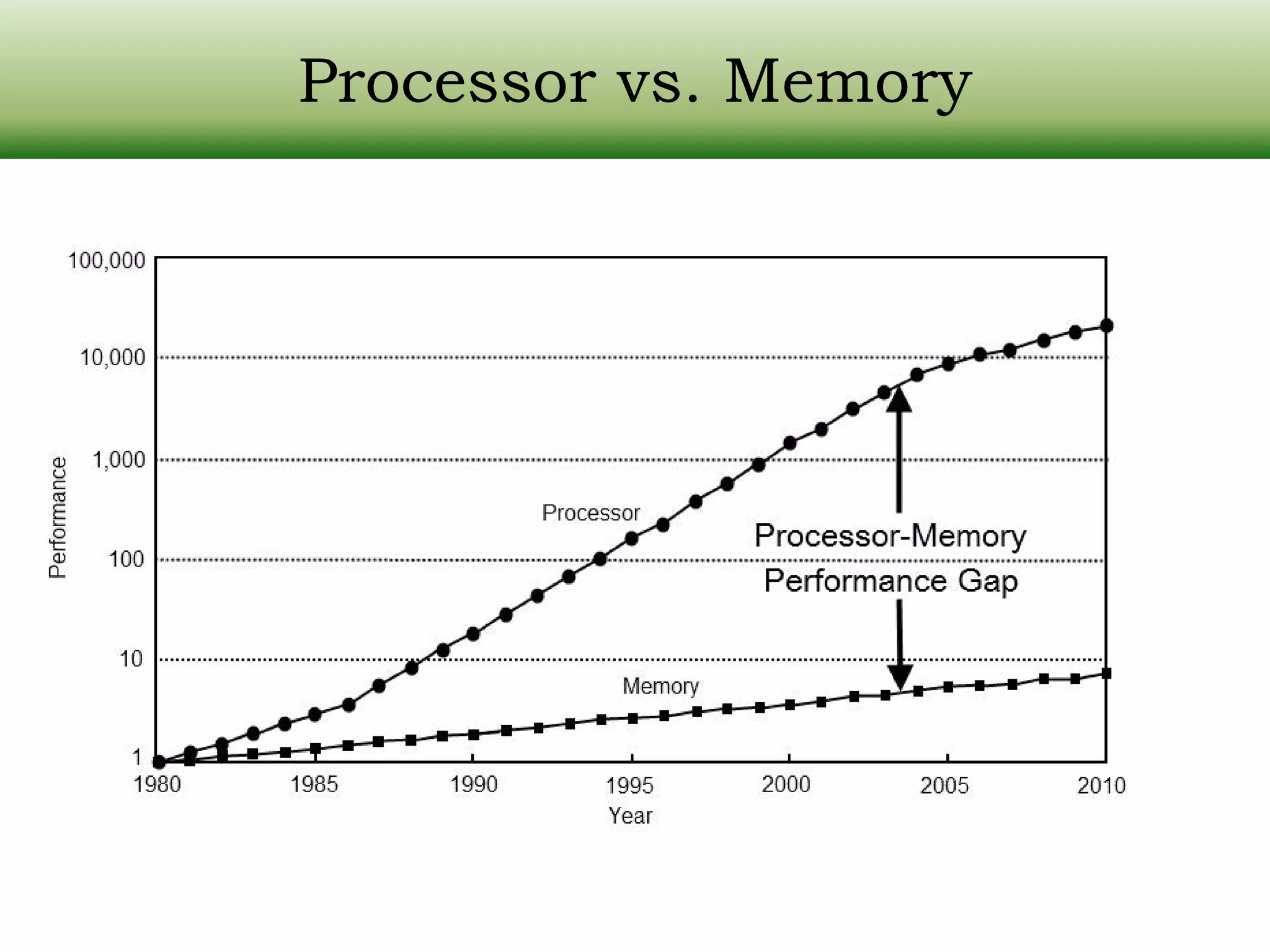

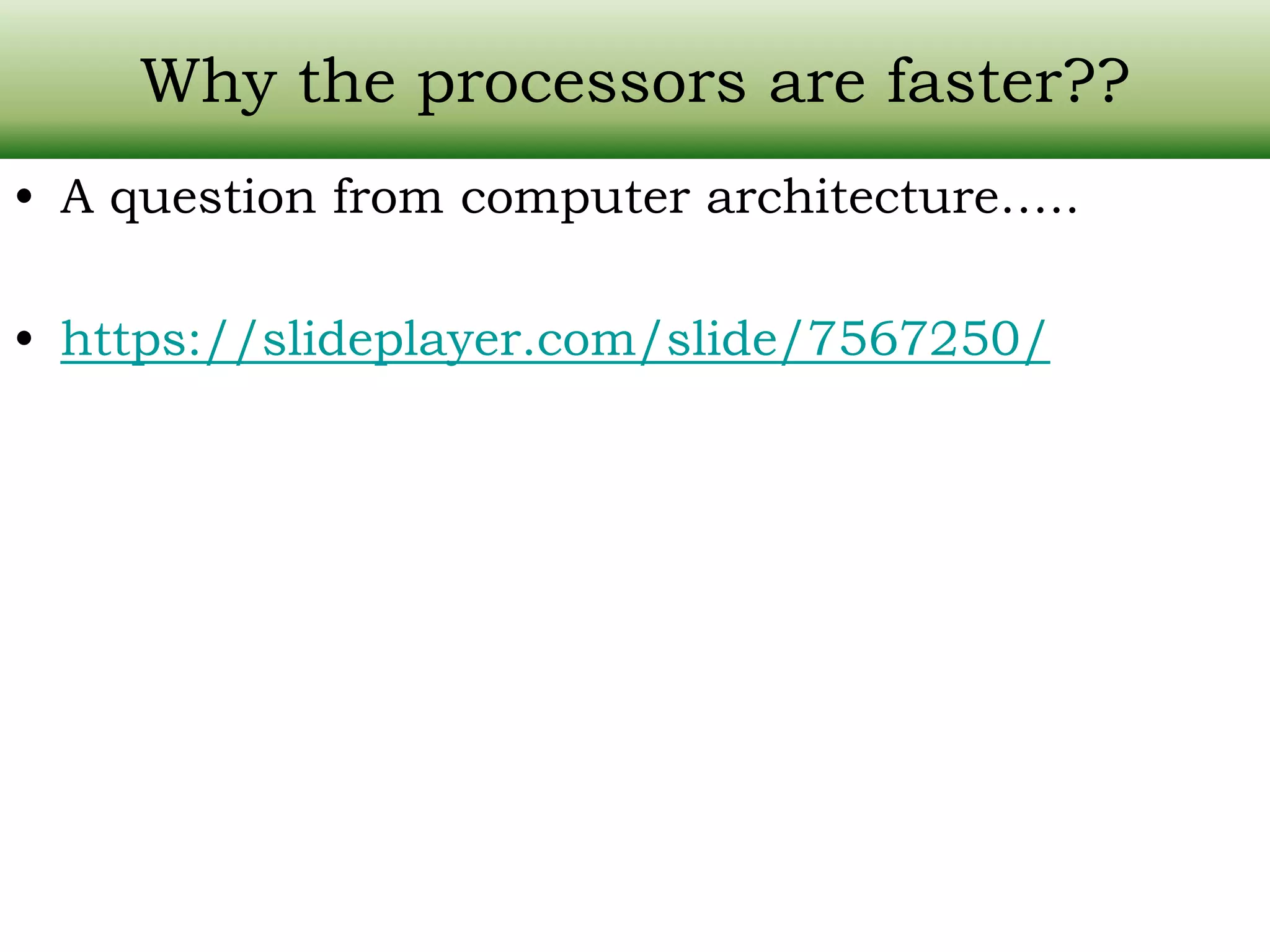

Why the processors are faster?? • A question from computer architecture….. • https://slideplayer.com/slide/7567250/

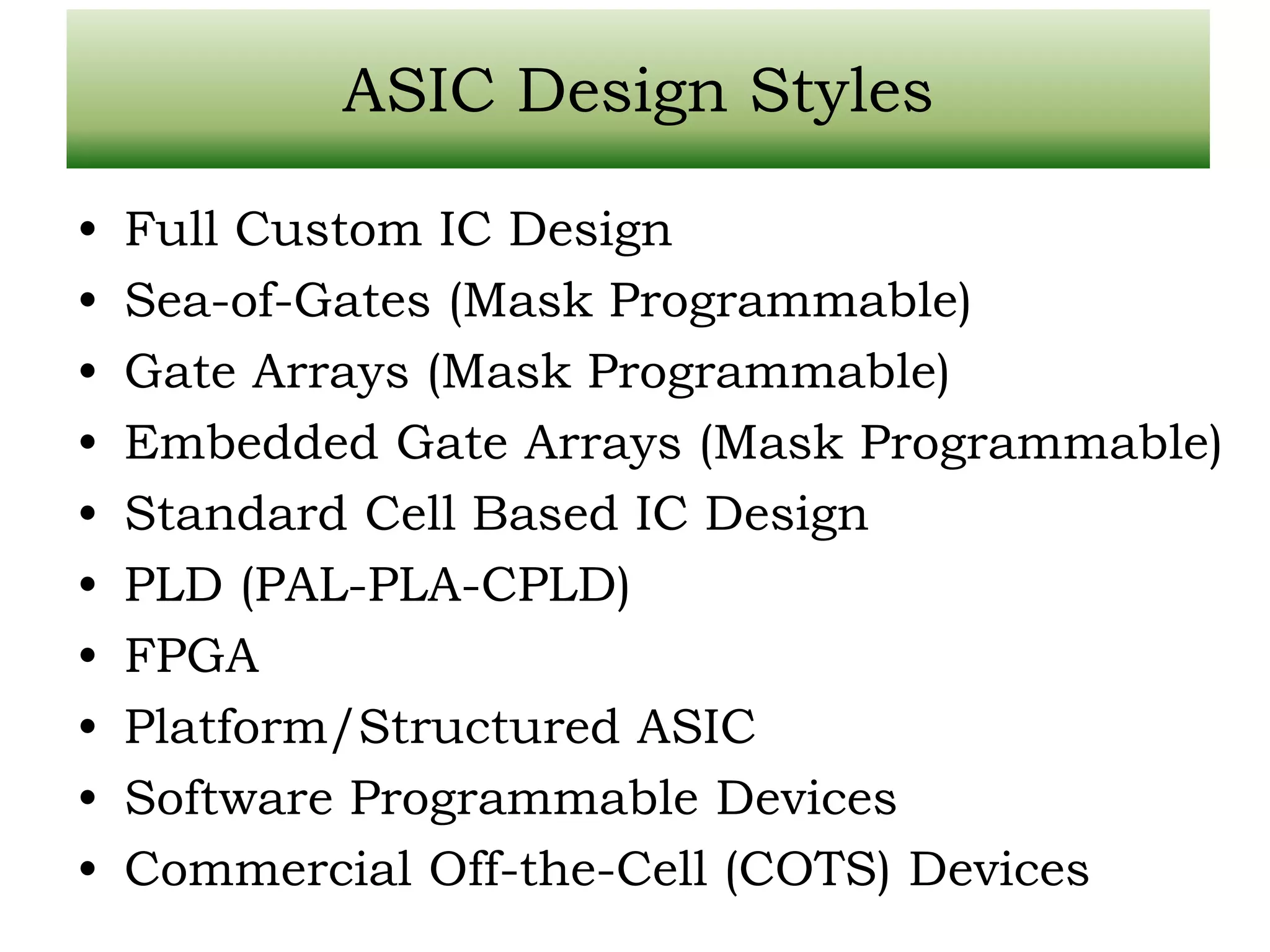

ASIC Design Styles • Full Custom IC Design • Sea-of-Gates (Mask Programmable) • Gate Arrays (Mask Programmable) • Embedded Gate Arrays (Mask Programmable) • Standard Cell Based IC Design • PLD (PAL-PLA-CPLD) • FPGA • Platform/Structured ASIC • Software Programmable Devices • Commercial Off-the-Cell (COTS) Devices

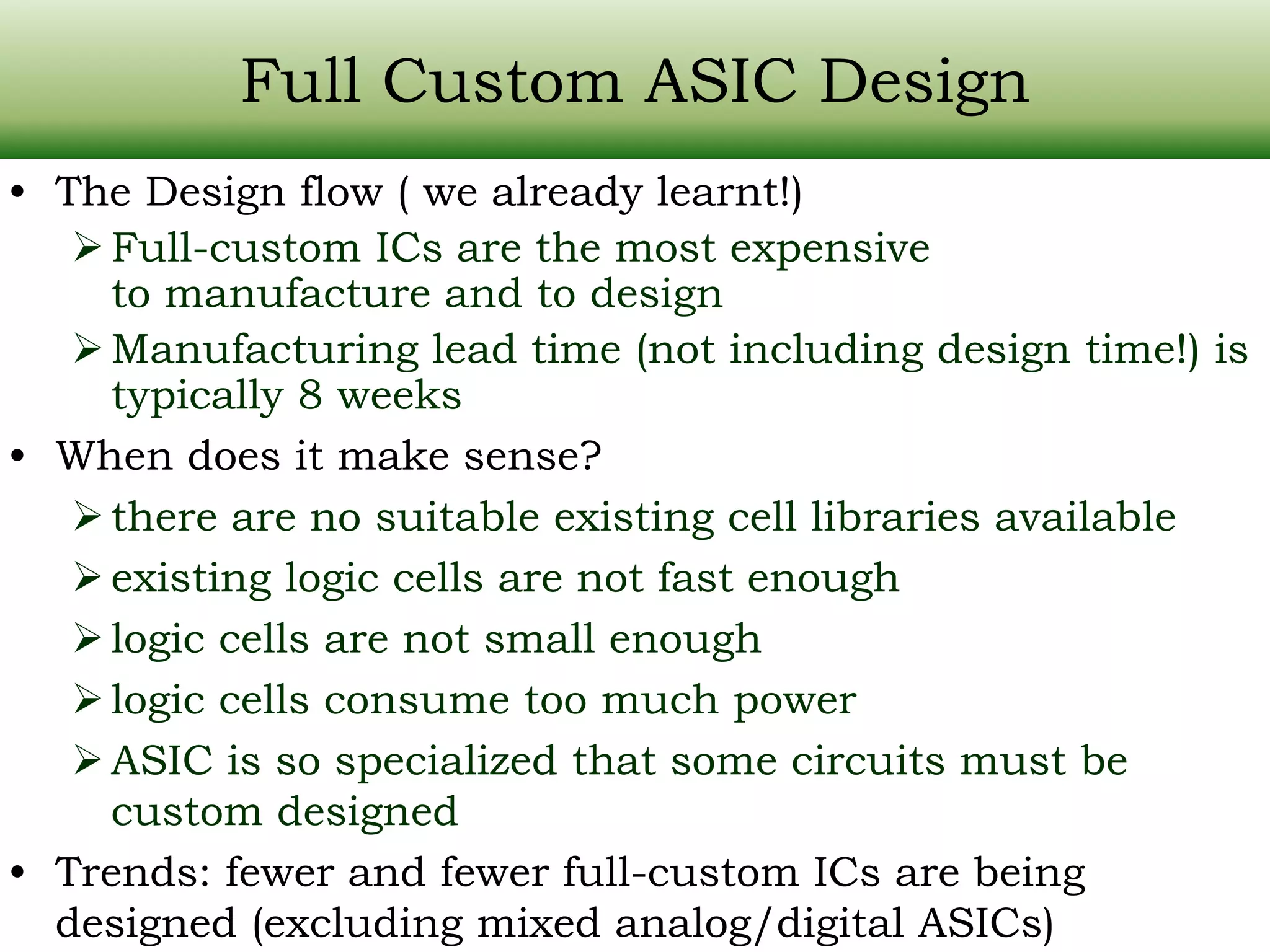

Full Custom ASIC Design • The Design flow ( we already learnt!) Full-custom ICs are the most expensive to manufacture and to design Manufacturing lead time (not including design time!) is typically 8 weeks • When does it make sense? there are no suitable existing cell libraries available existing logic cells are not fast enough logic cells are not small enough logic cells consume too much power ASIC is so specialized that some circuits must be custom designed • Trends: fewer and fewer full-custom ICs are being designed (excluding mixed analog/digital ASICs)

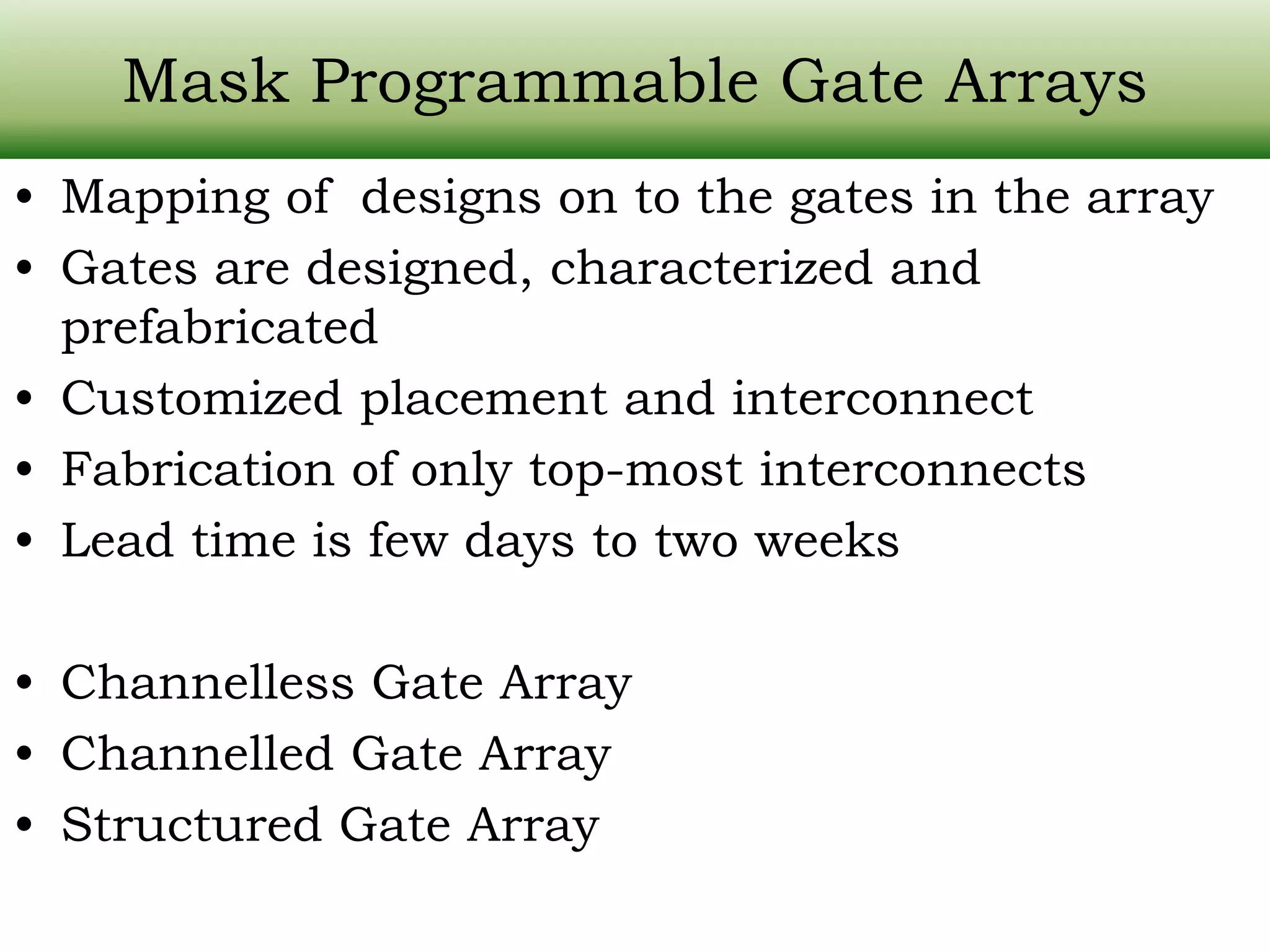

Mask Programmable Gate Arrays • Mapping of designs on to the gates in the array • Gates are designed, characterized and prefabricated • Customized placement and interconnect • Fabrication of only top-most interconnects • Lead time is few days to two weeks • Channelless Gate Array • Channelled Gate Array • Structured Gate Array

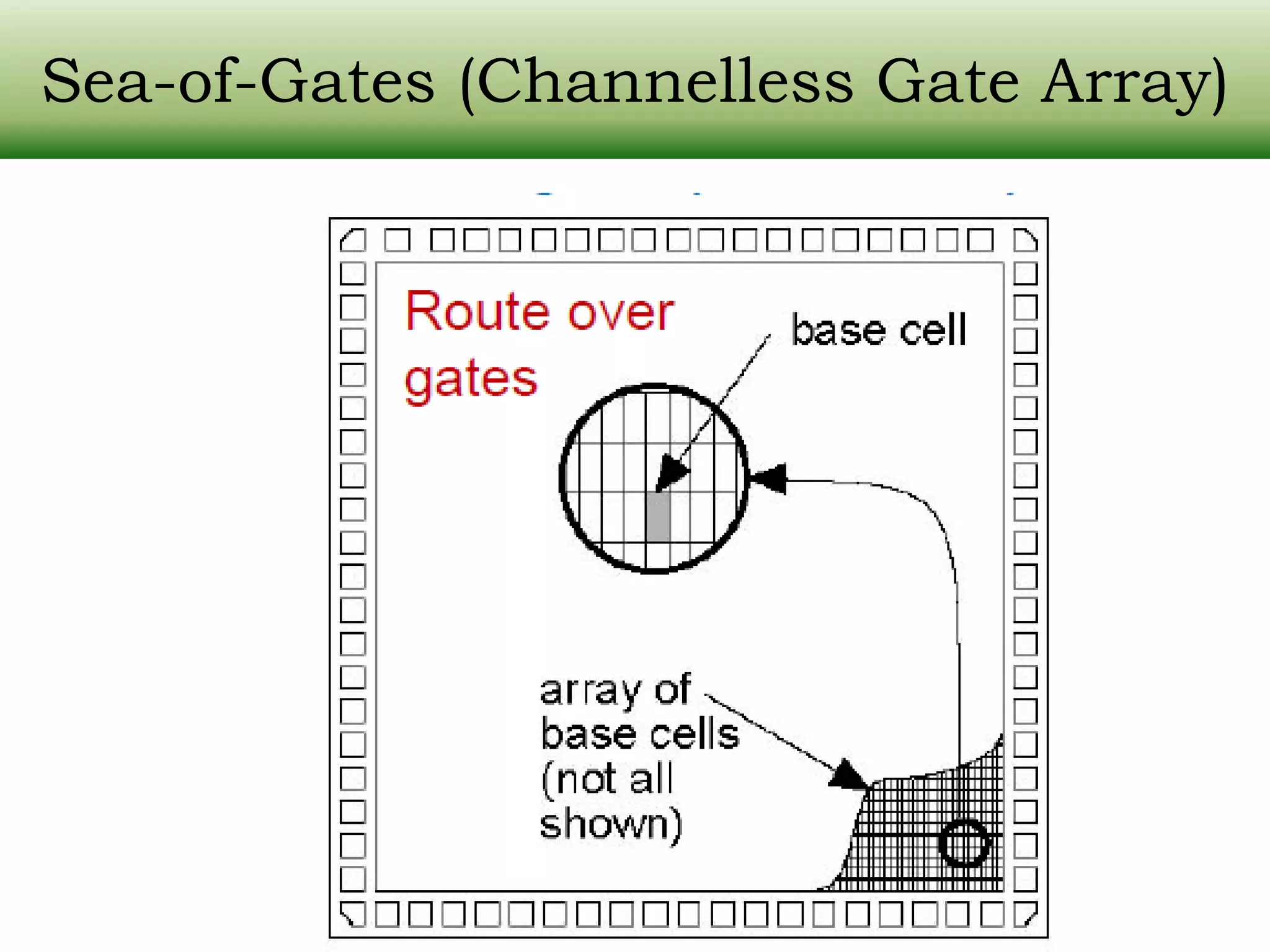

Sea-of-Gates (Channelless Gate Array)

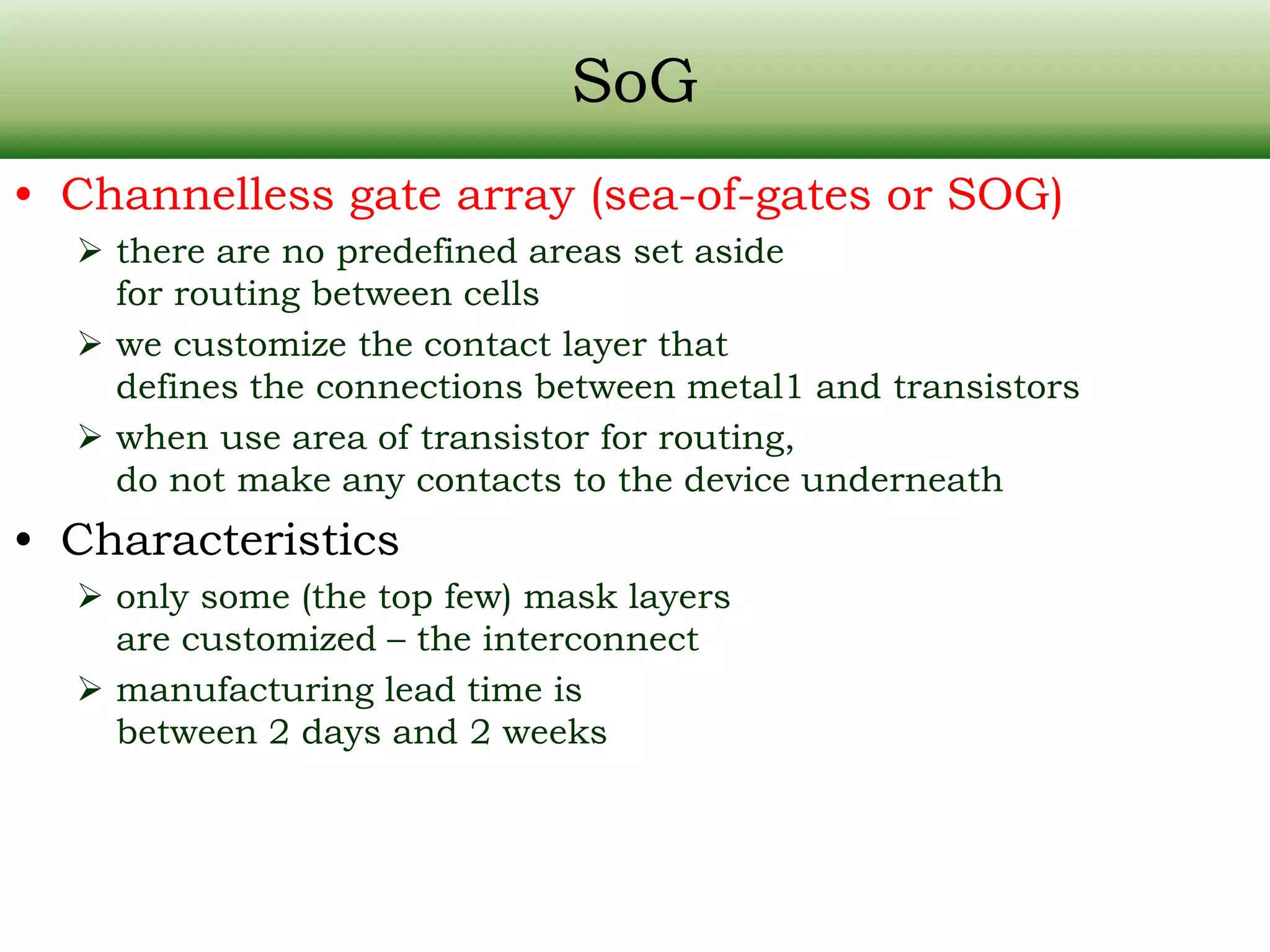

SoG • Channelless gate array (sea-of-gates or SOG)  there are no predefined areas set aside for routing between cells  we customize the contact layer that defines the connections between metal1 and transistors  when use area of transistor for routing, do not make any contacts to the device underneath • Characteristics  only some (the top few) mask layers are customized – the interconnect  manufacturing lead time is between 2 days and 2 weeks

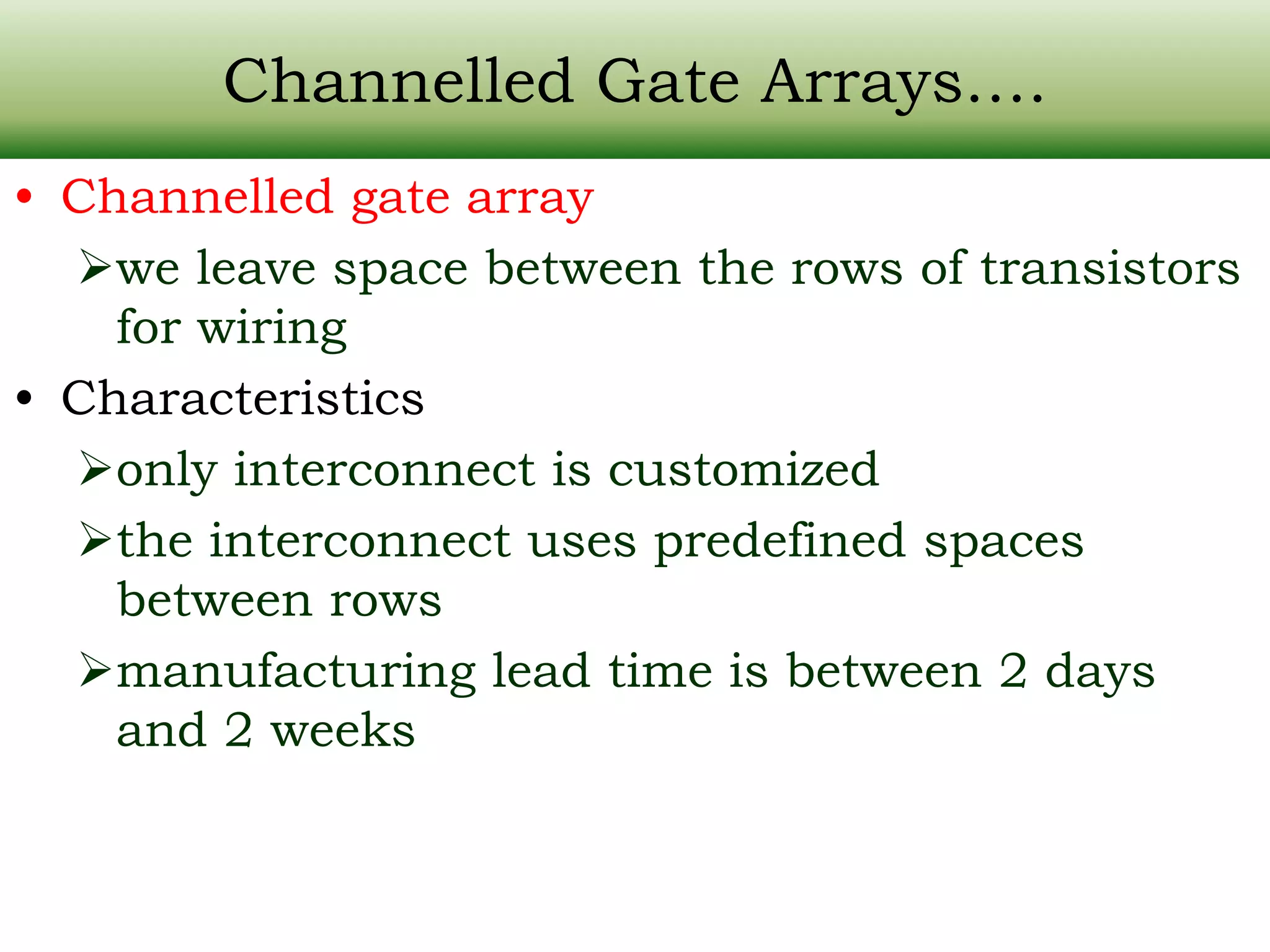

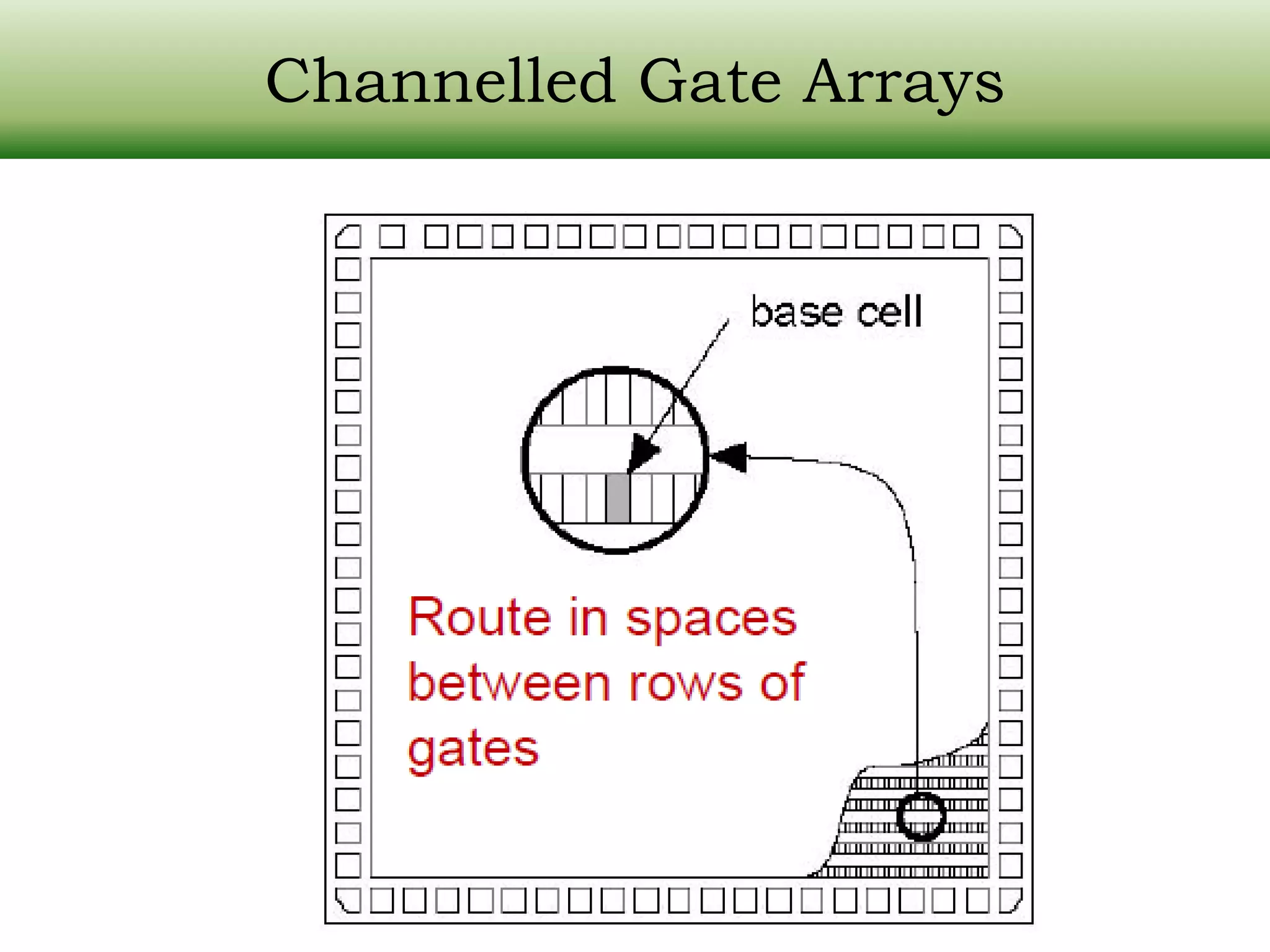

Channelled Gate Arrays…. • Channelled gate array we leave space between the rows of transistors for wiring • Characteristics only interconnect is customized the interconnect uses predefined spaces between rows manufacturing lead time is between 2 days and 2 weeks

Embedded Gate Array Structured Gate Array

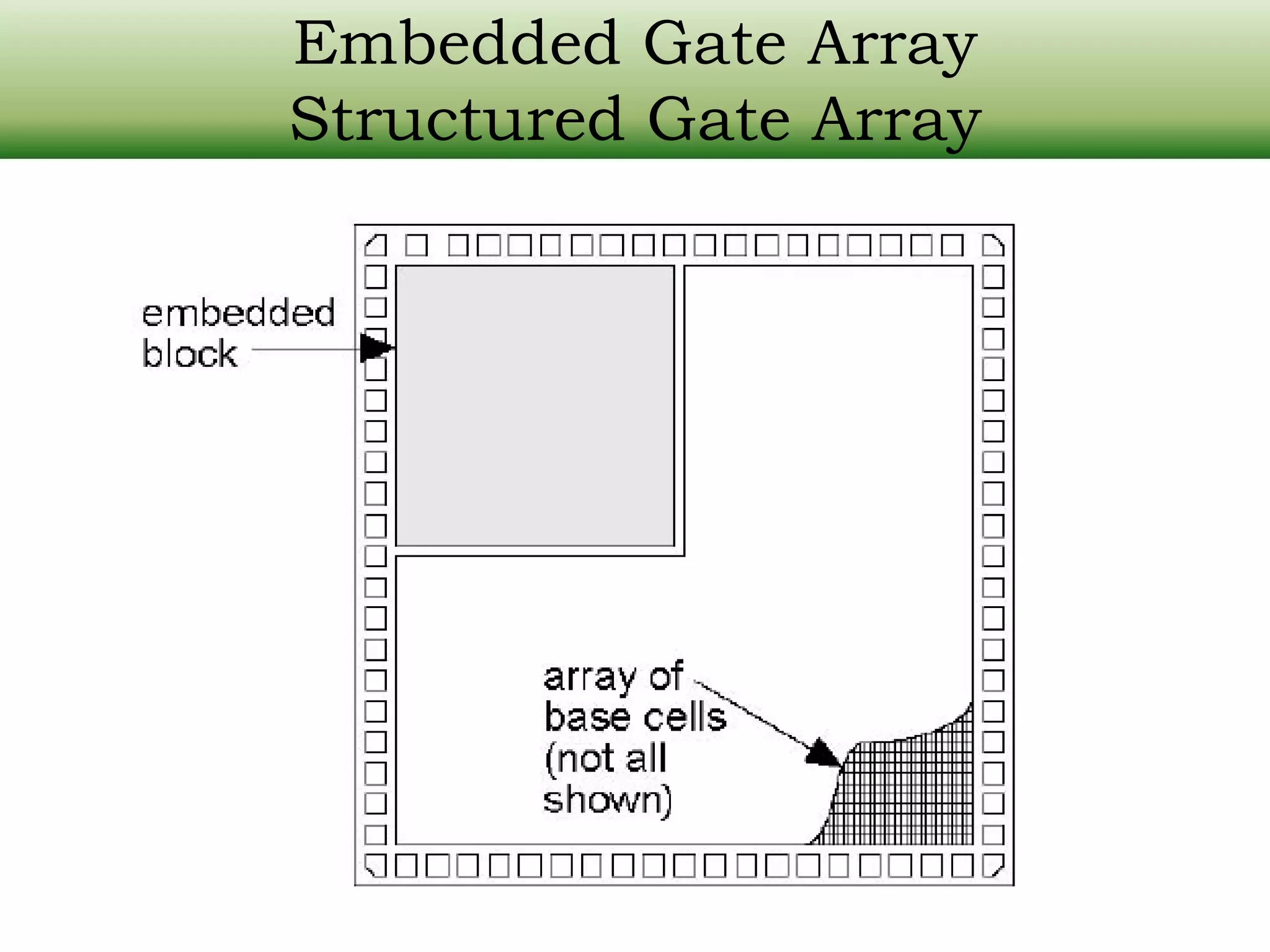

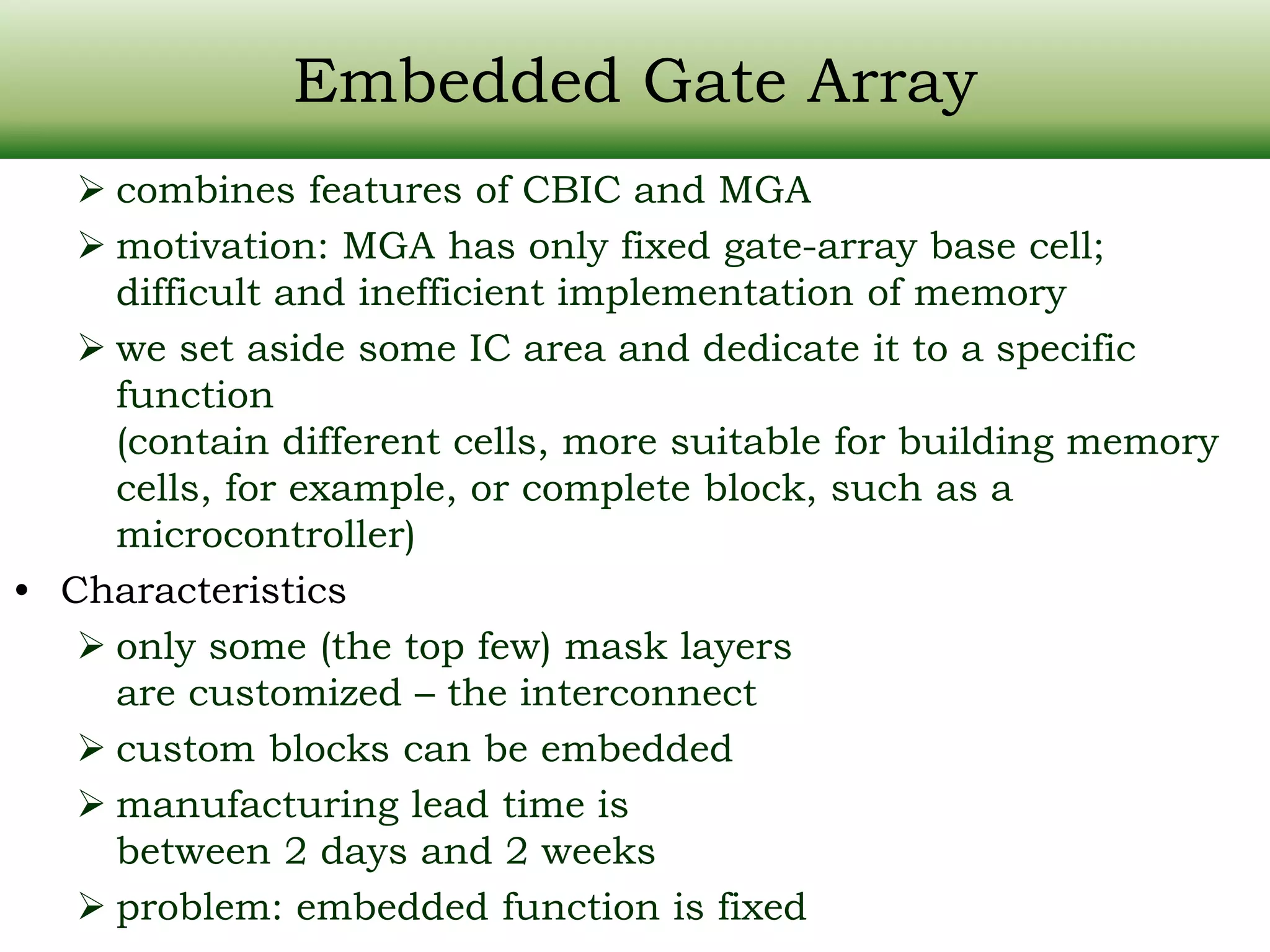

Embedded Gate Array  combines features of CBIC and MGA  motivation: MGA has only fixed gate-array base cell; difficult and inefficient implementation of memory  we set aside some IC area and dedicate it to a specific function (contain different cells, more suitable for building memory cells, for example, or complete block, such as a microcontroller) • Characteristics  only some (the top few) mask layers are customized – the interconnect  custom blocks can be embedded  manufacturing lead time is between 2 days and 2 weeks  problem: embedded function is fixed

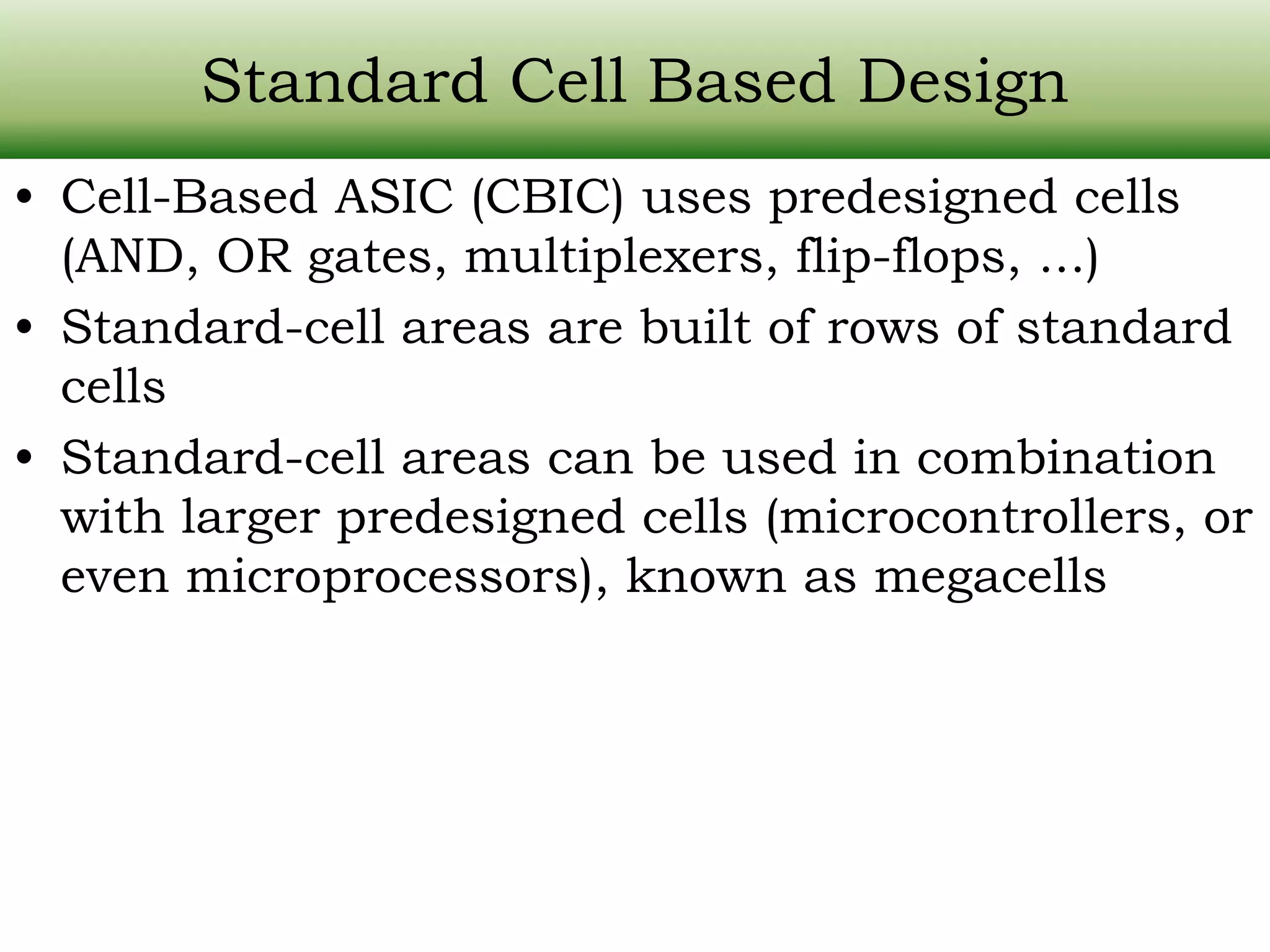

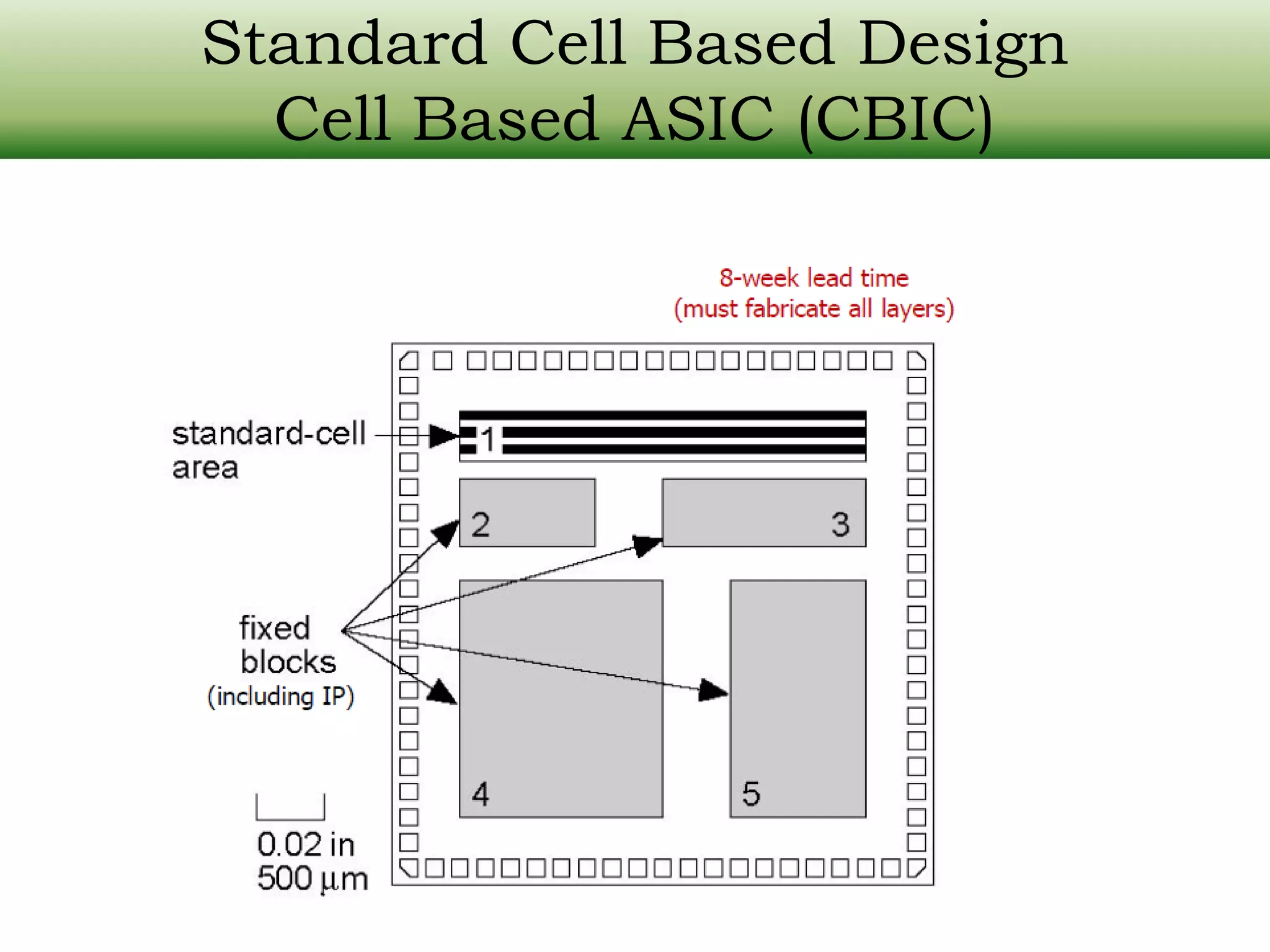

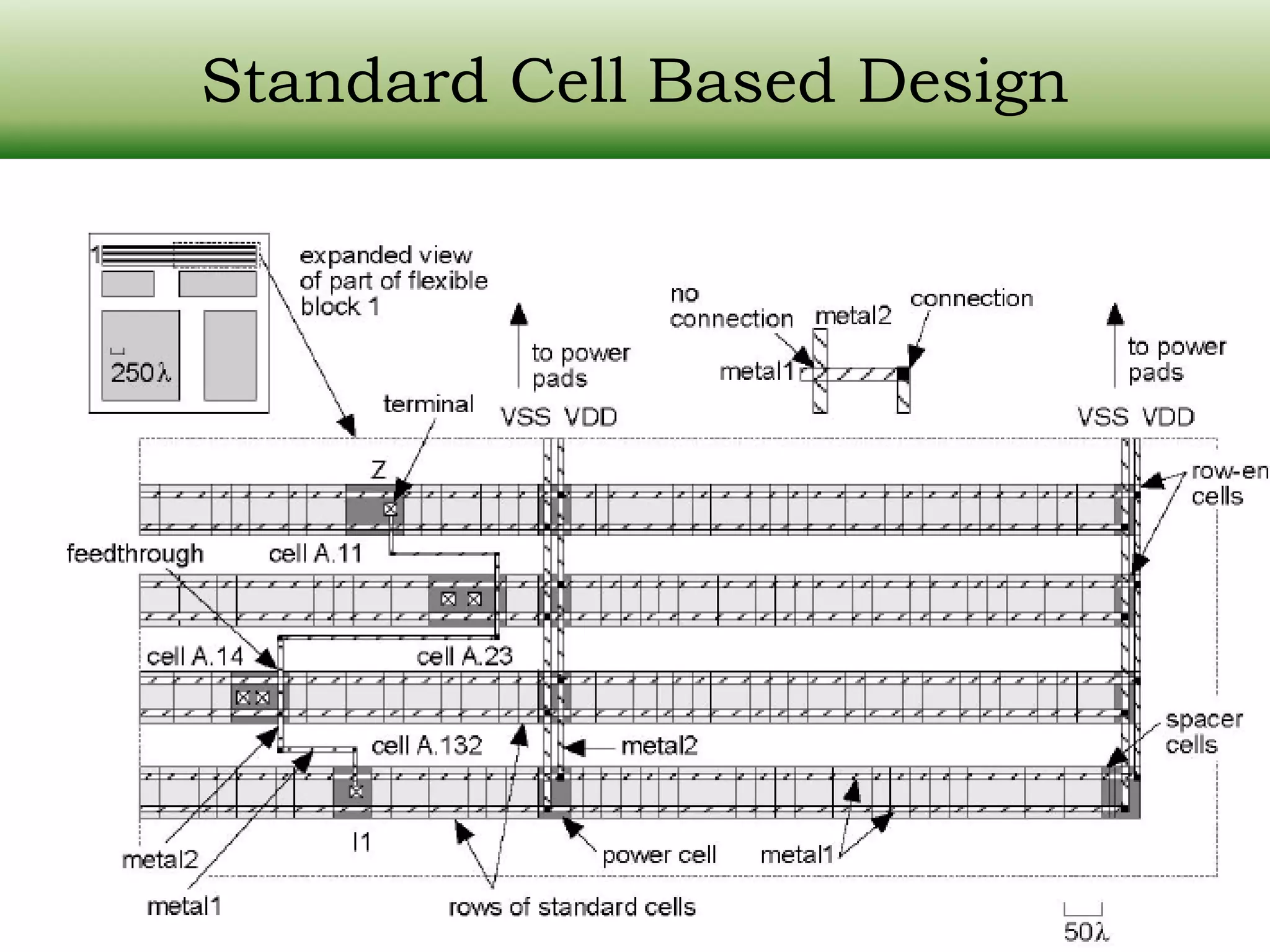

Standard Cell Based Design • Cell-Based ASIC (CBIC) uses predesigned cells (AND, OR gates, multiplexers, flip-flops, ...) • Standard-cell areas are built of rows of standard cells • Standard-cell areas can be used in combination with larger predesigned cells (microcontrollers, or even microprocessors), known as megacells

Standard Cell Based Design Cell Based ASIC (CBIC)

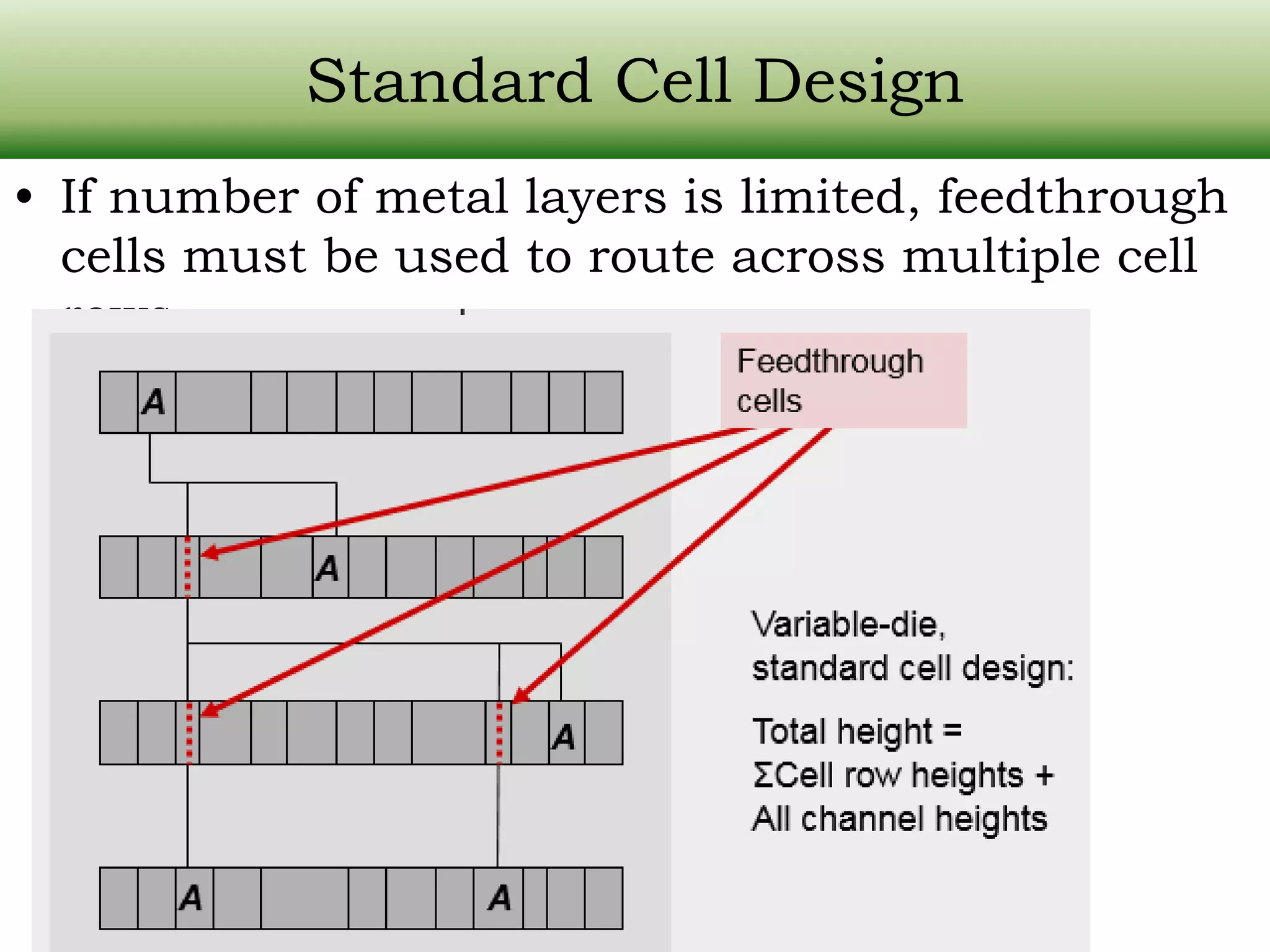

Standard Cell Design • If number of metal layers is limited, feedthrough cells must be used to route across multiple cell rows

Platform ASICs • A pre-manufactured device, used to implement a custom system on a chip (SoC) • consists of a group of slices offering different gate ranges, memory, I/O, PLLs and other intellectual property such as high speed Serializer/Deserializers (SerDes) • A slice may be customized through few layers of metal for a user application. • Since only a few layers of metal are customized for any given design, NRE costs are significantly lower than a cell-based ASIC where a full mask set is needed.

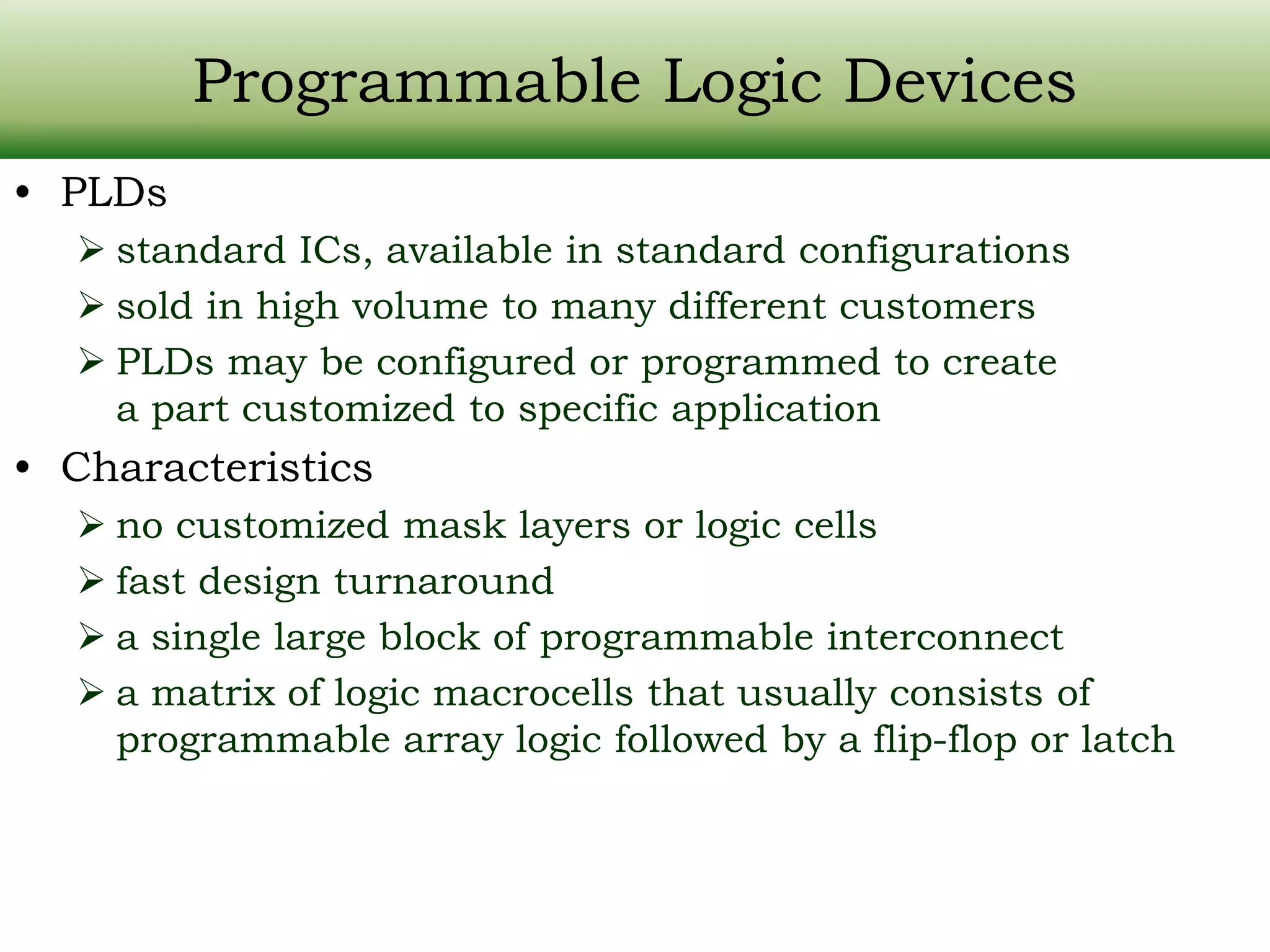

Programmable Logic Devices • PLDs  standard ICs, available in standard configurations  sold in high volume to many different customers  PLDs may be configured or programmed to create a part customized to specific application • Characteristics  no customized mask layers or logic cells  fast design turnaround  a single large block of programmable interconnect  a matrix of logic macrocells that usually consists of programmable array logic followed by a flip-flop or latch

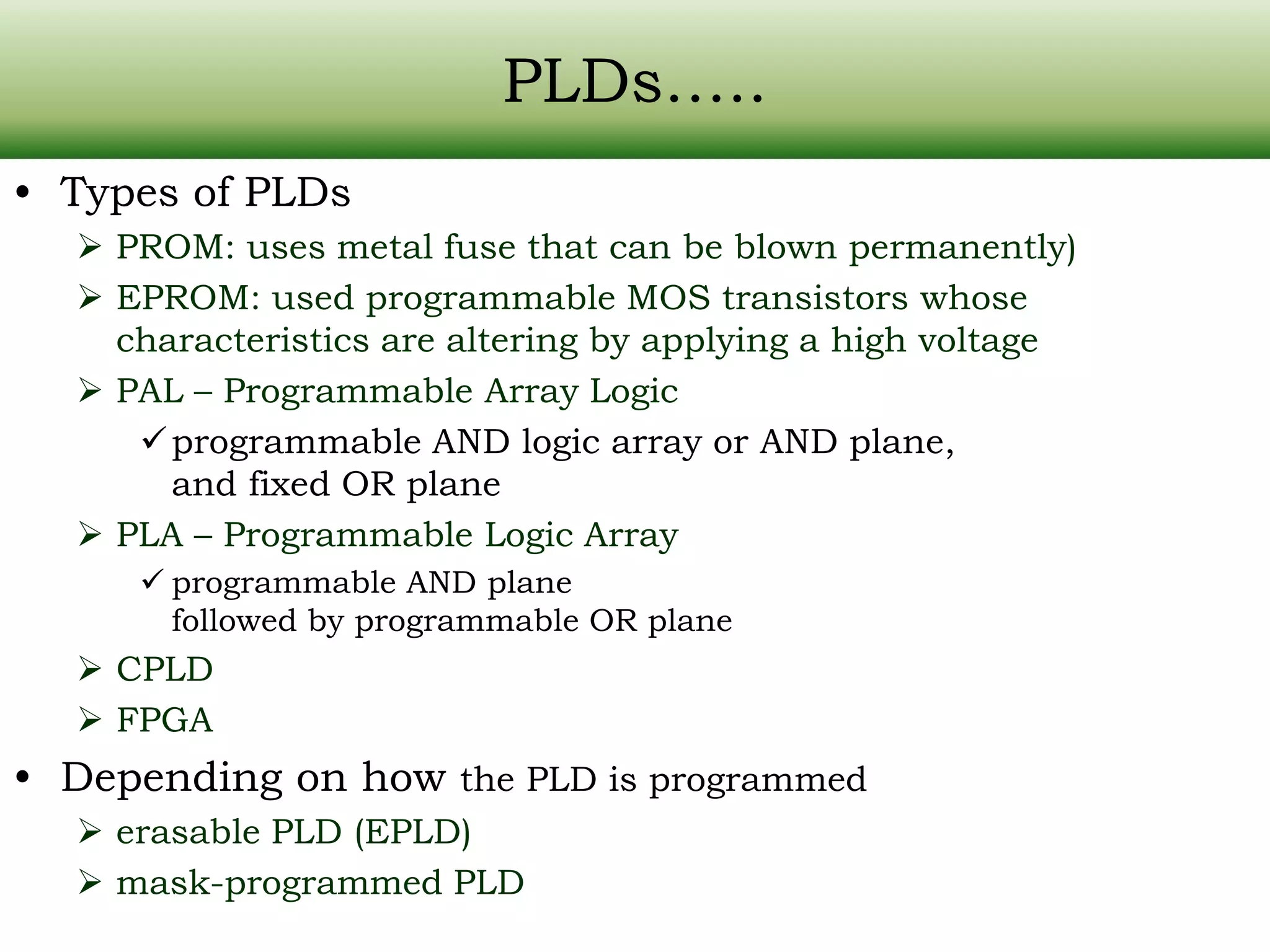

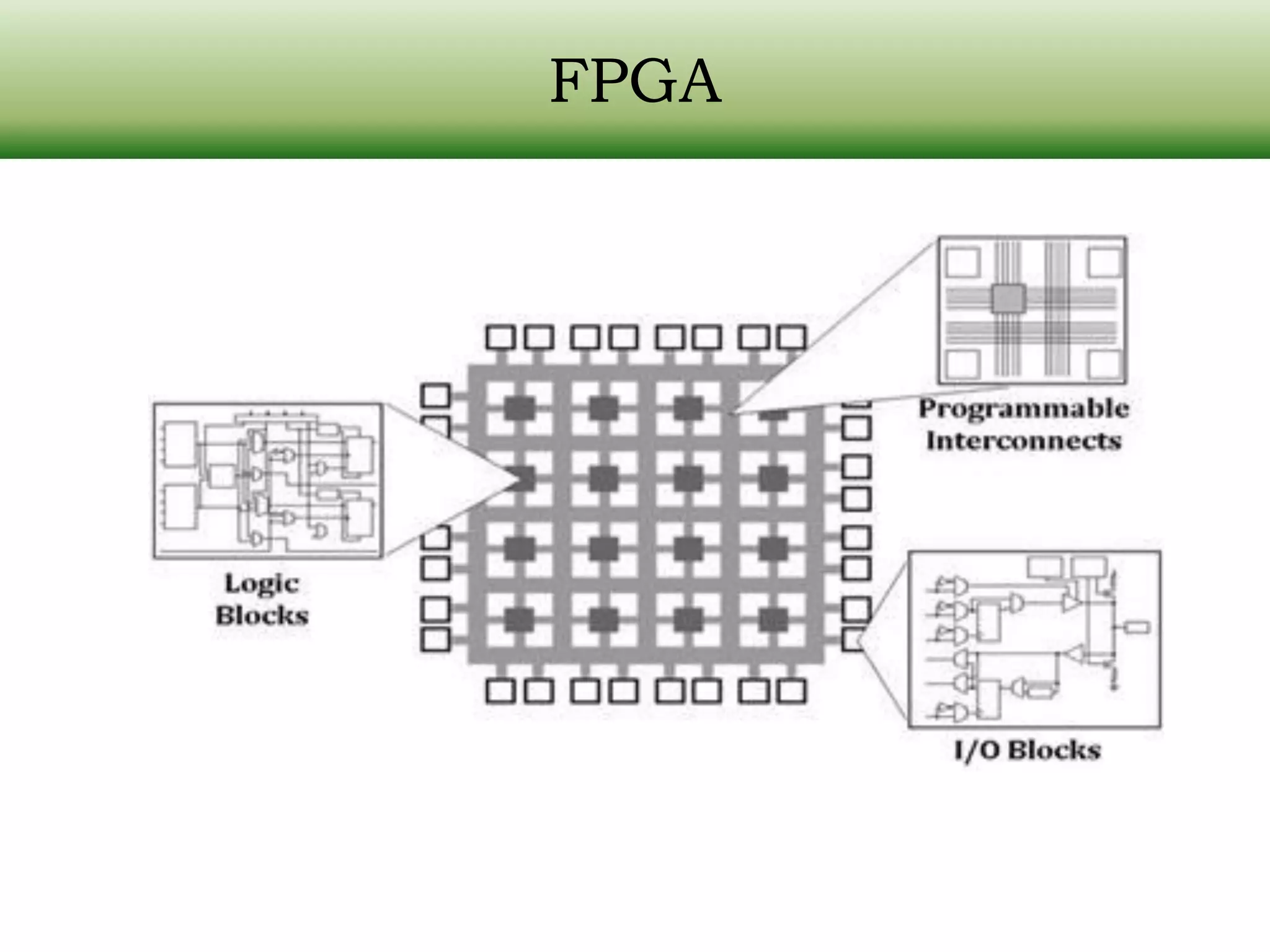

PLDs….. • Types of PLDs  PROM: uses metal fuse that can be blown permanently)  EPROM: used programmable MOS transistors whose characteristics are altering by applying a high voltage  PAL – Programmable Array Logic programmable AND logic array or AND plane, and fixed OR plane  PLA – Programmable Logic Array  programmable AND plane followed by programmable OR plane  CPLD  FPGA • Depending on how the PLD is programmed  erasable PLD (EPLD)  mask-programmed PLD

Comparison of VLSI Implementations Cost vs Volume

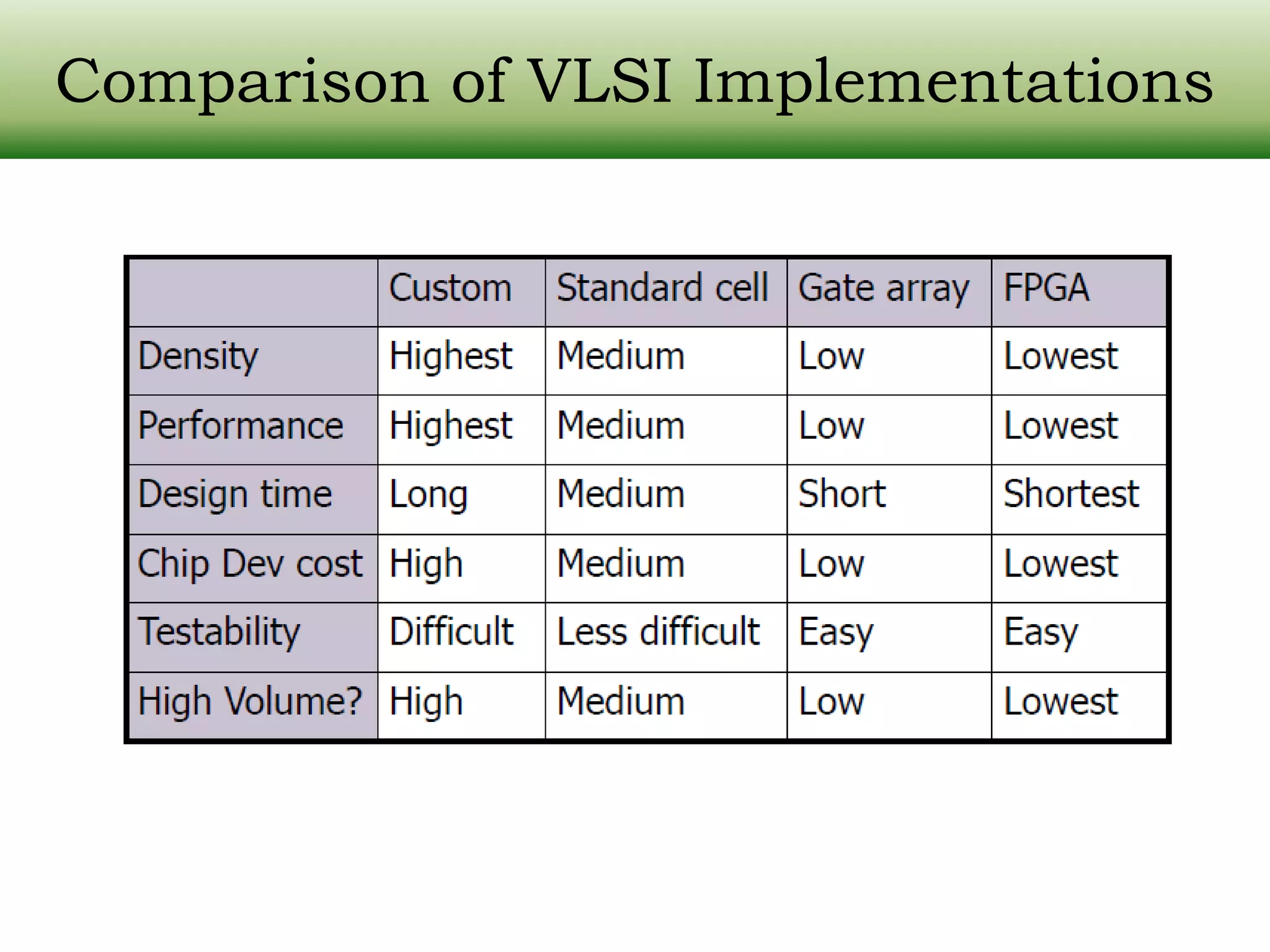

Comparison of VLSI Implementations

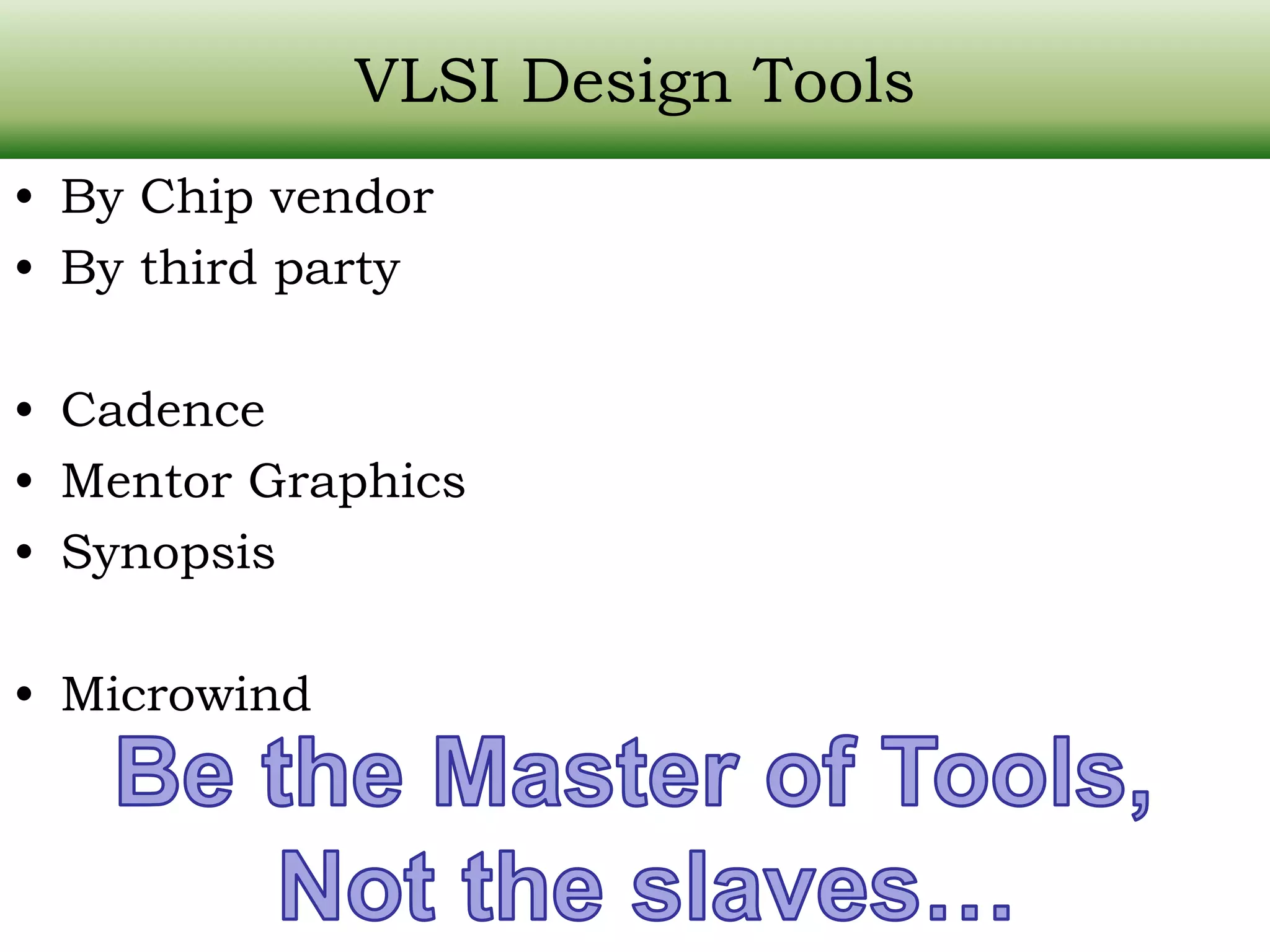

VLSI Design Tools • By Chip vendor • By third party • Cadence • Mentor Graphics • Synopsis • Microwind

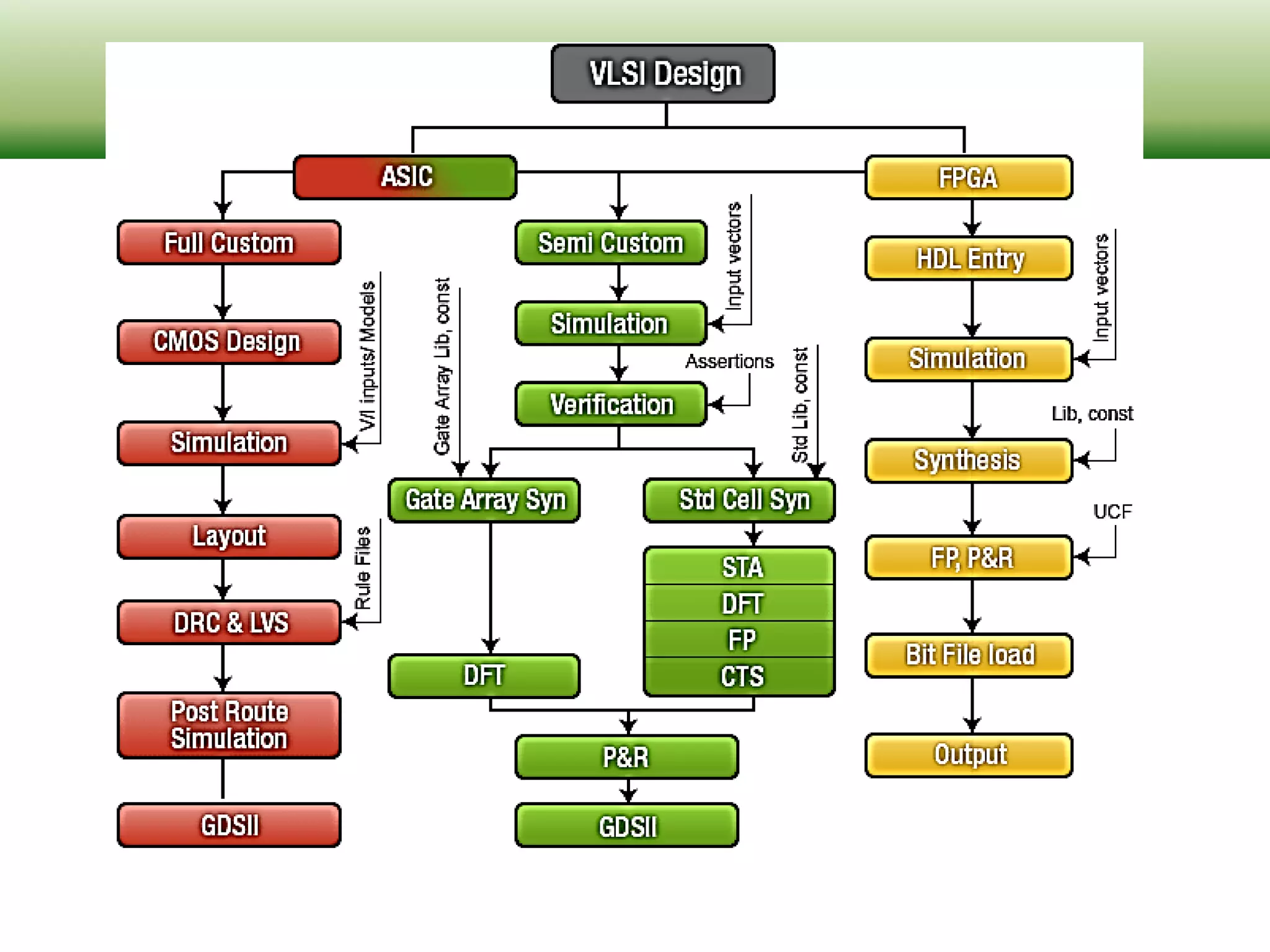

Coverage of my lectures…. • ASIC • Full Custom • CMOS Design • Simulation • Layout • SemiCustom • Verification • Gate Array • Std. Cell • DFT • STA • FP-Floor Plan • CTC – Clock Tree Synthesis • FPGA • HDL Entry • Place and Route
