Full adder using structural modeling
This document describes the design of a half adder and full adder circuit using VHDL. It defines the half_adder entity with inputs A and B and outputs Sum and Cout. The behavior is described as Sum being the XOR of A and B, and Cout being the AND. It then defines the FullAdd entity which uses two half adder components to add three inputs A, B, and C, with outputs Sum and Carry.
Full adder using structural modeling
- 1. First Declare HalfAdder ---------------------------------------------------------------------------------- -- Company: -- Engineer: -- -- Create Date: 10:43:41 07/18/2012 -- Design Name: -- Module Name: half_adder - Behavioral -- Project Name: -- Target Devices: -- Tool versions: -- Description: -- -- Dependencies: -- -- Revision: -- Revision 0.01 - File Created -- Additional Comments: -- ---------------------------------------------------------------------------------- library IEEE; use IEEE.STD_LOGIC_1164.ALL; use IEEE.STD_LOGIC_ARITH.ALL; use IEEE.STD_LOGIC_UNSIGNED.ALL;
- 2. ---- Uncomment thefollowing library declaration if instantiating ---- any Xilinx primitives in this code. --library UNISIM; --use UNISIM.VComponents.all; entity half_adder is Port ( A : in STD_LOGIC;B : in STD_LOGIC;C : in STD_LOGIC; Sum : out STD_LOGIC; Cout : out STD_LOGIC); end half_adder; architecture Behavioral of half_adder is begin Sum <= A xor B; Cout <= A and B; end Behavioral; -------------------------------------------------------------------------------- -- Company: -- Engineer: -- -- Create Date: 10:51:44 07/18/2012

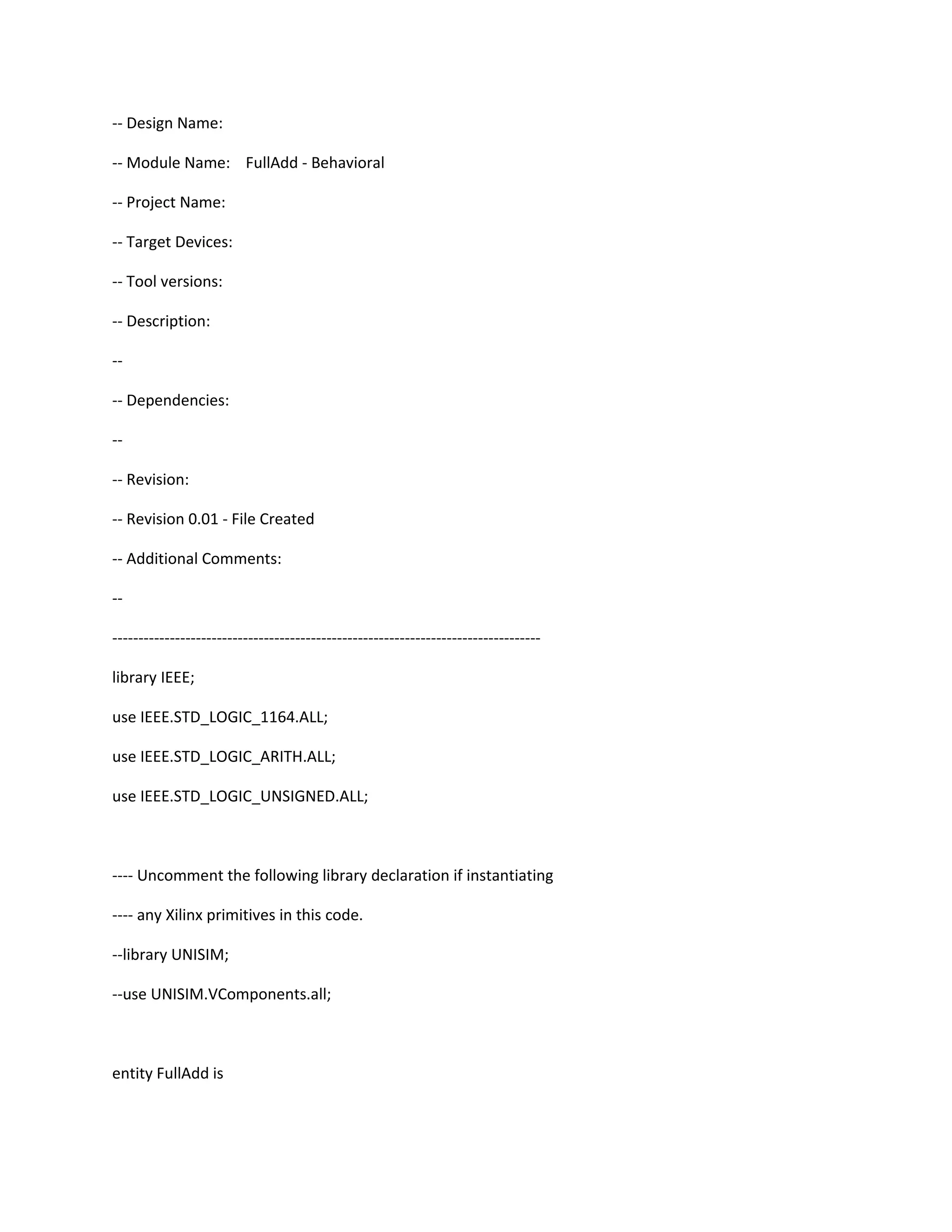

- 3. -- Design Name: --Module Name: FullAdd - Behavioral -- Project Name: -- Target Devices: -- Tool versions: -- Description: -- -- Dependencies: -- -- Revision: -- Revision 0.01 - File Created -- Additional Comments: -- ---------------------------------------------------------------------------------- library IEEE; use IEEE.STD_LOGIC_1164.ALL; use IEEE.STD_LOGIC_ARITH.ALL; use IEEE.STD_LOGIC_UNSIGNED.ALL; ---- Uncomment the following library declaration if instantiating ---- any Xilinx primitives in this code. --library UNISIM; --use UNISIM.VComponents.all; entity FullAdd is

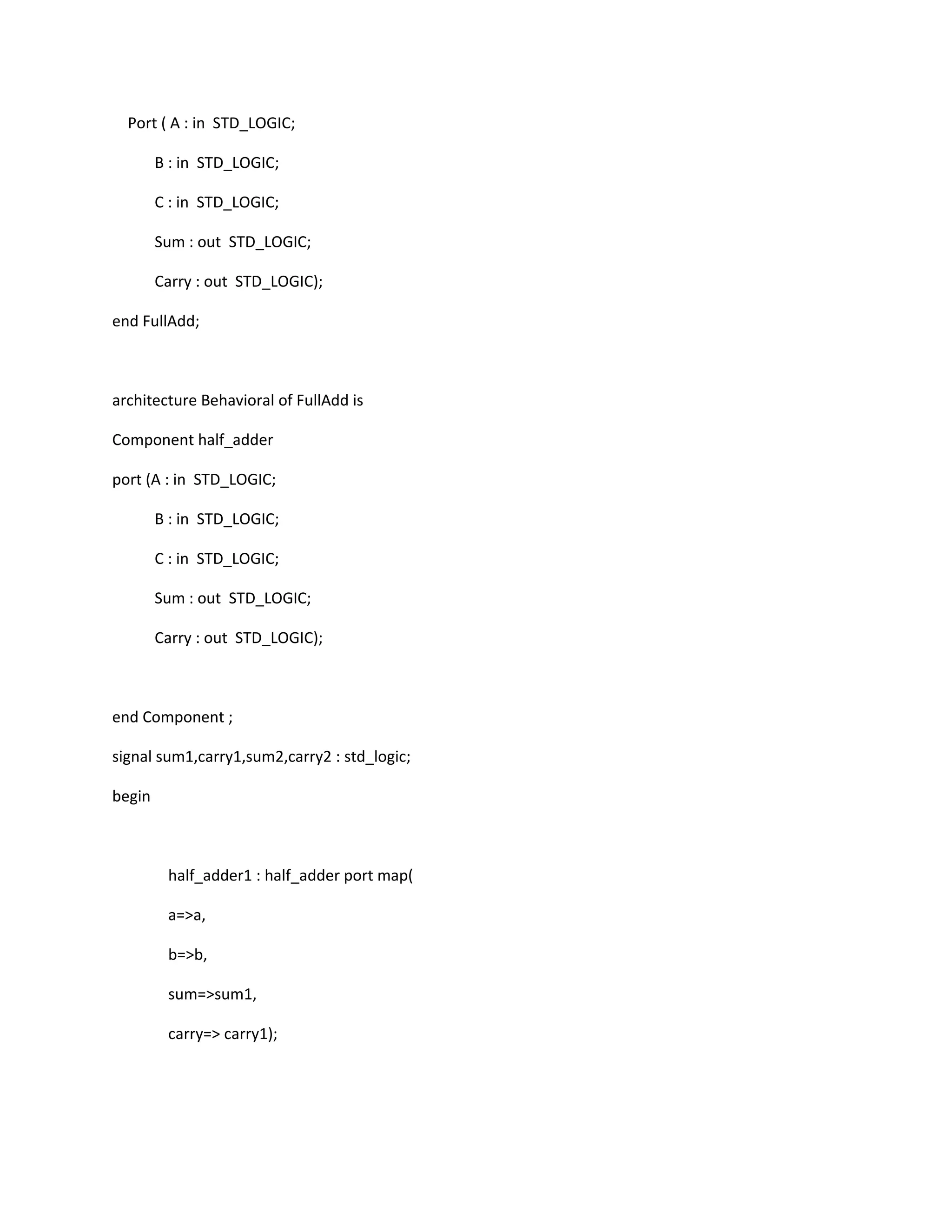

- 4. Port ( A: in STD_LOGIC; B : in STD_LOGIC; C : in STD_LOGIC; Sum : out STD_LOGIC; Carry : out STD_LOGIC); end FullAdd; architecture Behavioral of FullAdd is Component half_adder port (A : in STD_LOGIC; B : in STD_LOGIC; C : in STD_LOGIC; Sum : out STD_LOGIC; Carry : out STD_LOGIC); end Component ; signal sum1,carry1,sum2,carry2 : std_logic; begin half_adder1 : half_adder port map( a=>a, b=>b, sum=>sum1, carry=> carry1);

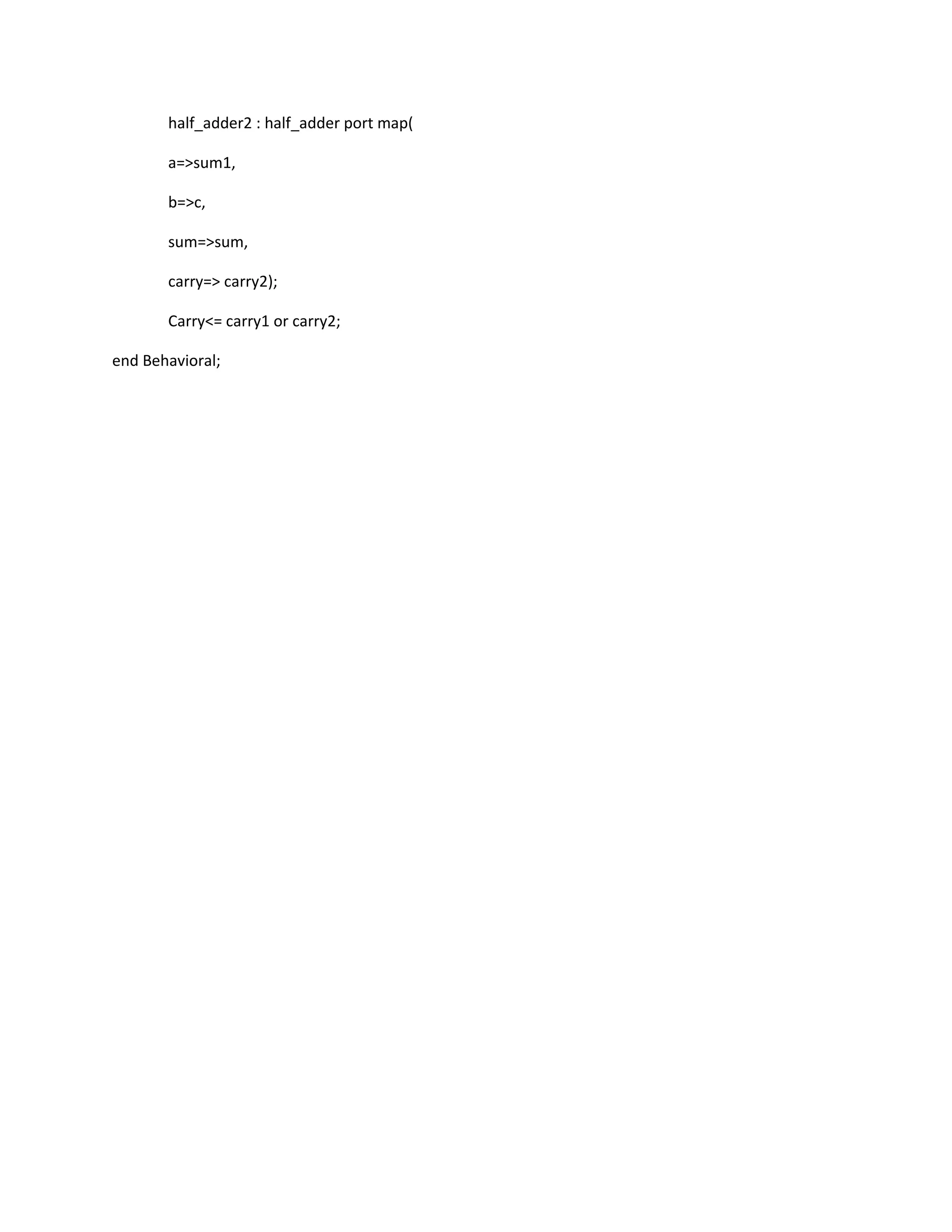

- 5. half_adder2 : half_adderport map( a=>sum1, b=>c, sum=>sum, carry=> carry2); Carry<= carry1 or carry2; end Behavioral;
