INHERITANCE IN C++ +2 COMPUTER SCIENCE CBSE AND STATE SYLLABUS

INHERITANCE IS ONE OF THE CORNERSTONE OF OOP BECAUSE IT ALLOWS THE CREATION OF CLASS THAT DEFINE TRAITS COMMON TO A SET OF RELATED ITEMS. THIS CLASS THEN MAY BE INHERITED BY OTHER MORE SPECIFIC CLASSES, EACH ADDING ONLY THOSE THINGS THAT ARE UNIQUE TO THE INHERITING CLASS. THE CLASS THAT IS INHERETED IS REFERED TO AS A BASE CLASS. THE CLASS THAT DOES INHERITING IS CALLED THE DERIVED CLASS. IN THIS WAY MULTIPLE INHERITANCE IS ACHIVED. CLICK HERE

Inheritance is the capability of one class to inherit properties from another class. A class from which another class is inheriting its properties is called base class and the class inheriting properties is known as a sub-class or derived class. Ones a base class is written and debugged, it can be used in various situations without having to redefine it or rewrite it. Actually a derived class inherits all the members of a base class, the derived class has access privilege only to the non-private members of the base class. NEED FOR INHERITANCE. 1. The Capability to express the inheritance relationship which ensures the closeness with the real-world models. 2. Reusability. Once a base class is written it can be used in various situations. It gives some advantages like faster development time, easier maintenance, and easy to extend. Inheritance allows the addition of additional features to an existing class without modifying it. 3. Transitive nature of Inheritance. Inheritance is transitive. If a class B inherits properties of another class A, then all sub-class of B will automatically inherit the properties of A. This property is called transitive nature of inheritance. CLICK HERE CLICK HERE CLICK HERE CLICK HERE CLICK HERE

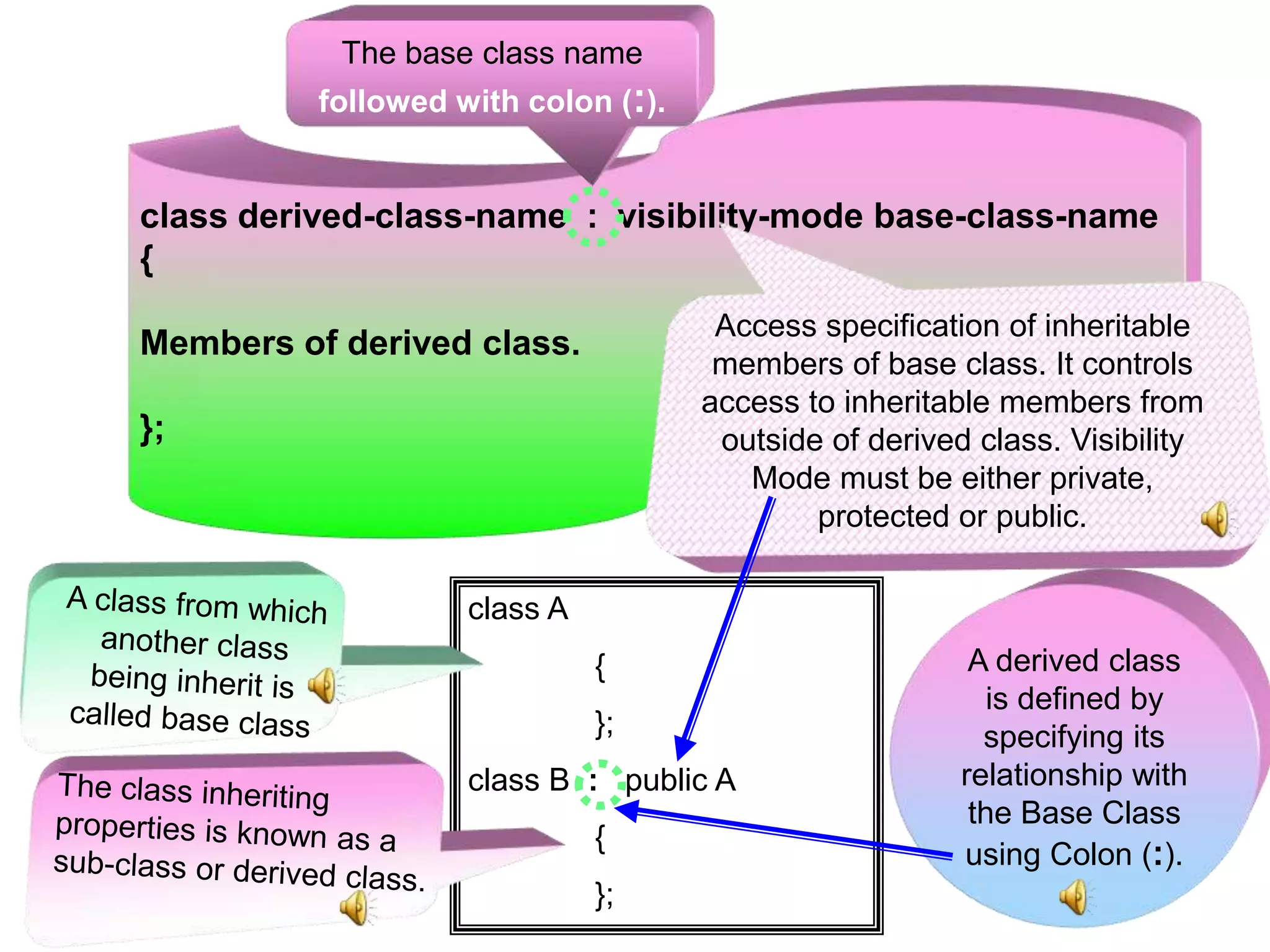

class derived-class-name : visibility-mode base-class-name { Members of derived class. }; The base class name followed with colon (:). Access specification of inheritable members of base class. It controls access to inheritable members from outside of derived class. Visibility Mode must be either private, protected or public. class A { }; class B : public A { }; A derived class is defined by specifying its relationship with the Base Class using Colon (:).

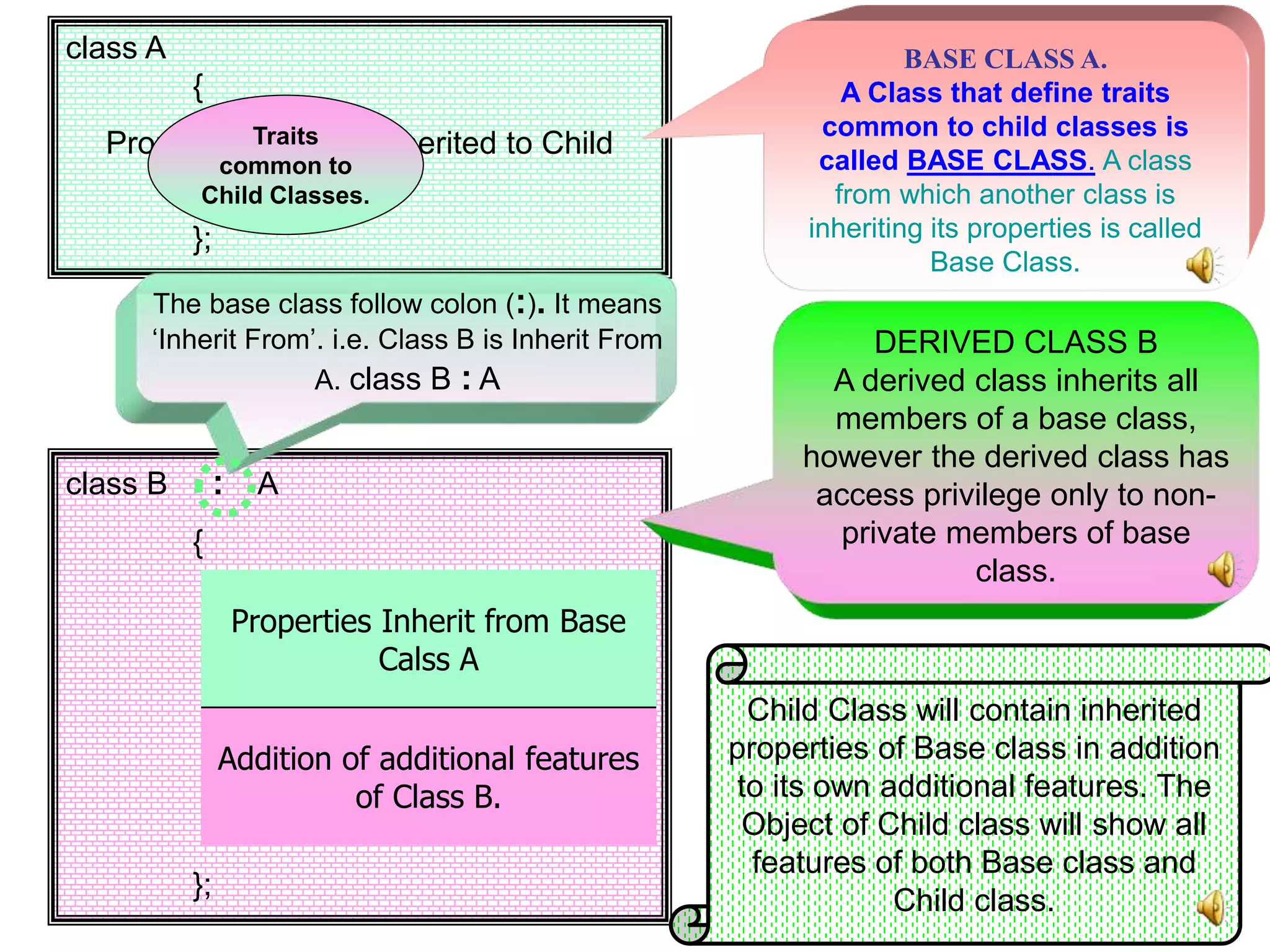

class A { Properties that are inherited to Child Class. }; class B : A { }; Properties Inherit from Base Calss A Addition of additional features of Class B. The base class follow colon (:). It means ‘Inherit From’. i.e. Class B is Inherit From A. class B : A BASE CLASS A. A Class that define traits common to child classes is called BASE CLASS. A class from which another class is inheriting its properties is called Base Class. DERIVED CLASS B A derived class inherits all members of a base class, however the derived class has access privilege only to non- private members of base class. Traits common to Child Classes. Child Class will contain inherited properties of Base class in addition to its own additional features. The Object of Child class will show all features of both Base class and Child class.

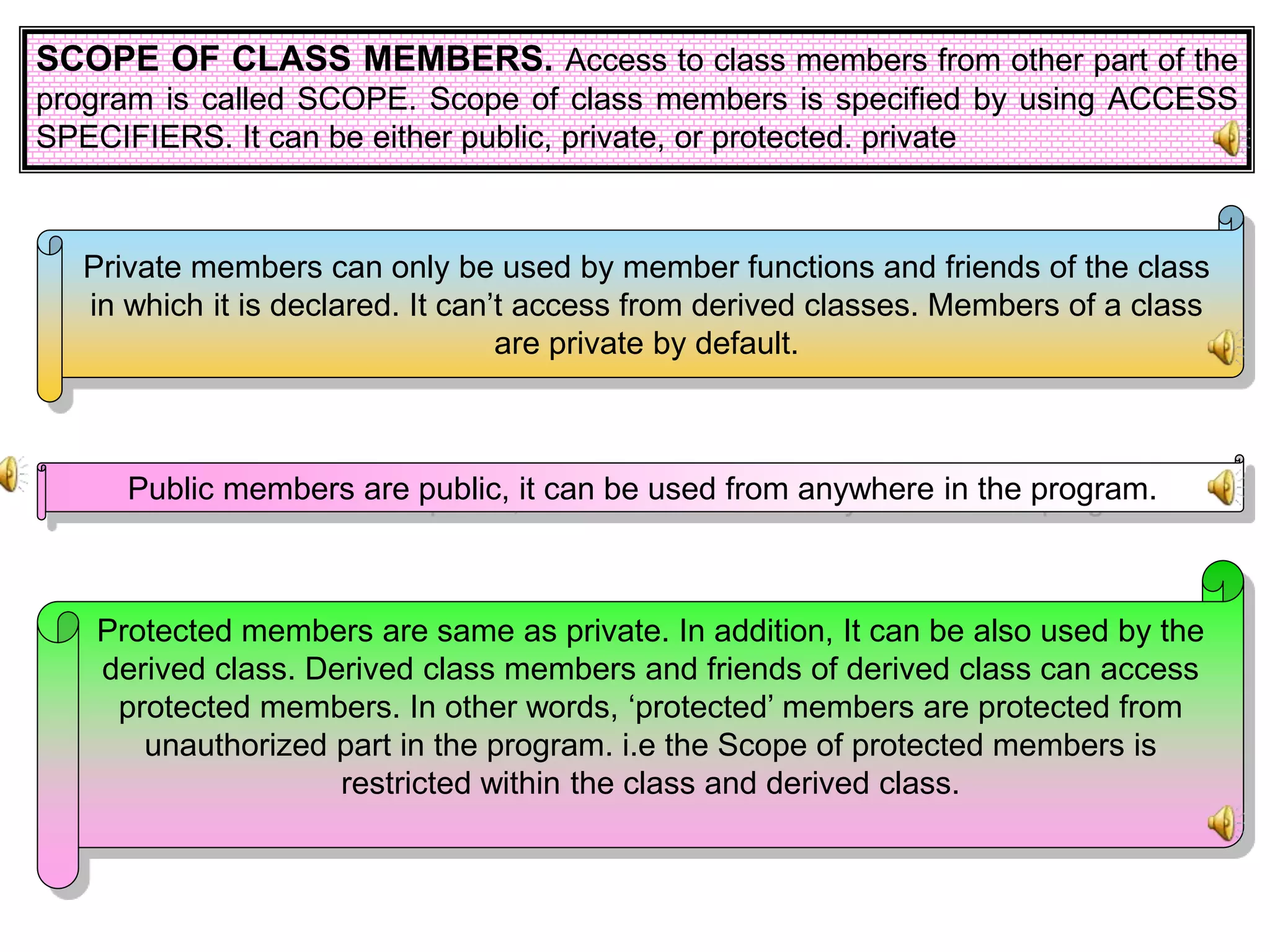

SCOPE OF CLASS MEMBERS. Access to class members from other part of the program is called SCOPE. Scope of class members is specified by using ACCESS SPECIFIERS. It can be either public, private, or protected. private Private members can only be used by member functions and friends of the class in which it is declared. It can’t access from derived classes. Members of a class are private by default. Public members are public, it can be used from anywhere in the program. Protected members are same as private. In addition, It can be also used by the derived class. Derived class members and friends of derived class can access protected members. In other words, ‘protected’ members are protected from unauthorized part in the program. i.e the Scope of protected members is restricted within the class and derived class.

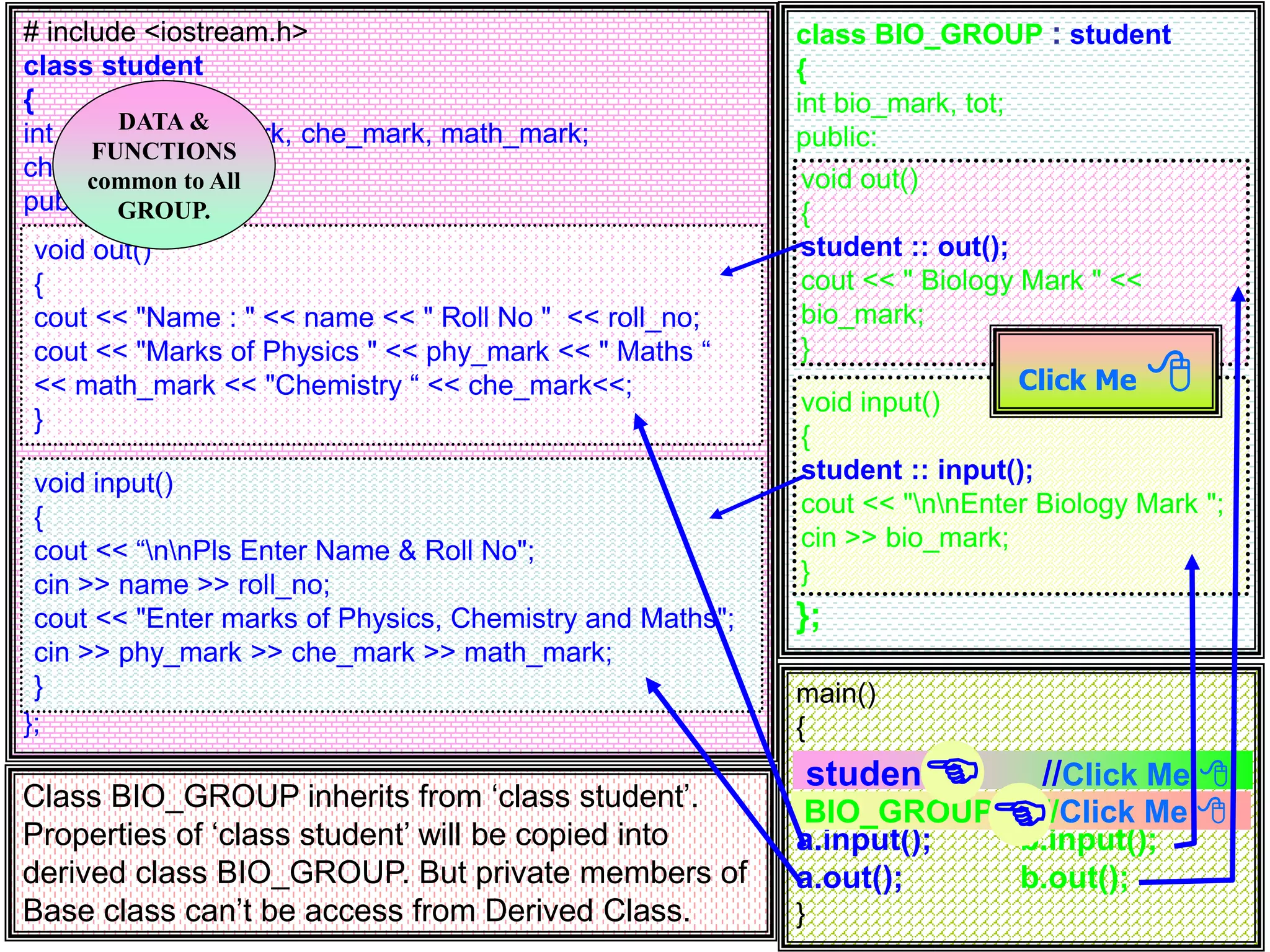

Class BIO_GROUP inherits from ‘class student’. Properties of ‘class student’ will be copied into derived class BIO_GROUP. But private members of Base class can’t be access from Derived Class. # include <iostream.h> class student { int roll_no, phy_mark, che_mark, math_mark; char name[20]; public: }; main() { a.input(); b.input(); a.out(); b.out(); } class BIO_GROUP : student { int bio_mark, tot; public: }; void out() { cout << "Name : " << name << " Roll No " << roll_no; cout << "Marks of Physics " << phy_mark << " Maths “ << math_mark << "Chemistry “ << che_mark<<; } void input() { cout << “nnPls Enter Name & Roll No"; cin >> name >> roll_no; cout << "Enter marks of Physics, Chemistry and Maths"; cin >> phy_mark >> che_mark >> math_mark; } void input() { student :: input(); cout << "nnEnter Biology Mark "; cin >> bio_mark; } void out() { student :: out(); cout << " Biology Mark " << bio_mark; } student a; //Click Me  BIO_GROUP b; //Click Me  DATA & FUNCTIONS common to All GROUP. Click Me   

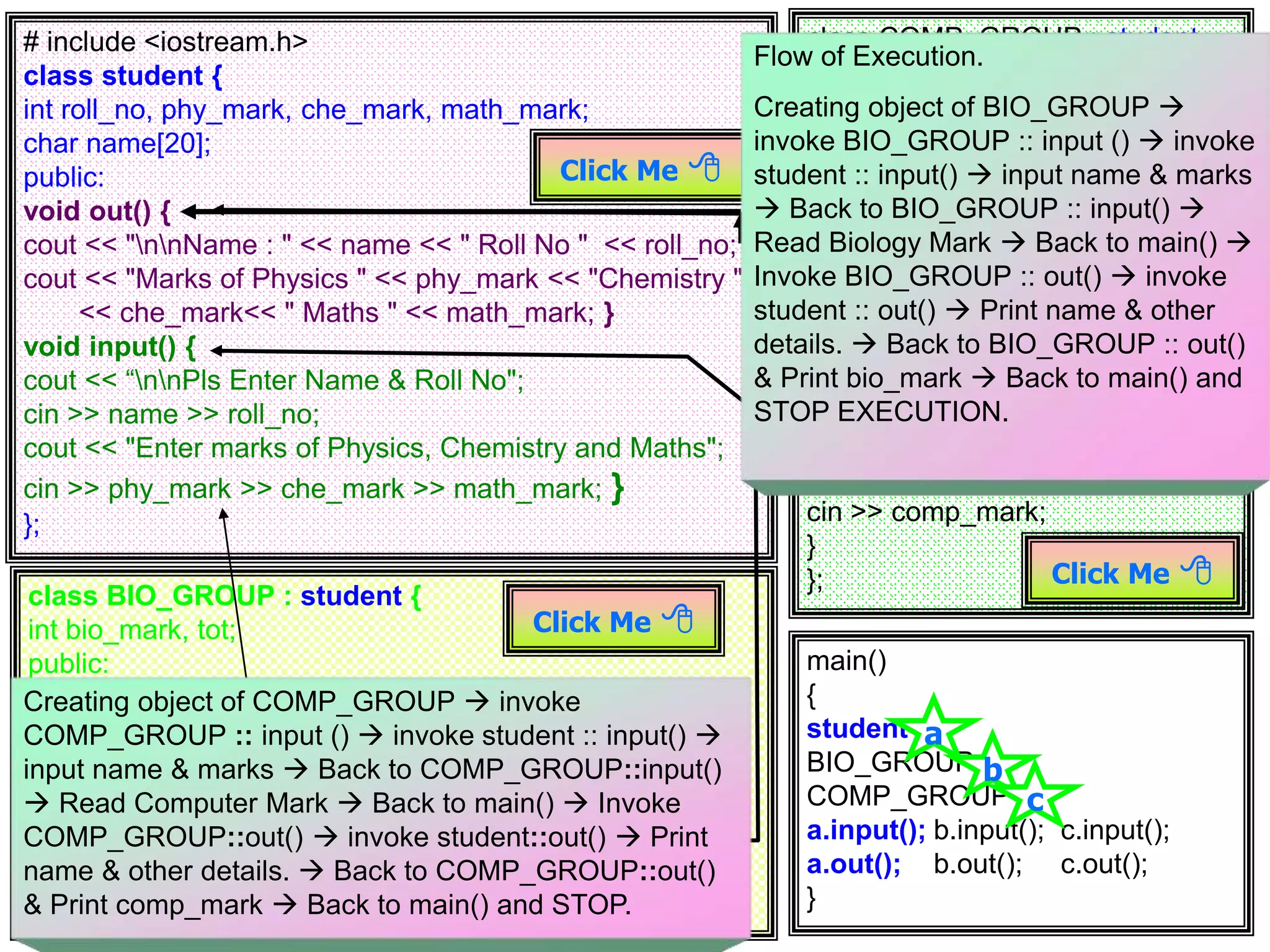

# include <iostream.h> class student { int roll_no, phy_mark, che_mark, math_mark; char name[20]; public: void out() { cout << "nnName : " << name << " Roll No " << roll_no; cout << "Marks of Physics " << phy_mark << "Chemistry " << che_mark<< " Maths " << math_mark; } void input() { cout << “nnPls Enter Name & Roll No"; cin >> name >> roll_no; cout << "Enter marks of Physics, Chemistry and Maths"; cin >> phy_mark >> che_mark >> math_mark; } }; main() { student a; BIO_GROUP b; COMP_GROUP c; a.input(); b.input(); c.input(); a.out(); b.out(); c.out(); } class BIO_GROUP : student { int bio_mark, tot; public: void input() { student :: input(); cout << "Enter Bio Mark "; cin >> bio_mark; } void out() { student :: out(); cout << " Biology Mark " << bio_mark; } }; class COMP_GROUP : student { int comp_mark, tot; public: void out() { student :: out(); cout<<"Computer Mark " << comp_mark; } void input() { student :: input(); cout << "Computer Mark "; cin >> comp_mark; } }; Click Me  a Click Me  b Click Me  c Flow of Execution. Creating object of student  invoke student :: input()  input name & marks  Back to main()  Invoke student :: out()  Print name & other details.  Back to main() and STOP EXECUTION. Flow of Execution. Creating object of BIO_GROUP  invoke BIO_GROUP :: input ()  invoke student :: input()  input name & marks  Back to BIO_GROUP :: input()  Read Biology Mark  Back to main()  Invoke BIO_GROUP :: out()  invoke student :: out()  Print name & other details.  Back to BIO_GROUP :: out() & Print bio_mark  Back to main() and STOP EXECUTION. Creating object of COMP_GROUP  invoke COMP_GROUP :: input ()  invoke student :: input()  input name & marks  Back to COMP_GROUP::input()  Read Computer Mark  Back to main()  Invoke COMP_GROUP::out()  invoke student::out()  Print name & other details.  Back to COMP_GROUP::out() & Print comp_mark  Back to main() and STOP.

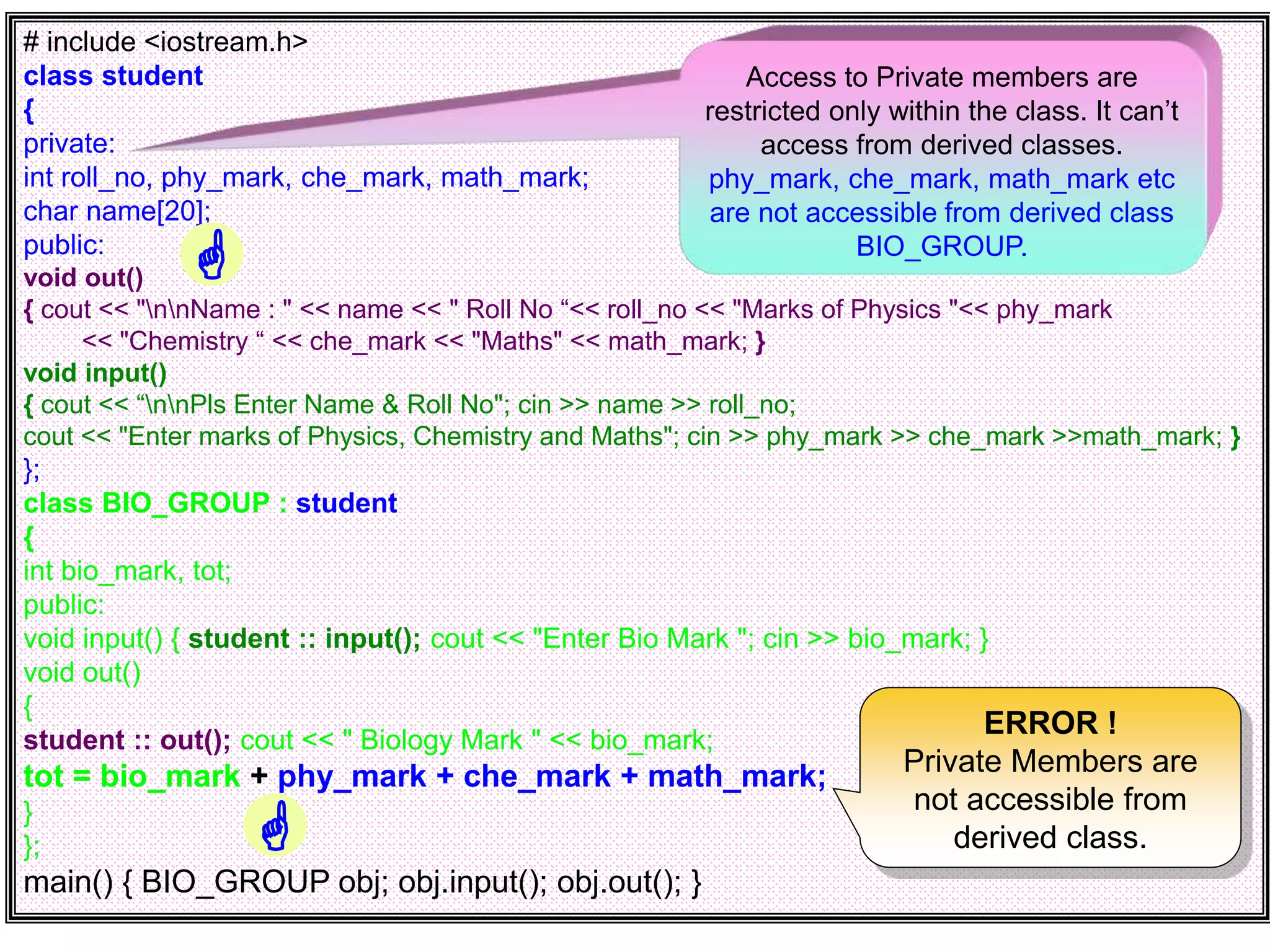

# include <iostream.h> class student { private: int roll_no, phy_mark, che_mark, math_mark; char name[20]; public: void out() { cout << "nnName : " << name << " Roll No “<< roll_no << "Marks of Physics "<< phy_mark << "Chemistry “ << che_mark << "Maths" << math_mark; } void input() { cout << “nnPls Enter Name & Roll No"; cin >> name >> roll_no; cout << "Enter marks of Physics, Chemistry and Maths"; cin >> phy_mark >> che_mark >>math_mark; } }; class BIO_GROUP : student { int bio_mark, tot; public: void input() { student :: input(); cout << "Enter Bio Mark "; cin >> bio_mark; } void out() { student :: out(); cout << " Biology Mark " << bio_mark; tot = bio_mark + phy_mark + che_mark + math_mark; } }; main() { BIO_GROUP obj; obj.input(); obj.out(); } Access to Private members are restricted only within the class. It can’t access from derived classes. phy_mark, che_mark, math_mark etc are not accessible from derived class BIO_GROUP. ERROR ! Private Members are not accessible from derived class.  

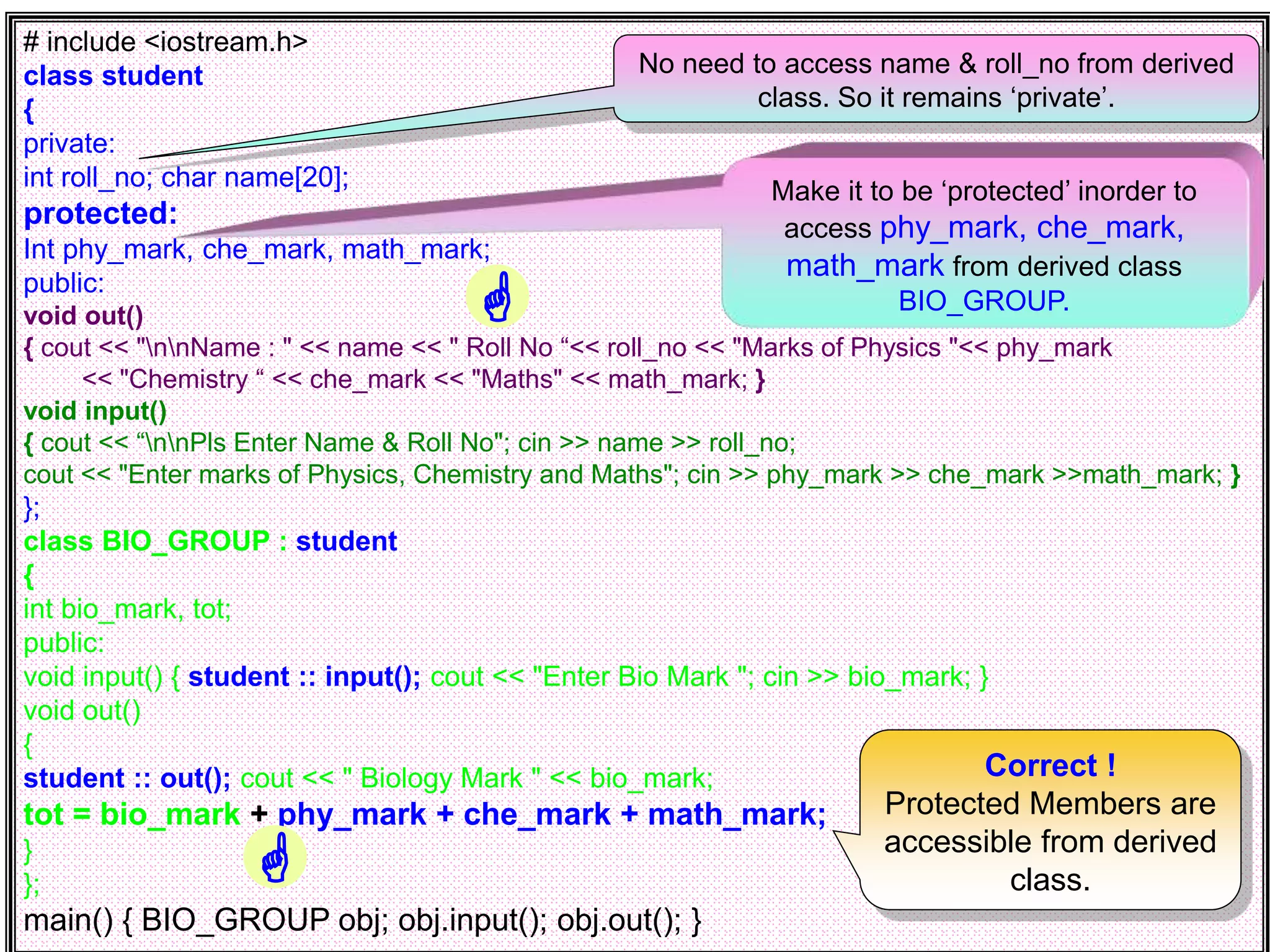

# include <iostream.h> class student { private: int roll_no; char name[20]; protected: Int phy_mark, che_mark, math_mark; public: void out() { cout << "nnName : " << name << " Roll No “<< roll_no << "Marks of Physics "<< phy_mark << "Chemistry “ << che_mark << "Maths" << math_mark; } void input() { cout << “nnPls Enter Name & Roll No"; cin >> name >> roll_no; cout << "Enter marks of Physics, Chemistry and Maths"; cin >> phy_mark >> che_mark >>math_mark; } }; class BIO_GROUP : student { int bio_mark, tot; public: void input() { student :: input(); cout << "Enter Bio Mark "; cin >> bio_mark; } void out() { student :: out(); cout << " Biology Mark " << bio_mark; tot = bio_mark + phy_mark + che_mark + math_mark; } }; main() { BIO_GROUP obj; obj.input(); obj.out(); } Make it to be ‘protected’ inorder to access phy_mark, che_mark, math_mark from derived class BIO_GROUP. Correct ! Protected Members are accessible from derived class. No need to access name & roll_no from derived class. So it remains ‘private’.  

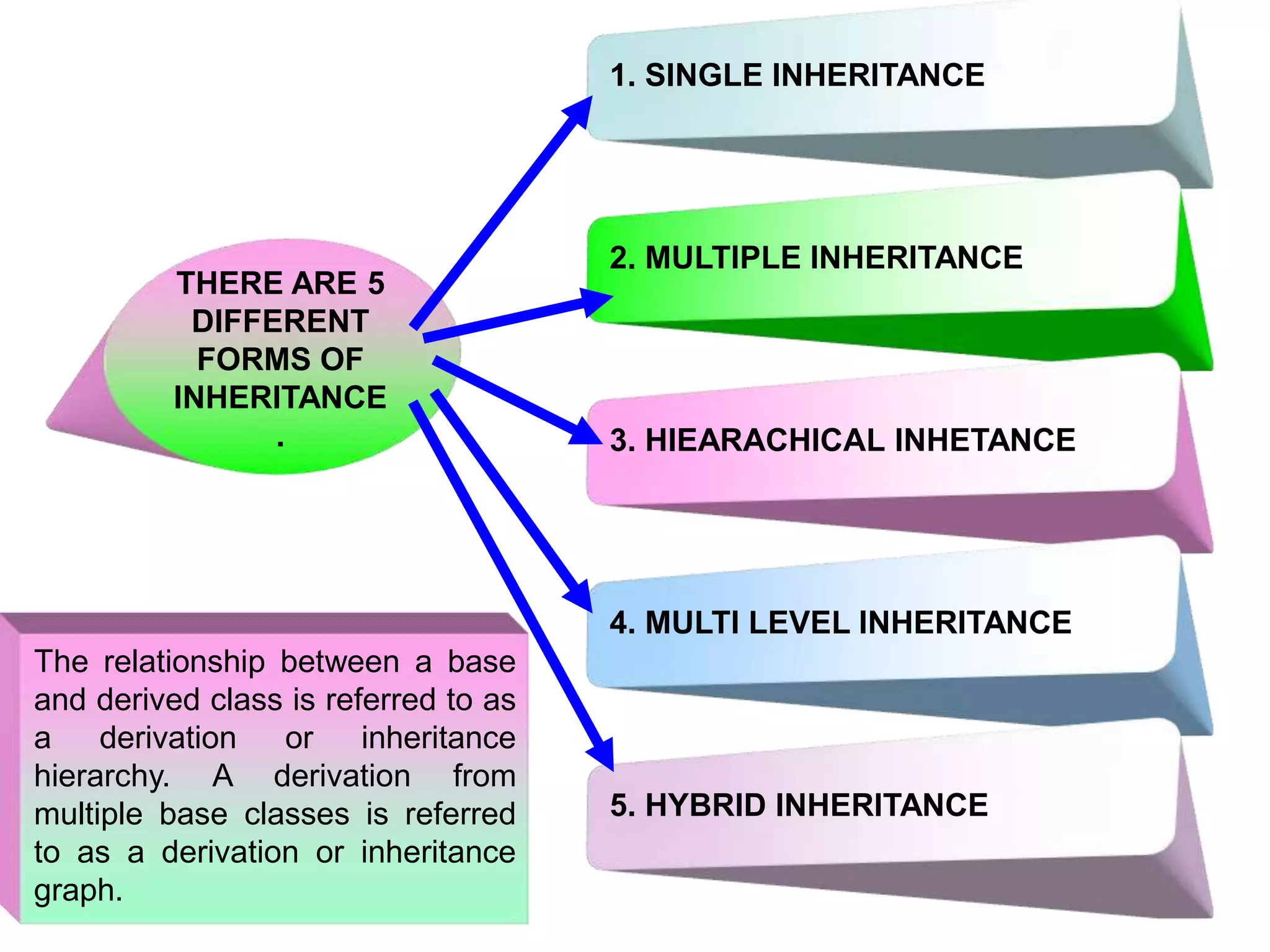

THERE ARE 5 DIFFERENT FORMS OF INHERITANCE . 1. SINGLE INHERITANCE 2. MULTIPLE INHERITANCE 3. HIEARACHICAL INHETANCE 4. MULTI LEVEL INHERITANCE 5. HYBRID INHERITANCE The relationship between a base and derived class is referred to as a derivation or inheritance hierarchy. A derivation from multiple base classes is referred to as a derivation or inheritance graph.

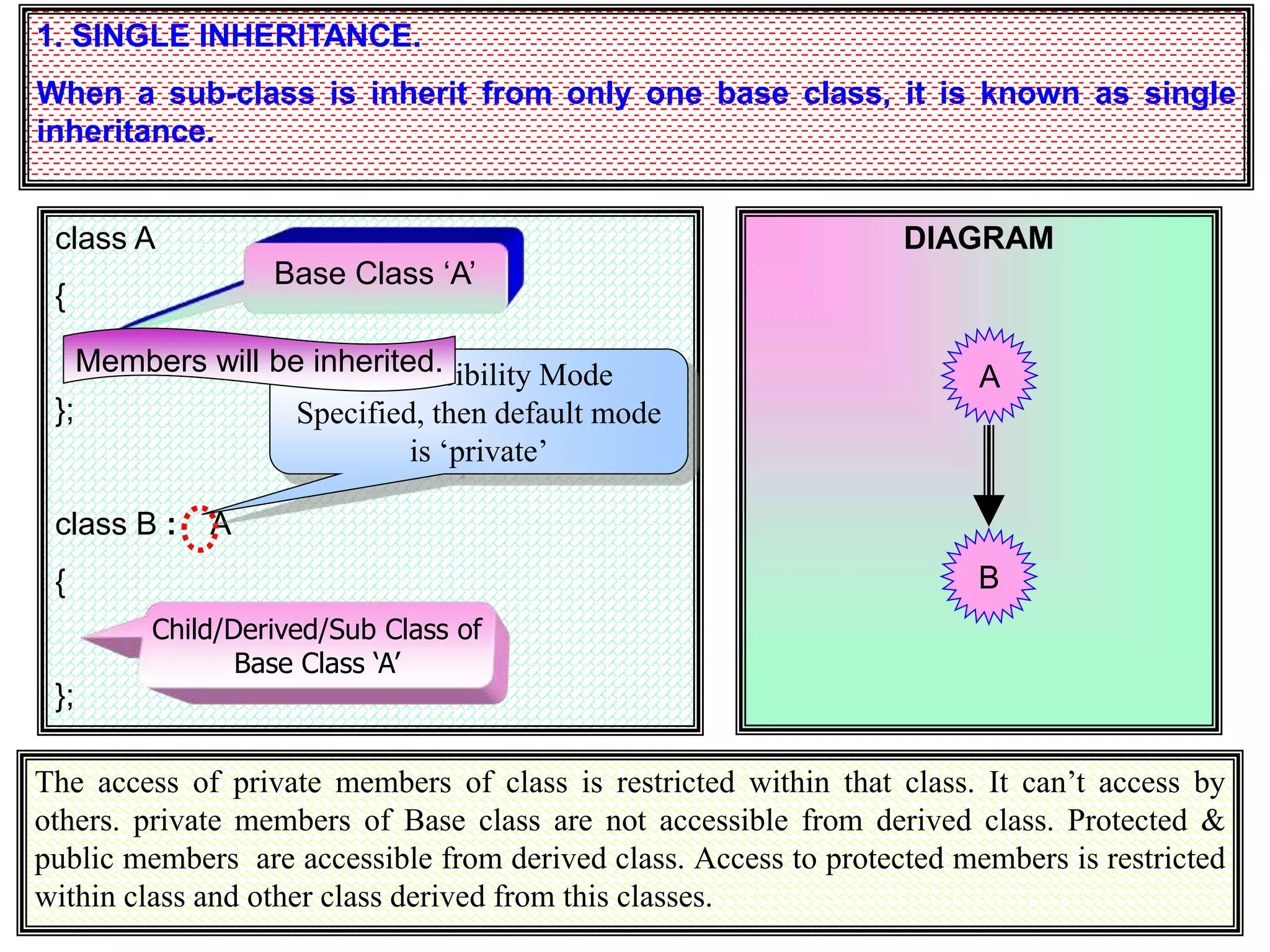

1. SINGLE INHERITANCE. When a sub-class is inherit from only one base class, it is known as single inheritance. class A { }; class B : A { }; If no Visibility Mode Specified, then default mode is ‘private’ Base Class ‘A’ Child/Derived/Sub Class of Base Class ‘A’ The access of private members of class is restricted within that class. It can’t access by others. private members of Base class are not accessible from derived class. Protected & public members are accessible from derived class. Access to protected members is restricted within class and other class derived from this classes. DIAGRAM A B Members will be inherited.

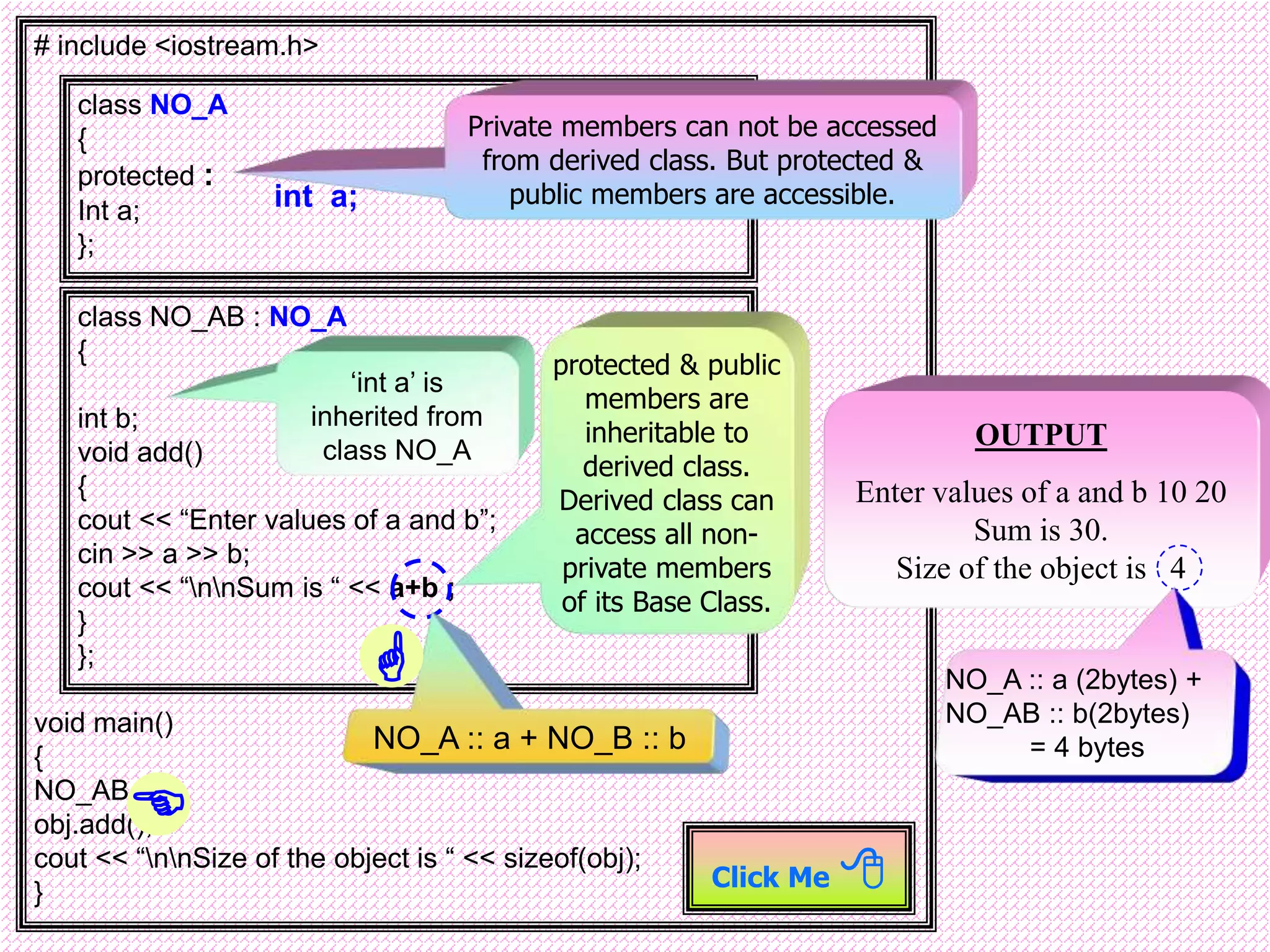

# include <iostream.h> void main() { NO_AB obj; obj.add(); cout << “nnSize of the object is “ << sizeof(obj); } class NO_A { protected : Int a; }; class NO_AB : NO_A { int b; void add() { cout << “Enter values of a and b”; cin >> a >> b; cout << “nnSum is “ << a+b ; } }; Private members can not be accessed from derived class. But protected & public members are accessible. protected & public members are inheritable to derived class. Derived class can access all non- private members of its Base Class. ‘int a’ is inherited from class NO_A int a; OUTPUT Enter values of a and b 10 20 Sum is 30. Size of the object is 4 NO_A :: a (2bytes) + NO_AB :: b(2bytes) = 4 bytes Click Me   NO_A :: a + NO_B :: b 

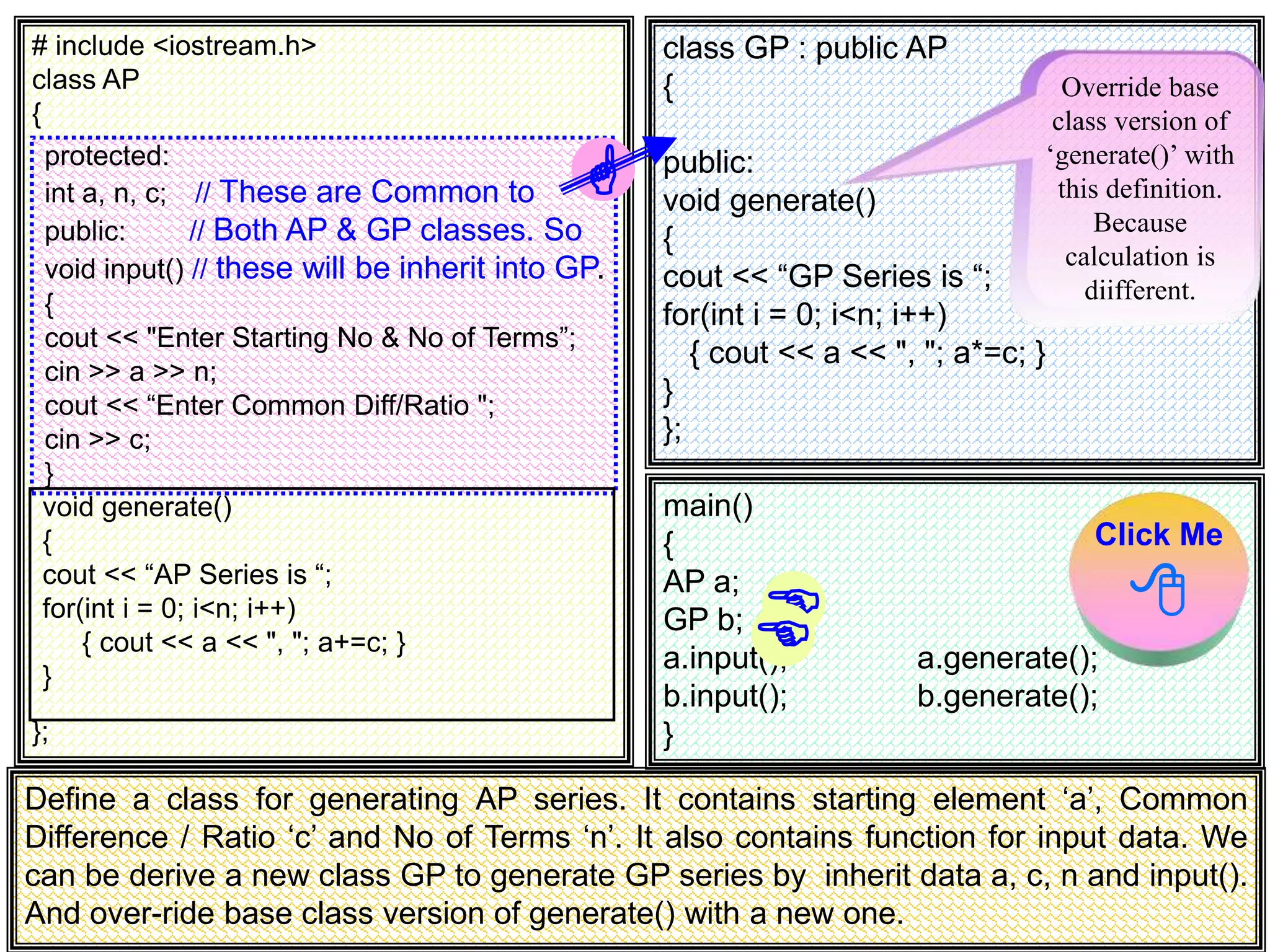

# include <iostream.h> class AP { }; main() { AP a; GP b; a.input(); a.generate(); b.input(); b.generate(); } protected: int a, n, c; // These are Common to public: // Both AP & GP classes. So void input() // these will be inherit into GP. { cout << "Enter Starting No & No of Terms”; cin >> a >> n; cout << “Enter Common Diff/Ratio "; cin >> c; } void generate() { cout << “AP Series is “; for(int i = 0; i<n; i++) { cout << a << ", "; a+=c; } } class GP : public AP { public: void generate() { cout << “GP Series is “; for(int i = 0; i<n; i++) { cout << a << ", "; a*=c; } } }; Override base class version of ‘generate()’ with this definition. Because calculation is diifferent.  Click Me   Define a class for generating AP series. It contains starting element ‘a’, Common Difference / Ratio ‘c’ and No of Terms ‘n’. It also contains function for input data. We can be derive a new class GP to generate GP series by inherit data a, c, n and input(). And over-ride base class version of generate() with a new one.

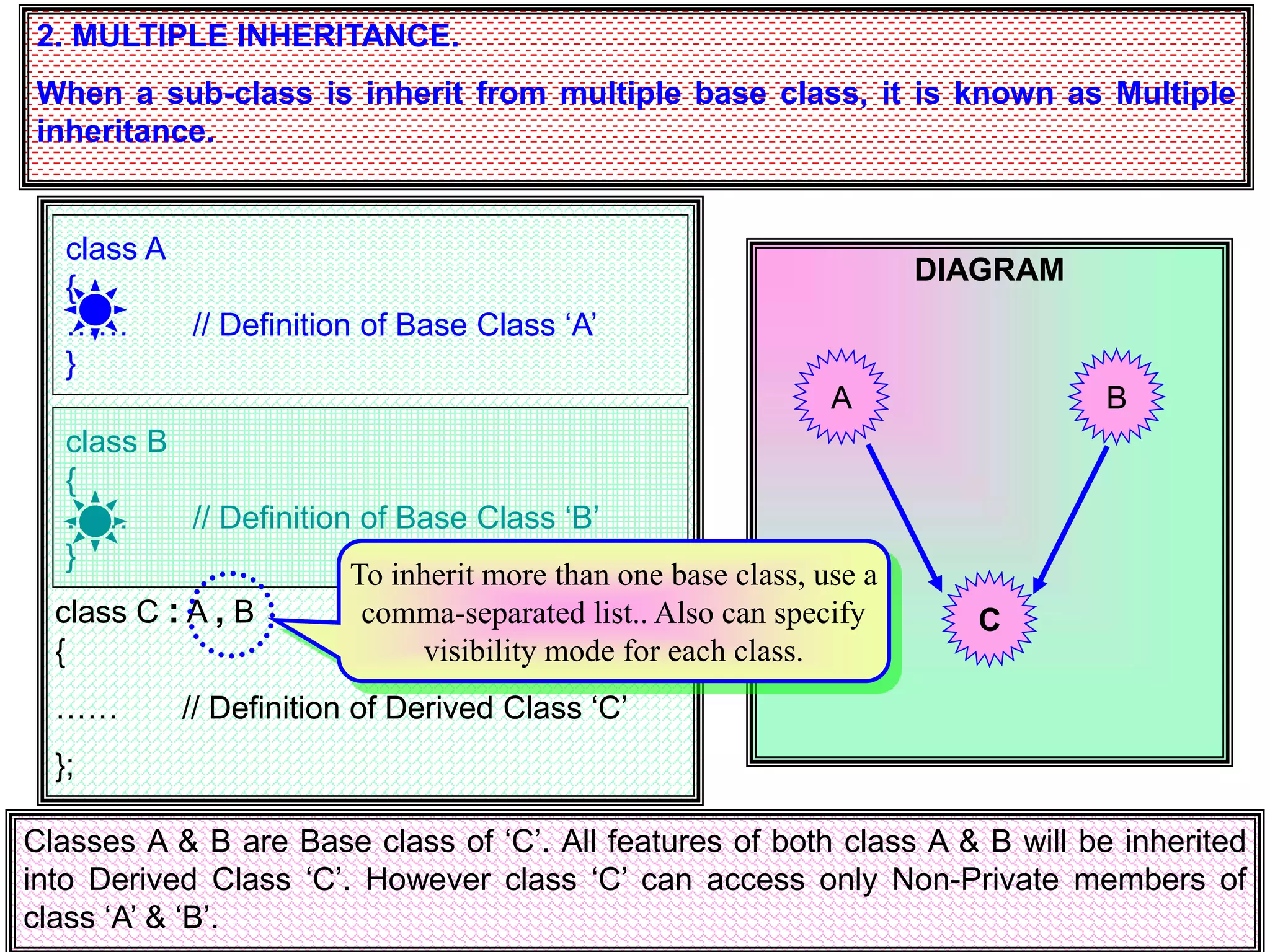

2. MULTIPLE INHERITANCE. When a sub-class is inherit from multiple base class, it is known as Multiple inheritance. class C : A , B { …… // Definition of Derived Class ‘C’ }; DIAGRAM A B class A { …… // Definition of Base Class ‘A’ } class B { …… // Definition of Base Class ‘B’ } C To inherit more than one base class, use a comma-separated list.. Also can specify visibility mode for each class. Classes A & B are Base class of ‘C’. All features of both class A & B will be inherited into Derived Class ‘C’. However class ‘C’ can access only Non-Private members of class ‘A’ & ‘B’.

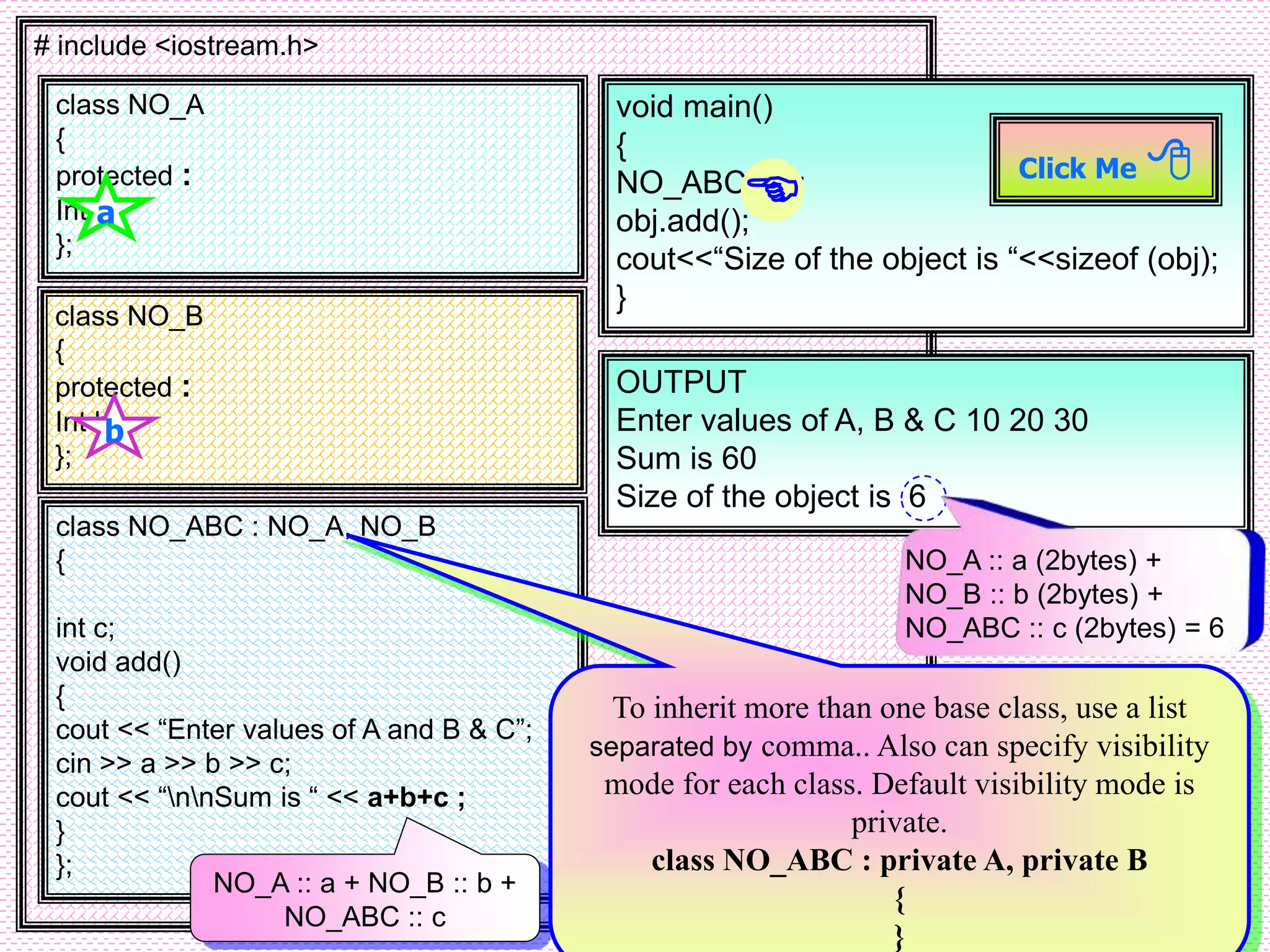

# include <iostream.h> class NO_A { protected : Int a; }; class NO_ABC : NO_A, NO_B { int c; void add() { cout << “Enter values of A and B & C”; cin >> a >> b >> c; cout << “nnSum is “ << a+b+c ; } }; class NO_B { protected : Int b; }; void main() { NO_ABC obj; obj.add(); cout<<“Size of the object is “<<sizeof (obj); } OUTPUT Enter values of A, B & C 10 20 30 Sum is 60 Size of the object is 6 a b Click Me   NO_A :: a (2bytes) + NO_B :: b (2bytes) + NO_ABC :: c (2bytes) = 6 To inherit more than one base class, use a list separated by comma.. Also can specify visibility mode for each class. Default visibility mode is private. class NO_ABC : private A, private B { } NO_A :: a + NO_B :: b + NO_ABC :: c

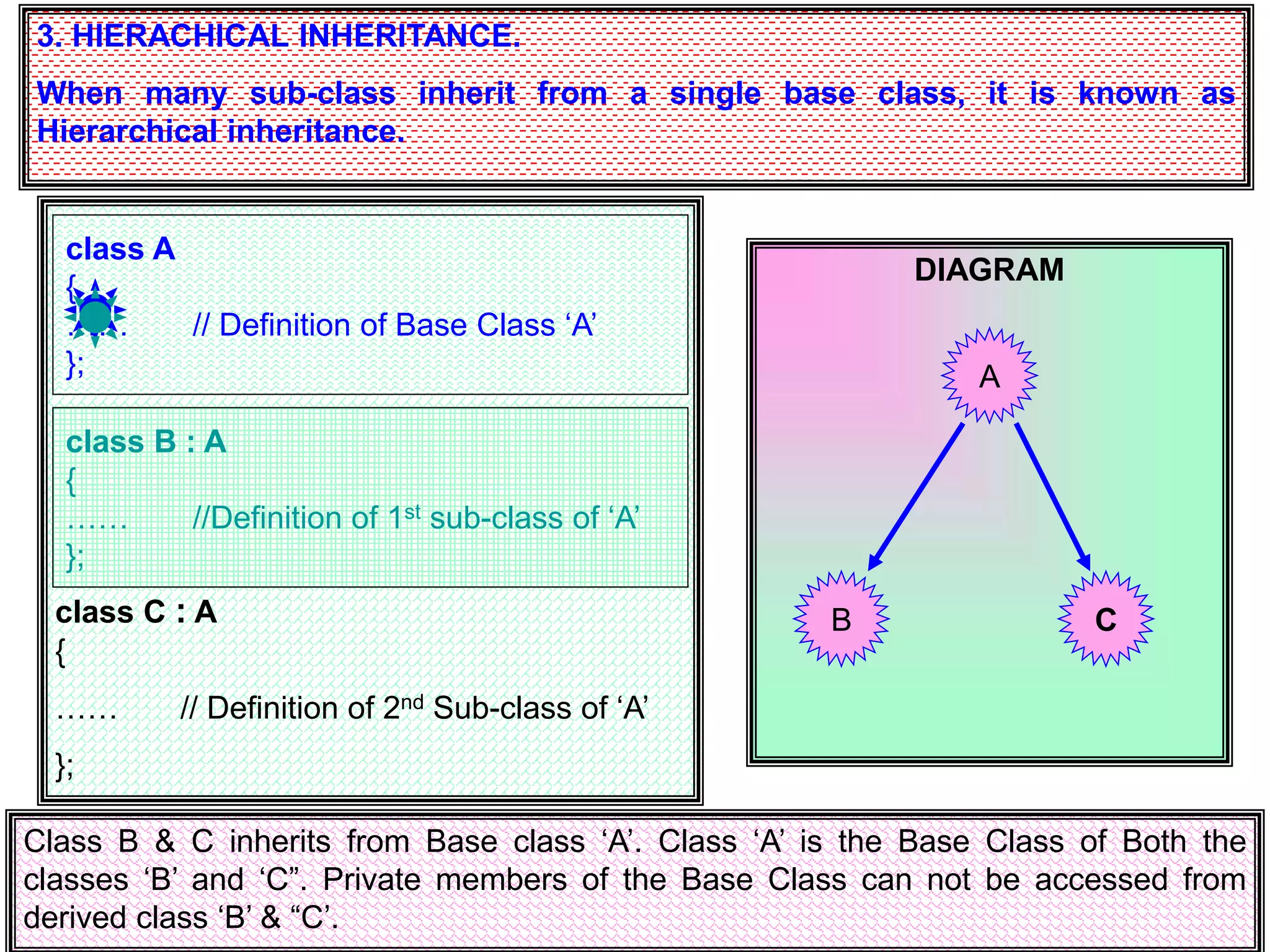

3. HIERACHICAL INHERITANCE. When many sub-class inherit from a single base class, it is known as Hierarchical inheritance. class C : A { …… // Definition of 2nd Sub-class of ‘A’ }; DIAGRAM A B class A { …… // Definition of Base Class ‘A’ }; class B : A { …… //Definition of 1st sub-class of ‘A’ }; C Class B & C inherits from Base class ‘A’. Class ‘A’ is the Base Class of Both the classes ‘B’ and ‘C”. Private members of the Base Class can not be accessed from derived class ‘B’ & “C’.

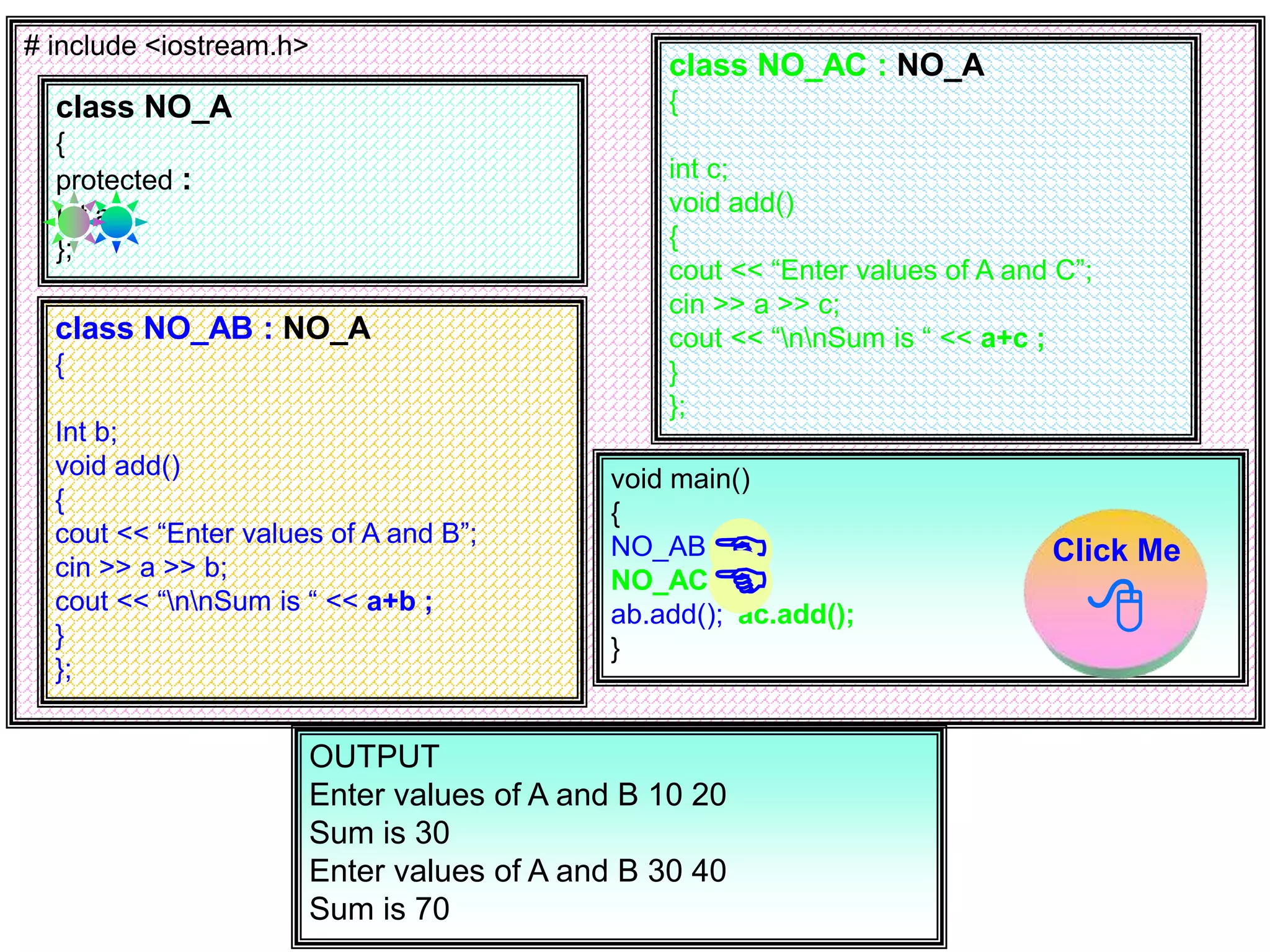

# include <iostream.h> class NO_A { protected : Int a; }; class NO_AC : NO_A { int c; void add() { cout << “Enter values of A and C”; cin >> a >> c; cout << “nnSum is “ << a+c ; } }; class NO_AB : NO_A { Int b; void add() { cout << “Enter values of A and B”; cin >> a >> b; cout << “nnSum is “ << a+b ; } }; void main() { NO_AB ab; NO_AC ac; ab.add(); ac.add(); } OUTPUT Enter values of A and B 10 20 Sum is 30 Enter values of A and B 30 40 Sum is 70 Click Me   

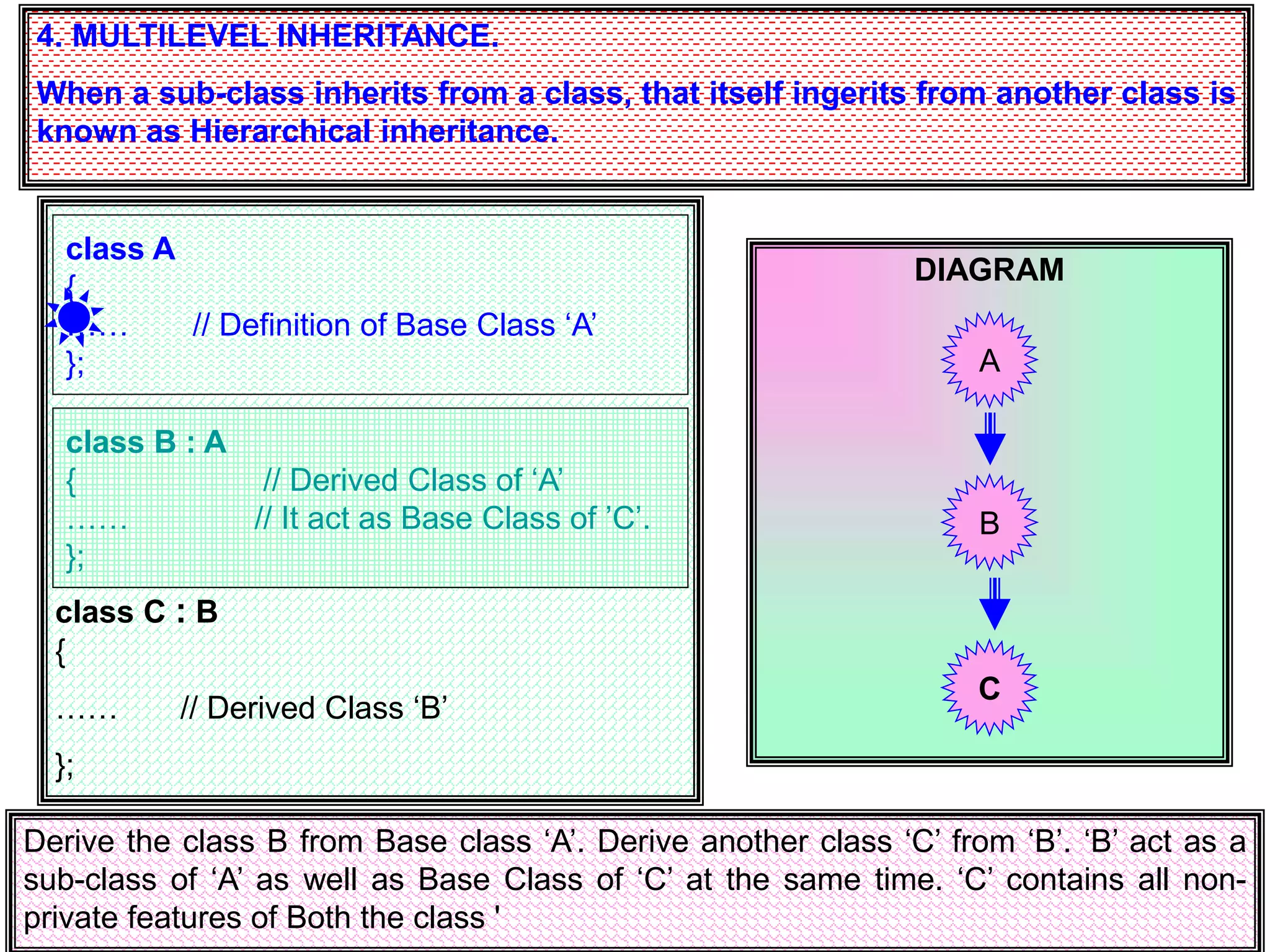

4. MULTILEVEL INHERITANCE. When a sub-class inherits from a class, that itself ingerits from another class is known as Hierarchical inheritance. class C : B { …… // Derived Class ‘B’ }; DIAGRAM A B class A { …… // Definition of Base Class ‘A’ }; class B : A { // Derived Class of ‘A’ …… // It act as Base Class of ’C’. }; C Derive the class B from Base class ‘A’. Derive another class ‘C’ from ‘B’. ‘B’ act as a sub-class of ‘A’ as well as Base Class of ‘C’ at the same time. ‘C’ contains all non- private features of Both the class '

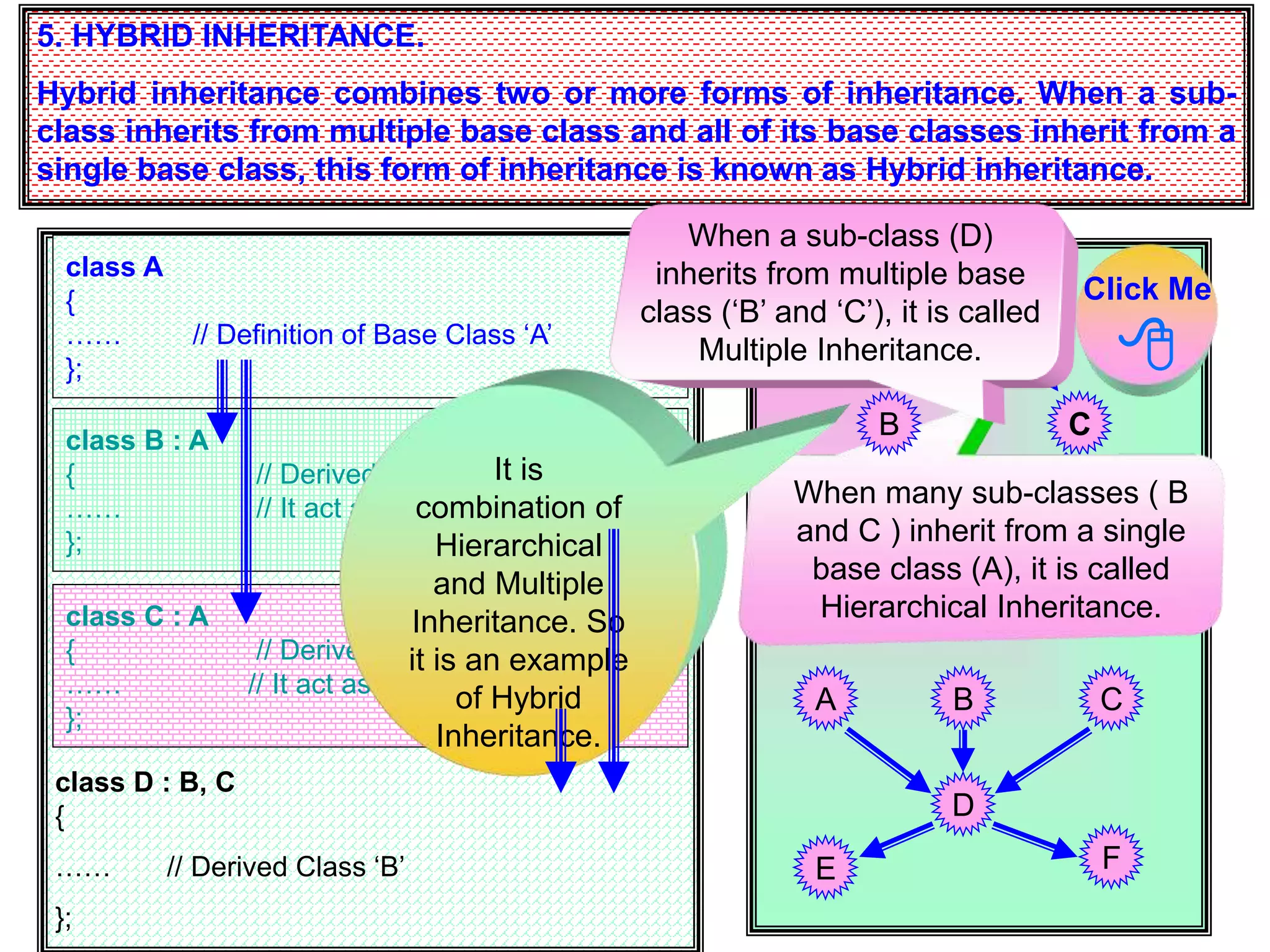

5. HYBRID INHERITANCE. Hybrid inheritance combines two or more forms of inheritance. When a sub- class inherits from multiple base class and all of its base classes inherit from a single base class, this form of inheritance is known as Hybrid inheritance. class D : B, C { …… // Derived Class ‘B’ }; DIAGRAM A class A { …… // Definition of Base Class ‘A’ }; class B : A { // Derived Class of ‘A’ …… // It act as Base Class of ’D’. }; C D class C : A { // Derived Class of ‘A’ …… // It act as Base Class of ’D’. }; Click Me  When many sub-classes ( B and C ) inherit from a single base class (A), it is called Hierarchical Inheritance. When a sub-class (D) inherits from multiple base class (‘B’ and ‘C’), it is called Multiple Inheritance. It is combination of Hierarchical and Multiple Inheritance. So it is an example of Hybrid Inheritance. A B C D E F B

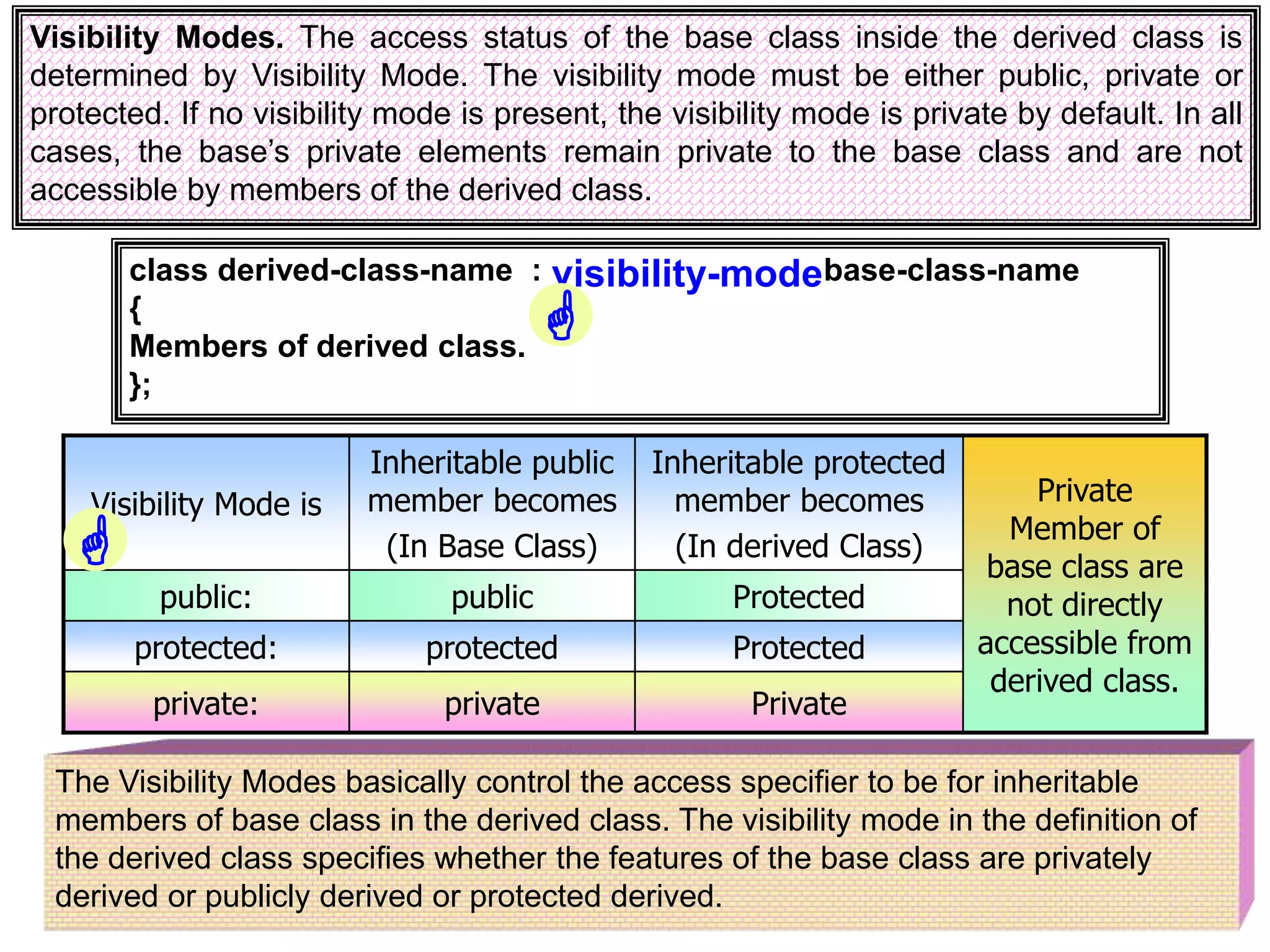

Visibility Modes. The access status of the base class inside the derived class is determined by Visibility Mode. The visibility mode must be either public, private or protected. If no visibility mode is present, the visibility mode is private by default. In all cases, the base’s private elements remain private to the base class and are not accessible by members of the derived class. Visibility Mode is Inheritable public member becomes (In Base Class) Inheritable protected member becomes (In derived Class) Private Member of base class are not directly accessible from derived class. public: public Protected protected: protected Protected private: private Private The Visibility Modes basically control the access specifier to be for inheritable members of base class in the derived class. The visibility mode in the definition of the derived class specifies whether the features of the base class are privately derived or publicly derived or protected derived. class derived-class-name : base-class-name { Members of derived class. }; visibility-mode  

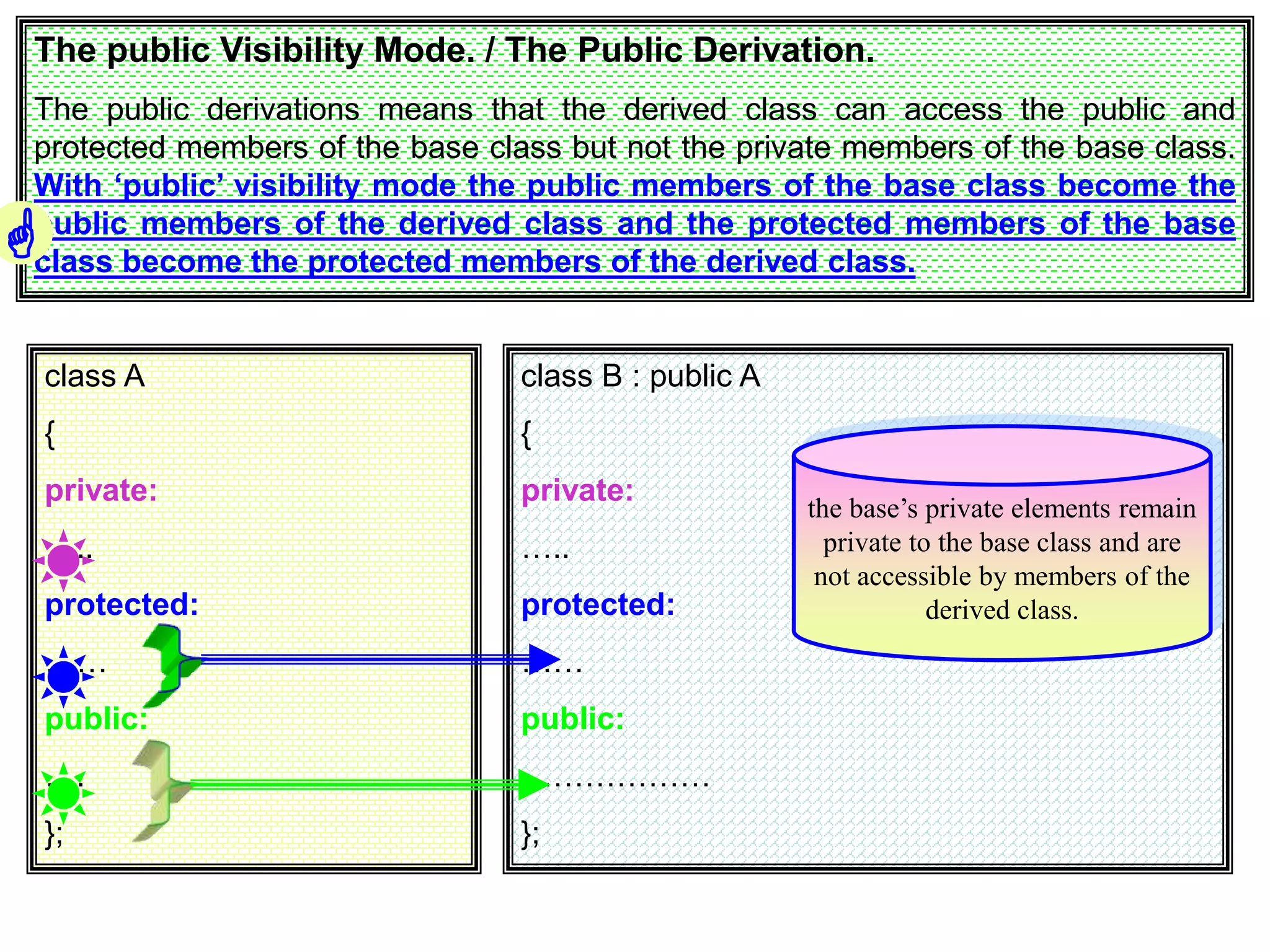

The public Visibility Mode. / The Public Derivation. The public derivations means that the derived class can access the public and protected members of the base class but not the private members of the base class. With ‘public’ visibility mode the public members of the base class become the public members of the derived class and the protected members of the base class become the protected members of the derived class. class A { private: ….. protected: …… public: …. }; class B : public A { private: ….. protected: …… public: ……………… }; the base’s private elements remain private to the base class and are not accessible by members of the derived class. 

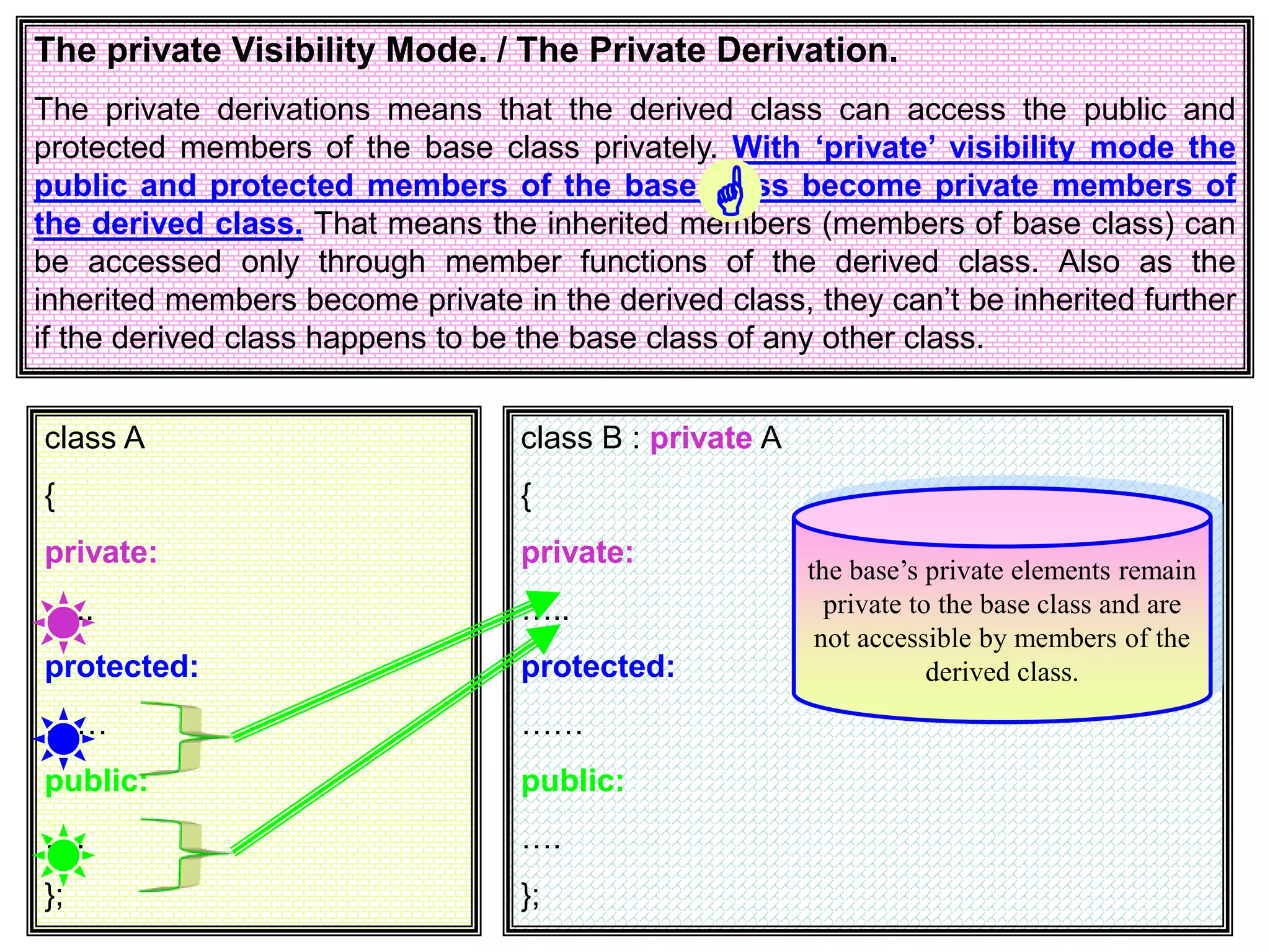

The private Visibility Mode. / The Private Derivation. The private derivations means that the derived class can access the public and protected members of the base class privately. With ‘private’ visibility mode the public and protected members of the base class become private members of the derived class. That means the inherited members (members of base class) can be accessed only through member functions of the derived class. Also as the inherited members become private in the derived class, they can’t be inherited further if the derived class happens to be the base class of any other class. class A { private: ….. protected: …… public: …. }; class B : private A { private: ….. protected: …… public: …. }; the base’s private elements remain private to the base class and are not accessible by members of the derived class. 

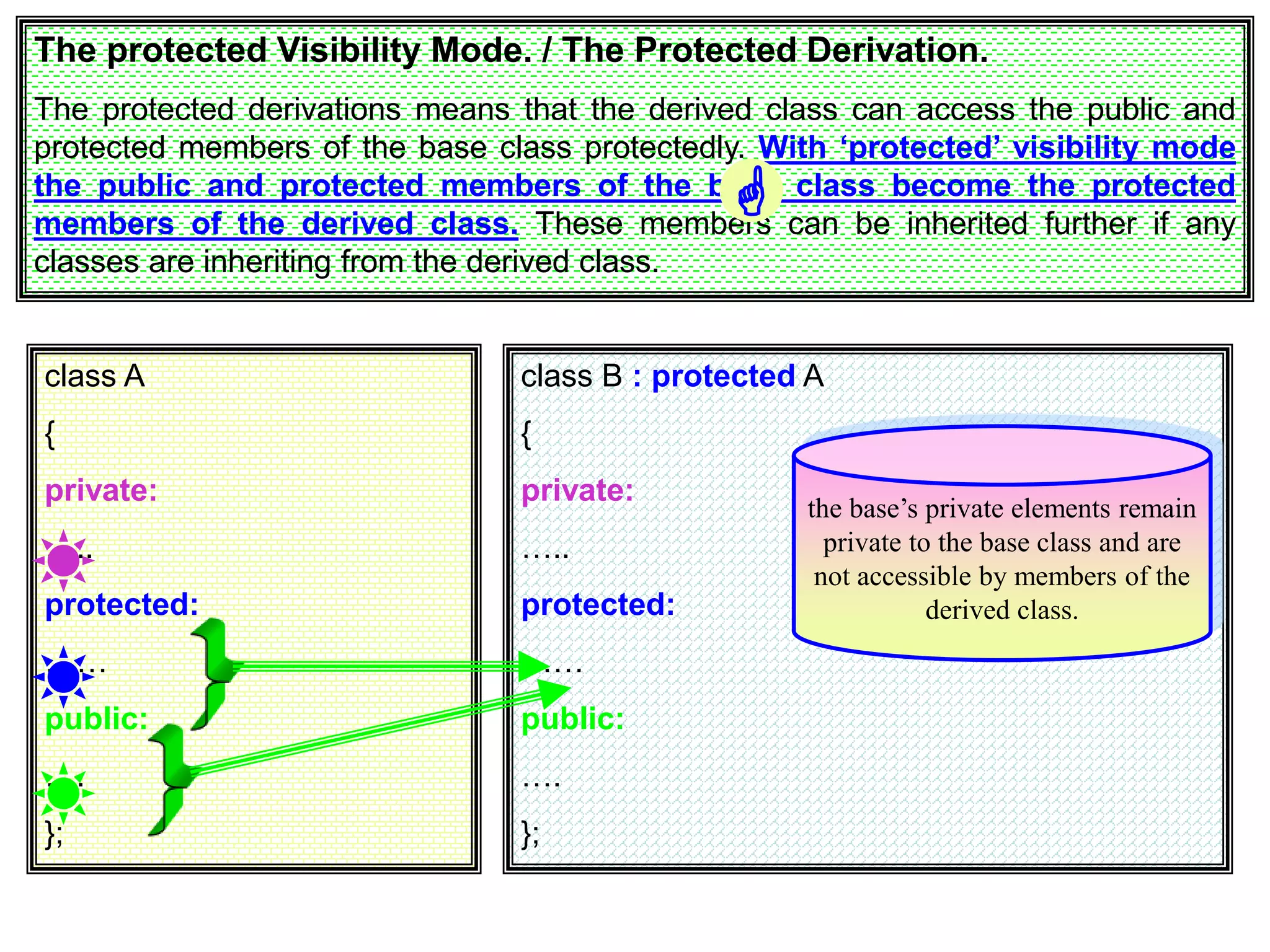

The protected Visibility Mode. / The Protected Derivation. The protected derivations means that the derived class can access the public and protected members of the base class protectedly. With ‘protected’ visibility mode the public and protected members of the base class become the protected members of the derived class. These members can be inherited further if any classes are inheriting from the derived class. class A { private: ….. protected: …… public: …. }; class B : protected A { private: ….. protected: …… public: …. }; the base’s private elements remain private to the base class and are not accessible by members of the derived class. 

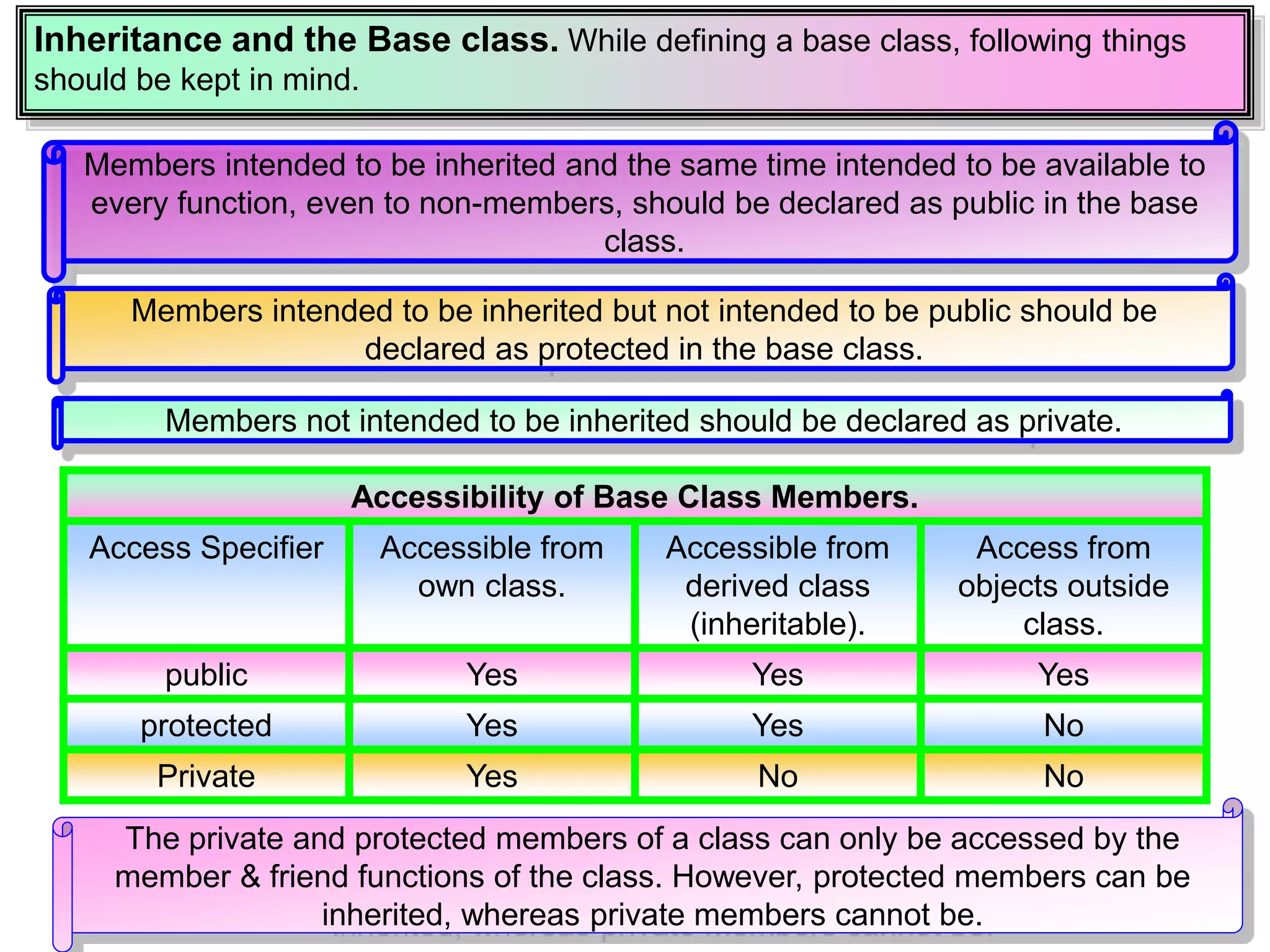

Inheritance and the Base class. While defining a base class, following things should be kept in mind. Members intended to be inherited and the same time intended to be available to every function, even to non-members, should be declared as public in the base class. Members intended to be inherited but not intended to be public should be declared as protected in the base class. Members not intended to be inherited should be declared as private. Accessibility of Base Class Members. Access Specifier Accessible from own class. Accessible from derived class (inheritable). Access from objects outside class. public Yes Yes Yes protected Yes Yes No Private Yes No No The private and protected members of a class can only be accessed by the member & friend functions of the class. However, protected members can be inherited, whereas private members cannot be.

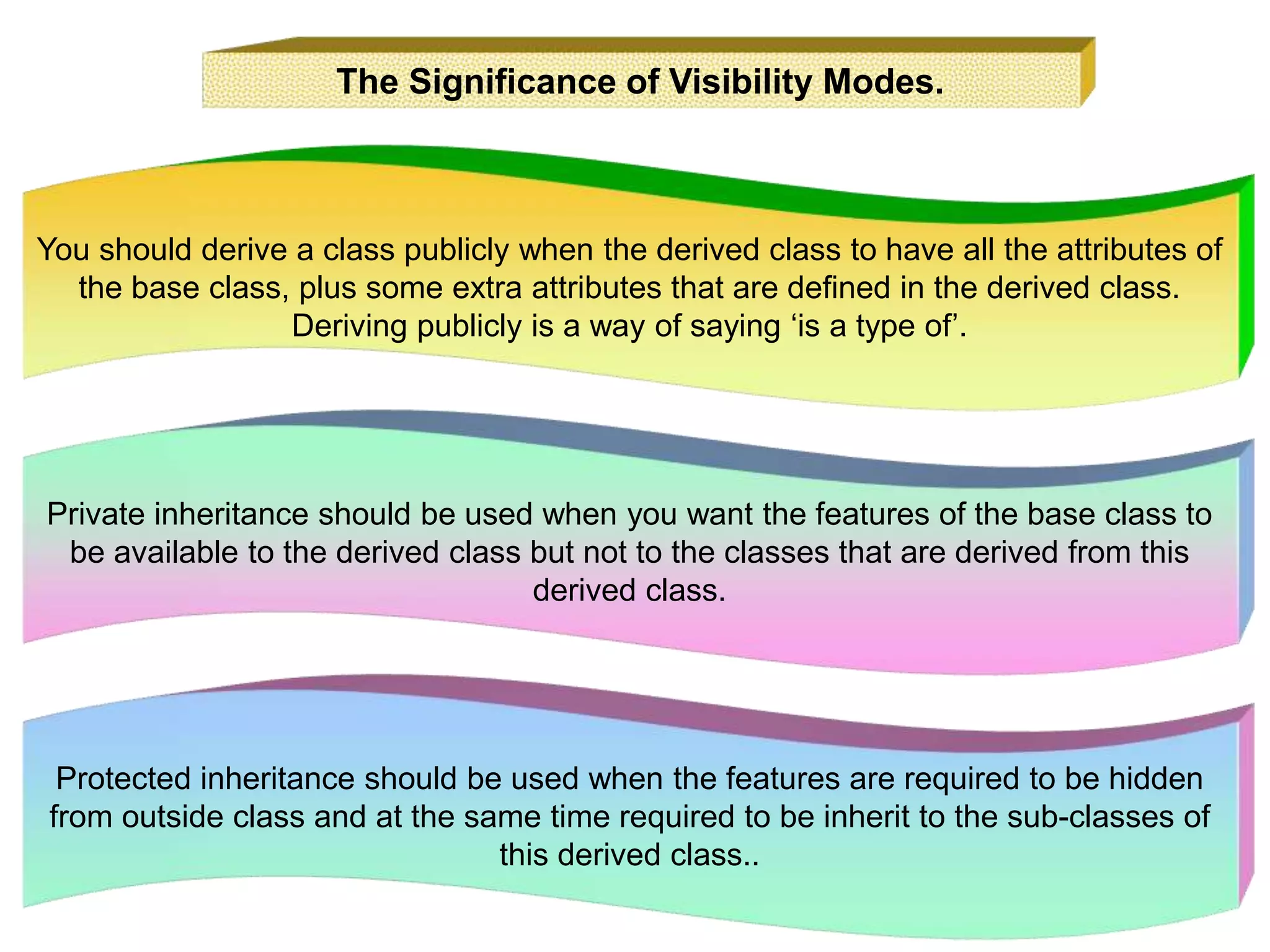

The Significance of Visibility Modes. You should derive a class publicly when the derived class to have all the attributes of the base class, plus some extra attributes that are defined in the derived class. Deriving publicly is a way of saying ‘is a type of’. Private inheritance should be used when you want the features of the base class to be available to the derived class but not to the classes that are derived from this derived class. Protected inheritance should be used when the features are required to be hidden from outside class and at the same time required to be inherit to the sub-classes of this derived class..

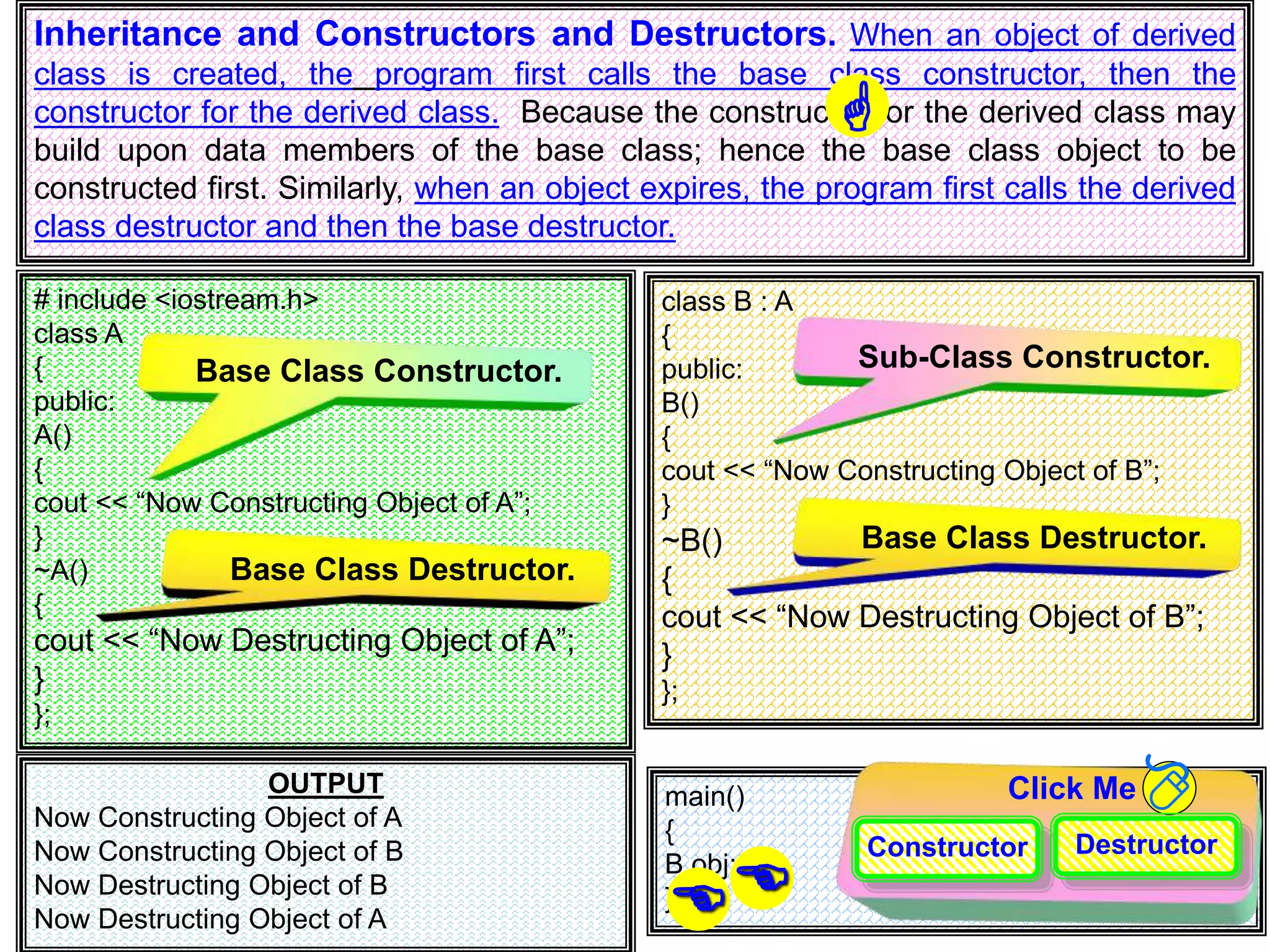

Inheritance and Constructors and Destructors. When an object of derived class is created, the program first calls the base class constructor, then the constructor for the derived class. Because the constructor for the derived class may build upon data members of the base class; hence the base class object to be constructed first. Similarly, when an object expires, the program first calls the derived class destructor and then the base destructor. # include <iostream.h> class A { public: A() { cout << “Now Constructing Object of A”; } ~A() { cout << “Now Destructing Object of A”; } }; class B : A { public: B() { cout << “Now Constructing Object of B”; } ~B() { cout << “Now Destructing Object of B”; } }; main() { B obj; }; OUTPUT Now Constructing Object of A Now Constructing Object of B Now Destructing Object of B Now Destructing Object of A Click Me Constructor Destructor Base Class Constructor. Sub-Class Constructor. Base Class Destructor. Base Class Destructor.  

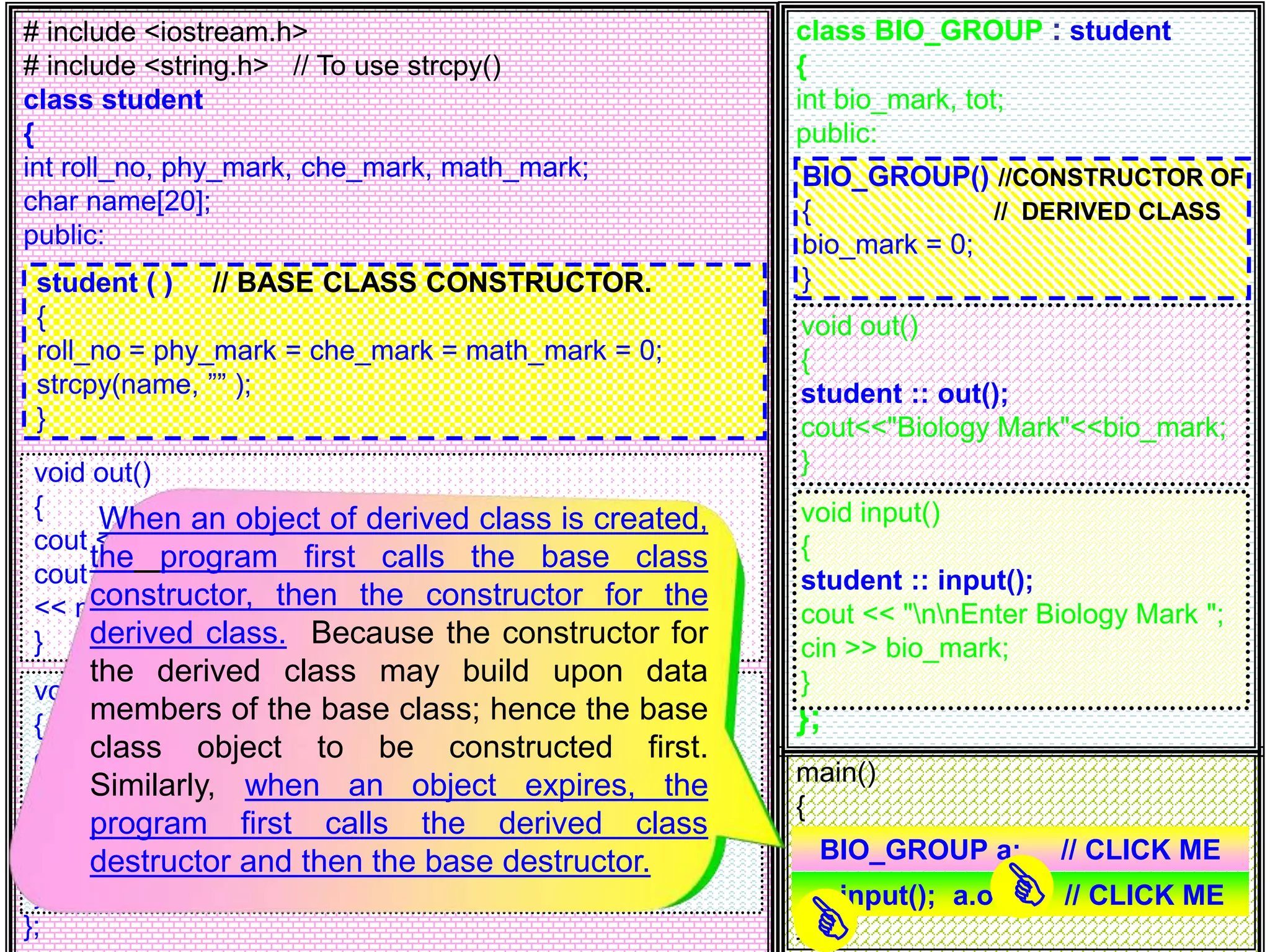

# include <iostream.h> # include <string.h> // To use strcpy() class student { int roll_no, phy_mark, che_mark, math_mark; char name[20]; public: }; main() { } class BIO_GROUP : student { int bio_mark, tot; public: }; void out() { cout << "Name : " << name << " Roll No " << roll_no; cout << "Marks of Physics " << phy_mark << " Maths “ << math_mark << "Chemistry “ << che_mark<<; } void input() { cout << “nnPls Enter Name & Roll No"; cin >> name >> roll_no; cout << "Enter marks of Physics, Chemistry and Maths"; cin >> phy_mark >> che_mark >> math_mark; } void input() { student :: input(); cout << "nnEnter Biology Mark "; cin >> bio_mark; } void out() { student :: out(); cout<<"Biology Mark"<<bio_mark; } student ( ) // BASE CLASS CONSTRUCTOR. { roll_no = phy_mark = che_mark = math_mark = 0; strcpy(name, ”” ); } BIO_GROUP() //CONSTRUCTOR OF { // DERIVED CLASS bio_mark = 0; } BIO_GROUP a; // CLICK ME a.input(); a.out(); // CLICK ME When an object of derived class is created, the program first calls the base class constructor, then the constructor for the derived class. Because the constructor for the derived class may build upon data members of the base class; hence the base class object to be constructed first. Similarly, when an object expires, the program first calls the derived class destructor and then the base destructor.

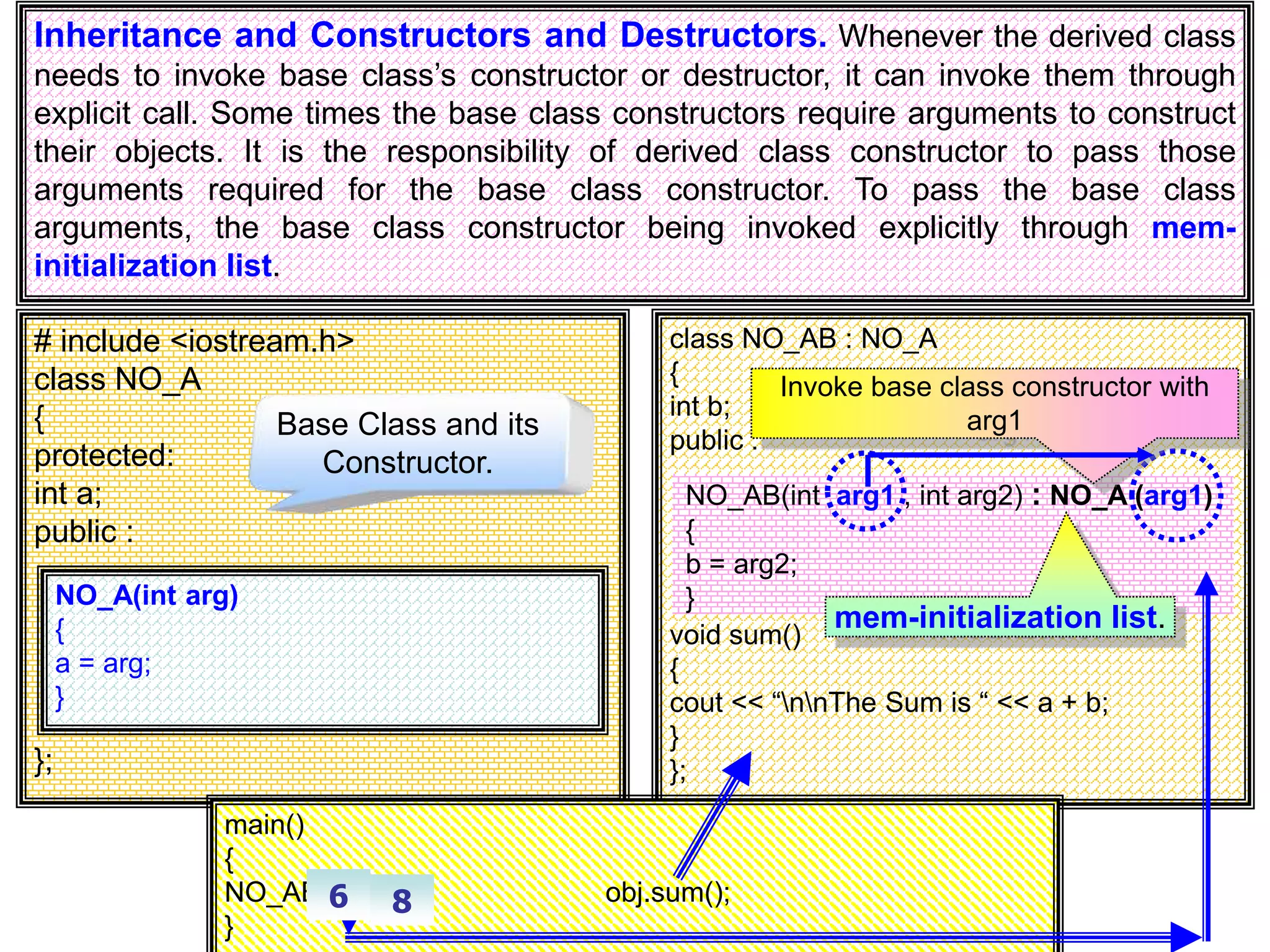

Inheritance and Constructors and Destructors. Whenever the derived class needs to invoke base class’s constructor or destructor, it can invoke them through explicit call. Some times the base class constructors require arguments to construct their objects. It is the responsibility of derived class constructor to pass those arguments required for the base class constructor. To pass the base class arguments, the base class constructor being invoked explicitly through mem- initialization list. # include <iostream.h> class NO_A { protected: int a; public : }; NO_A(int arg) { a = arg; } class NO_AB : NO_A { int b; public : void sum() { cout << “nnThe Sum is “ << a + b; } }; main() { NO_AB obj(6,8); obj.sum(); } NO_AB(int arg1 , int arg2) : NO_A (arg1) { b = arg2; } Invoke base class constructor with arg1 mem-initialization list. 6 8 Base Class and its Constructor.

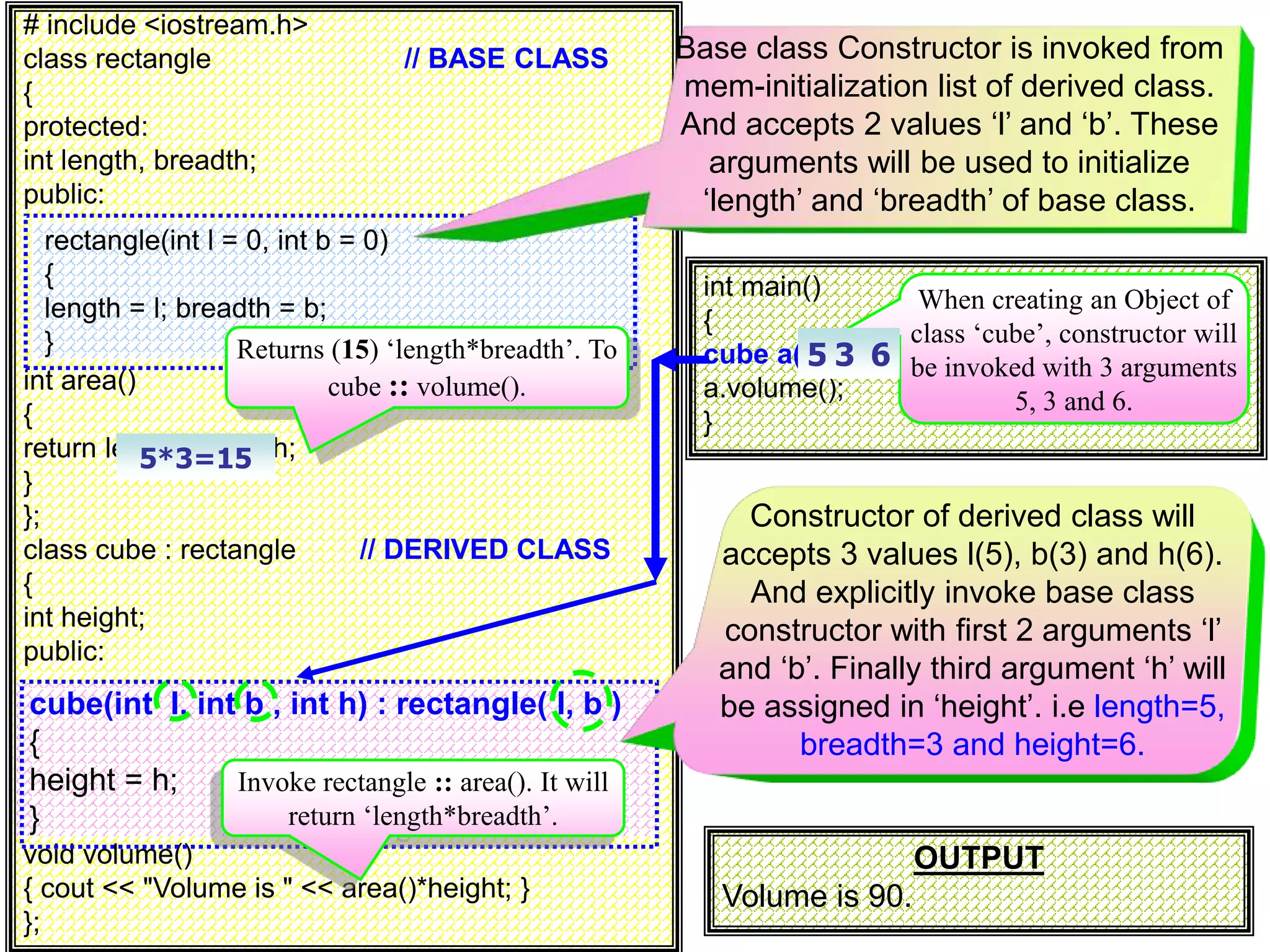

# include <iostream.h> class rectangle // BASE CLASS { protected: int length, breadth; public: int area() { return length*breadth; } }; class cube : rectangle // DERIVED CLASS { int height; public: void volume() { cout << "Volume is " << area()*height; } }; int main() { cube a(5,3,6); a.volume(); } rectangle(int l = 0, int b = 0) { length = l; breadth = b; } cube(int l, int b , int h) : rectangle( l, b ) { height = h; } When creating an Object of class ‘cube’, constructor will be invoked with 3 arguments 5, 3 and 6. Constructor of derived class will accepts 3 values l(5), b(3) and h(6). And explicitly invoke base class constructor with first 2 arguments ‘l’ and ‘b’. Finally third argument ‘h’ will be assigned in ‘height’. i.e length=5, breadth=3 and height=6. Base class Constructor is invoked from mem-initialization list of derived class. And accepts 2 values ‘l’ and ‘b’. These arguments will be used to initialize ‘length’ and ‘breadth’ of base class. Invoke rectangle :: area(). It will return ‘length*breadth’. Returns (15) ‘length*breadth’. To cube :: volume(). OUTPUT Volume is 90. 5 3 6 5*3=15

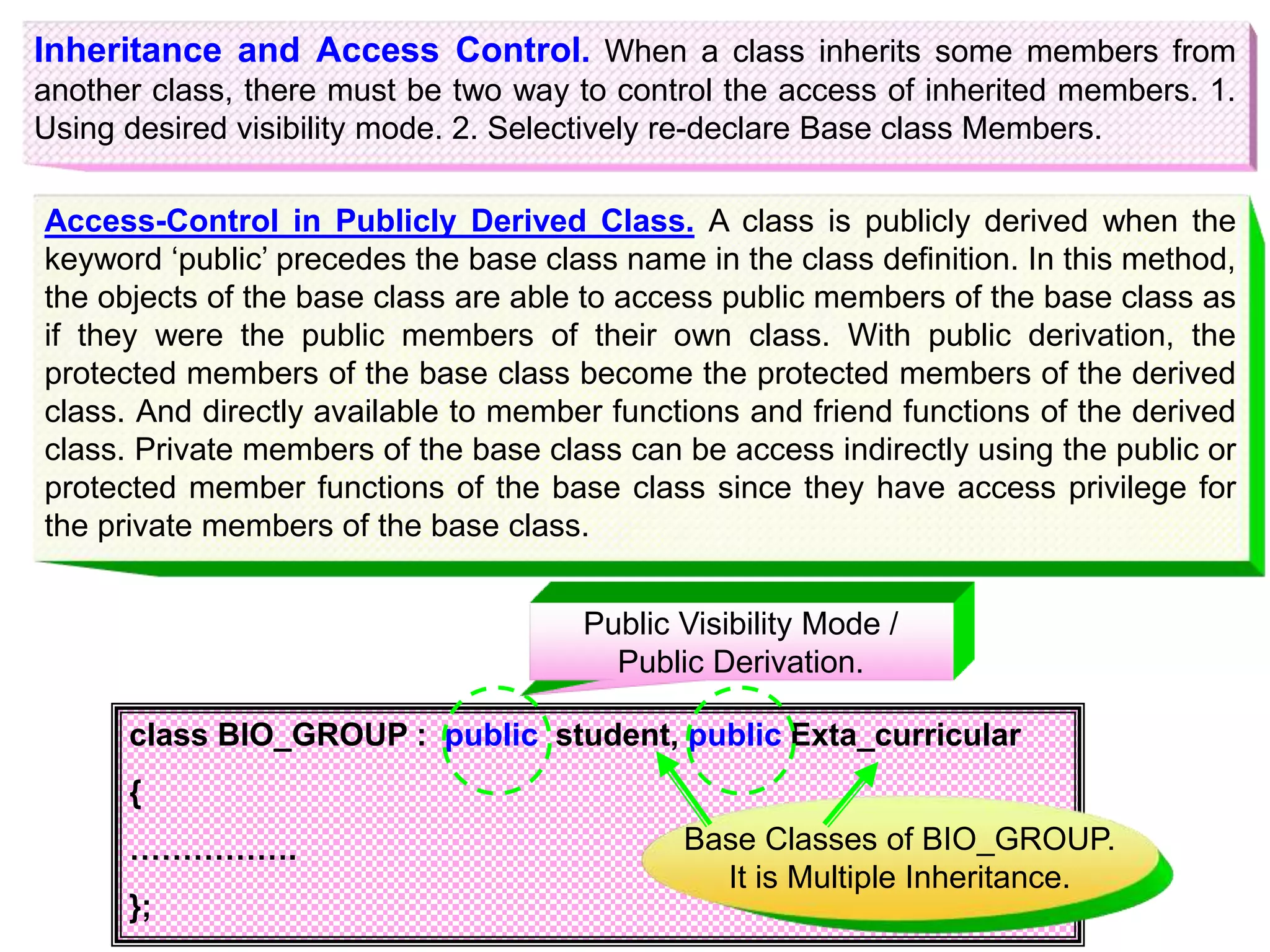

Inheritance and Access Control. When a class inherits some members from another class, there must be two way to control the access of inherited members. 1. Using desired visibility mode. 2. Selectively re-declare Base class Members. Access-Control in Publicly Derived Class. A class is publicly derived when the keyword ‘public’ precedes the base class name in the class definition. In this method, the objects of the base class are able to access public members of the base class as if they were the public members of their own class. With public derivation, the protected members of the base class become the protected members of the derived class. And directly available to member functions and friend functions of the derived class. Private members of the base class can be access indirectly using the public or protected member functions of the base class since they have access privilege for the private members of the base class. class BIO_GROUP : public student, public Exta_curricular { ……………. }; Public Visibility Mode / Public Derivation. Base Classes of BIO_GROUP. It is Multiple Inheritance.

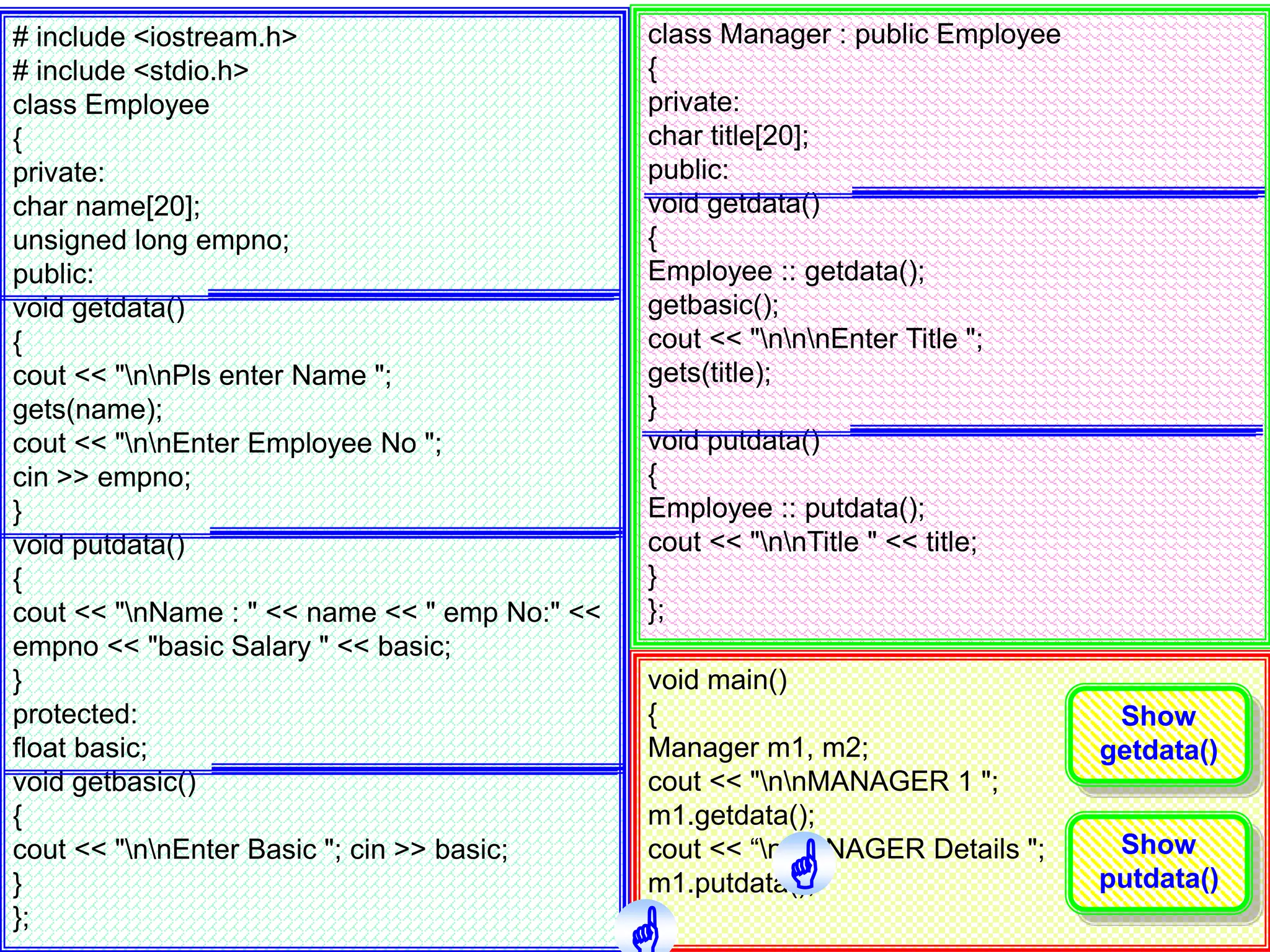

# include <iostream.h> # include <stdio.h> class Employee { private: char name[20]; unsigned long empno; public: void getdata() { cout << "nnPls enter Name "; gets(name); cout << "nnEnter Employee No "; cin >> empno; } void putdata() { cout << "nName : " << name << " emp No:" << empno << "basic Salary " << basic; } protected: float basic; void getbasic() { cout << "nnEnter Basic "; cin >> basic; } }; class Manager : public Employee { private: char title[20]; public: void getdata() { Employee :: getdata(); getbasic(); cout << "nnnEnter Title "; gets(title); } void putdata() { Employee :: putdata(); cout << "nnTitle " << title; } }; void main() { Manager m1, m2; cout << "nnMANAGER 1 "; m1.getdata(); cout << “nMANAGER Details "; m1.putdata(); } Show getdata() Show putdata()

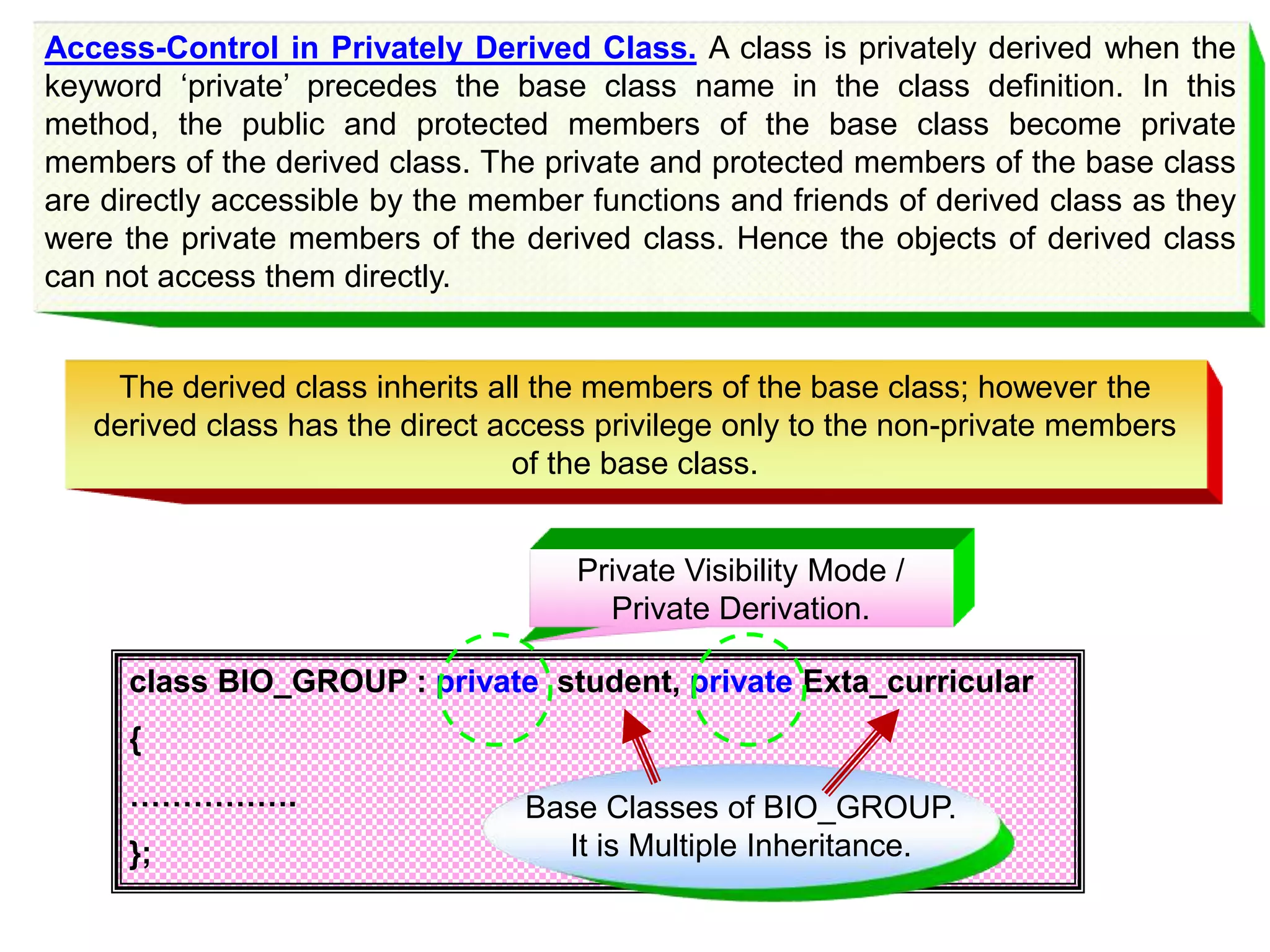

Access-Control in Privately Derived Class. A class is privately derived when the keyword ‘private’ precedes the base class name in the class definition. In this method, the public and protected members of the base class become private members of the derived class. The private and protected members of the base class are directly accessible by the member functions and friends of derived class as they were the private members of the derived class. Hence the objects of derived class can not access them directly. class BIO_GROUP : private student, private Exta_curricular { ……………. }; Private Visibility Mode / Private Derivation. The derived class inherits all the members of the base class; however the derived class has the direct access privilege only to the non-private members of the base class. Base Classes of BIO_GROUP. It is Multiple Inheritance.

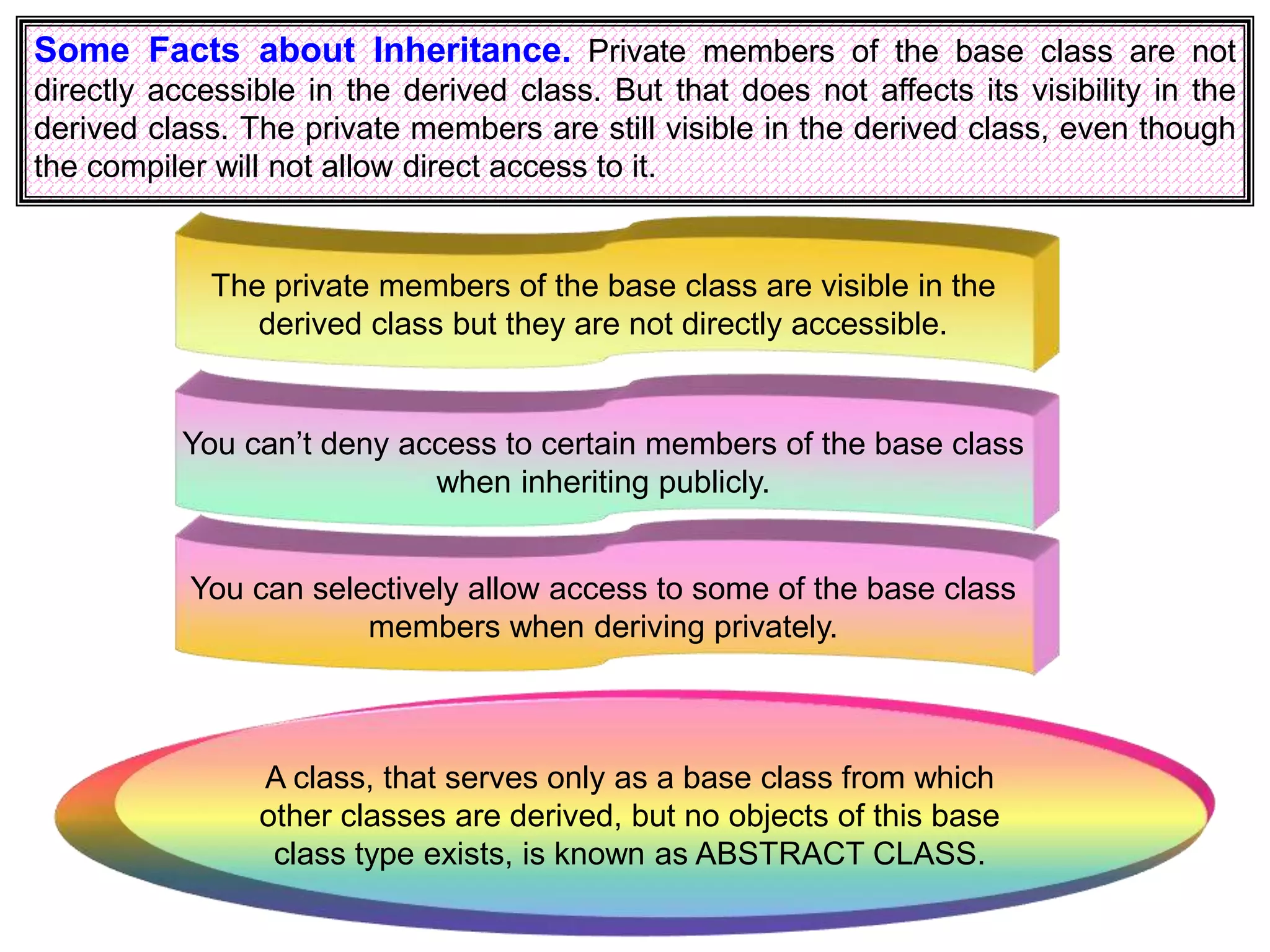

Some Facts about Inheritance. Private members of the base class are not directly accessible in the derived class. But that does not affects its visibility in the derived class. The private members are still visible in the derived class, even though the compiler will not allow direct access to it. The private members of the base class are visible in the derived class but they are not directly accessible. You can’t deny access to certain members of the base class when inheriting publicly. You can selectively allow access to some of the base class members when deriving privately. A class, that serves only as a base class from which other classes are derived, but no objects of this base class type exists, is known as ABSTRACT CLASS.

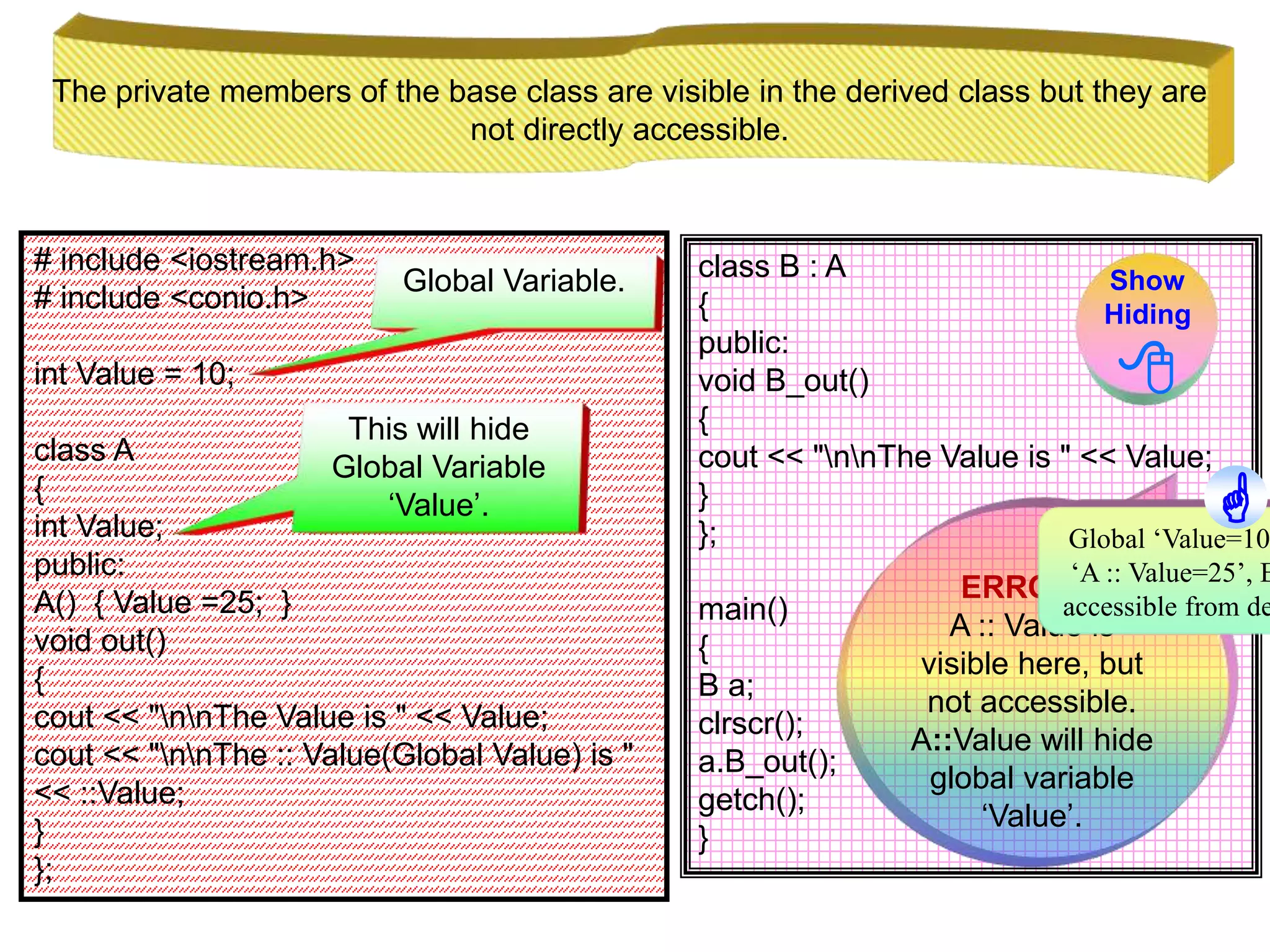

The private members of the base class are visible in the derived class but they are not directly accessible. # include <iostream.h> # include <conio.h> int Value = 10; class A { int Value; public: A() { Value =25; } void out() { cout << "nnThe Value is " << Value; cout << "nnThe :: Value(Global Value) is " << ::Value; } }; class B : A { public: void B_out() { cout << "nnThe Value is " << Value; } }; main() { B a; clrscr(); a.B_out(); getch(); } Global Variable. This will hide Global Variable ‘Value’. ERROR !. A :: Value is visible here, but not accessible. A::Value will hide global variable ‘Value’. Show Hiding  Global ‘Value=10 ‘A :: Value=25’, B accessible from de 

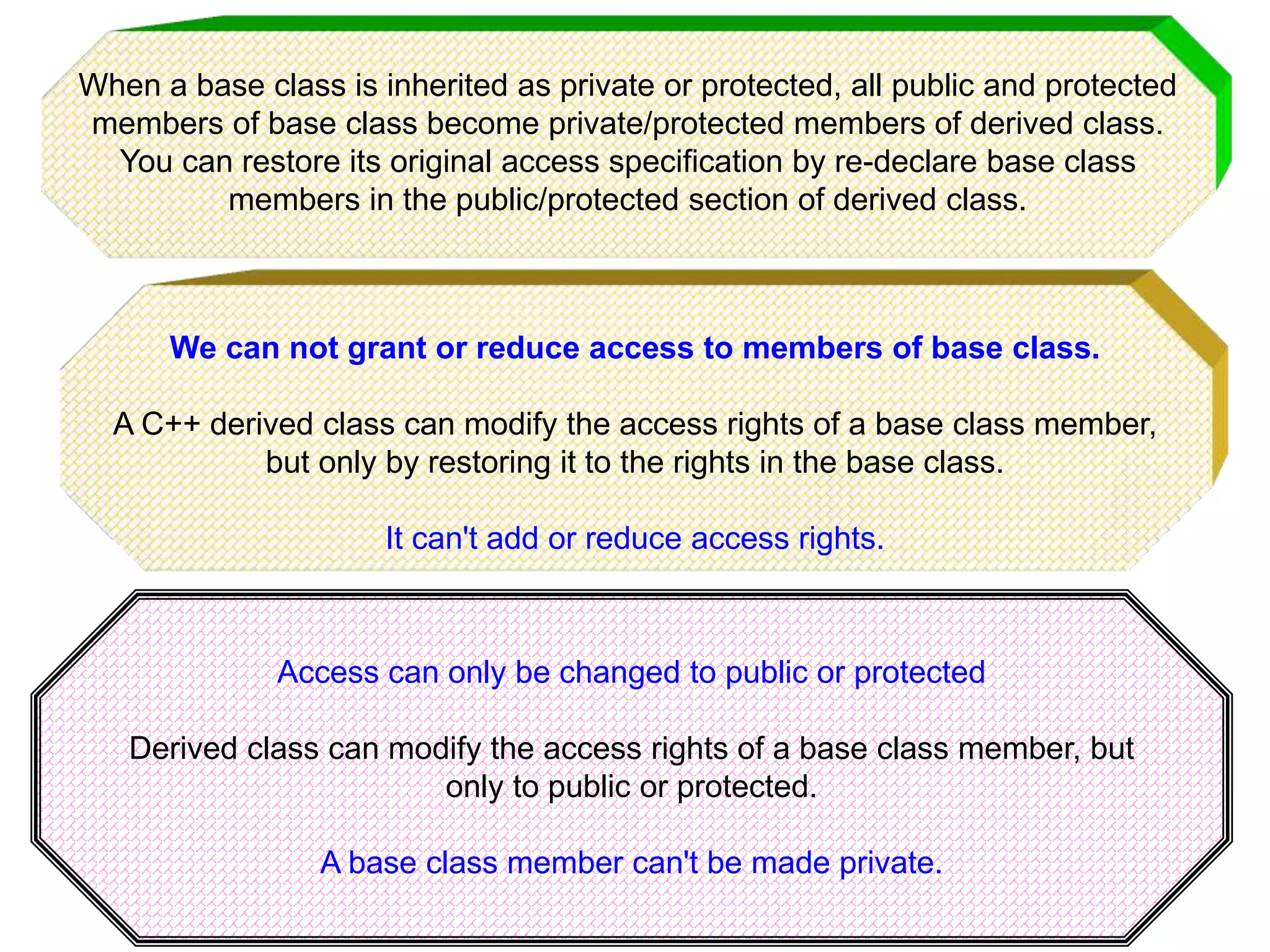

Access can only be changed to public or protected Derived class can modify the access rights of a base class member, but only to public or protected. A base class member can't be made private. When a base class is inherited as private or protected, all public and protected members of base class become private/protected members of derived class. You can restore its original access specification by re-declare base class members in the public/protected section of derived class. We can not grant or reduce access to members of base class. A C++ derived class can modify the access rights of a base class member, but only by restoring it to the rights in the base class. It can't add or reduce access rights.

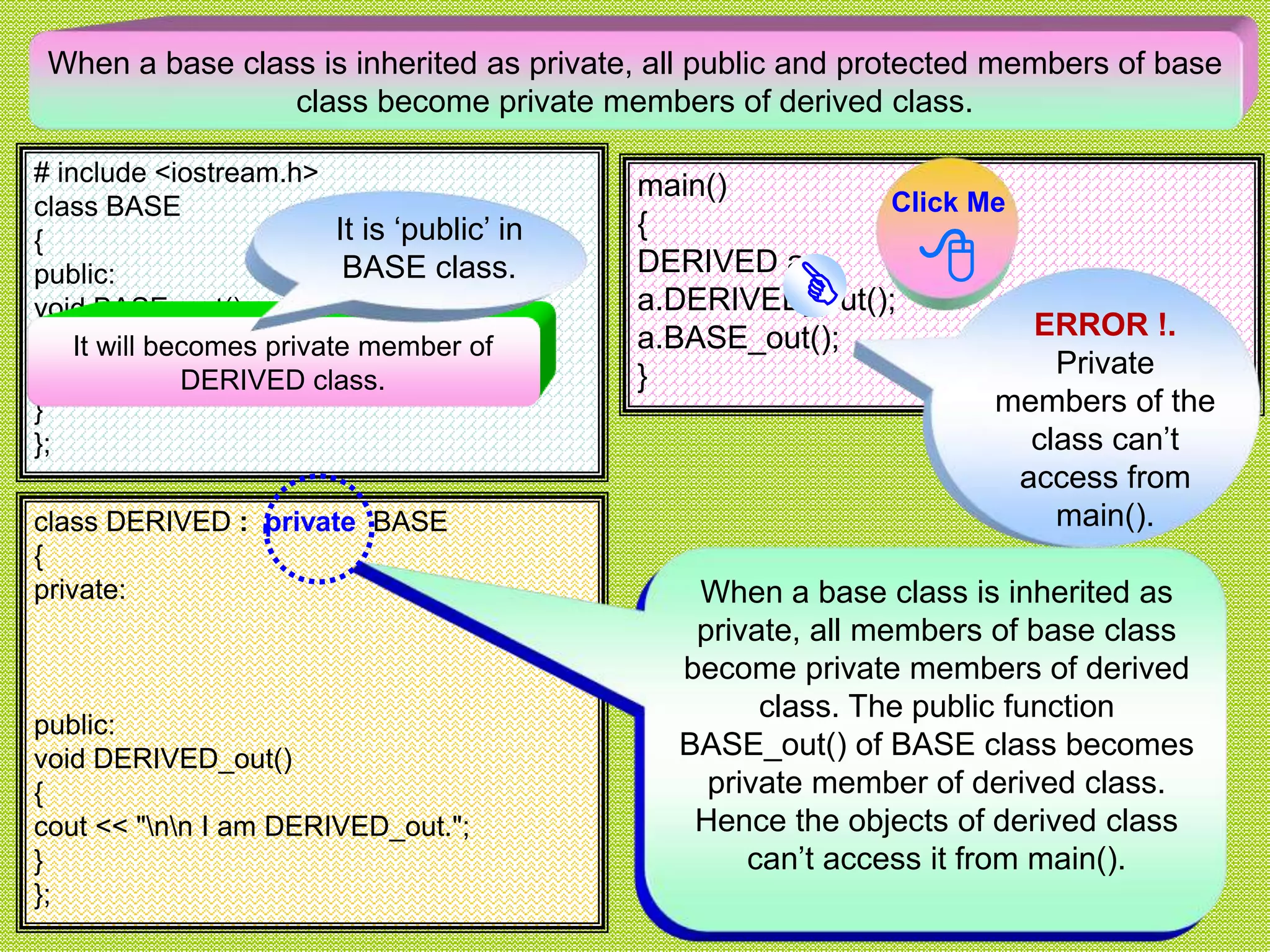

When a base class is inherited as private, all public and protected members of base class become private members of derived class. # include <iostream.h> class BASE { public: void BASE_out() { cout << "nn I am BASE_out."; } }; main() { DERIVED a; a.DERIVED_out(); a.BASE_out(); } class DERIVED : private BASE { private: public: void DERIVED_out() { cout << "nn I am DERIVED_out."; } }; When a base class is inherited as private, all members of base class become private members of derived class. The public function BASE_out() of BASE class becomes private member of derived class. Hence the objects of derived class can’t access it from main(). It will becomes private member of DERIVED class. It is ‘public’ in BASE class. ERROR !. Private members of the class can’t access from main(). Click Me 

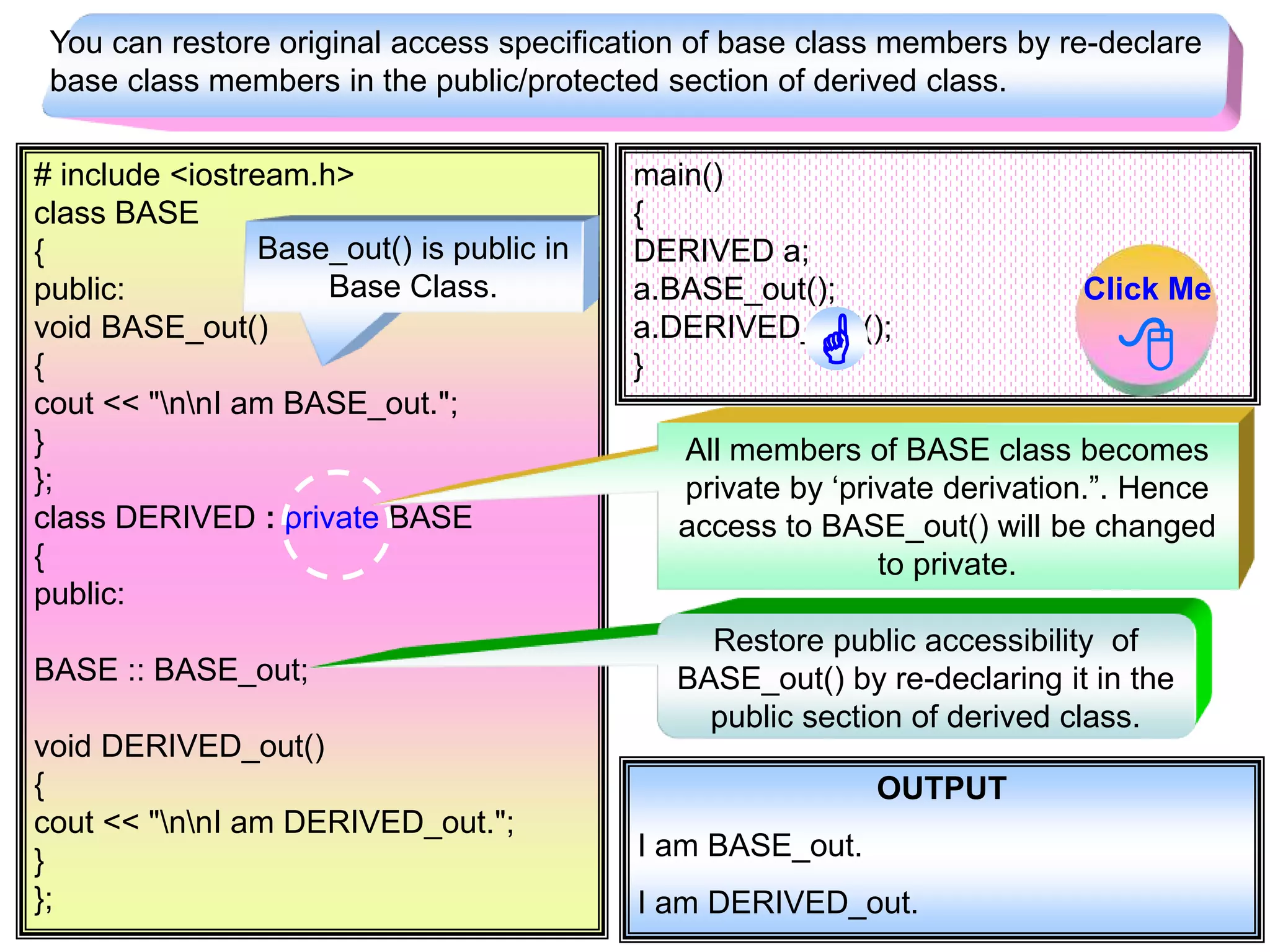

# include <iostream.h> class BASE { public: void BASE_out() { cout << "nnI am BASE_out."; } }; class DERIVED : private BASE { public: BASE :: BASE_out; void DERIVED_out() { cout << "nnI am DERIVED_out."; } }; main() { DERIVED a; a.BASE_out(); a.DERIVED_out(); } You can restore original access specification of base class members by re-declare base class members in the public/protected section of derived class. Base_out() is public in Base Class. All members of BASE class becomes private by ‘private derivation.”. Hence access to BASE_out() will be changed to private. Restore public accessibility of BASE_out() by re-declaring it in the public section of derived class. OUTPUT I am BASE_out. I am DERIVED_out.  Click Me 

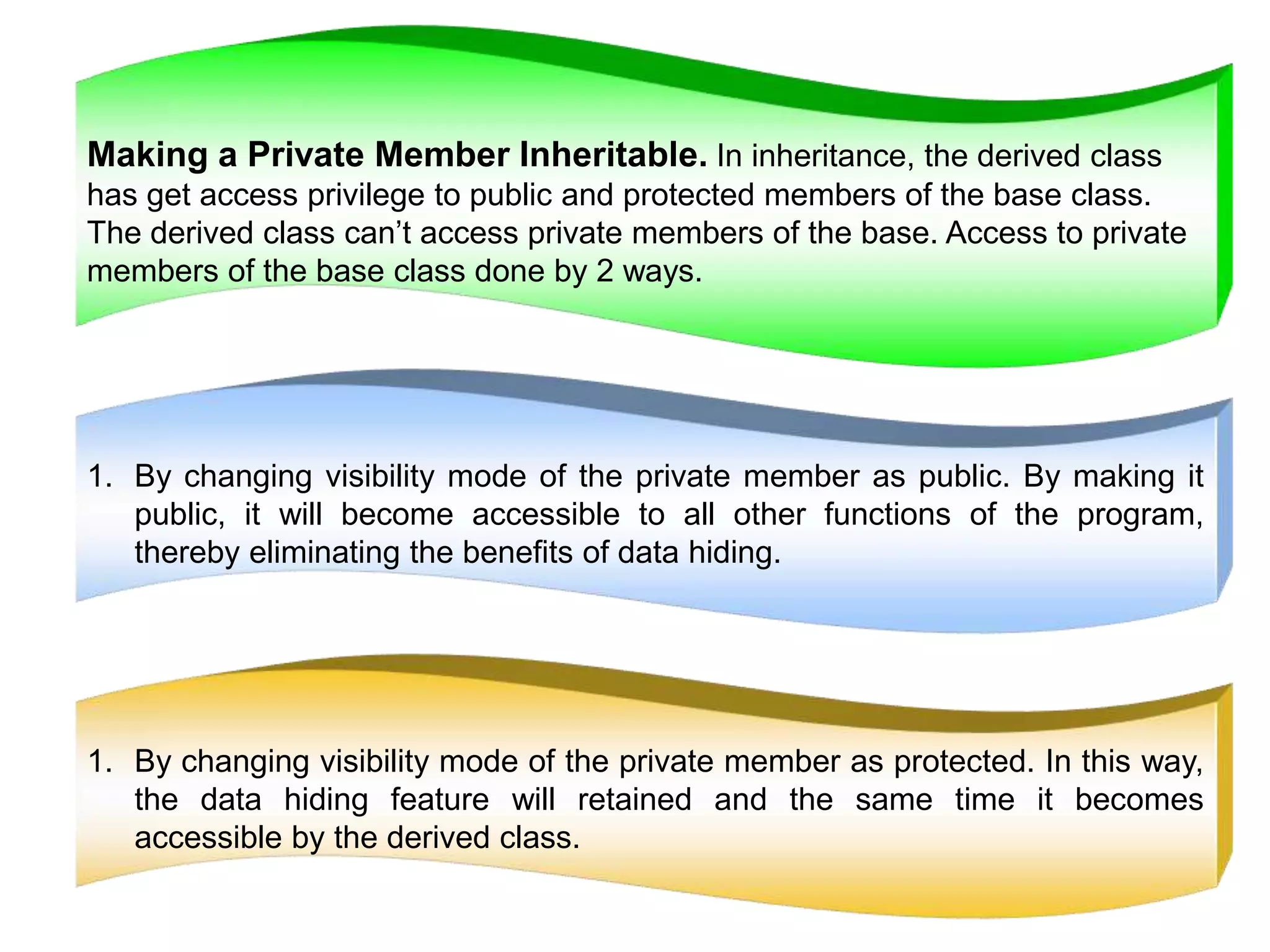

1. By changing visibility mode of the private member as public. By making it public, it will become accessible to all other functions of the program, thereby eliminating the benefits of data hiding. Making a Private Member Inheritable. In inheritance, the derived class has get access privilege to public and protected members of the base class. The derived class can’t access private members of the base. Access to private members of the base class done by 2 ways. 1. By changing visibility mode of the private member as protected. In this way, the data hiding feature will retained and the same time it becomes accessible by the derived class.

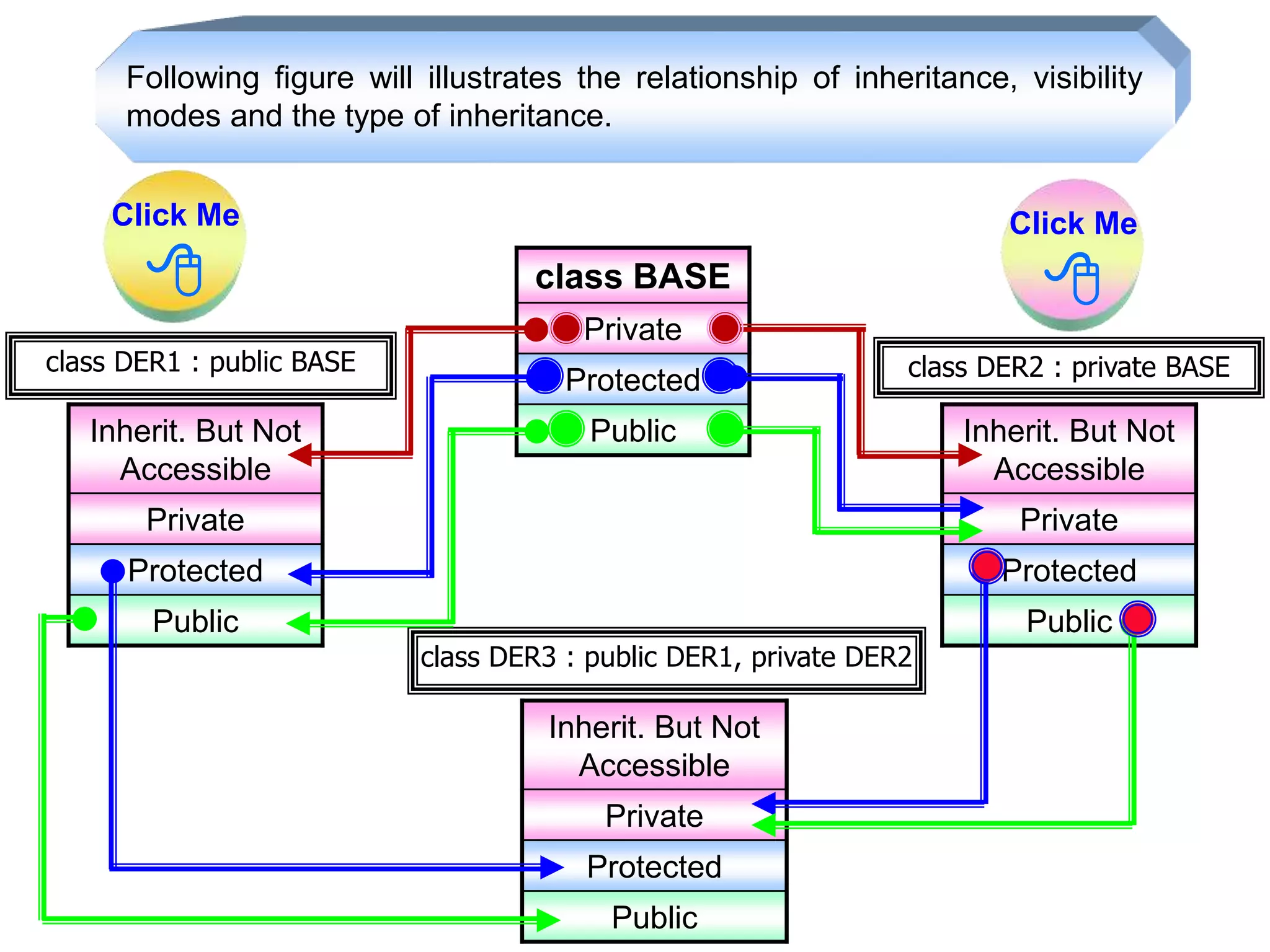

Inherit. But Not Accessible Private Protected Public class BASE Private Protected Public Inherit. But Not Accessible Private Protected Public Inherit. But Not Accessible Private Protected Public class DER1 : public BASE class DER2 : private BASE class DER3 : public DER1, private DER2 Following figure will illustrates the relationship of inheritance, visibility modes and the type of inheritance. Click Me  Click Me 

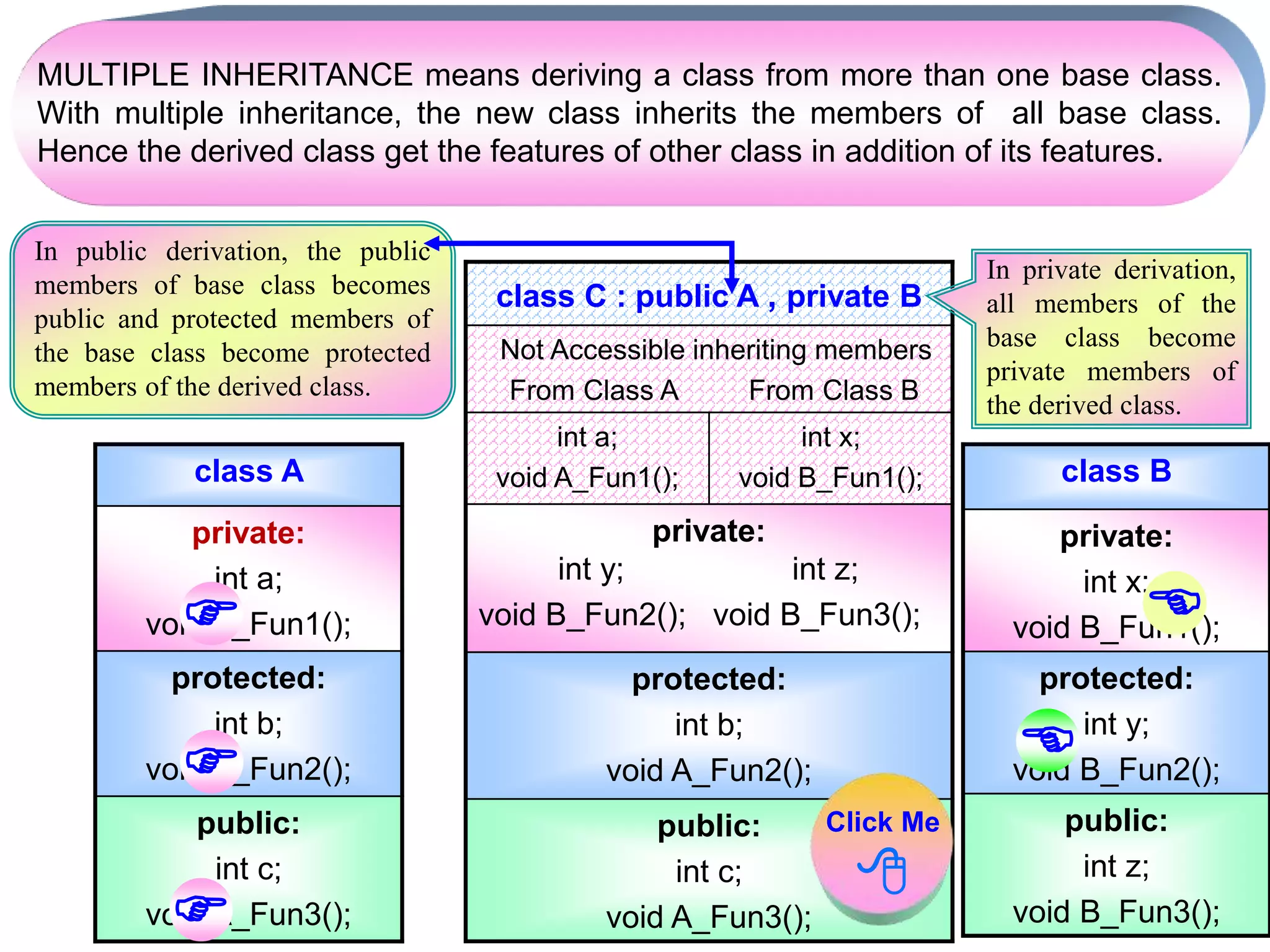

MULTIPLE INHERITANCE means deriving a class from more than one base class. With multiple inheritance, the new class inherits the members of all base class. Hence the derived class get the features of other class in addition of its features. class A private: int a; void A_Fun1(); protected: int b; void A_Fun2(); public: int c; void A_Fun3(); class B private: int x; void B_Fun1(); protected: int y; void B_Fun2(); public: int z; void B_Fun3(); class C : public A , private B Not Accessible inheriting members From Class A From Class B int a; void A_Fun1(); int x; void B_Fun1(); private: int y; int z; void B_Fun2(); void B_Fun3(); protected: int b; void A_Fun2(); public: int c; void A_Fun3(); In public derivation, the public members of base class becomes public and protected members of the base class become protected members of the derived class. In private derivation, all members of the base class become private members of the derived class.      Click Me 

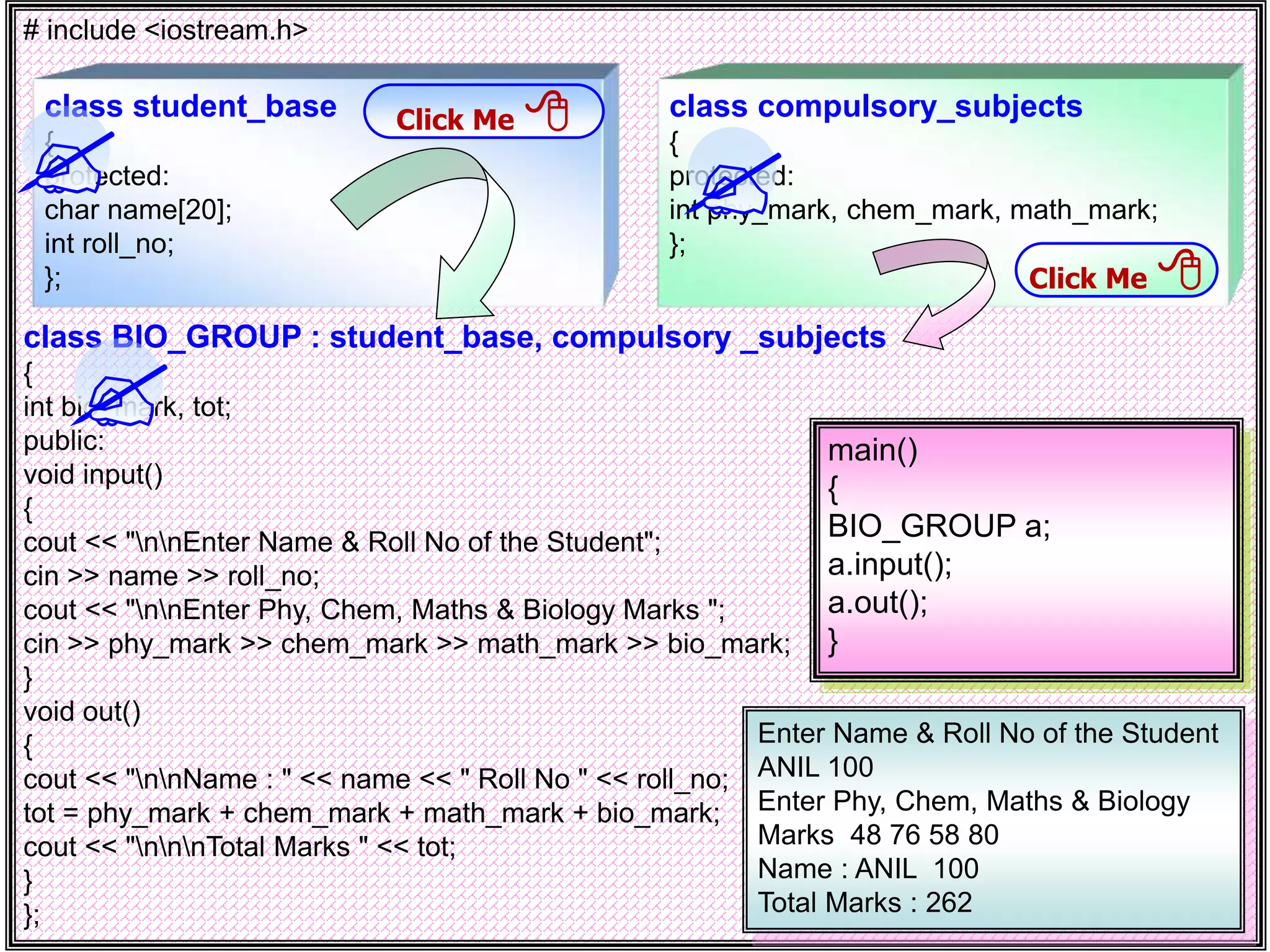

# include <iostream.h> class BIO_GROUP : student_base, compulsory _subjects { int bio_mark, tot; public: void input() { cout << "nnEnter Name & Roll No of the Student"; cin >> name >> roll_no; cout << "nnEnter Phy, Chem, Maths & Biology Marks "; cin >> phy_mark >> chem_mark >> math_mark >> bio_mark; } void out() { cout << "nnName : " << name << " Roll No " << roll_no; tot = phy_mark + chem_mark + math_mark + bio_mark; cout << "nnnTotal Marks " << tot; } }; class compulsory_subjects { protected: int phy_mark, chem_mark, math_mark; }; class student_base { protected: char name[20]; int roll_no; }; main() { BIO_GROUP a; a.input(); a.out(); } Enter Name & Roll No of the Student ANIL 100 Enter Phy, Chem, Maths & Biology Marks 48 76 58 80 Name : ANIL 100 Total Marks : 262   Click Me  Click Me  

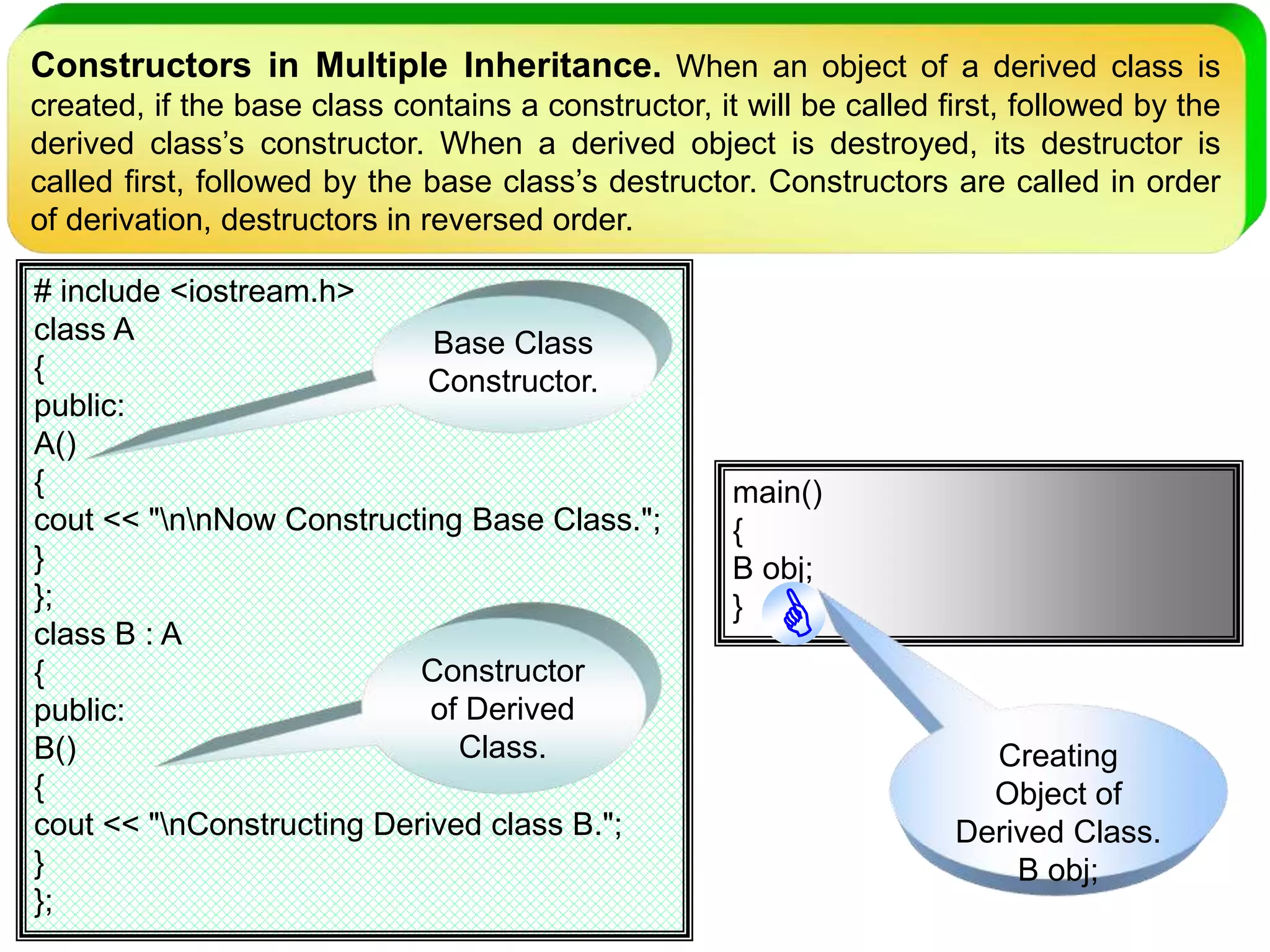

Constructors in Multiple Inheritance. When an object of a derived class is created, if the base class contains a constructor, it will be called first, followed by the derived class’s constructor. When a derived object is destroyed, its destructor is called first, followed by the base class’s destructor. Constructors are called in order of derivation, destructors in reversed order. # include <iostream.h> class A { public: A() { cout << "nnNow Constructing Base Class."; } }; class B : A { public: B() { cout << "nConstructing Derived class B."; } }; main() { B obj; } Base Class Constructor. Constructor of Derived Class. Creating Object of Derived Class. B obj;

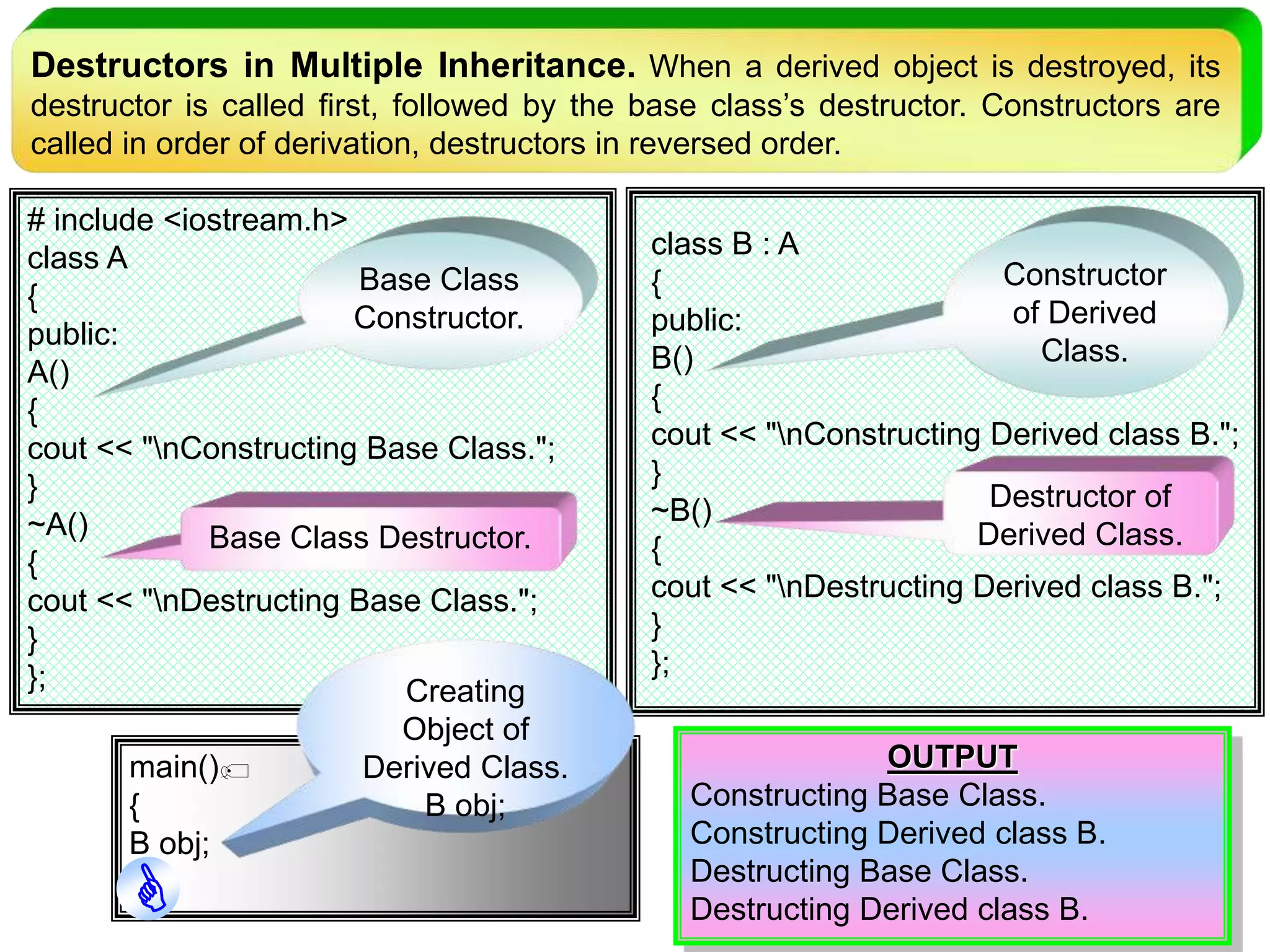

Destructors in Multiple Inheritance. When a derived object is destroyed, its destructor is called first, followed by the base class’s destructor. Constructors are called in order of derivation, destructors in reversed order. # include <iostream.h> class A { public: A() { cout << "nConstructing Base Class."; } ~A() { cout << "nDestructing Base Class."; } }; main() { B obj; } class B : A { public: B() { cout << "nConstructing Derived class B."; } ~B() { cout << "nDestructing Derived class B."; } }; Creating Object of Derived Class. B obj; Base Class Constructor. Constructor of Derived Class. Base Class Destructor. Destructor of Derived Class. OUTPUT Constructing Base Class. Constructing Derived class B. Destructing Base Class. Destructing Derived class B.

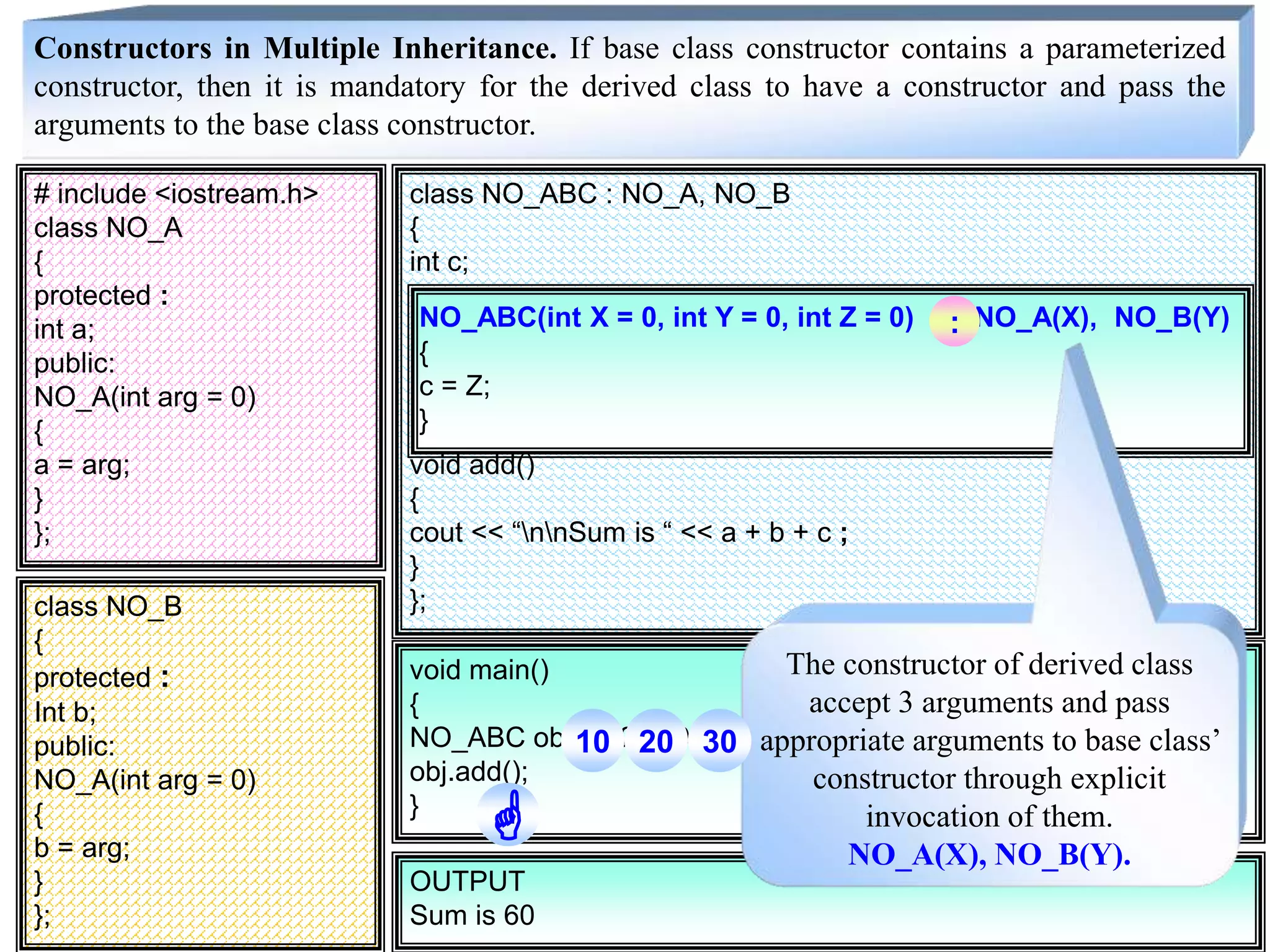

Constructors in Multiple Inheritance. If base class constructor contains a parameterized constructor, then it is mandatory for the derived class to have a constructor and pass the arguments to the base class constructor. class NO_ABC : NO_A, NO_B { int c; void add() { cout << “nnSum is “ << a + b + c ; } }; # include <iostream.h> class NO_A { protected : int a; public: NO_A(int arg = 0) { a = arg; } }; class NO_B { protected : Int b; public: NO_A(int arg = 0) { b = arg; } }; void main() { NO_ABC obj(10,20,30); obj.add(); } OUTPUT Sum is 60 NO_ABC(int X = 0, int Y = 0, int Z = 0) : NO_A(X), NO_B(Y) { c = Z; } : The constructor of derived class accept 3 arguments and pass appropriate arguments to base class’ constructor through explicit invocation of them. NO_A(X), NO_B(Y). 10 20 30 

# include <iostream.h> # include <string.h> class student_base { protected: char name[20]; int roll_no; student_base(char nam[], int rol) { strcpy(name, nam); roll_no = rol; } }; class compulsary_subjects { protected: int phy_mark, chem_mark, math_mark; public: compulsary_subjects(int p, int c, int m) { phy_mark = p; chem_mark = c; math_mark = m; } }; Constructors in Multiple Inheritance. If base class constructor contains a parameterized constructor, then it is mandatory for the derived class to have a constructor and pass the arguments to the base class constructor. Constructors and destructors can’t be inherited. Though a derived class can explicitly call the constructor and destructor of the base class. class BIO_GROUP : student_base, compulsary_subjects { int bio_mark, tot; public: void out() { cout << "nName : " << name << " Roll No " << roll_no; tot = phy_mark + chem_mark + math_mark + bio_mark; cout << "nTotal Marks " << tot; } }; main() { BIO_GROUP a("anil", 100, 10,20,30,40); a.out(); getch(); } BIO_GROUP(char nam[], int rol, int p, int c, int m, int b) : student_base(nam, rol), compulsary_subjects(p,c,m) { bio_mark = b; } Nam=anil, rol=100, p=10, c=20, m=30, b=40anil Click Me  100 10 20 30 40 "anil", 100, 10,20,30,40

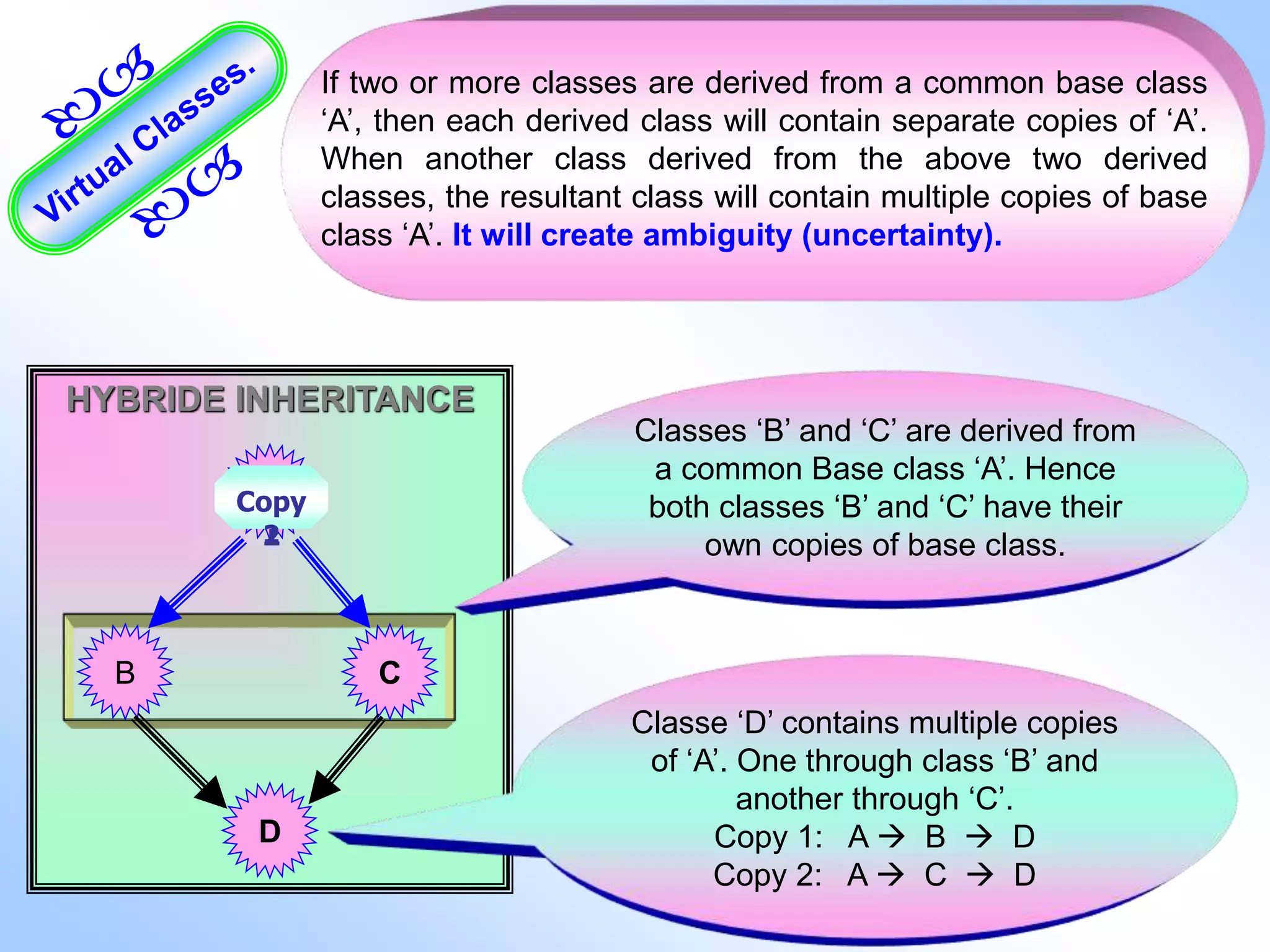

If two or more classes are derived from a common base class ‘A’, then each derived class will contain separate copies of ‘A’. When another class derived from the above two derived classes, the resultant class will contain multiple copies of base class ‘A’. It will create ambiguity (uncertainty). HYBRIDE INHERITANCE Classes ‘B’ and ‘C’ are derived from a common Base class ‘A’. Hence both classes ‘B’ and ‘C’ have their own copies of base class. A B C D Classe ‘D’ contains multiple copies of ‘A’. One through class ‘B’ and another through ‘C’. Copy 1: A  B  D Copy 2: A  C  D Copy 1 Copy 2

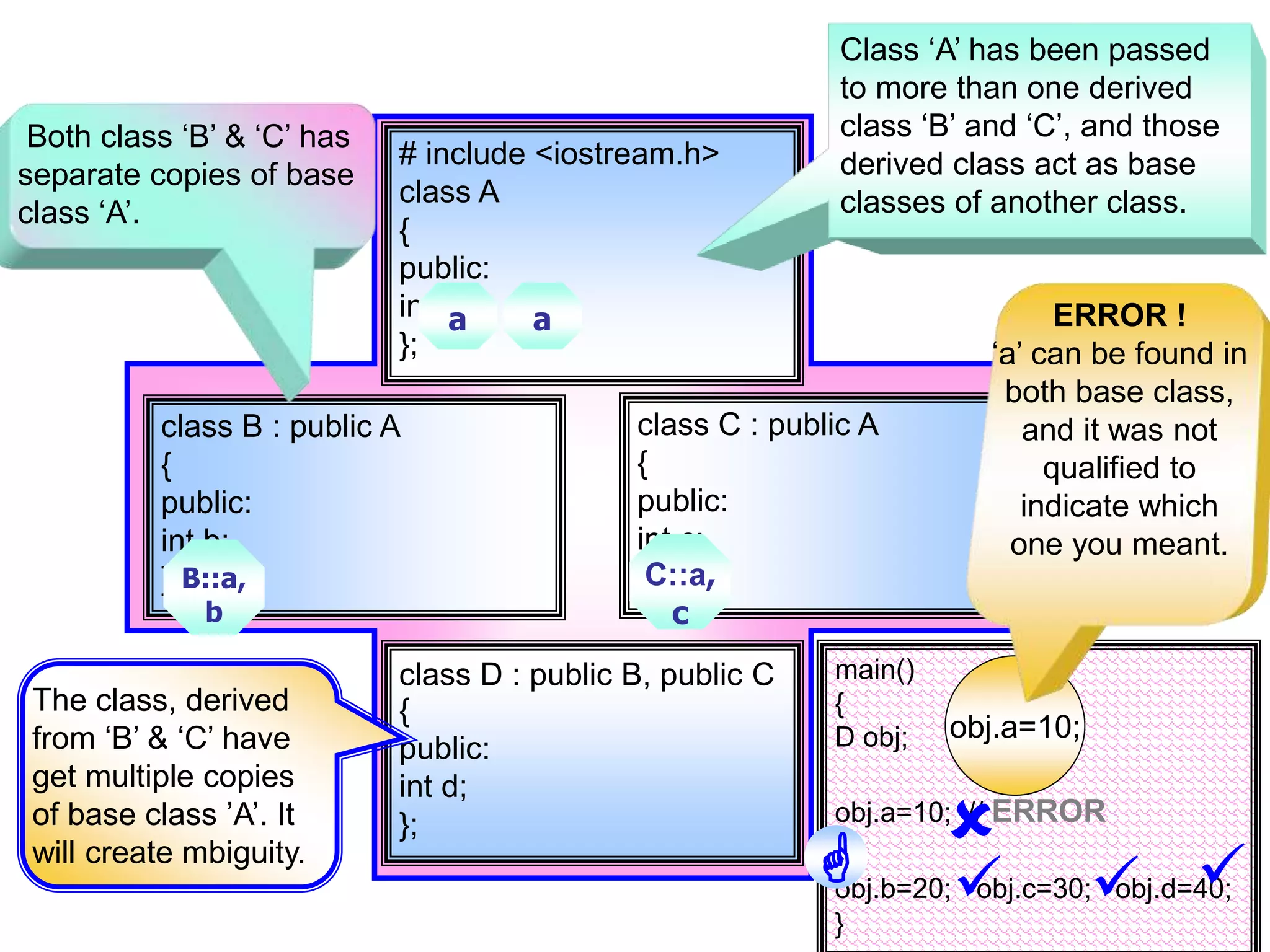

main() { D obj; obj.a=10; // ERROR obj.b=20; obj.c=30; obj.d=40; } # include <iostream.h> class A { public: int a; }; class B : public A { public: int b; }; class C : public A { public: int c; }; class D : public B, public C { public: int d; }; obj.a=10; a a B::a, b C::a, c ERROR ! ‘a’ can be found in both base class, and it was not qualified to indicate which one you meant. Class ‘A’ has been passed to more than one derived class ‘B’ and ‘C’, and those derived class act as base classes of another class. The class, derived from ‘B’ & ‘C’ have get multiple copies of base class ’A’. It will create mbiguity. Both class ‘B’ & ‘C’ has separate copies of base class ‘A’.    

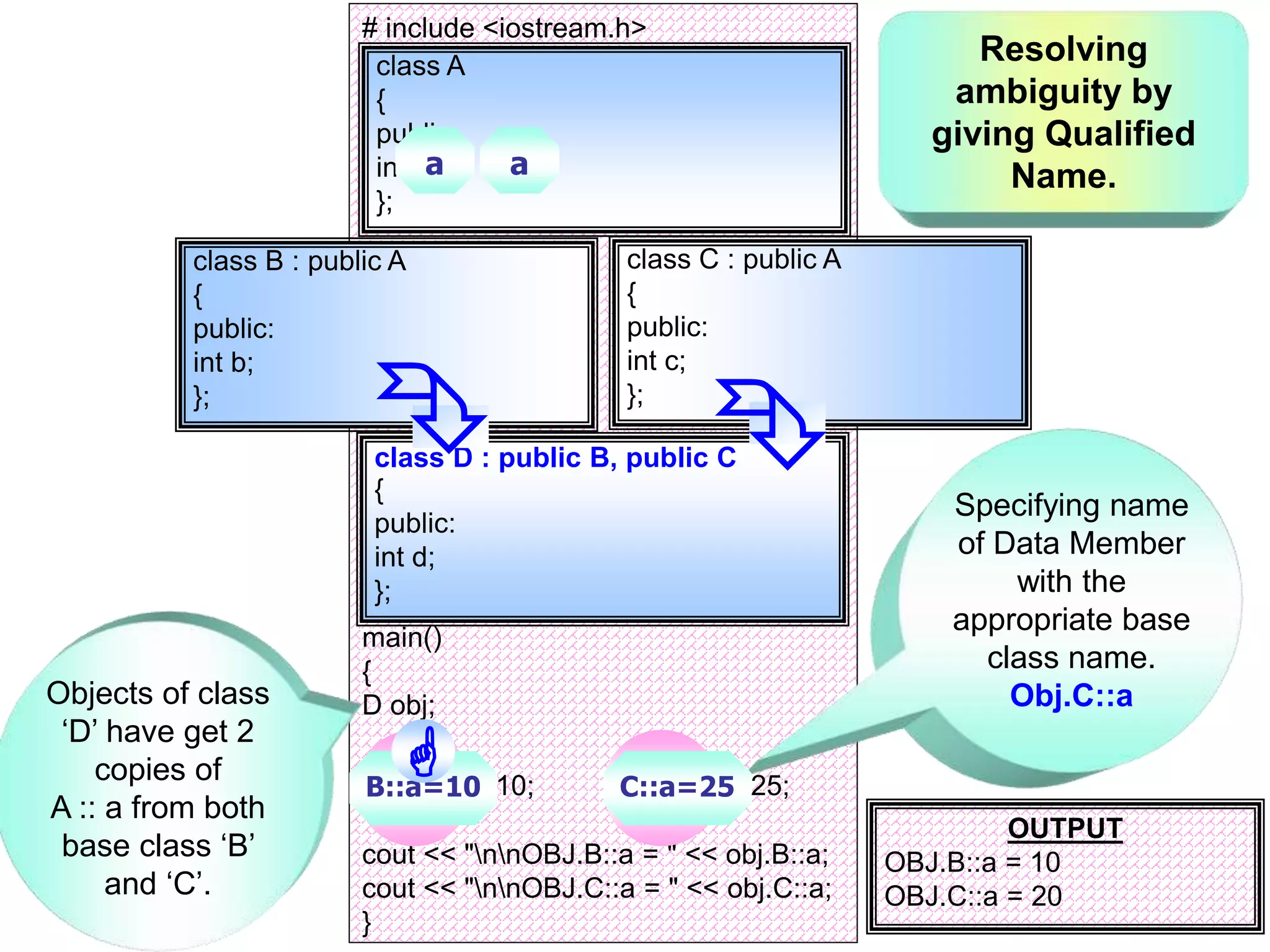

# include <iostream.h> main() { D obj; obj.B::a = 10; obj.C::a = 25; cout << "nnOBJ.B::a = " << obj.B::a; cout << "nnOBJ.C::a = " << obj.C::a; } class A { public: int a; }; class B : public A { public: int b; }; class C : public A { public: int c; }; class D : public B, public C { public: int d; }; a obj.B::a obj.C::a OUTPUT OBJ.B::a = 10 OBJ.C::a = 20 Specifying name of Data Member with the appropriate base class name. Obj.C::aObjects of class ‘D’ have get 2 copies of A :: a from both base class ‘B’ and ‘C’.   a B::a=10 C::a=25 Resolving ambiguity by giving Qualified Name. 

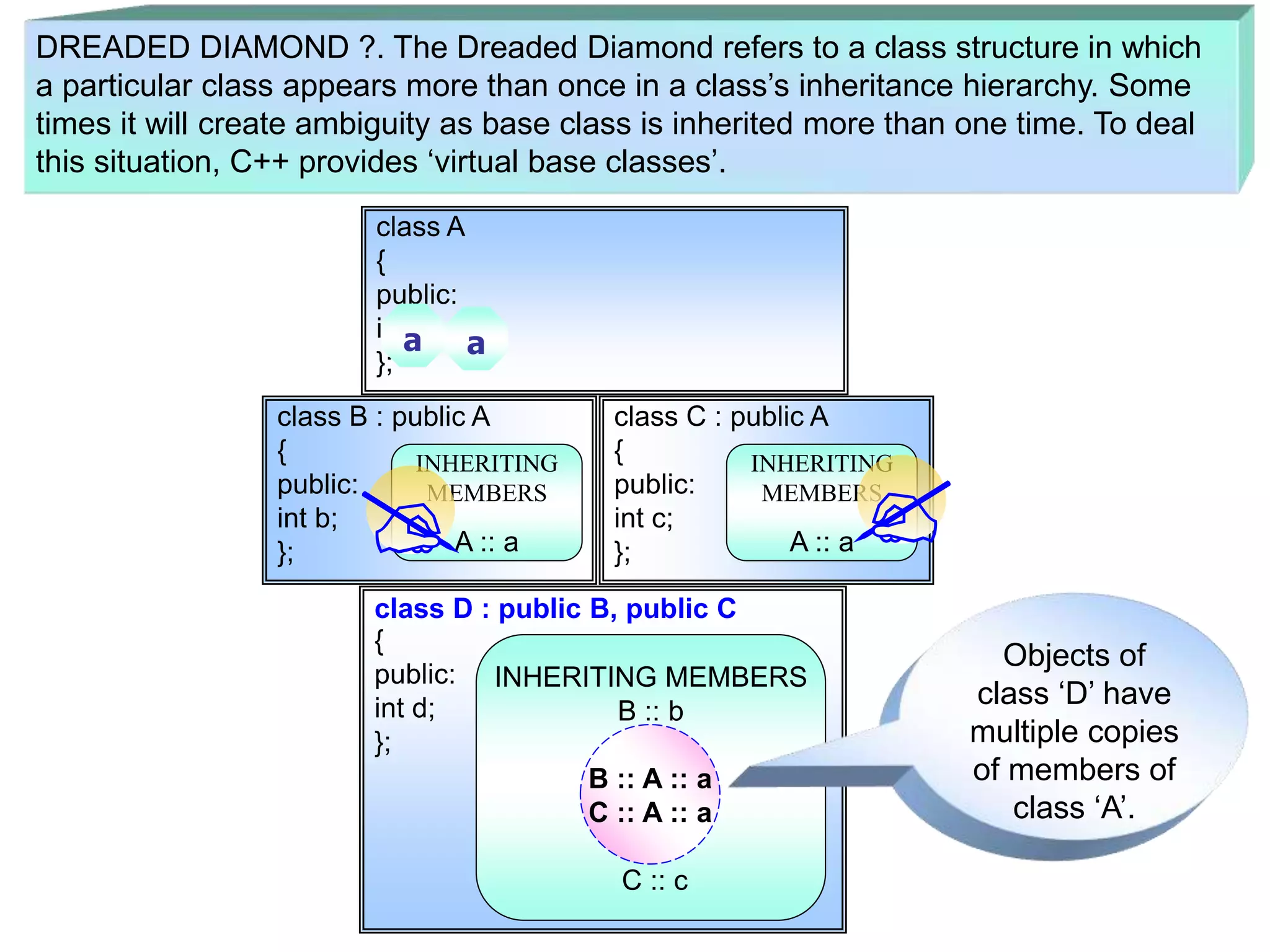

DREADED DIAMOND ?. The Dreaded Diamond refers to a class structure in which a particular class appears more than once in a class’s inheritance hierarchy. Some times it will create ambiguity as base class is inherited more than one time. To deal this situation, C++ provides ‘virtual base classes’. class A { public: int a; }; class B : public A { public: int b; }; class C : public A { public: int c; }; class D : public B, public C { public: int d; }; INHERITING MEMBERS B :: b B :: A :: a C :: A :: a C :: c B :: A :: a C :: A :: a INHERITING MEMBERS A :: a INHERITING MEMBERS A :: a Objects of class ‘D’ have multiple copies of members of class ‘A’. a a  

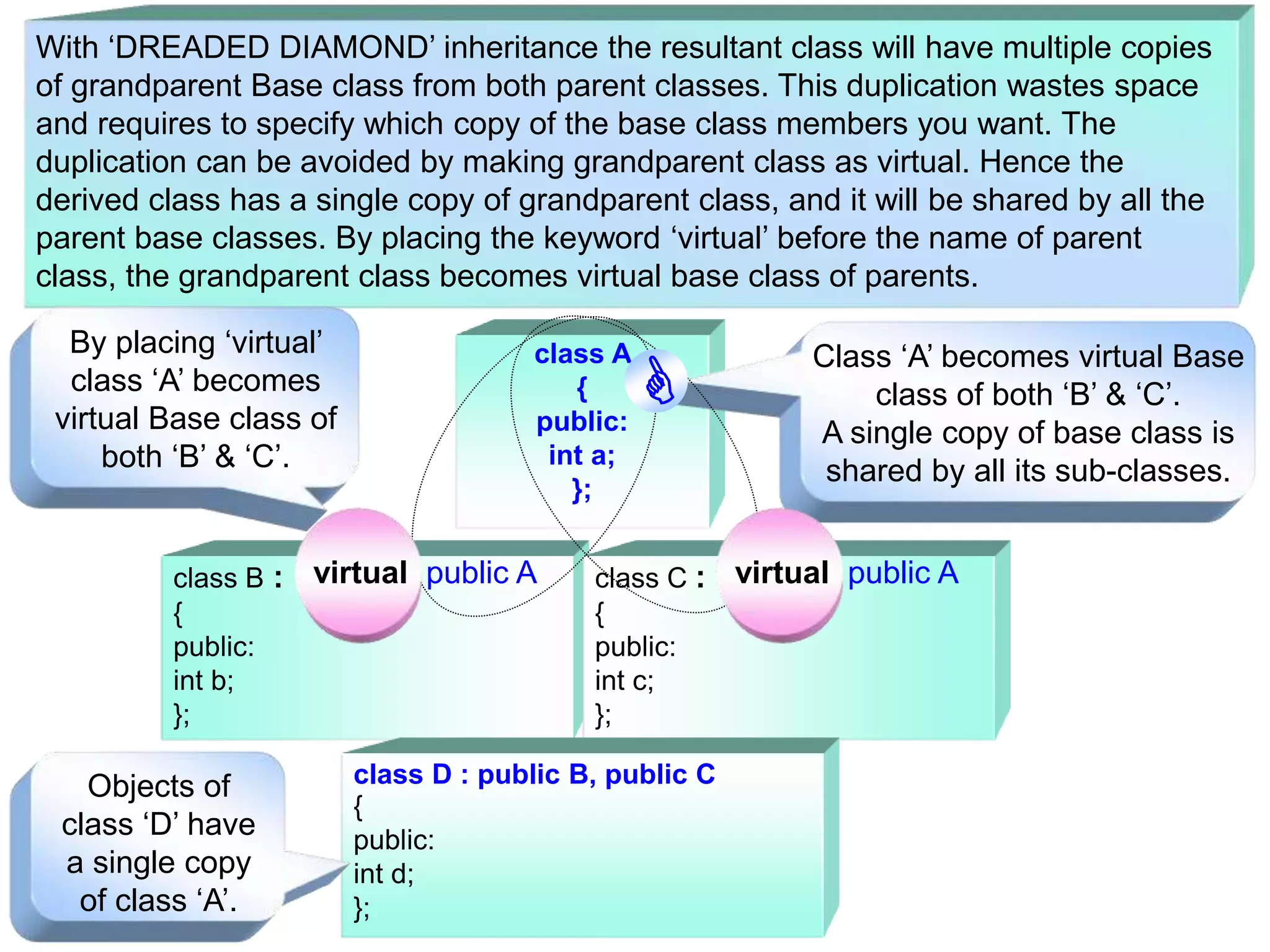

With ‘DREADED DIAMOND’ inheritance the resultant class will have multiple copies of grandparent Base class from both parent classes. This duplication wastes space and requires to specify which copy of the base class members you want. The duplication can be avoided by making grandparent class as virtual. Hence the derived class has a single copy of grandparent class, and it will be shared by all the parent base classes. By placing the keyword ‘virtual’ before the name of parent class, the grandparent class becomes virtual base class of parents. class A { public: int a; }; class B : { public: int b; }; class C : { public: int c; }; class D : public B, public C { public: int d; }; Objects of class ‘D’ have a single copy of class ‘A’. Class ‘A’ becomes virtual Base class of both ‘B’ & ‘C’. A single copy of base class is shared by all its sub-classes. virtual public Avirtual public A By placing ‘virtual’ class ‘A’ becomes virtual Base class of both ‘B’ & ‘C’.

# include <iostream.h> main() { D obj; obj.B:: a = 10; obj.C:: a = 25; cout<<"Address of B::a is"<<unsigned(&obj.B::a); cout<<“Address of C::a is"<<unsigned(&obj.C::a); cout << "nThe Value of B :: a is " << obj.B::a; cout << "nThe Value of C :: a is " << obj.C::a; } class A { public: int a; }; class B : public A { public: int b; }; class C : public A { public: int c; }; class D : public B, public C { public: int d; }; # include <iostream.h> main() { D obj; obj.B:: a = 10; obj.C:: a = 25; cout<<"Address of B::a is"<<unsigned(&obj.B::a); cout<<“Address of C::a is"<<unsigned(&obj.C::a); cout << "nThe Value of B :: a is " << obj.B::a; cout << "nThe Value of C :: a is " << obj.C::a; } class A { public: int a; }; class C : virtual public A { public: int c; }; class D : public B, public C { public: int d; }; Absence of ‘virtual’, it becomes dreaded derivation. class C : virtual public A { public: int c; }; Presence of ‘virtual’, it becomes virtual derivation. Show Output  OUTPUT of virtual Derivation. Address of obj.B::a is 65524 Address of obj.C::a is 65524 The Value of obj.B :: a is 25 The Value of obj.C :: a is 25 The virtual keyword ensures that only one copy of the A::a is included. Obj.B :: a = 10; There was only one copy of A :: a, it was shared between B :: a and C :: a. Hence Obj.B :: a = 10; becomes Obj.C :: a = 25; Show Output  It is ‘DREADED DIAMOND’ There was multiple copies of A :: a . Obj.B :: a = 10 and Obj.C :: a = 25. 10 25 10 25 OUTPUT Address of B::a is 65524 Address of C::a is 65520 The Value of B :: a is 10 The Value of C :: a is 25

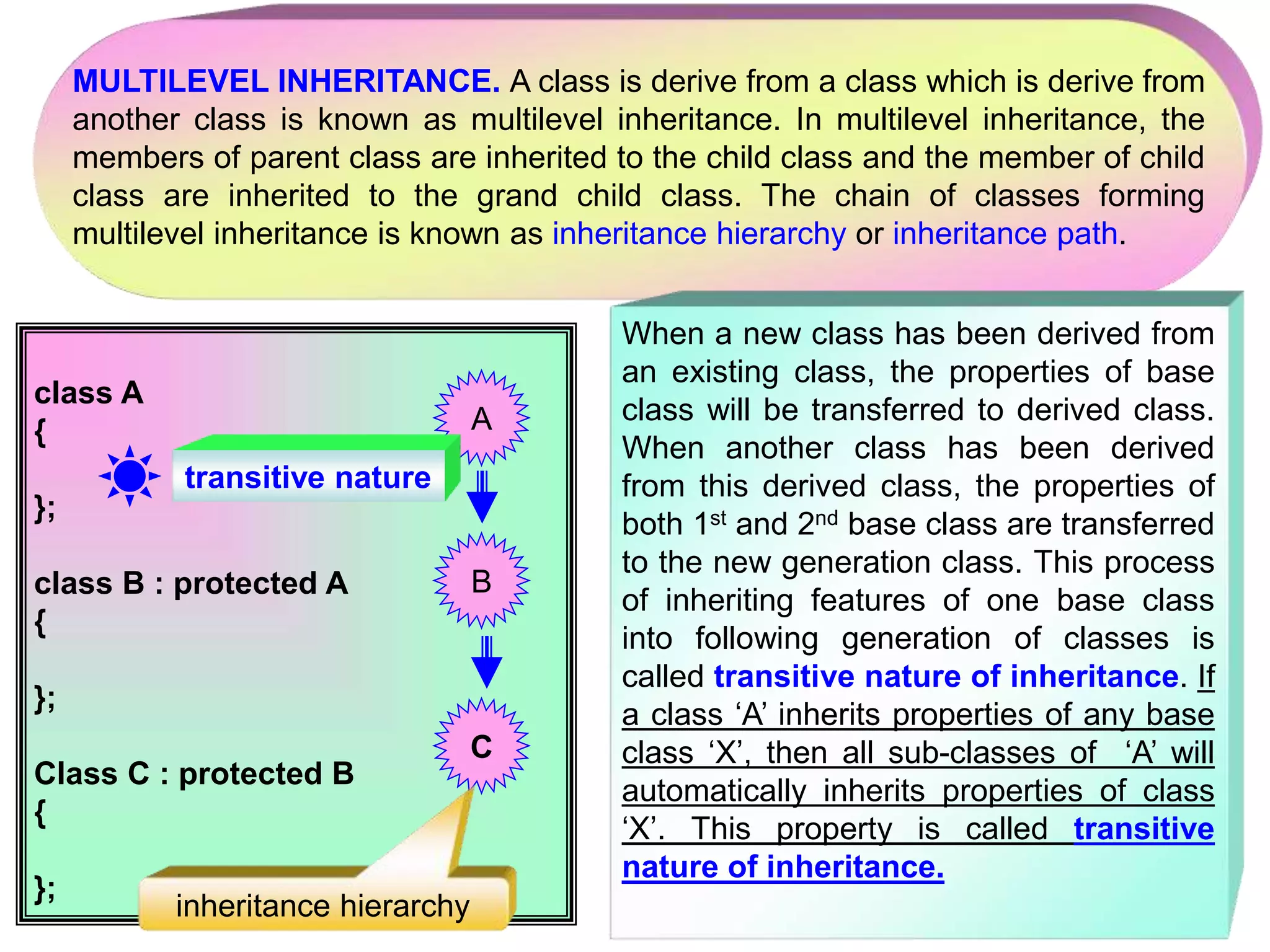

MULTILEVEL INHERITANCE. A class is derive from a class which is derive from another class is known as multilevel inheritance. In multilevel inheritance, the members of parent class are inherited to the child class and the member of child class are inherited to the grand child class. The chain of classes forming multilevel inheritance is known as inheritance hierarchy or inheritance path. class A { }; class B : protected A { }; Class C : protected B { }; A B C inheritance hierarchy When a new class has been derived from an existing class, the properties of base class will be transferred to derived class. When another class has been derived from this derived class, the properties of both 1st and 2nd base class are transferred to the new generation class. This process of inheriting features of one base class into following generation of classes is called transitive nature of inheritance. If a class ‘A’ inherits properties of any base class ‘X’, then all sub-classes of ‘A’ will automatically inherits properties of class ‘X’. This property is called transitive nature of inheritance. transitive nature

class A : public Y { protected: int a; public: void setval_A(int arg) { a = arg; } void sum() { cout << "nSum of inherited Nos is " << x+y+a; } }; void main() { } # include <iostream.h> class X { protected: int x; public: void setval_X(int arg) { x = arg; } }; class Y : public X { protected: int y; public: void setval_Y(int arg) { y = arg; } }; class B : public Y { protected: int b; public: void setval_B(int arg) { b = arg; } void sum() { cout << "nSum of inherited Nos is " << x+y+b; } }; By transitive nature of inheritance X :: x and Y :: y are inherited to newly created class. By transitive nature of inheritance X::x is inherited to newly created class. By transitive nature of inheritance X :: x and Y :: y are inherited to newly created class. A ob1; obj.setval_X(10); ob1.setval_Y(20); ob1.setval_A(30); ob1.sum(); // Show Output  B ob2; ob2.setval_X(40); ob2.setval_Y(50); ob2.setval_B(60); obj2.sum(); // Show Output  10 20 30 40 50 60 OUTPUT Sum of inherited Nos is 60 10 20 30  OUTPUT Sum of inherited Nos is 150 40 50 60 

NESTING OF CLASSES. A class has get properties of another class in different ways. 1. A class has get certain properties of another class by inheritance. So far we discussed about it. 2. A class has get certain properties of another class by defining a inner class in it. It was discussed in the chapter ‘CLASSES AND OBJECTS’. 3. A class has get certain properties of another class By defining an object of another class in it. It was already discussed in the chapter ‘CONSTRUCTORS AND DISTRUCTORS’.

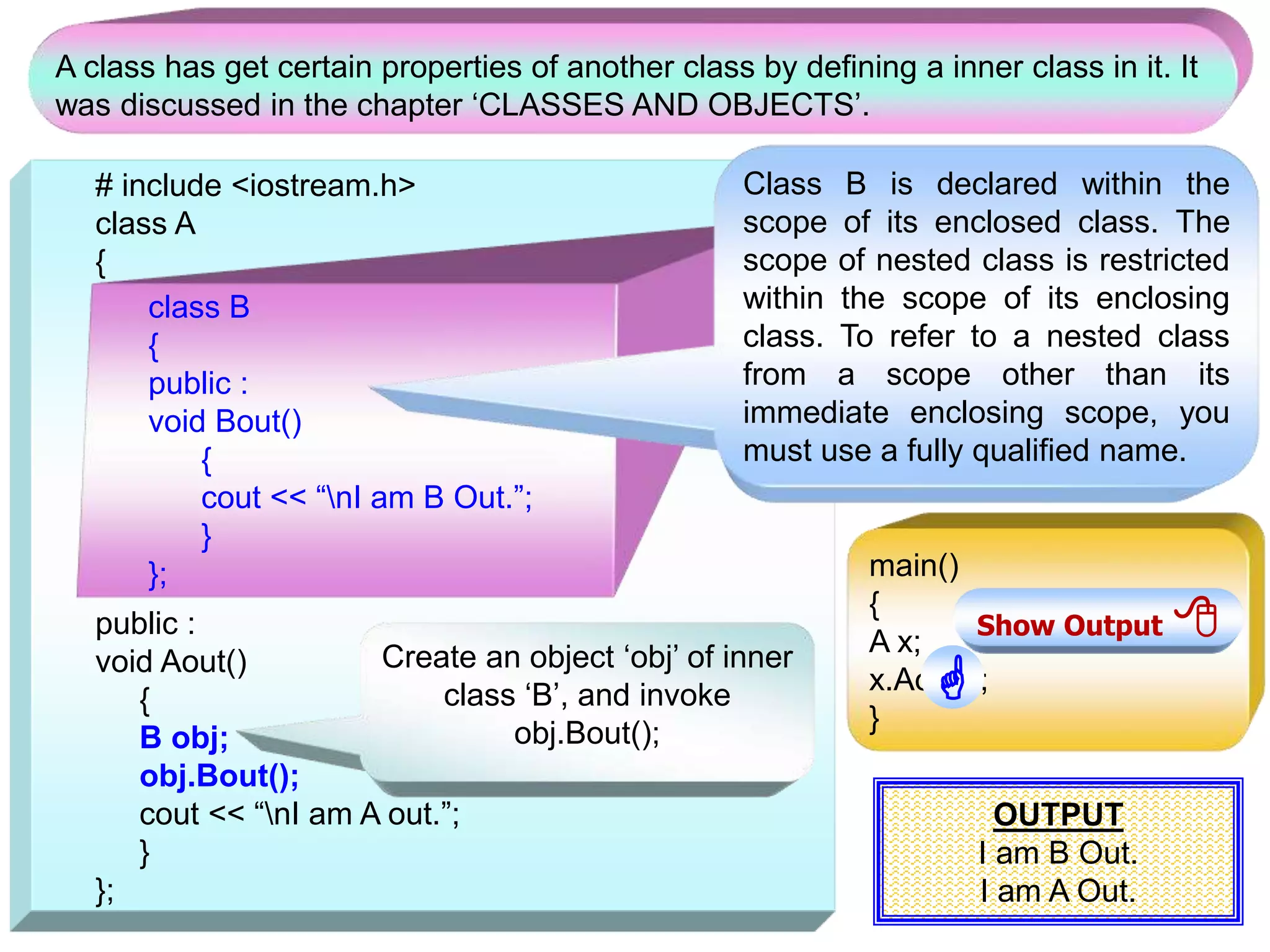

# include <iostream.h> class A { public : void Aout() { B obj; obj.Bout(); cout << “nI am A out.”; } }; class B { public : void Bout() { cout << “nI am B Out.”; } }; A class has get certain properties of another class by defining a inner class in it. It was discussed in the chapter ‘CLASSES AND OBJECTS’. Class B is declared within the scope of its enclosed class. The scope of nested class is restricted within the scope of its enclosing class. To refer to a nested class from a scope other than its immediate enclosing scope, you must use a fully qualified name. main() { A x; x.Aout(); } Create an object ‘obj’ of inner class ‘B’, and invoke obj.Bout(); OUTPUT I am B Out. I am A Out. Show Output  

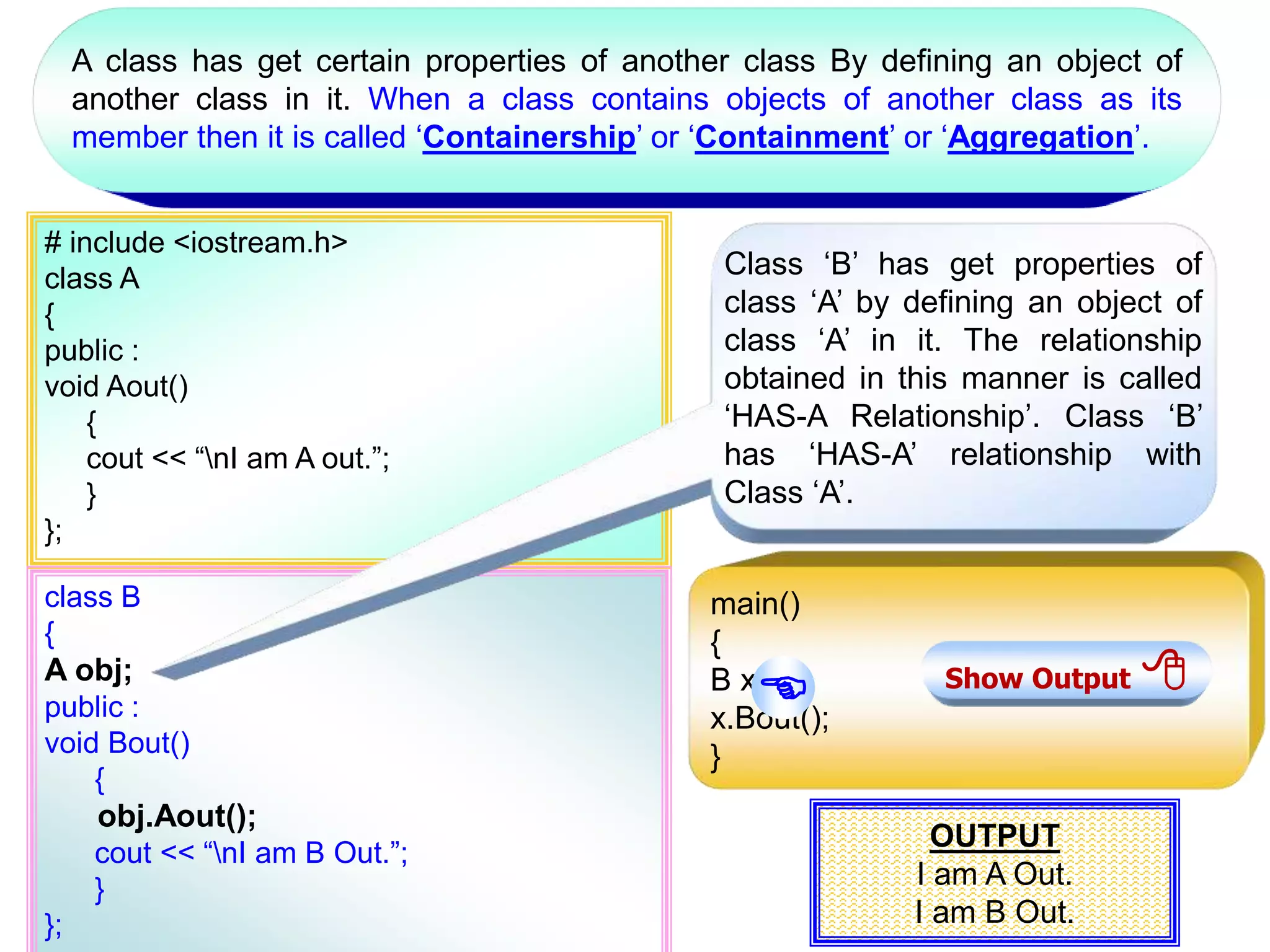

A class has get certain properties of another class By defining an object of another class in it. When a class contains objects of another class as its member then it is called ‘Containership’ or ‘Containment’ or ‘Aggregation’. # include <iostream.h> class A { public : void Aout() { cout << “nI am A out.”; } }; class B { A obj; public : void Bout() { obj.Aout(); cout << “nI am B Out.”; } }; main() { B x; x.Bout(); } Class ‘B’ has get properties of class ‘A’ by defining an object of class ‘A’ in it. The relationship obtained in this manner is called ‘HAS-A Relationship’. Class ‘B’ has ‘HAS-A’ relationship with Class ‘A’. OUTPUT I am A Out. I am B Out. Show Output  

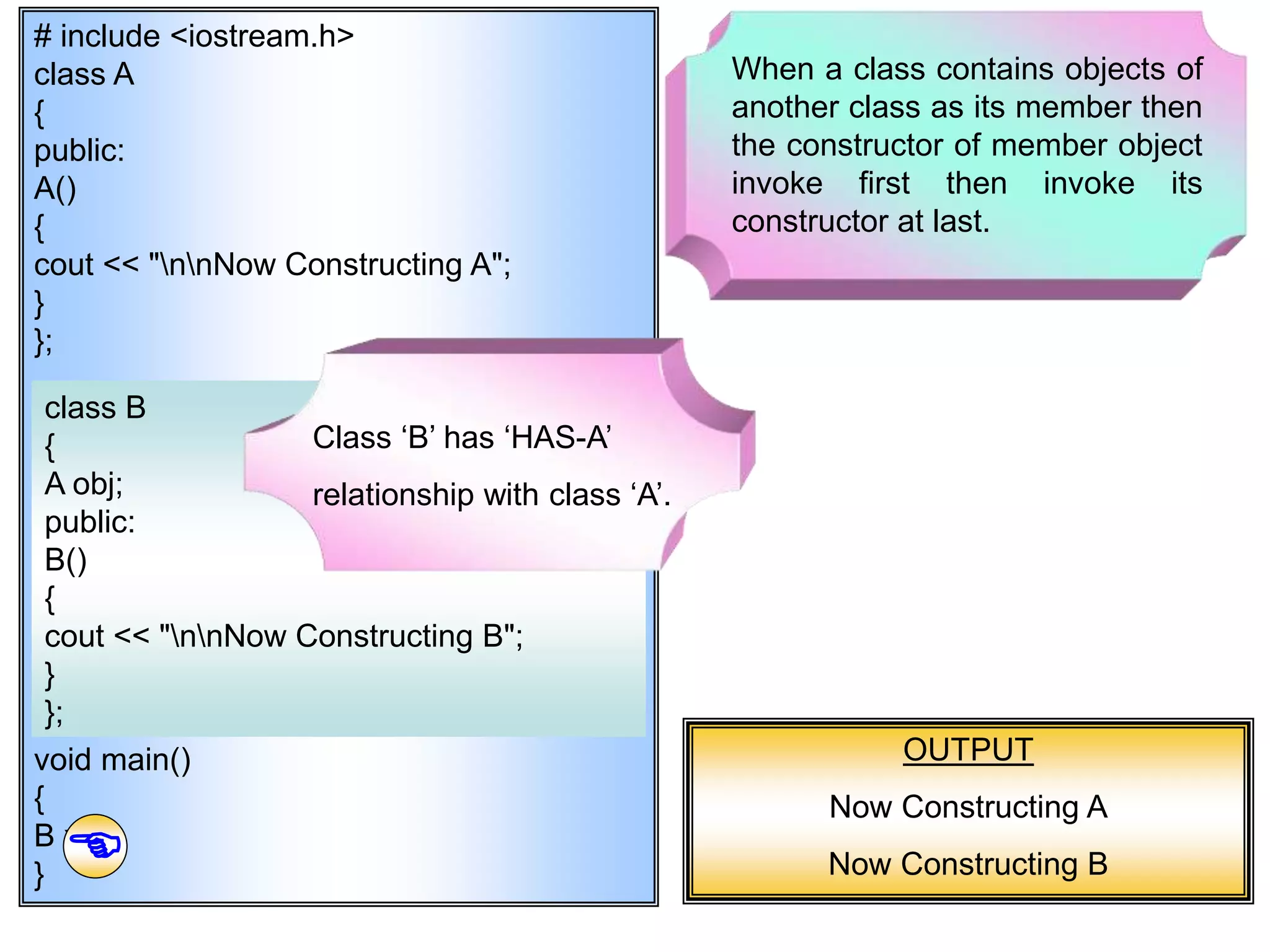

# include <iostream.h> class A { public: A() { cout << "nnNow Constructing A"; } }; void main() { B x; } class B { A obj; public: B() { cout << "nnNow Constructing B"; } }; When a class contains objects of another class as its member then the constructor of member object invoke first then invoke its constructor at last. OUTPUT Now Constructing A Now Constructing B Class ‘B’ has ‘HAS-A’ relationship with class ‘A’. 

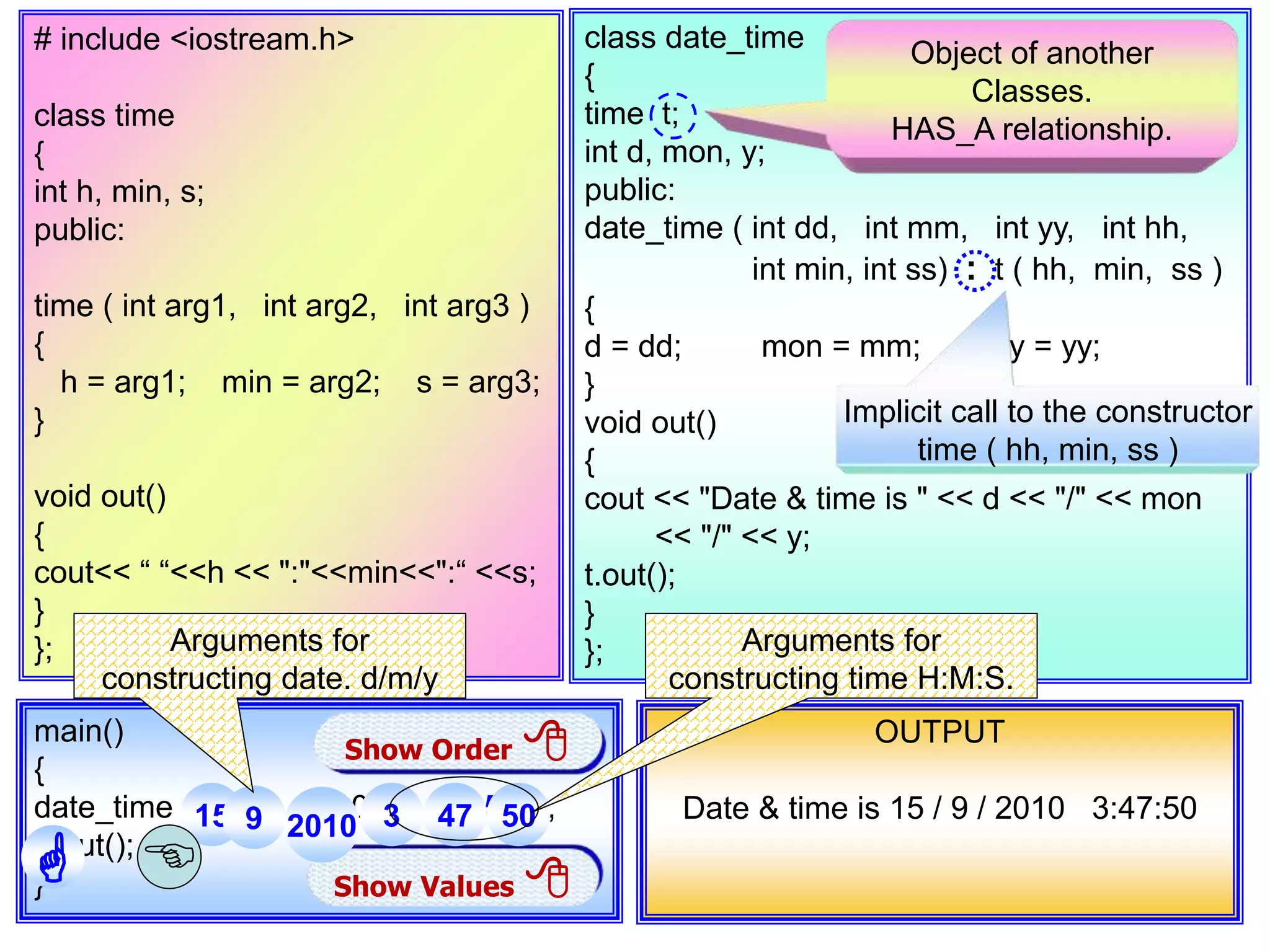

# include <iostream.h> class time { int h, min, s; public: time ( int arg1, int arg2, int arg3 ) { h = arg1; min = arg2; s = arg3; } void out() { cout<< “ “<<h << ":"<<min<<":“ <<s; } }; class date_time { time t; int d, mon, y; public: date_time ( int dd, int mm, int yy, int hh, int min, int ss) : t ( hh, min, ss ) { d = dd; mon = mm; y = yy; } void out() { cout << "Date & time is " << d << "/" << mon << "/" << y; t.out(); } }; Implicit call to the constructor time ( hh, min, ss ) main() { date_time a(15, 9, 2010, 3, 47, 50 ); a.out(); } OUTPUT Date & time is 15 / 9 / 2010 3:47:50 Show Values  Object of another Classes. HAS_A relationship. Show Order   3 47 5015 9 2010  Arguments for constructing time H:M:S. Arguments for constructing date. d/m/y

# include <iostream.h> class time { int h, min, s; public: time ( int arg1, int arg2, int arg3 ) { h = arg1; min = arg2; s = arg3; } void out() { cout<< “ “<<h << ":"<<min<<":“ <<s; } }; class date_time : public time { int d, mon, y; public: date_time (int dd, int mm, int yy, int hh, int min, int ss) : time ( hh, min, ss ) { d = dd; mon = mm; y = yy; } void out() { cout << "Date & time is " << d << "/" << mon << "/" << y; t.out(); } }; Explicit call to the constructor time ( hh, min, ss ) main() { date_time a(15, 9, 2010, 3, 47, 50 ); a.out(); } OUTPUT Date & time is 15 / 9 / 2010 3:47:50 Show Values  Deriving a class from the class ‘time’. IS-A relationship. Show Order   3 47 5015 9 2010  Arguments for constructing time H:M:S. Arguments for constructing date. d/m/y

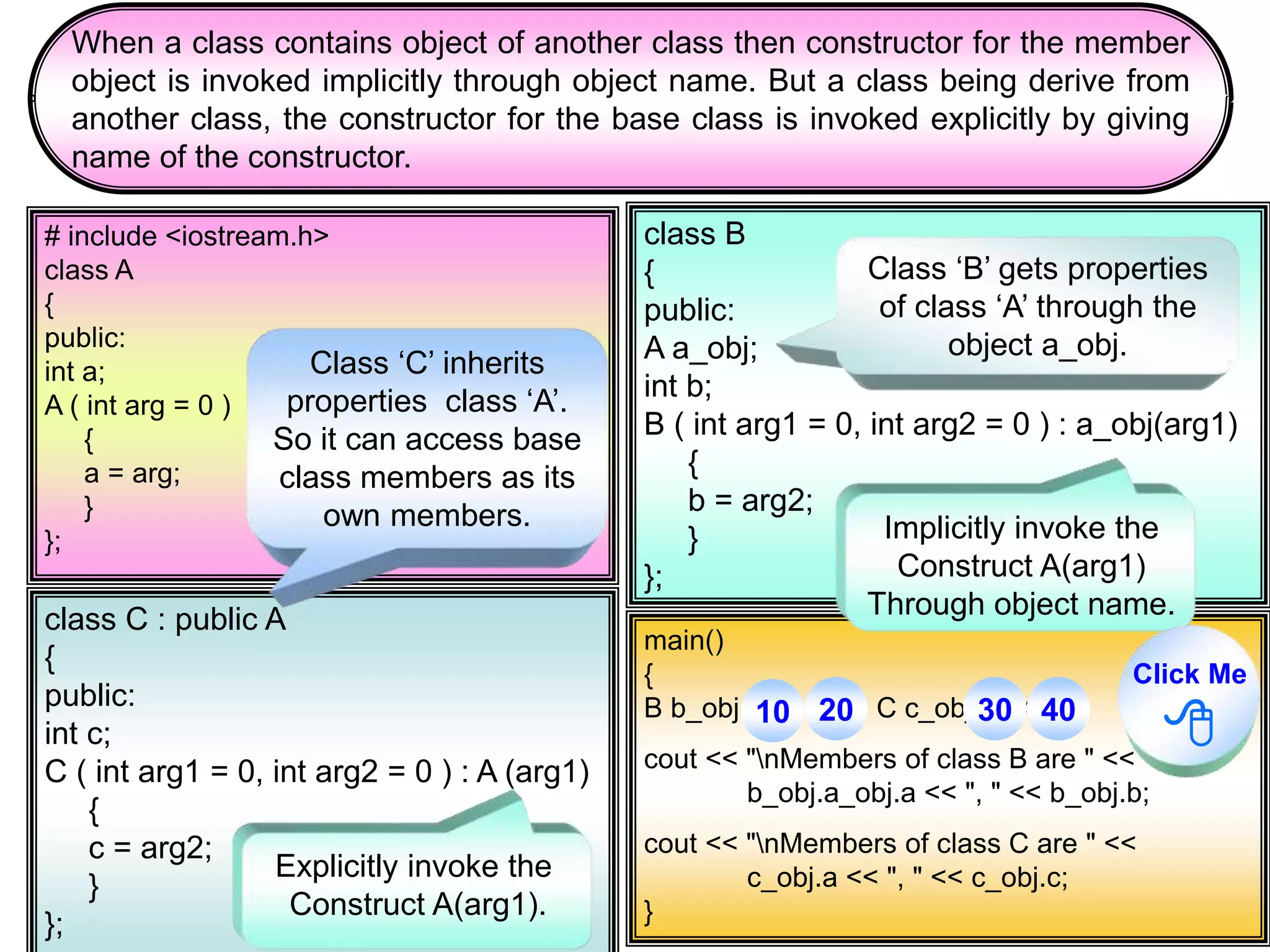

When a class contains object of another class then constructor for the member object is invoked implicitly through object name. But a class being derive from another class, the constructor for the base class is invoked explicitly by giving name of the constructor. # include <iostream.h> class A { public: int a; A ( int arg = 0 ) { a = arg; } }; class B { public: A a_obj; int b; B ( int arg1 = 0, int arg2 = 0 ) : a_obj(arg1) { b = arg2; } }; class C : public A { public: int c; C ( int arg1 = 0, int arg2 = 0 ) : A (arg1) { c = arg2; } }; main() { B b_obj(10,20); C c_obj(30,40); cout << "nMembers of class B are " << b_obj.a_obj.a << ", " << b_obj.b; cout << "nMembers of class C are " << c_obj.a << ", " << c_obj.c; } Class ‘B’ gets properties of class ‘A’ through the object a_obj. Class ‘C’ inherits properties class ‘A’. So it can access base class members as its own members. Explicitly invoke the Construct A(arg1). Implicitly invoke the Construct A(arg1) Through object name. Click Me 10 20 30 40

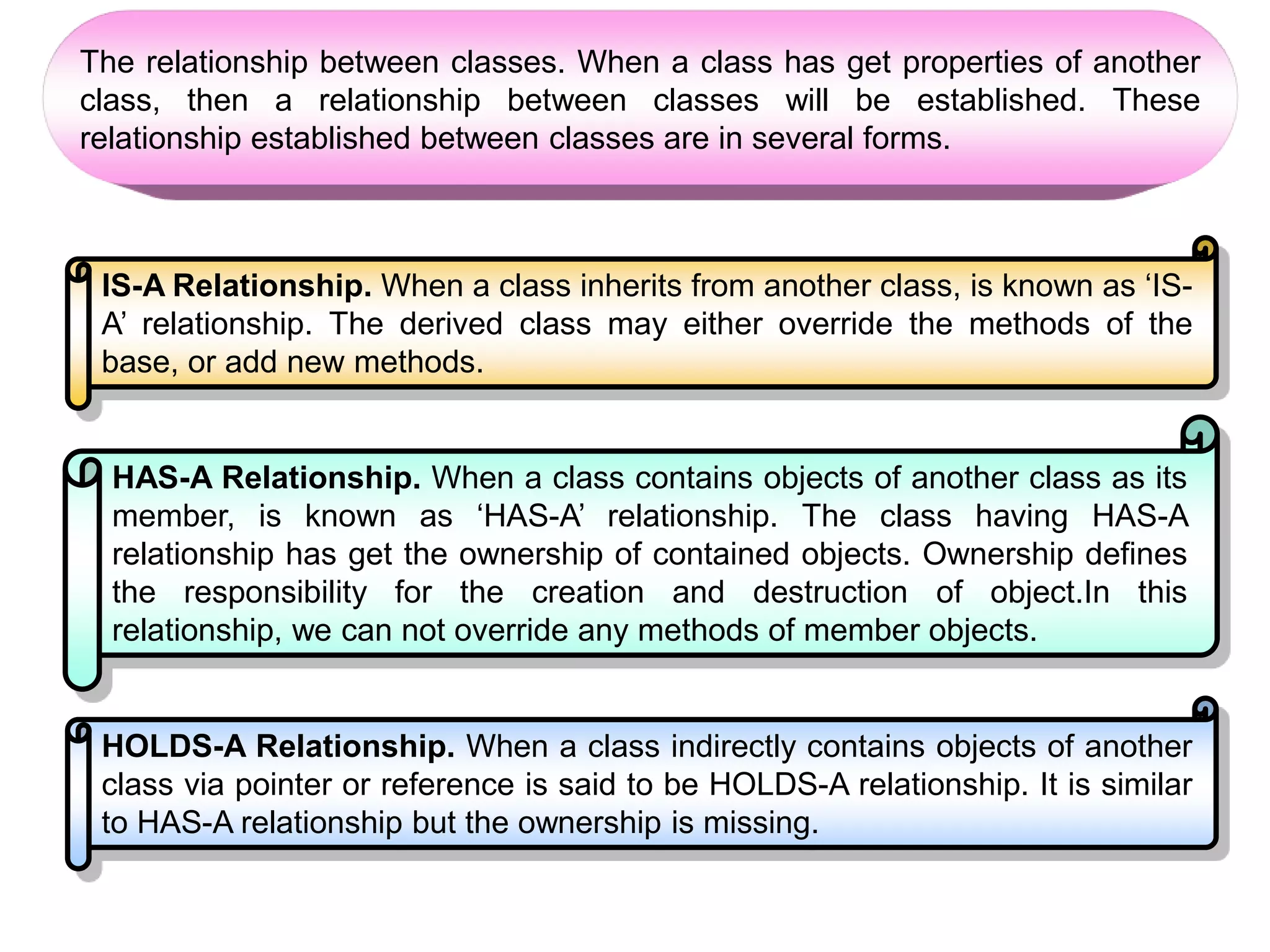

The relationship between classes. When a class has get properties of another class, then a relationship between classes will be established. These relationship established between classes are in several forms. IS-A Relationship. When a class inherits from another class, is known as ‘IS- A’ relationship. The derived class may either override the methods of the base, or add new methods. HAS-A Relationship. When a class contains objects of another class as its member, is known as ‘HAS-A’ relationship. The class having HAS-A relationship has get the ownership of contained objects. Ownership defines the responsibility for the creation and destruction of object.In this relationship, we can not override any methods of member objects. HOLDS-A Relationship. When a class indirectly contains objects of another class via pointer or reference is said to be HOLDS-A relationship. It is similar to HAS-A relationship but the ownership is missing.

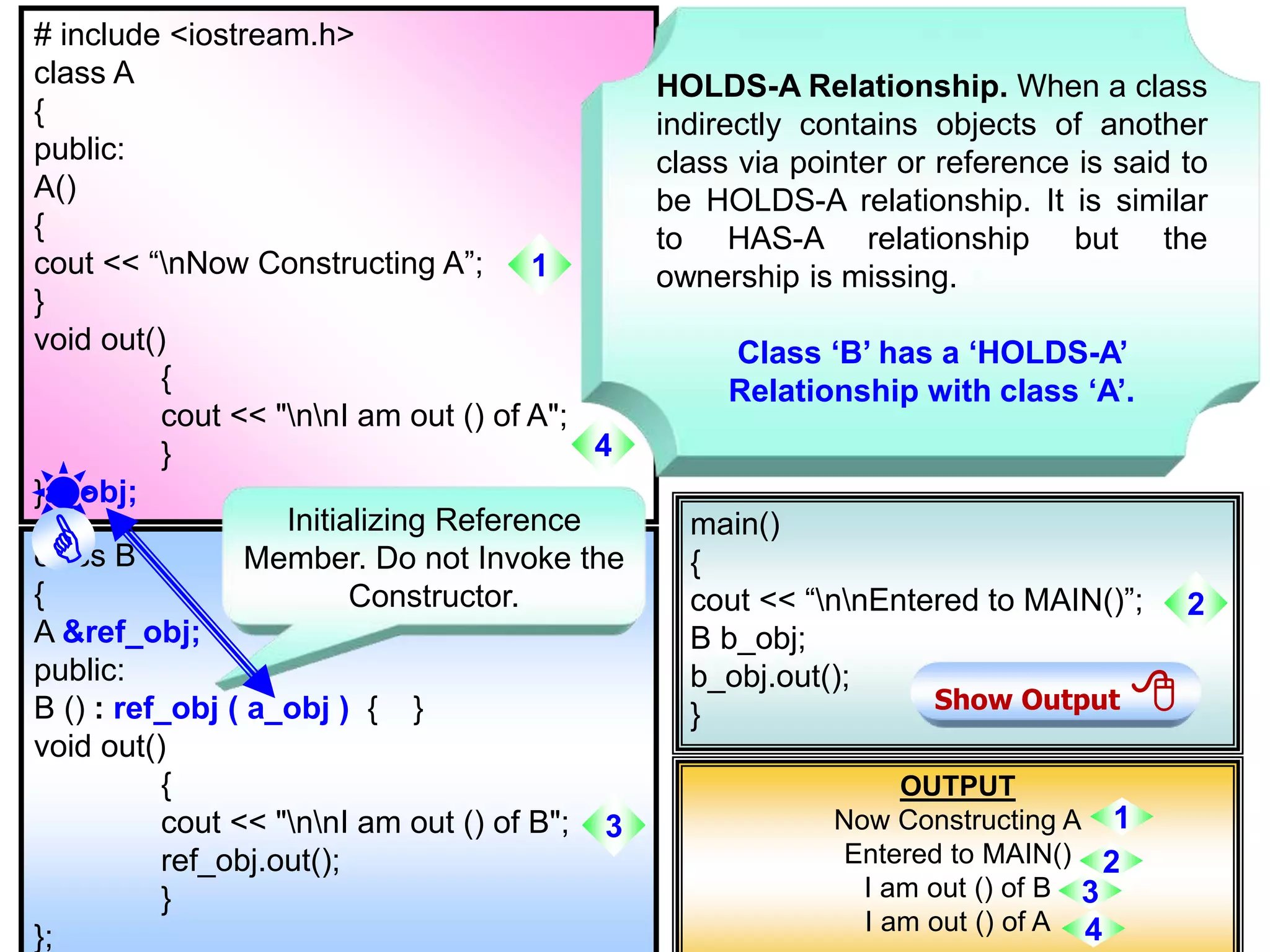

# include <iostream.h> class A { public: A() { cout << “nNow Constructing A”; } void out() { cout << "nnI am out () of A"; } }a_obj; main() { cout << “nnEntered to MAIN()”; B b_obj; b_obj.out(); } class B { A &ref_obj; public: B () : ref_obj ( a_obj ) { } void out() { cout << "nnI am out () of B"; ref_obj.out(); } }; HOLDS-A Relationship. When a class indirectly contains objects of another class via pointer or reference is said to be HOLDS-A relationship. It is similar to HAS-A relationship but the ownership is missing. Class ‘B’ has a ‘HOLDS-A’ Relationship with class ‘A’. Initializing Reference Member. Do not Invoke the Constructor. OUTPUT Now Constructing A Entered to MAIN() I am out () of B I am out () of A Show Output  1 2 3 4 1 2 3 4

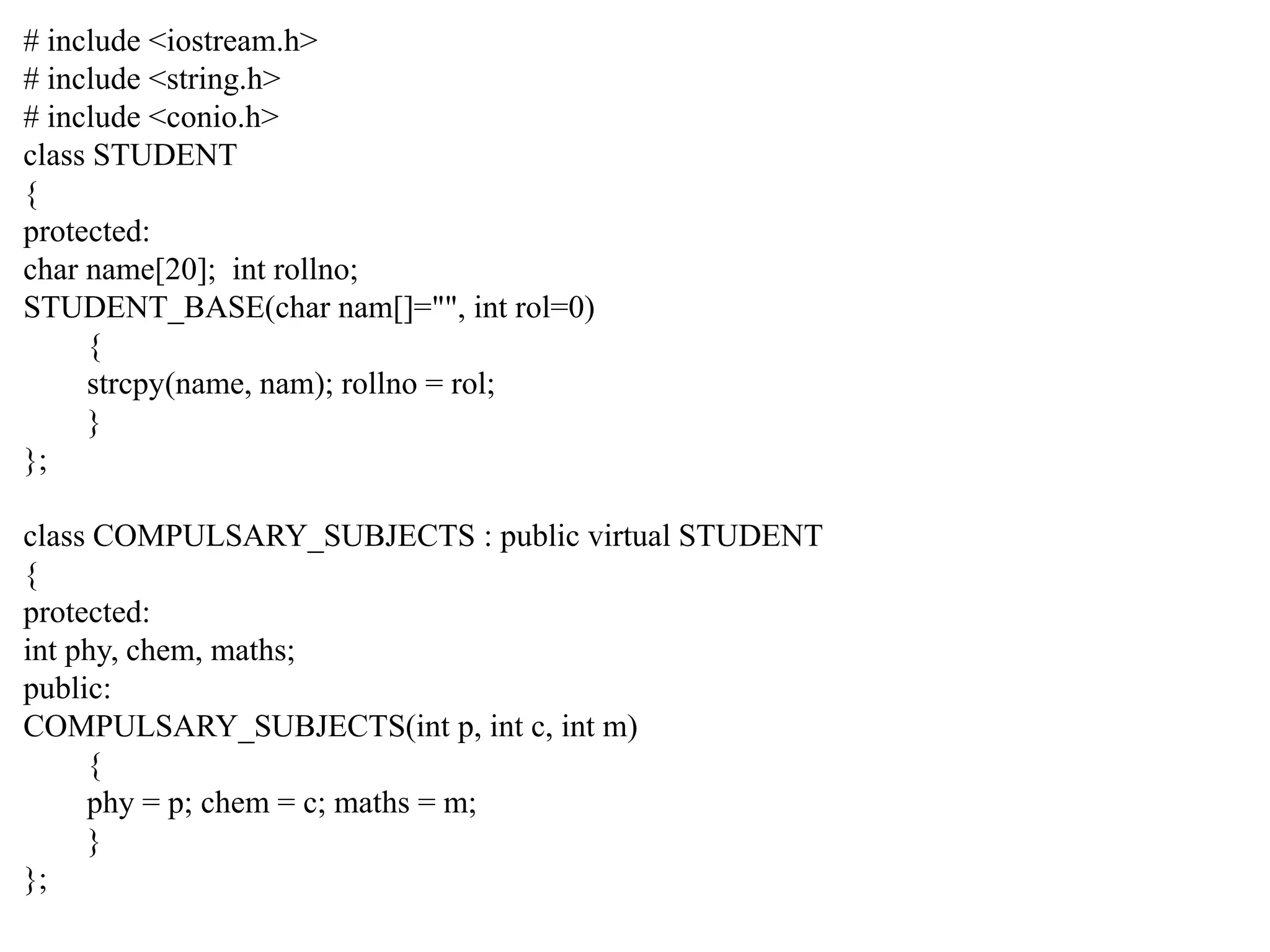

# include <iostream.h> # include <string.h> # include <conio.h> class STUDENT { protected: char name[20]; int rollno; STUDENT_BASE(char nam[]="", int rol=0) { strcpy(name, nam); rollno = rol; } }; class COMPULSARY_SUBJECTS : public virtual STUDENT { protected: int phy, chem, maths; public: COMPULSARY_SUBJECTS(int p, int c, int m) { phy = p; chem = c; maths = m; } };

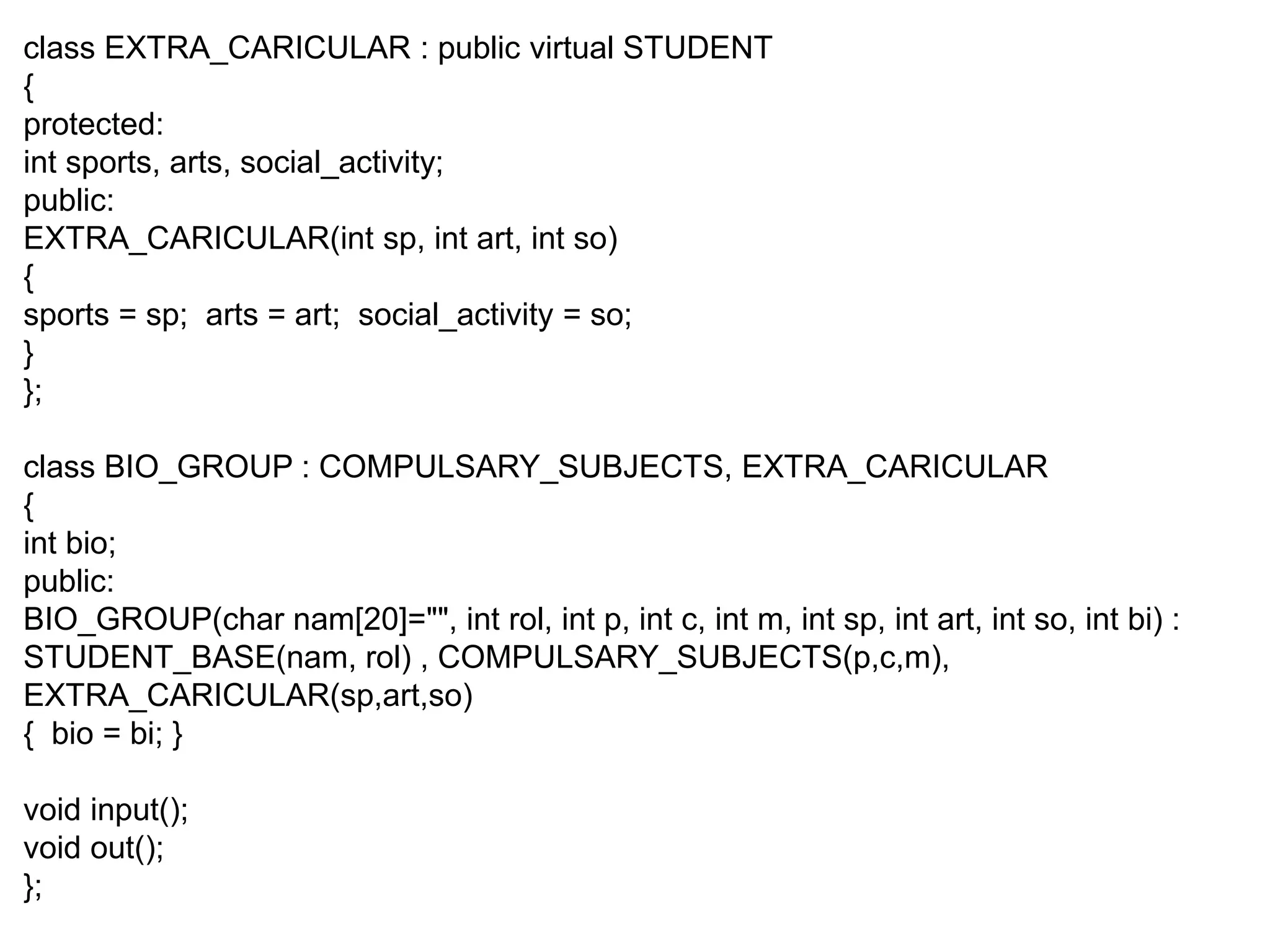

class EXTRA_CARICULAR : public virtual STUDENT { protected: int sports, arts, social_activity; public: EXTRA_CARICULAR(int sp, int art, int so) { sports = sp; arts = art; social_activity = so; } }; class BIO_GROUP : COMPULSARY_SUBJECTS, EXTRA_CARICULAR { int bio; public: BIO_GROUP(char nam[20]="", int rol, int p, int c, int m, int sp, int art, int so, int bi) : STUDENT_BASE(nam, rol) , COMPULSARY_SUBJECTS(p,c,m), EXTRA_CARICULAR(sp,art,so) { bio = bi; } void input(); void out(); };

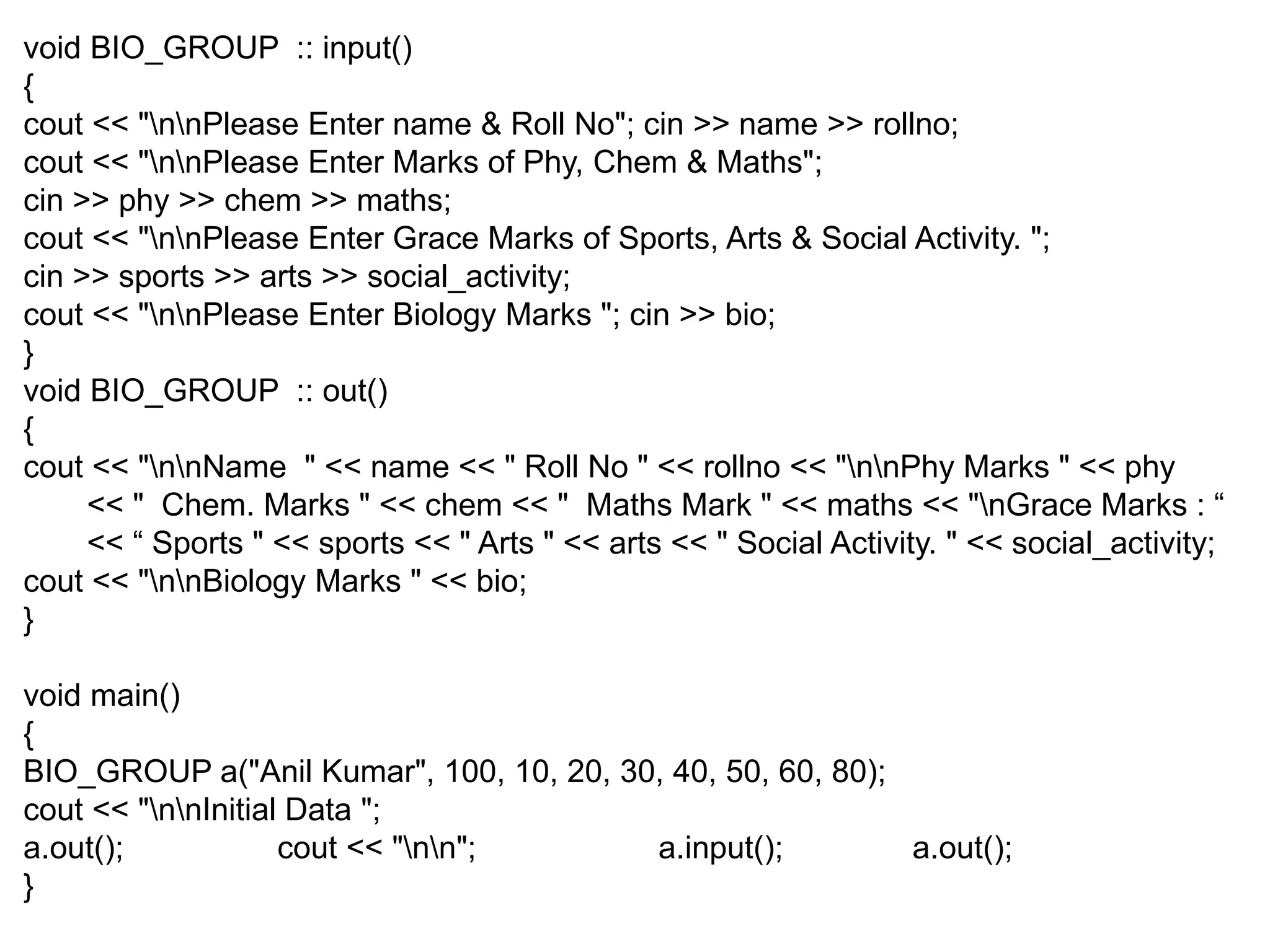

void BIO_GROUP :: input() { cout << "nnPlease Enter name & Roll No"; cin >> name >> rollno; cout << "nnPlease Enter Marks of Phy, Chem & Maths"; cin >> phy >> chem >> maths; cout << "nnPlease Enter Grace Marks of Sports, Arts & Social Activity. "; cin >> sports >> arts >> social_activity; cout << "nnPlease Enter Biology Marks "; cin >> bio; } void BIO_GROUP :: out() { cout << "nnName " << name << " Roll No " << rollno << "nnPhy Marks " << phy << " Chem. Marks " << chem << " Maths Mark " << maths << "nGrace Marks : “ << “ Sports " << sports << " Arts " << arts << " Social Activity. " << social_activity; cout << "nnBiology Marks " << bio; } void main() { BIO_GROUP a("Anil Kumar", 100, 10, 20, 30, 40, 50, 60, 80); cout << "nnInitial Data "; a.out(); cout << "nn"; a.input(); a.out(); }

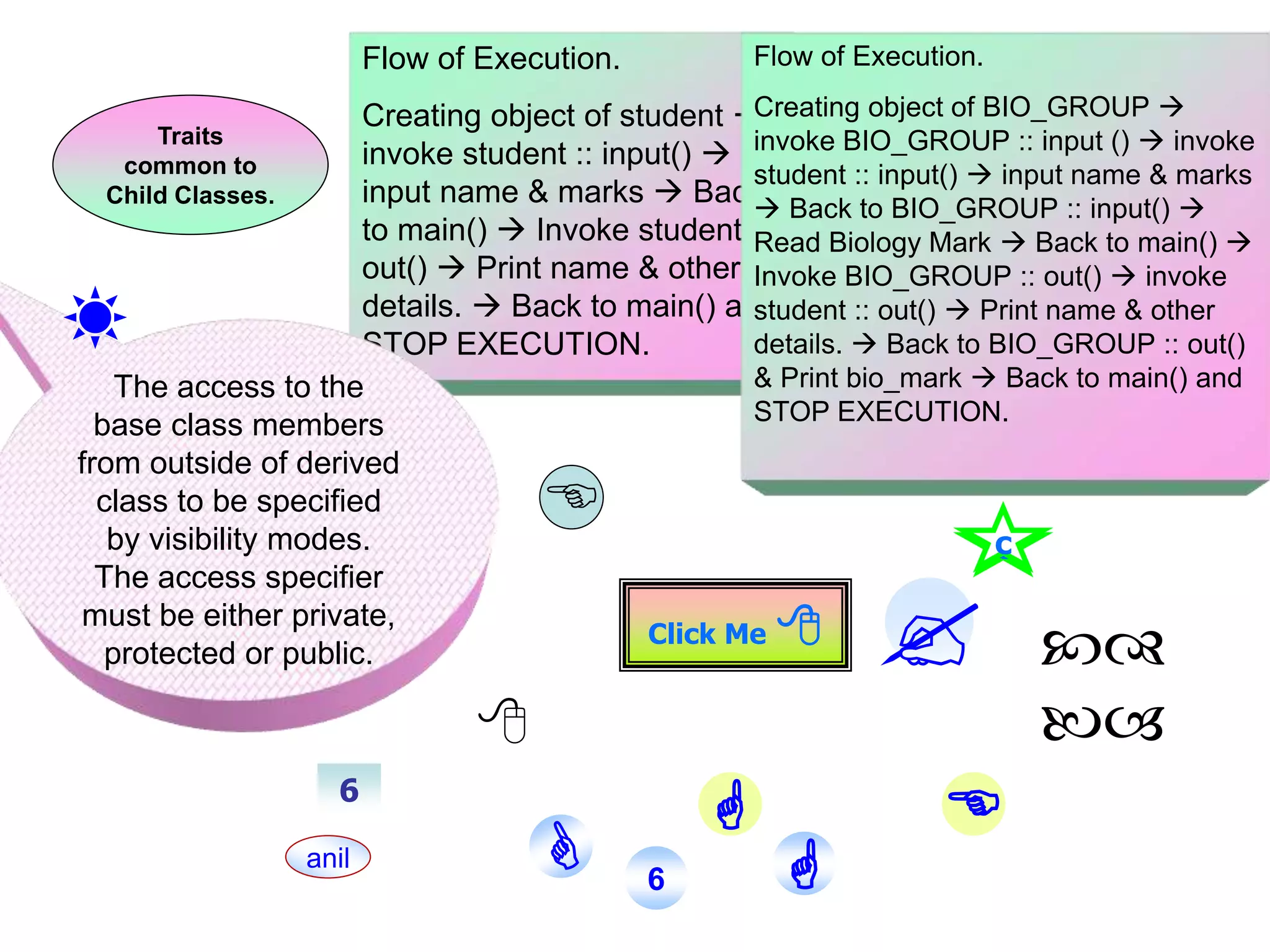

a Click Me  c Flow of Execution. Creating object of student  invoke student :: input()  input name & marks  Back to main()  Invoke student :: out()  Print name & other details.  Back to main() and STOP EXECUTION. Flow of Execution. Creating object of BIO_GROUP  invoke BIO_GROUP :: input ()  invoke student :: input()  input name & marks  Back to BIO_GROUP :: input()  Read Biology Mark  Back to main()  Invoke BIO_GROUP :: out()  invoke student :: out()  Print name & other details.  Back to BIO_GROUP :: out() & Print bio_mark  Back to main() and STOP EXECUTION. Traits common to Child Classes.   The access to the base class members from outside of derived class to be specified by visibility modes. The access specifier must be either private, protected or public. c 6   anil 6  
