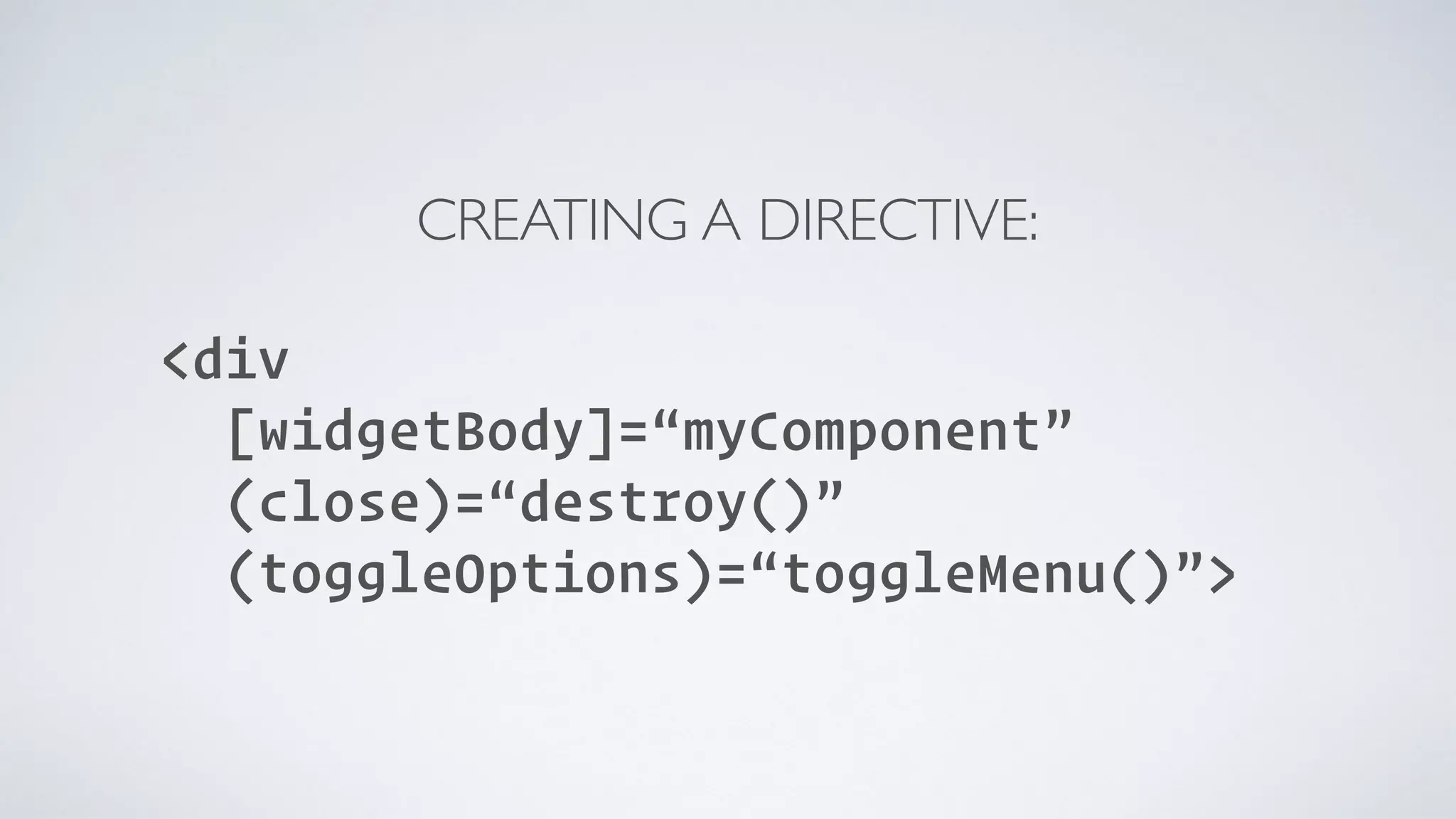

![CREATING A DIRECTIVE:
<div [widgetBody]=“myComponent” (close)=“destroy()” (toggleOptions)=“toggleMenu()”>](https://image.slidesharecdn.com/react-jsx-and-top-leve-api-171125114125/75/React-JSX-and-Top-Level-API-55-2048.jpg)
![import { ComponentRef, ComponentFactoryResolver, Directive, ElementRef, Input, OnDestroy, ViewContainerRef } from '@angular/core';
@Directive({ selector: '[widgetBody]' }) export class WidgetBodyDirective implements OnDestroy { @Input() set widgetBody(component: WidgetComponent) { this.view.clear(); if (component) { let factory = this.resolver.resolveComponentFactory(component.type); this.ref = this.view.createComponent(factory); for (let key in component.payload) { this.ref.instance[key] = component.payload[key]; } } }
private ref: ComponentRef<any>; constructor( private view: ViewContainerRef, private resolver: ComponentFactoryResolver) { } ngOnDestroy() { if (this.ref) { this.ref.destroy(); } } }](https://image.slidesharecdn.com/react-jsx-and-top-leve-api-171125114125/75/React-JSX-and-Top-Level-API-56-2048.jpg)
Uploaded byFabio Biondi
React: JSX and Top Level API
This document discusses developing client, server, and mobile applications with React. It introduces React Top-Level API vs JSX and how to create reusable Widget components in React that can render different content types specified by a string property. Widgets are demonstrated as cards with optional close and option buttons that can trigger callback handlers. The content is split across multiple nested components for reusability and extensibility. Similar capabilities in Angular are discussed using directives.
React: JSX and Top Level API
- 2. Sviluppare applicazioni client,server e mobile con React Jiayi Hu, Maksim Sinik, Michele Stieven, Fabio Biondi
- 3.
- 4. EX FLASH-FLEX-AIR CERTIFIED INSTRUCTOR:°( 2002-2012
- 5. I also love:Typescript, Redux, RxJS, D3.js, CreateJS,Arduino, …. ANGULAR & REACT DEVELOPER &TRAINER
- 6.
- 7. ANGULAR DEVELOPER ITALIANI JAVASCRIPT DEVELOPER ITALIANI REACT DEVELOPER ITALIANI
- 9.
- 10. ONE YEAR SUBSCRIPTION (for2 attendees)
- 11. Javascript ES6 :La guida mancante in italiano Corso completo di sviluppo web: crea da zero il tuo business
- 12. La Fabbrica diinnovazione e sviluppo tecnologico dei servizi core per le aziende. INutile è anche il tuo successo professionale dei prossimi anni www.inattivo.com Progetto INutile
- 13. • Il marketplaceche conne0e aziende e freelancer digitali • Usa l’Ar:ficial Intelligence per la creazione di team di freelancer • Un workspace Agile per la ges:one della collaborazione azienda - team • Il primo marketplace collegato ad un ufficio 3D in Virtual Reality • Iscrivi: alla newsle0er su h0ps://coderblock.com o sulla pagina facebook per testare la pia0aforma in closed beta e ricevere i primi premi! Il recruitment ai tempi del remote working.
- 14. IL PROGRAMMA DIOGGI

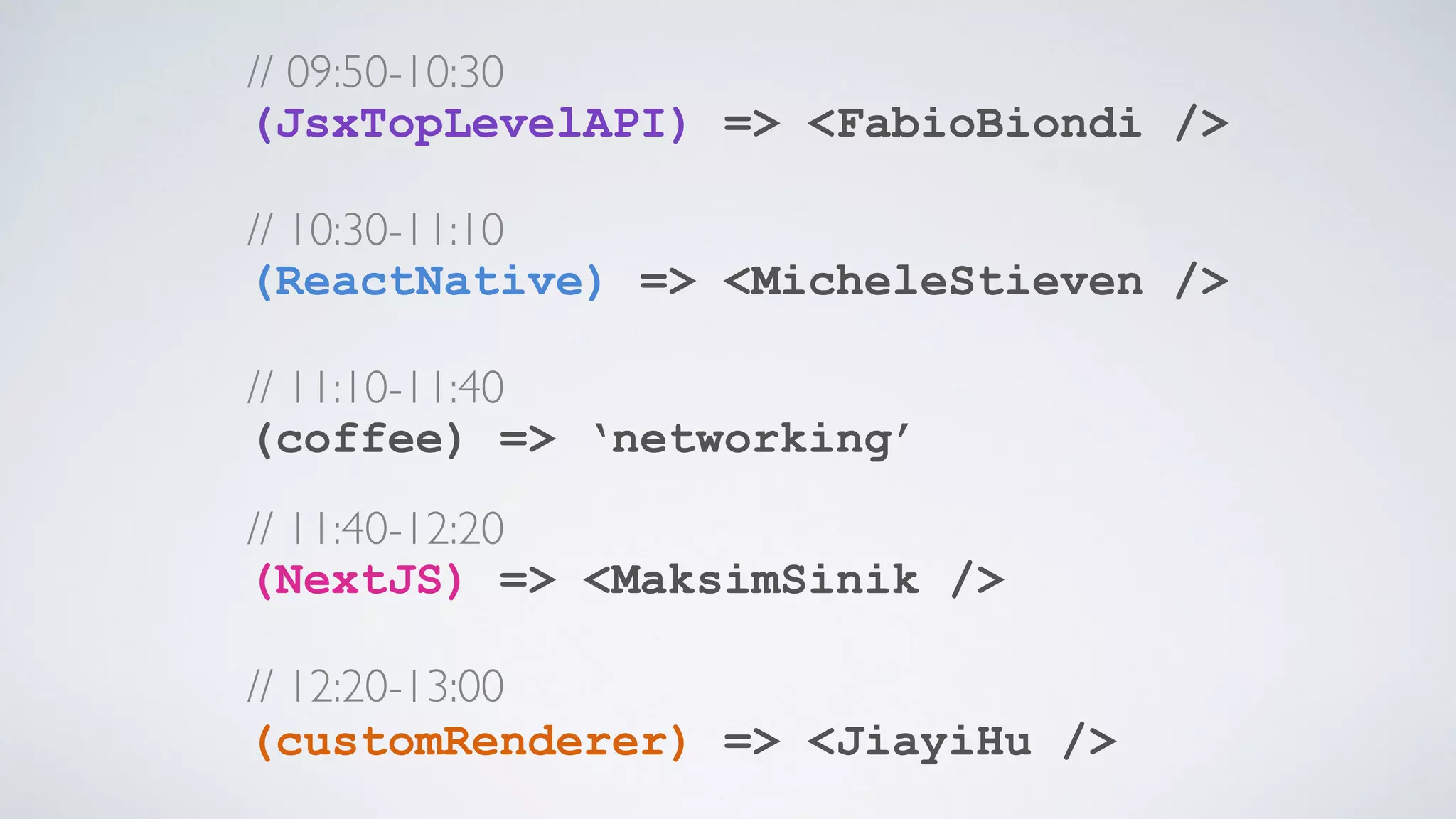

- 15. // 09:50-10:30 (JsxTopLevelAPI) =><FabioBiondi /> // 10:30-11:10 (ReactNative) => <MicheleStieven /> // 11:10-11:40 (coffee) => ‘networking’ // 11:40-12:20 (NextJS) => <MaksimSinik /> // 12:20-13:00 (customRenderer) => <JiayiHu />
- 16.

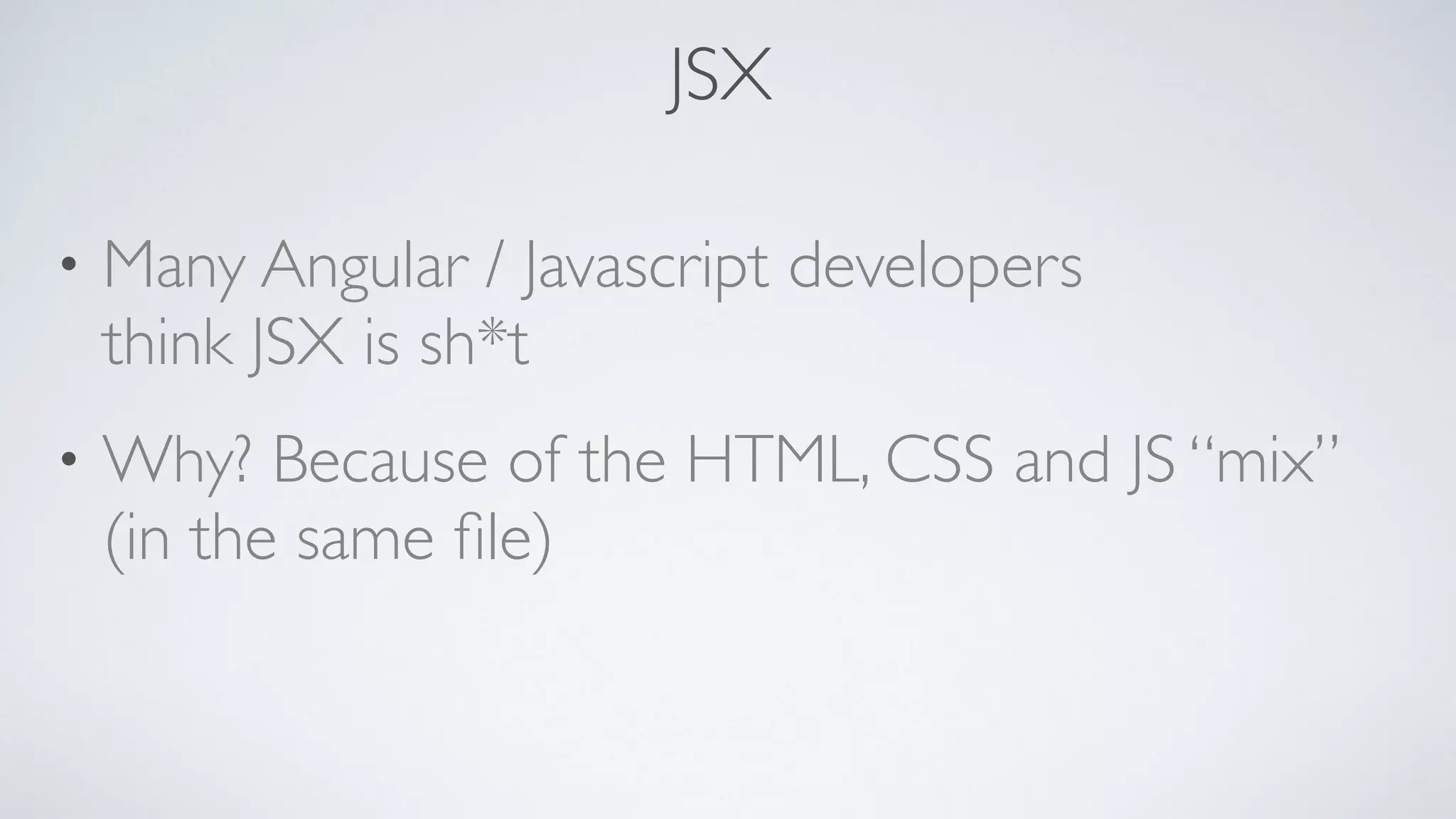

- 17. JSX • Many Angular/ Javascript developers think JSX is sh*t • Why? Because of the HTML, CSS and JS “mix” (in the same file)
- 18. JSX In my opinion JSX is one of the most interesting features in React thanks to its flexibility

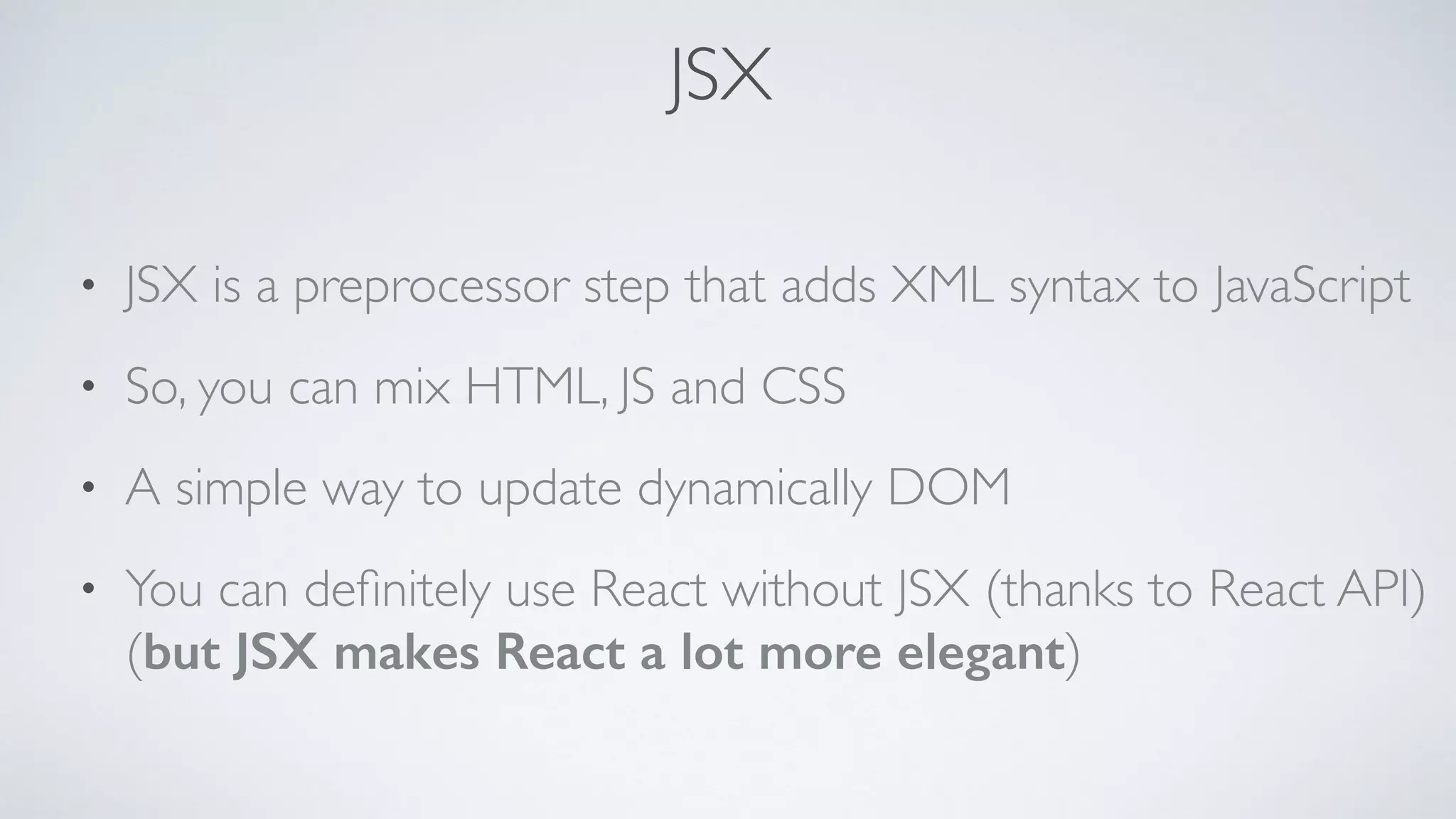

- 19. JSX • JSX isa preprocessor step that adds XML syntax to JavaScript • So, you can mix HTML, JS and CSS • A simple way to update dynamically DOM • You can definitely use React without JSX (thanks to React API) (but JSX makes React a lot more elegant)
- 20.
- 21.

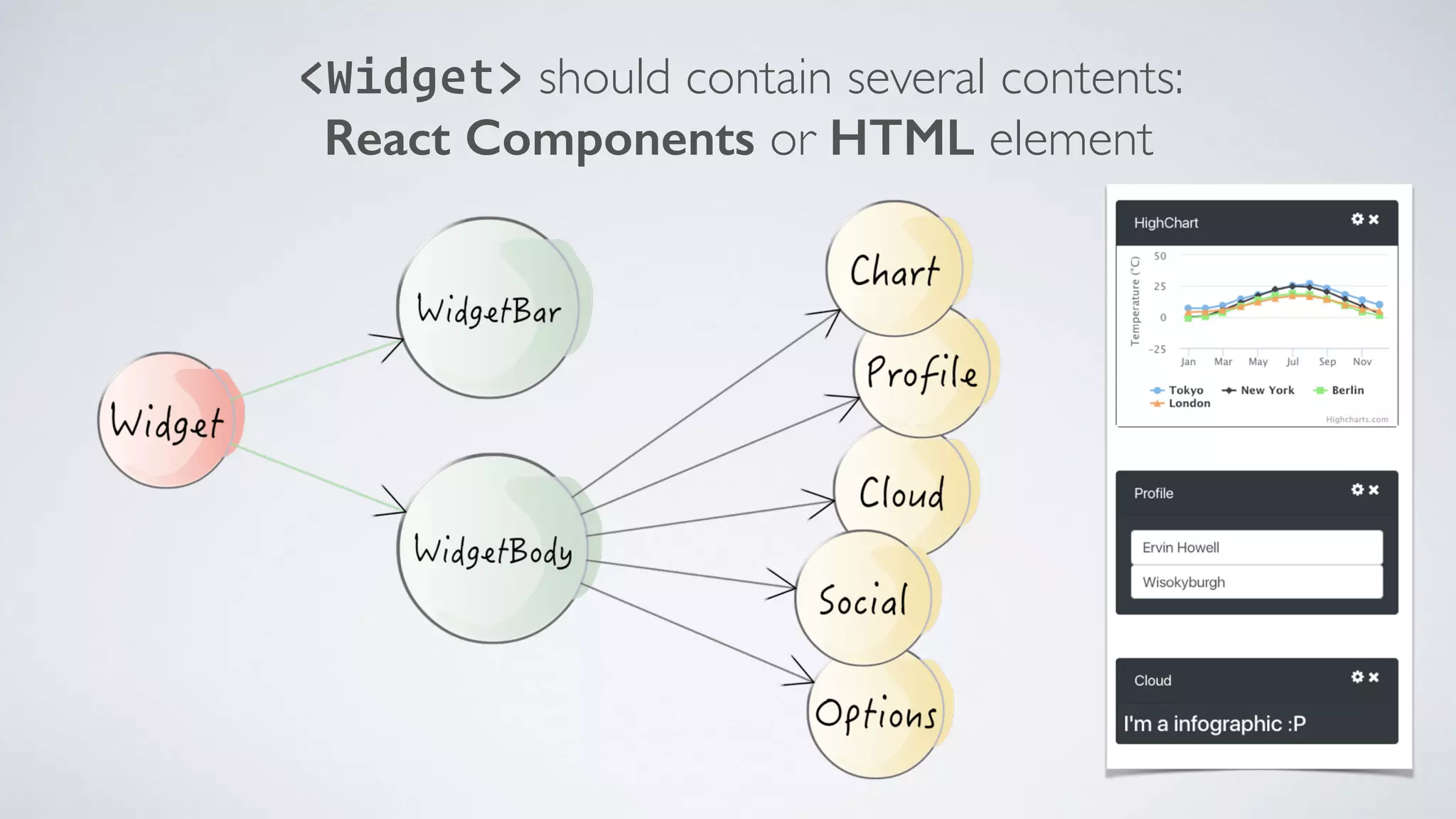

- 22. <Widget> should containseveral contents: React Components or HTML element
- 23. PART 1 JSXVS REACTTOP-LEVEL API

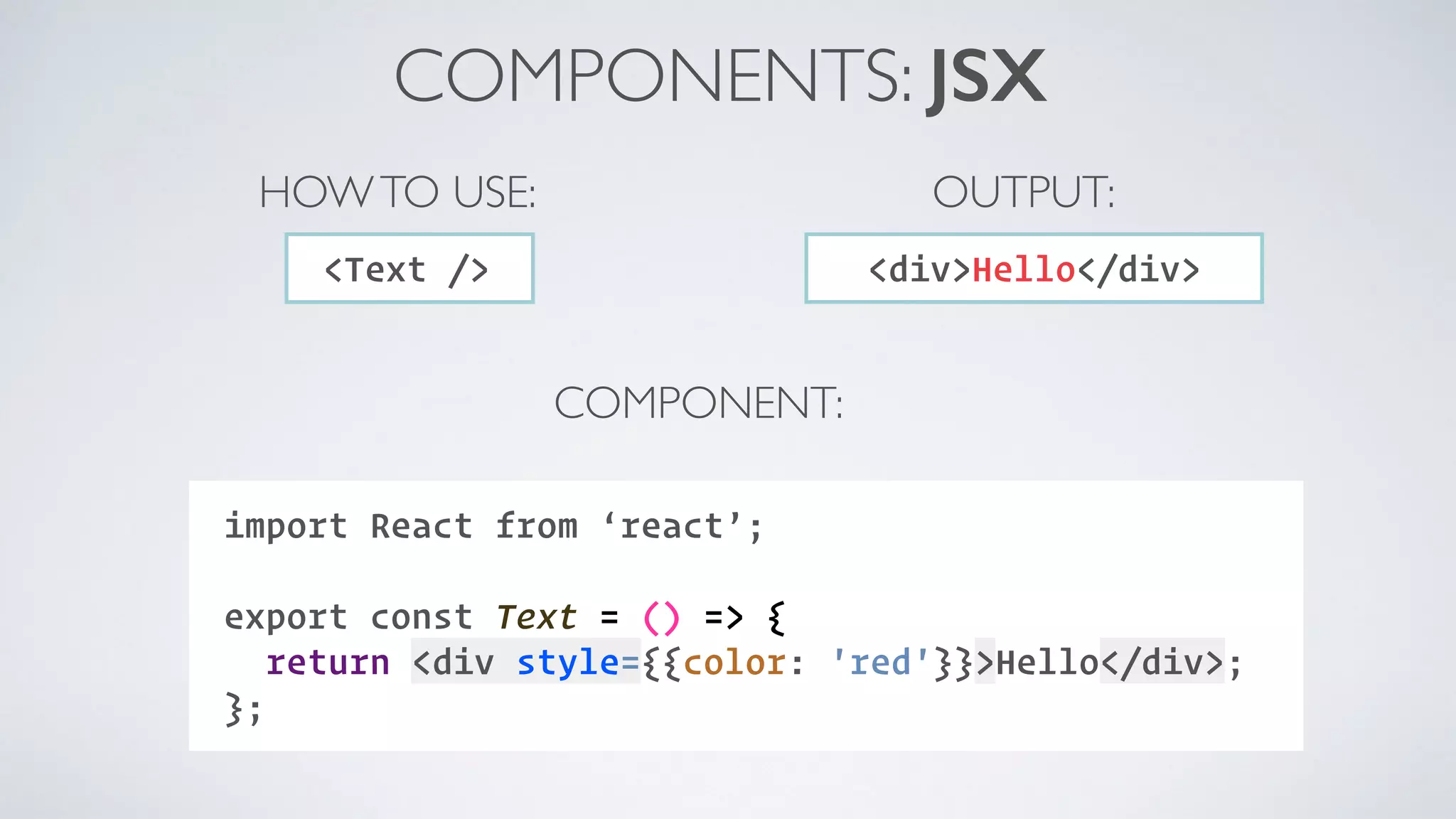

- 24. COMPONENTS: JSX import Reactfrom ‘react’; export const Text = () => { return <div style={{color: 'red'}}>Hello</div>; }; <Text /> HOWTO USE: COMPONENT: <div>Hello</div> OUTPUT:

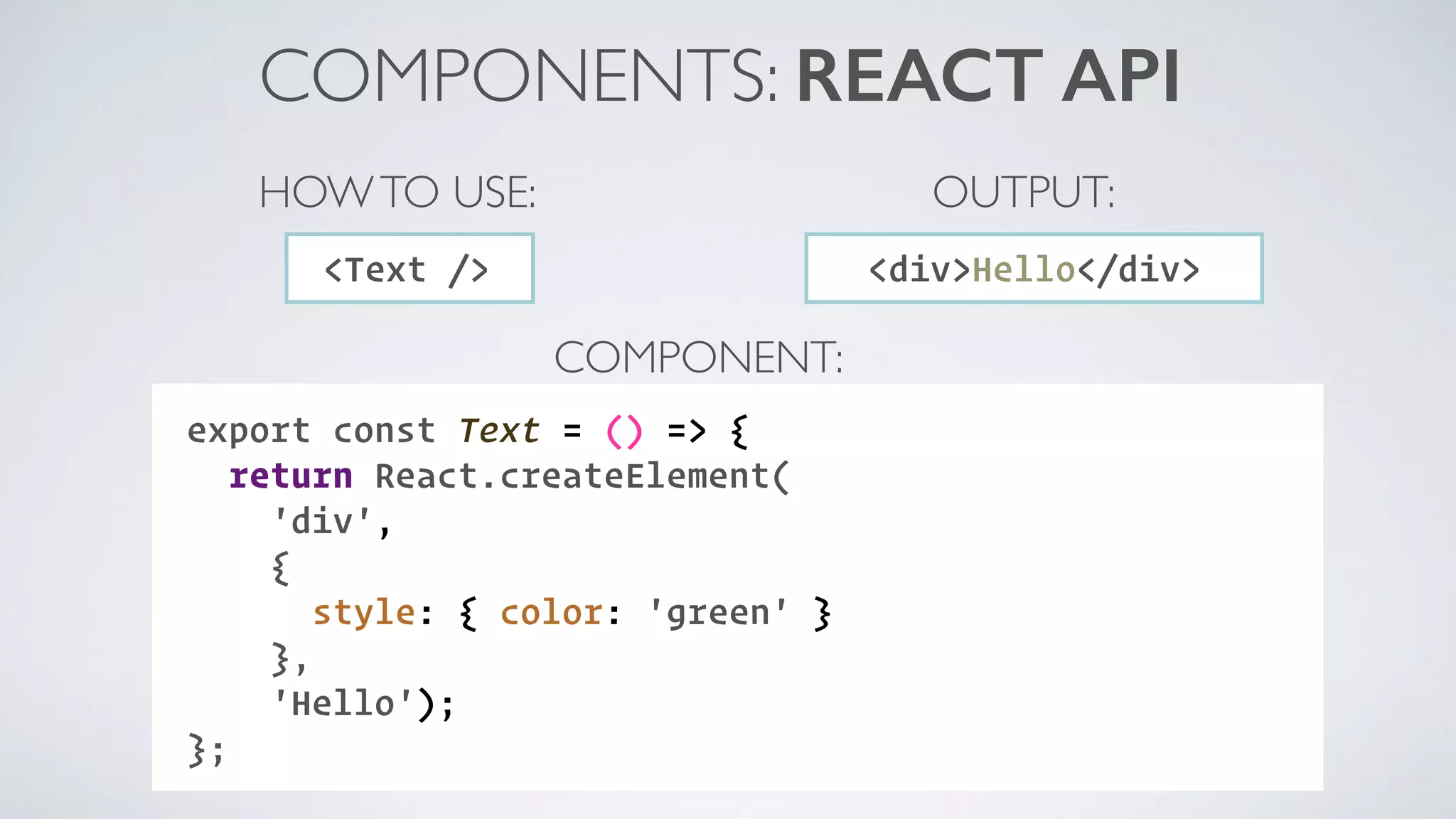

- 25. COMPONENT: COMPONENTS: REACT API exportconst Text = () => { return React.createElement( 'div', { style: { color: 'green' } }, 'Hello'); }; <Text /> HOWTO USE: <div>Hello</div> OUTPUT:

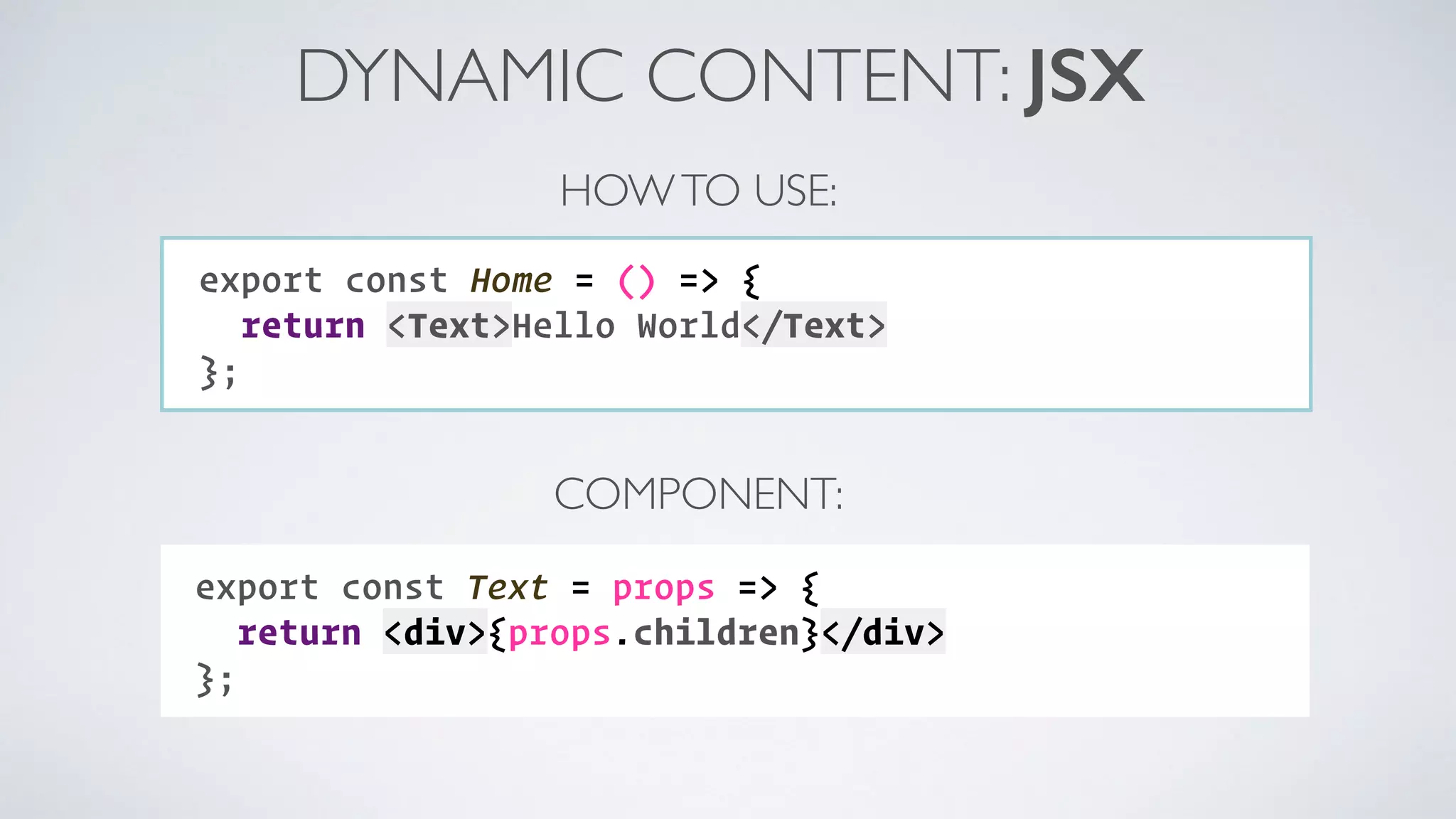

- 26. DYNAMIC CONTENT: JSX exportconst Text = props => { return <div>{props.children}</div> }; export const Home = () => { return <Text>Hello World</Text> }; HOWTO USE: COMPONENT:

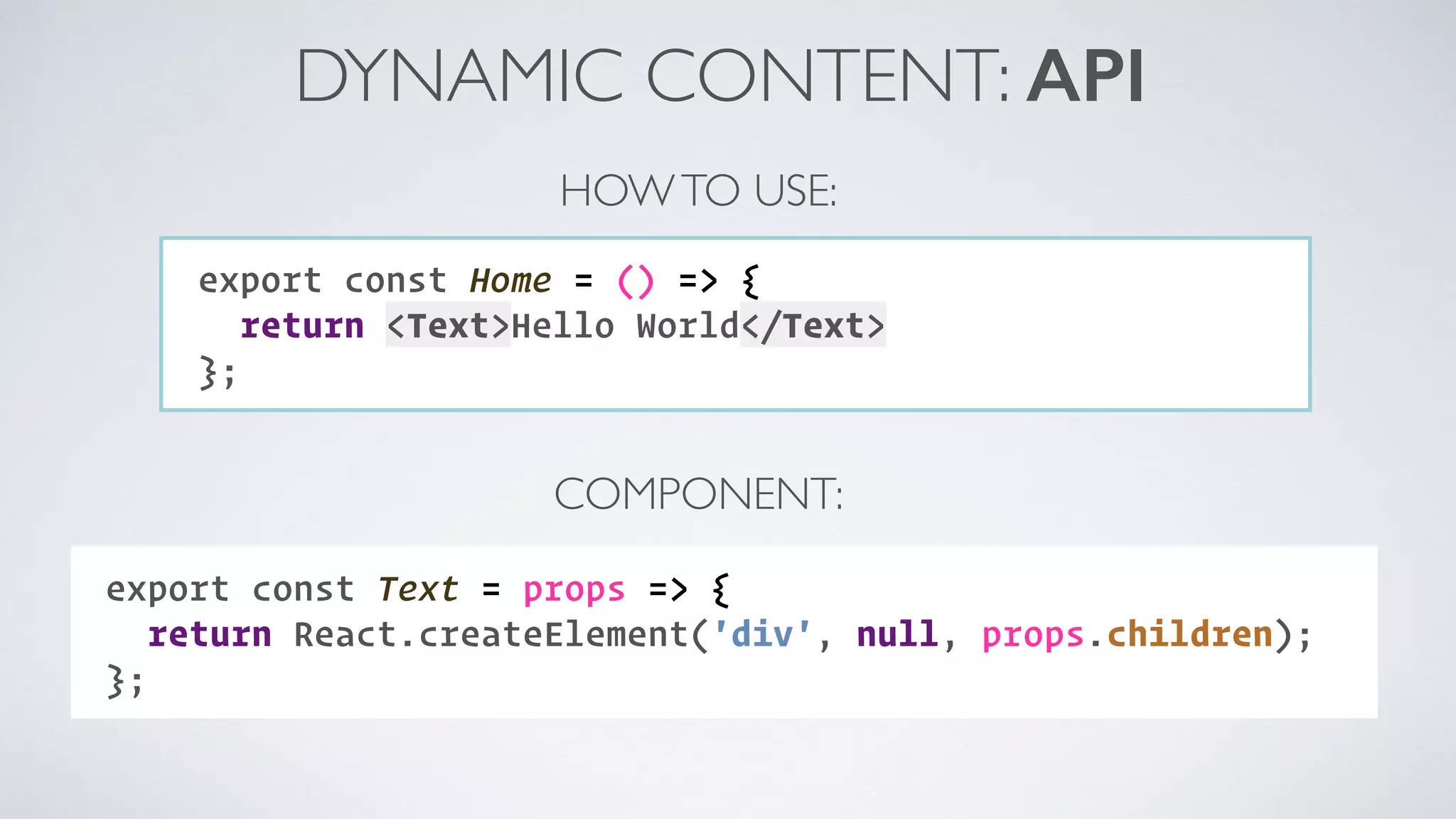

- 27. DYNAMIC CONTENT: API exportconst Home = () => { return <Text>Hello World</Text> }; HOWTO USE: COMPONENT: export const Text = props => { return React.createElement('div', null, props.children); };

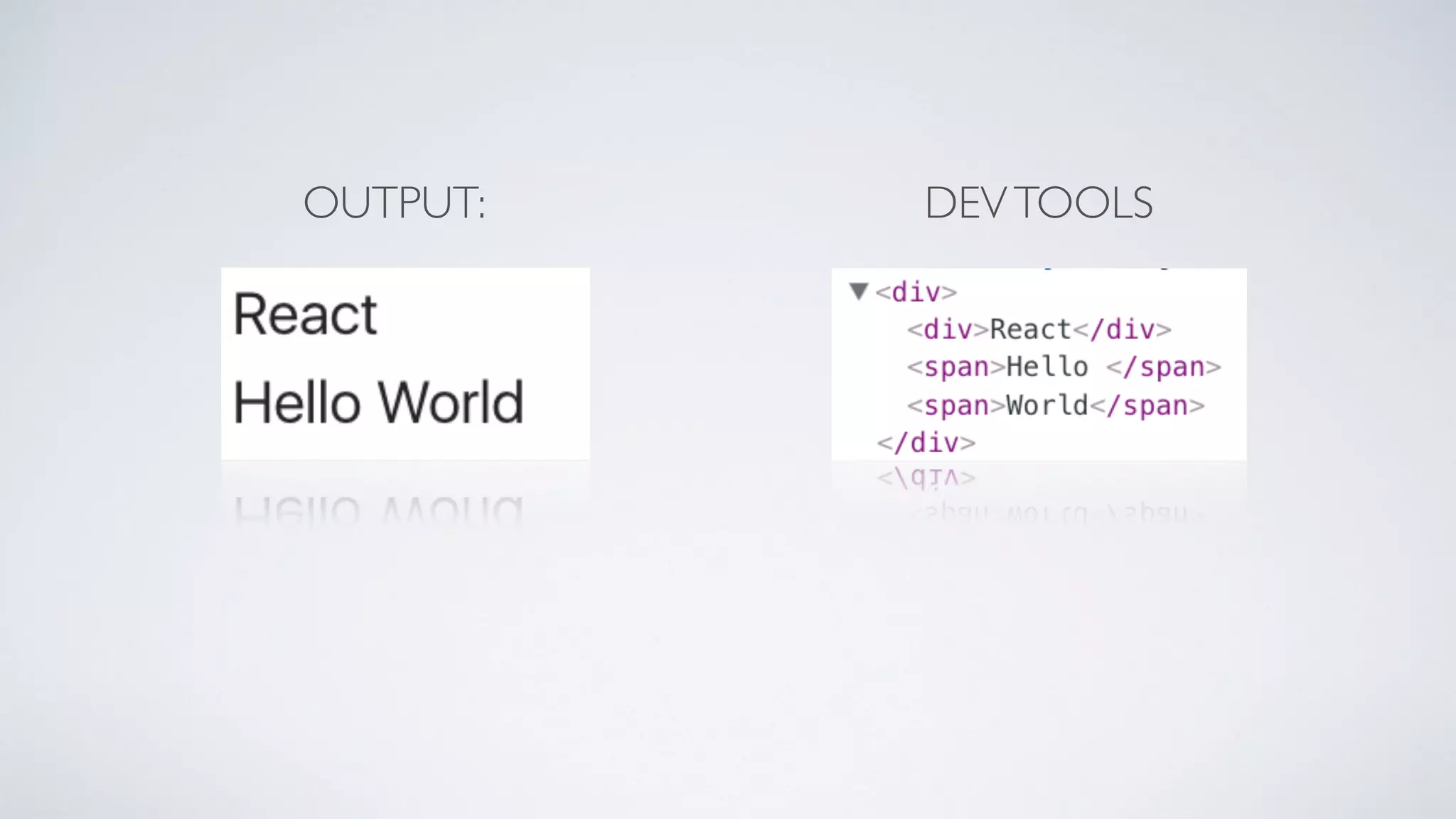

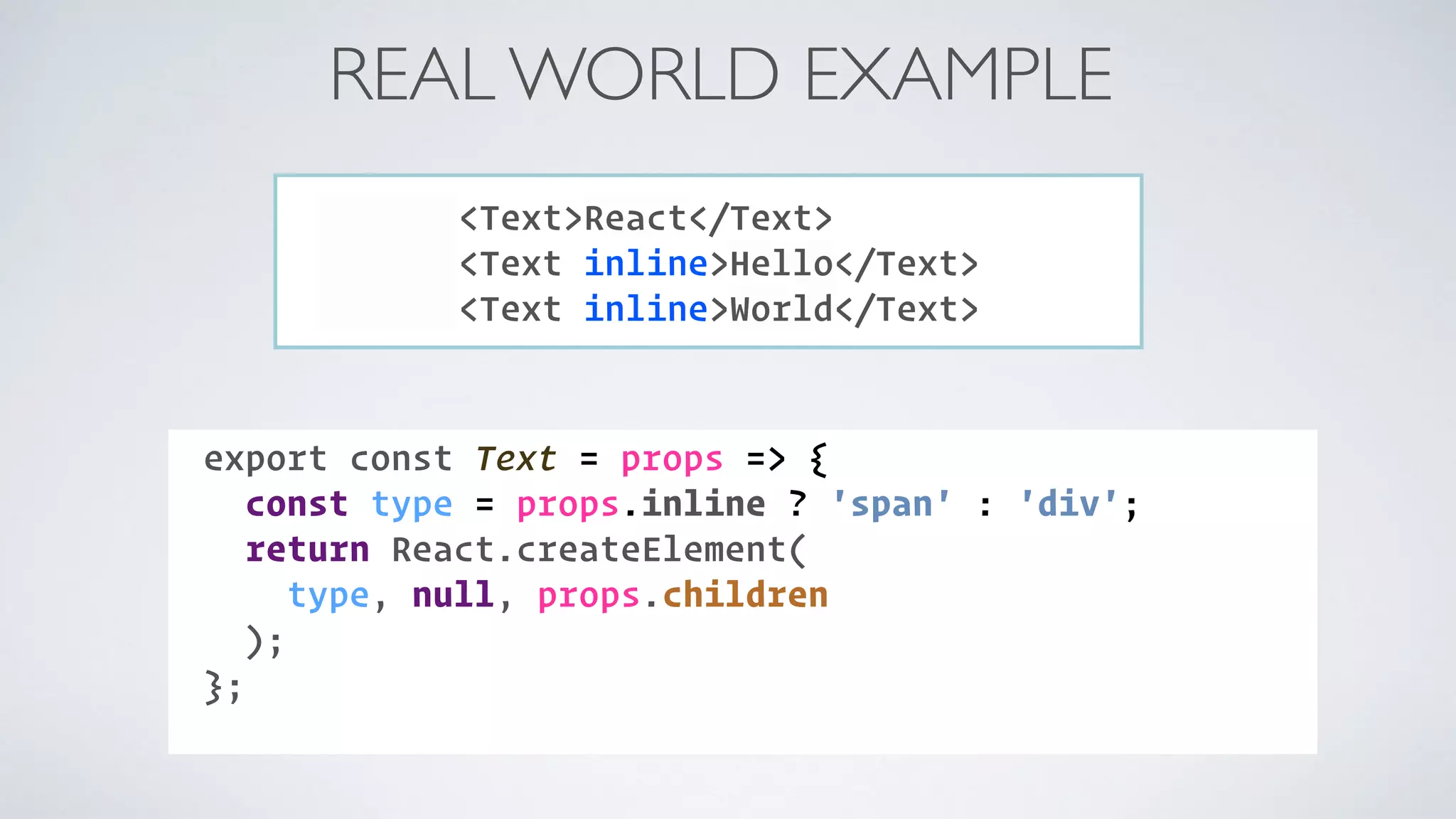

- 28. REAL WORLD EXAMPLE <Text>React</Text> <Textinline>Hello</Text> <Text inline>World</Text> COMPONENT:export const Text = props => { const type = props.inline ? 'span' : 'div'; return React.createElement( type, null, props.children ); };
- 29.
- 30. PART 2 <Widget />component

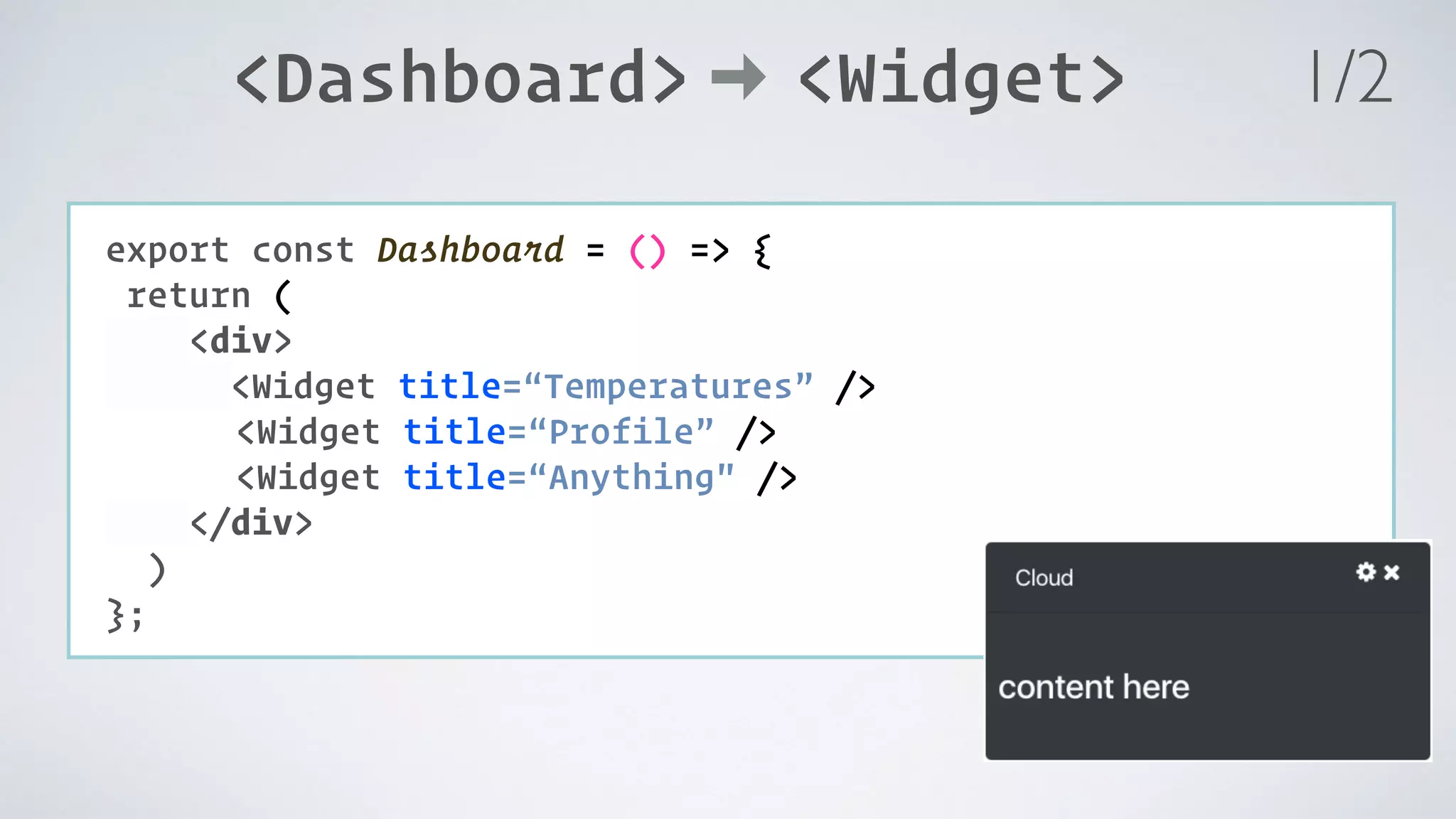

- 31. <Dashboard> <Widget> COMPONENT: export constDashboard = () => { return ( <div> <Widget title=“Temperatures” /> <Widget title=“Profile” /> <Widget title=“Anything" /> </div> ) }; 1/2

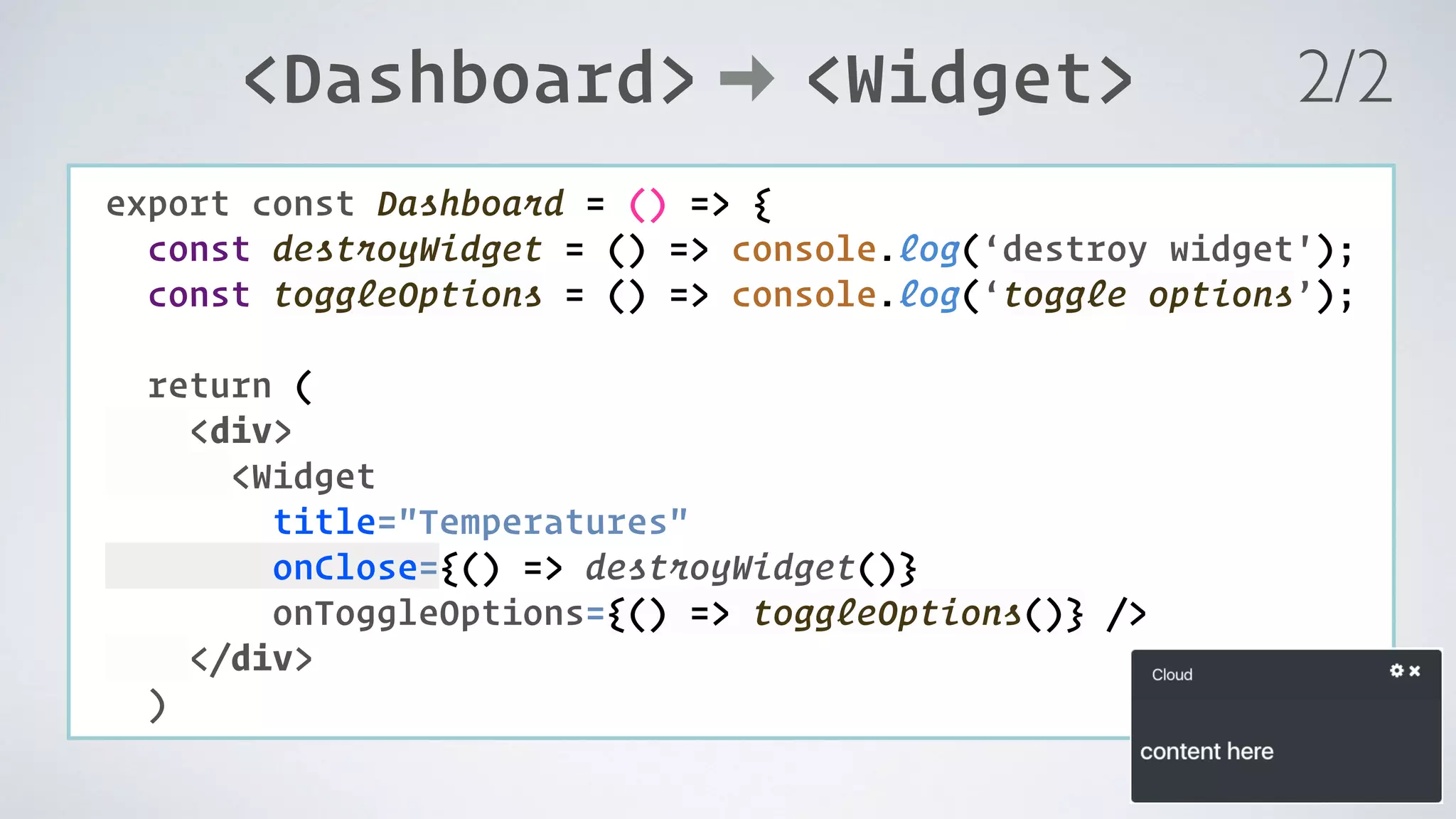

- 32. COMPONENT: export const Dashboard= () => { const destroyWidget = () => console.log(‘destroy widget'); const toggleOptions = () => console.log(‘toggle options’); return ( <div> <Widget title="Temperatures" onClose={() => destroyWidget()} onToggleOptions={() => toggleOptions()} /> </div> ) <Dashboard> <Widget> 2/2
- 33.

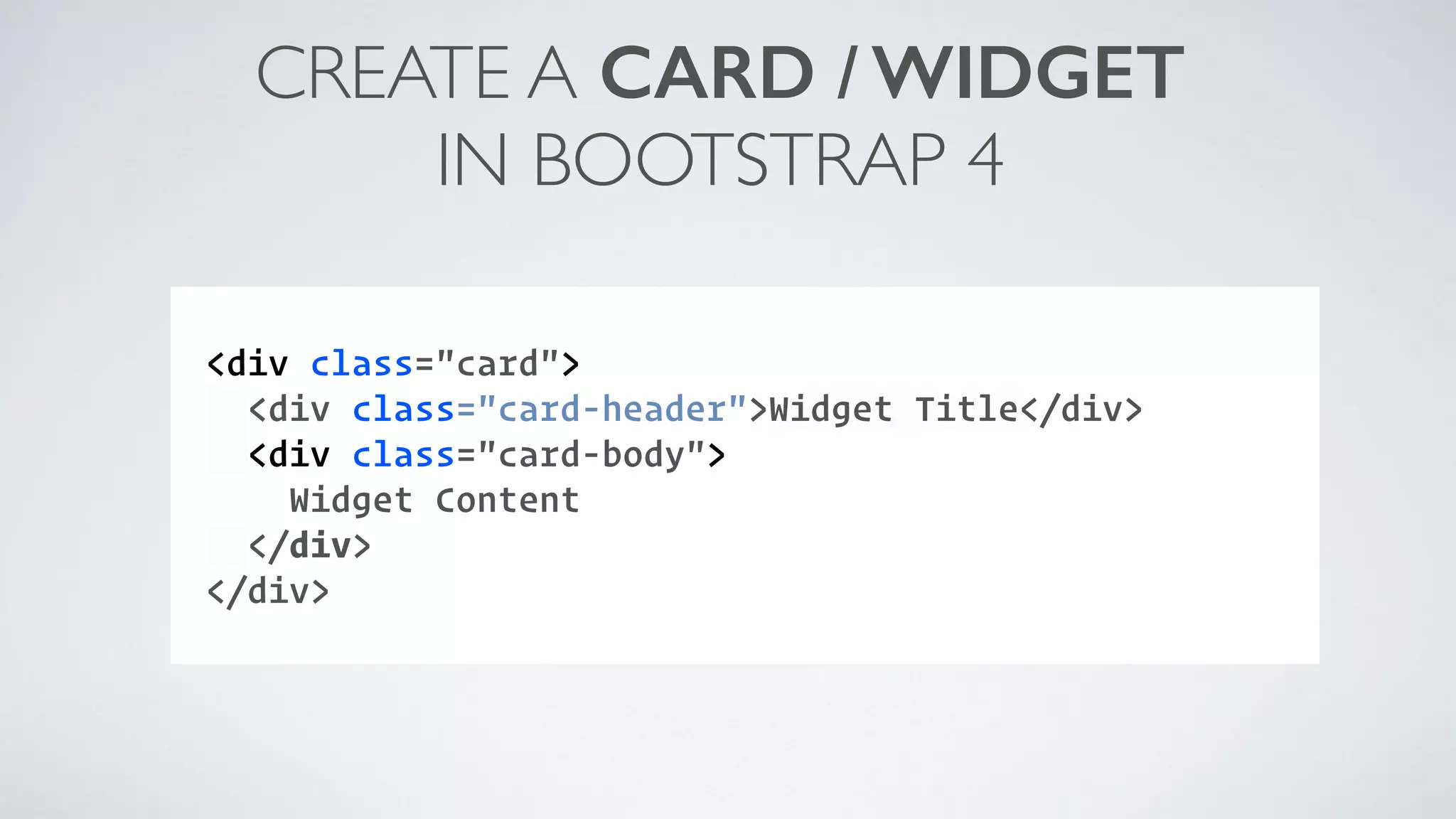

- 34. CREATE A CARD/ WIDGET IN BOOTSTRAP 4 COMPONENT: <div class="card"> <div class="card-header">Widget Title</div> <div class="card-body"> Widget Content </div> </div>

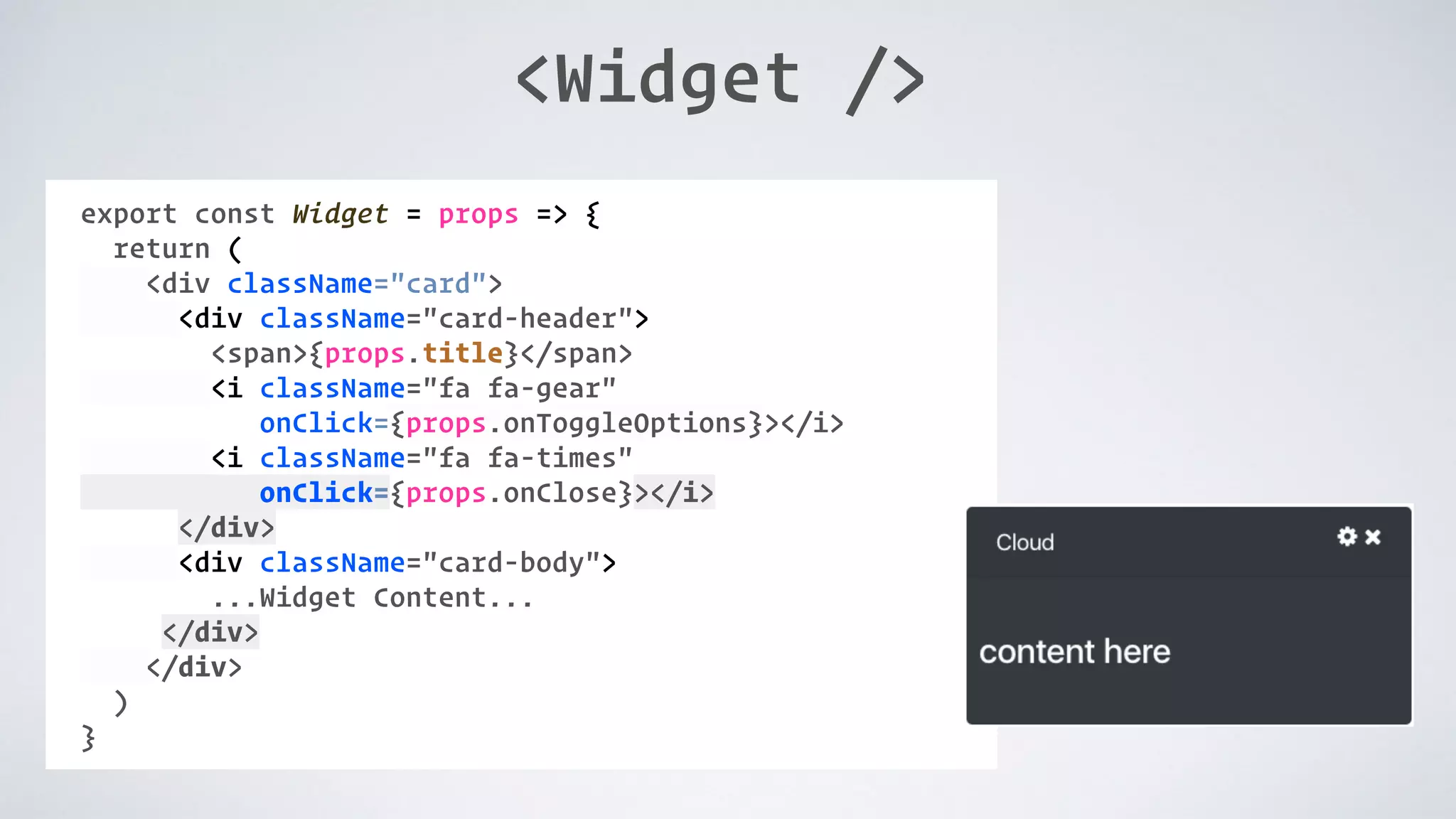

- 35. <Widget /> COMPONENT: export constWidget = props => { return ( <div className="card"> <div className="card-header"> <span>{props.title}</span> <i className="fa fa-gear" onClick={props.onToggleOptions}></i> <i className="fa fa-times" onClick={props.onClose}></i> </div> <div className="card-body"> ...Widget Content... </div> </div> ) }

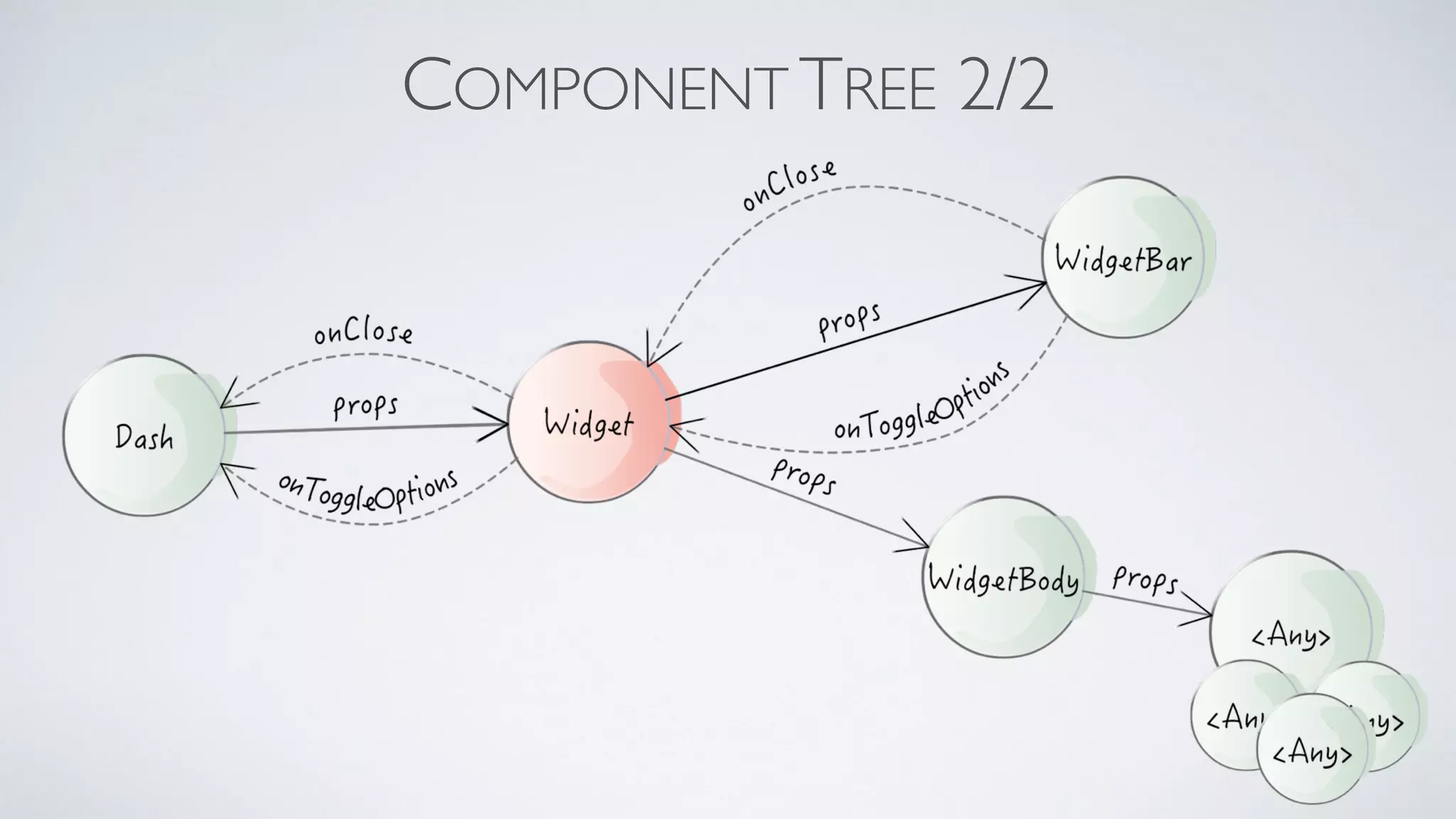

- 36. PART 3 SPLIT INCOMPONENTS
- 37.
- 38.

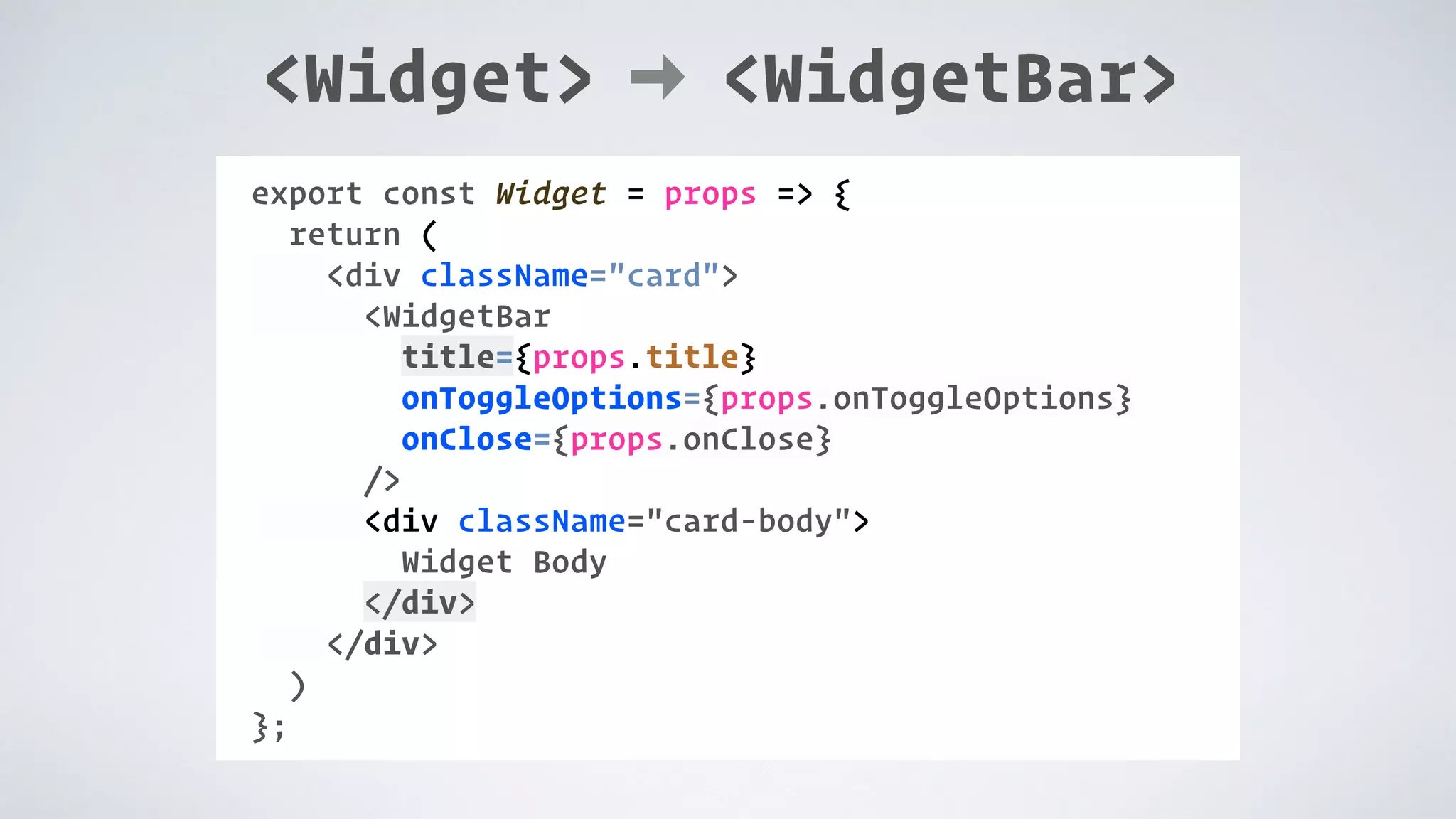

- 39. <Widget> <WidgetBar> COMPONENT: export constWidget = props => { return ( <div className="card"> <WidgetBar title={props.title} onToggleOptions={props.onToggleOptions} onClose={props.onClose} /> <div className="card-body"> Widget Body </div> </div> ) };

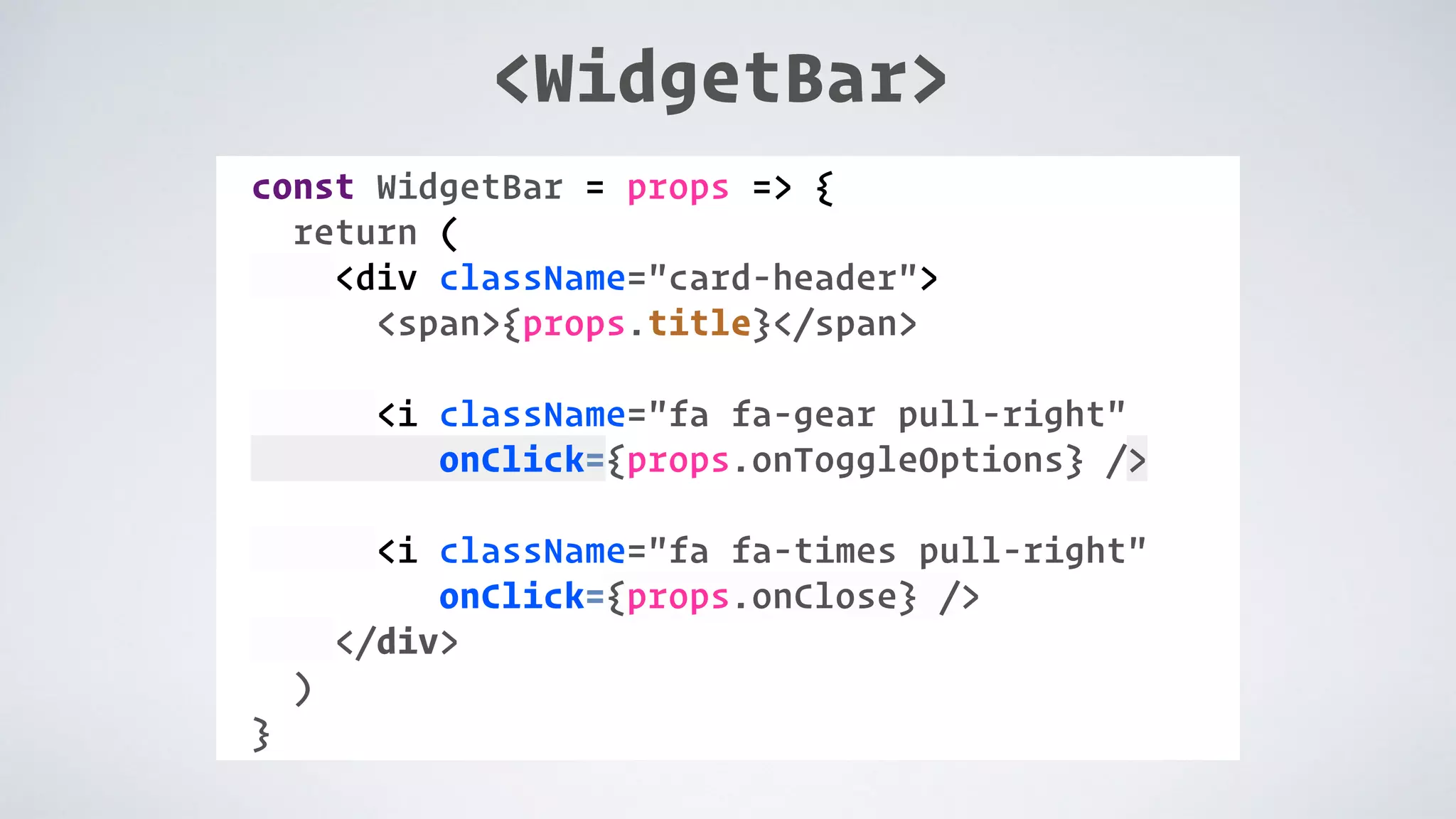

- 40. COMPONENT: const WidgetBar =props => { return ( <div className="card-header"> <span>{props.title}</span> <i className="fa fa-gear pull-right" onClick={props.onToggleOptions} /> <i className="fa fa-times pull-right" onClick={props.onClose} /> </div> ) } <WidgetBar>
- 41.

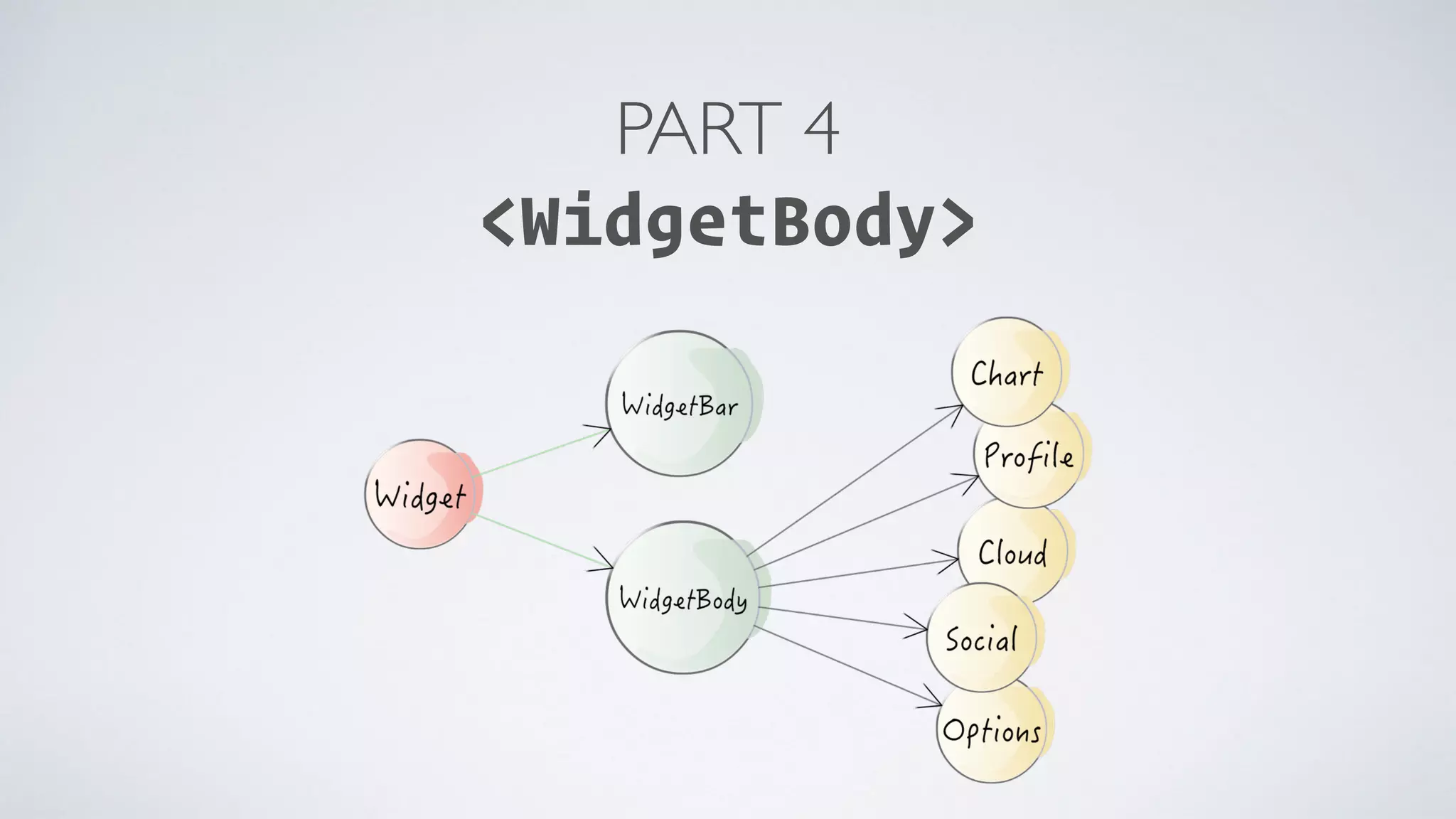

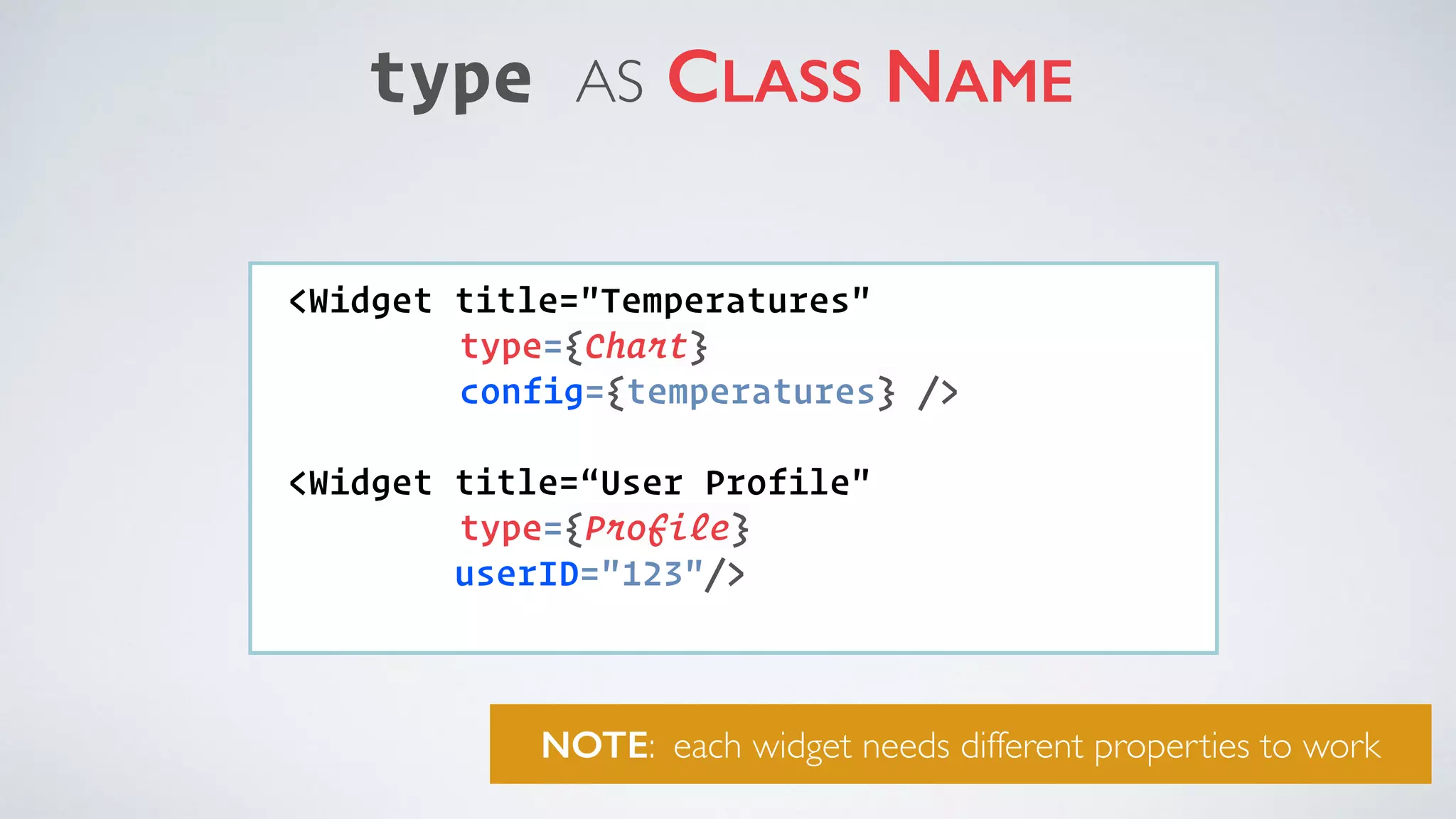

- 42. type AS CLASSNAME <Widget title="Temperatures" type={Chart} config={temperatures} /> <Widget title=“User Profile" type={Profile} userID="123"/> NOTE: each widget needs different properties to work

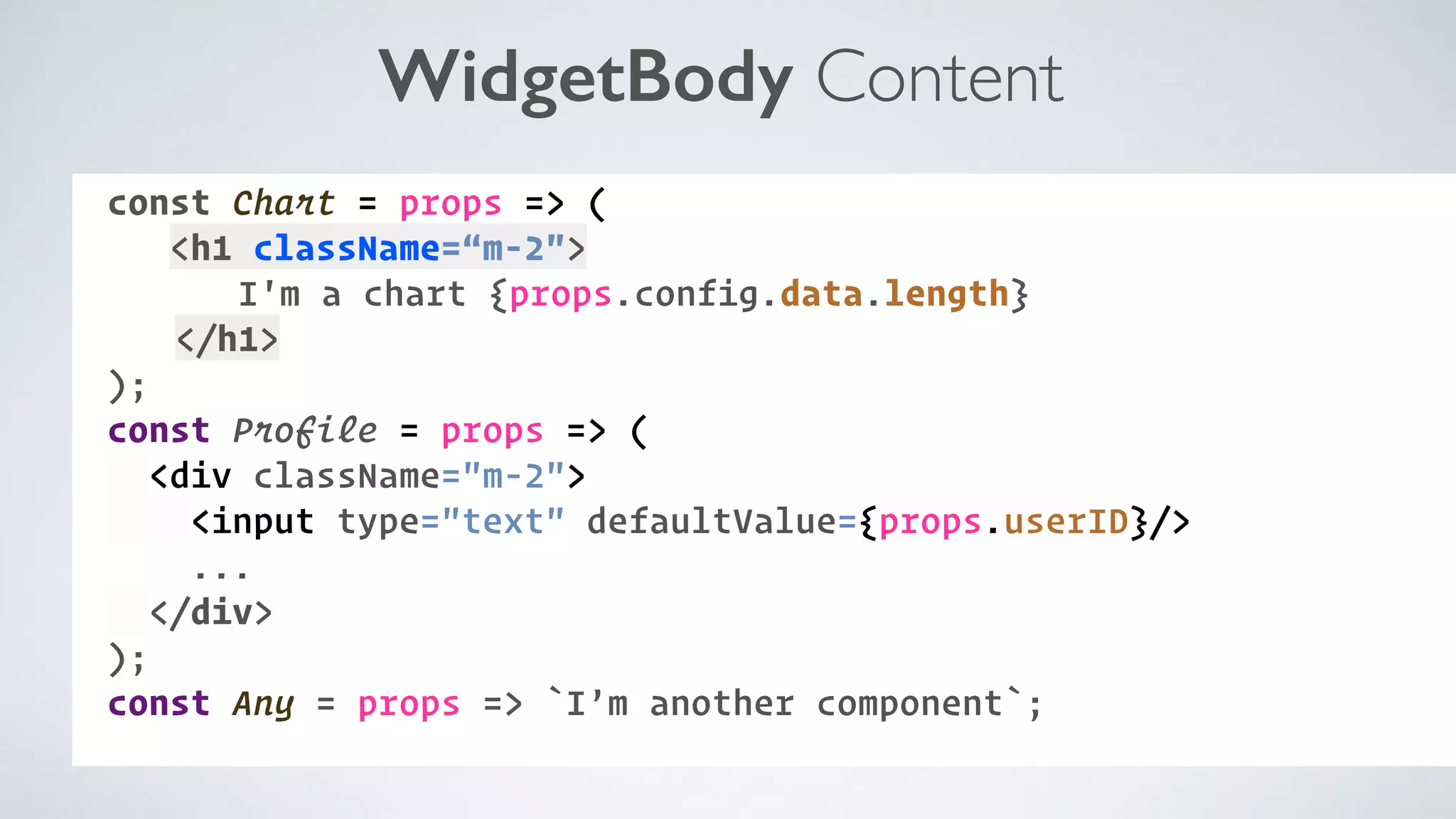

- 43. WidgetBody Content const Chart= props => ( <h1 className=“m-2"> I'm a chart {props.config.data.length} </h1> ); const Profile = props => ( <div className="m-2"> <input type="text" defaultValue={props.userID}/> ... </div> ); const Any = props => `I’m another component`;

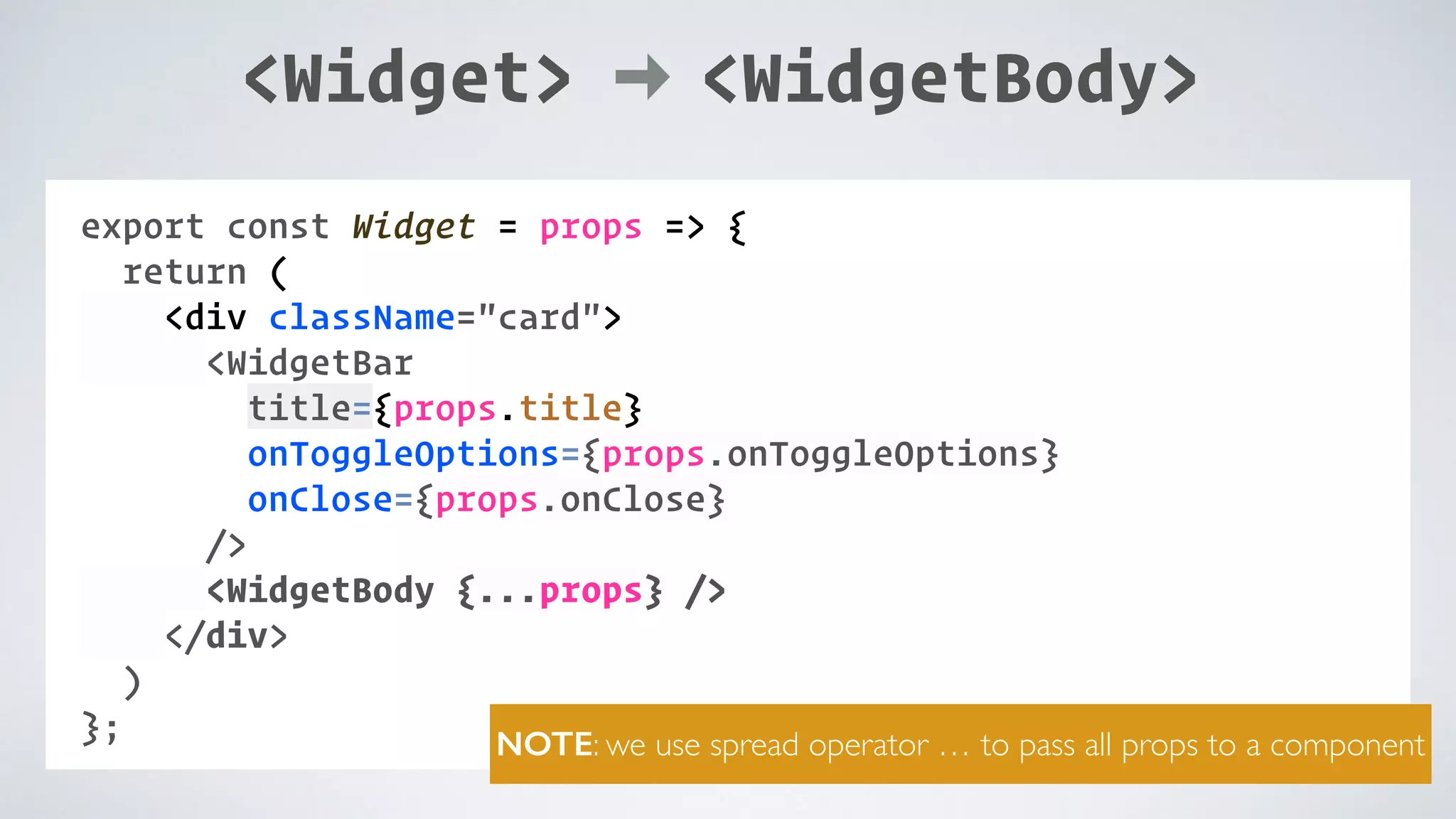

- 44. COMPONENT: export const Widget= props => { return ( <div className="card"> <WidgetBar title={props.title} onToggleOptions={props.onToggleOptions} onClose={props.onClose} /> <WidgetBody {...props} /> </div> ) }; NOTE: we use spread operator … to pass all props to a component <Widget> <WidgetBody>

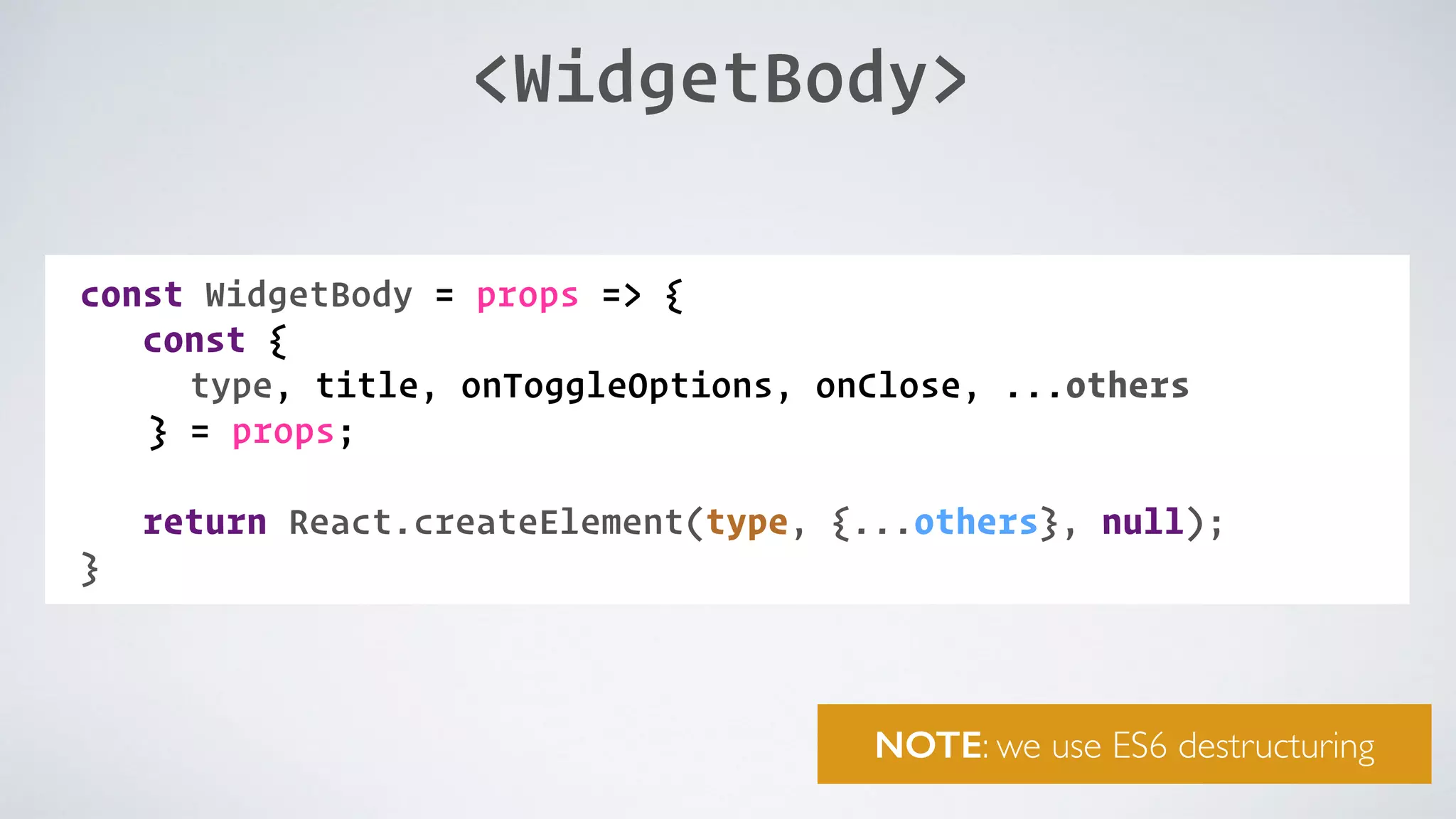

- 45. <WidgetBody> const WidgetBody =props => { const { type, title, onToggleOptions, onClose, ...others } = props; return React.createElement(type, {...others}, null); } NOTE: we use ES6 destructuring
- 47. PART 5 type ASSTRING (USEFUL WHEN WIDGET CONFIGURATION IS LOADED FROM JSON)

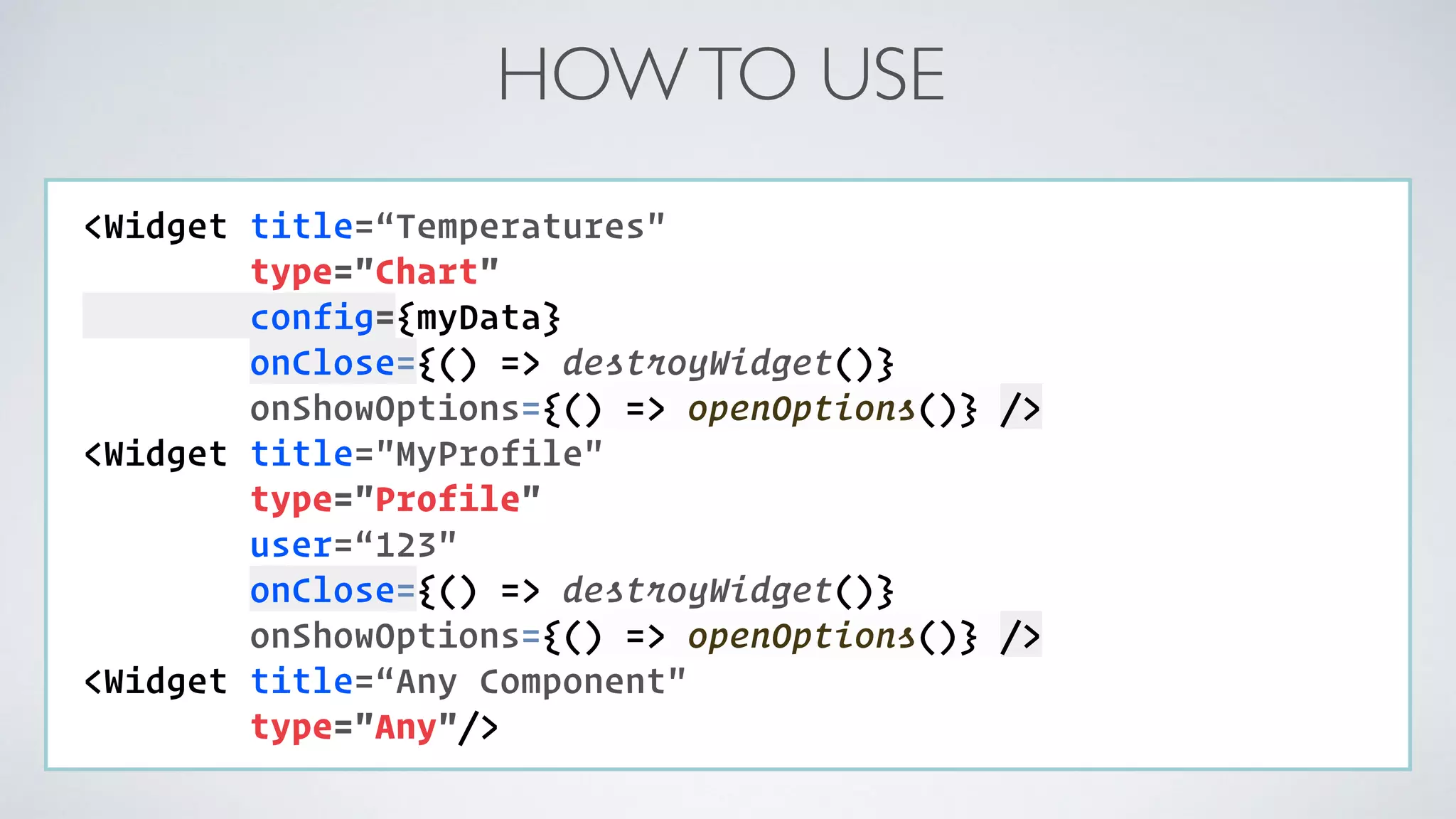

- 48. HOWTO USE COMPONENT: <Widget title=“Temperatures" type="Chart" config={myData} onClose={() => destroyWidget()} onShowOptions={() => openOptions()} /> <Widget title="MyProfile" type="Profile" user=“123" onClose={() => destroyWidget()} onShowOptions={() => openOptions()} /> <Widget title=“Any Component" type="Any"/>

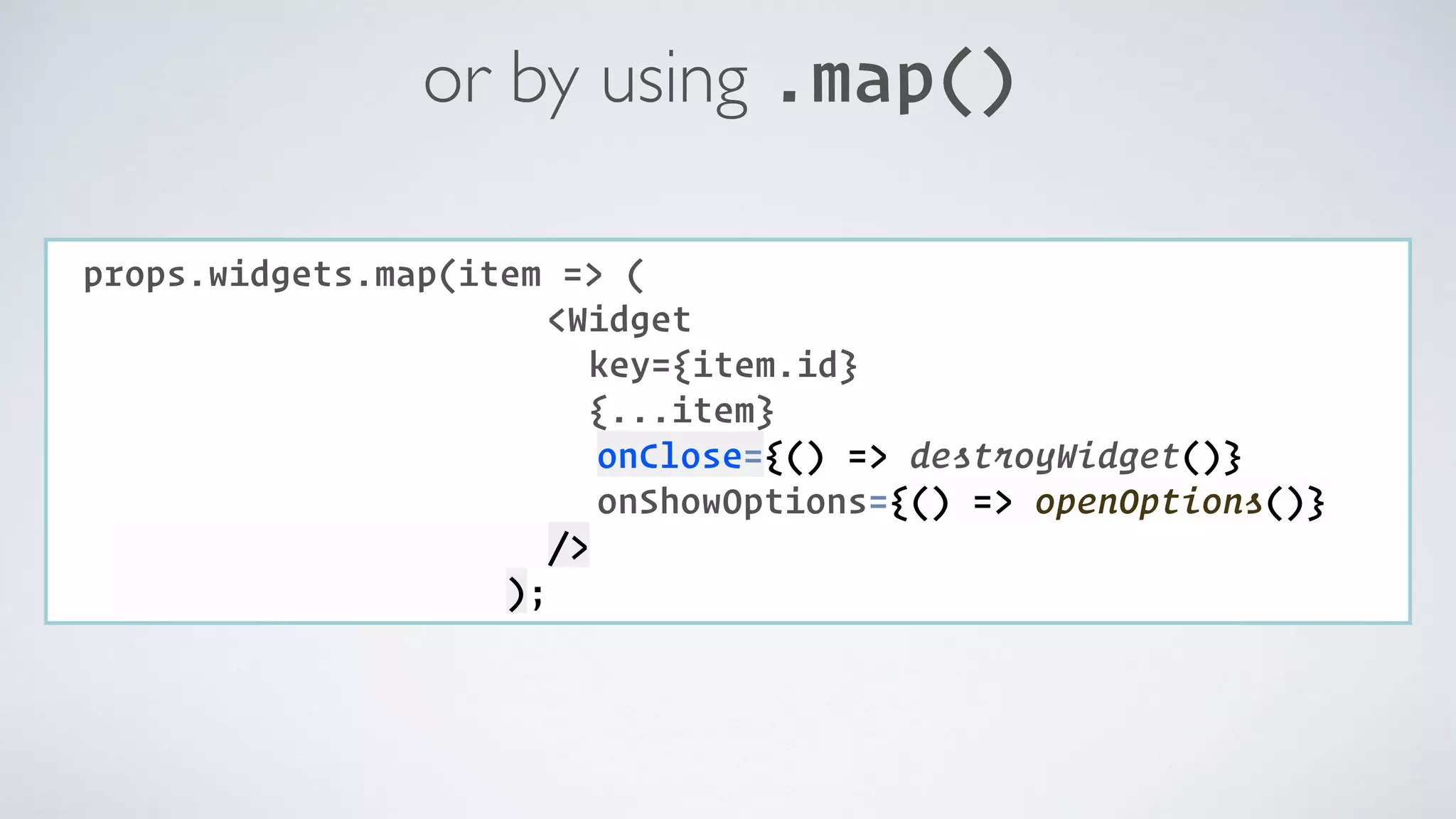

- 49. or by using.map() COMPONENT: props.widgets.map(item => ( <Widget key={item.id} {...item} onClose={() => destroyWidget()} onShowOptions={() => openOptions()} /> );

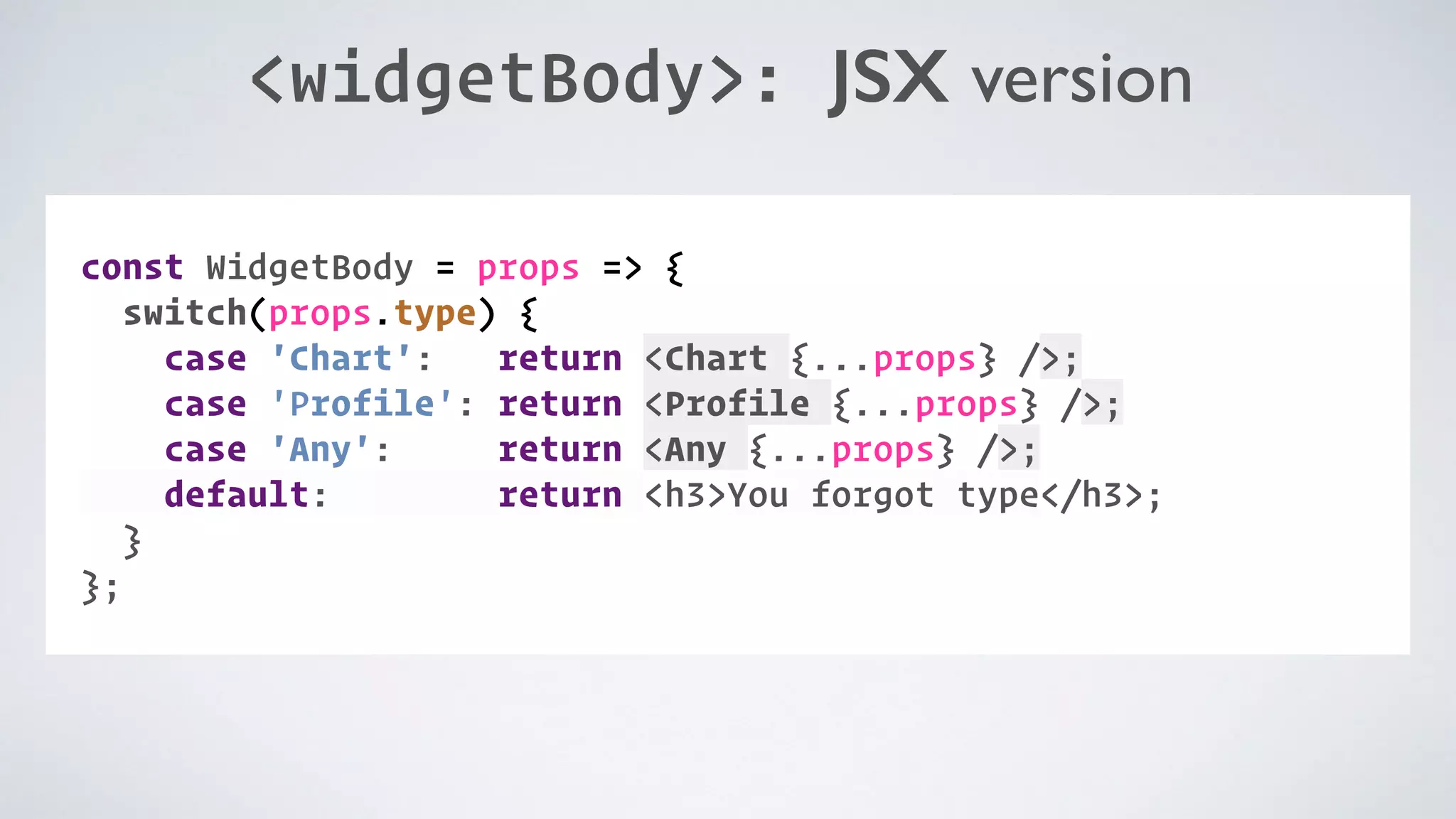

- 50. <widgetBody>: JSX version COMPONENT: constWidgetBody = props => { switch(props.type) { case 'Chart': return <Chart {...props} />; case 'Profile': return <Profile {...props} />; case 'Any': return <Any {...props} />; default: return <h3>You forgot type</h3>; } };

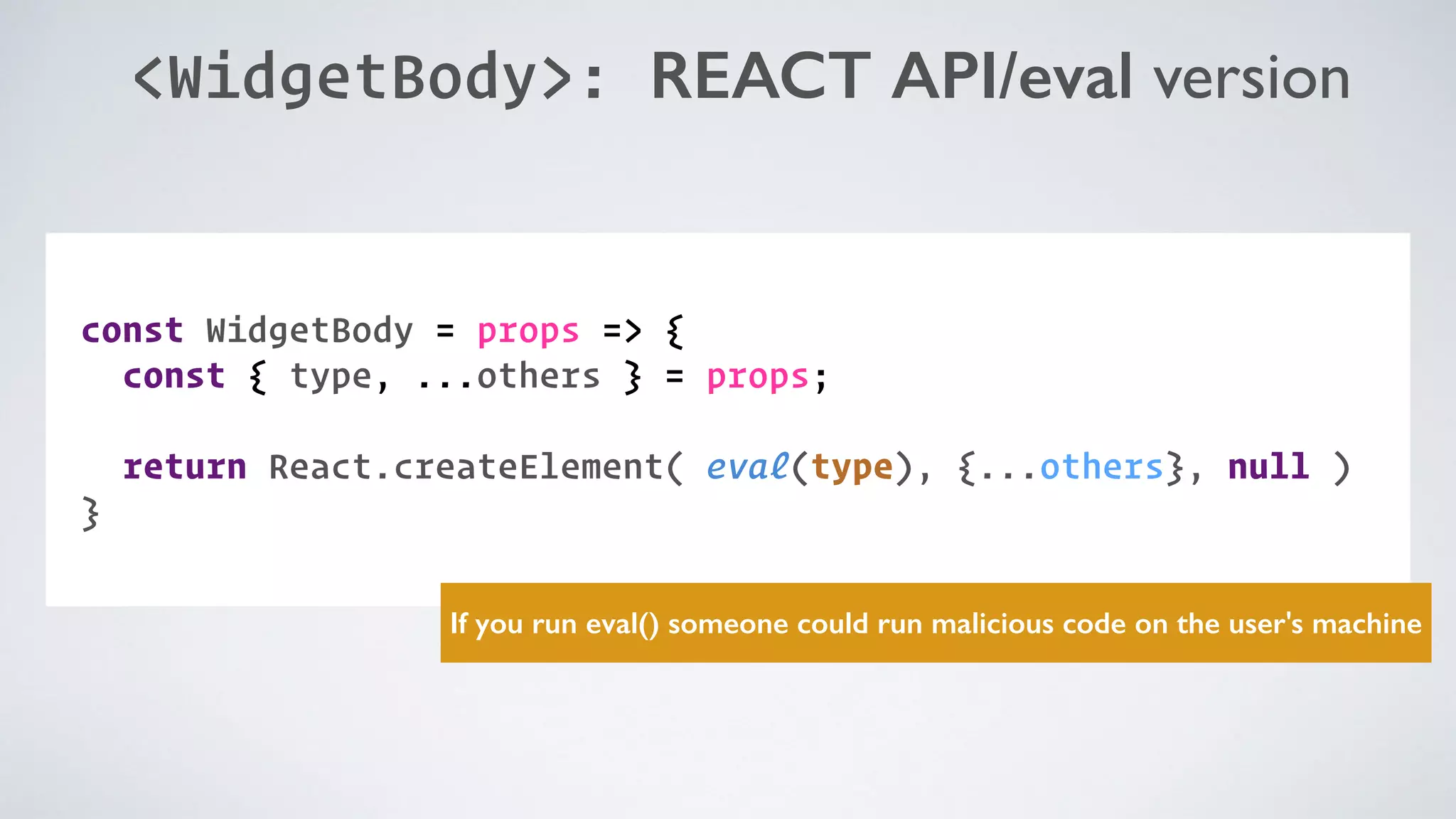

- 51. <WidgetBody>: REACT API/evalversion COMPONENT: const WidgetBody = props => { const { type, ...others } = props; return React.createElement( eval(type), {...others}, null ) } If you run eval() someone could run malicious code on the user's machine

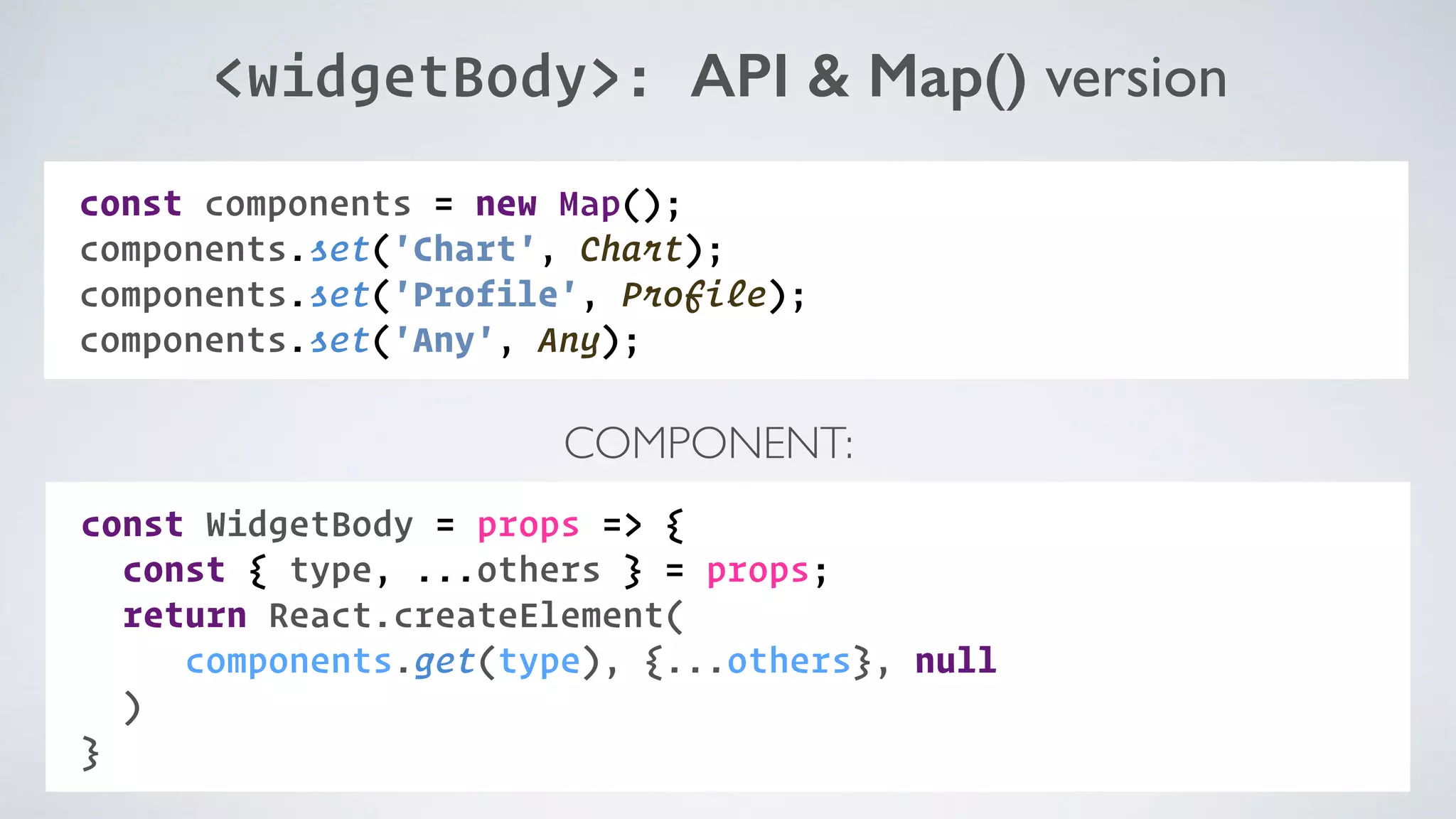

- 52. <widgetBody>: API &Map() version COMPONENT: const WidgetBody = props => { const { type, ...others } = props; return React.createElement( components.get(type), {...others}, null ) } const components = new Map(); components.set('Chart', Chart); components.set('Profile', Profile); components.set('Any', Any);
- 54. CAN I DOTHESAME IN ANGULAR?
- 55.

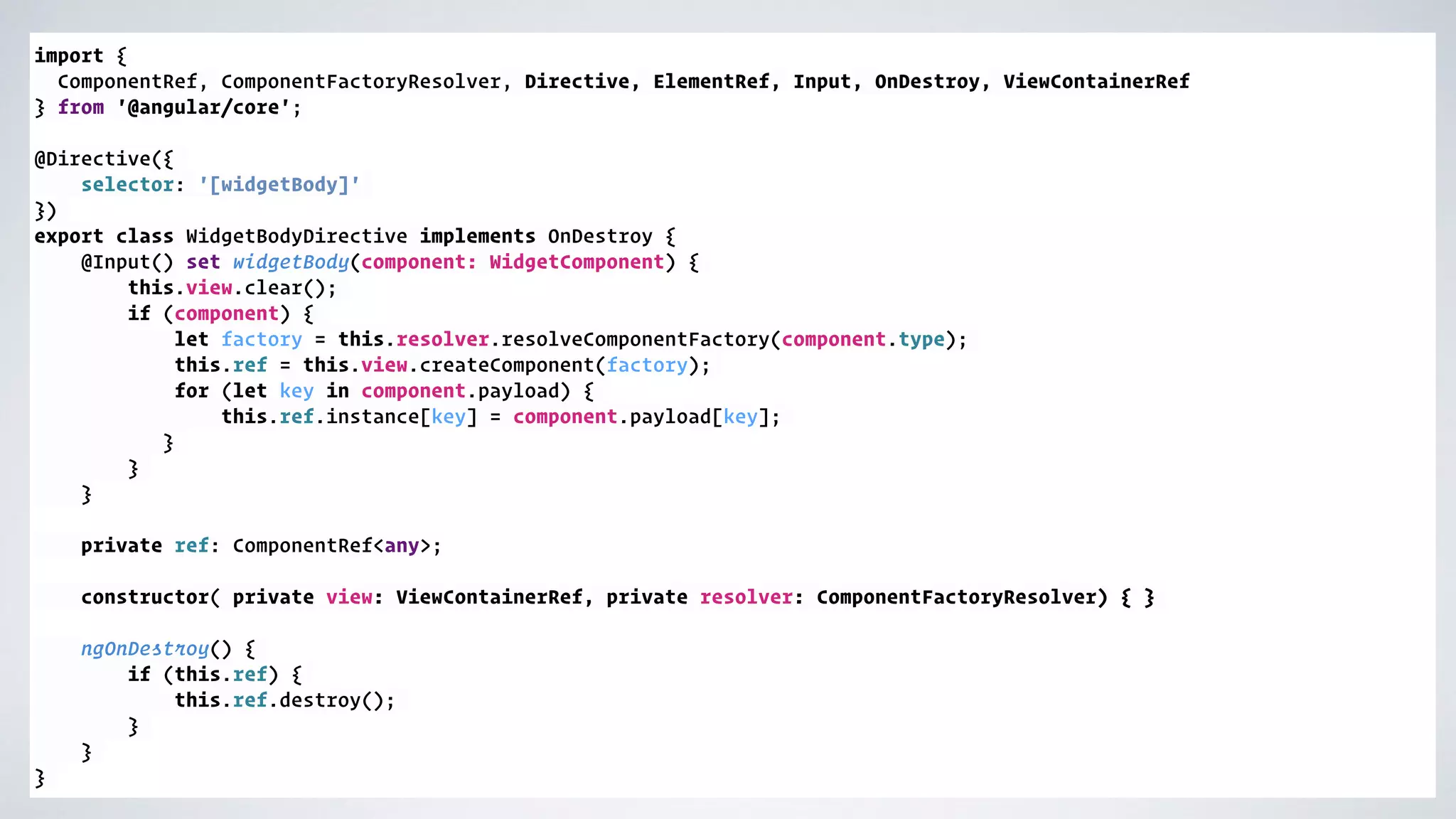

- 56. import { ComponentRef, ComponentFactoryResolver,Directive, ElementRef, Input, OnDestroy, ViewContainerRef } from '@angular/core'; @Directive({ selector: '[widgetBody]' }) export class WidgetBodyDirective implements OnDestroy { @Input() set widgetBody(component: WidgetComponent) { this.view.clear(); if (component) { let factory = this.resolver.resolveComponentFactory(component.type); this.ref = this.view.createComponent(factory); for (let key in component.payload) { this.ref.instance[key] = component.payload[key]; } } } private ref: ComponentRef<any>; constructor( private view: ViewContainerRef, private resolver: ComponentFactoryResolver) { } ngOnDestroy() { if (this.ref) { this.ref.destroy(); } } }
- 58.
- 59.
- 60. JOIN OUR COMMUNITIES ANGULAR DEVELOPER ITALIANI JAVASCRIPT DEVELOPER ITALIANI REACT DEVELOPER ITALIANI
