Write an API for Almost Anything: The Amazing Power and Flexibility of Django Rest Framework
The document discusses how to build APIs using Django Rest Framework. It explains that Django Rest Framework allows Django code and data to be accessed via API endpoints. It provides a breakdown of the key components needed, including serializers to define request and response formats, viewsets to handle requests and responses, and routers to define URL patterns. Documentation and testing are also emphasized to ensure usability and prevent errors from changes. Overall the document serves as a tutorial for getting started with building APIs using Django Rest Framework.
Write an API for Almost Anything: The Amazing Power and Flexibility of Django Rest Framework
- 1. Write an APIfor Almost Anything DjangoCon 2017 The Amazing Power and Flexibility of Django Rest Framework
- 2. Who Am I? ●WebDeveloper at Caktus Group ●Organizer of PyLadies RDU ●Builder and User of APIs Note: Slides available at: http://cakt.us/DjangoCon2017talk
- 3. What does “API”mean, anyway? ● “Application Programming Interface” ● Definition (techtarget.com): “An application program interface (API) is code that allows two software programs to communicate with each other.”

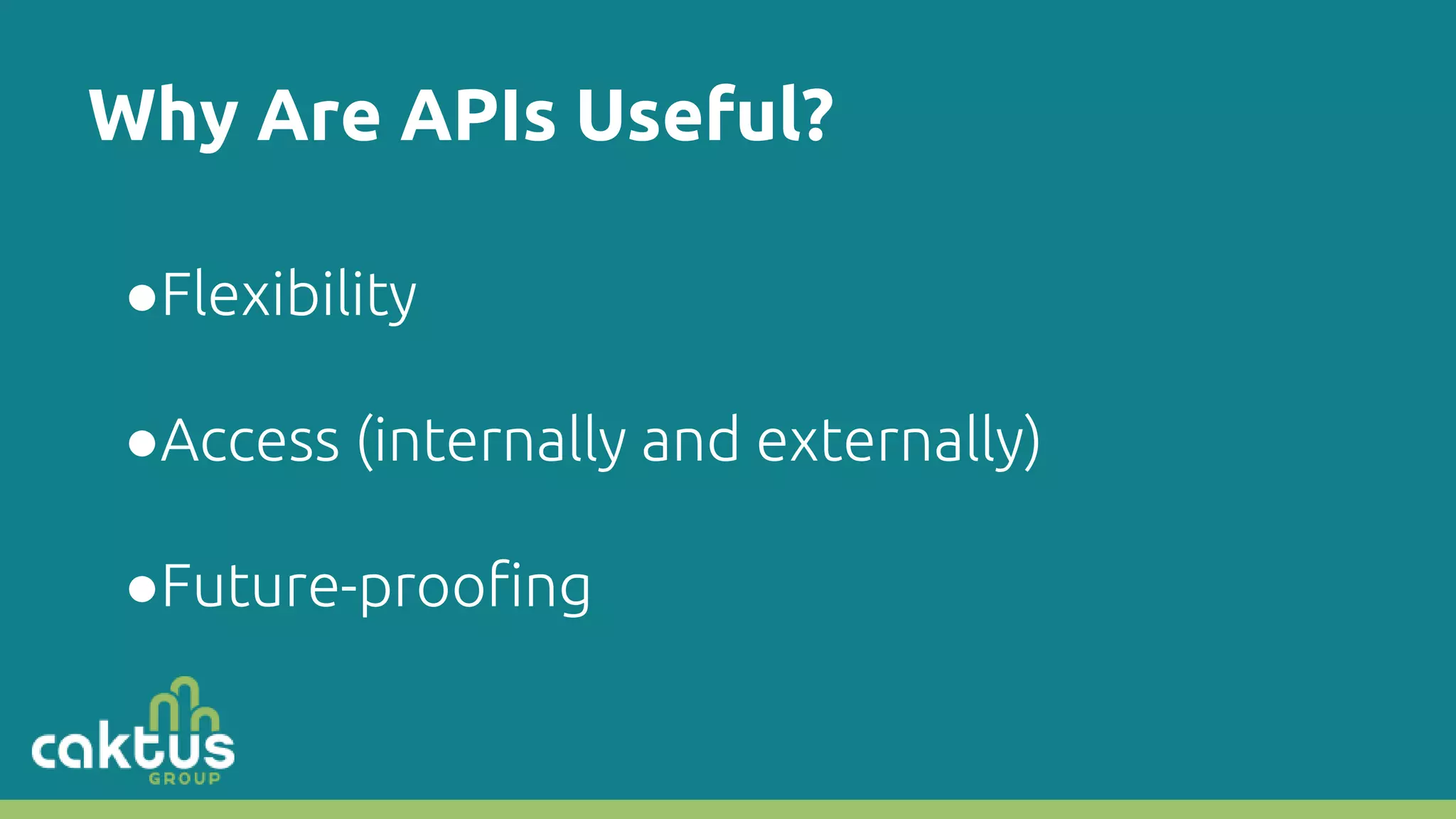

- 4. Why Are APIsUseful? ●Flexibility ●Access (internally and externally) ●Future-proofing

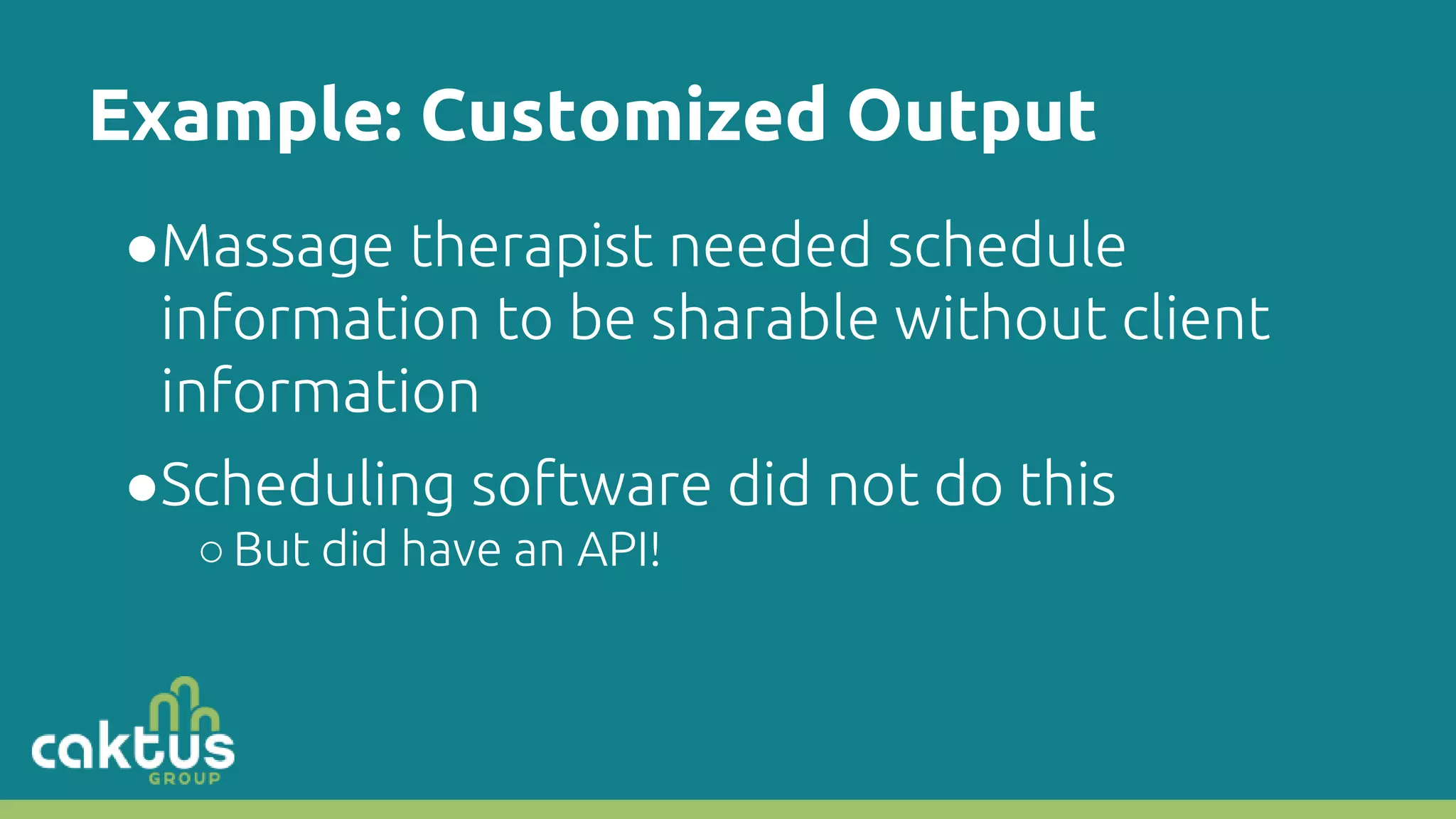

- 5. Example: Customized Output ●Massagetherapist needed schedule information to be sharable without client information ●Scheduling software did not do this ○But did have an API!

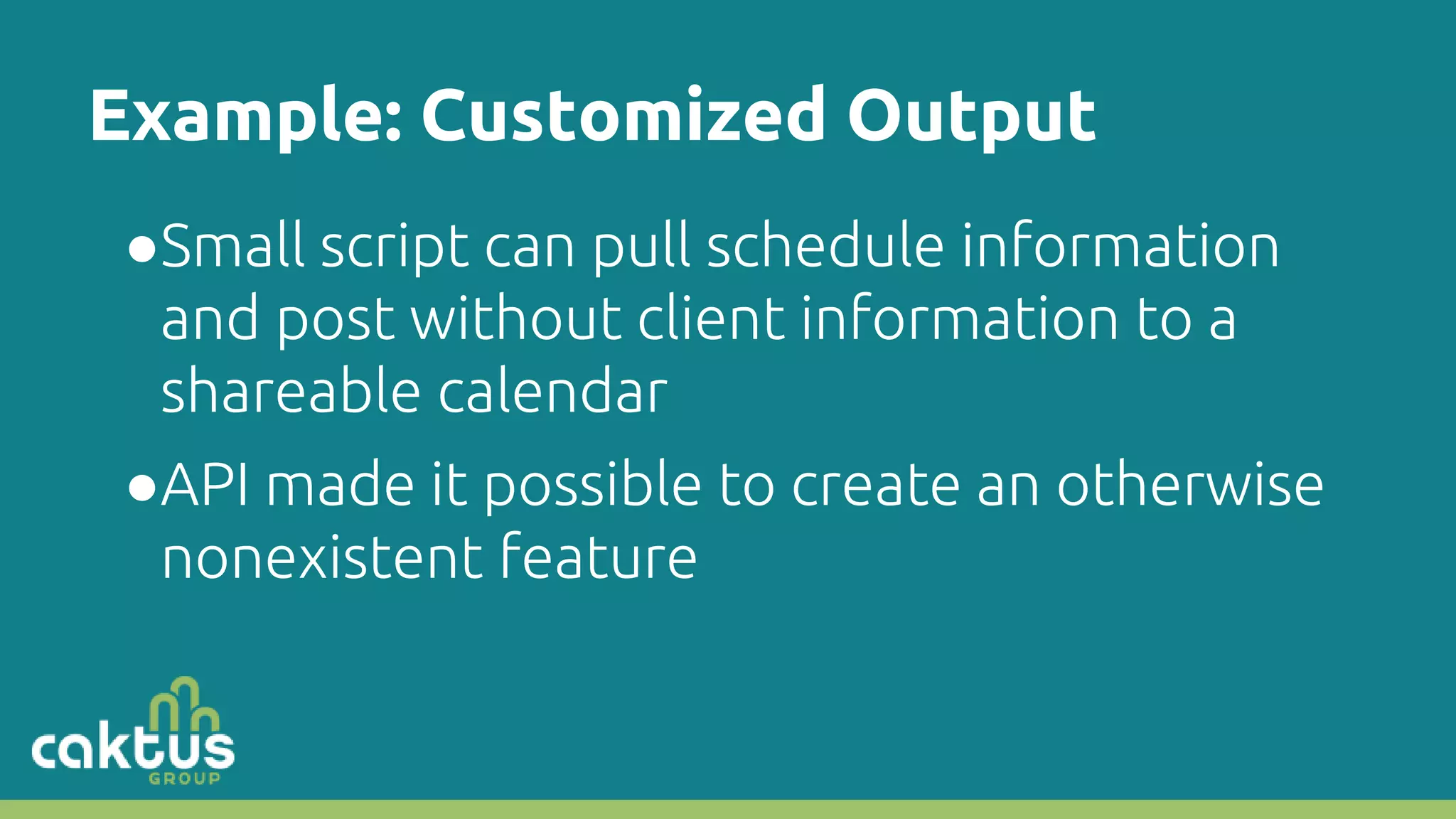

- 6. Example: Customized Output ●Smallscript can pull schedule information and post without client information to a shareable calendar ●API made it possible to create an otherwise nonexistent feature

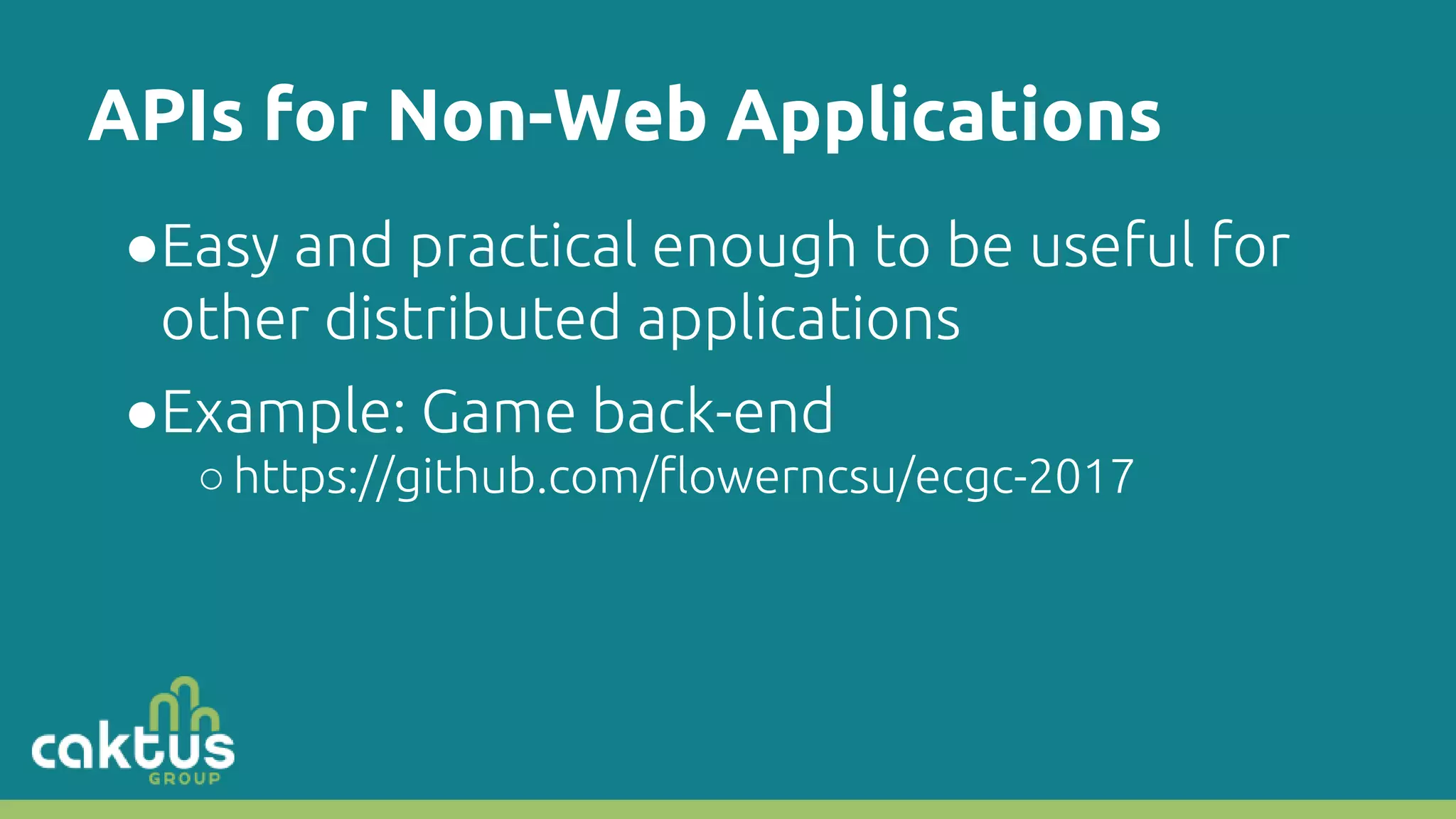

- 7. APIs for Non-WebApplications ●Easy and practical enough to be useful for other distributed applications ●Example: Game back-end ○https://github.com/flowerncsu/ecgc-2017

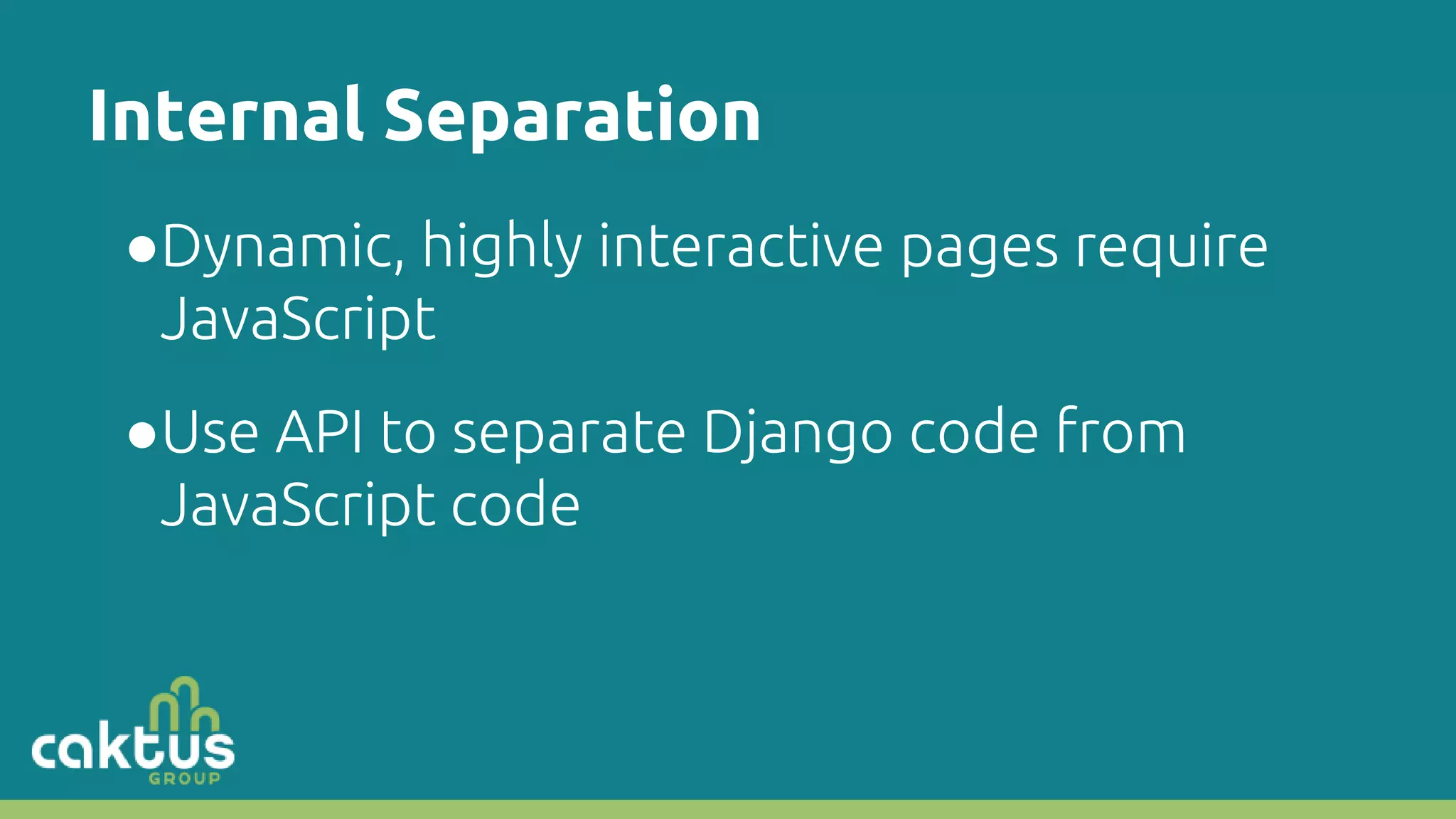

- 8. Internal Separation ●Dynamic, highlyinteractive pages require JavaScript ●Use API to separate Django code from JavaScript code

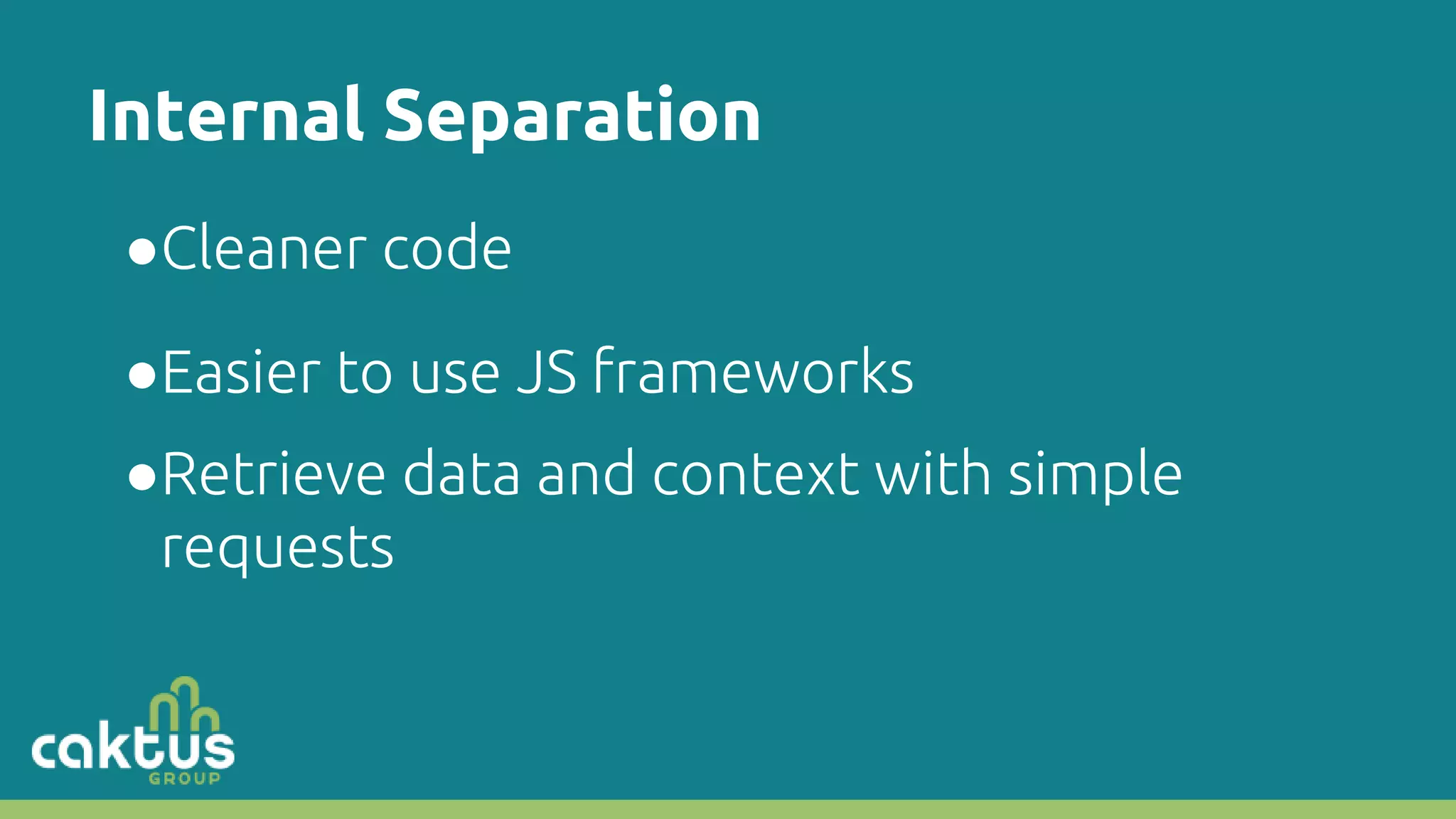

- 9. Internal Separation ●Cleaner code ●Easierto use JS frameworks ●Retrieve data and context with simple requests

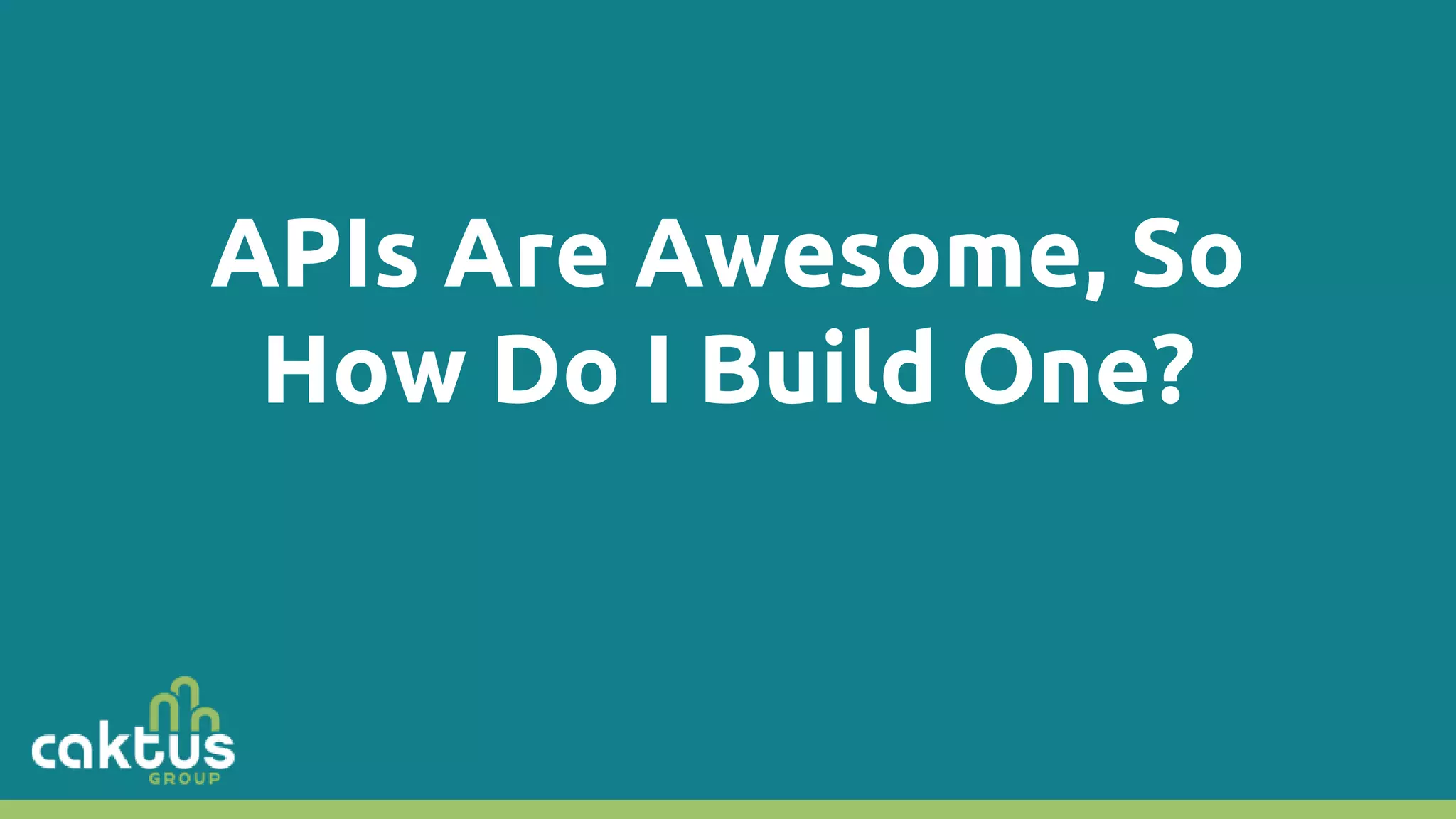

- 10. APIs Are Awesome,So How Do I Build One?

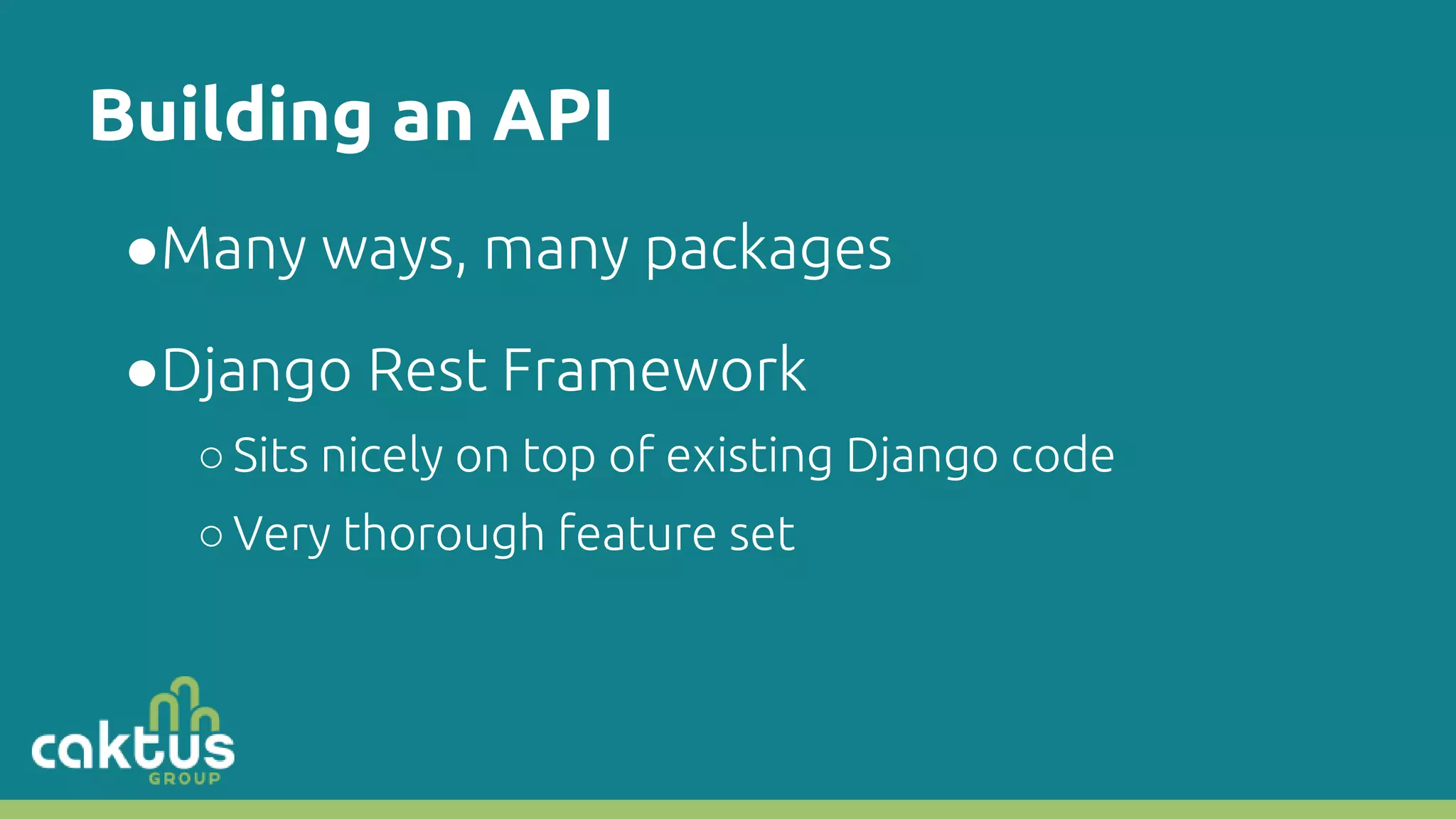

- 11. Building an API ●Manyways, many packages ●Django Rest Framework ○Sits nicely on top of existing Django code ○Very thorough feature set

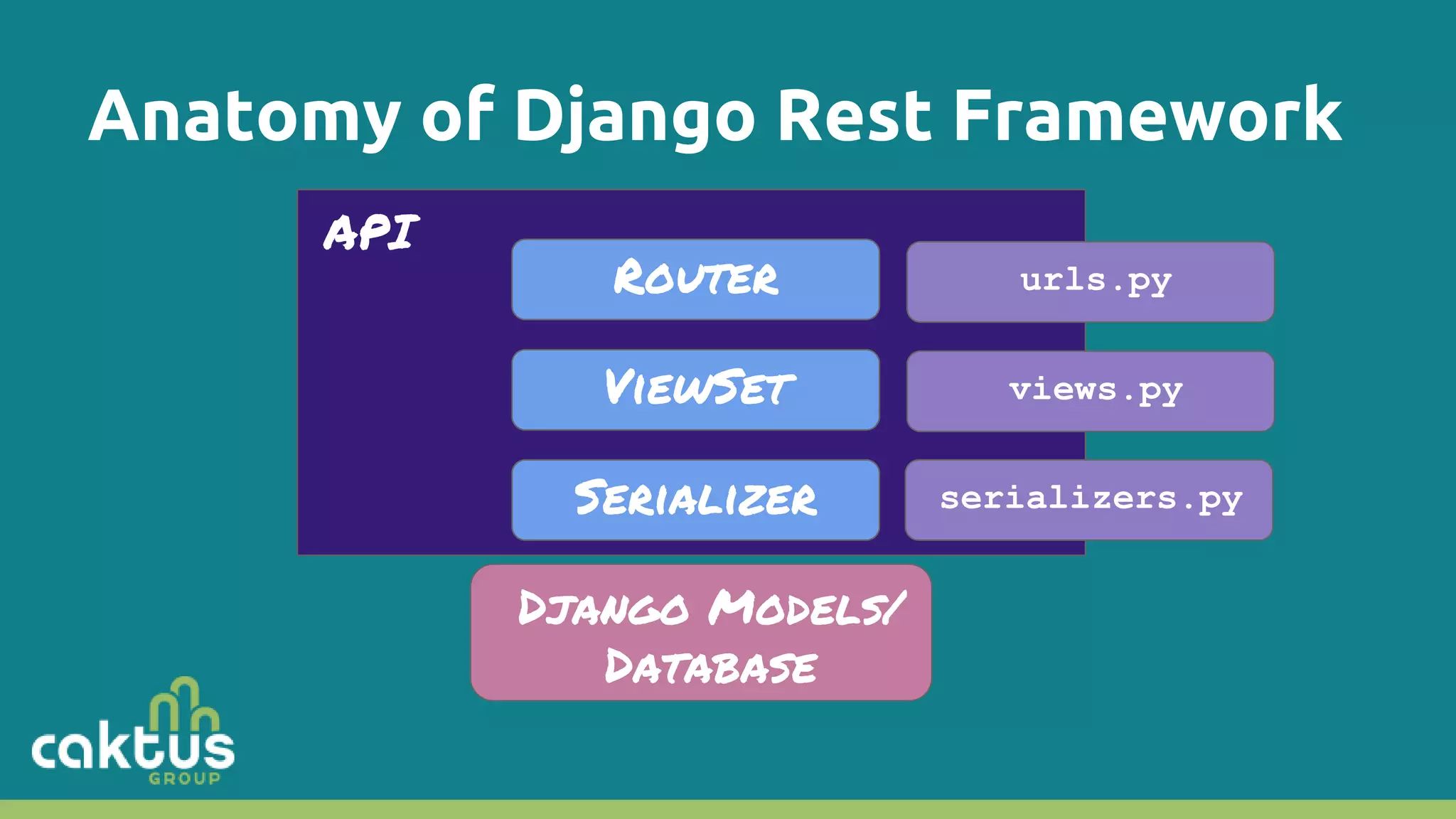

- 12. Anatomy of DjangoRest Framework API Router ViewSet Serializer Django Models/ Database serializers.py views.py urls.py

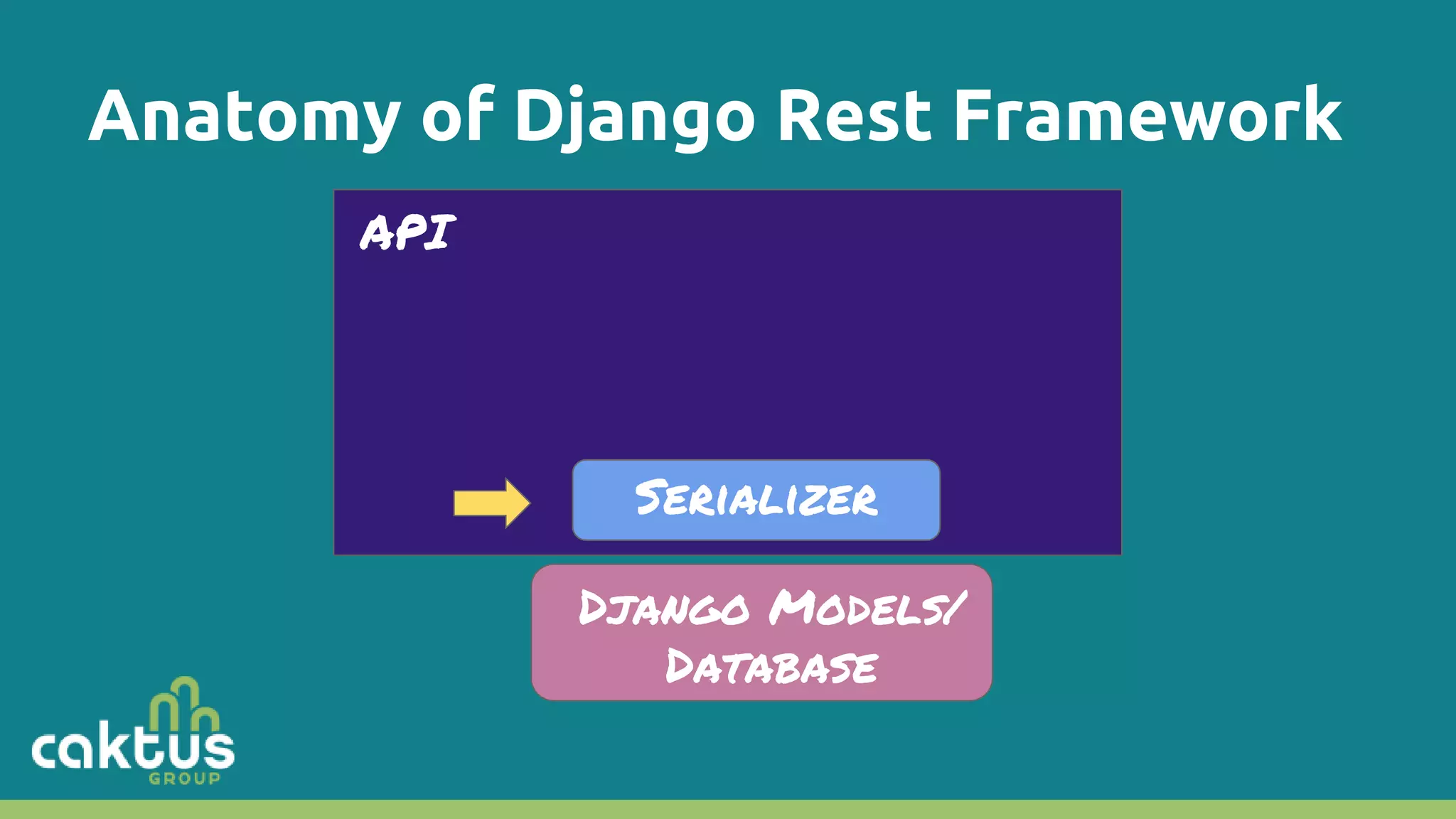

- 13. Anatomy of DjangoRest Framework API Serializer Django Models/ Database

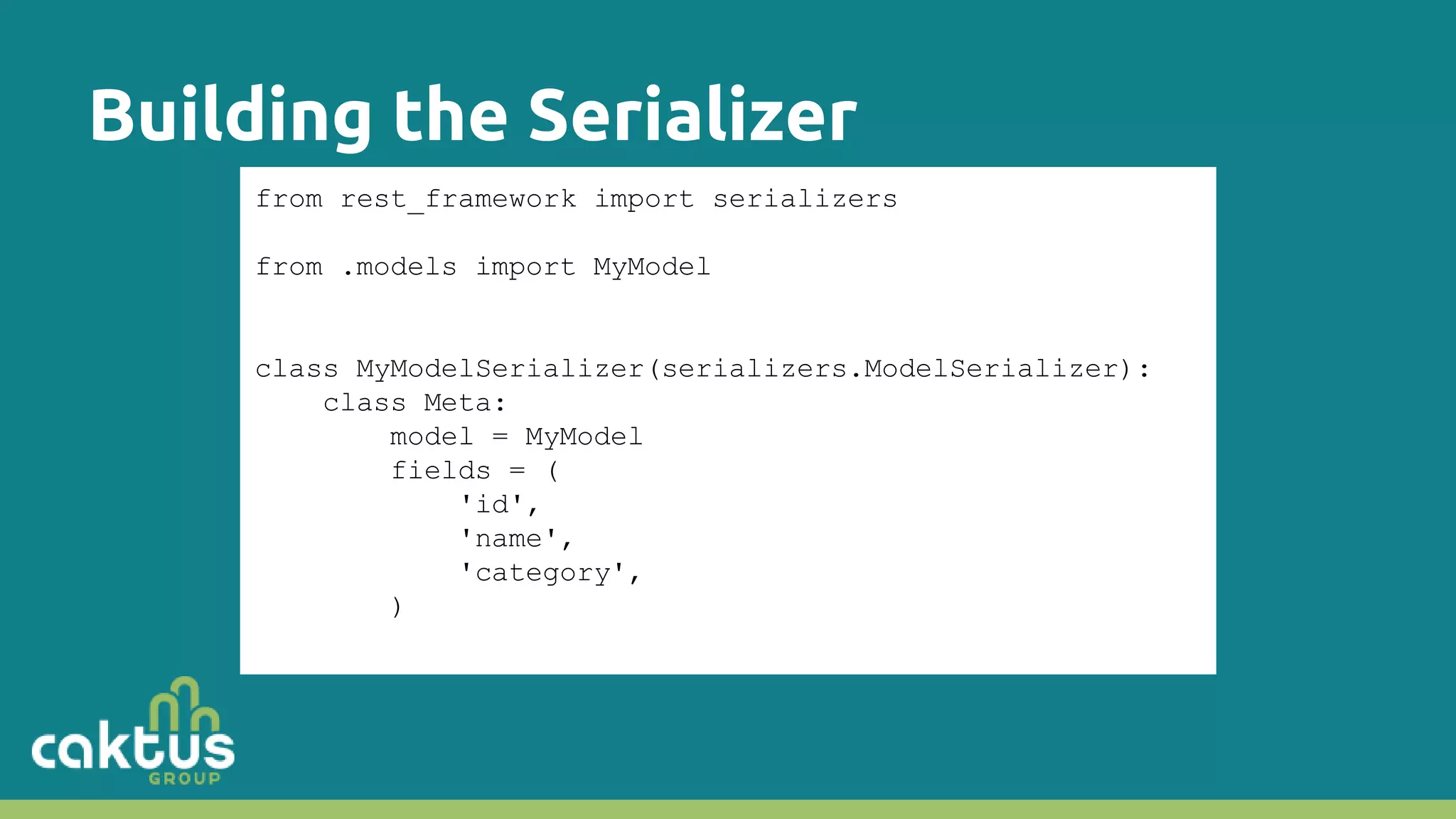

- 14. Building the Serializer fromrest_framework import serializers from .models import MyModel class MyModelSerializer(serializers.ModelSerializer): class Meta: model = MyModel fields = ( 'id', 'name', 'category', )

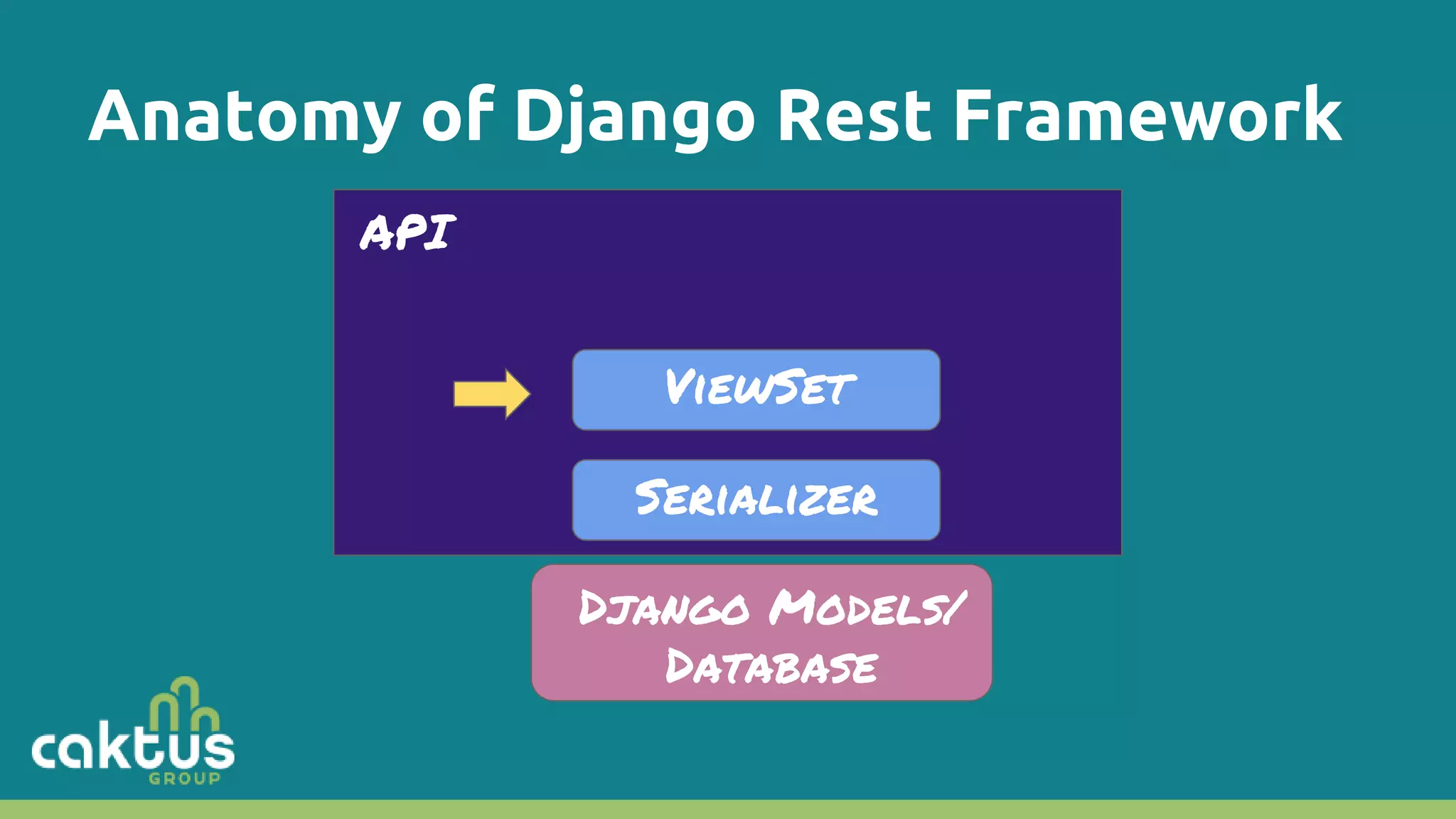

- 15. Anatomy of DjangoRest Framework API ViewSet Serializer Django Models/ Database

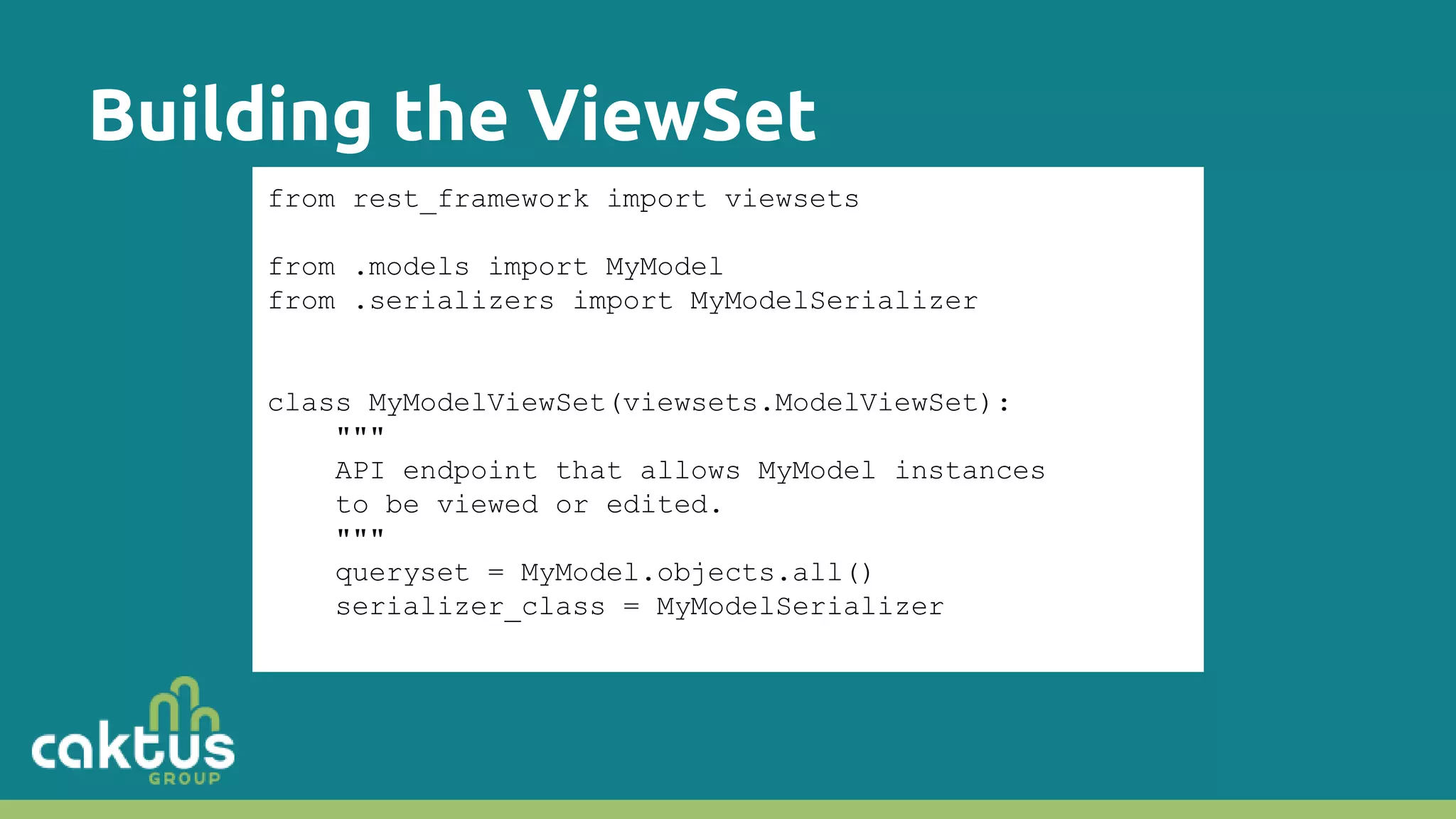

- 16. Building the ViewSet fromrest_framework import viewsets from .models import MyModel from .serializers import MyModelSerializer class MyModelViewSet(viewsets.ModelViewSet): """ API endpoint that allows MyModel instances to be viewed or edited. """ queryset = MyModel.objects.all() serializer_class = MyModelSerializer

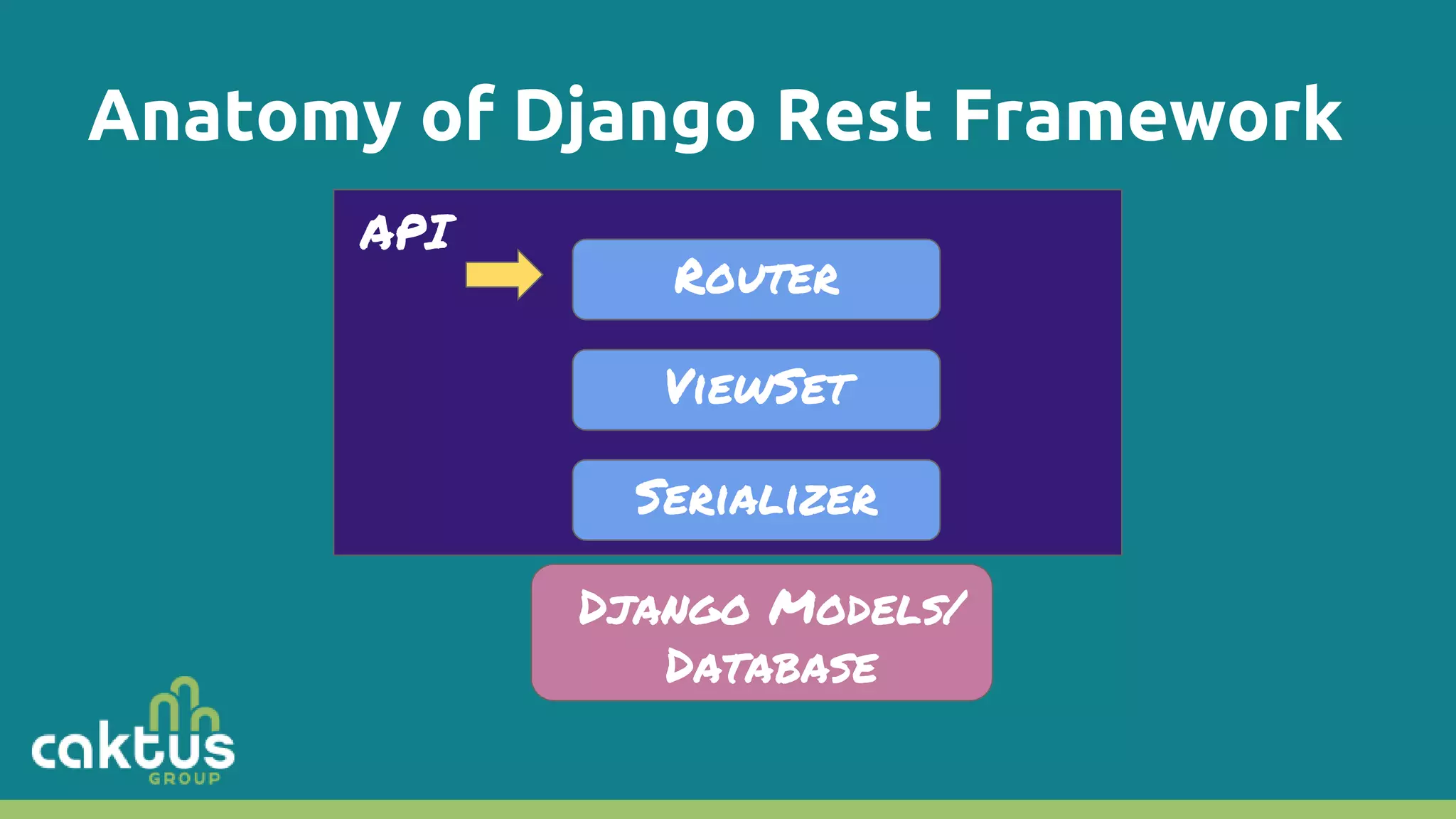

- 17. Anatomy of DjangoRest Framework API Router ViewSet Serializer Django Models/ Database

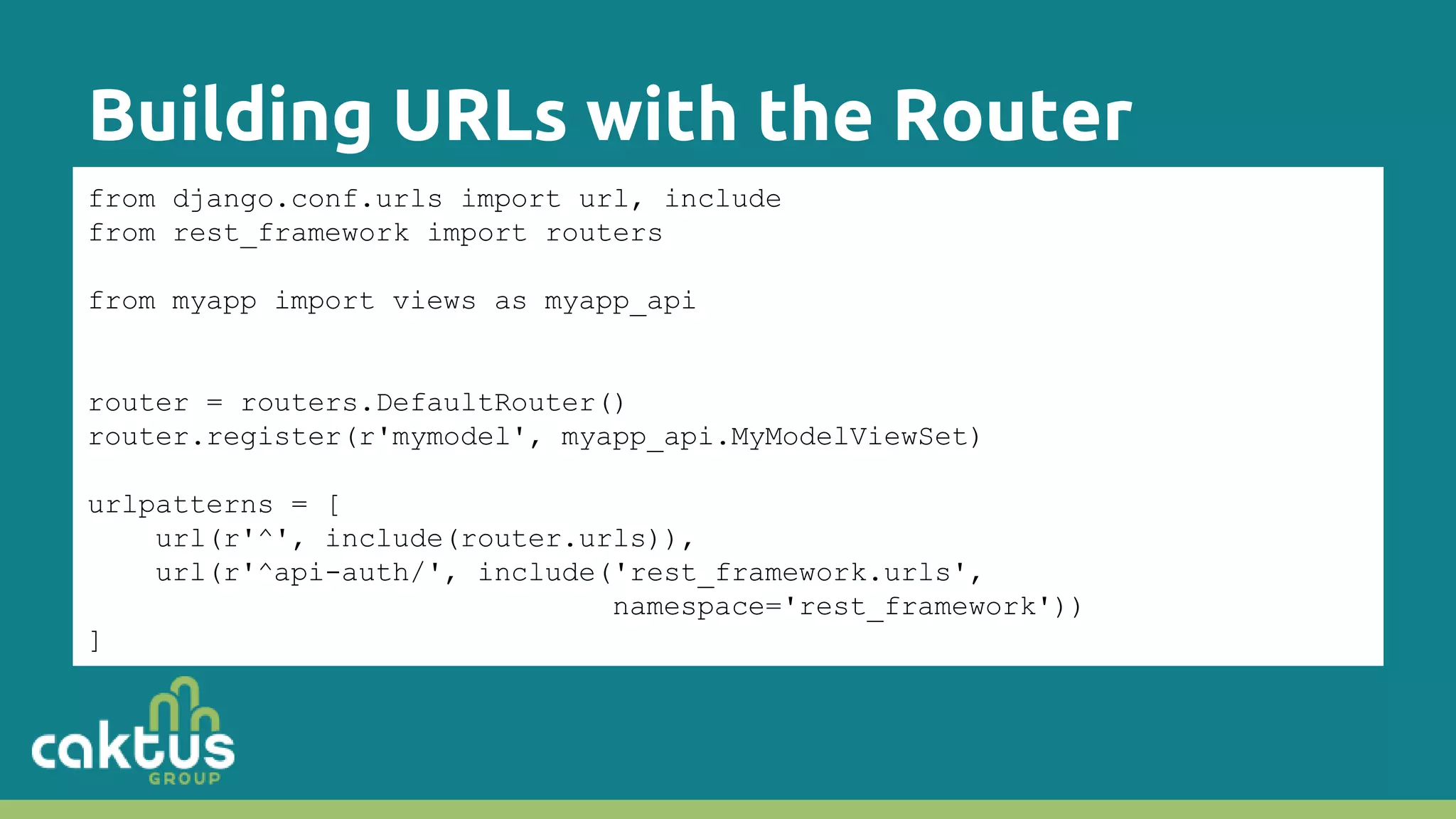

- 18. Building URLs withthe Router from django.conf.urls import url, include from rest_framework import routers from myapp import views as myapp_api router = routers.DefaultRouter() router.register(r'mymodel', myapp_api.MyModelViewSet) urlpatterns = [ url(r'^', include(router.urls)), url(r'^api-auth/', include('rest_framework.urls', namespace='rest_framework')) ]

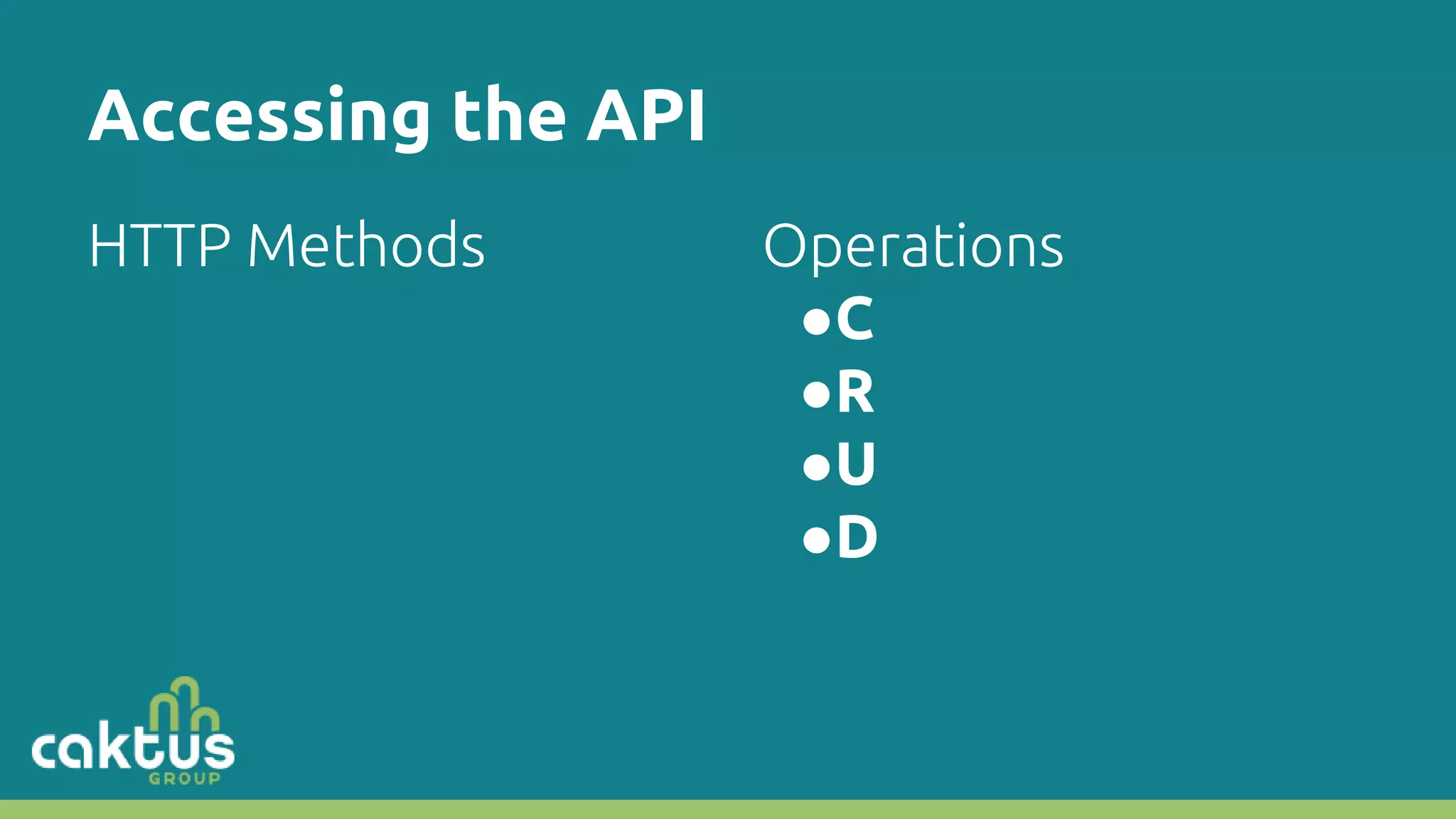

- 19. Accessing the API HTTPMethods Operations ●C ●R ●U ●D

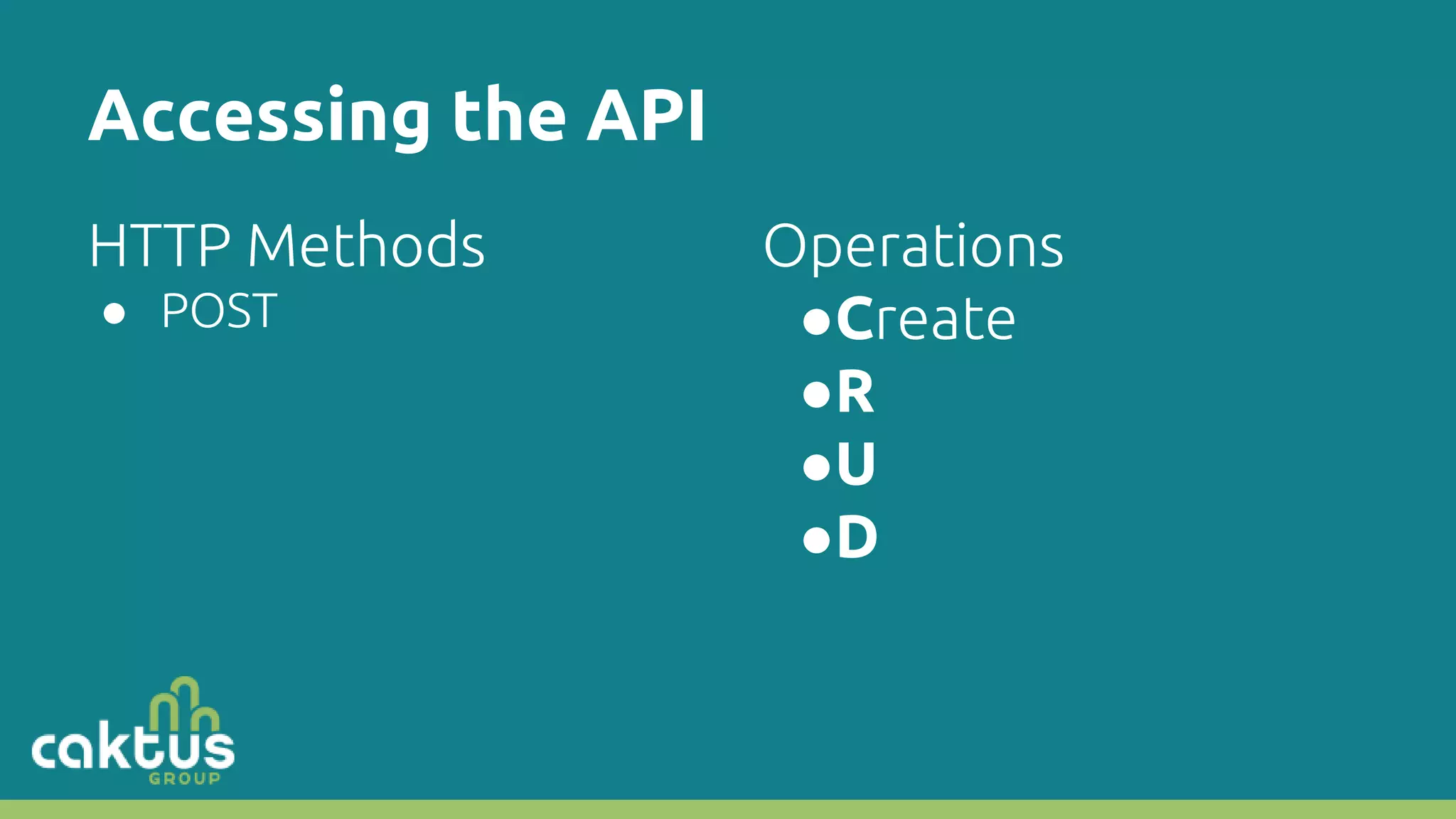

- 20. Accessing the API HTTPMethods ● POST Operations ●Create ●R ●U ●D

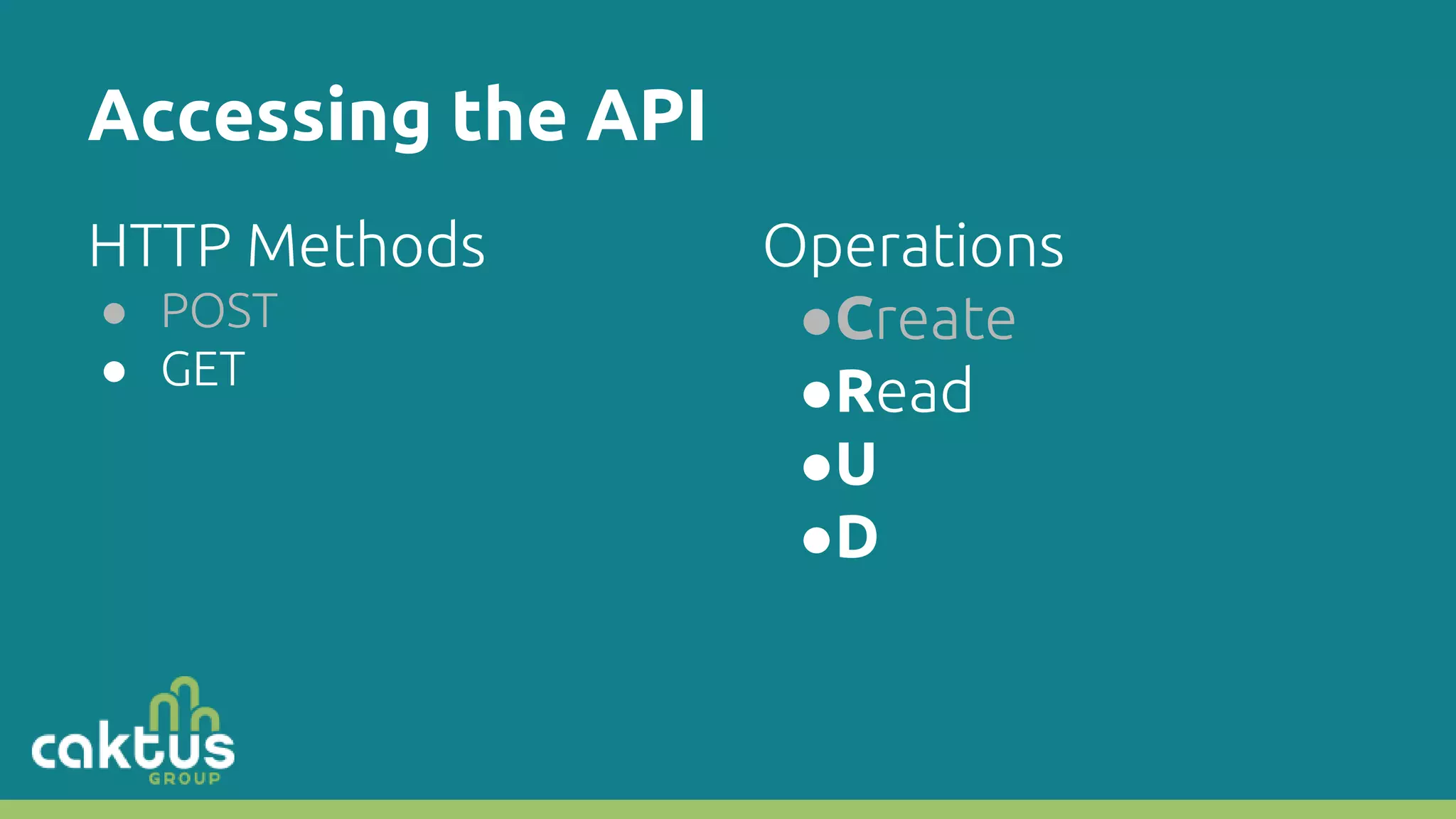

- 21. Accessing the API HTTPMethods ● POST ● GET Operations ●Create ●Read ●U ●D

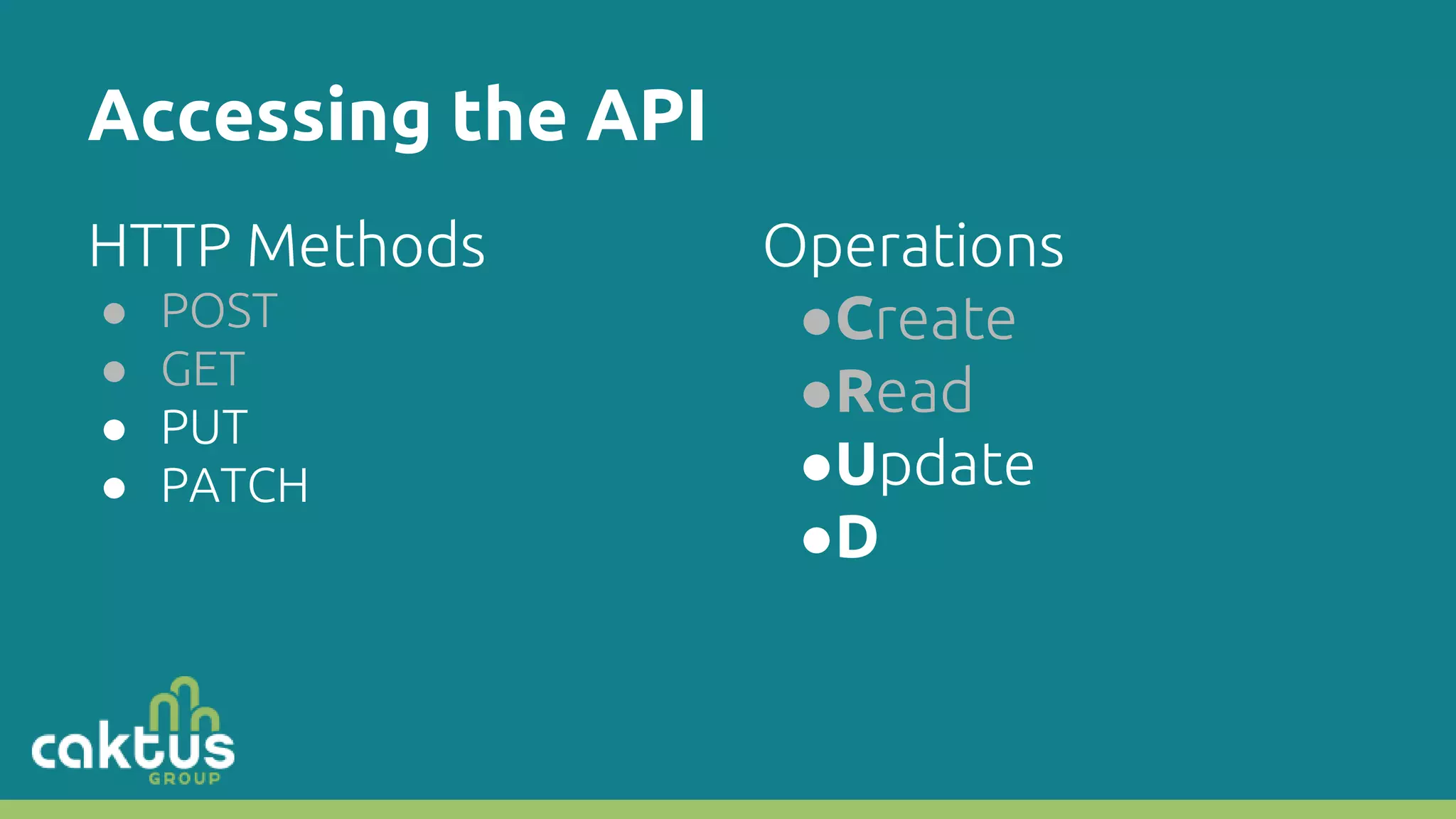

- 22. Accessing the API HTTPMethods ● POST ● GET ● PUT ● PATCH Operations ●Create ●Read ●Update ●D

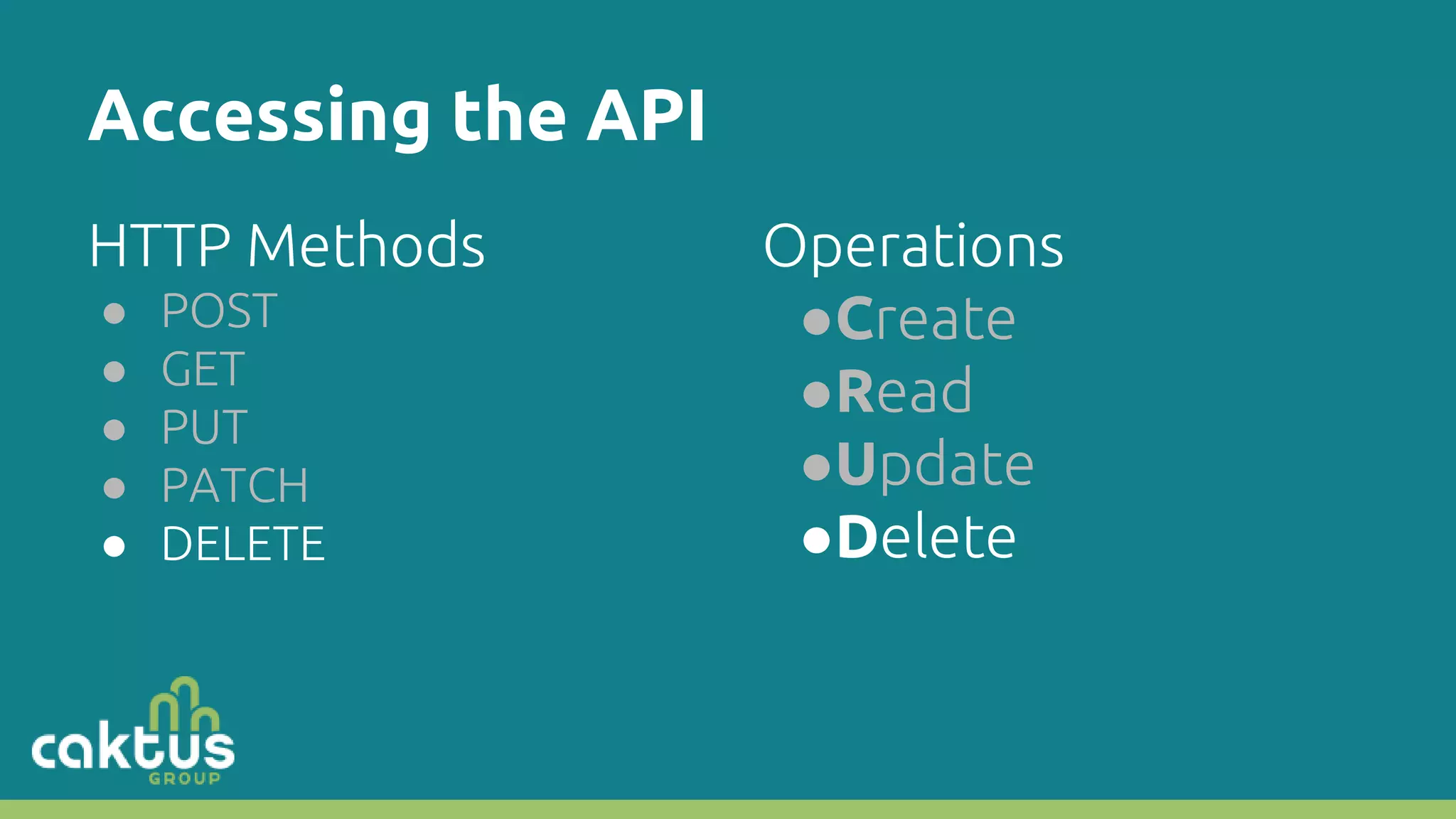

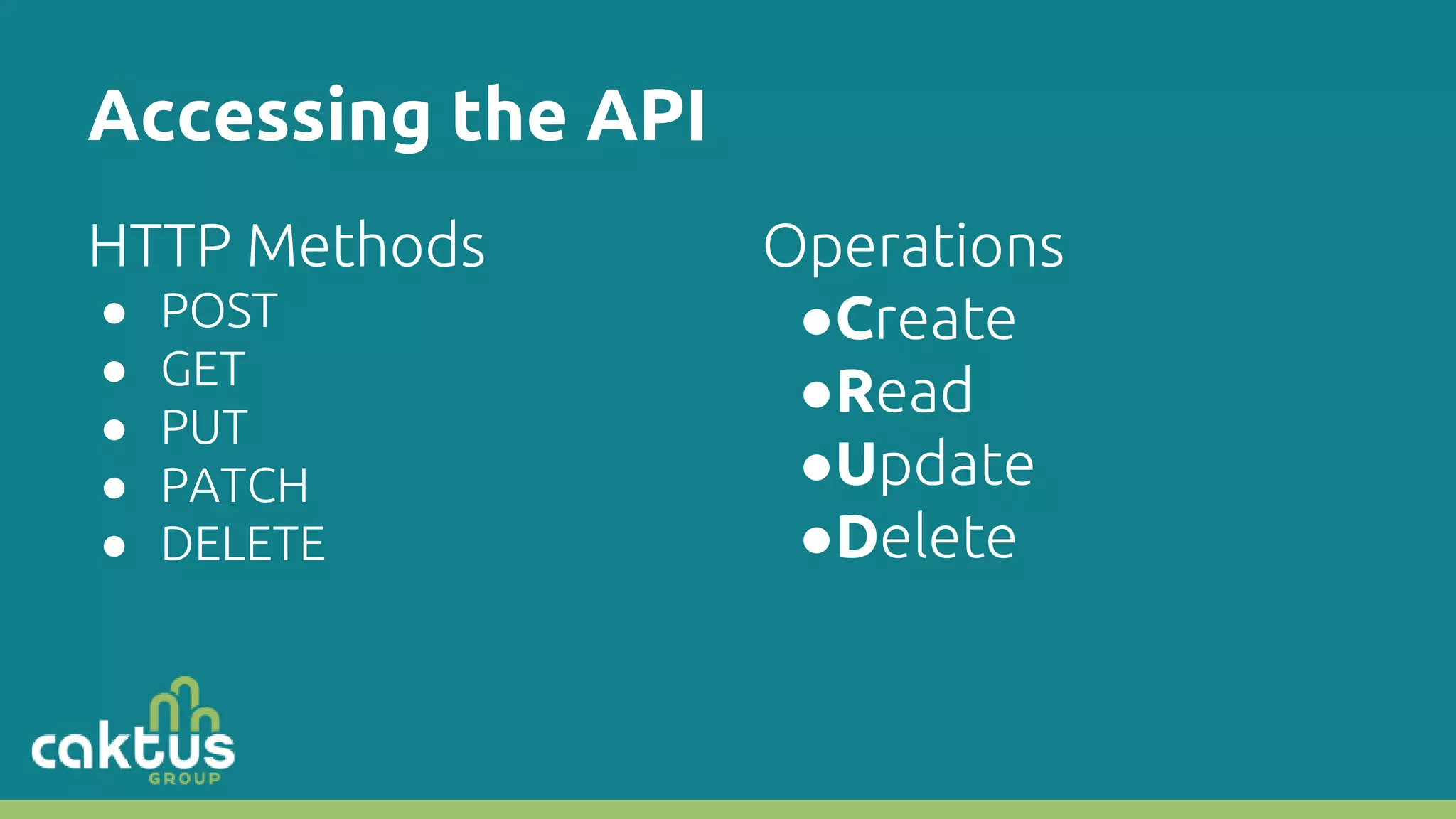

- 23. Accessing the API HTTPMethods ● POST ● GET ● PUT ● PATCH ● DELETE Operations ●Create ●Read ●Update ●Delete
- 24. Accessing the API HTTPMethods ● POST ● GET ● PUT ● PATCH ● DELETE Operations ●Create ●Read ●Update ●Delete

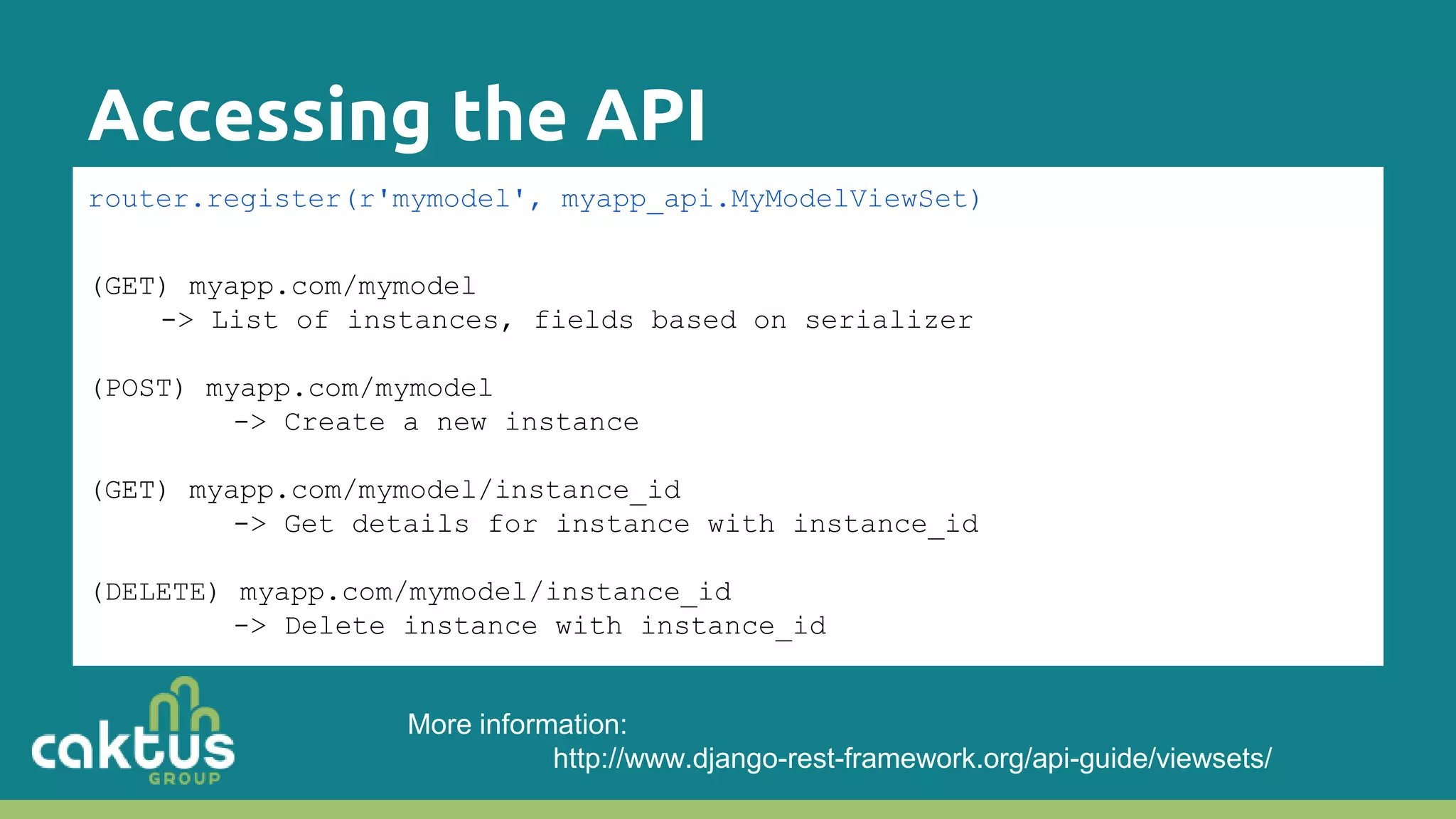

- 25. Accessing the API router.register(r'mymodel',myapp_api.MyModelViewSet) (GET) myapp.com/mymodel -> List of instances, fields based on serializer (POST) myapp.com/mymodel -> Create a new instance (GET) myapp.com/mymodel/instance_id -> Get details for instance with instance_id (DELETE) myapp.com/mymodel/instance_id -> Delete instance with instance_id More information: http://www.django-rest-framework.org/api-guide/viewsets/

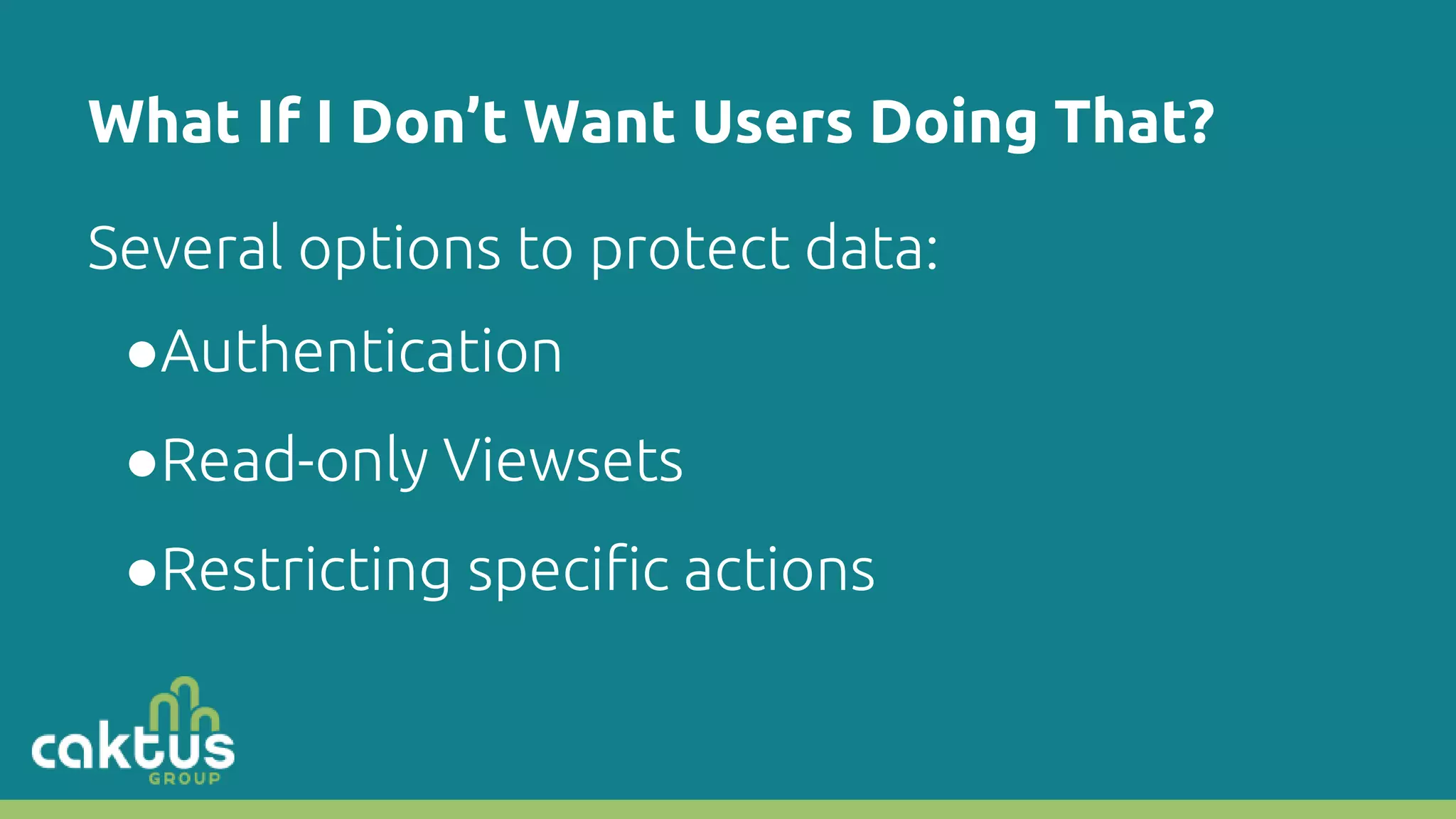

- 26. What If IDon’t Want Users Doing That? Several options to protect data: ●Authentication ●Read-only Viewsets ●Restricting specific actions

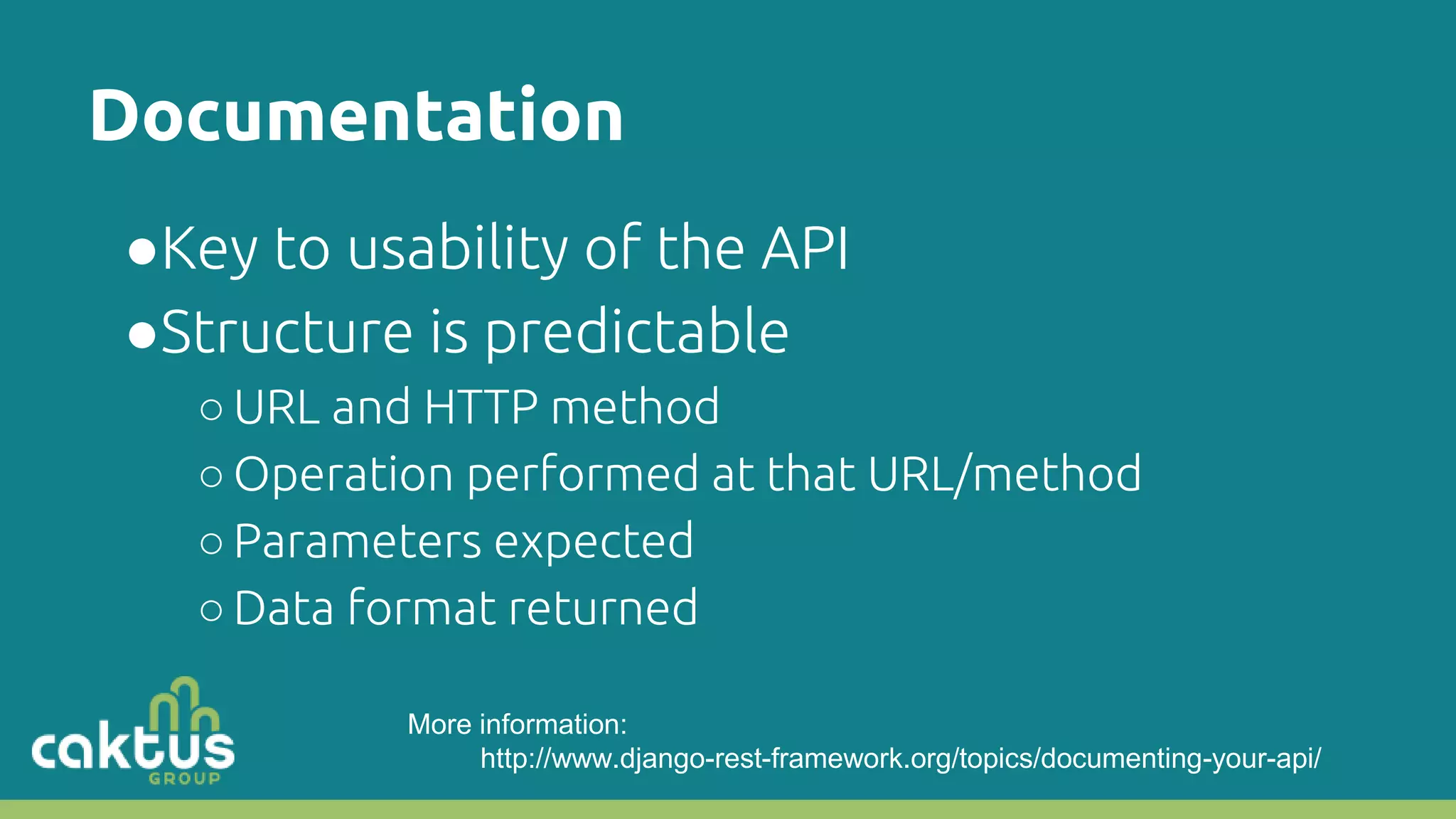

- 27. Documentation ●Key to usabilityof the API ●Structure is predictable ○URL and HTTP method ○Operation performed at that URL/method ○Parameters expected ○Data format returned More information: http://www.django-rest-framework.org/topics/documenting-your-api/

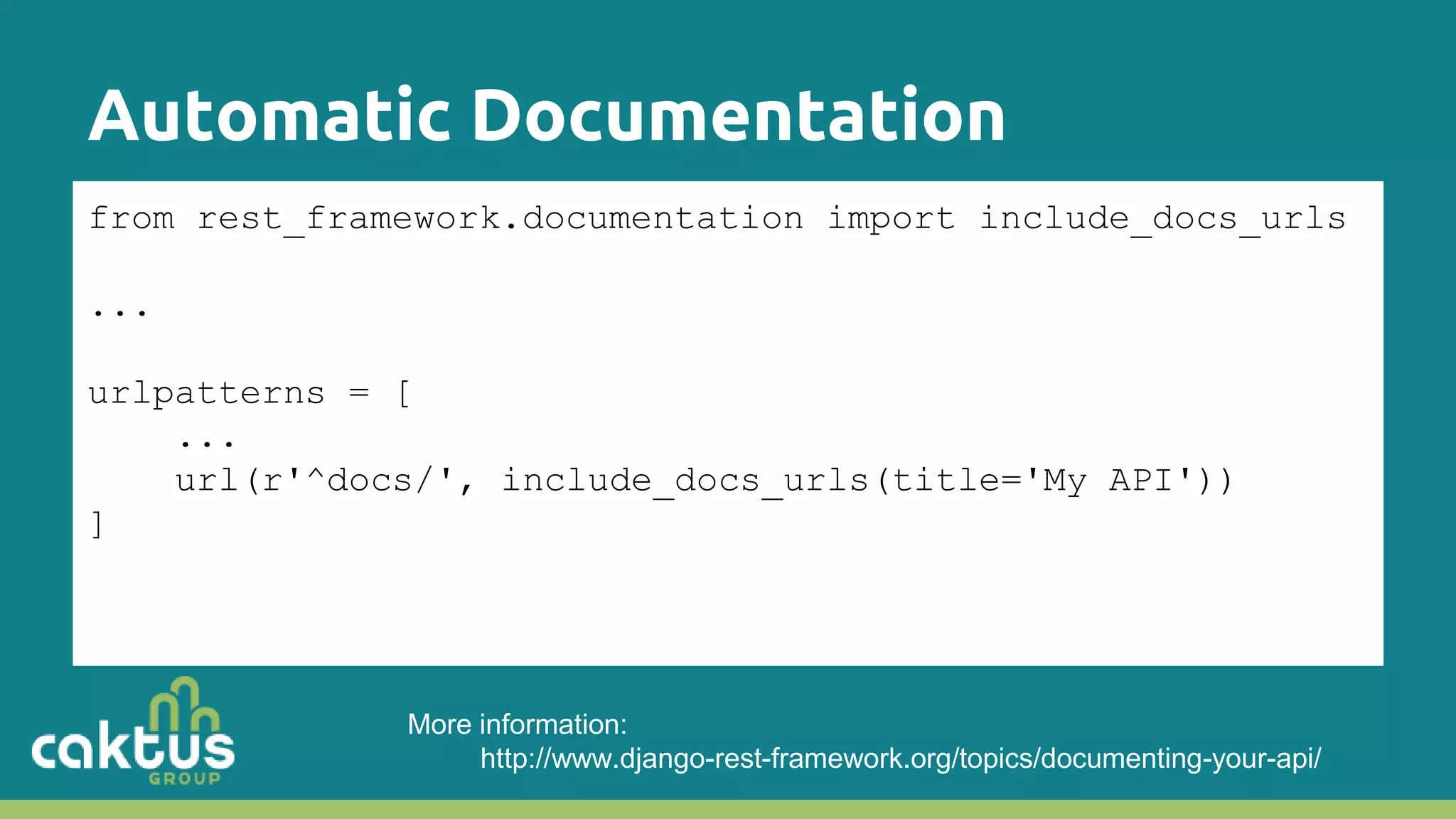

- 28. Automatic Documentation from rest_framework.documentationimport include_docs_urls ... urlpatterns = [ ... url(r'^docs/', include_docs_urls(title='My API')) ] More information: http://www.django-rest-framework.org/topics/documenting-your-api/

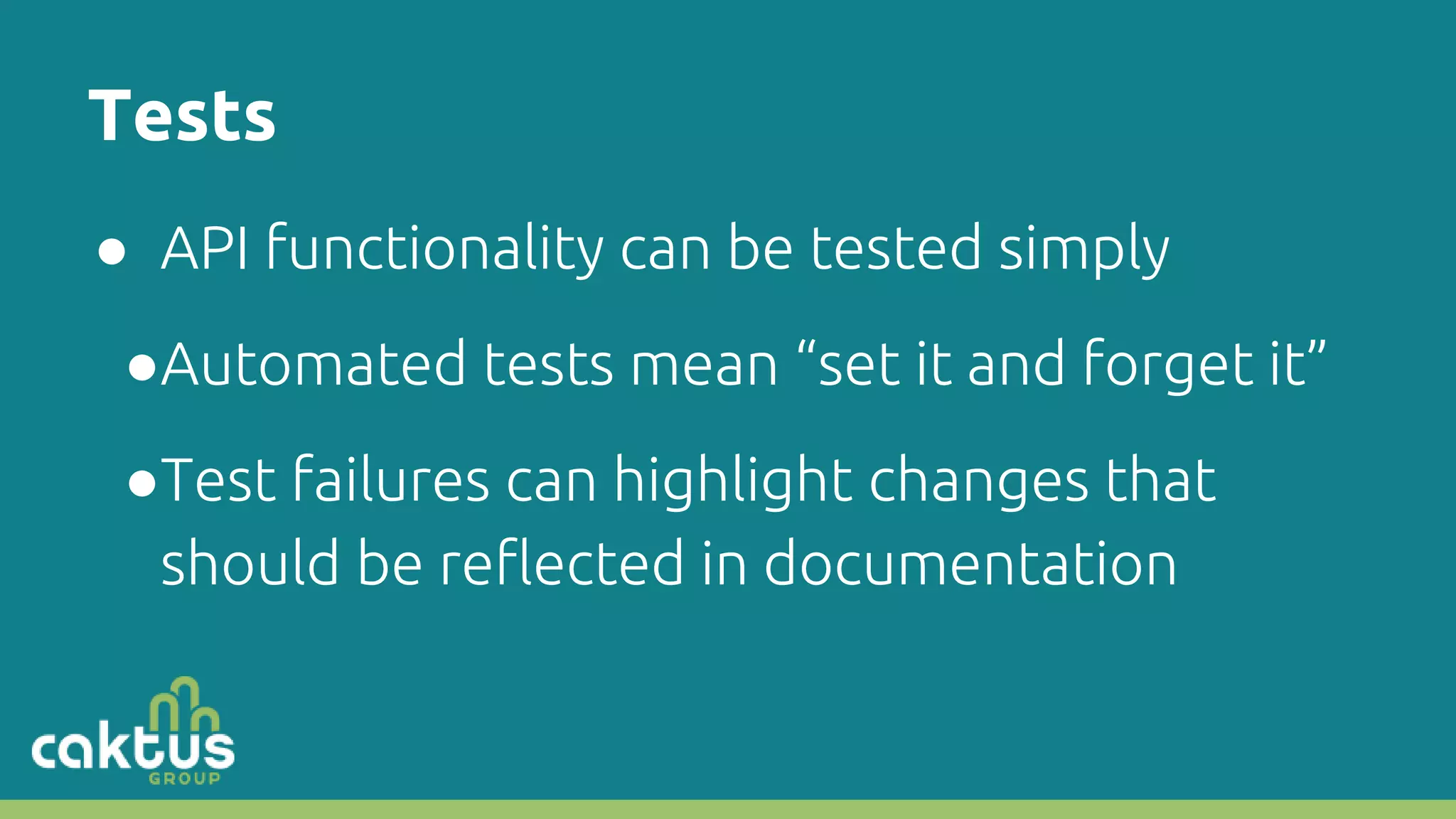

- 29. Tests ● API functionalitycan be tested simply ●Automated tests mean “set it and forget it” ●Test failures can highlight changes that should be reflected in documentation

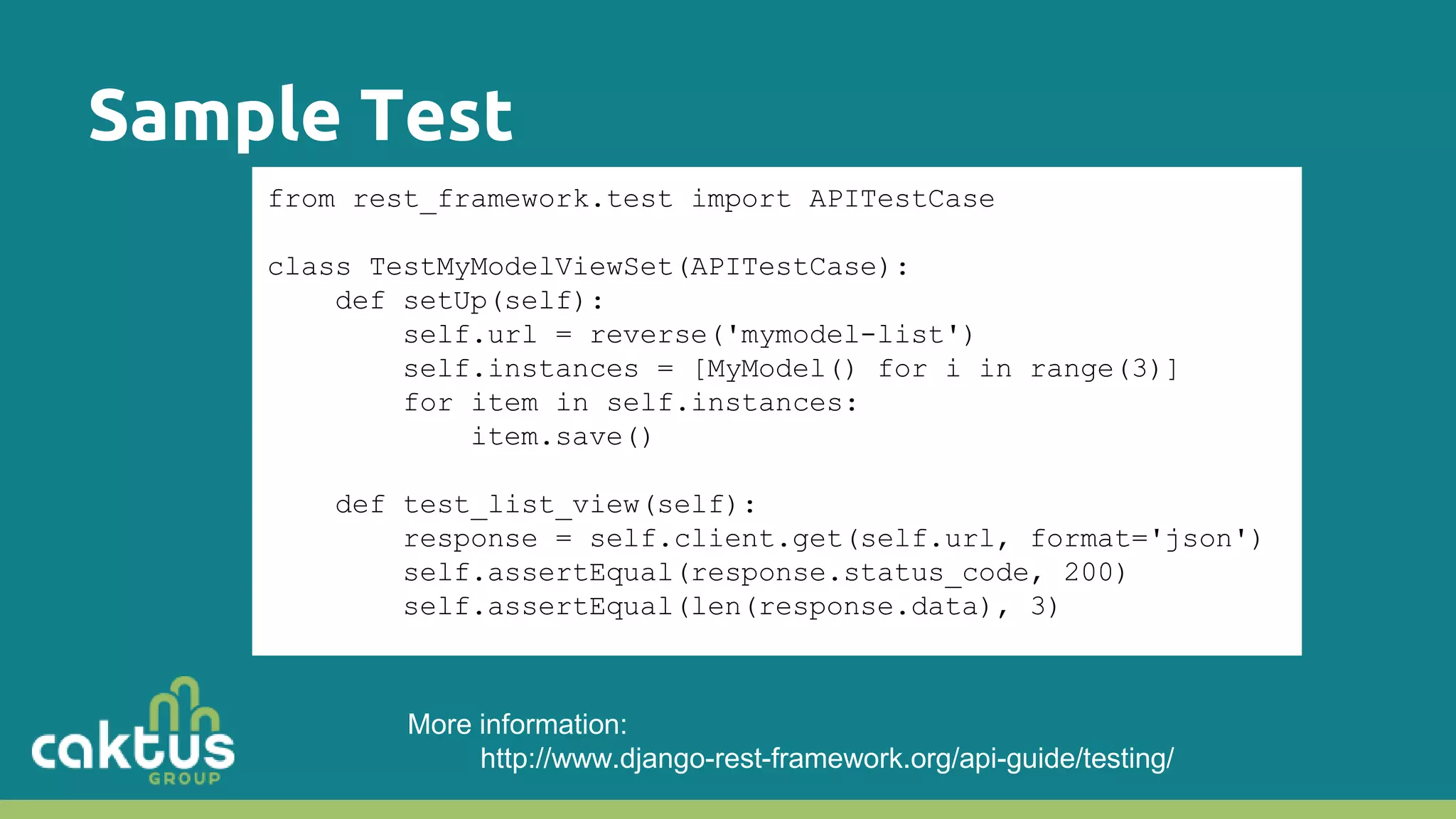

- 30. Sample Test from rest_framework.testimport APITestCase class TestMyModelViewSet(APITestCase): def setUp(self): self.url = reverse('mymodel-list') self.instances = [MyModel() for i in range(3)] for item in self.instances: item.save() def test_list_view(self): response = self.client.get(self.url, format='json') self.assertEqual(response.status_code, 200) self.assertEqual(len(response.data), 3) More information: http://www.django-rest-framework.org/api-guide/testing/

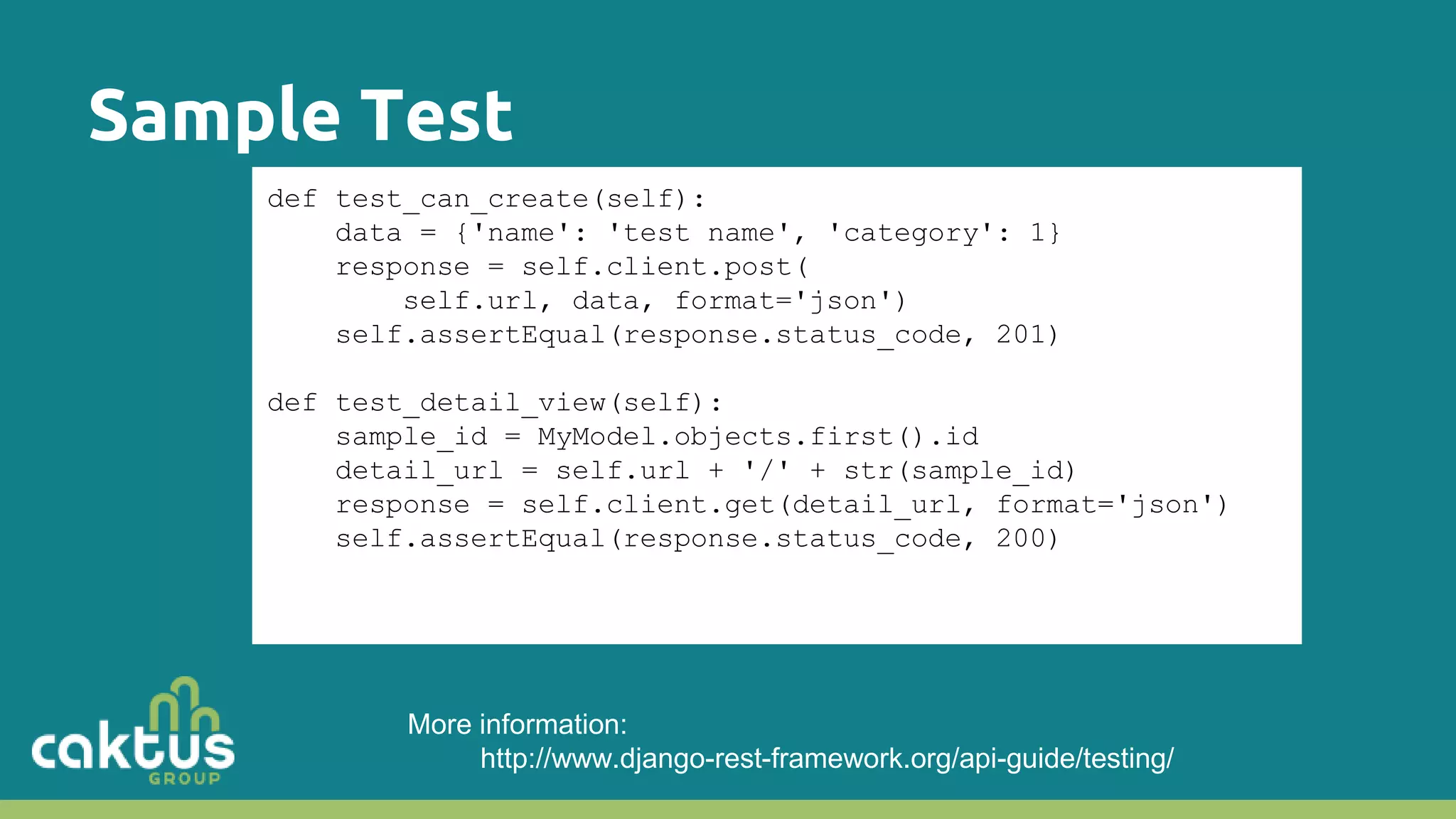

- 31. Sample Test def test_can_create(self): data= {'name': 'test name', 'category': 1} response = self.client.post( self.url, data, format='json') self.assertEqual(response.status_code, 201) def test_detail_view(self): sample_id = MyModel.objects.first().id detail_url = self.url + '/' + str(sample_id) response = self.client.get(detail_url, format='json') self.assertEqual(response.status_code, 200) More information: http://www.django-rest-framework.org/api-guide/testing/

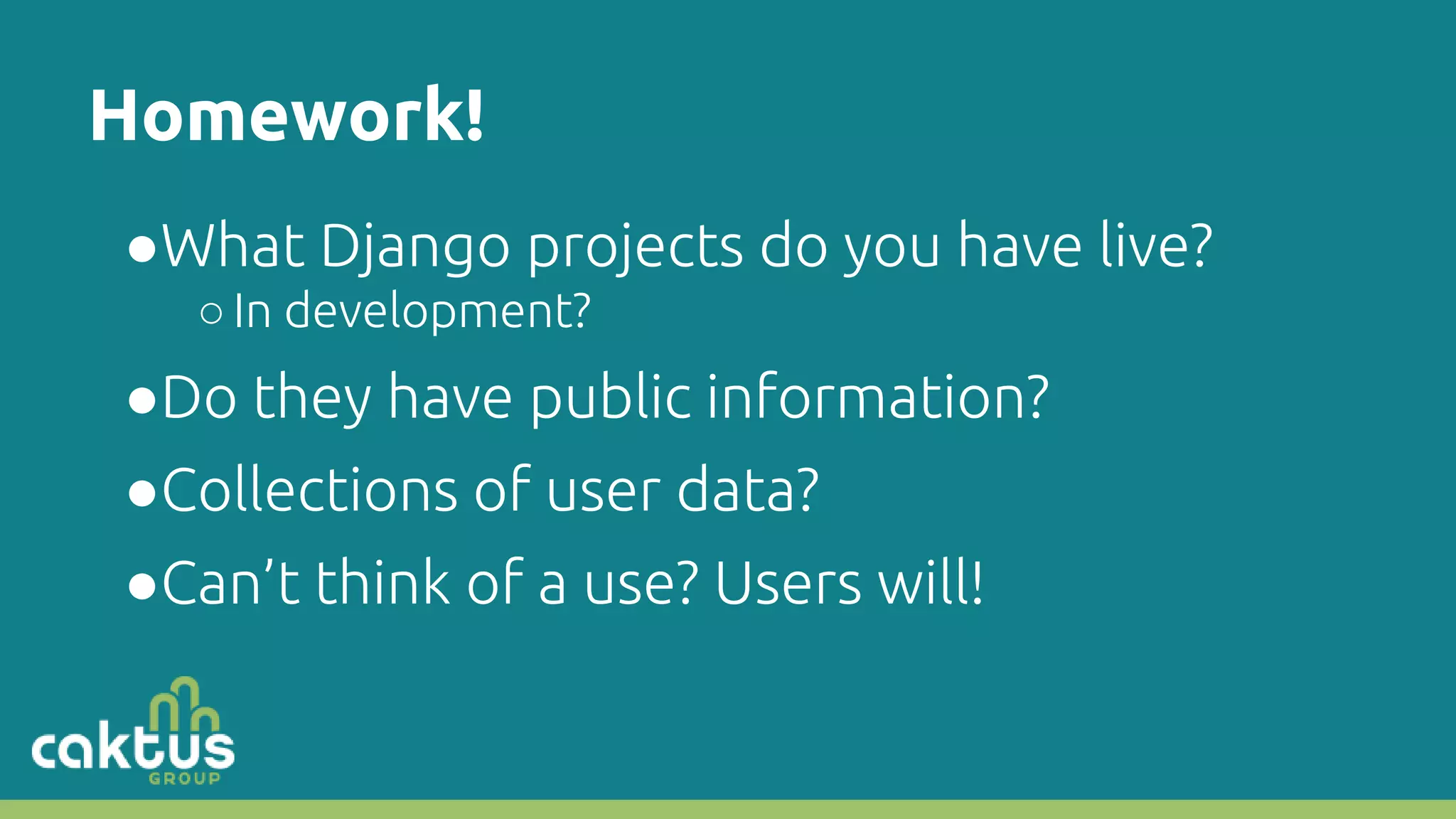

- 32. Homework! ●What Django projectsdo you have live? ○In development? ●Do they have public information? ●Collections of user data? ●Can’t think of a use? Users will!

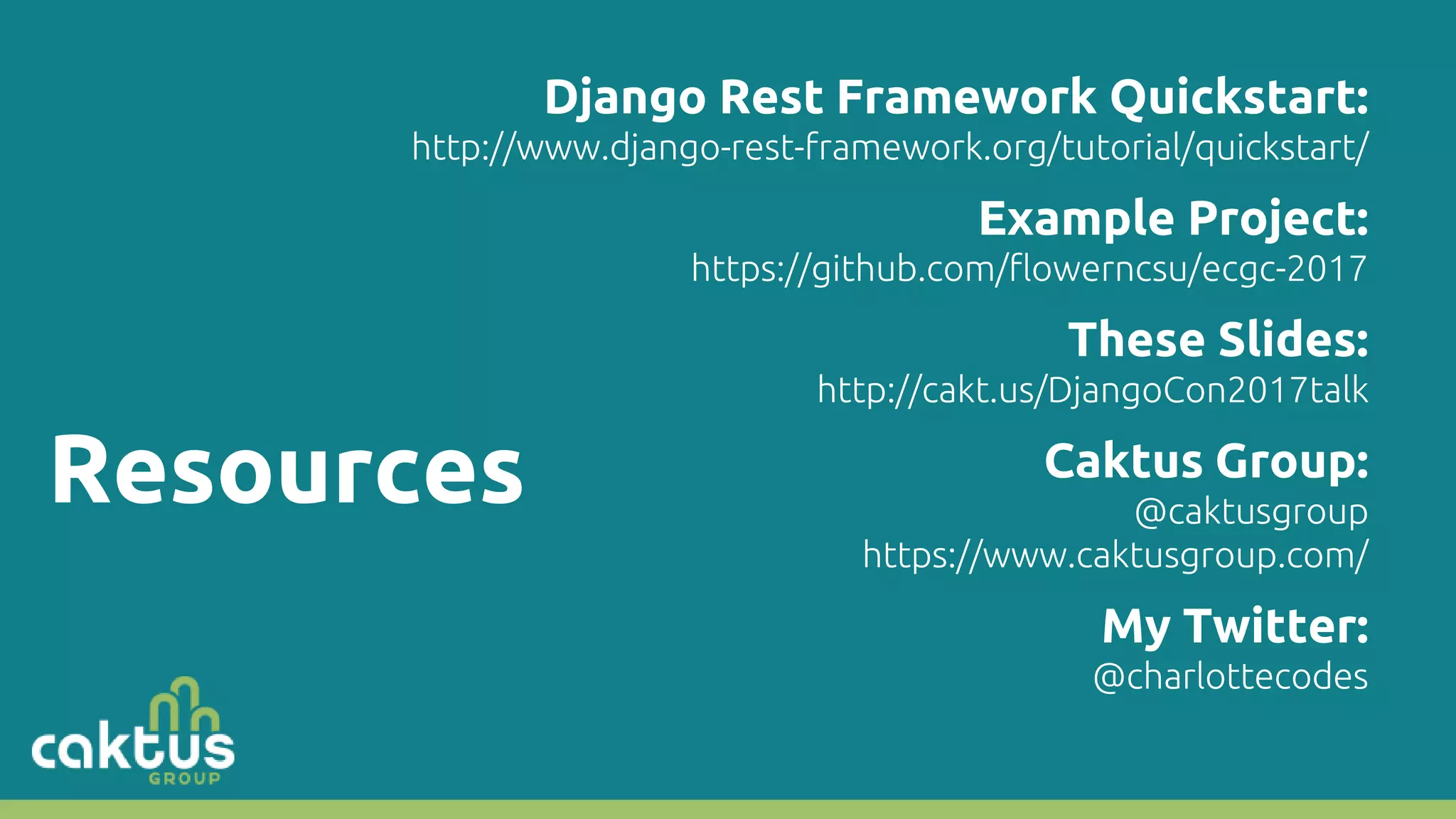

- 33. Resources Django Rest FrameworkQuickstart: http://www.django-rest-framework.org/tutorial/quickstart/ Example Project: https://github.com/flowerncsu/ecgc-2017 These Slides: http://cakt.us/DjangoCon2017talk Caktus Group: @caktusgroup https://www.caktusgroup.com/ My Twitter: @charlottecodes
