Overview #

This section covers how to add a Point Label to your map

Prerequisites #

The Following Plugin/s need to be installed and active

• WP Go Maps
• WP Go Maps Pro Add-on (optional, Fill & Line color and font Size)

This Feature is only available in the Atlas Novus Build

On the Map editor of the of your selected map, you are able to navigate to the Point label page to view, add or edit existing Point Labels.

WP Go MAPS -> Maps (edit your chosen map) -> Point Labels

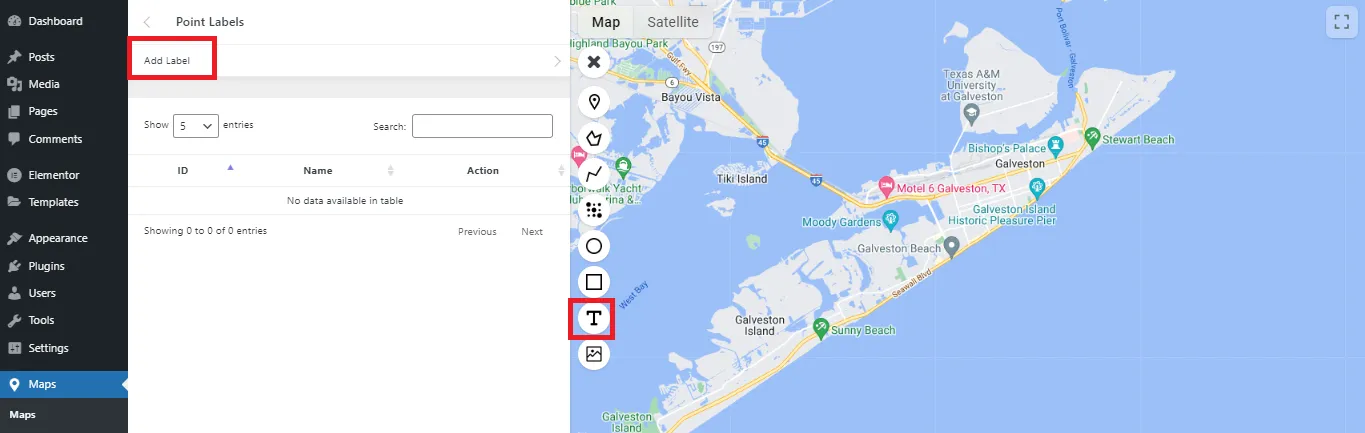

To Add a new Point label select the “Add Label” text near the top of the page or select the + icon and then the Label icon that appears on the map preview

Add in a Label

• Click on the map to add a label.
• Adjust options and move the label to your preferred location.

Point label Options #

Edit the following options as required

Name: Name your Label, this identifies it on the Label page where all existing polygons are listed and is the text that is displayed on the map

Line and Fill Colour of the Label

Font size: Text size

Layer: Entering a value into this textbox will influence how close to the top the Drawing object is displayed in relation to other objects, the greater the number, the closer to the top it is displayed

Saving the Point Label #

Select Add Label at the bottom right of the page, to save your new Point Label
