Fix worker report all block locations to master for async restore by fffanyang · Pull Request #16897 · Alluxio/alluxio

fffanyang · 2023-02-16T11:25:55Z

What changes are proposed in this pull request?

Using BlockHeartbeat to report all block locations to master when worker scans pages asynchronously.

Why are the changes needed?

If not，worker may have some blocks unrecognized.

Does this PR introduce any user facing changes?

N/A

alluxio-bot · 2023-02-16T11:25:57Z

Thank you for your pull request.
In order for us to evaluate and accept your PR, we ask that you sign a contribution license agreement (CLA).
It's all electronic and will take just a few minutes. Please download CLA form here, sign, and e-mail back to cla@alluxio.org

fffanyang · 2023-02-16T11:28:30Z

@dbw9580 @maobaolong PTAL thanks!

maobaolong

@fffanyang Thanks for your contribution. Left a couple of comments. @dbw9580 Would you like to take a look at this PR?

BTW, please fix the style issue in the next commit.

2023-02-17T01:08:29.7892989Z [ERROR] /usr/src/alluxio/core/client/fs/src/main/java/alluxio/client/file/cache/PageMetaStore.java:58:3: Missing a Javadoc comment. [MissingJavadocMethod]

maobaolong · 2023-02-17T01:11:03Z

core/client/fs/src/main/java/alluxio/client/file/cache/LocalCacheManager.java

 return false;
 }
+ if (mInitService.isPresent()) {
+ mPageMetaStore.reportBlocks(pageStoreDir);


Reference to this BlockMasterSync, The original behavior is that worker register to master with its all blocks as a full block report during the register stage.

The changes are used to fix blocks report partly during worker register stage when we set alluxio.worker.page.store.async.restore.enabled=true (default, to accelerate worker restarts)

maobaolong · 2023-02-17T01:15:01Z

core/server/worker/src/main/java/alluxio/worker/page/PagedBlockMetaStore.java

+ for (PagedBlockMeta blockMeta : blockMetas) {
+ for (BlockStoreEventListener listener : mBlockStoreEventListeners) {
+ synchronized (listener) {
+ listener.onMoveBlockByWorker(blockMeta.getBlockId(),


This is a tricky way to report the blocks generated by pageStore to master by Incrementally, but it need a full block report during register stage.

maobaolong · 2023-02-17T02:57:25Z

core/client/fs/src/main/java/alluxio/client/file/cache/PageMetaStore.java

 */
 void addPage(PageId pageId, PageInfo pageInfo);

+ default void reportBlocks(PageStoreDir pageStoreDir) {}


Missing a Javadoc comment

The page cache implementation is shared by the client side local cache, as well as the worker side paged block store. So PageMetaStore is also used by the client side local cache, adding a method specifically for doing worker-master sync is not appropriate here.

alluxio-bot · 2023-02-17T07:08:45Z

Automated checks report:

Commits associated with Github account: FAIL
- It looks like your commits can't be linked to a valid Github account.
  Your commits are made with the email daisyfyang@tencent.com, which does not allow your contribution to be tracked by Github.
  See this link for possible reasons this might be happening.
  To change the author email address that your most recent commit was made under, you can run:
```
git -c user.name="Name" -c user.email="Email" commit --amend --reset-author
```
  See this answer for more details about how to change commit email addresses.
  Once the author email address has been updated, update the pull request by running:
```
git push --force https://github.com/fffanyang/alluxio.git fix-pagestore-asyncrestore
```
PR title follows the conventions: PASS

Some checks failed. Please fix the reported issues and reply 'alluxio-bot, check this please' to re-run checks.

alluxio-bot · 2023-02-17T07:10:26Z

Automated checks report:

Commits associated with Github account: PASS
PR title follows the conventions: PASS

All checks passed!

fffanyang · 2023-02-17T07:12:11Z

@maobaolong Already fix the comments, please take a look again, thanks a lot!

maobaolong

LGTM @fffanyang Thanks for your contribution!

maobaolong · 2023-02-20T11:21:44Z

@dbw9580 Would you like to take a double look?

dbw9580

If the worker registers itself with the master before the cache store is restored, will the async restoration have a race with the actual read requests from clients?

I wonder what's pros and cons of turning off async restoration by setting alluxio.worker.page.store.async.restore.enabled to false?

dbw9580 · 2023-02-21T03:32:19Z

core/client/fs/src/main/java/alluxio/client/file/cache/PageMetaStore.java

 */
 void addPage(PageId pageId, PageInfo pageInfo);

+ default void reportBlocks(PageStoreDir pageStoreDir) {}


The page cache implementation is shared by the client side local cache, as well as the worker side paged block store. So PageMetaStore is also used by the client side local cache, adding a method specifically for doing worker-master sync is not appropriate here.

fffanyang · 2023-02-21T09:08:47Z

If the worker registers itself with the master before the cache store is restored, will the async restoration have a race with the actual read requests from clients?

I wonder what's pros and cons of turning off async restoration by setting alluxio.worker.page.store.async.restore.enabled to false?

@dbw9580
The actual read requests from clients may have a race with the async restoration. The update requests such as put, append and delete, will wait until mState in LocalCacheManager become READ_WRITE, which is set only after restoration. While read requests only need the state be not NOT_IN_USE, so clients may acquire blocks without location before async restoration finished.

I already tested that if there are 100w pages, the time spend on scaning pages will be 16s on NVME. Setting alluxio.worker.page.store.async.restore.enabled to true defaultly may wants to accelerate workers restart I think.

dbw9580 · 2023-03-03T06:33:52Z

I'm thinking of adding the block store event here:

alluxio/core/server/worker/src/main/java/alluxio/worker/page/PagedBlockMetaStore.java

Lines 372 to 374 in 317523a

     public void addBlock(PagedBlockMeta blockMeta) {
   mBlocks.add(blockMeta);
   }


this should be the sole place that gets called whenever a block is added to the paged block store, whether it's added during restoration, or added by client activity.

There are a few places where mBlocks is manipulated directly instead of calling this function, e.g.

alluxio/core/server/worker/src/main/java/alluxio/worker/page/PagedBlockMetaStore.java

Line 216 in 317523a

mBlocks.add(new PagedBlockMeta(blockId, blockSize, dir));

they also need to be changed to call the addBlock method.

fffanyang · 2023-03-21T02:37:07Z

@dbw9580 I have added the callback function as you suggested, please take a look again, thanks a lot!

dbw9580

Thanks for the update! I like the idea of a callback.

dbw9580 · 2023-03-21T08:56:57Z

core/client/fs/src/main/java/alluxio/client/file/cache/CacheManager.java

 * @param conf the Alluxio configuration
 * @param options the options for local cache manager
 * @param pageMetaStore meta store for pages
+ * @param report the callback to report blocks for async pagedBlock restore


We'd like to keep the callback abstract, so that they may be used for purposes other than block report.

Suggested change

* @param report the callback to report blocks for async pagedBlock restore

* @param callback the callback that will be invoked when the page store finishes restoring pages after start up.

dbw9580 · 2023-03-21T09:05:57Z

core/client/fs/src/main/java/alluxio/client/file/cache/LocalCacheManager.java

+ try (LockResource r = new LockResource(pageMetaStore.getLock().readLock())) {
+ report.reportBlocks();
+ }
 } catch (IOException e) {
 LOG.error("Failed to restore LocalCacheManager", e);
 }


the call to reportBlocks should be outside of this try catch block. Failing to report blocks should not share a common catch block with the case where restoreOrInit fails.

Do you think another callback would be helpful when restoreOrInit fails? The page store would be read only and cannot handle cache requests. In this case, the upper level things like PagedBlockStore might need to know that.
Something like this:

try { manager.restoreOrInit(pageStoreDirs); try (LockResource r = new LockResource(pageMetaStore.getLock().readLock())) { callback.onSuccess(); } } catch (IOException e) { LOG.error("Failed to restore LocalCacheManager", e); callback.onFailure(); }

Just a thought, we don't need to address this in this PR.

dbw9580 · 2023-03-21T09:09:54Z

core/client/fs/src/main/java/alluxio/client/file/cache/PagedBlockReport.java

+public interface PagedBlockReport {
+ /**
+ * Report all block locations in a pageStoreDirs to master using BlockHeartbeat.
+ */
+ void reportBlocks();
+}


I think a more general name like CacheRestorationCallback would be good. And the method name can be onCacheRestorationSuccess.

dbw9580 · 2023-03-21T09:18:45Z

core/client/fs/src/main/java/alluxio/client/file/cache/CacheManager.java

 public static CacheManager create(AlluxioConfiguration conf) throws IOException {
 CacheManagerOptions options = CacheManagerOptions.create(conf);
- return create(conf, options, PageMetaStore.create(options));
+ return create(conf, options, PageMetaStore.create(options), () -> { });


() -> { } looks funny. Can we provide a no-op implementation for PagedBlockReport interface, and make it a named singleton e.g. PagedBlockReport.NO_OP?

dbw9580 · 2023-03-21T09:21:50Z

tests/src/test/java/alluxio/client/fs/LocalCacheManagerIntegrationTest.java


 private void testNewCache() throws Exception {
- mCacheManager = LocalCacheManager.create(mCacheManagerOptions, mPageMetaStore);
+ mCacheManager = LocalCacheManager.create(mCacheManagerOptions, mPageMetaStore, () -> { });


I think you added a overloaded version of create that provides the default argument for the callback, so this change here is not necessary.

fffanyang · 2023-03-27T08:47:17Z

@dbw9580 I have fixed according to your comments. Please take a look, thanks a lot!

dbw9580

Thanks for the improvements! Implementation-wise these are the last batch from me. Can you please add some tests to ensure the feature works as expected?

dbw9580 · 2023-03-30T08:16:38Z

core/client/fs/src/main/java/alluxio/client/file/cache/CacheRestorationCallback.java

+ static void NO_OP() {
+ //NOOP
+ }


You can add a static field on the interface:

Suggested change

static void NO_OP() {

//NOOP

}

CacheRestorationCallback NOOP = () -> { };

dbw9580 · 2023-03-30T08:27:10Z

core/server/worker/src/main/java/alluxio/worker/page/PagedBlockMetaStore.java

+ /**
+ * Report all block locations in a pageStoreDirs to master using BlockHeartbeat.
+ */
+ @GuardedBy("getLock().readLock()")
+ public void reportBlocks() {


The actual reporting does not happen inside this method, so may be rename this to reflect what it actually does?

Suggested change

/**

* Report all block locations in a pageStoreDirs to master using BlockHeartbeat.

*/

@GuardedBy("getLock().readLock()")

public void reportBlocks() {

/**

* Callback that gets called when the underlying page store finishes async

* restoration.

* This method notifies all registered block store event listeners

* about the newly added blocks. In particular, these blocks will be reported

* as added blocks to master via heartbeat.

*/

@GuardedBy("getLock().readLock()")

public void onCacheRestorationSuccess() {

dbw9580 · 2023-03-30T08:31:12Z

core/server/worker/src/main/java/alluxio/worker/page/PagedBlockMetaStore.java

+ for (PagedBlockMeta blockMeta : blockMetas) {
+ for (BlockStoreEventListener listener : mBlockStoreEventListeners) {
+ synchronized (listener) {
+ listener.onMoveBlockByWorker(blockMeta.getBlockId(),
+ blockMeta.getBlockLocation(), blockMeta.getBlockLocation());


Presumably there are far more blocks than event listeners. It's more efficient to only acquire the lock once per listener.

Suggested change

for (PagedBlockMeta blockMeta : blockMetas) {

for (BlockStoreEventListener listener : mBlockStoreEventListeners) {

synchronized (listener) {

listener.onMoveBlockByWorker(blockMeta.getBlockId(),

blockMeta.getBlockLocation(), blockMeta.getBlockLocation());

for (BlockStoreEventListener listener : mBlockStoreEventListeners) {

synchronized (listener) {

for (PagedBlockMeta blockMeta : blockMetas) {

listener.onMoveBlockByWorker(blockMeta.getBlockId(),

blockMeta.getBlockLocation(), blockMeta.getBlockLocation());

maobaolong · 2023-04-10T09:21:17Z

core/client/fs/src/main/java/alluxio/client/file/cache/CacheRestorationCallback.java

+
+package alluxio.client.file.cache;
+
+public interface CacheRestorationCallback {


2023-04-10T07:51:57.2198086Z [ERROR] /usr/src/alluxio/core/client/fs/src/main/java/alluxio/client/file/cache/CacheRestorationCallback.java:14:1: Missing a Javadoc comment. [MissingJavadocType]

maobaolong · 2023-04-20T08:24:35Z

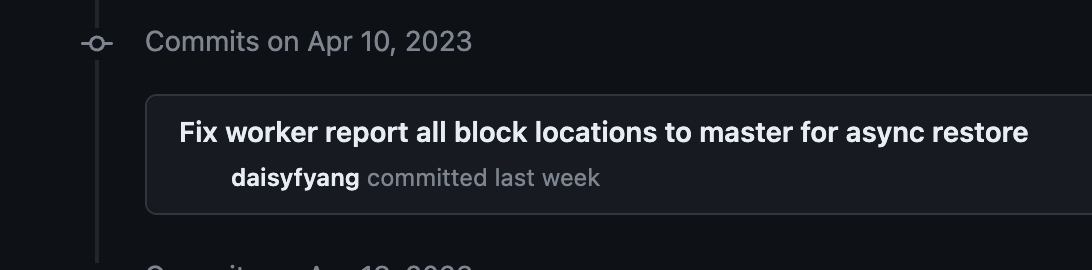

@fffanyang It seems you use a new email ?

github-actions · 2023-06-06T15:09:25Z

This pull request has been automatically marked as stale because it has not had recent activity. It will be closed in two weeks if no further activity occurs. Thank you for your contributions.

Fix worker report all block locations to master for async restore

4d3d8b8

alluxio-bot added the cla-missing label Feb 16, 2023

HelloHorizon removed the cla-missing label Feb 16, 2023

maobaolong requested a review from dbw9580 February 17, 2023 01:02

maobaolong requested changes Feb 17, 2023

View reviewed changes

maobaolong reviewed Feb 17, 2023

View reviewed changes

Fix worker report all block locations to master for async restore

d3218e4

fffanyang force-pushed the fix-pagestore-asyncrestore branch from 19df170 to d3218e4 Compare February 17, 2023 07:10

alluxio-bot assigned tcrain Feb 17, 2023

fffanyang requested review from maobaolong and removed request for dbw9580 February 20, 2023 02:43

maobaolong approved these changes Feb 20, 2023

View reviewed changes

elega requested a review from dbw9580 February 21, 2023 03:12

dbw9580 reviewed Feb 21, 2023

View reviewed changes

fffanyang requested a review from dbw9580 February 22, 2023 08:19

jiacheliu3 added the area-worker Alluxio worker label Mar 3, 2023

Fix worker report all block locations to master for async restore

16bb004

fffanyang force-pushed the fix-pagestore-asyncrestore branch from 12c9f0a to 16bb004 Compare March 21, 2023 02:31

dbw9580 suggested changes Mar 21, 2023

View reviewed changes

fffanyang requested a review from dbw9580 March 27, 2023 08:45

Fix worker report all block locations to master for async restore

73038a1

fffanyang force-pushed the fix-pagestore-asyncrestore branch from e274e00 to 73038a1 Compare March 30, 2023 02:49

Fix worker report all block locations to master for async restore

53328e0

dbw9580 suggested changes Mar 30, 2023

View reviewed changes

Fix worker report all block locations to master for async restore

2fe2dc6

maobaolong reviewed Apr 10, 2023

View reviewed changes

Add interface javadoc

9990bb7

fffanyang requested review from dbw9580 and maobaolong April 18, 2023 11:44

github-actions bot added the stale The PR/Issue does not have recent activities and will be closed automatically label Jun 6, 2023

github-actions bot removed the stale The PR/Issue does not have recent activities and will be closed automatically label Jun 26, 2024

	* @param report the callback to report blocks for async pagedBlock restore
	* @param callback the callback that will be invoked when the page store finishes restoring pages after start up.

- /**
- * Report all block locations in a pageStoreDirs to master using BlockHeartbeat.
- */
- @GuardedBy("getLock().readLock()")
- public void reportBlocks() {
+ /**
+ * Callback that gets called when the underlying page store finishes async
+ * restoration.
+ * This method notifies all registered block store event listeners
+ * about the newly added blocks. In particular, these blocks will be reported
+ * as added blocks to master via heartbeat.
+ */
+ @GuardedBy("getLock().readLock()")
+ public void onCacheRestorationSuccess() {


		package alluxio.client.file.cache;

		public interface CacheRestorationCallback {

Conversation

fffanyang commented Feb 16, 2023

What changes are proposed in this pull request?

Why are the changes needed?

Does this PR introduce any user facing changes?

alluxio-bot commented Feb 16, 2023

fffanyang commented Feb 16, 2023

maobaolong left a comment • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

alluxio-bot commented Feb 17, 2023

alluxio-bot commented Feb 17, 2023

fffanyang commented Feb 17, 2023

maobaolong left a comment

Choose a reason for hiding this comment

maobaolong commented Feb 20, 2023

dbw9580 left a comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

fffanyang commented Feb 21, 2023

dbw9580 commented Mar 3, 2023

fffanyang commented Mar 21, 2023

dbw9580 left a comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

fffanyang commented Mar 27, 2023

dbw9580 left a comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

Choose a reason for hiding this comment

maobaolong commented Apr 20, 2023

github-actions bot commented Jun 6, 2023

Labels

7 participants

maobaolong left a comment •

edited

Loading
