Expanding the idea of static analysis from code check to other development processes
The document discusses the 25th International Conference on Software Quality Assurance, focusing on the expansion of static analysis from code checking to various development processes. Key topics include the importance of code analysis, metrics calculation, and source code obfuscation, highlighting static analysis's role in identifying bugs and ensuring compliance with coding standards. It concludes that the application of static analysis is rapidly increasing and will continue to grow in the future.
Expanding the idea of static analysis from code check to other development processes
- 1. Software quality assurancedays 25th International Conference on software quality issues sqadays.com St. Petersburg, May 31 – June 1, 2019 Expanding the idea of static analysis from code check to other development processes

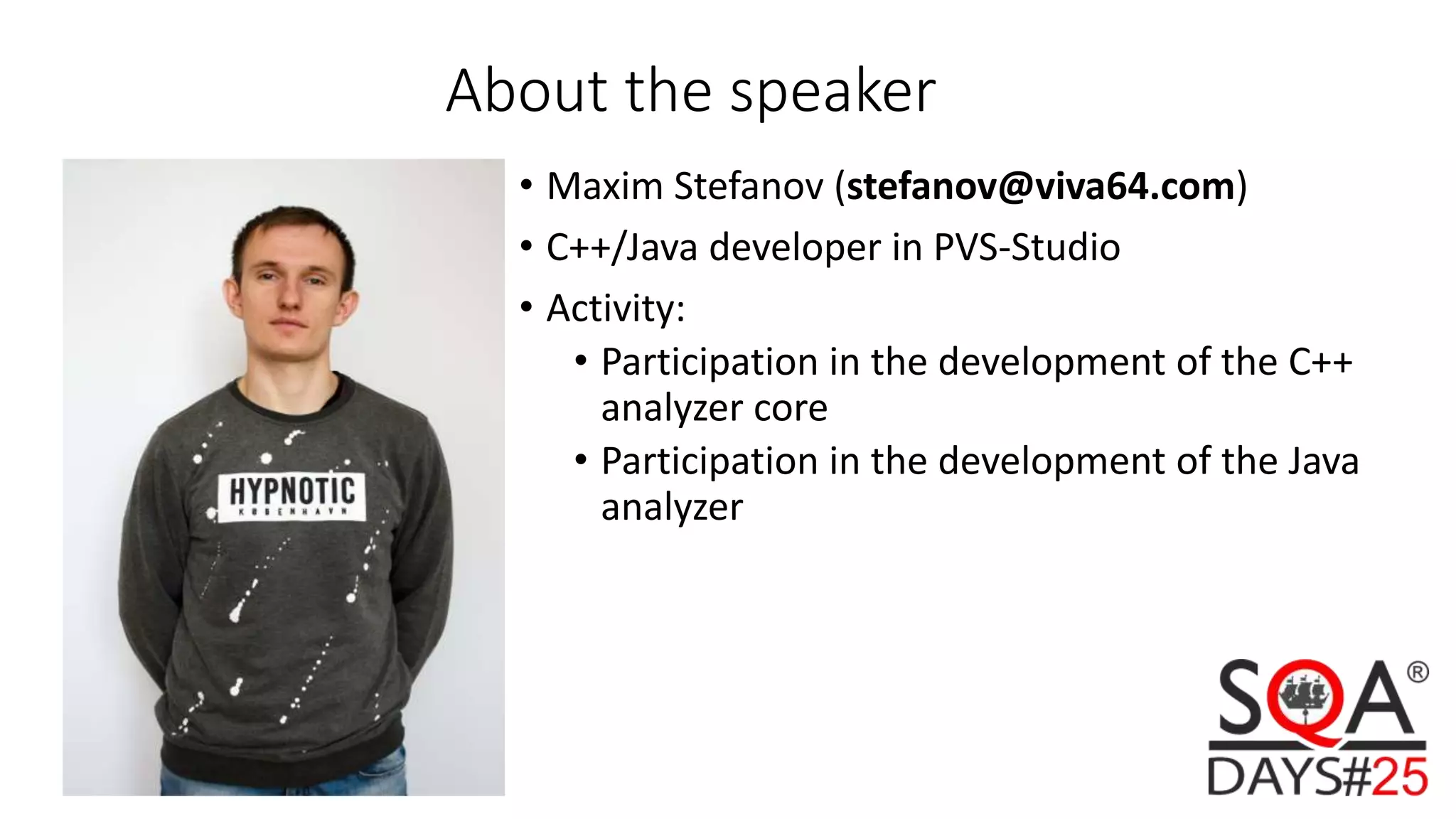

- 2. About the speaker •Maxim Stefanov (stefanov@viva64.com) • C++/Java developer in PVS-Studio • Activity: • Participation in the development of the C++ analyzer core • Participation in the development of the Java analyzer
- 3. Content • General conceptsof static analysis • Classic look • Alternative look • Conclusion
- 4.
- 5. Static analysis inputs •Program code • Data in JSON, YAML, XML format • Documentation / article • Scematic, 3D model (in design) • …
- 6. Classic look: codebase analysis

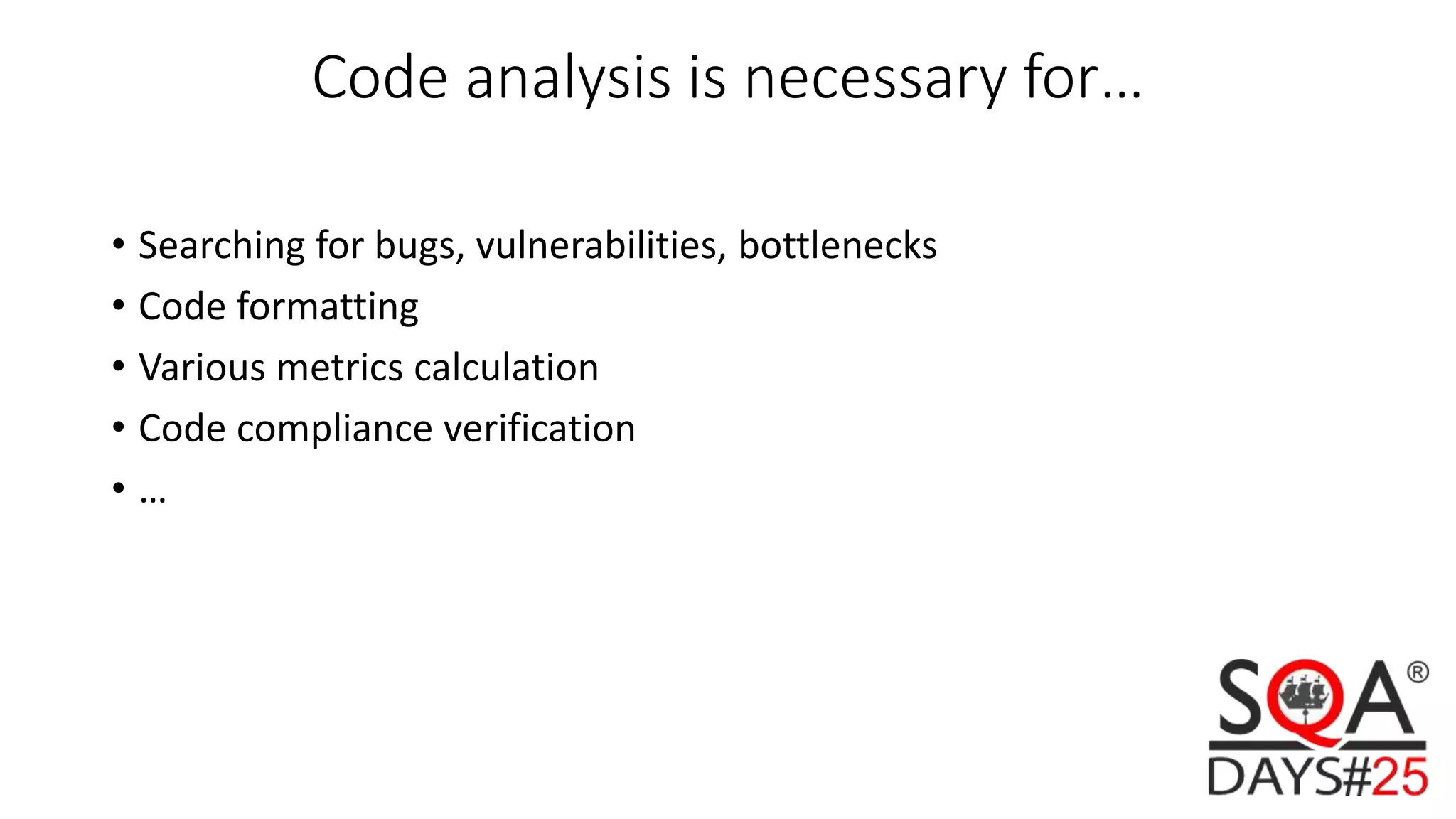

- 7. Code analysis isnecessary for… • Searching for bugs, vulnerabilities, bottlenecks • Code formatting • Various metrics calculation • Code compliance verification • …

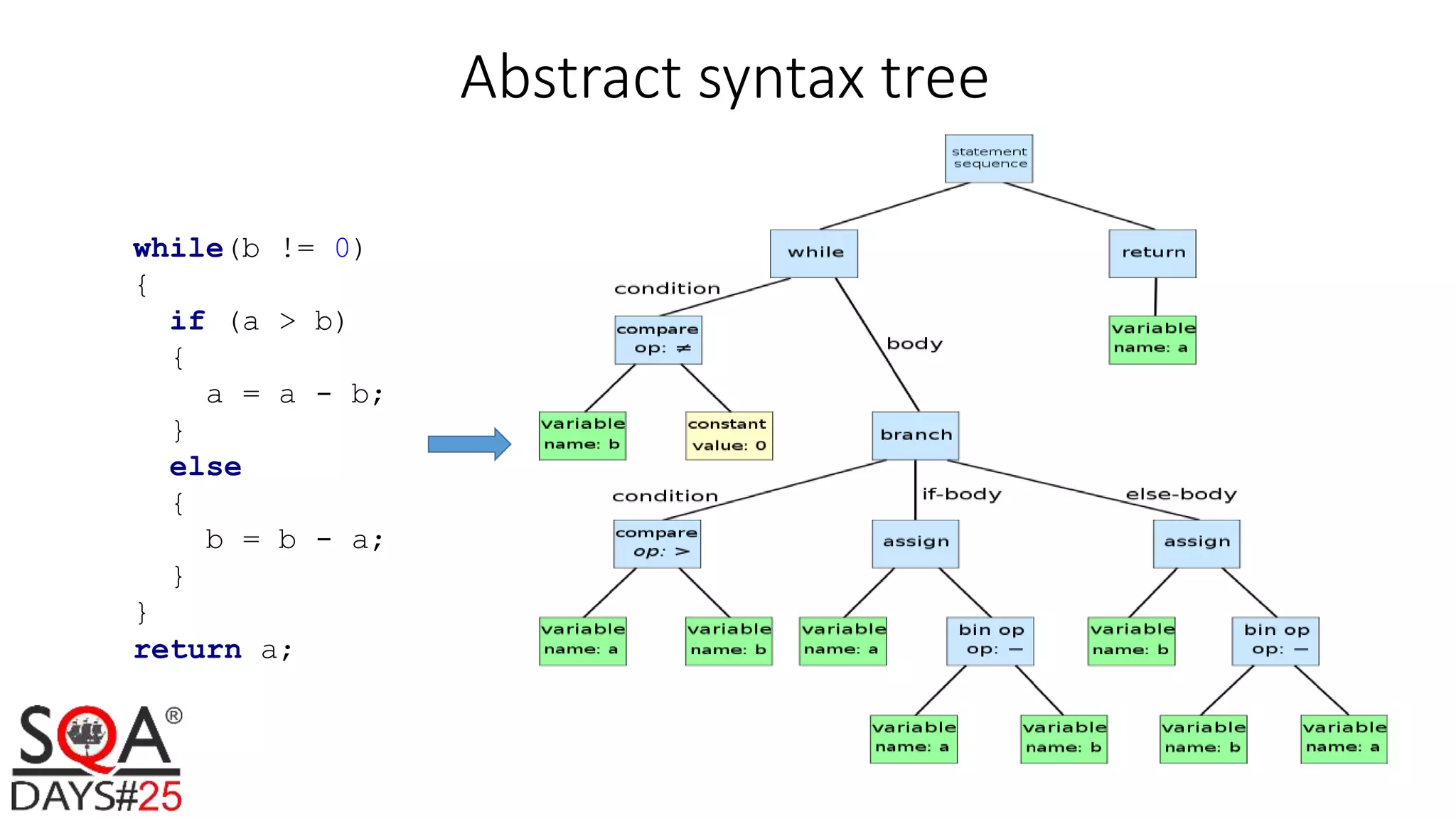

- 8. Abstract syntax tree while(b!= 0) { if (a > b) { a = a - b; } else { b = b - a; } } return a;

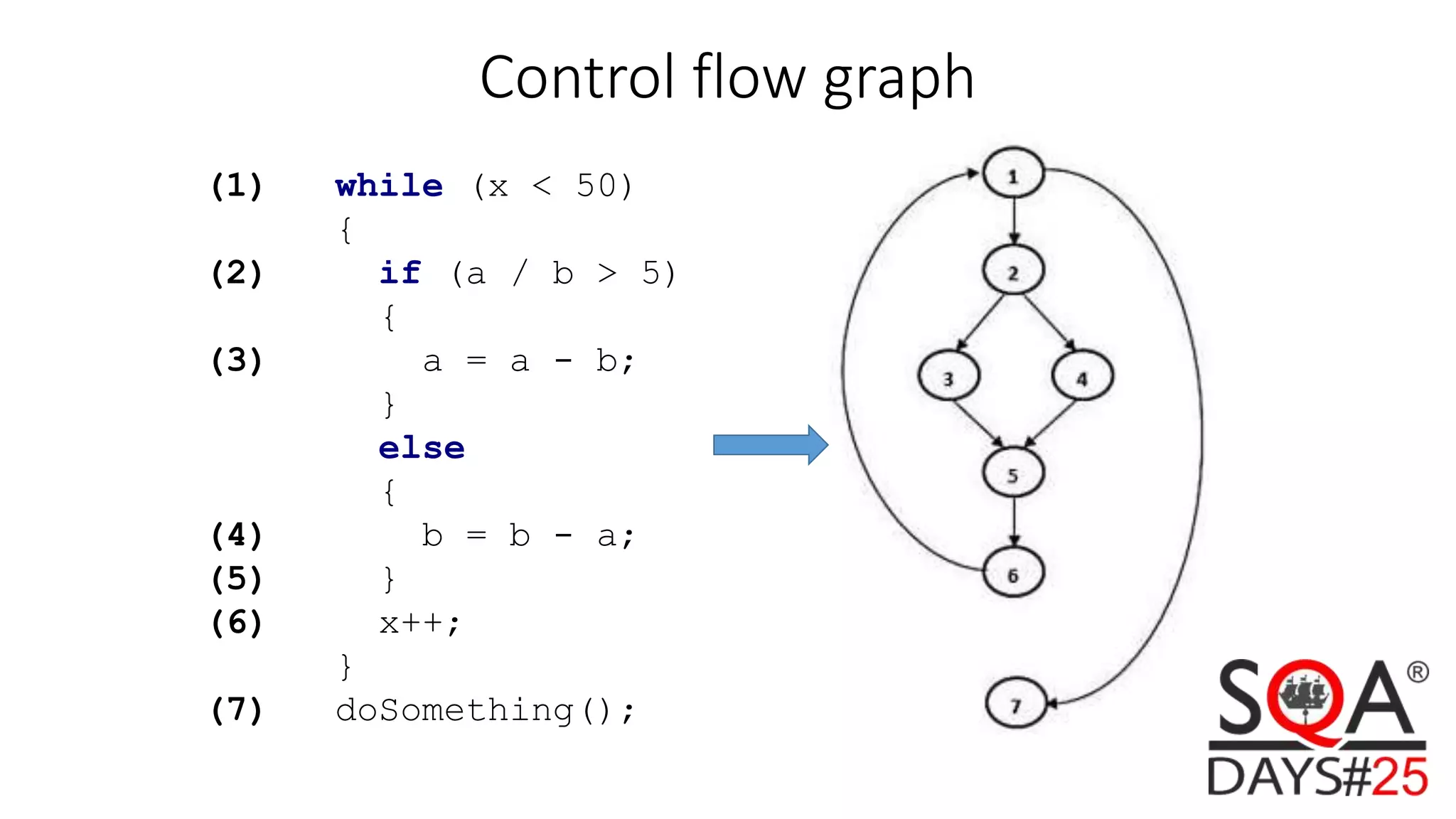

- 9. Control flow graph (1)while (x < 50) { (2) if (a / b > 5) { (3) a = a - b; } else { (4) b = b - a; (5) } (6) x++; } (7) doSomething();

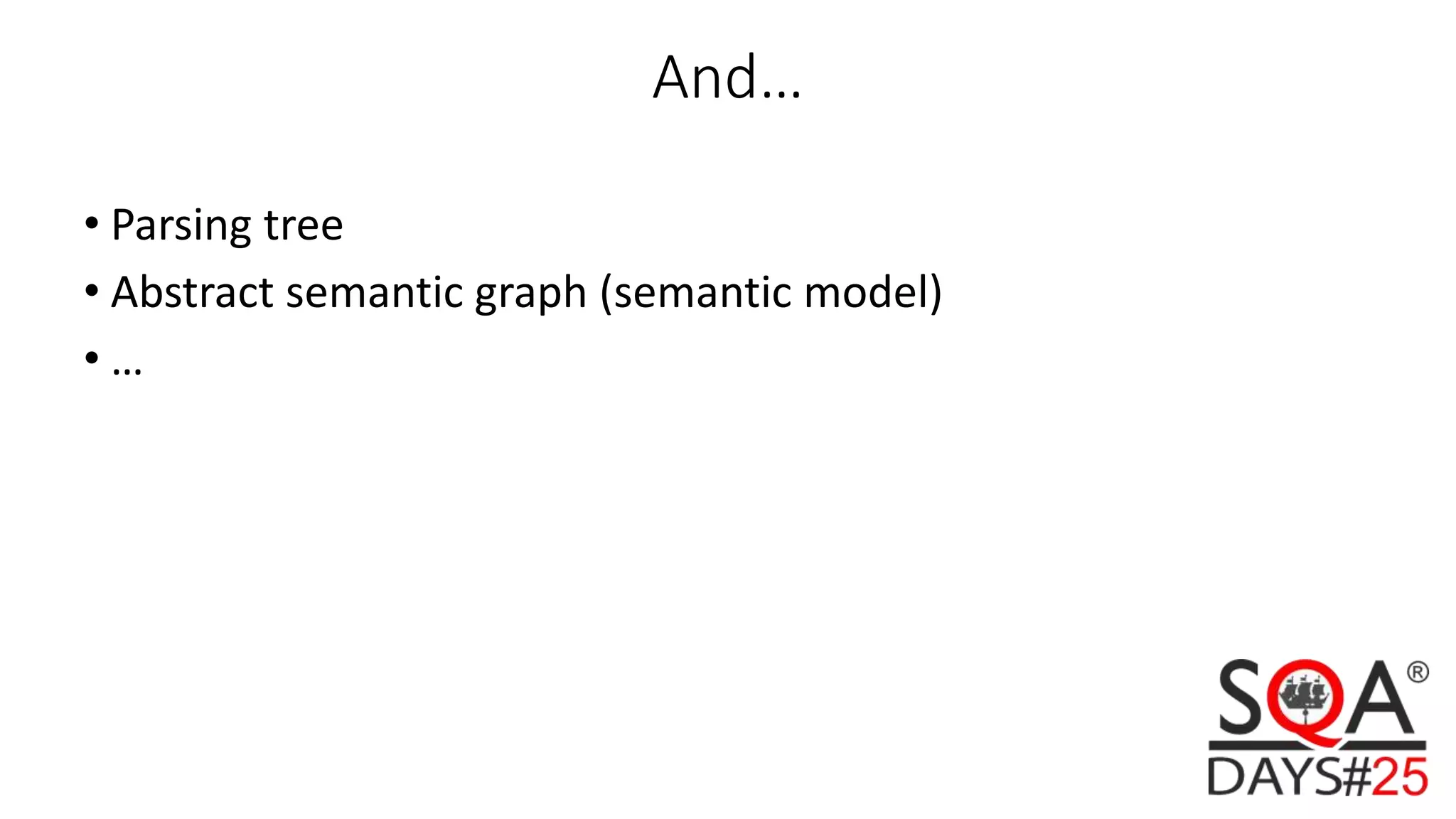

- 10. And… • Parsing tree •Abstract semantic graph (semantic model) • …
- 11. Search for bugs,vulnerabilities and bottlenecks

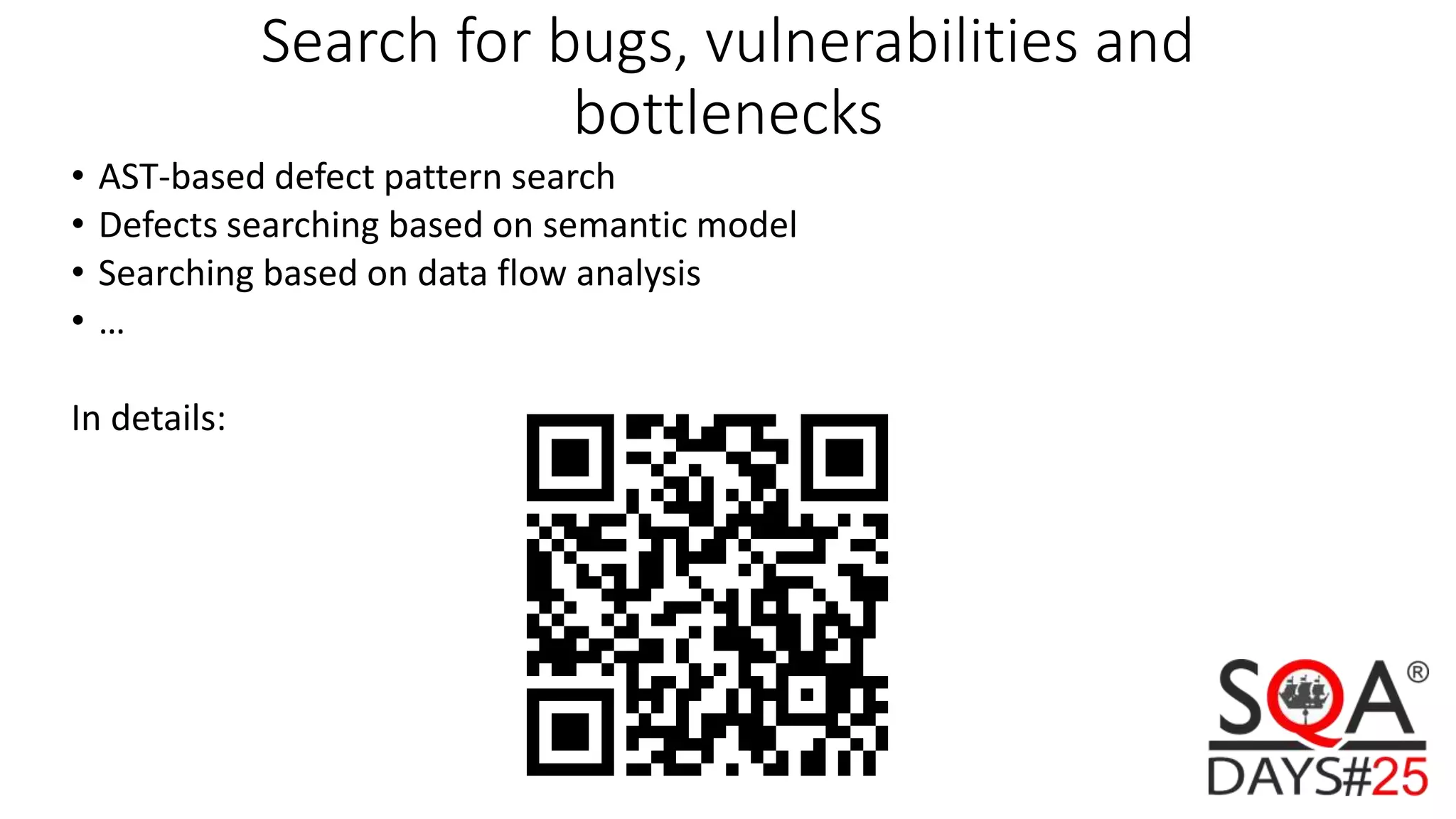

- 12. Search for bugs,vulnerabilities and bottlenecks • AST-based defect pattern search • Defects searching based on semantic model • Searching based on data flow analysis • … In details:

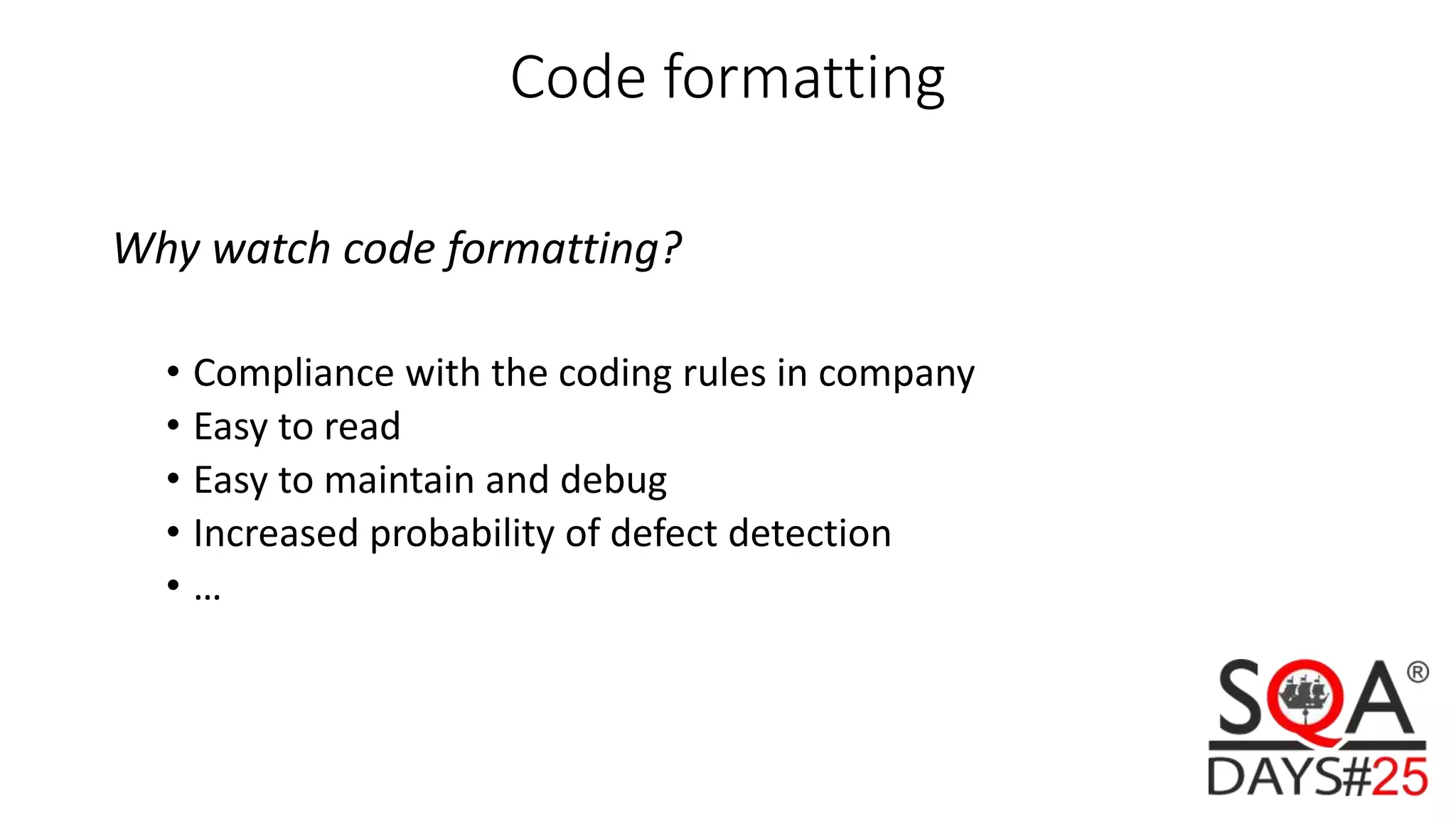

- 13. Code formatting Why watchcode formatting? • Compliance with the coding rules in company • Easy to read • Easy to maintain and debug • Increased probability of defect detection • …

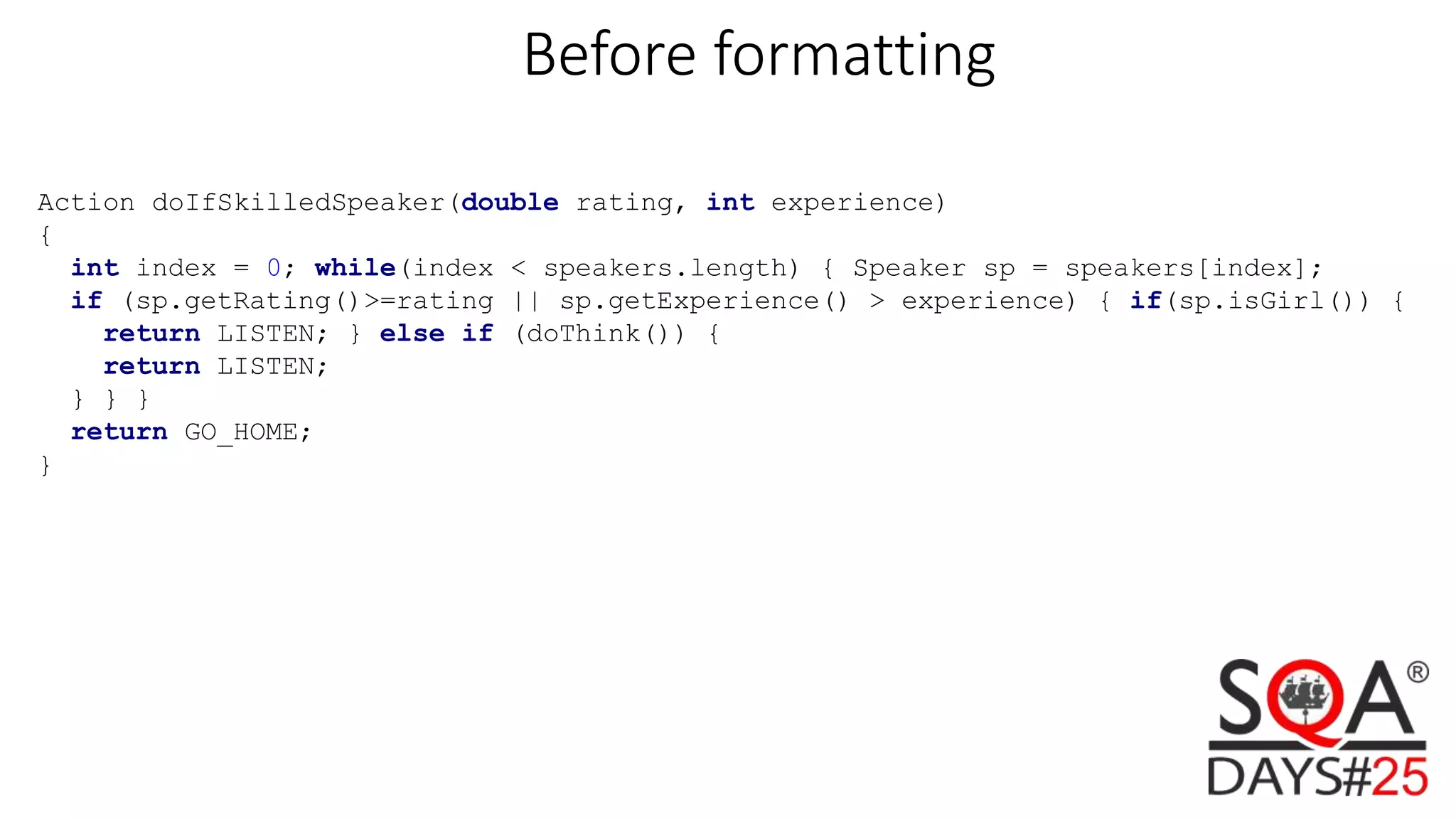

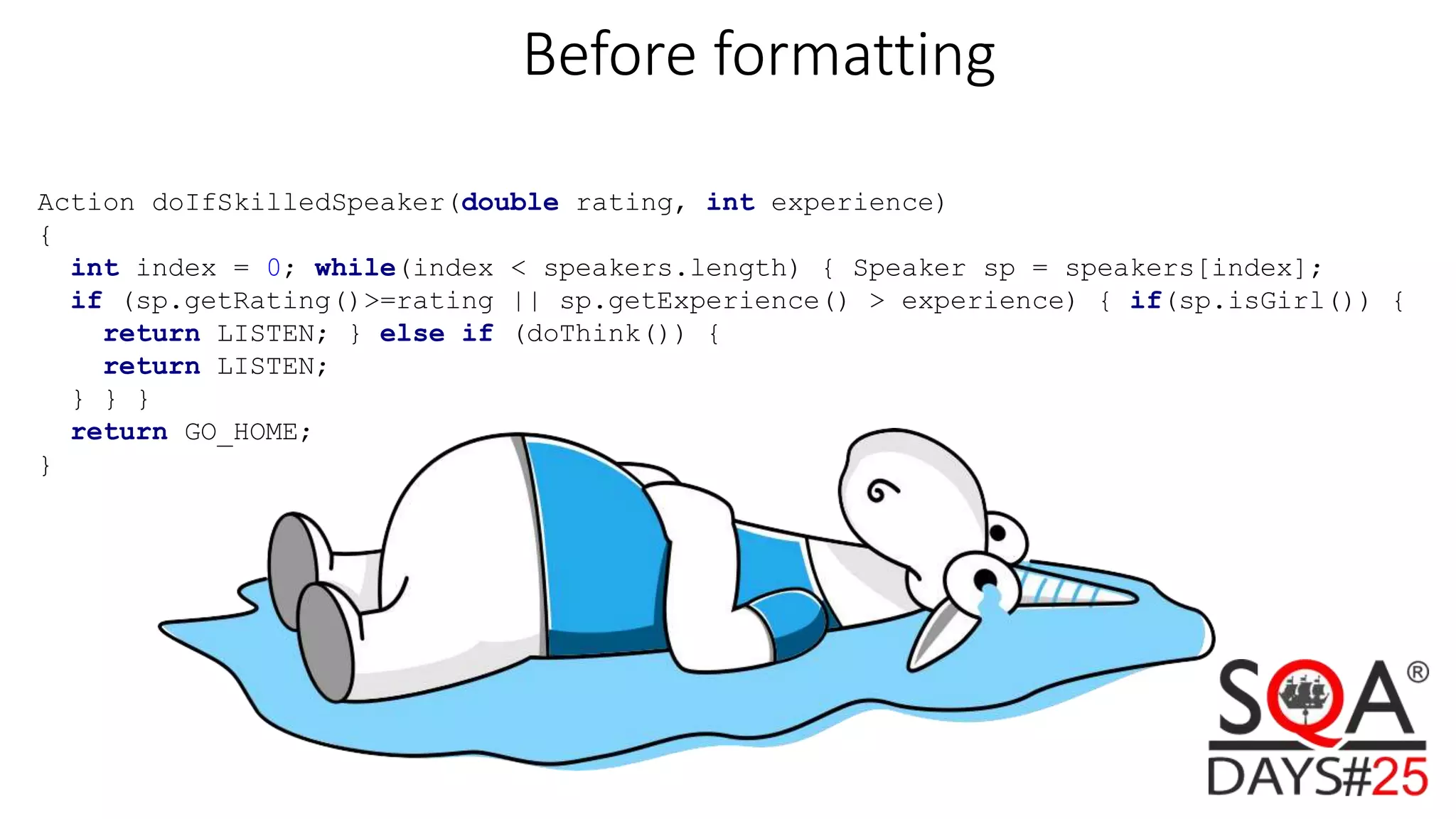

- 14. Before formatting Action doIfSkilledSpeaker(doublerating, int experience) { int index = 0; while(index < speakers.length) { Speaker sp = speakers[index]; if (sp.getRating()>=rating || sp.getExperience() > experience) { if(sp.isGirl()) { return LISTEN; } else if (doThink()) { return LISTEN; } } } return GO_HOME; }
- 15. Before formatting Action doIfSkilledSpeaker(doublerating, int experience) { int index = 0; while(index < speakers.length) { Speaker sp = speakers[index]; if (sp.getRating()>=rating || sp.getExperience() > experience) { if(sp.isGirl()) { return LISTEN; } else if (doThink()) { return LISTEN; } } } return GO_HOME; }

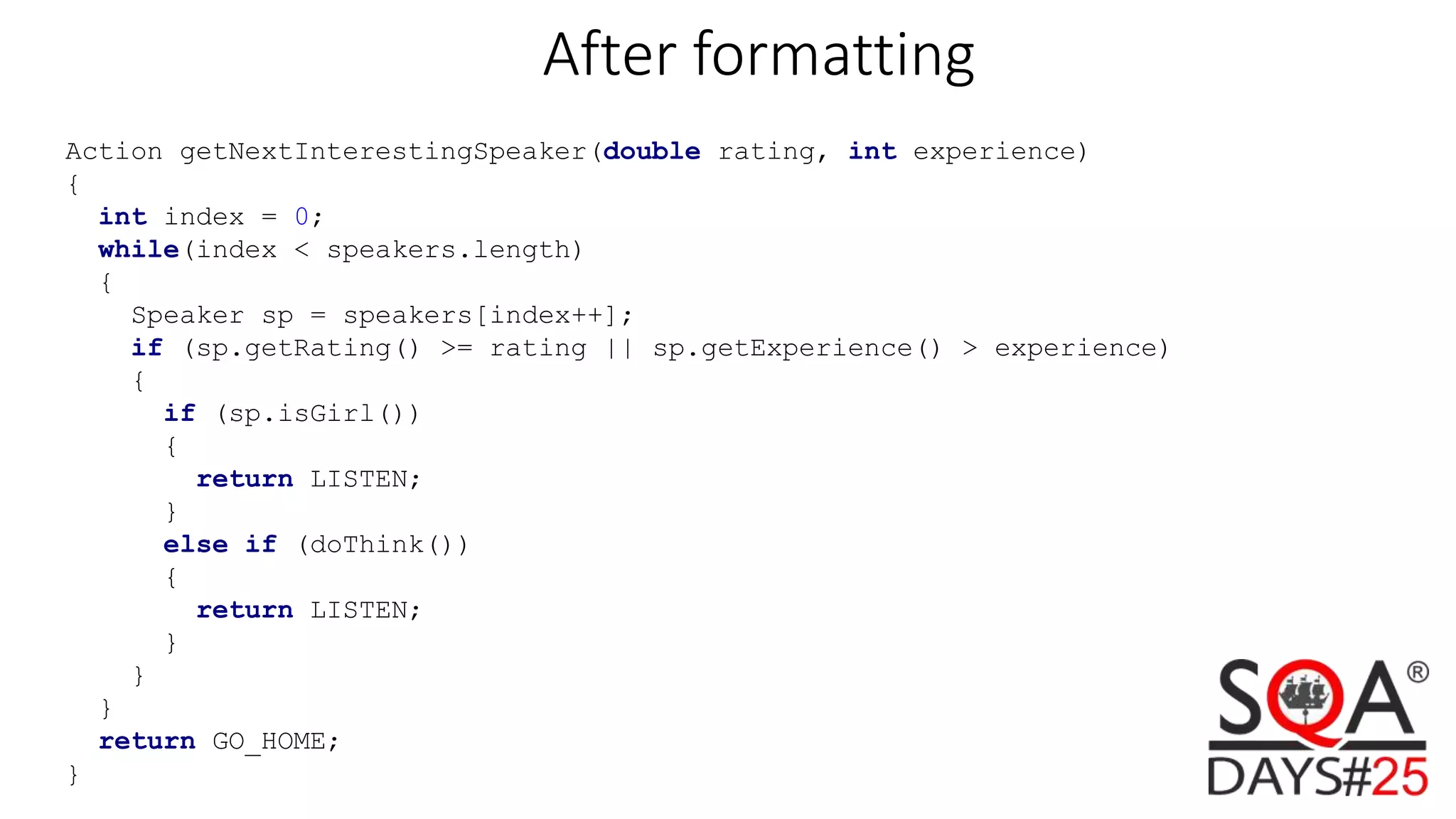

- 16. Action getNextInterestingSpeaker(double rating,int experience) { int index = 0; while(index < speakers.length) { Speaker sp = speakers[index++]; if (sp.getRating() >= rating || sp.getExperience() > experience) { if (sp.isGirl()) { return LISTEN; } else if (doThink()) { return LISTEN; } } } return GO_HOME; } After formatting

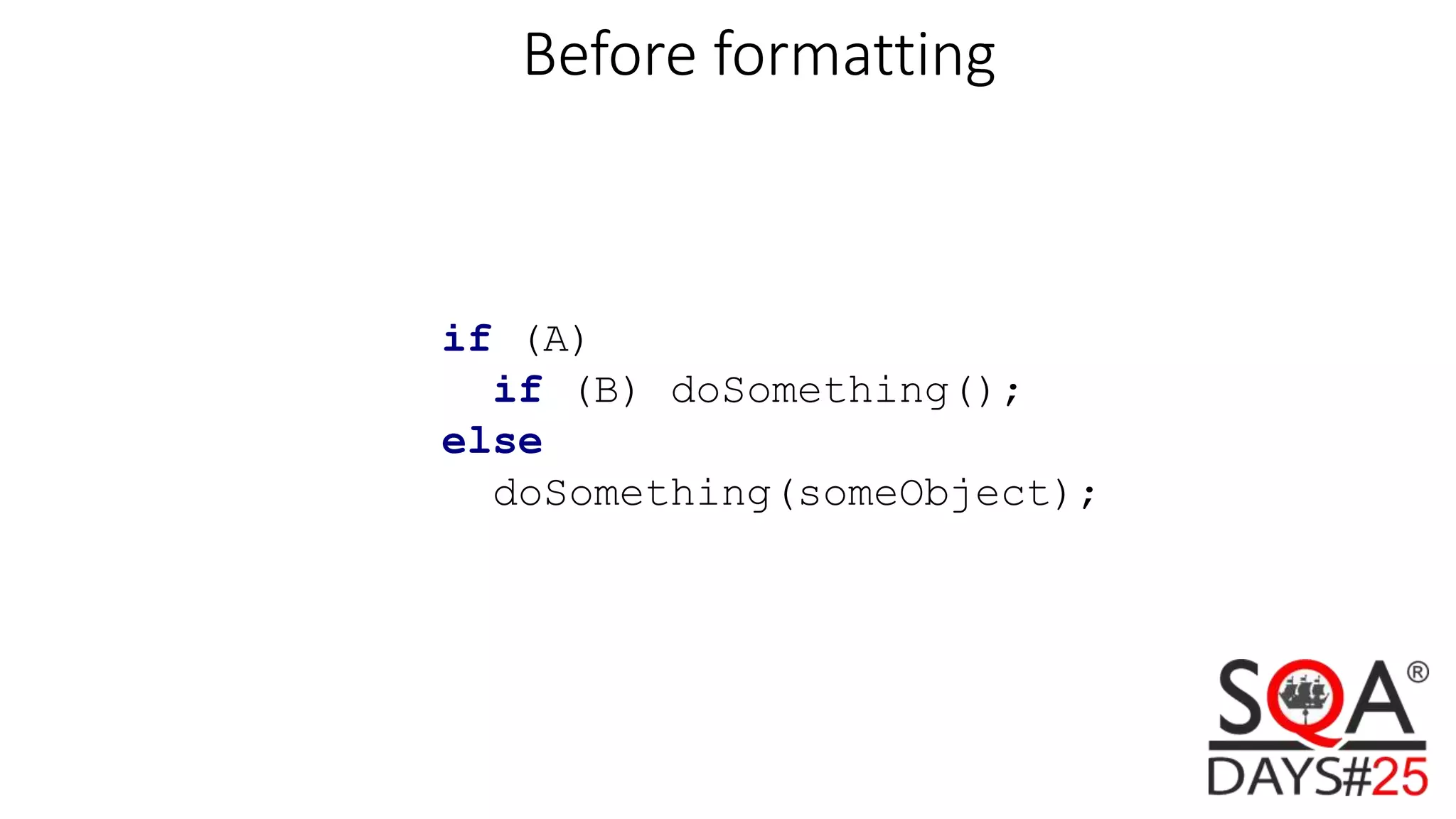

- 17. Before formatting if (A) if(B) doSomething(); else doSomething(someObject);

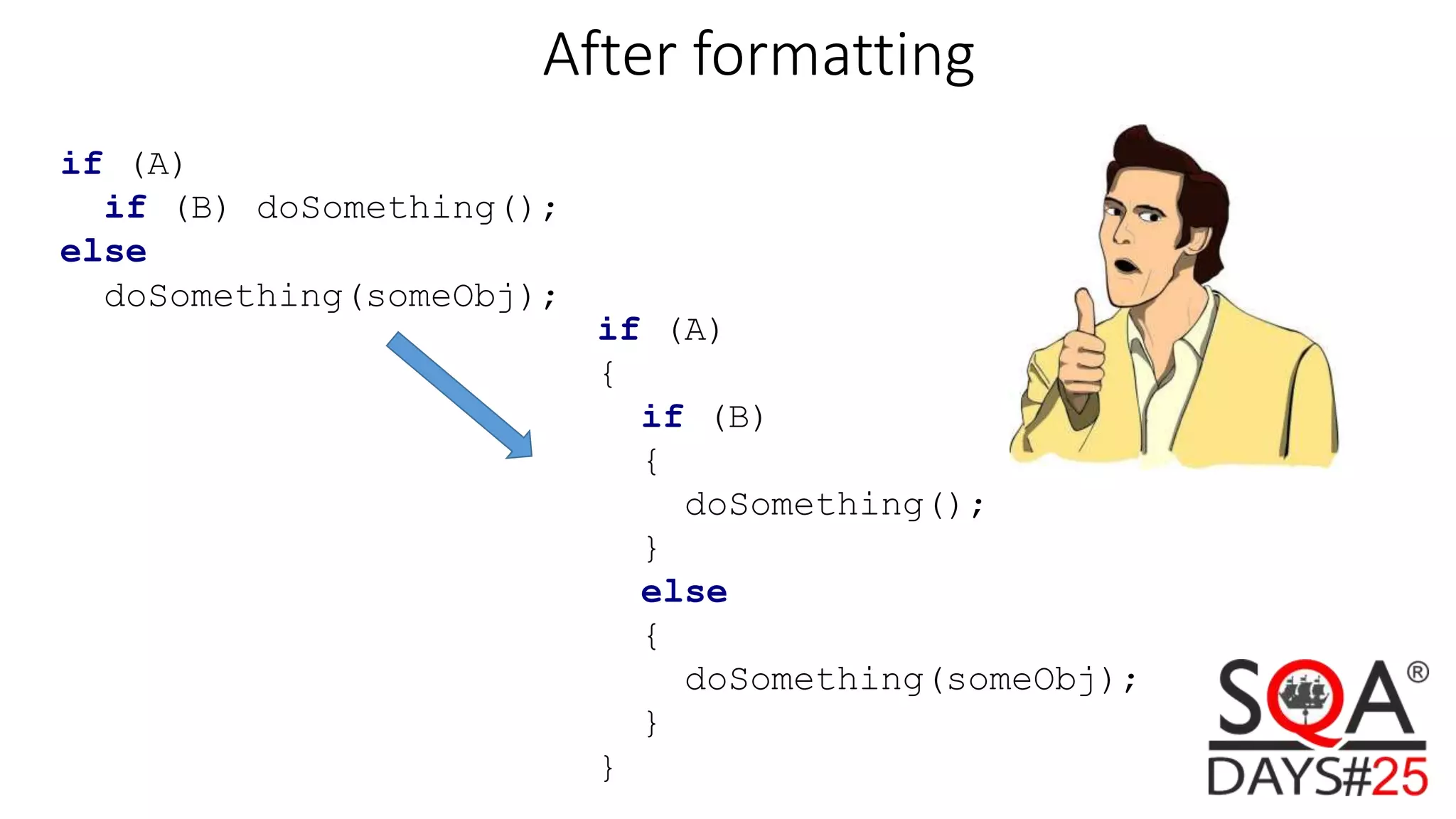

- 18. if (A) { if (B) { doSomething(); } else { doSomething(someObj); } } Afterformatting if (A) if (B) doSomething(); else doSomething(someObj);

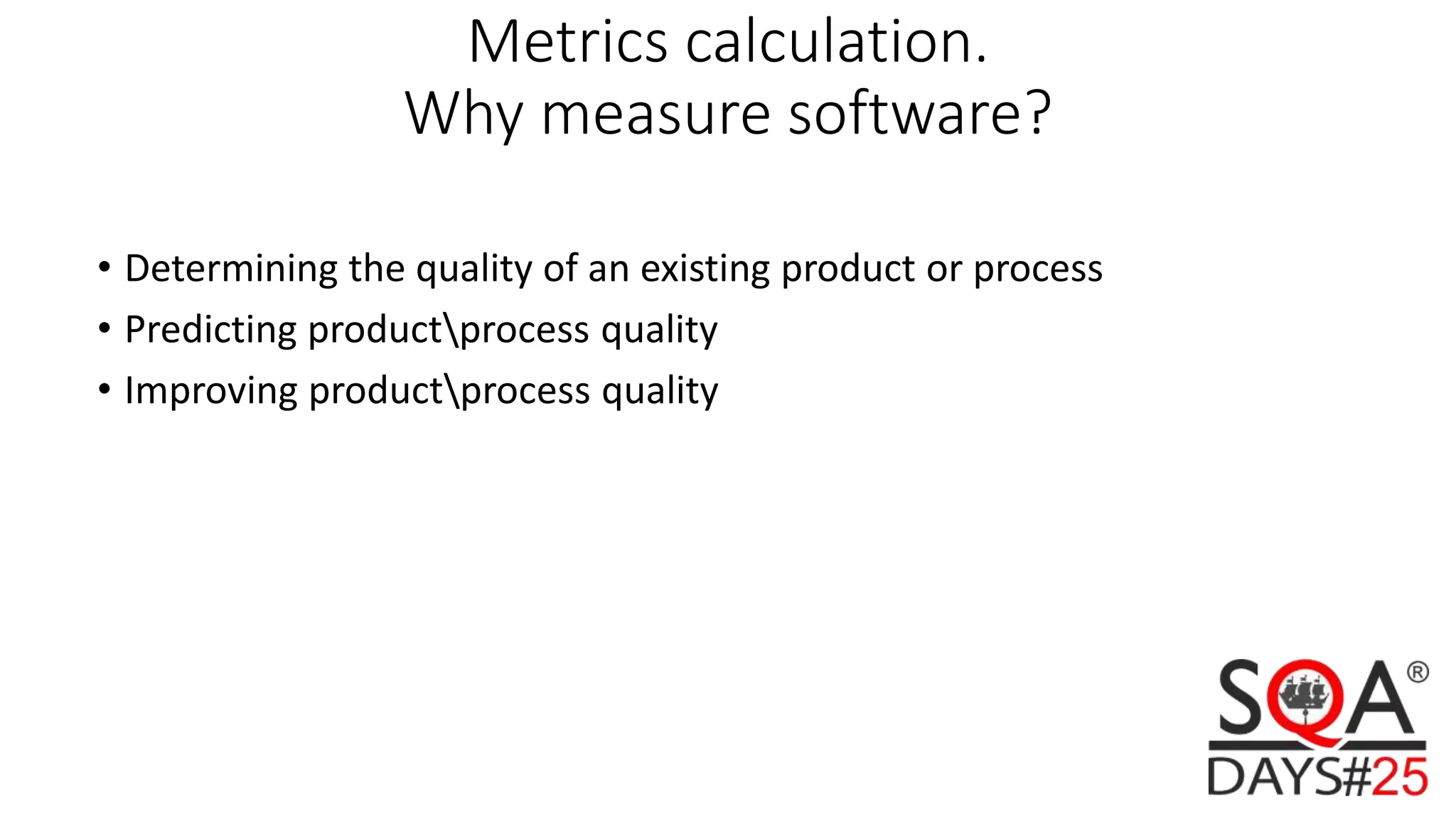

- 19. Metrics calculation. Why measuresoftware? • Determining the quality of an existing product or process • Predicting productprocess quality • Improving productprocess quality

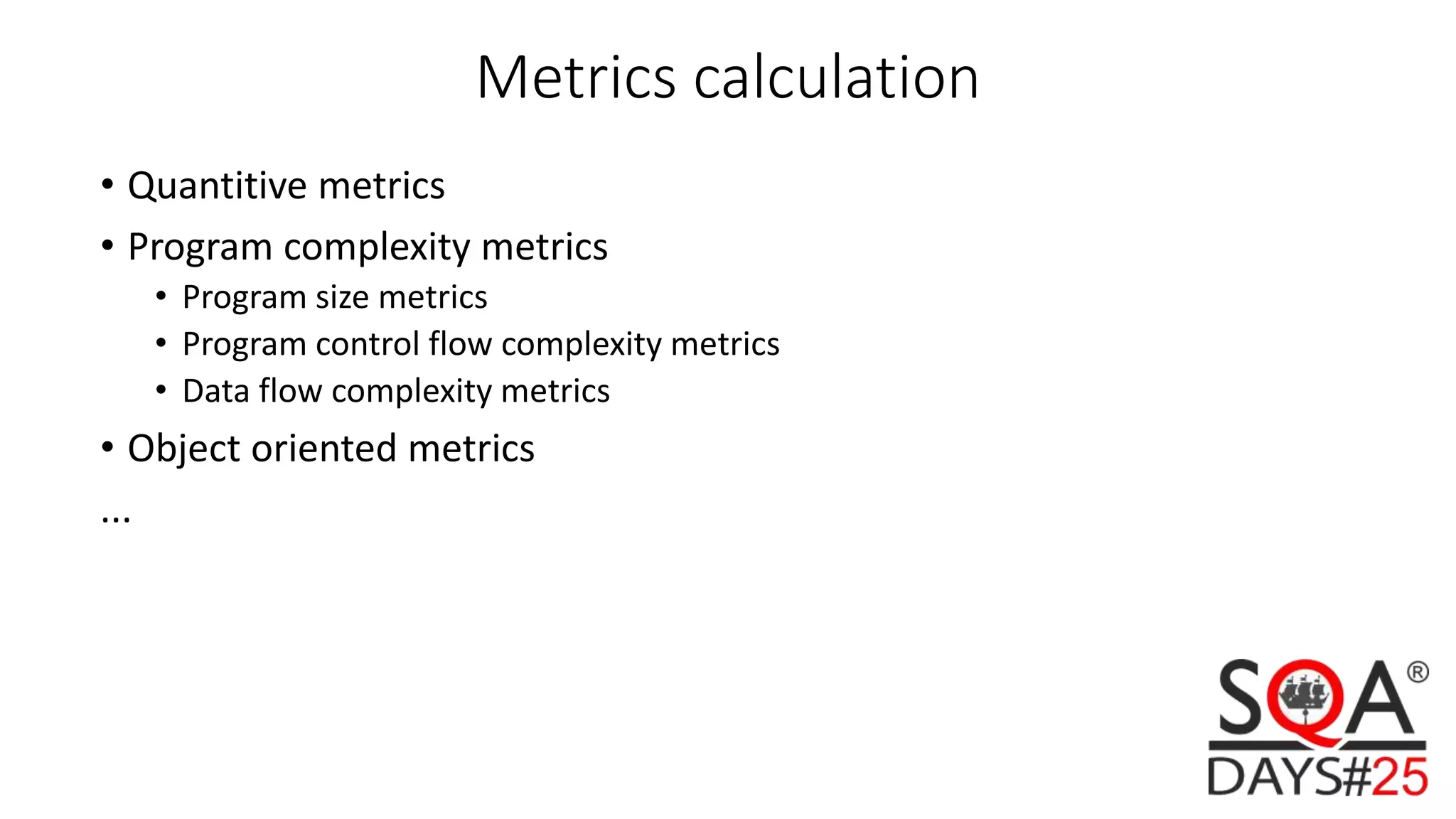

- 20. Metrics calculation • Quantitivemetrics • Program complexity metrics • Program size metrics • Program control flow complexity metrics • Data flow complexity metrics • Object oriented metrics ...
- 21. Quantitive metrics • SLOC– code lines (physical, logical) • Amount and percentage of comments • Average number of lines for functions (classes, files) • Code Duplication Percentage • ...

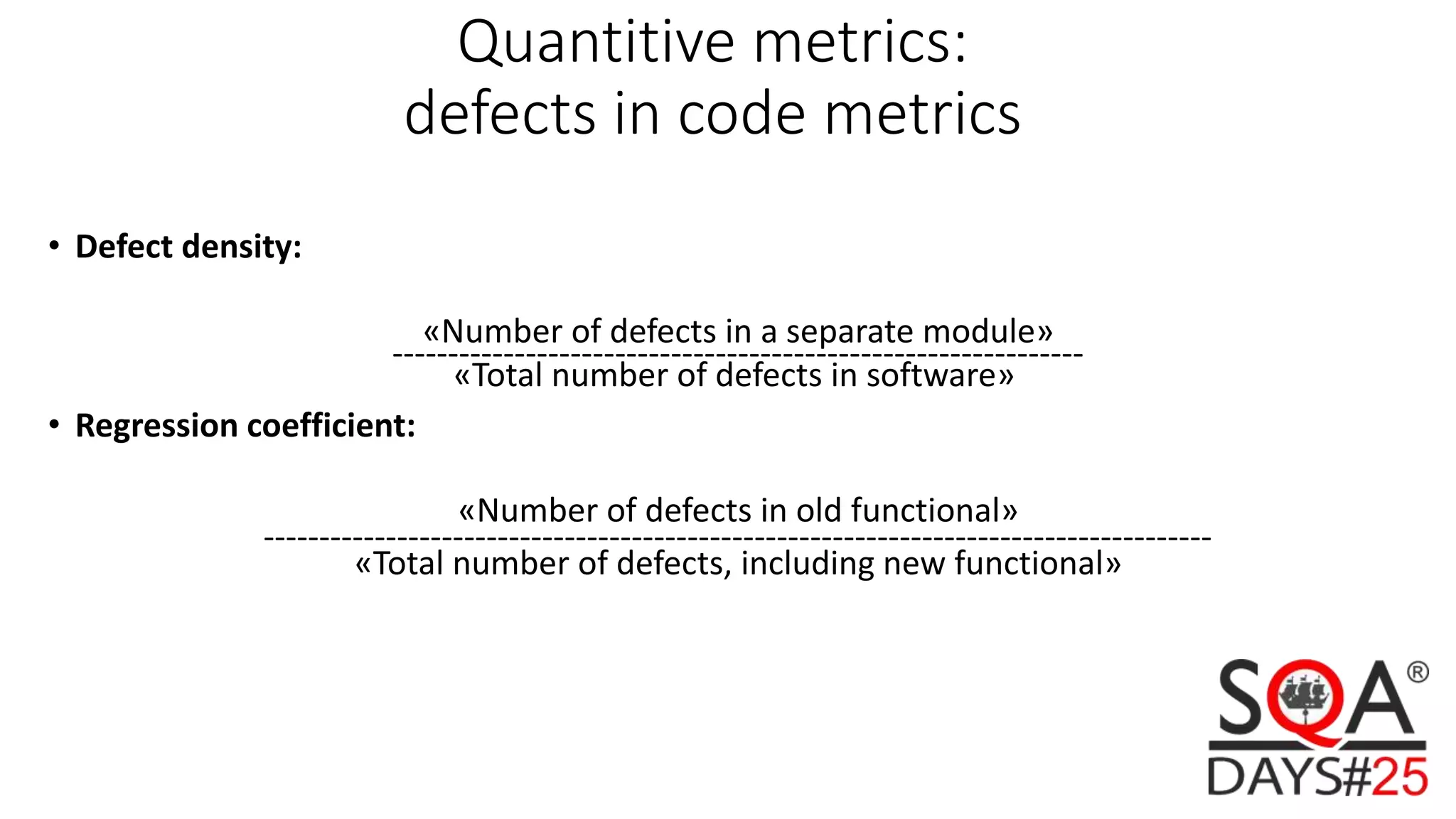

- 22. Quantitive metrics: defects incode metrics • Defect density: «Number of defects in a separate module» -------------------------------------------------------------- «Total number of defects in software» • Regression coefficient: «Number of defects in old functional» ------------------------------------------------------------------------------------- «Total number of defects, including new functional»

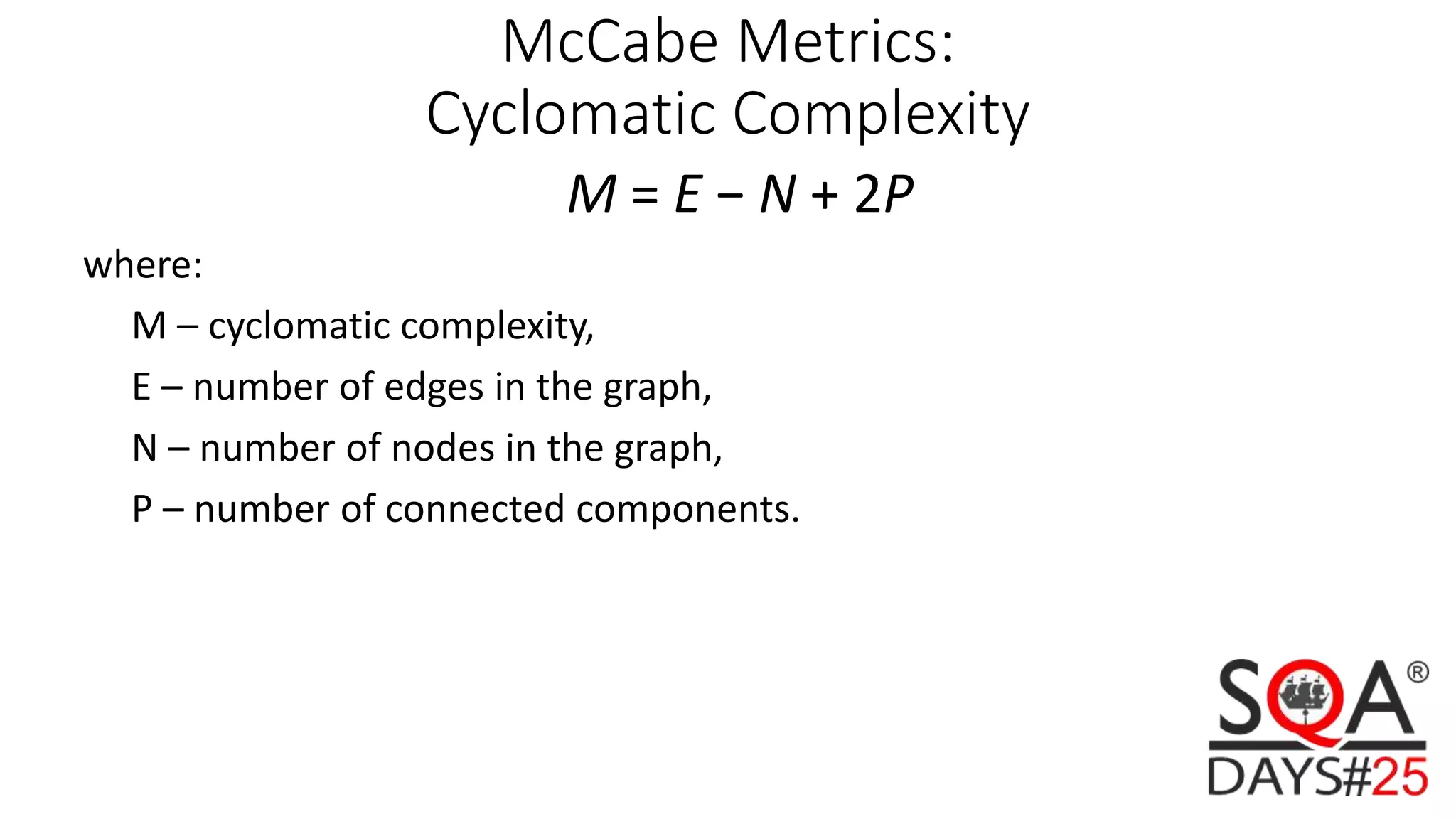

- 23. McCabe Metrics: Cyclomatic Complexity M= E − N + 2P where: M – cyclomatic complexity, E – number of edges in the graph, N – number of nodes in the graph, P – number of connected components.

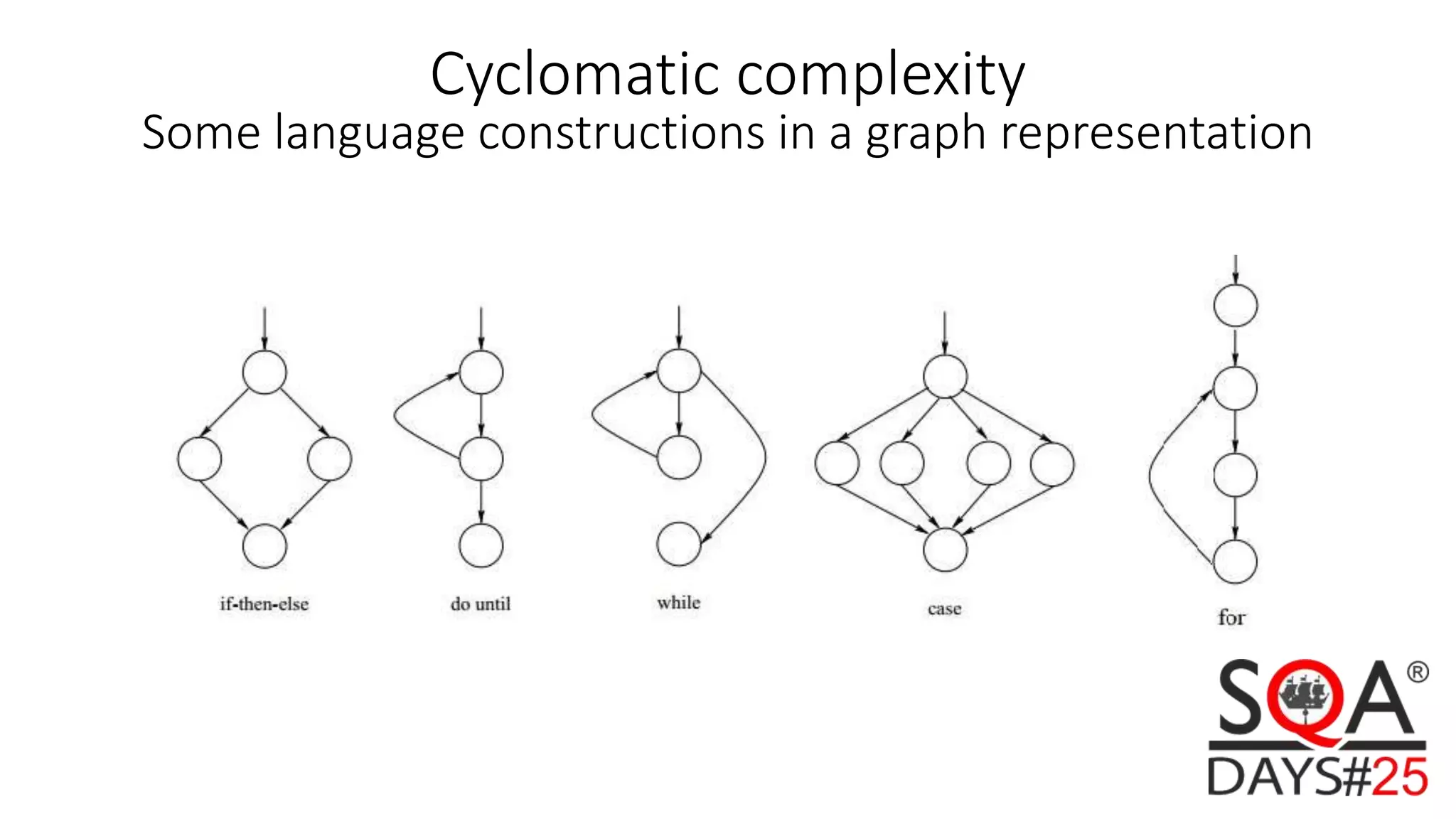

- 24. Cyclomatic complexity Some languageconstructions in a graph representation

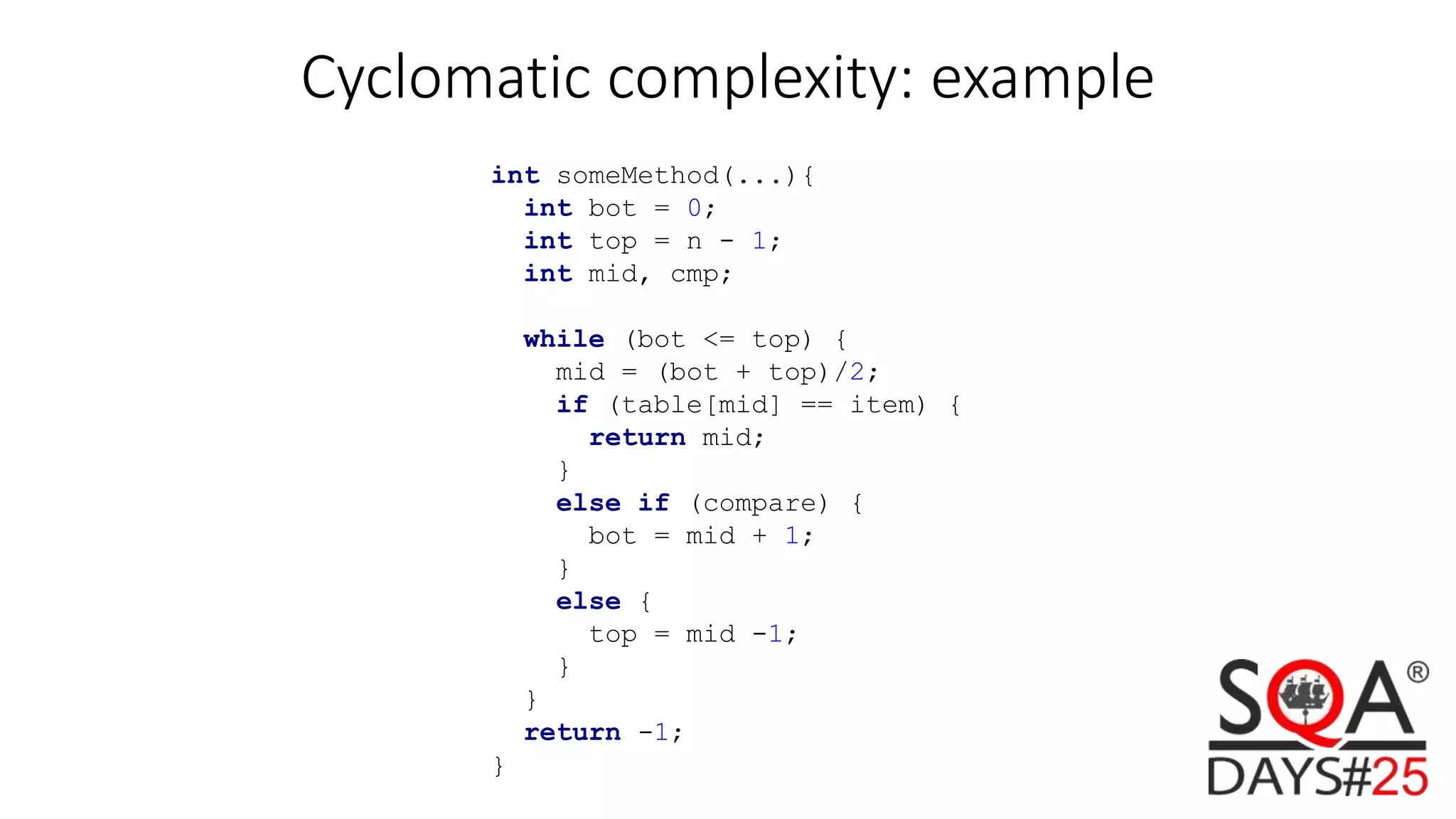

- 25. Cyclomatic complexity: example intsomeMethod(...){ int bot = 0; int top = n - 1; int mid, cmp; while (bot <= top) { mid = (bot + top)/2; if (table[mid] == item) { return mid; } else if (compare) { bot = mid + 1; } else { top = mid -1; } } return -1; }

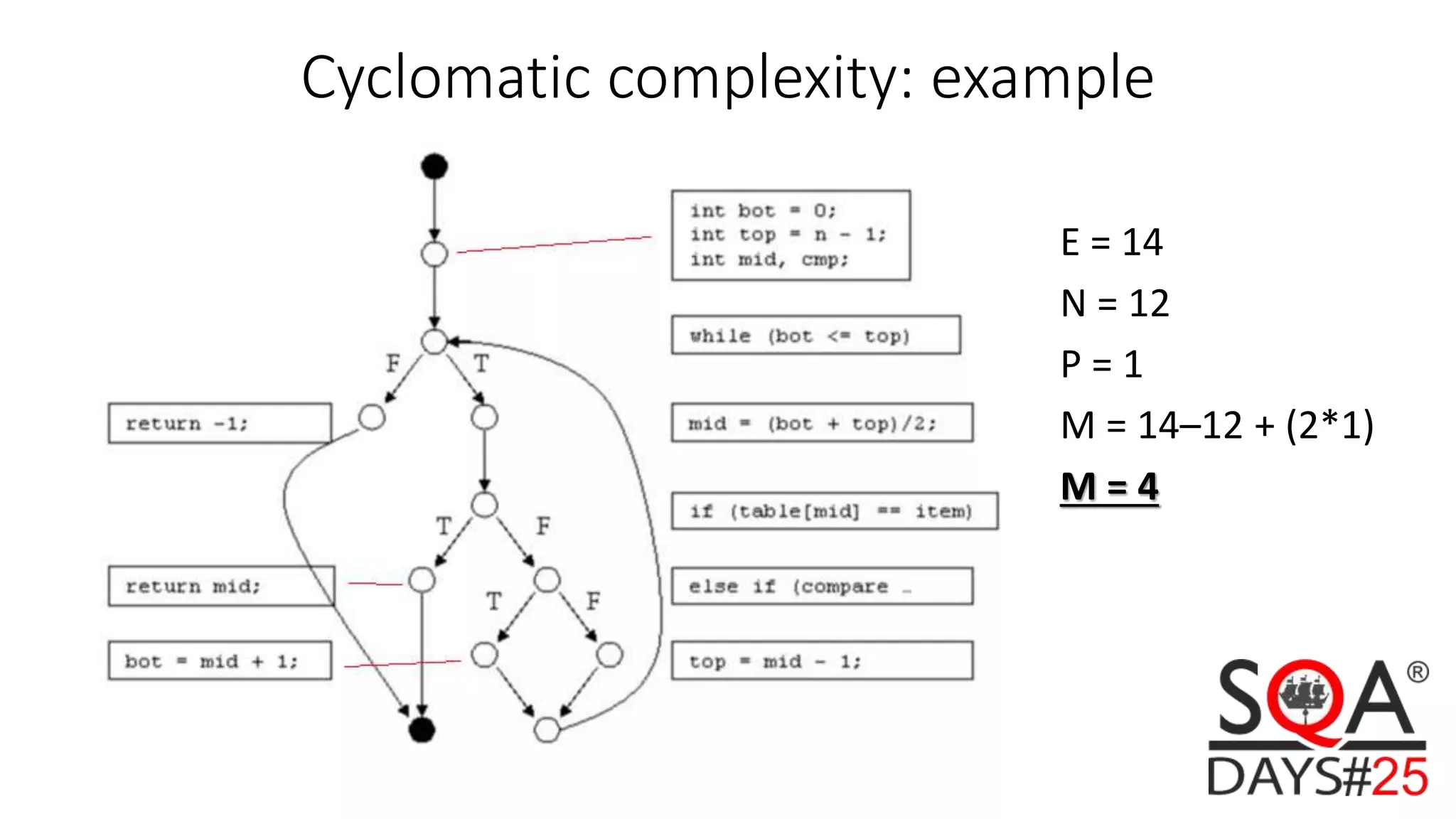

- 26. Cyclomatic complexity: example E= 14 N = 12 P = 1 M = 14–12 + (2*1) M = 4

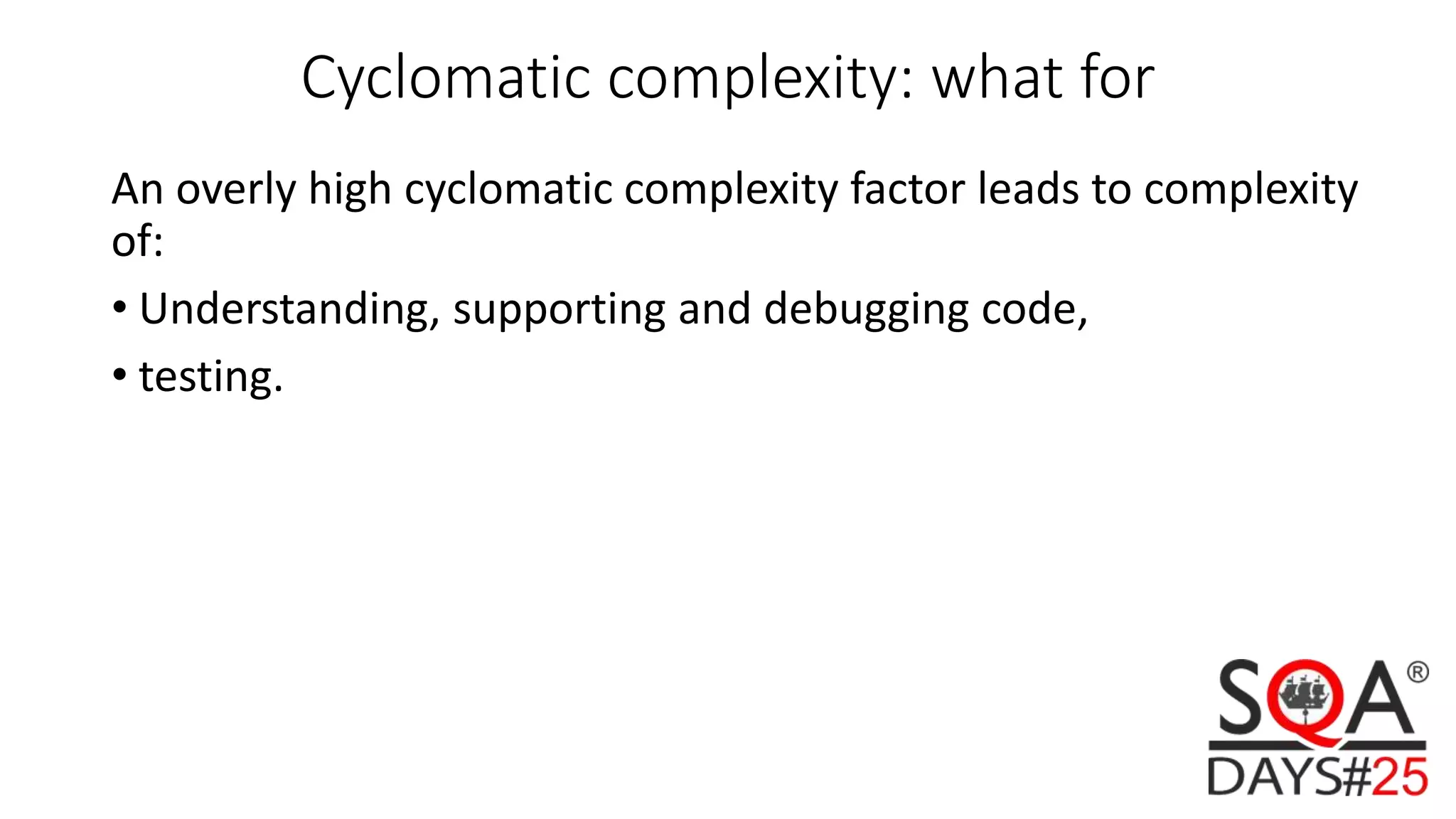

- 27. Cyclomatic complexity: whatfor An overly high cyclomatic complexity factor leads to complexity of: • Understanding, supporting and debugging code, • testing.

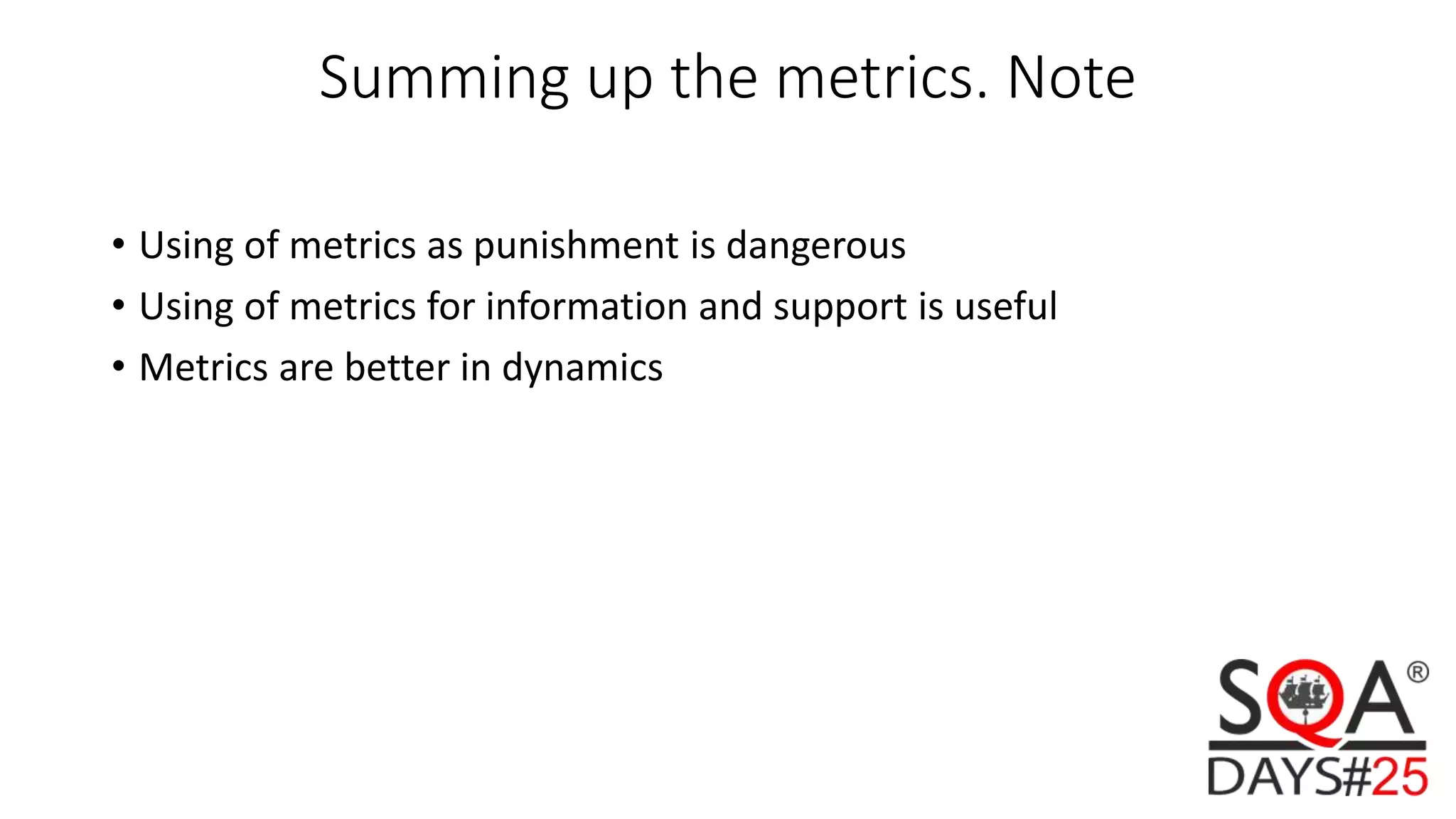

- 28. Summing up themetrics. Note • Using of metrics as punishment is dangerous • Using of metrics for information and support is useful • Metrics are better in dynamics
- 29. Source code obfuscation/deobfustation Theneed of protection against analysis performed by both man and machine, as well as software with increased requirements for crack resistance, for example: • DRM key protection • Game protection against extraneous code (cheats and bots) • Source protection during transfer/sale

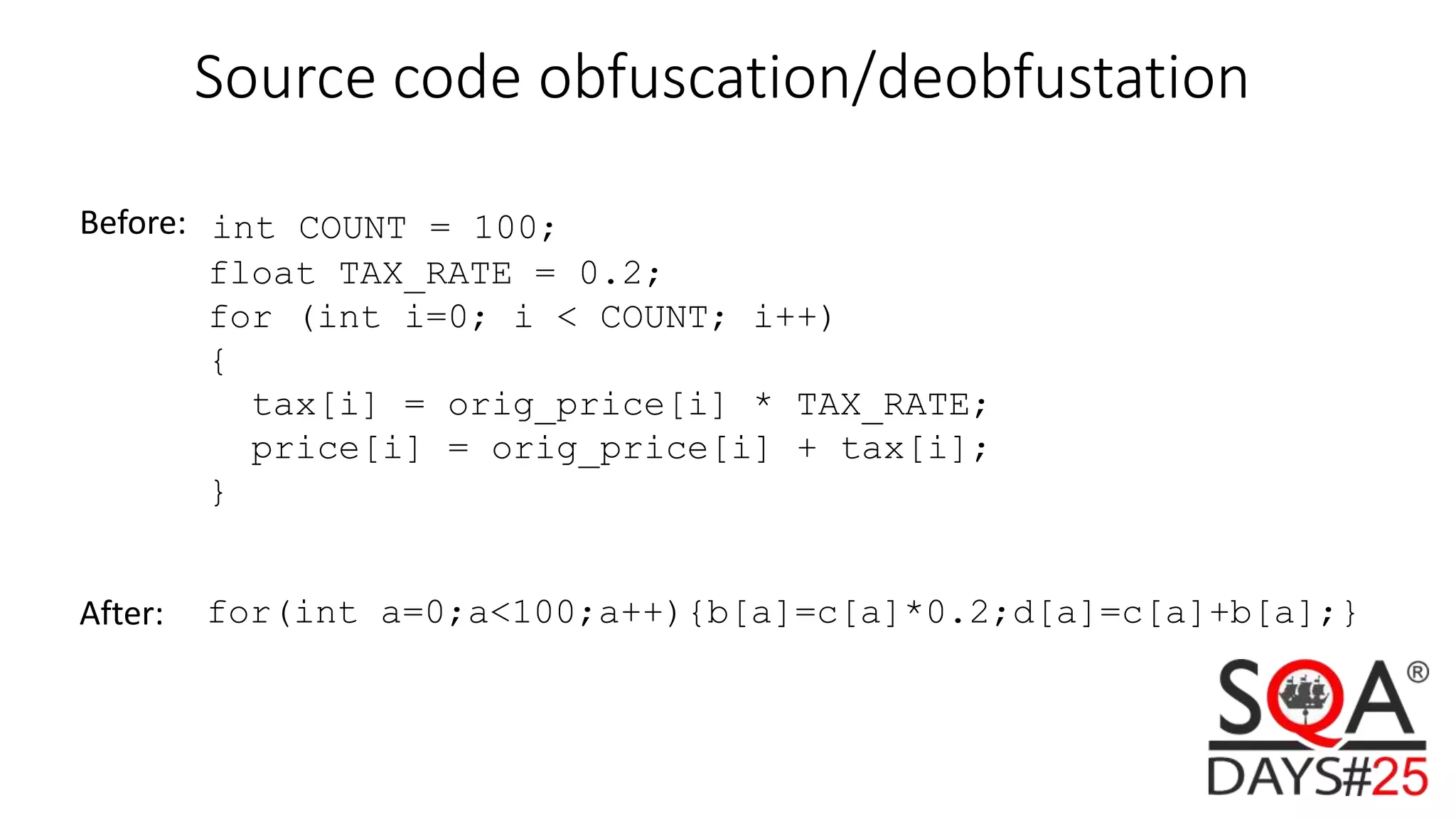

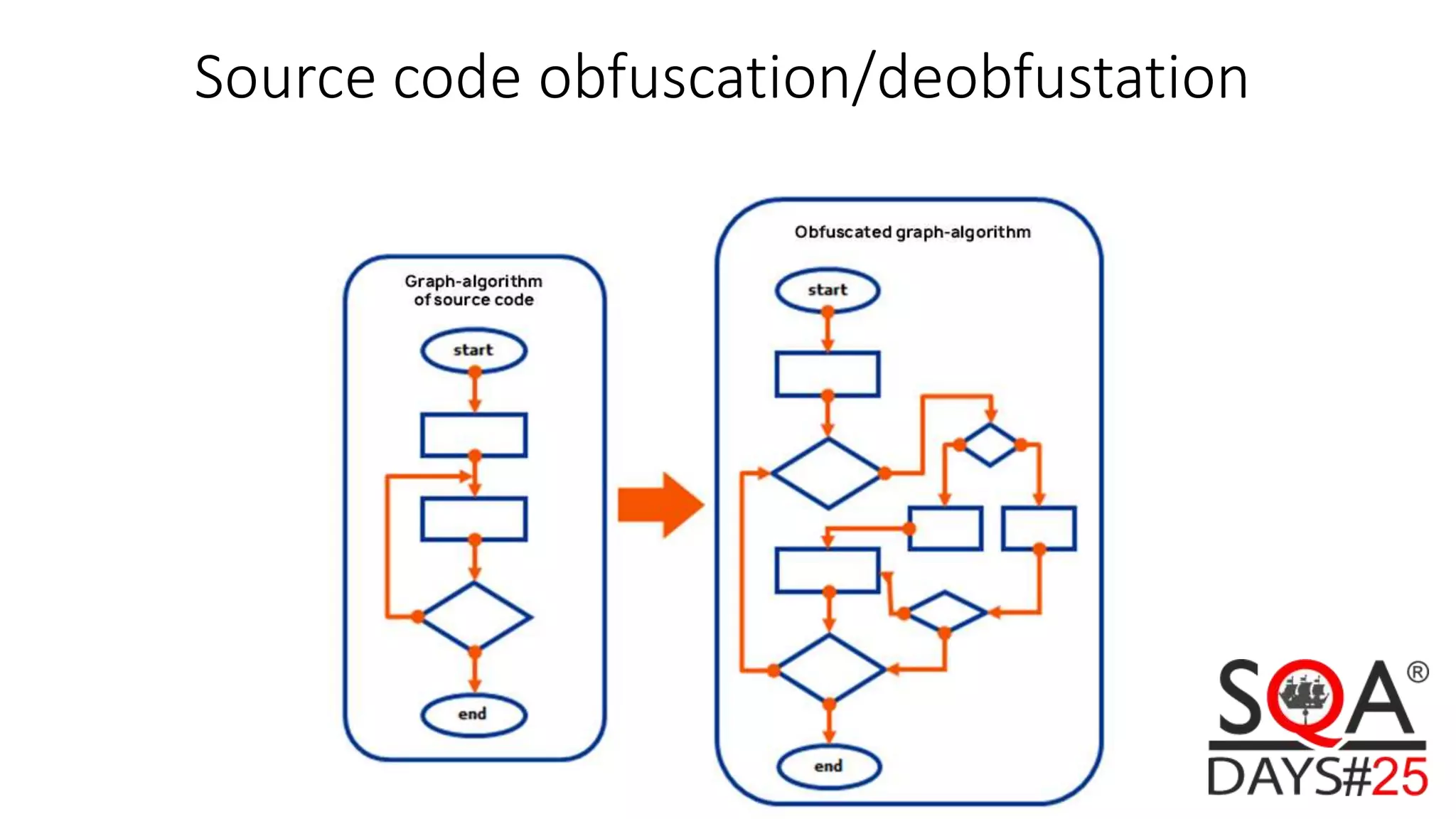

- 30. Source code obfuscation/deobfustation intCOUNT = 100; float TAX_RATE = 0.2; for (int i=0; i < COUNT; i++) { tax[i] = orig_price[i] * TAX_RATE; price[i] = orig_price[i] + tax[i]; } Before: After: for(int a=0;a<100;a++){b[a]=c[a]*0.2;d[a]=c[a]+b[a];}
- 31.

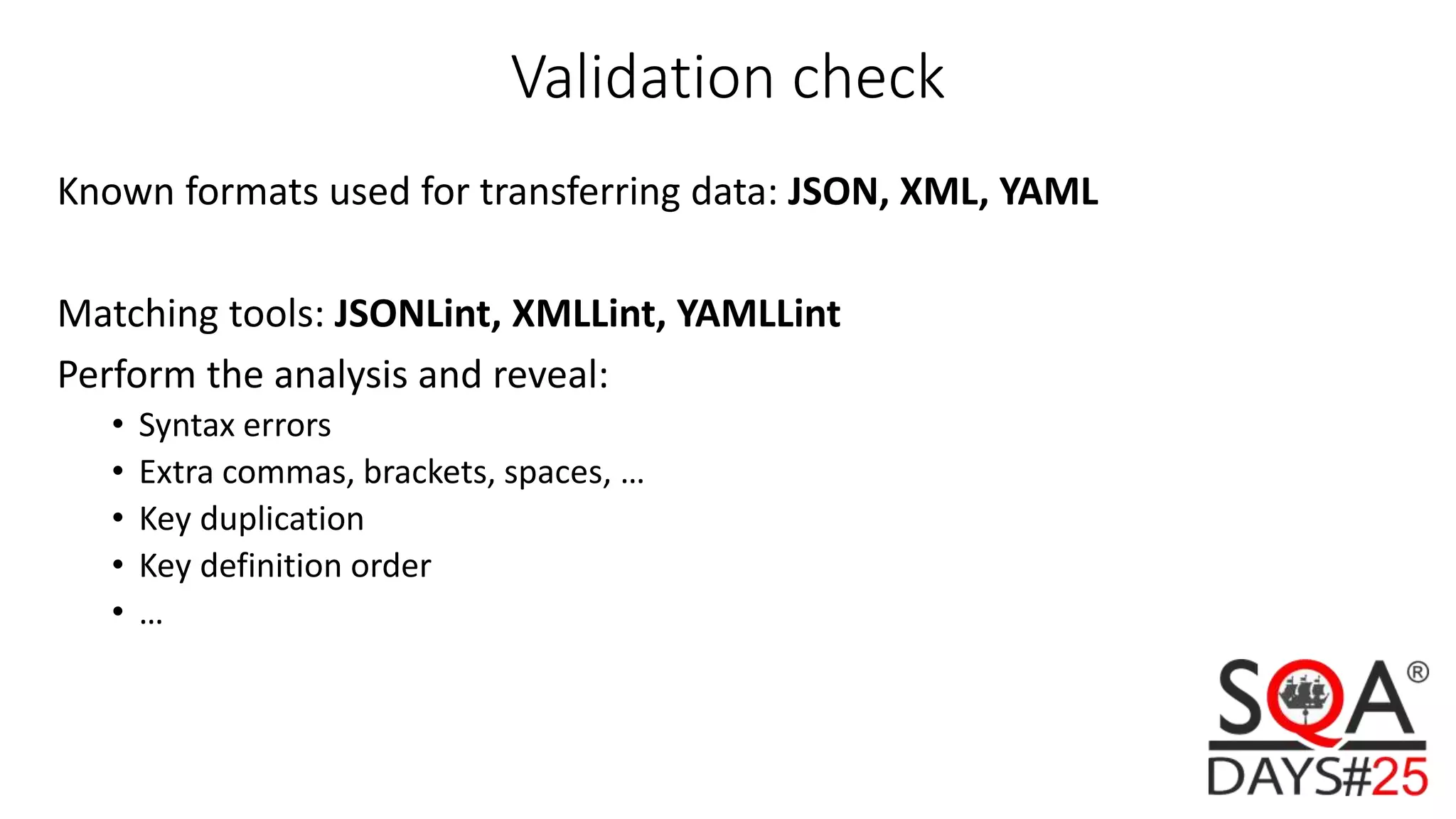

- 32. Validation check Known formatsused for transferring data: JSON, XML, YAML Matching tools: JSONLint, XMLLint, YAMLLint Perform the analysis and reveal: • Syntax errors • Extra commas, brackets, spaces, … • Key duplication • Key definition order • …

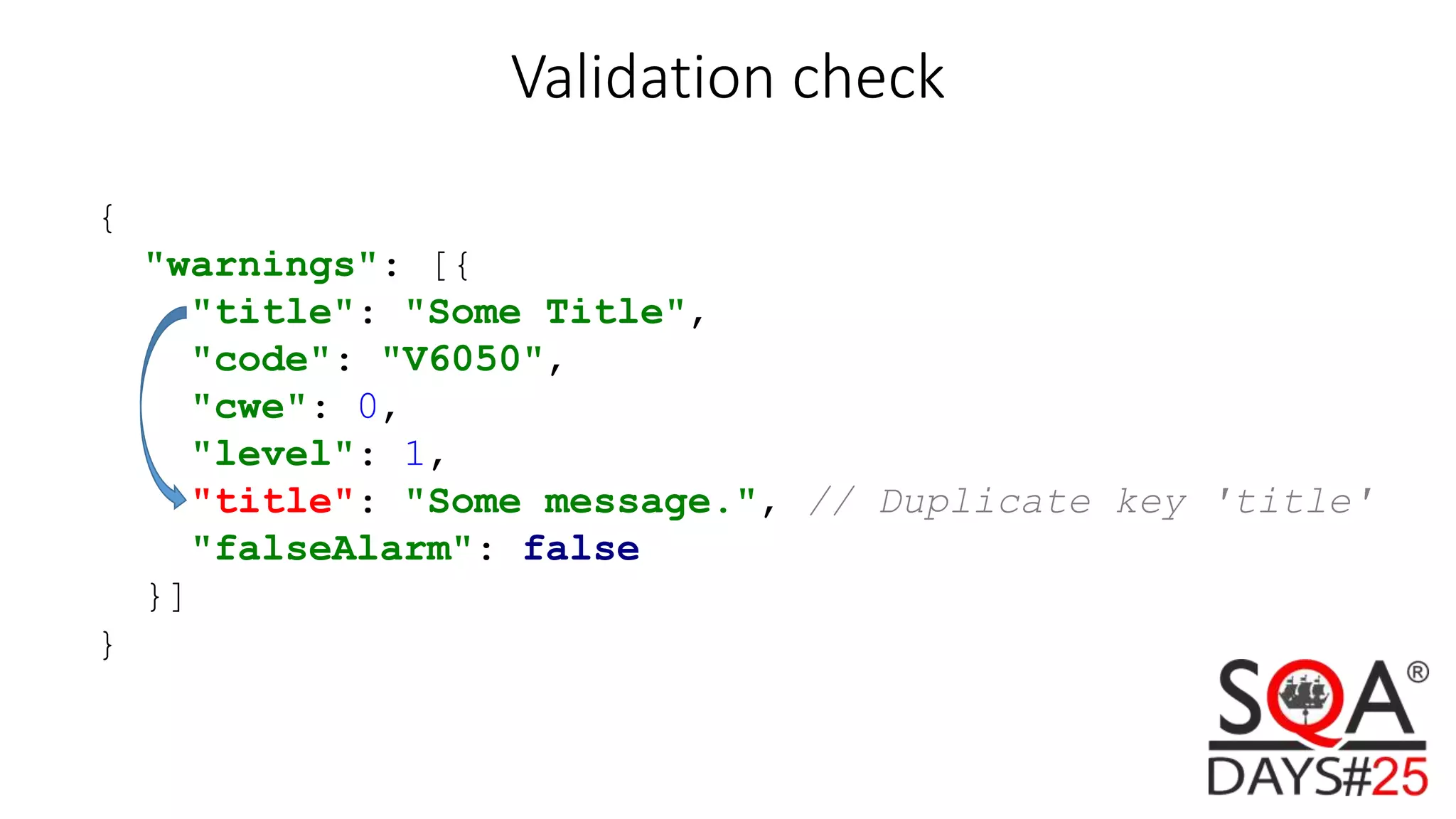

- 33. Validation check { "warnings": [{ "title":"Some Title", "code": "V6050", "cwe": 0, "level": 1, "title": "Some message.", // Duplicate key 'title' "falseAlarm": false }] }

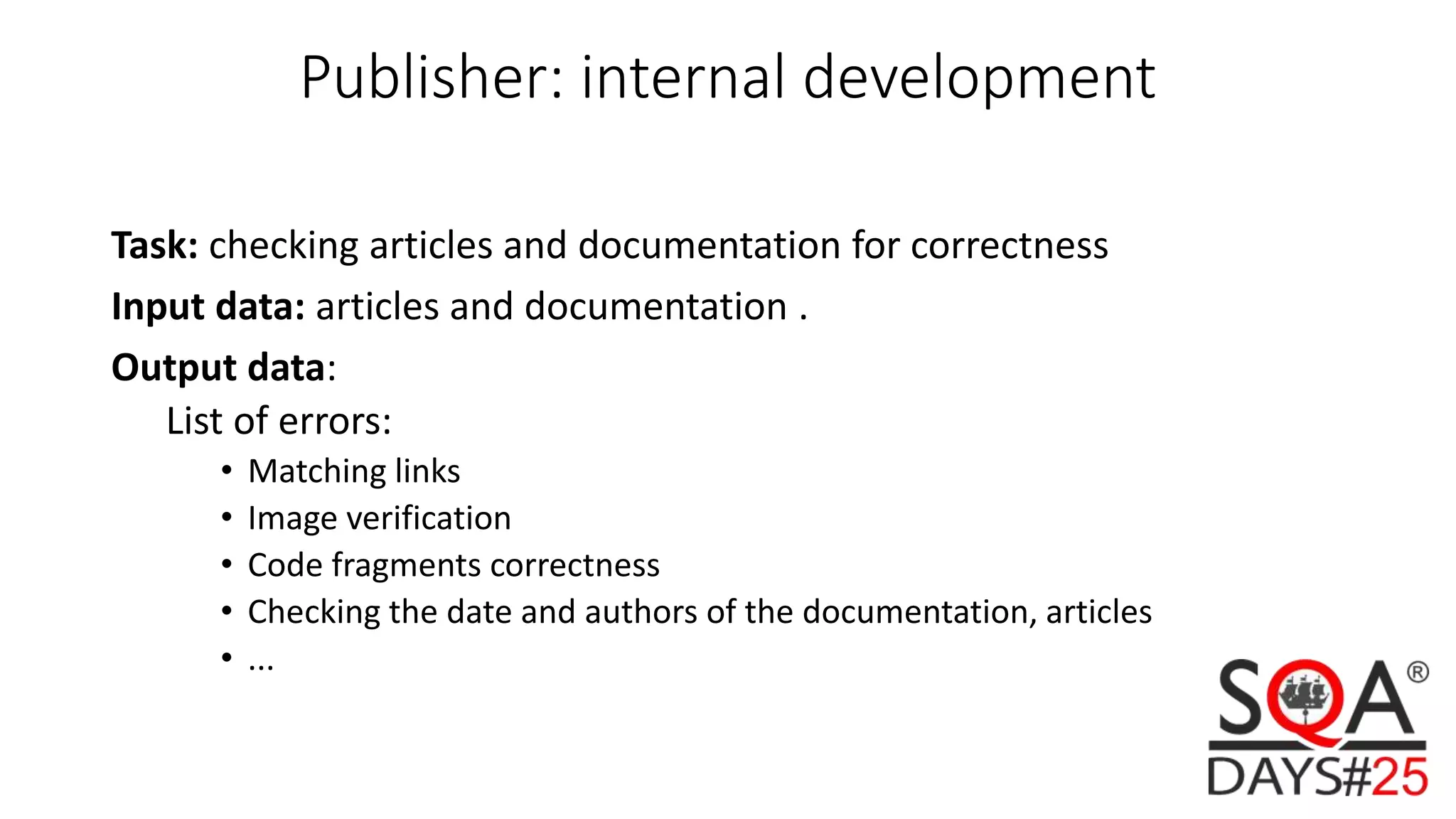

- 34. Publisher: internal development Task:checking articles and documentation for correctness Input data: articles and documentation . Output data: List of errors: • Matching links • Image verification • Code fragments correctness • Checking the date and authors of the documentation, articles • ...
- 35. Example: checking pictures foralpha channels Expectation Reality

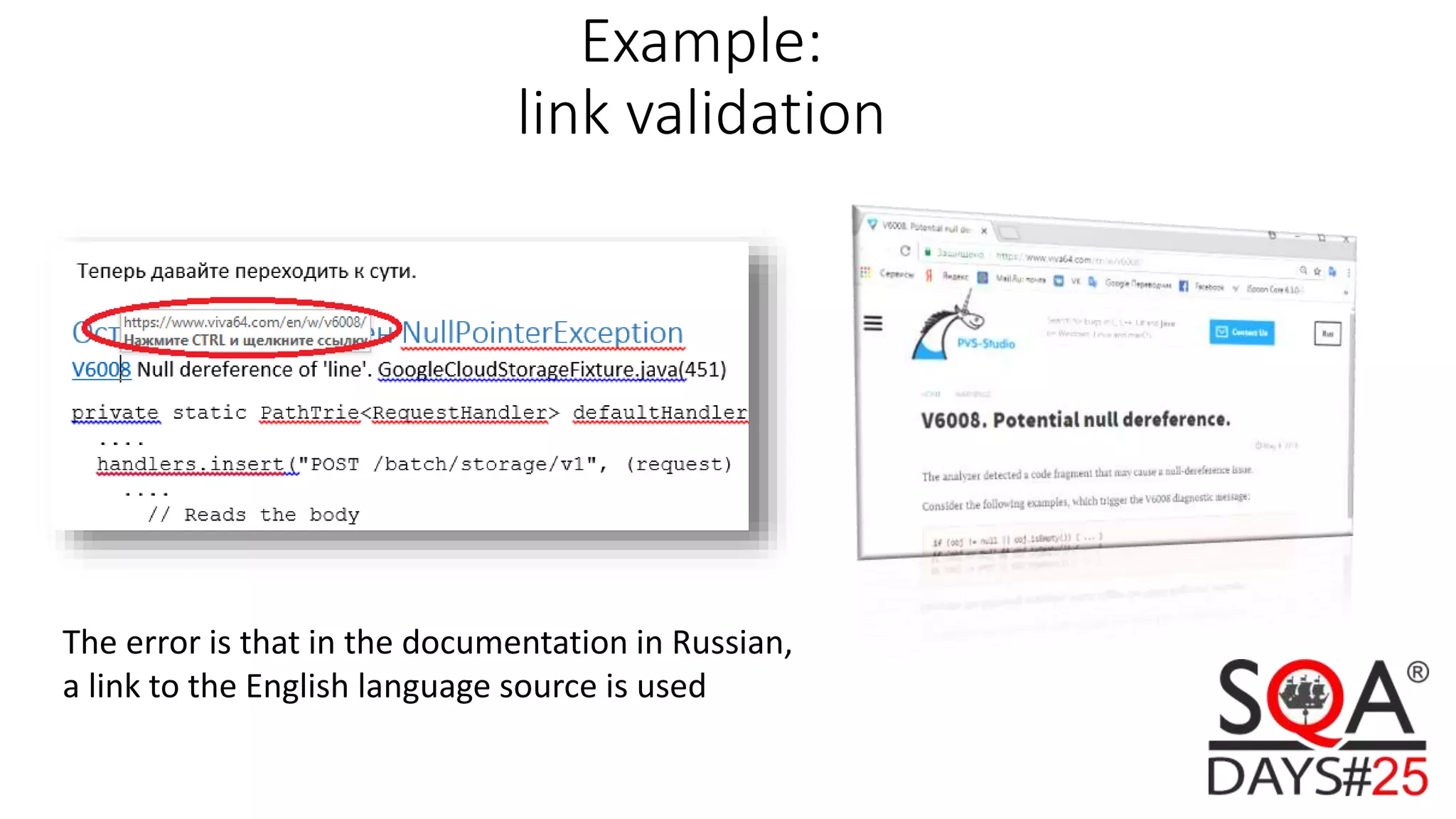

- 36. Example: link validation The erroris that in the documentation in Russian, a link to the English language source is used

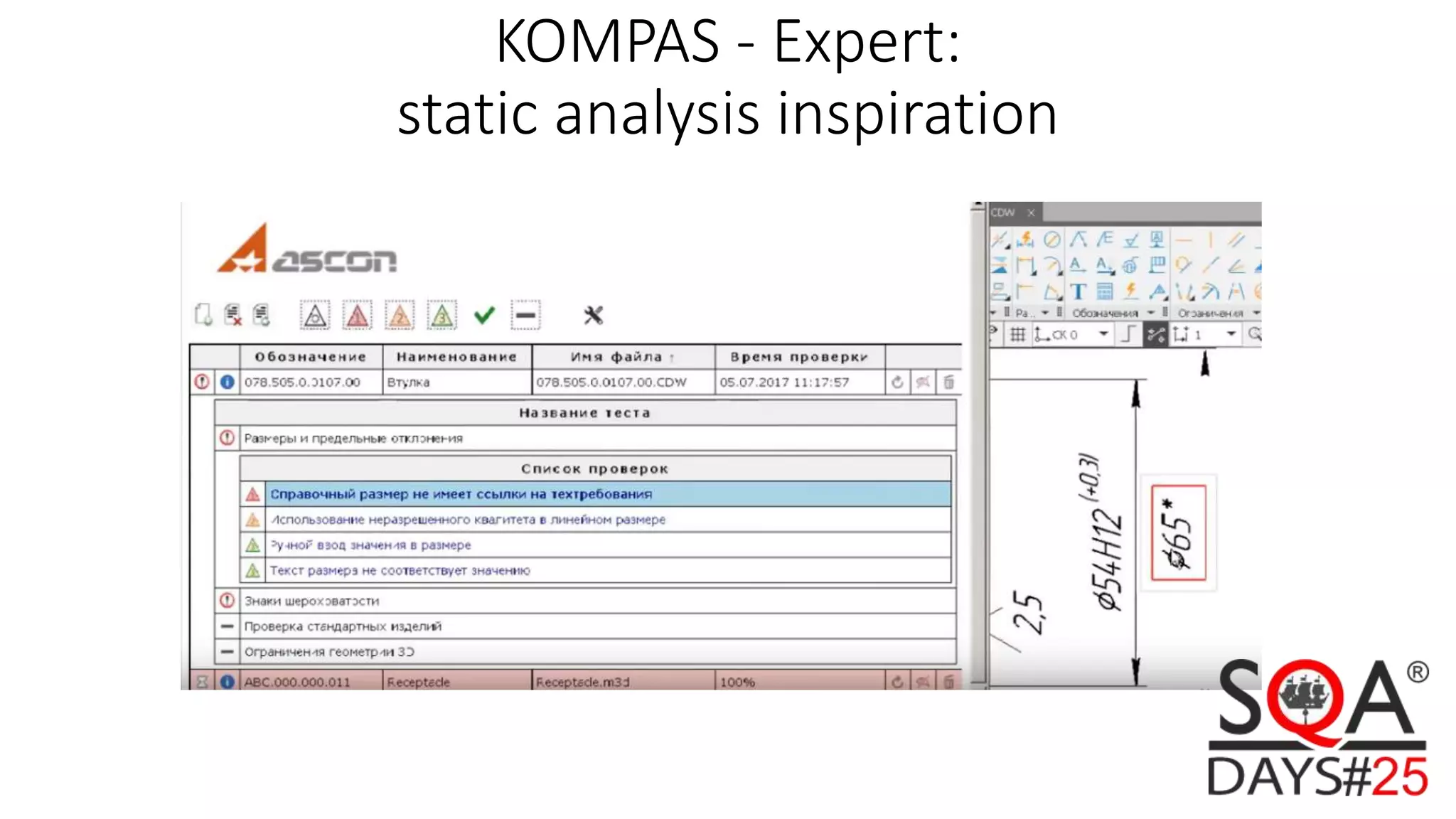

- 37. KOMPAS - Expert: staticanalysis inspiration • Input data: figure and 3D-model • Output data: List of errors: • Design standards compliance • Enterprise restriction lists compliance • KOMPAS – 3D work rules compliance
- 38. KOMPAS - Expert: staticanalysis inspiration
