How to install a font using xml publisher administrator
The document provides step-by-step instructions on how to install a font using XML Publisher Administrator, replacing the need for a configuration file with an administration tab for managing fonts. Users are guided through creating font files, mapping them, and configuring the necessary settings to ensure proper usage in PDF templates. The instructions conclude with testing the font in a template to verify successful installation.
How to install a font using xml publisher administrator
- 1. How to installa font using XML Publisher Administrator Lot Number Label Report Report Parameters Create Value Set Name = XX ITEM CODE Table Application = Inventory Table Name = MTL_SYSTEM_ITEMS_B
- 2. Where/order by =ORGANIZATION_ID=:$PROFILES$.MFG_ORGANIZATION_ID

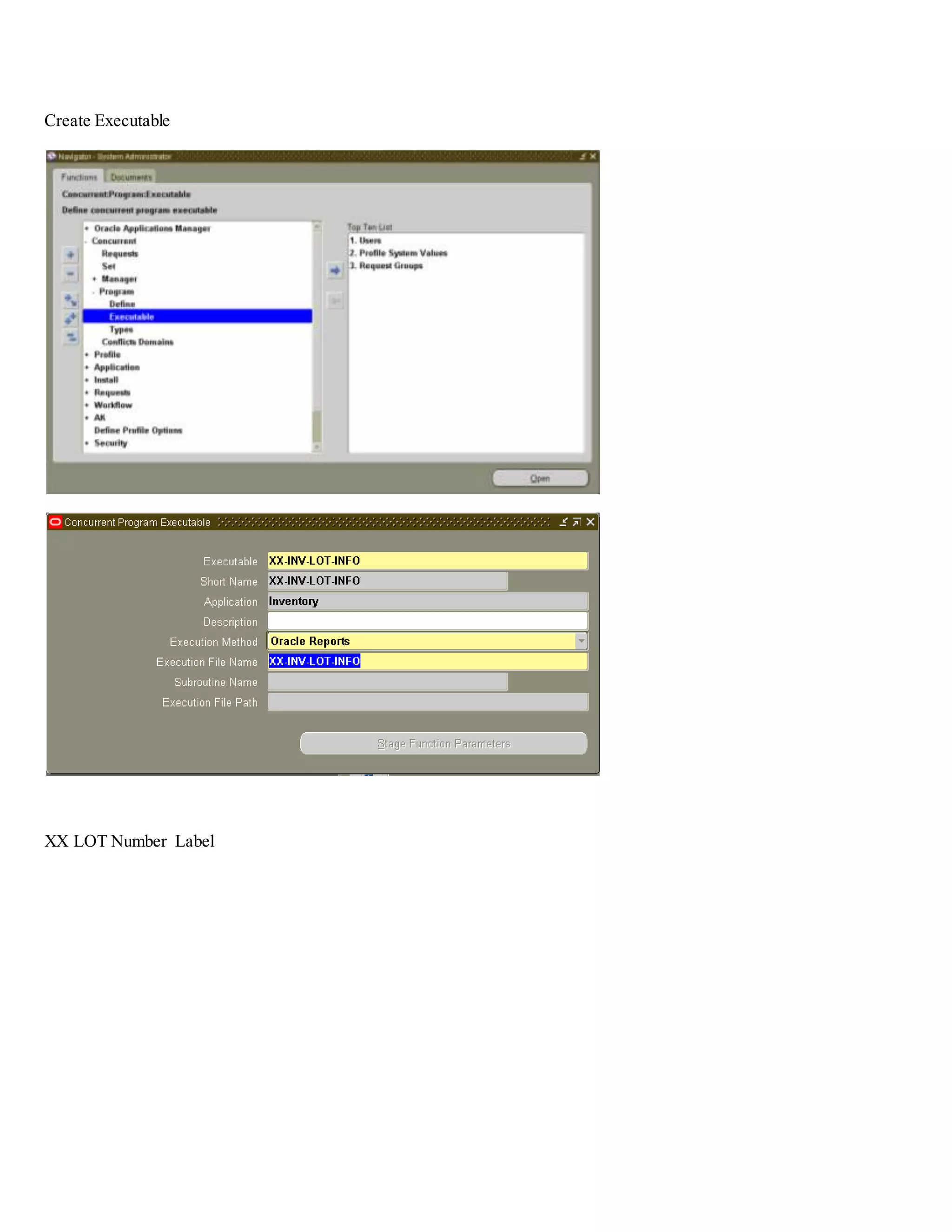

- 3. Create Executable XX LOTNumber Label

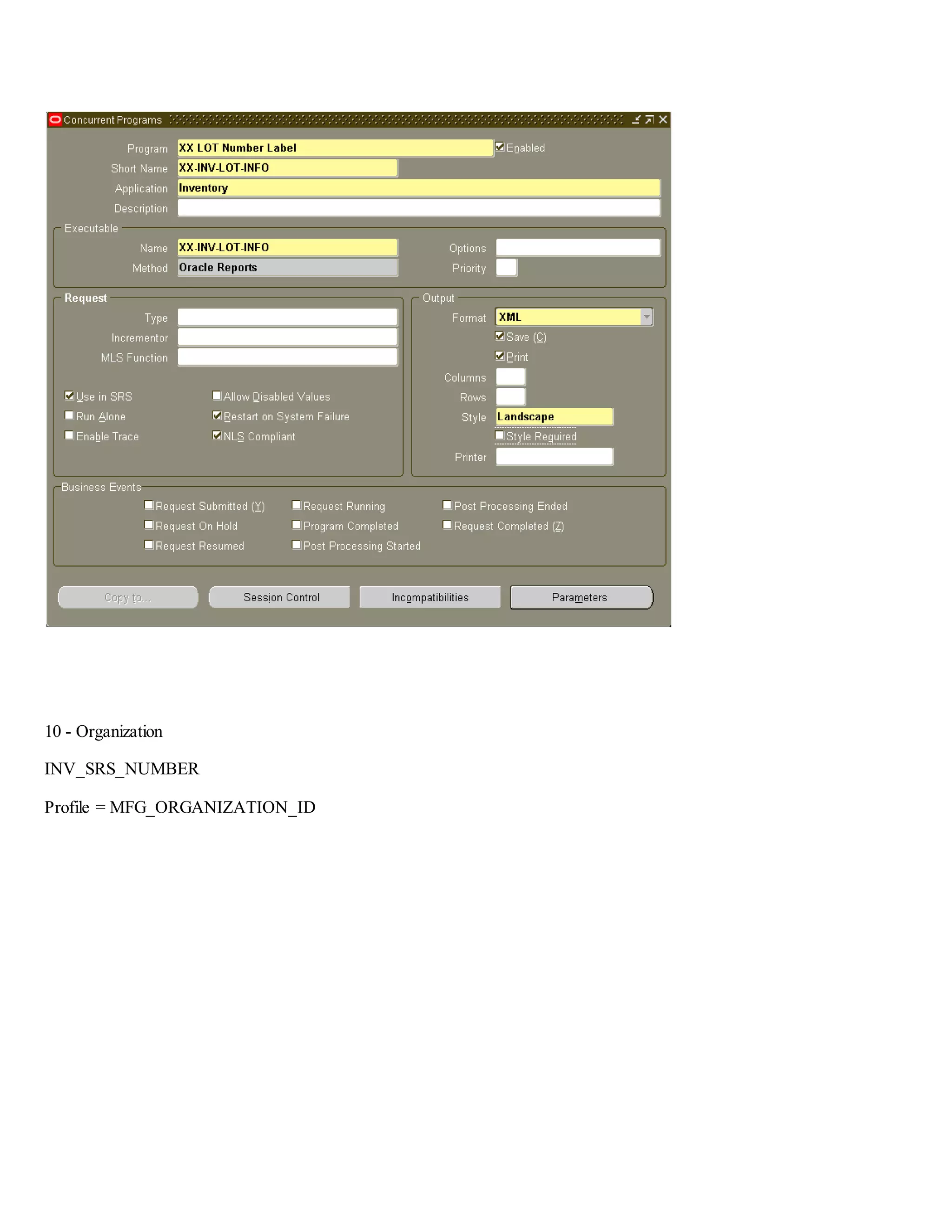

- 5. 10 - Organization INV_SRS_NUMBER Profile= MFG_ORGANIZATION_ID

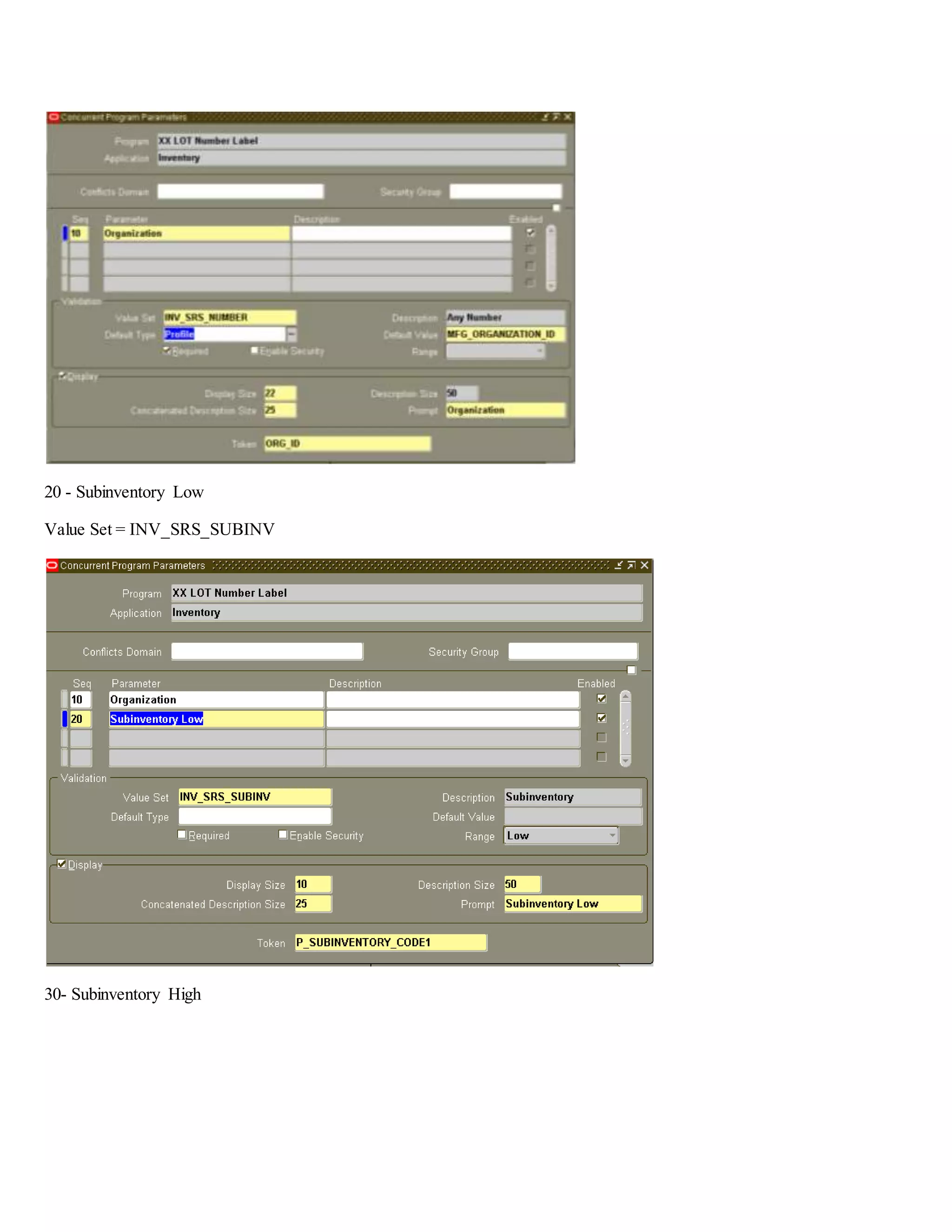

- 6. 20 - SubinventoryLow Value Set = INV_SRS_SUBINV 30- Subinventory High

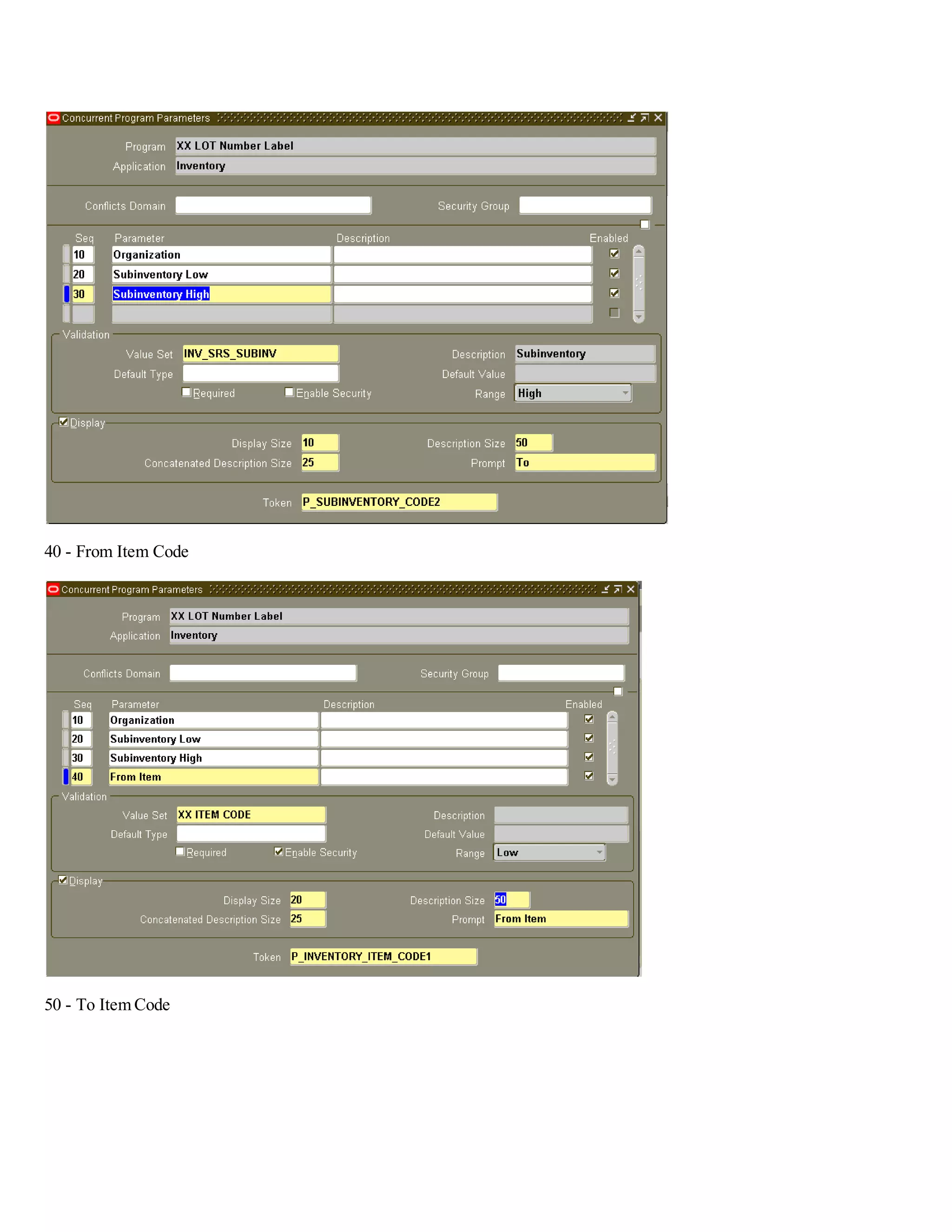

- 7. 40 - FromItem Code 50 - To Item Code

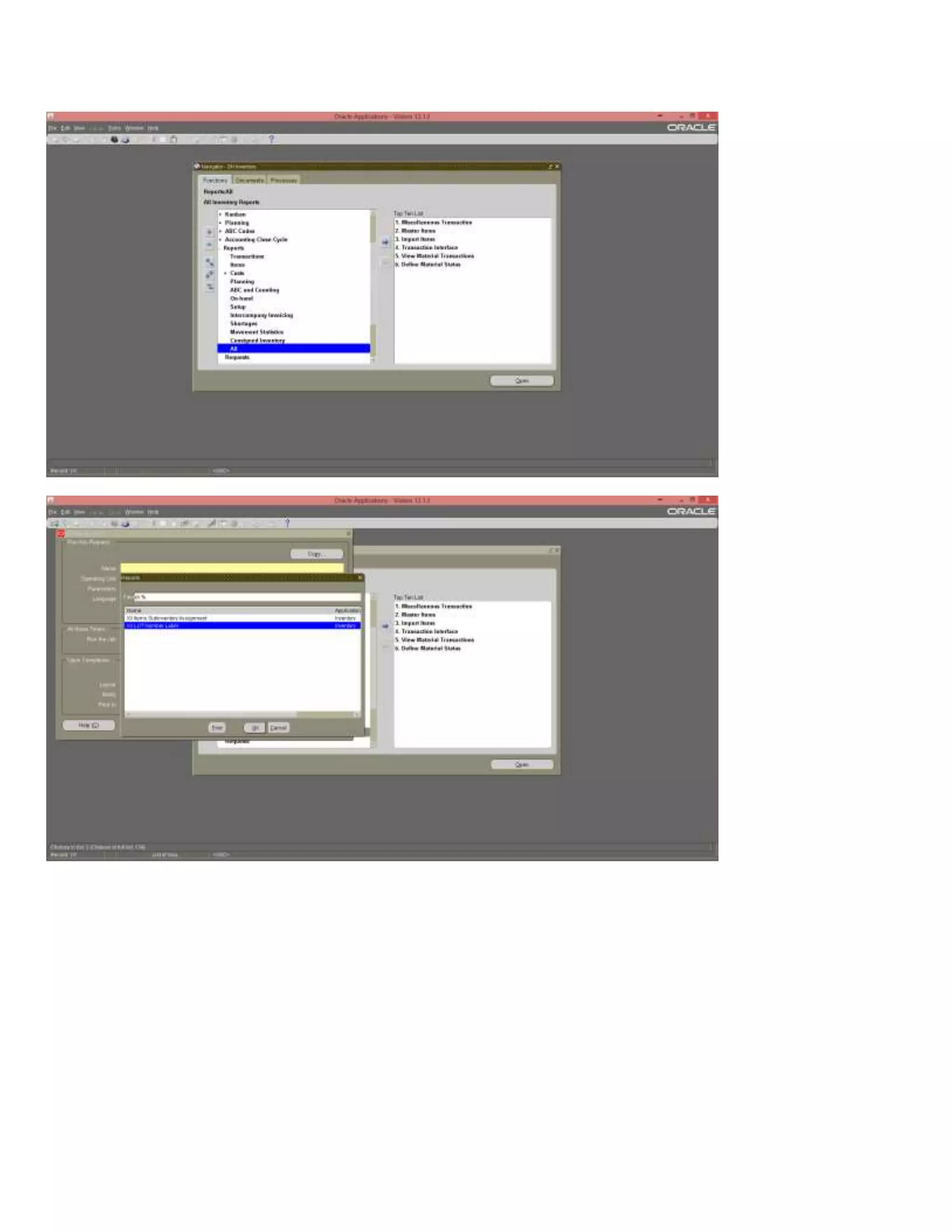

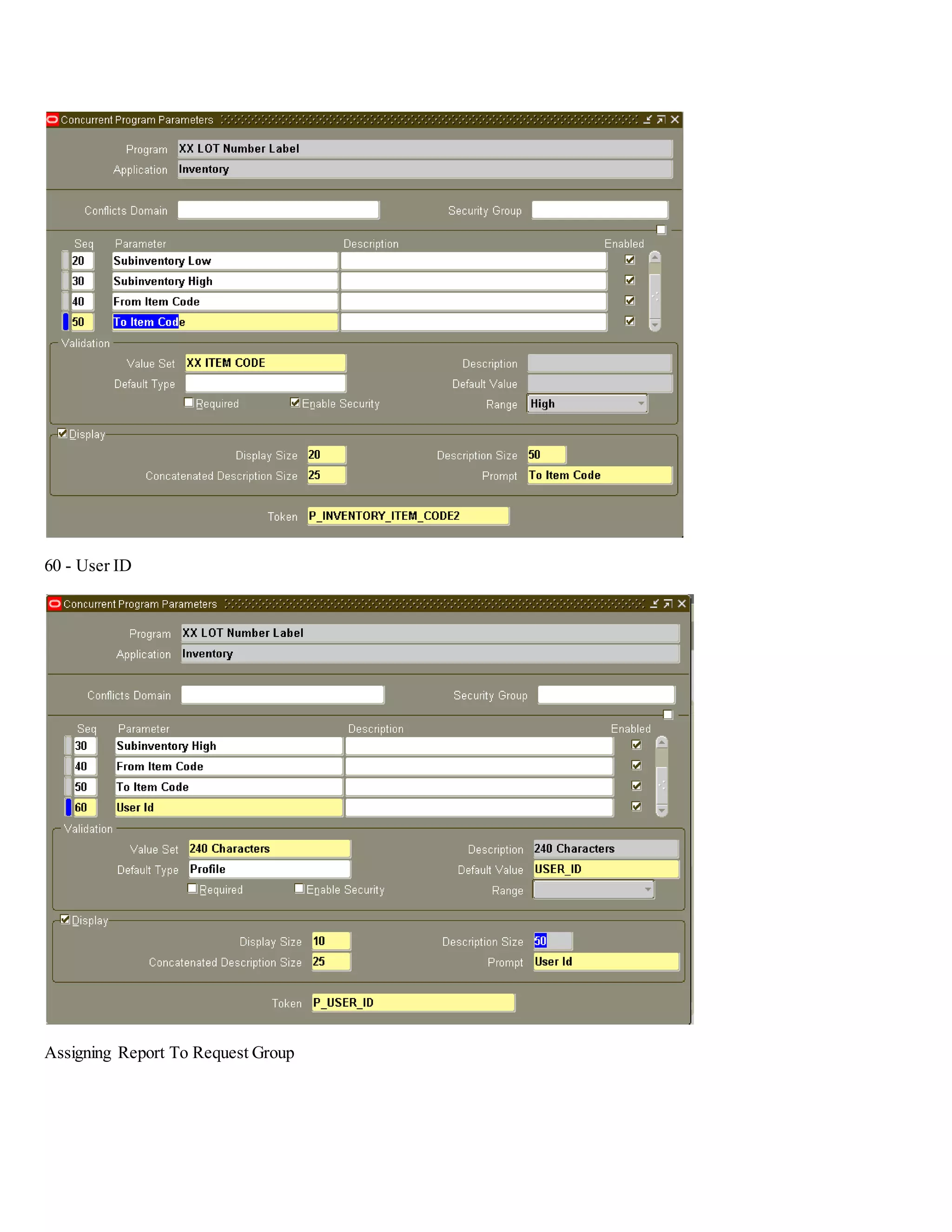

- 8. 60 - UserID Assigning Report To Request Group
- 9.

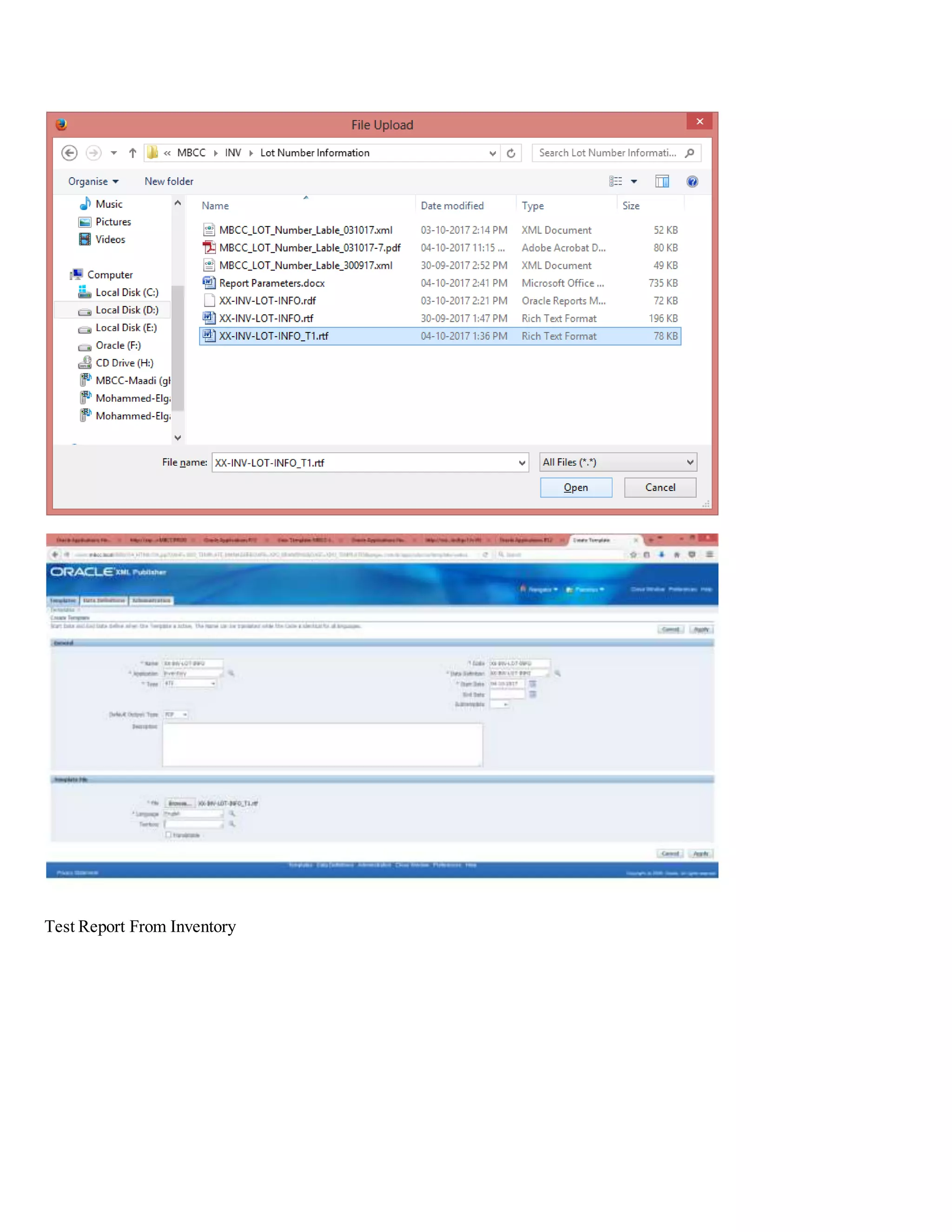

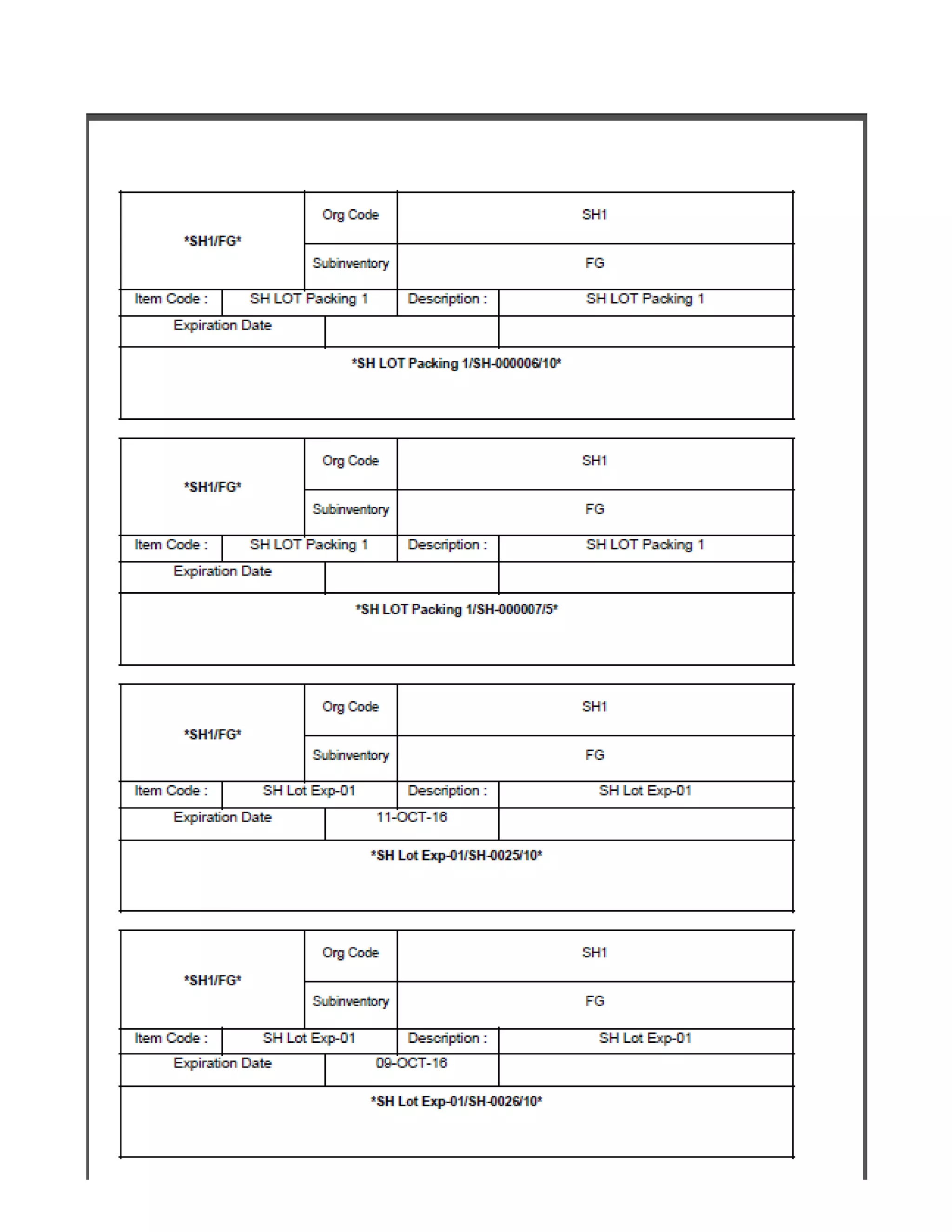

- 13. Test Report FromInventory

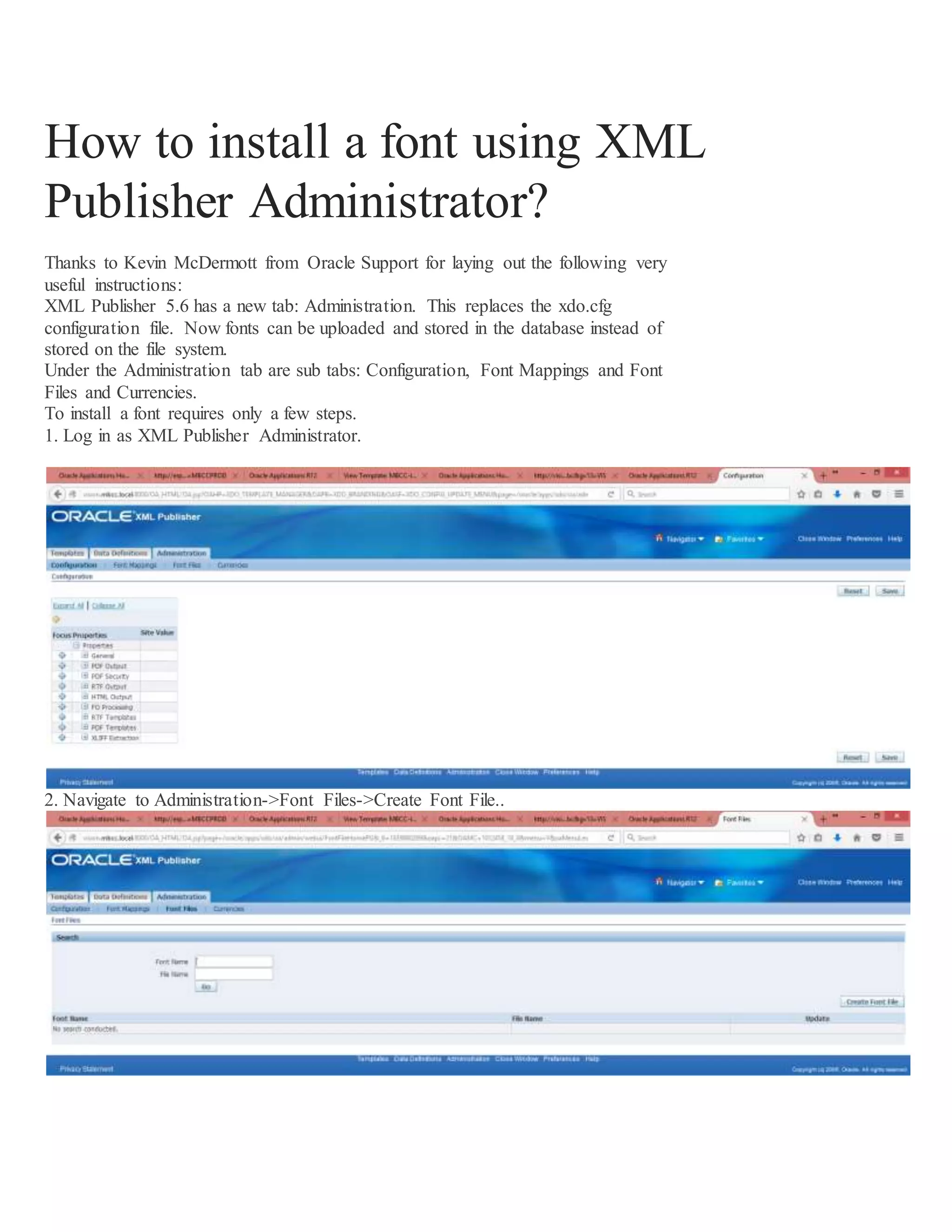

- 17. How to installa font using XML Publisher Administrator? Thanks to Kevin McDermott from Oracle Support for laying out the following very useful instructions: XML Publisher 5.6 has a new tab: Administration. This replaces the xdo.cfg configuration file. Now fonts can be uploaded and stored in the database instead of stored on the file system. Under the Administration tab are sub tabs: Configuration, Font Mappings and Font Files and Currencies. To install a font requires only a few steps. 1. Log in as XML Publisher Administrator. 2. Navigate to Administration->Font Files->Create Font File..

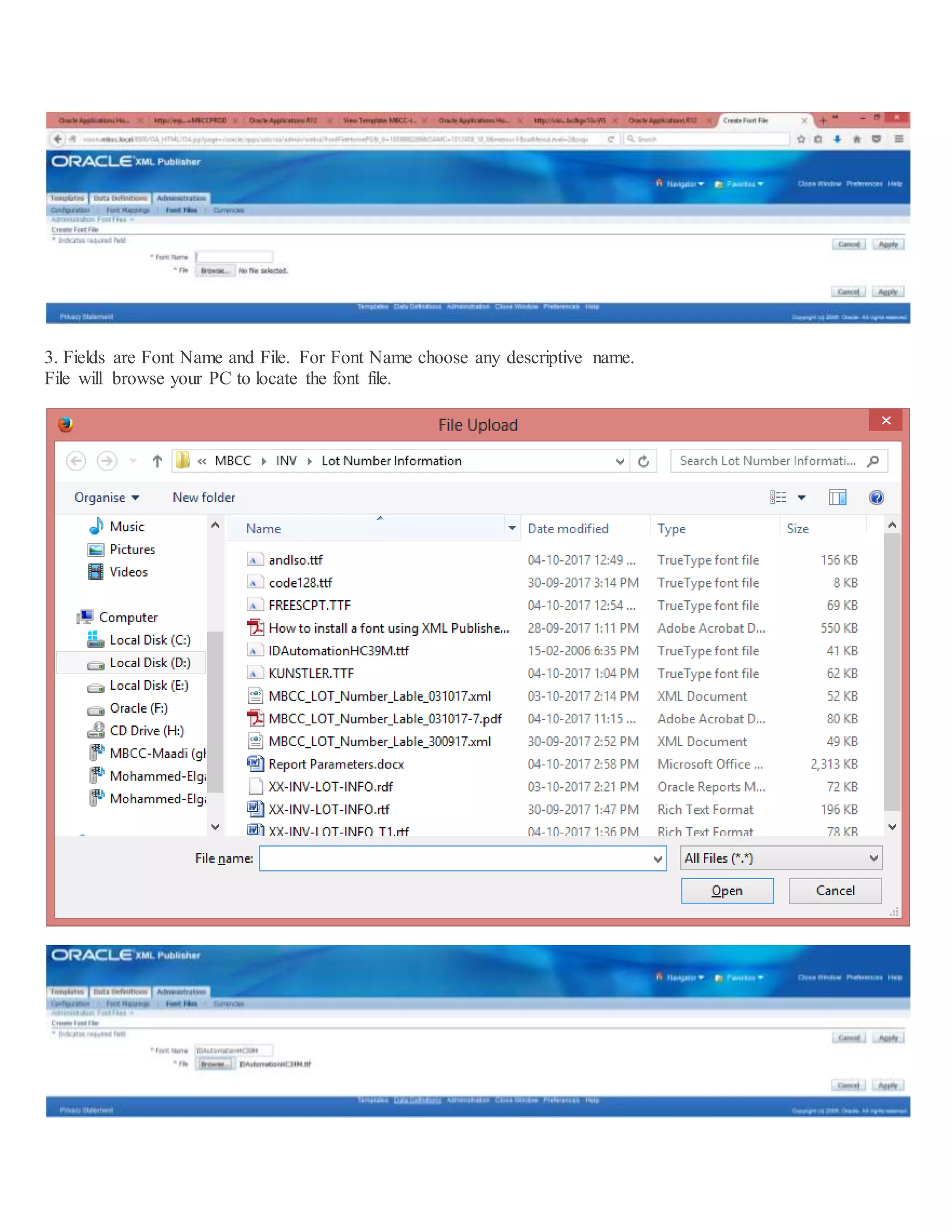

- 18. 3. Fields areFont Name and File. For Font Name choose any descriptive name. File will browse your PC to locate the font file.

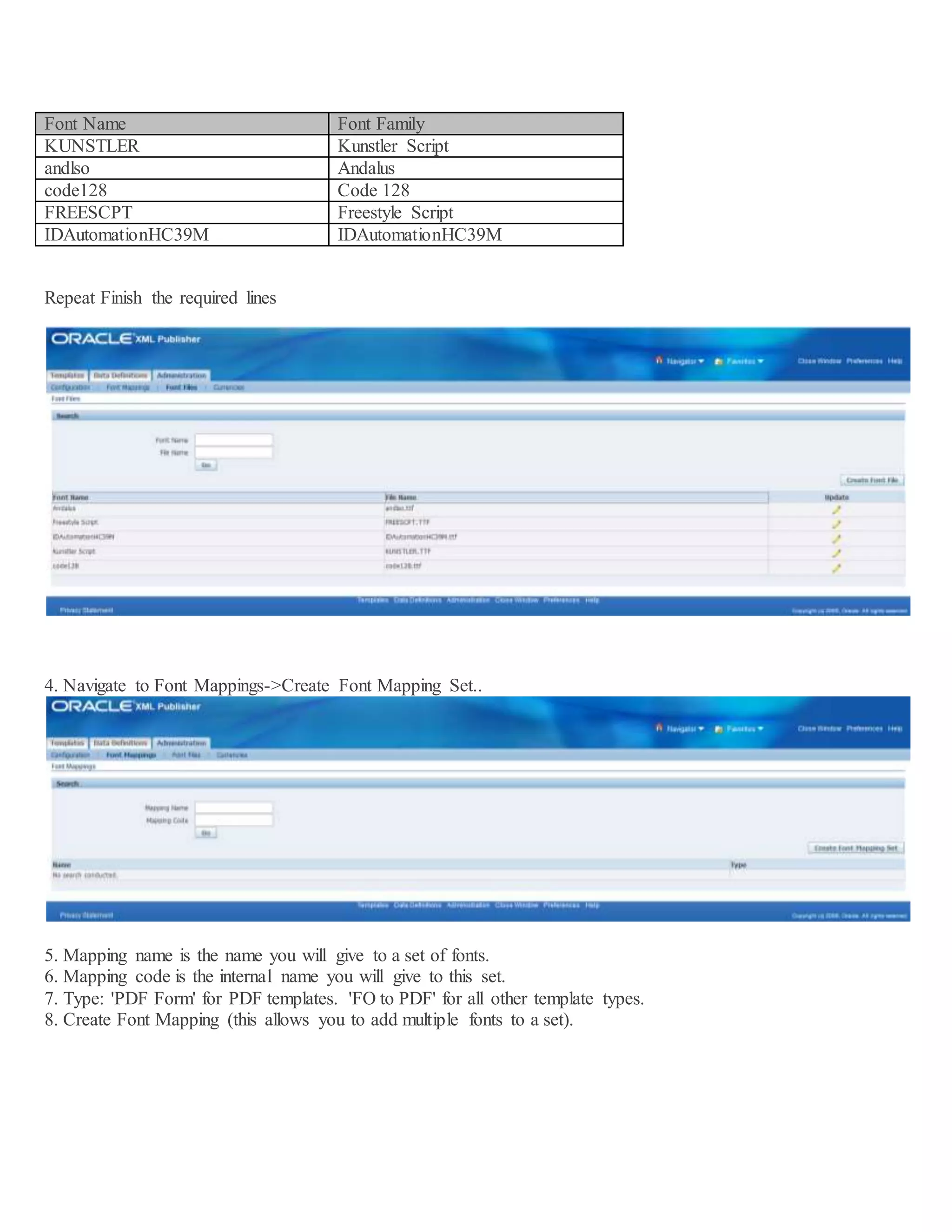

- 19. Font Name FontFamily KUNSTLER Kunstler Script andlso Andalus code128 Code 128 FREESCPT Freestyle Script IDAutomationHC39M IDAutomationHC39M Repeat Finish the required lines 4. Navigate to Font Mappings->Create Font Mapping Set.. 5. Mapping name is the name you will give to a set of fonts. 6. Mapping code is the internal name you will give to this set. 7. Type: 'PDF Form' for PDF templates. 'FO to PDF' for all other template types. 8. Create Font Mapping (this allows you to add multiple fonts to a set).

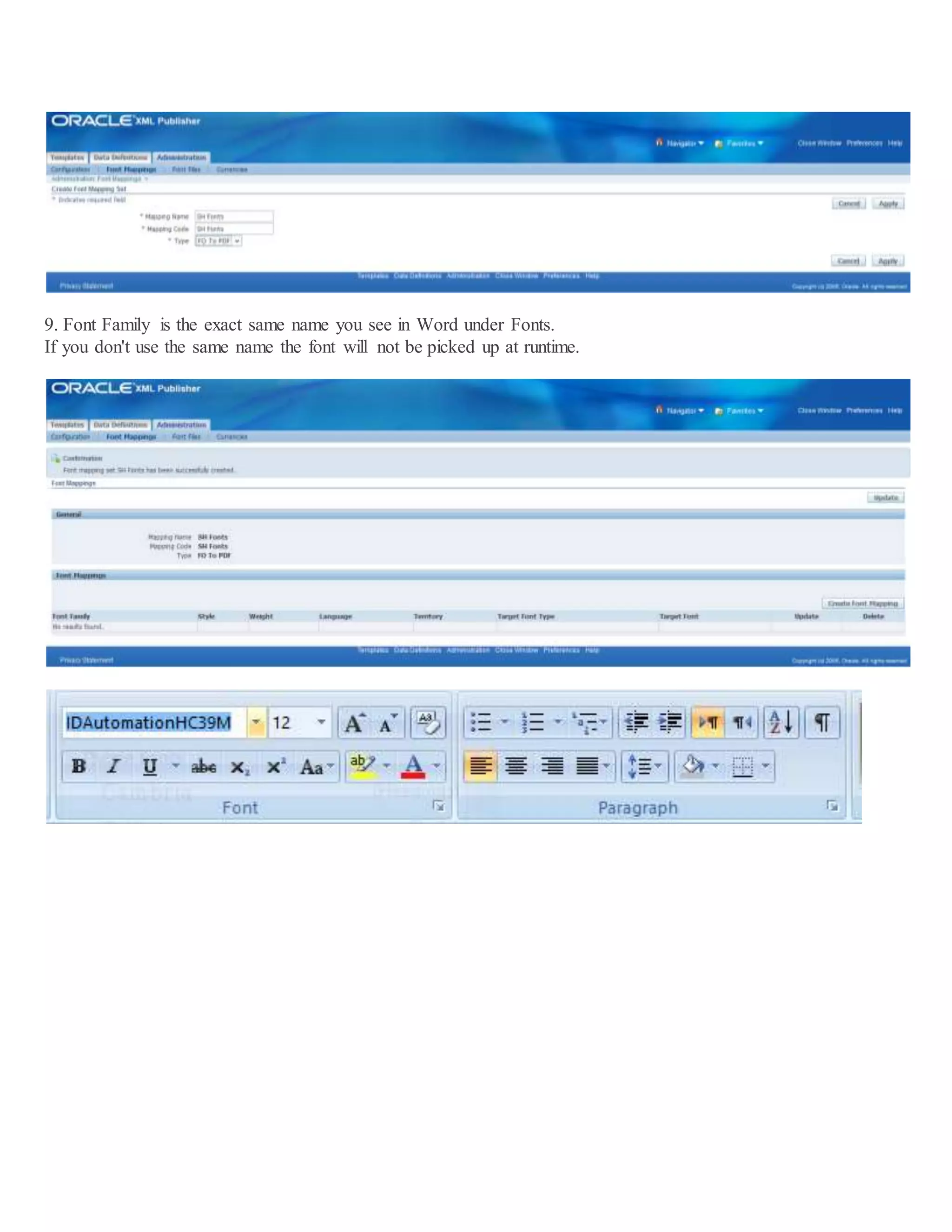

- 20. 9. Font Familyis the exact same name you see in Word under Fonts. If you don't use the same name the font will not be picked up at runtime.

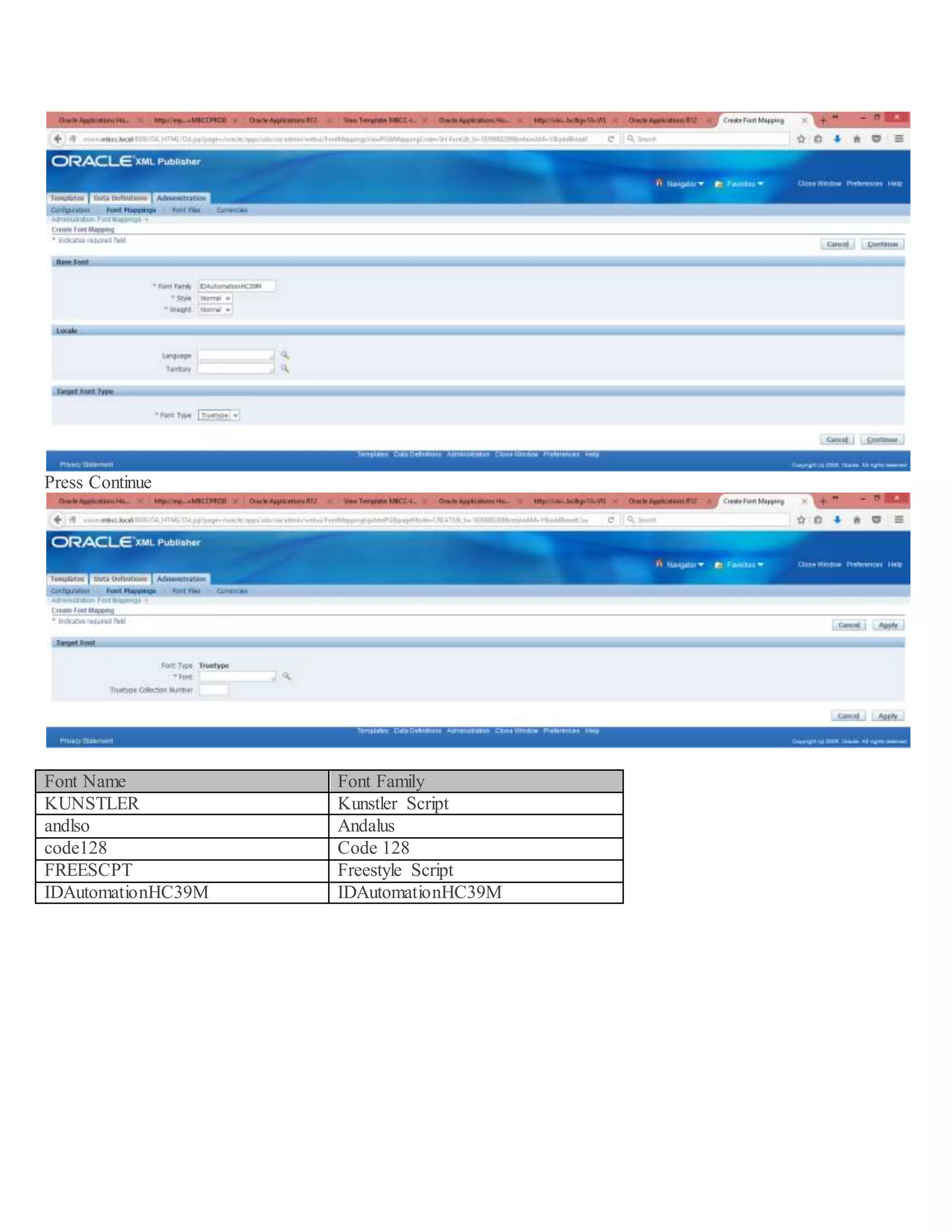

- 21. Press Continue Font NameFont Family KUNSTLER Kunstler Script andlso Andalus code128 Code 128 FREESCPT Freestyle Script IDAutomationHC39M IDAutomationHC39M

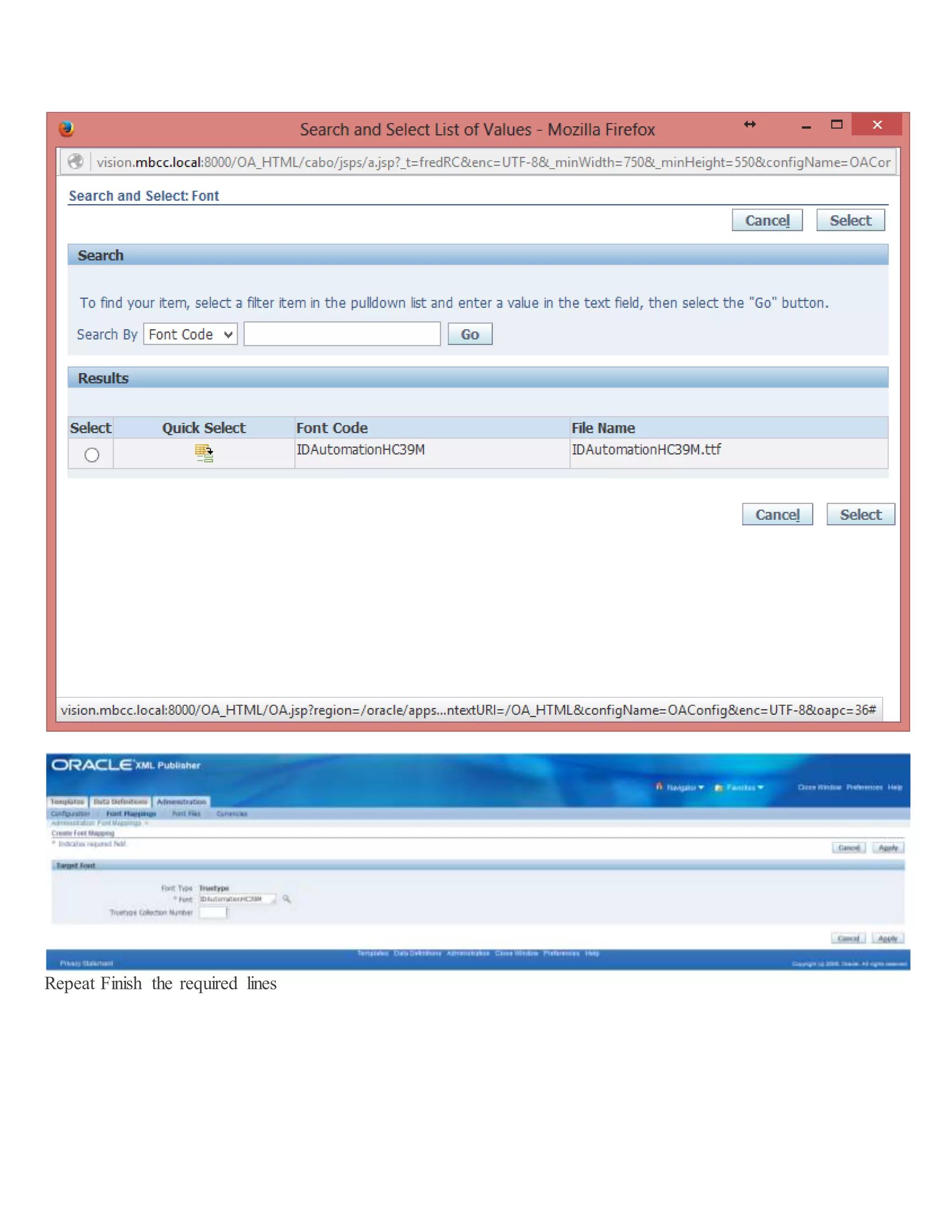

- 22. Repeat Finish therequired lines

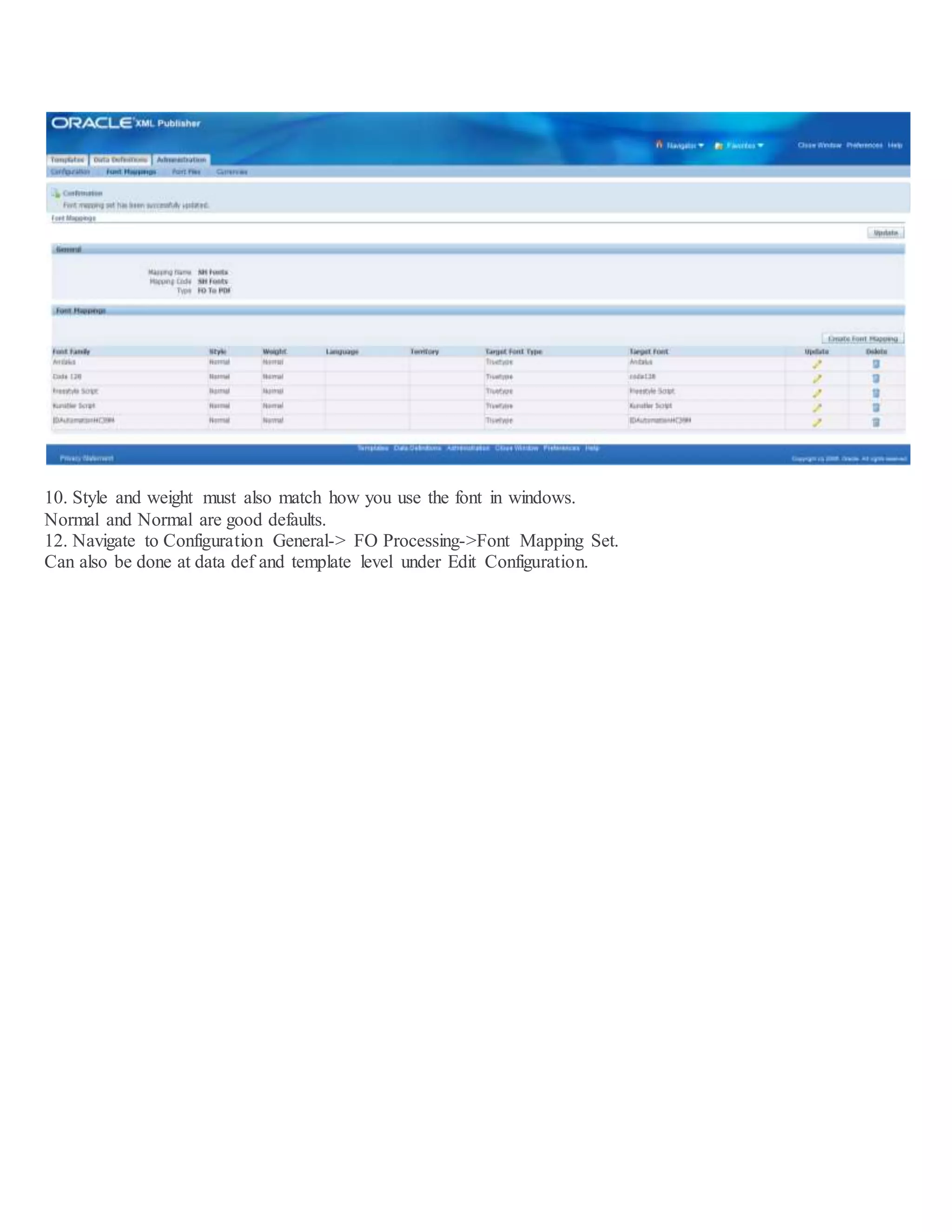

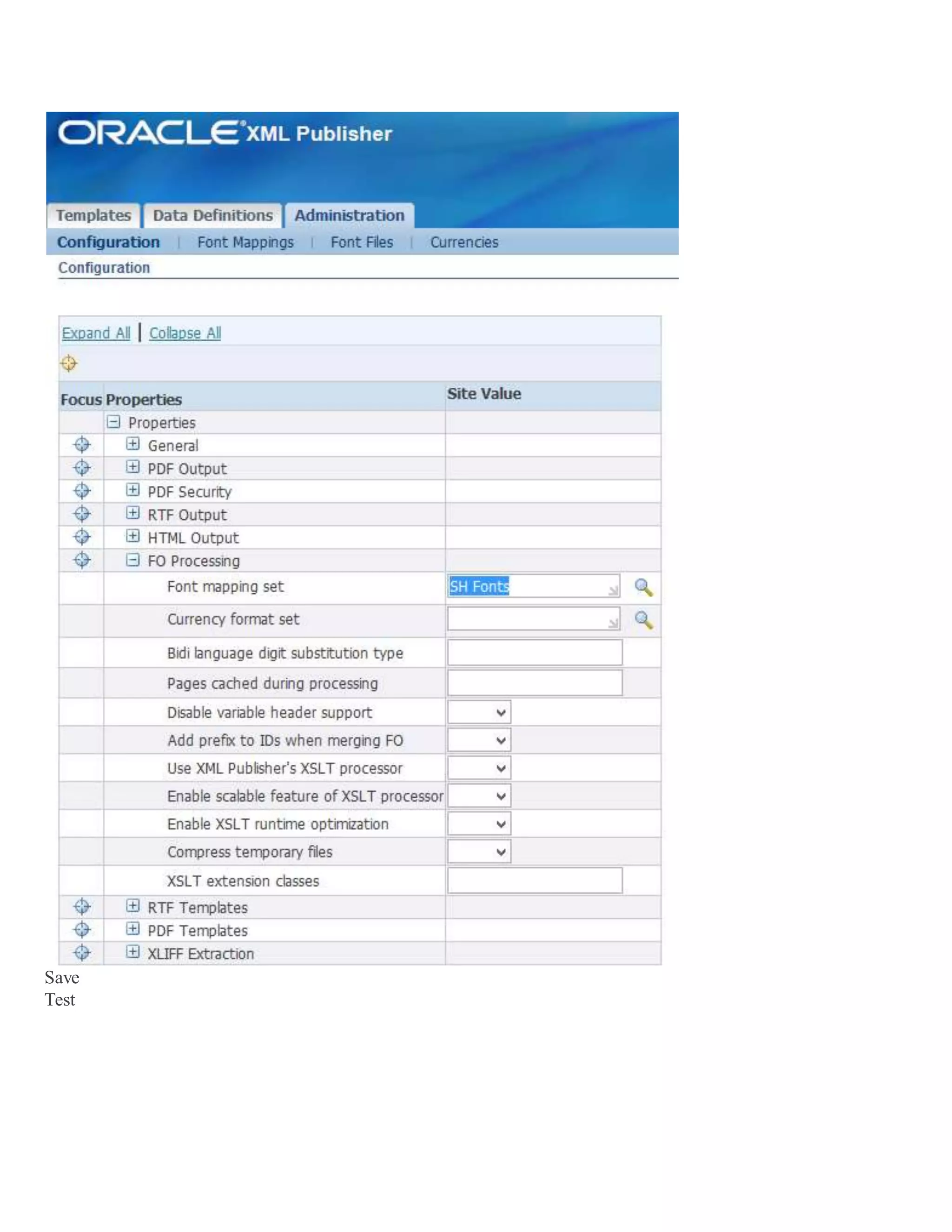

- 23. 10. Style andweight must also match how you use the font in windows. Normal and Normal are good defaults. 12. Navigate to Configuration General-> FO Processing->Font Mapping Set. Can also be done at data def and template level under Edit Configuration.
- 24.

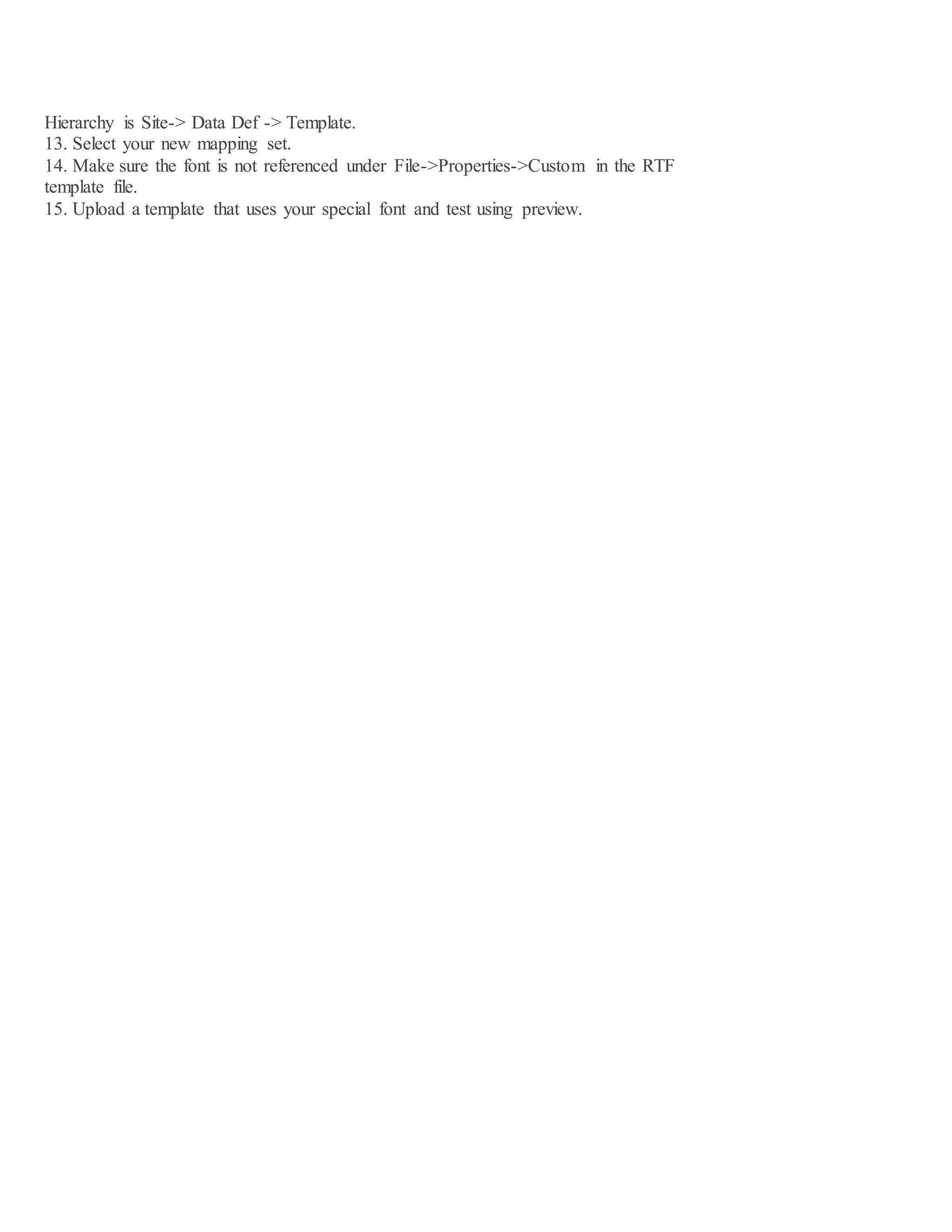

- 26. Hierarchy is Site->Data Def -> Template. 13. Select your new mapping set. 14. Make sure the font is not referenced under File->Properties->Custom in the RTF template file. 15. Upload a template that uses your special font and test using preview.
