Nko workshop - node js & nosql
This document provides an overview of NodeJS and NoSQL with CouchDB. It includes a 3-minute introduction to NoSQL, initial NoSQL choices, using Node.js with CouchDB, and introductions to CouchDB Map/Reduce and administration. It discusses why NoSQL is needed compared to relational databases and file storage. CouchDB is presented as a choice due to its implementation of ACID properties using multi-version concurrency control and B-tree indexes, as well as its schema-free and RESTful capabilities. The document also covers basic CouchDB CRUD operations and examples of using Map/Reduce views to transform raw data.
Nko workshop - node js & nosql
- 1. NodeJS & NoSQL PPT: http://goo.gl/nHQRJ Code: https://github.com/peihsinsu/nko2012.git Simon Su simonsu.mail@gmail.com
- 2. 課程大綱 ● 三分鐘簡介NoSQL ● 初入NoSQL的選擇 ● Node.js使用CouchDB ● CouchDB Map / Reduce介紹 ● CouchDB Administration簡介
- 3. Why NoSQL -We Need Store... File Store (R)DBMS

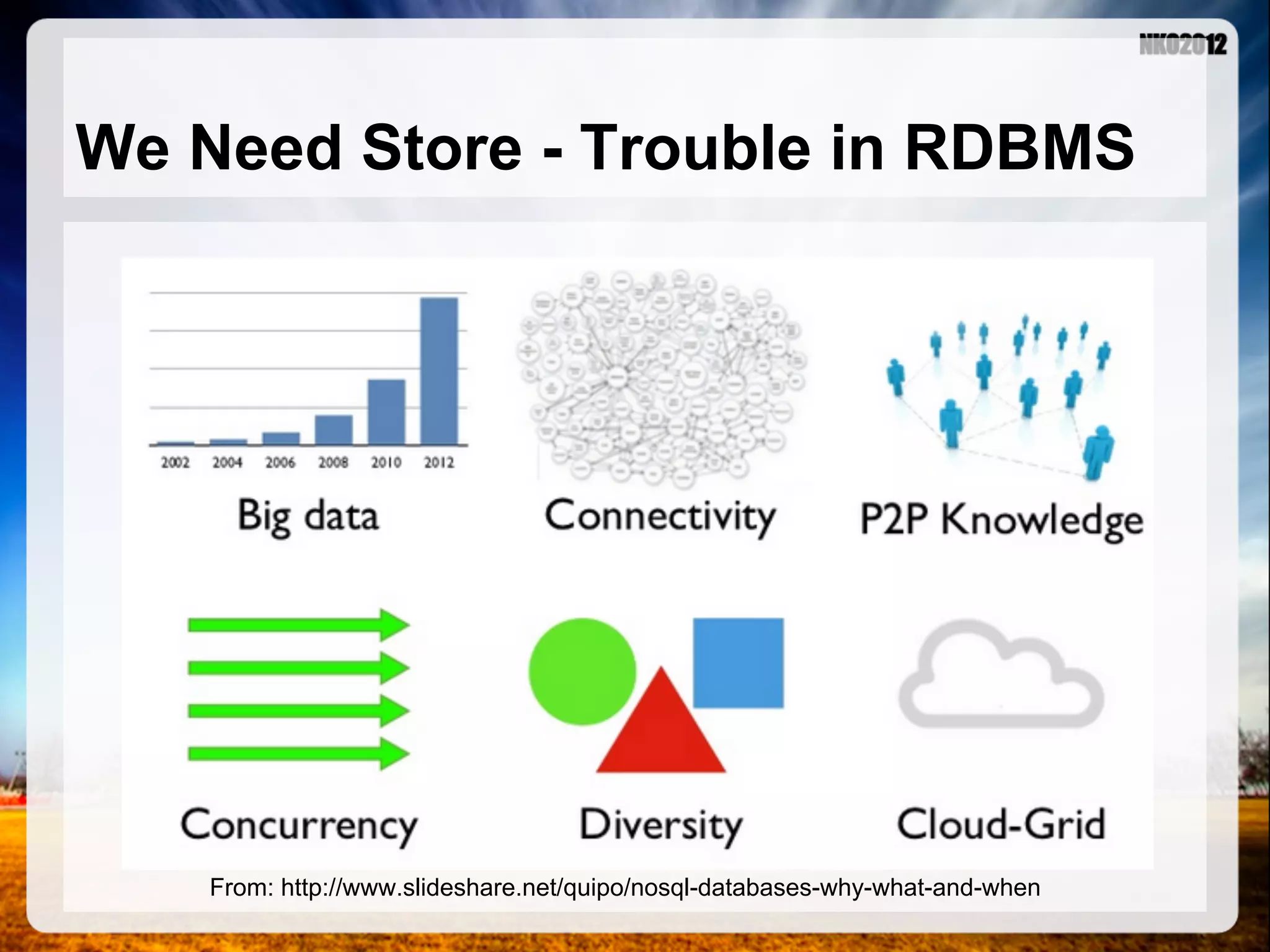

- 4. We Need Store- Trouble in RDBMS From: http://www.slideshare.net/quipo/nosql-databases-why-what-and-when
- 5. What is NoSQL NoSQL = Not-Only-SQL
- 7.

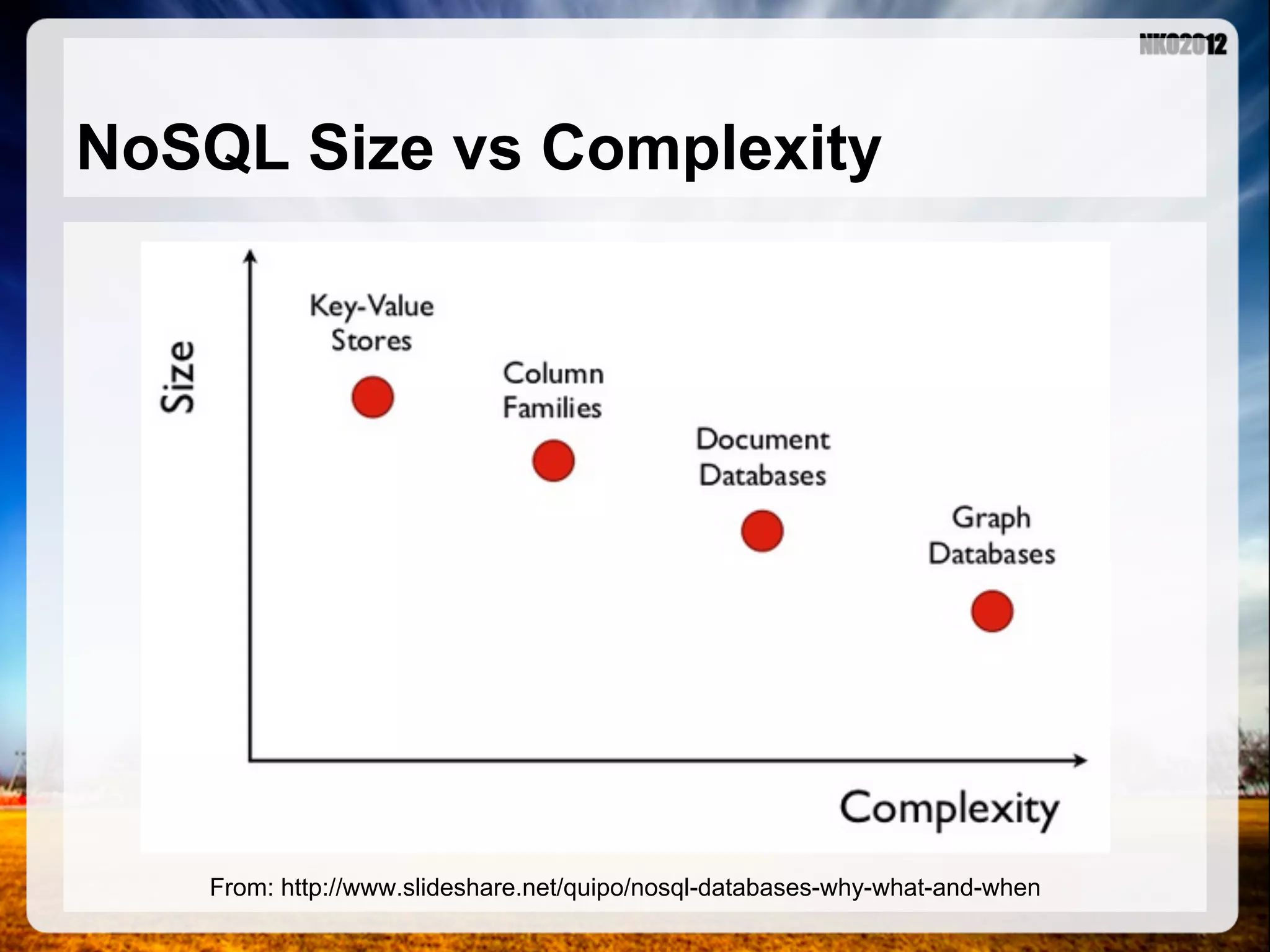

- 8. NoSQL Size vsComplexity From: http://www.slideshare.net/quipo/nosql-databases-why-what-and-when
- 9.

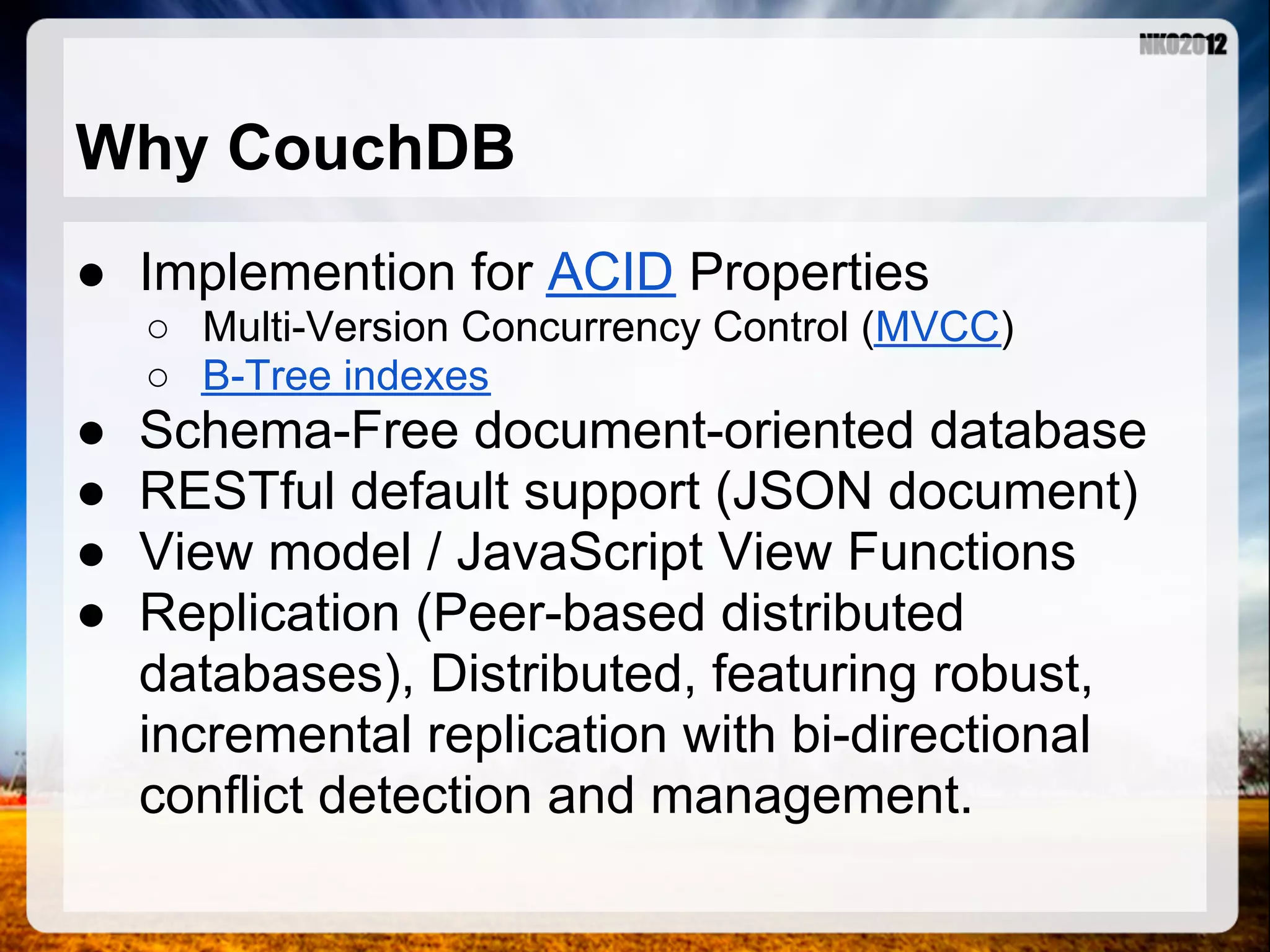

- 10. Why CouchDB ● Implementionfor ACID Properties ○ Multi-Version Concurrency Control (MVCC) ○ B-Tree indexes ● Schema-Free document-oriented database ● RESTful default support (JSON document) ● View model / JavaScript View Functions ● Replication (Peer-based distributed databases), Distributed, featuring robust, incremental replication with bi-directional conflict detection and management.

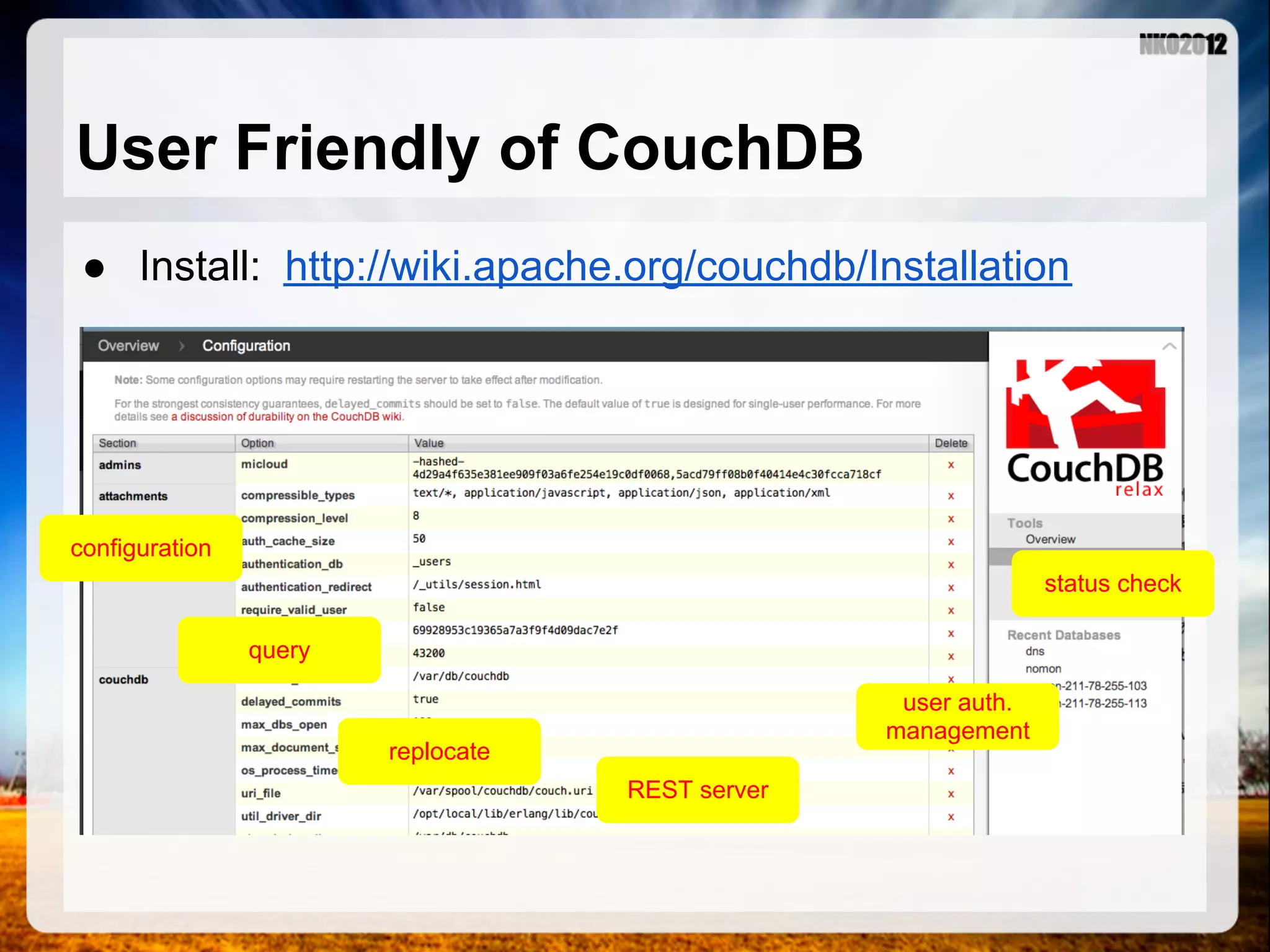

- 11. User Friendly ofCouchDB ● Install: http://wiki.apache.org/couchdb/Installation configuration status check query user auth. management replocate REST server

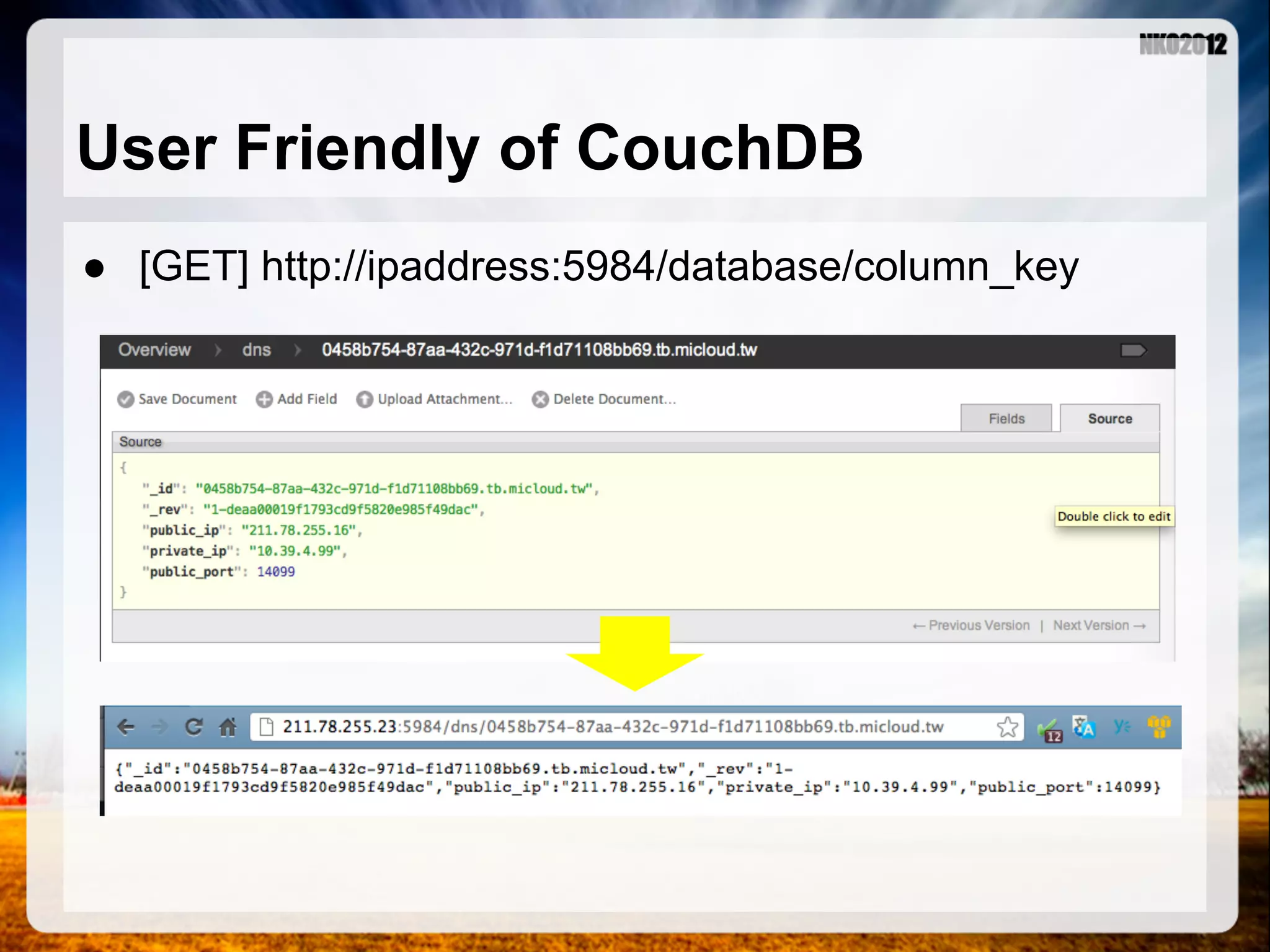

- 12. User Friendly ofCouchDB ● [GET] http://ipaddress:5984/database/column_key

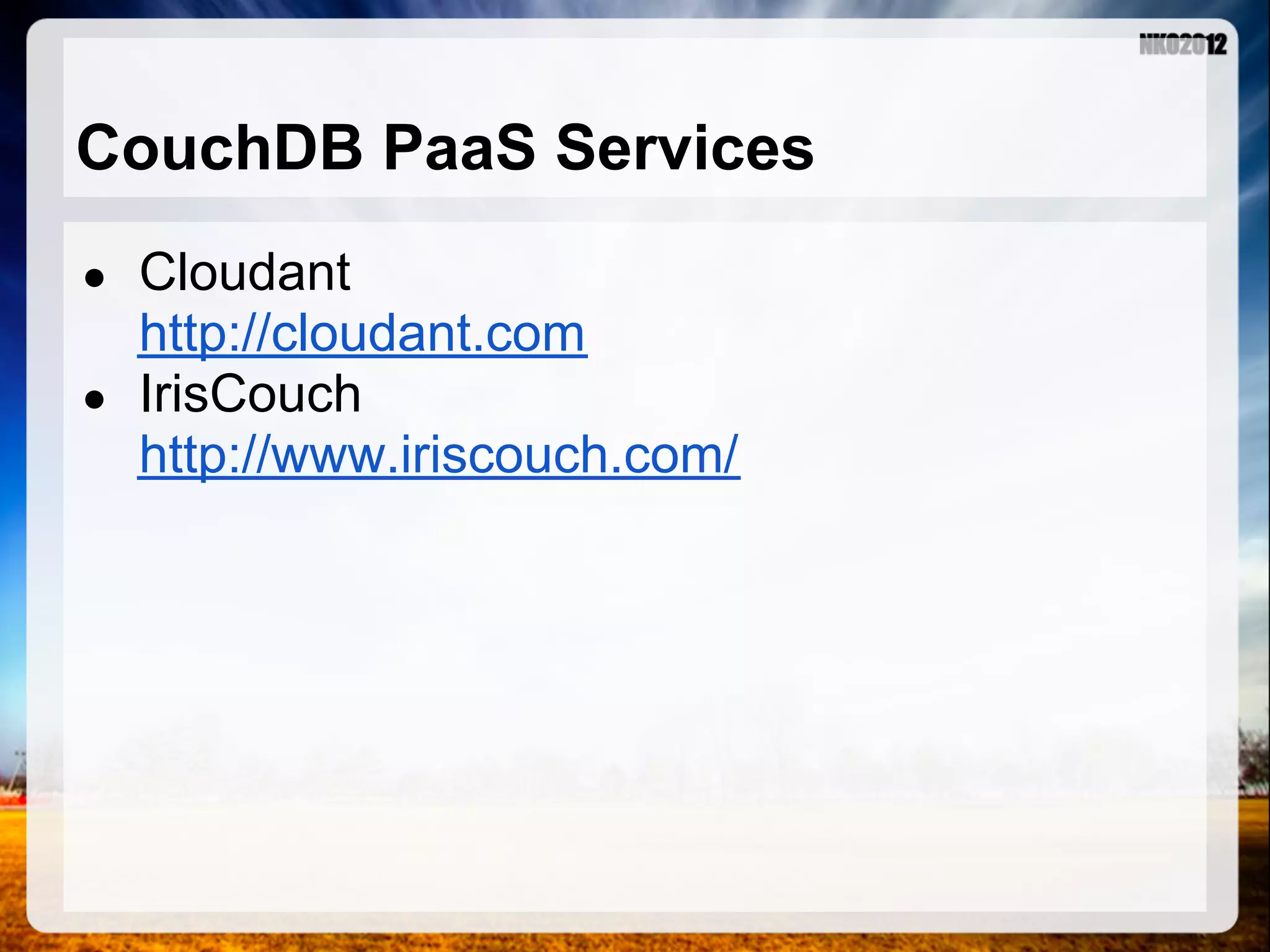

- 13. CouchDB PaaS Services ●Cloudant http://cloudant.com ● IrisCouch http://www.iriscouch.com/
- 14. Node Knock Out2012 Start to using NoSQL

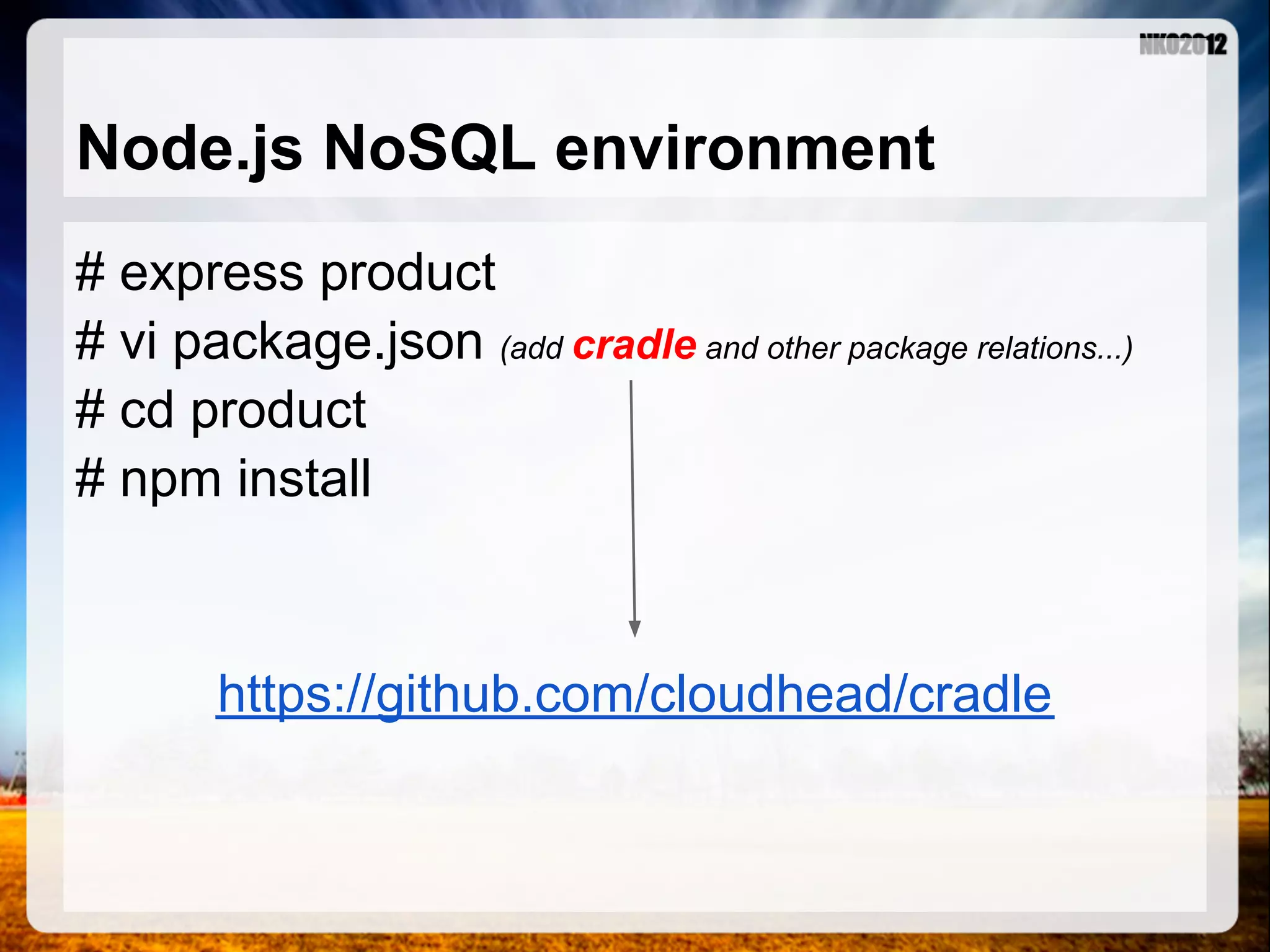

- 15. Node.js NoSQL environment #express product # vi package.json (add cradle and other package relations...) # cd product # npm install https://github.com/cloudhead/cradle

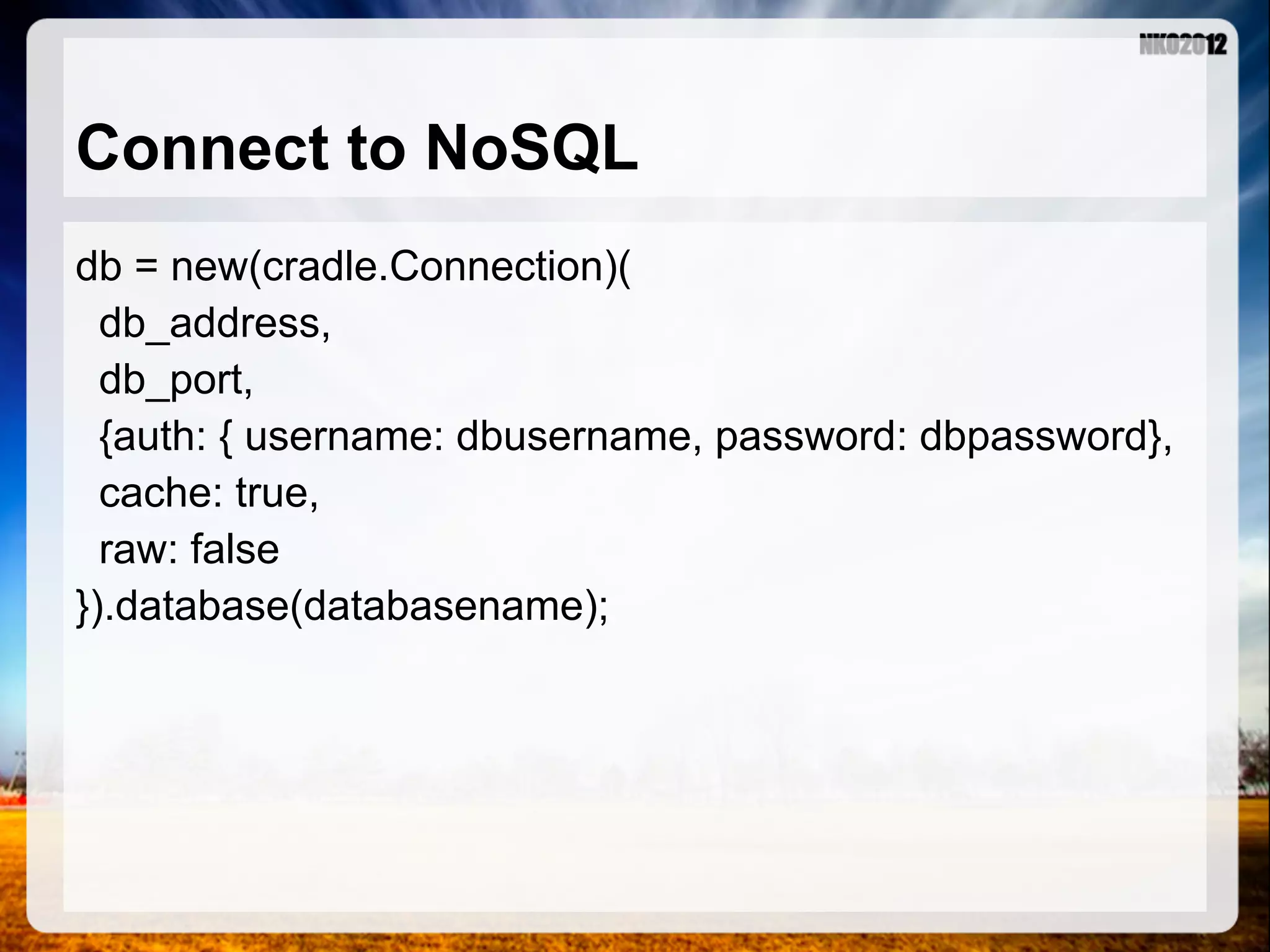

- 16. Connect to NoSQL db= new(cradle.Connection)( db_address, db_port, {auth: { username: dbusername, password: dbpassword}, cache: true, raw: false }).database(databasename);

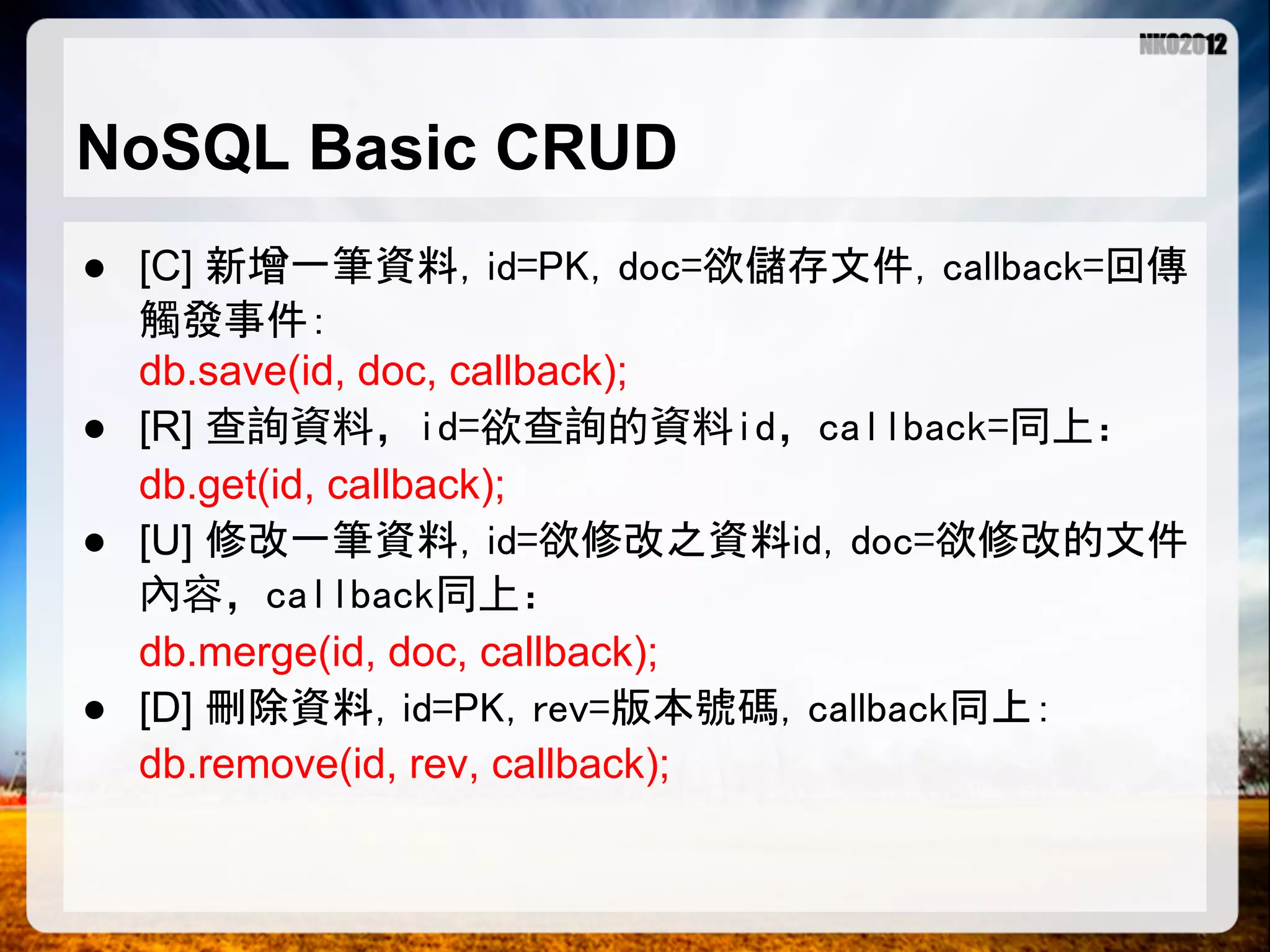

- 17. NoSQL Basic CRUD ●[C] 新增一筆資料，id=PK，doc=欲儲存文件，callback=回傳 觸發事件： db.save(id, doc, callback); ● [R] 查詢資料，id=欲查詢的資料id，callback=同上： db.get(id, callback); ● [U] 修改一筆資料，id=欲修改之資料id，doc=欲修改的文件 內容，callback同上： db.merge(id, doc, callback); ● [D] 刪除資料，id=PK，rev=版本號碼，callback同上： db.remove(id, rev, callback);

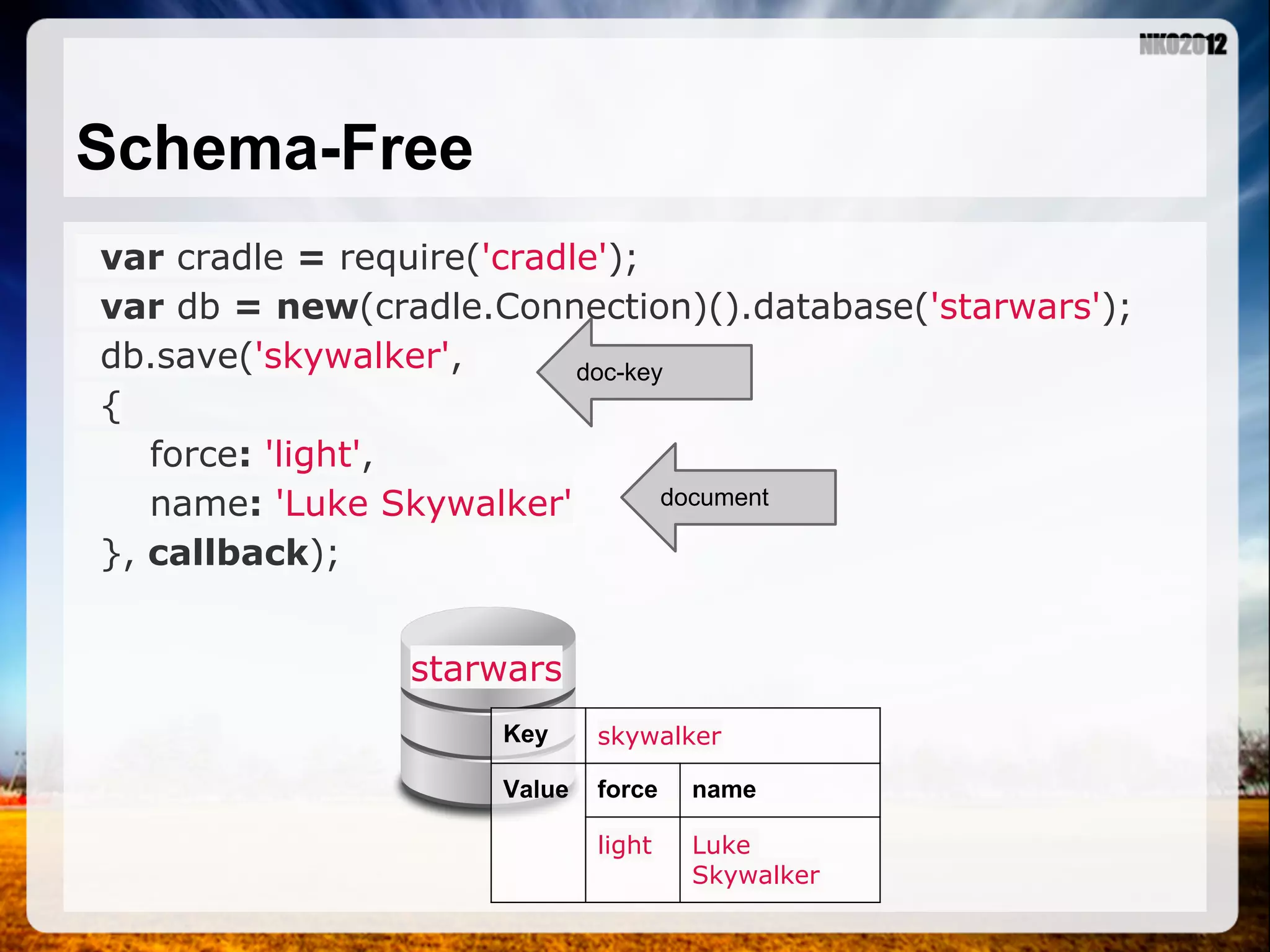

- 18. Schema-Free var cradle =require('cradle'); var db = new(cradle.Connection)().database('starwars'); db.save('skywalker', doc-key { force: 'light', name: 'Luke Skywalker' document }, callback); starwars Key skywalker Value force name light Luke Skywalker

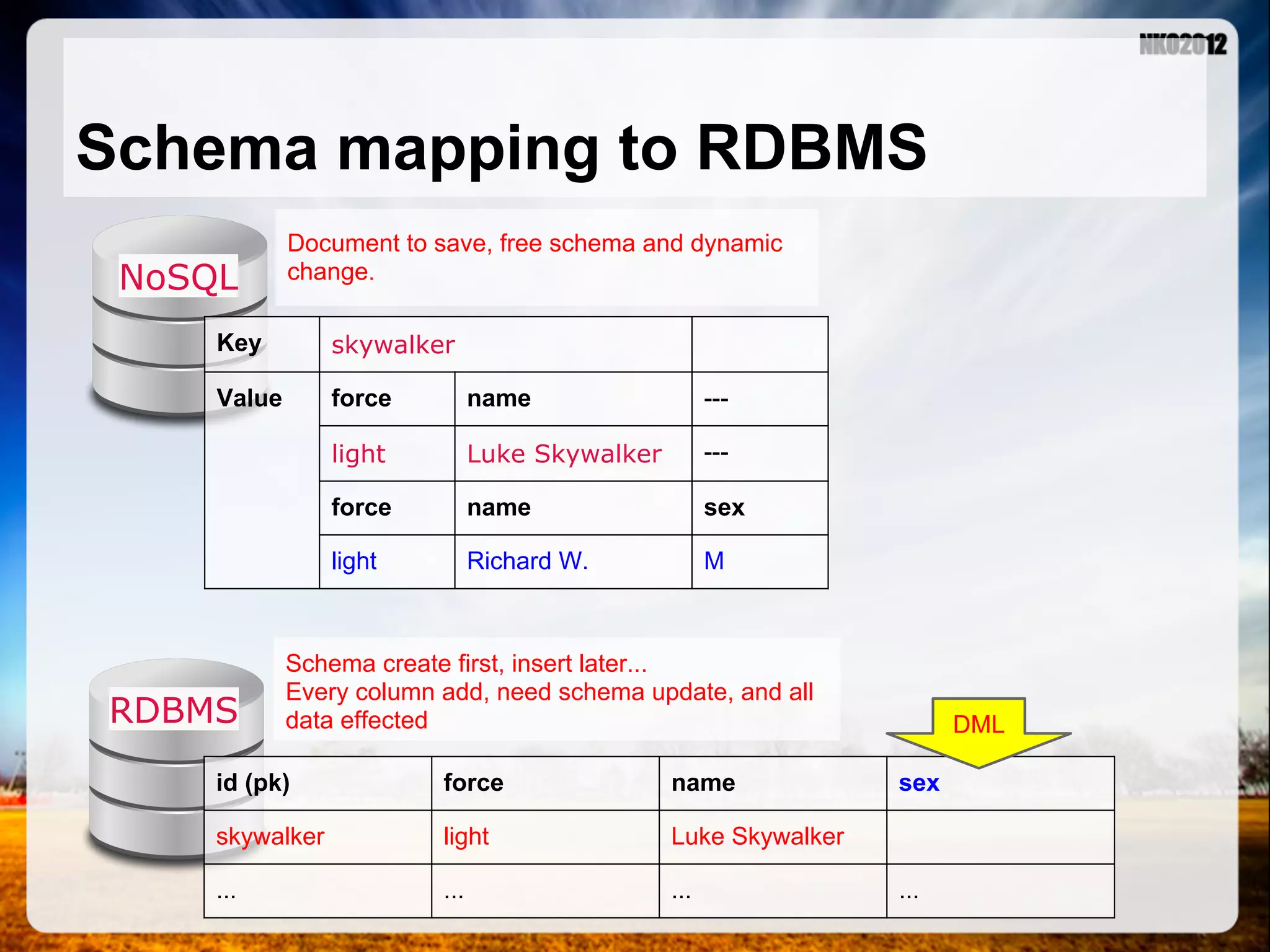

- 19. Schema mapping toRDBMS Document to save, free schema and dynamic NoSQL change. Key skywalker Value force name --- light Luke Skywalker --- force name sex light Richard W. M Schema create first, insert later... Every column add, need schema update, and all RDBMS data effected DML id (pk) force name sex skywalker light Luke Skywalker ... ... ... ...

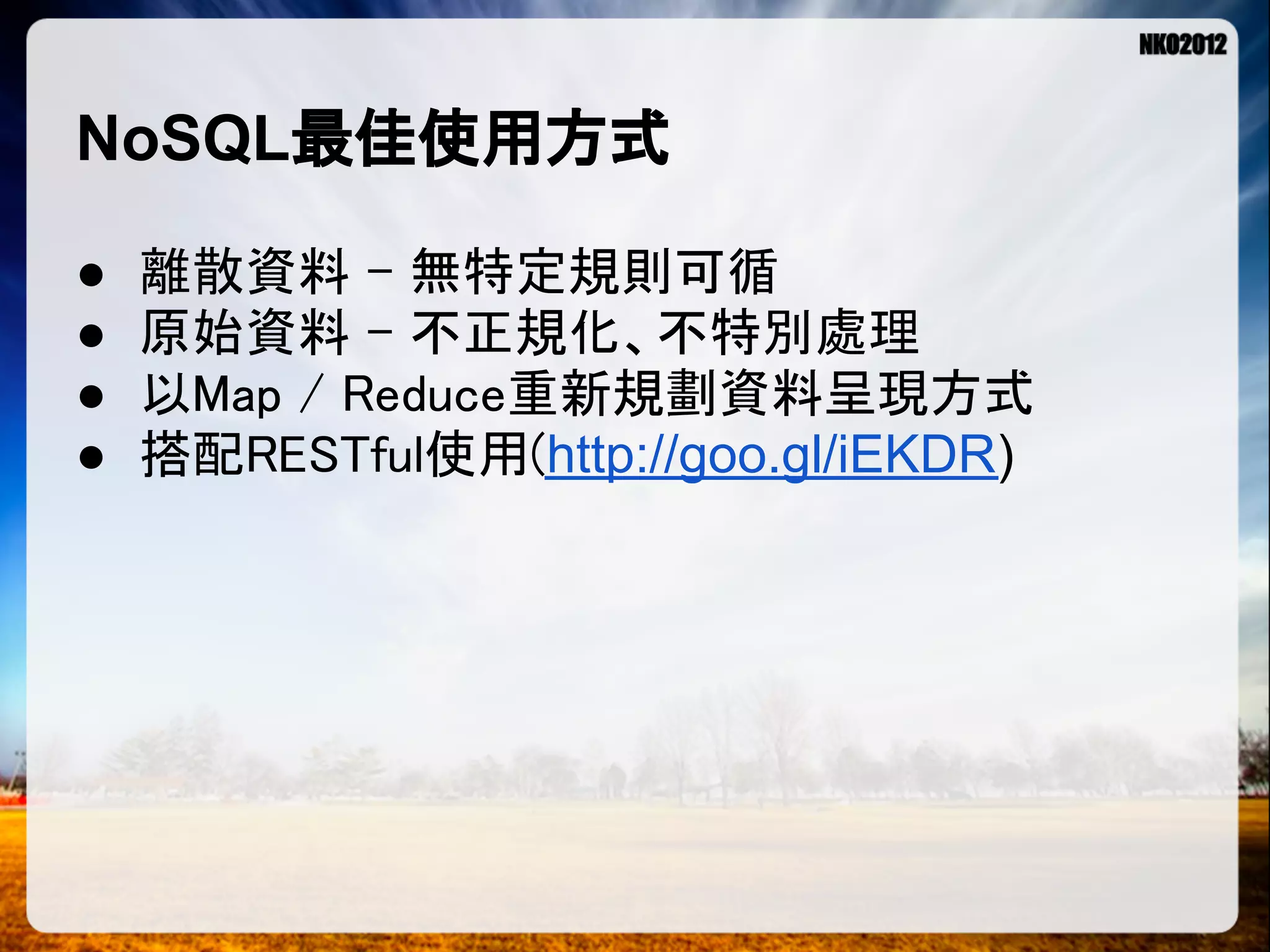

- 20. NoSQL最佳使用方式 ● 離散資料 - 無特定規則可循 ● 原始資料 - 不正規化、不特別處理 ● 以Map / Reduce重新規劃資料呈現方式 ● 搭配RESTful使用(http://goo.gl/iEKDR)
- 21. Node Knock Out2012 NoSQL Map / Reduce

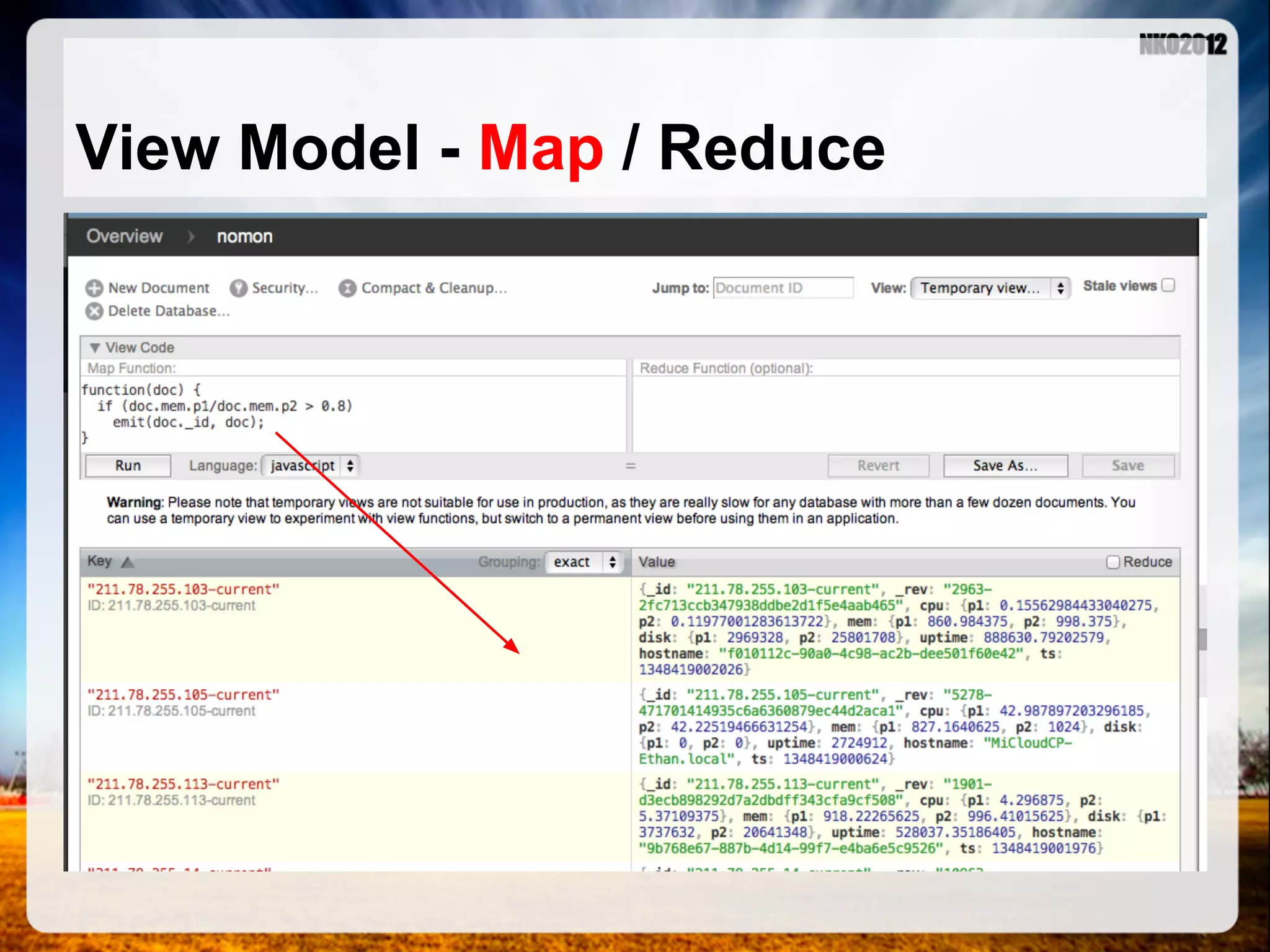

- 22. View Model -Map / Reduce

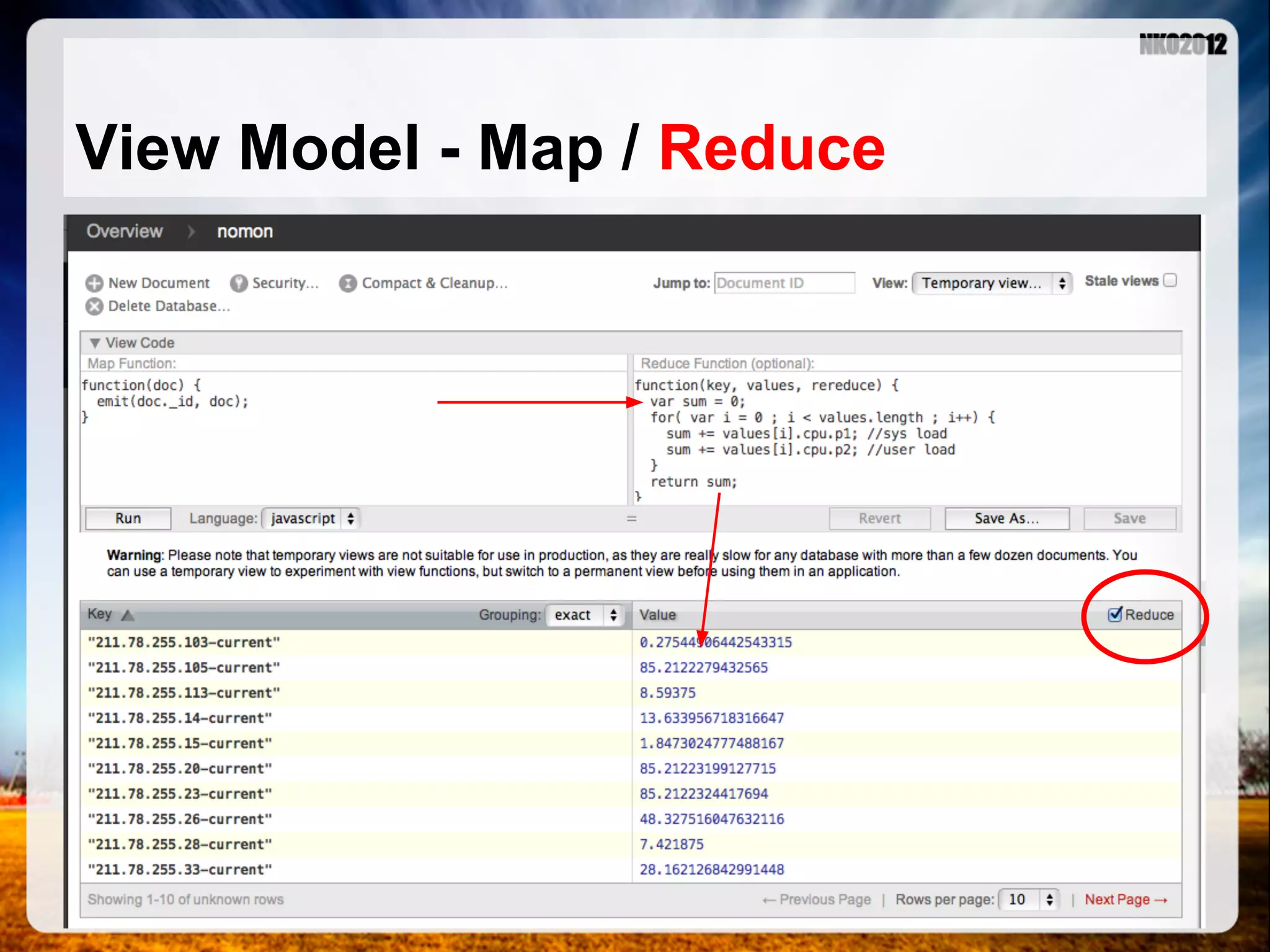

- 23. View Model -Map / Reduce

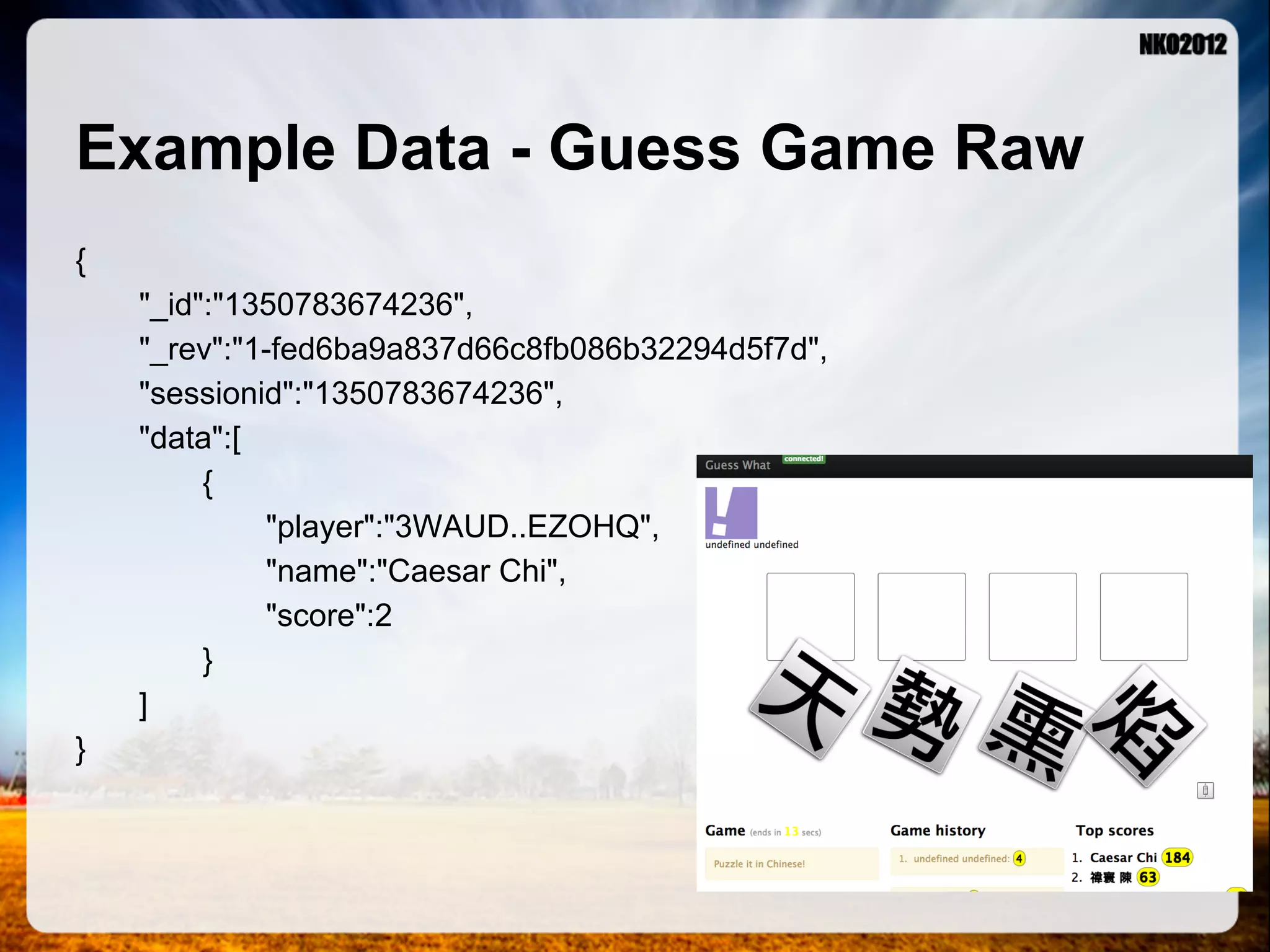

- 24. Example Data -Guess Game Raw { "_id":"1350783674236", "_rev":"1-fed6ba9a837d66c8fb086b32294d5f7d", "sessionid":"1350783674236", "data":[ { "player":"3WAUD..EZOHQ", "name":"Caesar Chi", "score":2 } ] }

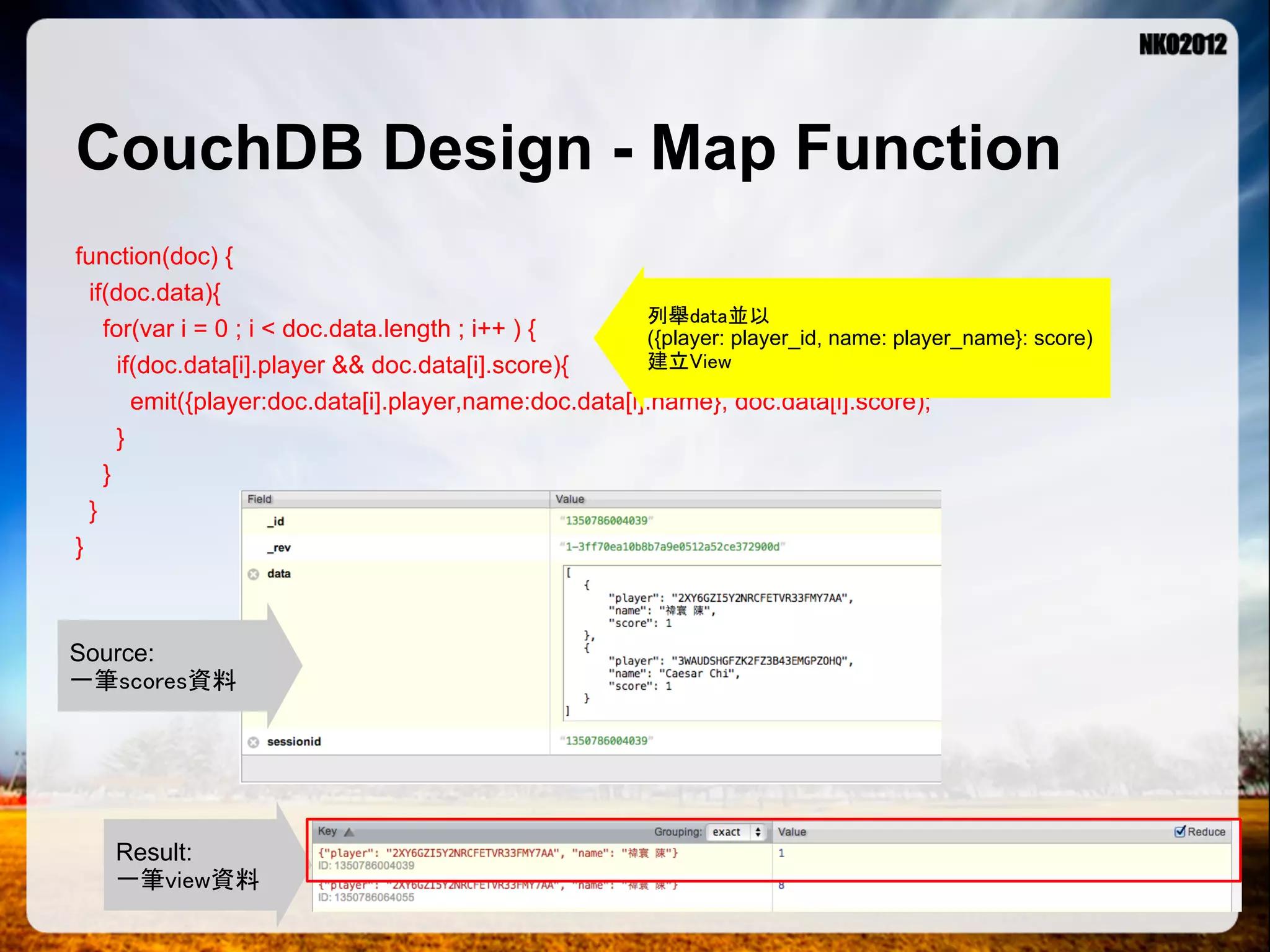

- 25. CouchDB Design -Map Function function(doc) { if(doc.data){ 列舉data並以 for(var i = 0 ; i < doc.data.length ; i++ ) { ({player: player_id, name: player_name}: score) if(doc.data[i].player && doc.data[i].score){ 建立View emit({player:doc.data[i].player,name:doc.data[i].name}, doc.data[i].score); } } } } Source: 一筆scores資料 Result: 一筆view資料

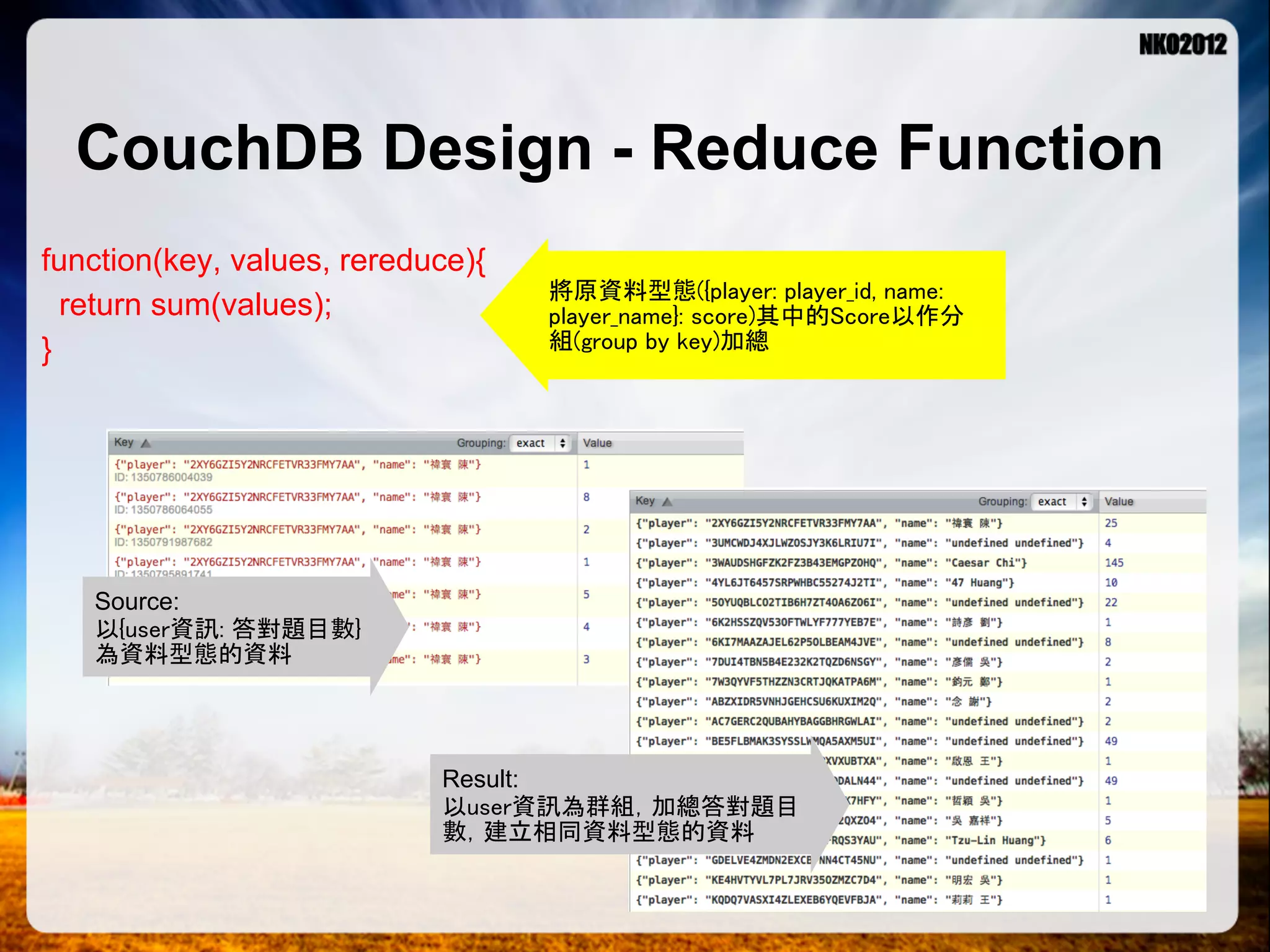

- 26. CouchDB Design -Reduce Function function(key, values, rereduce){ 將原資料型態({player: player_id, name: return sum(values); player_name}: score)其中的Score以作分 } 組(group by key)加總 Source: 以{user資訊: 答對題目數} 為資料型態的資料 Result: 以user資訊為群組，加總答對題目 數，建立相同資料型態的資料
- 27. Node Knock Out2012 NoSQL Administration

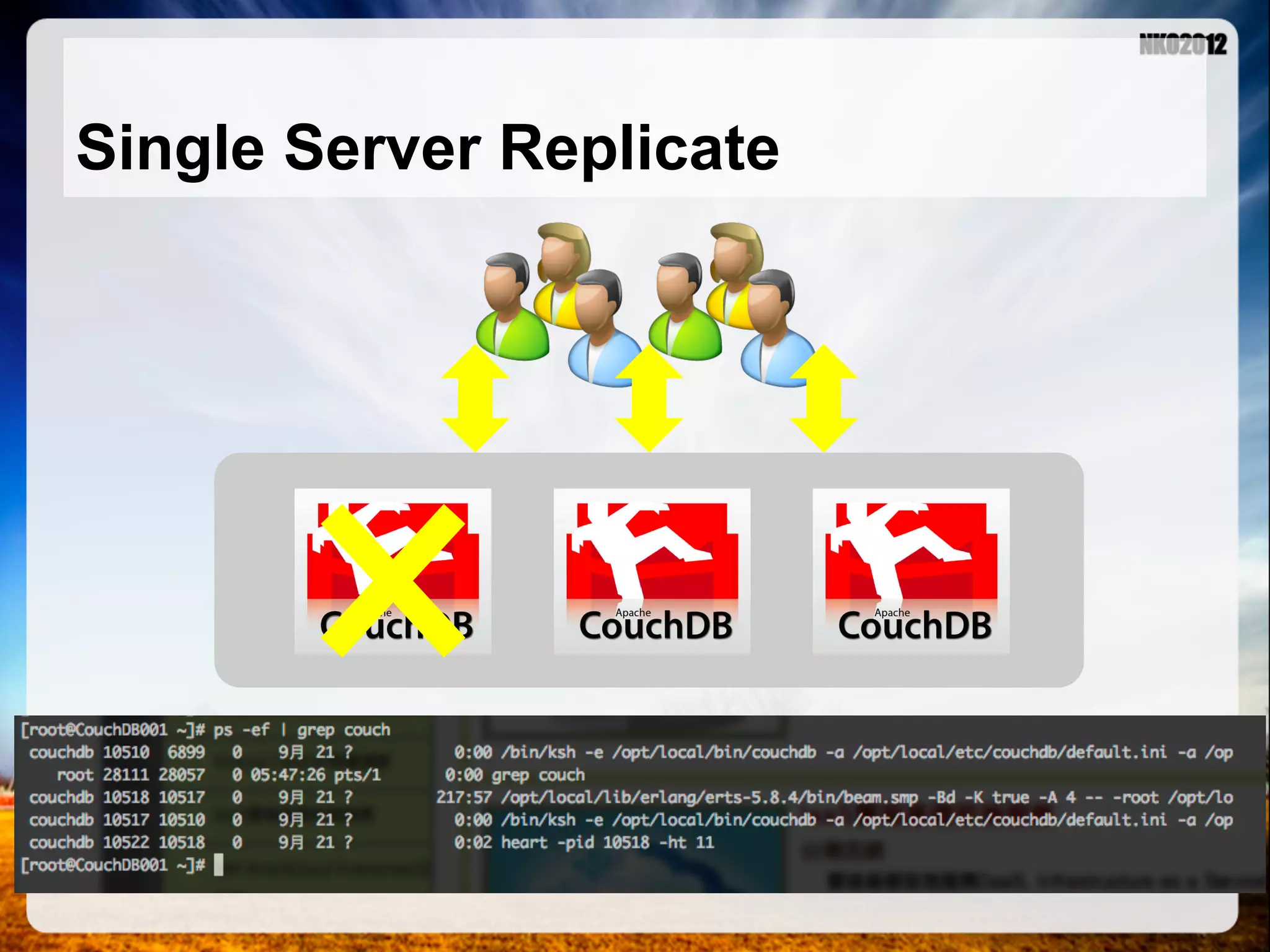

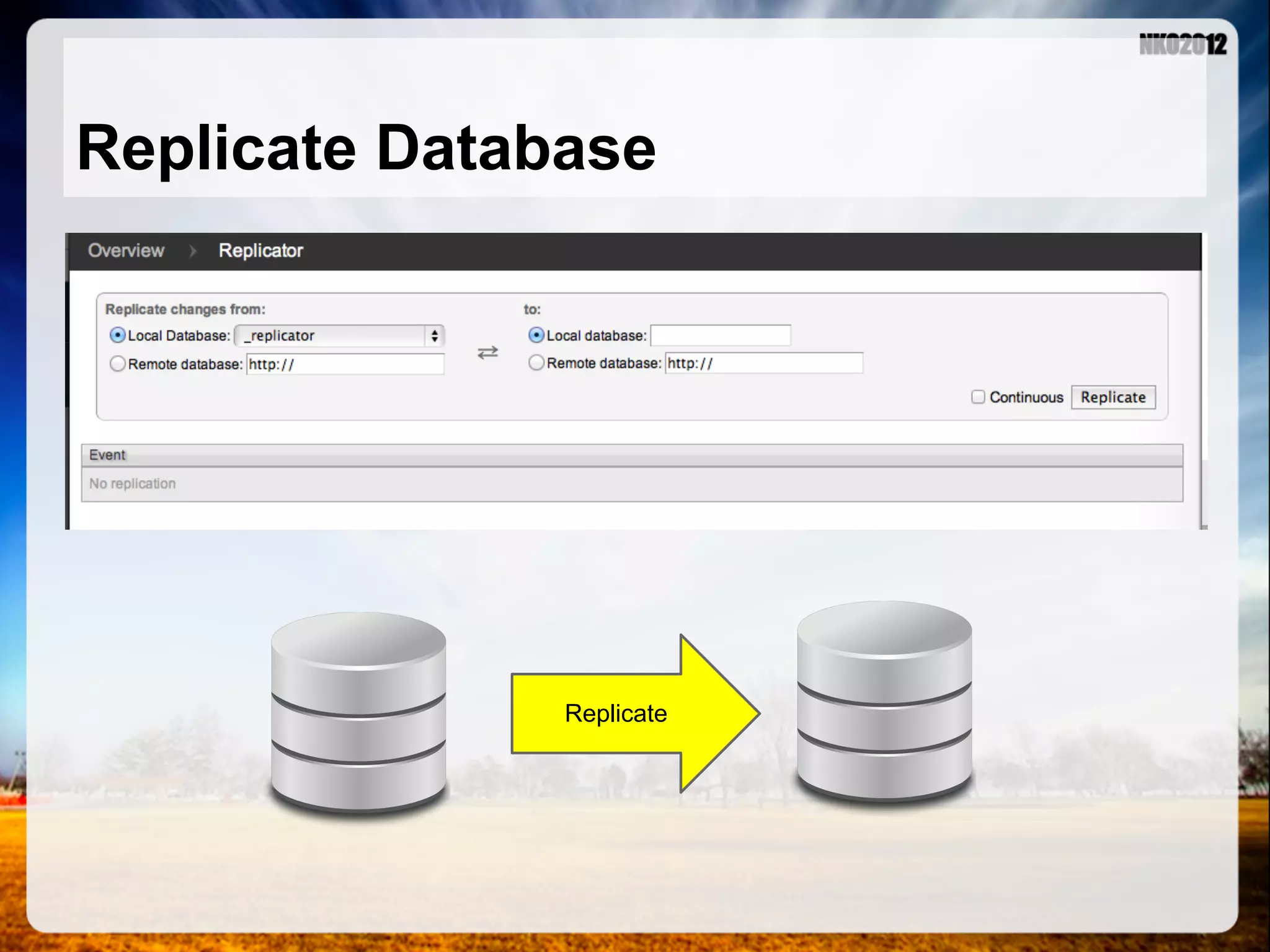

- 28. Replicate Database Replicate
- 29.
- 30.
- 31. Node Knock Out2012 Q&A

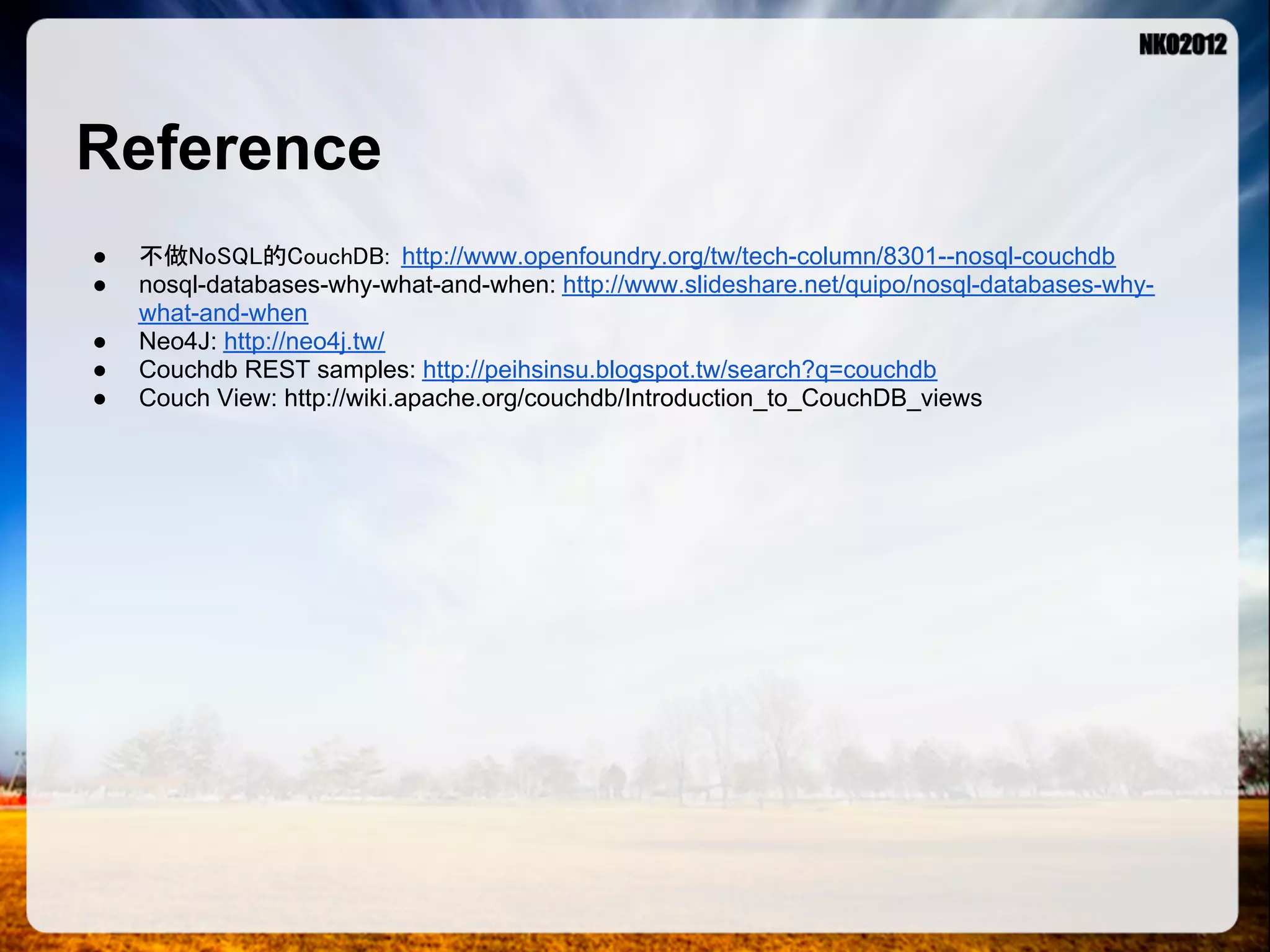

- 32. Reference ● 不做NoSQL的CouchDB: http://www.openfoundry.org/tw/tech-column/8301--nosql-couchdb ● nosql-databases-why-what-and-when: http://www.slideshare.net/quipo/nosql-databases-why- what-and-when ● Neo4J: http://neo4j.tw/ ● Couchdb REST samples: http://peihsinsu.blogspot.tw/search?q=couchdb ● Couch View: http://wiki.apache.org/couchdb/Introduction_to_CouchDB_views

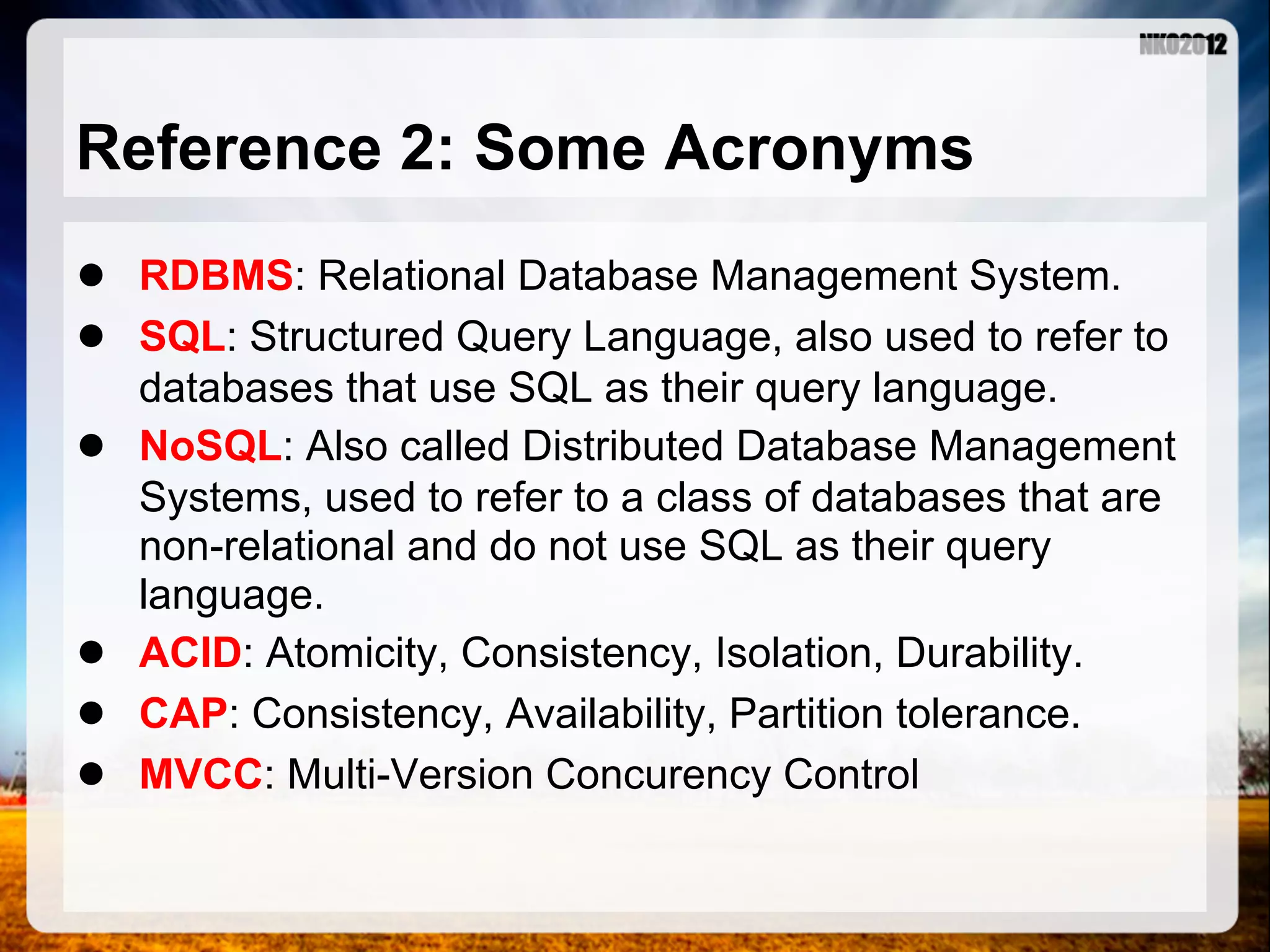

- 33. Reference 2: SomeAcronyms ● RDBMS: Relational Database Management System. ● SQL: Structured Query Language, also used to refer to databases that use SQL as their query language. ● NoSQL: Also called Distributed Database Management Systems, used to refer to a class of databases that are non-relational and do not use SQL as their query language. ● ACID: Atomicity, Consistency, Isolation, Durability. ● CAP: Consistency, Availability, Partition tolerance. ● MVCC: Multi-Version Concurency Control
- 34. Node Knock Out2012 附錄

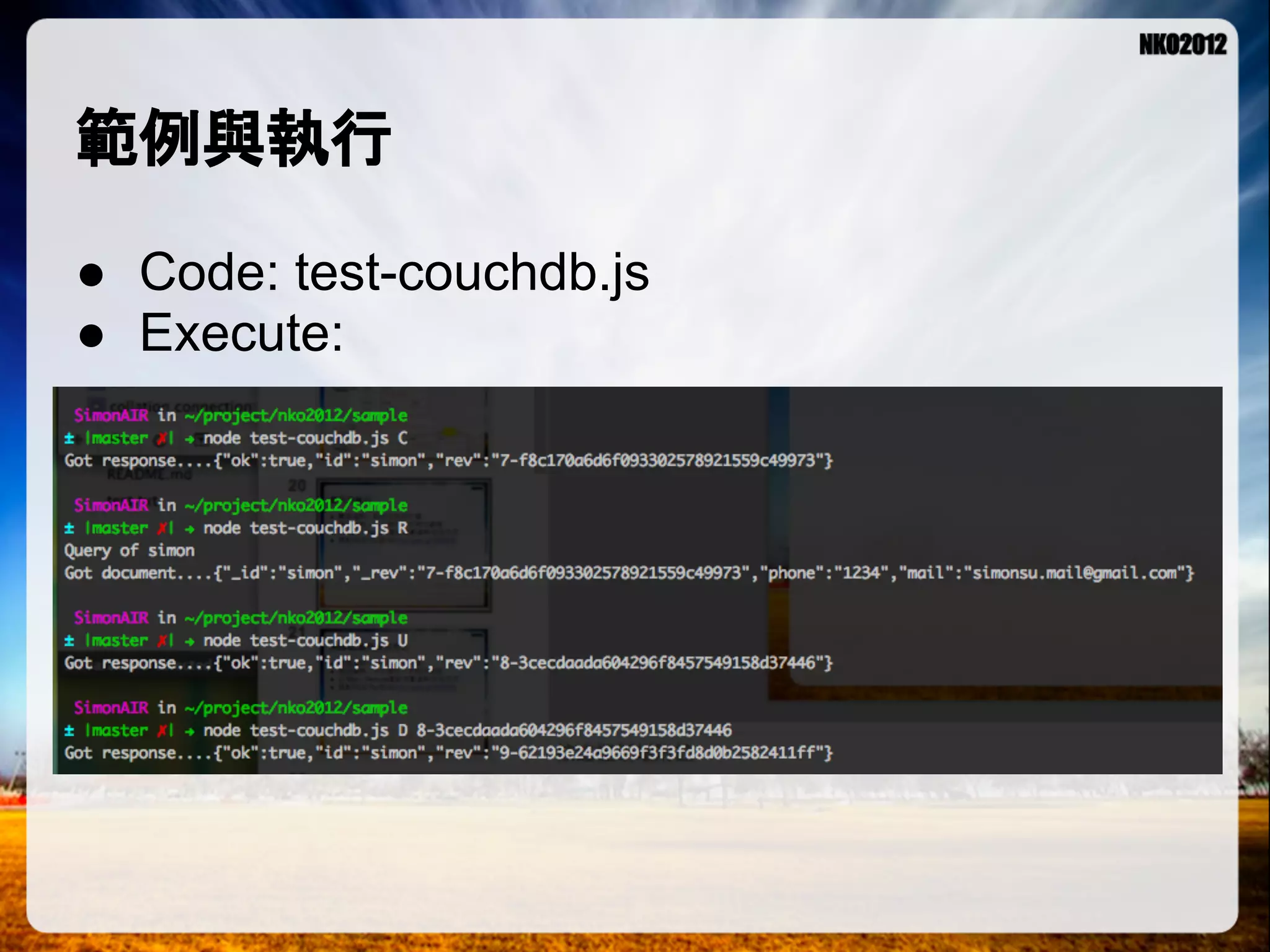

- 35. 範例與執行 ● Code: test-couchdb.js ●Execute:
- 36. Node Knock Out2012 After Class...

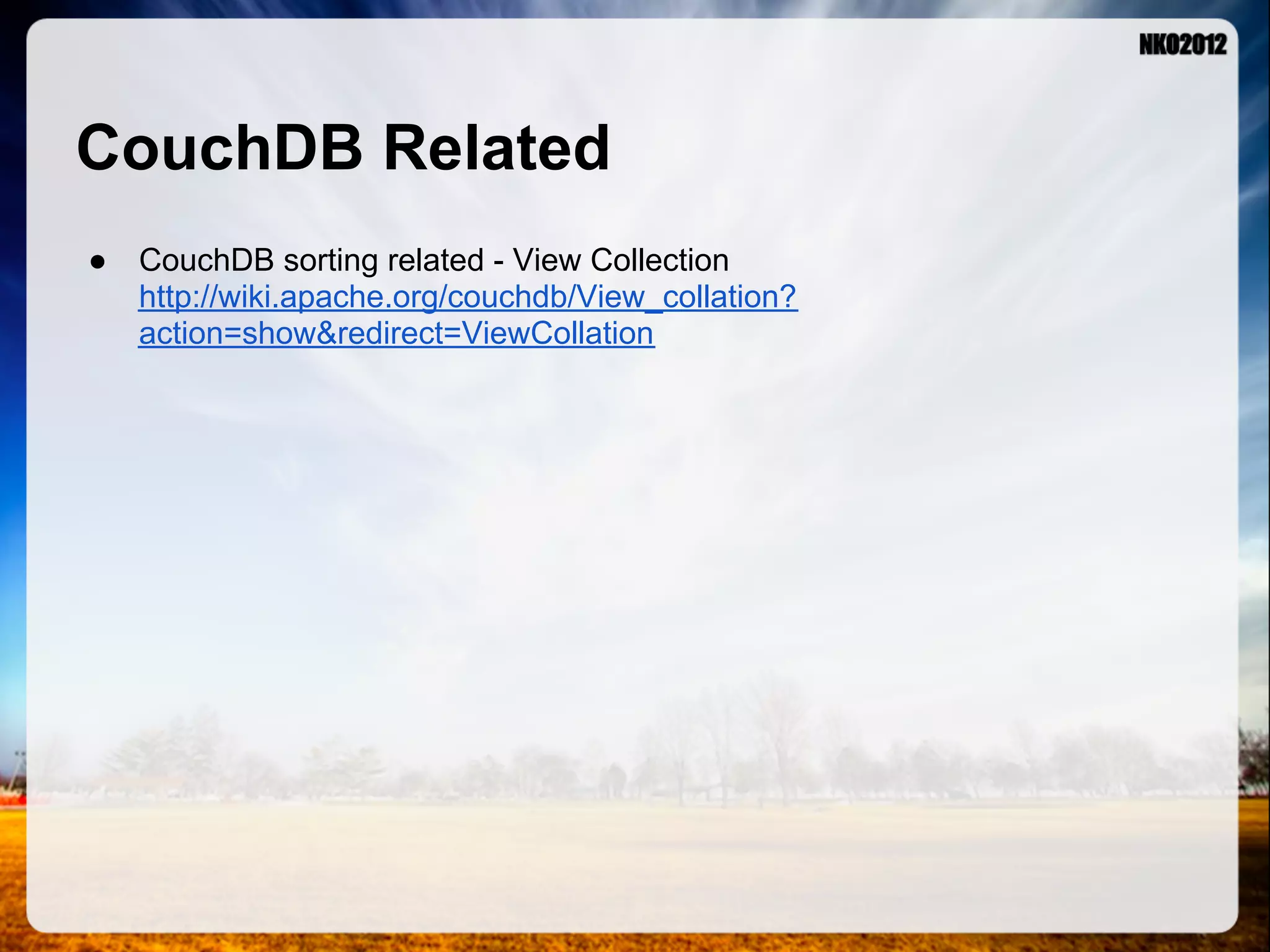

- 37. CouchDB Related ● CouchDB sorting related - View Collection http://wiki.apache.org/couchdb/View_collation? action=show&redirect=ViewCollation
