Profiling your Java Application
This document discusses Java application profiling, covering tools and techniques for identifying performance issues such as slow endpoint response times and connection starvation. It highlights the use of Micrometer for monitoring system metrics, Java Flight Recorder for profiling, and provides practical examples of how to implement these tools in applications. The content also addresses challenges in distributed systems and emphasizes the importance of proper profiling and monitoring for optimizing performance.
Profiling your Java Application
- 1. Profiling your JavaApplica2on @victorrentea ♦ VictorRentea.ro Code: github.com/victorrentea/performance-profiling.git
- 2. 👉 victorrentea.ro/training-offer 👋 Hi,I'm Victor Rentea 🇷🇴 PhD(CS) Java Champion, 18 years of code, 10 years of teaching Consultant & Trainer for 100+ companies: ❤ Clean Code, Architecture, Unit Tes3ng 🛠 Spring, Hibernate, Reac3ve/WebFlux ⚡ Java Performance, Secure Coding 🔐 Conference Talks on YouTube Founder of European So<ware Cra<ers Community, > 6000 members 🔥 Free 1-hour webinars, a;er work, on clean code, design, tes>ng 👉 victorrentea.ro/community Past events on youtube.com/vrentea Father of 👧👦, servant of a 🐈, weekend gardener 🌼 @victorrentea VictorRentea.ro
- 3. 3 VictorRentea.ro a trainingby Join the European So3ware Cra3ers community at victorrentea.ro/community The response *me of your endpoint is too slow 😱 🎉 Congratulations! 🎉 You made it to production, and you're taking serious load! Where to start?

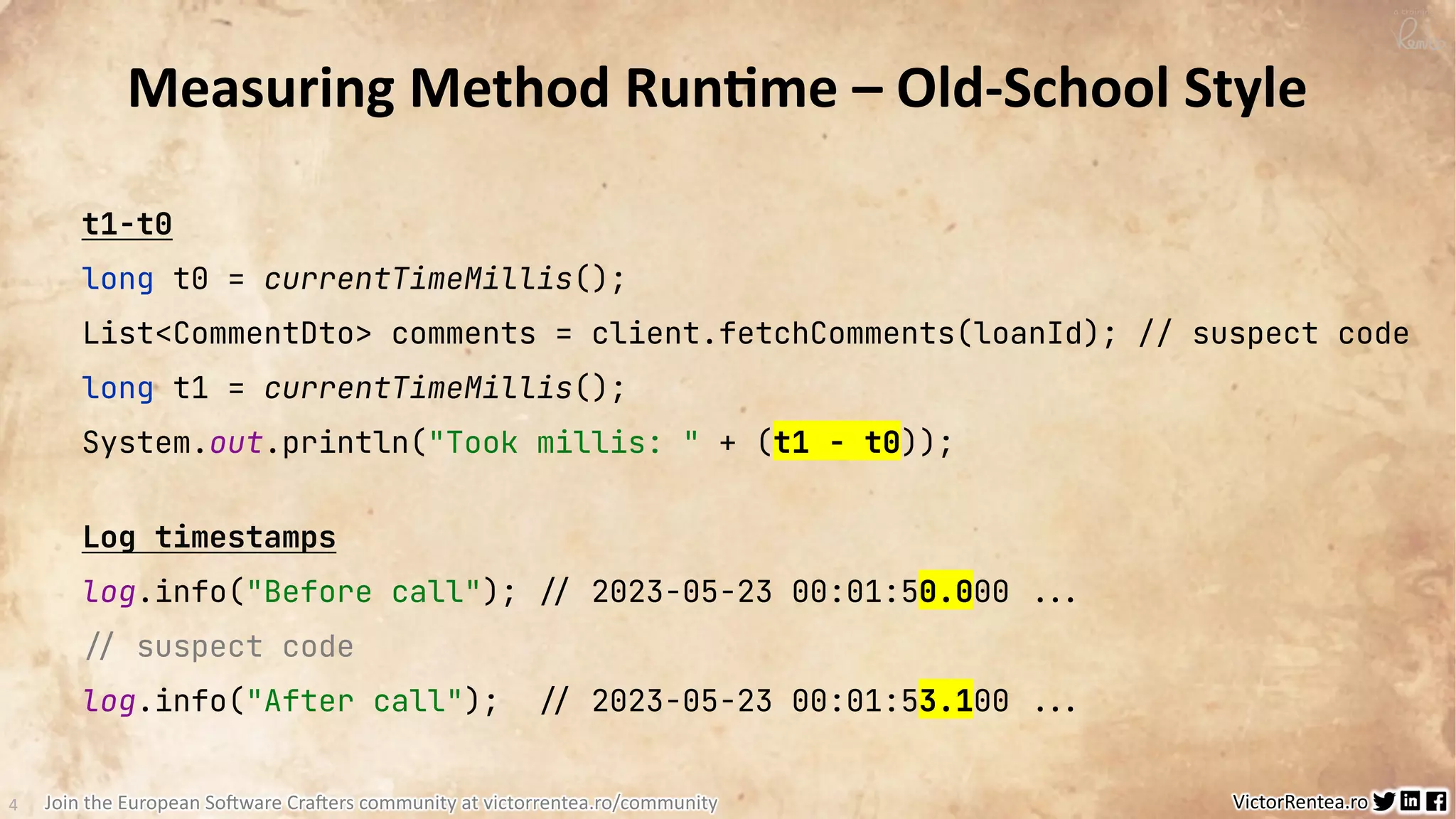

- 4. 4 VictorRentea.ro a trainingby Join the European So3ware Cra3ers community at victorrentea.ro/community Log timestamps log.info("Before call"); !// 2023-05-23 00:01:50.000 !!... !// suspect code log.info("After call"); !// 2023-05-23 00:01:53.100 !!... Measuring Method Run*me – Old-School Style t1-t0 long t0 = currentTimeMillis(); List<CommentDto> comments = client.fetchComments(loanId); // suspect code long t1 = currentTimeMillis(); System.out.println("Took millis: " + (t1 - t0));

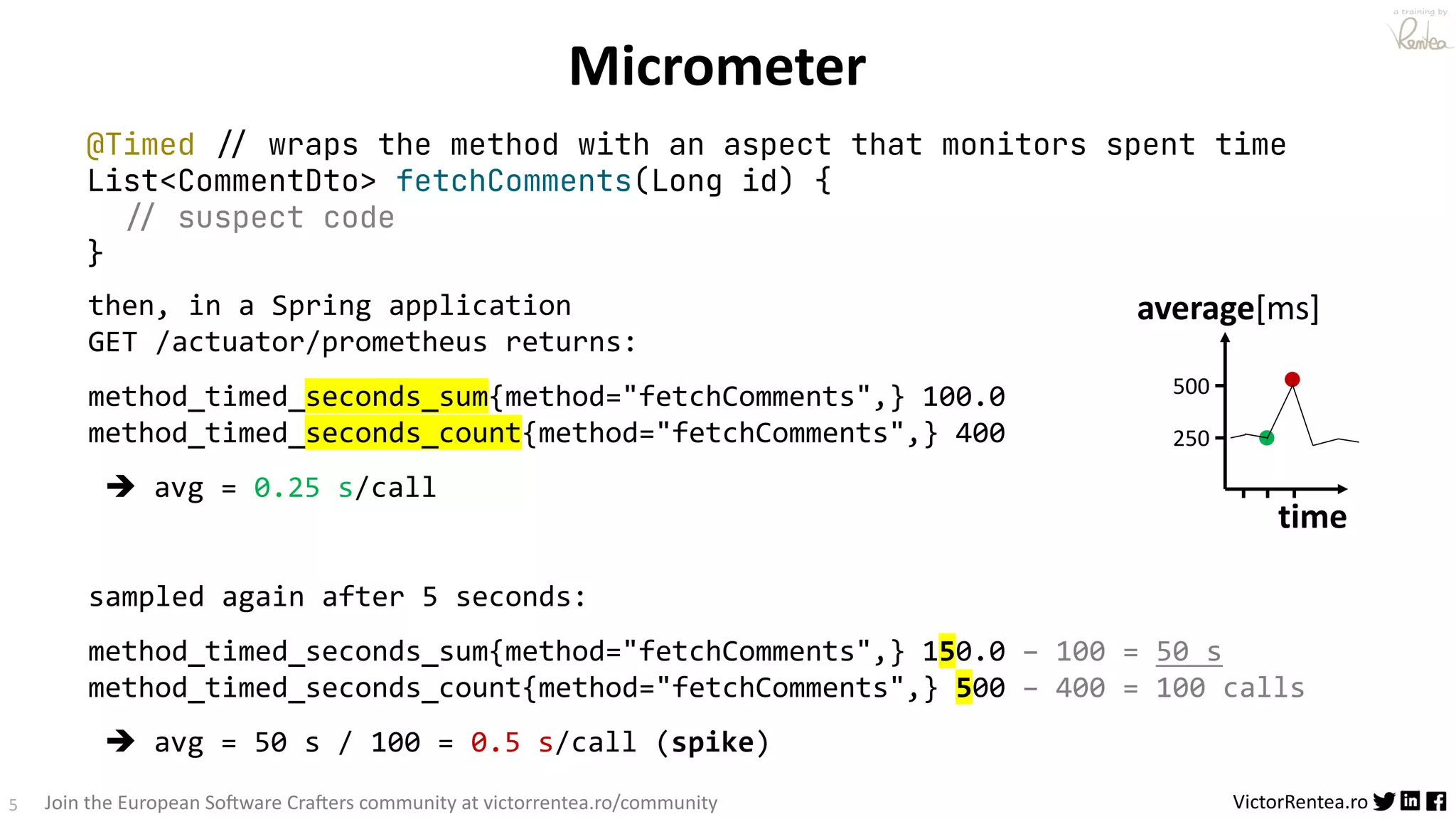

- 5. 5 VictorRentea.ro a trainingby Join the European So3ware Cra3ers community at victorrentea.ro/community Micrometer @Timed !// wraps the method with an aspect that monitors spent time List<CommentDto> fetchComments(Long id) { !// suspect code } then, in a Spring application GET /actuator/prometheus returns: method_timed_seconds_sum{method="fetchComments",} 100.0 method_timed_seconds_count{method="fetchComments",} 400 è avg = 0.25 s/call sampled again after 5 seconds: method_timed_seconds_sum{method="fetchComments",} 150.0 – 100 = 50 s method_timed_seconds_count{method="fetchComments",} 500 – 400 = 100 calls è avg = 50 s / 100 = 0.5 s/call (spike) time average[ms] 250 500

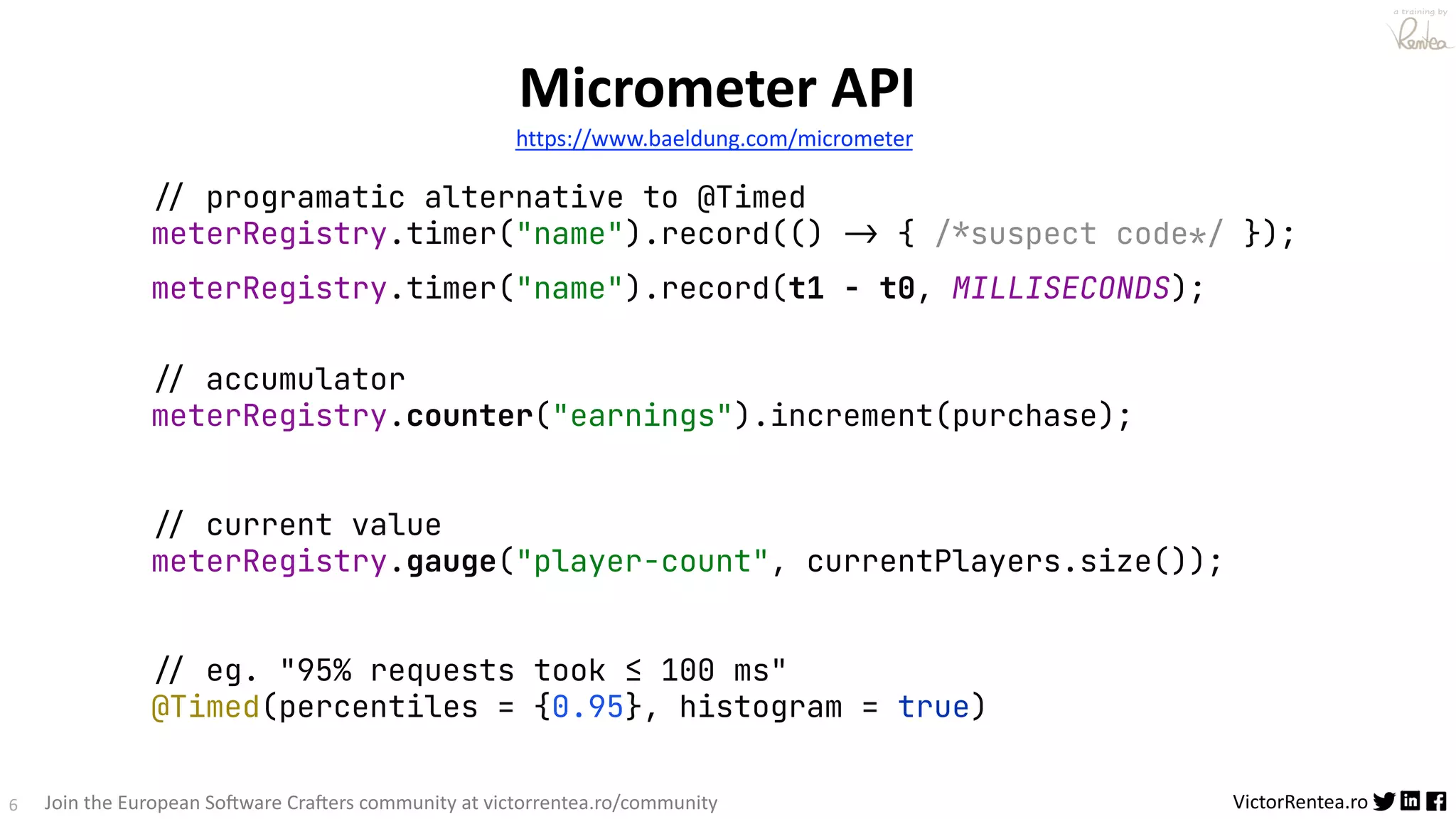

- 6. 6 VictorRentea.ro a trainingby Join the European So3ware Cra3ers community at victorrentea.ro/community Micrometer API https://www.baeldung.com/micrometer !// programatic alternative to @Timed meterRegistry.timer("name").record(() -> { !/*suspect code!*/ }); meterRegistry.timer("name").record(t1 - t0, MILLISECONDS); !// accumulator meterRegistry.counter("earnings").increment(purchase); !// current value meterRegistry.gauge("player-count", currentPlayers.size()); !// eg. "95% requests took ≤ 100 ms" @Timed(percentiles = {0.95}, histogram = true)

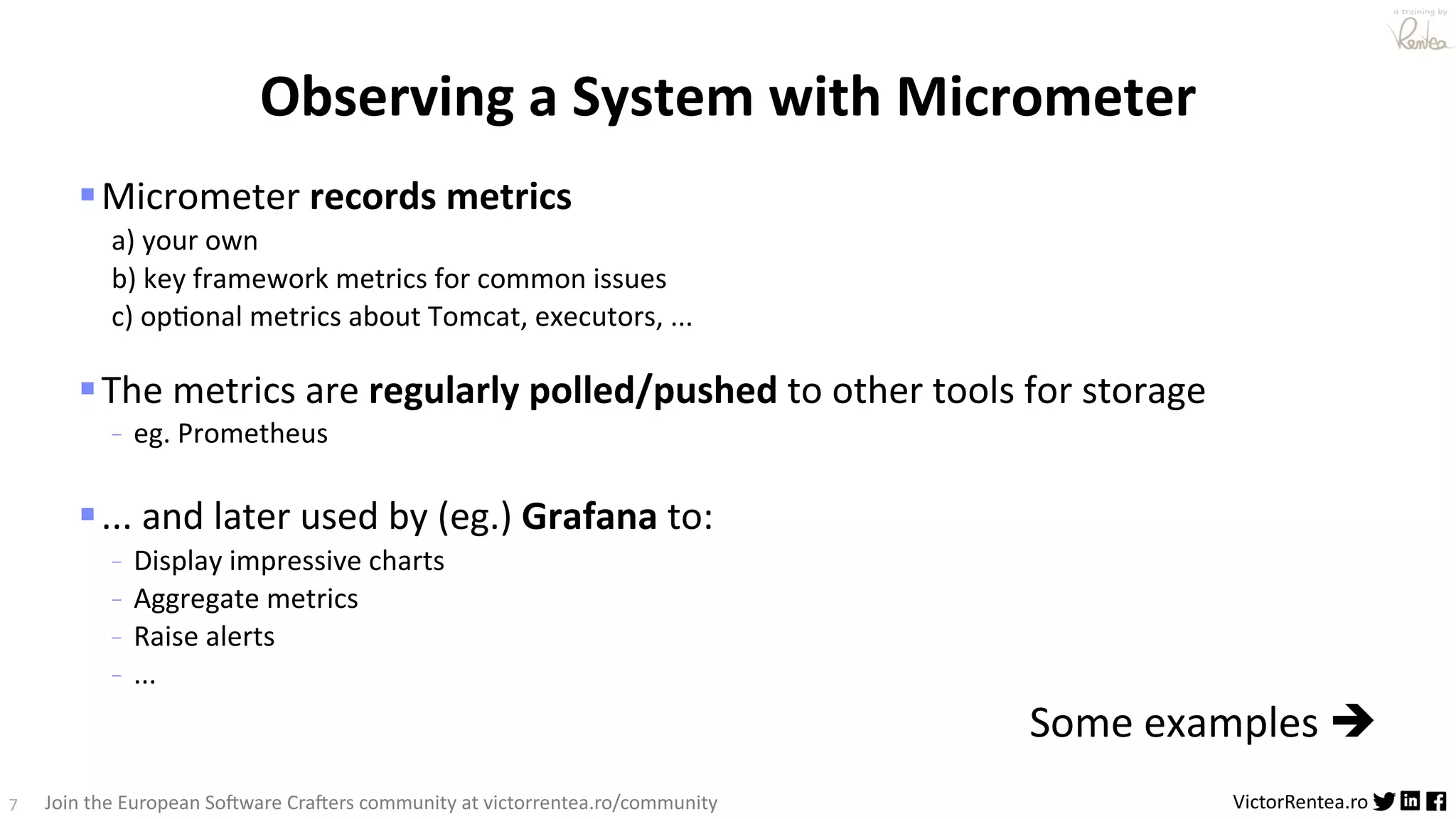

- 7. 7 VictorRentea.ro a trainingby Join the European So3ware Cra3ers community at victorrentea.ro/community §Micrometer records metrics a) your own b) key framework metrics for common issues c) opBonal metrics about Tomcat, executors, ... §The metrics are regularly polled/pushed to other tools for storage - eg. Prometheus §... and later used by (eg.) Grafana to: - Display impressive charts - Aggregate metrics - Raise alerts - ... Some examples è Observing a System with Micrometer

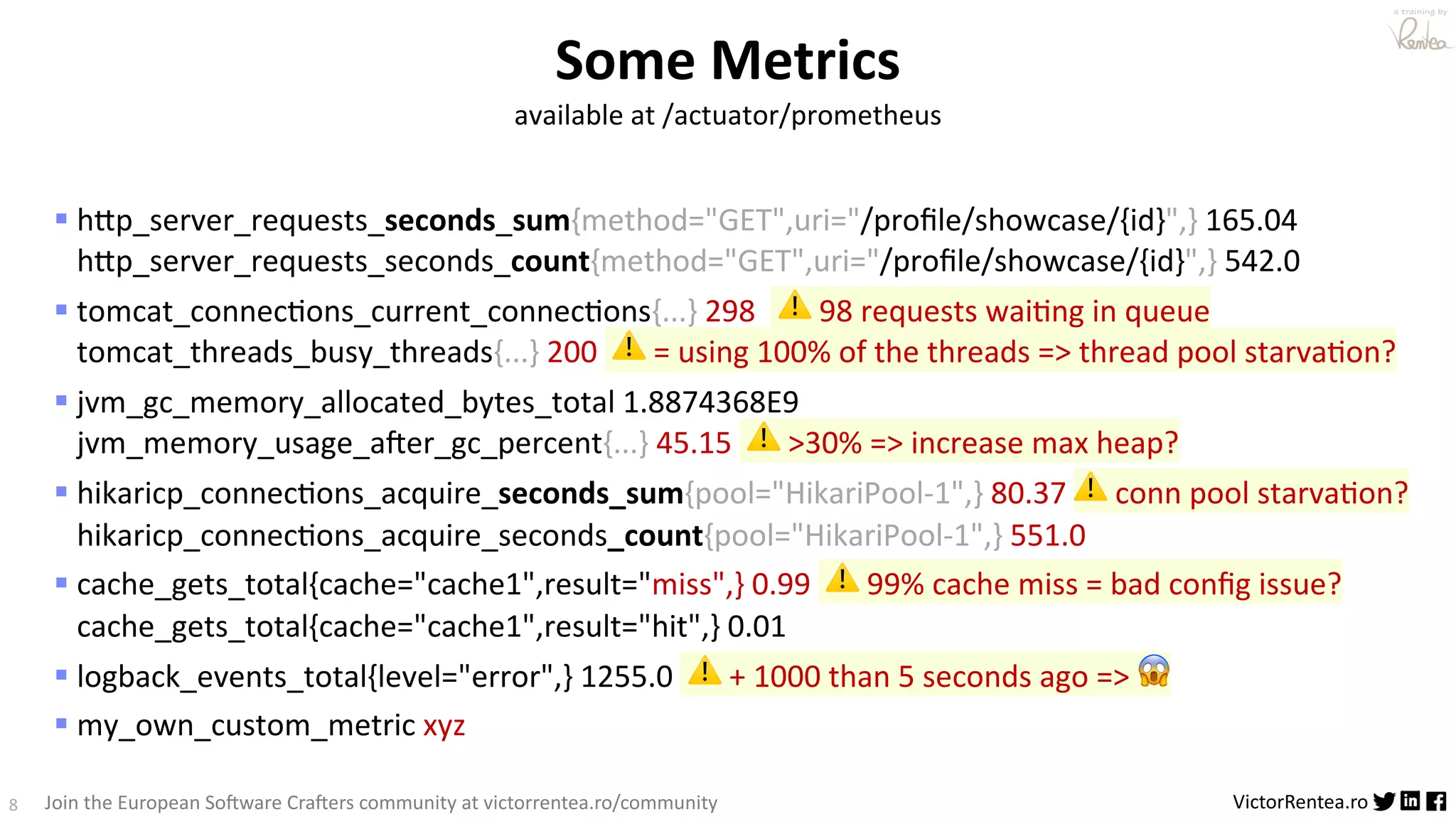

- 8. 8 VictorRentea.ro a trainingby Join the European So3ware Cra3ers community at victorrentea.ro/community § hBp_server_requests_seconds_sum{method="GET",uri="/profile/showcase/{id}",} 165.04 hBp_server_requests_seconds_count{method="GET",uri="/profile/showcase/{id}",} 542.0 § tomcat_connec>ons_current_connec>ons{...} 298 ⚠ 98 requests wai>ng in queue tomcat_threads_busy_threads{...} 200 ⚠ = using 100% of the threads => thread pool starva>on? § jvm_gc_memory_allocated_bytes_total 1.8874368E9 jvm_memory_usage_a;er_gc_percent{...} 45.15 ⚠ >30% => increase max heap? § hikaricp_connec>ons_acquire_seconds_sum{pool="HikariPool-1",} 80.37 ⚠ conn pool starva>on? hikaricp_connec>ons_acquire_seconds_count{pool="HikariPool-1",} 551.0 § cache_gets_total{cache="cache1",result="miss",} 0.99 ⚠ 99% cache miss = bad config issue? cache_gets_total{cache="cache1",result="hit",} 0.01 § logback_events_total{level="error",} 1255.0 ⚠ + 1000 than 5 seconds ago => 😱 § my_own_custom_metric xyz Some Metrics available at /actuator/prometheus

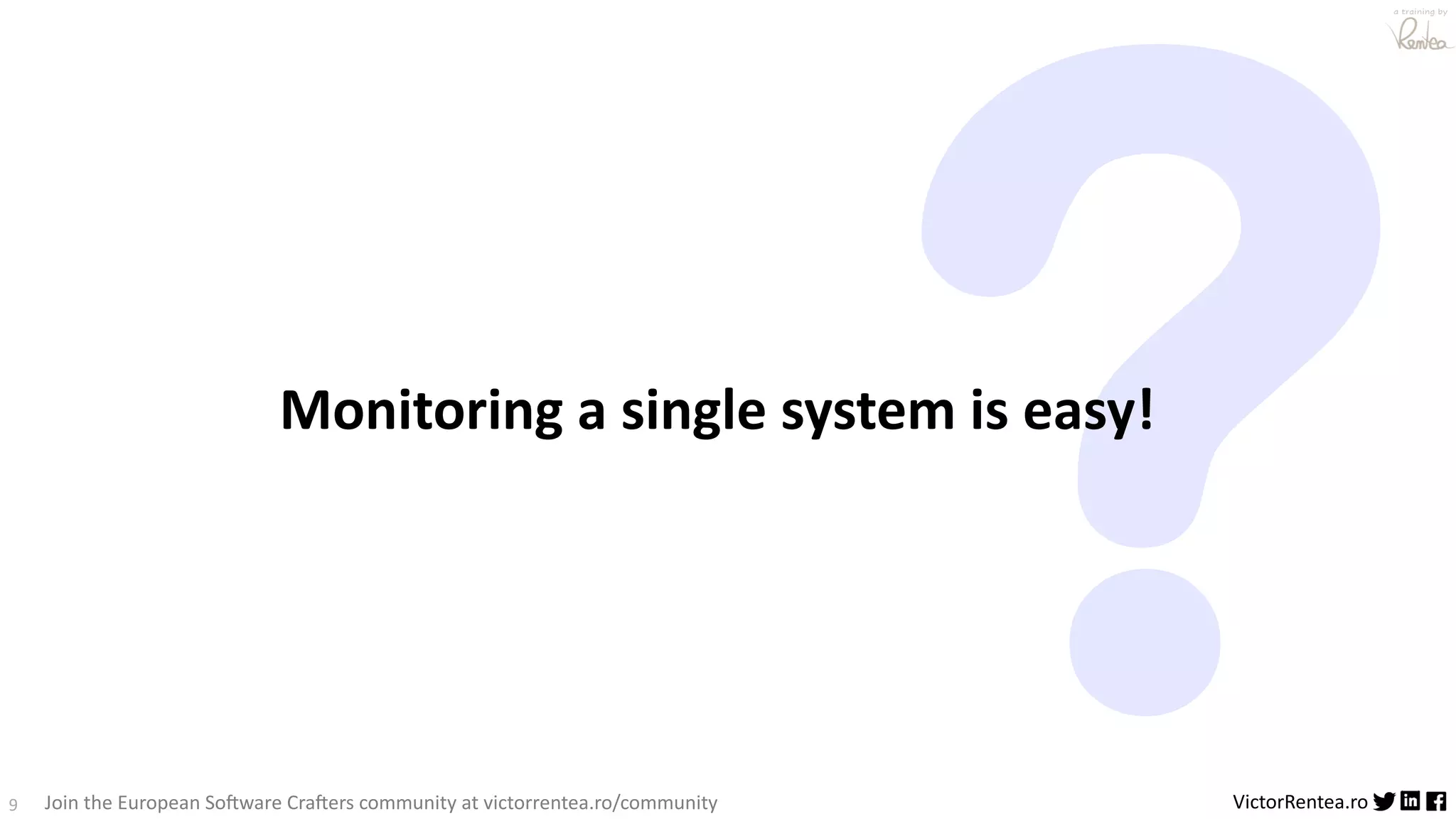

- 9. 9 VictorRentea.ro a trainingby Join the European So3ware Cra3ers community at victorrentea.ro/community ? Monitoring a single system is easy!

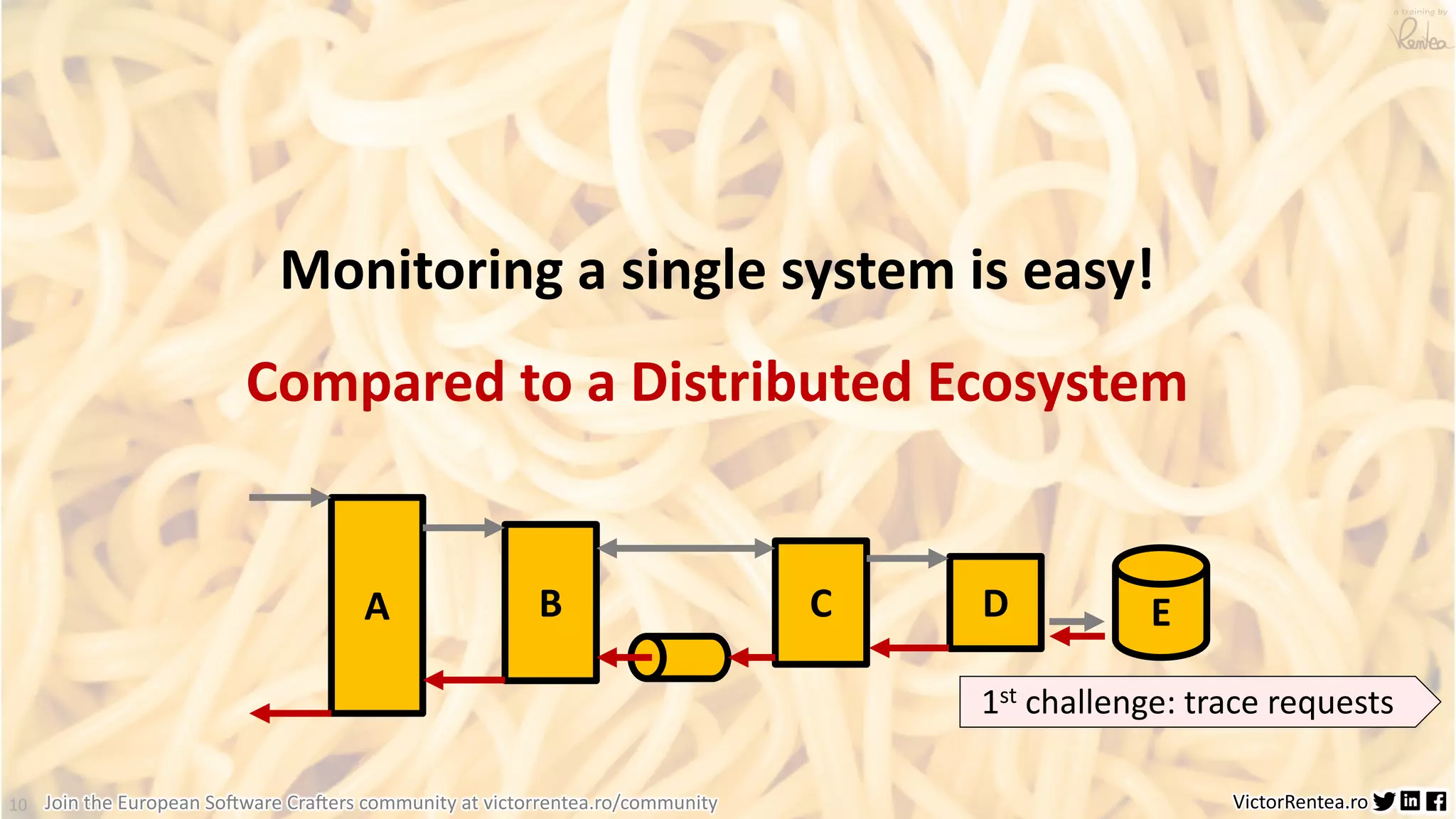

- 10. 10 VictorRentea.ro a trainingby Join the European So3ware Cra3ers community at victorrentea.ro/community Compared to a Distributed Ecosystem 1st challenge: trace requests A B C D E Monitoring a single system is easy!

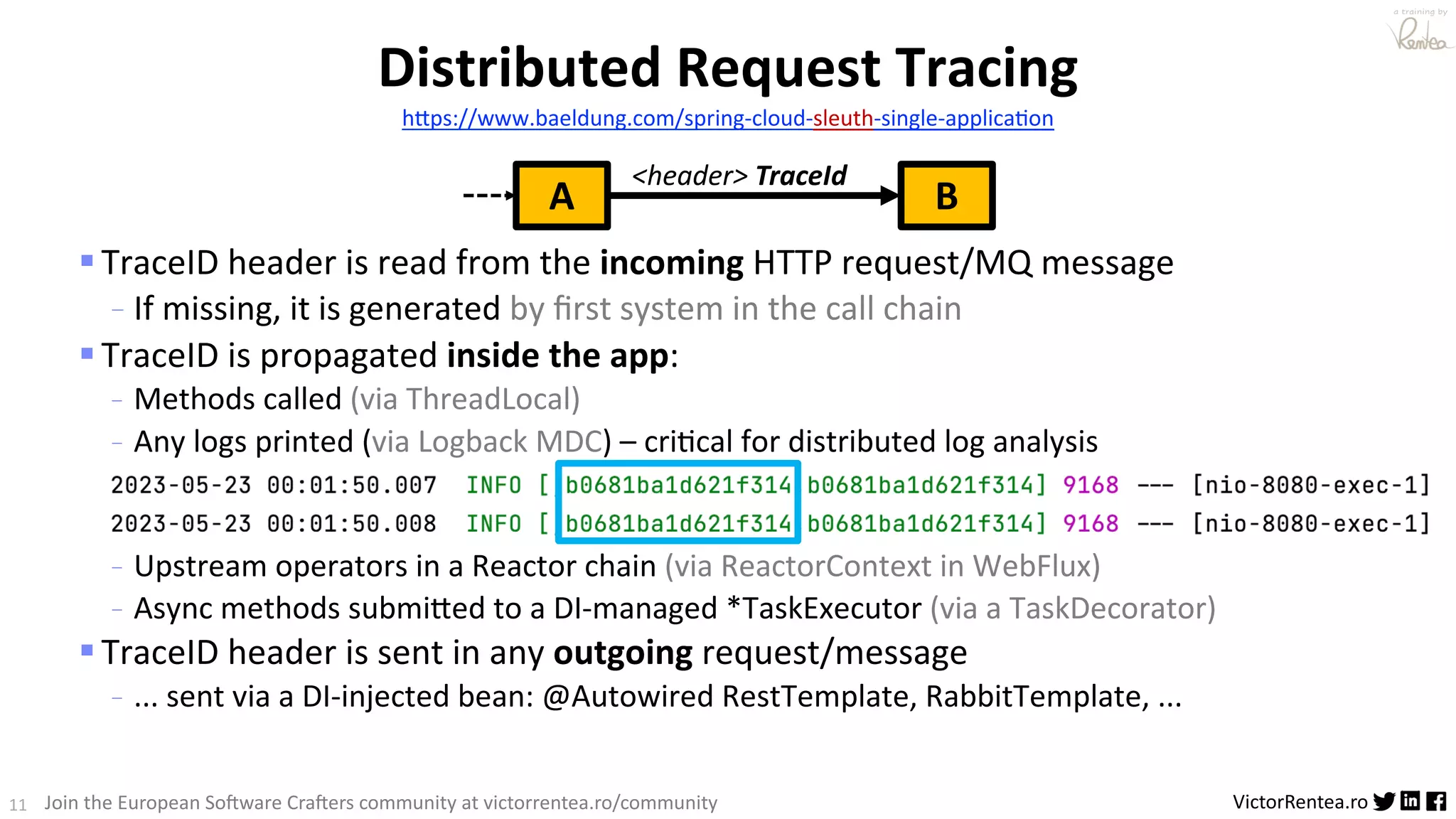

- 11. 11 VictorRentea.ro a trainingby Join the European So3ware Cra3ers community at victorrentea.ro/community §TraceID header is read from the incoming HTTP request/MQ message - If missing, it is generated by first system in the call chain §TraceID is propagated inside the app: - Methods called (via ThreadLocal) - Any logs printed (via Logback MDC) – cri>cal for distributed log analysis - Upstream operators in a Reactor chain (via ReactorContext in WebFlux) - Async methods submiBed to a DI-managed *TaskExecutor (via a TaskDecorator) §TraceID header is sent in any outgoing request/message - ... sent via a DI-injected bean: @Autowired RestTemplate, RabbitTemplate, ... Distributed Request Tracing h:ps://www.baeldung.com/spring-cloud-sleuth-single-applica<on A B <header> TraceId

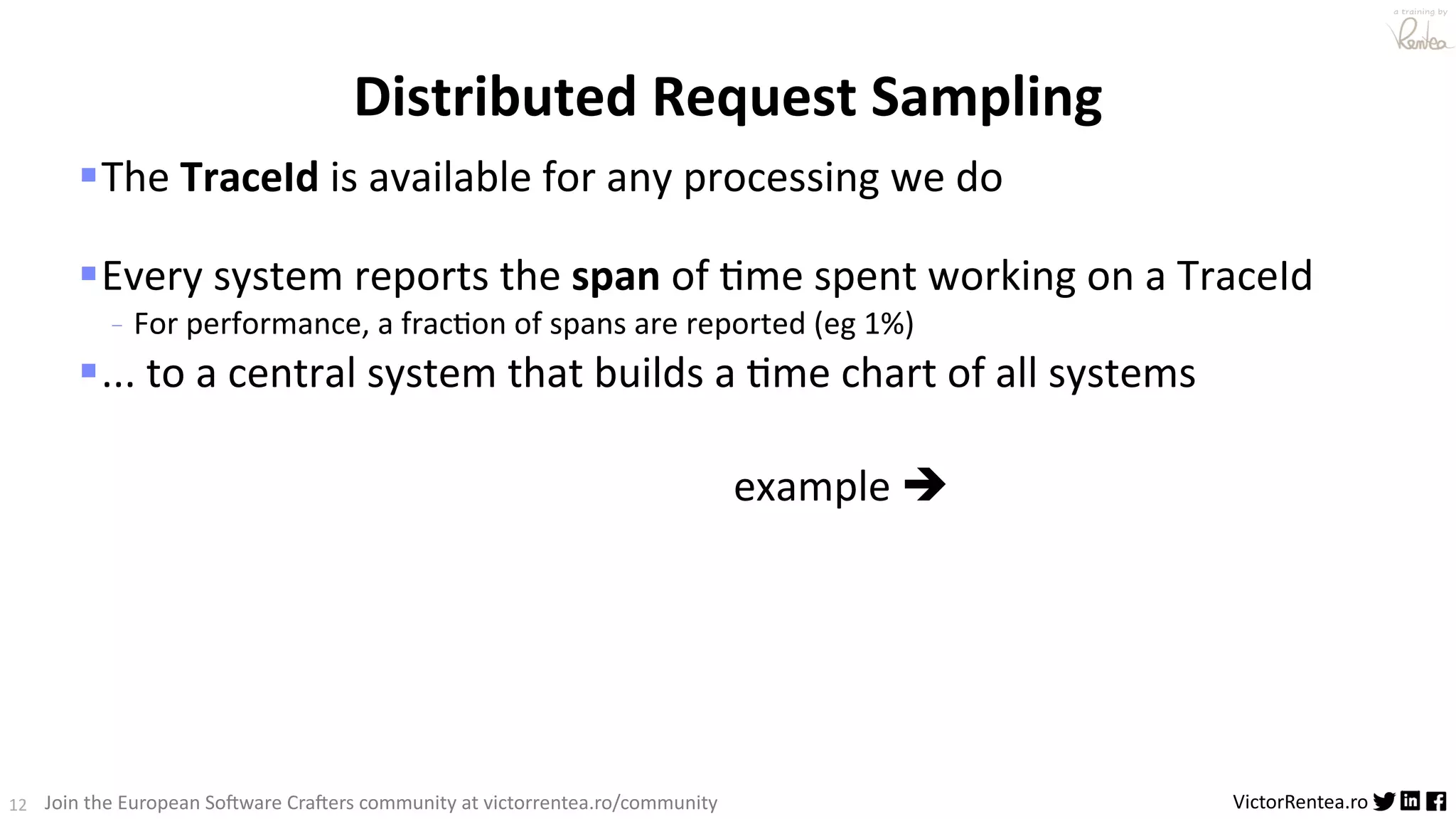

- 12. 12 VictorRentea.ro a trainingby Join the European So3ware Cra3ers community at victorrentea.ro/community §The TraceId is available for any processing we do §Every system reports the span of :me spent working on a TraceId - For performance, a frac>on of spans are reported (eg 1%) §... to a central system that builds a :me chart of all systems example è Distributed Request Sampling

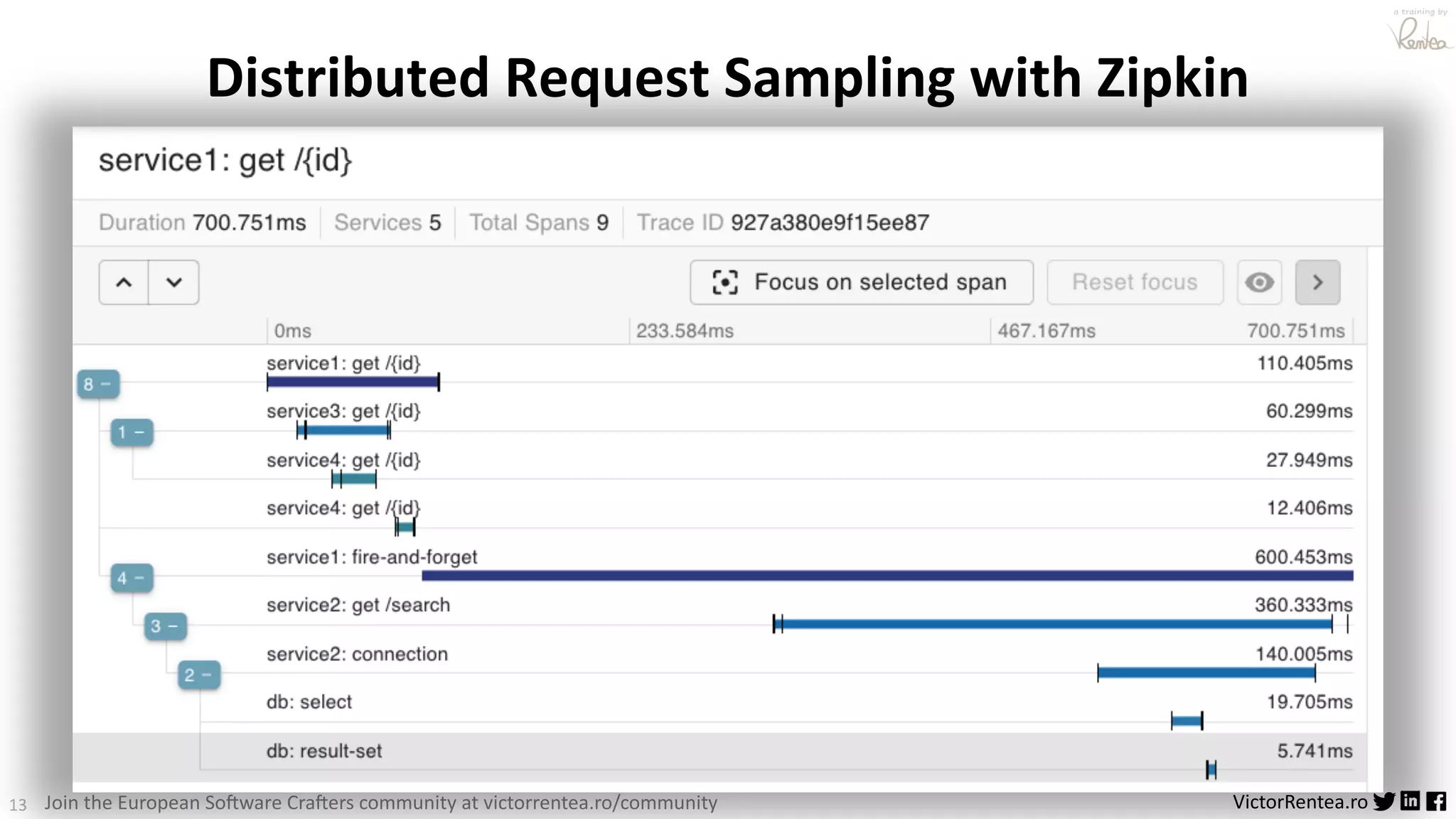

- 13. 13 VictorRentea.ro a trainingby Join the European So3ware Cra3ers community at victorrentea.ro/community Distributed Request Sampling with Zipkin

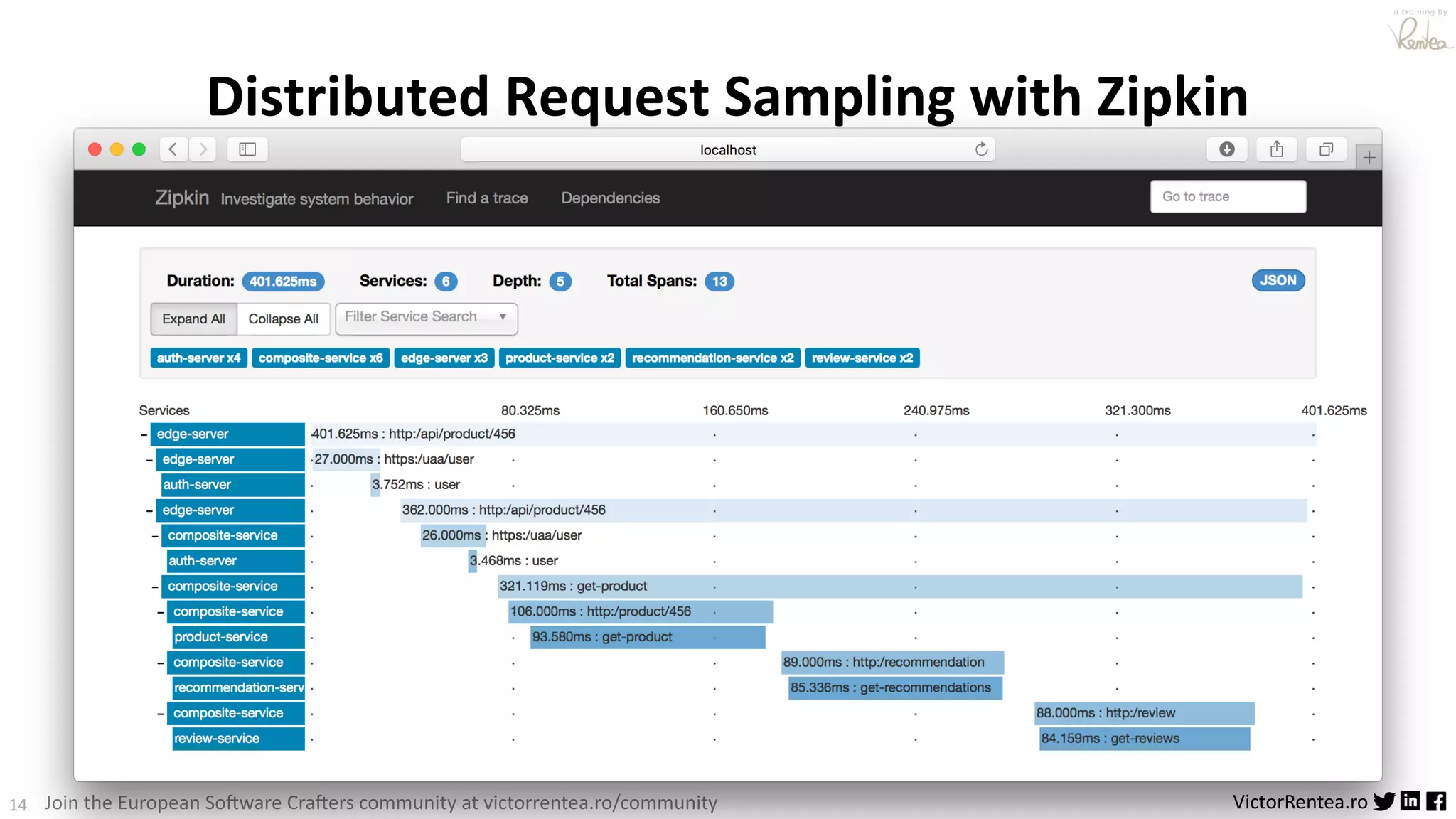

- 14. 14 VictorRentea.ro a trainingby Join the European So3ware Cra3ers community at victorrentea.ro/community Distributed Request Sampling with Zipkin

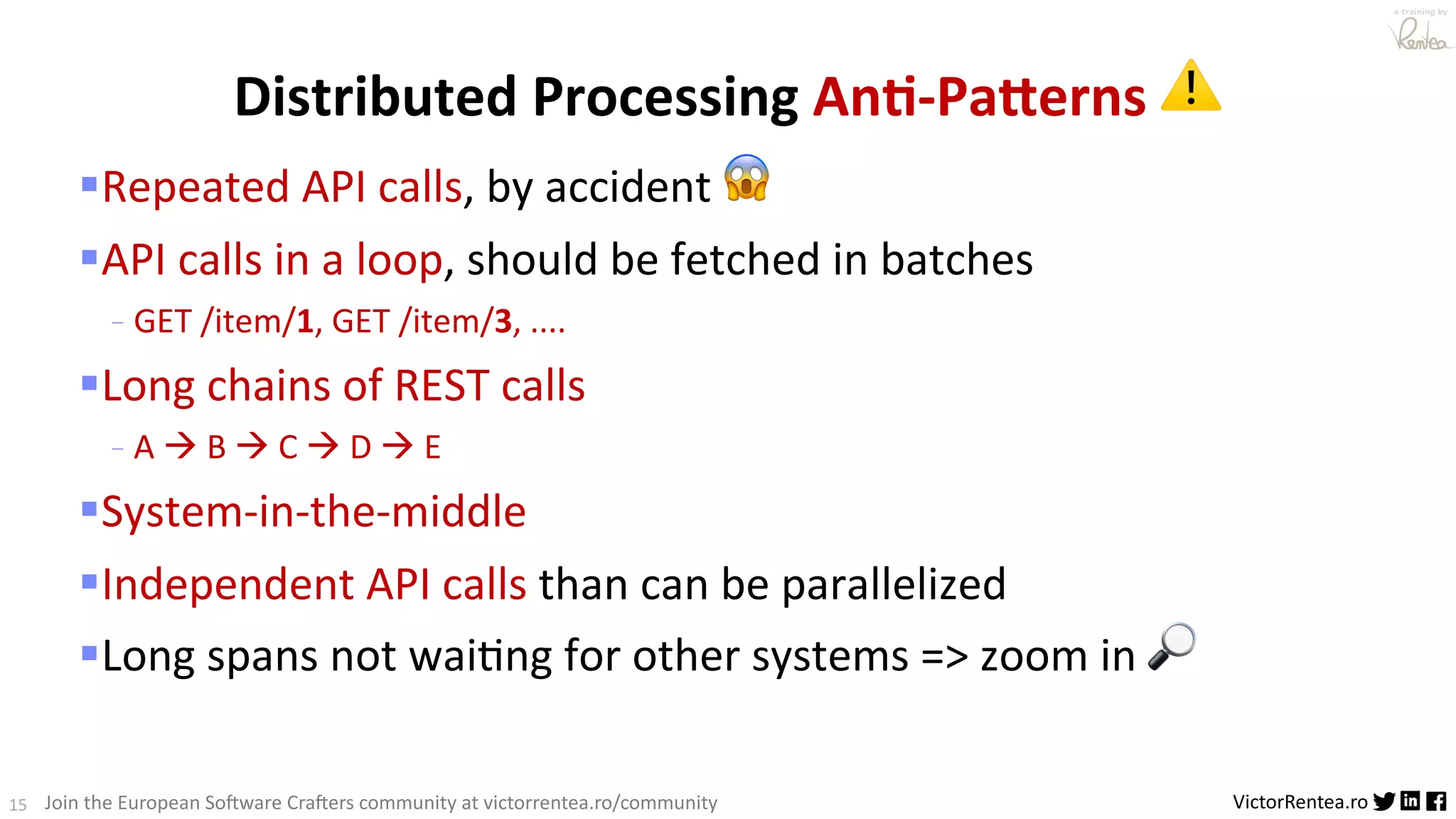

- 15. 15 VictorRentea.ro a trainingby Join the European So3ware Cra3ers community at victorrentea.ro/community §Repeated API calls, by accident 😱 §API calls in a loop, should be fetched in batches - GET /item/1, GET /item/3, .... §Long chains of REST calls - A à B à C à D à E §System-in-the-middle §Independent API calls than can be parallelized §Long spans not waiAng for other systems => zoom in 🔎 Distributed Processing An*-PaKerns ⚠

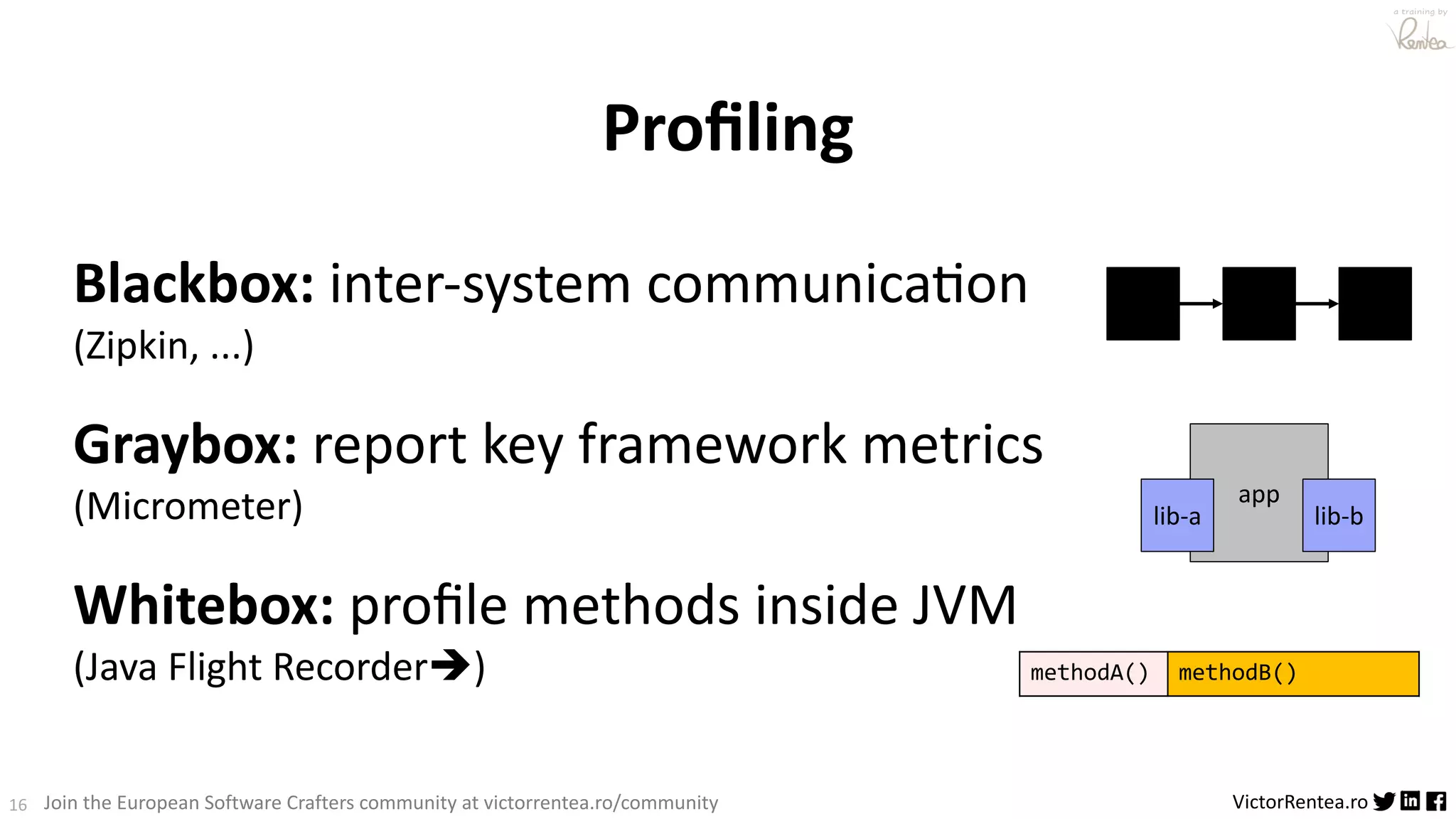

- 16. 16 VictorRentea.ro a trainingby Join the European Software Crafters community at victorrentea.ro/community Profiling Blackbox: inter-system communica/on (Zipkin, ...) Graybox: report key framework metrics (Micrometer) Whitebox: profile methods inside JVM (Java Flight Recorderè) app lib-a lib-b methodA() methodB()

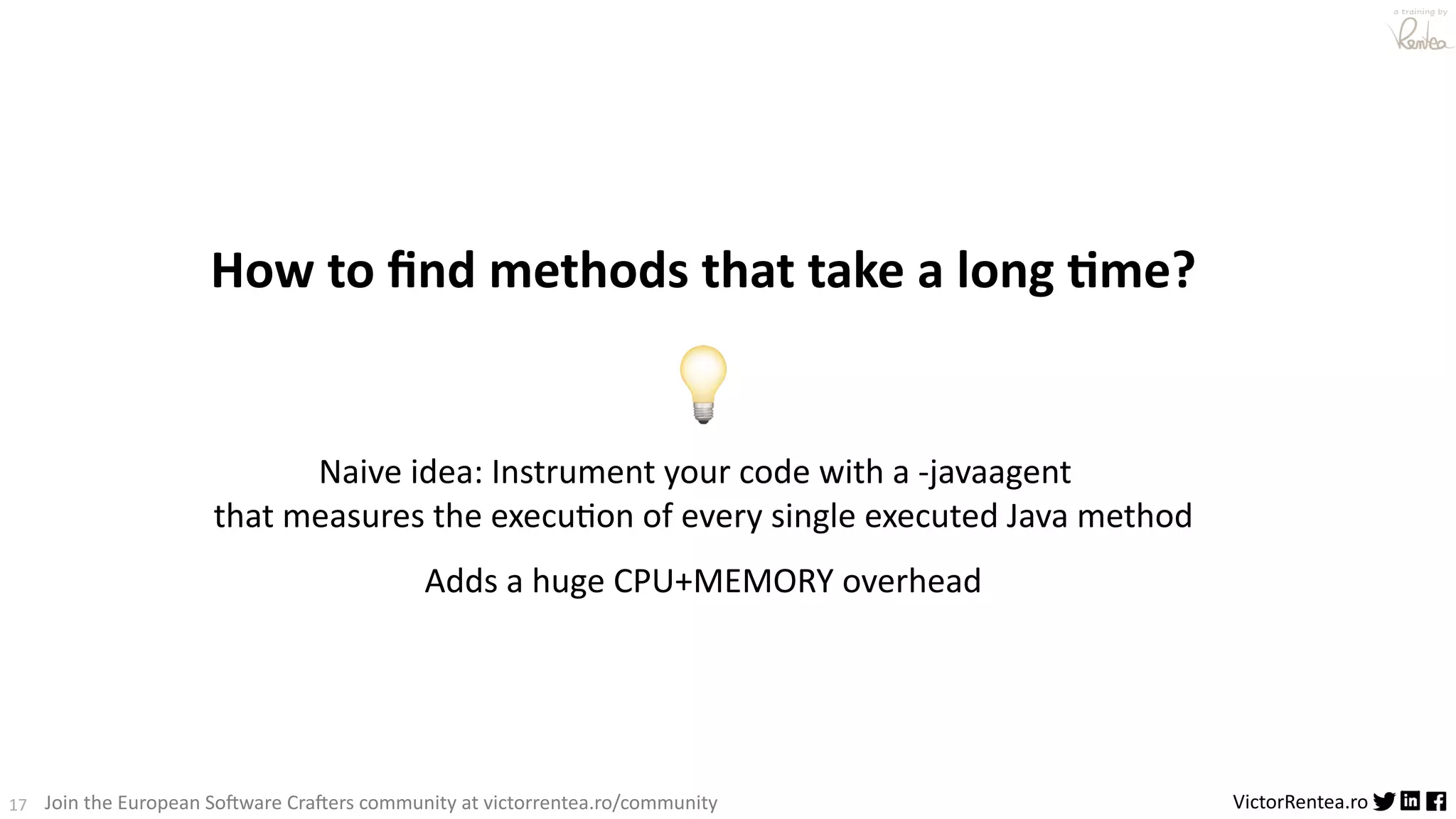

- 17. 17 VictorRentea.ro a trainingby Join the European So3ware Cra3ers community at victorrentea.ro/community How to find methods that take a long 1me? 💡 Naive idea: Instrument your code with a -javaagent that measures the execuPon of every single executed Java method Adds a huge CPU+MEMORY overhead
- 18. 18 VictorRentea.ro a trainingby Join the European Software Crafters community at victorrentea.ro/community Java Flight Recorder The Tools of the Java Gods

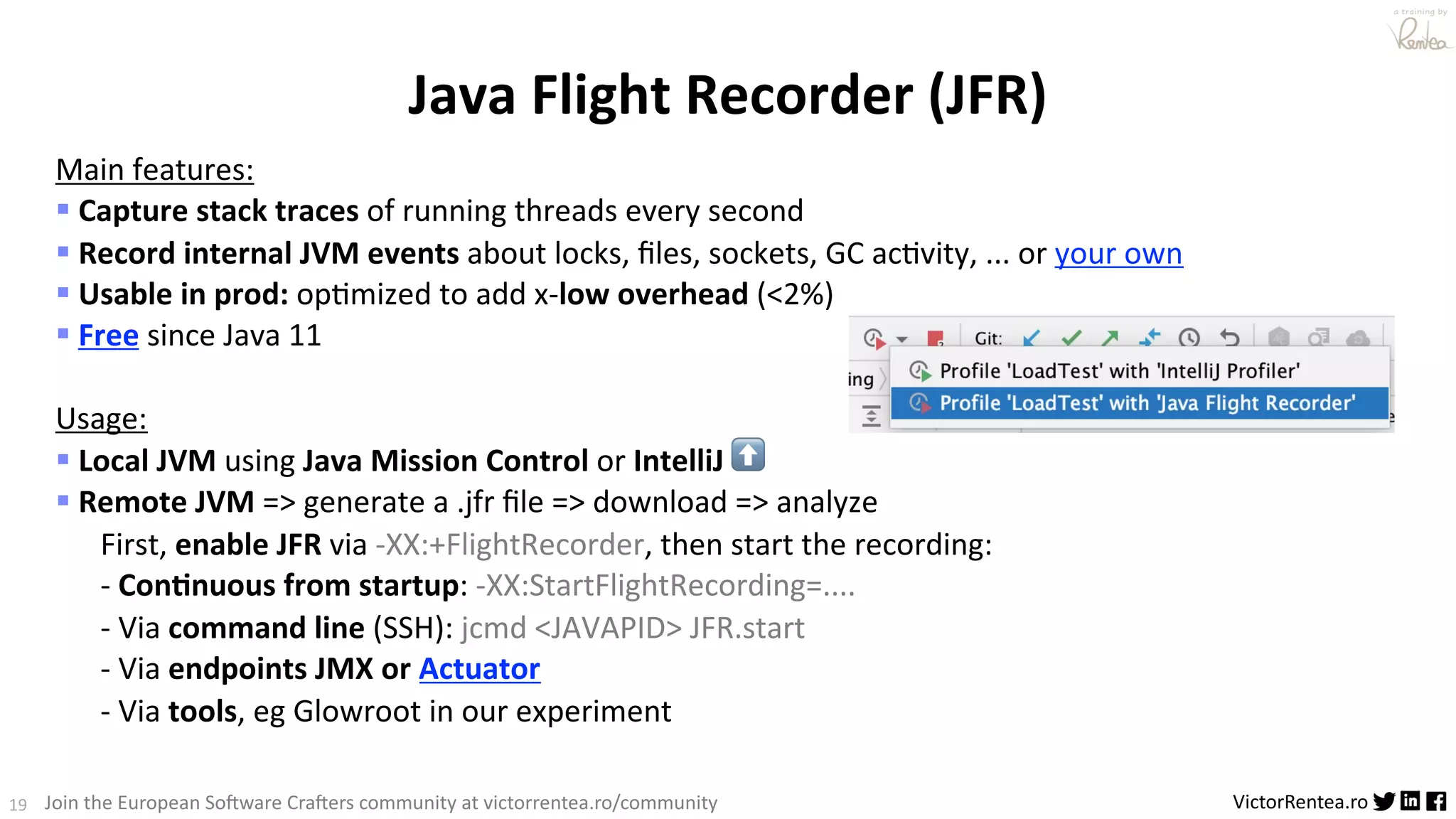

- 19. 19 VictorRentea.ro a trainingby Join the European So3ware Cra3ers community at victorrentea.ro/community Java Flight Recorder (JFR) Main features: § Capture stack traces of running threads every second § Record internal JVM events about locks, files, sockets, GC ac>vity, ... or your own § Usable in prod: op>mized to add x-low overhead (<2%) § Free since Java 11 Usage: § Local JVM using Java Mission Control or IntelliJ ⬆ § Remote JVM => generate a .jfr file => download => analyze First, enable JFR via -XX:+FlightRecorder, then start the recording: - Con3nuous from startup: -XX:StartFlightRecording=.... - Via command line (SSH): jcmd <JAVAPID> JFR.start - Via endpoints JMX or Actuator - Via tools, eg Glowroot in our experiment
- 20. 26 VictorRentea.ro a trainingby Join the European Software Crafters community at victorrentea.ro/community Flame Graph best way to visualize the output of an execuAon profiler

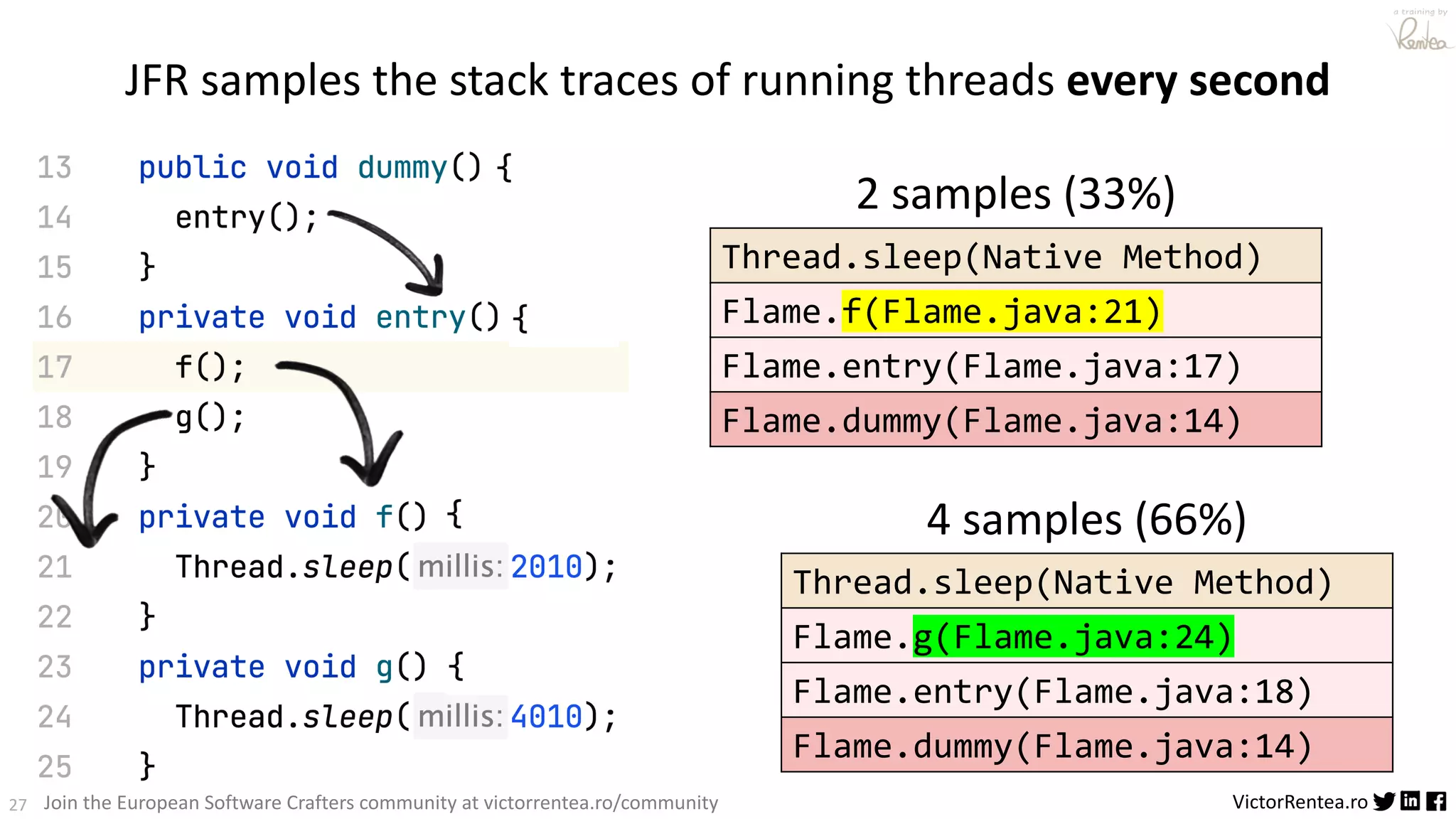

- 21. 27 VictorRentea.ro a trainingby Join the European Software Crafters community at victorrentea.ro/community Thread.sleep(Native Method) Flame.f(Flame.java:21) Flame.entry(Flame.java:17) Flame.dummy(Flame.java:14) Thread.sleep(Native Method) Flame.g(Flame.java:24) Flame.entry(Flame.java:18) Flame.dummy(Flame.java:14) 2 samples (33%) 4 samples (66%) JFR samples the stack traces of running threads every second

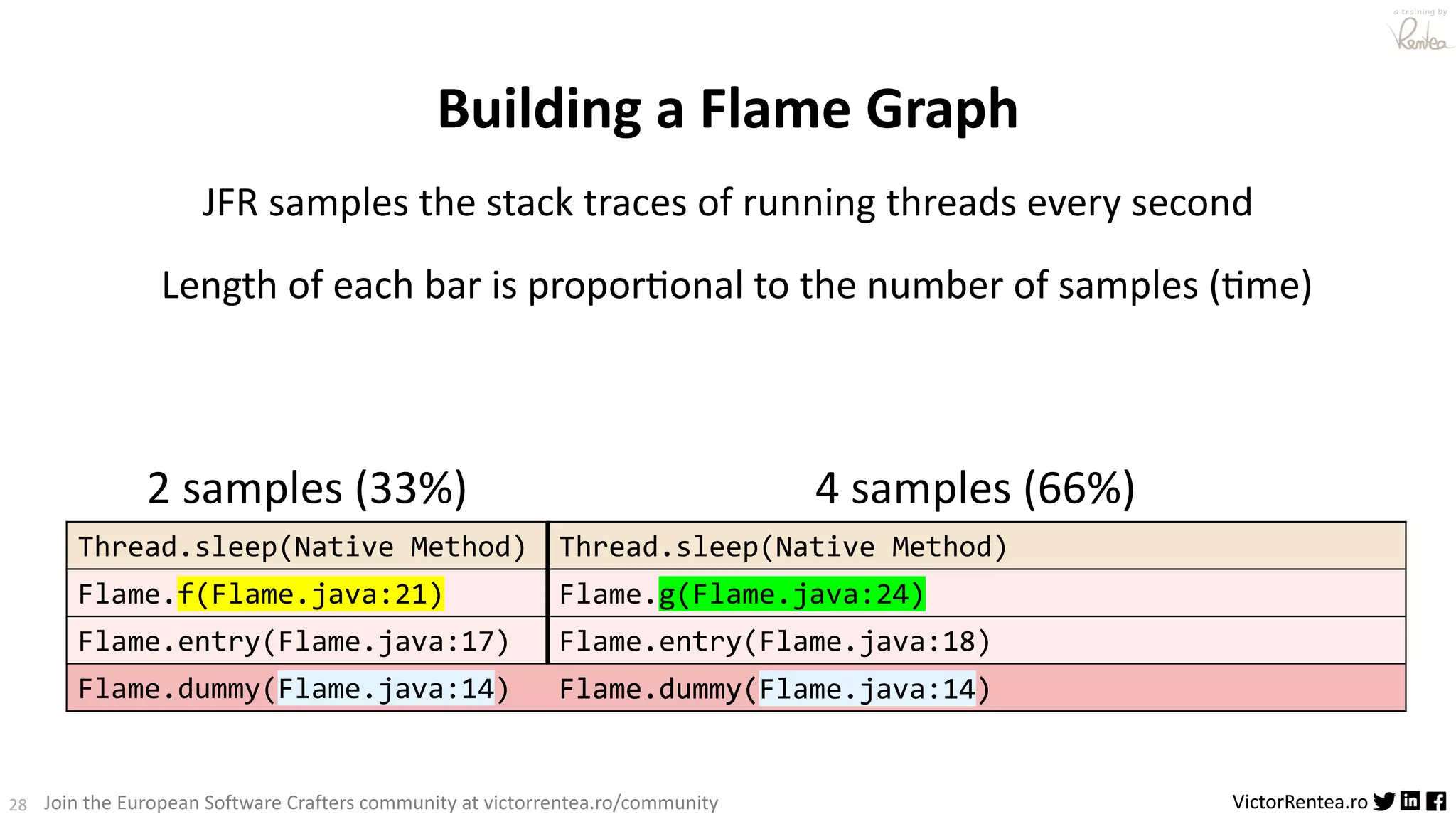

- 22. 28 VictorRentea.ro a trainingby Join the European Software Crafters community at victorrentea.ro/community Thread.sleep(Native Method) Flame.g(Flame.java:24) Flame.entry(Flame.java:18) Flame.dummy(Flame.java:14) Thread.sleep(Native Method) Flame.f(Flame.java:21) Flame.entry(Flame.java:17) Flame.dummy(Flame.java:14) 2 samples (33%) 4 samples (66%) Length of each bar is propor?onal to the number of samples (?me) Building a Flame Graph JFR samples the stack traces of running threads every second Flame.dummy(Flame.java:14)

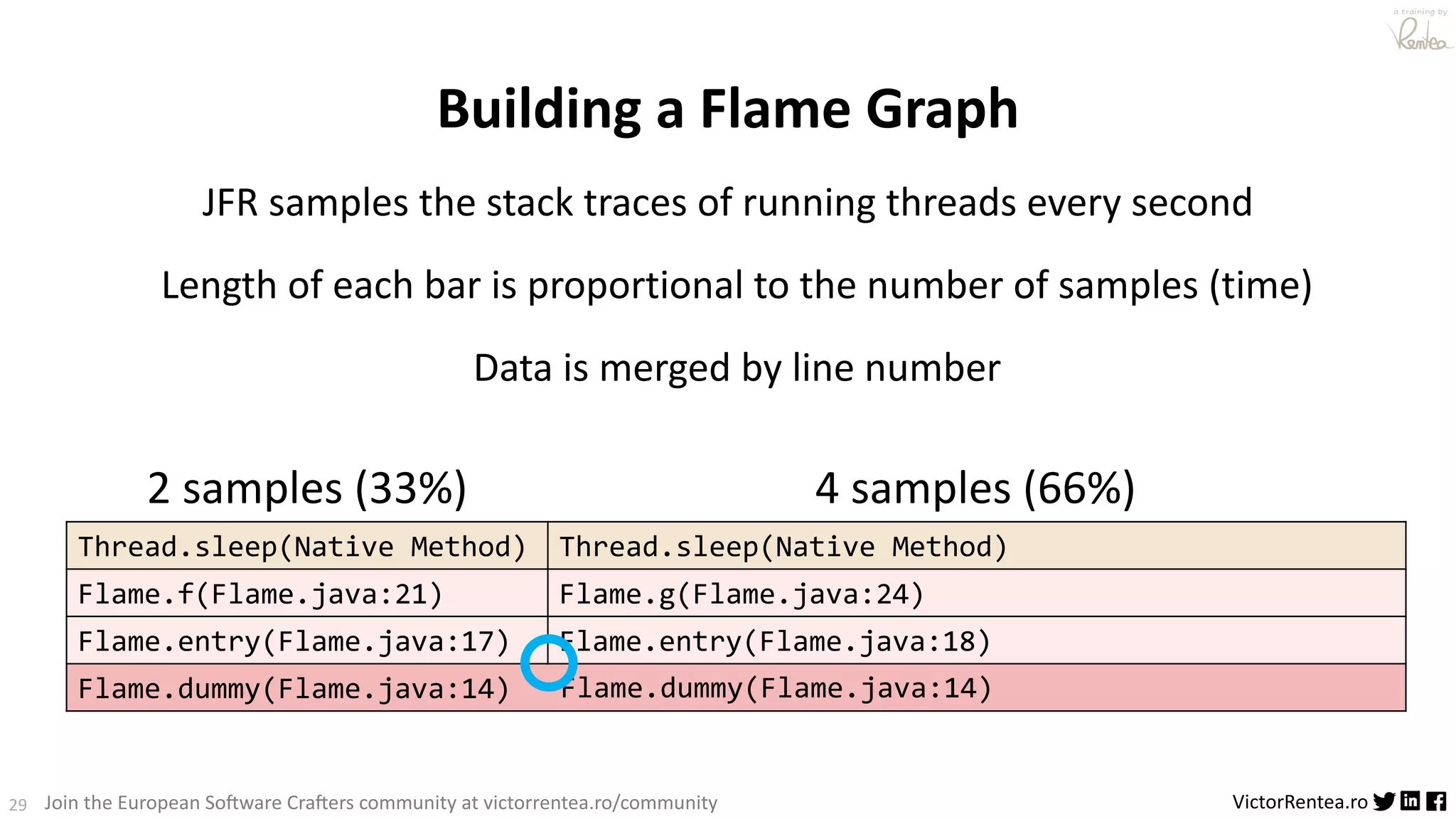

- 23. 29 VictorRentea.ro a trainingby Join the European So3ware Cra3ers community at victorrentea.ro/community Thread.sleep(Native Method) Thread.sleep(Native Method) Flame.f(Flame.java:21) Flame.g(Flame.java:24) Flame.entry(Flame.java:17) Flame.entry(Flame.java:18) Flame.dummy(Flame.java:14) Data is merged by line number 2 samples (33%) 4 samples (66%) Length of each bar is proportional to the number of samples (time) Building a Flame Graph JFR samples the stack traces of running threads every second Flame.dummy(Flame.java:14)

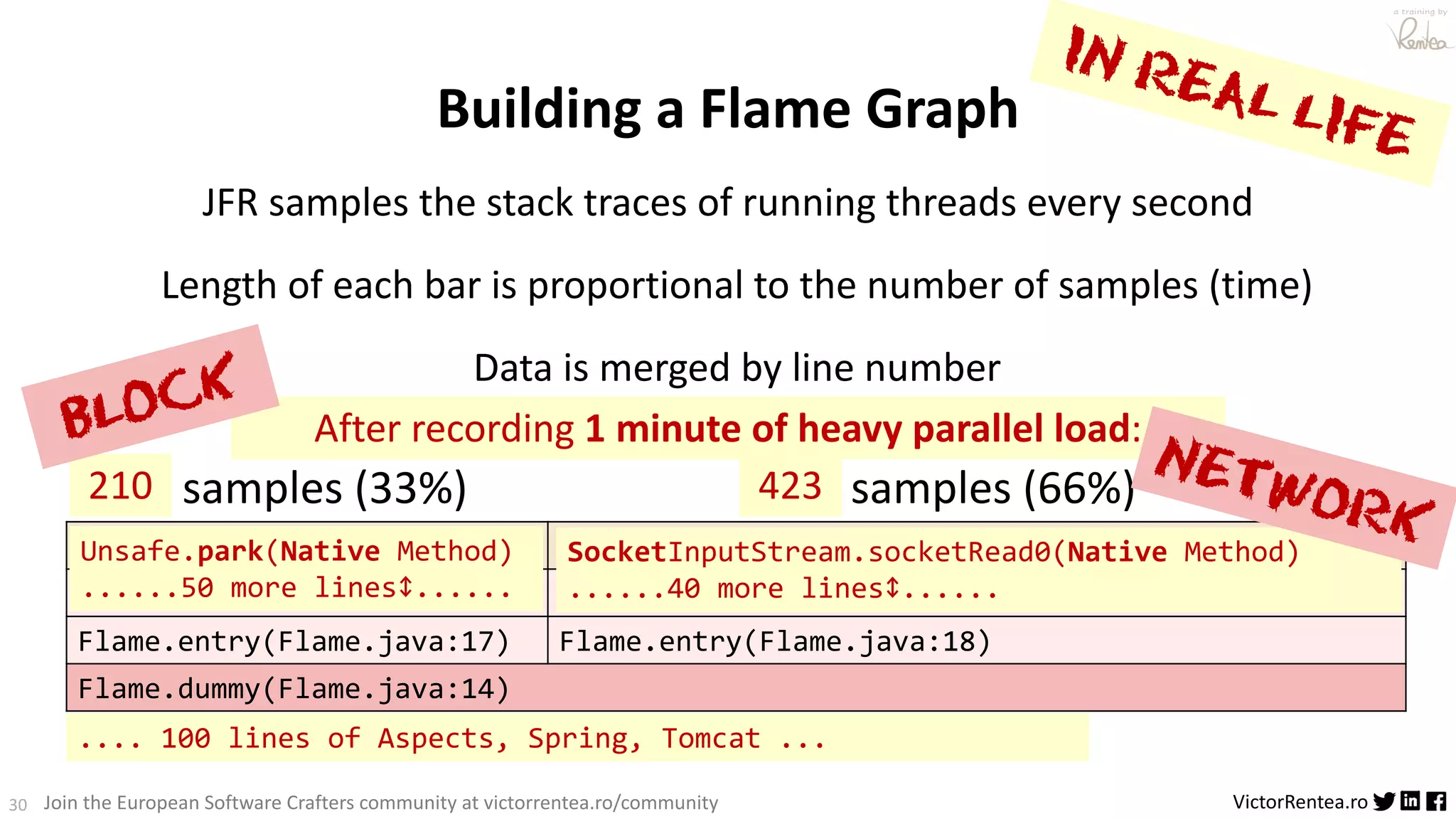

- 24. 30 VictorRentea.ro a trainingby Join the European Software Crafters community at victorrentea.ro/community Thread.sleep(Native Method) Thread.sleep(Native Method) Flame.f(Flame.java:21) Flame.g(Flame.java:24) Flame.entry(Flame.java:17) Flame.entry(Flame.java:18) Flame.dummy(Flame.java:14) 2 samples (33%) 4 samples (66%) IN REAL LIFE Unsafe.park(Native Method) ......50 more lines↕...... SocketInputStream.socketRead0(Native Method) ......40 more lines↕...... 423 210 After recording 1 minute of heavy parallel load: .... 100 lines of Aspects, Spring, Tomcat ... Data is merged by line number Length of each bar is proportional to the number of samples (time) Building a Flame Graph JFR samples the stack traces of running threads every second BLOCK NETWORK

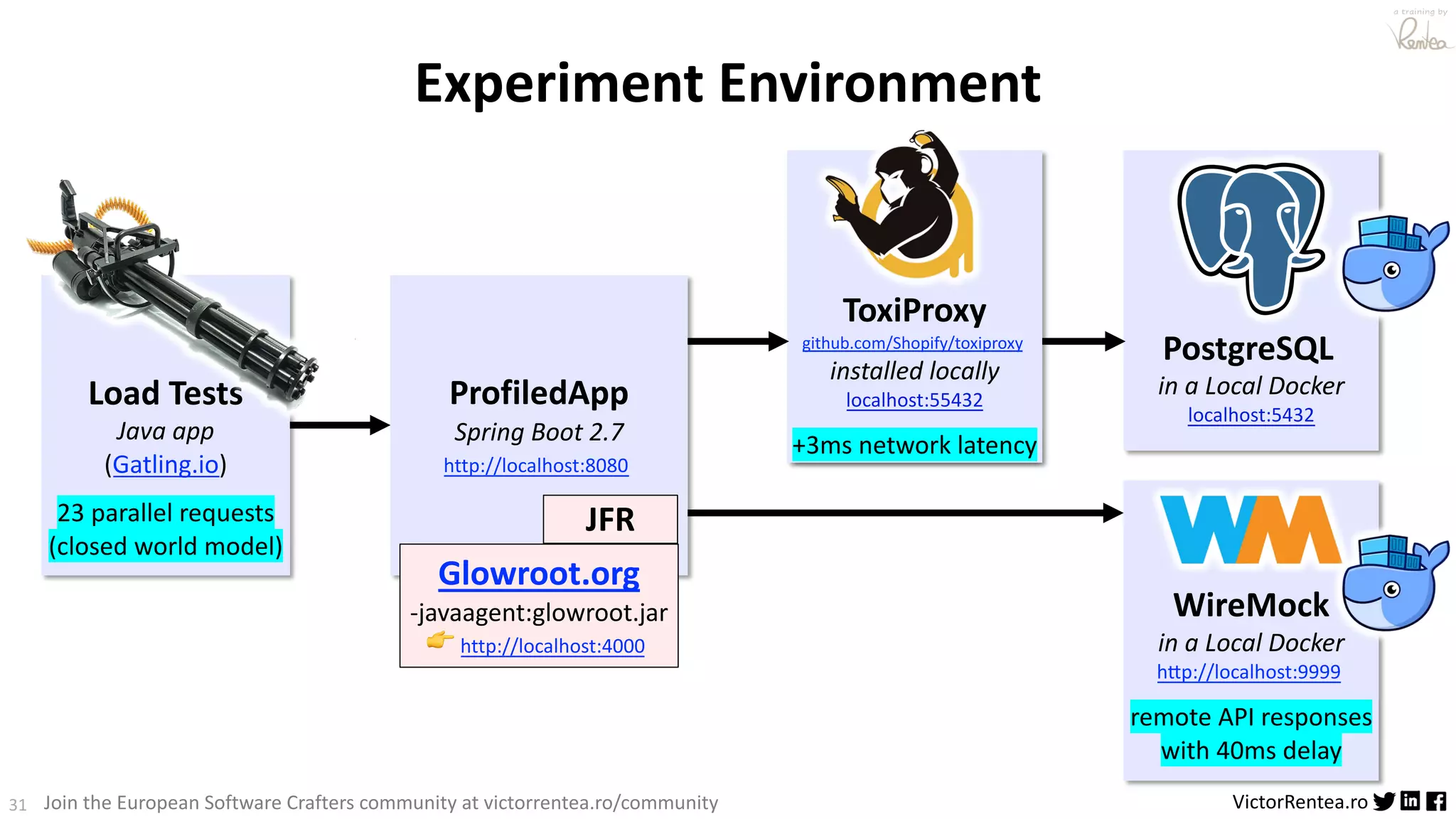

- 25. 31 VictorRentea.ro a trainingby Join the European Software Crafters community at victorrentea.ro/community ProfiledApp Spring Boot 2.7 http://localhost:8080 Load Tests Java app (Gatling.io) 23 parallel requests (closed world model) PostgreSQL in a Local Docker localhost:5432 WireMock in a Local Docker hDp://localhost:9999 remote API responses with 40ms delay Glowroot.org -javaagent:glowroot.jar 👉 http://localhost:4000 Experiment Environment ToxiProxy github.com/Shopify/toxiproxy installed locally localhost:55432 +3ms network latency JFR
- 26. 32 VictorRentea.ro a trainingby Join the European So3ware Cra3ers community at victorrentea.ro/community EXPERIMENT

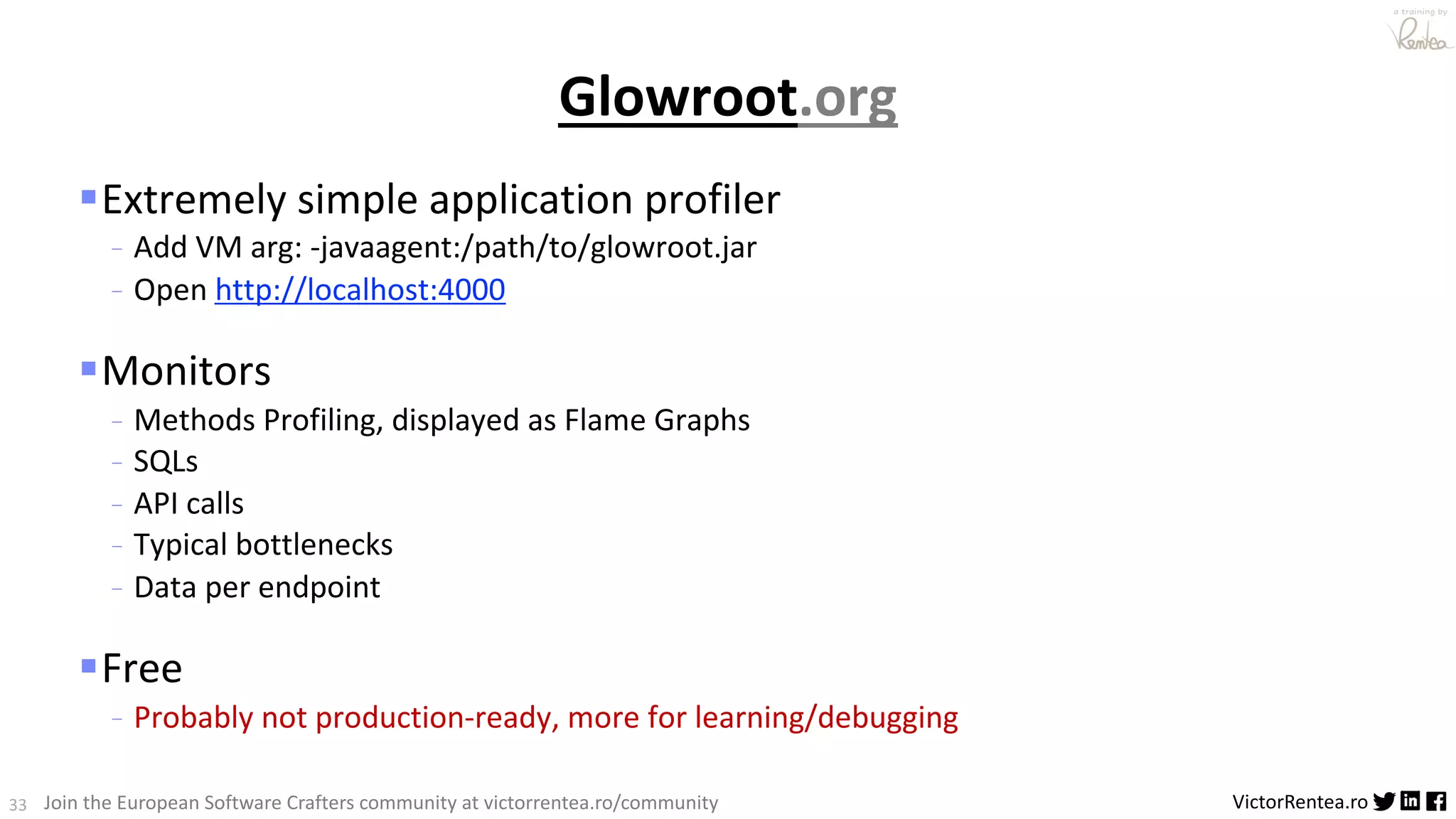

- 27. 33 VictorRentea.ro a trainingby Join the European Software Crafters community at victorrentea.ro/community Glowroot.org §Extremely simple application profiler - Add VM arg: -javaagent:/path/to/glowroot.jar - Open http://localhost:4000 §Monitors - Methods Profiling, displayed as Flame Graphs - SQLs - API calls - Typical bottlenecks - Data per endpoint §Free - Probably not production-ready, more for learning/debugging

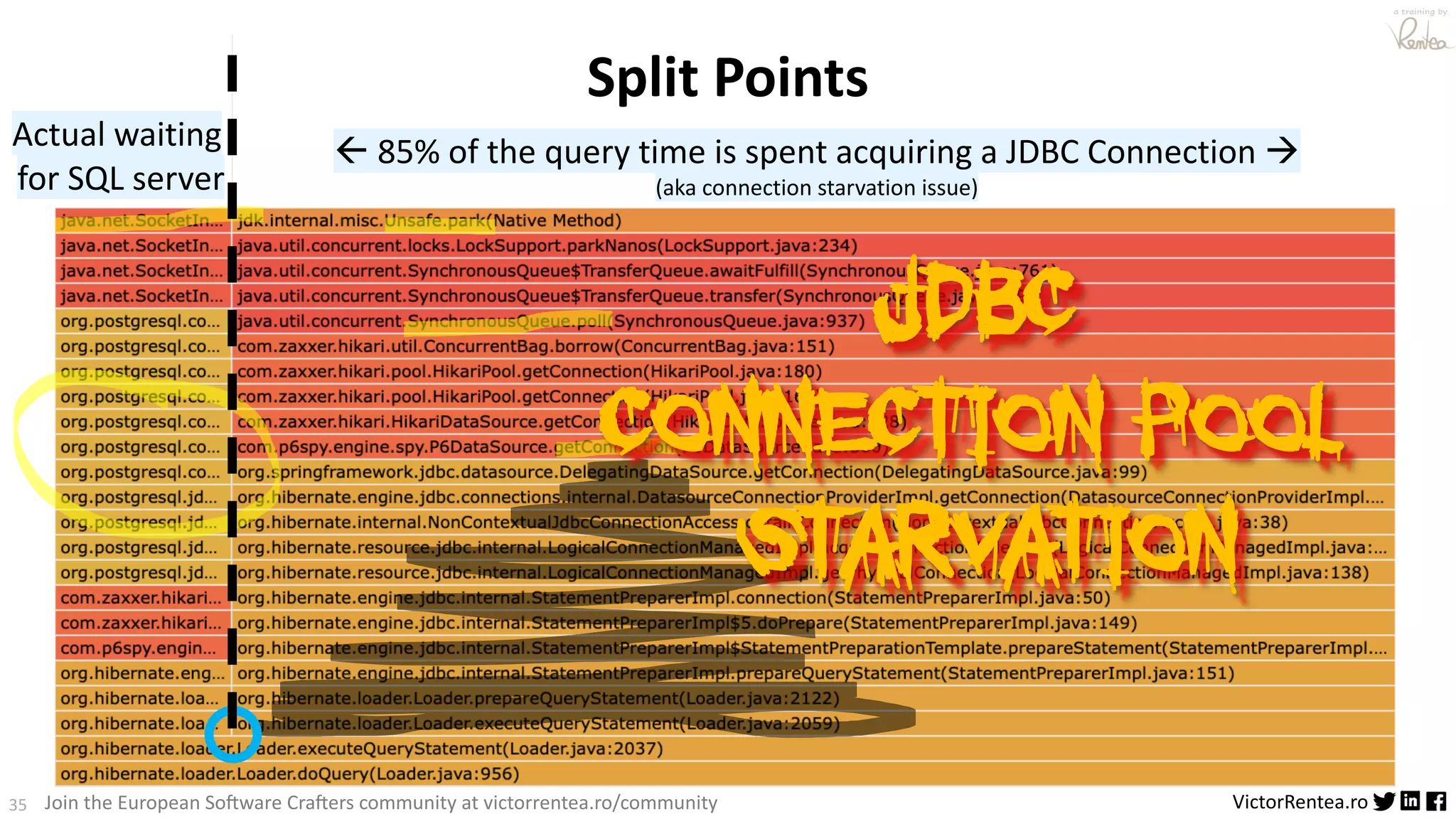

- 28. 35 VictorRentea.ro a trainingby Join the European So3ware Cra3ers community at victorrentea.ro/community Split Points ß 85% of the query time is spent acquiring a JDBC Connection à (aka connection starvation issue) Actual waiting for SQL server JDBC Connection Pool Starvation

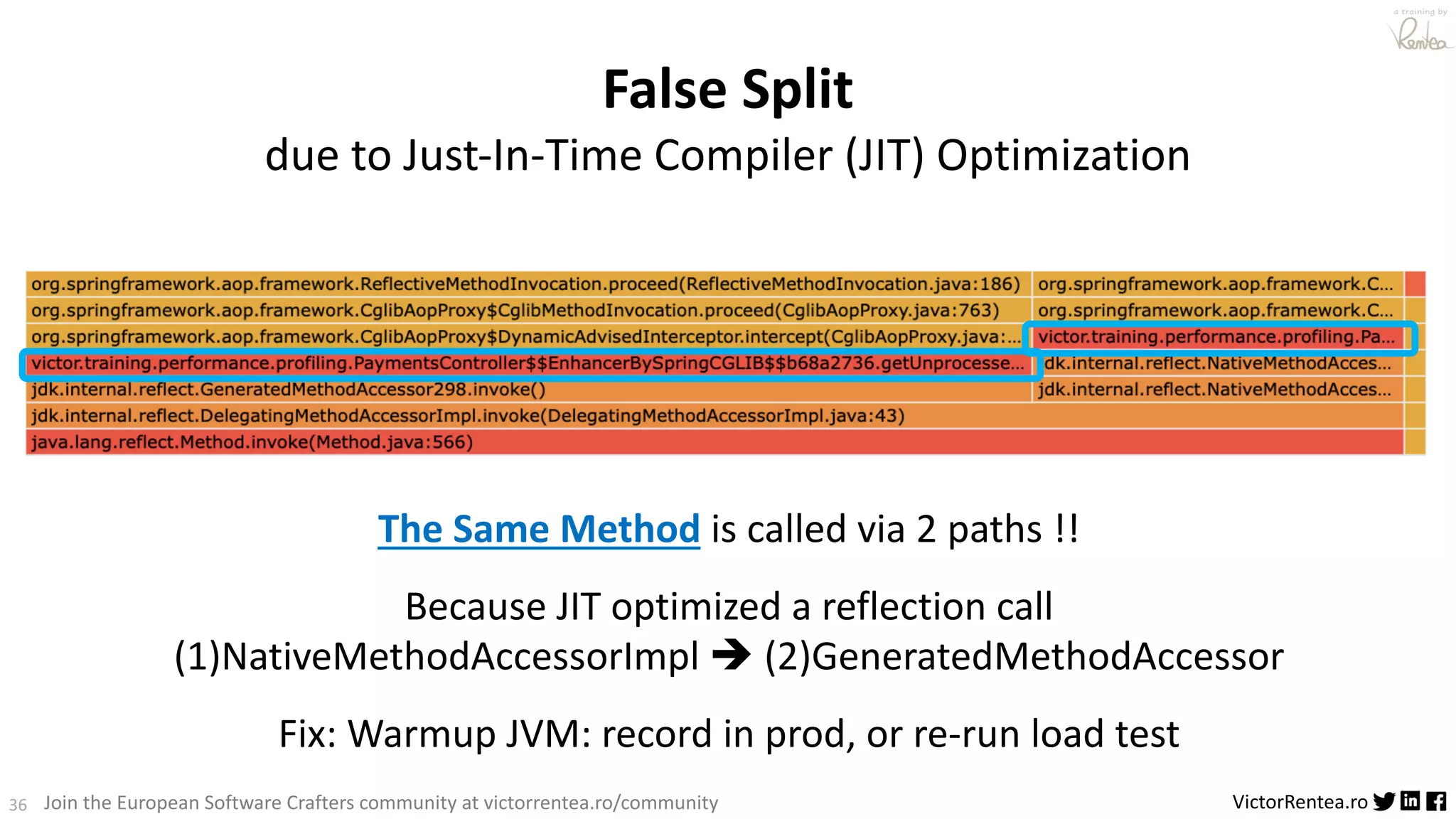

- 29. 36 VictorRentea.ro a trainingby Join the European Software Crafters community at victorrentea.ro/community False Split due to Just-In-Time Compiler (JIT) Optimization The Same Method is called via 2 paths !! Because JIT optimized a reflection call (1)NativeMethodAccessorImpl è (2)GeneratedMethodAccessor Fix: Warmup JVM: record in prod, or re-run load test

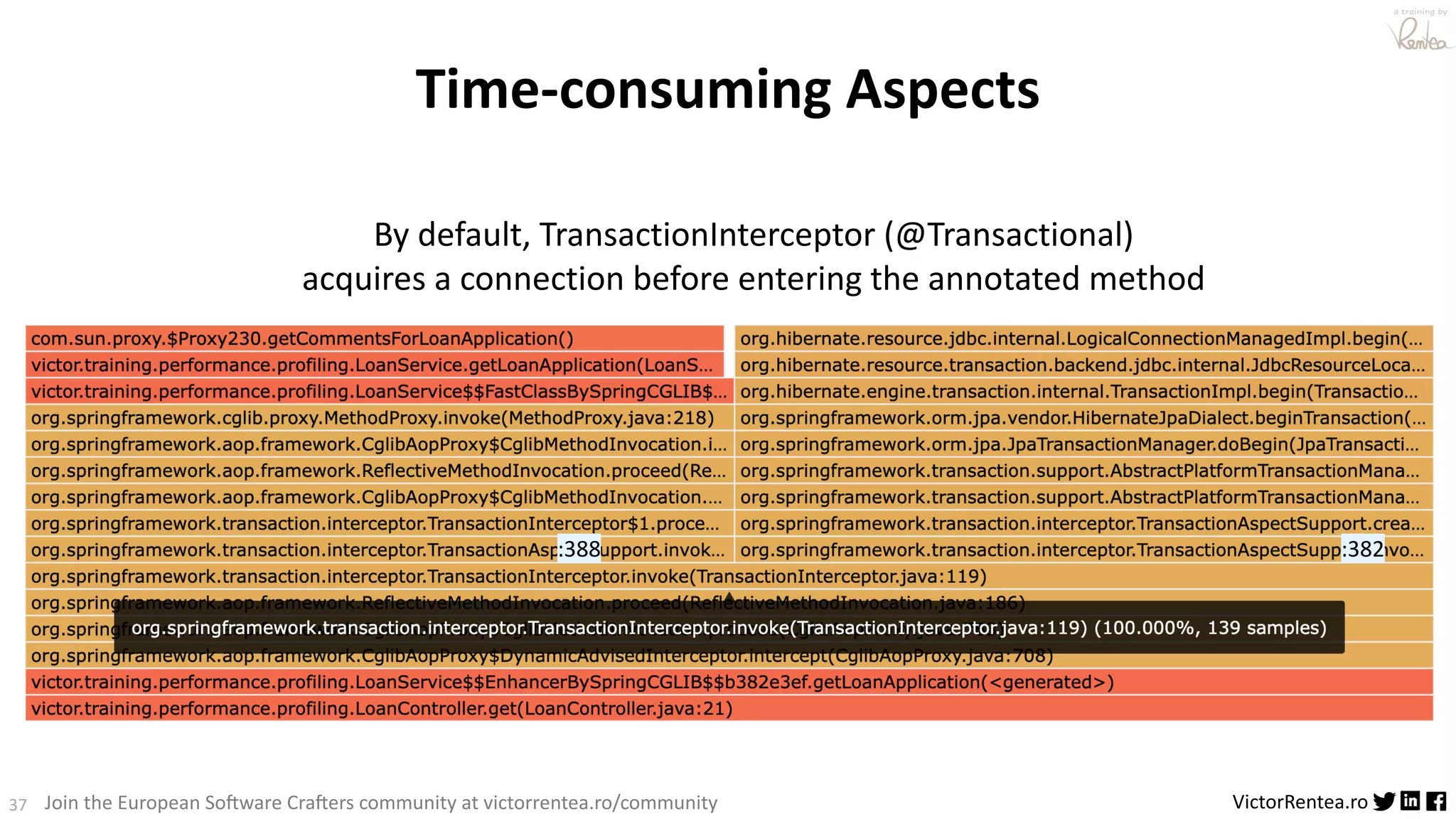

- 30. 37 VictorRentea.ro a trainingby Join the European So3ware Cra3ers community at victorrentea.ro/community Time-consuming Aspects By default, TransactionInterceptor (@Transactional) acquires a connection before entering the annotated method :382 :388

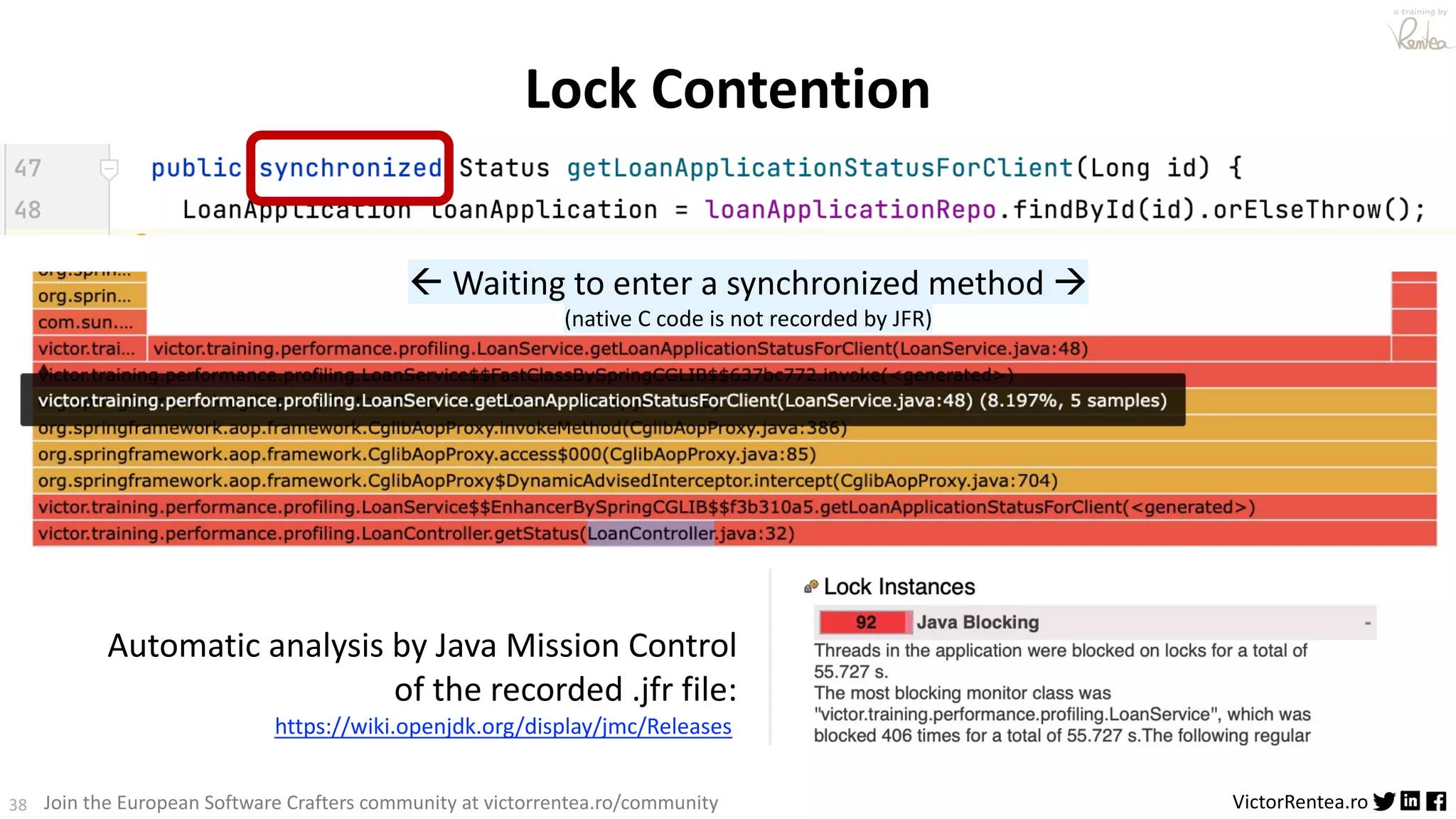

- 31. 38 VictorRentea.ro a trainingby Join the European Software Crafters community at victorrentea.ro/community Lock Contention Automatic analysis by Java Mission Control of the recorded .jfr file: https://wiki.openjdk.org/display/jmc/Releases ß Waiting to enter a synchronized method à (native C code is not recorded by JFR)

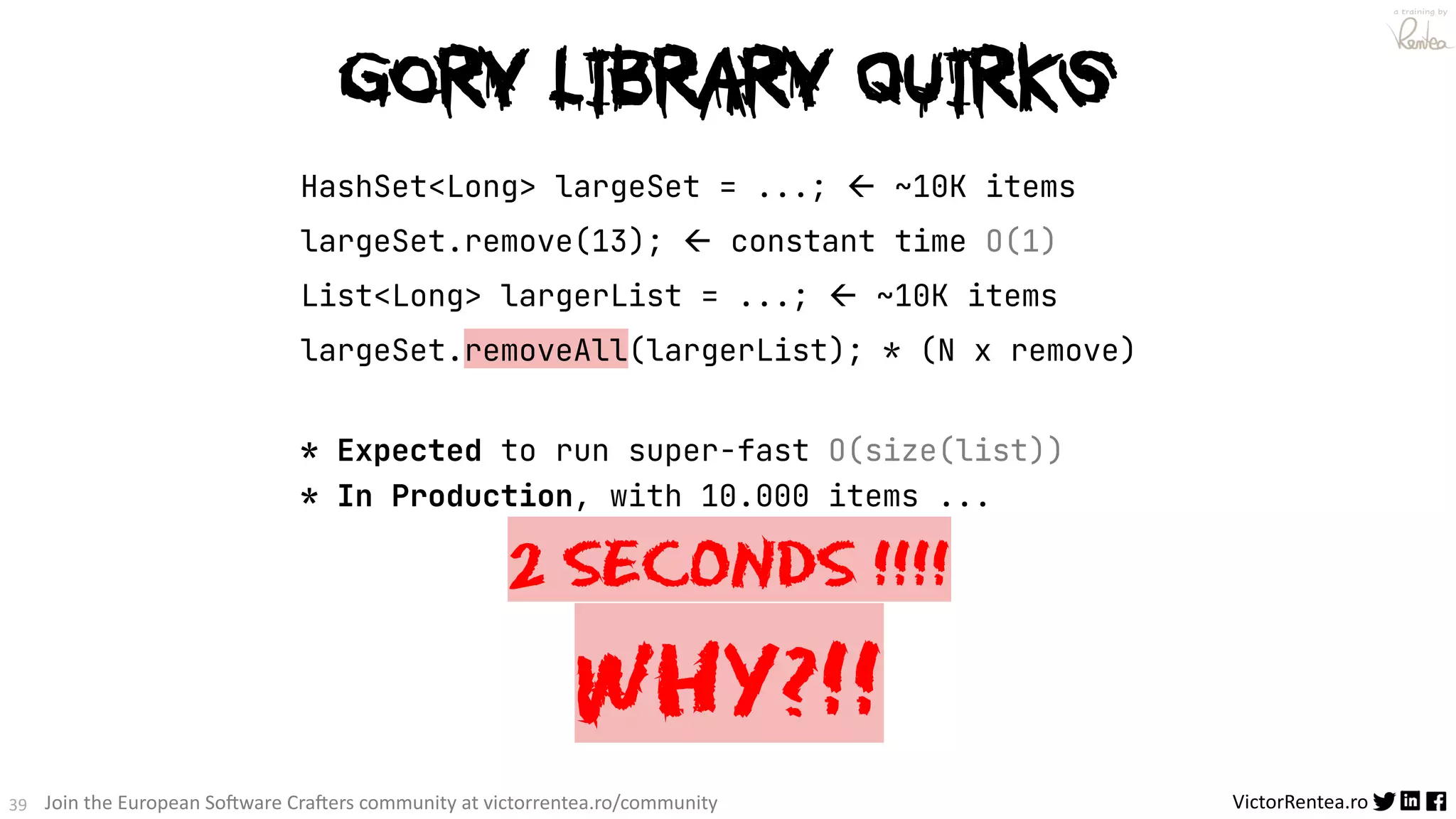

- 32. 39 VictorRentea.ro a trainingby Join the European So3ware Cra3ers community at victorrentea.ro/community HashSet<Long> largeSet = ...; ß ~10K items largeSet.remove(13); ß constant time O(1) List<Long> largerList = ...; ß ~10K items largeSet.removeAll(largerList); * (N x remove) * Expected to run super-fast O(size(list)) * In Production, with 10.000 items ... 2 SECONDS !!!! WHY?!! Gory Library QUIRKS

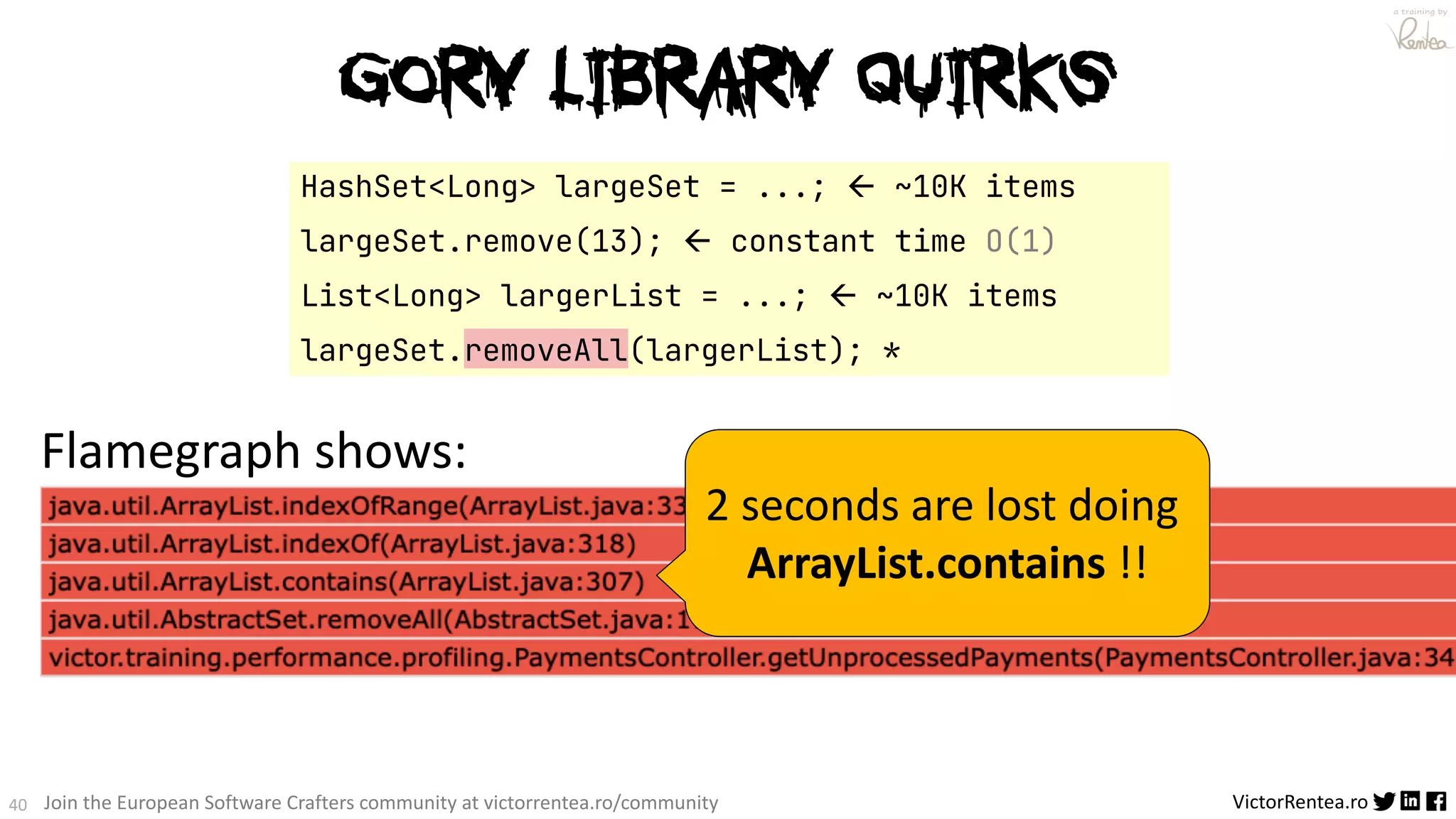

- 33. 40 VictorRentea.ro a trainingby Join the European Software Crafters community at victorrentea.ro/community Flamegraph shows: HashSet<Long> largeSet = ...; ß ~10K items largeSet.remove(13); ß constant time O(1) List<Long> largerList = ...; ß ~10K items largeSet.removeAll(largerList); * 2 seconds are lost doing ArrayList.contains !! Gory Library QUIRKS

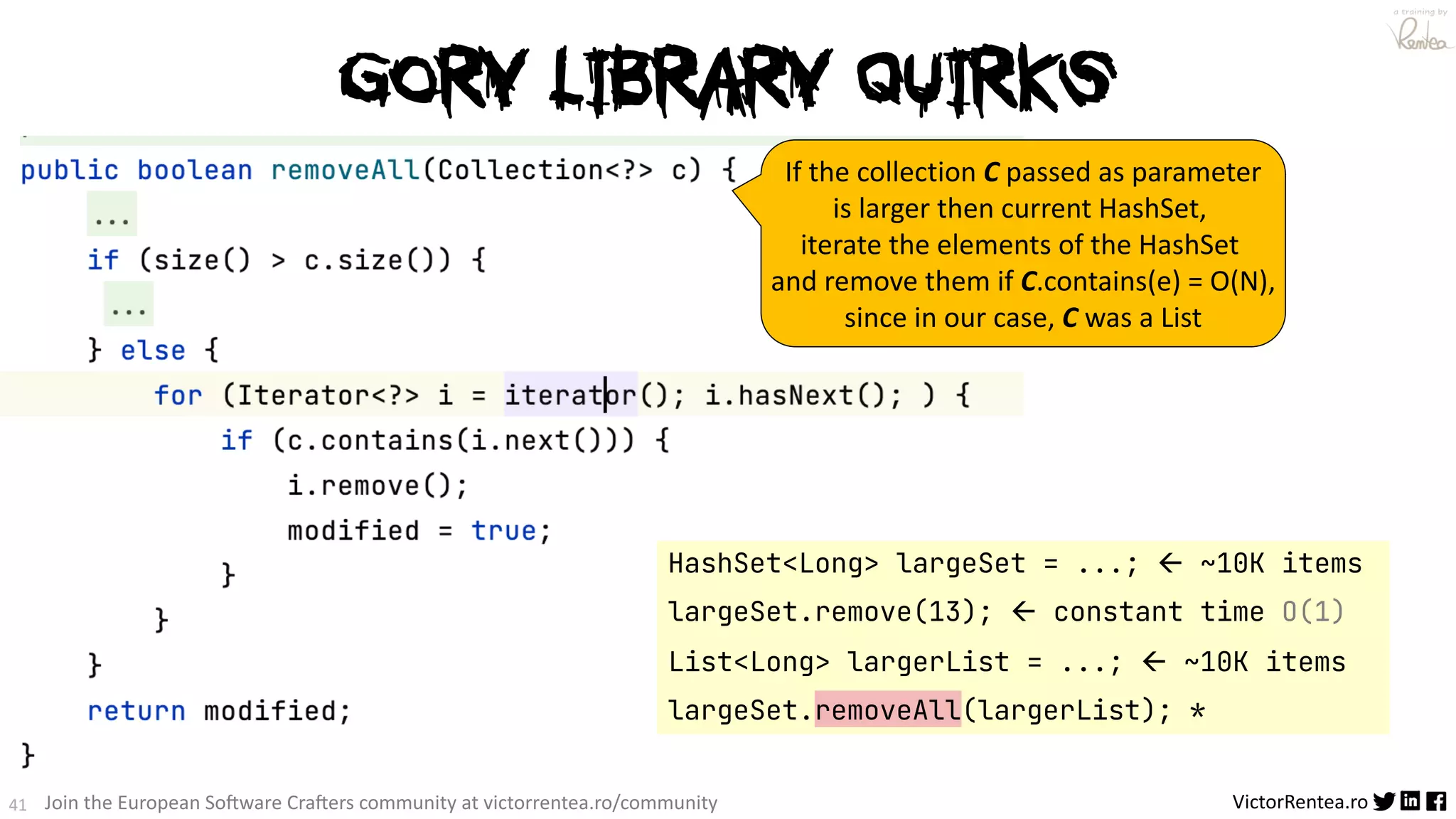

- 34. 41 VictorRentea.ro a trainingby Join the European So3ware Cra3ers community at victorrentea.ro/community Gory Library QUIRKS HashSet<Long> largeSet = ...; ß ~10K items largeSet.remove(13); ß constant time O(1) List<Long> largerList = ...; ß ~10K items largeSet.removeAll(largerList); * If the collection C passed as parameter is larger then current HashSet, iterate the elements of the HashSet and remove them if C.contains(e) = O(N), since in our case, C was a List

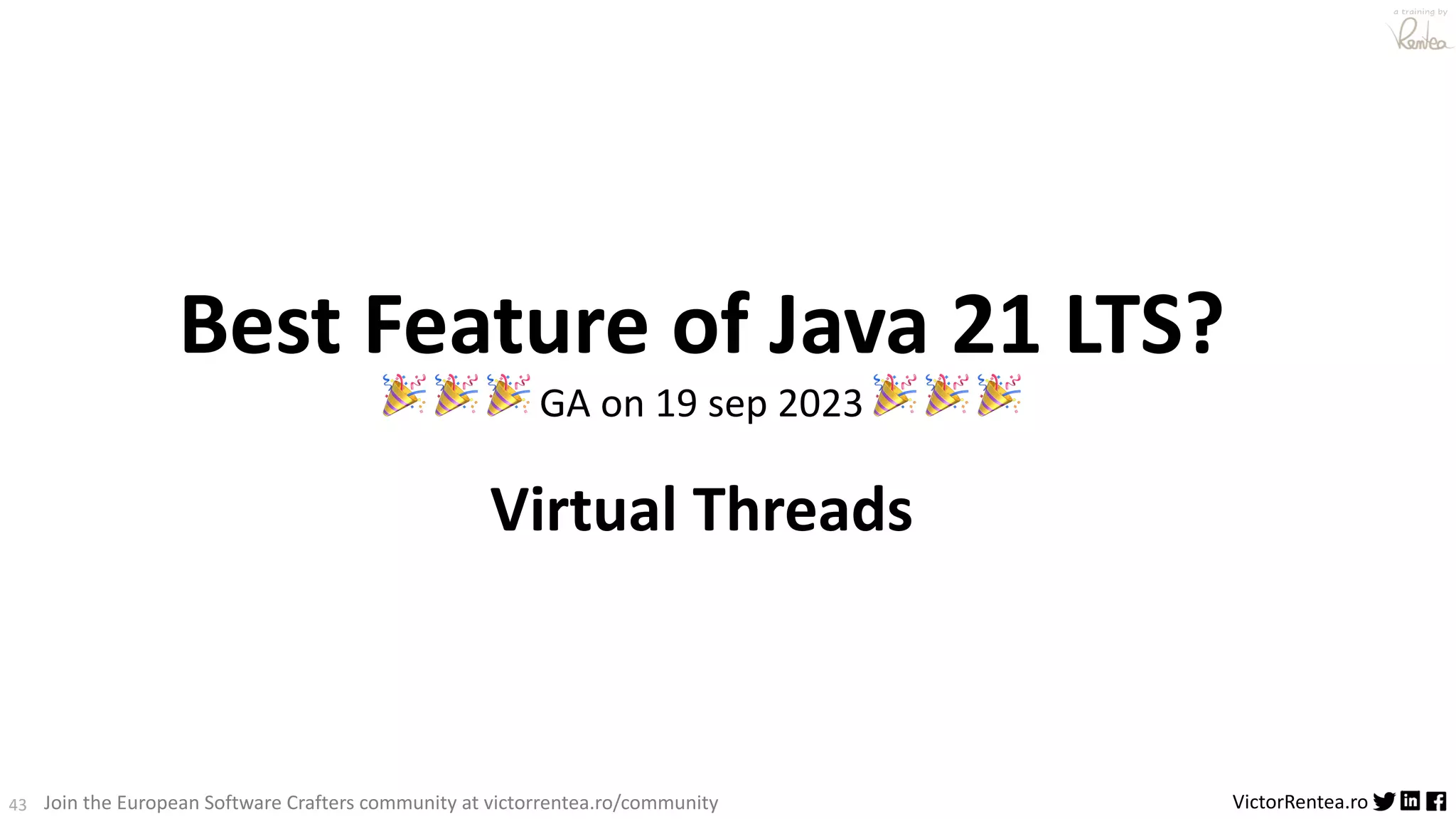

- 35. 43 VictorRentea.ro a trainingby Join the European Software Crafters community at victorrentea.ro/community Best Feature of Java 21 LTS? 🎉 🎉 🎉 GA on 19 sep 2023 🎉 🎉 🎉 Virtual Threads

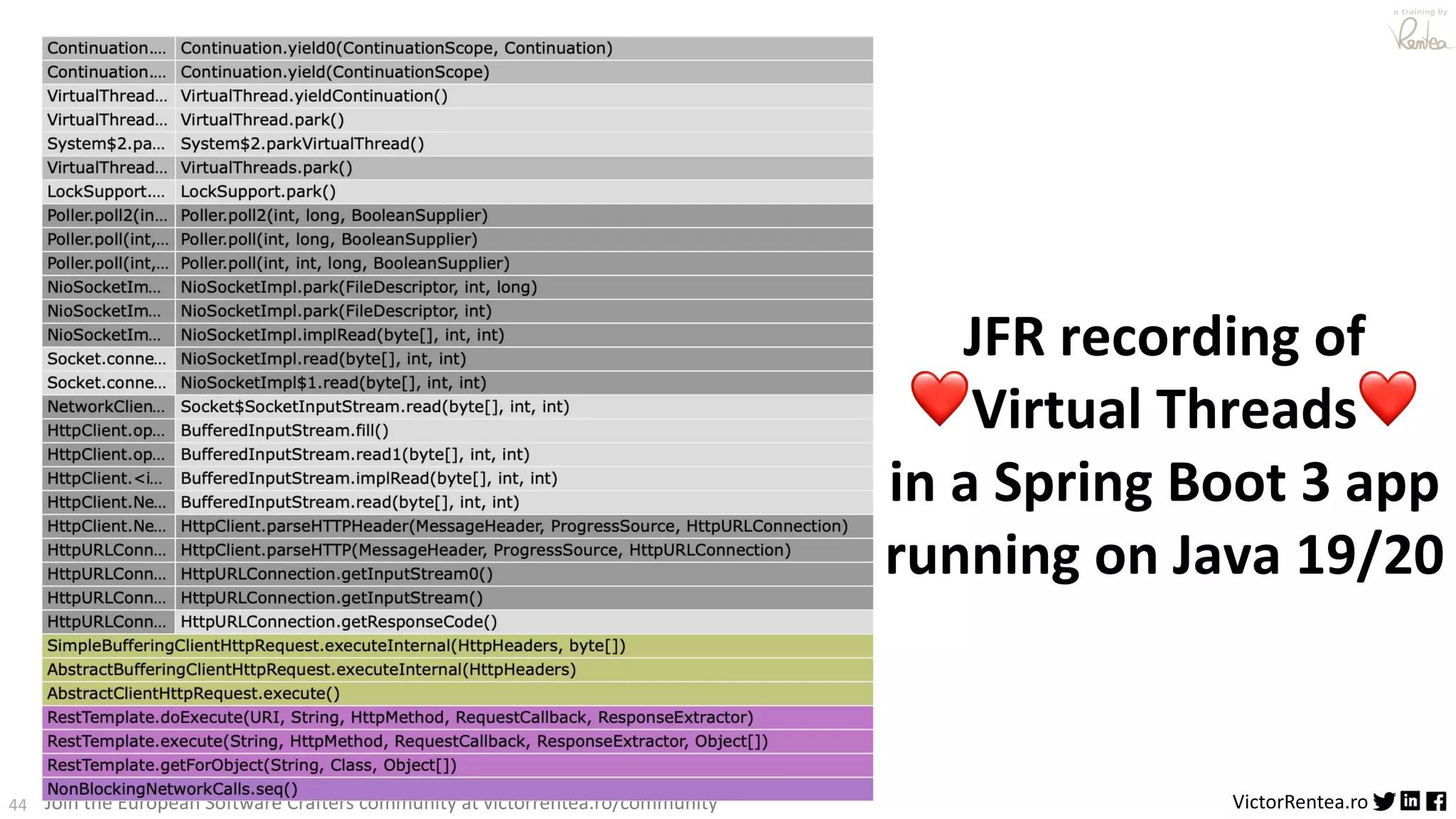

- 36. 44 VictorRentea.ro a trainingby Join the European So3ware Cra3ers community at victorrentea.ro/community JFR recording of ❤Virtual Threads❤ in a Spring Boot 3 app running on Java 19/20

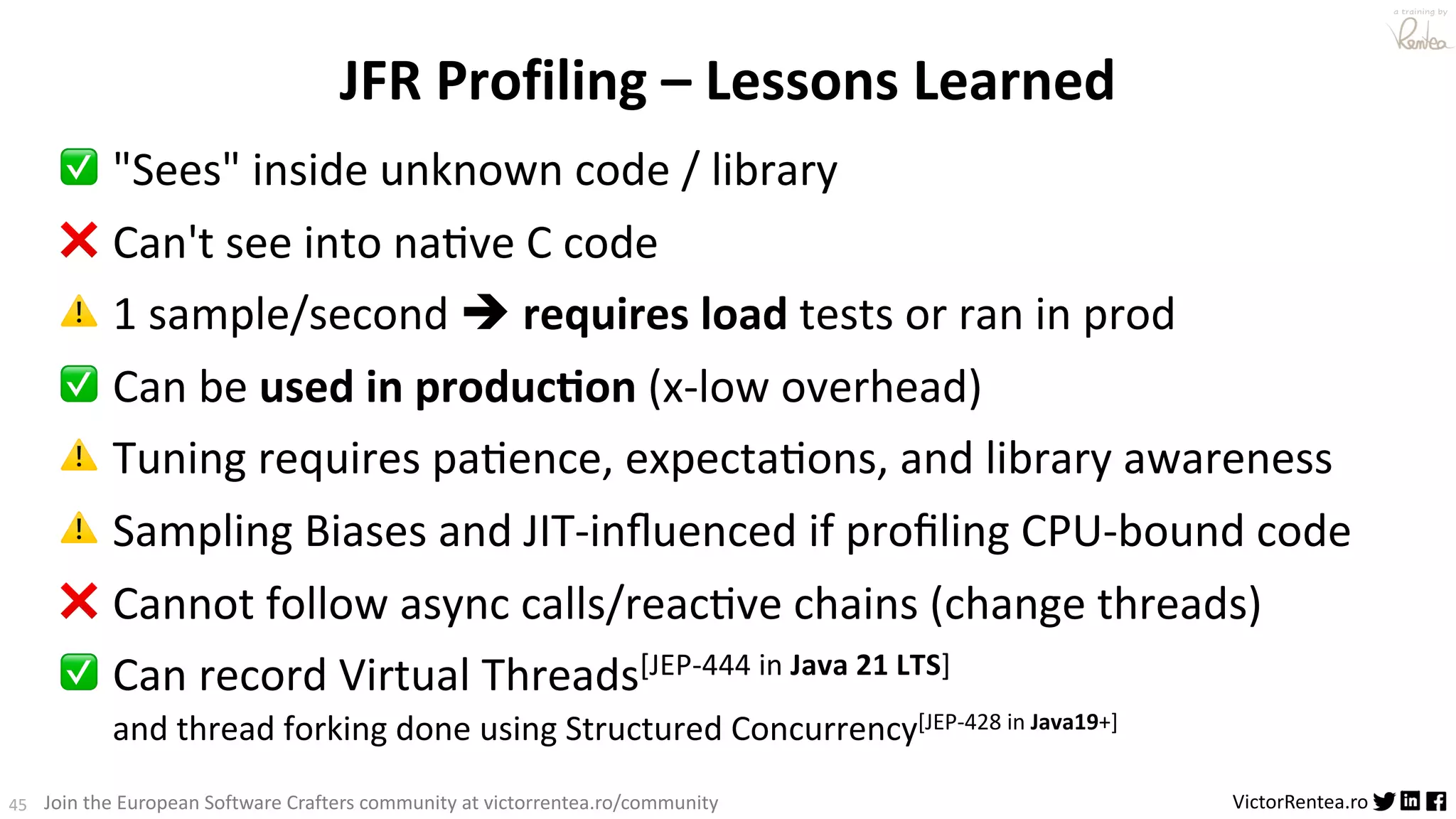

- 37. 45 VictorRentea.ro a trainingby Join the European Software Crafters community at victorrentea.ro/community JFR Profiling – Lessons Learned ✅ "Sees" inside unknown code / library ❌ Can't see into naAve C code ⚠ 1 sample/second è requires load tests or ran in prod ✅ Can be used in produc5on (x-low overhead) ⚠ Tuning requires paAence, expectaAons, and library awareness ⚠ Sampling Biases and JIT-influenced if profiling CPU-bound code ❌ Cannot follow async calls/reacAve chains (change threads) ✅ Can record Virtual Threads[JEP-444 in Java 21 LTS] and thread forking done using Structured Concurrency[JEP-428 in Java19+]

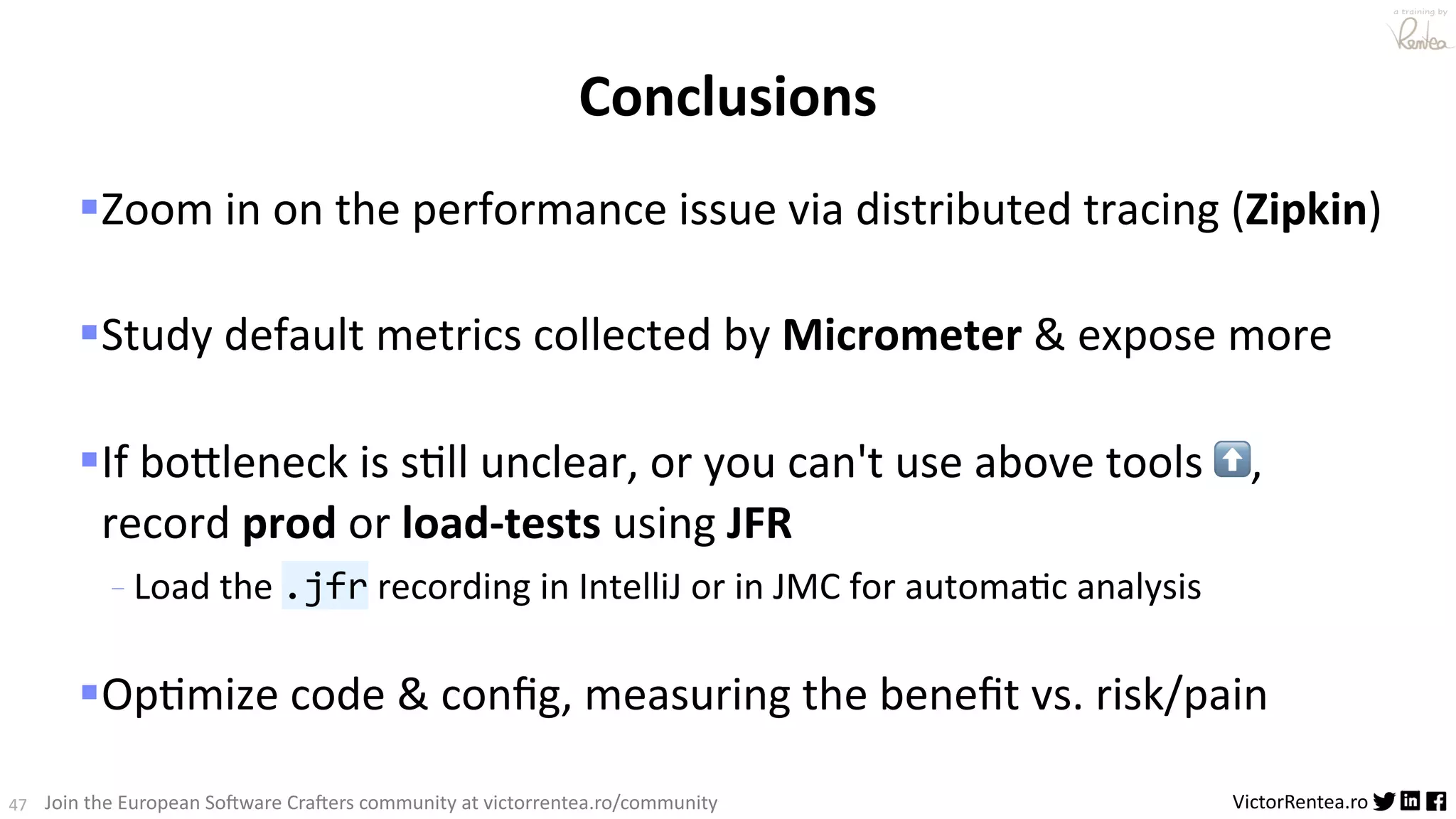

- 38. 47 VictorRentea.ro a trainingby Join the European So3ware Cra3ers community at victorrentea.ro/community Conclusions §Zoom in on the performance issue via distributed tracing (Zipkin) §Study default metrics collected by Micrometer & expose more §If bo_leneck is sAll unclear, or you can't use above tools ⬆, record prod or load-tests using JFR - Load the .jfr recording in IntelliJ or in JMC for automa6c analysis §OpAmize code & config, measuring the benefit vs. risk/pain
- 39. Profiling your JavaApplica2on victor.rentea@gmail.com ♦ ♦ @victorrentea ♦ VictorRentea.ro Find the code at: https://github.com/victorrentea/performance-profiling.git Join us! victorrentea.ro/community
