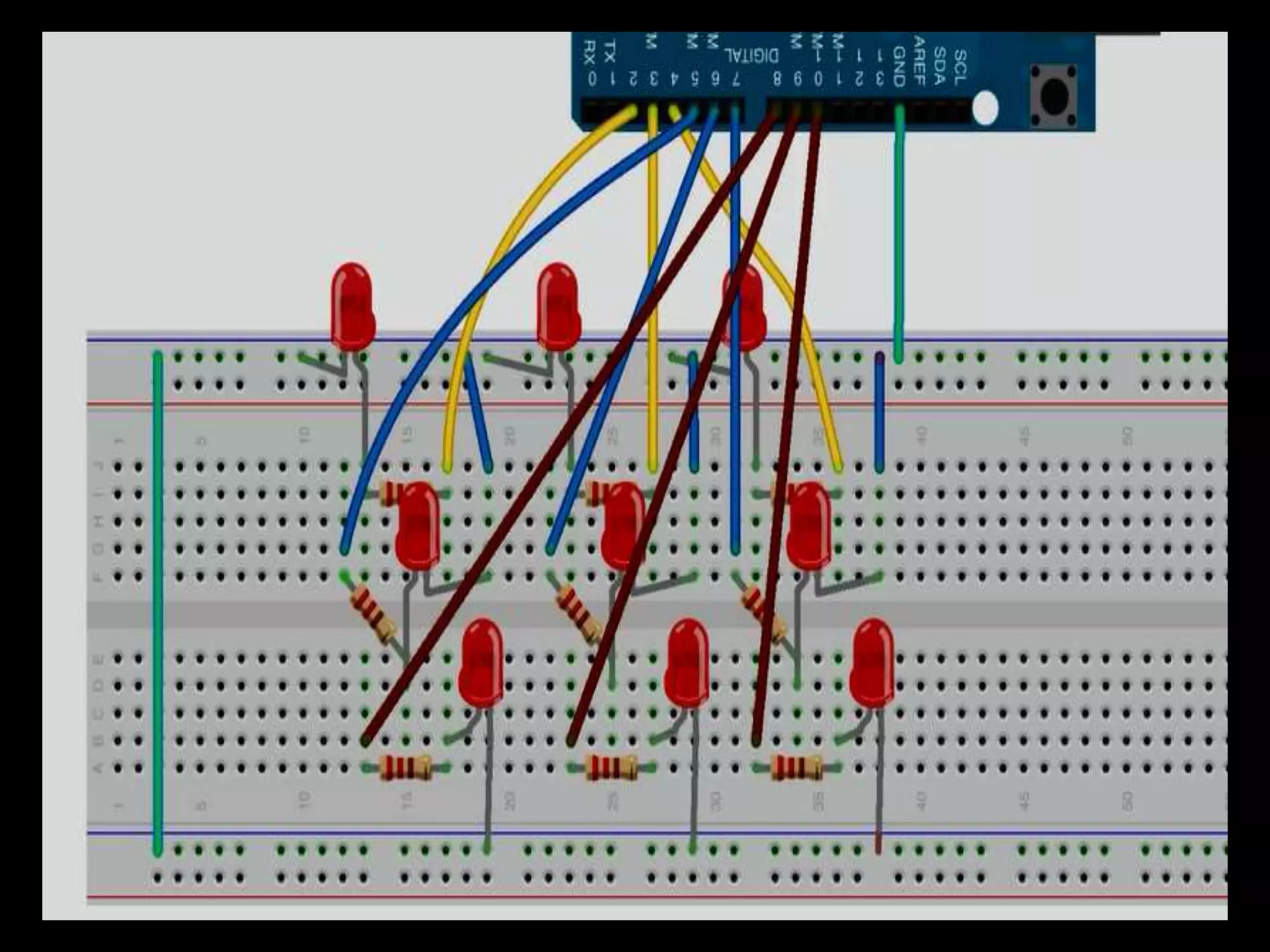

  Demonstrating multi-dimensional array using9 LEDs
• 2.
  You will need... •Arduino Board (UNO) • 9 LEDs • 9 Resistors - 220Ω • Jumper Wires • Breadboard
• 3.

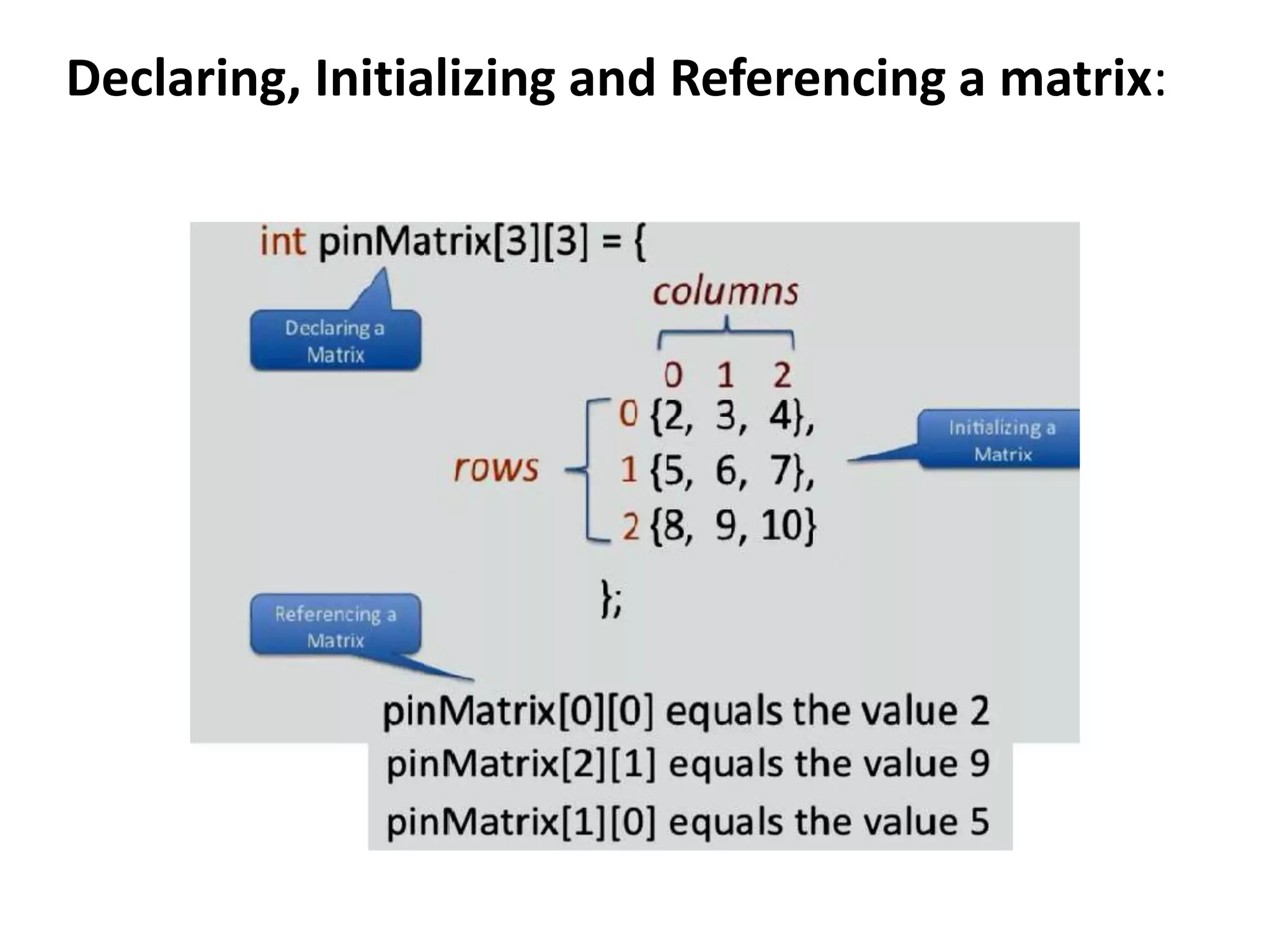

  Declaring, Initializing andReferencing a matrix:
• 5.

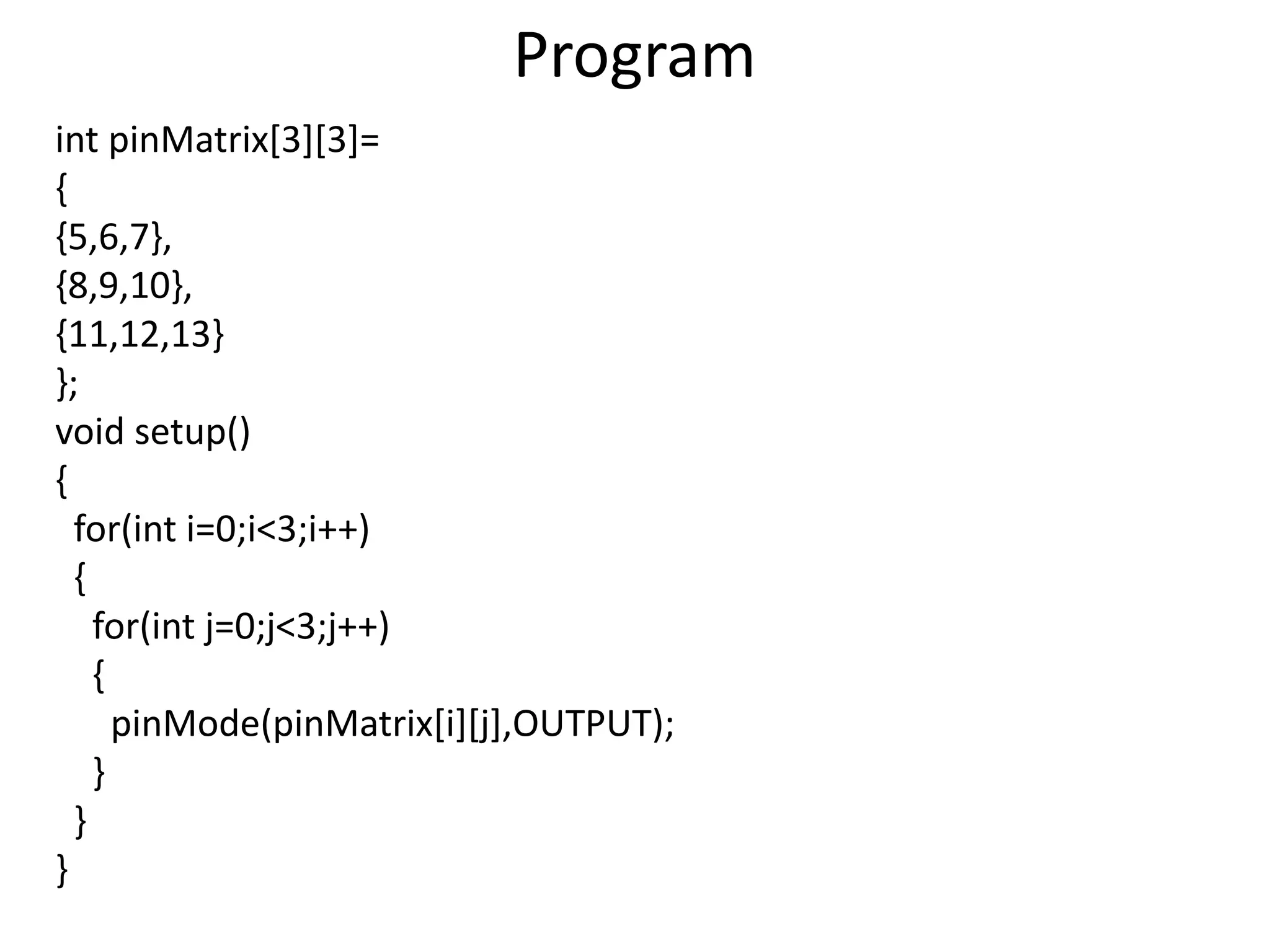

  Program int pinMatrix[3][3]= { {5,6,7}, {8,9,10}, {11,12,13} }; void setup() { for(inti=0;i<3;i++) { for(int j=0;j<3;j++) { pinMode(pinMatrix[i][j],OUTPUT); } } }
• 6.

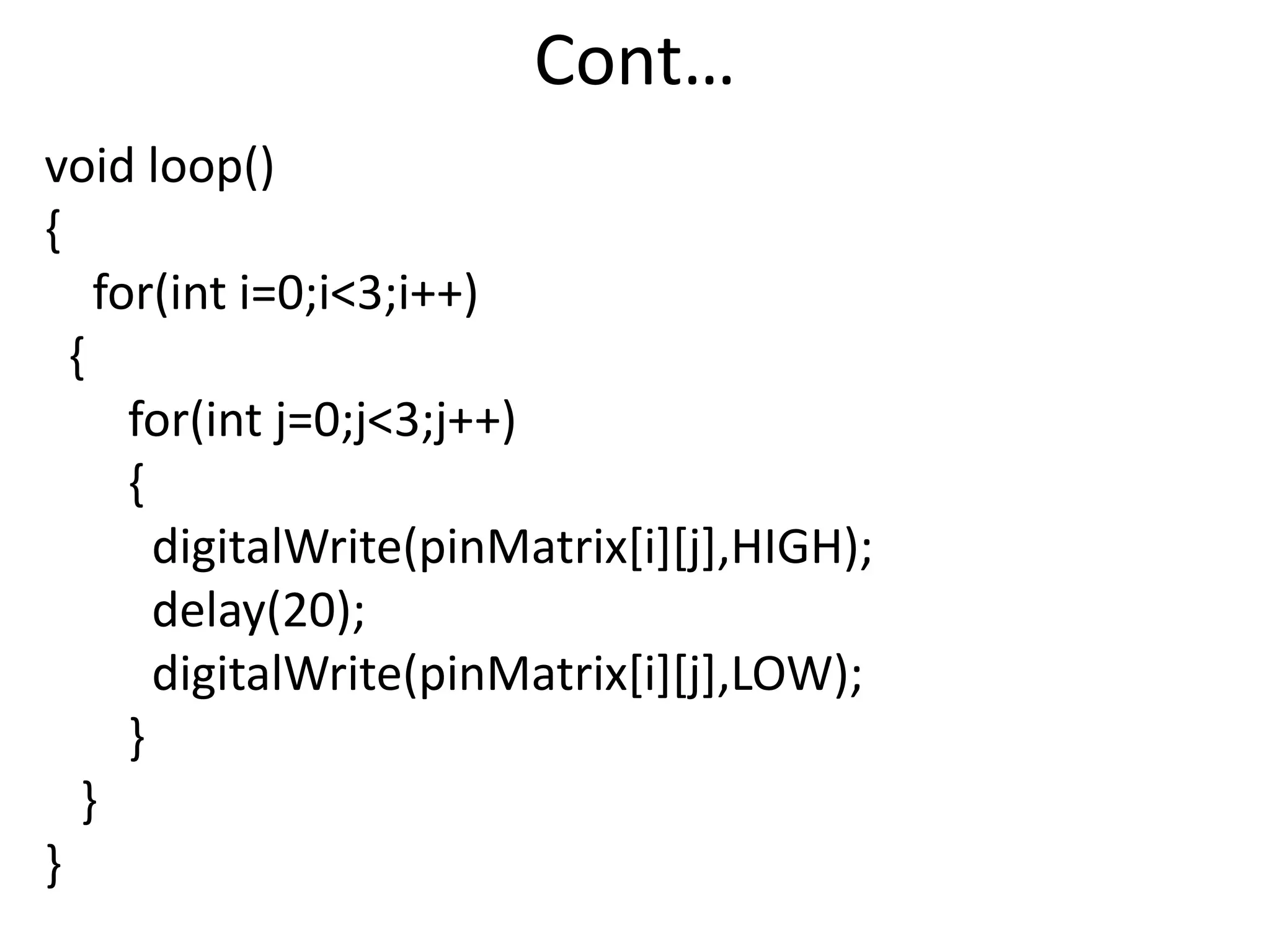

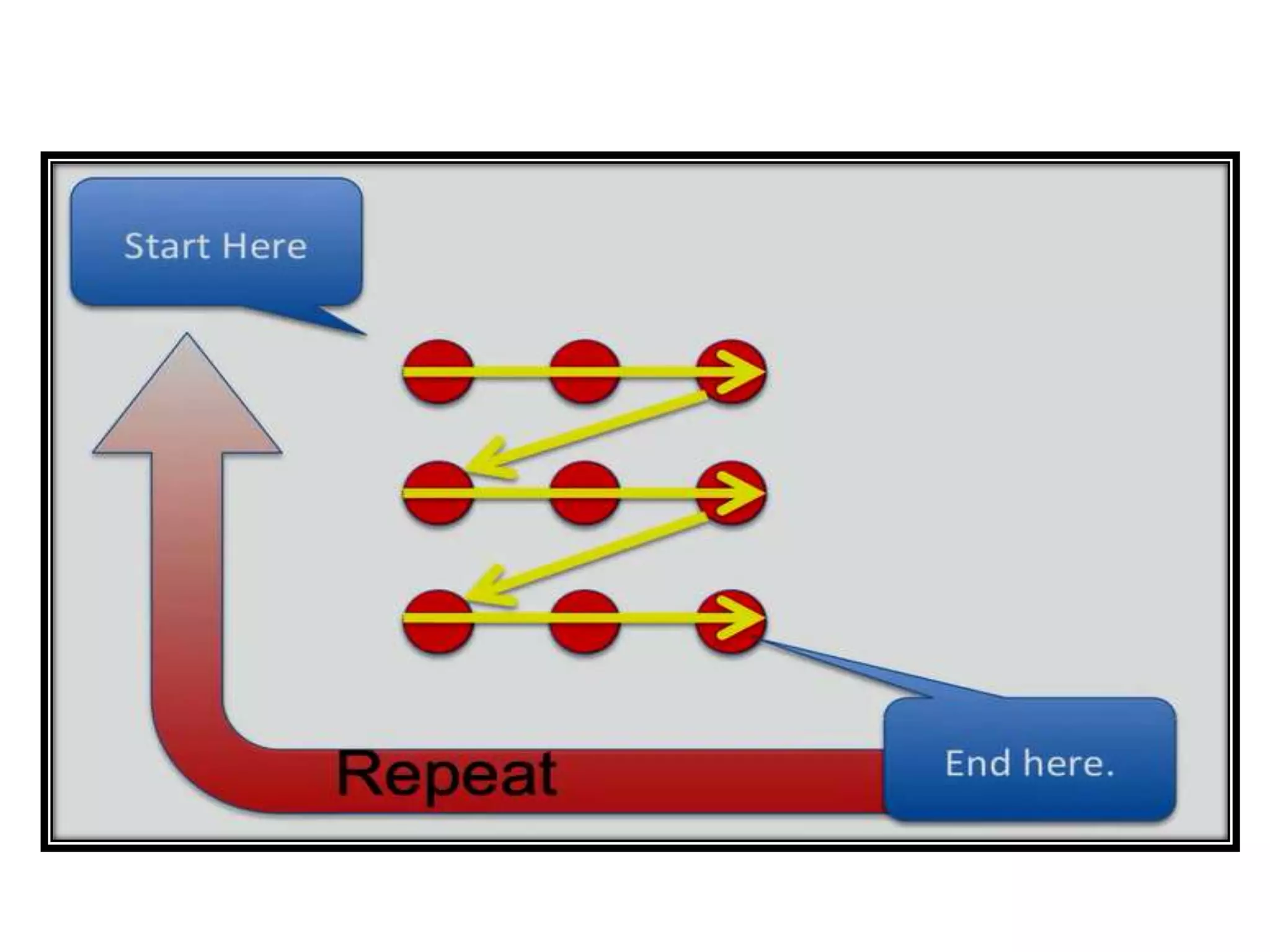

  Cont… void loop() { for(int i=0;i<3;i++) { for(intj=0;j<3;j++) { digitalWrite(pinMatrix[i][j],HIGH); delay(20); digitalWrite(pinMatrix[i][j],LOW); } } }
• 9.

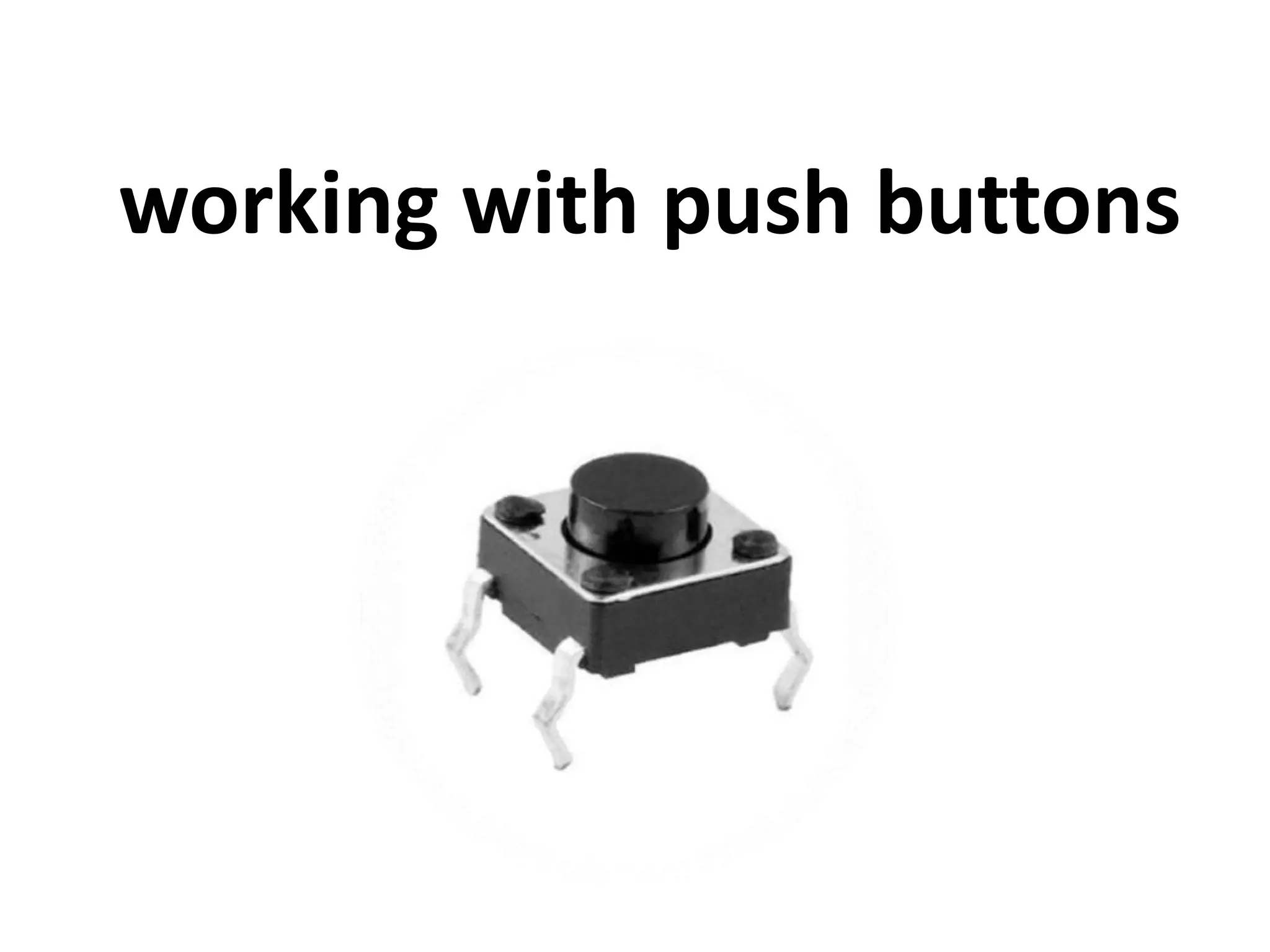

  working with pushbuttons
• 10.

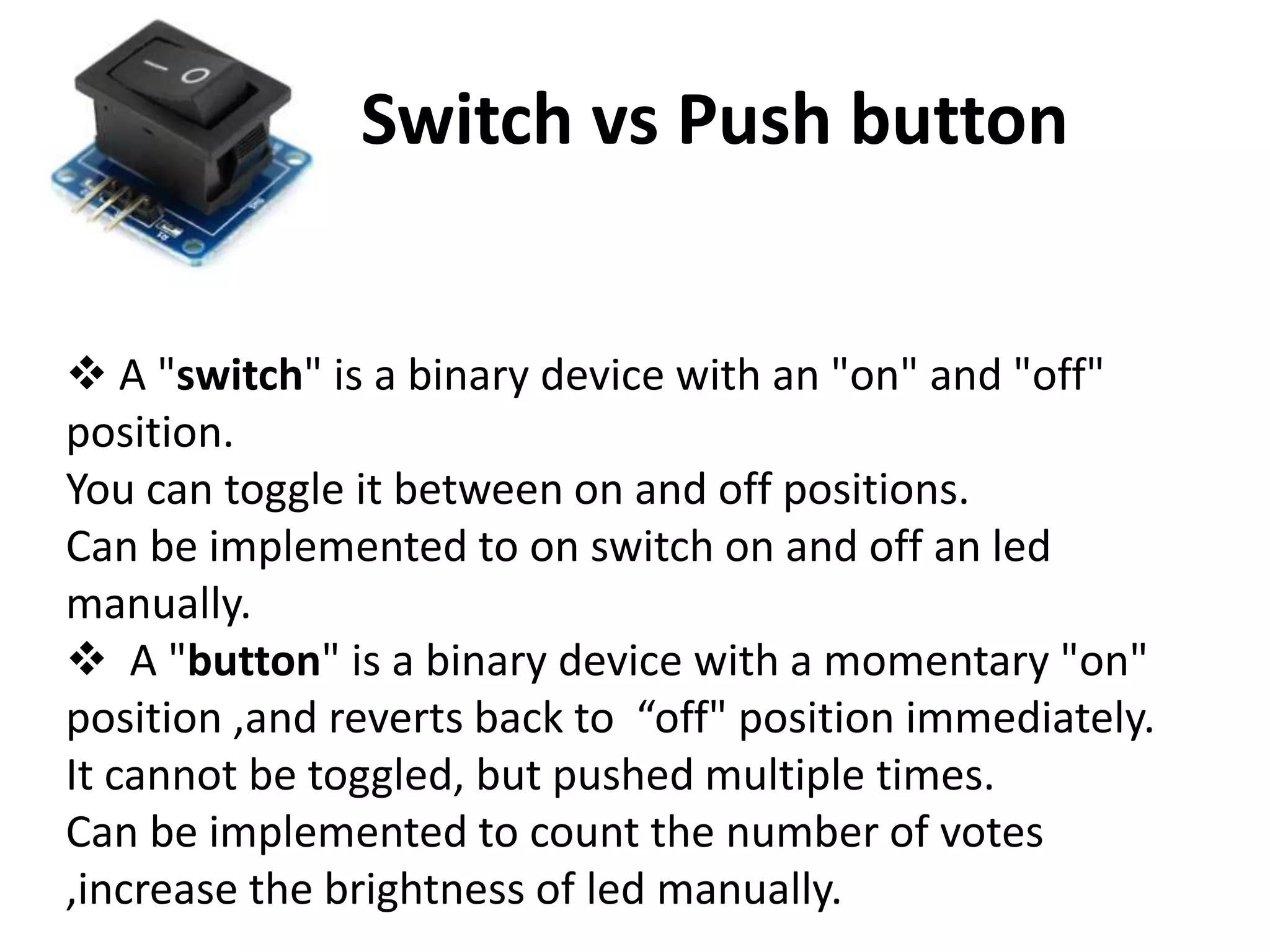

  Switch vs Pushbutton  A "switch" is a binary device with an "on" and "off" position. You can toggle it between on and off positions. Can be implemented to on switch on and off an led manually.  A "button" is a binary device with a momentary "on" position ,and reverts back to “off" position immediately. It cannot be toggled, but pushed multiple times. Can be implemented to count the number of votes ,increase the brightness of led manually.
• 11.

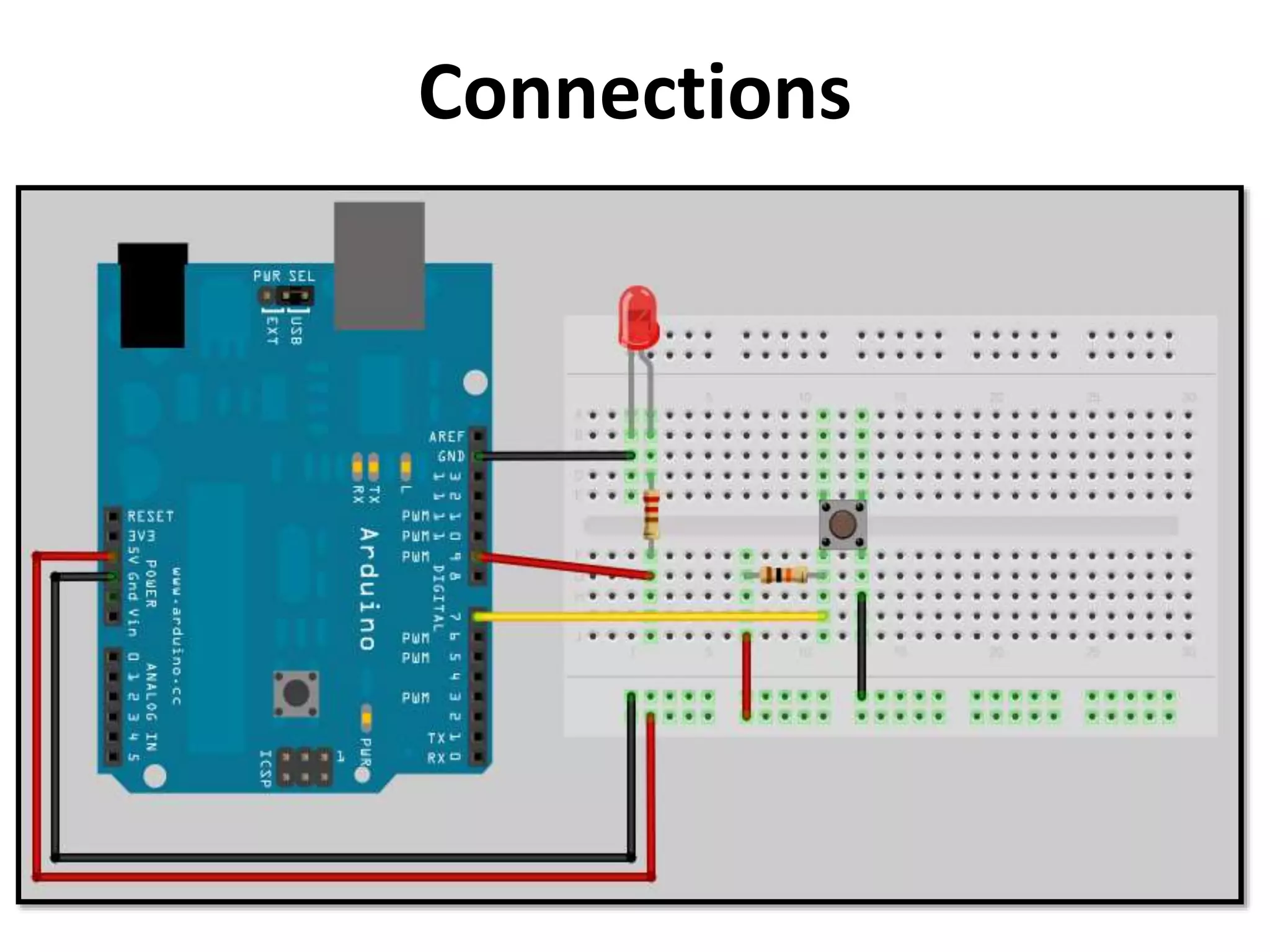

  Connections
• 12.

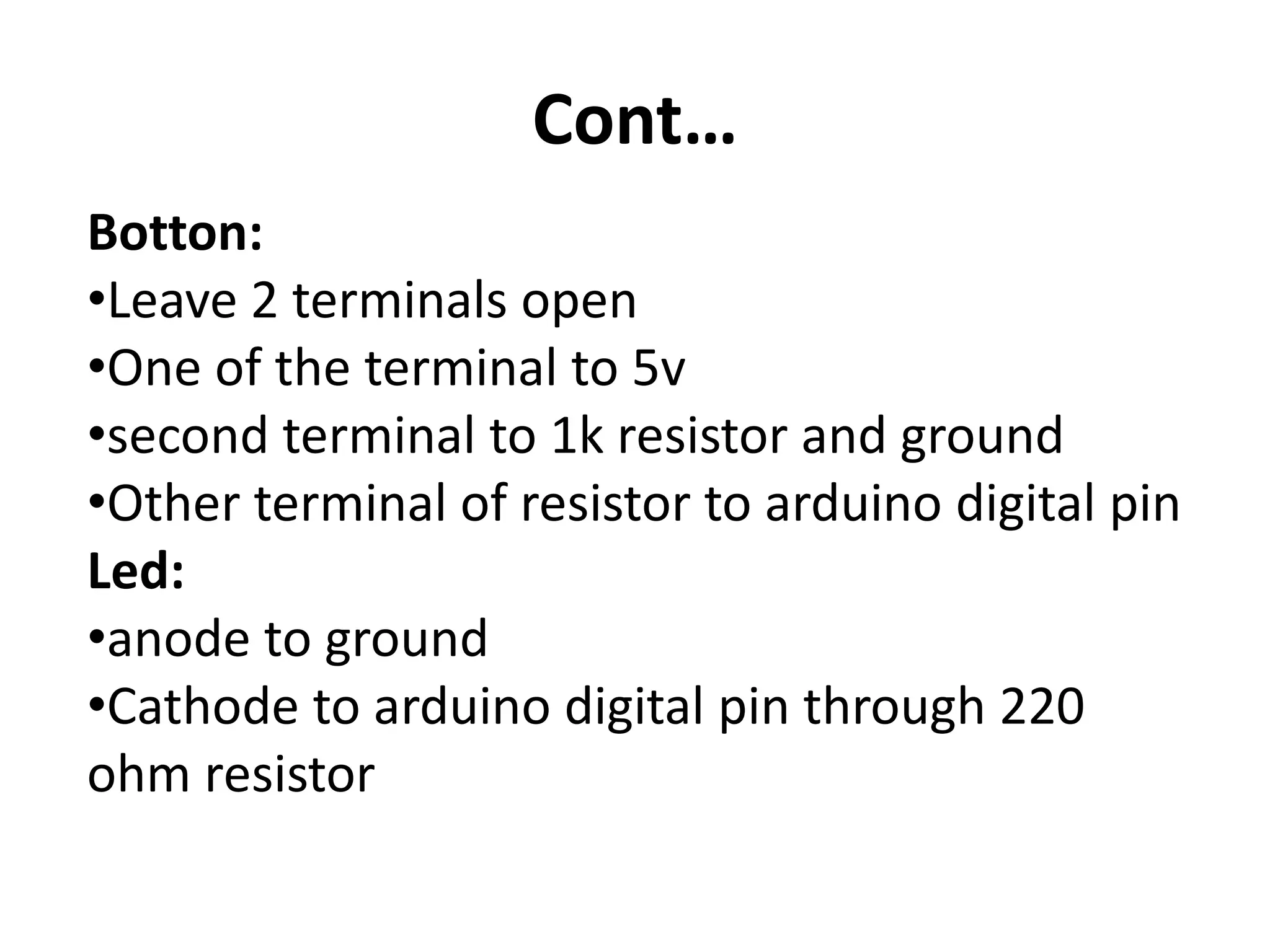

  Cont… Botton: •Leave 2 terminalsopen •One of the terminal to 5v •second terminal to 1k resistor and ground •Other terminal of resistor to arduino digital pin Led: •anode to ground •Cathode to arduino digital pin through 220 ohm resistor
• 13.

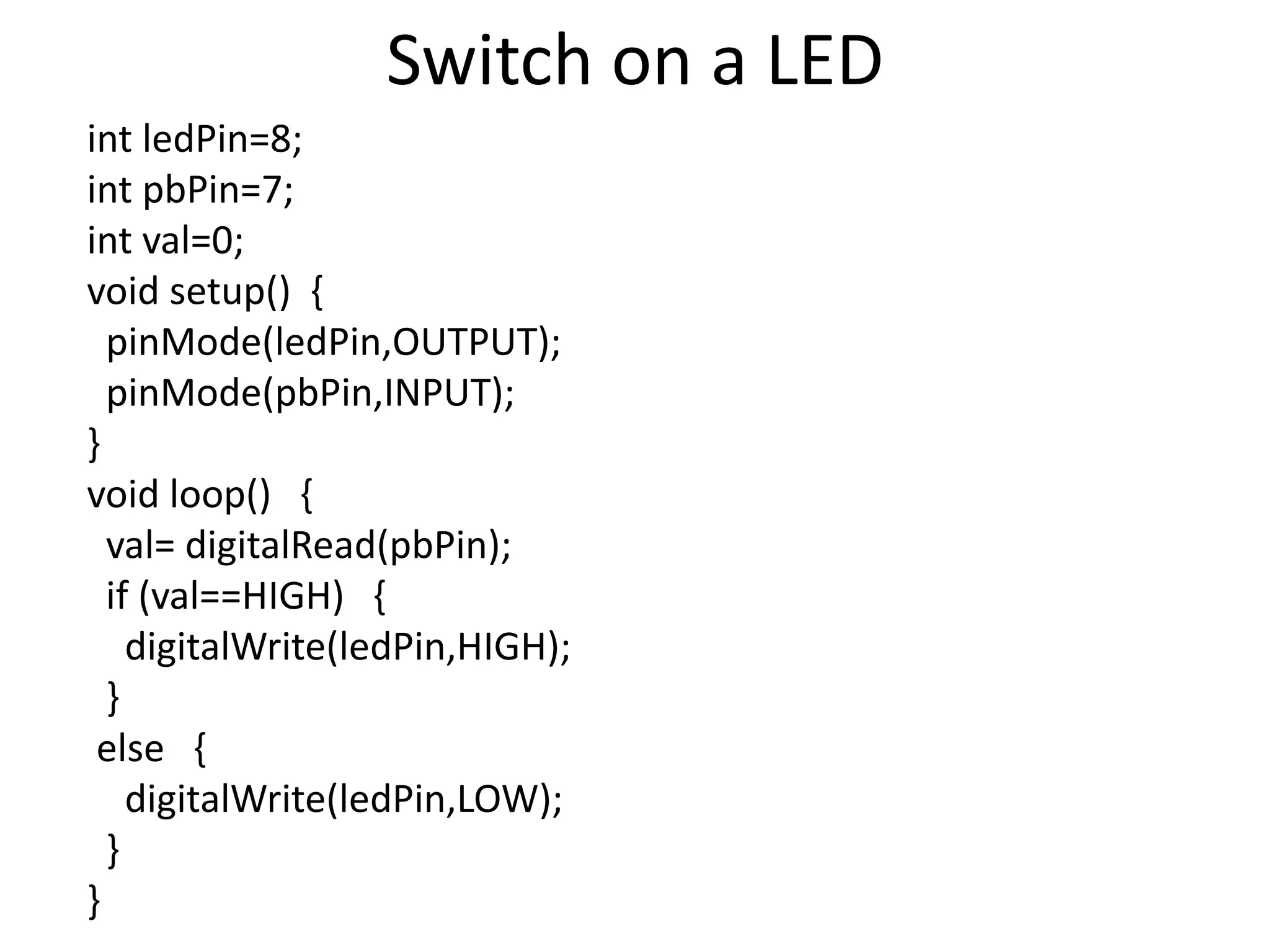

  Switch on aLED int ledPin=8; int pbPin=7; int val=0; void setup() { pinMode(ledPin,OUTPUT); pinMode(pbPin,INPUT); } void loop() { val= digitalRead(pbPin); if (val==HIGH) { digitalWrite(ledPin,HIGH); } else { digitalWrite(ledPin,LOW); } }
• 14.

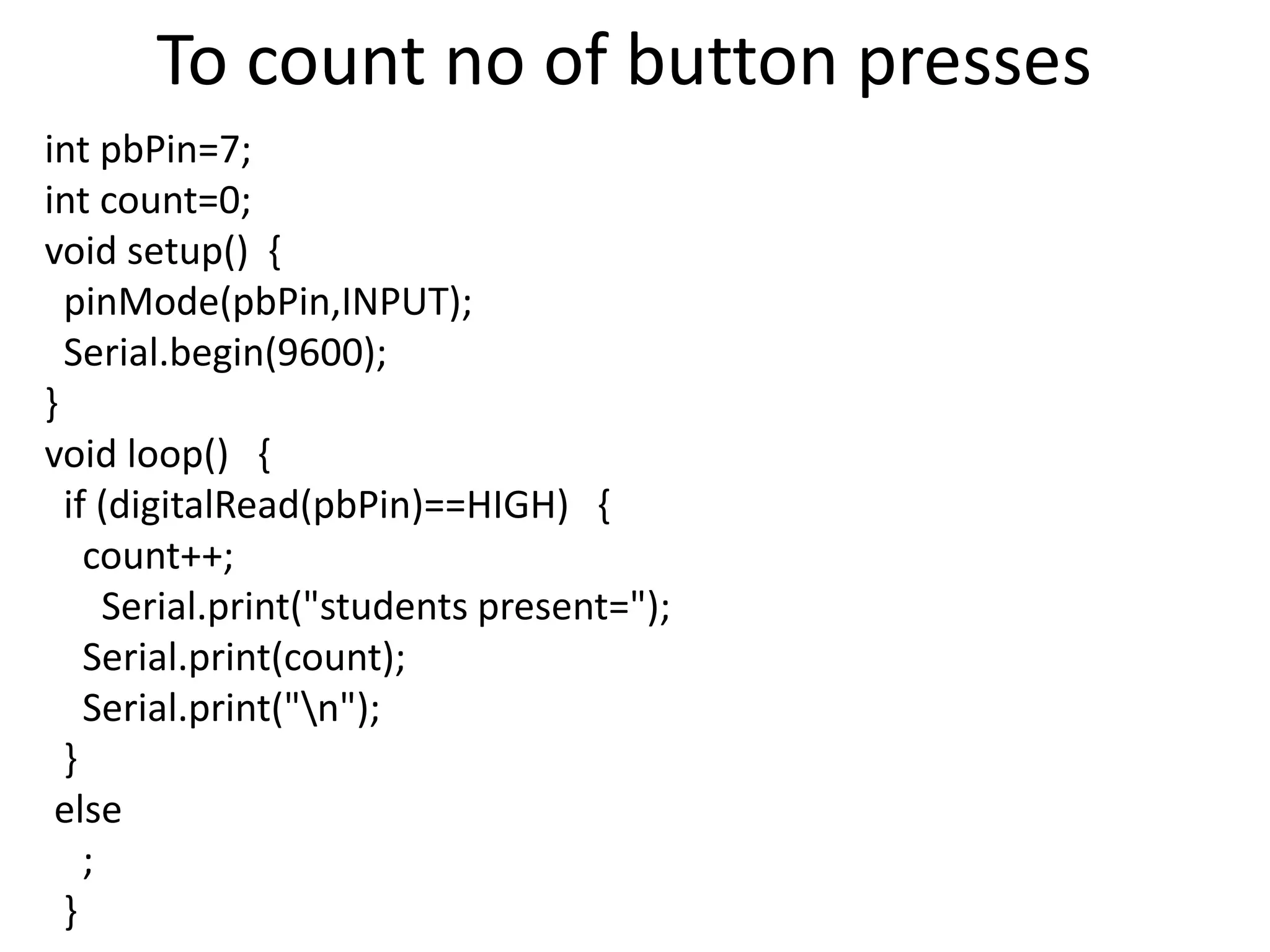

  To count noof button presses int pbPin=7; int count=0; void setup() { pinMode(pbPin,INPUT); Serial.begin(9600); } void loop() { if (digitalRead(pbPin)==HIGH) { count++; Serial.print("students present="); Serial.print(count); Serial.print("n"); } else ; }
• 15.

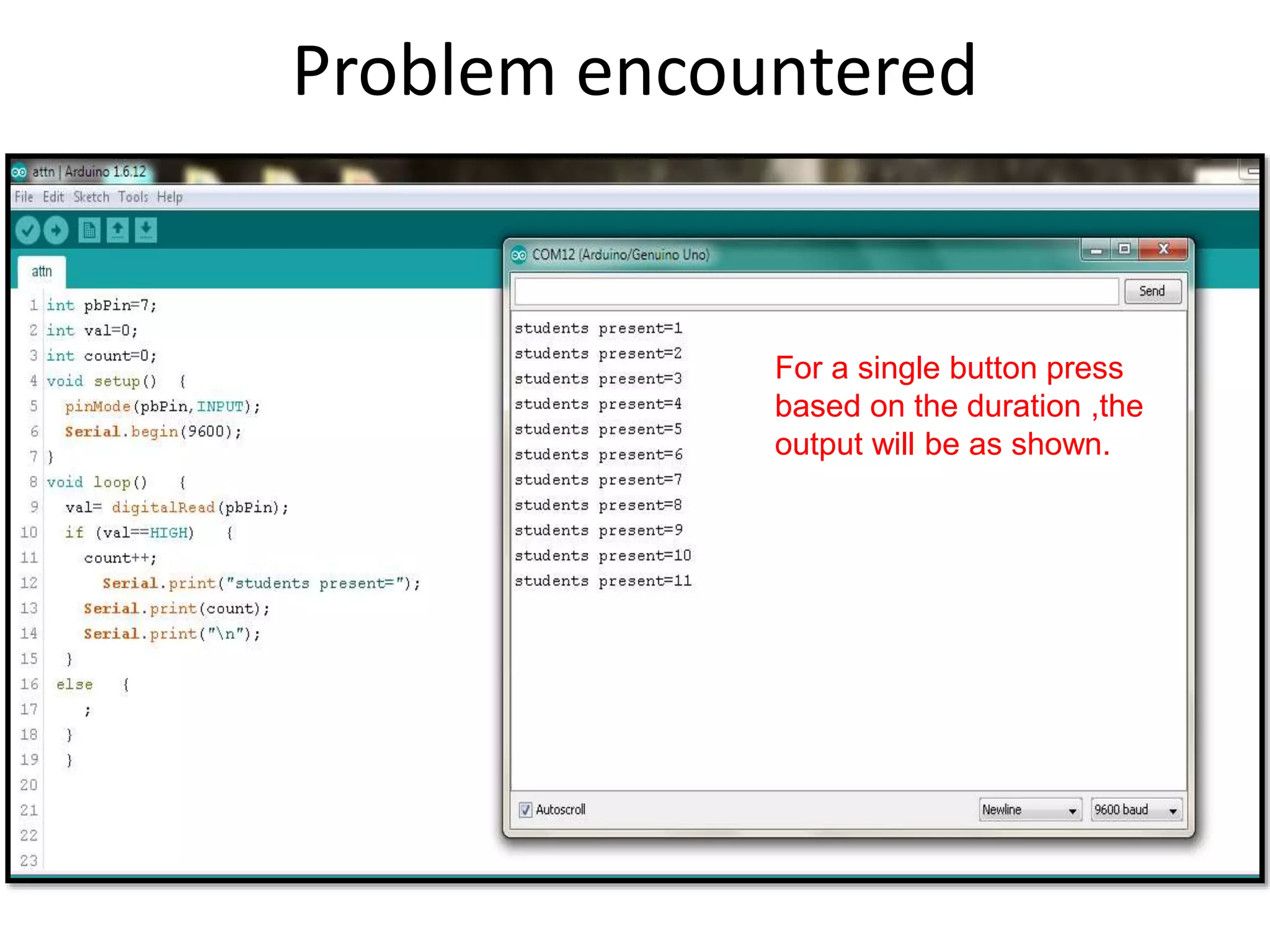

  Problem encountered For asingle button press based on the duration ,the output will be as shown.
• 16.

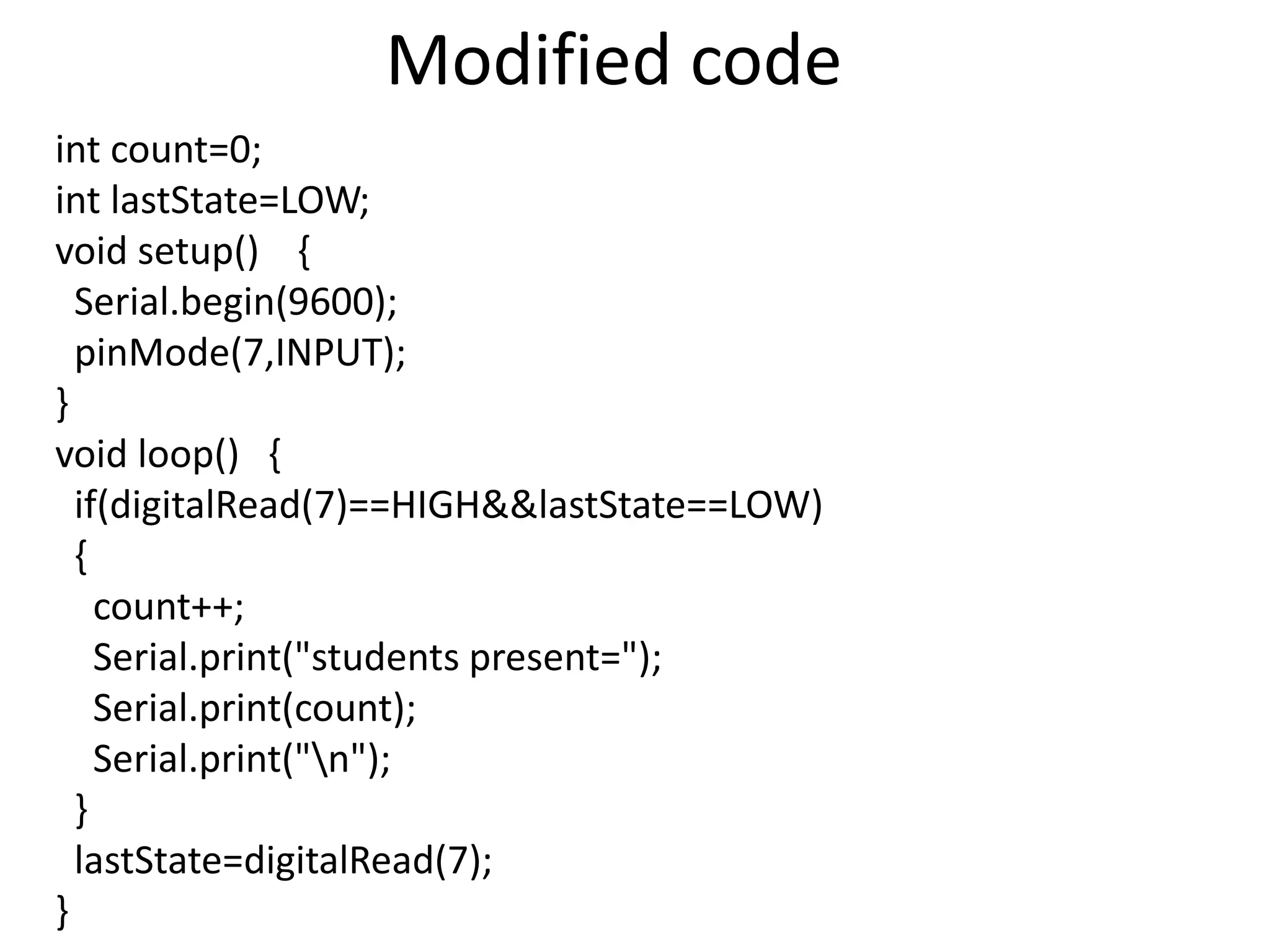

  Modified code int count=0; intlastState=LOW; void setup() { Serial.begin(9600); pinMode(7,INPUT); } void loop() { if(digitalRead(7)==HIGH&&lastState==LOW) { count++; Serial.print("students present="); Serial.print(count); Serial.print("n"); } lastState=digitalRead(7); }
• 17.

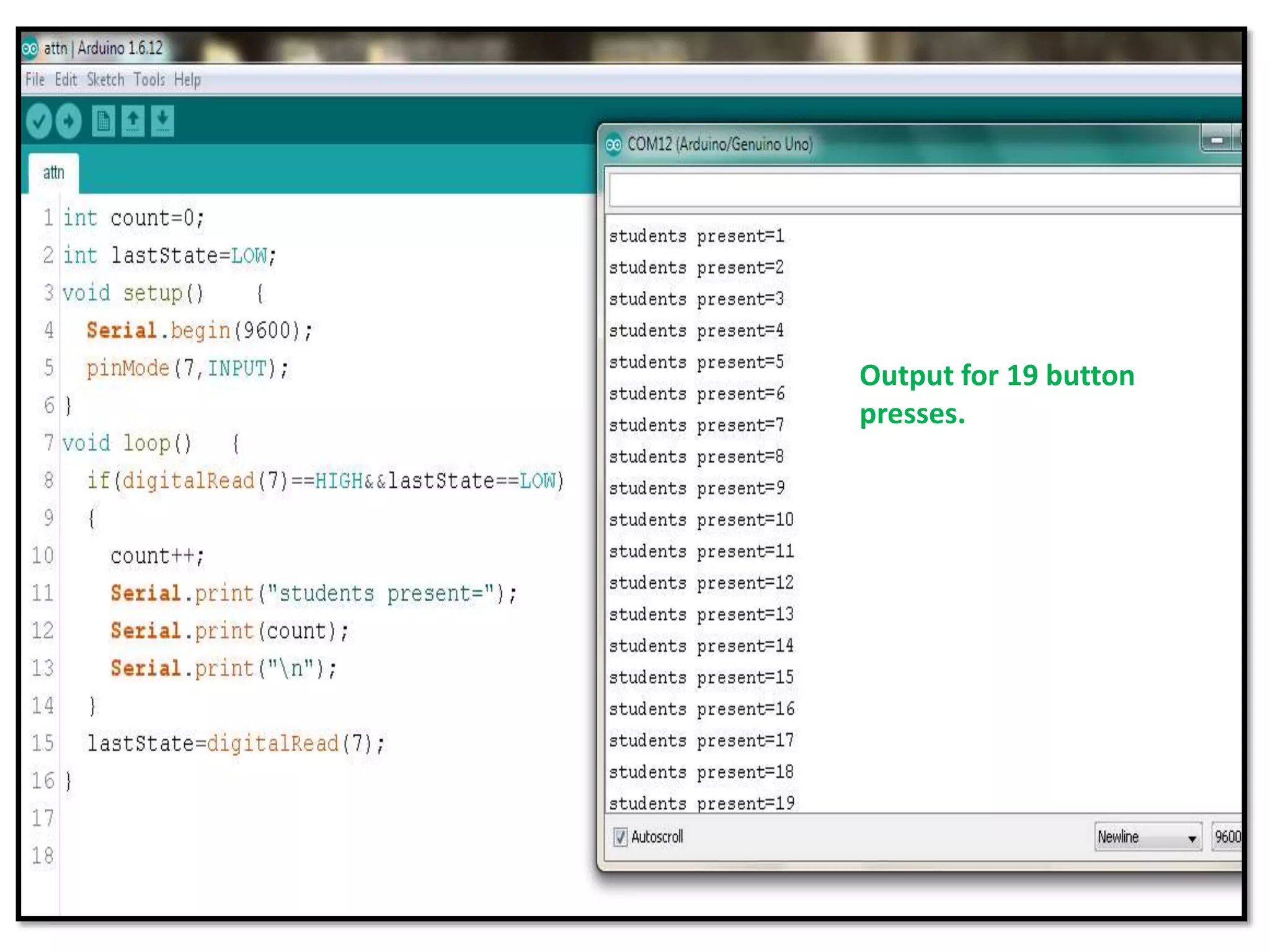

  Output for 19button presses.
