Experiments in data mining, entity disambiguation and how to think data-structures for designing beautiful algorithms Ekta Grover 1st September, 2013 @ektagrover/ekta1007@gmail.com PyCon India, 2013 1/26

Structure of this Talk How to think through a data mining problem 3 problems in data-mining around disambiguation, Natural language processing & Information Retrieval Measuring your Model performance - developing a near-real time performance aggregation platform Putting it all together @ektagrover/ekta1007@gmail.com PyCon India, 2013 2/26

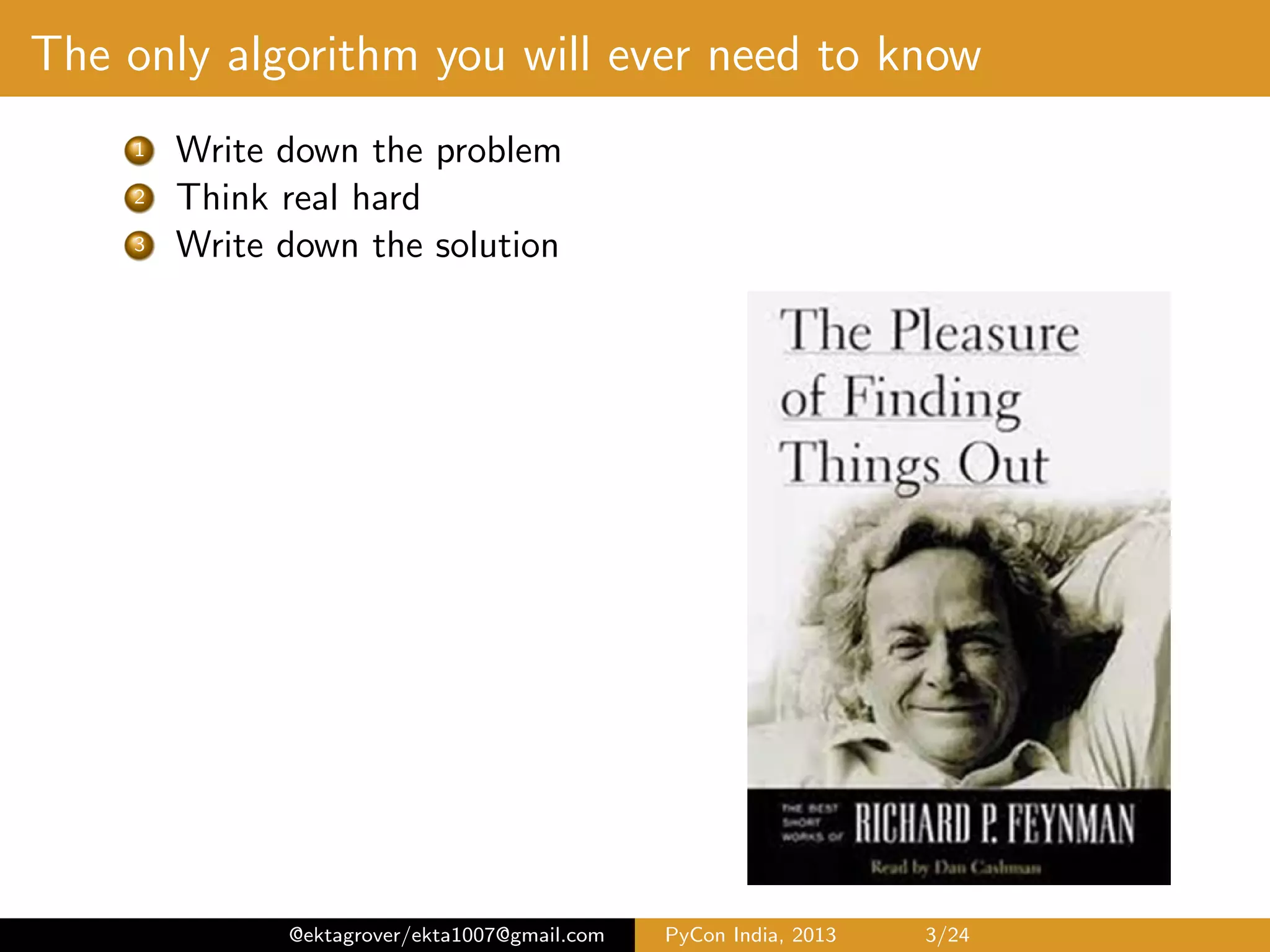

The only algorithm you will ever need to know 1 Write down the problem 2 Think real hard 3 Write down the solution @ektagrover/ekta1007@gmail.com PyCon India, 2013 3/26

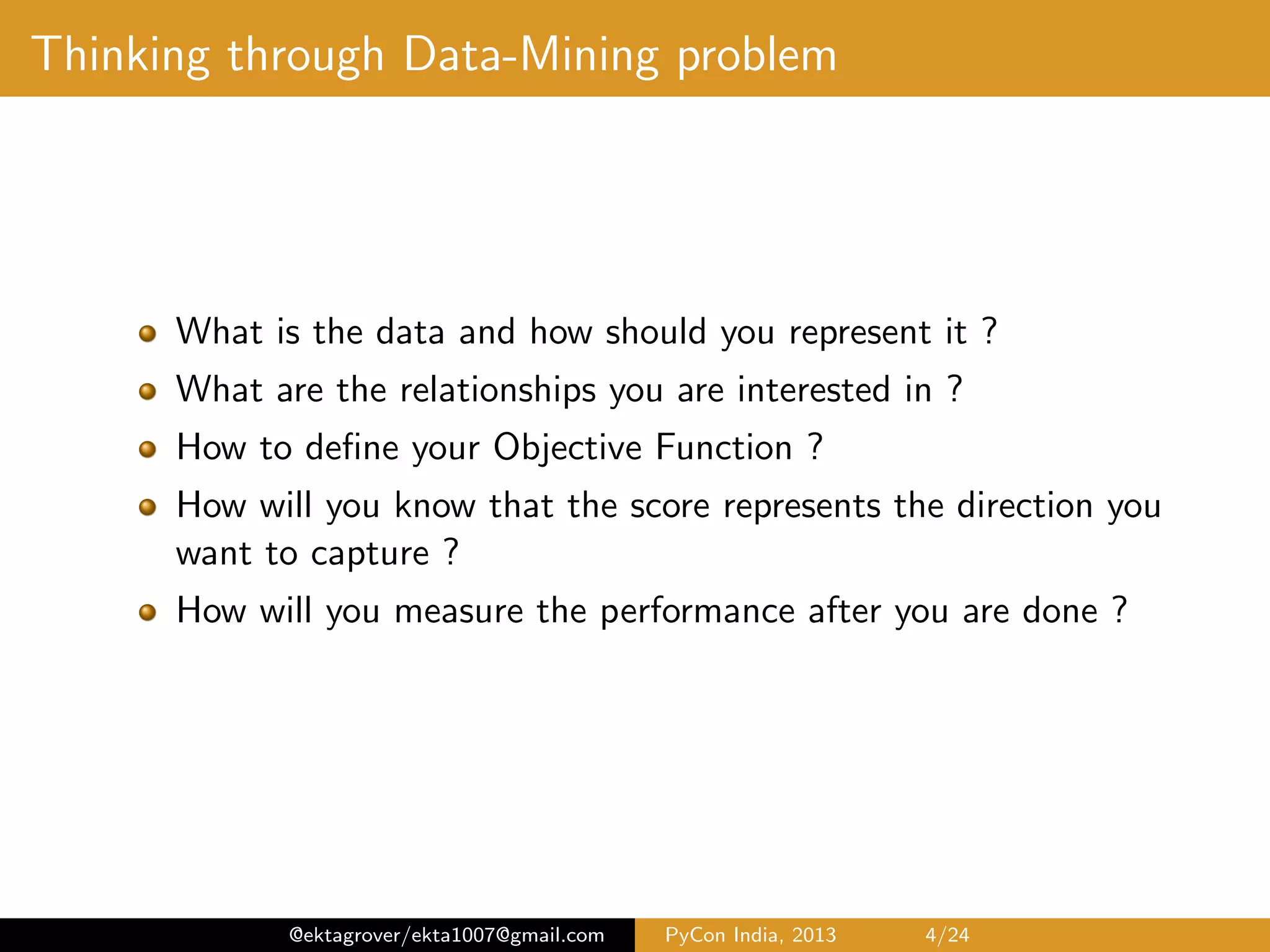

Thinking through Data-Mining problem What is the data and how should you represent it ? What are the relationships you are interested in ? How to deﬁne your Objective Function ? How will you know that the score represents the direction you want to capture ? How will you measure the performance after you are done ? @ektagrover/ekta1007@gmail.com PyCon India, 2013 4/26

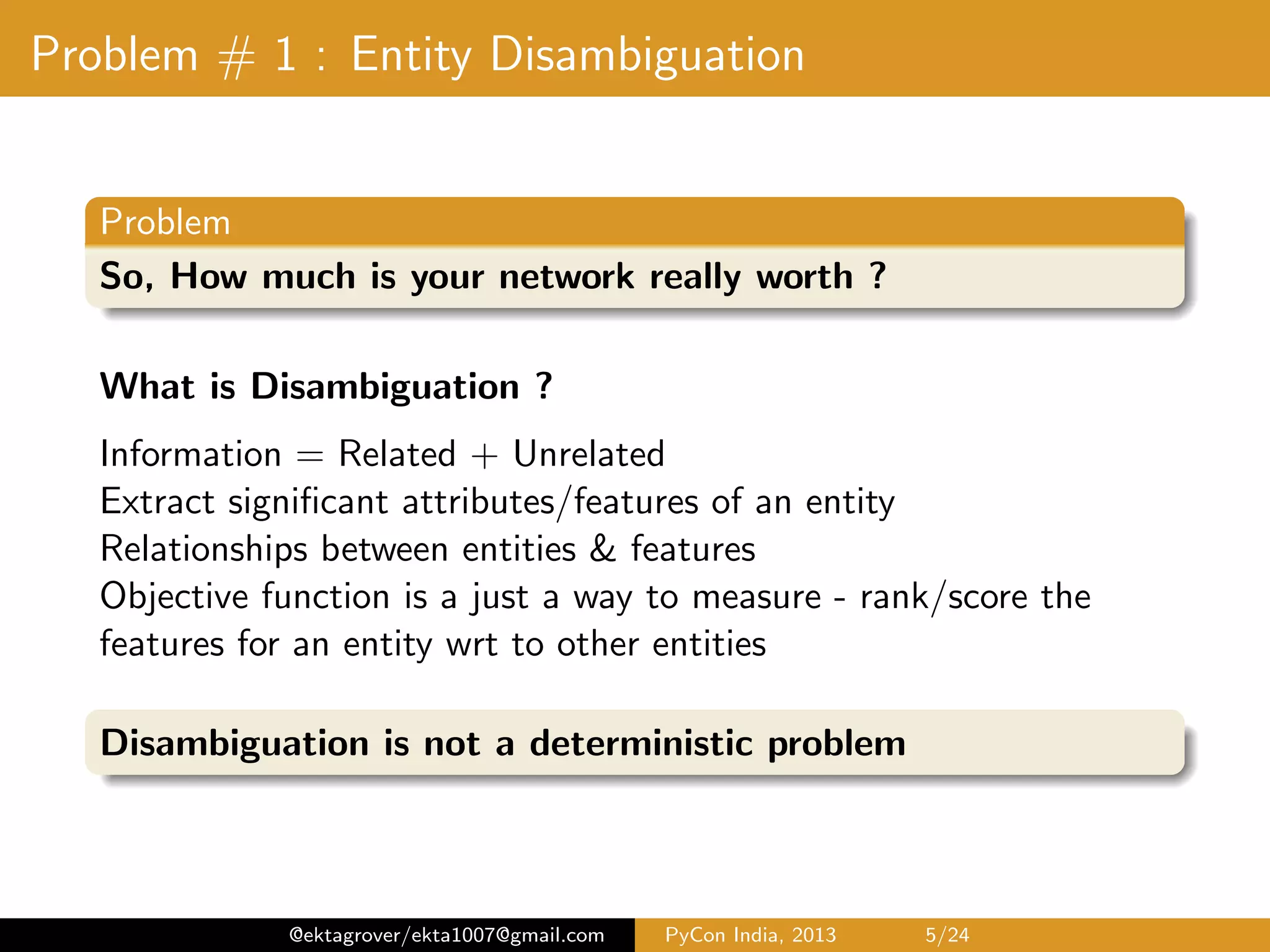

Problem # 1 : Entity Disambiguation Problem So, How much is your network really worth ? What is Disambiguation ? Information = Related + Unrelated Extract signiﬁcant attributes/features of an entity Relationships between entities & features Objective function is a just a way to measure - rank/score the features for an entity wrt to other entities Disambiguation is not a deterministic problem @ektagrover/ekta1007@gmail.com PyCon India, 2013 5/26

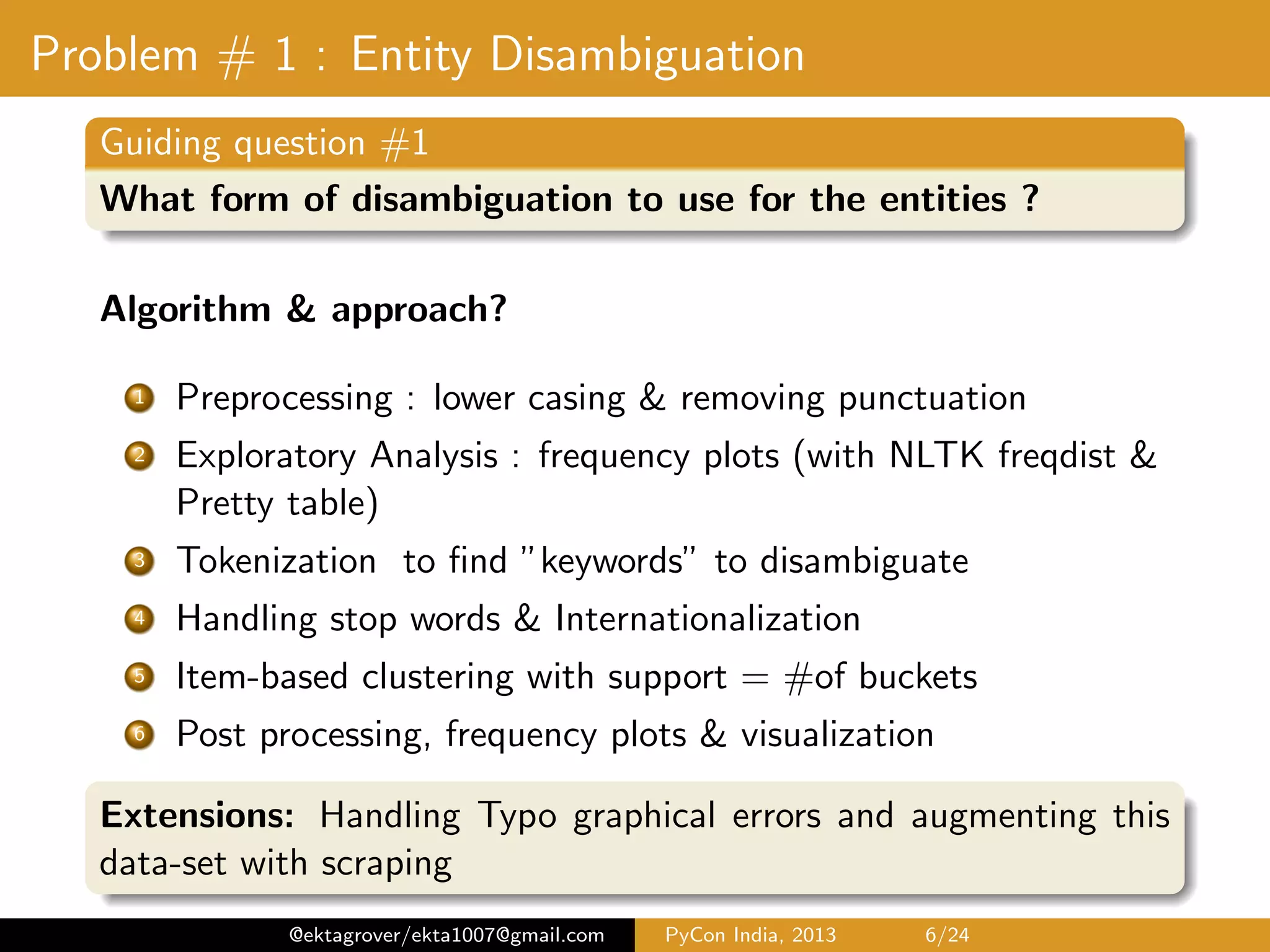

Problem # 1 : Entity Disambiguation Guiding question #1 What form of disambiguation to use for the entities ? Algorithm & approach 1 Preprocessing - lower casing & removing punctuation 2 Exploratory Analysis - frequency plots (with NLTK freqdist & Pretty table) 3 Tokenization to ﬁnd ”keywords” to disambiguate 4 Handling stop words & Internationalization 5 Frequent item-set mining with support = #of buckets 6 Post processing, frequency plots & visualization Extensions: Handling Typo graphical errors and augmenting this data-set with scraping @ektagrover/ekta1007@gmail.com PyCon India, 2013 6/26

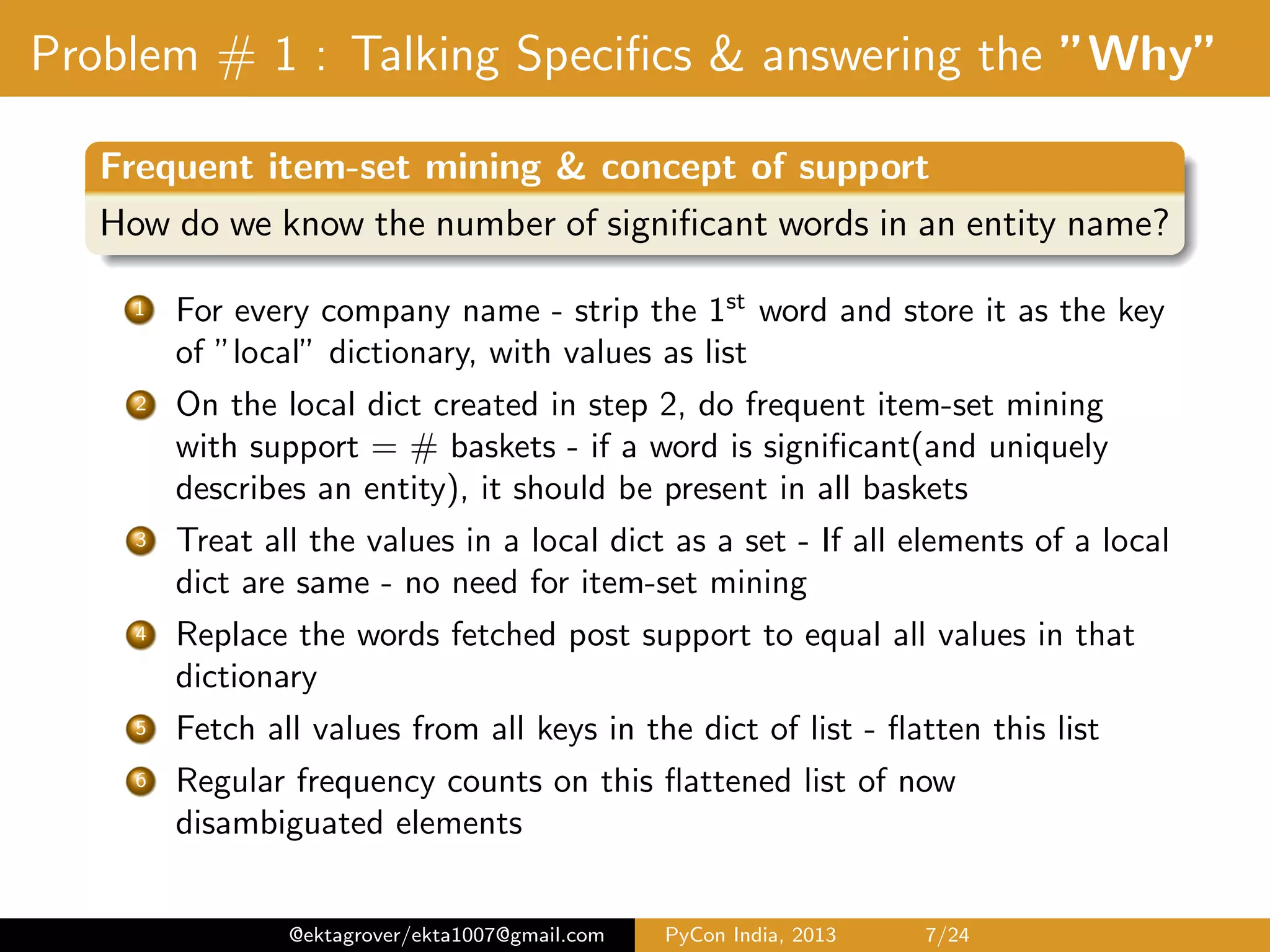

Problem # 1 : Talking Specifics & answering the ”Why” Frequent item-set mining & concept of support How do we know the number of significant words in an entity name? 1 For every company name - strip the 1st word and store it as the key of ”local” dictionary, with values as list 2 On the local dict created in step 1, do frequent item-set mining with support = # baskets - if a word is significant(and uniquely describes an entity), it should be present in all baskets 3 Treat all the values in a local dict as a set - If all elements of a local dict are same - no need for item-set mining 4 For every key - find the smallest list of tokens(by length) and search the presence of all tokens iteratively till the support appears in less than #baskets 5 Replace the words fetched post support to equal all values in that dictionary 6 Fetch all values from all keys in the dict of list - flatten this list 7 Regular frequency counts on this flattened list of now disambiguated elements @ektagrover/ekta1007@gmail.com PyCon India, 2013 7/26

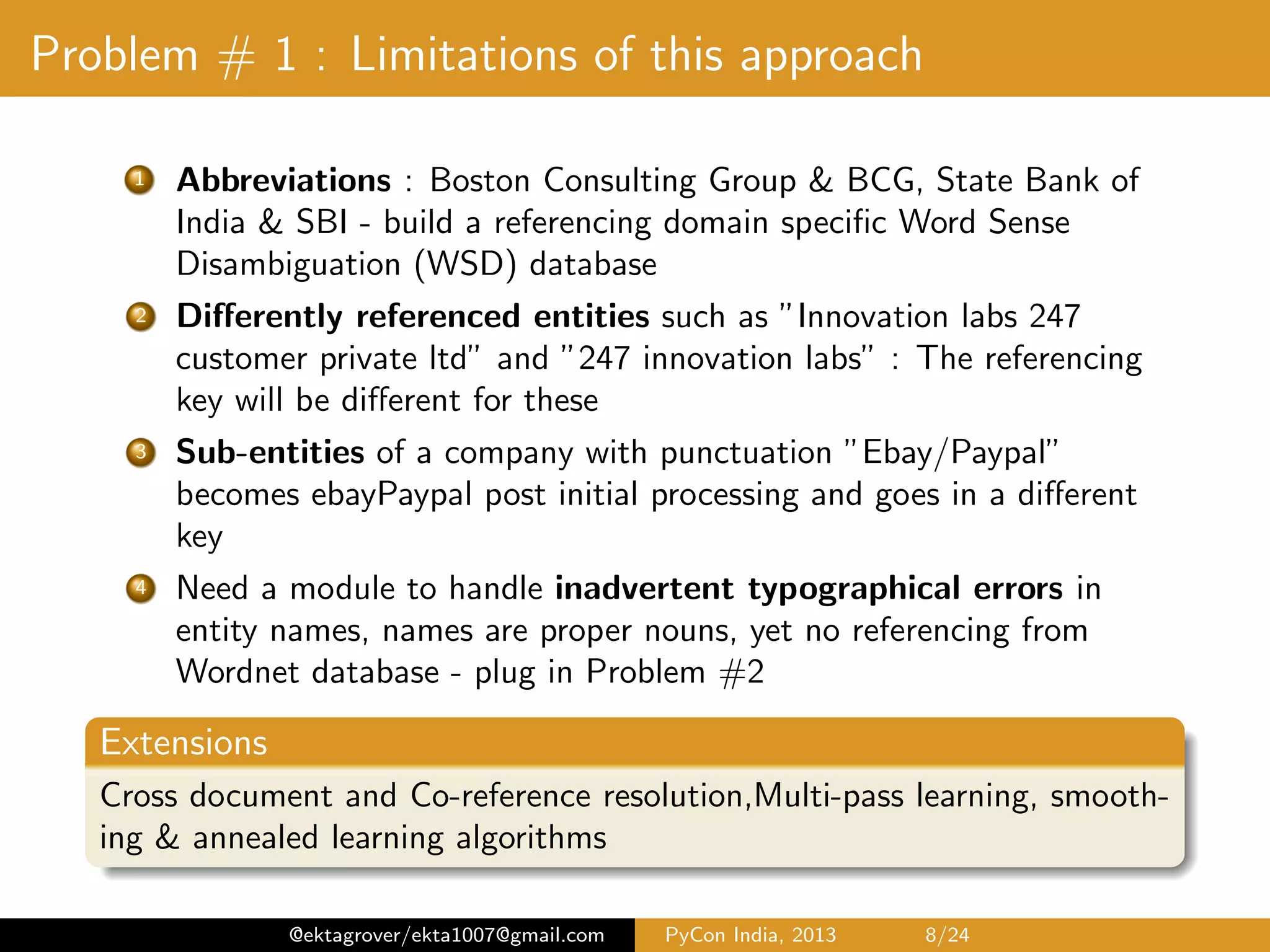

Problem # 1 : Limitations of this approach 1 Abbreviations : Boston Consulting Group & BCG, State Bank of India & SBI - build a referencing domain specific Word Sense Disambiguation (WSD) database 2 Differently referenced entities such as ”Innovation labs 247 customer private ltd” and ”247 innovation labs” : The referencing key will be different for these 3 Sub-entities of a company with punctuation ”Ebay/Paypal” - the ”key” depends on how we choose to treat the punctuation for {/,:,-} 4 Need a module to handle inadvertent typographical errors in entity names, names are proper nouns, yet no referencing from Wordnet database - plug in Problem #2 Extensions Cross document and Co-reference resolution,Multi-pass learning, smooth- ing & annealed learning algorithms @ektagrover/ekta1007@gmail.com PyCon India, 2013 8/26

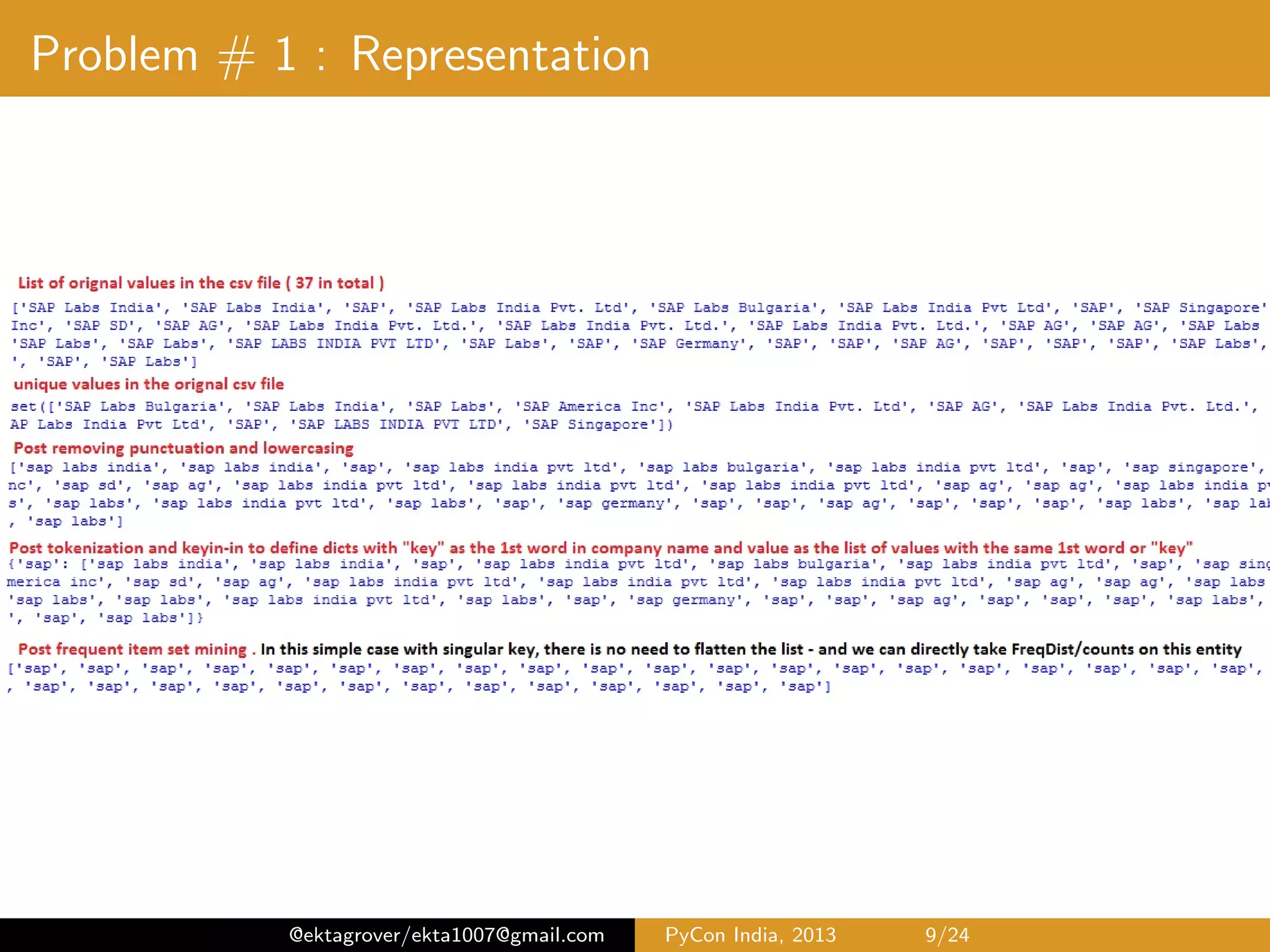

Problem # 1 : Representation @ektagrover/ekta1007@gmail.com PyCon India, 2013 9/26

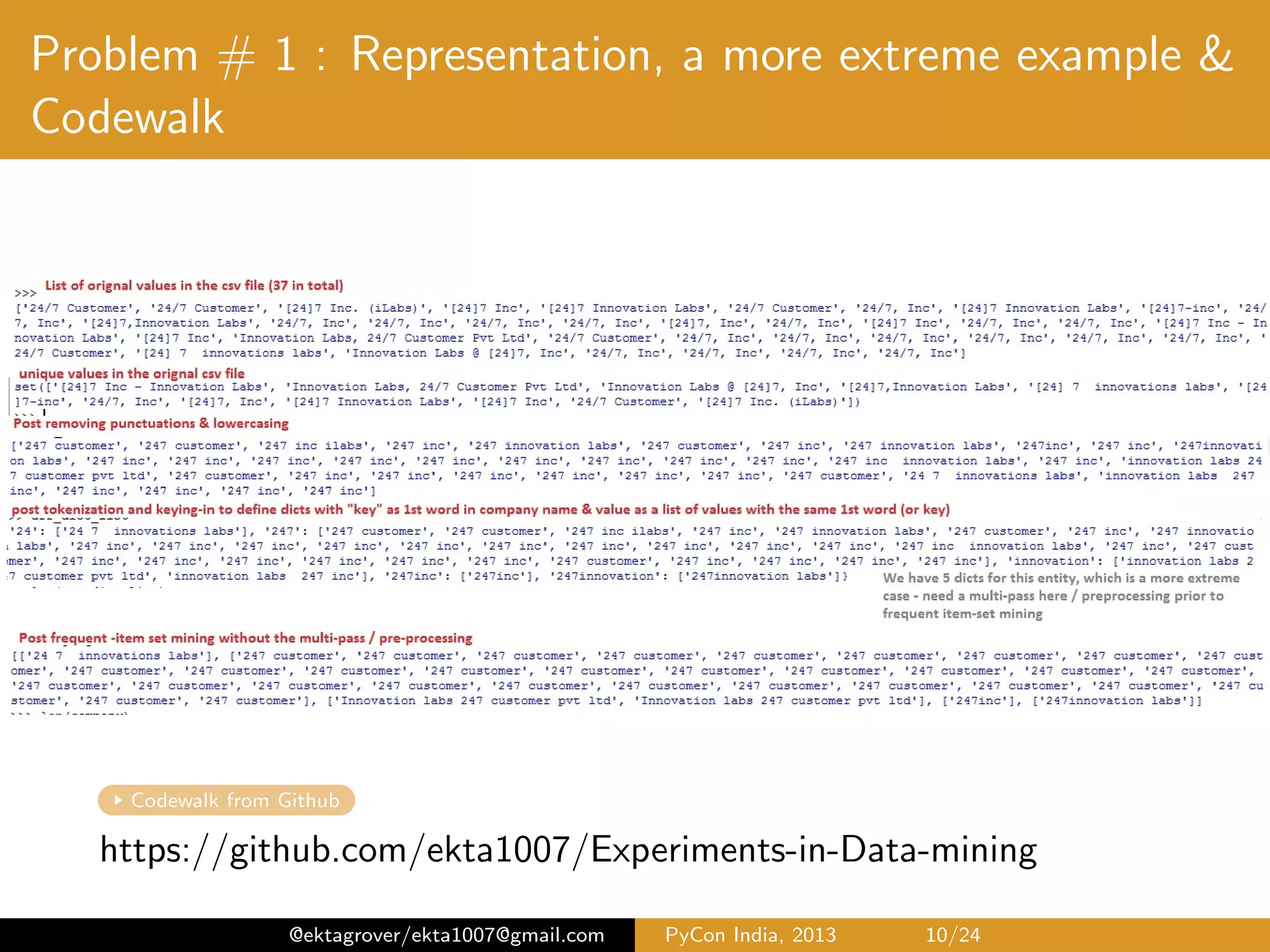

Problem # 1 : Representation, a more extreme example & Codewalk Codewalk from Github https://github.com/ekta1007/Experiments-in-Data-mining @ektagrover/ekta1007@gmail.com PyCon India, 2013 10/26

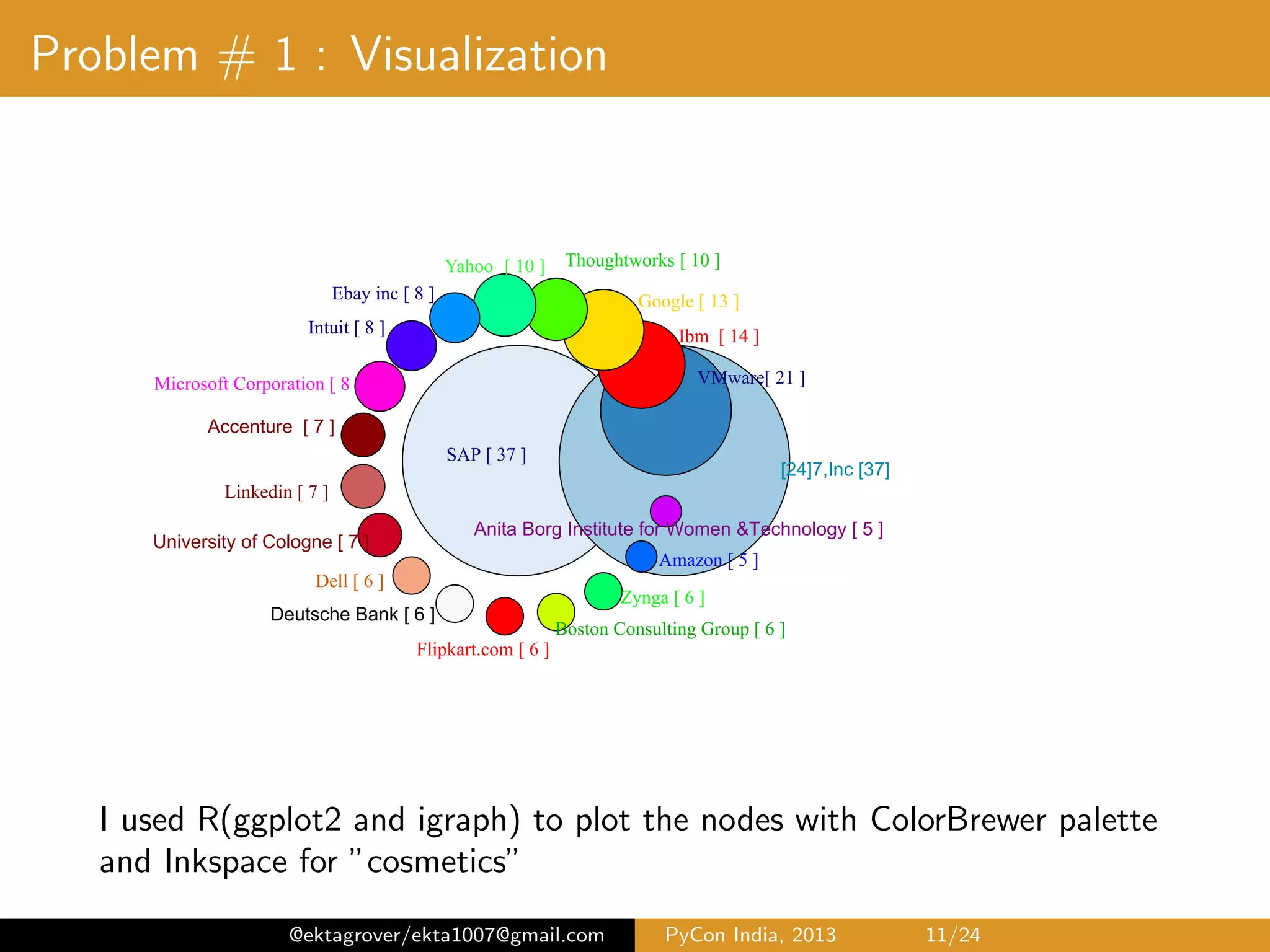

Problem # 1 : Visualization YYYYYYYSAPY[Y57Y]YYY [24]7,Inc6[37] VMware[YzZY] IbmYY[YZ4Y] GoogleY[YZ5Y] ThoughtworksY[YZBY]Yahoo Y[ ZBY] EbayYincY[Y8Y] IntuitY[Y8Y] MicrosoftYCorporationY[Y8Y] Accenture66[676] LinkedinY[Y7Y] University6of6Cologne6[676] DellY[Y6Y] Deutsche6Bank6[666] FlipkartFcomY[Y6Y] BostonYConsultingYGroupY[Y6Y] ZyngaY[Y6Y] AmazonY[Y5Y] Anita6Borg6Institute6for6Women6&Technology6[656] Top companies by Frequency distribution, post item-set mining *I used R(ggplot2 and igraph) to plot the nodes with ColorBrewer palette and Inkspace for ”cosmetics” @ektagrover/ekta1007@gmail.com PyCon India, 2013 11/26

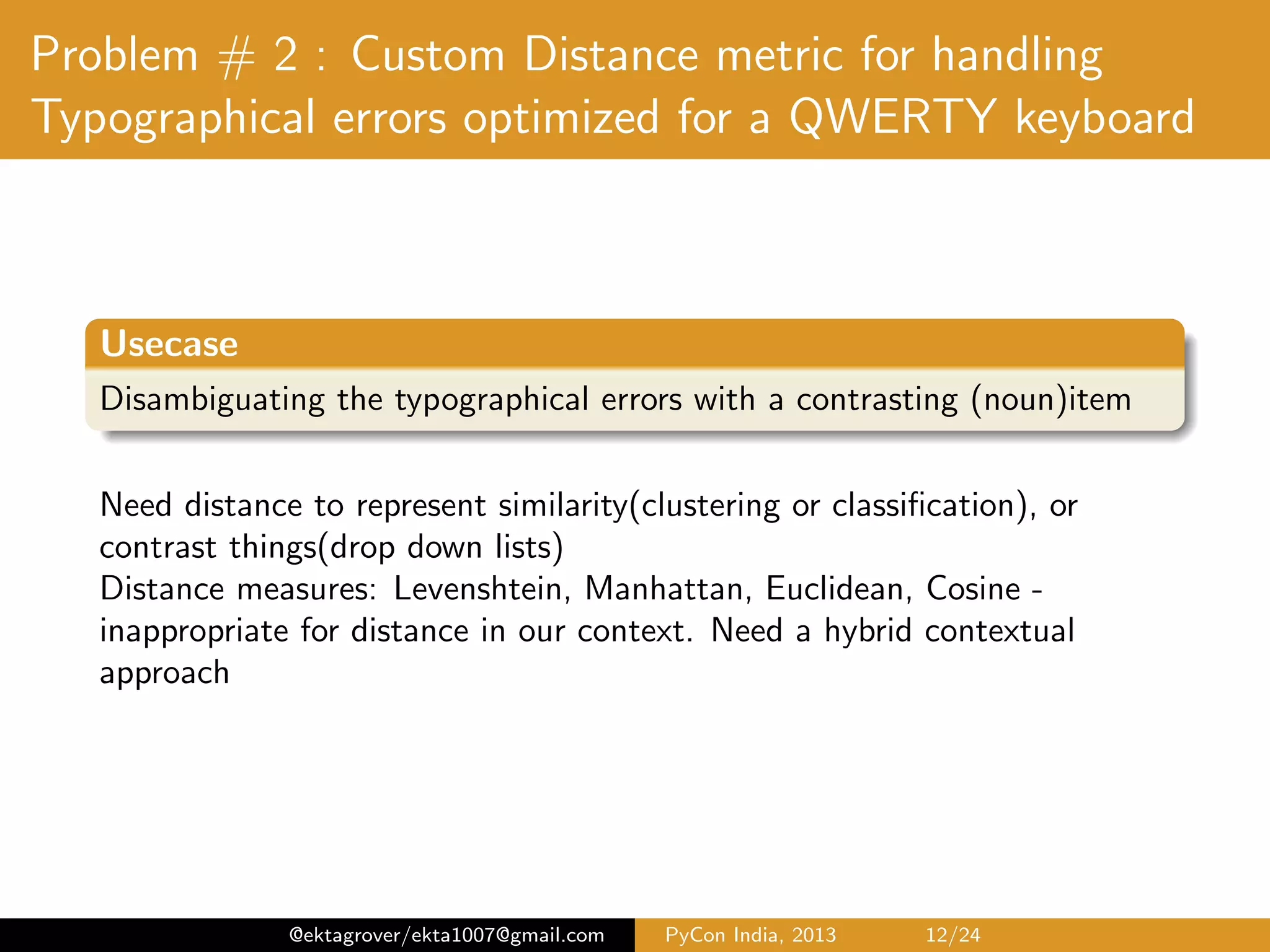

Problem # 2 : Custom Distance metric for handling Typographical errors optimized for a QWERTY keyboard Usecase Disambiguating the typographical errors with a contrasting (noun)item Three types of misspellings1 1 Typographic errors - know the correct spelling, but motor coordination slip when typing 2 Cognitive errors - caused by lack of knowledge of the person 3 Phonetic errors2 - sound correct, but are orthographically incorrect Distance measures: Levenshtein, Manhattan, Euclidean, Cosine - inappropriate for distance in our context. Need a hybrid contextual approach 1 Karen Kukich - Techniques for automatically correcting words in text, ACM Computing Surveys Volume 24 Issue 4, Dec. 1992 ; Creating a Spellchecker with Solr http://emmaespina.wordpress.com/2011/01/31/20/ 2 Soundex algorithm; example : Chebyshev & Tchebycheﬀ @ektagrover/ekta1007@gmail.com PyCon India, 2013 12/26

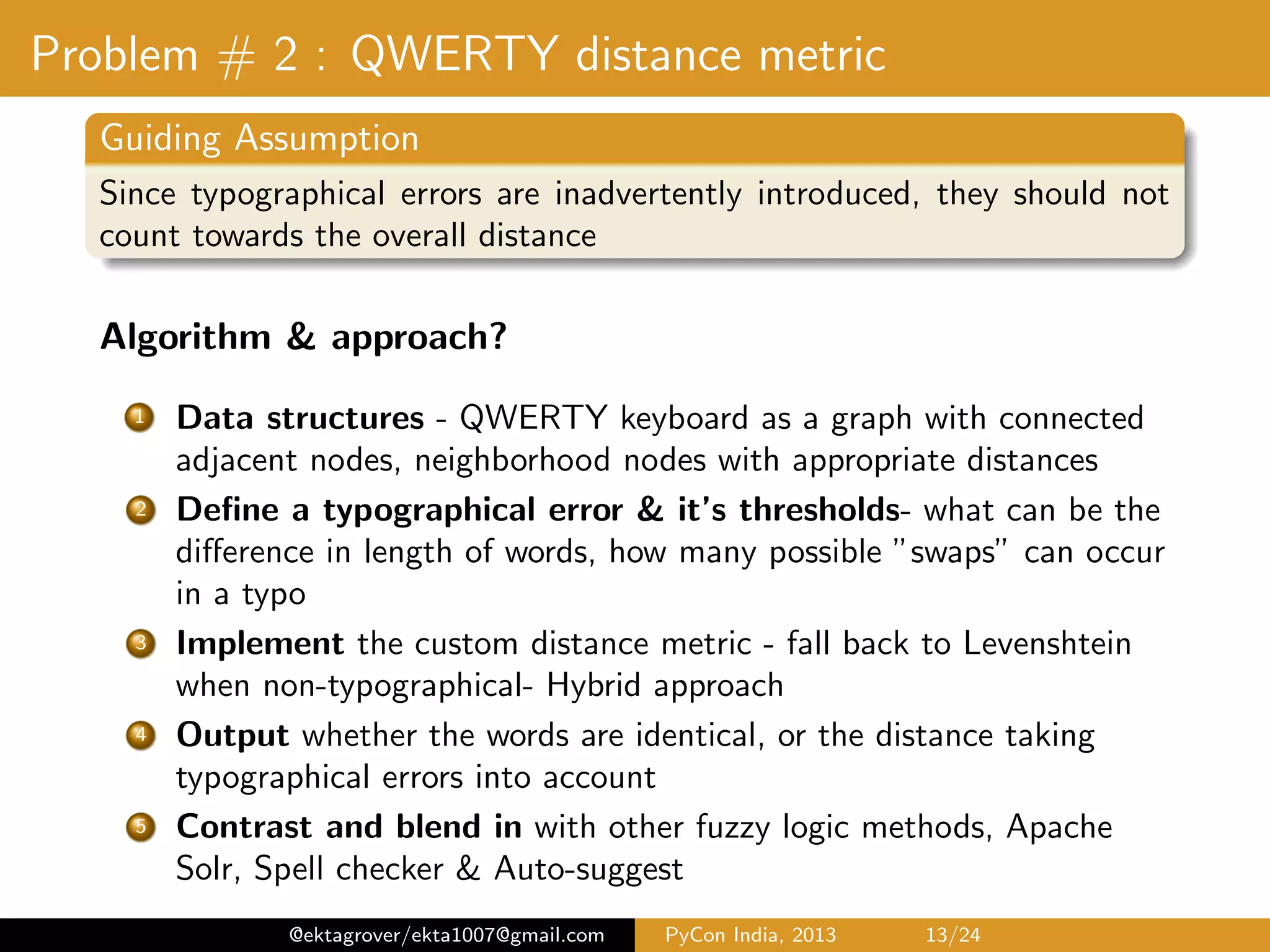

Problem # 2 : QWERTY distance metric Guiding Assumption Since typographical errors are inadvertently introduced, they should not count towards the overall distance Algorithm & approach? 1 Data structures - QWERTY keyboard as a graph with connected adjacent nodes, neighborhood nodes with appropriate distances 2 Deﬁne a typographical error & it’s thresholds- what can be the diﬀerence in length of words, how many possible ”swaps” can occur in a typo 3 Implement the custom distance metric - fall back to Levenshtein when non-typographical - Hybrid approach 4 Output whether the words are identical, or the distance taking typographical errors into account 5 Contrast and blend in with other fuzzy logic methods, Apache Solr, Spell checker & Auto-suggest @ektagrover/ekta1007@gmail.com PyCon India, 2013 13/26

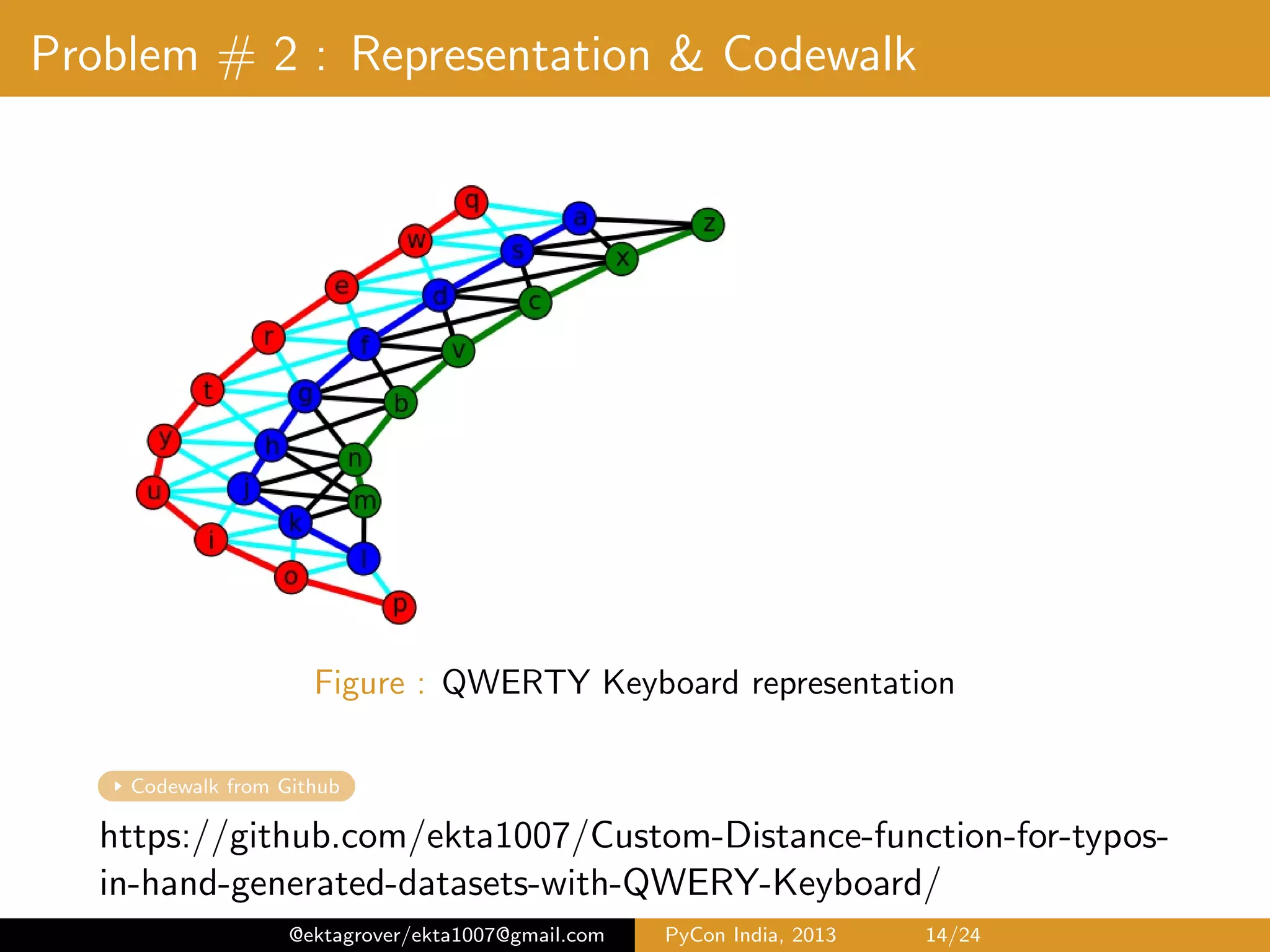

Problem # 2 : Representation & Codewalk QWERTY Keyboard representation Codewalk from Github https://github.com/ekta1007/Custom-Distance-function-for-typos-in- hand-generated-datasets-with-QWERY-Keyboard/ @ektagrover/ekta1007@gmail.com PyCon India, 2013 14/26

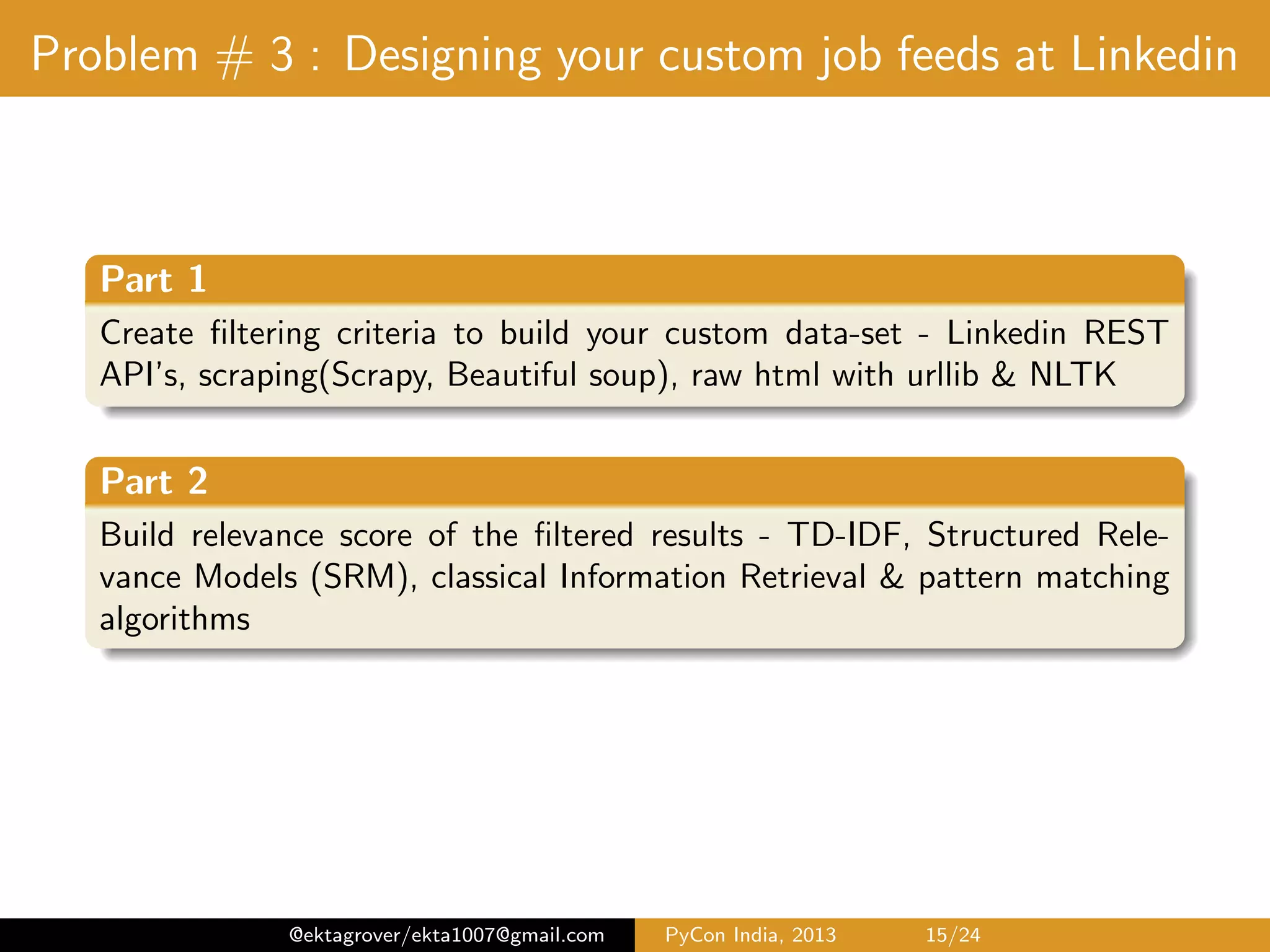

Problem # 3 : Designing your custom job feeds at Linkedin Part 1 Create ﬁltering criteria to build your custom data-set Linkedin REST API’s, scraping(Scrapy, Beautiful soup), raw html with urllib & NLTK Part 2 Build relevance score of the ﬁltered results TF-IDF(with cosine similarity), Structured Relevance Models (SRM), Prox- imity search, classical Information Retrieval & pattern matching algorithms @ektagrover/ekta1007@gmail.com PyCon India, 2013 15/26

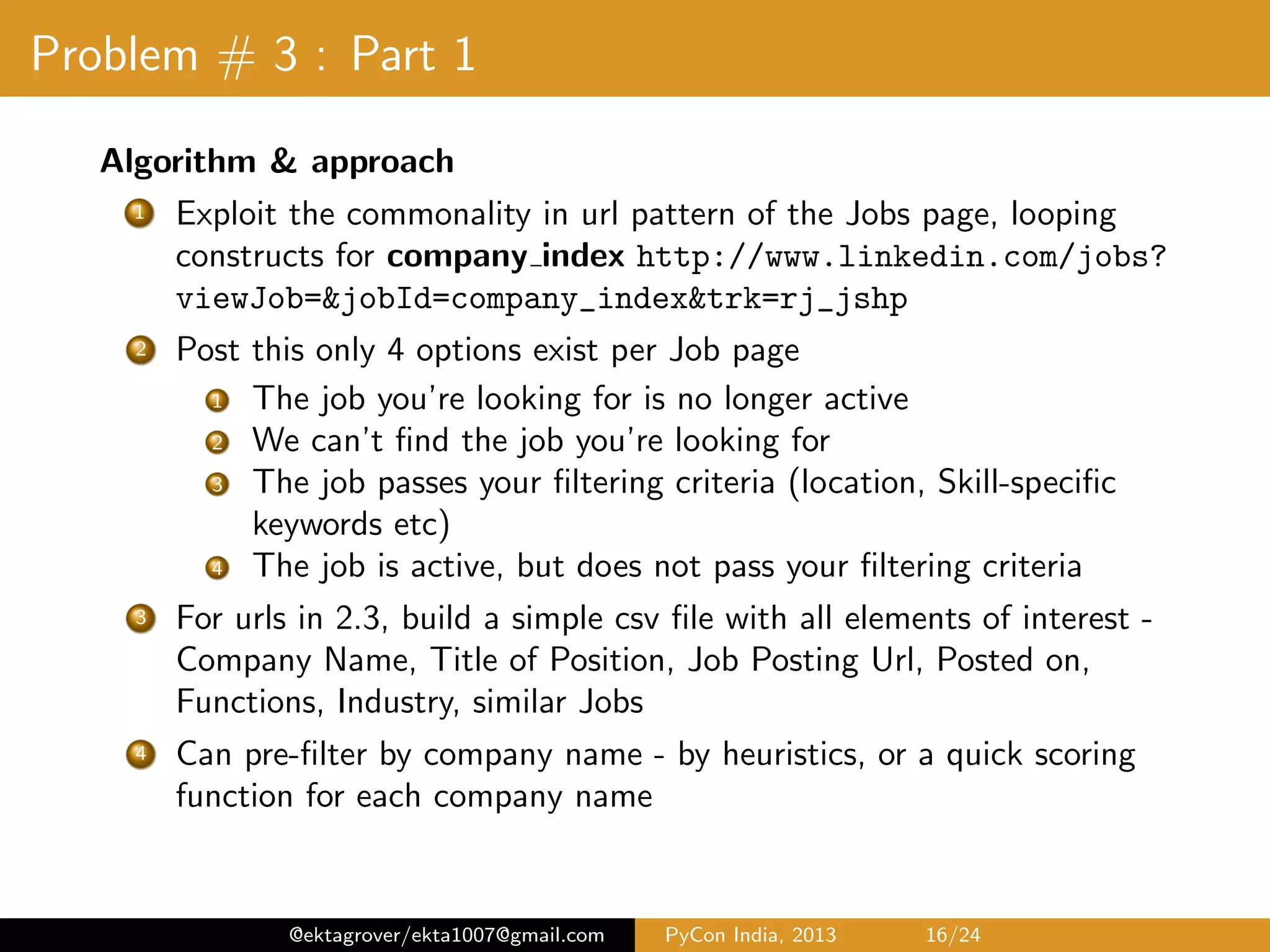

Problem # 3 : Part 1 Algorithm & approach 1 Exploit the commonality in url pattern of the Jobs page, looping constructs for job index http://www.linkedin.com/jobs? viewJob=&jobId=job_index&trk=rj_jshp 2 Post this only 4 options exist per Job page 1 The job you’re looking for is no longer active 2 We can’t find the job you’re looking for 3 The job passes your filtering criteria (location, skill-specific keywords etc) 4 The job is active, but does not pass your filtering criteria 3 For urls in 2.3, build a simple csv file with all elements of interest - Company Name, Title of Position, Job Posting Url, Posted on, Functions, Industry, similar Jobs 4 Can pre-filter by company name - by heuristics, or a quick scoring function for each company name @ektagrover/ekta1007@gmail.com PyCon India, 2013 16/26

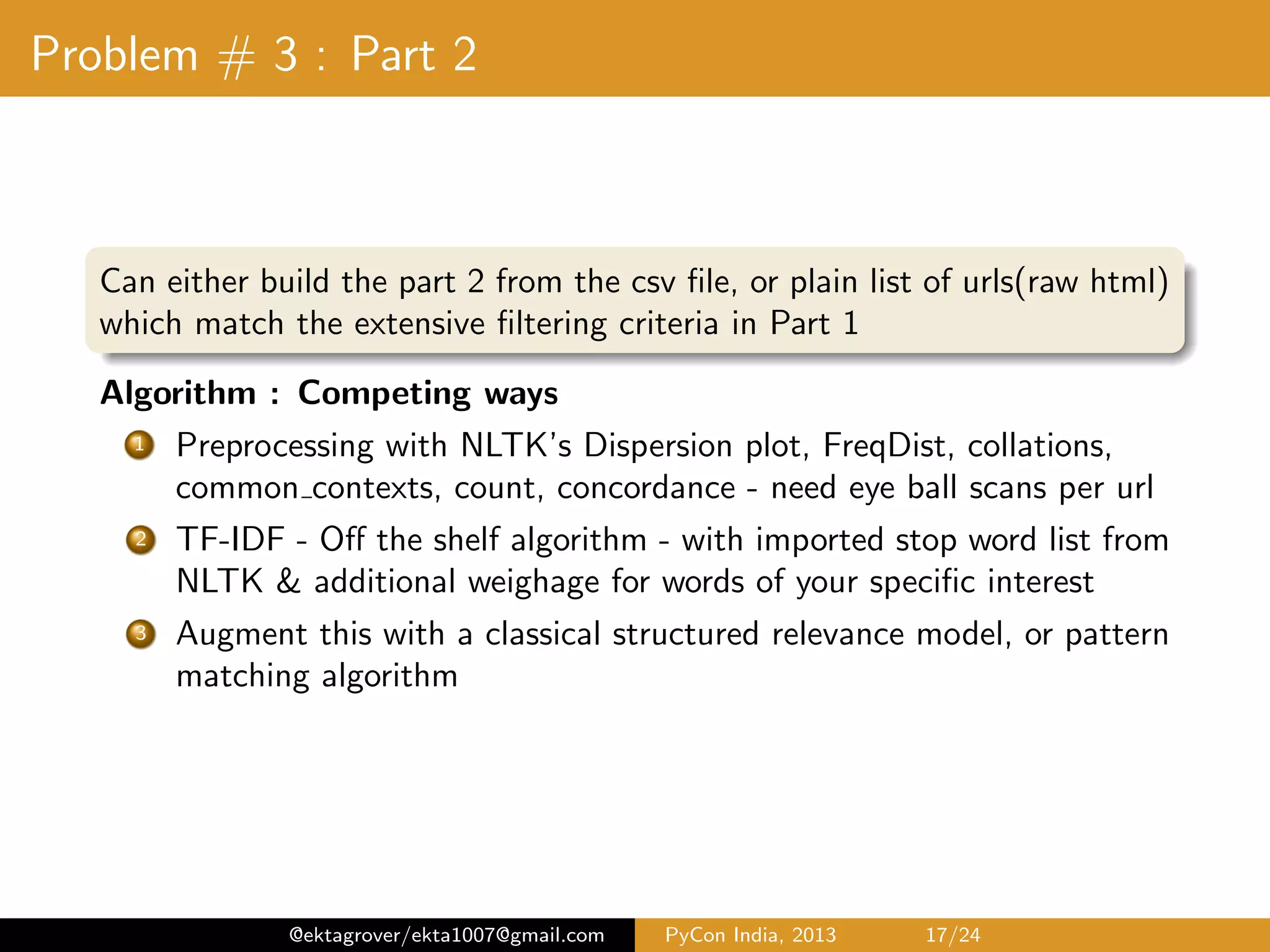

Problem # 3 : Part 2 Algorithm & Approach 1 A document is a bag-of-words - Tokenize, standard preprocessing(punctuation, lower case) 2 Exploratory analysis with NLTK’s Dispersion plot, FreqDist, collocations, common contexts, count, concordance 3 Lemmatization & stemming with NLTK’s derivationally related forms with Morphy(Wordnet), Porter, Wordnet app 4 TF-IDF - with stop word list from NLTK & additional weighage for words of your speciﬁc interest 5 Inverted index - for each word in vocabulary, store the doc-id with it’s TF-IDF, making up the whole TF-IDF vector 6 Given the TF-IDF vector of the document corpus & query, compute the cosine similarity of each document with the base query 7 Output top-k relevant Job listings, with the top-k’ words in each job feed 8 Augment this with a classical structured relevance model, Proximity search or pattern matching algorithm @ektagrover/ekta1007@gmail.com PyCon India, 2013 17/26

Problem # 3 : Representation & Visualization BusinessAnalysisSr. ManageratDell inBangalore[ 0.99374331] SrI6Software6Development6Engineer6x6Architect6−6Ad6TechFAmazons6[65IbWWGHNNL6] Technical6Program6Manager6−6Amazon6Fashion6TechnologyFAmazons6[65IbWCbW5WGG6] Data6AnalyticsxBusiness6Intelligence6Engineer6−6Buying6ExperienceFAmazons6[65Ib:bC55WL:6] SrI6Software6Development6Engineer6P6Collective6Human6IntelligenceFAmazons6[65IbHW:HGW::6] Lead6Analyst,6Statistical6Modelling6FWNS6Global6Servicess6[65Ib5GCNWCL6] Principal6ScientistB6SrI6Computer6ScientistB6Member6of6Research6StaffFAdobes6[65IG&5&WHL5G6] Research6ScientistFYahoos6[65INb5L:HCNG6] RPD−Biologics−Sr6ScientistFBiocons6[65INNNCHLWC&6] Data6ScientistFNetApps6[65I:N555H5WW6] Relevant Job feeds ranked by Cosine Similarity & TF-IDF to the base query @ektagrover/ekta1007@gmail.com PyCon India, 2013 18/26

Problem # 3 : Representation & Codewalk dell5[50.023801025] procurement5[50.0230164475] develops5[50.0104620215] strategy5[50.0104129465] goals5[50.0083696175] reports5[50.0083696175] analyzes5[50.0083696175] internal5[50.0062772135] planning5[50.0062772135] BusinessdAnalysisdSr.dManager(Dell) advertising5[50.0157264585] highly5[50.0088483225] amazon5[50.0070883285] traffic5[50.0066362425] advertisement5[50.0066362425] increase5[50.0066362425] architect5[50.0065324785] ad5[50.0059930035] distributed5[50.0047944025] Sr.dSoftwaredDevelopmentdEngineerd/dArchitect-AddTech(Amazon) nextorbit5[50.0478708685] energy5[50.0157405285] discovering5[50.0130556915] understanding5[50.0110156185] scientist5[50.011000655] enable5[50.0094321815] space5[50.009281755] trends5[50.009281755] Sr.dEnergydDatadScientist(NextOrbitdInc) Top ranking words in the respective job-feeds3 Codewalk from Github https://github.com/ekta1007/Creating-Custom-job-feeds-for-Linkedin 3 Note that some of the words are relatively uninformative like ”understanding”, ”Amazon” - could use any amongst Proximity search, Phase search, Positional index, Next word index @ektagrover/ekta1007@gmail.com PyCon India, 2013 19/26

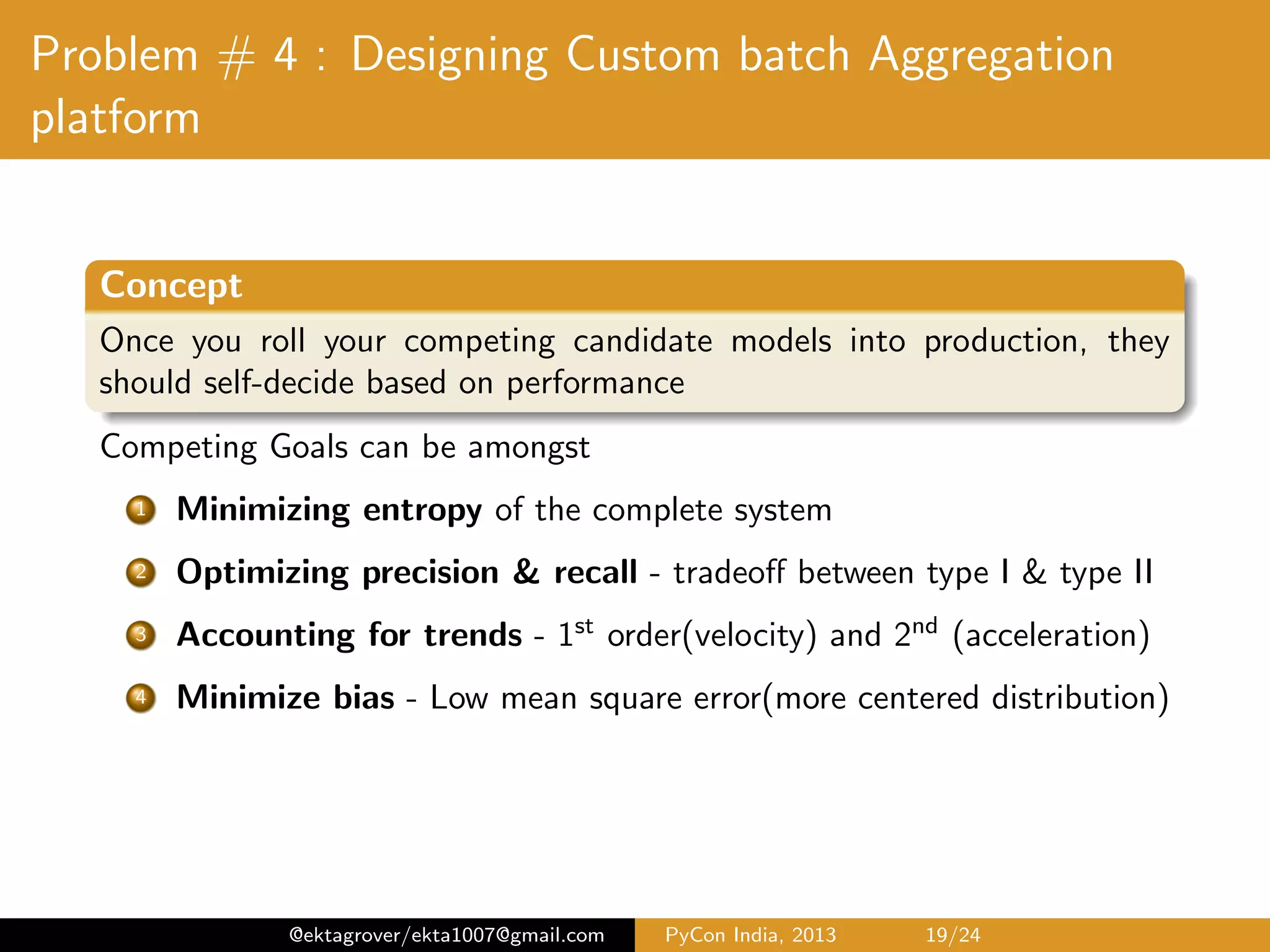

Problem # 4 : Designing a near-real time Performance Aggregation Platform Concept Once you roll your competing candidate models into production, they should self-decide based on performance Competing Goals can be amongst 1 Minimizing entropy of the complete system(more centered distribution) 2 Optimizing precision & recall4 - tradeoﬀ between type I & type II 3 Accounting for trends - 1st order(velocity) and 2nd (acceleration) 4 Minimize bias - Low mean square error, moving towards a more global representation of a problem 4 precision - fraction of retrieved instances that are relevant, recall - fraction of relevant instances that are retrieved @ektagrover/ekta1007@gmail.com PyCon India, 2013 20/26

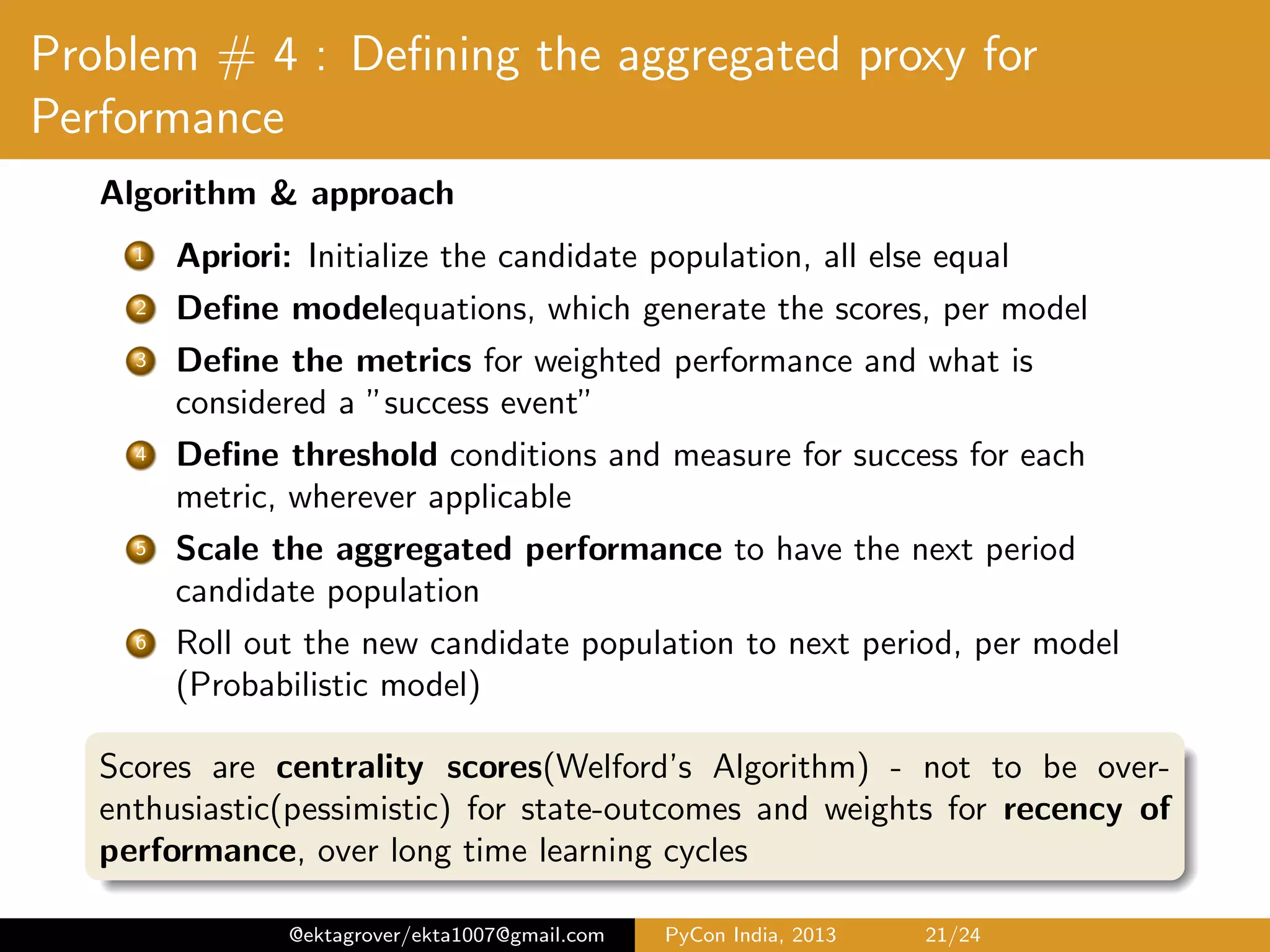

Problem # 4 : Defining the aggregated proxy for Performance Algorithm & approach 1 Apriori: Initialize the candidate population, all else equal 2 Define model equations, which generate the scores, per model 3 Define the metrics for weighted performance and what is considered a ”success event” 4 Define threshold conditions and measure for success for each metric, wherever applicable 5 Scale the aggregated performance to have the next period candidate population 6 Roll out the new candidate population to next period, per model (Probabilistic model) Scores are centrality scores(Welford’s Algorithm) - not to be over- enthusiastic(pessimistic) for state-outcomes and weights for recency of performance, over long time learning cycles @ektagrover/ekta1007@gmail.com PyCon India, 2013 21/26

Problem # 4 : Designing the performance benchmark Proxy for bias Type I & Type II errors Measure of entropy Velocity Metric Acceleration Metric Time period Model # Mean Square Precision Recall Mean Mean Variance Velocity Velocity Acceleration Acceleration bench-marked against Error Score Score by Metric 1 by Metric 2 by Metric 1 by Metric 2 t1 M1 M2 M3 M4 M5 t2 M1 M2 M3 M4 M5 @ektagrover/ekta1007@gmail.com PyCon India, 2013 22/26

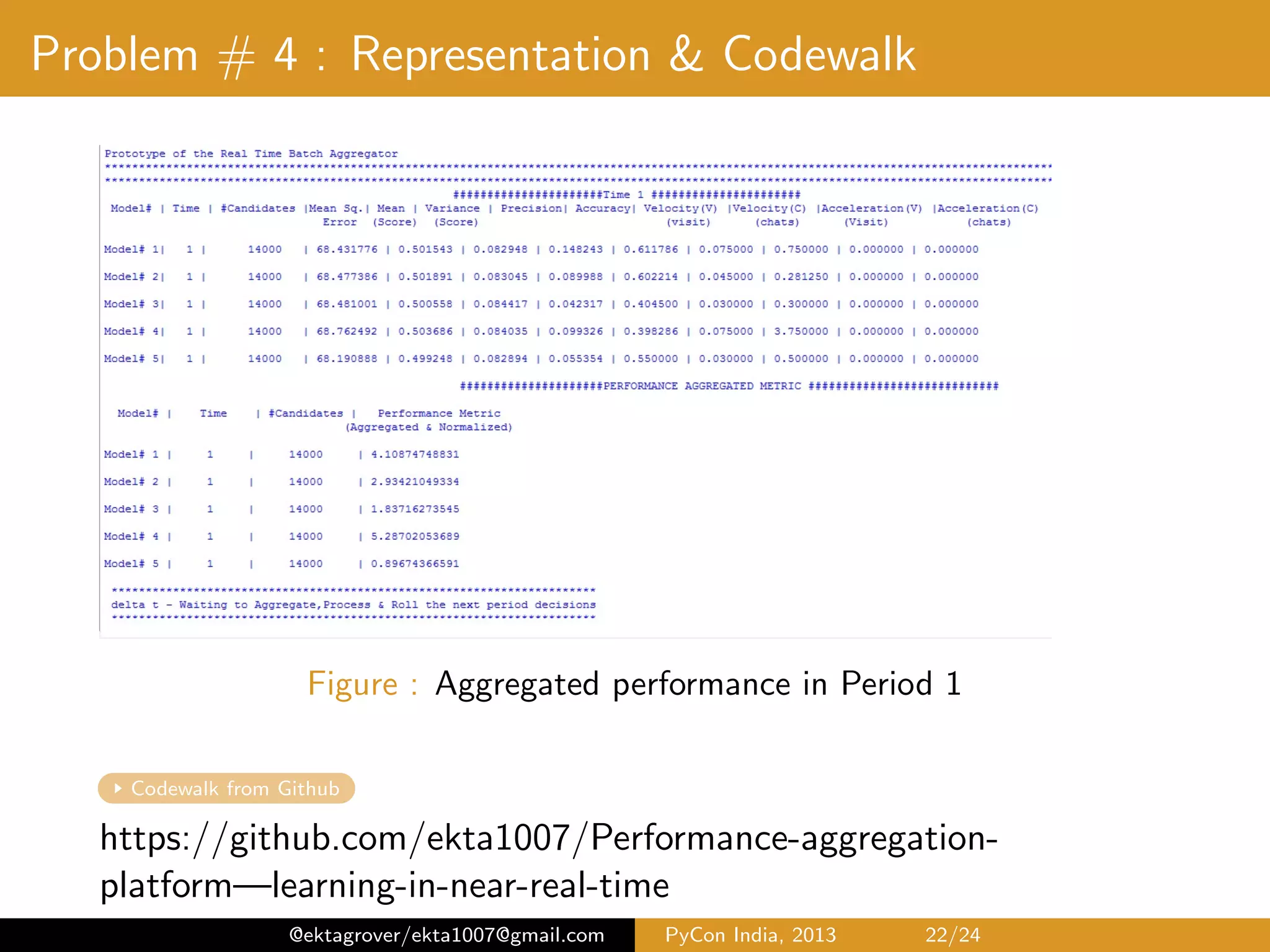

Problem # 4 : Representation & Codewalk Aggregated performance in Period 1 Codewalk from Github https://github.com/ekta1007/Performance-aggregation-platform— learning-in-near-real-time @ektagrover/ekta1007@gmail.com PyCon India, 2013 23/26

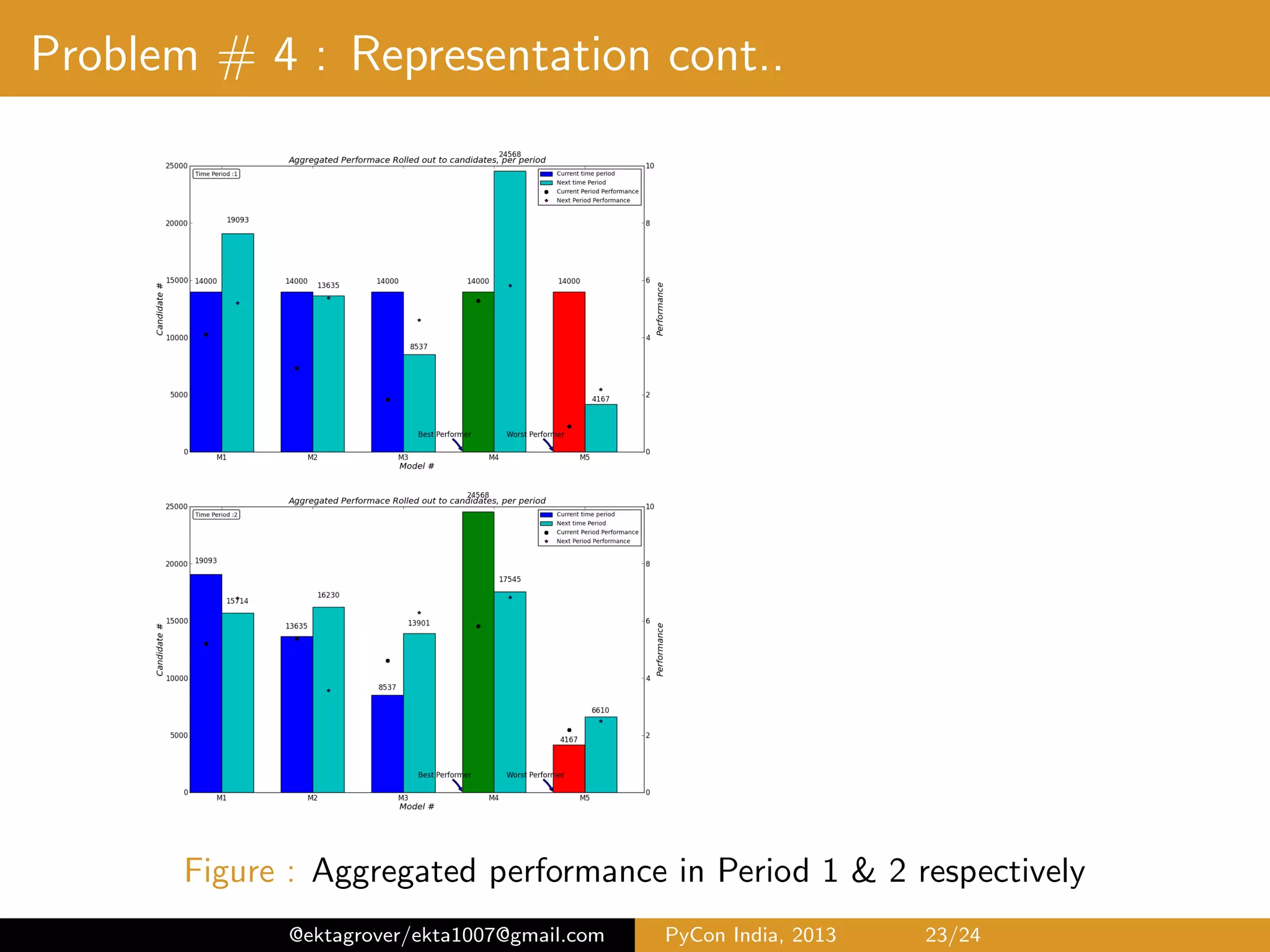

Problem # 4 : Representation cont.. Aggregated performance in Period 1 & 2 respectively @ektagrover/ekta1007@gmail.com PyCon India, 2013 24/26

Resources Link to the problems I talked today(I keep updating this) Understanding data structures in Python A Programmer’s Guide to Data Mining - Ron Zacharski Creating a Spell Checker with Solr An Intuitive example to TF-IDF, Iraq War logs - Jonathan Stray An Introduction to Information Retrieval - Christopher D. Manning, Prabhakar Raghavan, Hinrich Schutze Natural Language Processing with Python - Steven Bird, Ewan Klein, Edward Loper Stemming & lemmatization Programming Collective Intelligence: Building Smart Web 2.0 Applications - Toby Segaran Mining the Social Web: Analyzing Data from Facebook, Twitter, LinkedIn - Matthew A. Russell @ektagrover/ekta1007@gmail.com PyCon India, 2013 25/26

@ektagrover/ekta1007@gmail.com PyCon India, 2013 26/26
