Quick overview on mongo db
This document provides a quick overview of MongoDB, including: - MongoDB trades off ACID compliance for availability and scalability. - CRUD operations allow creating, reading, updating, and deleting documents. Indexes improve query performance. - Embedded documents and references model one-to-one and one-to-many relationships. - Aggregation operations group and transform data from multiple documents. Map-reduce is an alternative but less efficient.
Quick overview on mongo db
- 1.
- 2. Agenda 1. Introduction 2. CRUD 3.Cursors 4. Indexing 5. Schema Design principles 6. Aggregation 7. Map-Reduce

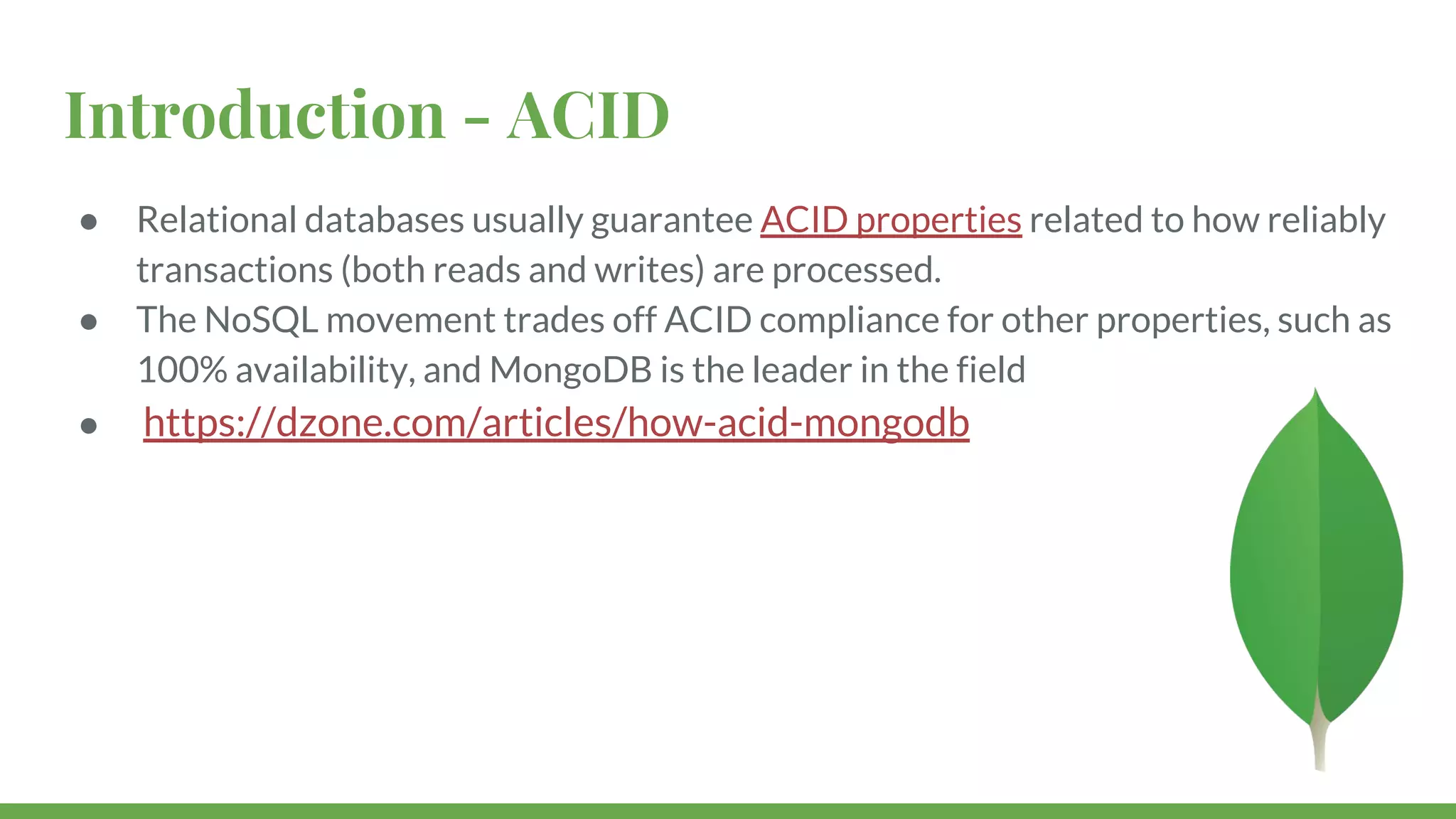

- 3. Introduction - ACID ●Relational databases usually guarantee ACID properties related to how reliably transactions (both reads and writes) are processed. ● The NoSQL movement trades off ACID compliance for other properties, such as 100% availability, and MongoDB is the leader in the field ● https://dzone.com/articles/how-acid-mongodb
- 4. Introduction - ACID ●Atomicity requires that each transaction is executed in its entirety, or fail without any change being applied. ● Consistency requires that the database only passes from a valid state to the next one, without intermediate points. Any data written to the database must be valid according to all defined rules, including constraints, cascades, triggers. ● Isolation requires that if transactions are executed concurrently, the result is equivalent to their serial execution. ● Durability means that the the result of a committed transaction is permanent, even if the database crashes immediately or in the event of a power loss.

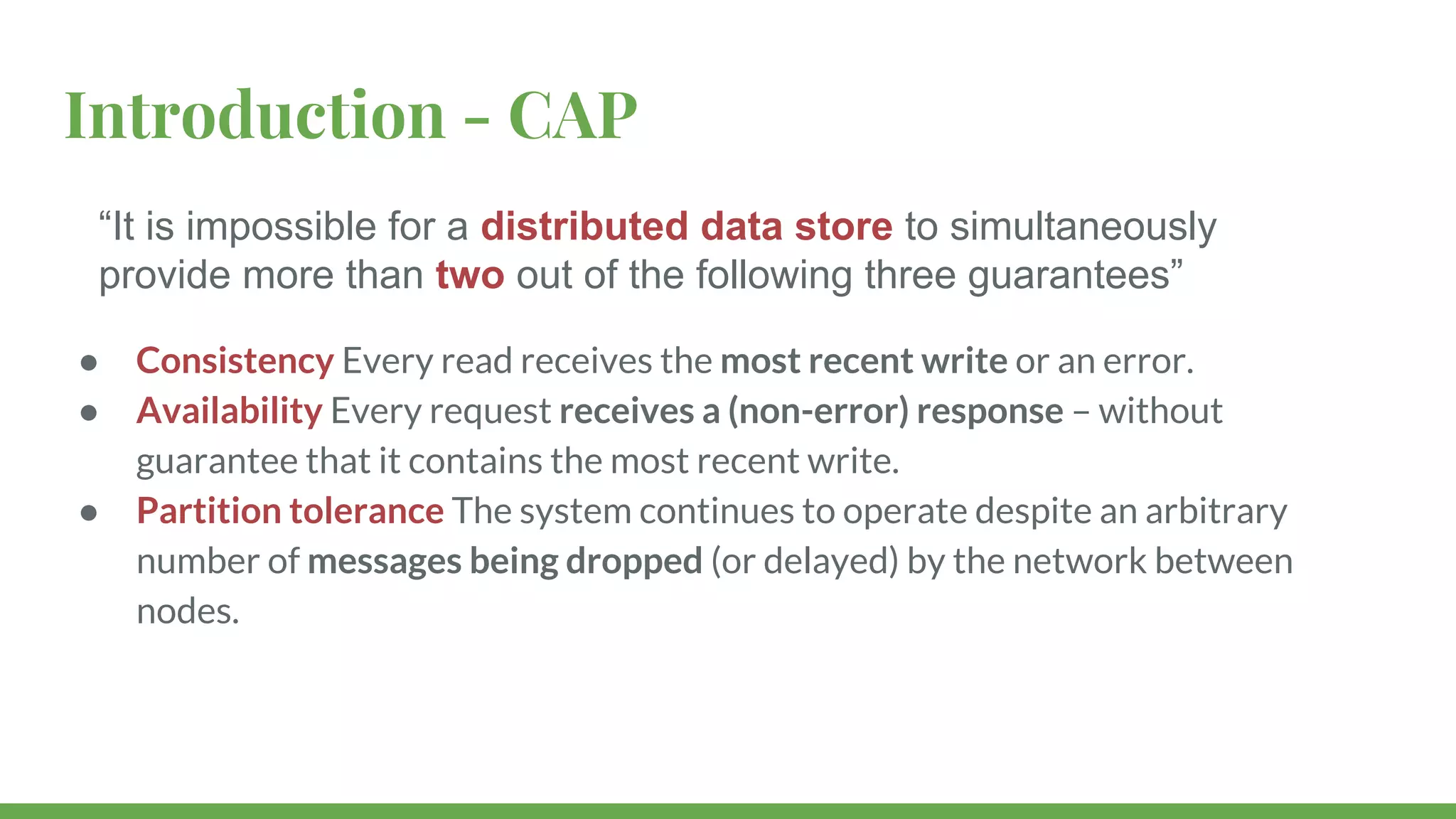

- 5. Introduction - CAP ●Consistency Every read receives the most recent write or an error. ● Availability Every request receives a (non-error) response – without guarantee that it contains the most recent write. ● Partition tolerance The system continues to operate despite an arbitrary number of messages being dropped (or delayed) by the network between nodes. “It is impossible for a distributed data store to simultaneously provide more than two out of the following three guarantees”

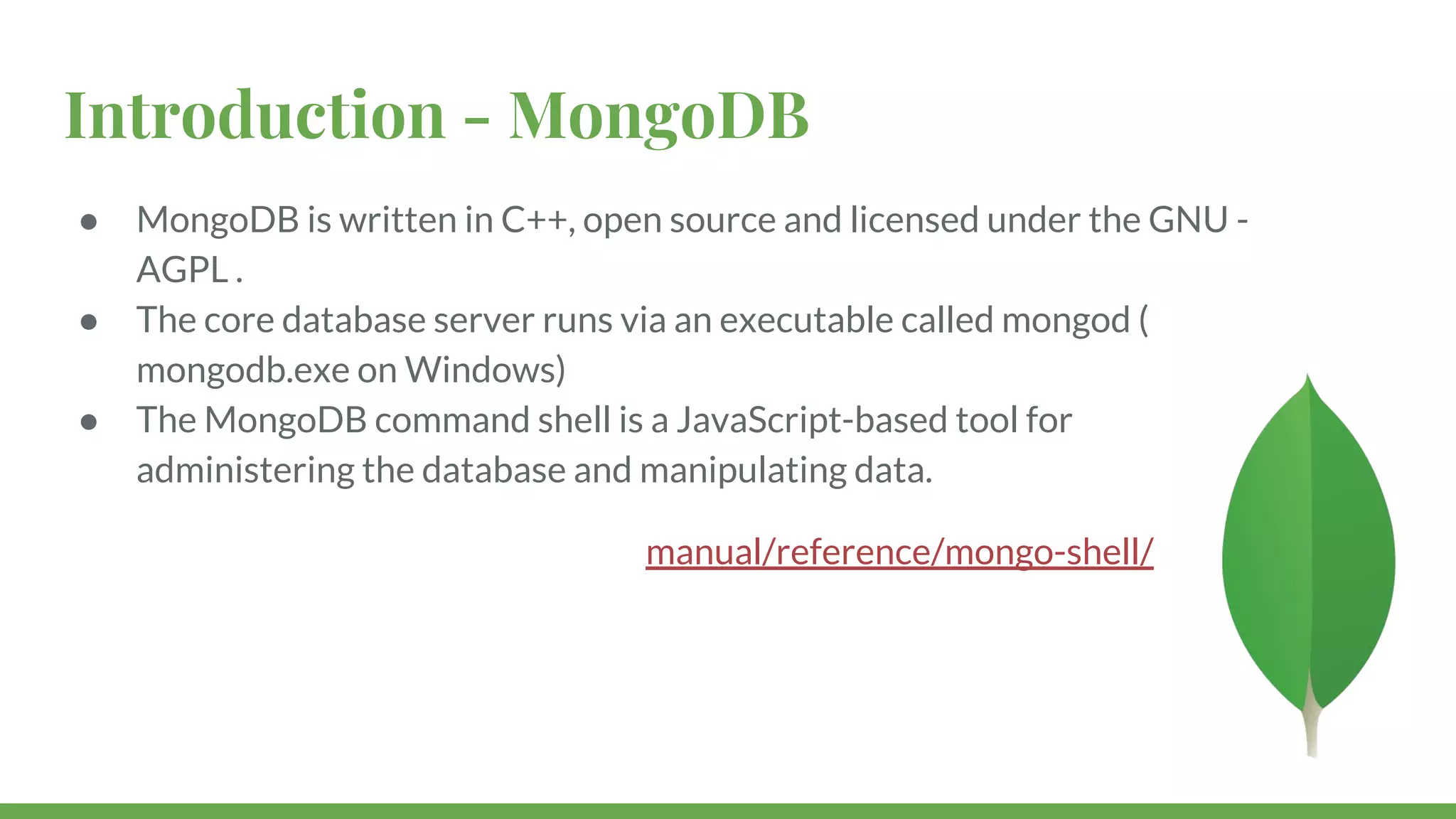

- 6. Introduction - MongoDB ●MongoDB is written in C++, open source and licensed under the GNU - AGPL . ● The core database server runs via an executable called mongod ( mongodb.exe on Windows) ● The MongoDB command shell is a JavaScript-based tool for administering the database and manipulating data. manual/reference/mongo-shell/

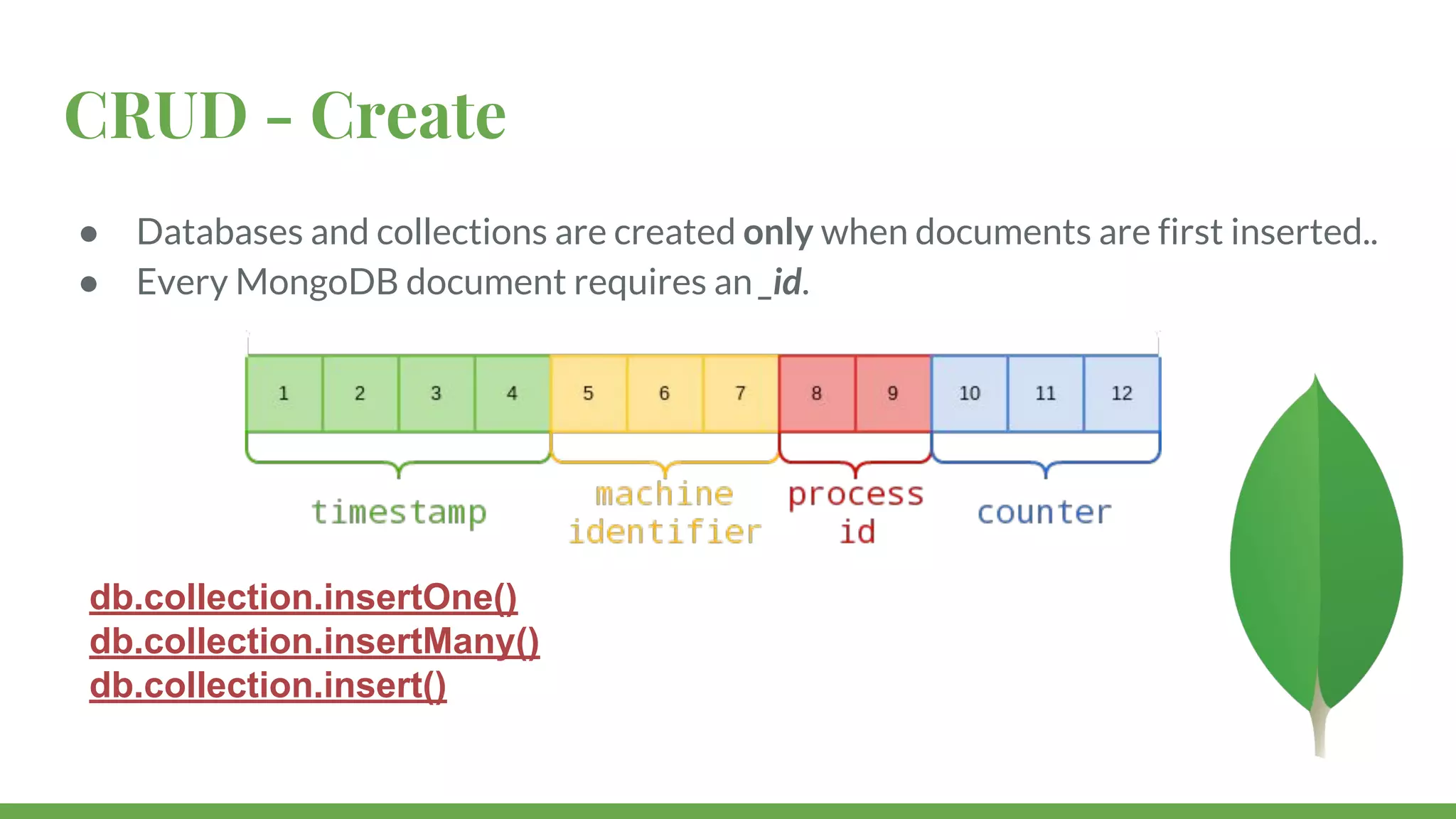

- 7. CRUD - Create ●Databases and collections are created only when documents are first inserted.. ● Every MongoDB document requires an _id. db.collection.insertOne() db.collection.insertMany() db.collection.insert()

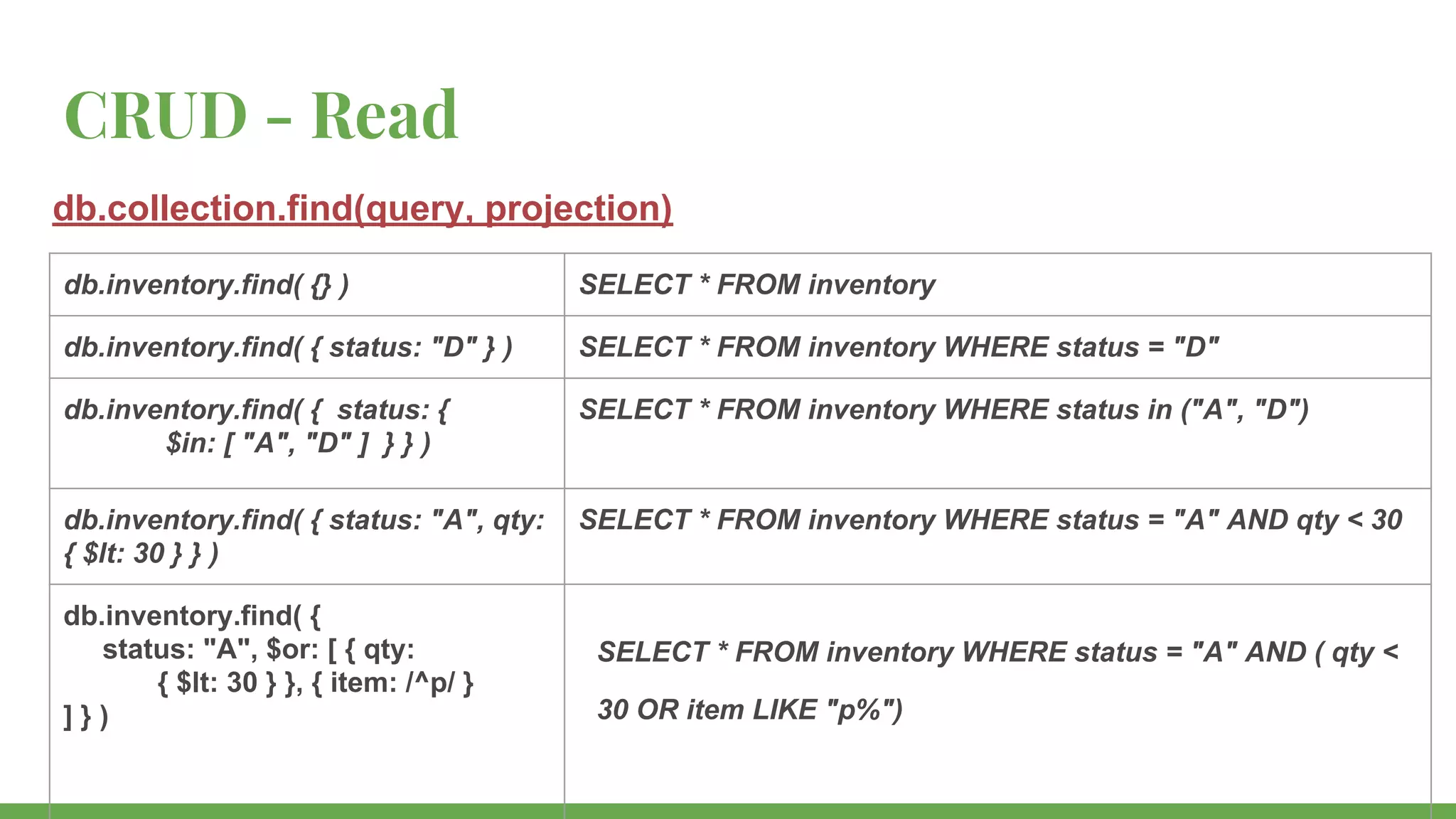

- 8. CRUD - Read db.collection.find(query,projection) db.inventory.find( {} ) SELECT * FROM inventory db.inventory.find( { status: "D" } ) SELECT * FROM inventory WHERE status = "D" db.inventory.find( { status: { $in: [ "A", "D" ] } } ) SELECT * FROM inventory WHERE status in ("A", "D") db.inventory.find( { status: "A", qty: { $lt: 30 } } ) SELECT * FROM inventory WHERE status = "A" AND qty < 30 db.inventory.find( { status: "A", $or: [ { qty: { $lt: 30 } }, { item: /^p/ } ] } ) SELECT * FROM inventory WHERE status = "A" AND ( qty < 30 OR item LIKE "p%")

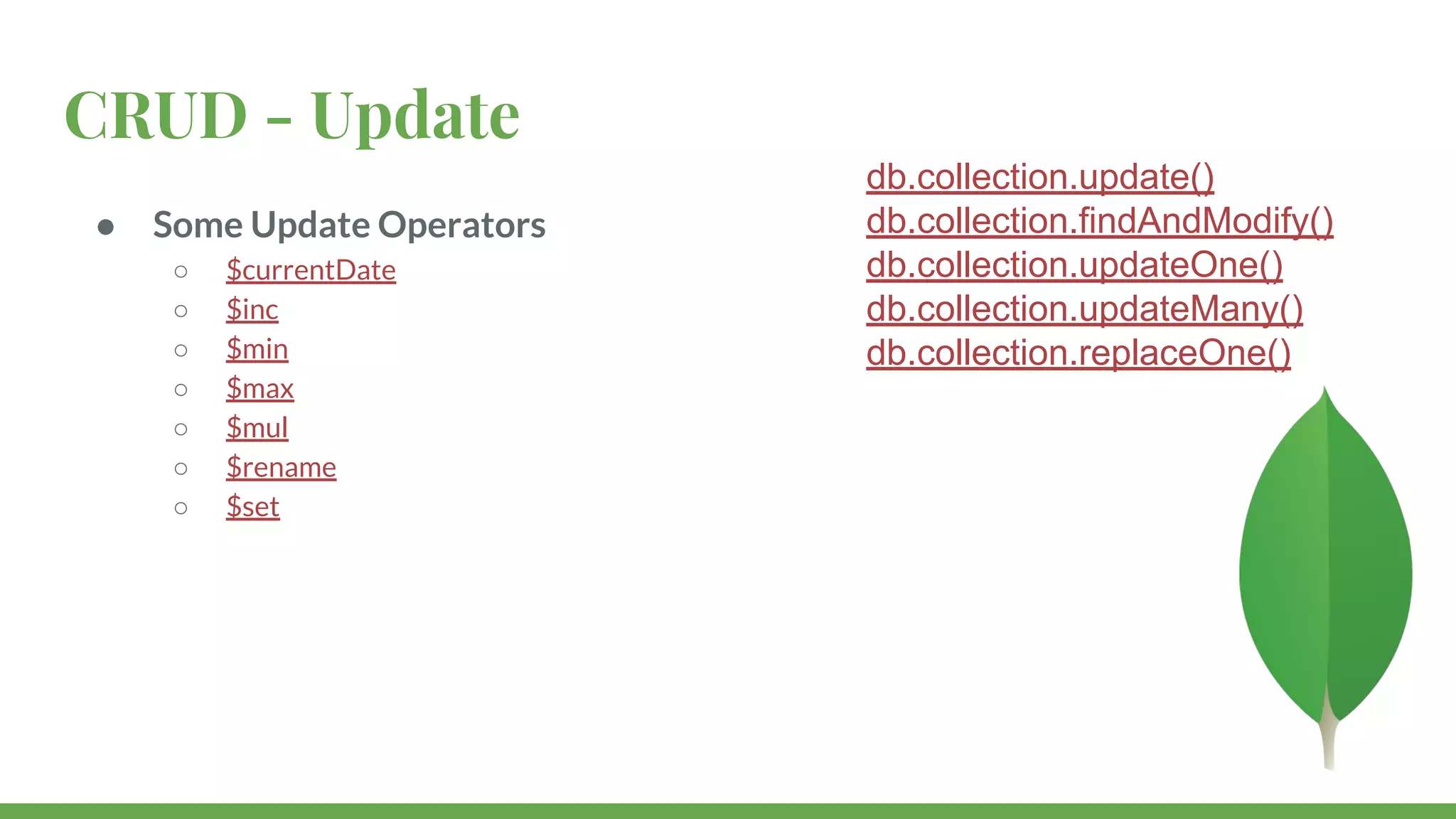

- 9. CRUD - Update ●Some Update Operators ○ $currentDate ○ $inc ○ $min ○ $max ○ $mul ○ $rename ○ $set db.collection.update() db.collection.findAndModify() db.collection.updateOne() db.collection.updateMany() db.collection.replaceOne()

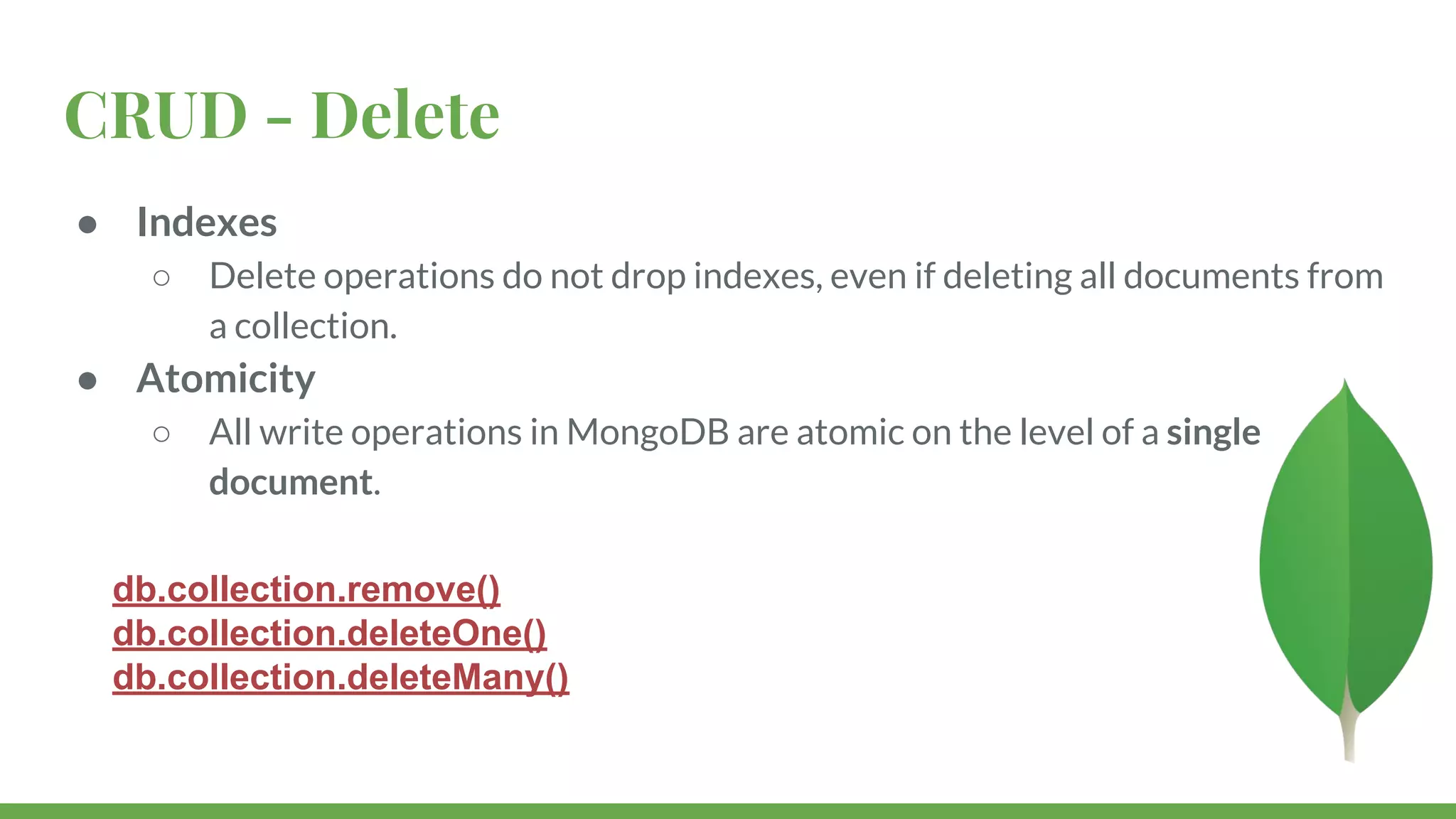

- 10. CRUD - Delete ●Indexes ○ Delete operations do not drop indexes, even if deleting all documents from a collection. ● Atomicity ○ All write operations in MongoDB are atomic on the level of a single document. db.collection.remove() db.collection.deleteOne() db.collection.deleteMany()

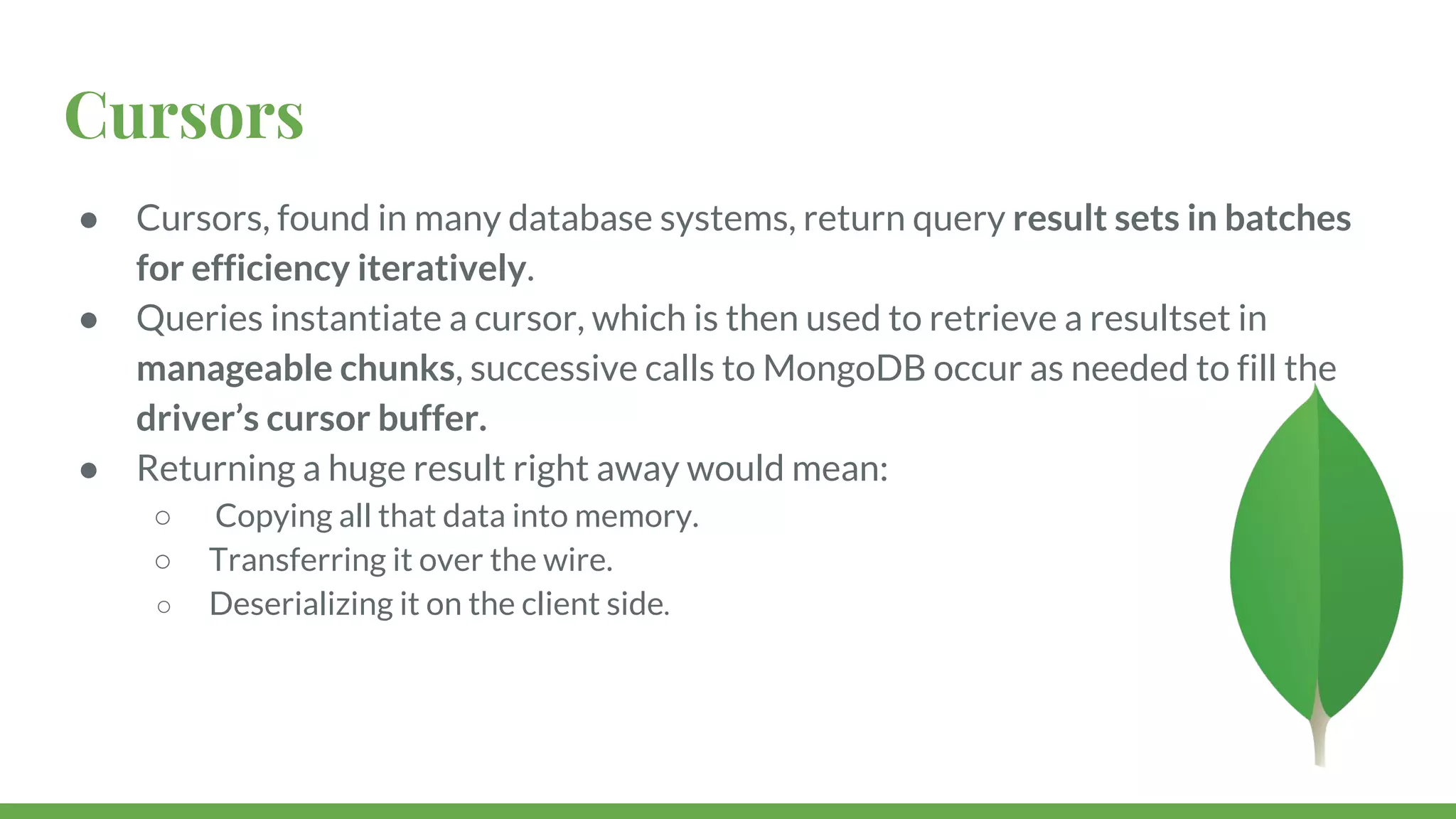

- 11. Cursors ● Cursors, foundin many database systems, return query result sets in batches for efficiency iteratively. ● Queries instantiate a cursor, which is then used to retrieve a resultset in manageable chunks, successive calls to MongoDB occur as needed to fill the driver’s cursor buffer. ● Returning a huge result right away would mean: ○ Copying all that data into memory. ○ Transferring it over the wire. ○ Deserializing it on the client side.
- 12. Indexing ● Introduction ● IndexingTypes ● Indexing Properties
- 13. Indexing- Introduction ● Indexkeys are typically smaller than the documents they catalog, and indexes are typically available in RAM or located sequentially on disk. ● Covered Queries ○ When the query criteria and the projection of a query include only the indexed fields ○ Results returned directly from the index without scanning any documents or bringing documents into memory. ● Ensure Indexes Fit in RAM ○ use the db.collection.totalIndexSize() helper, which returns index size in bytes.

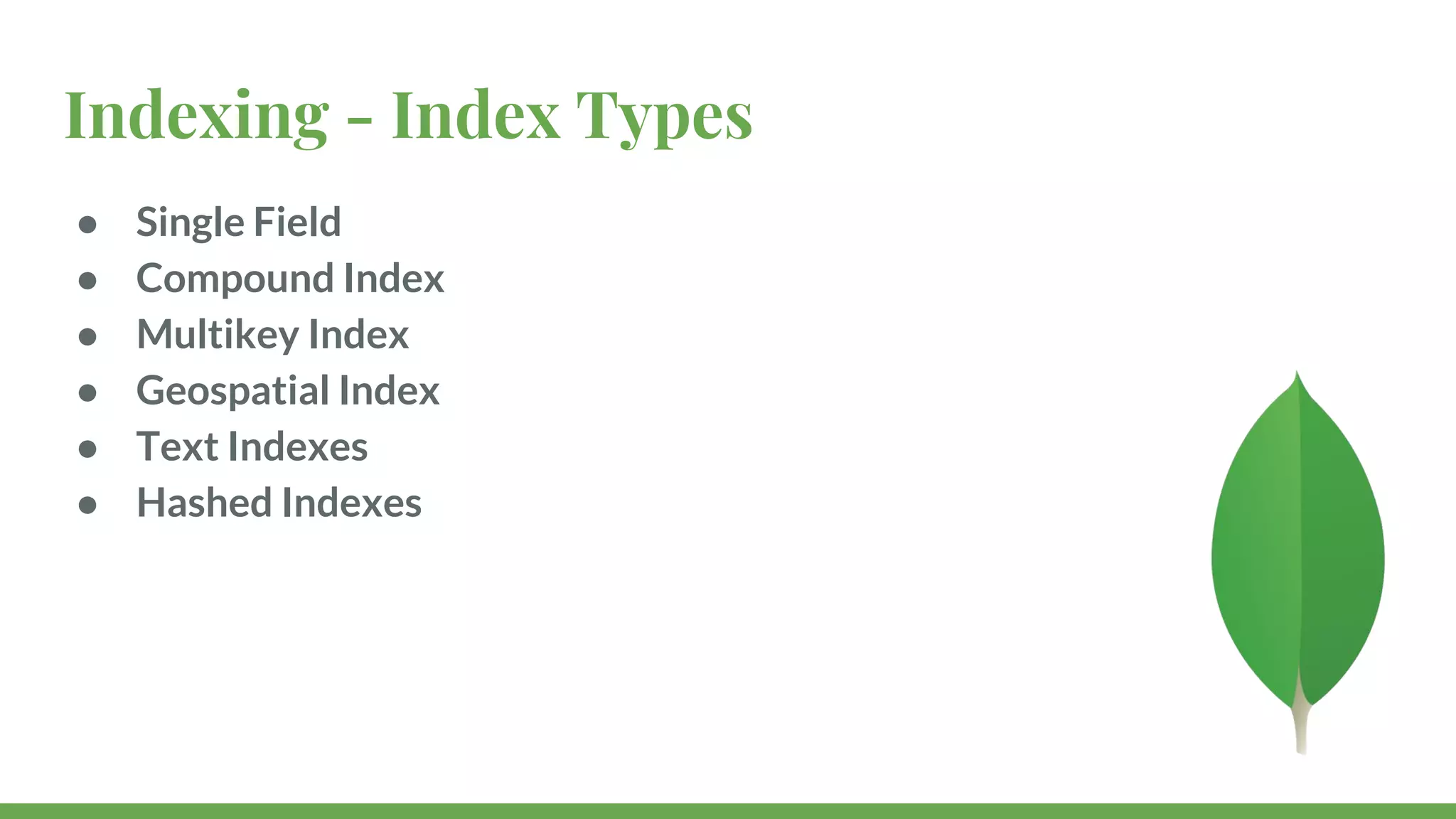

- 14. Indexing - IndexTypes ● Single Field ● Compound Index ● Multikey Index ● Geospatial Index ● Text Indexes ● Hashed Indexes
- 15. Indexing - IndexProperties ● TTL Indexes ○ The TTL index is used for TTL collections, which expire data after a period of time. ● Unique Indexes ○ A unique index causes MongoDB to reject all documents that contain a duplicate value for the indexed field. ● Partial Indexes ○ A partial index indexes only documents that meet specified filter criteria. ● Case Insensitive Indexes ○ A case insensitive index disregards the case of the index key values. ● Sparse Indexes ○ A sparse index does not index documents that do not have the indexed field.

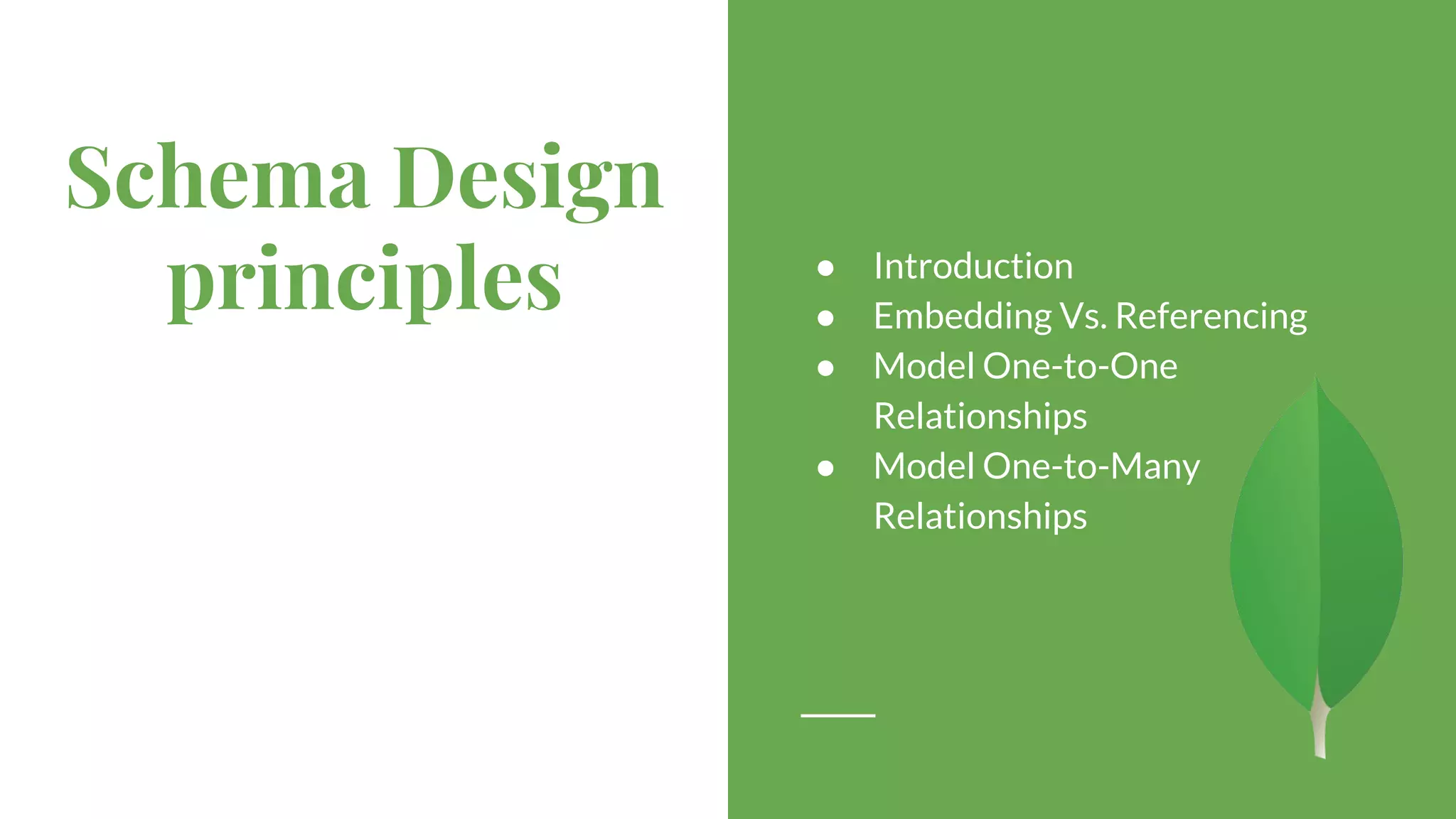

- 16. Schema Design principles ●Introduction ● Embedding Vs. Referencing ● Model One-to-One Relationships ● Model One-to-Many Relationships

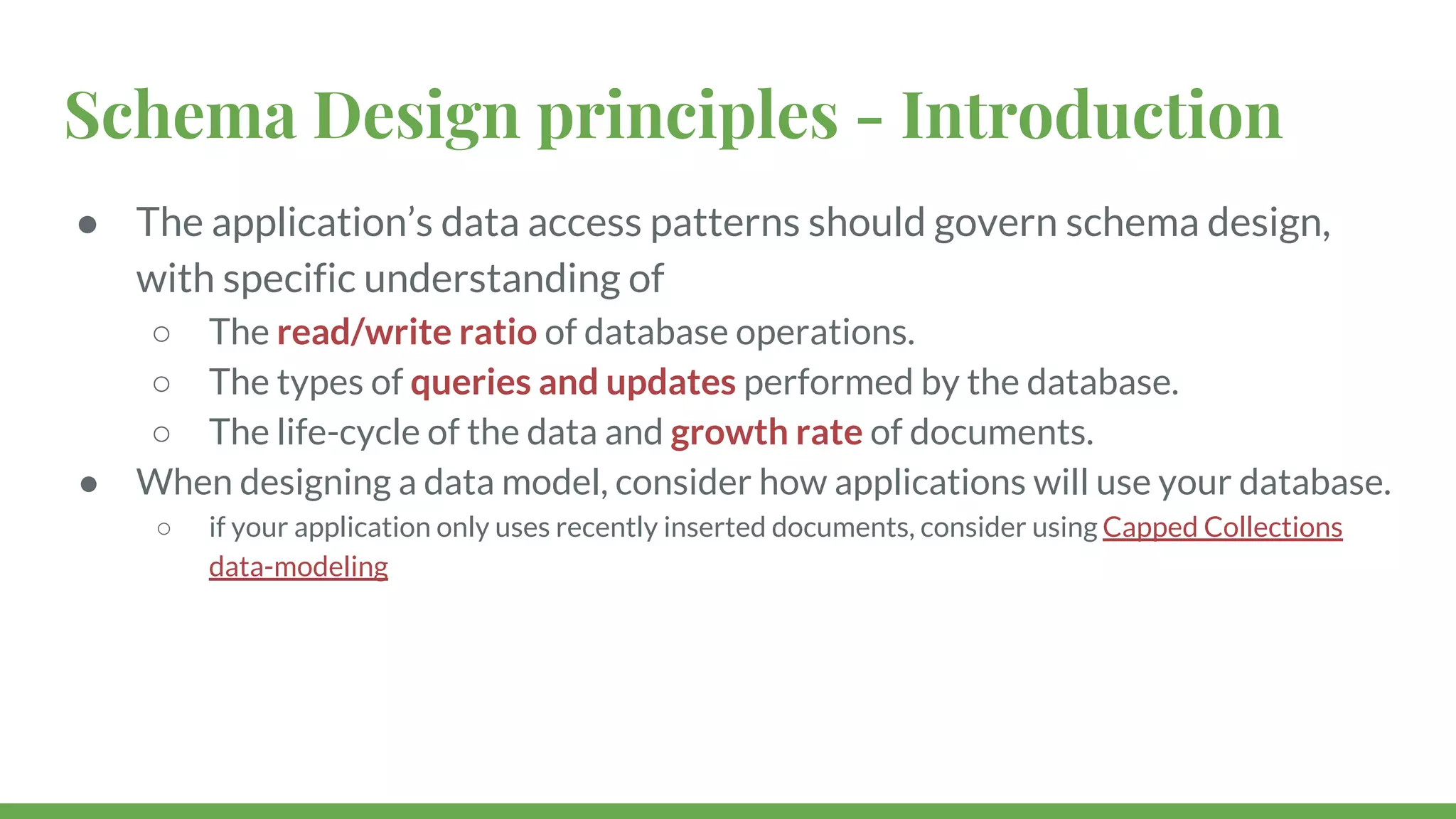

- 17. Schema Design principles- Introduction ● The application’s data access patterns should govern schema design, with specific understanding of ○ The read/write ratio of database operations. ○ The types of queries and updates performed by the database. ○ The life-cycle of the data and growth rate of documents. ● When designing a data model, consider how applications will use your database. ○ if your application only uses recently inserted documents, consider using Capped Collections data-modeling
- 18.

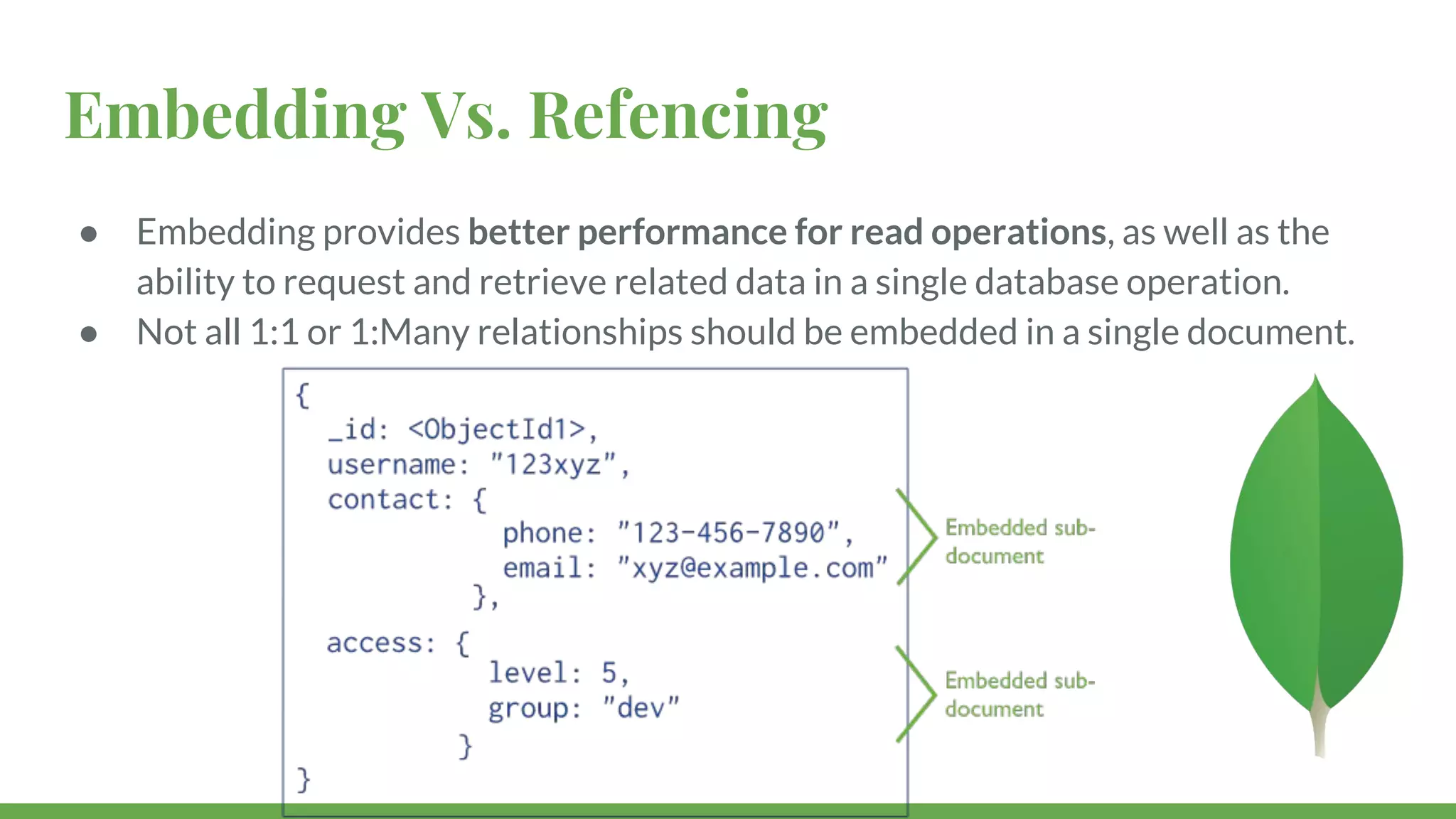

- 19. Embedding Vs. Refencing ●Embedding provides better performance for read operations, as well as the ability to request and retrieve related data in a single database operation. ● Not all 1:1 or 1:Many relationships should be embedded in a single document.
- 20. Embedding Vs. Refencing ●References store the relationships between data by including links or references from one document to another. ○ When embedding would not provide sufficient read performance advantages ○ Where the object is referenced from many different sources. ○ To represent complex many-to-many relationships. ○ To model large, hierarchical data sets.

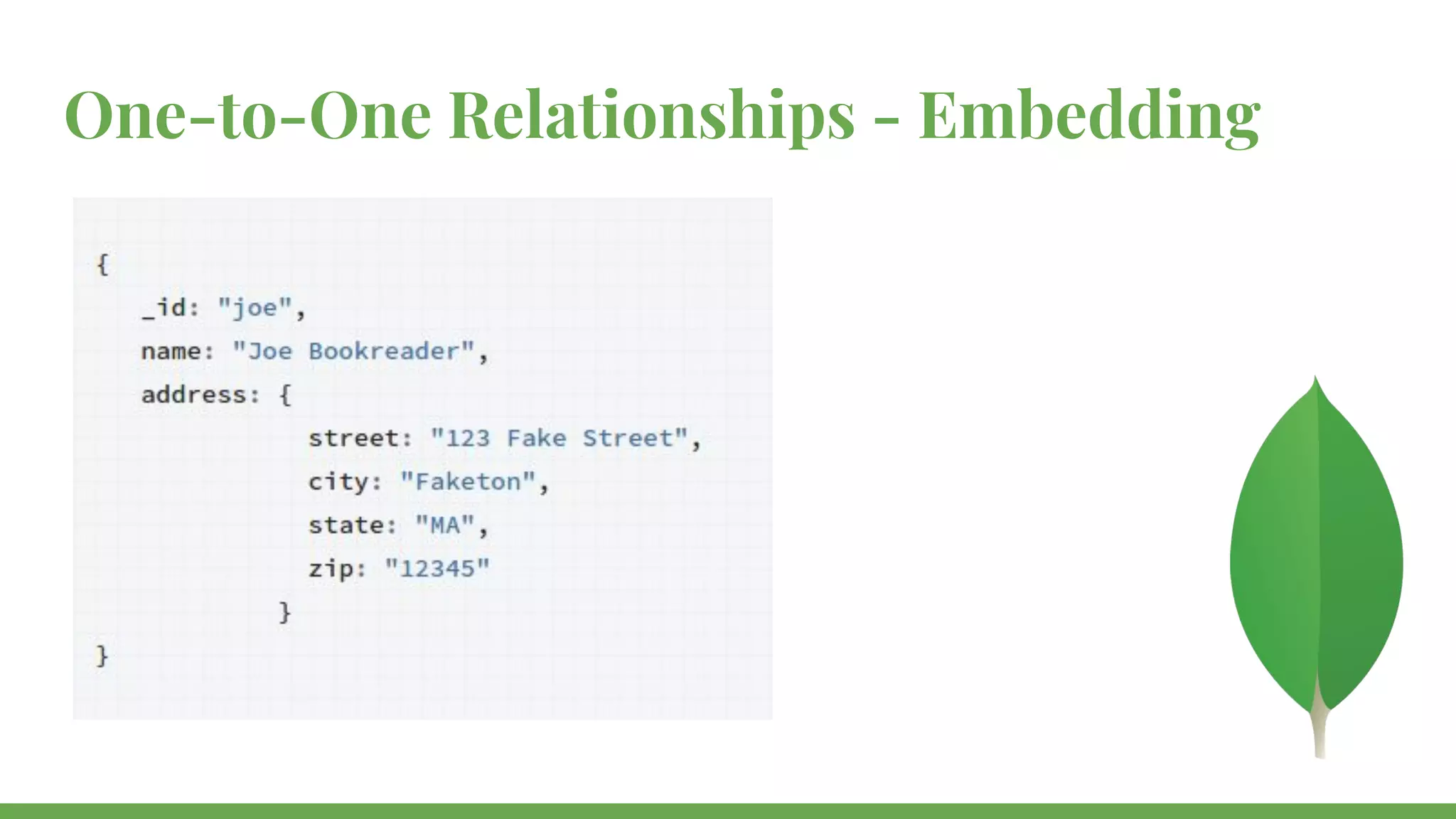

- 21. One-to-One Relationships -Embedding
- 22.
- 23.
- 24.

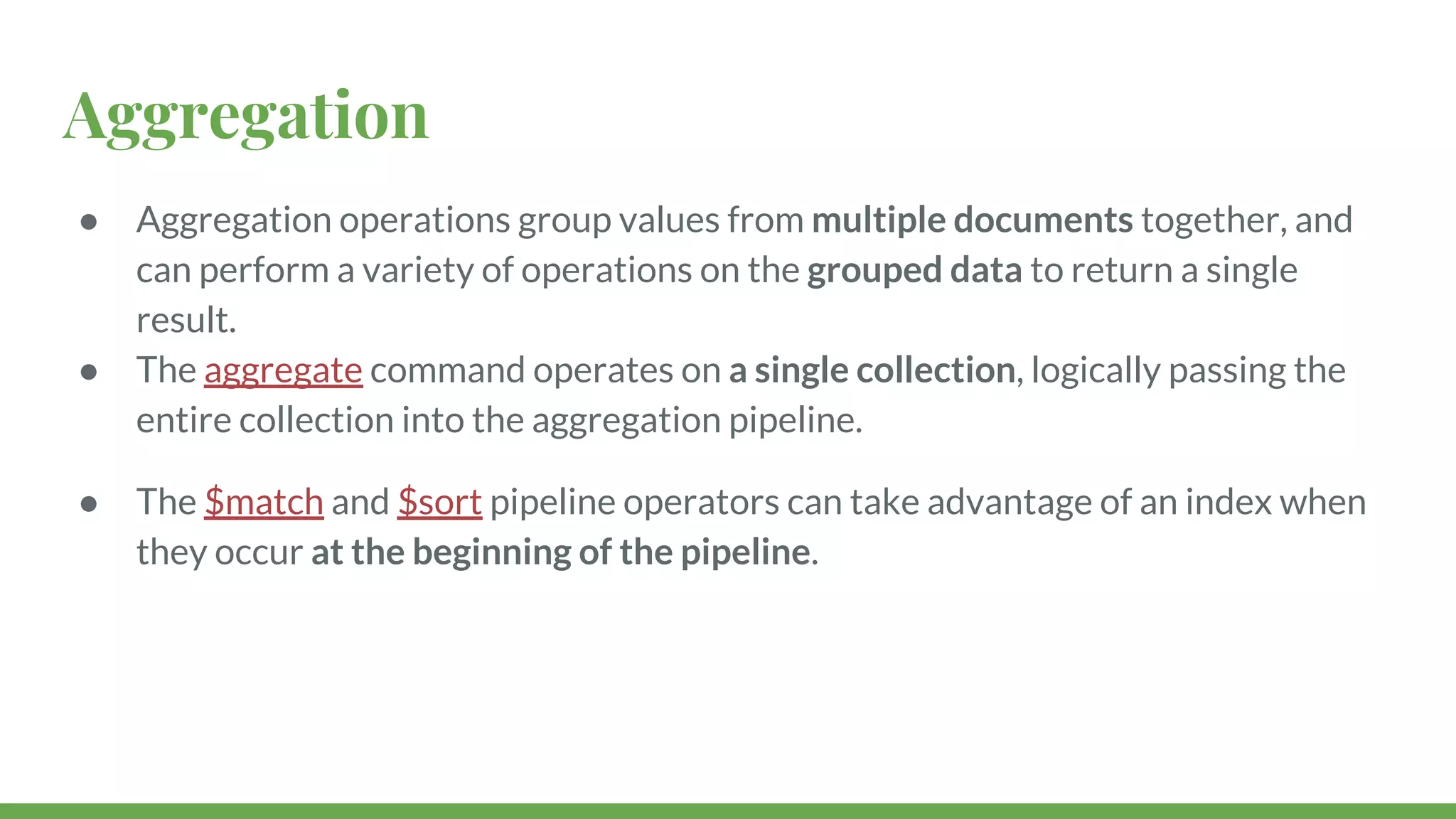

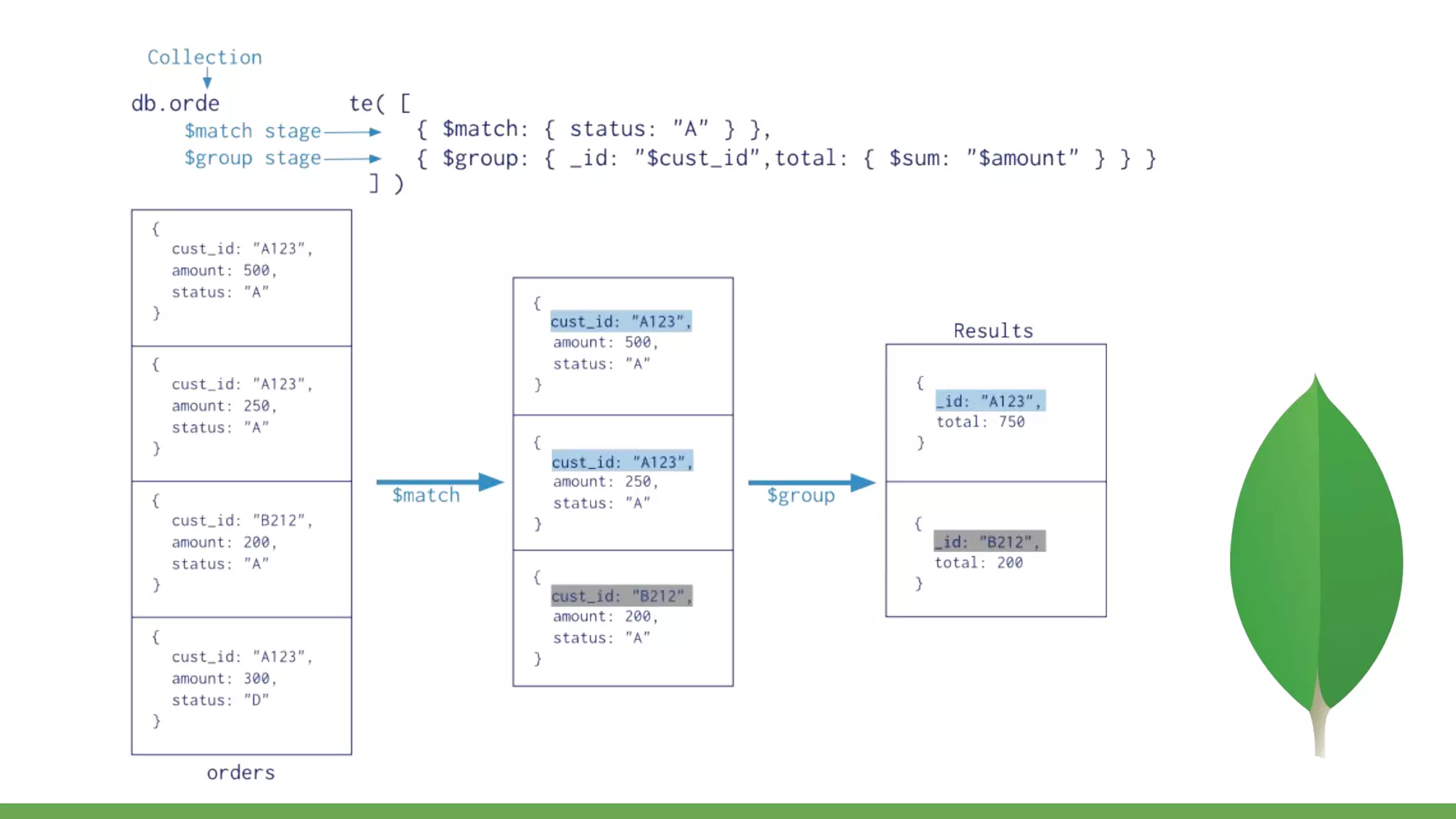

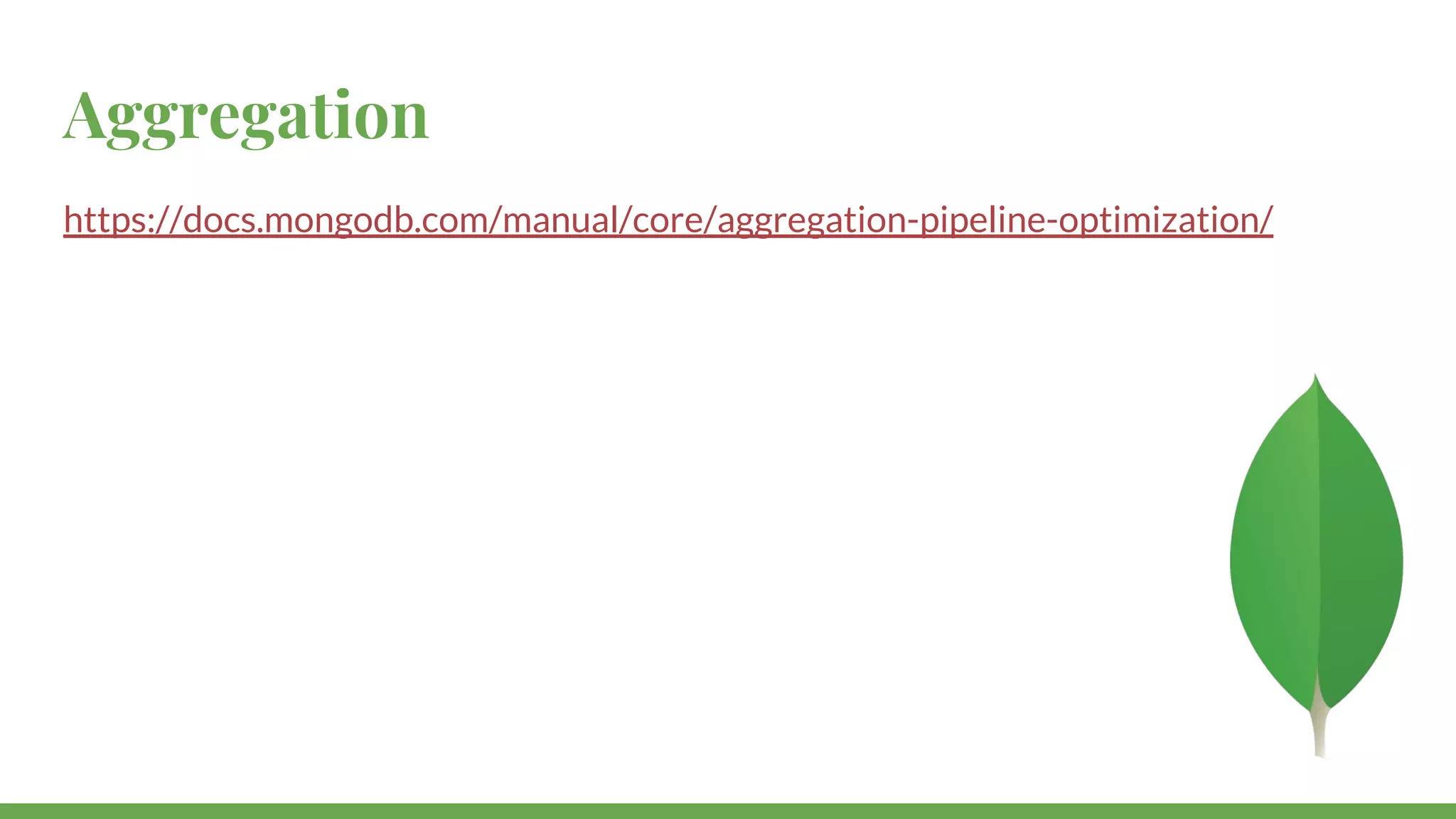

- 25. Aggregation ● Aggregation operationsgroup values from multiple documents together, and can perform a variety of operations on the grouped data to return a single result. ● The aggregate command operates on a single collection, logically passing the entire collection into the aggregation pipeline. ● The $match and $sort pipeline operators can take advantage of an index when they occur at the beginning of the pipeline.
- 27.

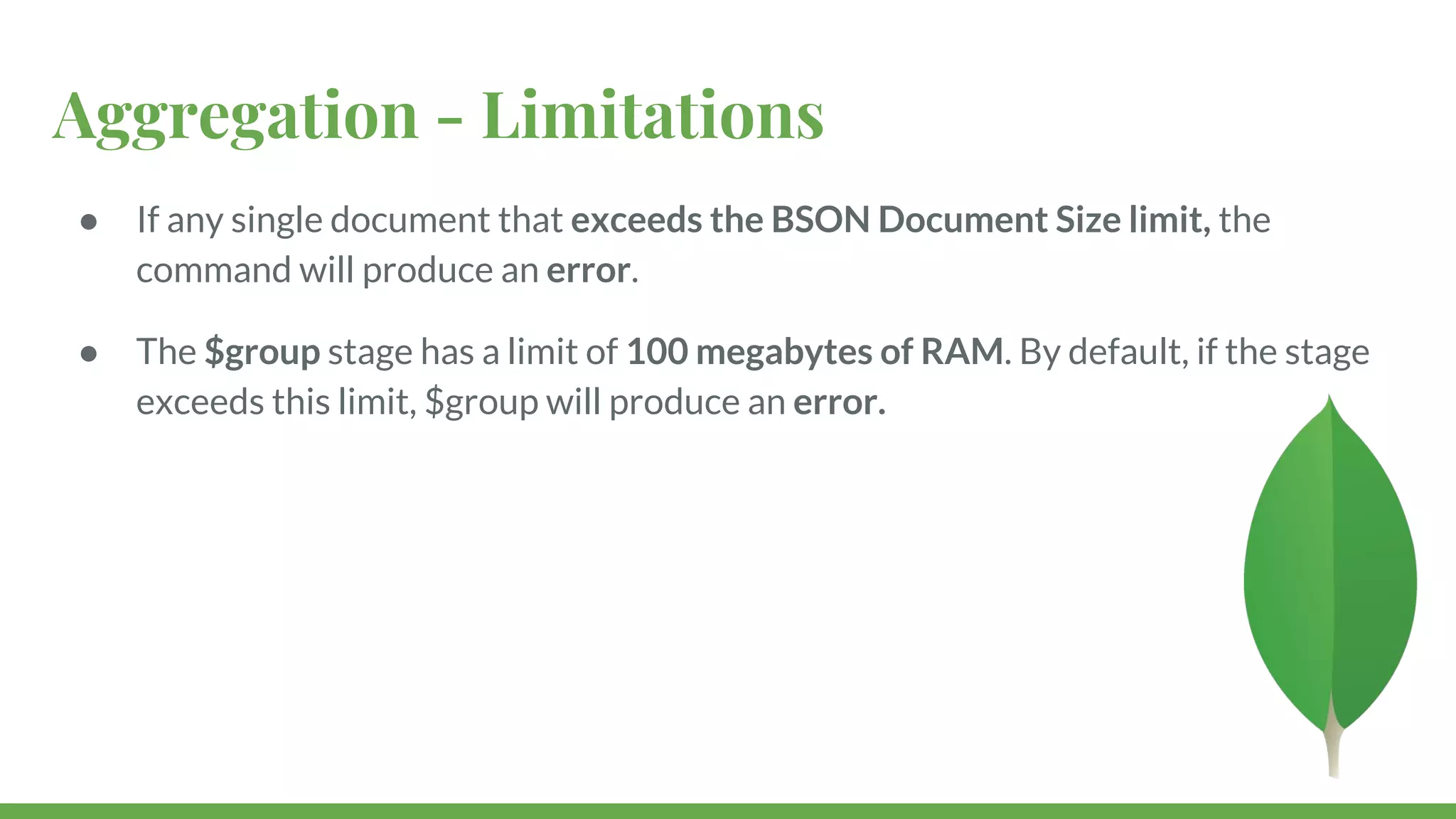

- 28. Aggregation - Limitations ●If any single document that exceeds the BSON Document Size limit, the command will produce an error. ● The $group stage has a limit of 100 megabytes of RAM. By default, if the stage exceeds this limit, $group will produce an error.

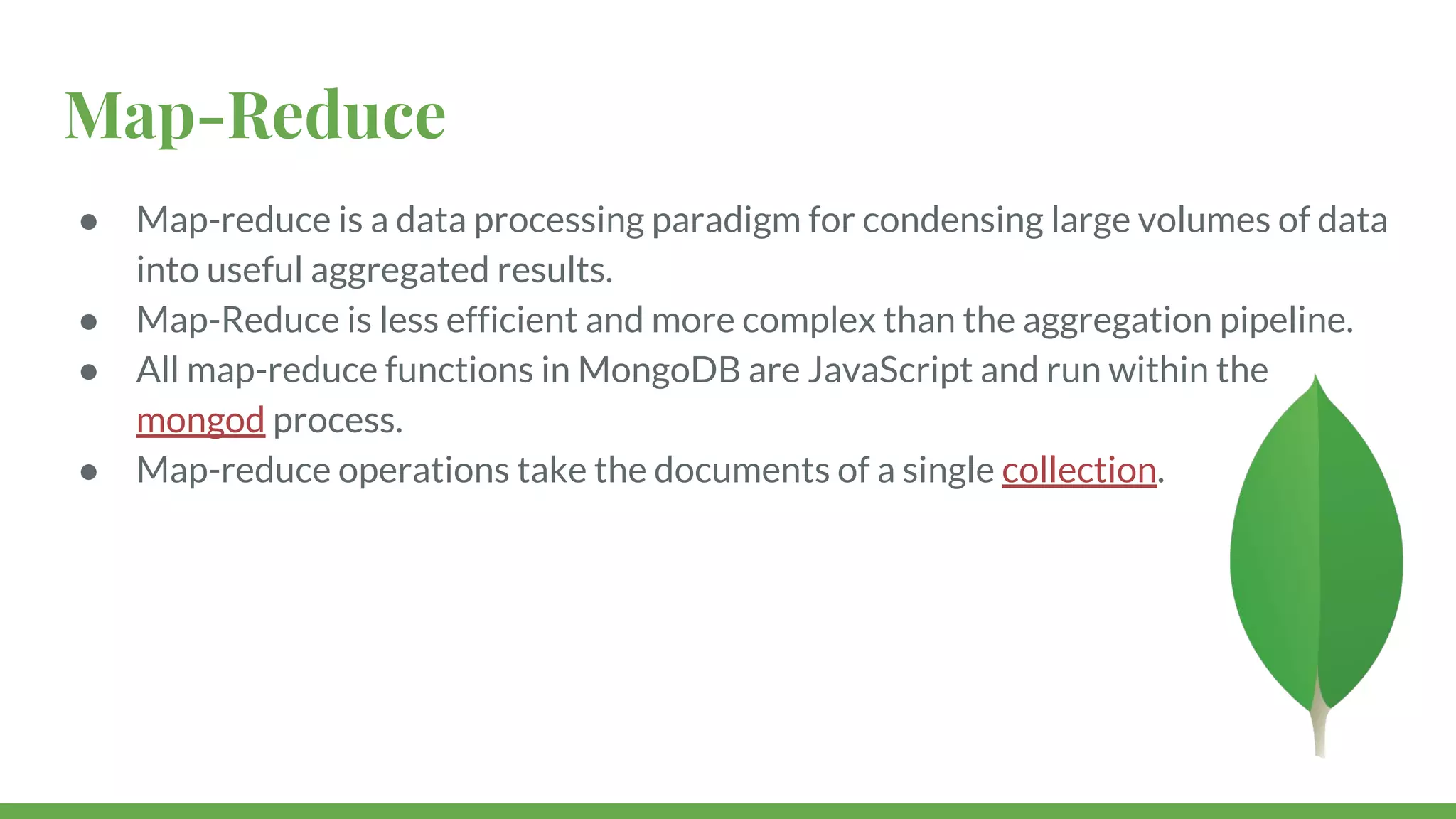

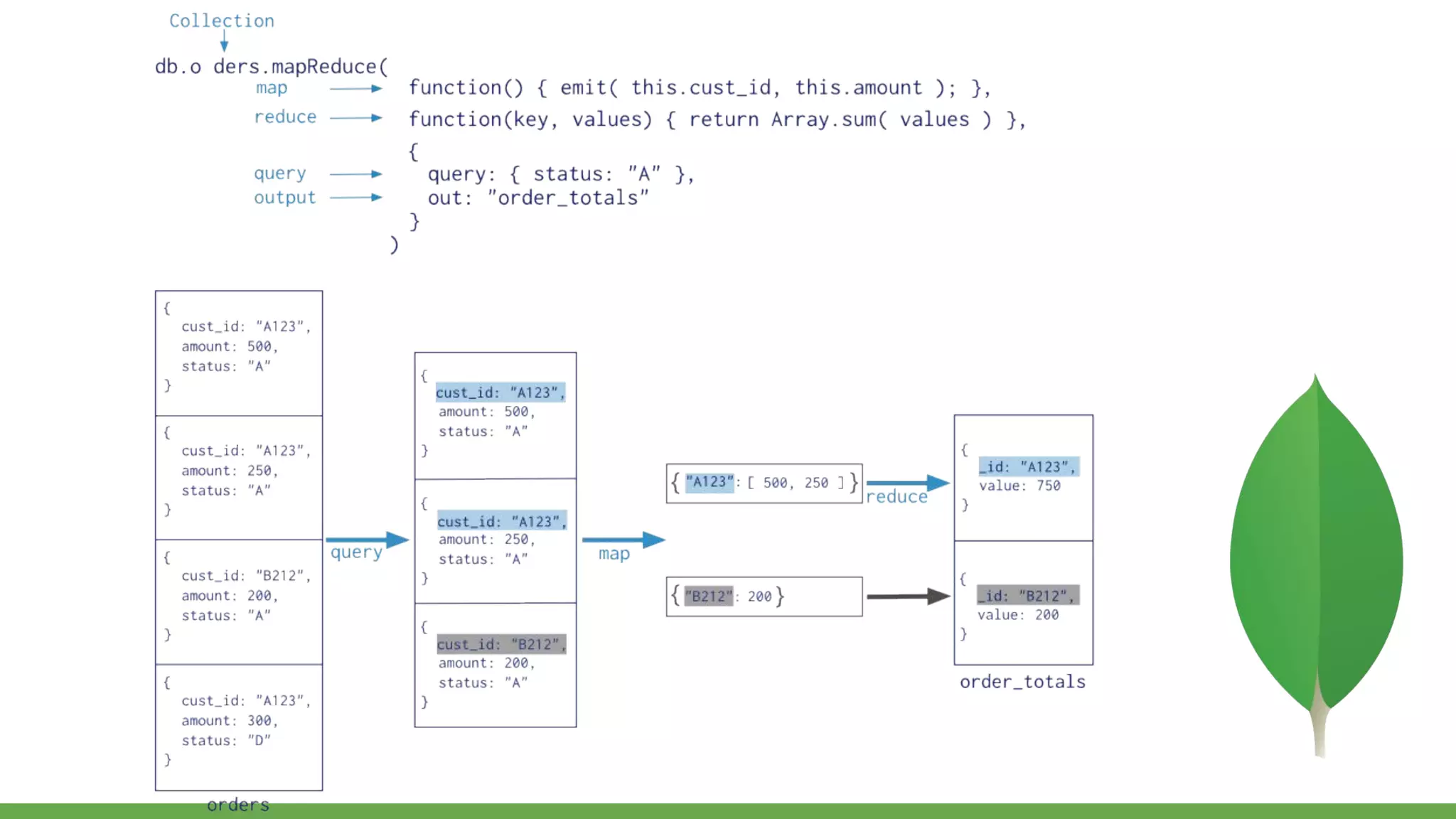

- 29. Map-Reduce ● Map-reduce isa data processing paradigm for condensing large volumes of data into useful aggregated results. ● Map-Reduce is less efficient and more complex than the aggregation pipeline. ● All map-reduce functions in MongoDB are JavaScript and run within the mongod process. ● Map-reduce operations take the documents of a single collection.
- 31.
