Running Kafka On Kubernetes With Strimzi For Real-Time Streaming Applications
- 2. Who am I? I’mSean Glover • Principal Engineer at Lightbend • Member of the Lightbend Pipelines team • Organizer of Scala Toronto (scalator) • Author and contributor to various projects in the Kafka ecosystem including Kafka, Alpakka Kafka (reactive-kafka), Strimzi, Kafka Lag Exporter, DC/OS Commons SDK 3 / seg1o
- 3. Operations Is Hard “Technologywill make our lives easier” Technology makes running other technology easier Automate as much operations work as we can 4 Designed by Freepik
- 4.

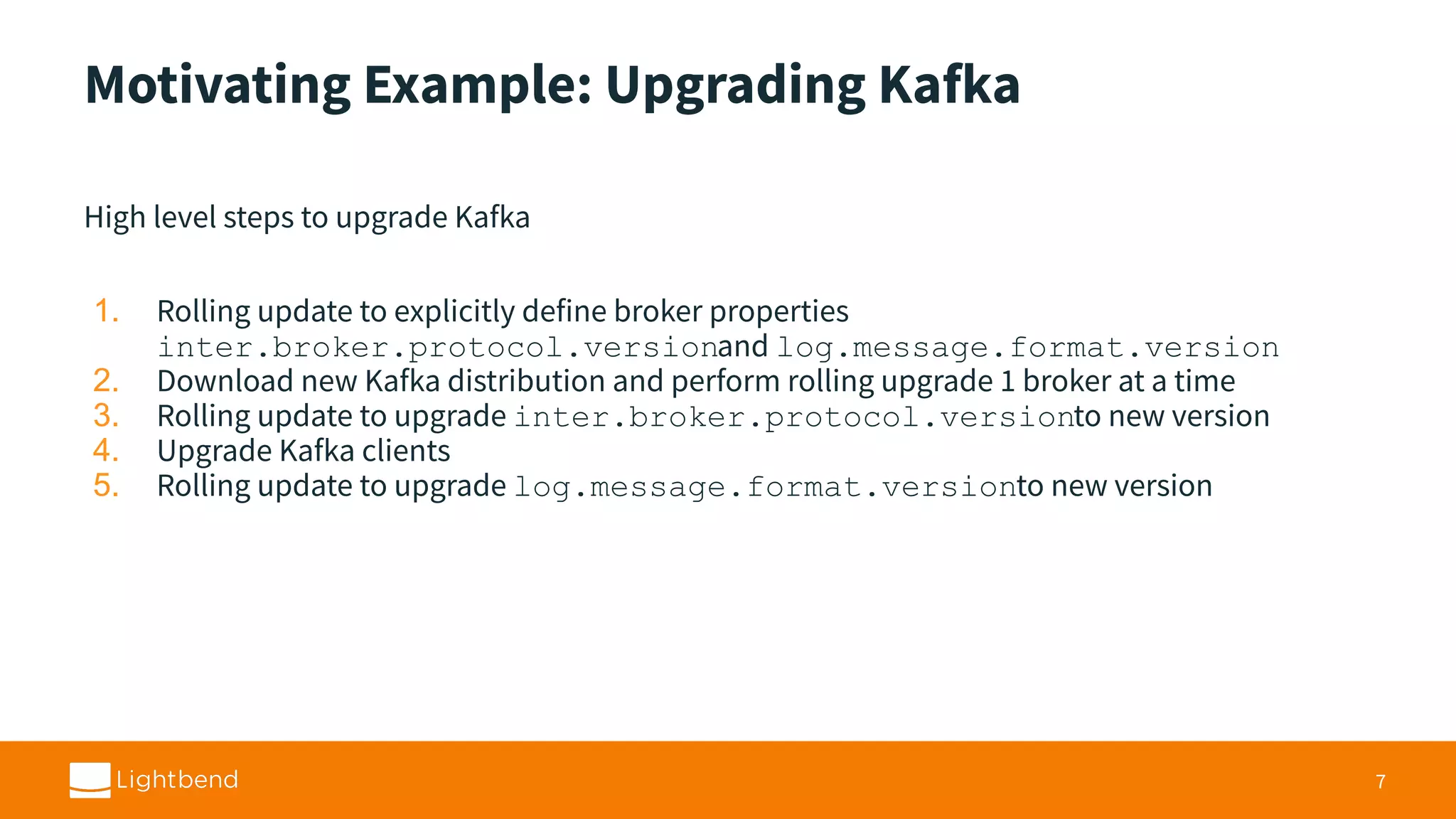

- 5. Motivating Example: UpgradingKafka High level steps to upgrade Kafka 1. Rolling update to explicitly define broker properties inter.broker.protocol.versionand log.message.format.version 2. Download new Kafka distribution and perform rolling upgrade 1 broker at a time 3. Rolling update to upgrade inter.broker.protocol.versionto new version 4. Upgrade Kafka clients 5. Rolling update to upgrade log.message.format.versionto new version 7

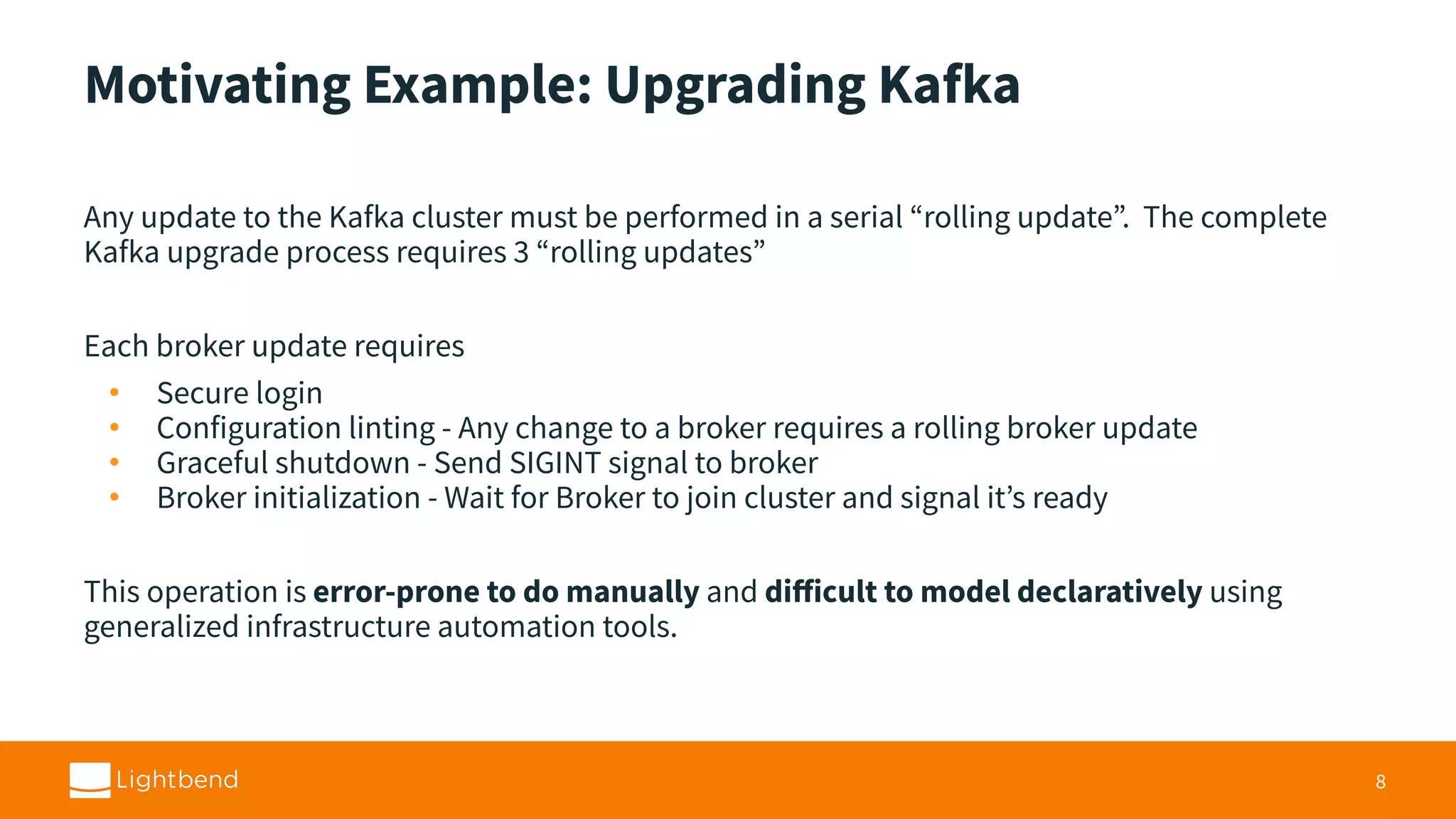

- 6. Motivating Example: UpgradingKafka Any update to the Kafka cluster must be performed in a serial “rolling update”. The complete Kafka upgrade process requires 3 “rolling updates” Each broker update requires • Secure login • Configuration linting - Any change to a broker requires a rolling broker update • Graceful shutdown - Send SIGINT signal to broker • Broker initialization - Wait for Broker to join cluster and signal it’s ready This operation is error-prone to do manually and difficult to model declaratively using generalized infrastructure automation tools. 8

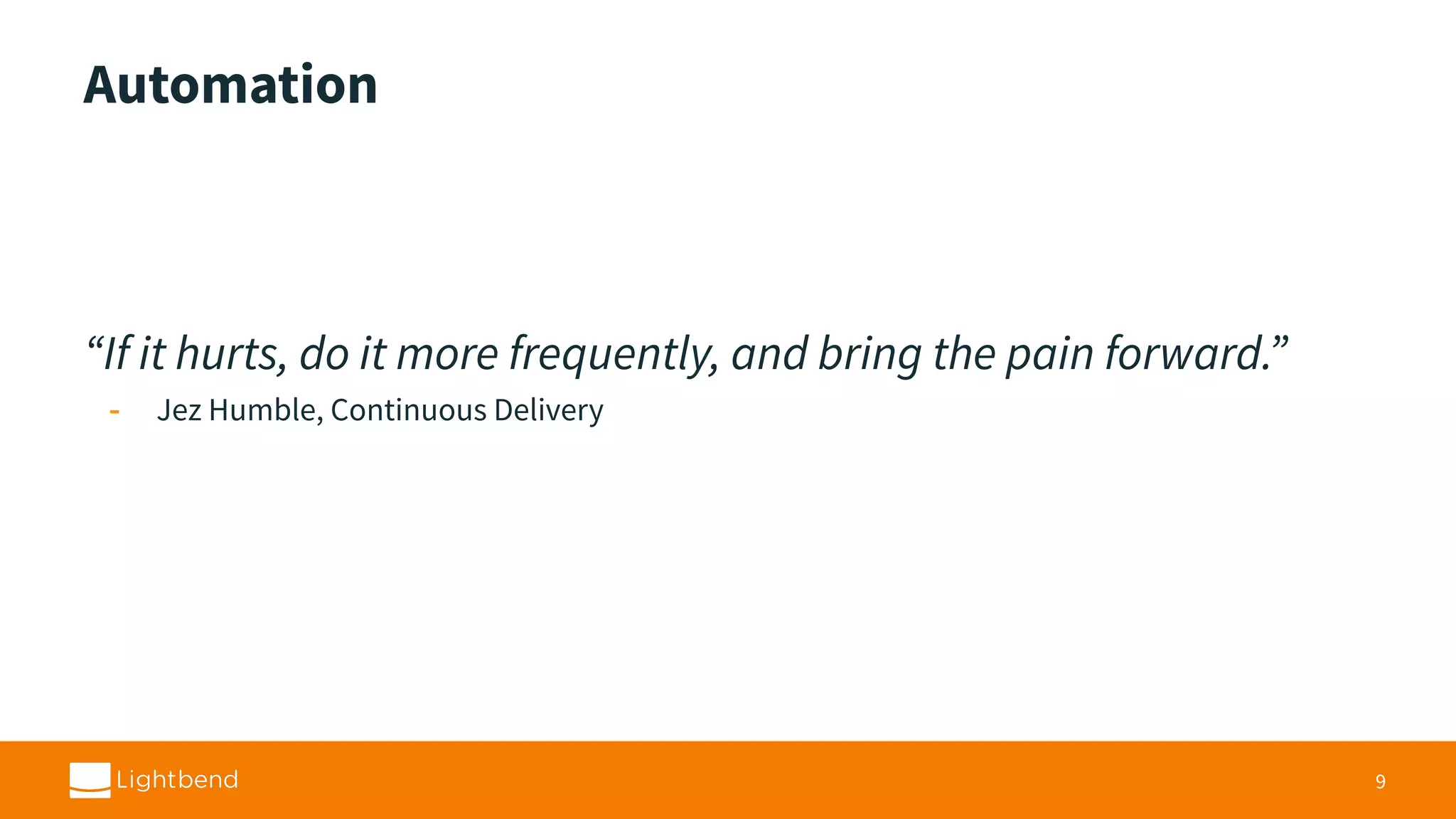

- 7. Automation “If it hurts,do it more frequently, and bring the pain forward.” - Jez Humble, Continuous Delivery 9

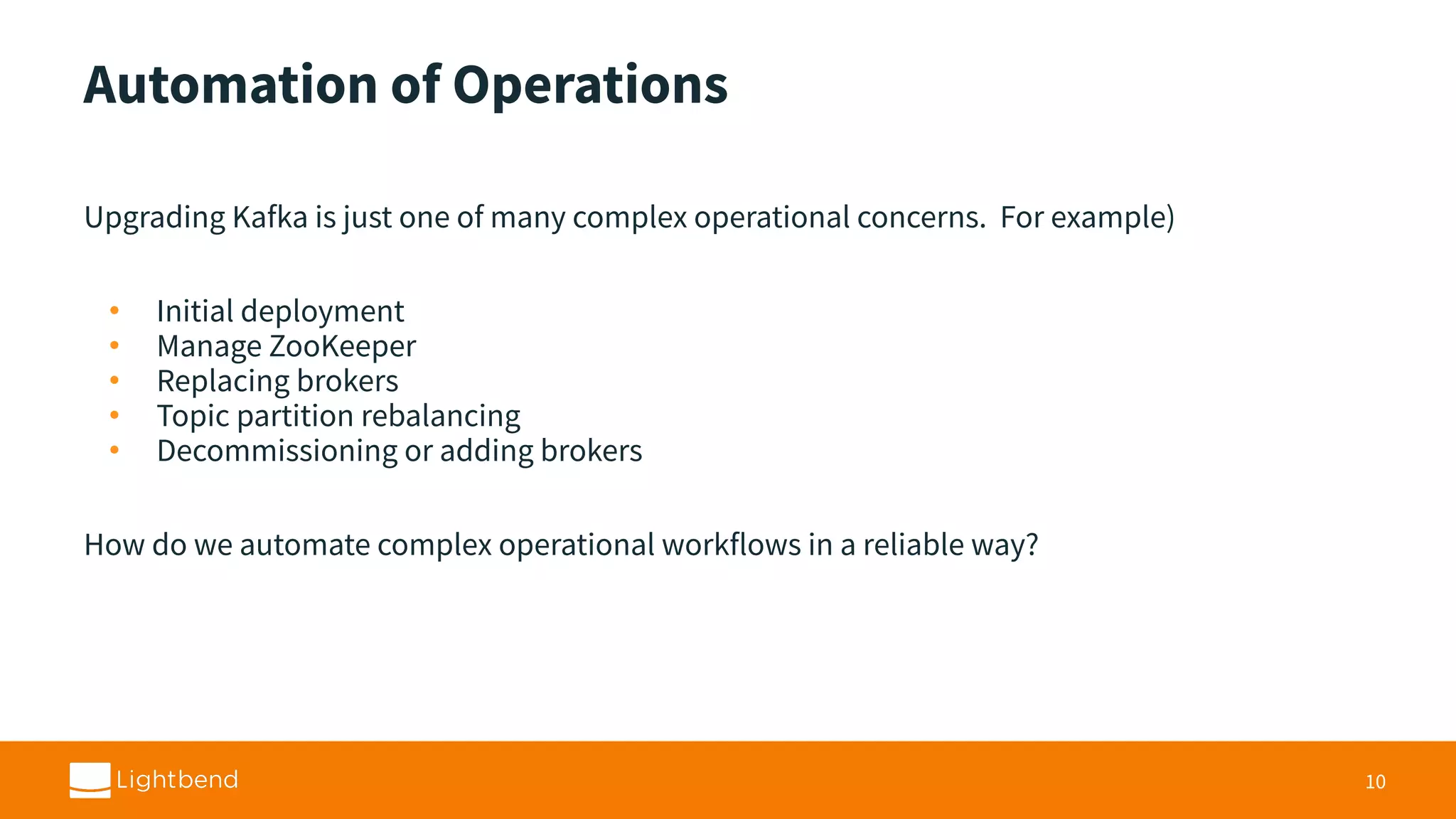

- 8. Automation of Operations UpgradingKafka is just one of many complex operational concerns. For example) • Initial deployment • Manage ZooKeeper • Replacing brokers • Topic partition rebalancing • Decommissioning or adding brokers How do we automate complex operational workflows in a reliable way? 10
- 9.
- 10.

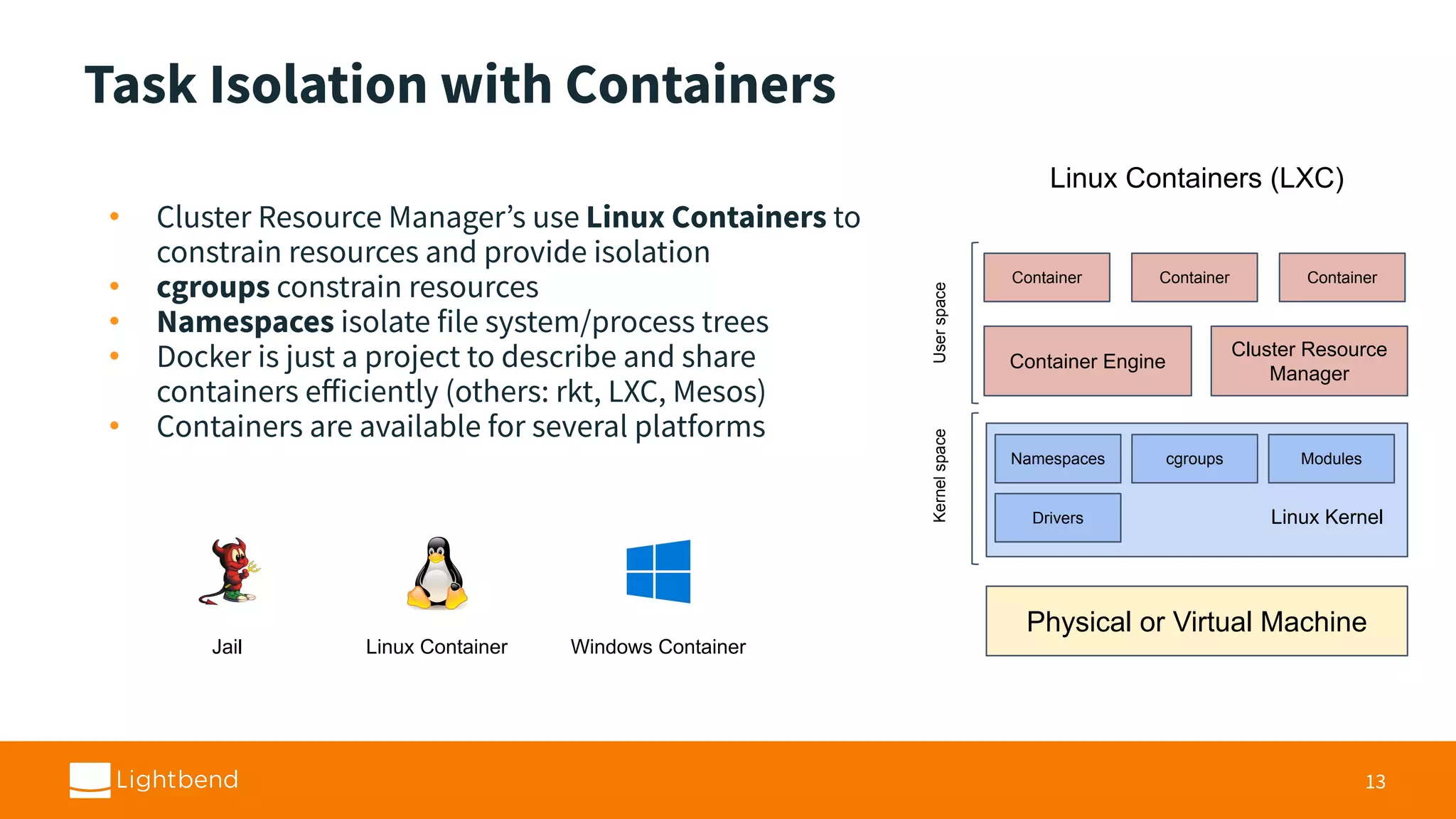

- 11. Task Isolation withContainers • Cluster Resource Manager’s use Linux Containers to constrain resources and provide isolation • cgroups constrain resources • Namespaces isolate file system/process trees • Docker is just a project to describe and share containers efficiently (others: rkt, LXC, Mesos) • Containers are available for several platforms 13 Physical or Virtual Machine Linux Kernel Namespaces cgroups Modules Cluster Resource Manager Container Engine Container ContainerContainer UserspaceKernelspace Drivers Linux Containers (LXC) Jail Linux Container Windows Container
- 12. Kubernetes and theOperator Pattern
- 13.

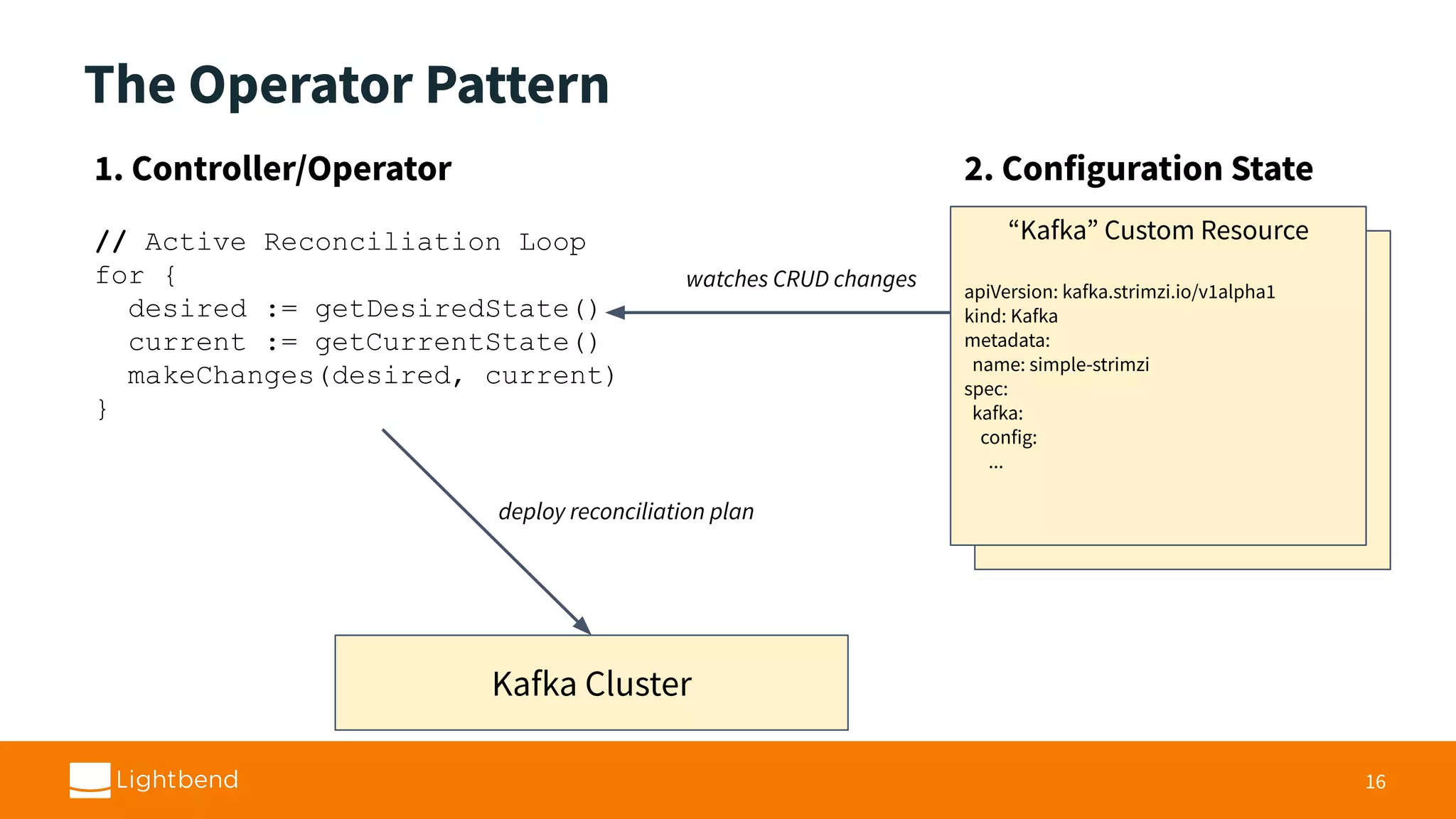

- 14. The Operator Pattern 16 1.Controller/Operator // Active Reconciliation Loop for { desired := getDesiredState() current := getCurrentState() makeChanges(desired, current) } Kafka Cluster watches CRUD changes deploy reconciliation plan 2. Configuration State “Kafka” Custom Resource apiVersion: kafka.strimzi.io/v1alpha1 kind: Kafka metadata: name: simple-strimzi spec: kafka: config: ... “Kafka” Custom Resource apiVersion: kafka.strimzi.io/v1alpha1 kind: Kafka metadata: name: simple-strimzi spec: kafka: config: ...

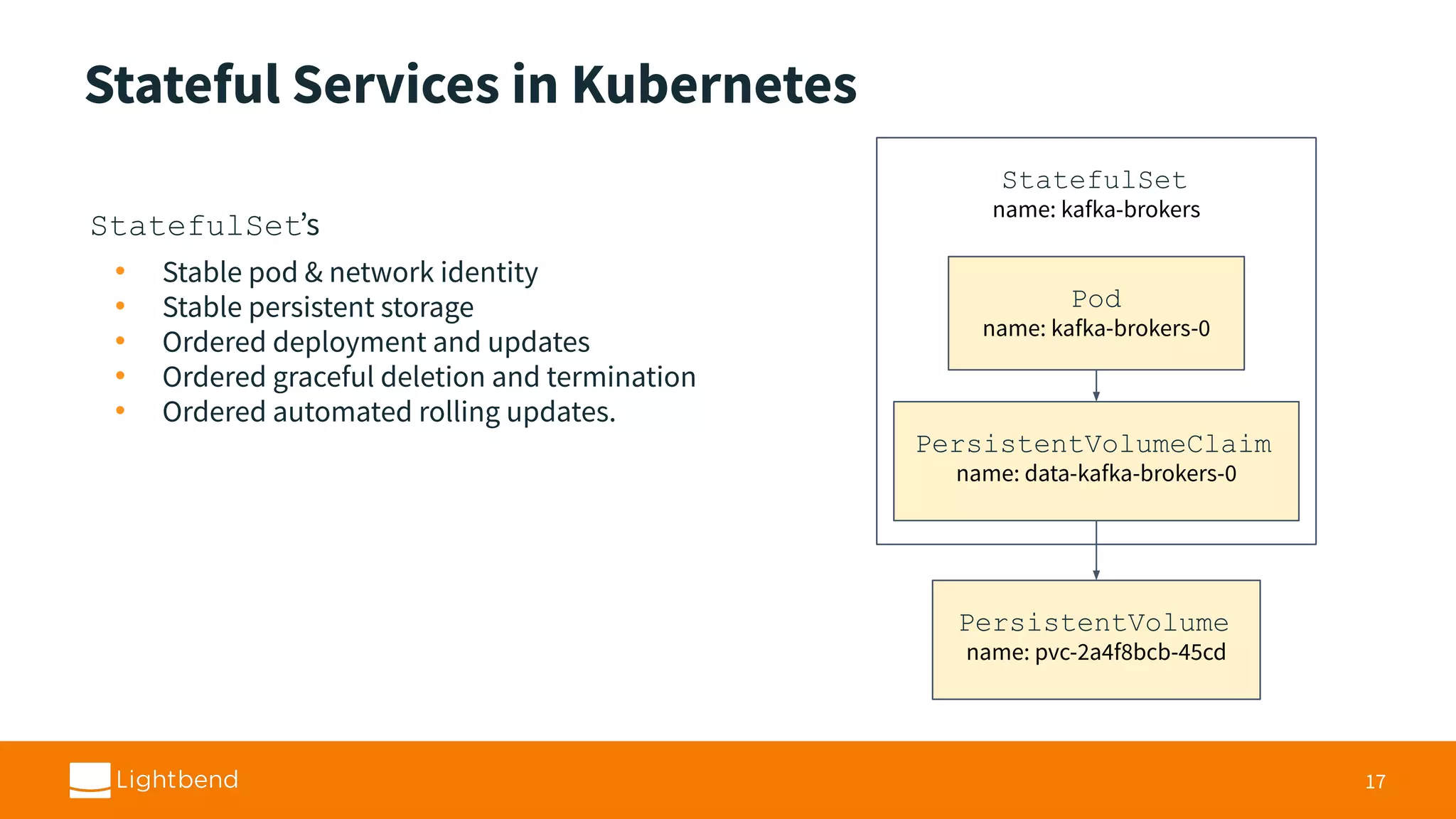

- 15. Stateful Services inKubernetes 17 StatefulSet name: kafka-brokers Pod name: kafka-brokers-0 PersistentVolumeClaim name: data-kafka-brokers-0 PersistentVolume name: pvc-2a4f8bcb-45cd StatefulSet’s • Stable pod & network identity • Stable persistent storage • Ordered deployment and updates • Ordered graceful deletion and termination • Ordered automated rolling updates.

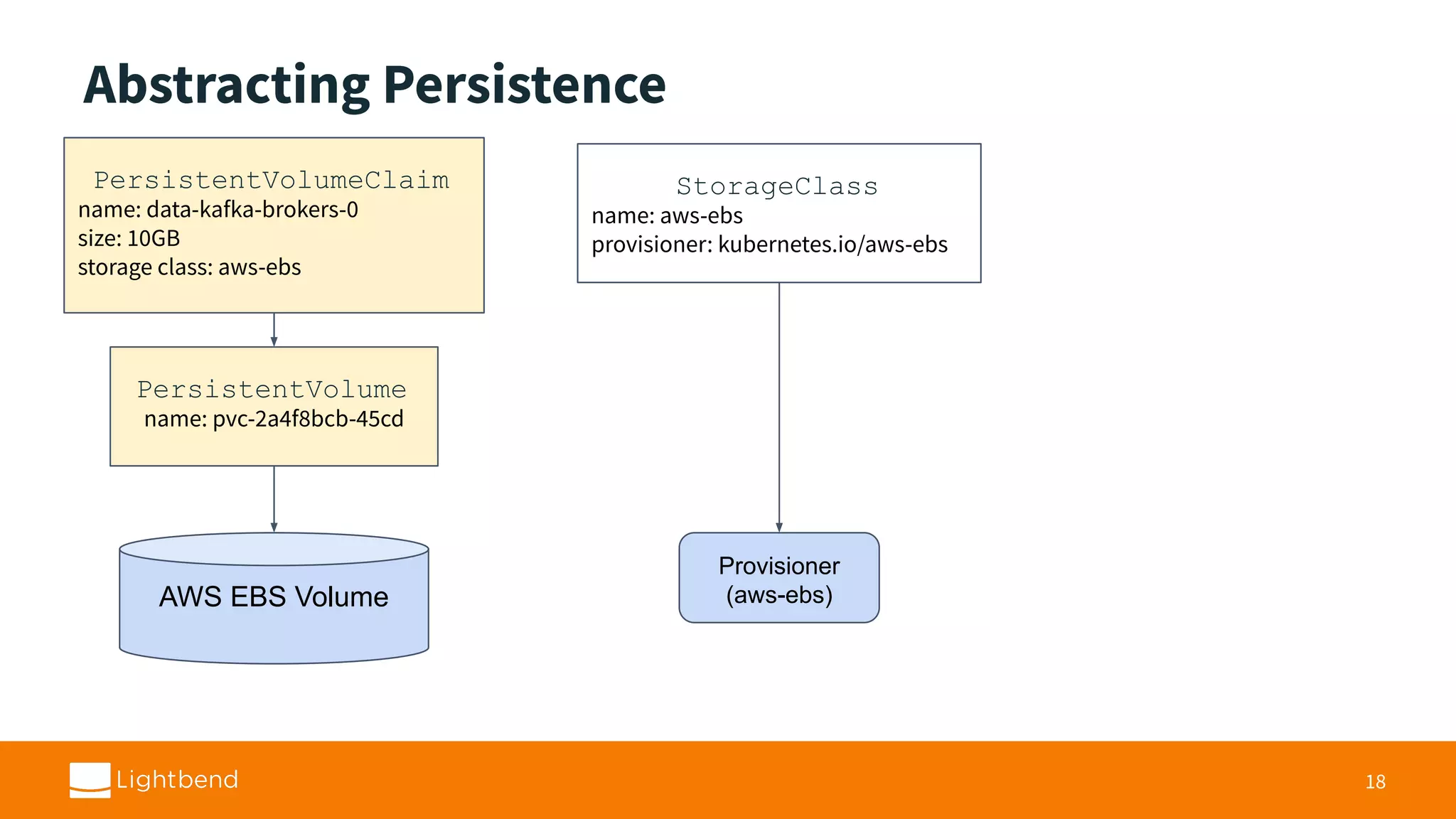

- 16. Abstracting Persistence 18 PersistentVolumeClaim name: data-kafka-brokers-0 size:10GB storage class: aws-ebs PersistentVolume name: pvc-2a4f8bcb-45cd AWS EBS Volume StorageClass name: aws-ebs provisioner: kubernetes.io/aws-ebs Provisioner (aws-ebs)
- 17. Strimzi An operator-based Kafkaon Kubernetes project

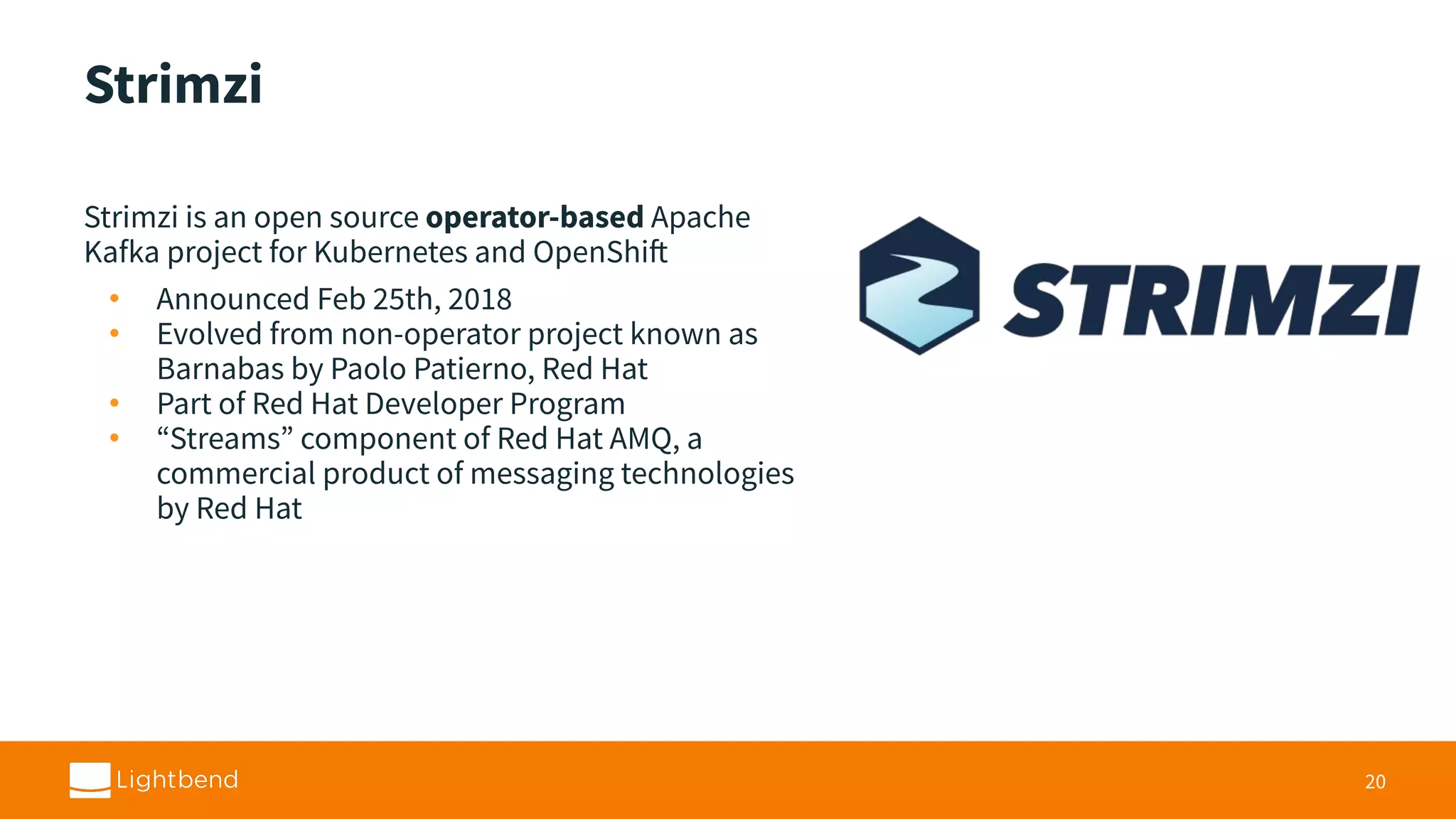

- 18. Strimzi Strimzi is anopen source operator-based Apache Kafka project for Kubernetes and OpenShift • Announced Feb 25th, 2018 • Evolved from non-operator project known as Barnabas by Paolo Patierno, Red Hat • Part of Red Hat Developer Program • “Streams” component of Red Hat AMQ, a commercial product of messaging technologies by Red Hat 20

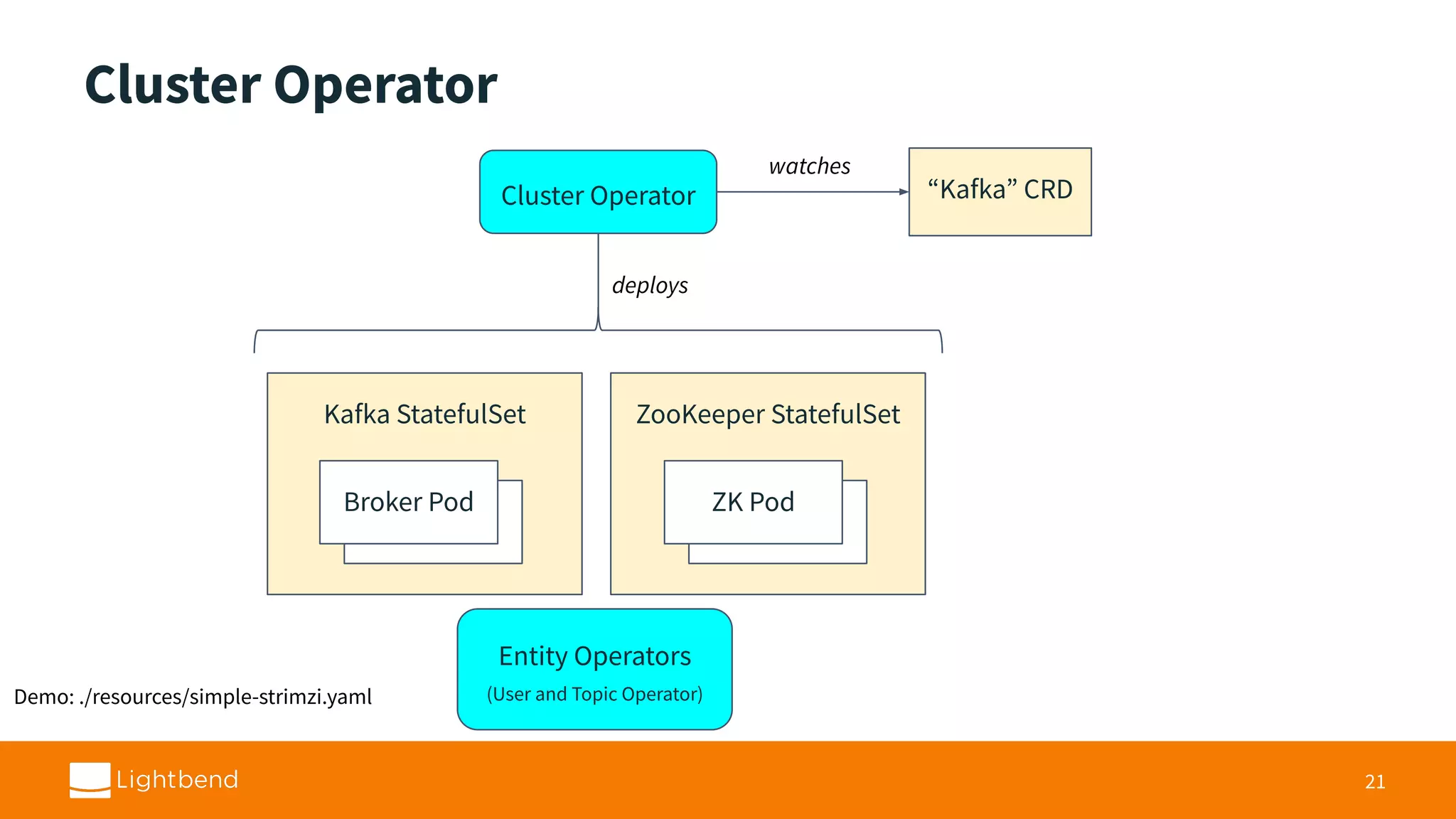

- 19. Cluster Operator 21 “Kafka” CRD watches deploys KafkaStatefulSet ZooKeeper StatefulSet Broker Pod Broker Pod Broker Pod ZK Pod Cluster Operator Entity Operators (User and Topic Operator)Demo: ./resources/simple-strimzi.yaml

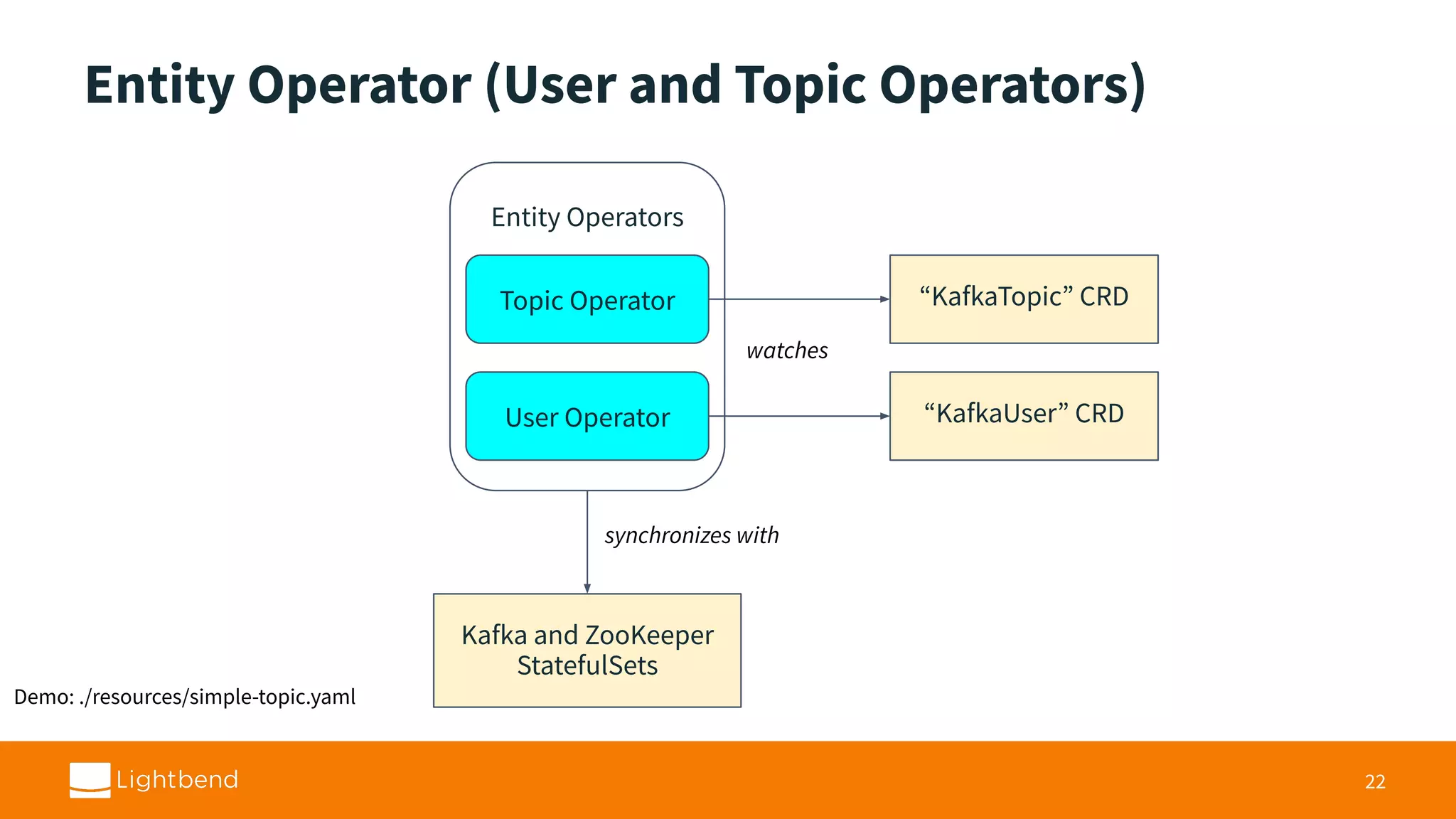

- 20. Entity Operator (Userand Topic Operators) 22 “KafkaTopic” CRD Kafka and ZooKeeper StatefulSets Entity Operators Topic Operator User Operator “KafkaUser” CRD synchronizes with watches Demo: ./resources/simple-topic.yaml

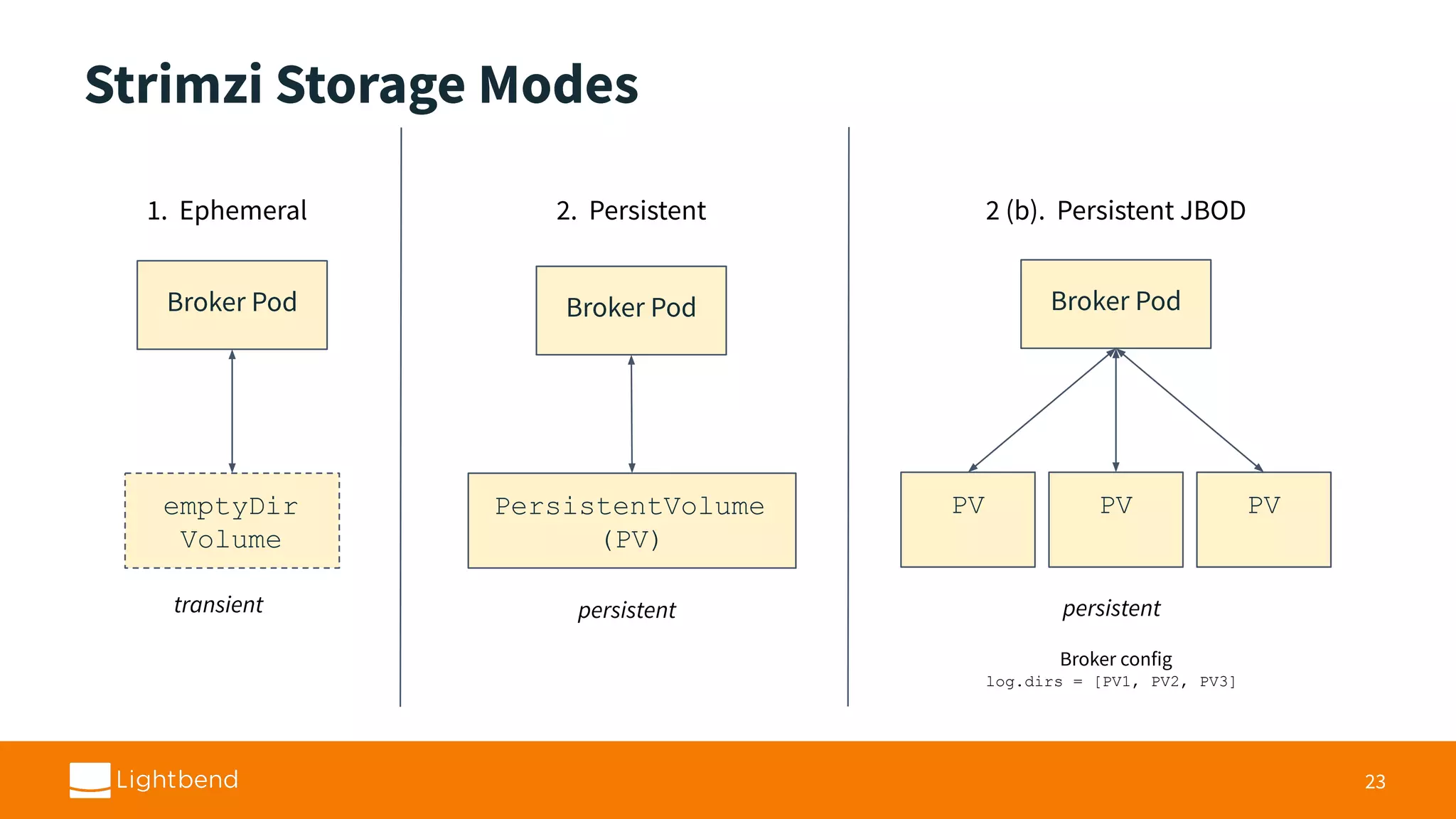

- 21. Strimzi Storage Modes 23 BrokerPod emptyDir Volume 1. Ephemeral Broker Pod PersistentVolume (PV) 2. Persistent Broker Pod PV 2 (b). Persistent JBOD PVPV transient persistent persistent Broker config log.dirs = [PV1, PV2, PV3]
- 22.

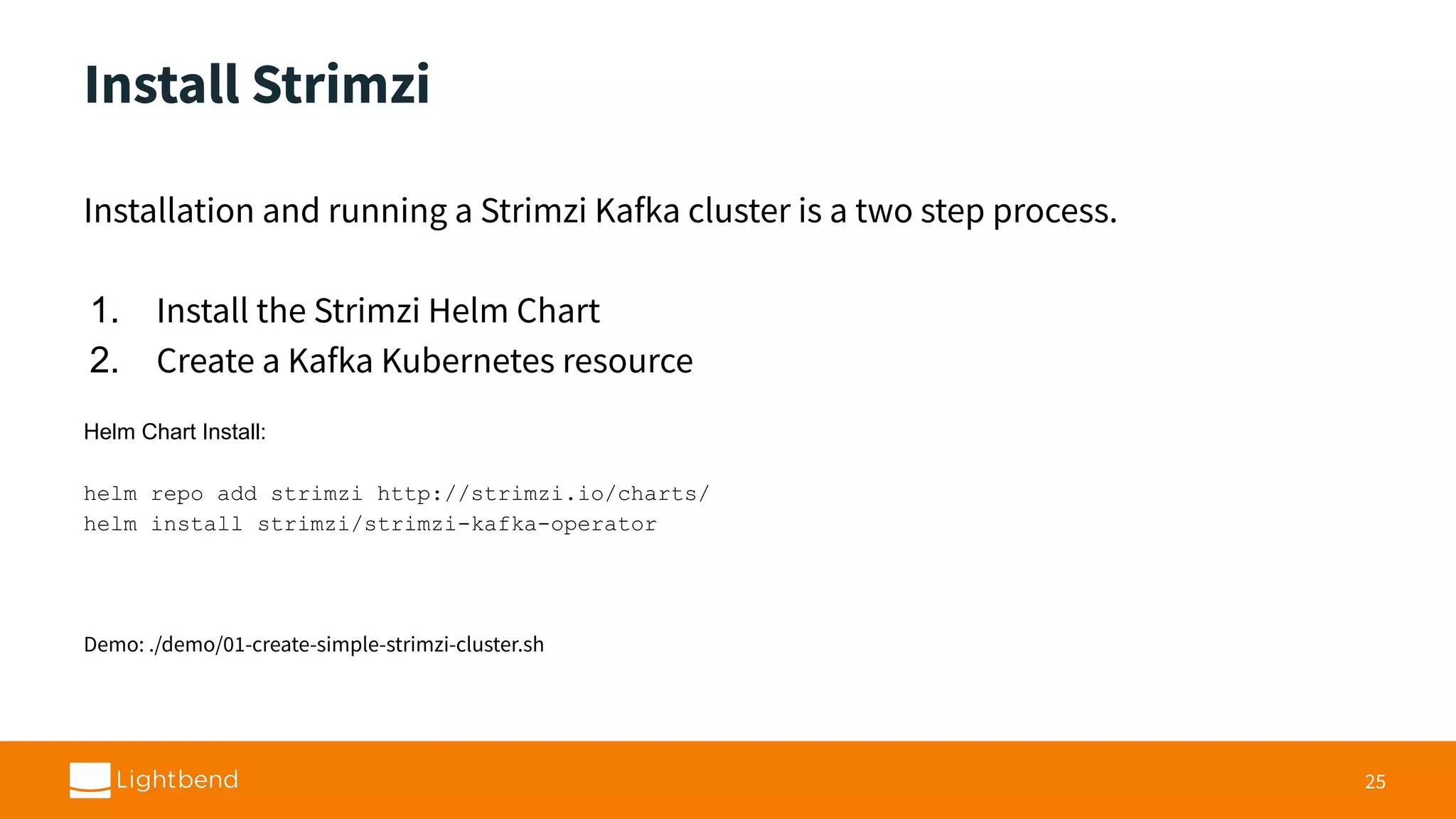

- 23. Install Strimzi Installation andrunning a Strimzi Kafka cluster is a two step process. 1. Install the Strimzi Helm Chart 2. Create a Kafka Kubernetes resource Helm Chart Install: helm repo add strimzi http://strimzi.io/charts/ helm install strimzi/strimzi-kafka-operator Demo: ./demo/01-create-simple-strimzi-cluster.sh 25
- 24. Connecting Clients simple-strimzi-kafka-bootstrap.strimzi.svc.cluster.local:9092 27 Kafka resource metadata.name Brokerload balancer name Namespace K8s Service Fully qualified service hostname: “Plain” 9092 TLS 9093 Interbroker 9094 Prometheus 9404 Demo: ./demo/02-connecting-clients.sh run-kafka-perf-producer.sh

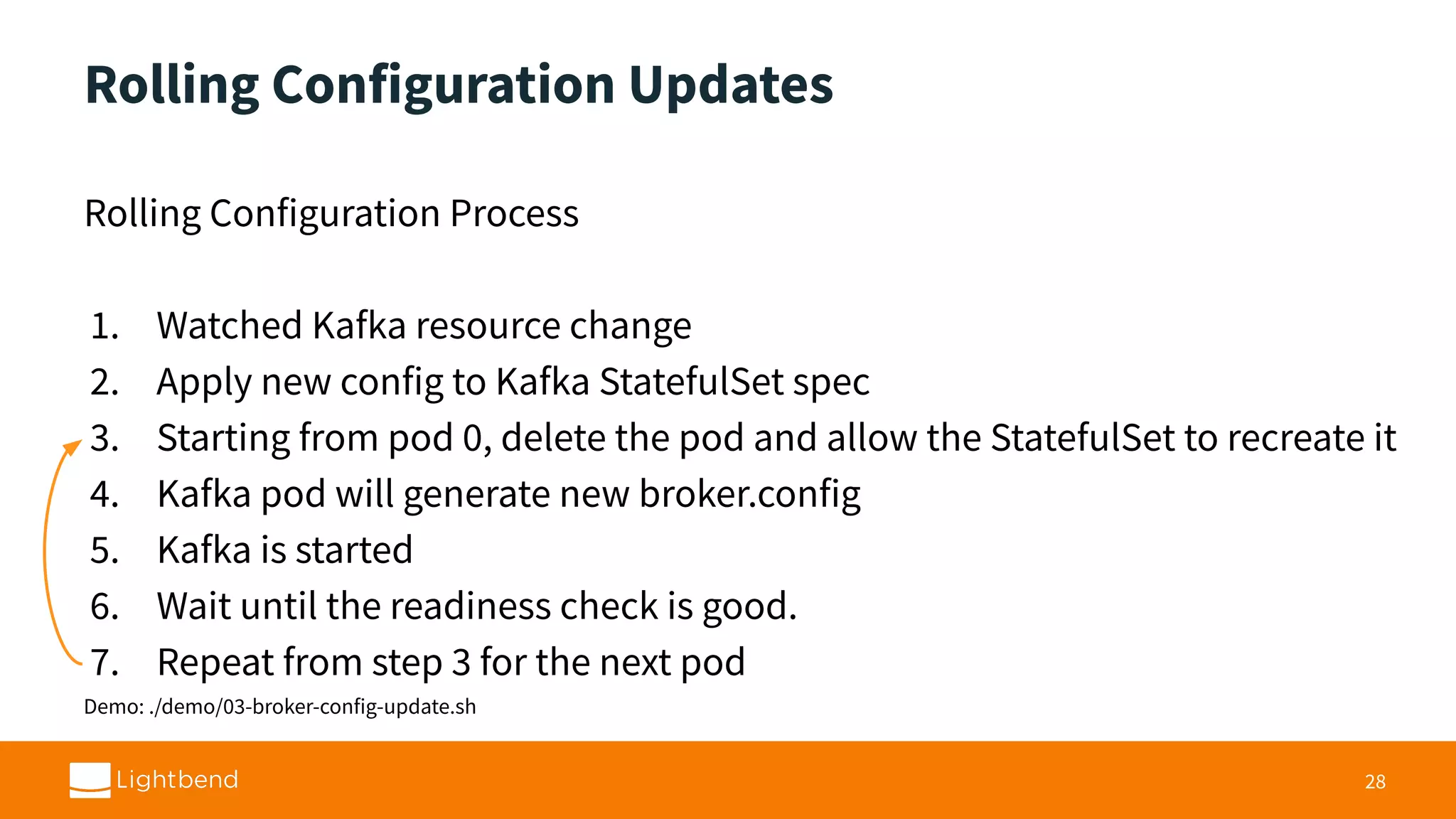

- 25. Rolling Configuration Updates RollingConfiguration Process 1. Watched Kafka resource change 2. Apply new config to Kafka StatefulSet spec 3. Starting from pod 0, delete the pod and allow the StatefulSet to recreate it 4. Kafka pod will generate new broker.config 5. Kafka is started 6. Wait until the readiness check is good. 7. Repeat from step 3 for the next pod Demo: ./demo/03-broker-config-update.sh 28

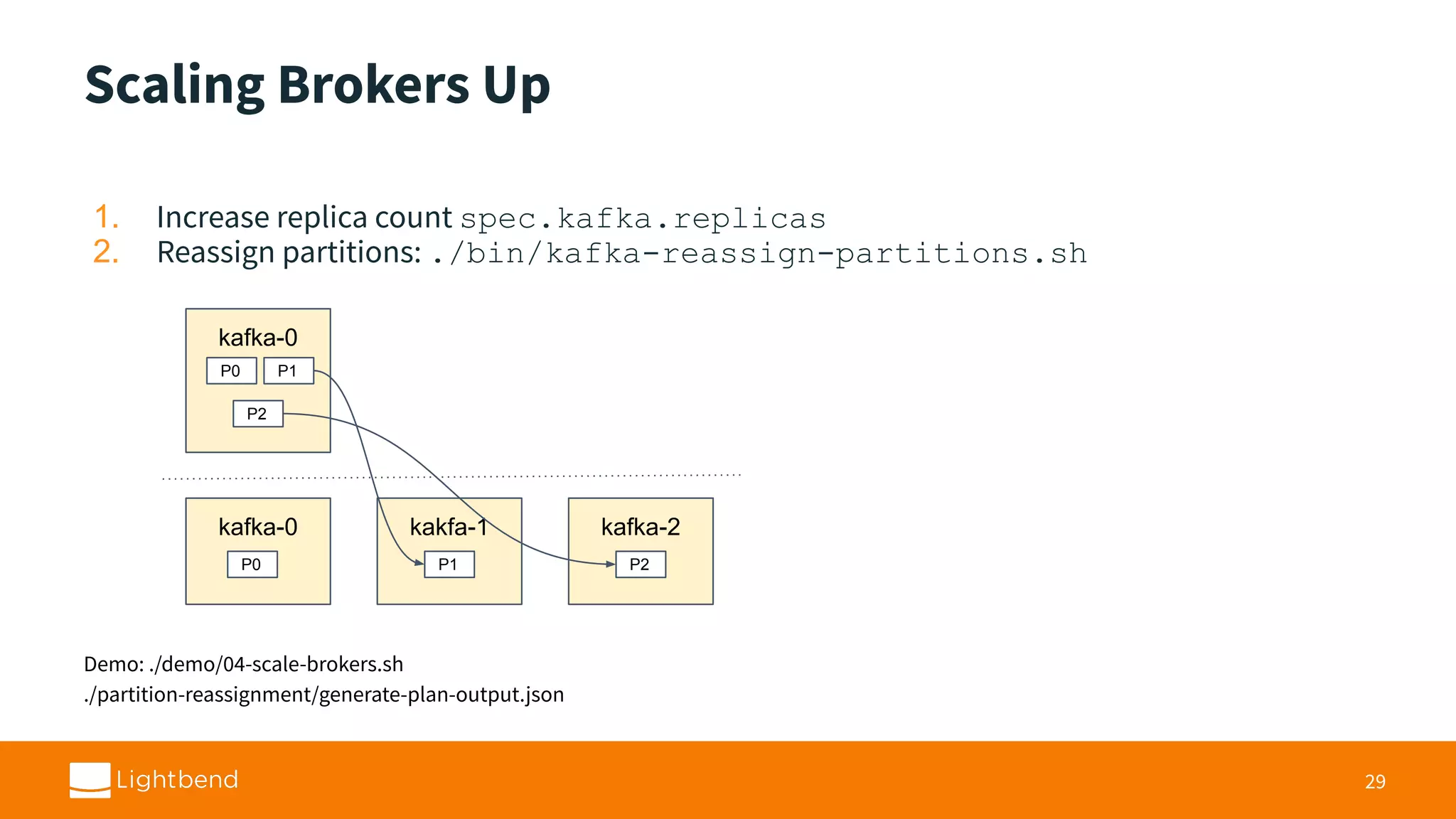

- 26. Scaling Brokers Up 1.Increase replica count spec.kafka.replicas 2. Reassign partitions: ./bin/kafka-reassign-partitions.sh Demo: ./demo/04-scale-brokers.sh ./partition-reassignment/generate-plan-output.json 29 kafka-0 kafka-0 kakfa-1 kafka-2 P0 P1 P2 P0 P1 P2

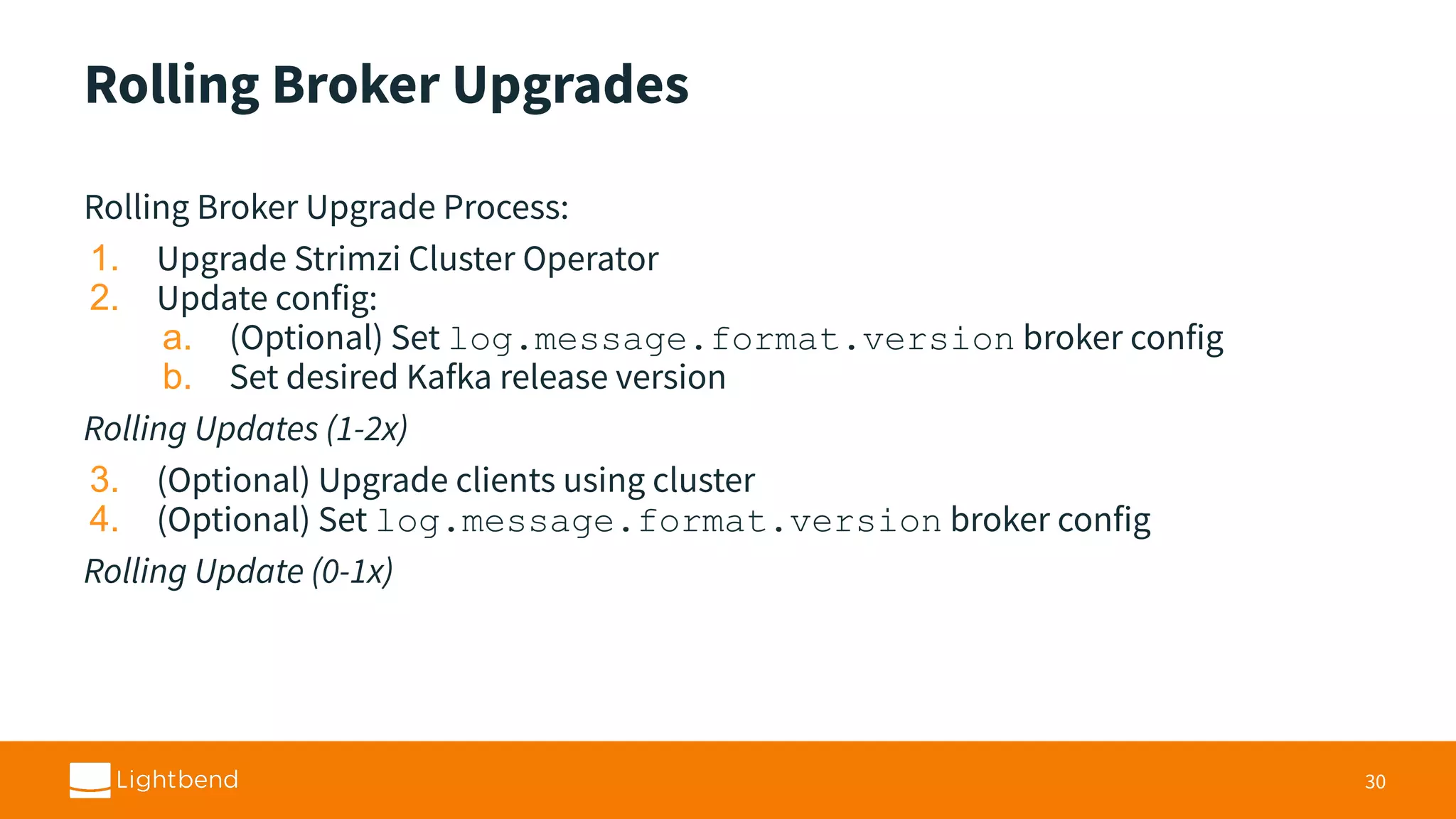

- 27. Rolling Broker Upgrades RollingBroker Upgrade Process: 1. Upgrade Strimzi Cluster Operator 2. Update config: a. (Optional) Set log.message.format.version broker config b. Set desired Kafka release version Rolling Updates (1-2x) 3. (Optional) Upgrade clients using cluster 4. (Optional) Set log.message.format.version broker config Rolling Update (0-1x) 30

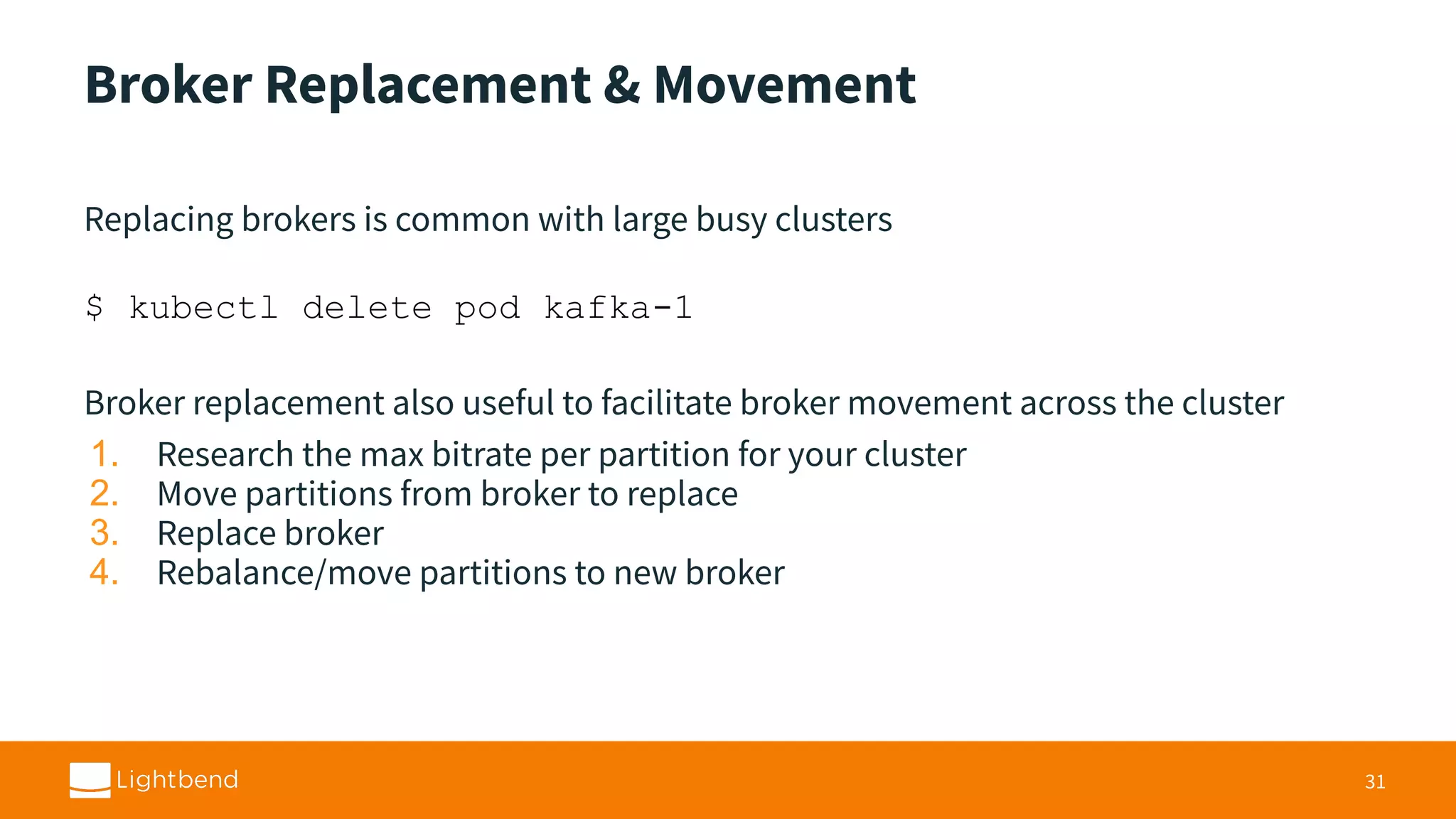

- 28. Broker Replacement &Movement Replacing brokers is common with large busy clusters $ kubectl delete pod kafka-1 Broker replacement also useful to facilitate broker movement across the cluster 1. Research the max bitrate per partition for your cluster 2. Move partitions from broker to replace 3. Replace broker 4. Rebalance/move partitions to new broker 31

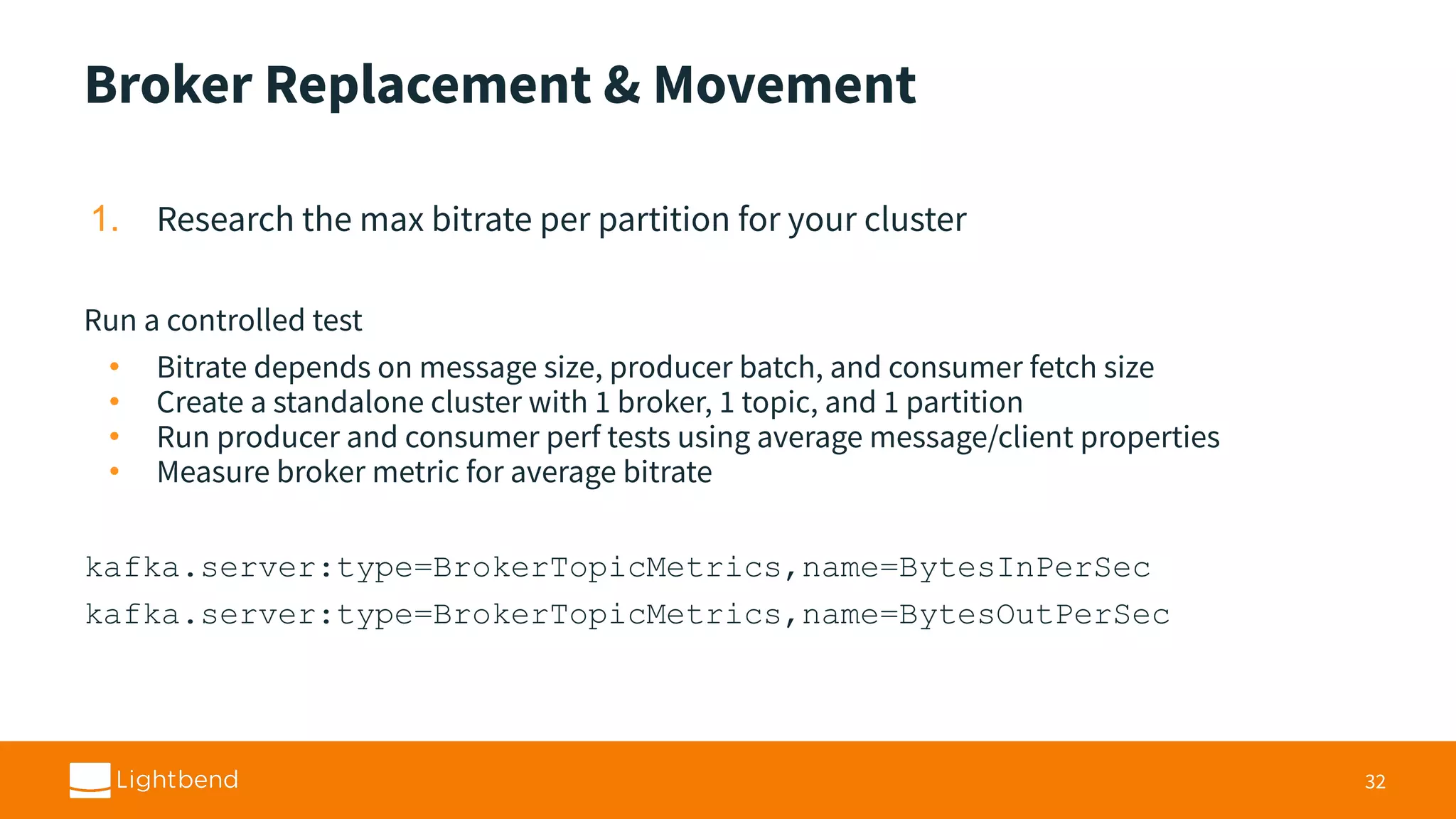

- 29. Broker Replacement &Movement 1. Research the max bitrate per partition for your cluster Run a controlled test • Bitrate depends on message size, producer batch, and consumer fetch size • Create a standalone cluster with 1 broker, 1 topic, and 1 partition • Run producer and consumer perf tests using average message/client properties • Measure broker metric for average bitrate kafka.server:type=BrokerTopicMetrics,name=BytesInPerSec kafka.server:type=BrokerTopicMetrics,name=BytesOutPerSec 32

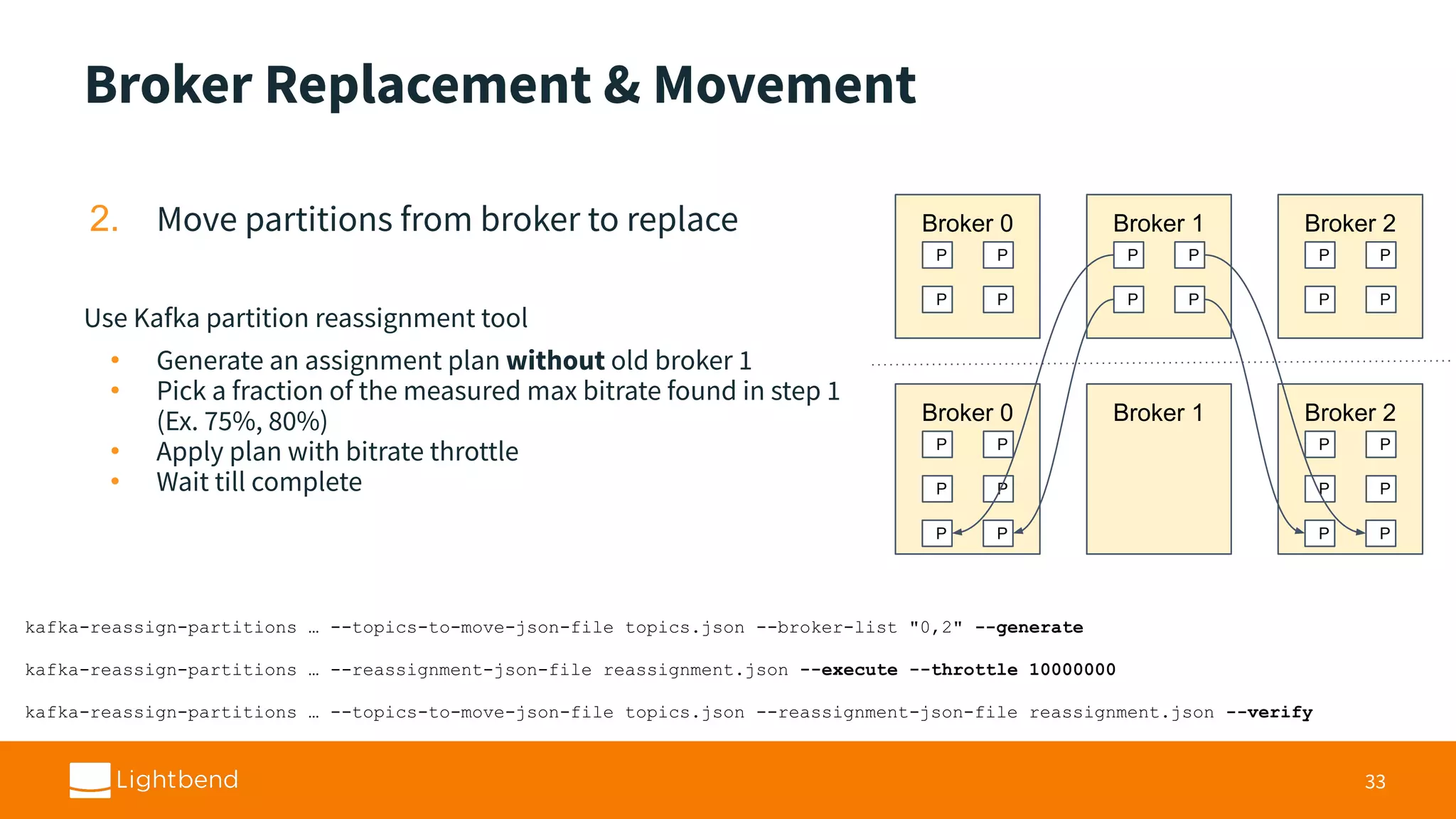

- 30. Broker Replacement &Movement 2. Move partitions from broker to replace Use Kafka partition reassignment tool • Generate an assignment plan without old broker 1 • Pick a fraction of the measured max bitrate found in step 1 (Ex. 75%, 80%) • Apply plan with bitrate throttle • Wait till complete 33 Broker 0 P P P P Broker 1 P P P P Broker 2 P P P P Broker 0 P P P P Broker 1 P P Broker 2 P P P P P P kafka-reassign-partitions … --topics-to-move-json-file topics.json --broker-list "0,2" --generate kafka-reassign-partitions … --reassignment-json-file reassignment.json --execute --throttle 10000000 kafka-reassign-partitions … --topics-to-move-json-file topics.json --reassignment-json-file reassignment.json --verify

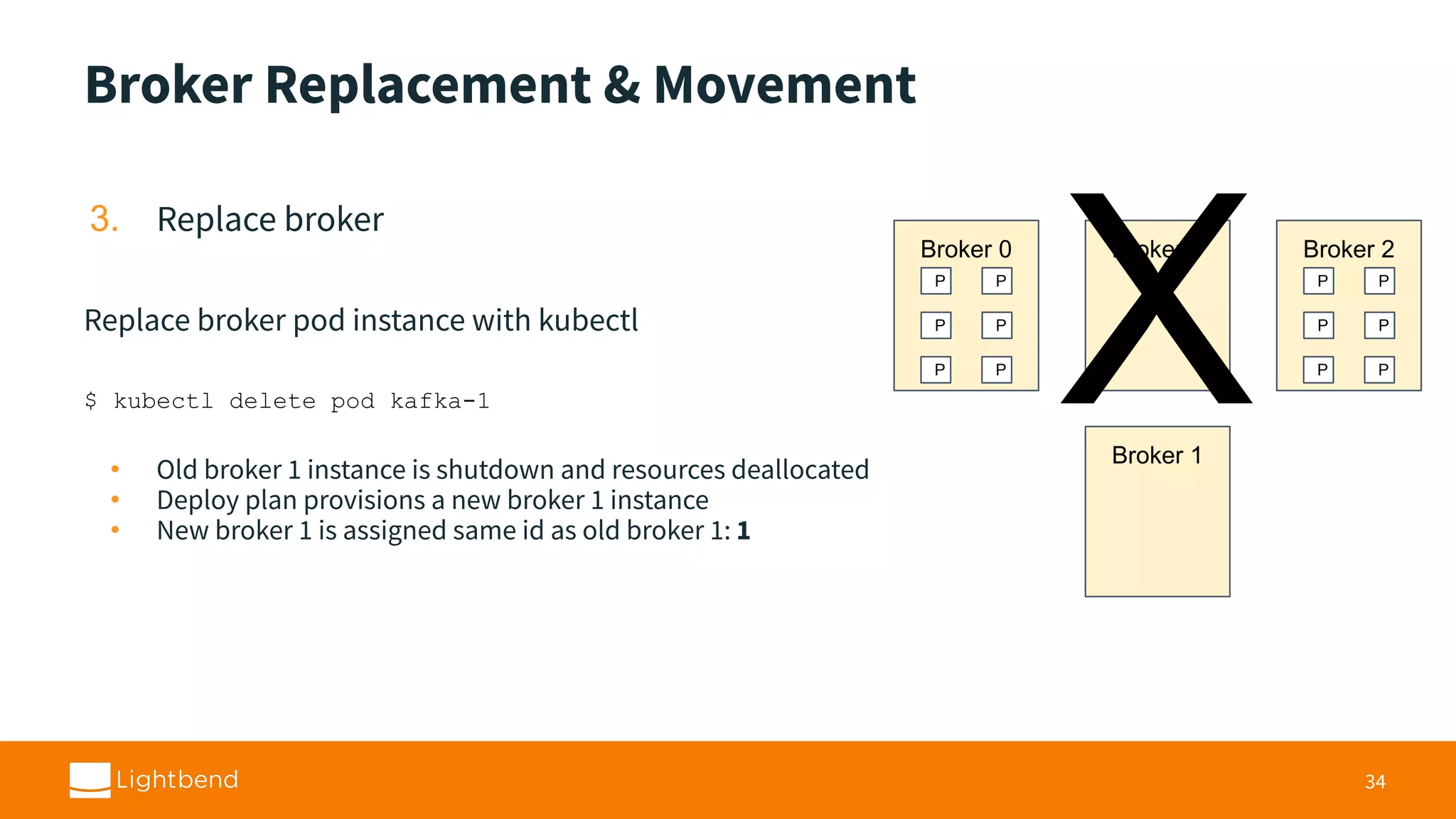

- 31. Broker Replacement &Movement 3. Replace broker Replace broker pod instance with kubectl $ kubectl delete pod kafka-1 • Old broker 1 instance is shutdown and resources deallocated • Deploy plan provisions a new broker 1 instance • New broker 1 is assigned same id as old broker 1: 1 34 Broker 0 P P P P Broker 1 P P Broker 2 P P P P P P Broker 1 X

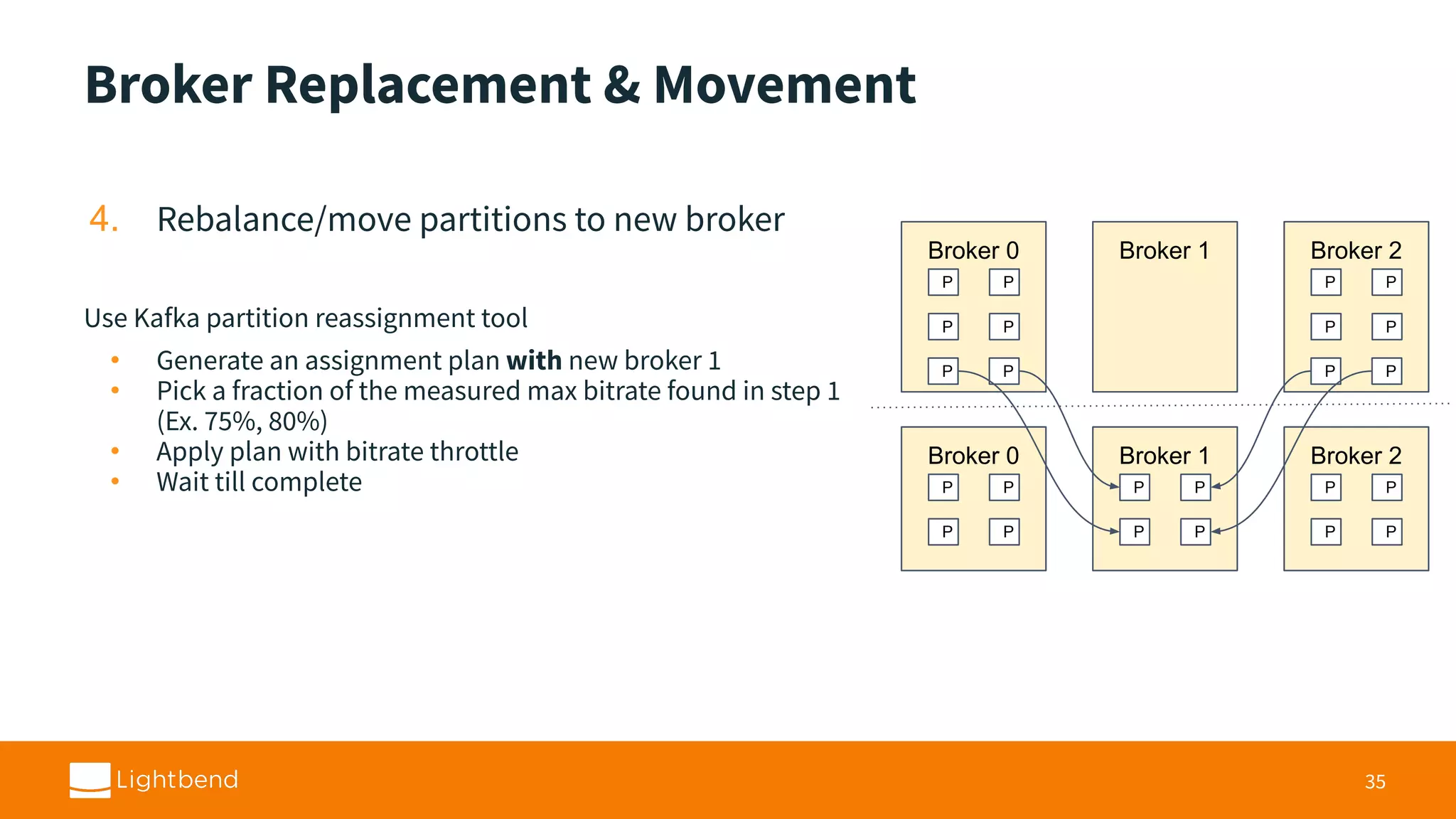

- 32. Broker Replacement &Movement 4. Rebalance/move partitions to new broker Use Kafka partition reassignment tool • Generate an assignment plan with new broker 1 • Pick a fraction of the measured max bitrate found in step 1 (Ex. 75%, 80%) • Apply plan with bitrate throttle • Wait till complete 35 Broker 0 P P P P Broker 1 P P P P Broker 2 P P P P Broker 0 P P P P Broker 1 P P Broker 2 P P P P P P

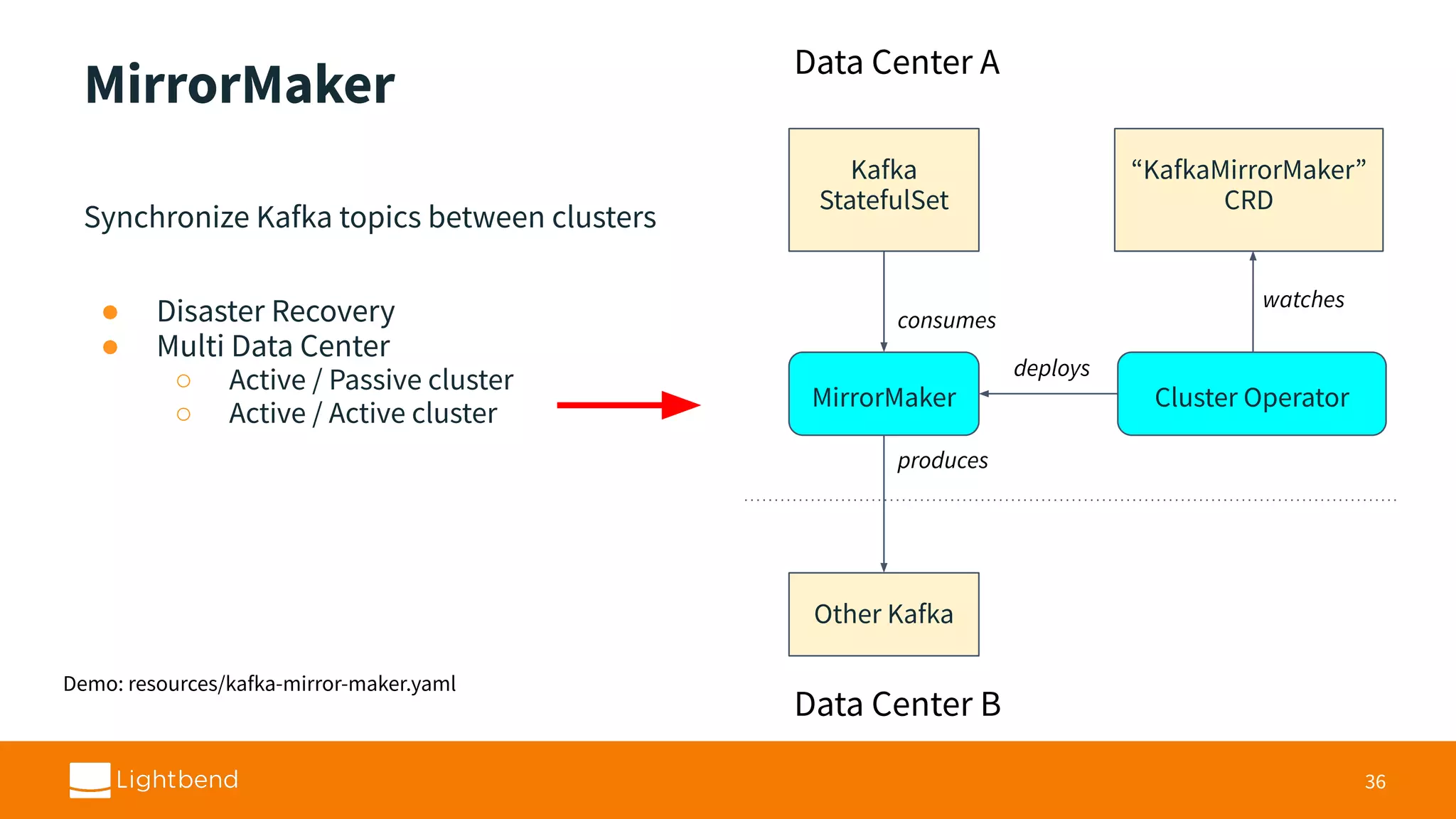

- 33. MirrorMaker Synchronize Kafka topicsbetween clusters ● Disaster Recovery ● Multi Data Center ○ Active / Passive cluster ○ Active / Active cluster 36 Kafka StatefulSet Cluster Operator “KafkaMirrorMaker” CRD watches MirrorMaker deploys Other Kafka consumes produces Data Center A Data Center B Demo: resources/kafka-mirror-maker.yaml
- 34.

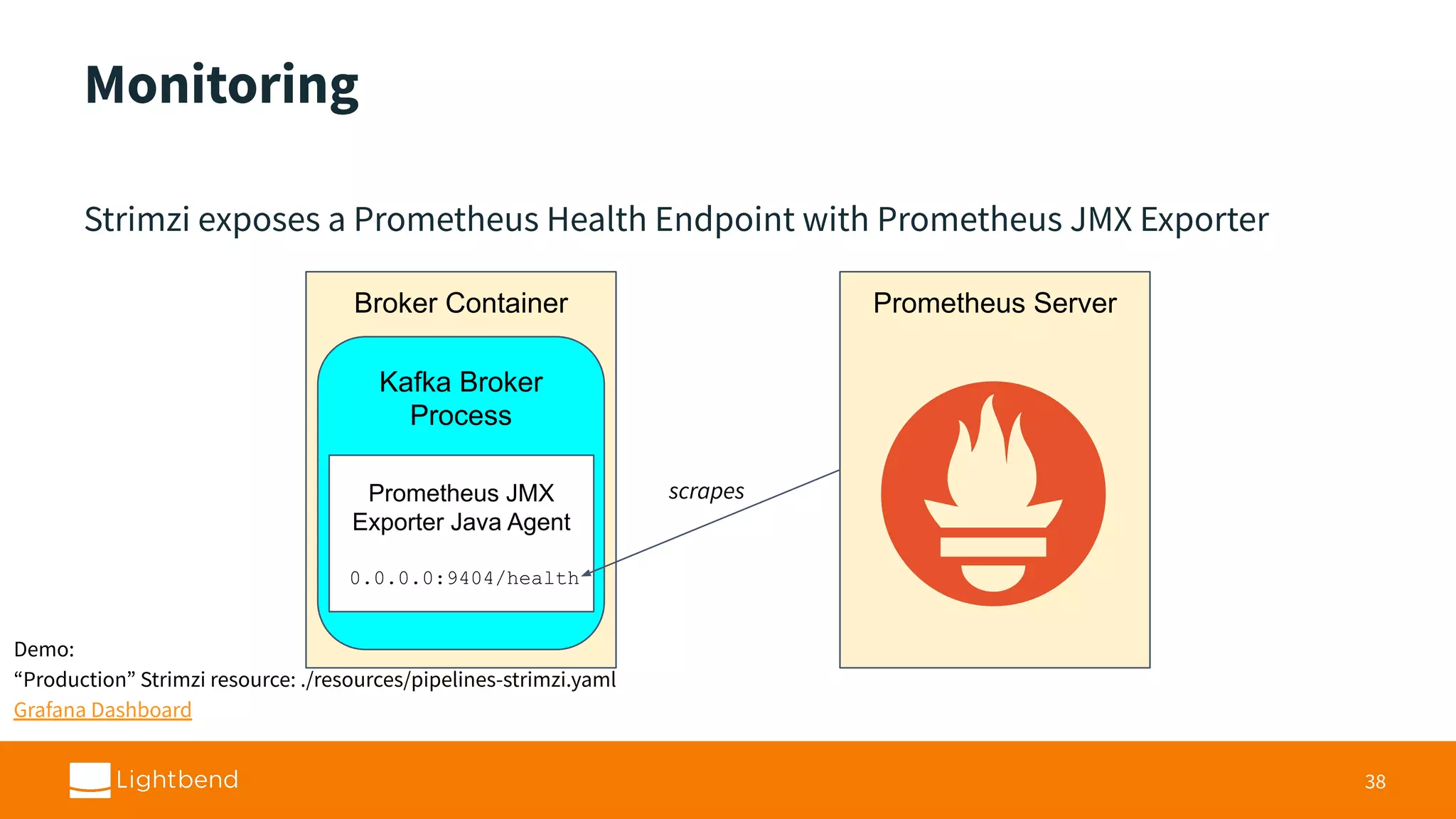

- 35. Monitoring 38 Strimzi exposes aPrometheus Health Endpoint with Prometheus JMX Exporter Broker Container Kafka Broker Process Prometheus JMX Exporter Java Agent 0.0.0.0:9404/health Prometheus Server Demo: “Production” Strimzi resource: ./resources/pipelines-strimzi.yaml Grafana Dashboard scrapes
- 36.

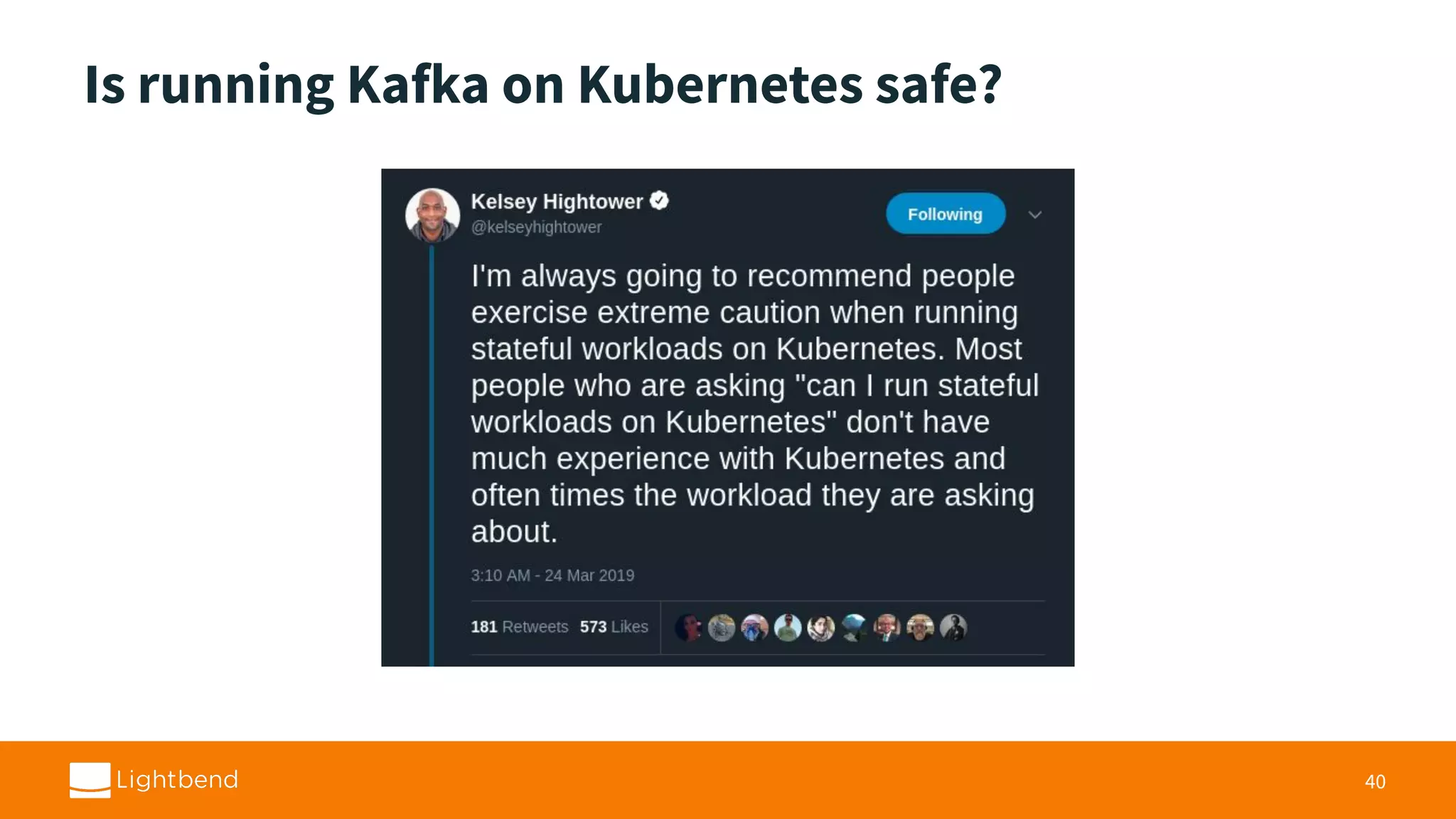

- 37. Is running Kafkaon Kubernetes safe? 40

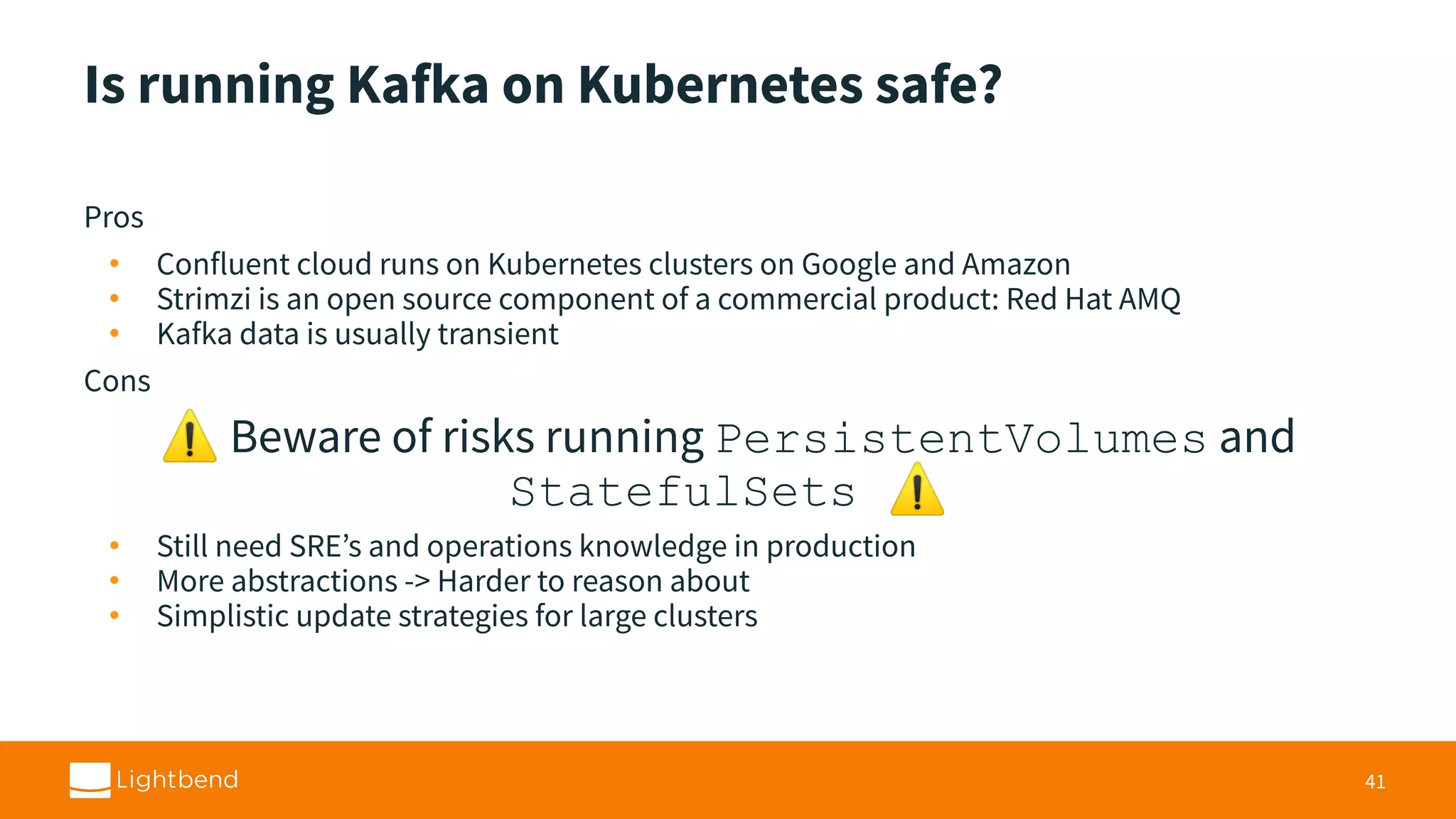

- 38. Is running Kafkaon Kubernetes safe? Pros • Confluent cloud runs on Kubernetes clusters on Google and Amazon • Strimzi is an open source component of a commercial product: Red Hat AMQ • Kafka data is usually transient Cons ⚠ Beware of risks running PersistentVolumes and StatefulSets ⚠ • Still need SRE’s and operations knowledge in production • More abstractions -> Harder to reason about • Simplistic update strategies for large clusters 41

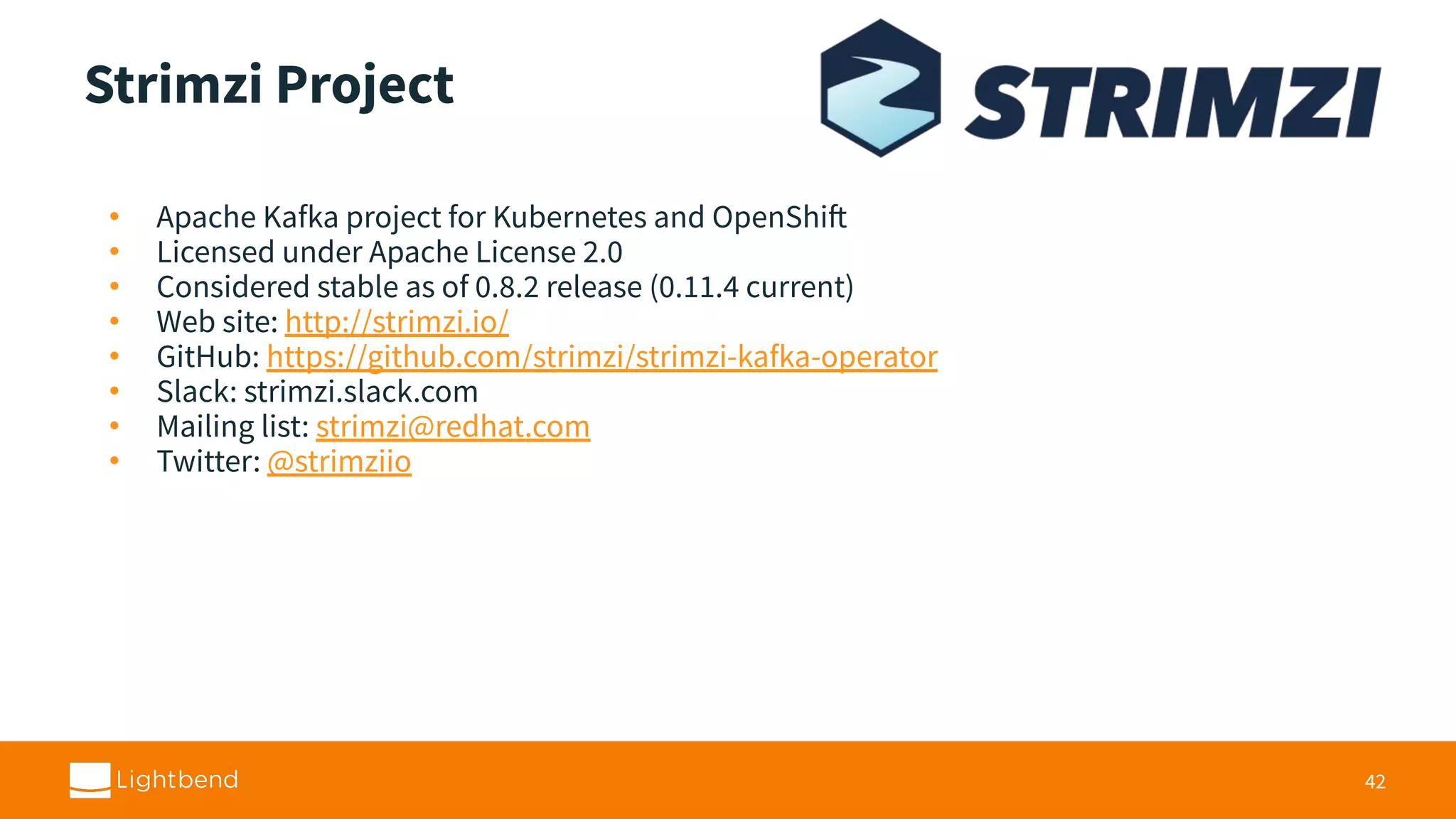

- 39. Strimzi Project • ApacheKafka project for Kubernetes and OpenShift • Licensed under Apache License 2.0 • Considered stable as of 0.8.2 release (0.11.4 current) • Web site: http://strimzi.io/ • GitHub: https://github.com/strimzi/strimzi-kafka-operator • Slack: strimzi.slack.com • Mailing list: strimzi@redhat.com • Twitter: @strimziio 42
- 40.

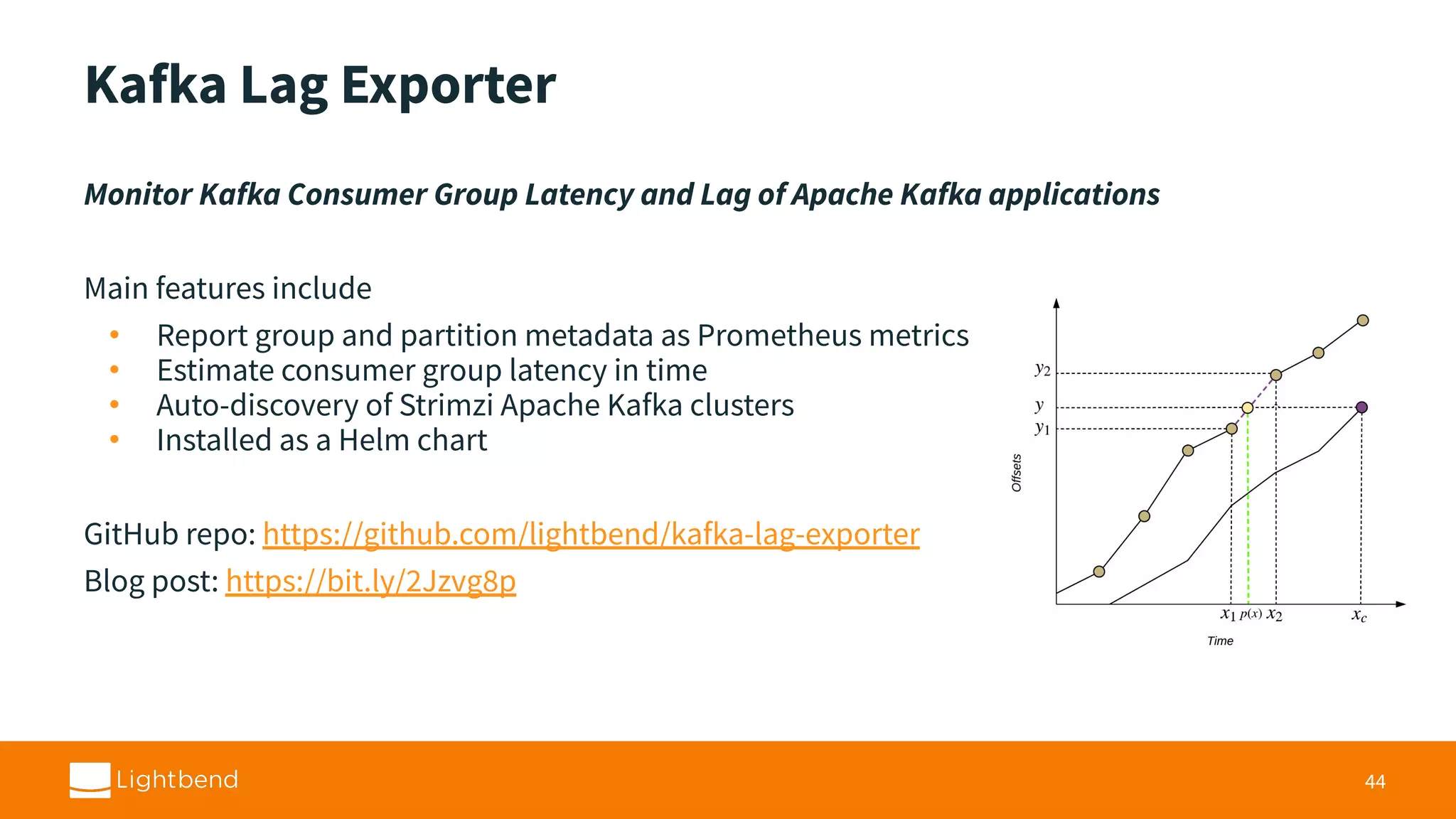

- 41. Kafka Lag Exporter MonitorKafka Consumer Group Latency and Lag of Apache Kafka applications Main features include • Report group and partition metadata as Prometheus metrics • Estimate consumer group latency in time • Auto-discovery of Strimzi Apache Kafka clusters • Installed as a Helm chart GitHub repo: https://github.com/lightbend/kafka-lag-exporter Blog post: https://bit.ly/2Jzvg8p 44
- 42.
- 44. Thank You! Sean Glover @seg1o in/seanaglover sean.glover@lightbend.com FreeeBook! https://bit.ly/2J9xmZm
