Serverless / FaaS / Lambda and how it relates to Microservices
- 1. munz & more Serverless ArchitecturesOTNLaTAM AUG 2017 Dr. Frank Munz
- 2. 2 Frank Munz • Foundedmunz & more in 2007 • 17 years Oracle Middleware, Cloud, and Distributed Computing • Consulting and High-End Training • Wrote two Oracle WLS and one Cloud book
- 3. Oracle announced FaaS atOOW2016

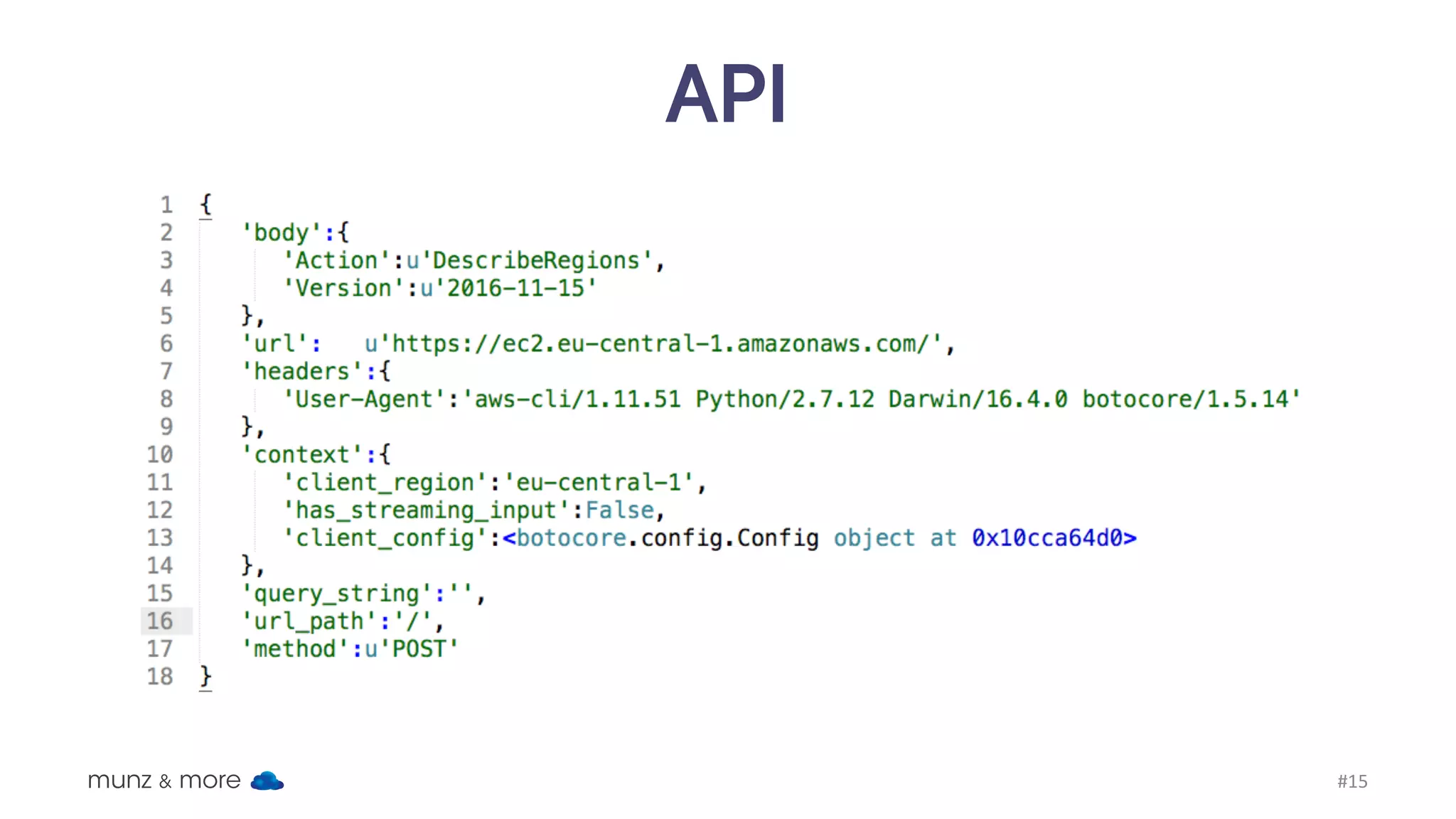

- 4. AWS API: JSONSnippet munz & more #4

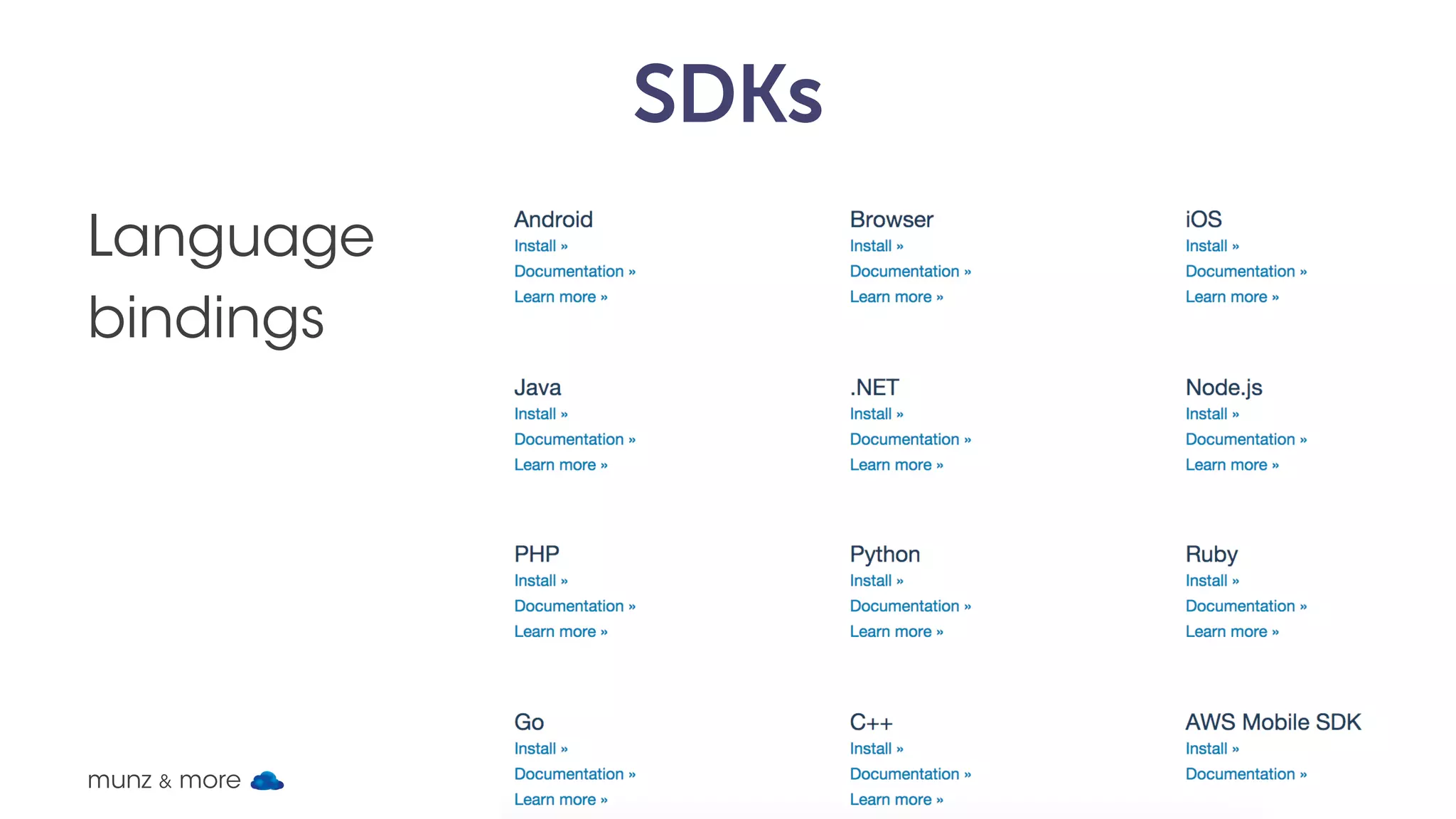

- 5. AWS SDKs munz &more #5 AWS language bindings Oracle language bindings, e.g. Java: https://github.com/oracle/bmcs-java-sdk

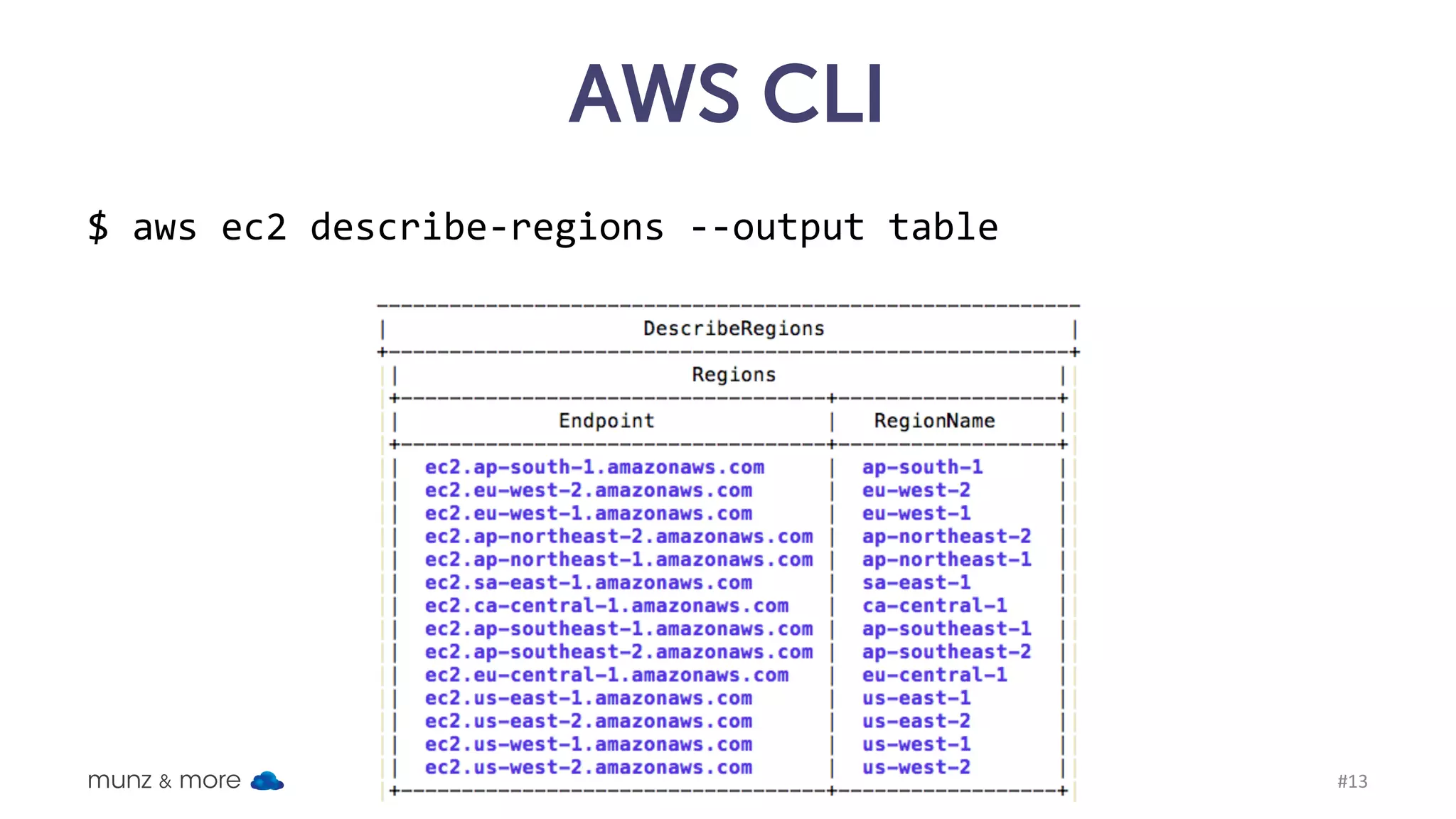

- 6. CLI munz & more#6 $ aws ec2 describe-regions --output table Oracle open sourced Bare Metal CLI https://blogs.oracle.com/de velopers/open-sourcing- bare-metal-cloud-services- cli

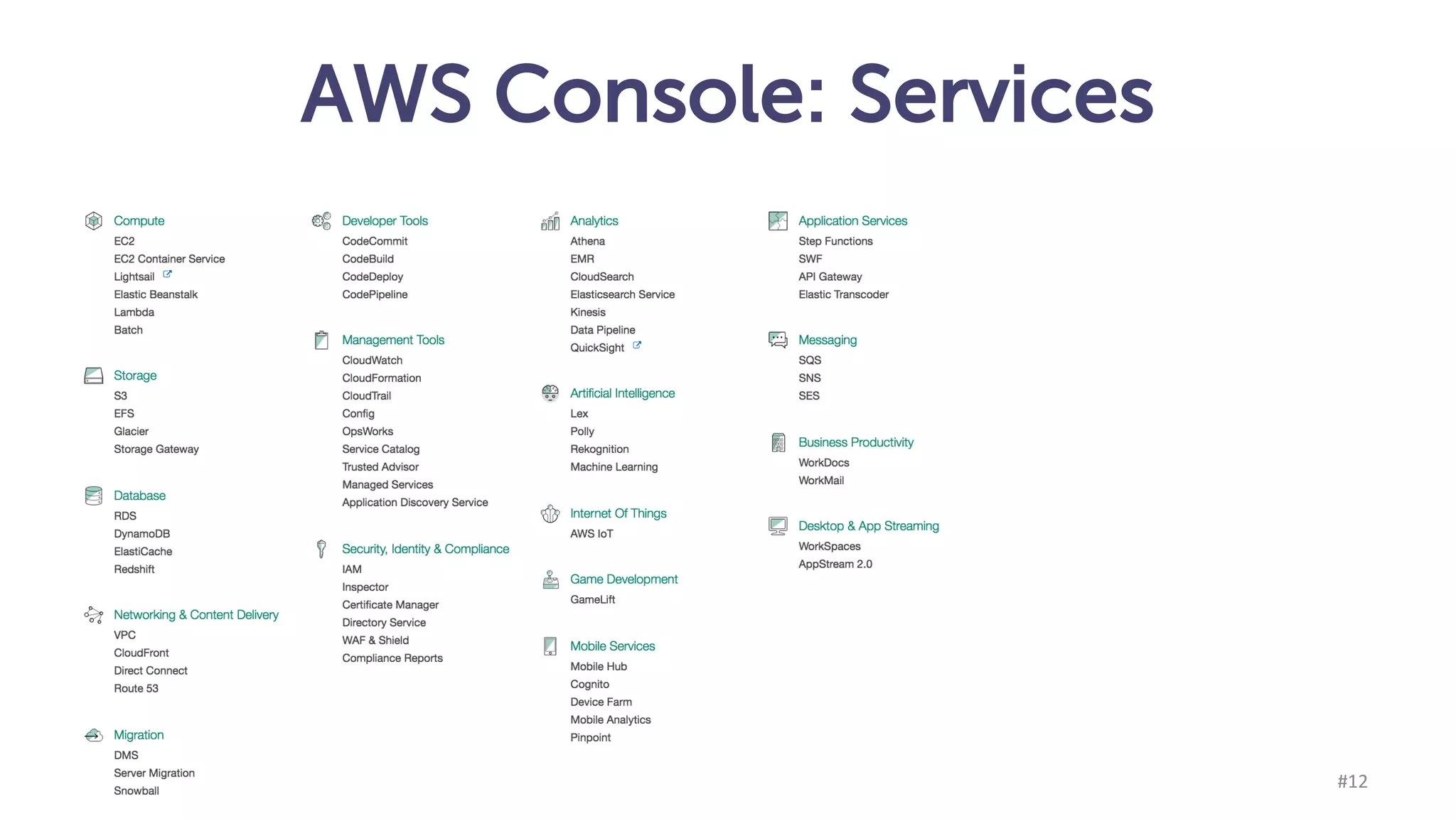

- 7. AWS Console: Services munz& more #7
- 8. Oracle Cloud Console munz& more #8
- 9.
- 10.
- 11. munz & more#11 https://www.blog.google/topics/google-cloud/google-invests-indigo-undersea-cable-improve-cloud-infrastructure-southeast-asia/
- 12. New Undersea Cable(Google) munz & more #12

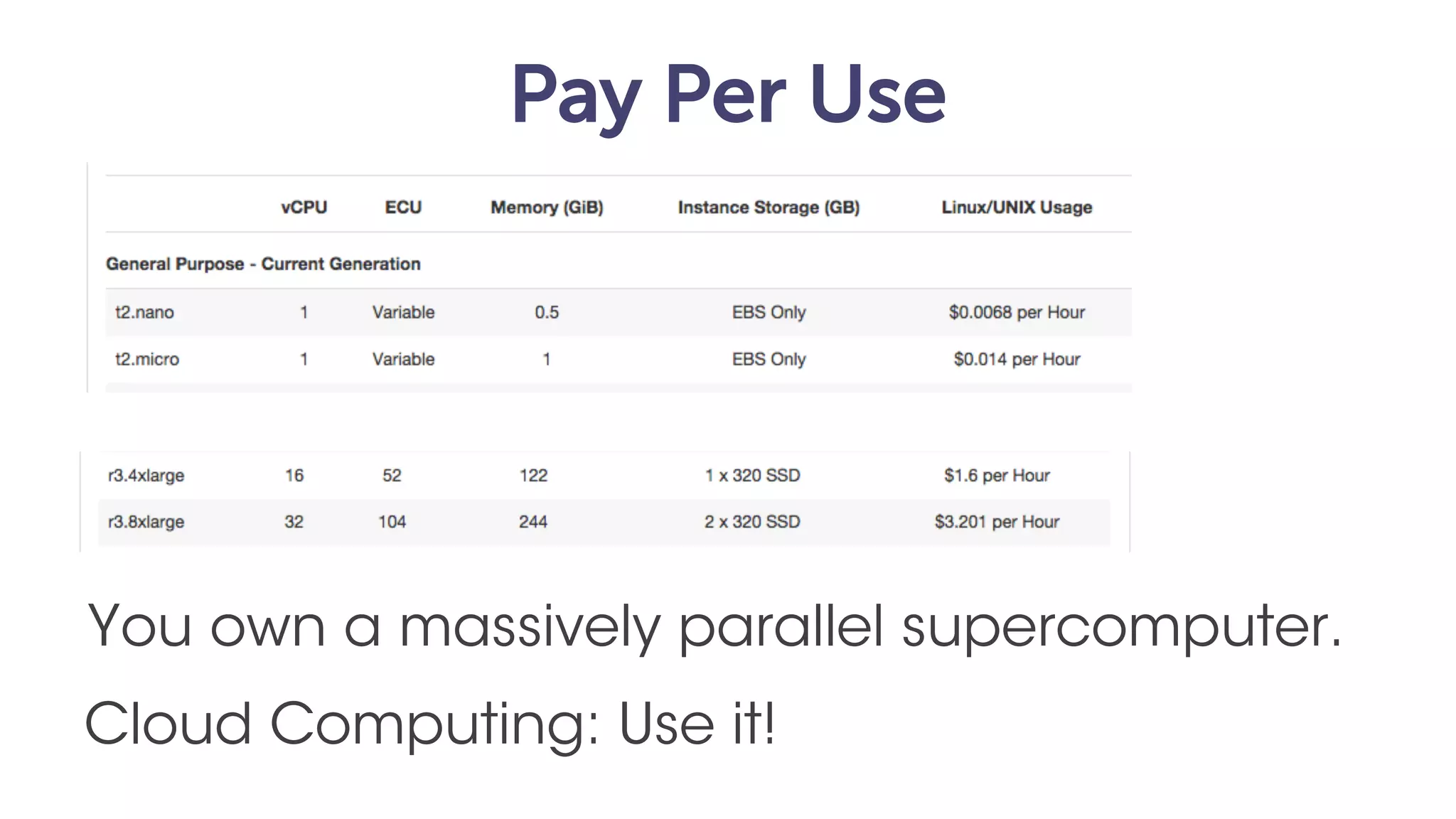

- 13. Pay Per Use •You own a massively parallel and distributed and highly available supercomputer with linear costs • 100h of 1 instance = 1h of 100 instances • Your IT resources are not fixed anymore

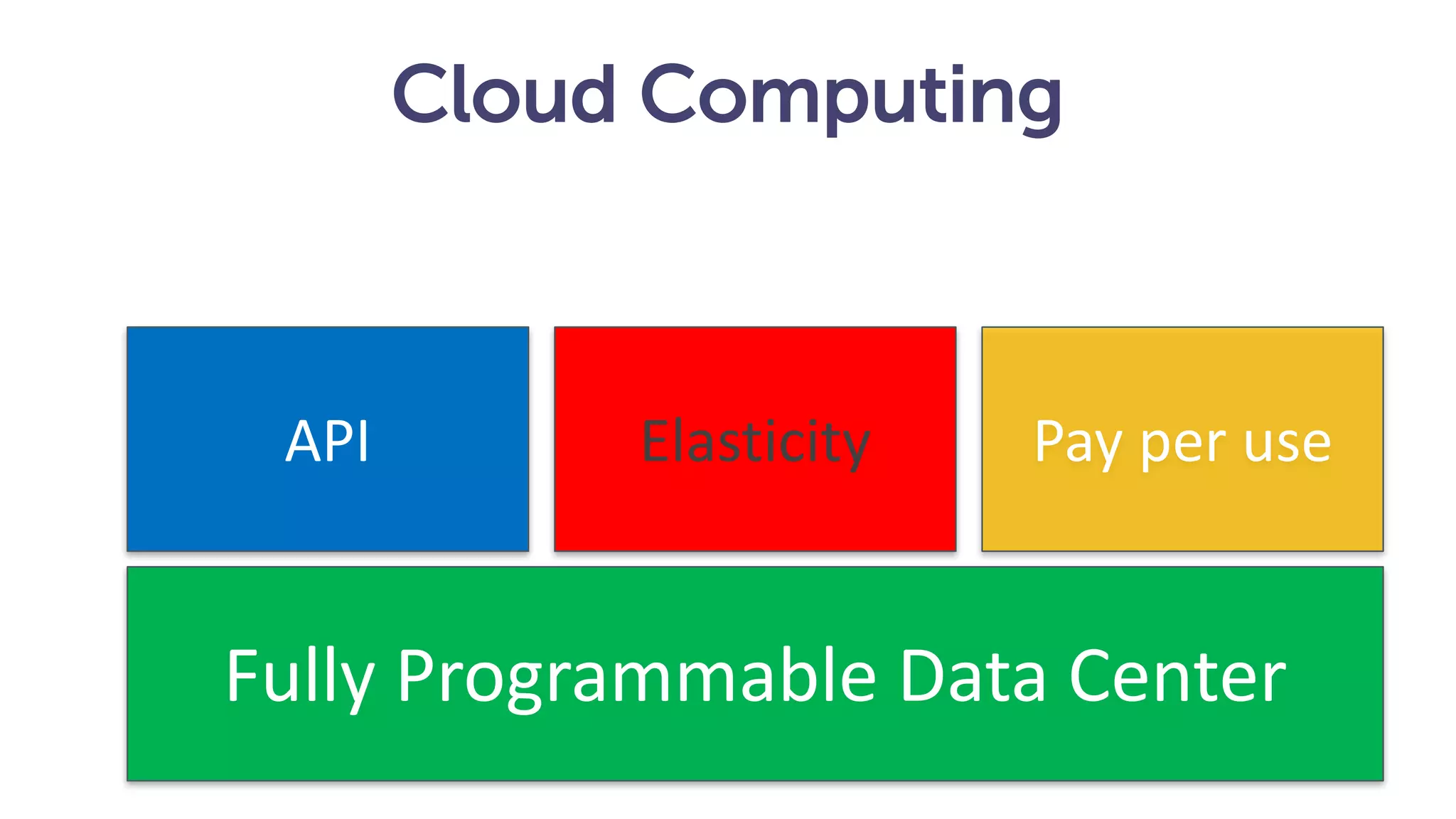

- 14. Cloud Computing API ElasticityPay per use Fully Programmable Data Center

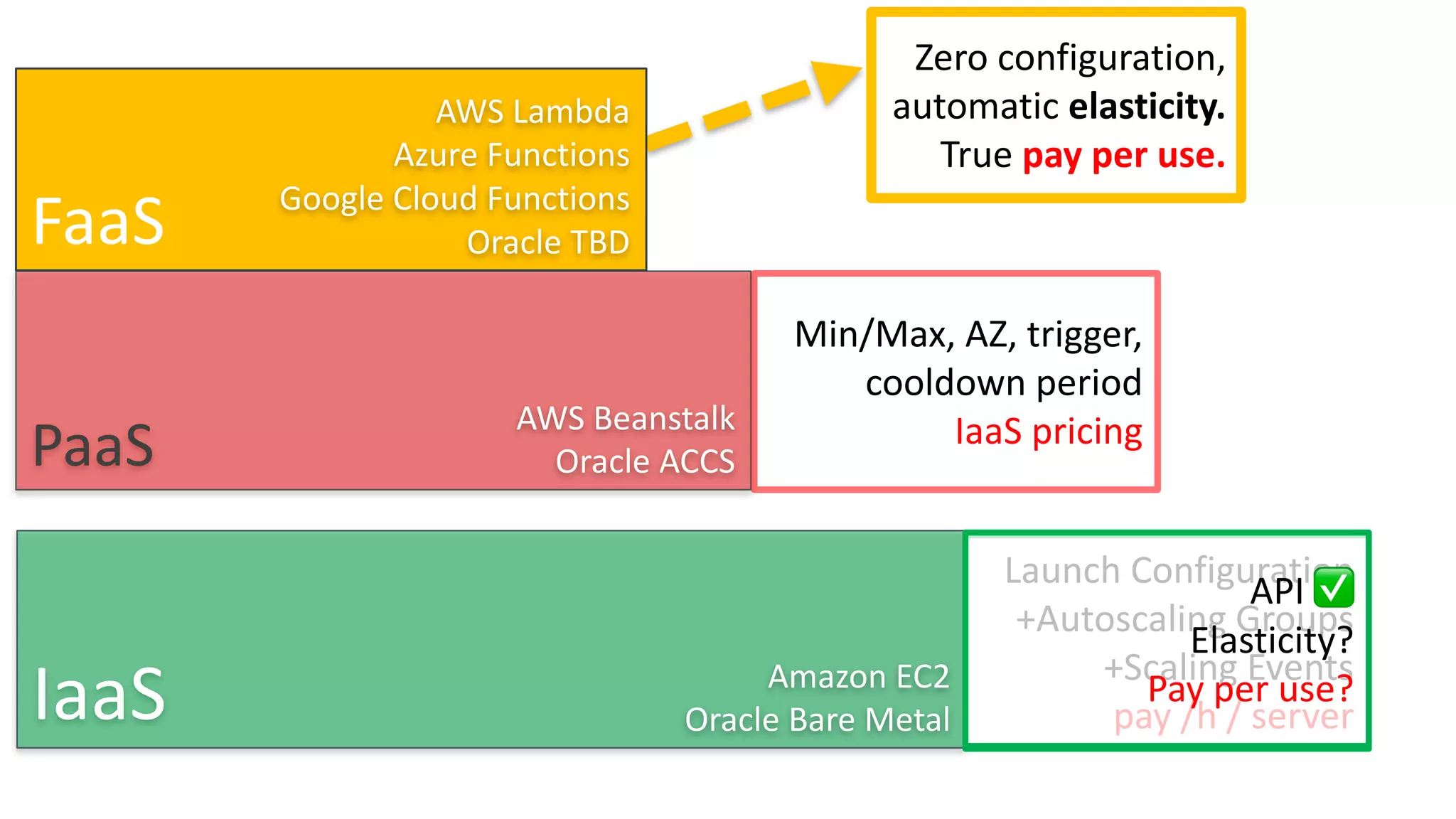

- 15. PaaS IaaS Oracle Bare Metal Amazon EC2 Oracle ACCS AWS Beanstalk FaaS Oracle TBD AWS Lambda automatic elasticity. True pay per use. Min/Max, trigger, IaaS pricing API ✅ Elasticity? Pay per use? Container ServiceOCCS AWS ECS Launch Configuration +Autoscaling Groups +Scaling Events, pay /h / server Easy scaling (OCCS) IaaS pay per use pricing
- 16.
- 18. Serverless vs. FaaS munz& more #18 • AWS announced Lambda in 2014 as serverless. • Lambda is Function as a Service (FaaS) • PaaS is ”serverless” (in a broader sense) • FaaS is the cool thing – not “serverless” https://dzone.com/articles/serverless-architecture-1

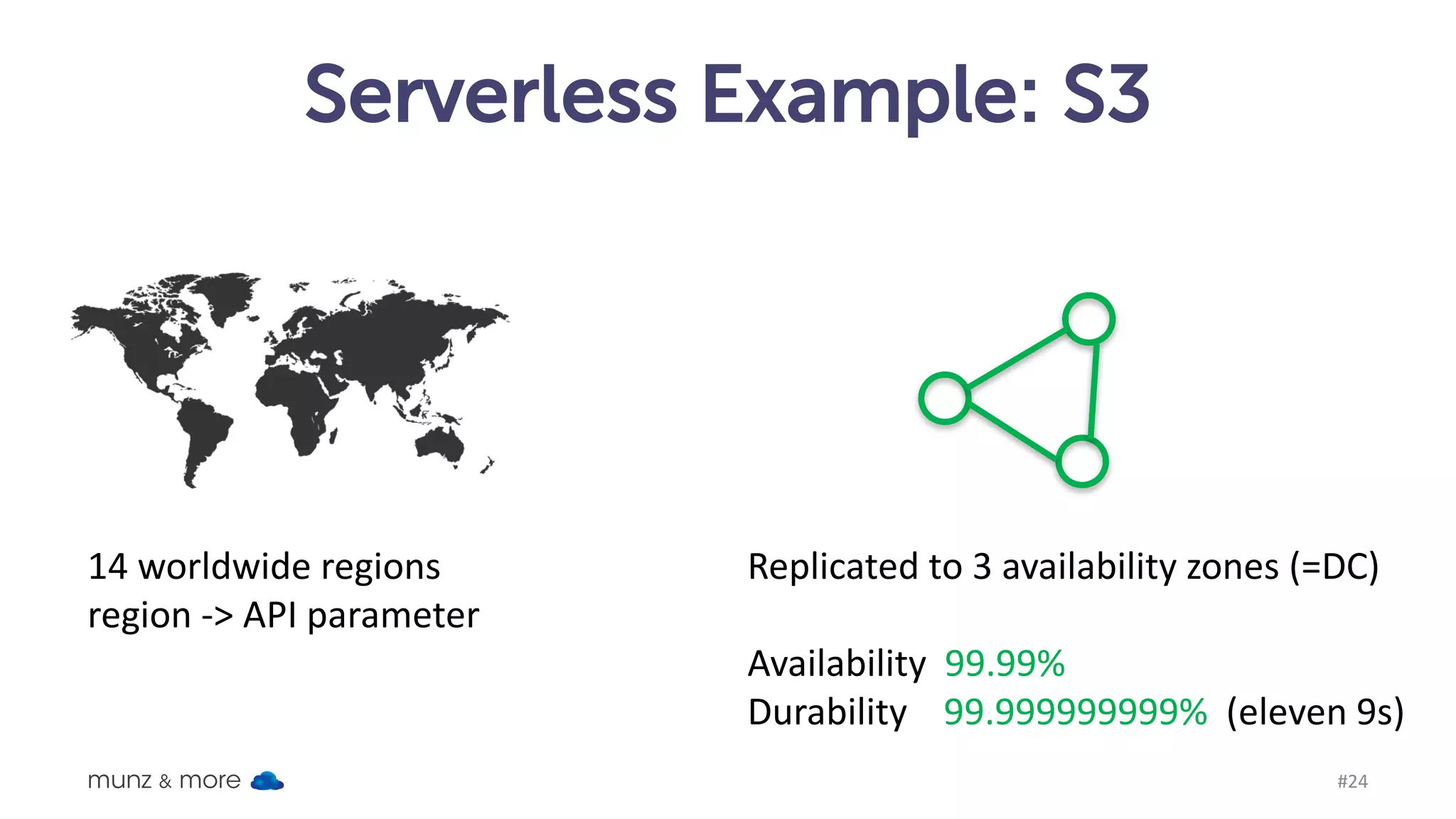

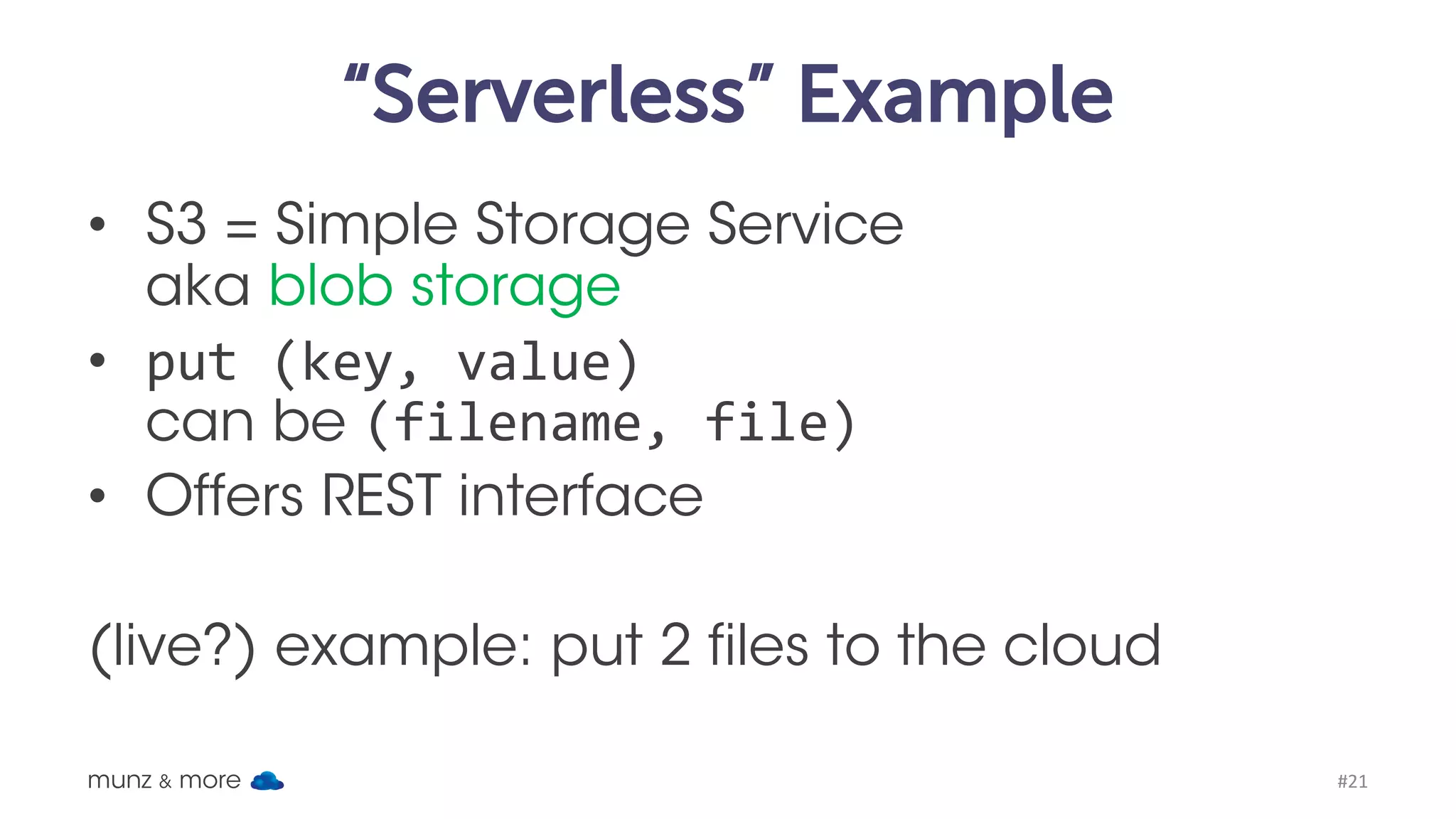

- 19. Serverless Example: S3 munz& more #19 Replicated to 3 availability zones (=DC) Availability 99.99% Durability 99.999999999% (eleven 9s) 14 worldwide regions region -> API parameter Blob storage with RESTful Interface: PUT (key, value)

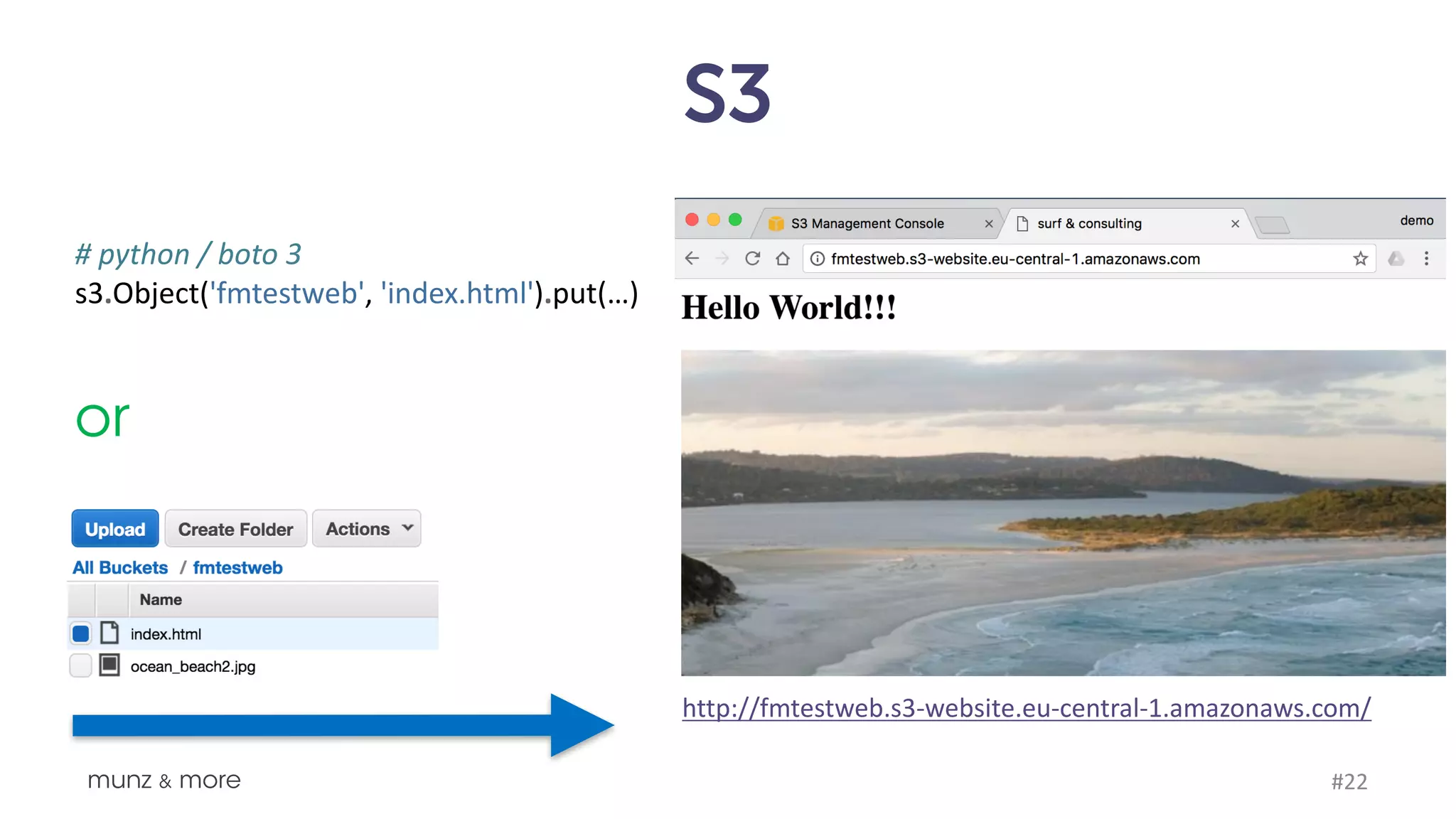

- 20. S3 munz & more#20 GET http://fmtestweb.s3-website.eu-central-1.amazonaws.com/

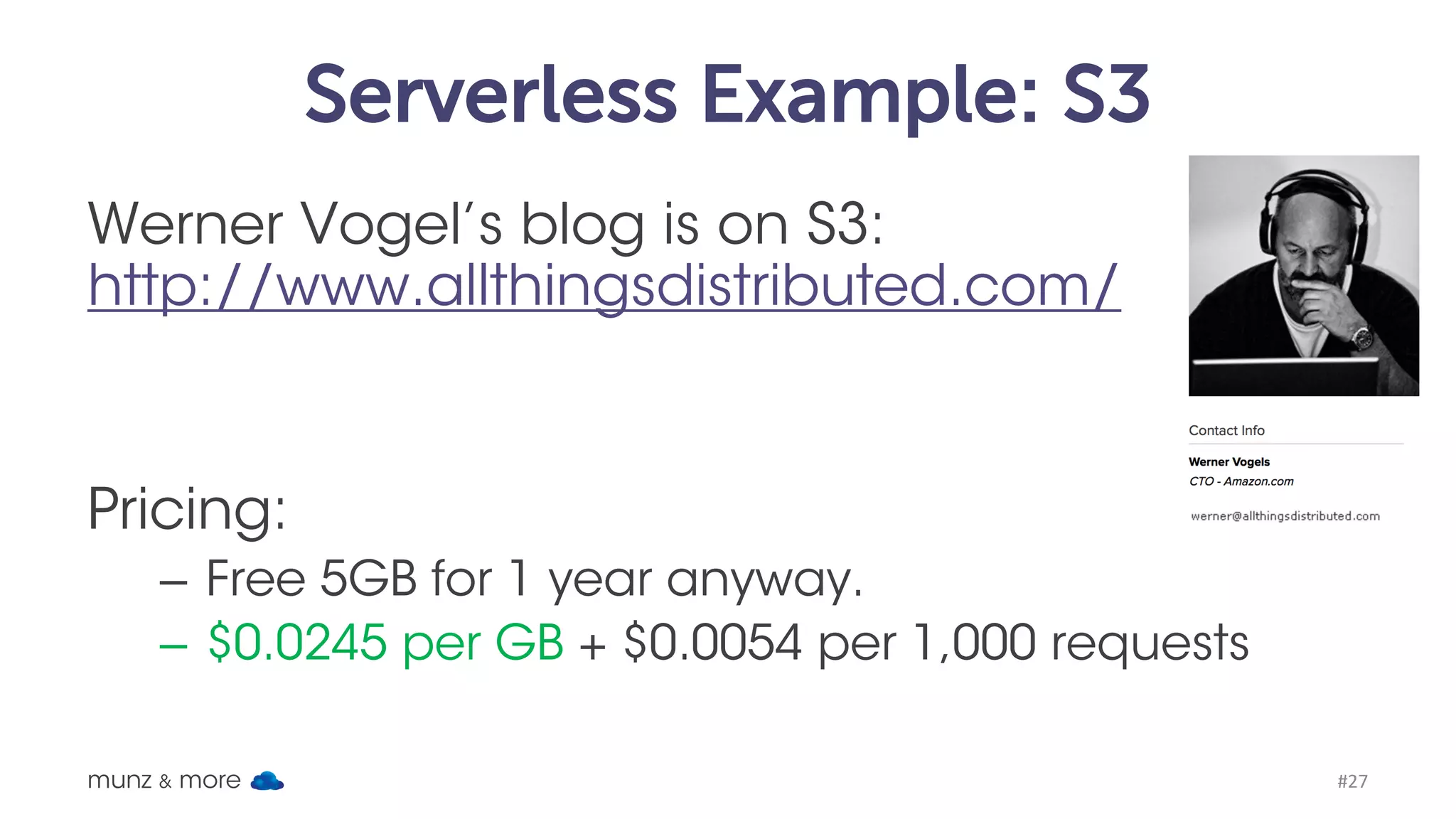

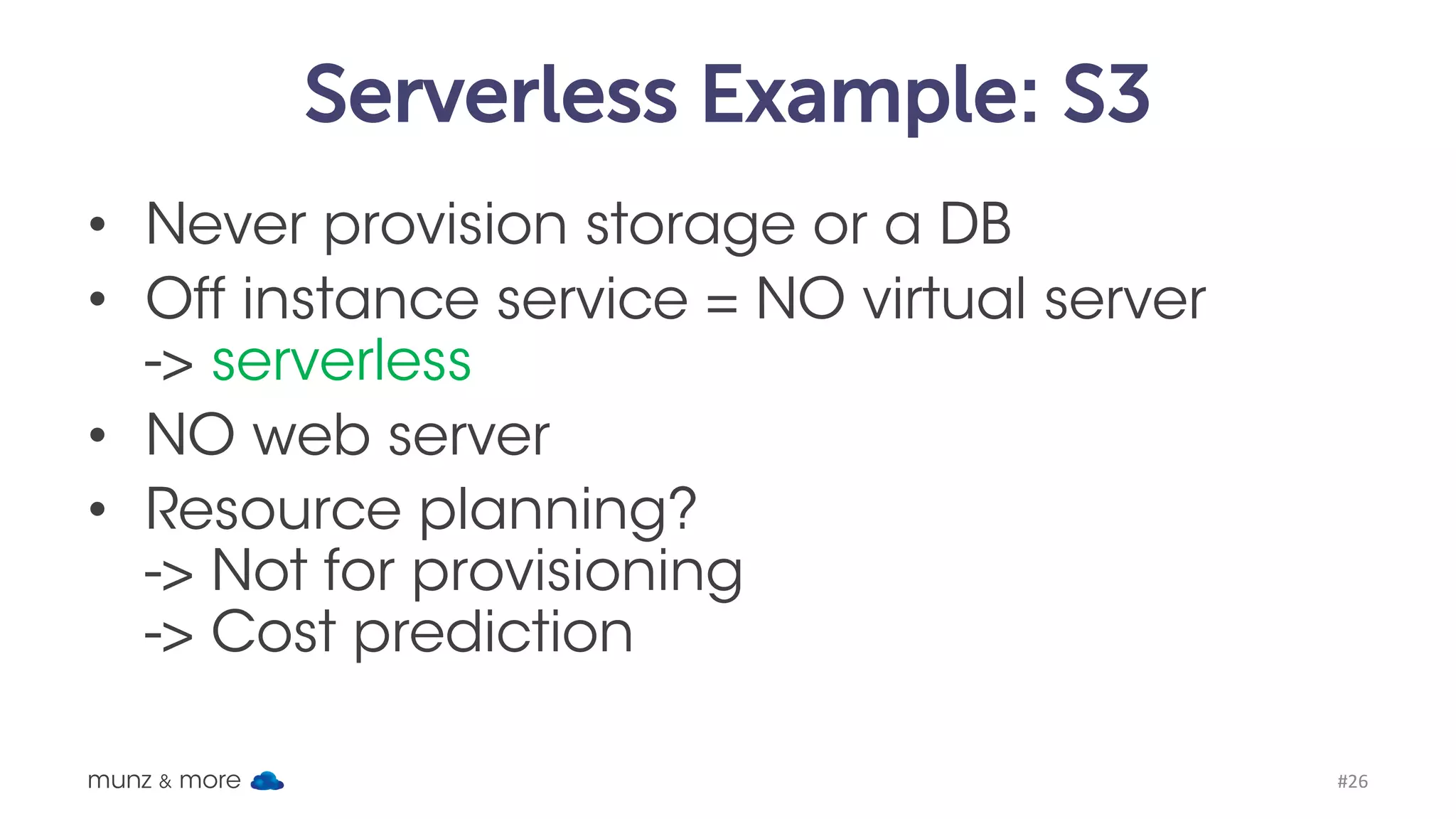

- 21. Serverless Example: S3 munz& more #21 • Never provision storage • Off instance service = NO server -> “serverless” • NO web server • $0,02 per GB + requests Werner Vogel’s blog is on S3: http://www.allthingsdistributed.com/
- 22. S3 is todata as FaaS is to code munz & more #22
- 23.

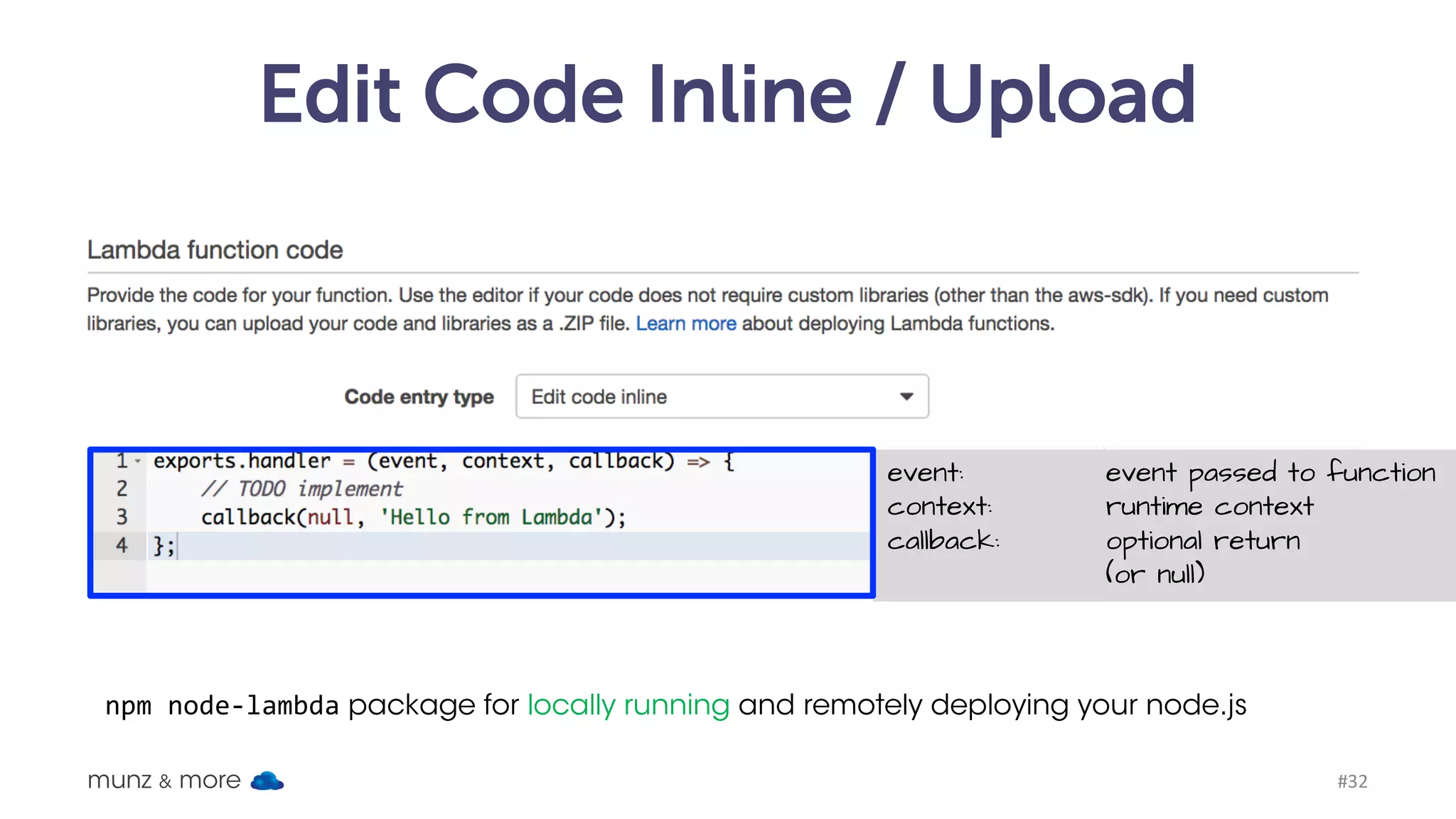

- 24. Edit Code Inline/ Upload munz & more #24 npm node-lambda package for locally running and remotely deploying your node.js event: event passed to function context: runtime context callback: optional return (or null)
- 25. Definition: Function asa Service • Automated elasticity • True pay per invokation • Stateless • Event based munz & more #25 Definition • Choose memory -> compute power, I/O • Using container tech Characteristics

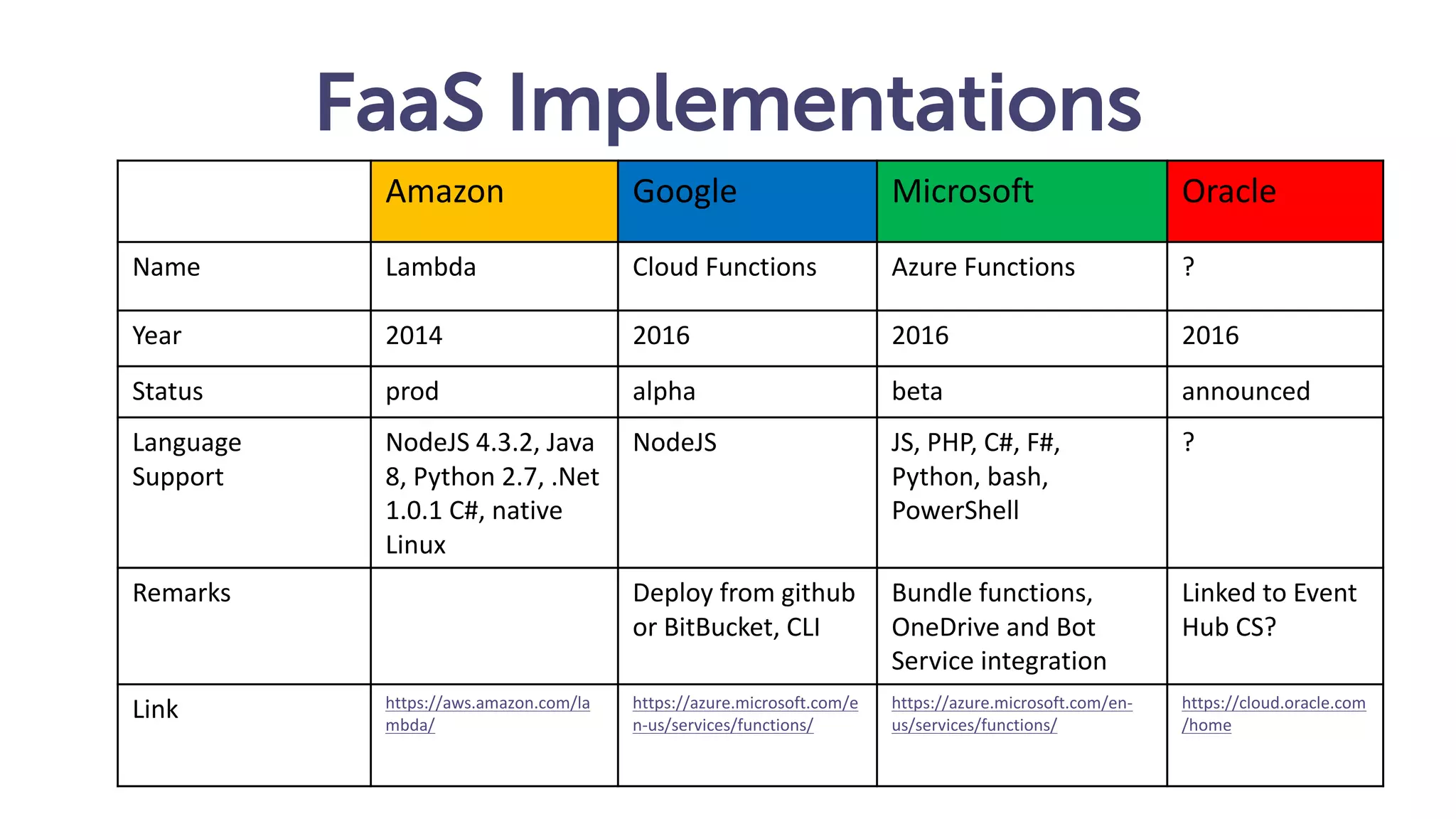

- 26. FaaS Implementations Amazon GoogleMicrosoft Oracle Name Lambda Cloud Functions Azure Functions tbd Year 2014 2016 2016 2016 Status prod alpha beta announced Language Support NodeJS 4.3.2, Java 8, Python 2.7, .Net 1.0.1 C#, native Linux NodeJS JS, PHP, C#, F#, Python, bash, PowerShell ? Remarks Deploy from github or BitBucket, CLI Bundle functions, OneDrive and Bot Service integration Linked to Event Hub CS? Link https://aws.amazon.com/la mbda/ https://azure.microsoft.com/e n-us/services/functions/ https://azure.microsoft.com/en- us/services/functions/ https://cloud.oracle.com /home

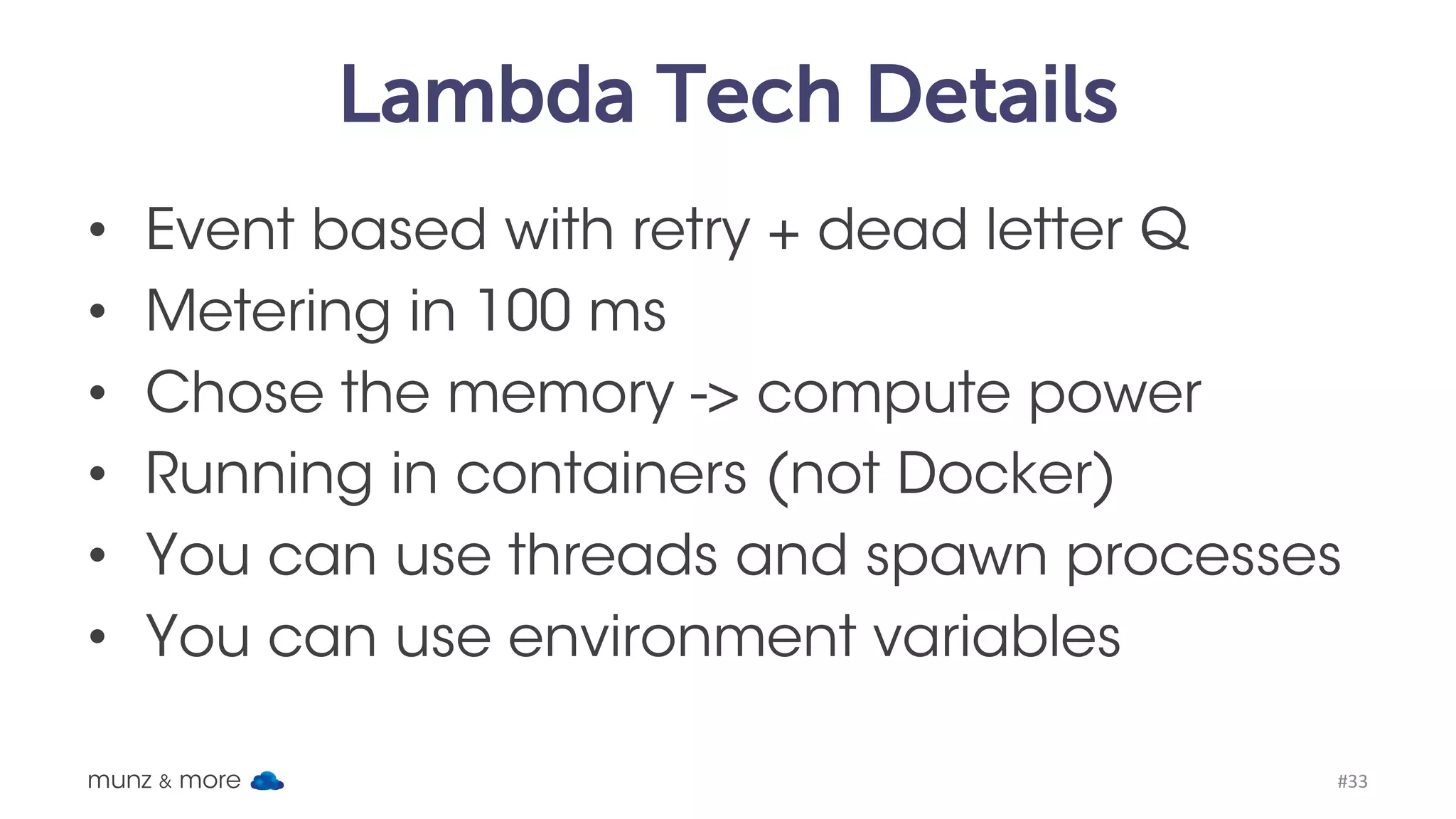

- 27. Lambda Tech Details •Retries + dead letter Q • Metering in 100 ms (compute x time) • You can use environment variables, threads and start processes • Invocation times may differ • No scaling parameter munz & more #27

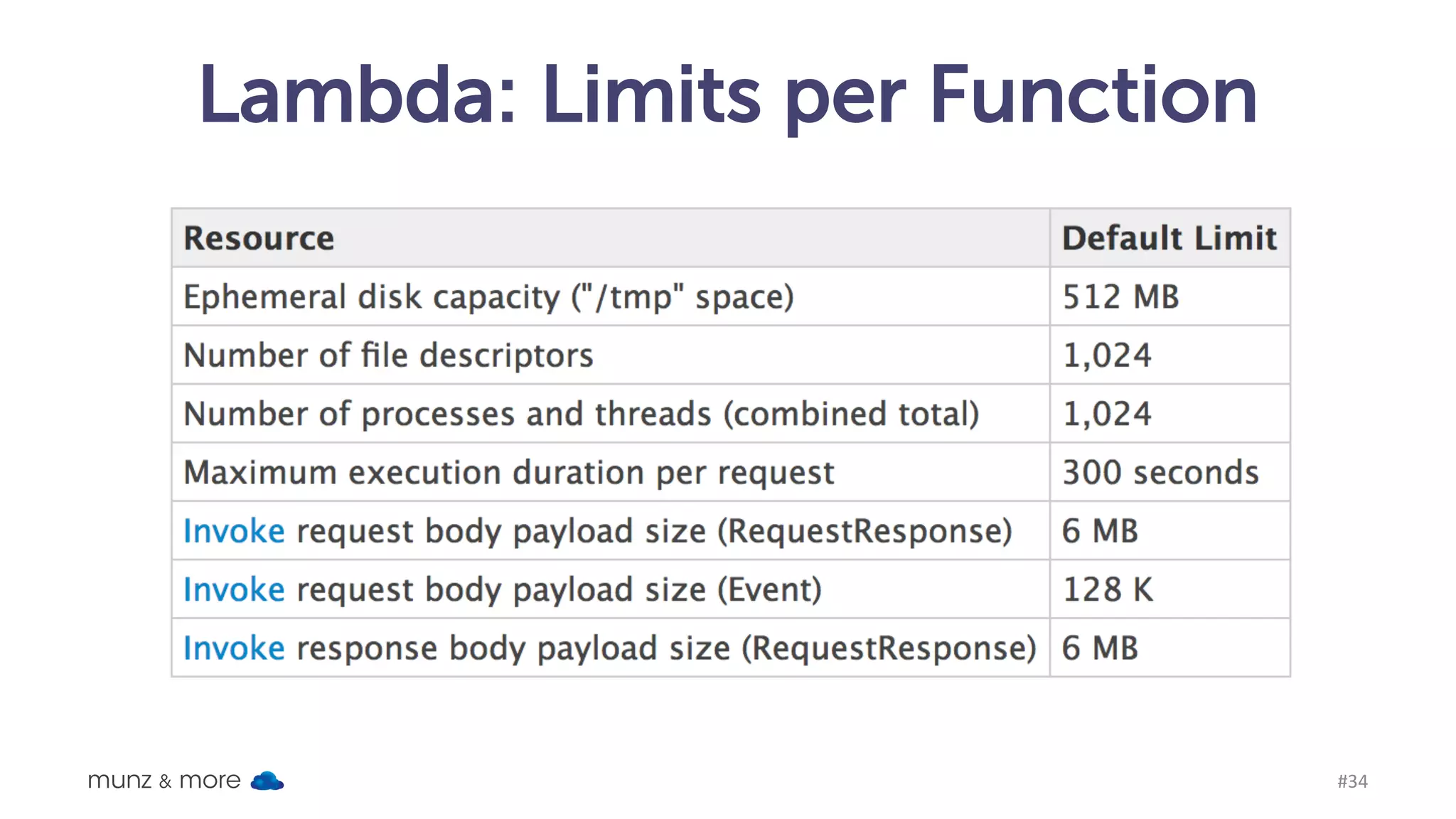

- 28. Lambda: Limits perFunction munz & more #28
- 29. Cost Savings • Expedia(2016): –2.3 billions calls – 200k hours / month – $ 550 a month • Postlight – API GW, Lambda, Serverless – Costs dropped 2 orders of magnitude to $ 370 munz & more #29 https://www.youtube.com/watch?v=gT9x9LnU_rE https://trackchanges.postlight.com/serving-39-million-requests-for-370-month-or-how-we- reduced-our-hosting-costs-by-two-orders-of-edc30a9a88cd

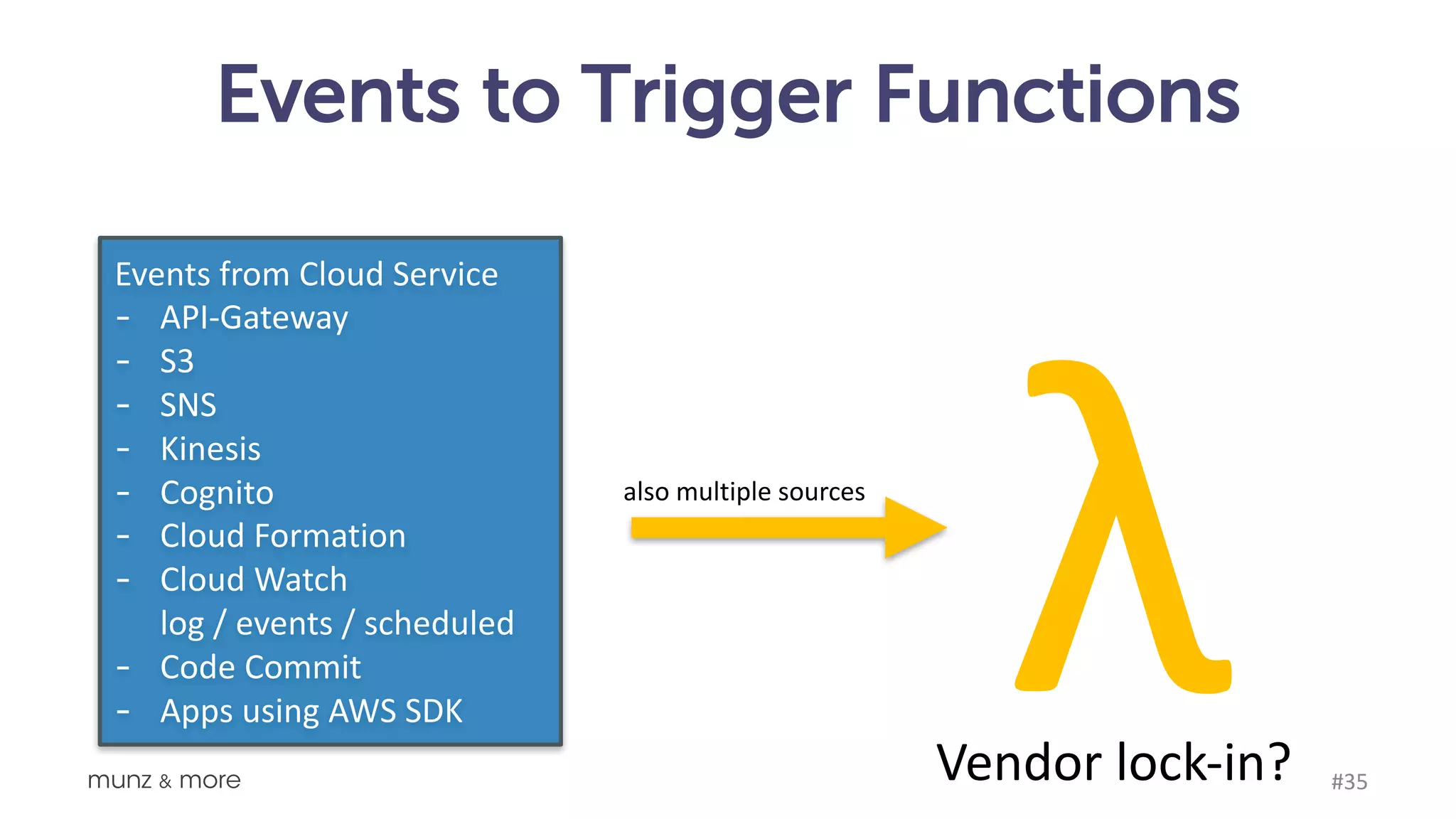

- 30. Events to TriggerFunctions munz & more #30 Events from Cloud Service - API-Gateway - S3 - SNS - Kinesis - Cognito - Cloud Formation - Cloud Watch log / events / scheduled - Code Commit - Apps using AWS SDK λVendor lock-in? also multiple sources

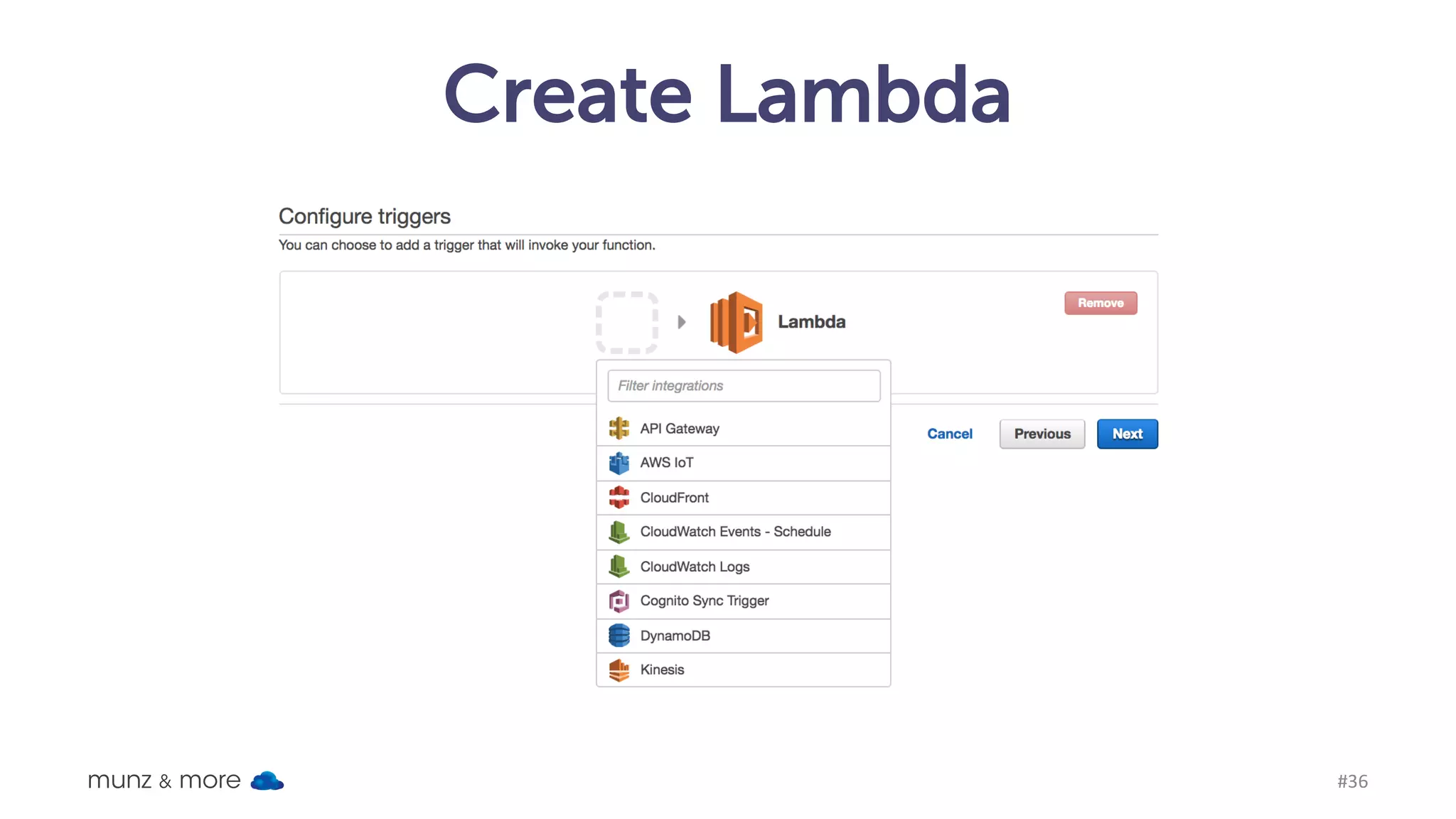

- 31. Create Lambda munz &more #31 S3

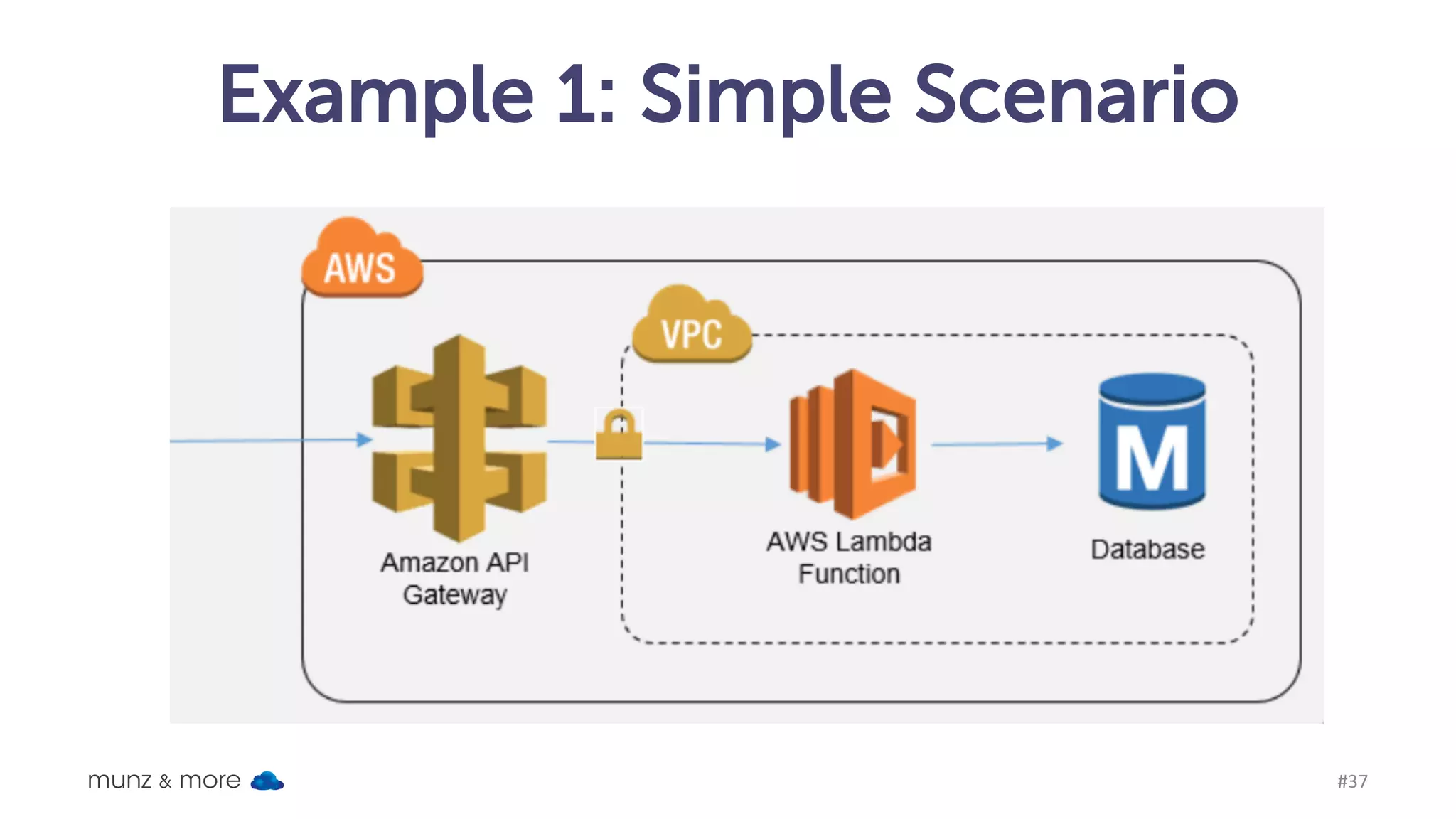

- 32. Example 1: SimpleScenario munz & more #32

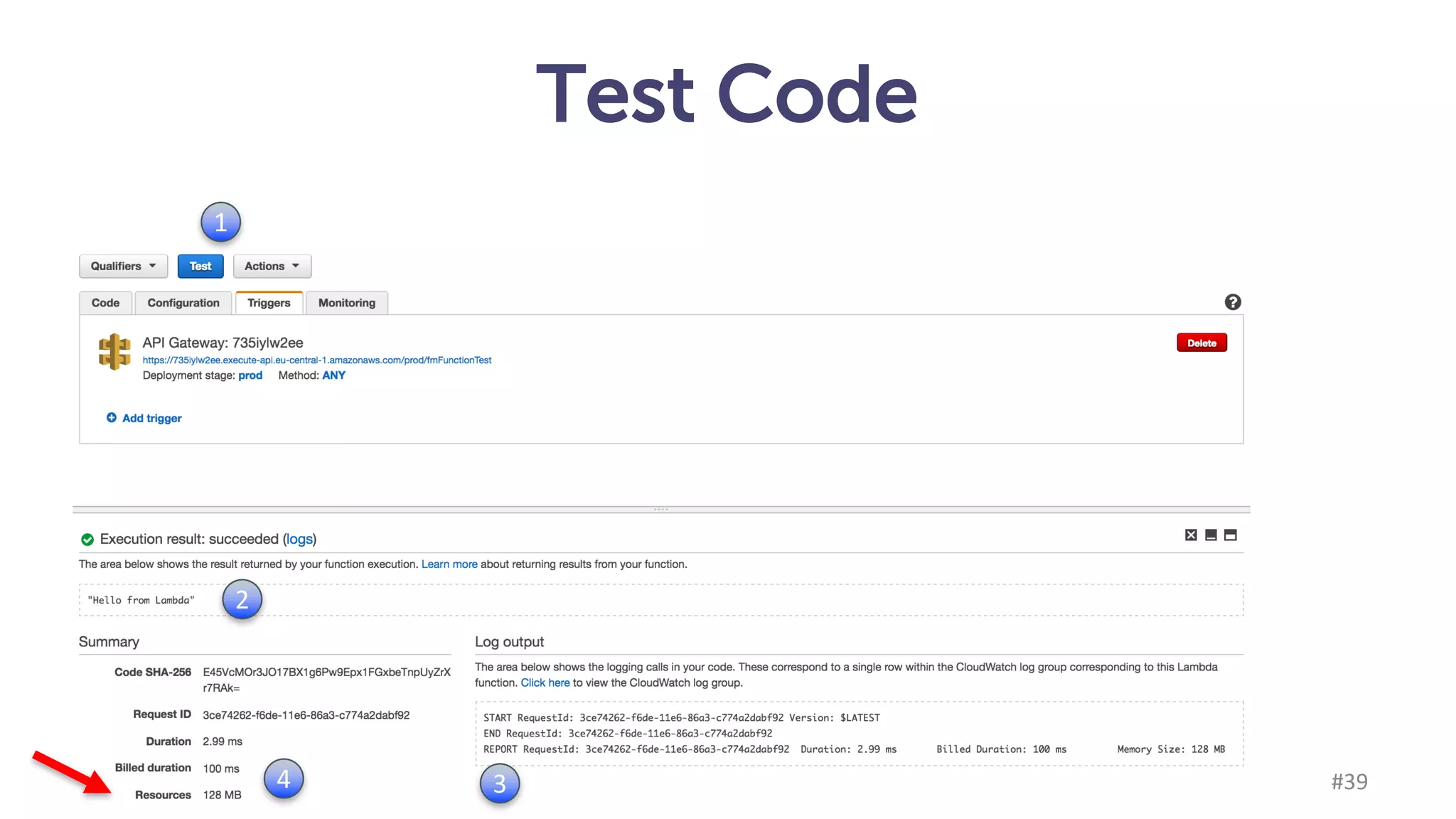

- 33. Test Code munz &more #33 1 2 34

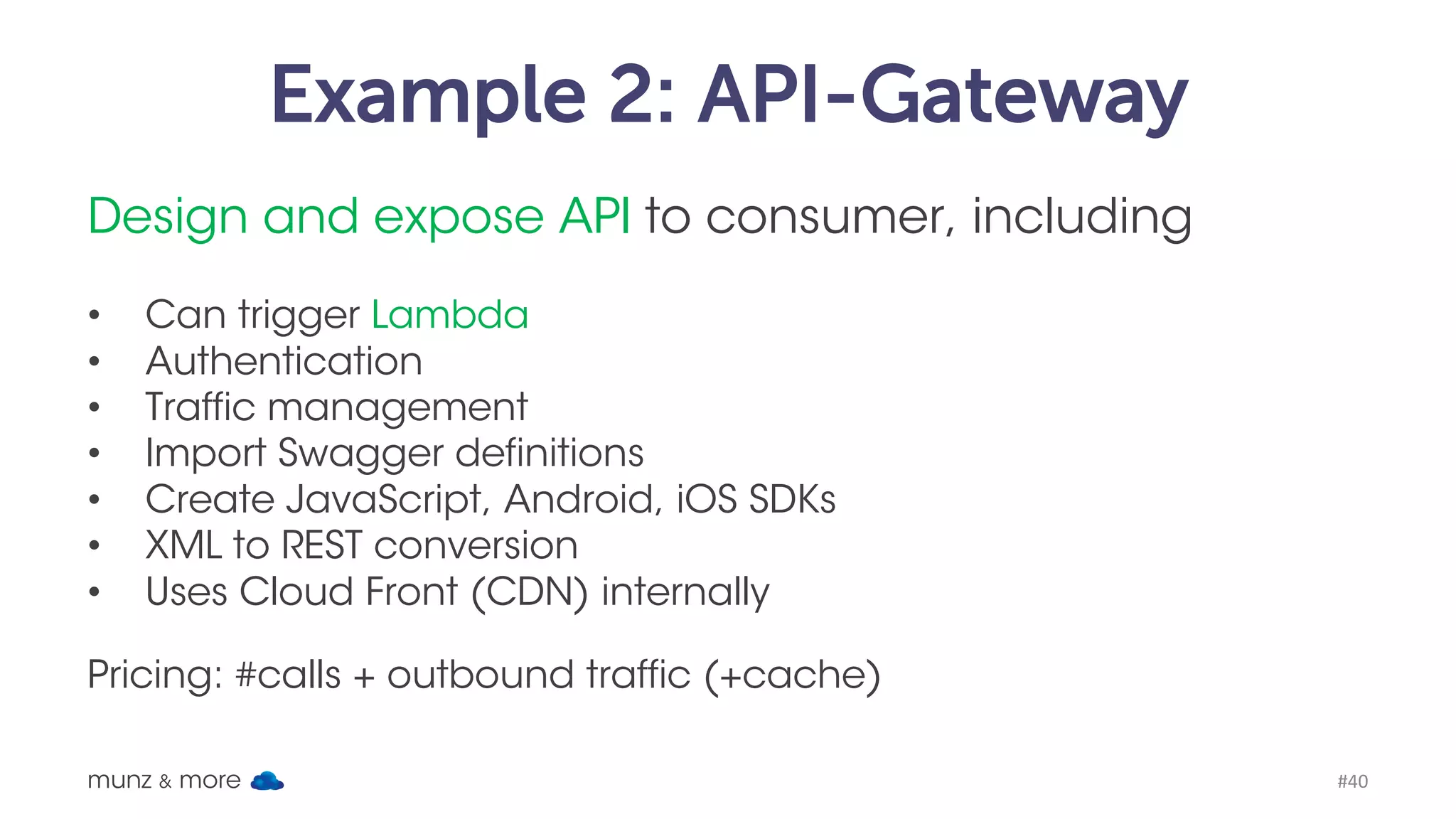

- 34. API-Gateway Design and exposeAPI to consumer, can trigger Lambda and brings more features: • Authentication • Traffic management • Import Swagger definitions • Create JavaScript, Android, iOS SDKs • XML to REST conversion • Uses Cloud Front (CDN) internally Pricing: #calls + outbound traffic (+cache) munz & more #34

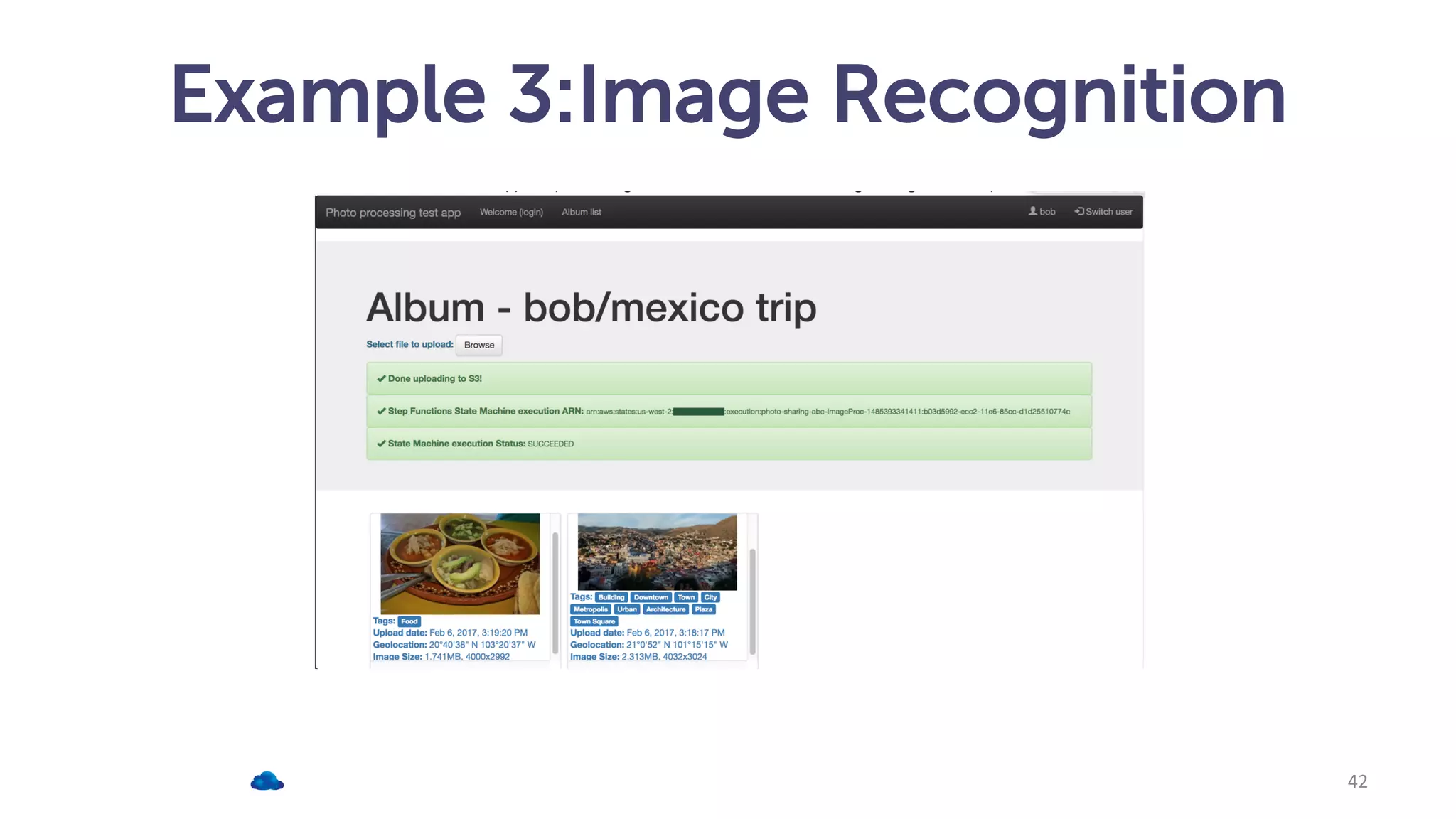

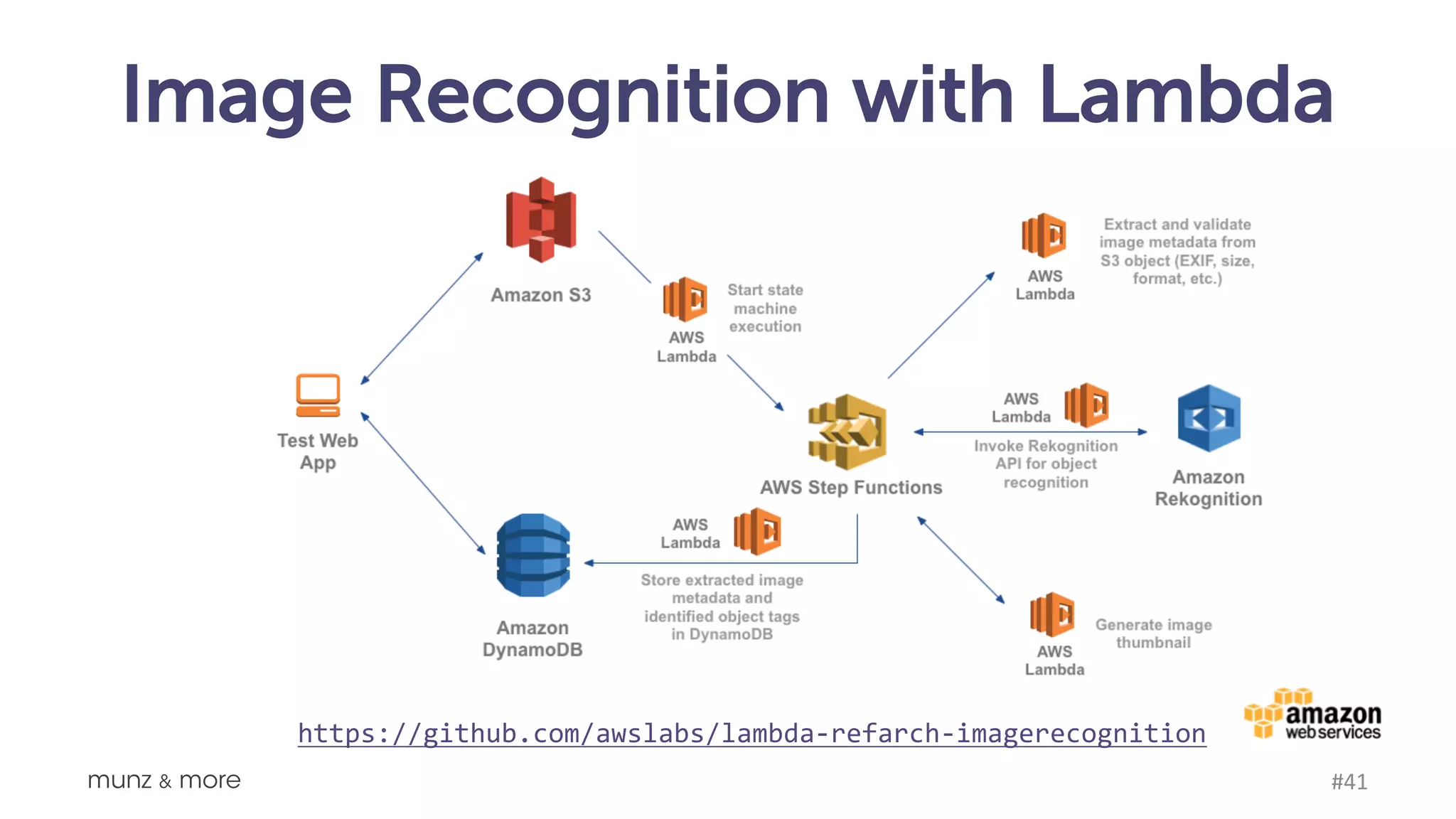

- 35. Example 2: ImageRecognition 35 https://github.com/awslabs/lambda-refarch-imagerecognition
- 36. Image Recognition munz &more #36 Extract meta data AI based ecognition Create thumbnail
- 37.

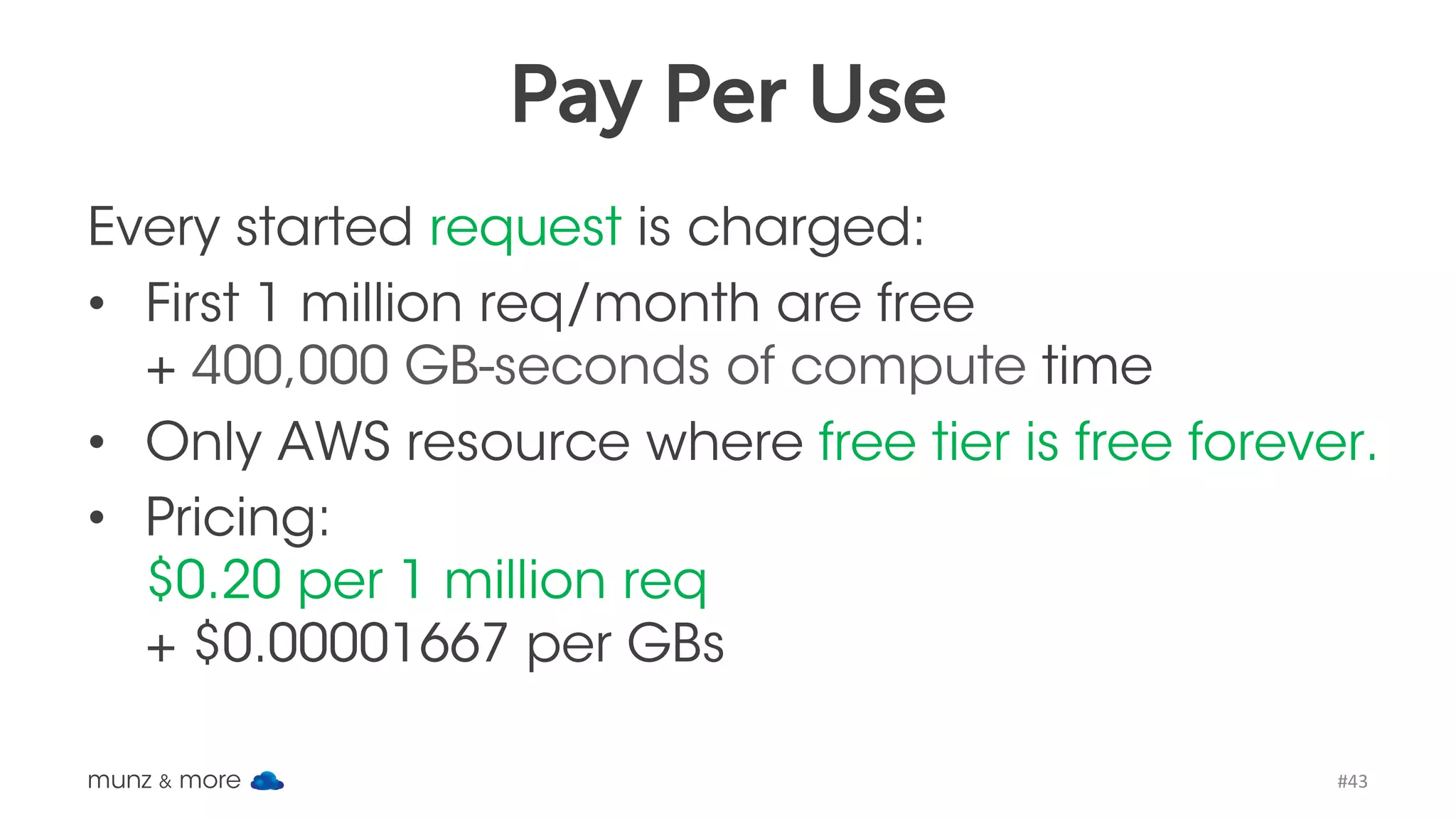

- 38. Pay Per Use Everystarted request is charged: • First 1 million req/month are free + 400,000 GB seconds of compute time • $0.20 per 1 million req + $0.00001667 per GB second Lambda: free tier is forever. munz & more #38
- 39.
- 40. “Try to attacksomething that only lives for few milli-seconds” (AWS)

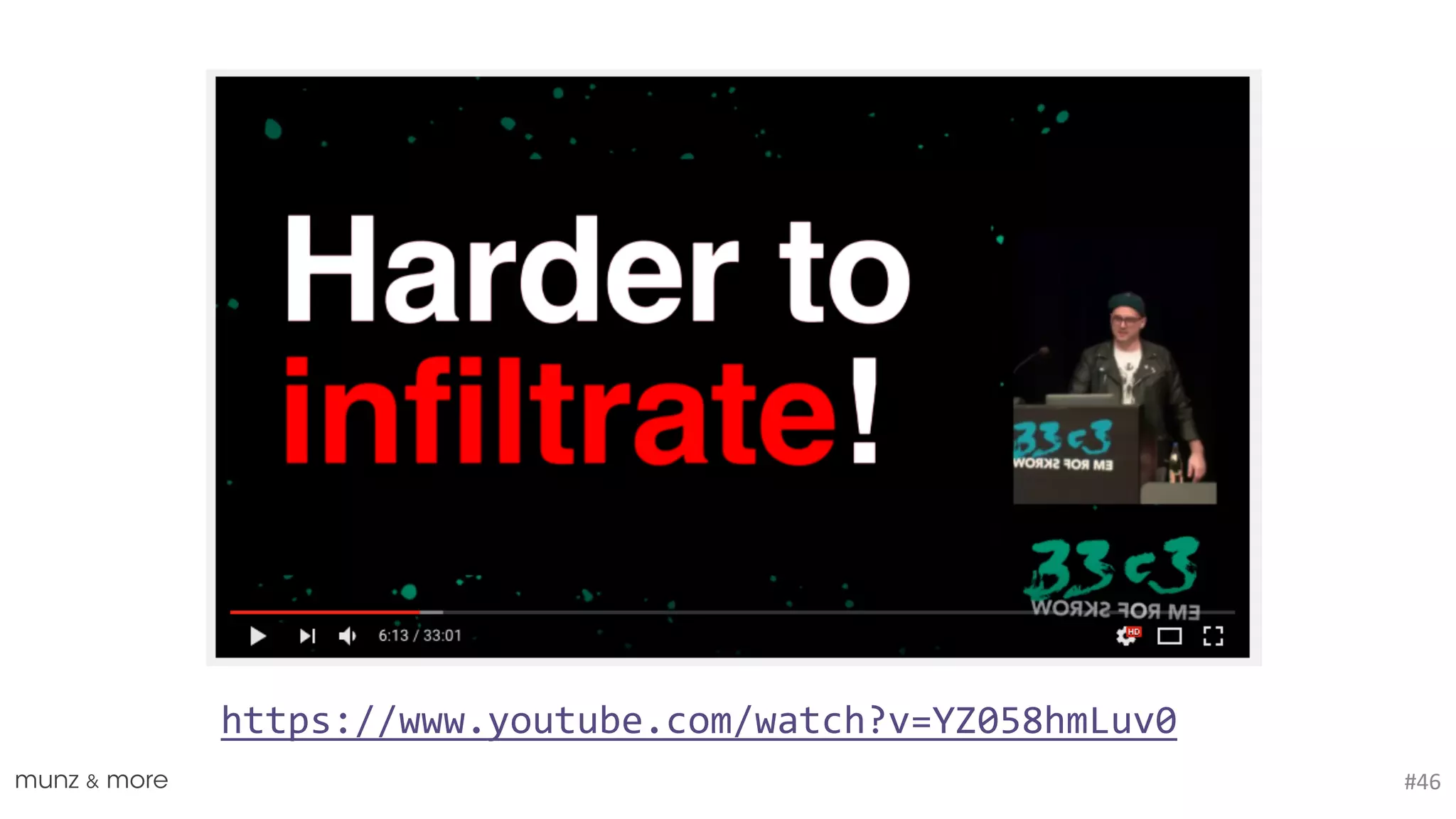

- 41. Gone in 60ms munz& more #41 https://www.youtube.com/watch?v=YZ058hmLuv0

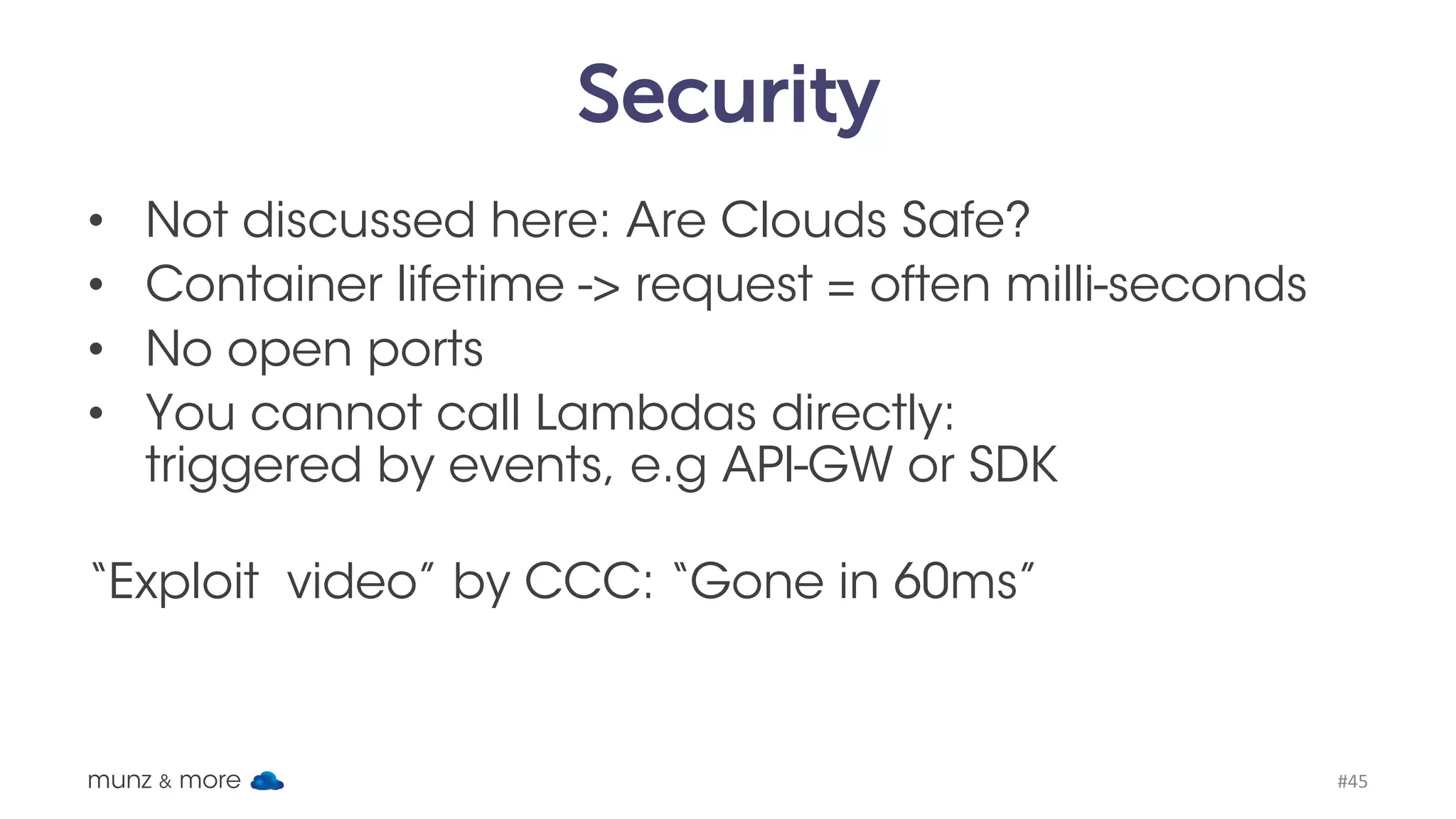

- 42. Security • Not discussedhere: Are Clouds Safe? • Small attack surface: – Container lifetime -> request = milli-seconds – No open ports – Not listening to an IP – You cannot call Lambdas directly: triggered by events “Exploit video” by CCC: “Gone in 60ms” munz & more #42
- 43.
- 44. Microservices Developing a singleapplication as • a suite of small services • each running in its own process / owns it‘s data • communicating with lightweight mechanisms (M. Fowler / J. Lewis) https://martinfowler.com/articles/microservices.html
- 47. Frank Munz /OTN Latam 2016 #47 Service owns its data Less enterprise, more application centric Continuous Unlocking

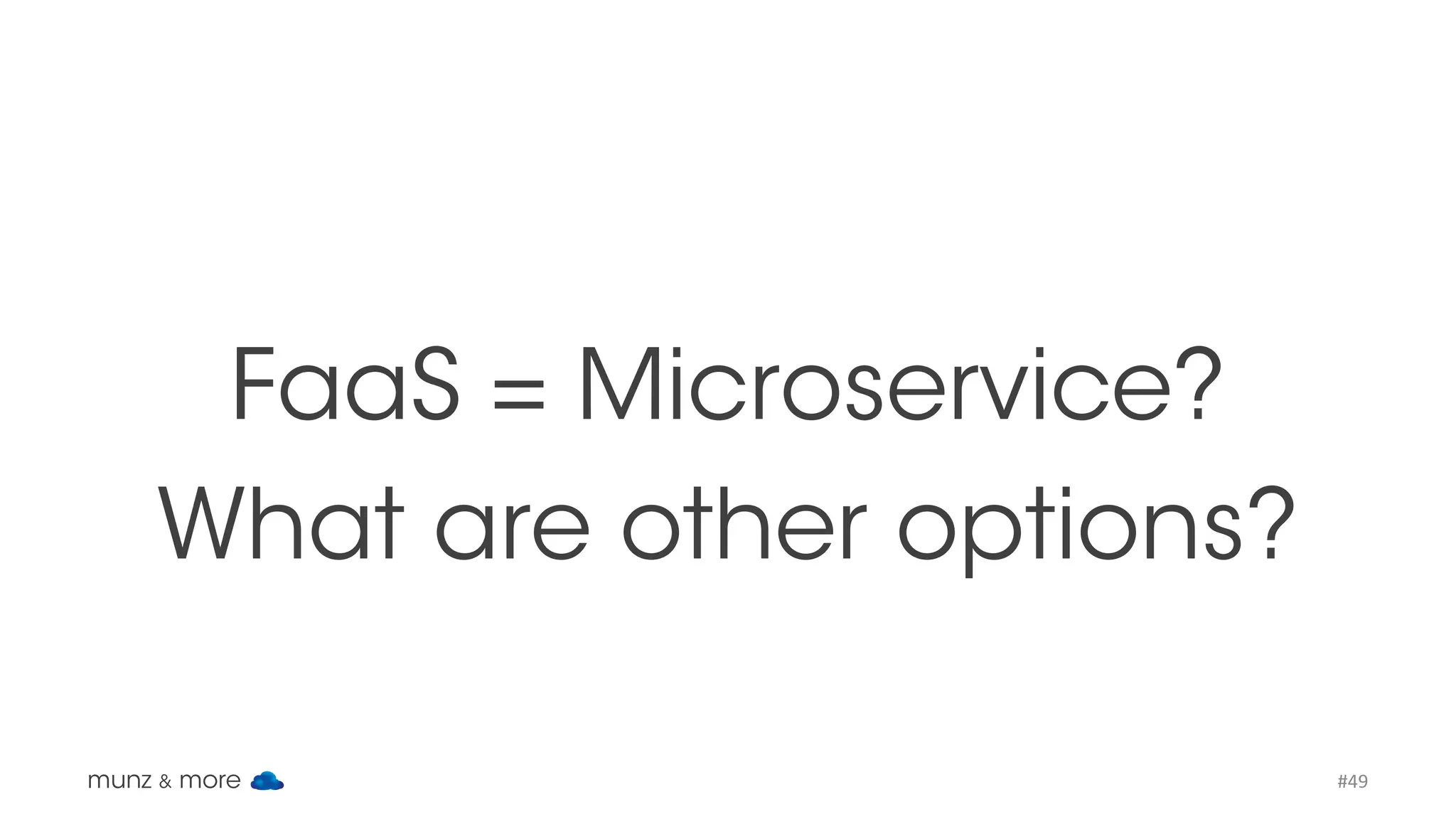

- 48. munz & more#48 Is 𝛌 the new μ ?

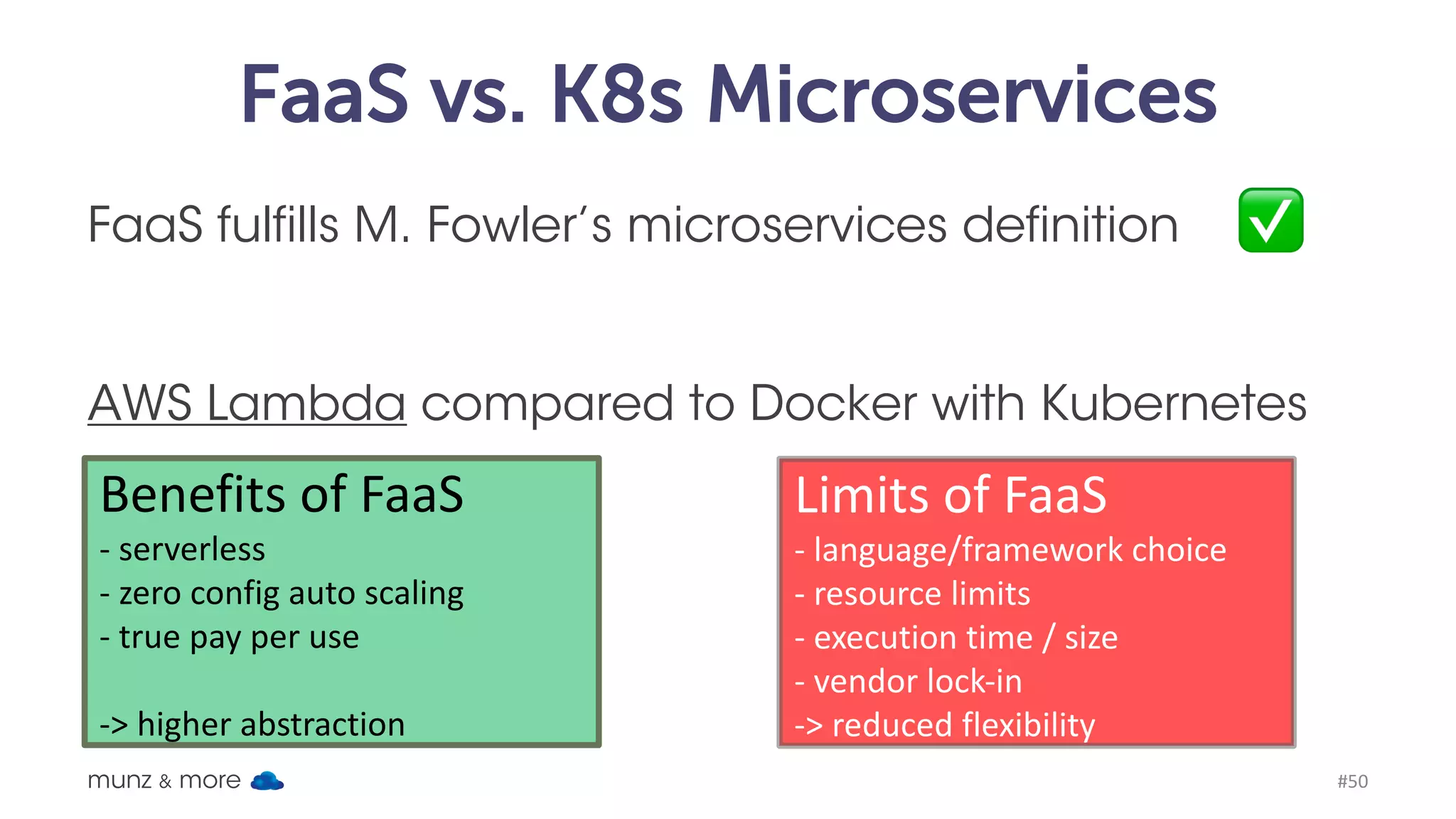

- 49. FaaS vs. K8sMicroservices FaaS fulfills M. Fowler’s microservices definition munz & more #49 AWS Lambda (compared to Docker with Kubernetes) ✅ Benefits of FaaS - “serverless” - zero config auto scaling - true pay per use -> higher abstraction Limits of FaaS - language/framework choice - resource limits - execution time / size limit - vendor lock-in -> reduced flexibility
- 50. A. Cockroft Ten yearsago, a monolithic application was the best way to deliver business logic, … five years ago the best option shifted to microservices Today, another shift is taking place, to event driven functions (FaaS) munz & more #50 https://read.acloud.guru/evolution-of-business-logic-from-monoliths-through-microservices-to-functions-ff464b95a44d
- 51.
- 52. Serverless Framework Why aframework if your code runs in a “frame”? • Repeating patterns: IAM, API-GW, S3 bucket etc • NodeJS, Python, Java • AWS and Azure • Generates, deploys, runs Lambda in 3 LOC based on generated YAML + .py file munz & more #52https://serverless.com/

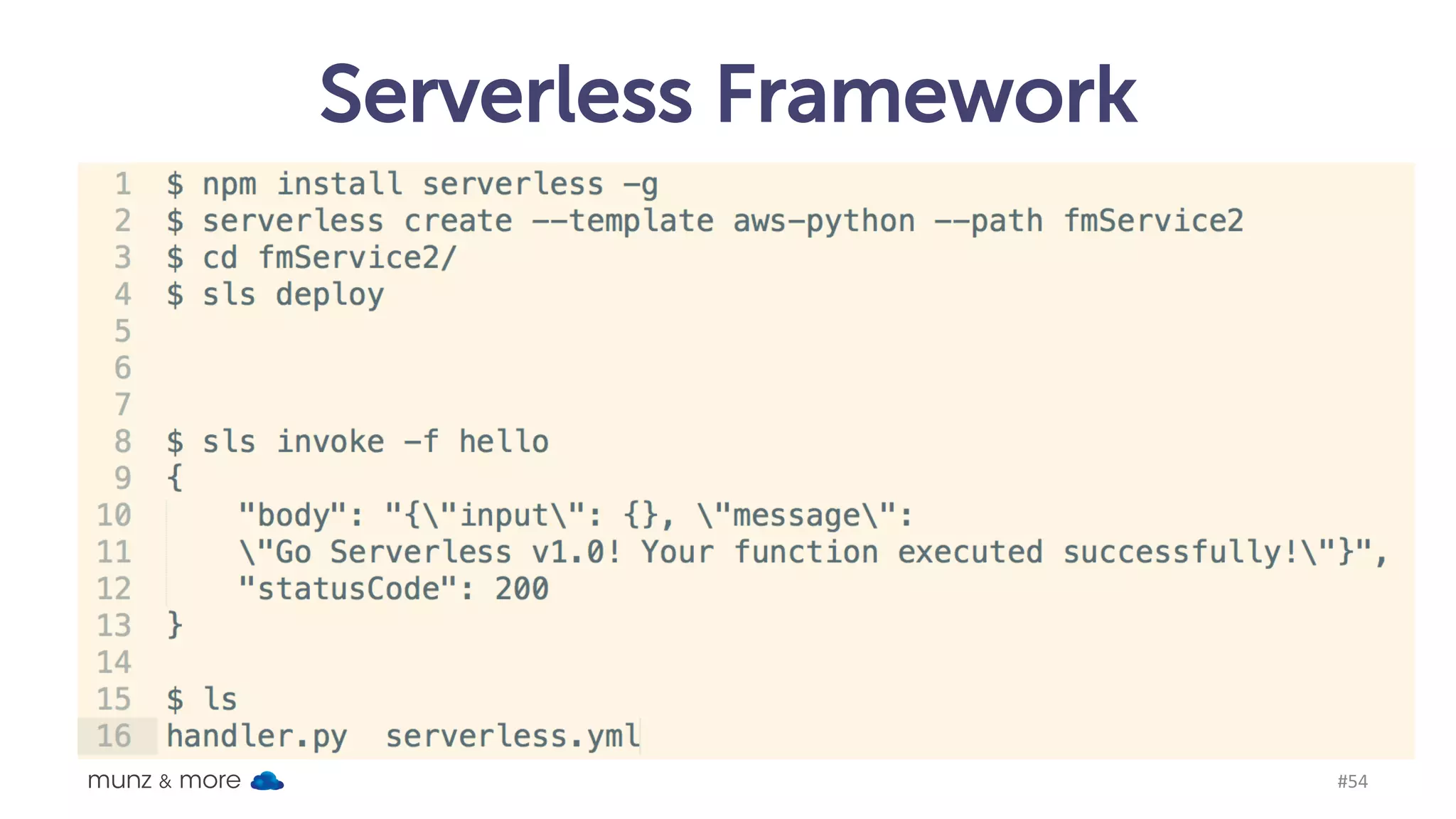

- 53. Serverless Framework munz &more #53
- 54.

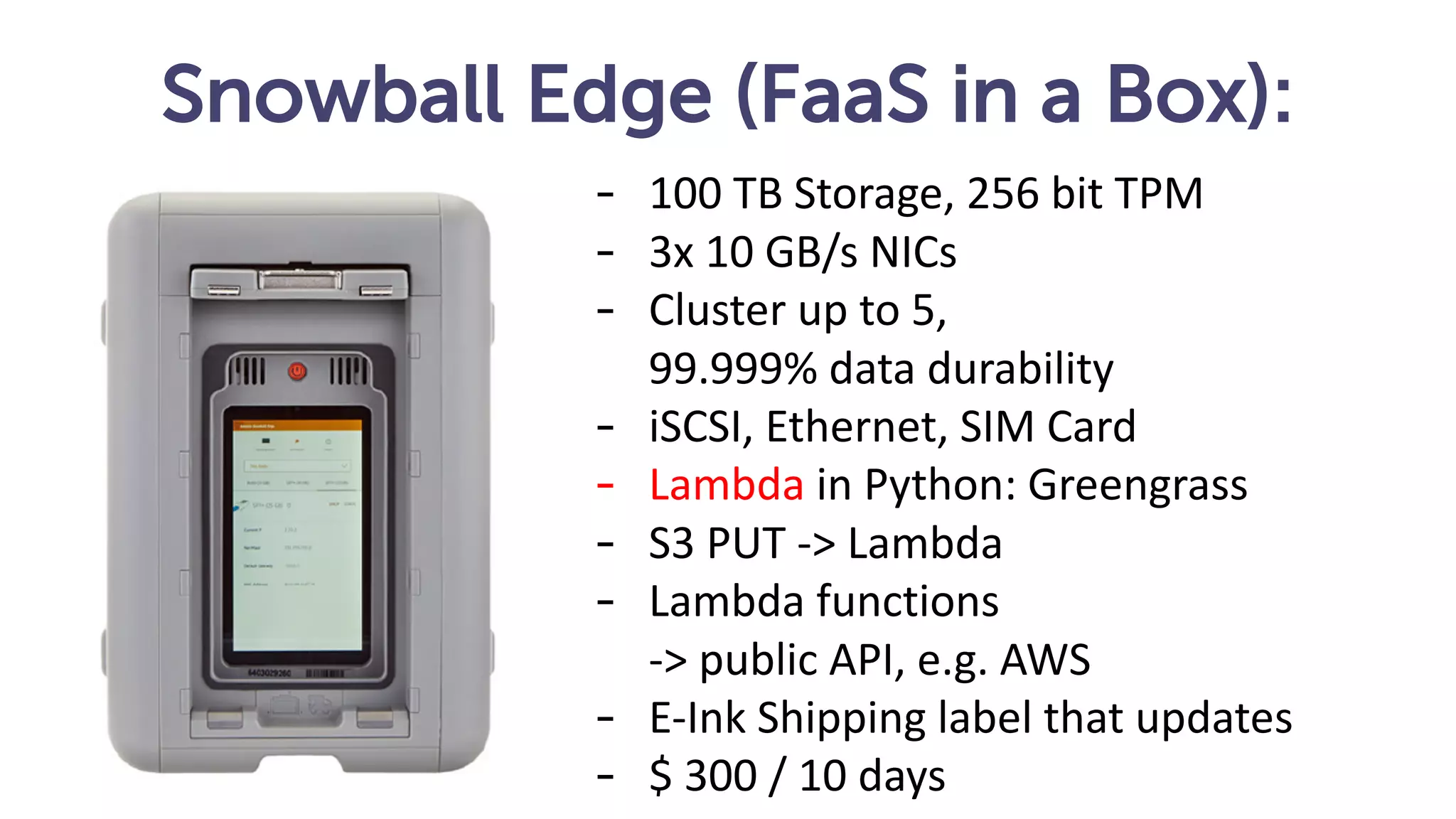

- 55. - 100 TB Storage, 256 bit TPM - 3x 10 GB/s NICs -Cluster up to 5, 99.999% data durability - iSCSI, Ethernet, SIM Card - Lambda in Python: Greengrass - S3 PUT -> Lambda - Lambda functions -> public API, e.g. AWS - E-Ink Shipping label that updates - $ 300 / 10 days AWS Snowball Edge (FaaS in a Box):

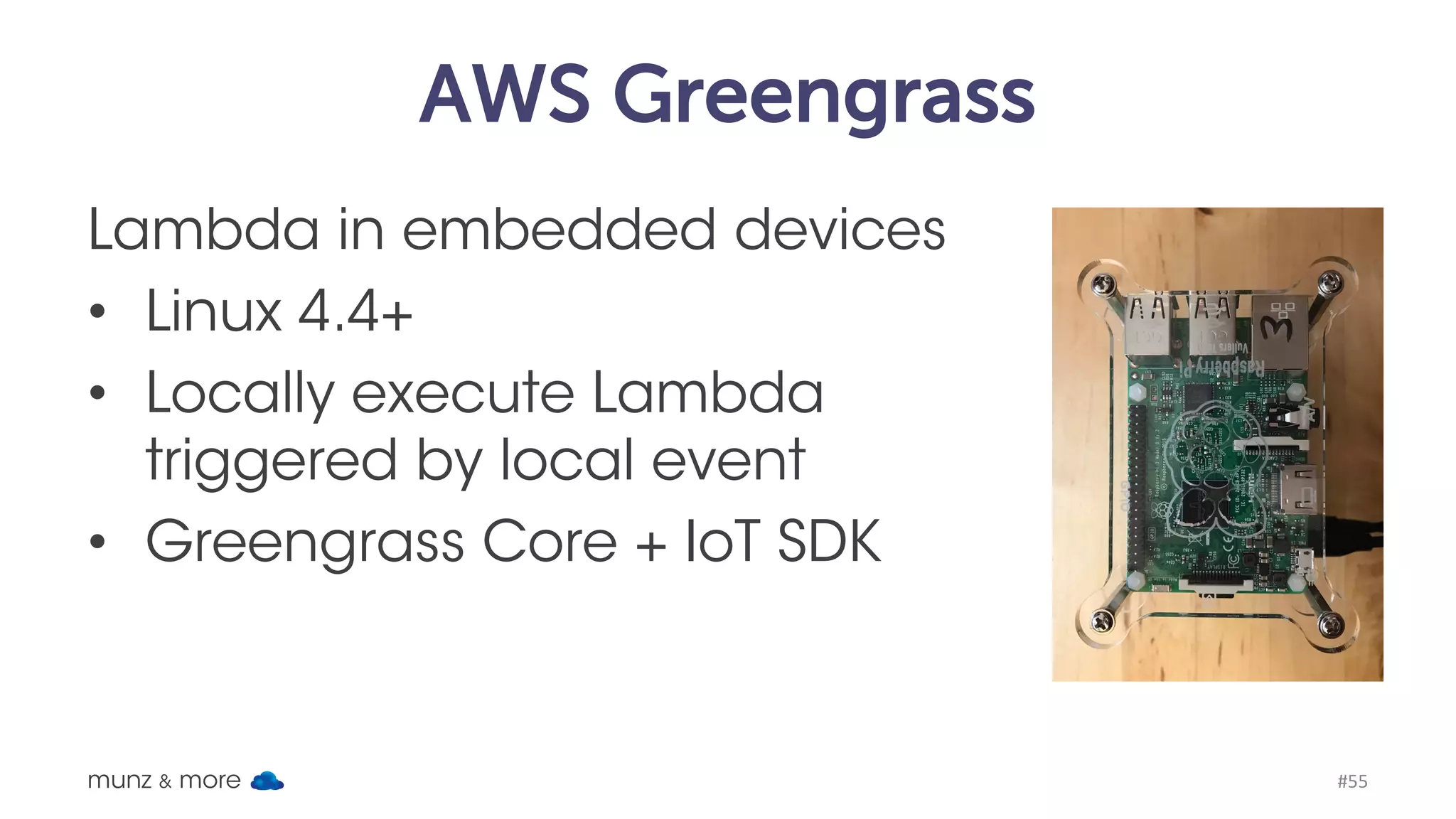

- 56. AWS Greengrass Lambda inembedded devices • Linux 4.4+ • Locally execute Lambda triggered by local event • Greengrass Core + IoT SDK munz & more #56
- 57. TL;DR #serverless /#FaaS ”Serverless” ∋ FaaS / all major clouds / event driven / stateless / true pay per use / automatic scalability / integrates with other CS / vendor lock in? / -> cross-cloud frameworks emerge / 𝛌 could be the new µ! @frankmunz
