Understanding SQL Trace, TKPROF and Execution Plan for beginners
The document provides a comprehensive overview of SQL trace, TKPROF, and execution plans for beginners, emphasizing their importance in diagnosing performance issues with SQL queries. It outlines the process for enabling SQL trace, aggregating the data using TKPROF, and interpreting execution plans, including common operations and join methods. The document also includes references for further learning and practical examples for better understanding.
Understanding SQL Trace, TKPROF and Execution Plan for beginners
- 1. Understanding SQL Trace,TKPROF and Execution Plan for beginners Carlos Sierra
- 2. Agenda • Motivation • SQLTrace • TKPROF • Execution Plan
- 3. Motivation • My reportis taking too long… • One Materialize View is sudently hanging... • This page is taking long since last upgrade... • It runs faster on my development instance... • Everything is slow, then the DBA has to fix it... • Where to start?
- 4. SQL Trace • Performanceinformation on individual SQL • CPU and Elapsed Time • Wait Events • Execution Plan • Rows processed • Call count (parse, execute and fetch) • Physical and Logical reads

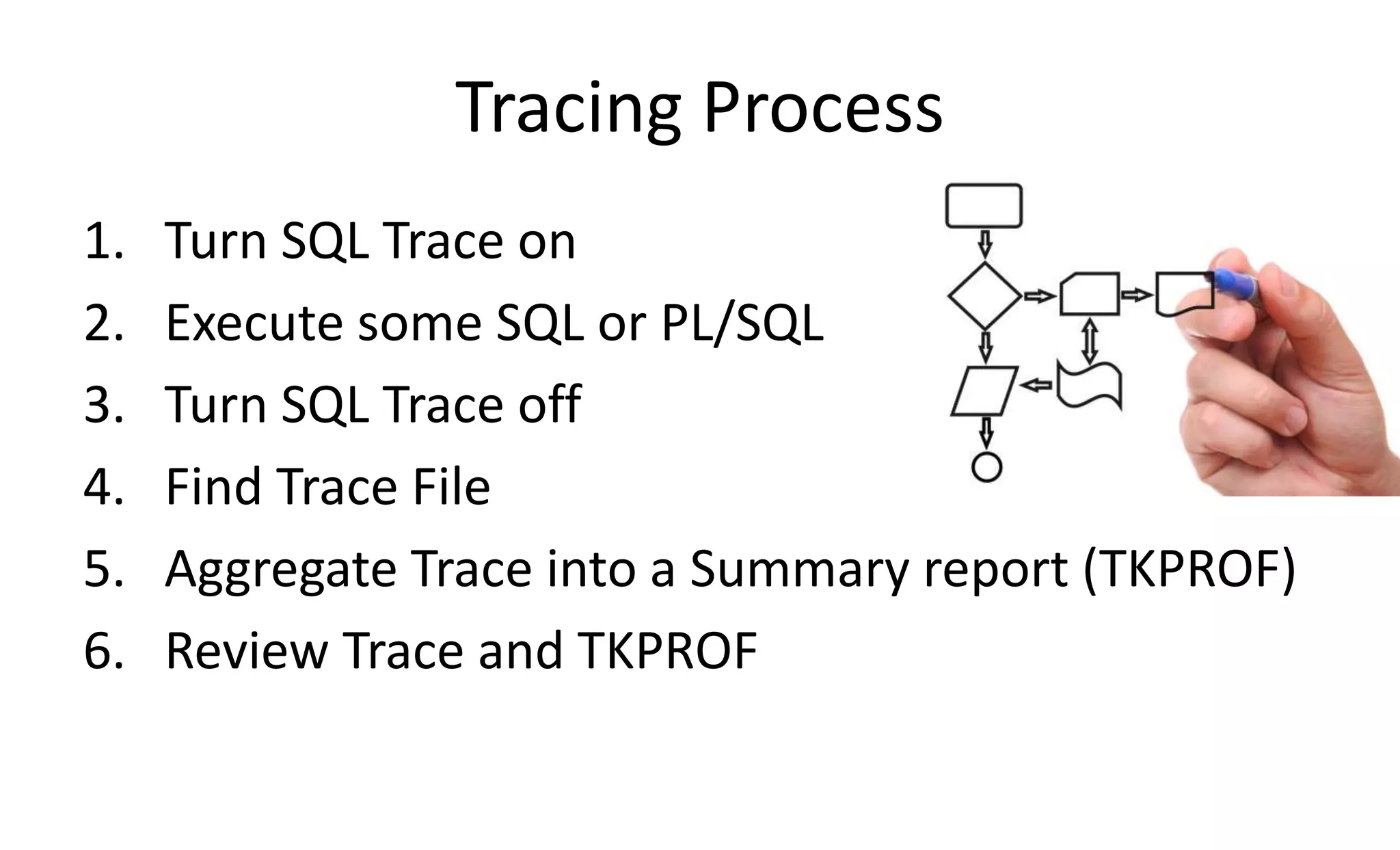

- 5. Tracing Process 1. TurnSQL Trace on 2. Execute some SQL or PL/SQL 3. Turn SQL Trace off 4. Find Trace File 5. Aggregate Trace into a Summary report (TKPROF) 6. Review Trace and TKPROF
- 6. Turning SQL Traceon and off • DBMS_SESSION.SESSION_TRACE_ENABLE – WAITS (default TRUE) – BINDS (default FALSE) – PLAN_STAT (default NULL) • NEVER • FIRST_EXECUTION (equivalent to NULL) • ALL_EXECUTIONS • DBMS_SESSION.SESSION_TRACE_DISABLE
- 7. Other ways toturn Trace on and off • DBMS_SESSION.SET_SQL_TRACE(TRUE|FALSE) • ALTER SESSION SET SQL_TRACE = TRUE|FALSE • ALTER SESSION SET EVENT 10046 • DBMS_MONITOR.SESSION_TRACE_ENABLE or DIS • ALTER SYSTEM SET EVENTS 'sql_trace [sql:&&sql_id] bind=true, wait=true'; • ORADEBUG • Oracle Enterprise Manager (OEM)

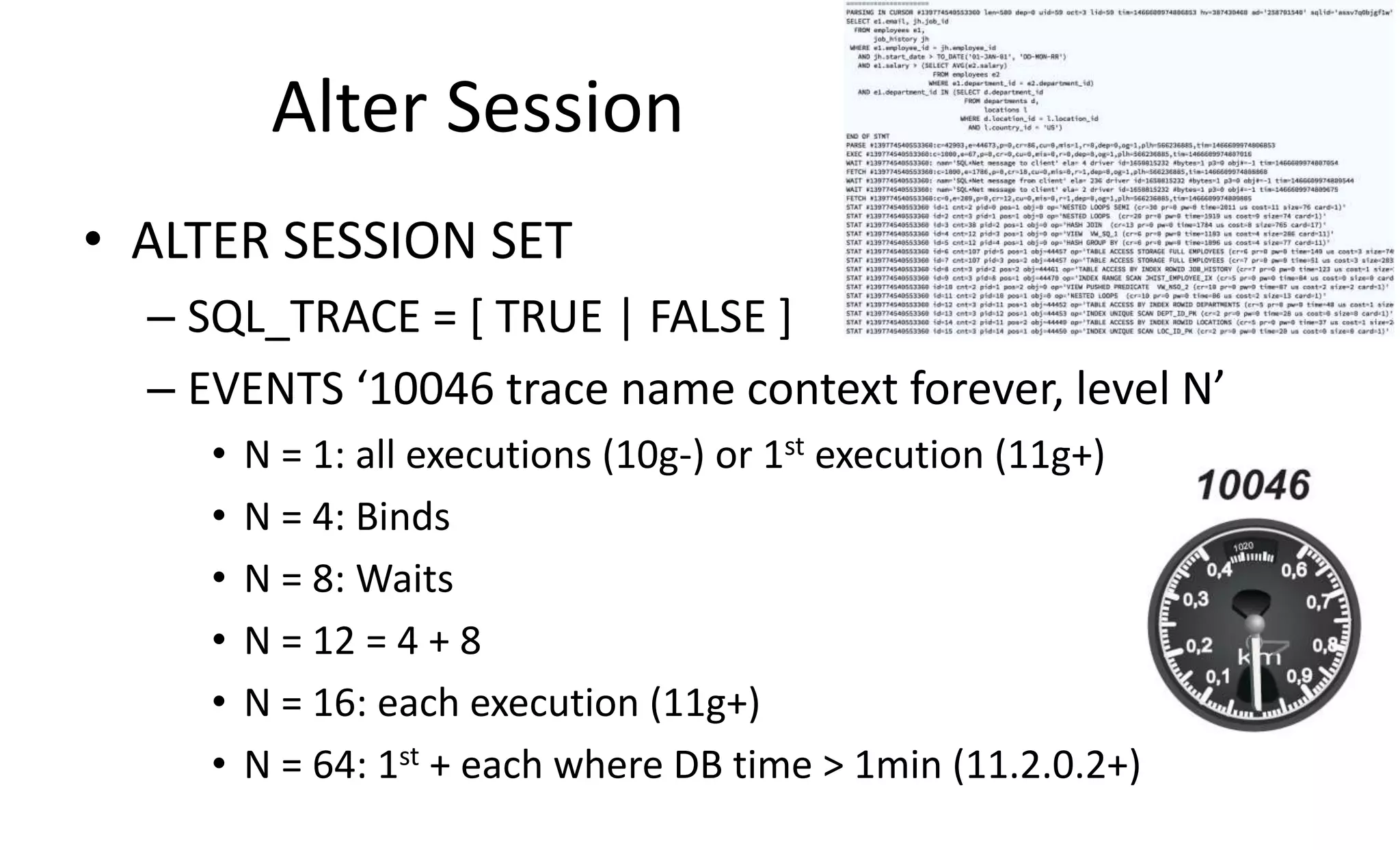

- 8. Alter Session • ALTERSESSION SET – SQL_TRACE = [ TRUE | FALSE ] – EVENTS ‘10046 trace name context forever, level N’ • N = 1: all executions (10g-) or 1st execution (11g+) • N = 4: Binds • N = 8: Waits • N = 12 = 4 + 8 • N = 16: each execution (11g+) • N = 64: 1st + each where DB time > 1min (11.2.0.2+)

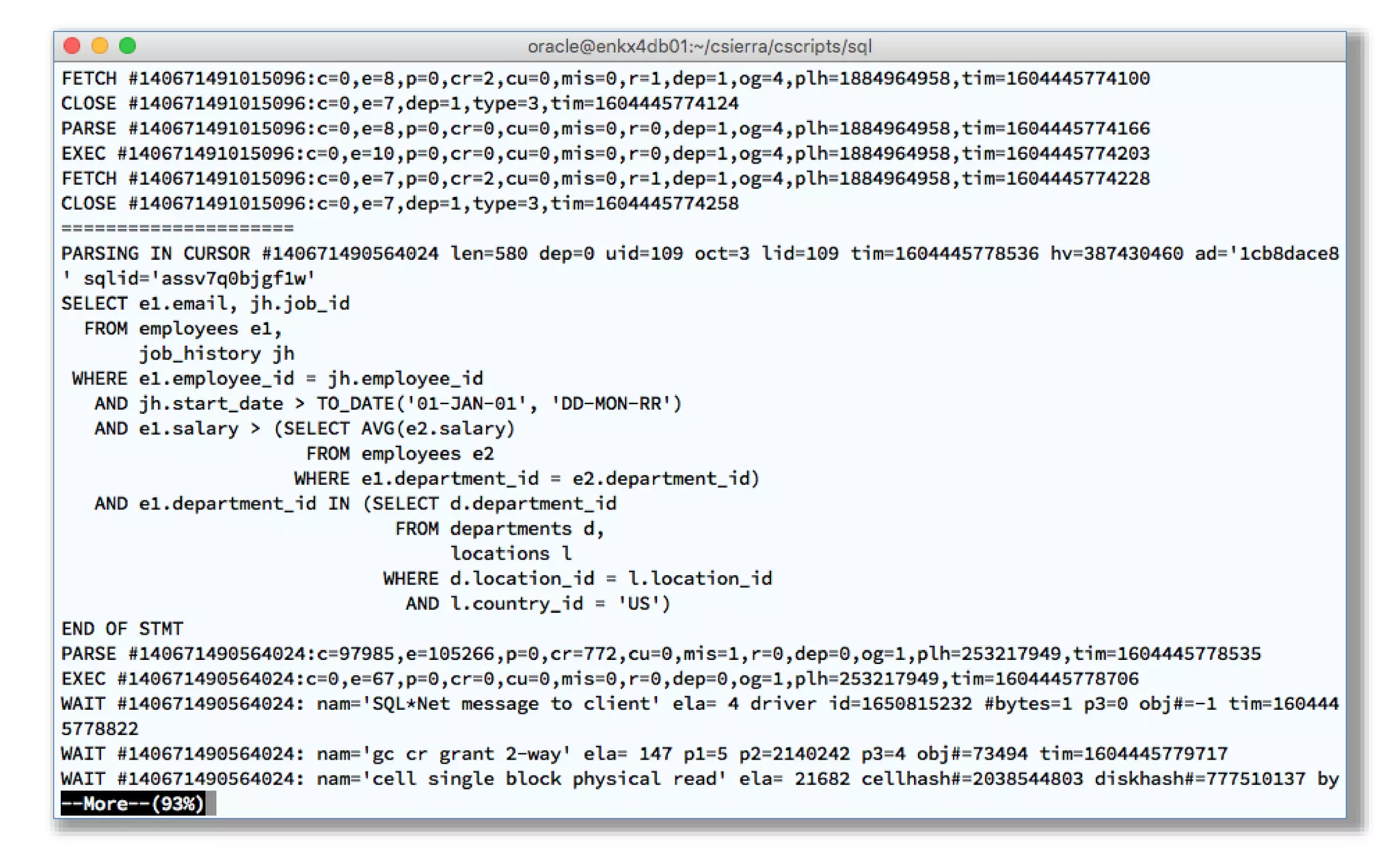

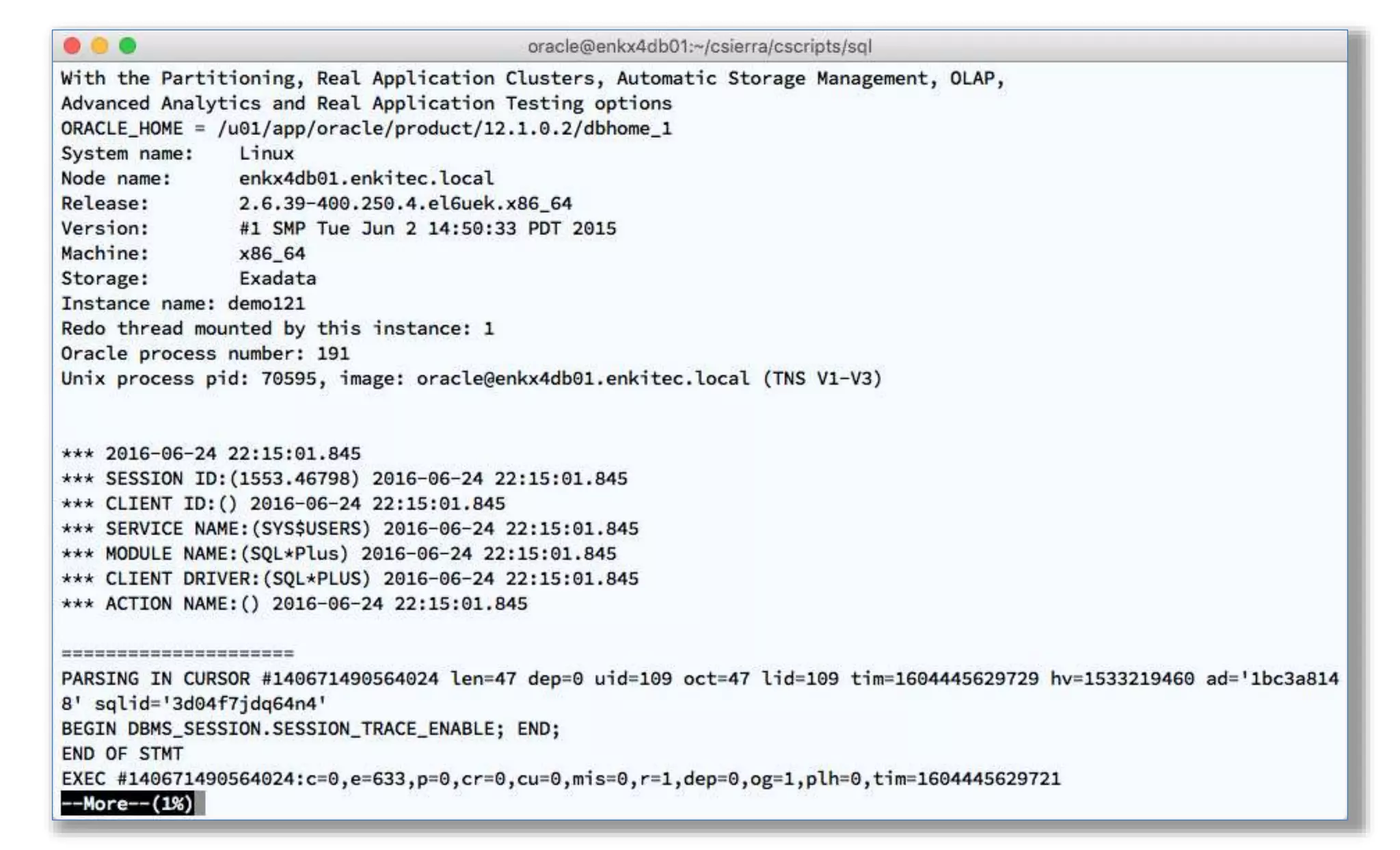

- 9. Finding SQL Trace •Get Trace Filename from V$DIAG_INFO (11g+) • Get Trace Directory from USER_DUMP_DEST (10g-) – Use V$DIAG_INFO on 11g and 12c
- 10. Sample SQL overSample HR Schema
- 11.
- 15.

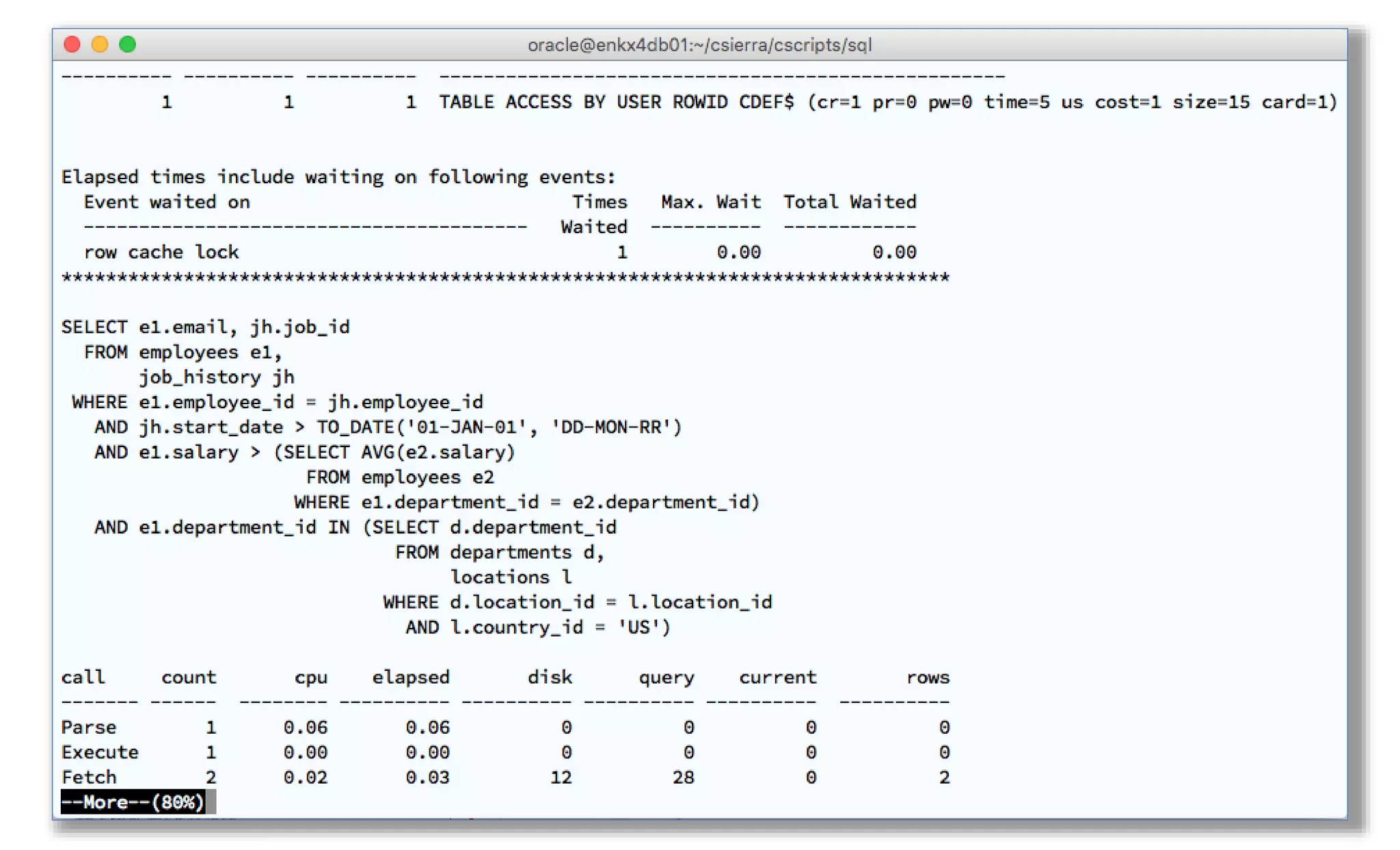

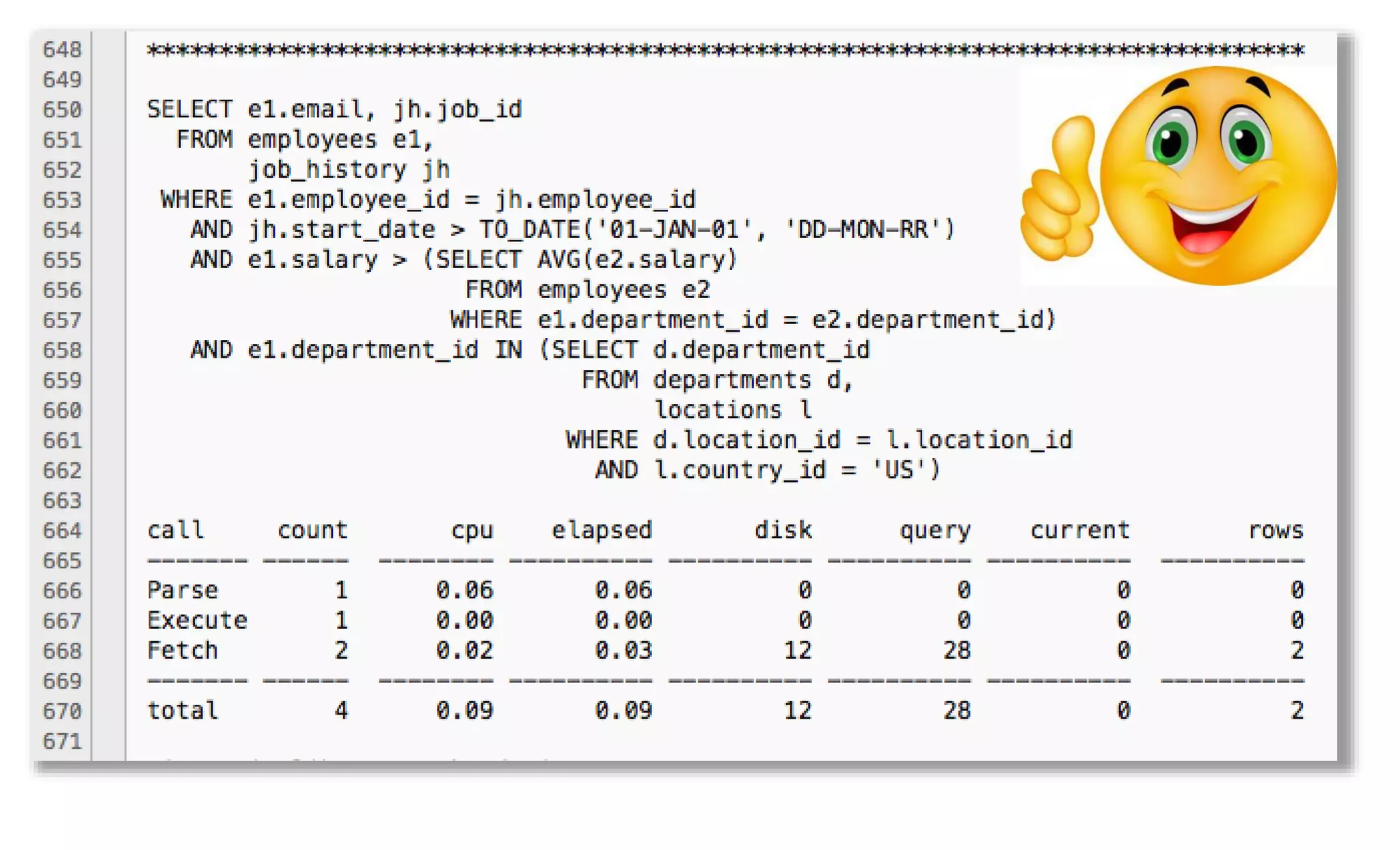

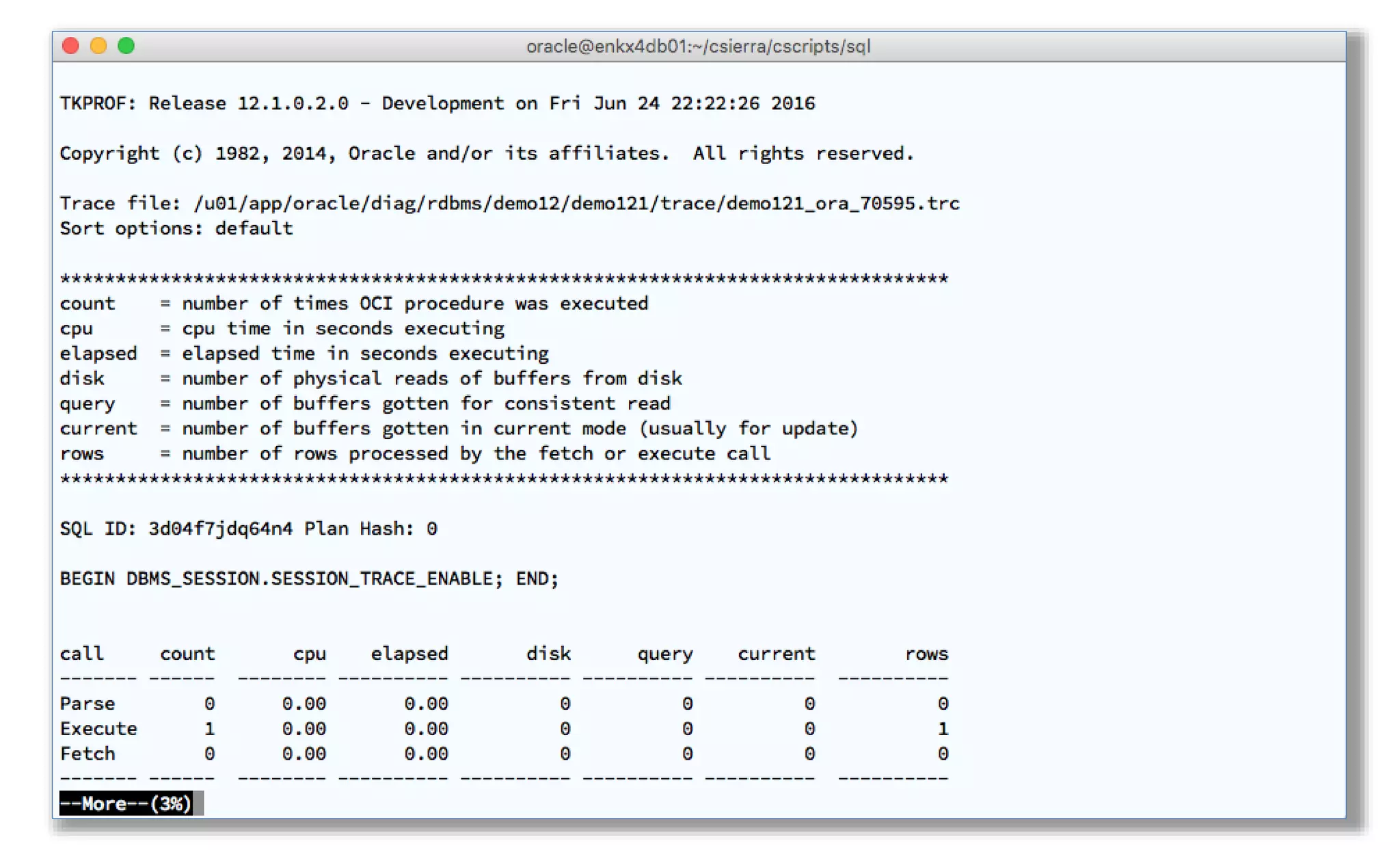

- 16. TKPROF • Inputs aSQL Trace • Outputs an aggregated TKPROF report • Example: – tkprof trace_file.trc tkprof.txt • Sort (optional): – sort=(exeela,fchela)
- 17.
- 21. • Rows returnedon 1st execution, in average and max • Consistent reads, physical reads/writes, etc.
- 22. • Metrics includeaggregates of sub-operations • Rows processed (returned by operations)

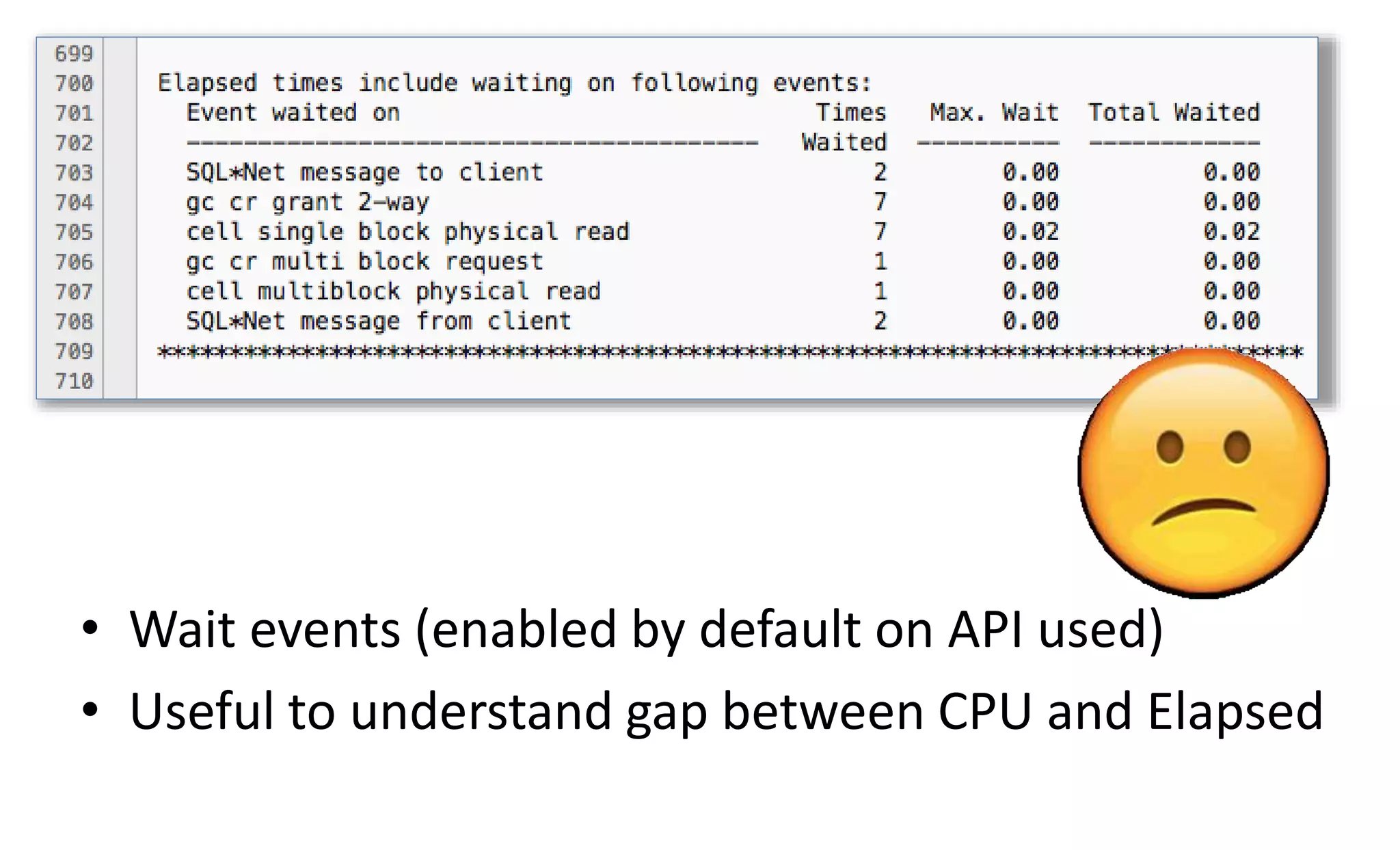

- 23. • Wait events(enabled by default on API used) • Useful to understand gap between CPU and Elapsed

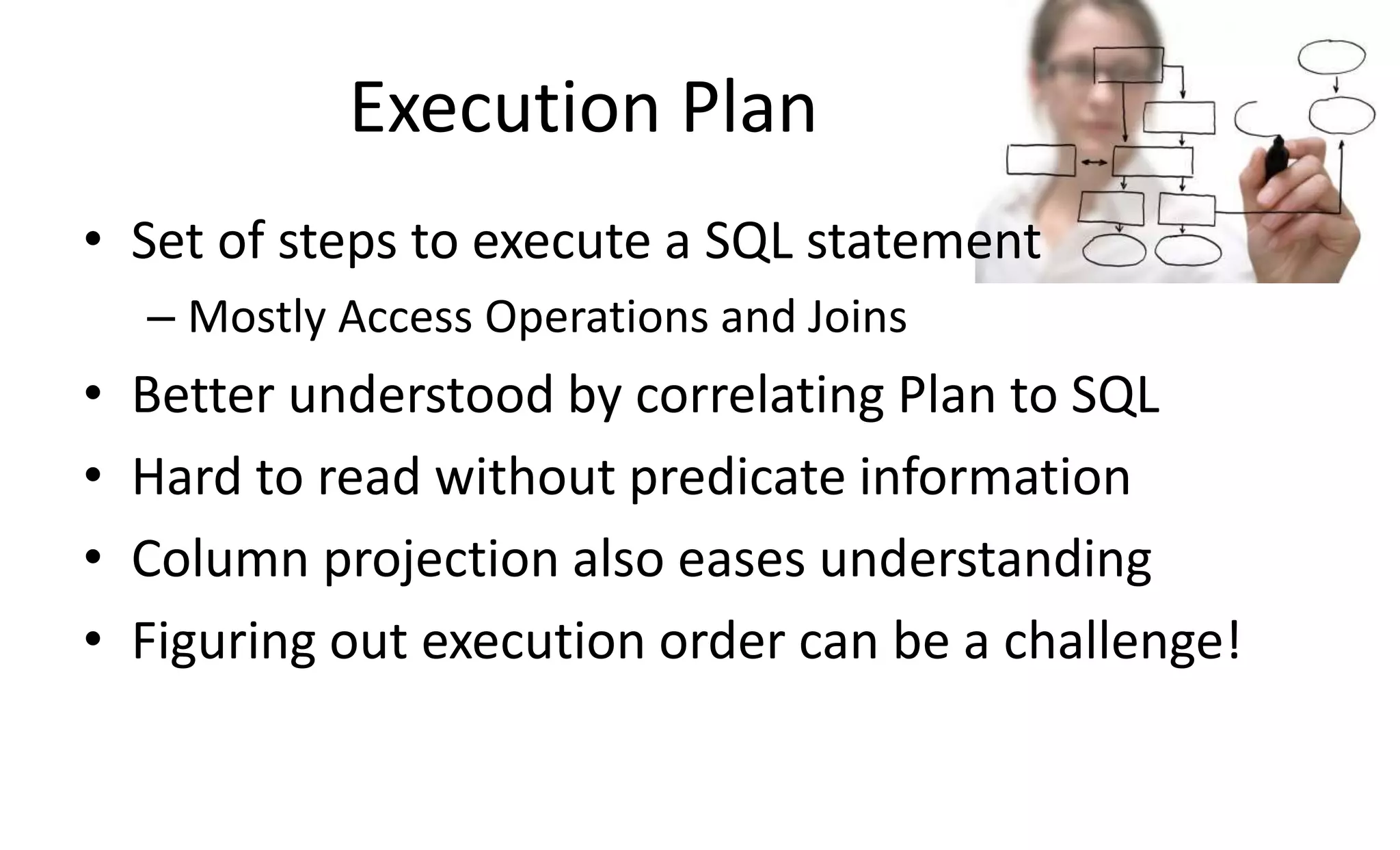

- 24. Execution Plan • Setof steps to execute a SQL statement – Mostly Access Operations and Joins • Better understood by correlating Plan to SQL • Hard to read without predicate information • Column projection also eases understanding • Figuring out execution order can be a challenge!
- 25. Common Access Operations •Table access – Full – By ROWID • Index access – Full – Range – Unique
- 26. Join Types • Equijoin •Outer-join • Semi-join • Anti-join • Cross-join • Self-join

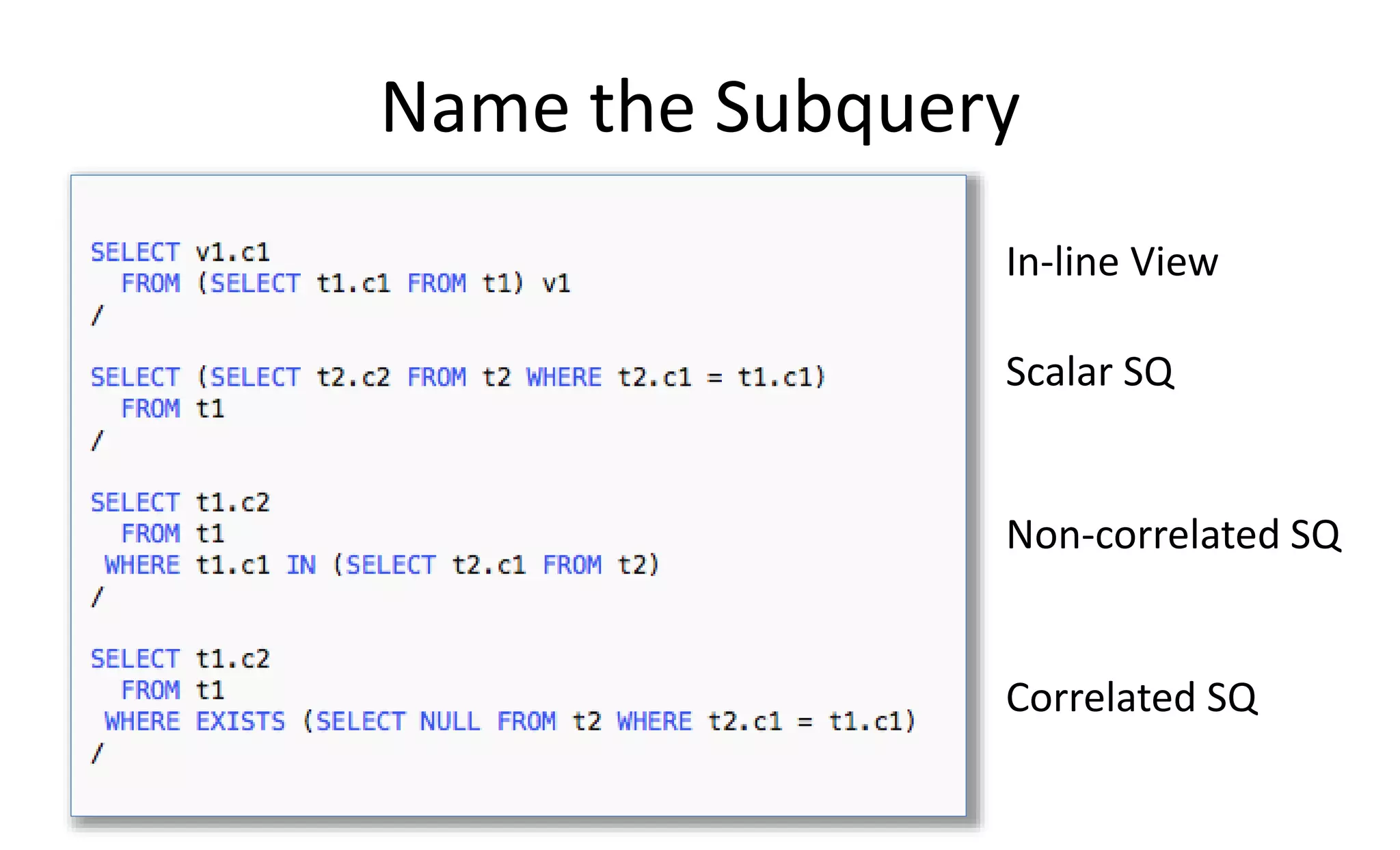

- 27. Name the Subquery In-lineView Scalar SQ Non-correlated SQ Correlated SQ

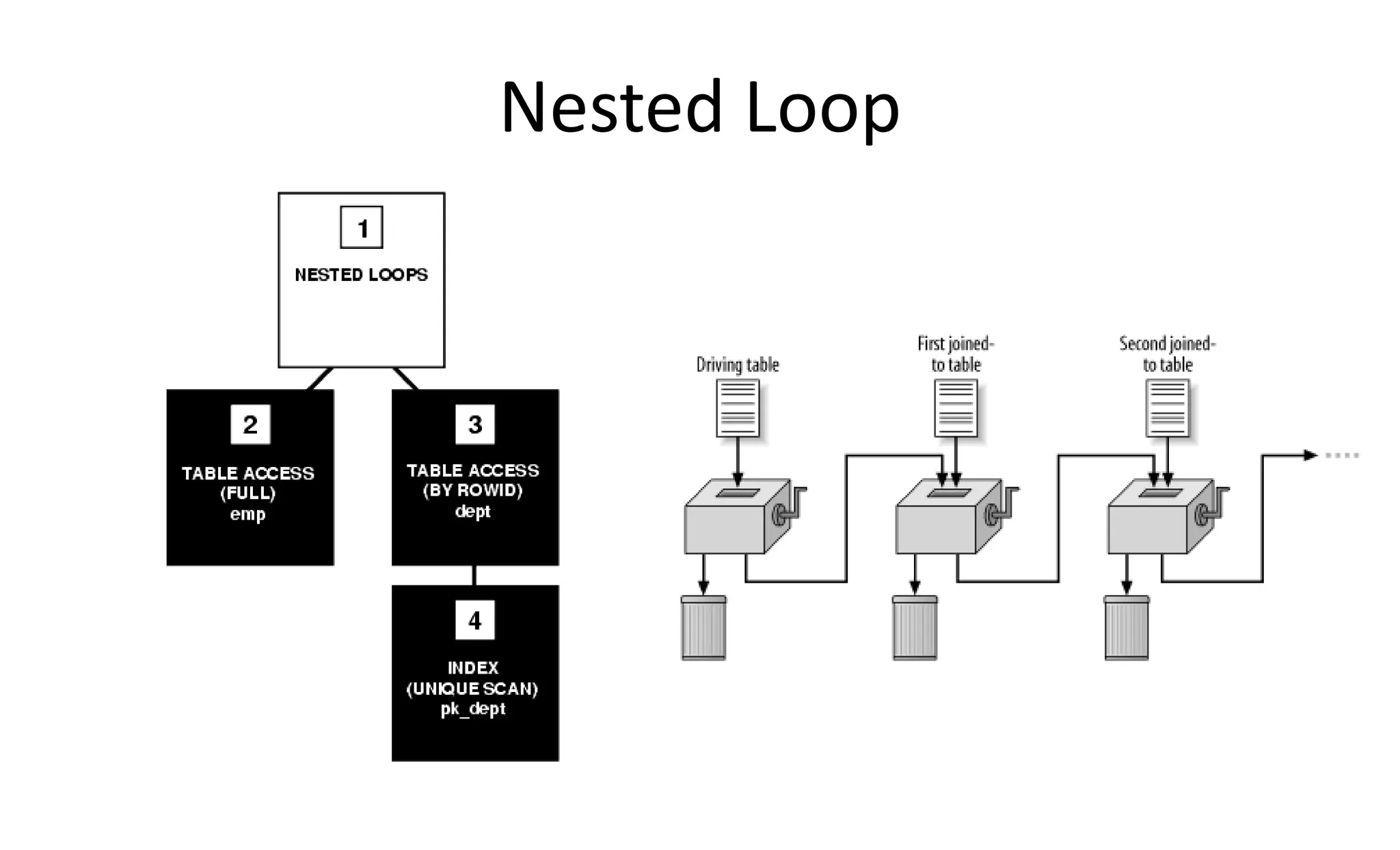

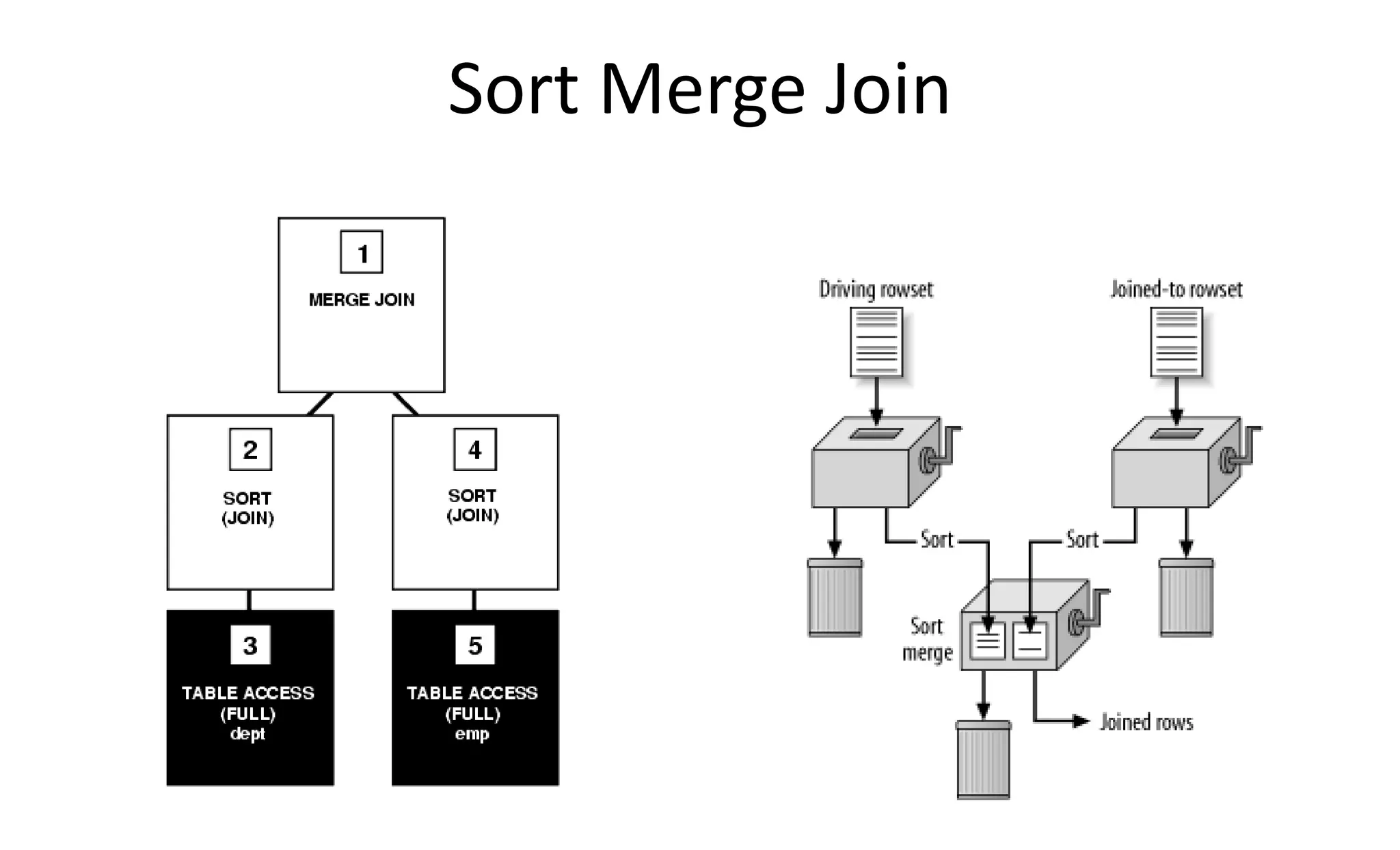

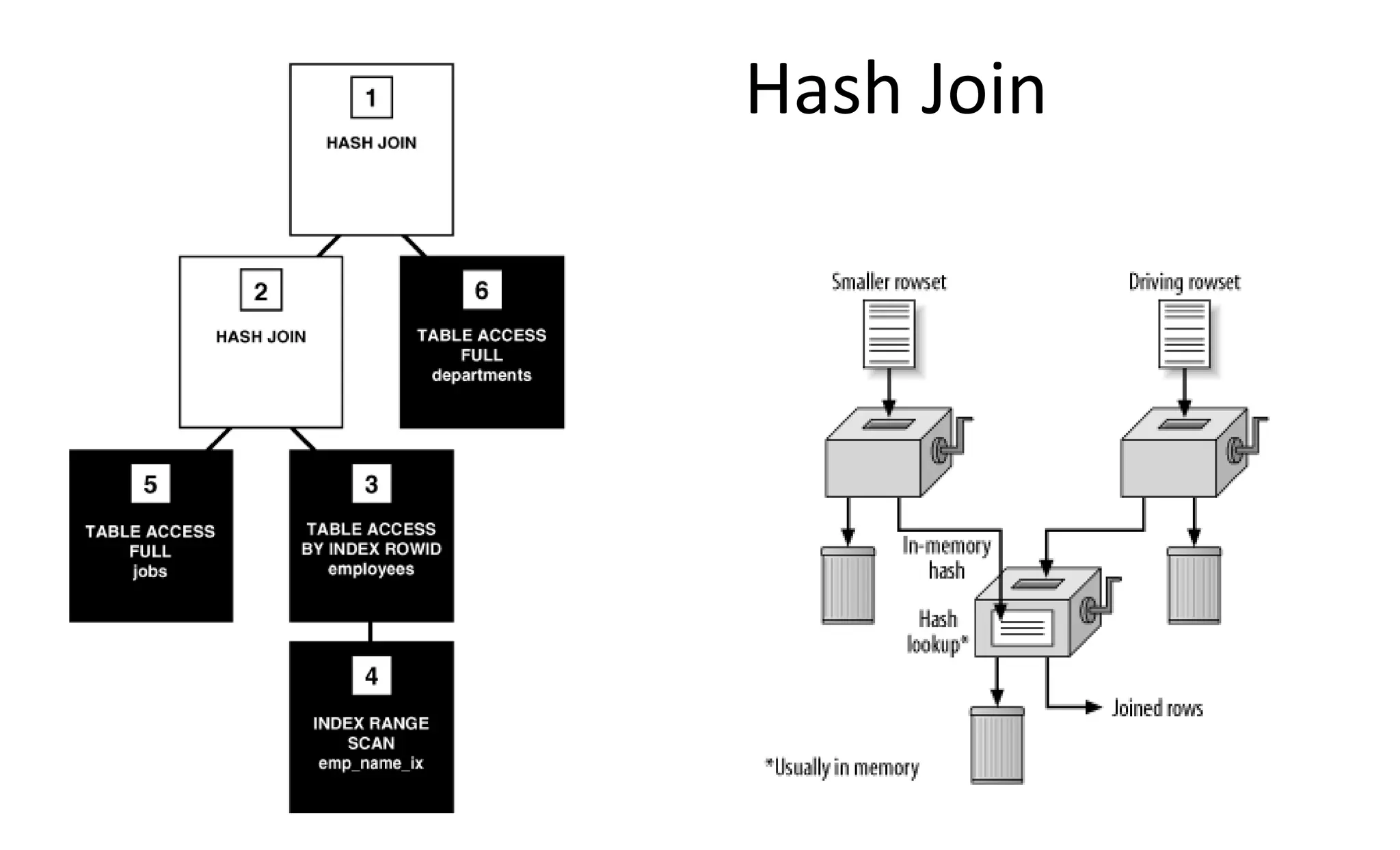

- 28. Join Methods • NestedLoop – Small sets – Index access • Hash Join – Medium to large sets – Equality predicates • Sort Merge Join
- 29.
- 30.
- 31.

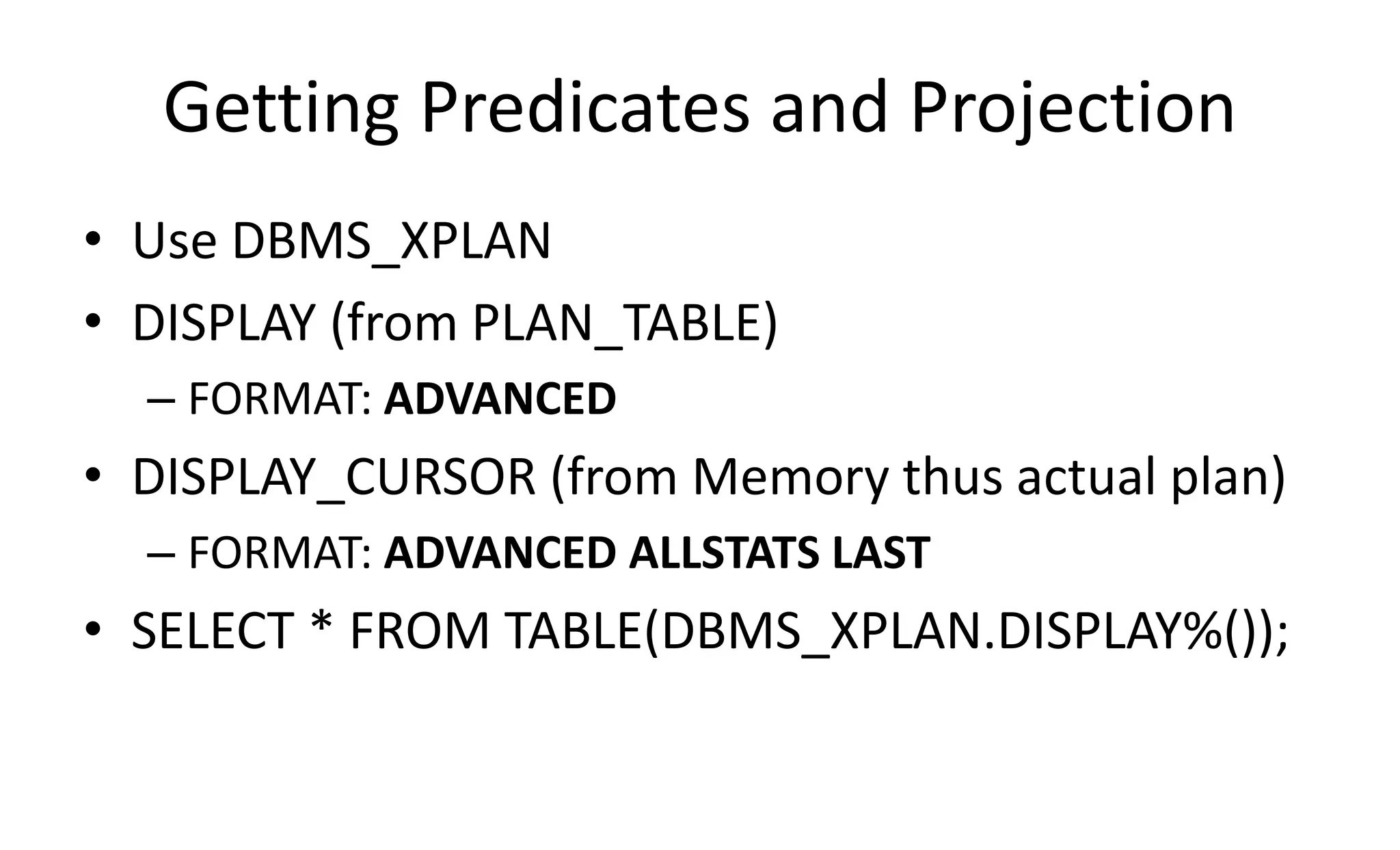

- 32. Getting Predicates andProjection • Use DBMS_XPLAN • DISPLAY (from PLAN_TABLE) – FORMAT: ADVANCED • DISPLAY_CURSOR (from Memory thus actual plan) – FORMAT: ADVANCED ALLSTATS LAST • SELECT * FROM TABLE(DBMS_XPLAN.DISPLAY%());

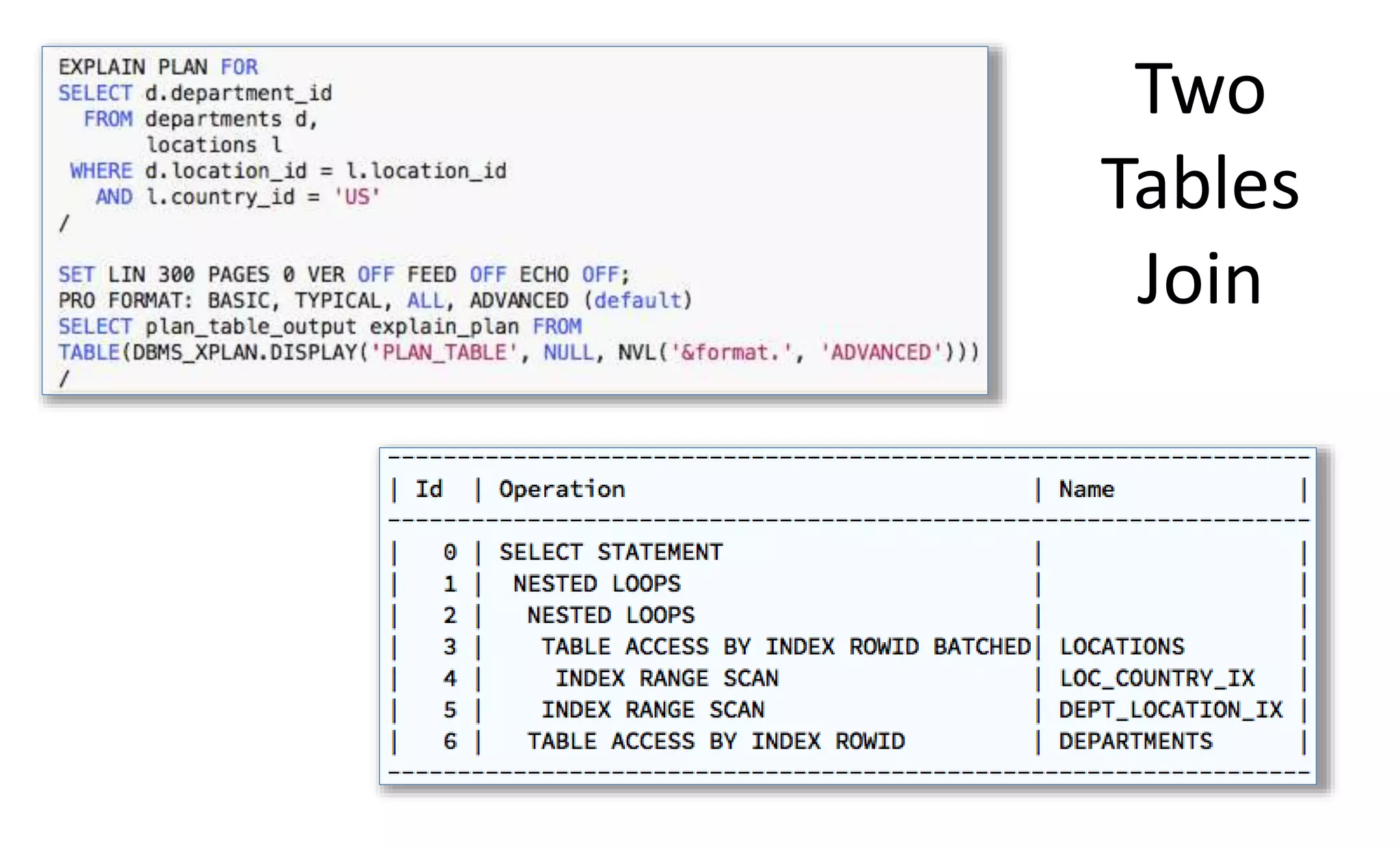

- 33.
- 35.

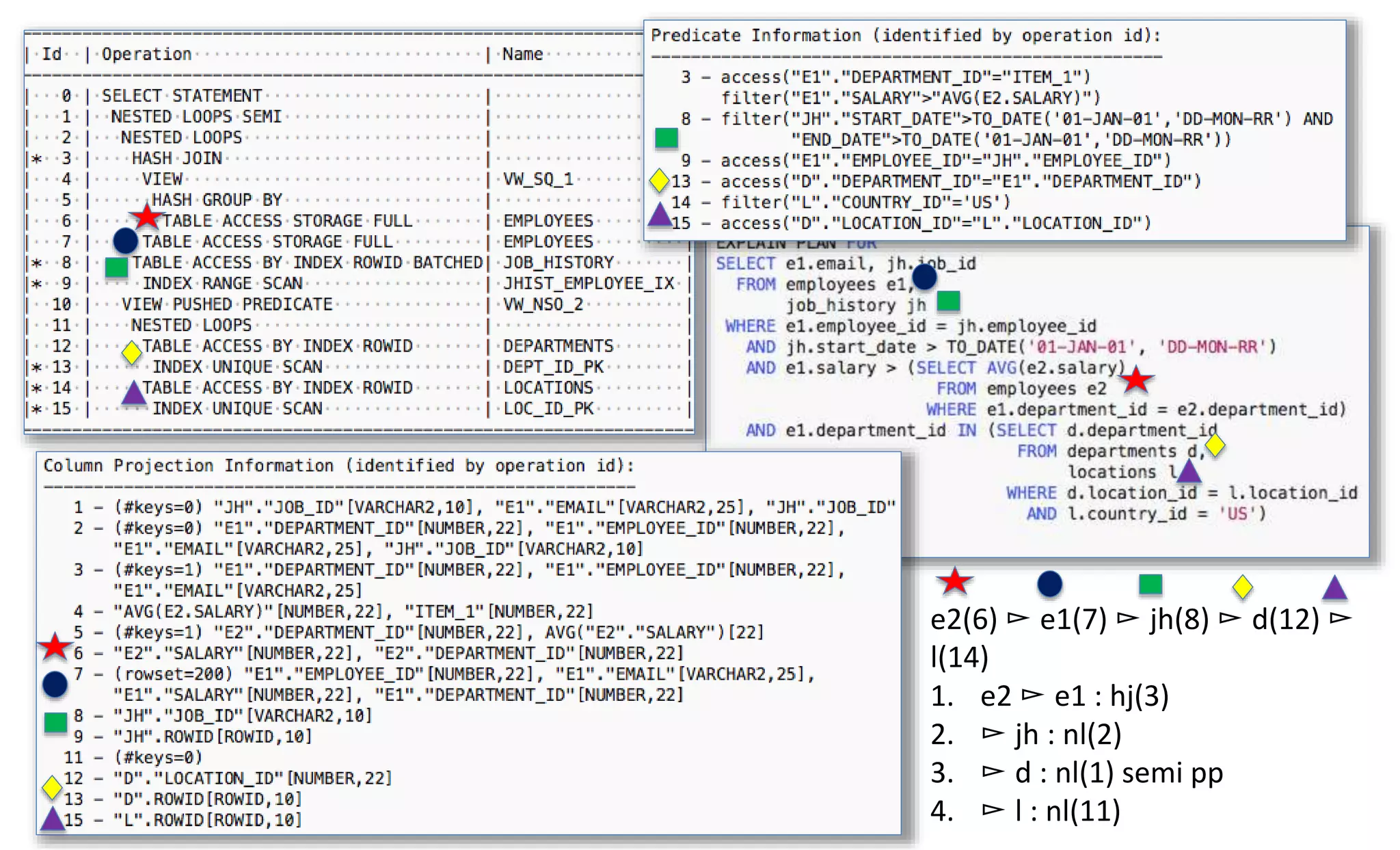

- 36. e2(6) ▻ e1(7)▻ jh(8) ▻ d(12) ▻ l(14) 1. e2 ▻ e1 : hj(3) 2. ▻ jh : nl(2) 3. ▻ d : nl(1) semi pp 4. ▻ l : nl(11)

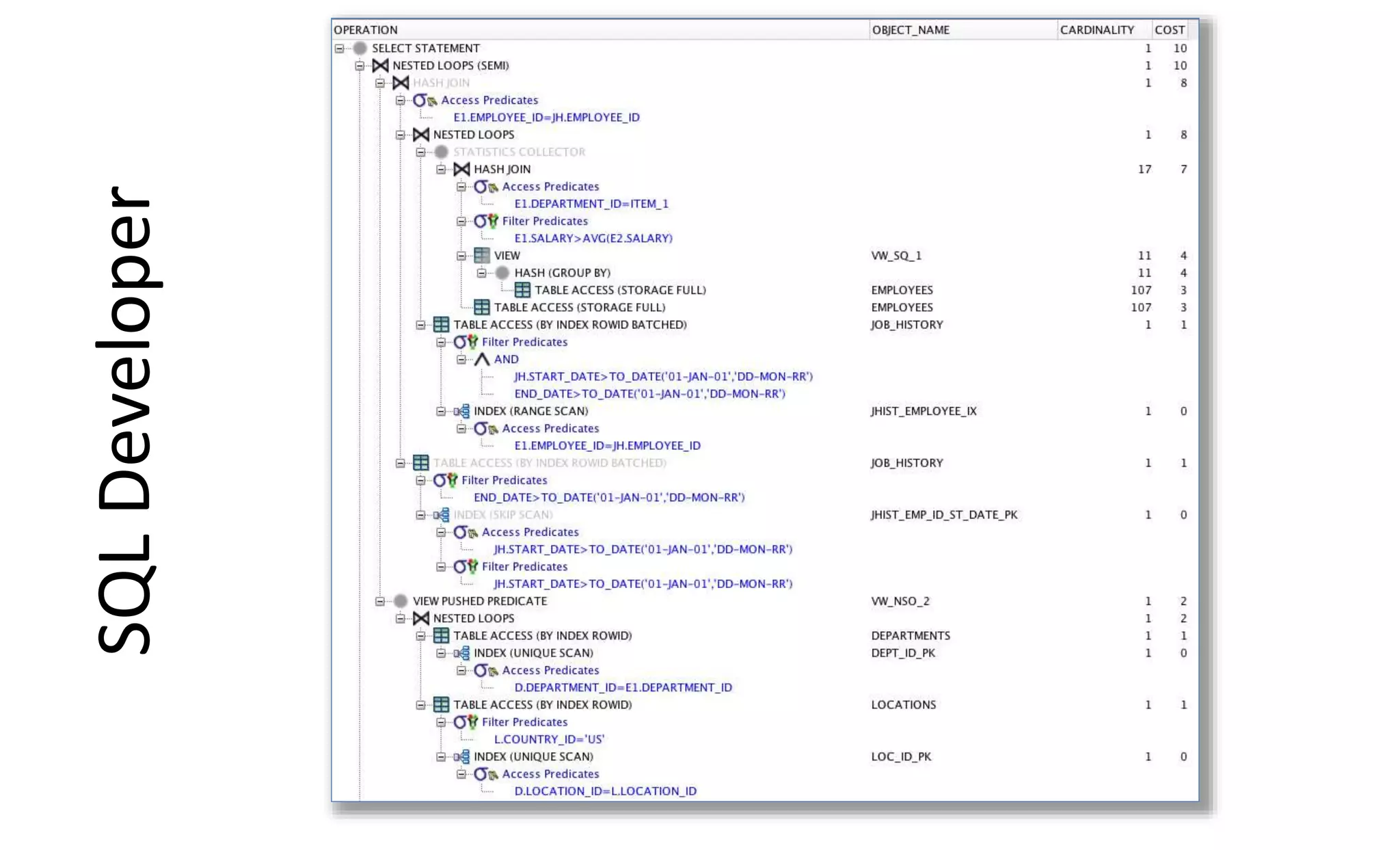

- 37.
- 38.

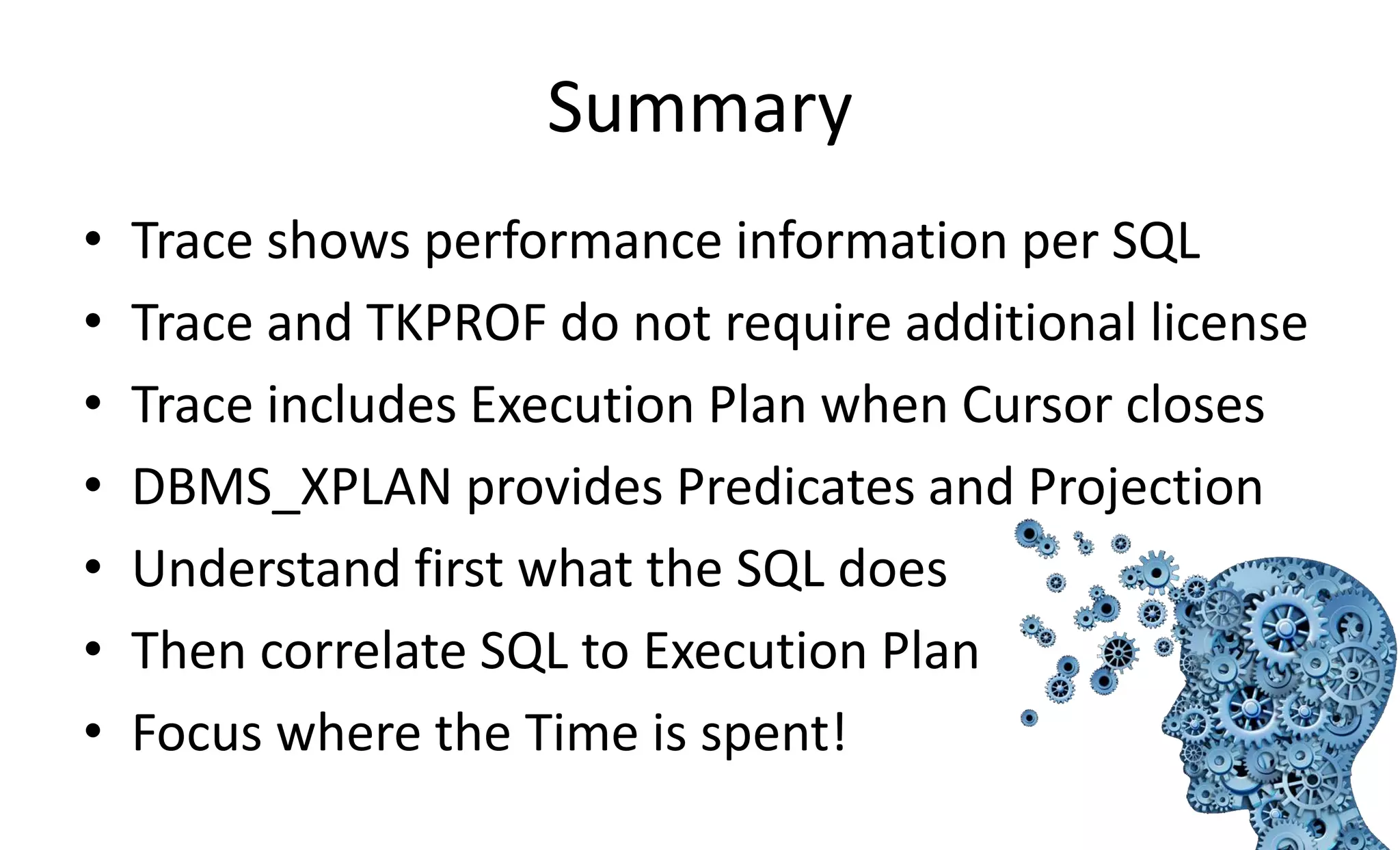

- 39. Summary • Trace showsperformance information per SQL • Trace and TKPROF do not require additional license • Trace includes Execution Plan when Cursor closes • DBMS_XPLAN provides Predicates and Projection • Understand first what the SQL does • Then correlate SQL to Execution Plan • Focus where the Time is spent!

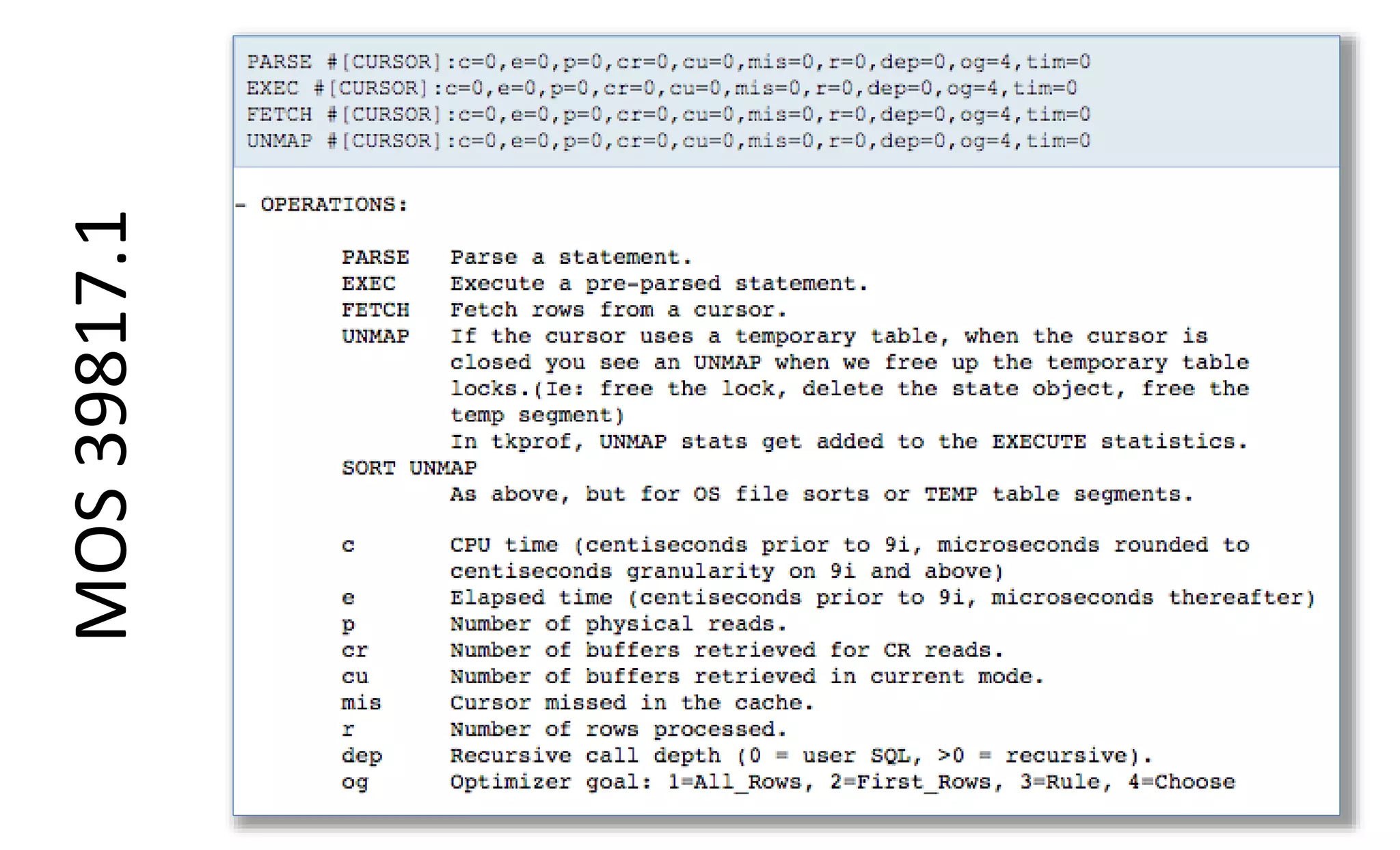

- 40. References • My OracleSupport (MOS) – 39817.1 Interpreting Raw SQL_TRACE output – 376442.1 How to Collect 10046 Trace (SQL_TRACE) Diagnostics for Performance Issues • https://oracle-base.com/articles/misc/sql-trace- 10046-trcsess-and-tkprof • Oracle Documentation • Google
- 41.
- 42. The End • http://carlos-sierra.net/ –Blog and downloads • carlos.sierra.usa@gmail.com – Questions and follow-up • Keep learning!
Editor's Notes
- #39 NSO: Nested Subquery Optimization
