Build microservice with gRPC in golang
This document discusses building microservices with gRPC in Golang. It provides an overview of gRPC, including that it is an open-source, high performance RPC framework created by Google. It supports features like bi-directional streaming over HTTP/2 and works across multiple languages and platforms. The document also provides an example of defining a simple gRPC service in Protobuf IDL and generating and implementing the client and server code in Go.
Build microservice with gRPC in golang
- 1. Build microserviceBuild microservice withgRPC in Golangwith gRPC in Golang David Chou
- 2. We are UmboWeare Umbo Computer VisionComputer Vision We buildWe build autonomous videoautonomous video security systemsecurity system
- 3. CyberlinkCyberlink TrendMicroTrendMicro Umbo CVUmbo CV GoogleI/O ExtendGoogle I/O Extend Golang TaipeiGolang Taipei
- 4. A high performance,open source, general purpose standards-based, feature-rich RPC framework.

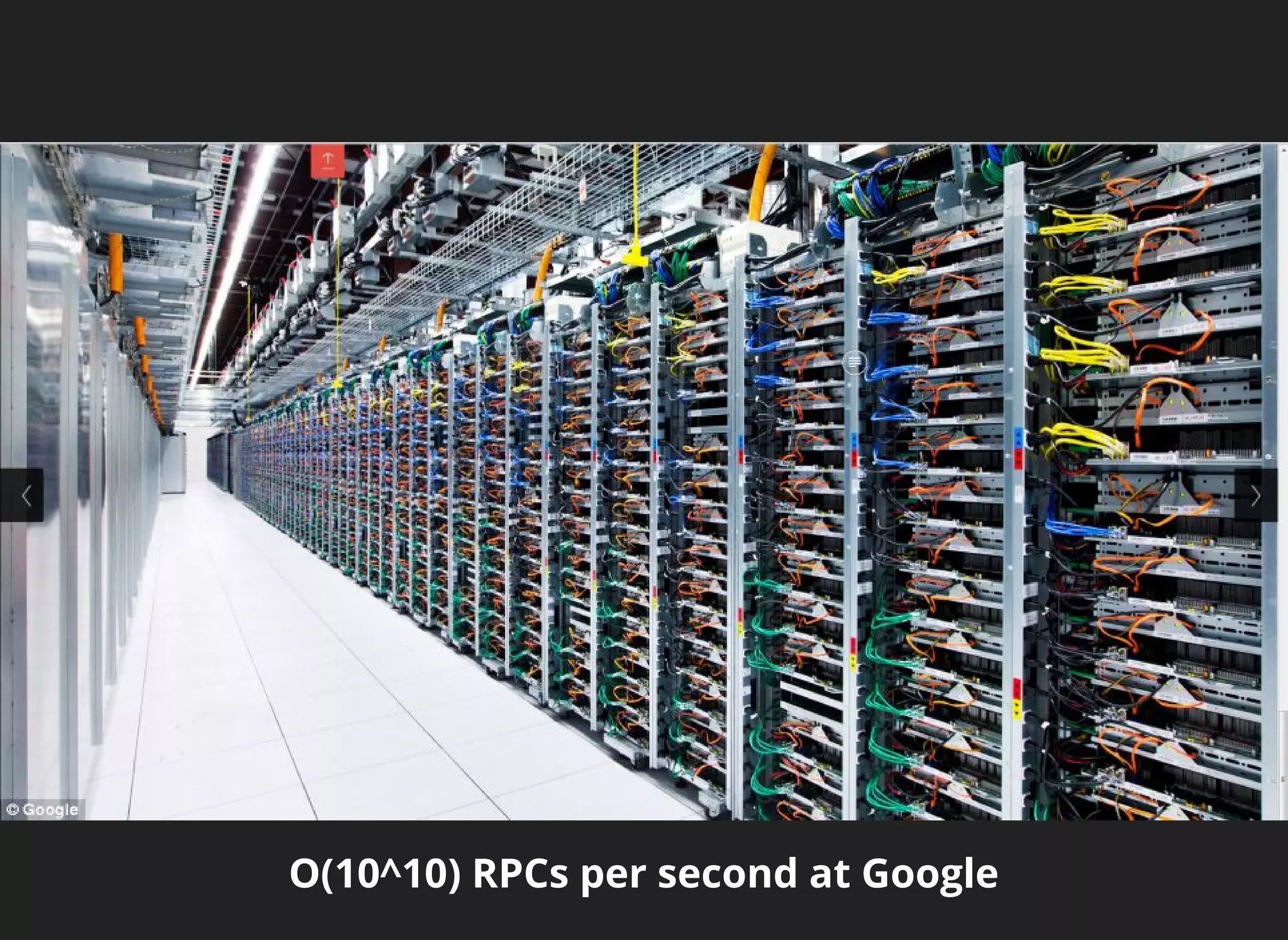

- 5. O(10^10) RPCs persecond at Google

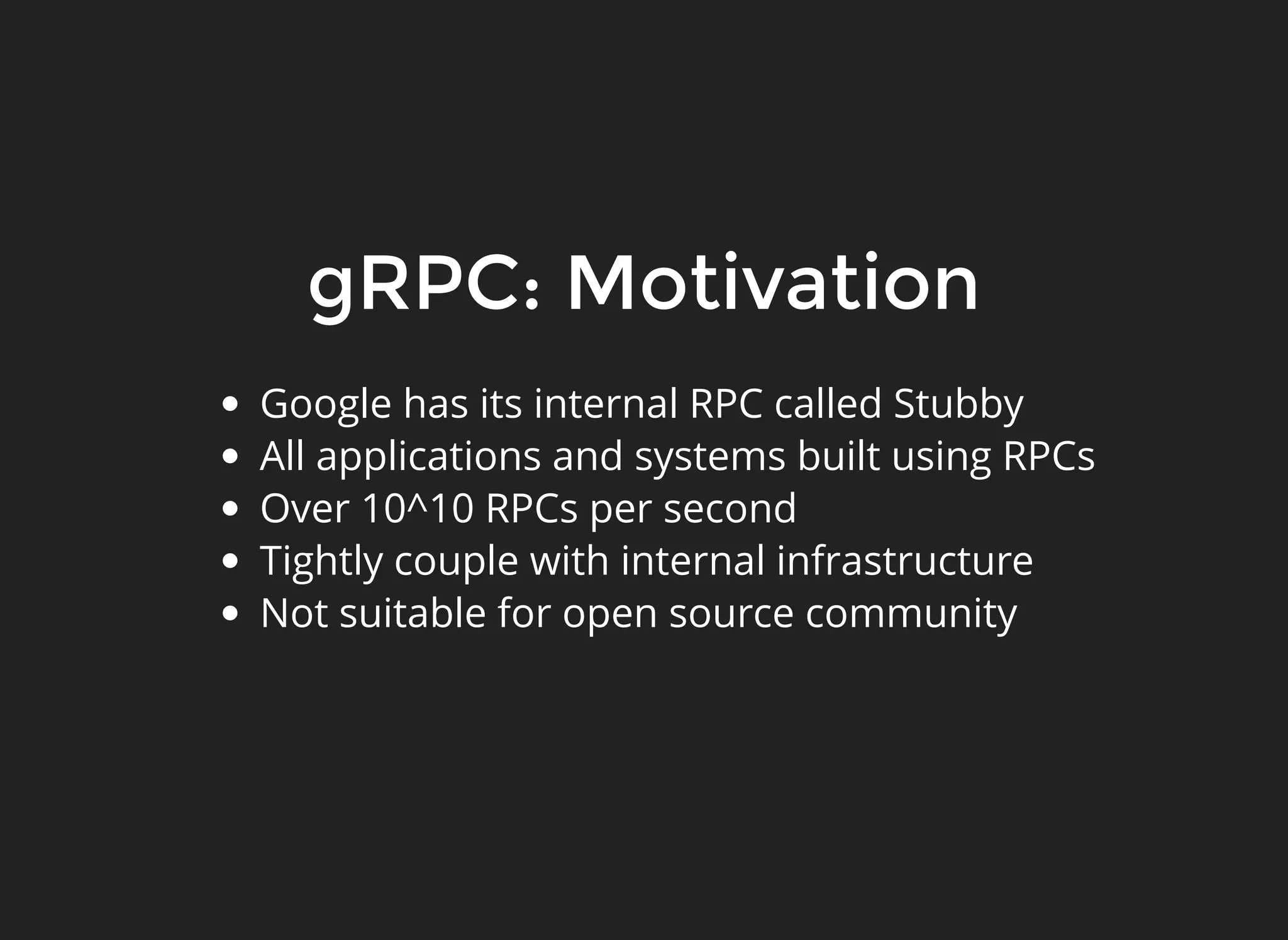

- 6. gRPC: MotivationgRPC: Motivation Googlehas its internal RPC called Stubby All applications and systems built using RPCs Over 10^10 RPCs per second Tightly couple with internal infrastructure Not suitable for open source community

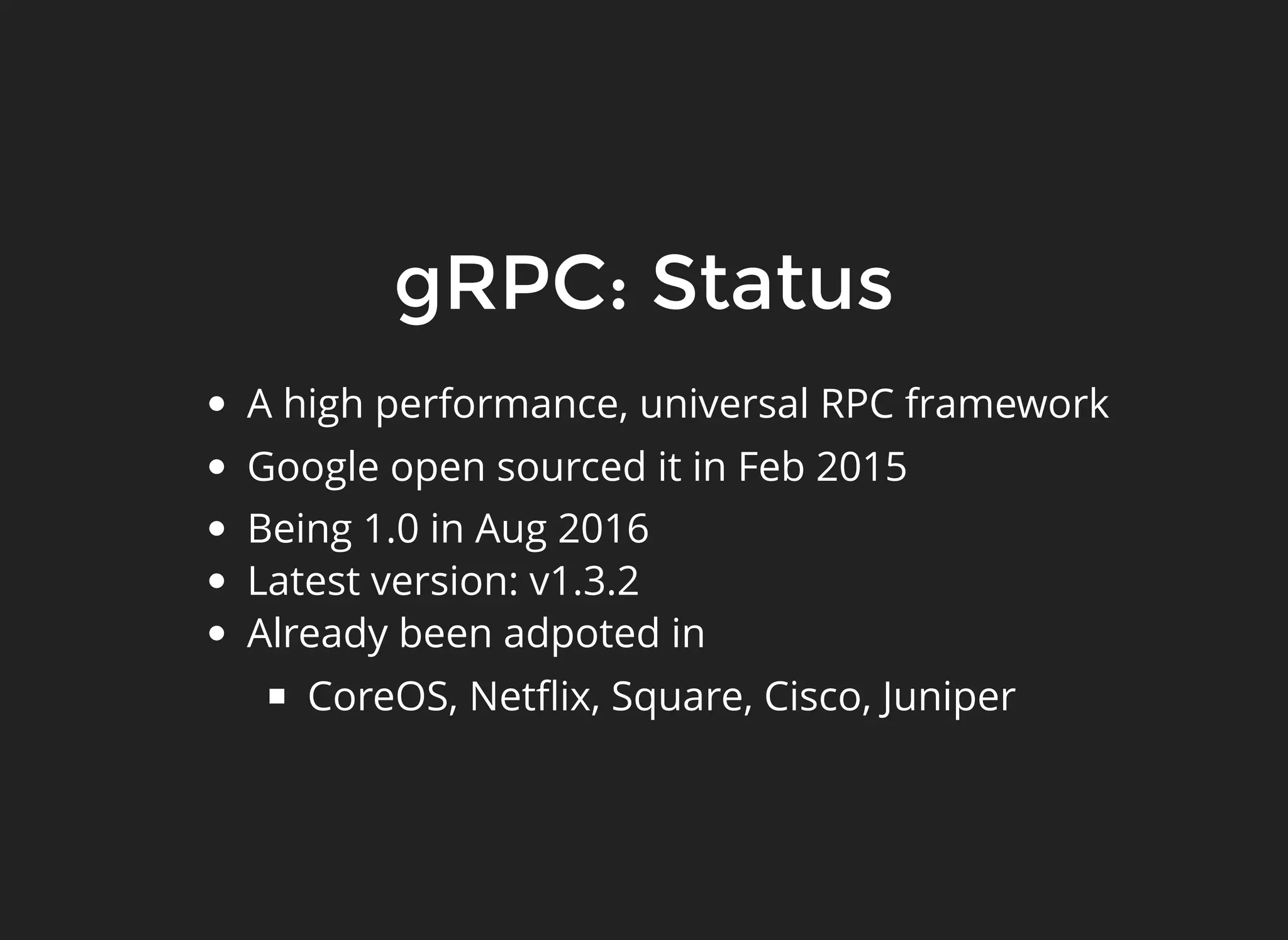

- 7. gRPC: StatusgRPC: Status Ahigh performance, universal RPC framework Google open sourced it in Feb 2015 Being 1.0 in Aug 2016 Latest version: v1.3.2 Already been adpoted in CoreOS, Netflix, Square, Cisco, Juniper

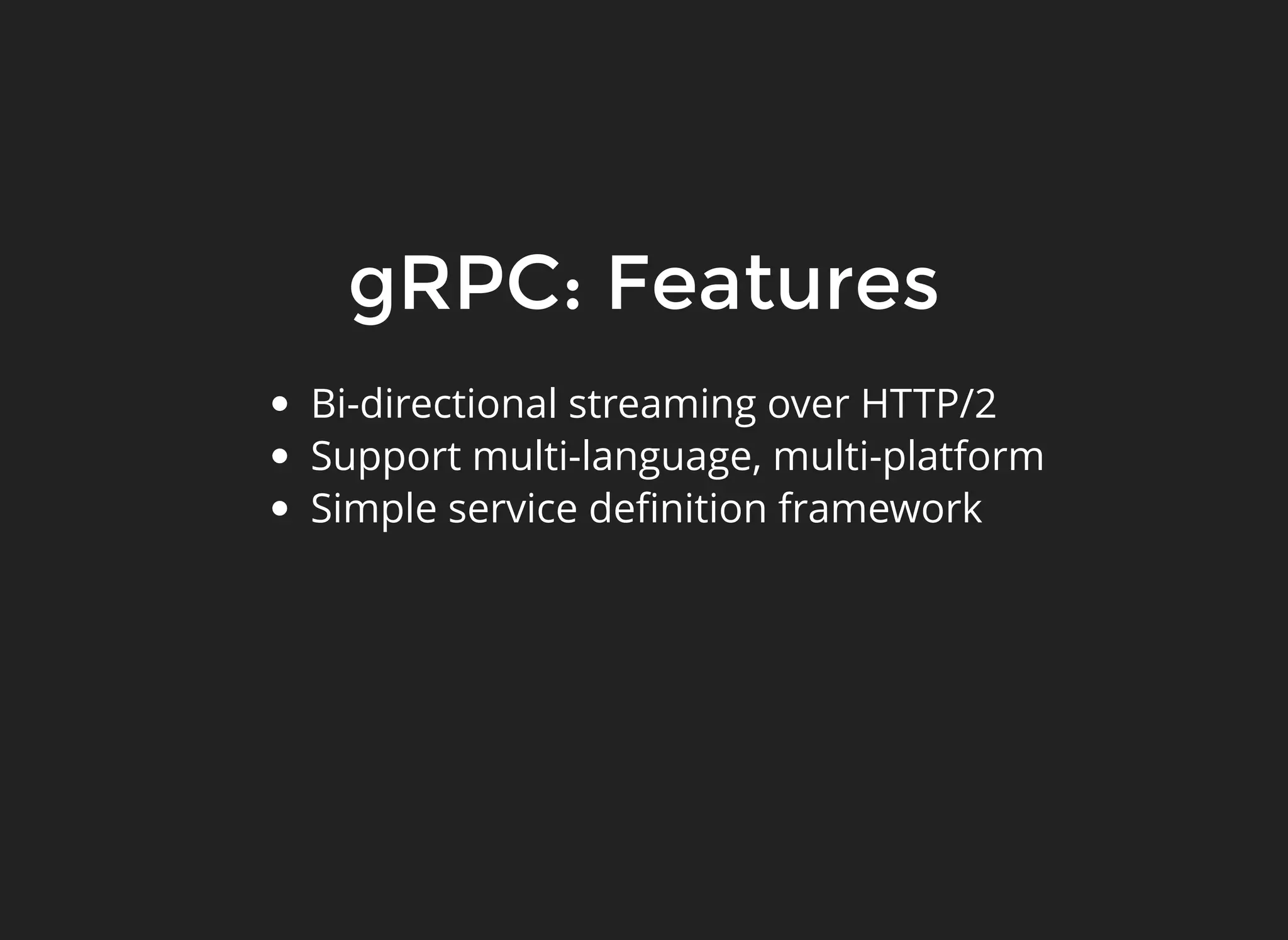

- 8. gRPC: FeaturesgRPC: Features Bi-directionalstreaming over HTTP/2 Support multi-language, multi-platform Simple service definition framework

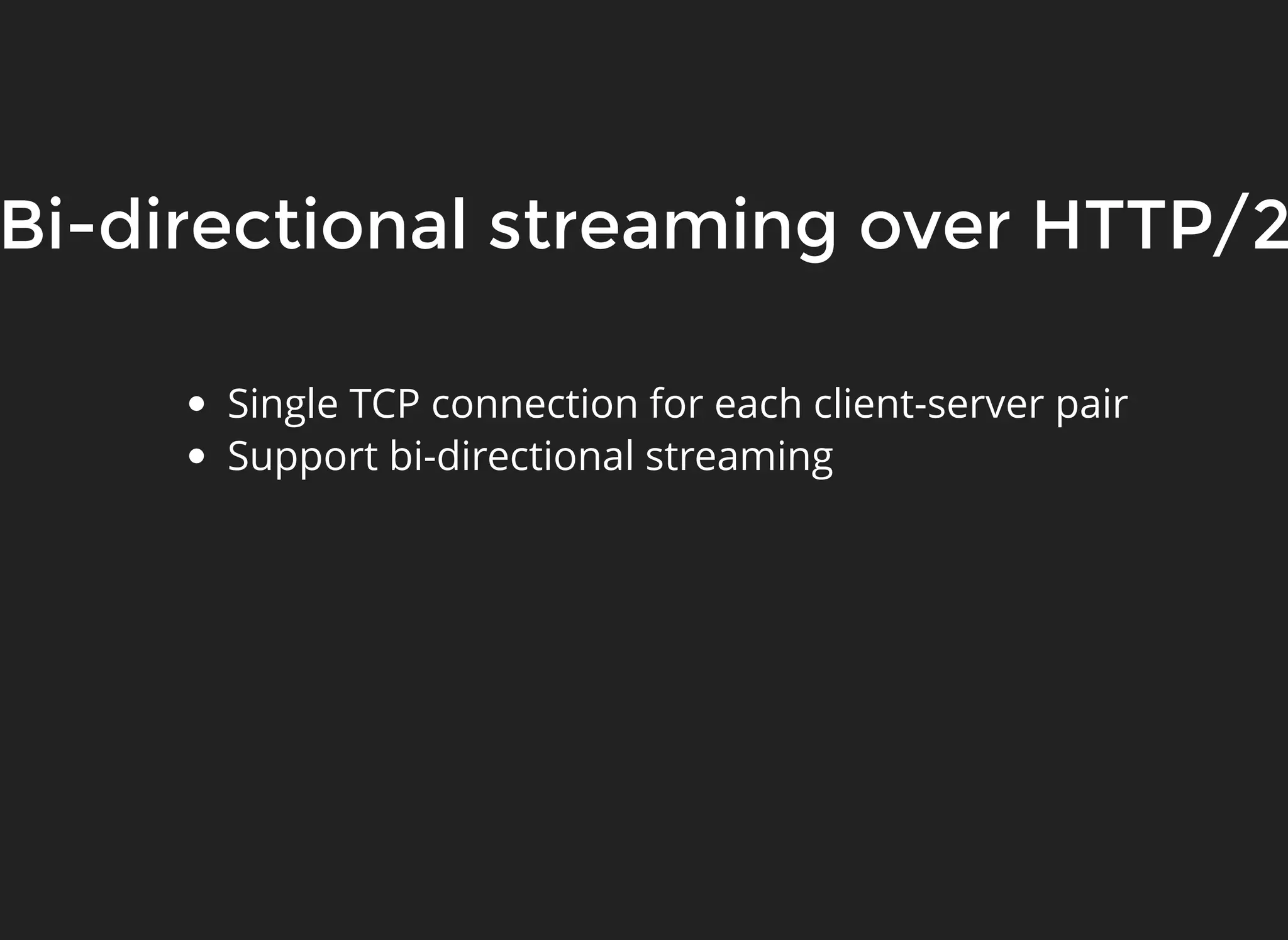

- 9. Bi-directional streaming overHTTP/2Bi-directional streaming over HTTP/2 Single TCP connection for each client-server pair Support bi-directional streaming

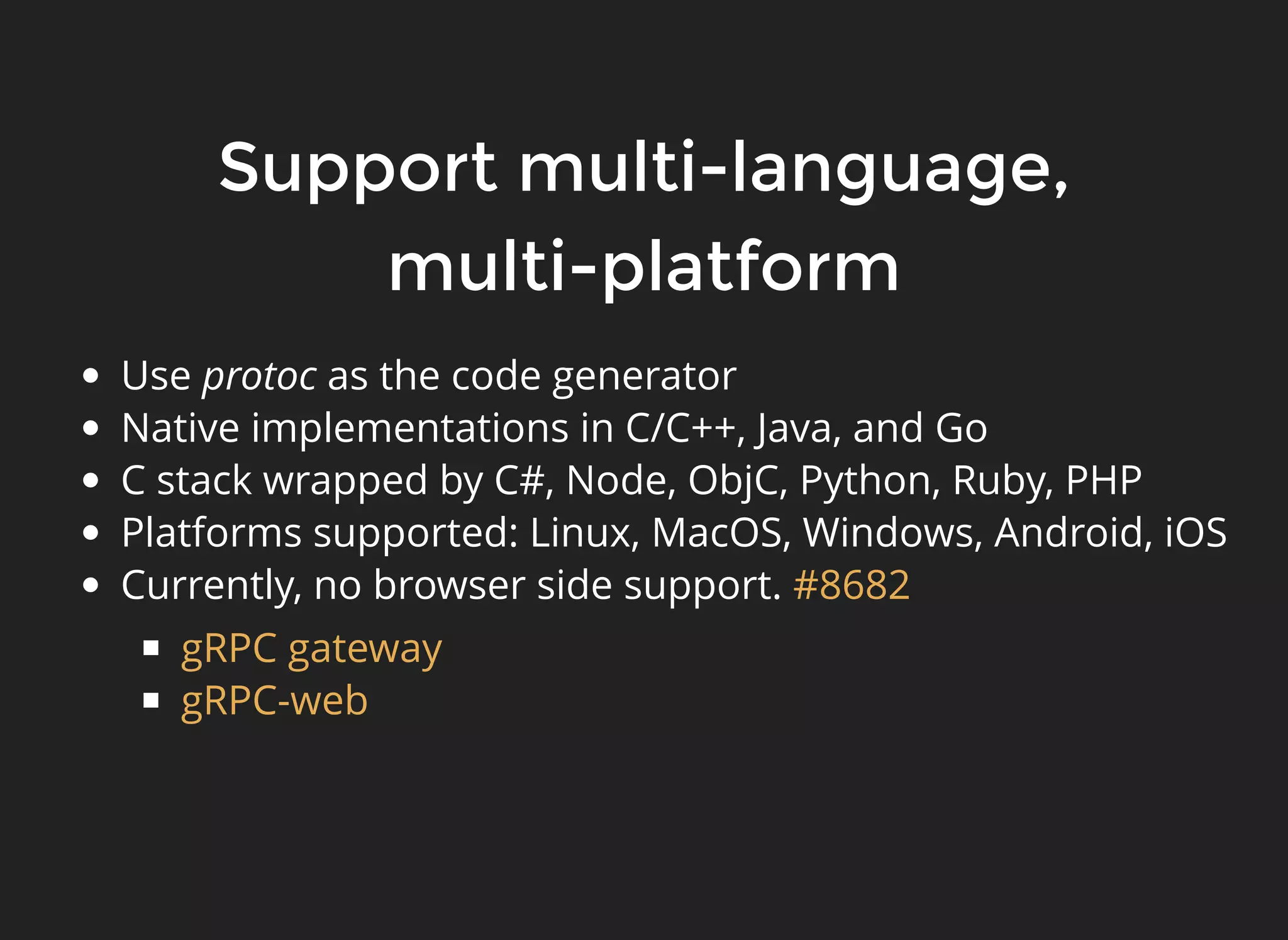

- 10. Support multi-language,Support multi-language, multi-platformmulti-platform Useprotoc as the code generator Native implementations in C/C++, Java, and Go C stack wrapped by C#, Node, ObjC, Python, Ruby, PHP Platforms supported: Linux, MacOS, Windows, Android, iOS Currently, no browser side support. #8682 gRPC gateway gRPC-web

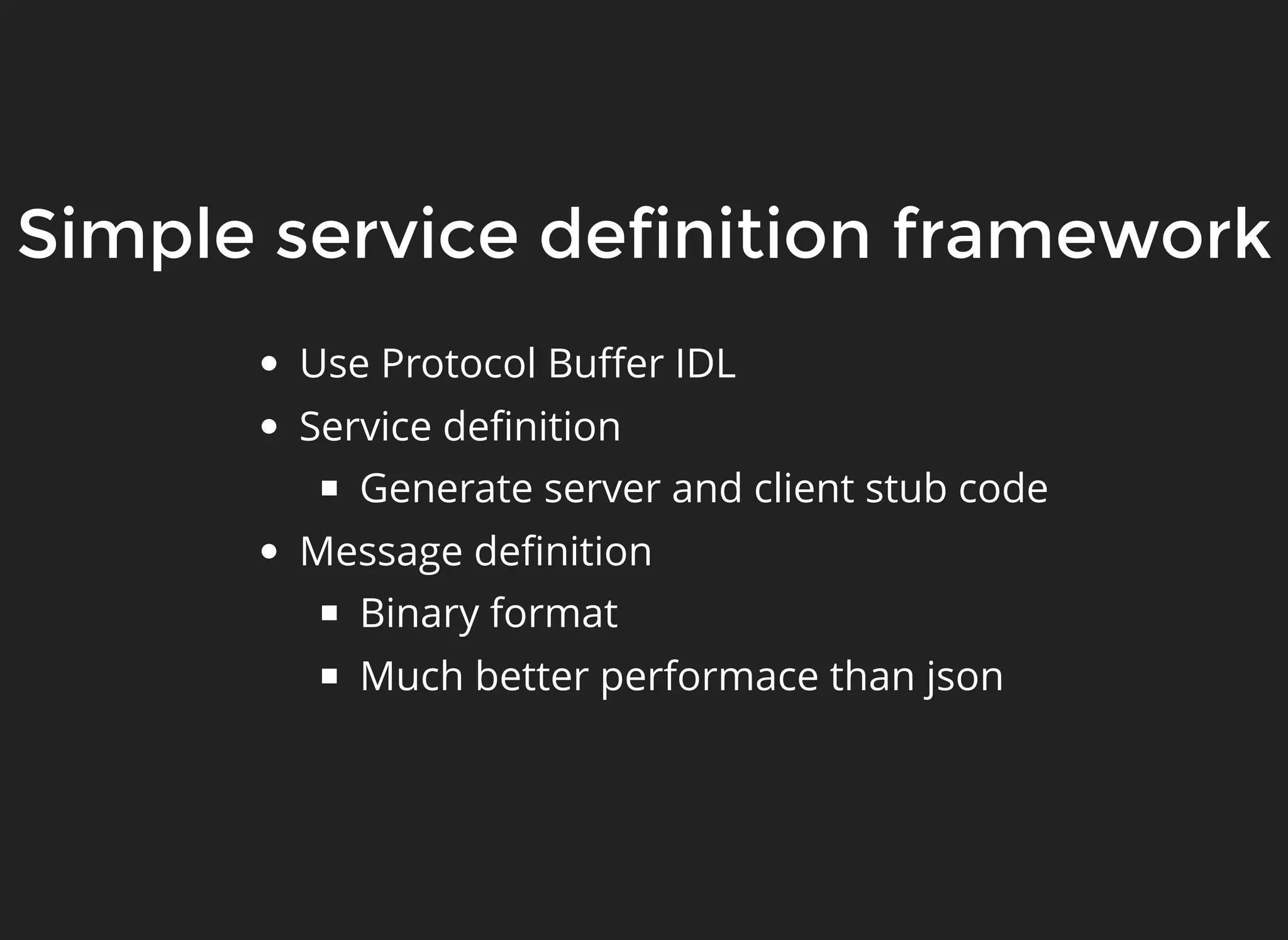

- 11. Simple service definitionframeworkSimple service definition framework Use Protocol Buffer IDL Service definition Generate server and client stub code Message definition Binary format Much better performace than json

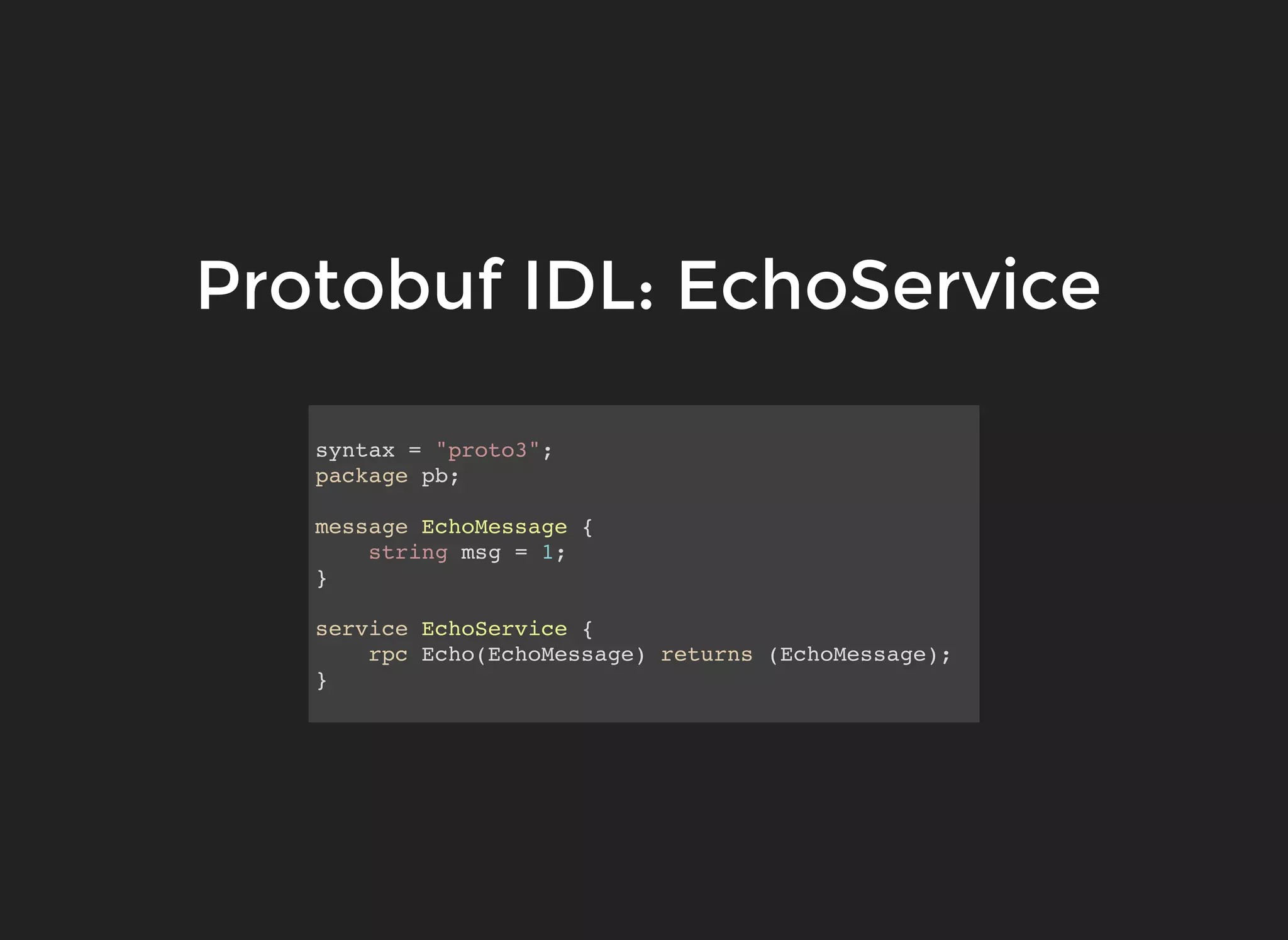

- 12. syntax = "proto3"; packagepb; message EchoMessage { string msg = 1; } service EchoService { rpc Echo(EchoMessage) returns (EchoMessage); } Protobuf IDL: EchoServiceProtobuf IDL: EchoService

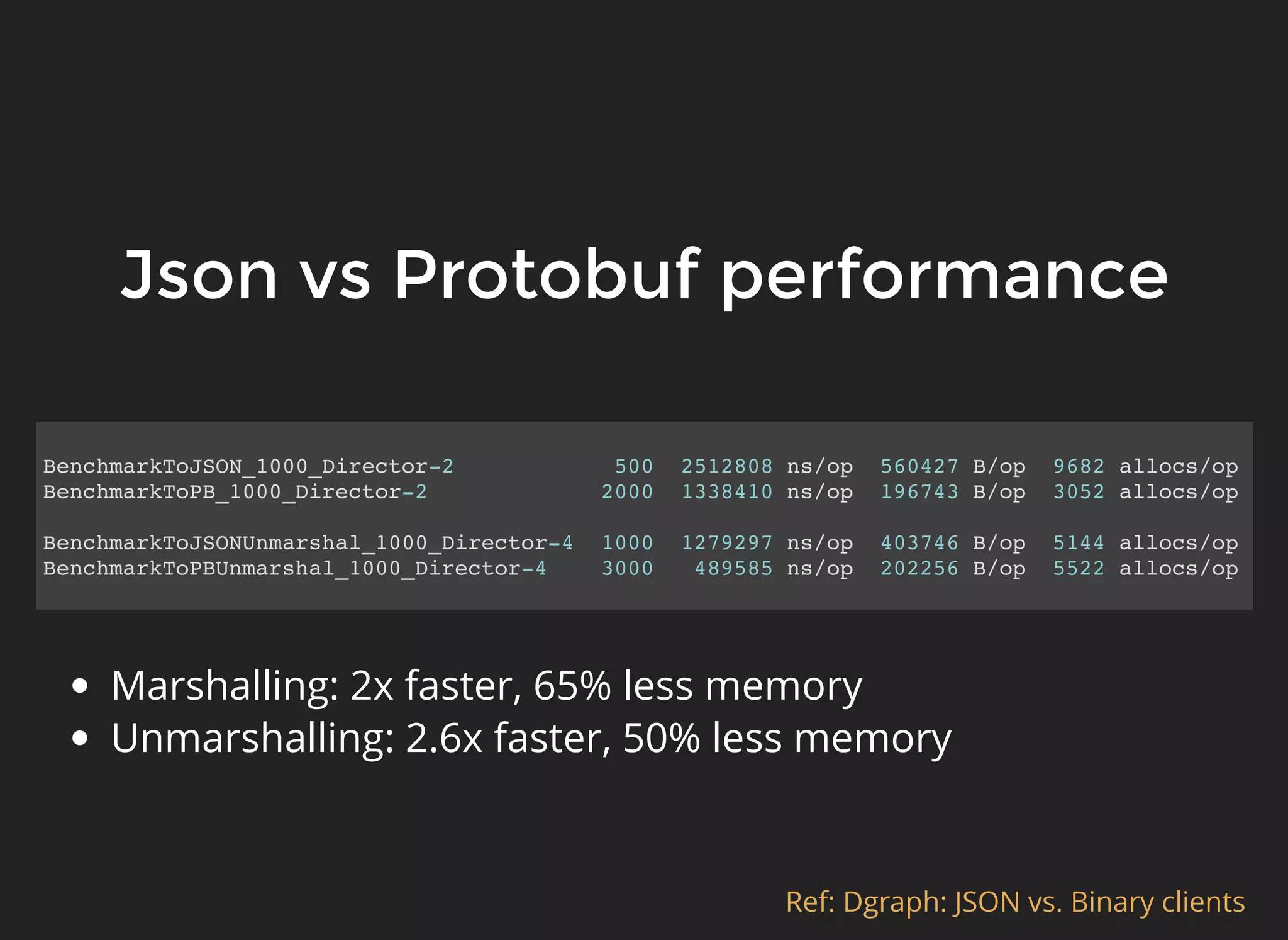

- 13. BenchmarkToJSON_1000_Director-2 500 2512808ns/op 560427 B/op 9682 allocs/op BenchmarkToPB_1000_Director-2 2000 1338410 ns/op 196743 B/op 3052 allocs/op BenchmarkToJSONUnmarshal_1000_Director-4 1000 1279297 ns/op 403746 B/op 5144 allocs/op BenchmarkToPBUnmarshal_1000_Director-4 3000 489585 ns/op 202256 B/op 5522 allocs/op Json vs Protobuf performanceJson vs Protobuf performance Ref: Dgraph: JSON vs. Binary clients Marshalling: 2x faster, 65% less memory Unmarshalling: 2.6x faster, 50% less memory
- 15.

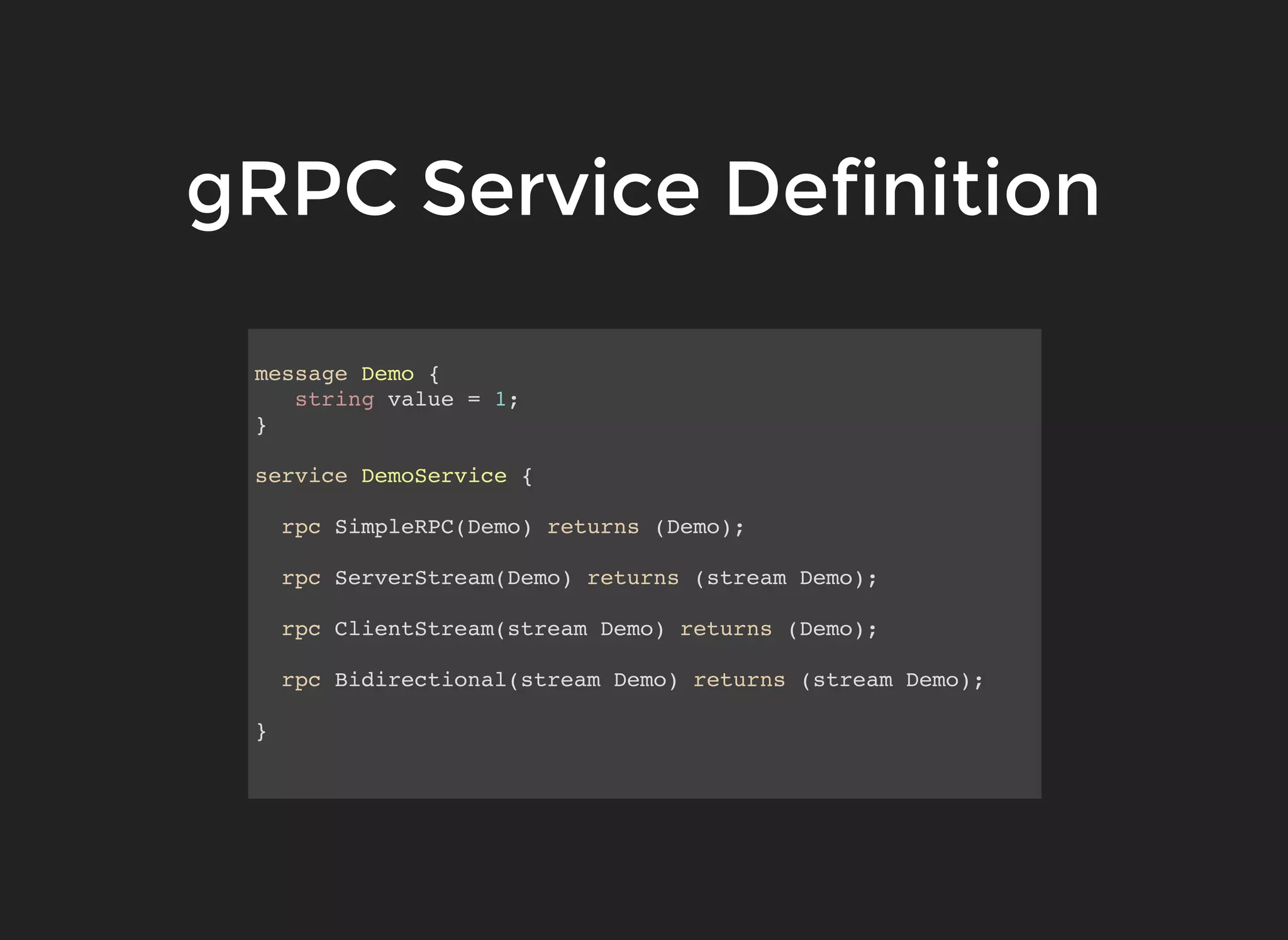

- 16. gRPC Service DefinitiongRPCService Definition message Demo { string value = 1; } service DemoService { rpc SimpleRPC(Demo) returns (Demo); rpc ServerStream(Demo) returns (stream Demo); rpc ClientStream(stream Demo) returns (Demo); rpc Bidirectional(stream Demo) returns (stream Demo); }

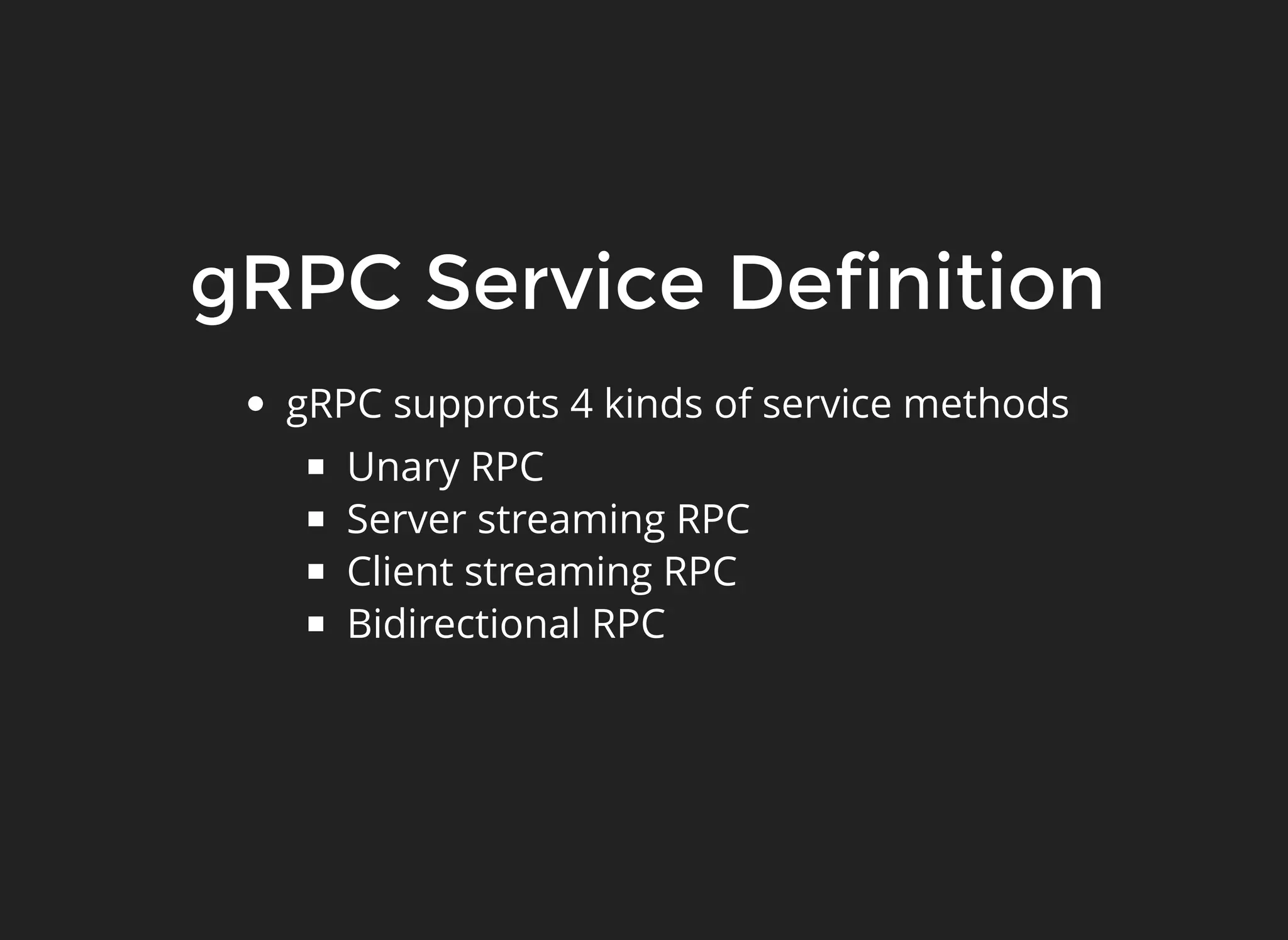

- 17. gRPC Service DefinitiongRPCService Definition gRPC supprots 4 kinds of service methods Unary RPC Server streaming RPC Client streaming RPC Bidirectional RPC

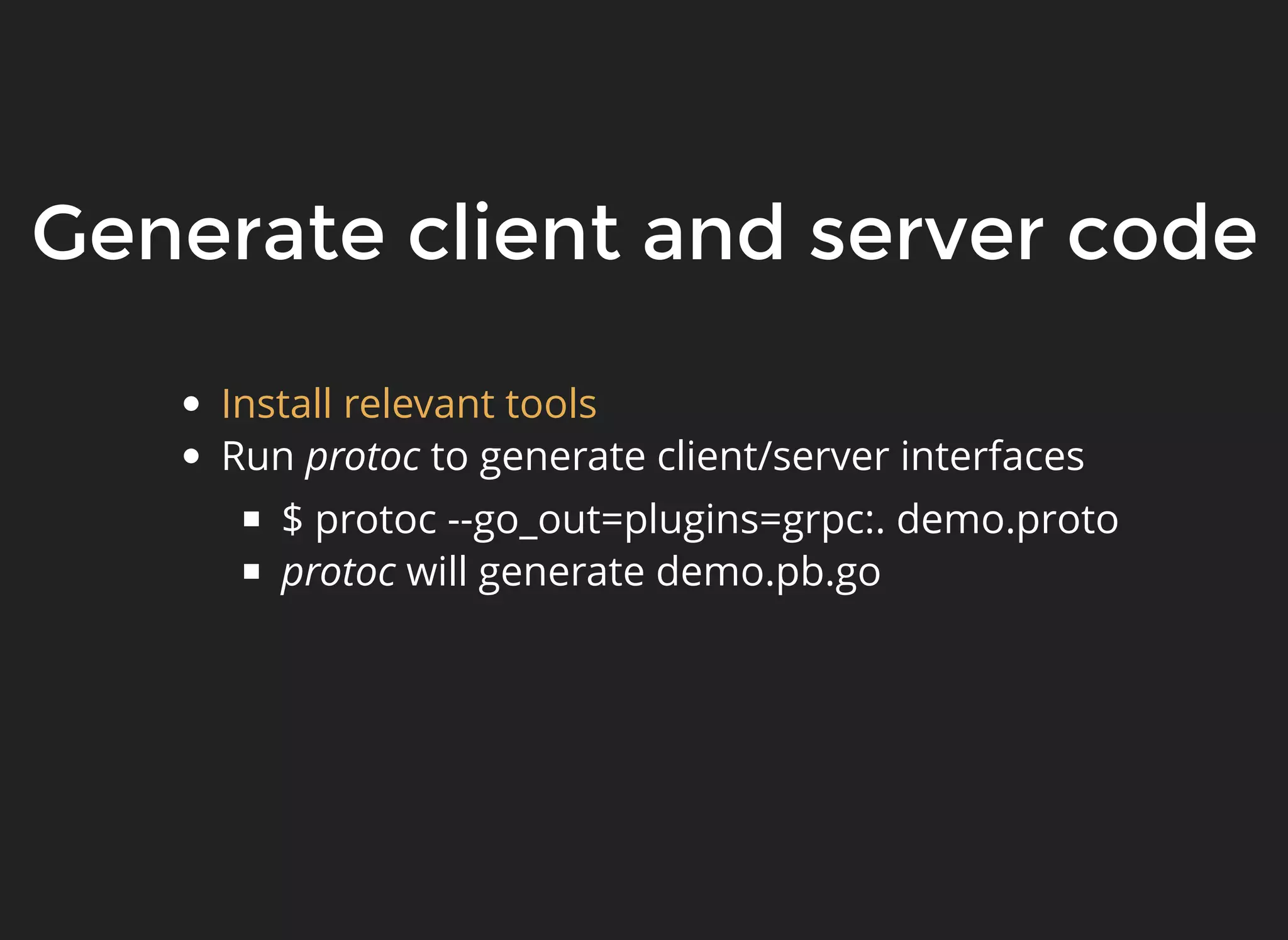

- 18. Generate client andserver codeGenerate client and server code Run protoc to generate client/server interfaces $ protoc --go_out=plugins=grpc:. demo.proto protoc will generate demo.pb.go Install relevant tools

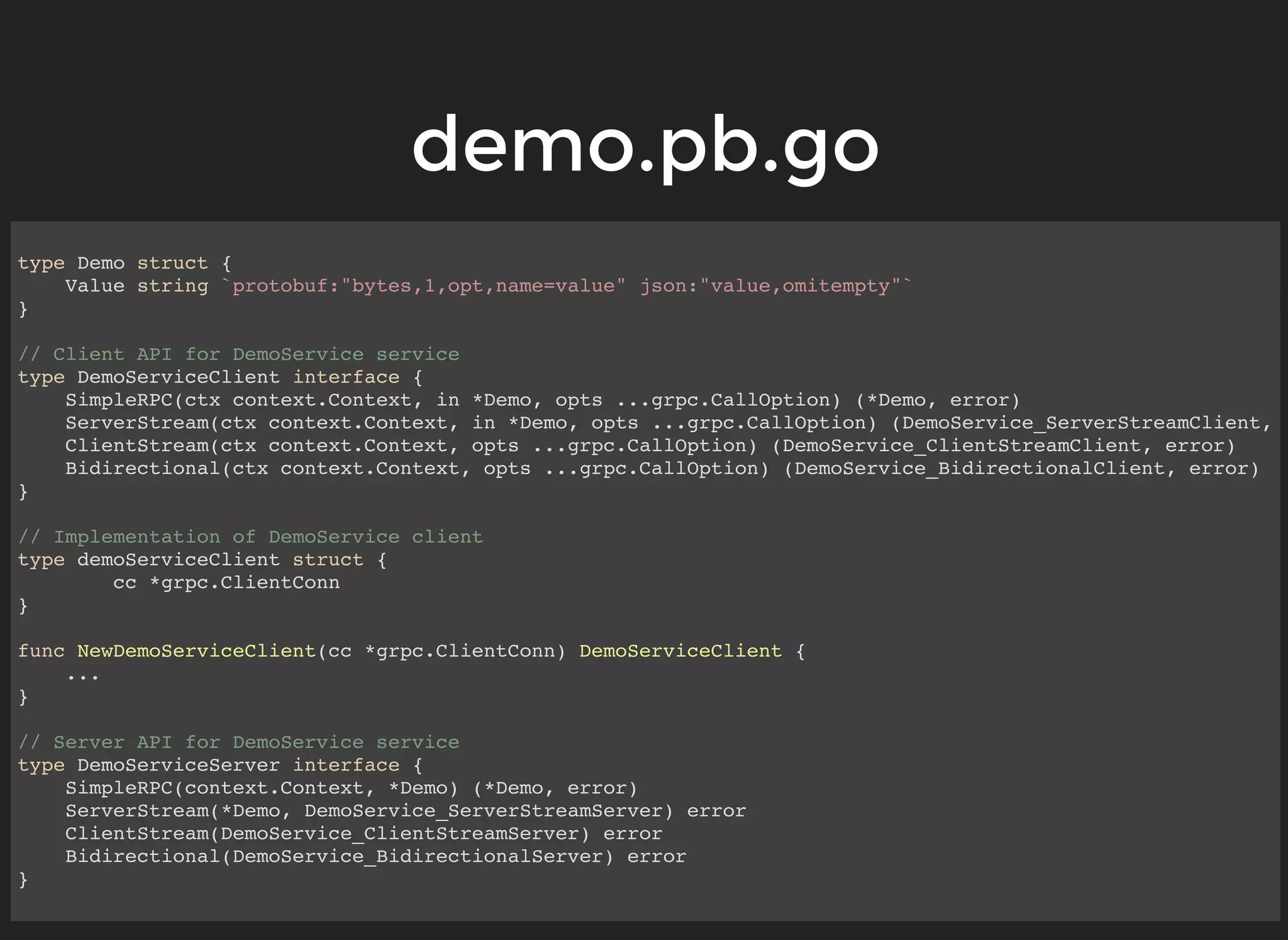

- 19. demo.pb.godemo.pb.go type Demo struct{ Value string `protobuf:"bytes,1,opt,name=value" json:"value,omitempty"` } // Client API for DemoService service type DemoServiceClient interface { SimpleRPC(ctx context.Context, in *Demo, opts ...grpc.CallOption) (*Demo, error) ServerStream(ctx context.Context, in *Demo, opts ...grpc.CallOption) (DemoService_ServerStreamClient, ClientStream(ctx context.Context, opts ...grpc.CallOption) (DemoService_ClientStreamClient, error) Bidirectional(ctx context.Context, opts ...grpc.CallOption) (DemoService_BidirectionalClient, error) } // Implementation of DemoService client type demoServiceClient struct { cc *grpc.ClientConn } func NewDemoServiceClient(cc *grpc.ClientConn) DemoServiceClient { ... } // Server API for DemoService service type DemoServiceServer interface { SimpleRPC(context.Context, *Demo) (*Demo, error) ServerStream(*Demo, DemoService_ServerStreamServer) error ClientStream(DemoService_ClientStreamServer) error Bidirectional(DemoService_BidirectionalServer) error }

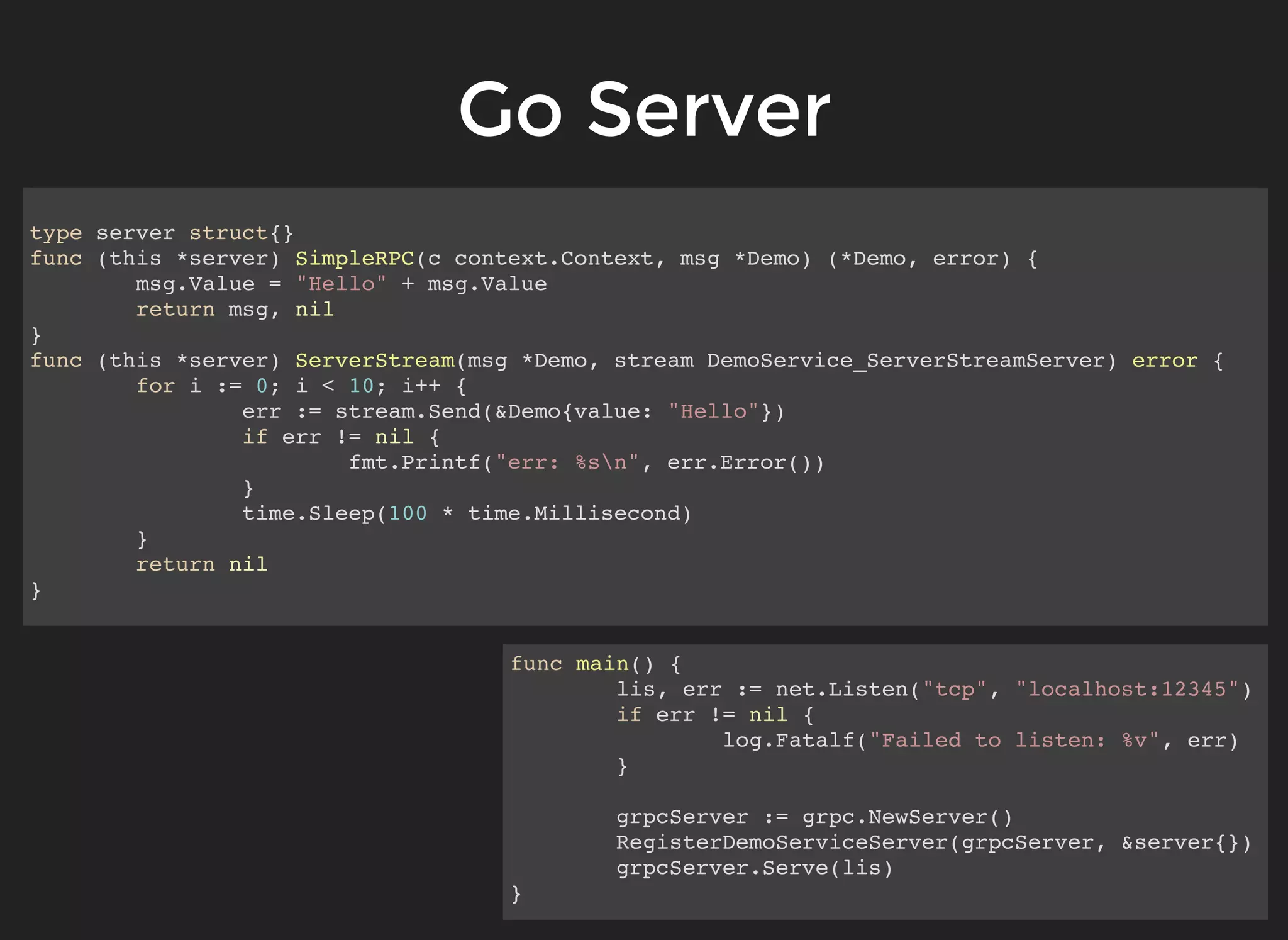

- 20. Go ServerGo Server typeserver struct{} func (this *server) SimpleRPC(c context.Context, msg *Demo) (*Demo, error) { msg.Value = "Hello" + msg.Value return msg, nil } func (this *server) ServerStream(msg *Demo, stream DemoService_ServerStreamServer) error { for i := 0; i < 10; i++ { err := stream.Send(&Demo{value: "Hello"}) if err != nil { fmt.Printf("err: %sn", err.Error()) } time.Sleep(100 * time.Millisecond) } return nil } func main() { lis, err := net.Listen("tcp", "localhost:12345") if err != nil { log.Fatalf("Failed to listen: %v", err) } grpcServer := grpc.NewServer() RegisterDemoServiceServer(grpcServer, &server{}) grpcServer.Serve(lis) }

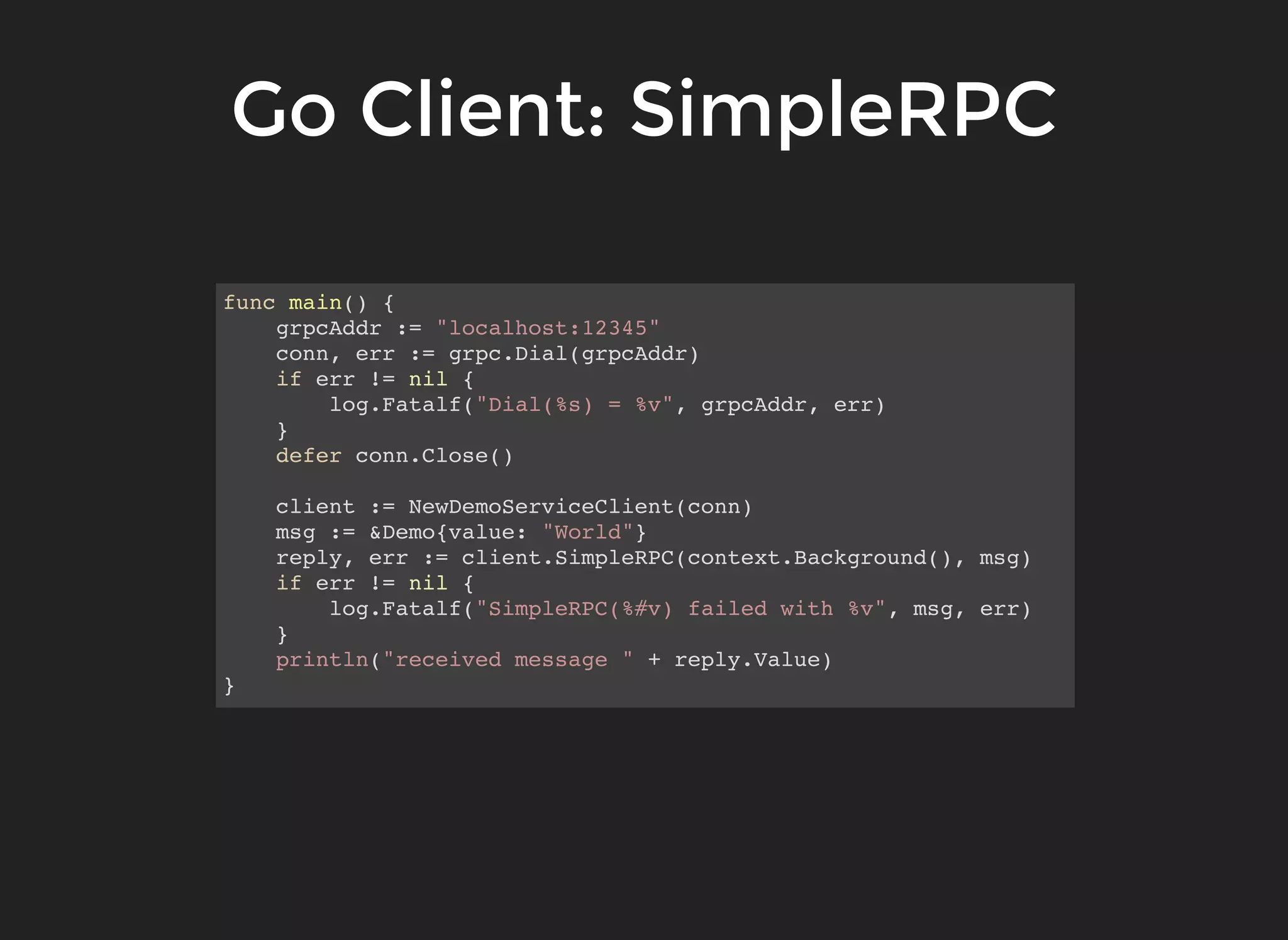

- 21. Go Client: SimpleRPCGoClient: SimpleRPC func main() { grpcAddr := "localhost:12345" conn, err := grpc.Dial(grpcAddr) if err != nil { log.Fatalf("Dial(%s) = %v", grpcAddr, err) } defer conn.Close() client := NewDemoServiceClient(conn) msg := &Demo{value: "World"} reply, err := client.SimpleRPC(context.Background(), msg) if err != nil { log.Fatalf("SimpleRPC(%#v) failed with %v", msg, err) } println("received message " + reply.Value) }

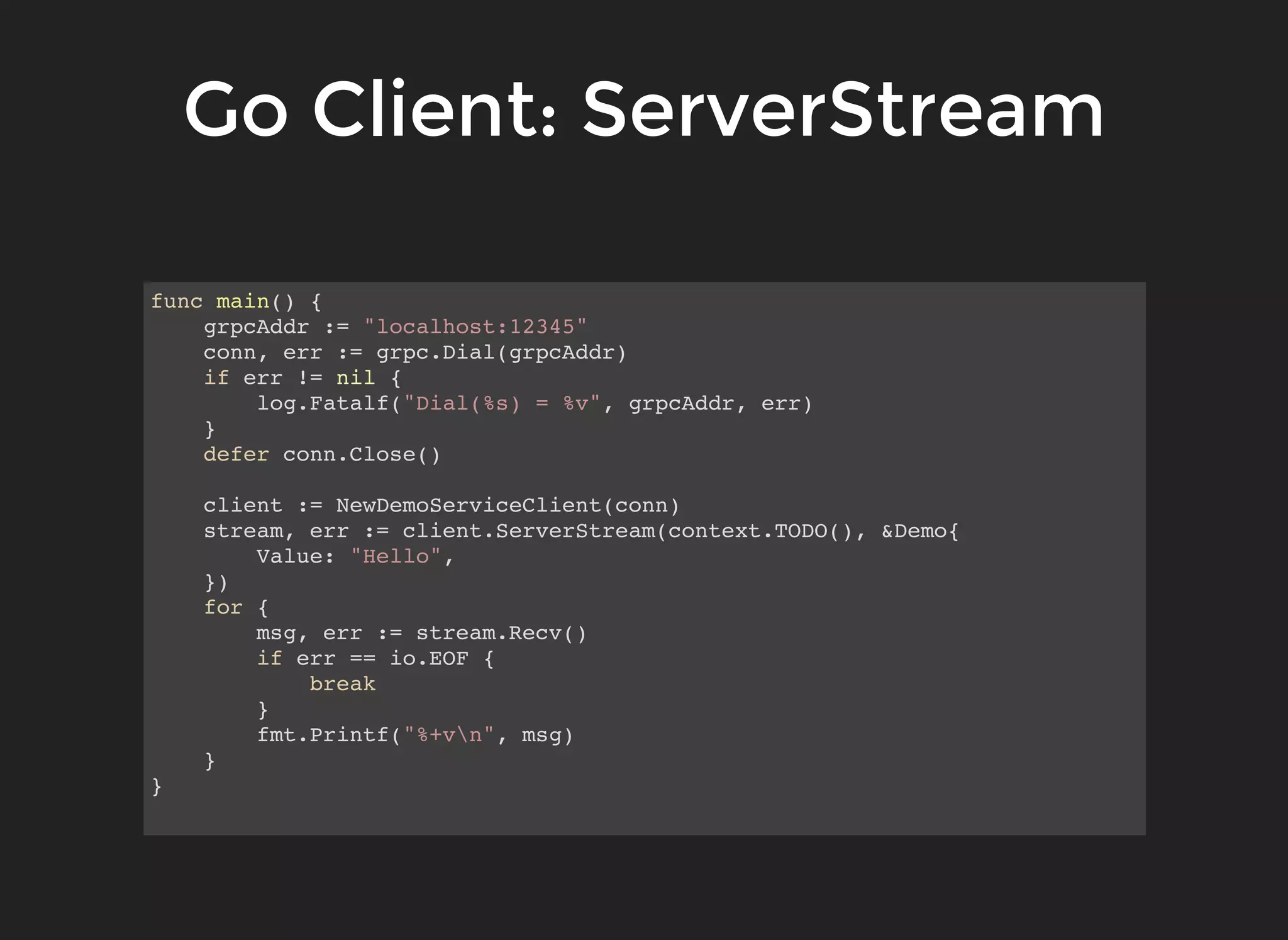

- 22. Go Client: ServerStreamGoClient: ServerStream func main() { grpcAddr := "localhost:12345" conn, err := grpc.Dial(grpcAddr) if err != nil { log.Fatalf("Dial(%s) = %v", grpcAddr, err) } defer conn.Close() client := NewDemoServiceClient(conn) stream, err := client.ServerStream(context.TODO(), &Demo{ Value: "Hello", }) for { msg, err := stream.Recv() if err == io.EOF { break } fmt.Printf("%+vn", msg) } }
- 23. Let's go deeperLet'sgo deeper

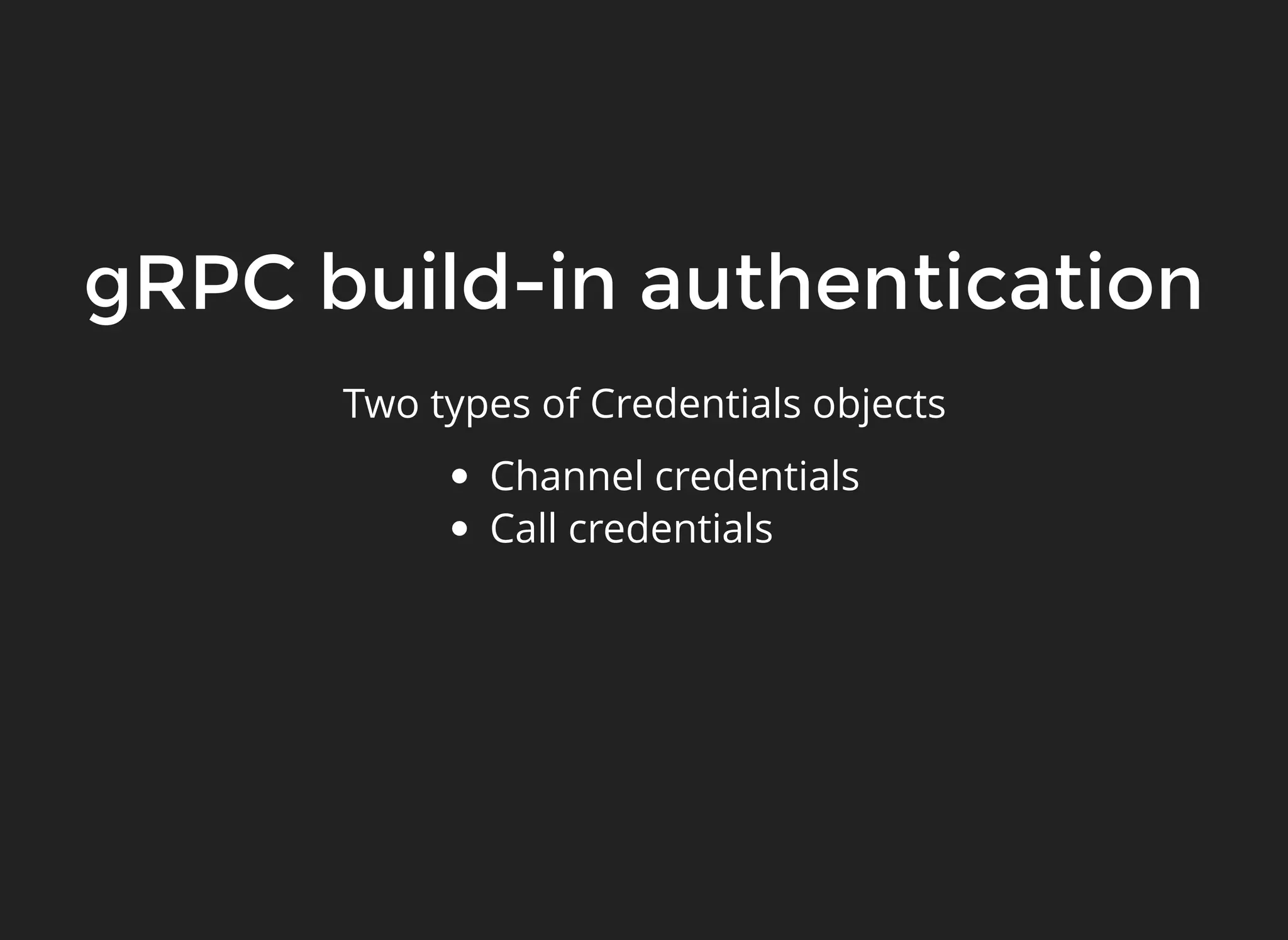

- 24. gRPC build-in authenticationgRPCbuild-in authentication Two types of Credentials objects Channel credentials Call credentials

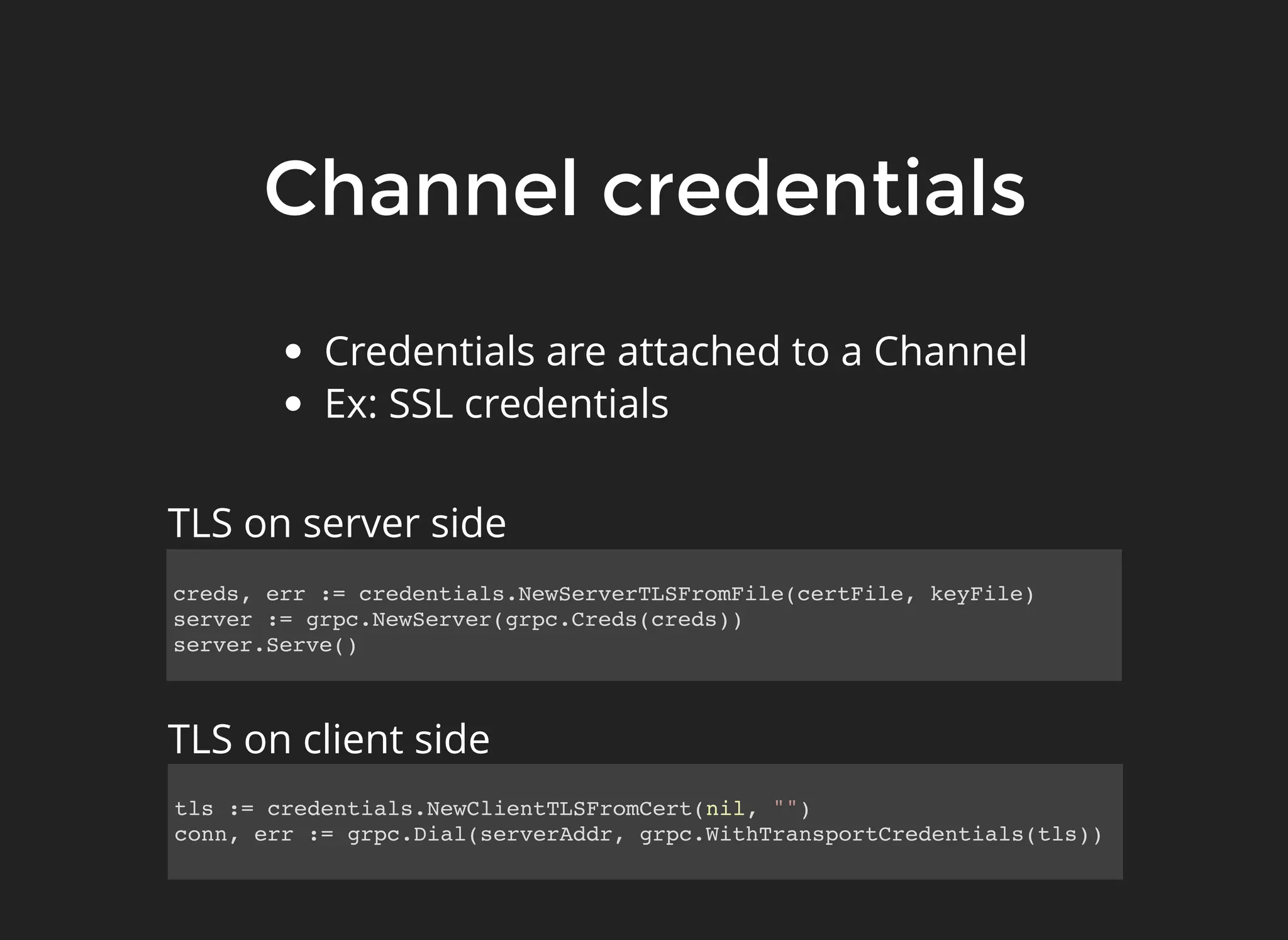

- 25. Channel credentialsChannel credentials Credentialsare attached to a Channel Ex: SSL credentials tls := credentials.NewClientTLSFromCert(nil, "") conn, err := grpc.Dial(serverAddr, grpc.WithTransportCredentials(tls)) creds, err := credentials.NewServerTLSFromFile(certFile, keyFile) server := grpc.NewServer(grpc.Creds(creds)) server.Serve() TLS on server side TLS on client side

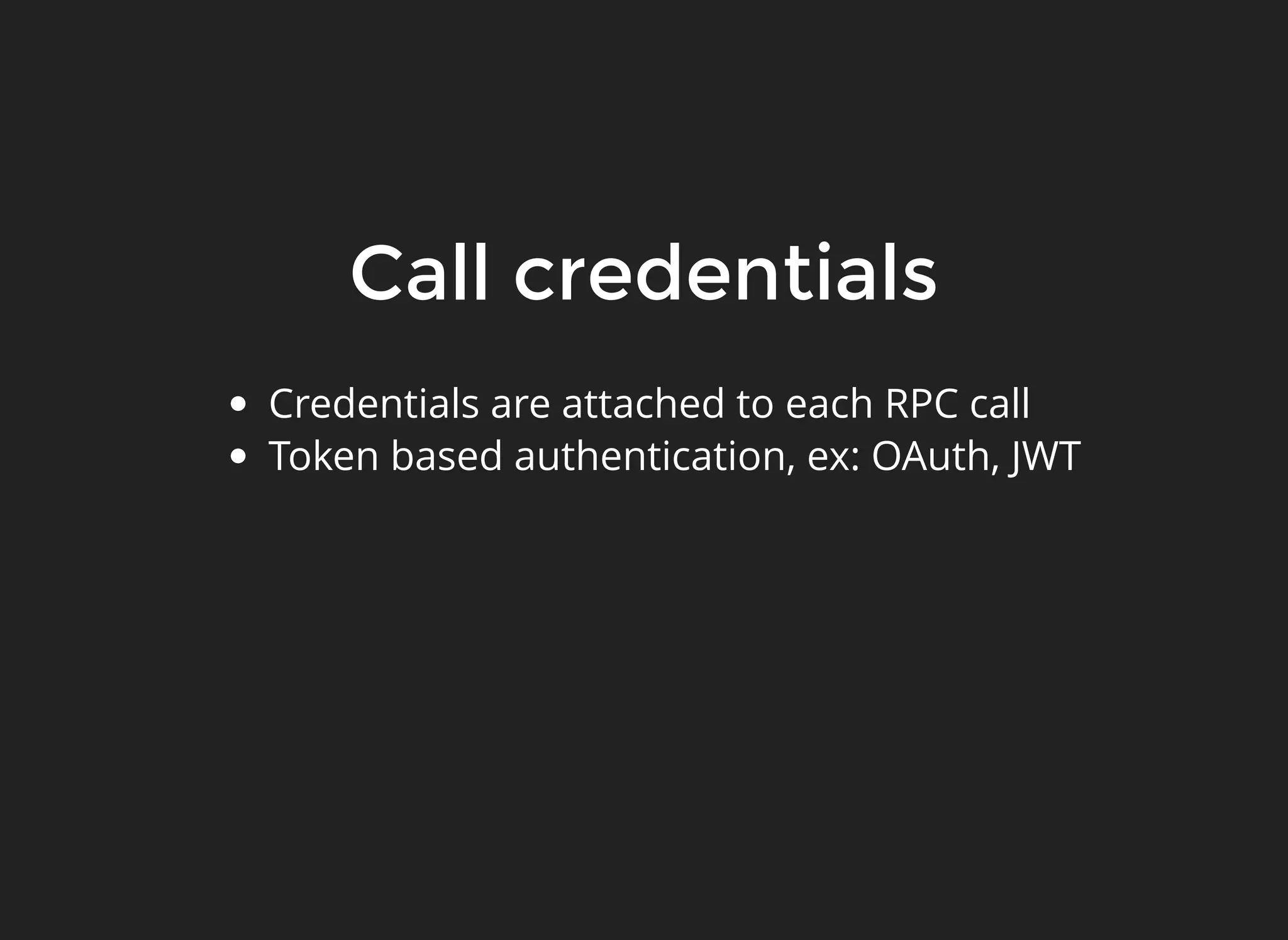

- 26. Call credentialsCall credentials Credentialsare attached to each RPC call Token based authentication, ex: OAuth, JWT

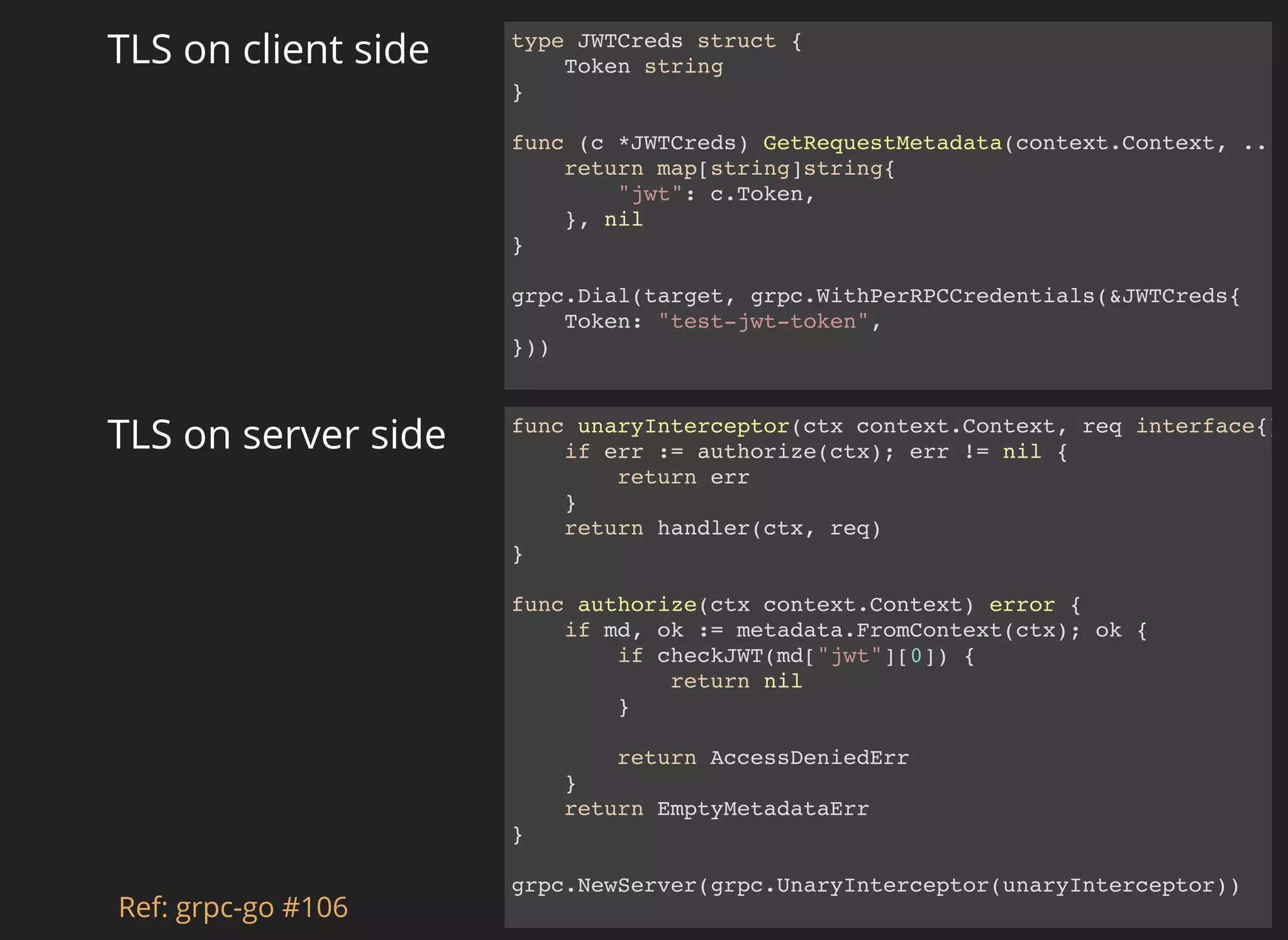

- 27. func unaryInterceptor(ctx context.Context,req interface{} if err := authorize(ctx); err != nil { return err } return handler(ctx, req) } func authorize(ctx context.Context) error { if md, ok := metadata.FromContext(ctx); ok { if checkJWT(md["jwt"][0]) { return nil } return AccessDeniedErr } return EmptyMetadataErr } grpc.NewServer(grpc.UnaryInterceptor(unaryInterceptor)) TLS on server side type JWTCreds struct { Token string } func (c *JWTCreds) GetRequestMetadata(context.Context, .. return map[string]string{ "jwt": c.Token, }, nil } grpc.Dial(target, grpc.WithPerRPCCredentials(&JWTCreds{ Token: "test-jwt-token", })) TLS on client side Ref: grpc-go #106

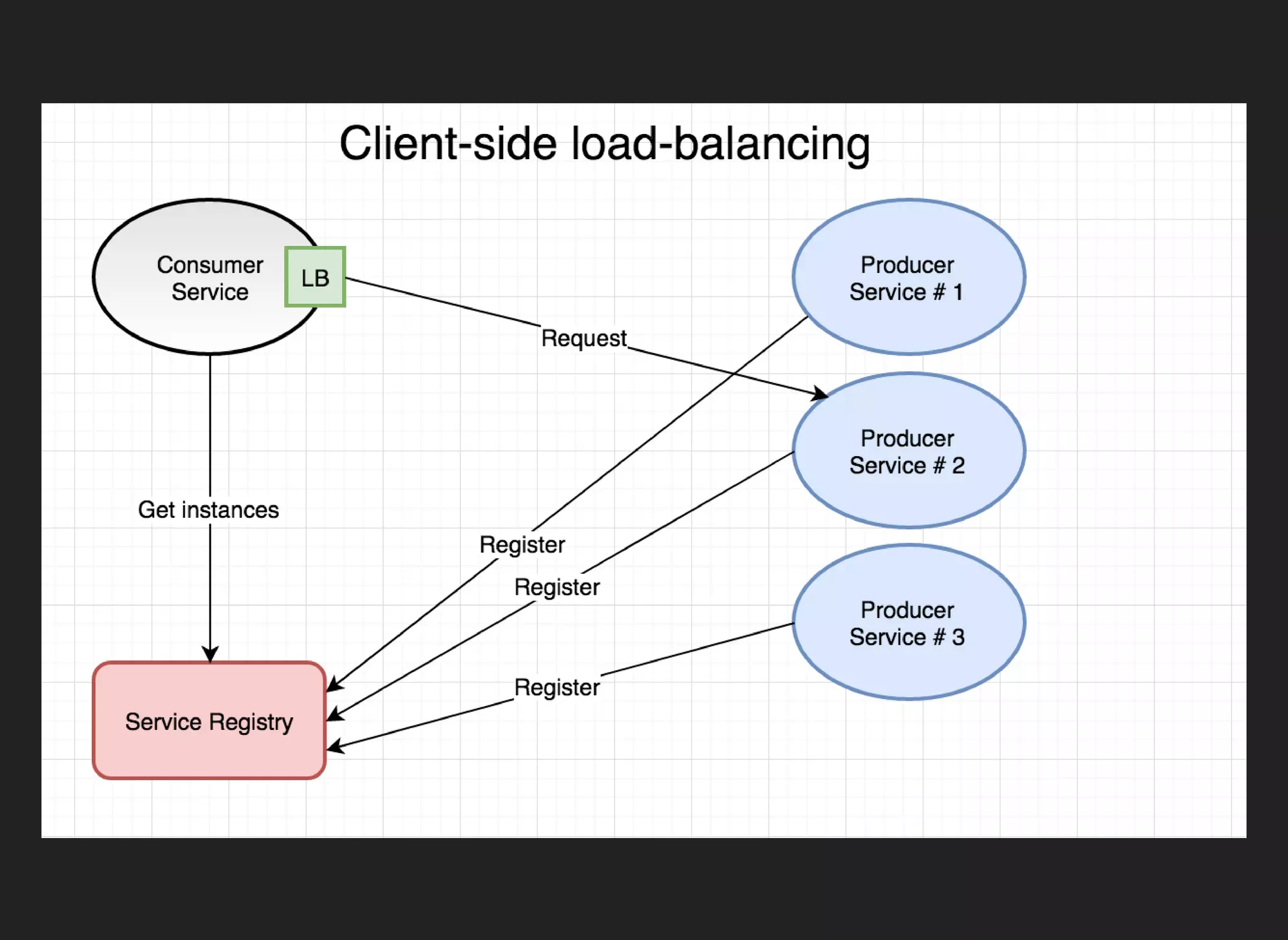

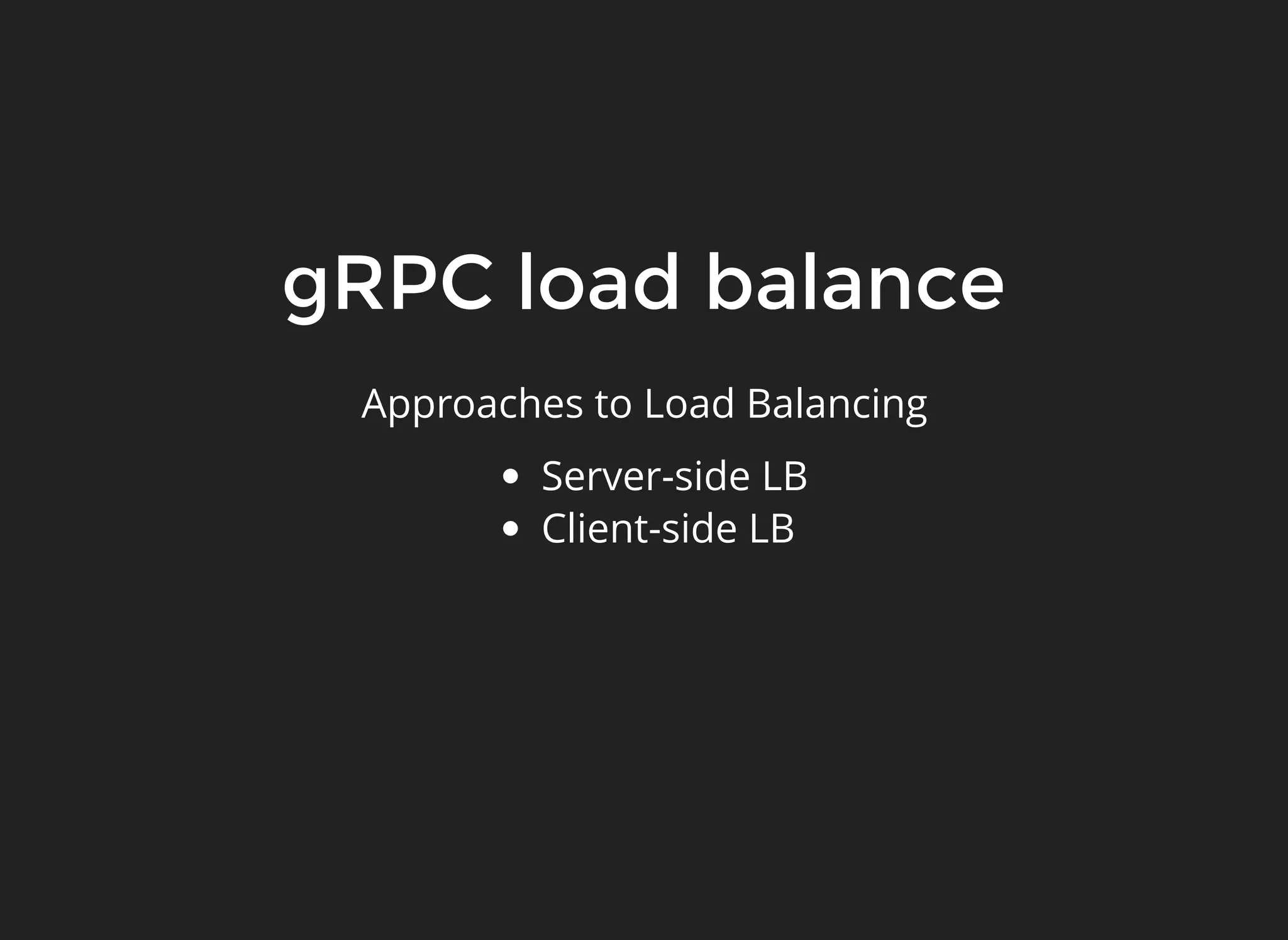

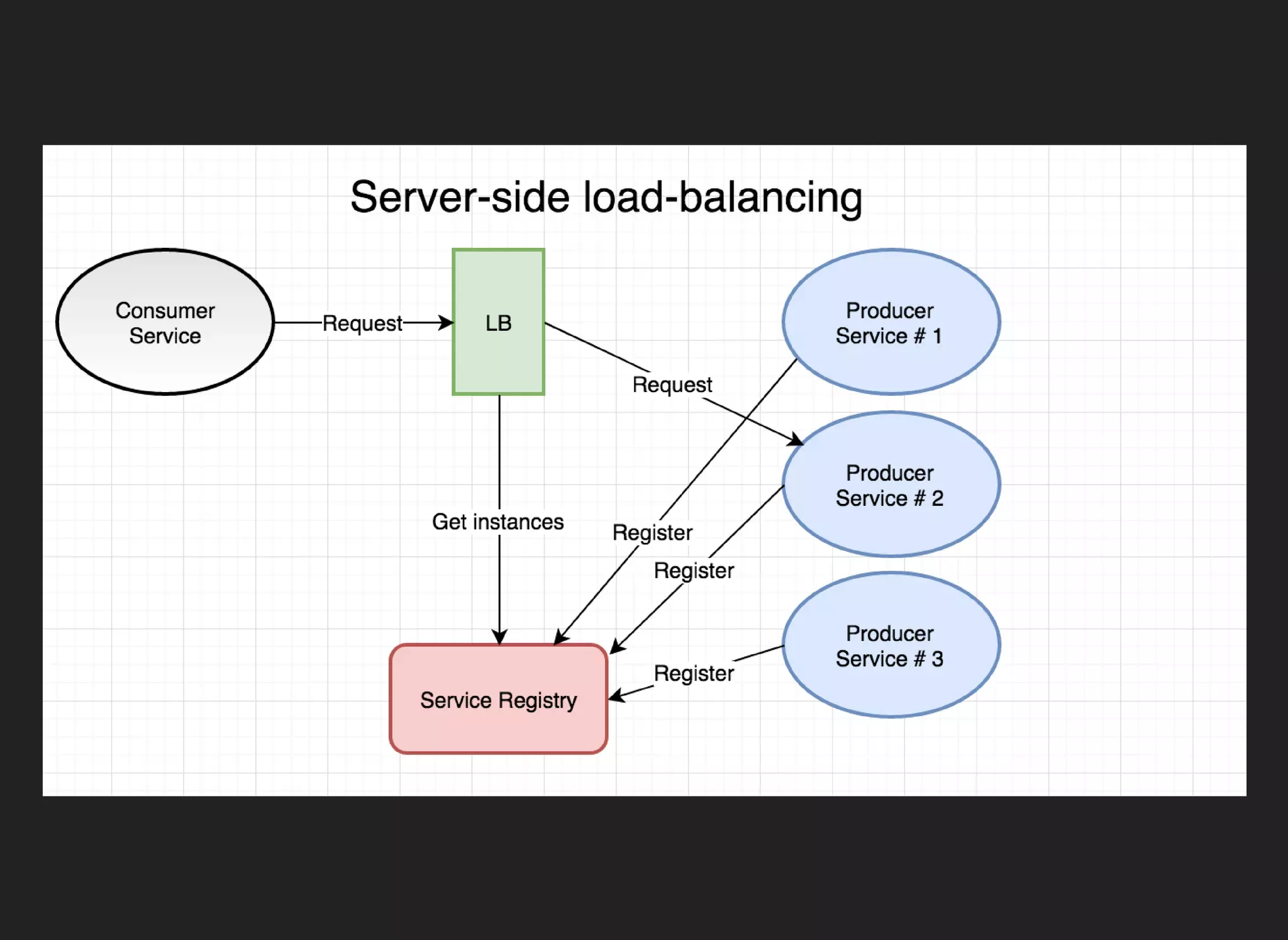

- 28. gRPC load balancegRPCload balance Approaches to Load Balancing Server-side LB Client-side LB

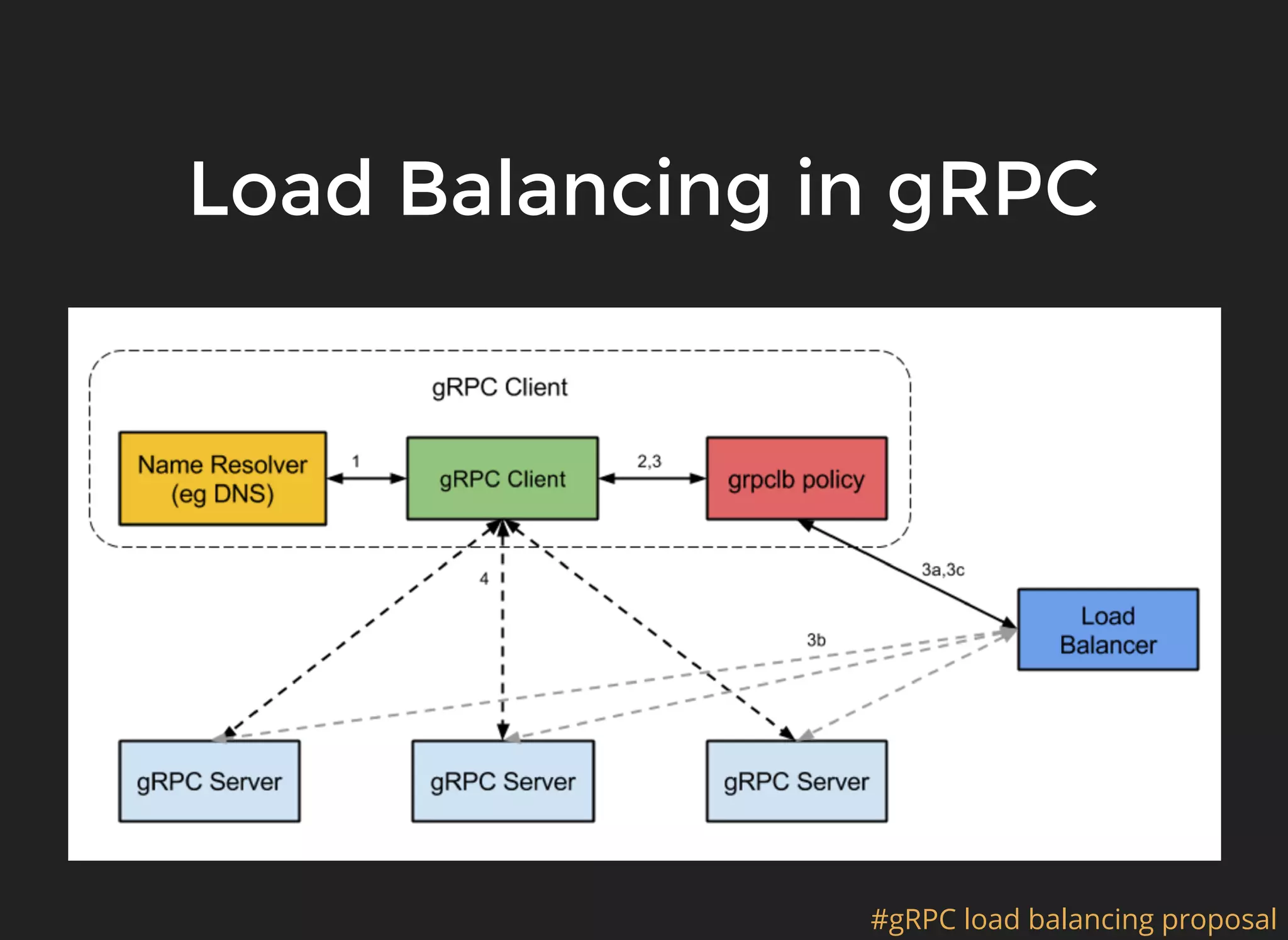

- 31. Load Balancing ingRPCLoad Balancing in gRPC #gRPC load balancing proposal
- 32.
