Cohesive Networks Support Docs: VNS3 Configuration in Azure

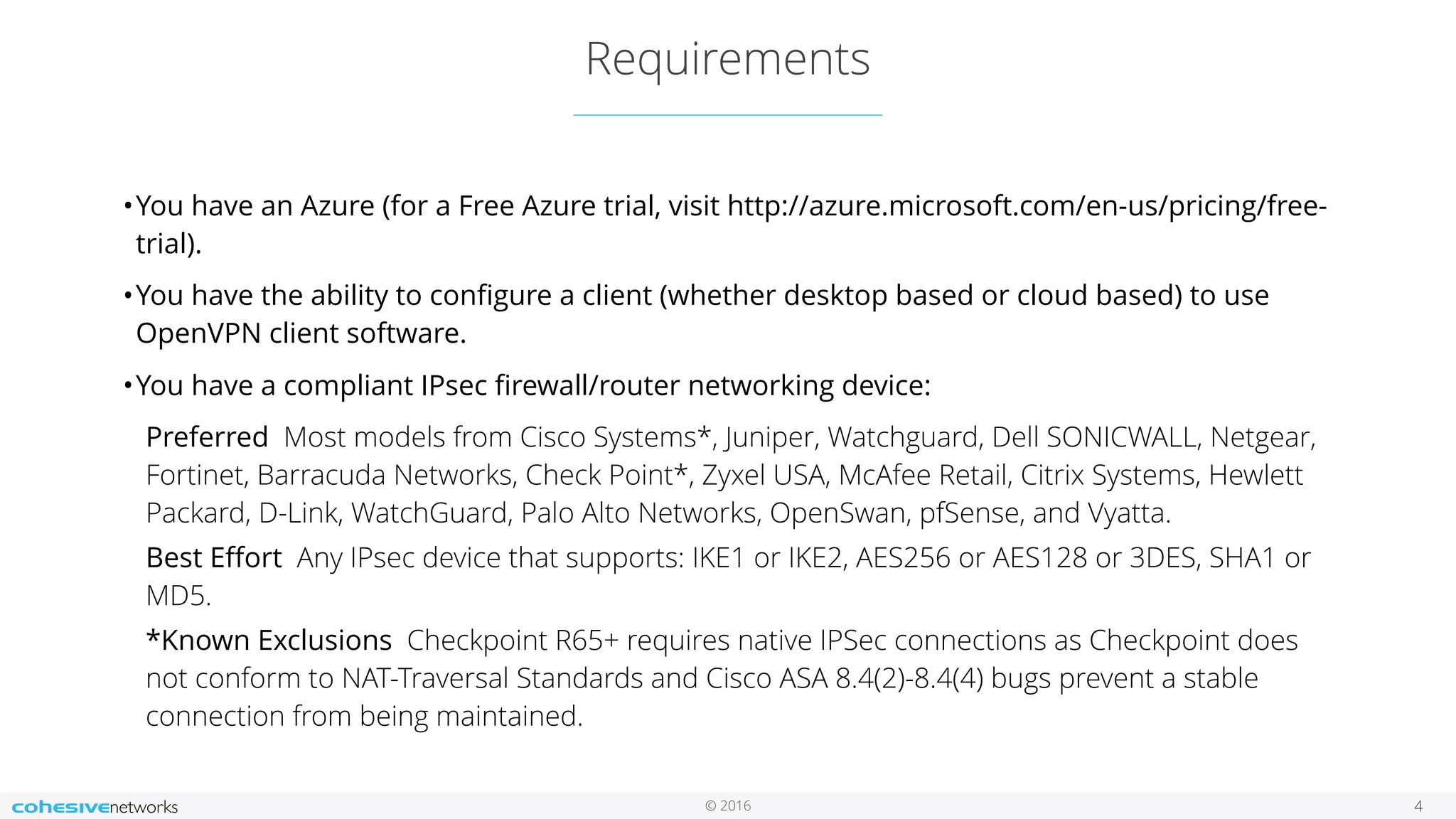

© 2016 Requirements 4 •You have an Azure (for a Free Azure trial, visit http://azure.microsoft.com/en-us/pricing/free- trial). •You have the ability to configure a client (whether desktop based or cloud based) to use OpenVPN client software. •You have a compliant IPsec firewall/router networking device: Preferred Most models from Cisco Systems*, Juniper, Watchguard, Dell SONICWALL, Netgear, Fortinet, Barracuda Networks, Check Point*, Zyxel USA, McAfee Retail, Citrix Systems, Hewlett Packard, D-Link, WatchGuard, Palo Alto Networks, OpenSwan, pfSense, and Vyatta. Best Effort Any IPsec device that supports: IKE1 or IKE2, AES256 or AES128 or 3DES, SHA1 or MD5. *Known Exclusions Checkpoint R65+ requires native IPSec connections as Checkpoint does not conform to NAT-Traversal Standards and Cisco ASA 8.4(2)-8.4(4) bugs prevent a stable connection from being maintained.

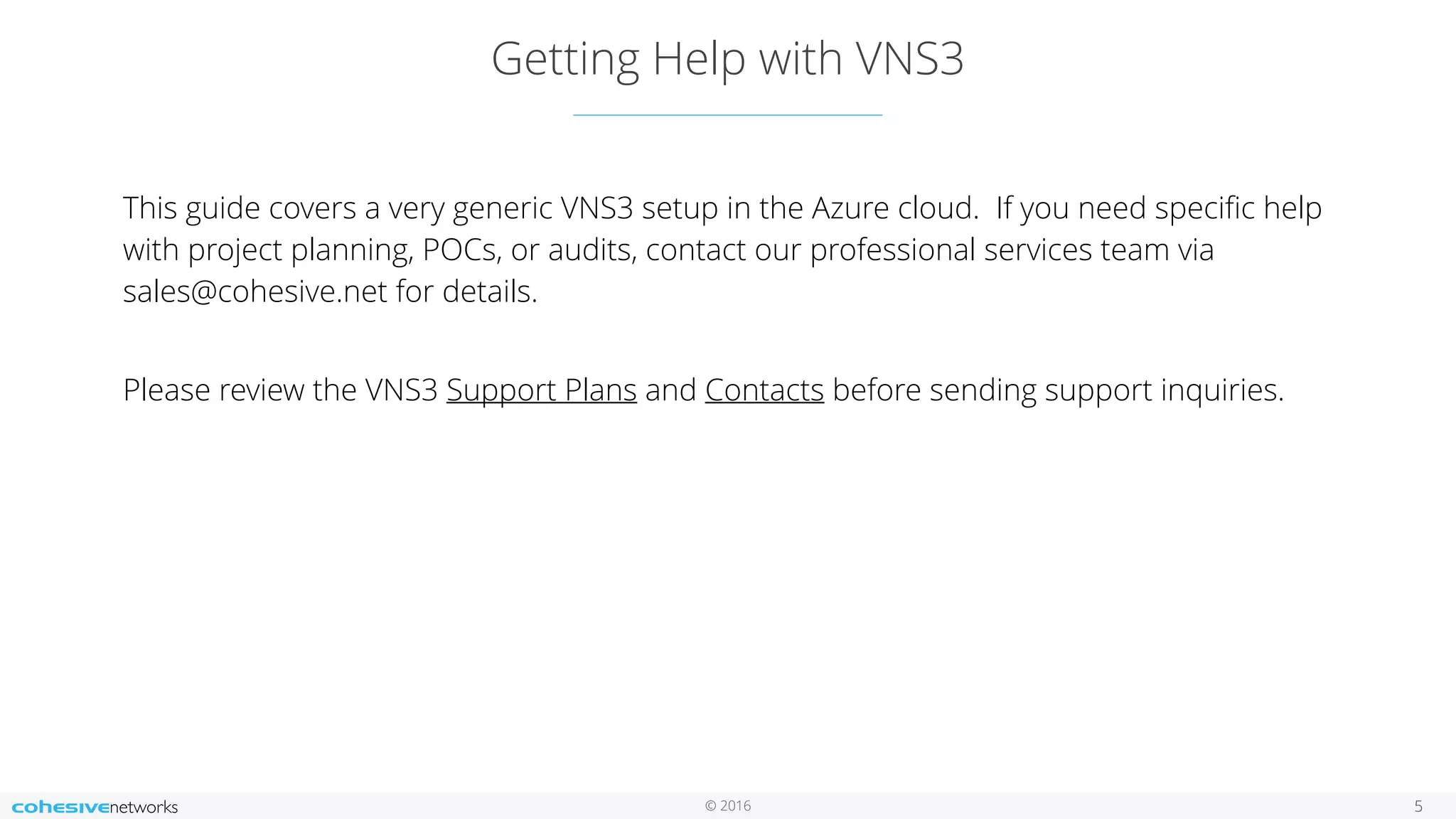

© 2016 Getting Help with VNS3 5 This guide covers a very generic VNS3 setup in the Azure cloud. If you need speciﬁc help with project planning, POCs, or audits, contact our professional services team via sales@cohesive.net for details.   Please review the VNS3 Support Plans and Contacts before sending support inquiries.

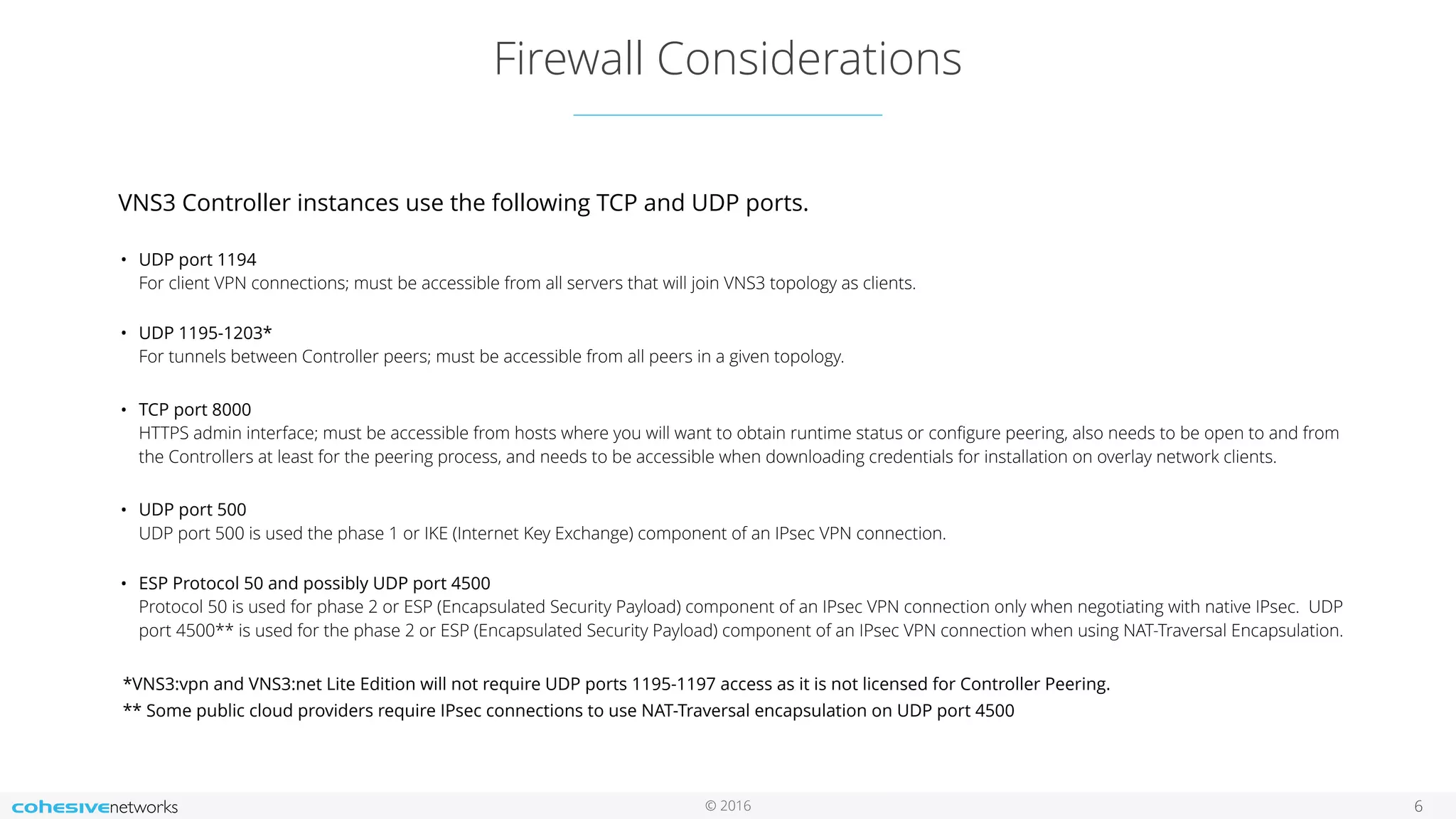

© 2016 Firewall Considerations 6 VNS3 Controller instances use the following TCP and UDP ports.  • UDP port 1194   For client VPN connections; must be accessible from all servers that will join VNS3 topology as clients.  • UDP 1195-1203*  For tunnels between Controller peers; must be accessible from all peers in a given topology. • TCP port 8000   HTTPS admin interface; must be accessible from hosts where you will want to obtain runtime status or conﬁgure peering, also needs to be open to and from the Controllers at least for the peering process, and needs to be accessible when downloading credentials for installation on overlay network clients. • UDP port 500  UDP port 500 is used the phase 1 or IKE (Internet Key Exchange) component of an IPsec VPN connection.  • ESP Protocol 50 and possibly UDP port 4500  Protocol 50 is used for phase 2 or ESP (Encapsulated Security Payload) component of an IPsec VPN connection only when negotiating with native IPsec. UDP port 4500** is used for the phase 2 or ESP (Encapsulated Security Payload) component of an IPsec VPN connection when using NAT-Traversal Encapsulation. *VNS3:vpn and VNS3:net Lite Edition will not require UDP ports 1195-1197 access as it is not licensed for Controller Peering. ** Some public cloud providers require IPsec connections to use NAT-Traversal encapsulation on UDP port 4500

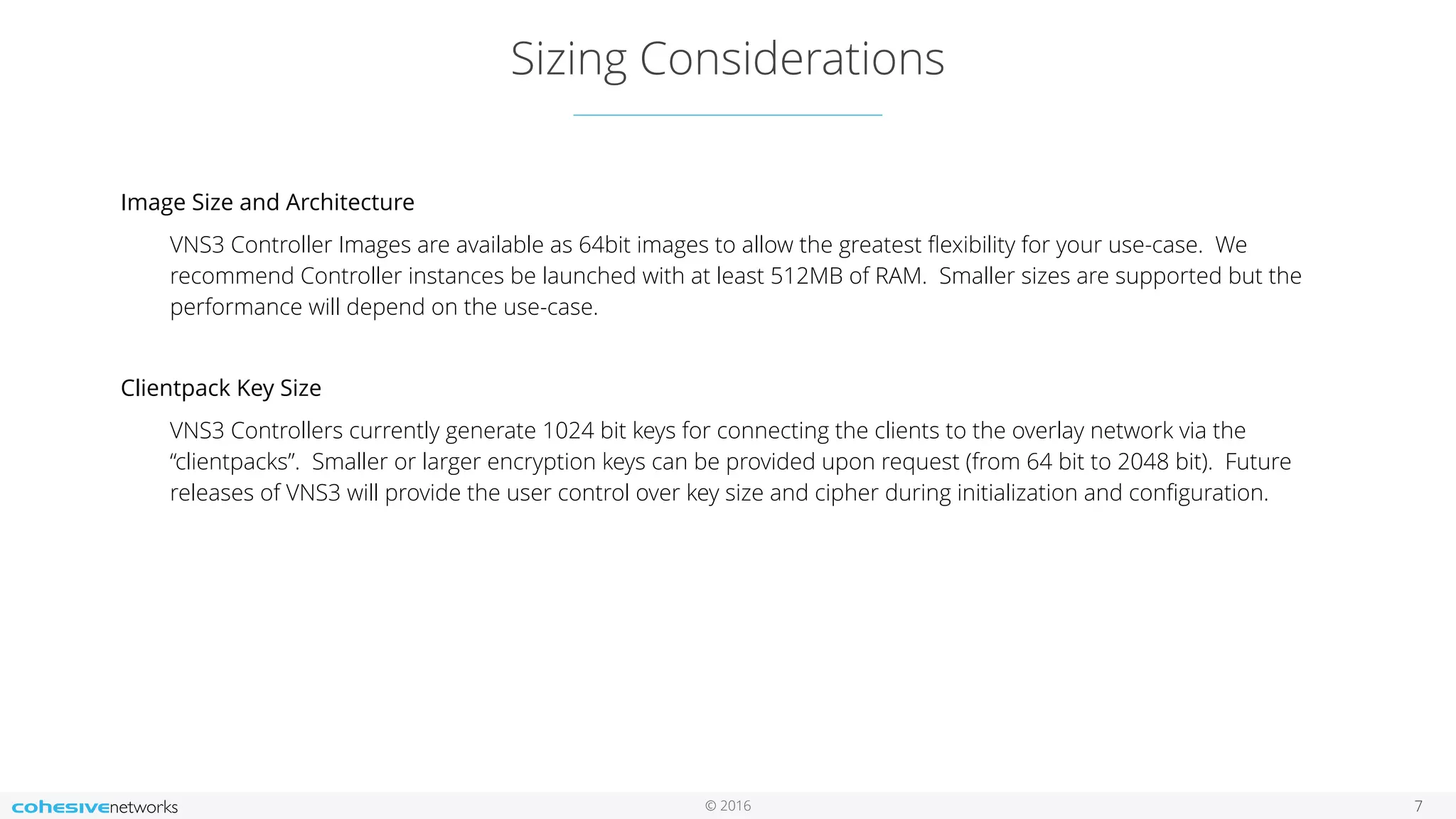

© 2016 Sizing Considerations 7 Image Size and Architecture VNS3 Controller Images are available as 64bit images to allow the greatest ﬂexibility for your use-case. We recommend Controller instances be launched with at least 512MB of RAM. Smaller sizes are supported but the performance will depend on the use-case. Clientpack Key Size VNS3 Controllers currently generate 1024 bit keys for connecting the clients to the overlay network via the “clientpacks”. Smaller or larger encryption keys can be provided upon request (from 64 bit to 2048 bit). Future releases of VNS3 will provide the user control over key size and cipher during initialization and conﬁguration.

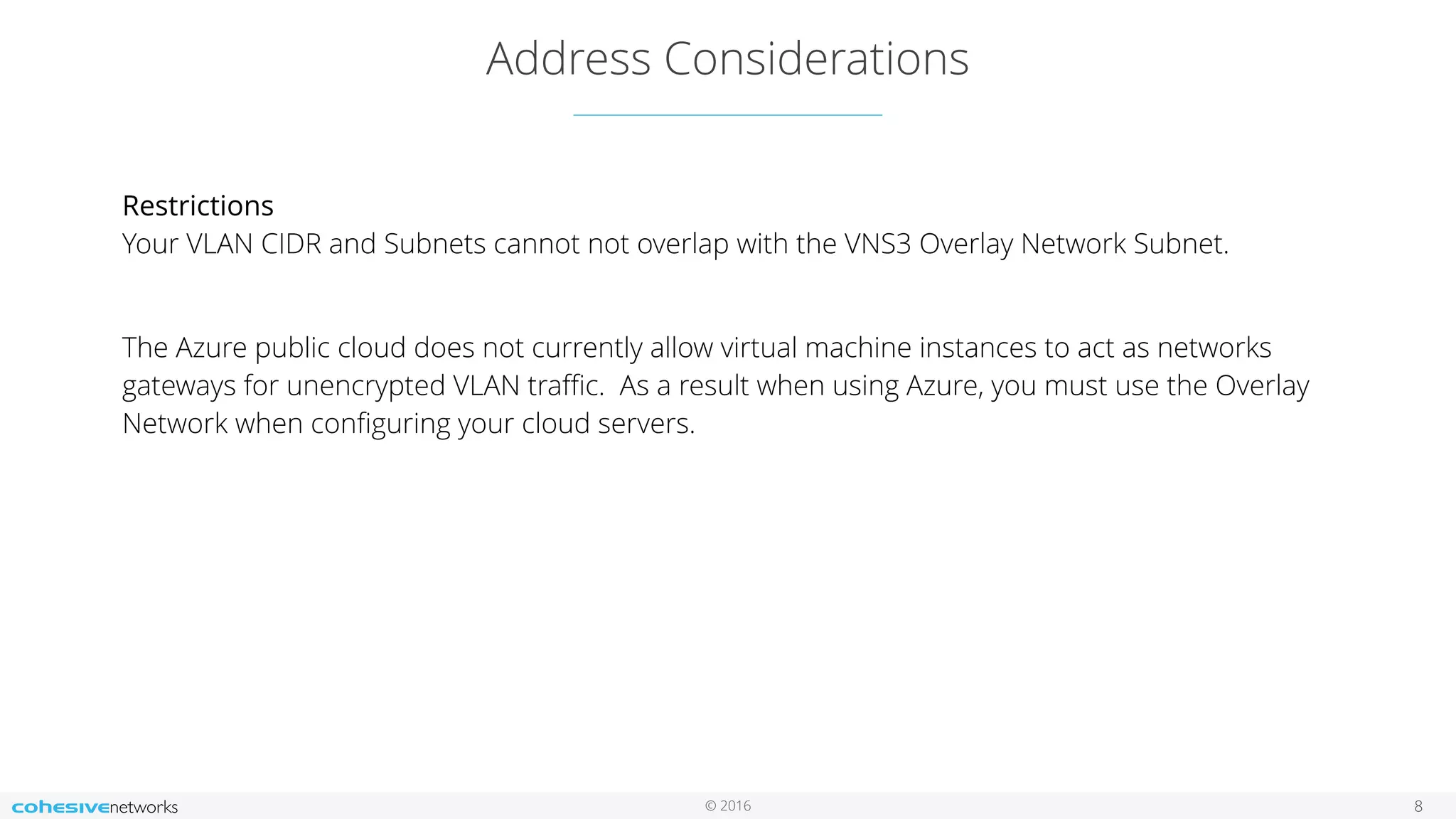

© 2016 Address Considerations 8 Restrictions  Your VLAN CIDR and Subnets cannot not overlap with the VNS3 Overlay Network Subnet. The Azure public cloud does not currently allow virtual machine instances to act as networks gateways for unencrypted VLAN traﬃc. As a result when using Azure, you must use the Overlay Network when conﬁguring your cloud servers.

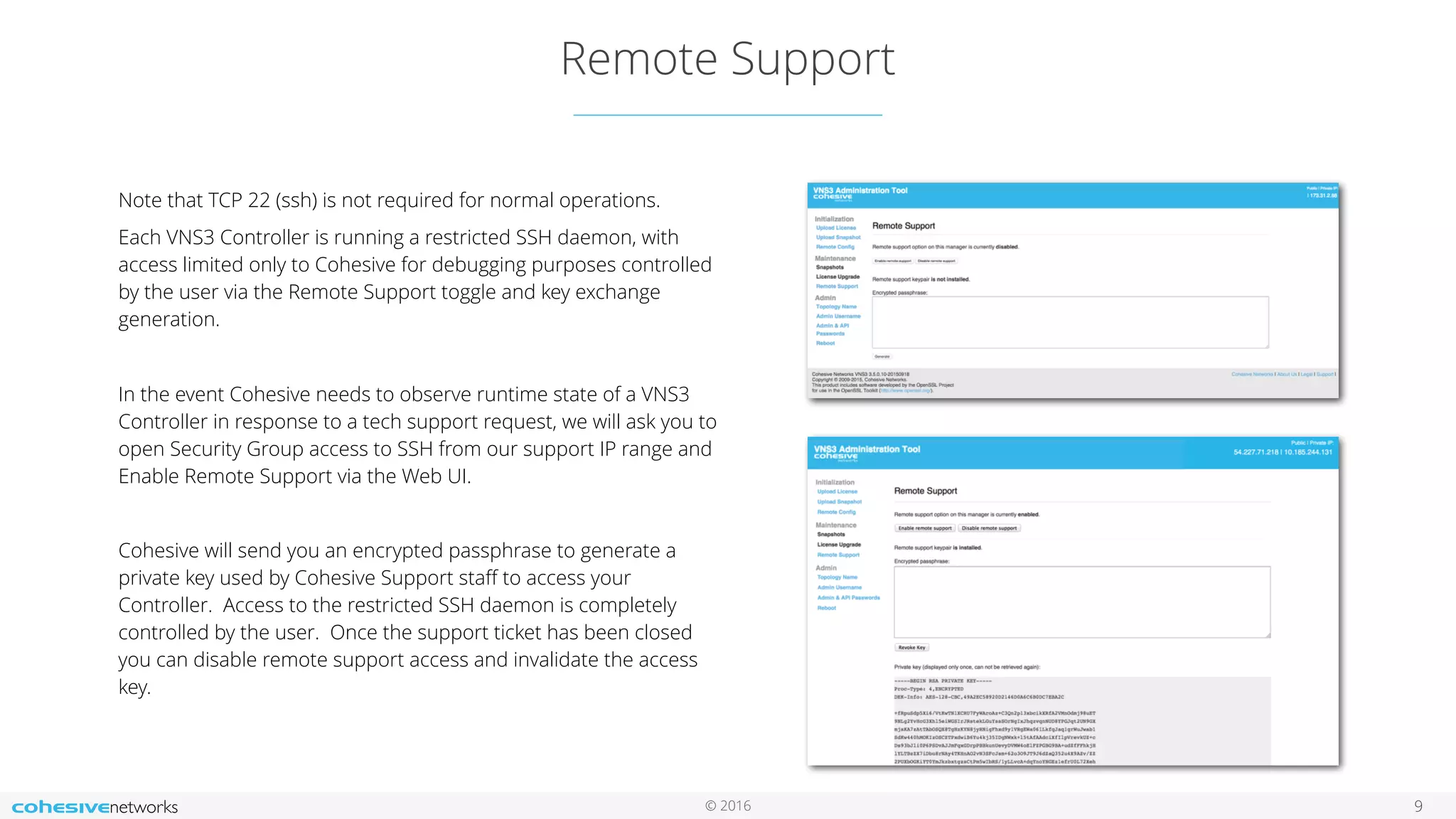

© 2016 Remote Support 9 Note that TCP 22 (ssh) is not required for normal operations. Each VNS3 Controller is running a restricted SSH daemon, with access limited only to Cohesive for debugging purposes controlled by the user via the Remote Support toggle and key exchange generation. In the event Cohesive needs to observe runtime state of a VNS3 Controller in response to a tech support request, we will ask you to open Security Group access to SSH from our support IP range and Enable Remote Support via the Web UI. Cohesive will send you an encrypted passphrase to generate a private key used by Cohesive Support staﬀ to access your Controller. Access to the restricted SSH daemon is completely controlled by the user. Once the support ticket has been closed you can disable remote support access and invalidate the access key.

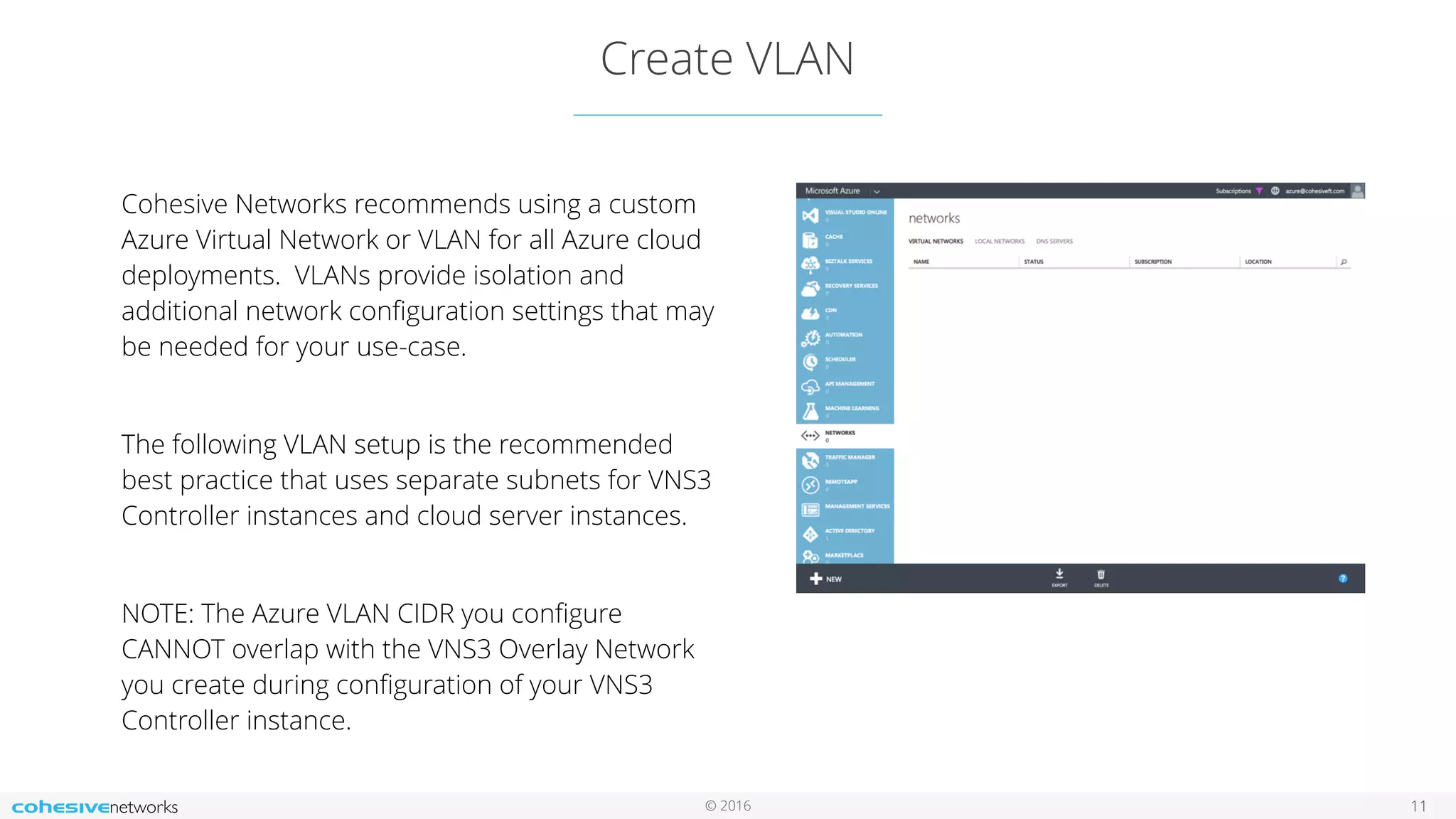

© 2016 Create VLAN 11 Cohesive Networks recommends using a custom Azure Virtual Network or VLAN for all Azure cloud deployments. VLANs provide isolation and additional network configuration settings that may be needed for your use-case. The following VLAN setup is the recommended best practice that uses separate subnets for VNS3 Controller instances and cloud server instances. NOTE: The Azure VLAN CIDR you configure CANNOT overlap with the VNS3 Overlay Network you create during configuration of your VNS3 Controller instance.

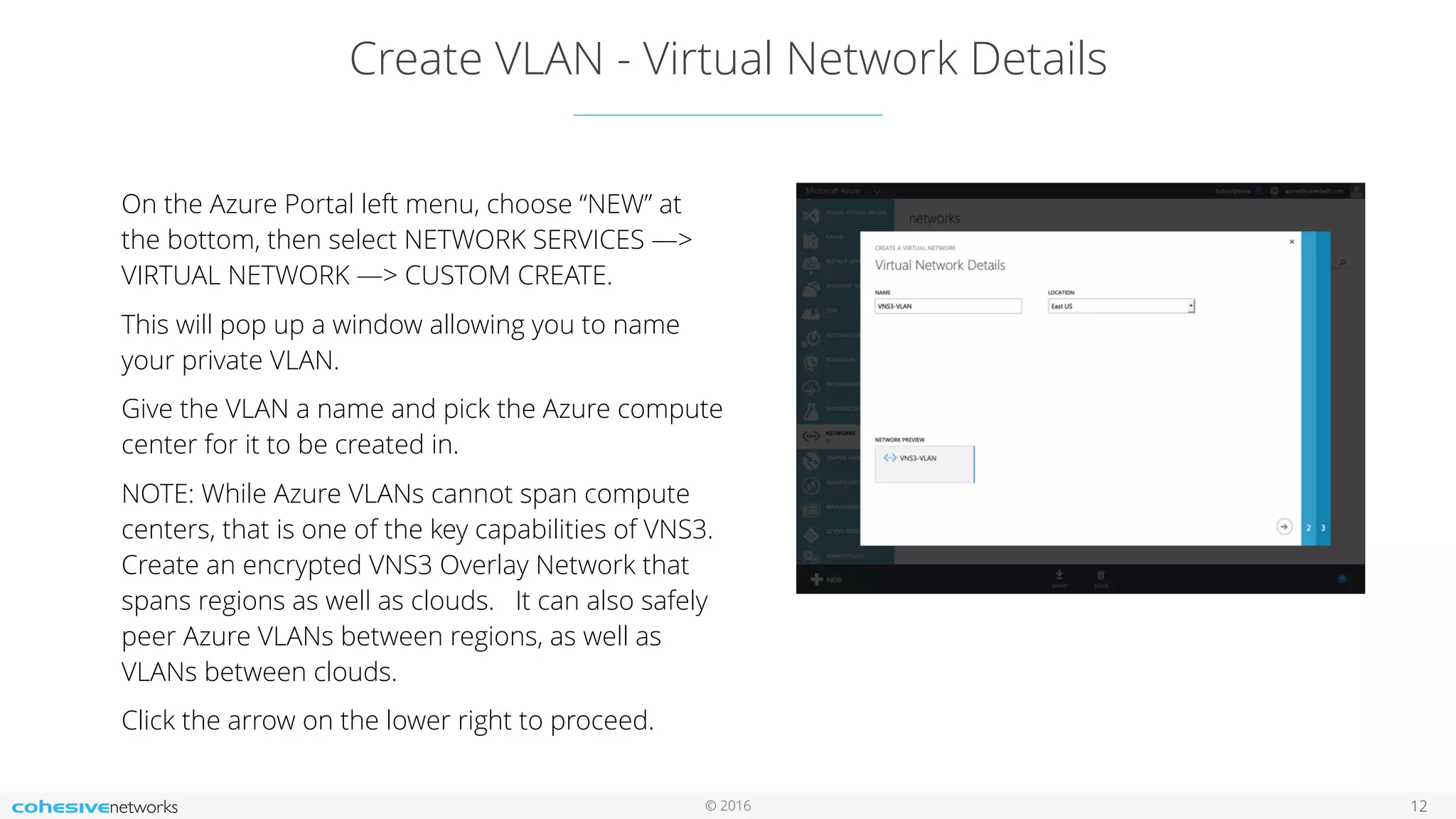

© 2016 Create VLAN - Virtual Network Details 12 On the Azure Portal left menu, choose “NEW” at the bottom, then select NETWORK SERVICES —> VIRTUAL NETWORK —> CUSTOM CREATE. This will pop up a window allowing you to name your private VLAN. Give the VLAN a name and pick the Azure compute center for it to be created in. NOTE: While Azure VLANs cannot span compute centers, that is one of the key capabilities of VNS3. Create an encrypted VNS3 Overlay Network that spans regions as well as clouds. It can also safely peer Azure VLANs between regions, as well as VLANs between clouds. Click the arrow on the lower right to proceed.

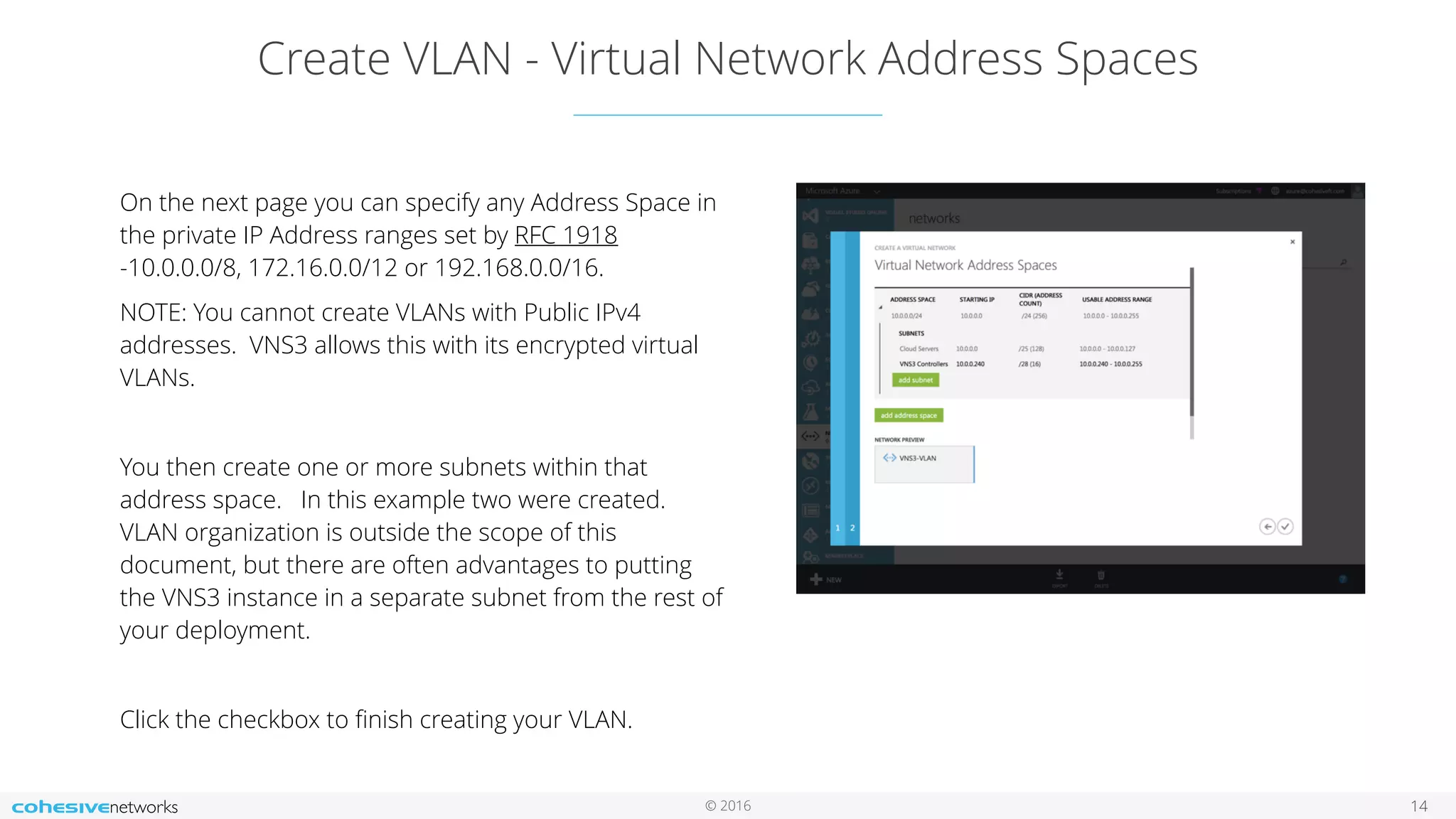

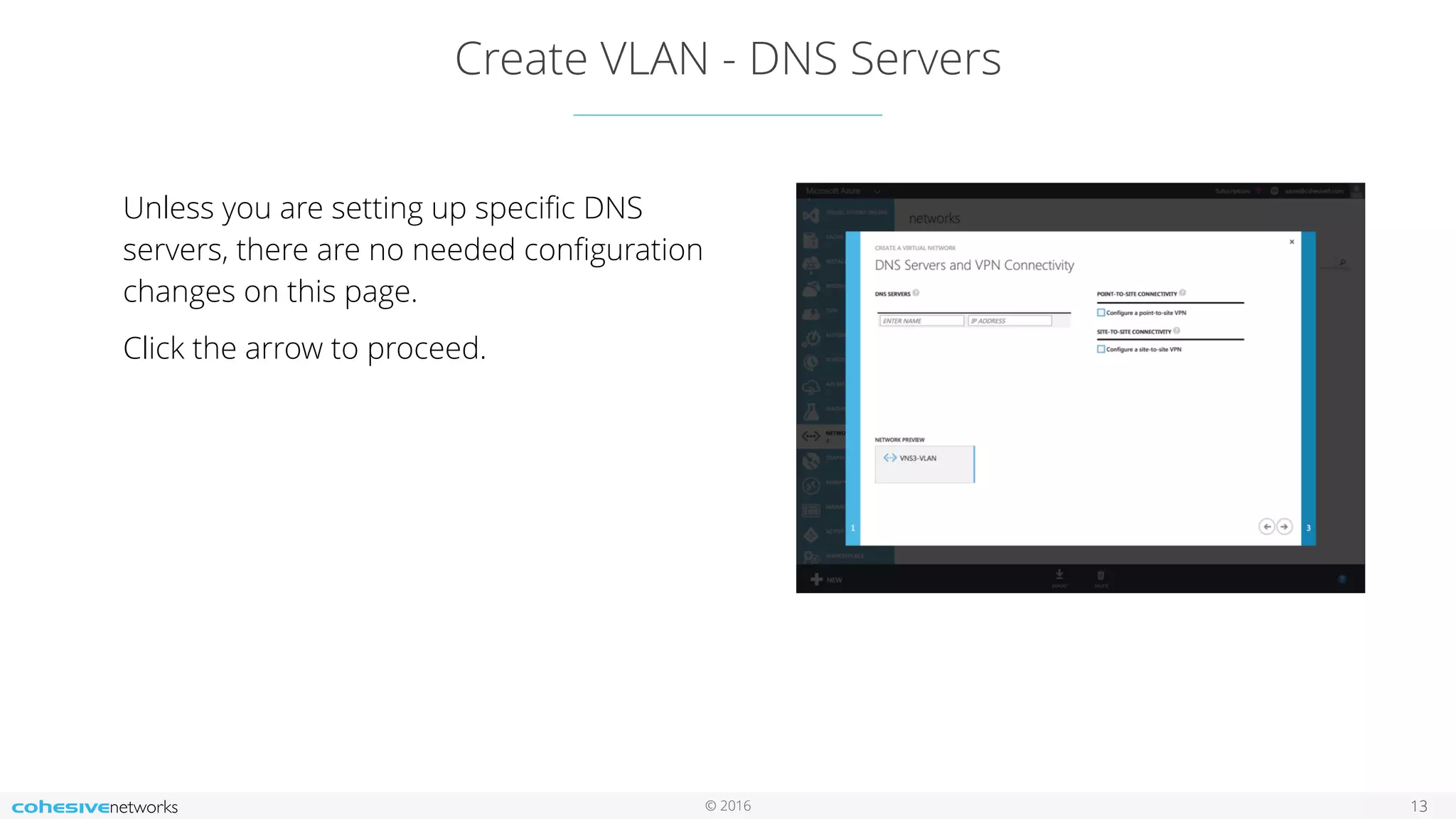

© 2016 Create VLAN - Virtual Network Address Spaces 14 On the next page you can specify any Address Space in the private IP Address ranges set by RFC 1918 -10.0.0.0/8, 172.16.0.0/12 or 192.168.0.0/16. NOTE: You cannot create VLANs with Public IPv4 addresses. VNS3 allows this with its encrypted virtual VLANs. You then create one or more subnets within that address space. In this example two were created. VLAN organization is outside the scope of this document, but there are often advantages to putting the VNS3 instance in a separate subnet from the rest of your deployment. Click the checkbox to ﬁnish creating your VLAN.

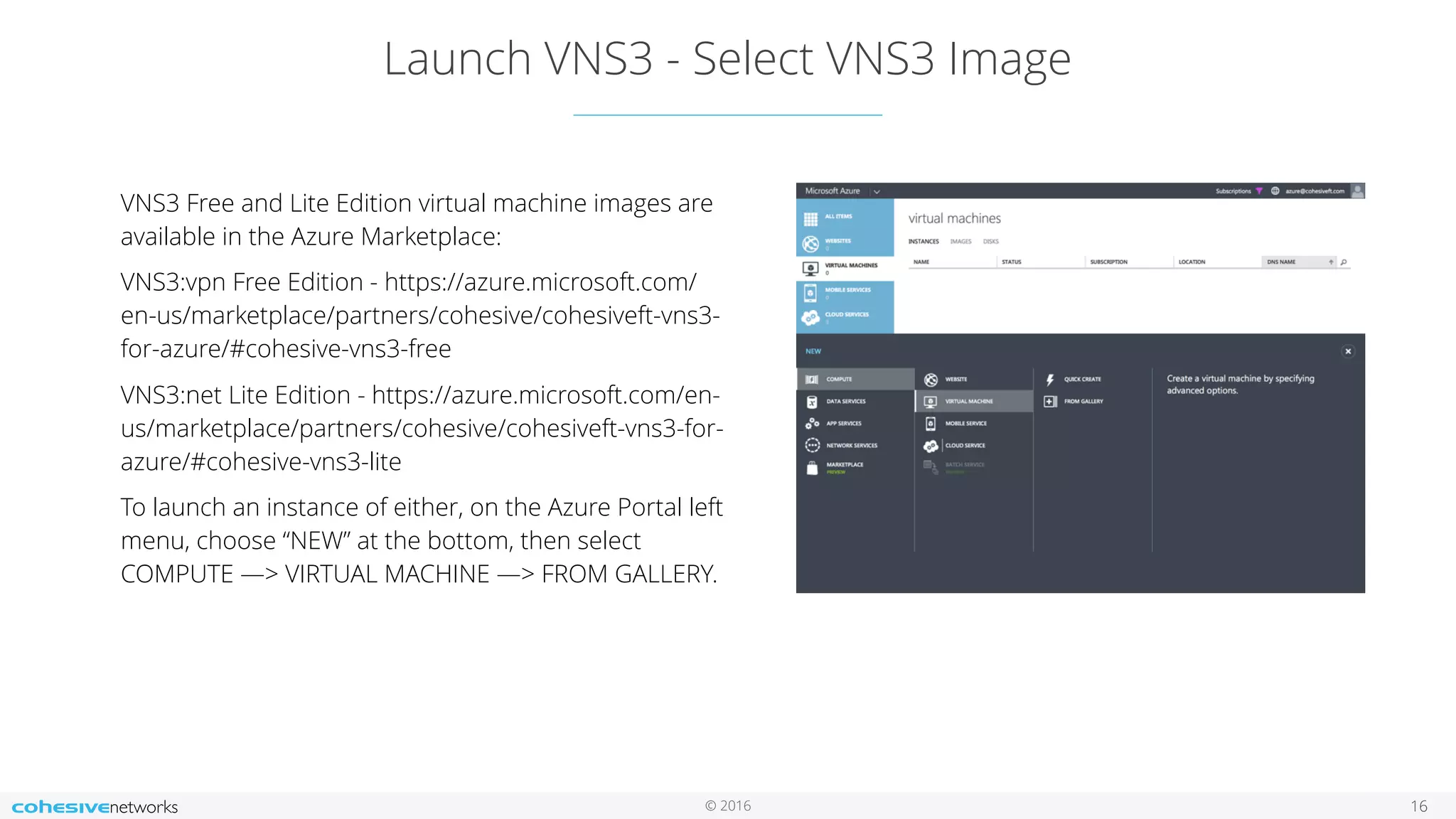

© 2016 Launch VNS3 - Select VNS3 Image 16 VNS3 Free and Lite Edition virtual machine images are available in the Azure Marketplace: VNS3:vpn Free Edition - https://azure.microsoft.com/ en-us/marketplace/partners/cohesive/cohesiveft-vns3- for-azure/#cohesive-vns3-free VNS3:net Lite Edition - https://azure.microsoft.com/en- us/marketplace/partners/cohesive/cohesiveft-vns3-for- azure/#cohesive-vns3-lite To launch an instance of either, on the Azure Portal left menu, choose “NEW” at the bottom, then select COMPUTE —> VIRTUAL MACHINE —> FROM GALLERY.

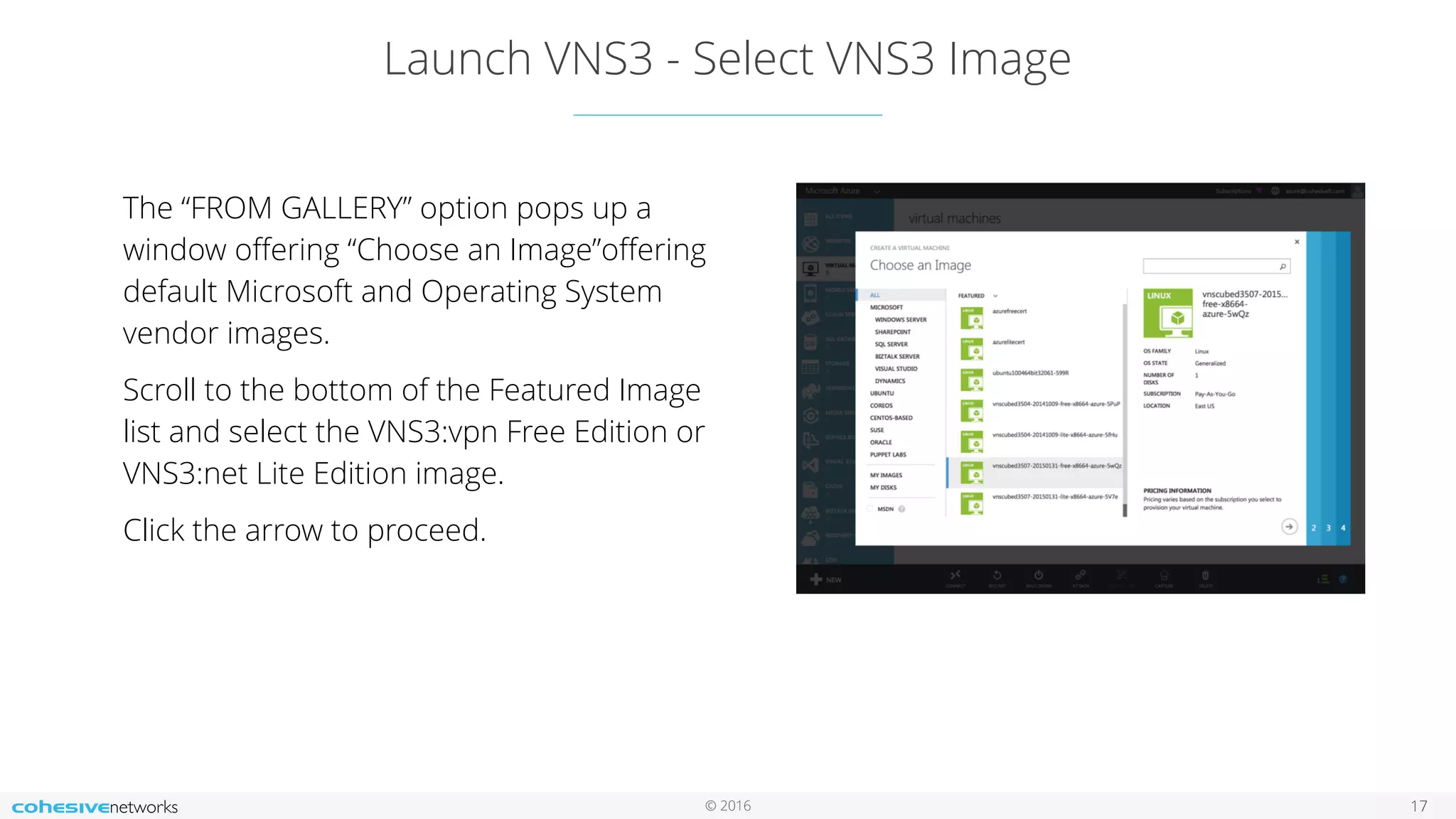

© 2016 Launch VNS3 - Select VNS3 Image 17 The “FROM GALLERY” option pops up a window oﬀering “Choose an Image”oﬀering default Microsoft and Operating System vendor images. Scroll to the bottom of the Featured Image list and select the VNS3:vpn Free Edition or VNS3:net Lite Edition image. Click the arrow to proceed.

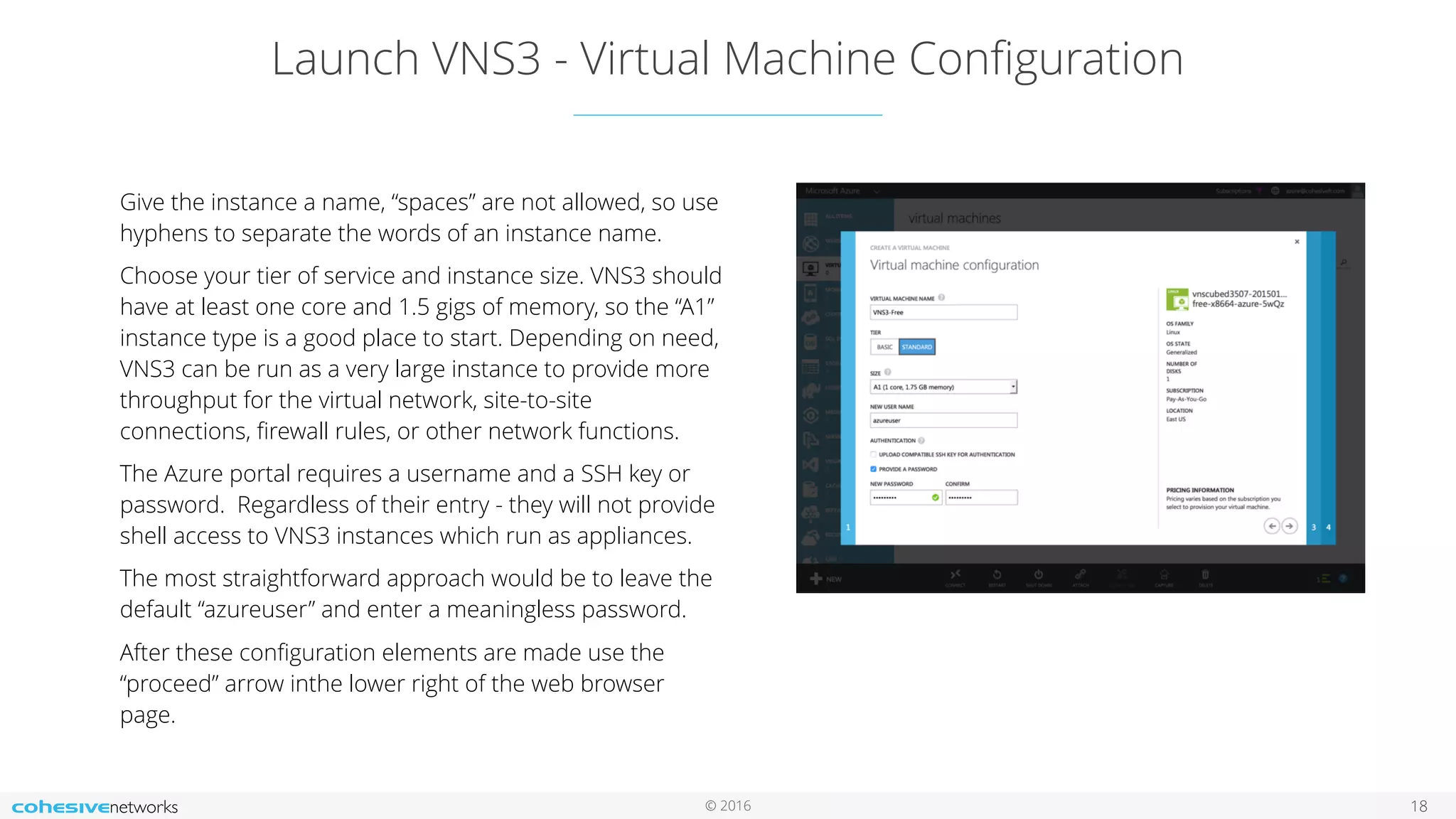

© 2016 Launch VNS3 - Virtual Machine Configuration 18 Give the instance a name, “spaces” are not allowed, so use hyphens to separate the words of an instance name. Choose your tier of service and instance size. VNS3 should have at least one core and 1.5 gigs of memory, so the “A1” instance type is a good place to start. Depending on need, VNS3 can be run as a very large instance to provide more throughput for the virtual network, site-to-site connections, firewall rules, or other network functions. The Azure portal requires a username and a SSH key or password. Regardless of their entry - they will not provide shell access to VNS3 instances which run as appliances. The most straightforward approach would be to leave the default “azureuser” and enter a meaningless password. After these configuration elements are made use the “proceed” arrow inthe lower right of the web browser page.

© 2016 Launch VNS3 - Virtual Machine Configuration 19 The next page of configuration for the VNS3 instance sets up the network port access rules, as well as allows you to choose a VLAN for the instance to be launched in. Azure calls this element that holds this information a “Cloud Service”, allowing you to launch other (subsequent) instances with the same configuration parameters. You can create a new cloud service, naming it, or choose an existing one created previously. The cloud service name must be globally unique as it serves as a DNS name. The next drop town box lets you choose from a number of groups; either one of the Azure Cloud Computing Centers, or an element called an “Affinity Group” or a pre-defined VLAN. Most customers will want to have defined a virtual network VLAN for placing their instances in. The topic of Availability Sets is beyond the scope of this document. Endpoints are how Azure describes a set of TCP and UDP port rules. Only TCP and UDP are allowed, other protocols cannot be controlled, and as a rule are blocked by Azure. At minimum VNS3 needs port 8000 open for the API and the Administrative UI. When complete select the proceed arrow near the bottom of the web browser page.

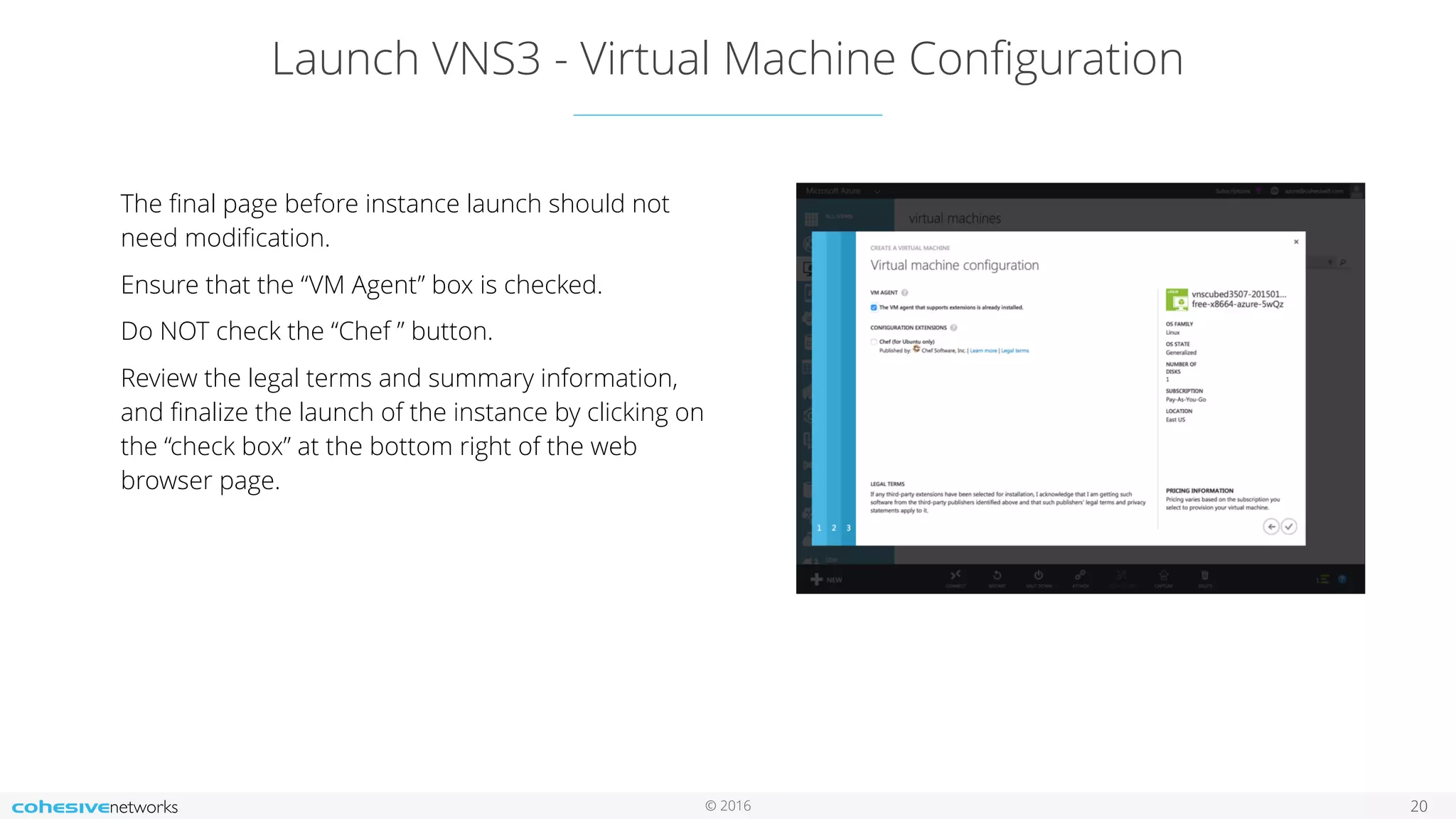

© 2016 Launch VNS3 - Virtual Machine Configuration 20 The final page before instance launch should not need modification. Ensure that the “VM Agent” box is checked. Do NOT check the “Chef ” button. Review the legal terms and summary information, and finalize the launch of the instance by clicking on the “check box” at the bottom right of the web browser page.

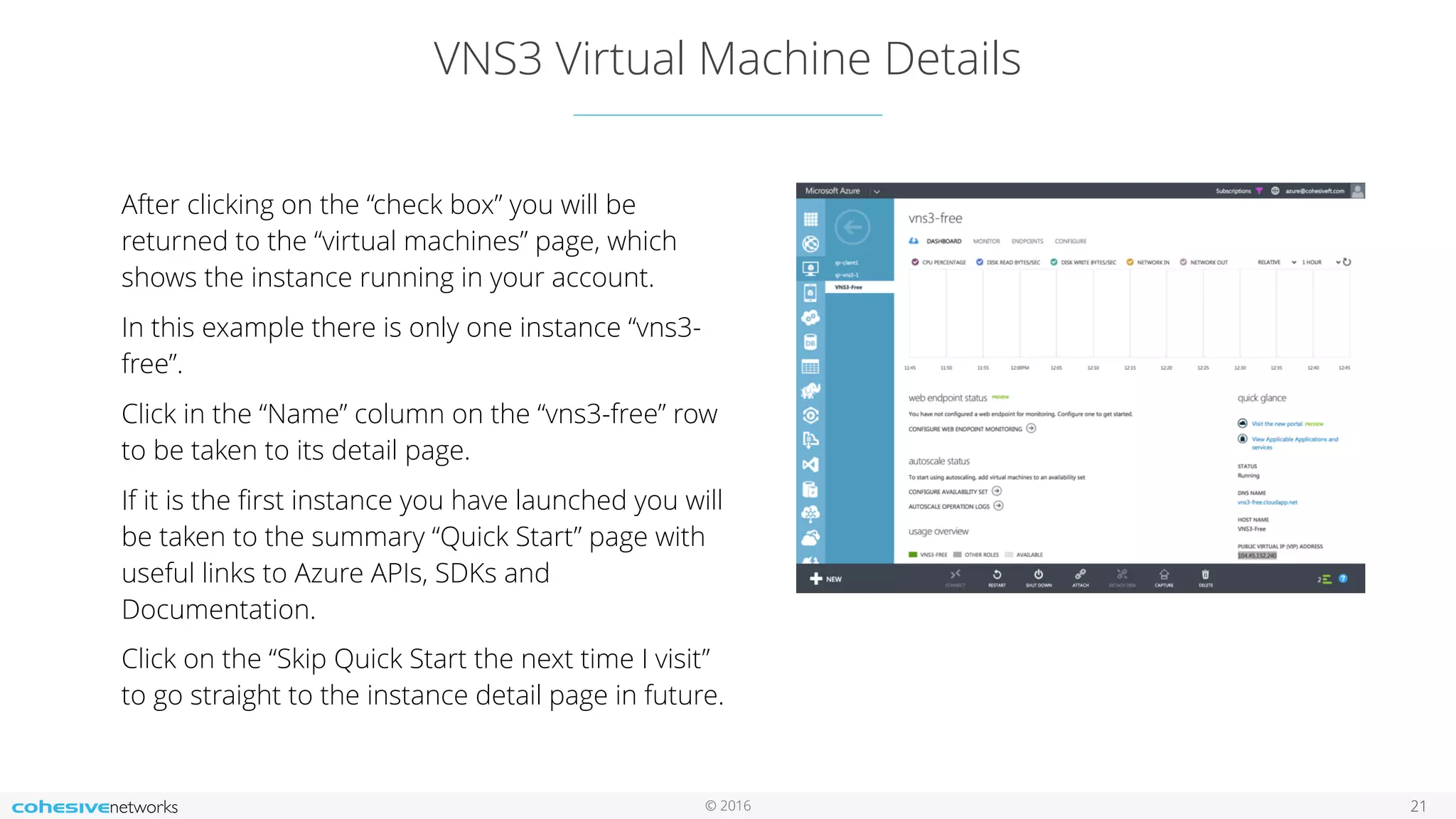

© 2016 VNS3 Virtual Machine Details 21 After clicking on the “check box” you will be returned to the “virtual machines” page, which shows the instance running in your account. In this example there is only one instance “vns3- free”. Click in the “Name” column on the “vns3-free” row to be taken to its detail page. If it is the ﬁrst instance you have launched you will be taken to the summary “Quick Start” page with useful links to Azure APIs, SDKs and Documentation. Click on the “Skip Quick Start the next time I visit” to go straight to the instance detail page in future.

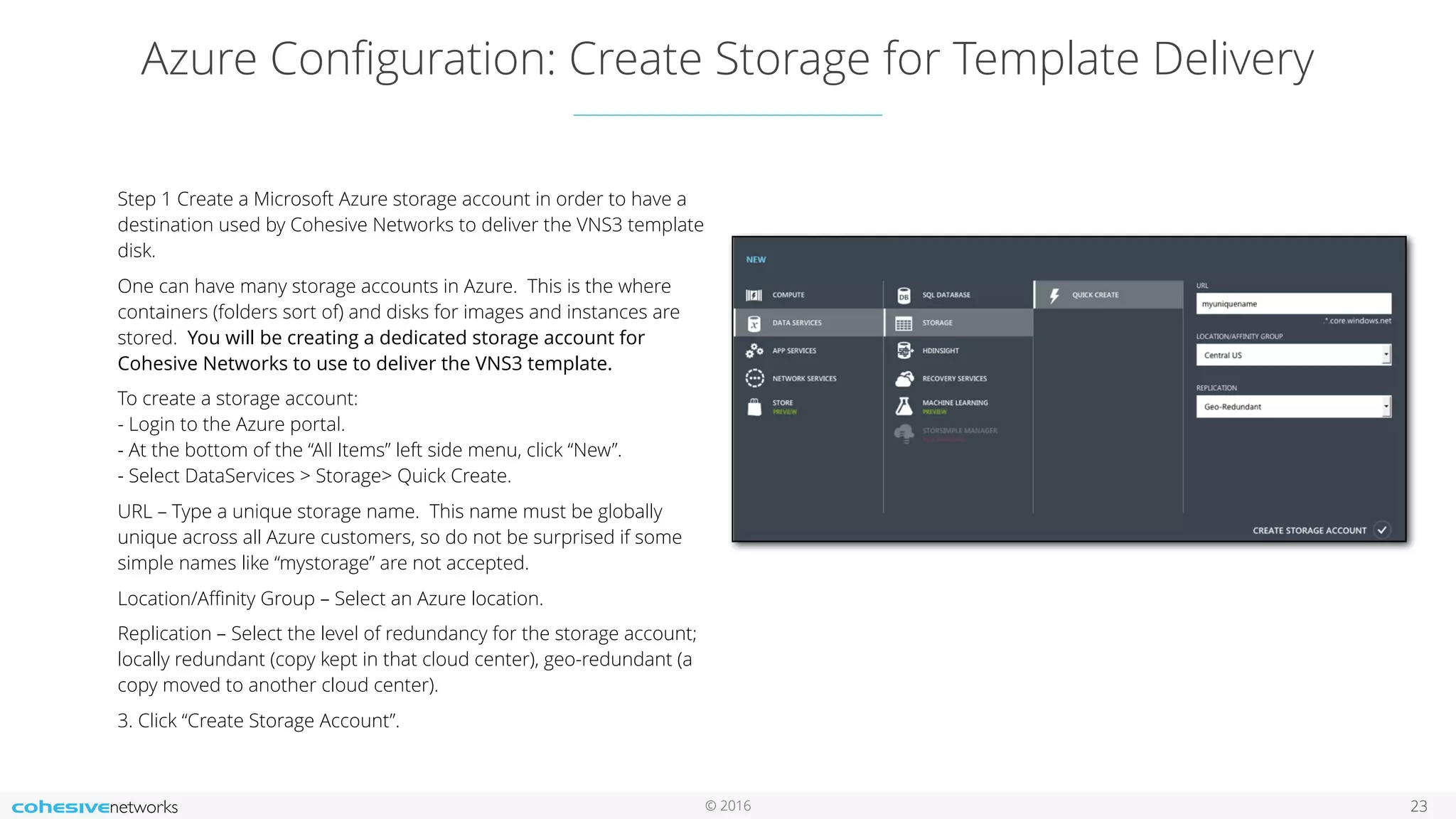

© 2016 Azure Conﬁguration: Create Storage for Template Delivery 23 Step 1 Create a Microsoft Azure storage account in order to have a destination used by Cohesive Networks to deliver the VNS3 template disk. One can have many storage accounts in Azure. This is the where containers (folders sort of) and disks for images and instances are stored. You will be creating a dedicated storage account for Cohesive Networks to use to deliver the VNS3 template. To create a storage account:  - Login to the Azure portal.   - At the bottom of the “All Items” left side menu, click “New”.  - Select DataServices > Storage> Quick Create. URL – Type a unique storage name. This name must be globally unique across all Azure customers, so do not be surprised if some simple names like “mystorage” are not accepted. Location/Aﬃnity Group – Select an Azure location. Replication – Select the level of redundancy for the storage account; locally redundant (copy kept in that cloud center), geo-redundant (a copy moved to another cloud center). 3. Click “Create Storage Account”.

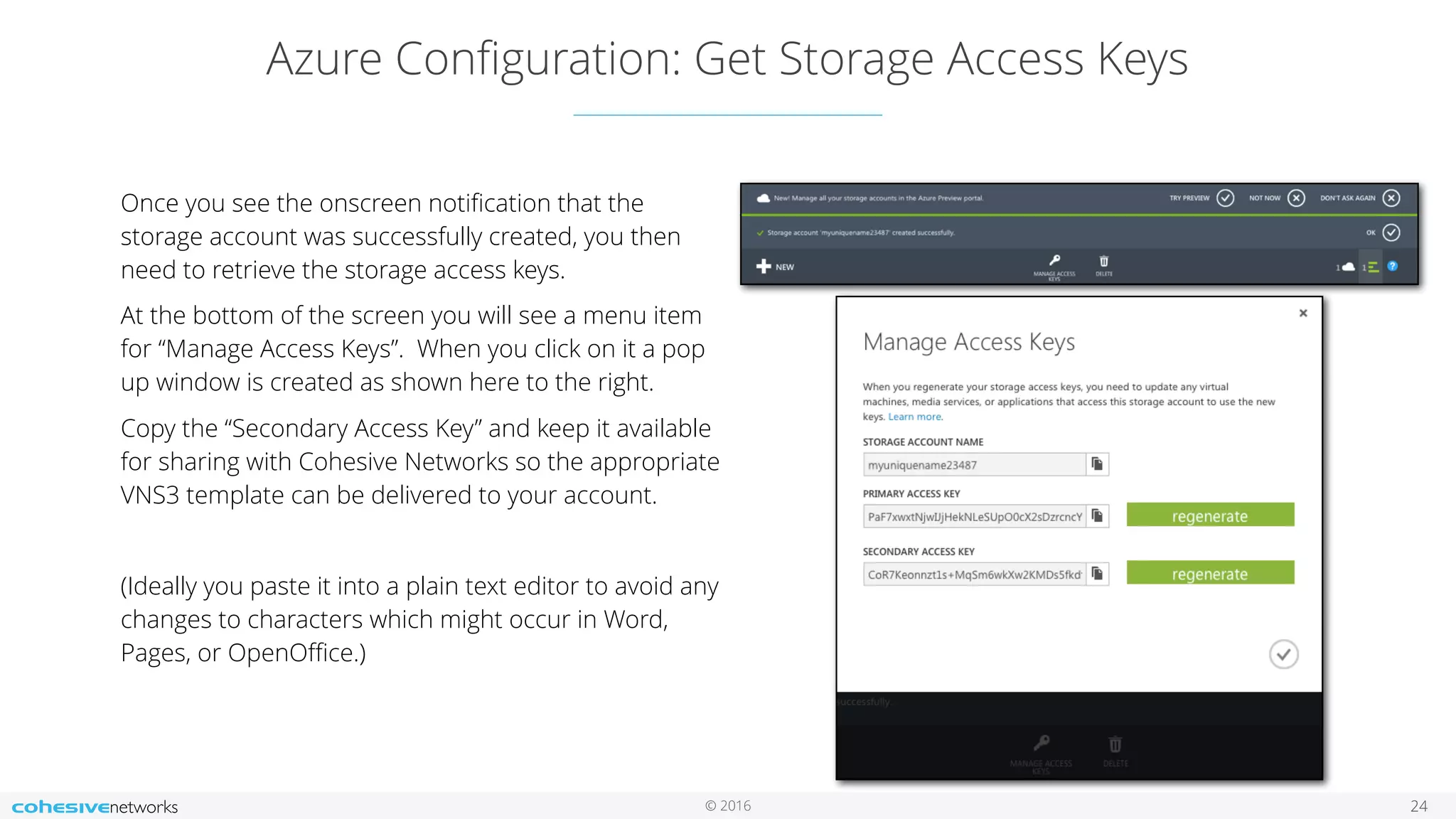

© 2016 Azure Configuration: Get Storage Access Keys 24 Once you see the onscreen notification that the storage account was successfully created, you then need to retrieve the storage access keys. At the bottom of the screen you will see a menu item for “Manage Access Keys”. When you click on it a pop up window is created as shown here to the right. Copy the “Secondary Access Key” and keep it available for sharing with Cohesive Networks so the appropriate VNS3 template can be delivered to your account. (Ideally you paste it into a plain text editor to avoid any changes to characters which might occur in Word, Pages, or OpenOffice.)

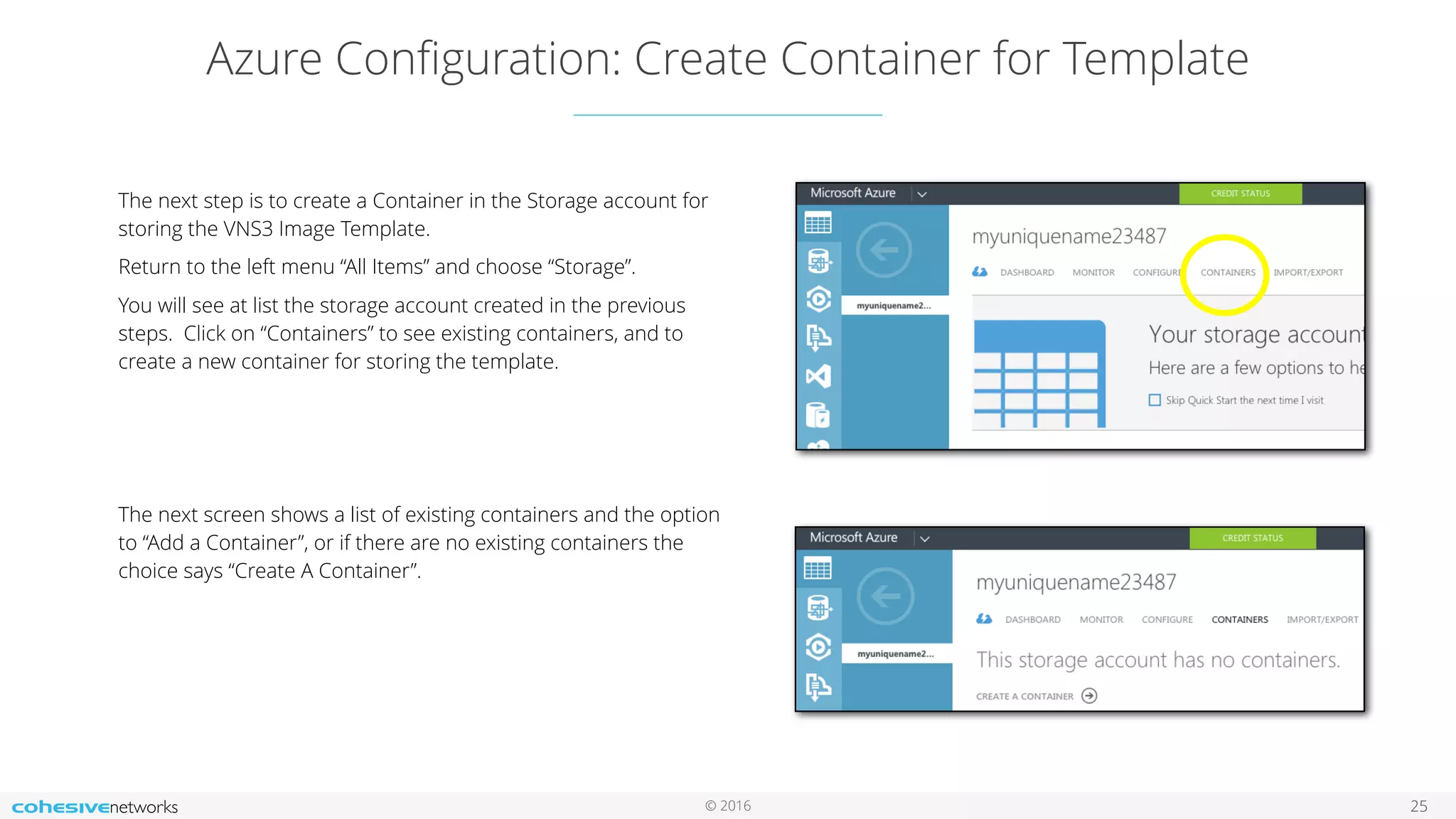

© 2016 Azure Conﬁguration: Create Container for Template 25 The next step is to create a Container in the Storage account for storing the VNS3 Image Template. Return to the left menu “All Items” and choose “Storage”. You will see at list the storage account created in the previous steps. Click on “Containers” to see existing containers, and to create a new container for storing the template. The next screen shows a list of existing containers and the option to “Add a Container”, or if there are no existing containers the choice says “Create A Container”.

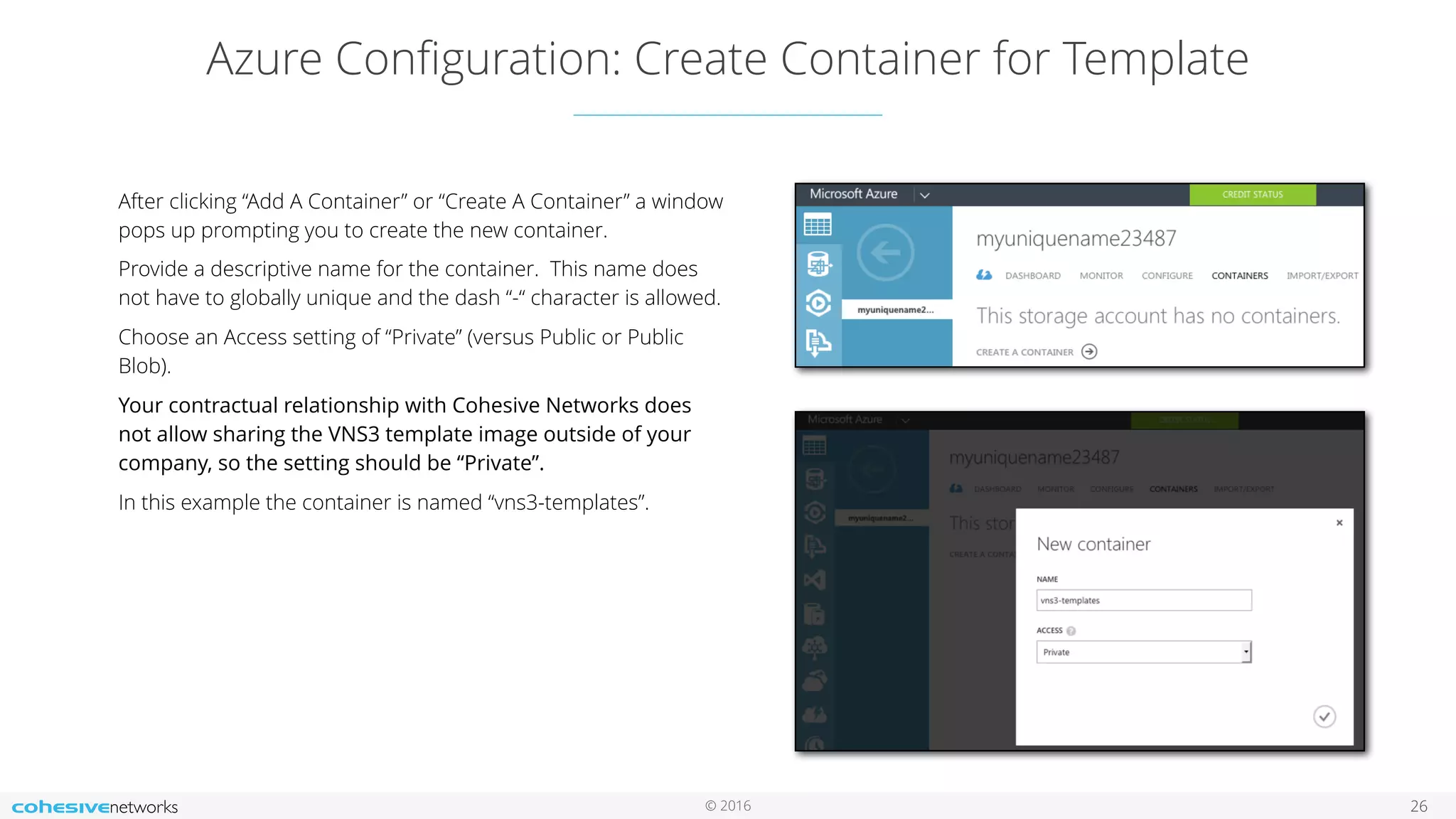

© 2016 Azure Conﬁguration: Create Container for Template 26 After clicking “Add A Container” or “Create A Container” a window pops up prompting you to create the new container. Provide a descriptive name for the container. This name does not have to globally unique and the dash “-“ character is allowed. Choose an Access setting of “Private” (versus Public or Public Blob). Your contractual relationship with Cohesive Networks does not allow sharing the VNS3 template image outside of your company, so the setting should be “Private”. In this example the container is named “vns3-templates”.

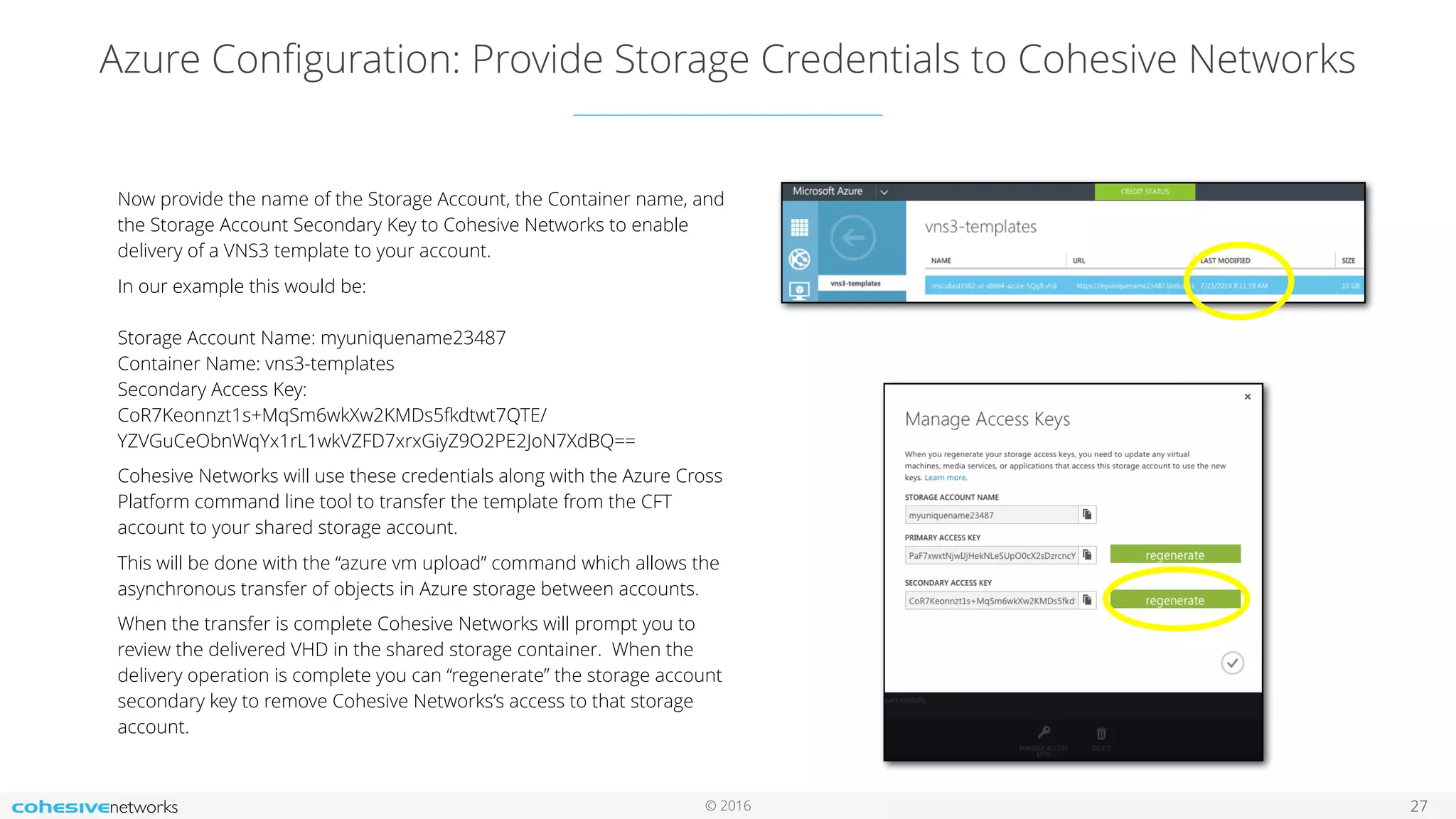

© 2016 Azure Conﬁguration: Provide Storage Credentials to Cohesive Networks 27 Now provide the name of the Storage Account, the Container name, and the Storage Account Secondary Key to Cohesive Networks to enable delivery of a VNS3 template to your account. In our example this would be:     Storage Account Name: myuniquename23487  Container Name: vns3-templates  Secondary Access Key:   CoR7Keonnzt1s+MqSm6wkXw2KMDs5fkdtwt7QTE/ YZVGuCeObnWqYx1rL1wkVZFD7xrxGiyZ9O2PE2JoN7XdBQ== Cohesive Networks will use these credentials along with the Azure Cross Platform command line tool to transfer the template from the CFT account to your shared storage account. This will be done with the “azure vm upload” command which allows the asynchronous transfer of objects in Azure storage between accounts. When the transfer is complete Cohesive Networks will prompt you to review the delivered VHD in the shared storage container. When the delivery operation is complete you can “regenerate” the storage account secondary key to remove Cohesive Networks’s access to that storage account.

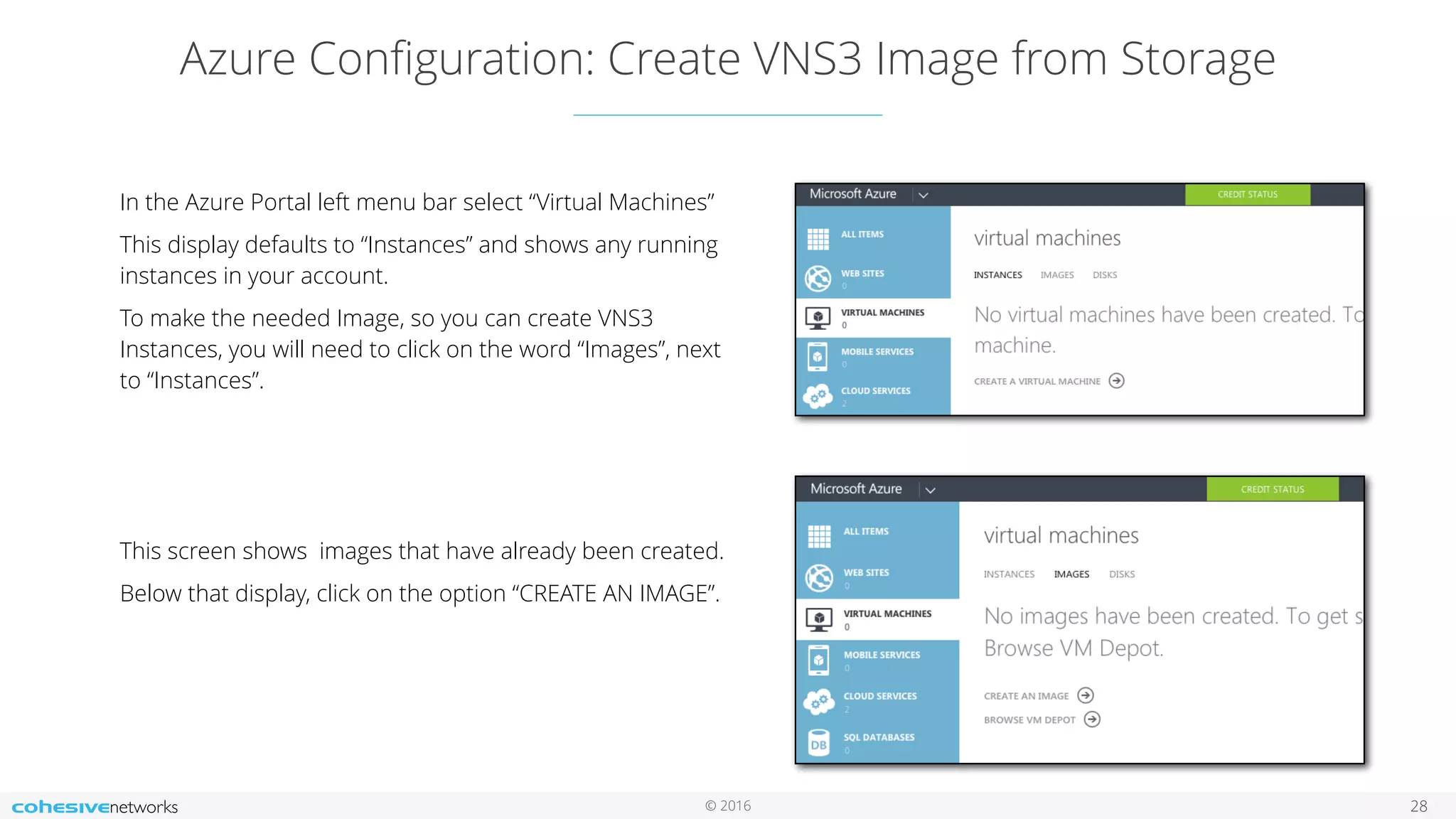

© 2016 Azure Conﬁguration: Create VNS3 Image from Storage 28 In the Azure Portal left menu bar select “Virtual Machines” This display defaults to “Instances” and shows any running instances in your account. To make the needed Image, so you can create VNS3 Instances, you will need to click on the word “Images”, next to “Instances”. This screen shows images that have already been created. Below that display, click on the option “CREATE AN IMAGE”.

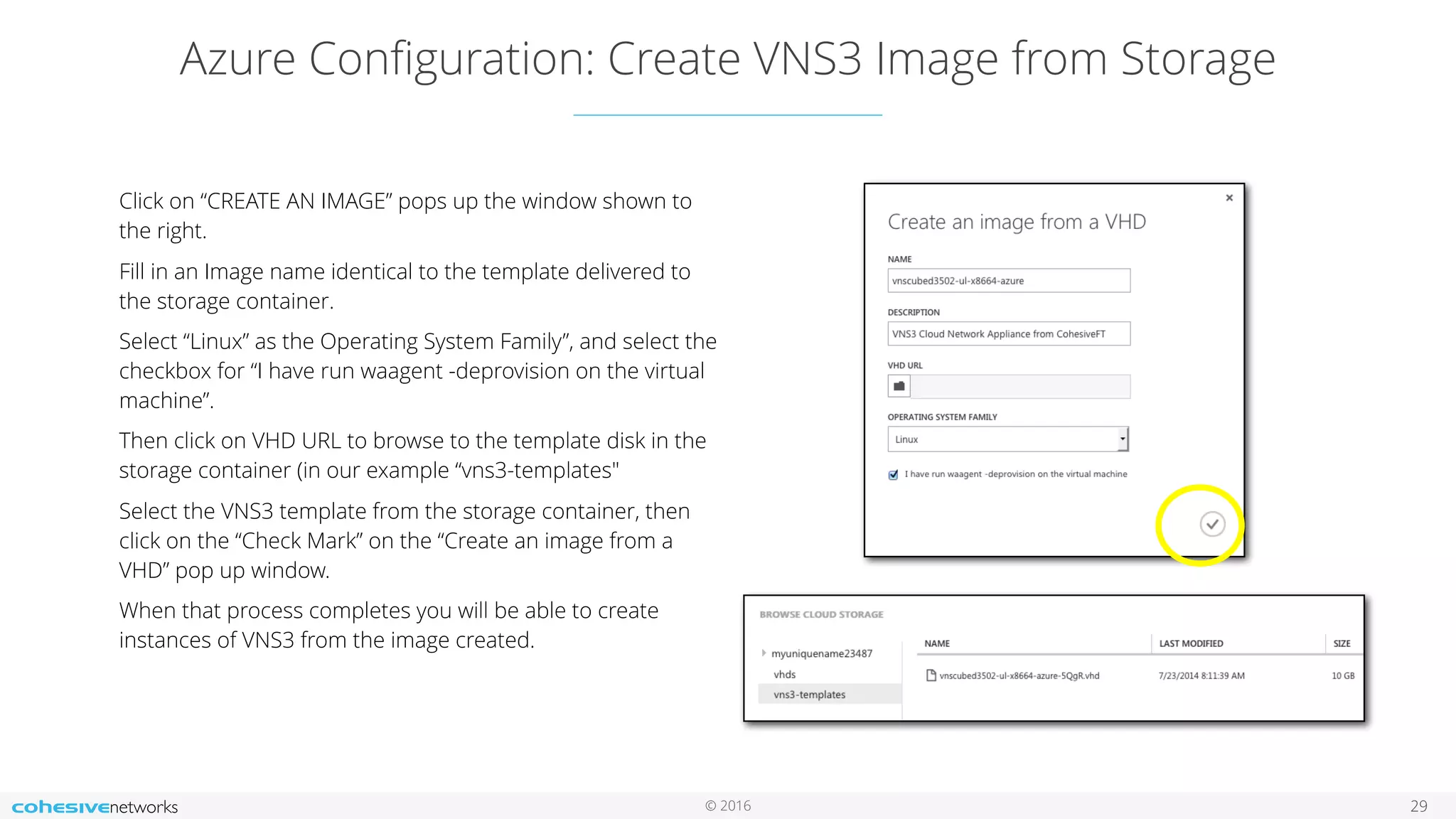

© 2016 Azure Conﬁguration: Create VNS3 Image from Storage 29 Click on “CREATE AN IMAGE” pops up the window shown to the right. Fill in an Image name identical to the template delivered to the storage container. Select “Linux” as the Operating System Family”, and select the checkbox for “I have run waagent -deprovision on the virtual machine”. Then click on VHD URL to browse to the template disk in the storage container (in our example “vns3-templates" Select the VNS3 template from the storage container, then click on the “Check Mark” on the “Create an image from a VHD” pop up window. When that process completes you will be able to create instances of VNS3 from the image created.

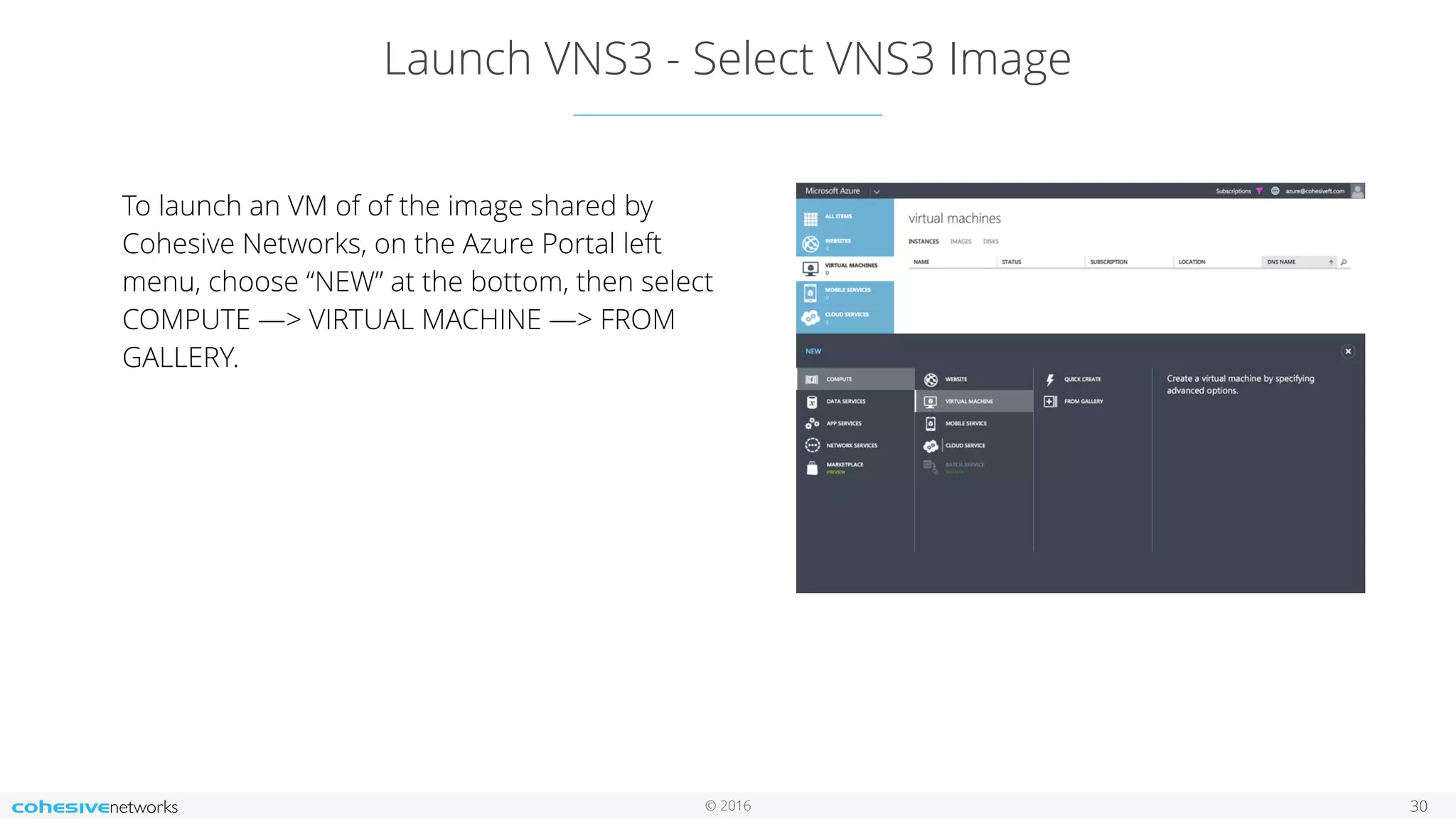

© 2016 Launch VNS3 - Select VNS3 Image 30 To launch an VM of of the image shared by Cohesive Networks, on the Azure Portal left menu, choose “NEW” at the bottom, then select COMPUTE —> VIRTUAL MACHINE —> FROM GALLERY.

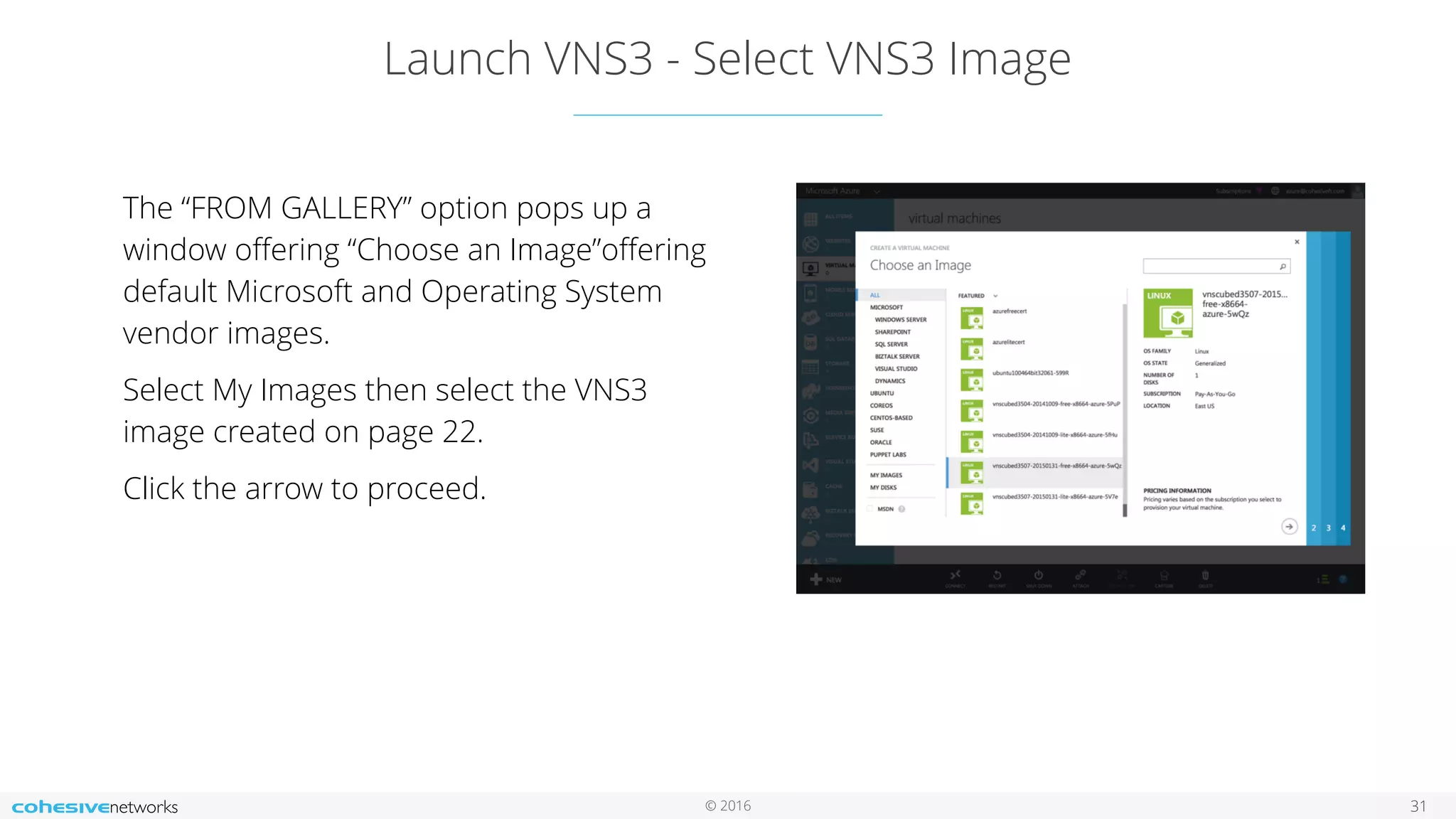

© 2016 Launch VNS3 - Select VNS3 Image 31 The “FROM GALLERY” option pops up a window oﬀering “Choose an Image”oﬀering default Microsoft and Operating System vendor images. Select My Images then select the VNS3 image created on page 22. Click the arrow to proceed.

© 2016 Launch VNS3 - Virtual Machine Configuration 32 Give the instance a name, “spaces” are not allowed, so use hyphens to separate the words of an instance name. Choose your tier of service and instance size. VNS3 should have at least one core and 1.5 gigs of memory, so the “A1” instance type is a good place to start. Depending on need, VNS3 can be run as a very large instance to provide more throughput for the virtual network, site-to-site connections, firewall rules, or other network functions. The Azure portal requires a username and a SSH key or password. Regardless of their entry - they will not provide shell access to VNS3 instances which run as appliances. The most straightforward approach would be to leave the default “azureuser” and enter a meaningless password. After these configuration elements are made use the “proceed” arrow inthe lower right of the web browser page.

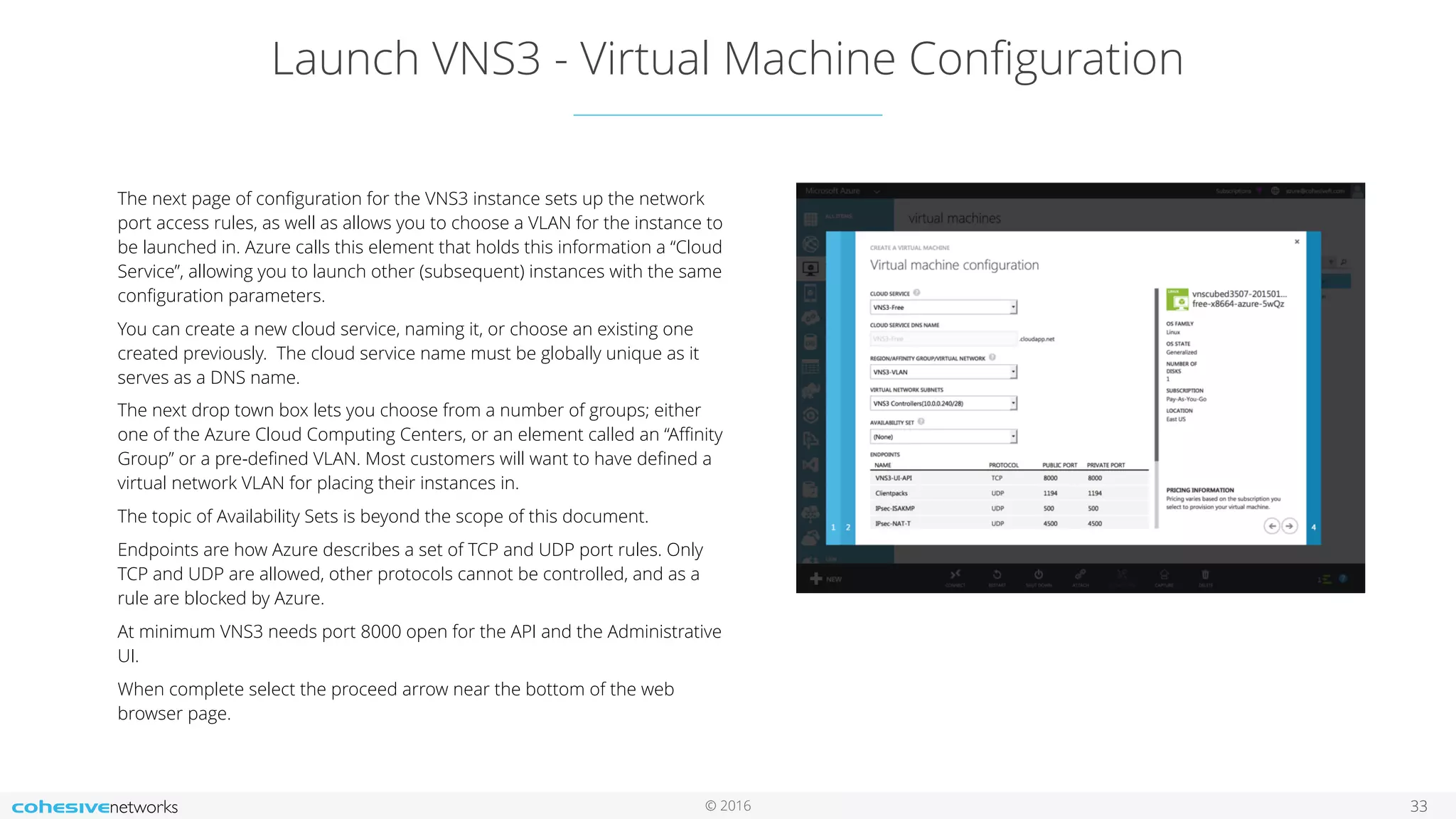

© 2016 Launch VNS3 - Virtual Machine Configuration 33 The next page of configuration for the VNS3 instance sets up the network port access rules, as well as allows you to choose a VLAN for the instance to be launched in. Azure calls this element that holds this information a “Cloud Service”, allowing you to launch other (subsequent) instances with the same configuration parameters. You can create a new cloud service, naming it, or choose an existing one created previously. The cloud service name must be globally unique as it serves as a DNS name. The next drop town box lets you choose from a number of groups; either one of the Azure Cloud Computing Centers, or an element called an “Affinity Group” or a pre-defined VLAN. Most customers will want to have defined a virtual network VLAN for placing their instances in. The topic of Availability Sets is beyond the scope of this document. Endpoints are how Azure describes a set of TCP and UDP port rules. Only TCP and UDP are allowed, other protocols cannot be controlled, and as a rule are blocked by Azure. At minimum VNS3 needs port 8000 open for the API and the Administrative UI. When complete select the proceed arrow near the bottom of the web browser page.

© 2016 Launch VNS3 - Virtual Machine Configuration 34 The final page before instance launch should not need modification. Ensure that the “VM Agent” box is checked. Do NOT check the “Chef ” button. Review the legal terms and summary information, and finalize the launch of the instance by clicking on the “check box” at the bottom right of the web browser page.

© 2016 VNS3 Virtual Machine Details 35 After clicking on the “check box” you will be returned to the “virtual machines” page, which shows the instance running in your account. In this example there is only one instance “vns3- free”. Click in the “Name” column on the “vns3-free” row to be taken to its detail page. If it is the ﬁrst instance you have launched you will be taken to the summary “Quick Start” page with useful links to Azure APIs, SDKs and Documentation. Click on the “Skip Quick Start the next time I visit” to go straight to the instance detail page in future.

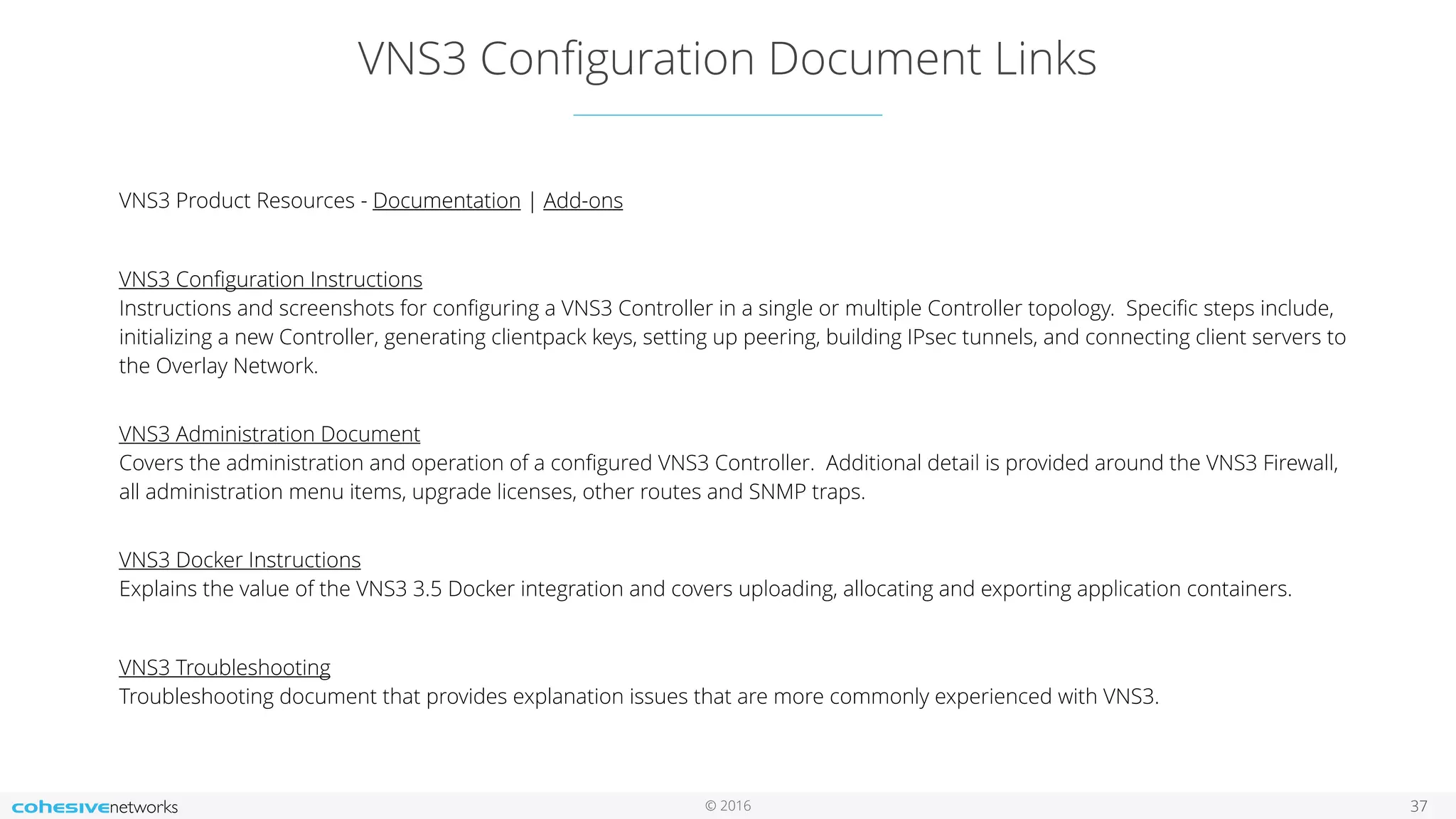

© 2016 VNS3 Configuration Document Links 37 VNS3 Product Resources - Documentation | Add-ons VNS3 Configuration Instructions  Instructions and screenshots for configuring a VNS3 Controller in a single or multiple Controller topology. Specific steps include, initializing a new Controller, generating clientpack keys, setting up peering, building IPsec tunnels, and connecting client servers to the Overlay Network.   VNS3 Administration Document  Covers the administration and operation of a configured VNS3 Controller. Additional detail is provided around the VNS3 Firewall, all administration menu items, upgrade licenses, other routes and SNMP traps.  VNS3 Docker Instructions  Explains the value of the VNS3 3.5 Docker integration and covers uploading, allocating and exporting application containers. VNS3 Troubleshooting  Troubleshooting document that provides explanation issues that are more commonly experienced with VNS3.
