"Inside The AngularJS Directive Compiler" by Tero Parviainen

Inside The AngularJS Directive Compiler Tero Parviainen @teropa

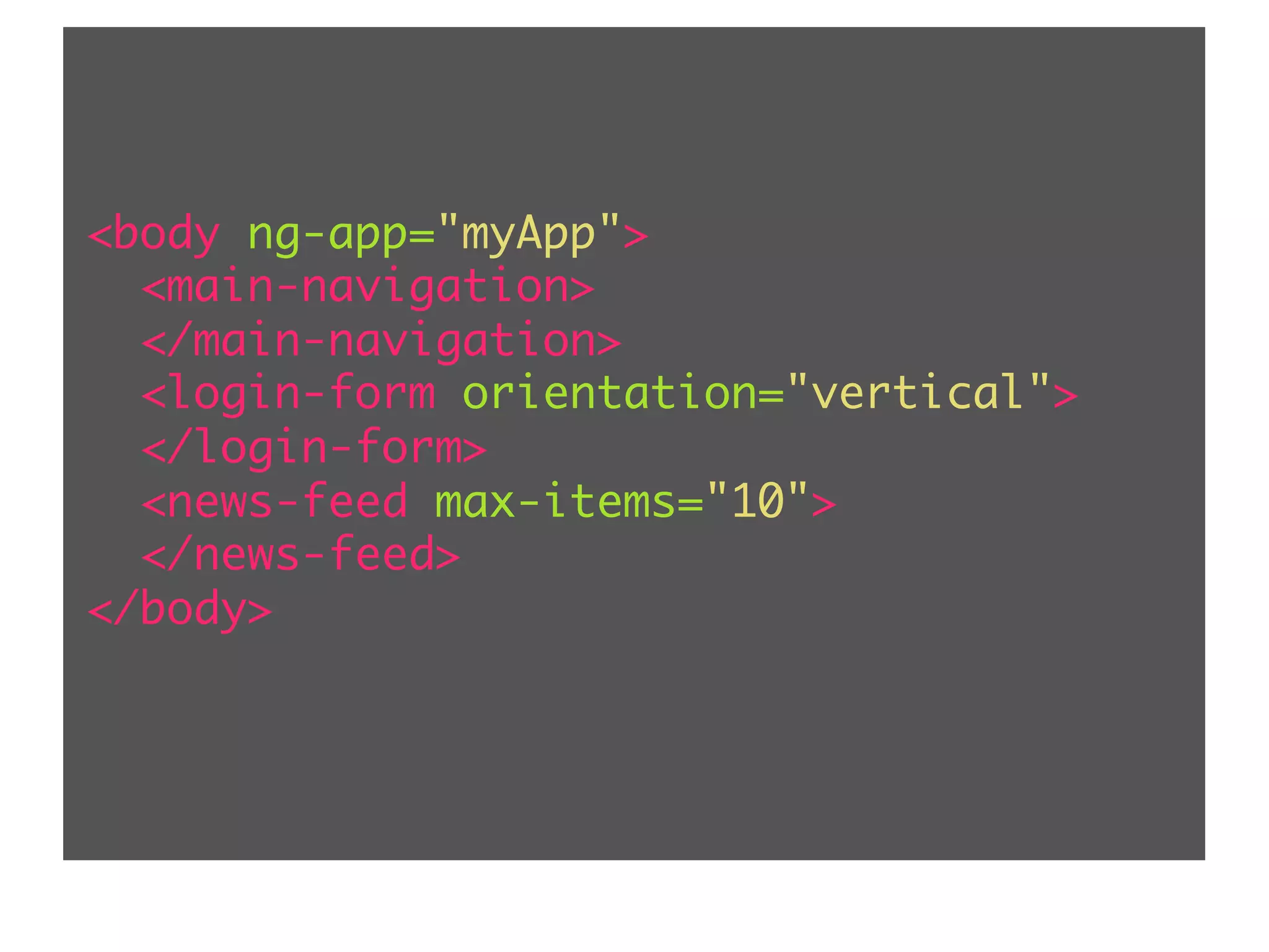

Directives “Angular attempts to minimize the impedance mismatch between document centric HTML and what an application needs by creating new HTML constructs. Angular teaches the browser new syntax through a construct we call directives.” https://docs.angularjs.org/guide/introduction

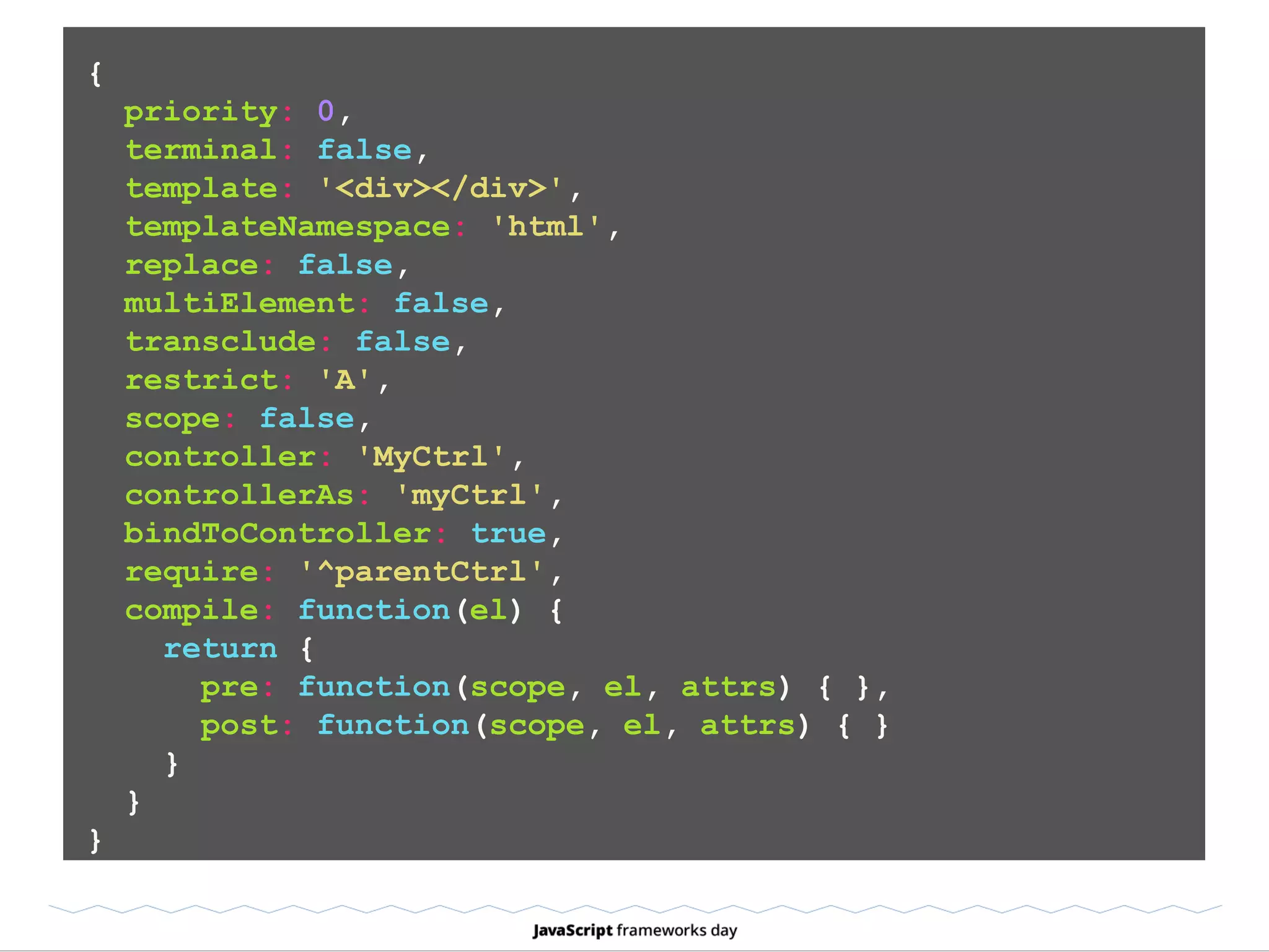

{ priority: 0, terminal: false, template: '<div></div>', templateNamespace: 'html', replace: false, multiElement: false, transclude: false, restrict: 'A', scope: false, controller: 'MyCtrl', controllerAs: 'myCtrl', bindToController: true, require: '^parentCtrl', compile: function(el) { return { pre: function(scope, el, attrs) { }, post: function(scope, el, attrs) { } } } }

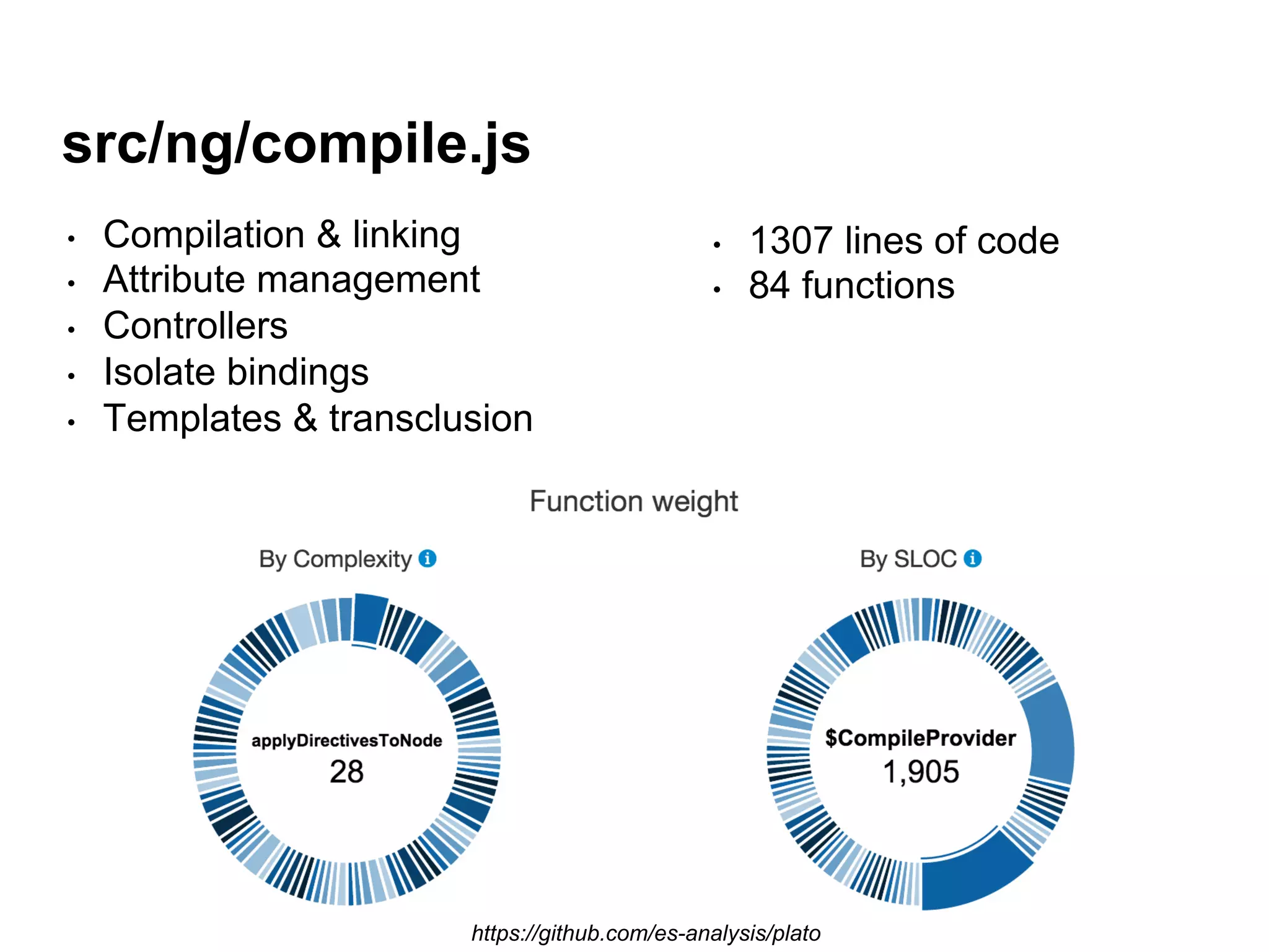

src/ng/compile.js •  1307 lines of code •  84 functions •  Compilation & linking •  Attribute management •  Controllers •  Isolate bindings •  Templates & transclusion https://github.com/es-analysis/plato

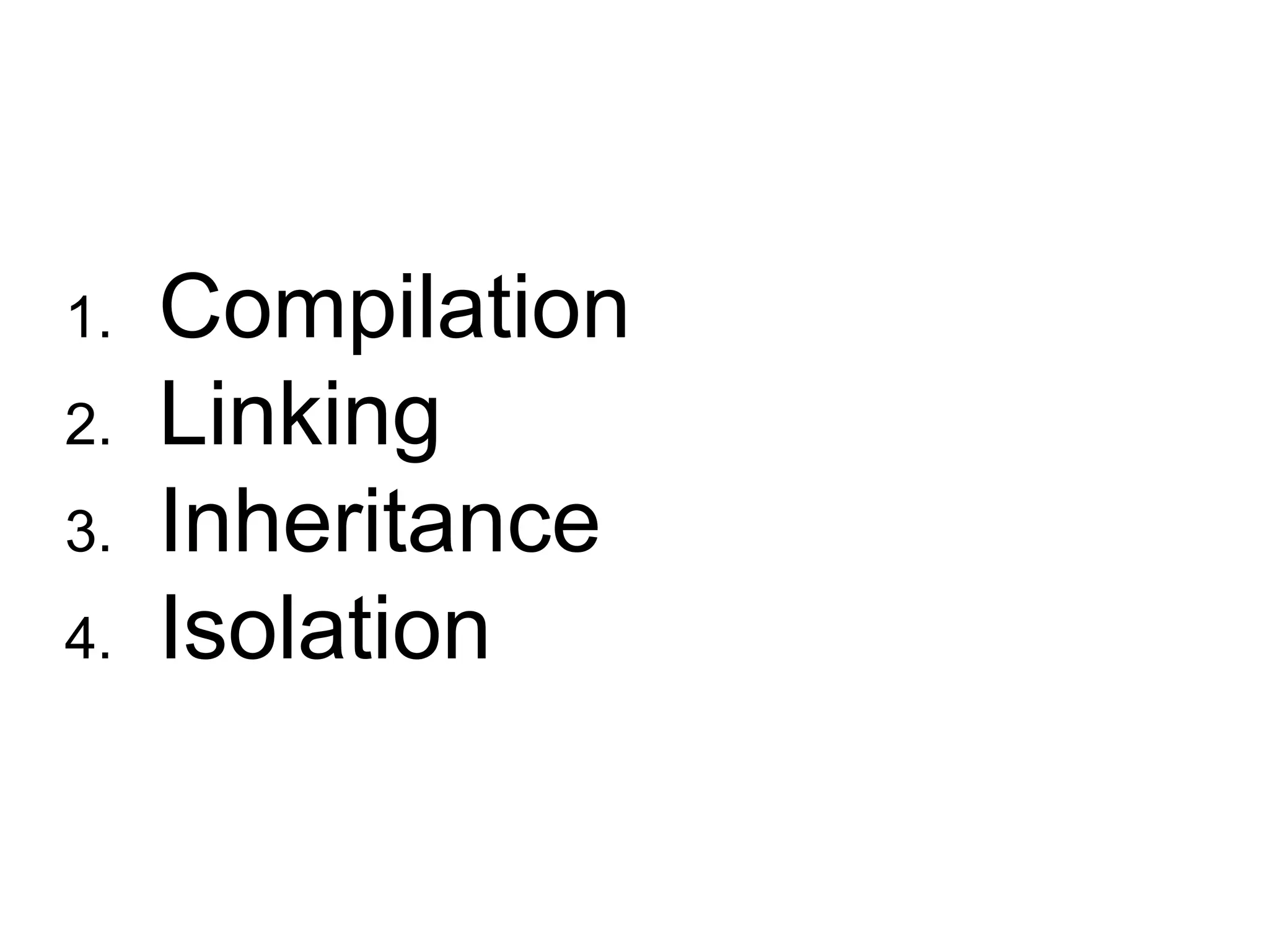

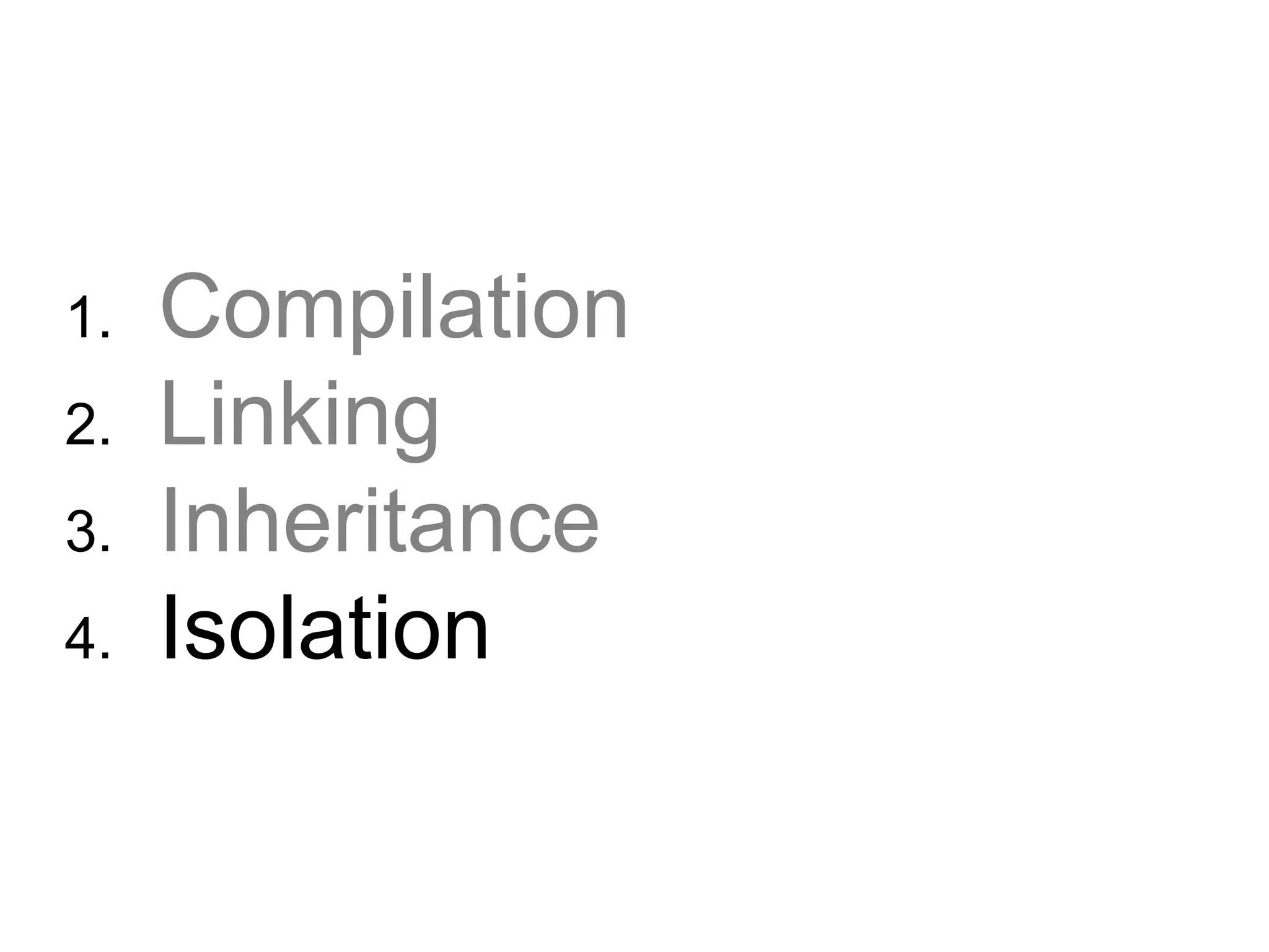

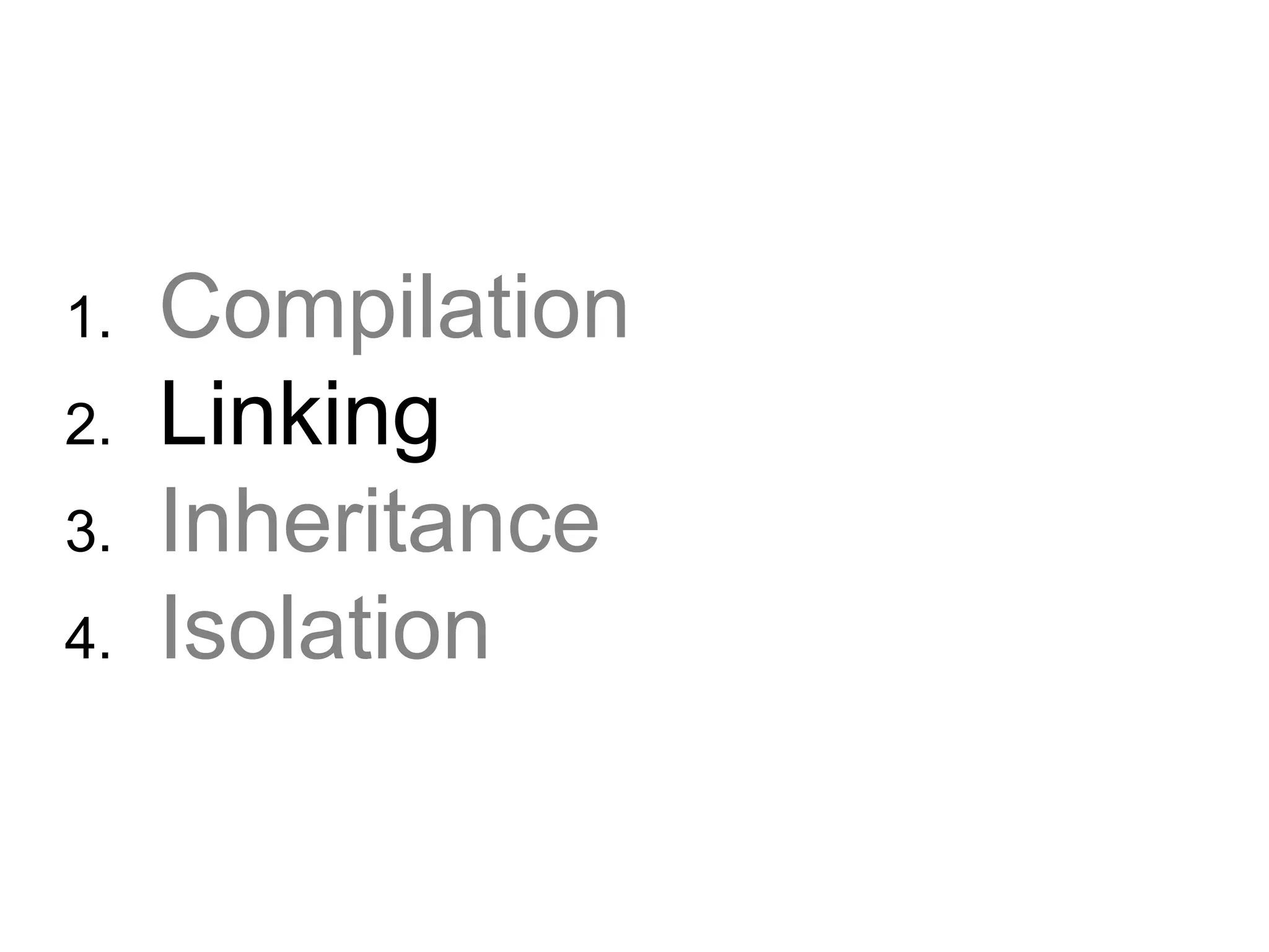

1.  Compilation 2.  Linking 3.  Inheritance 4.  Isolation

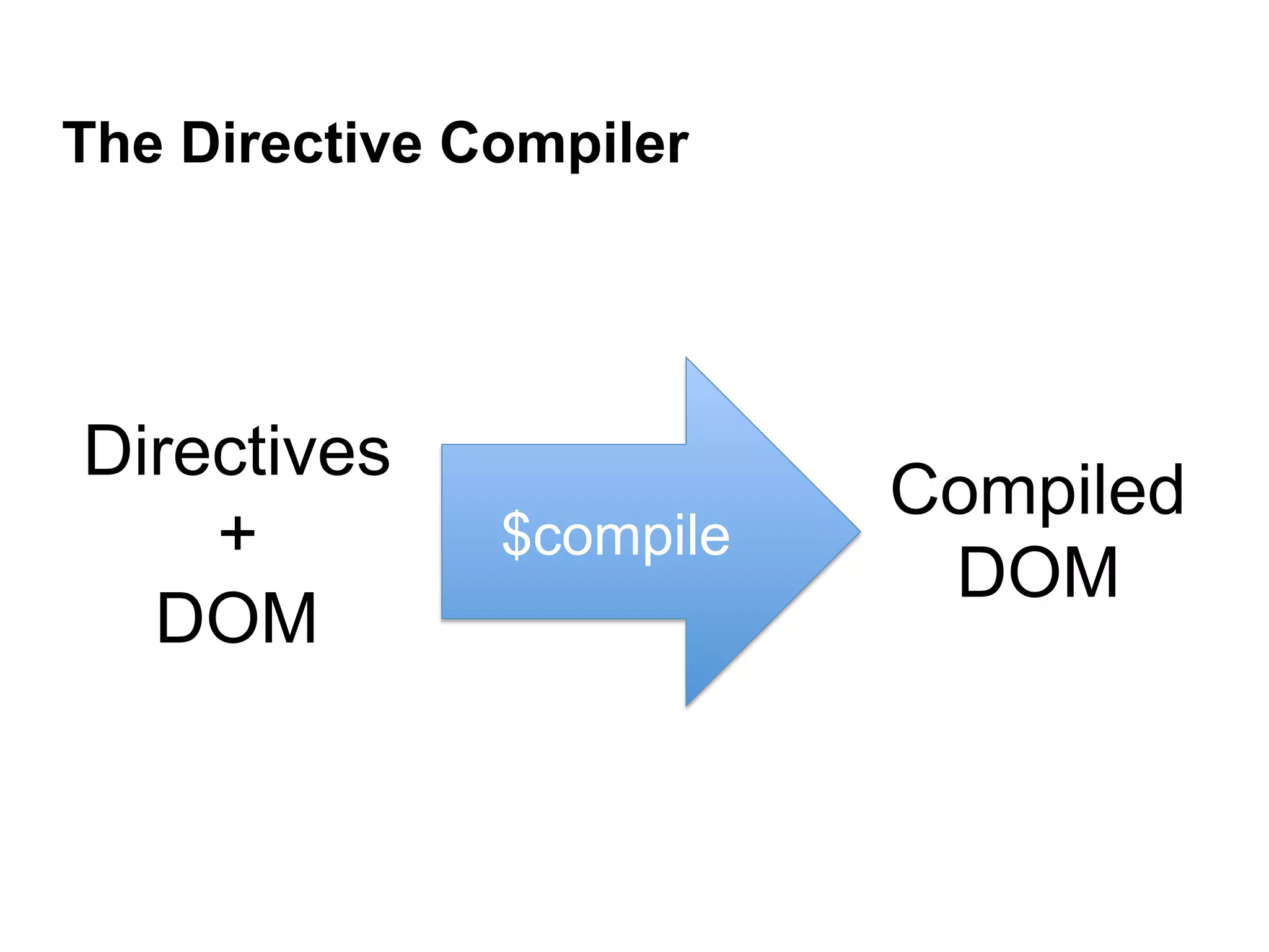

The Directive Compiler $compile Directives + DOM Compiled DOM

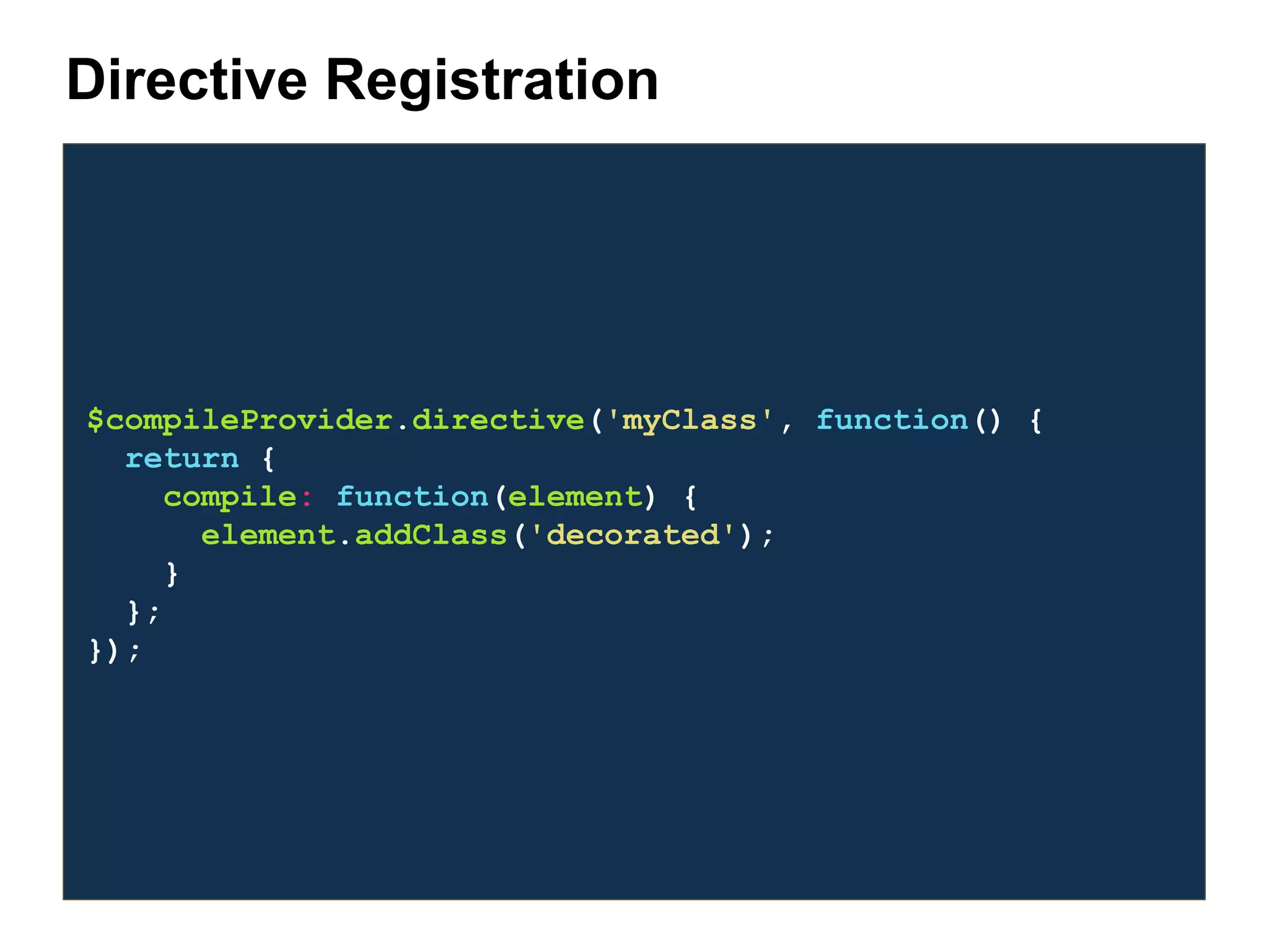

$compileProvider.directive('myClass', function() { return { compile: function(element) { element.addClass('decorated'); } }; }); Directive Registration

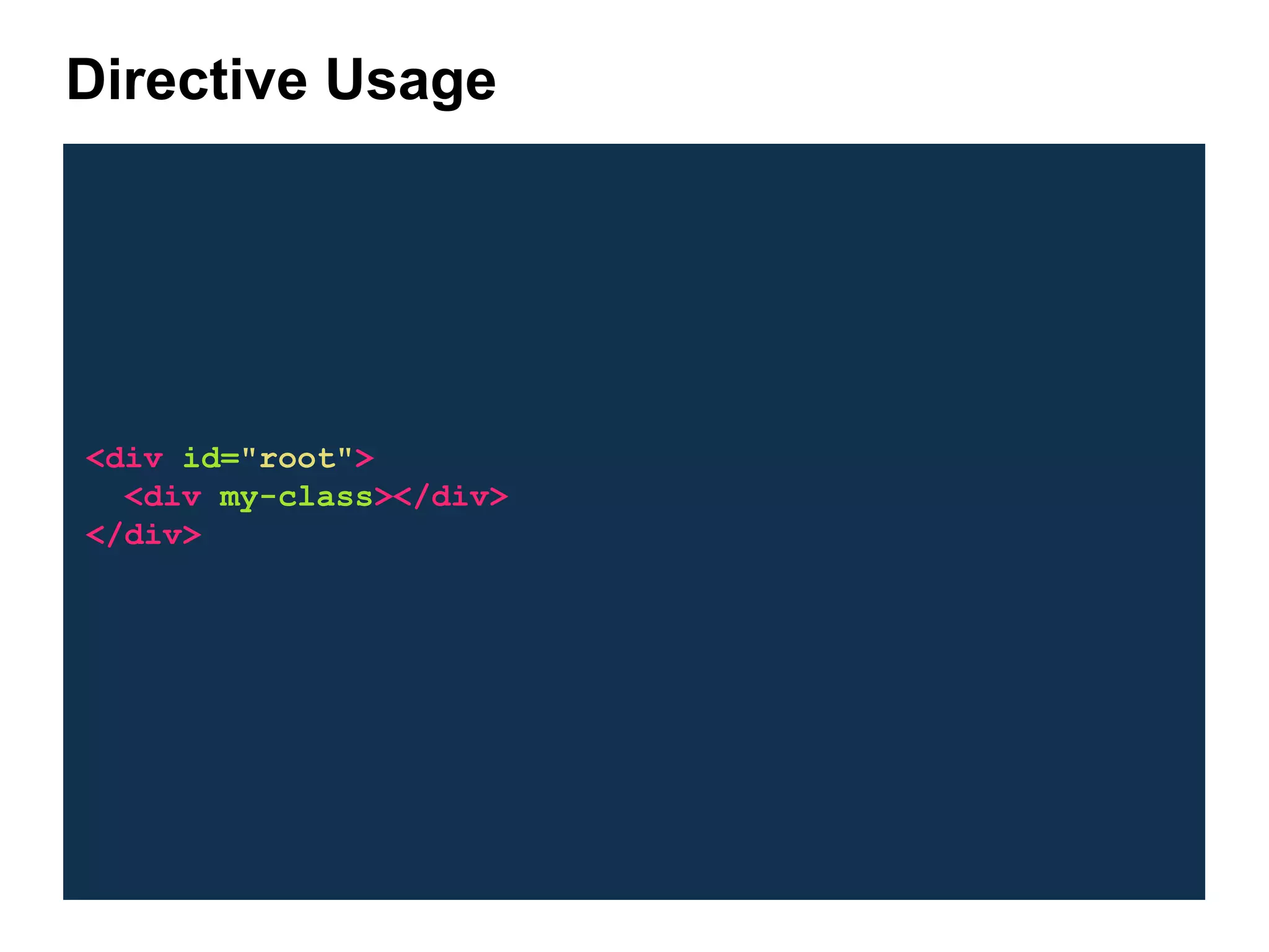

<div id="root"> <div my-class></div> </div> Directive Usage

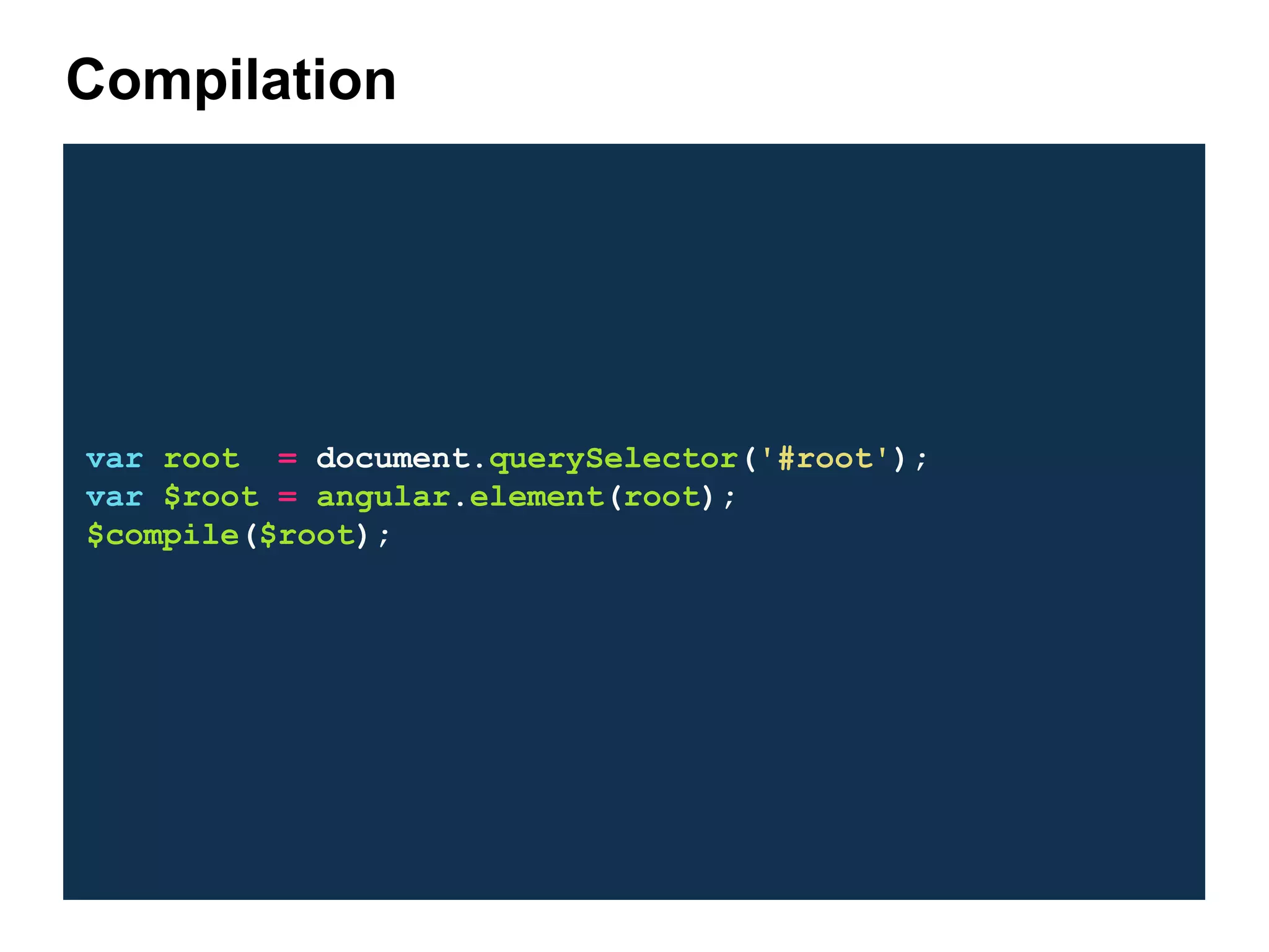

var root = document.querySelector('#root'); var $root = angular.element(root); $compile($root); Compilation

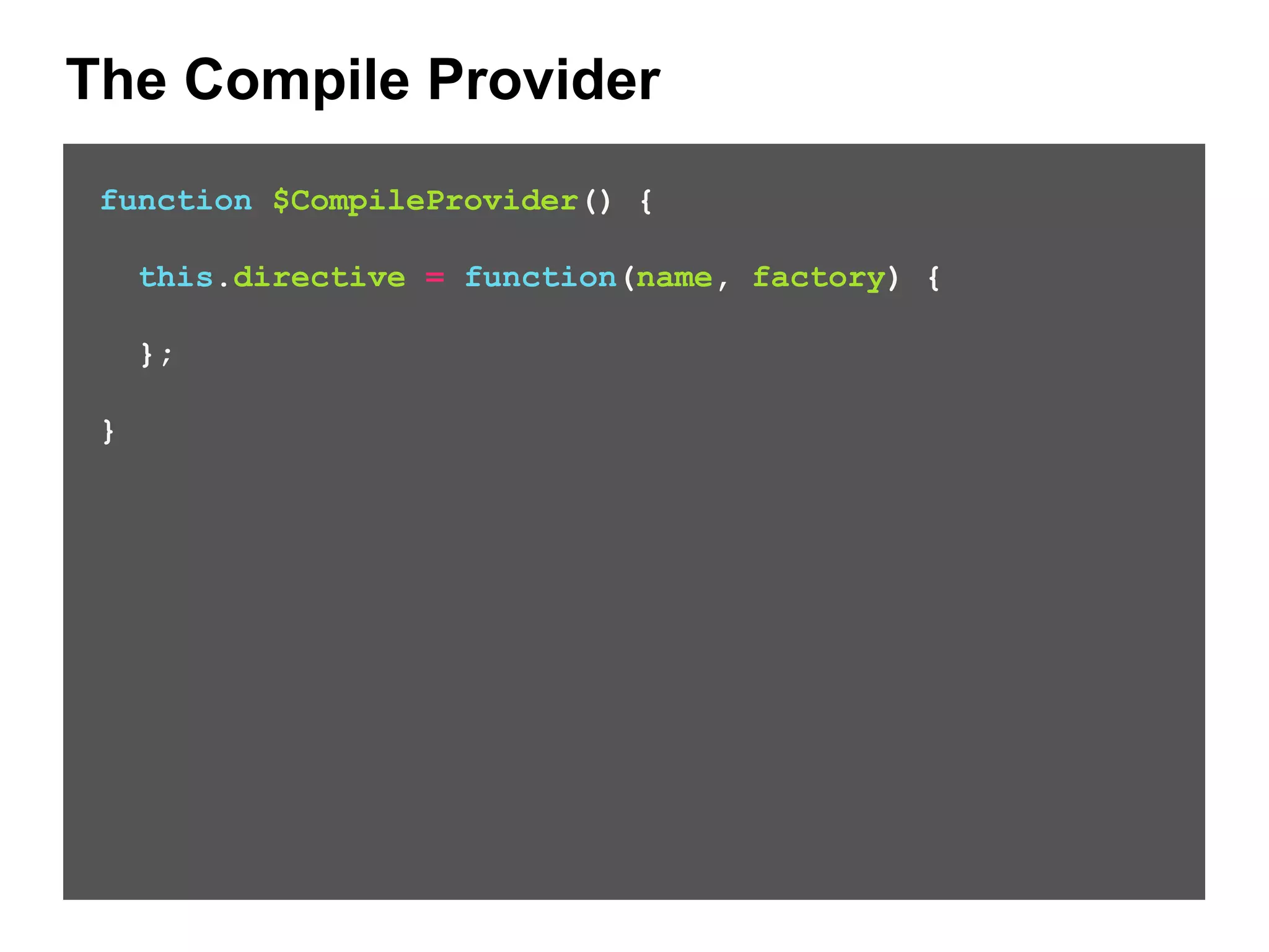

The Compile Provider function $CompileProvider() { this.directive = function(name, factory) { }; }

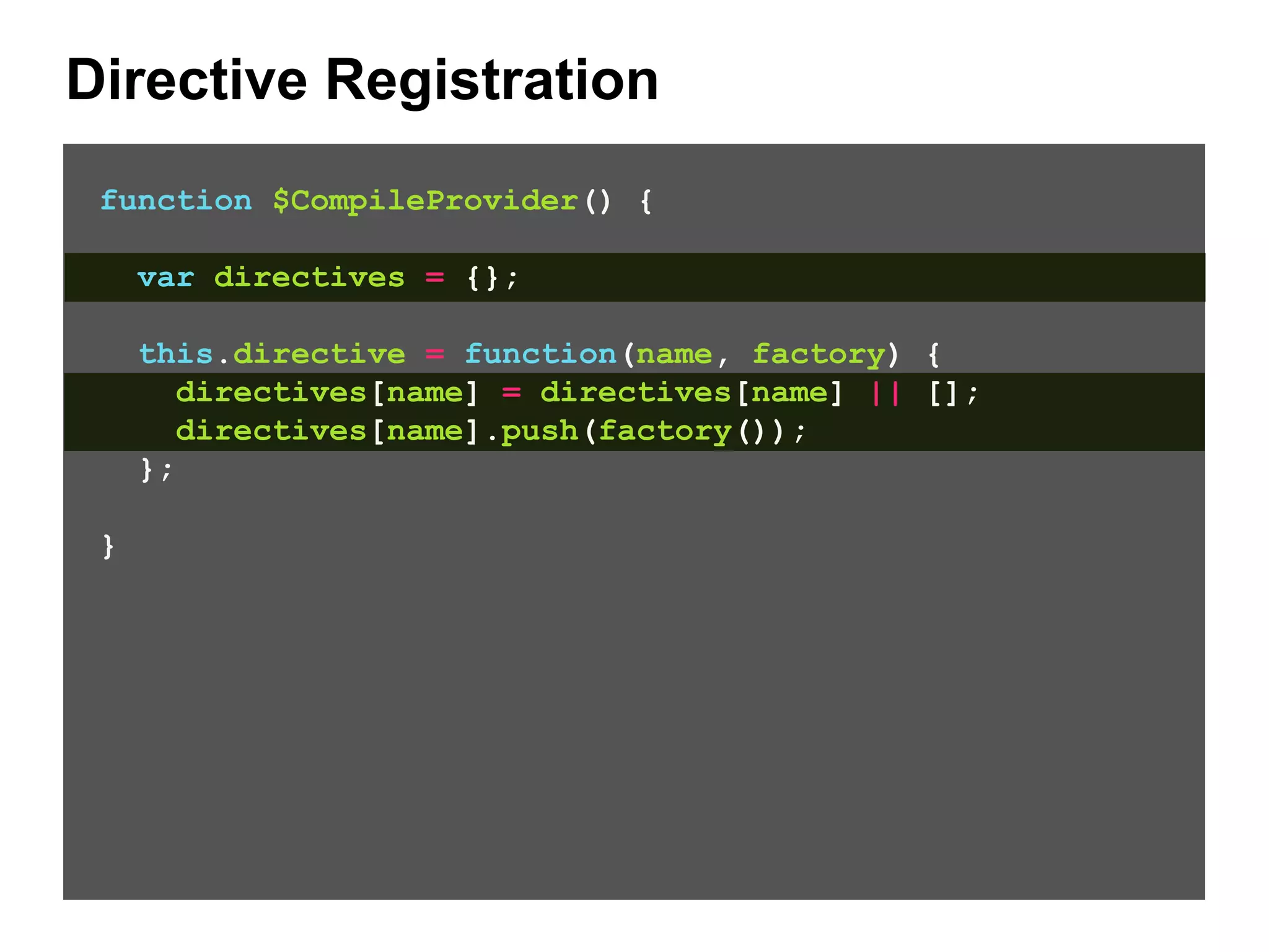

Directive Registration function $CompileProvider() { var directives = {}; this.directive = function(name, factory) { directives[name] = directives[name] || []; directives[name].push(factory()); }; }

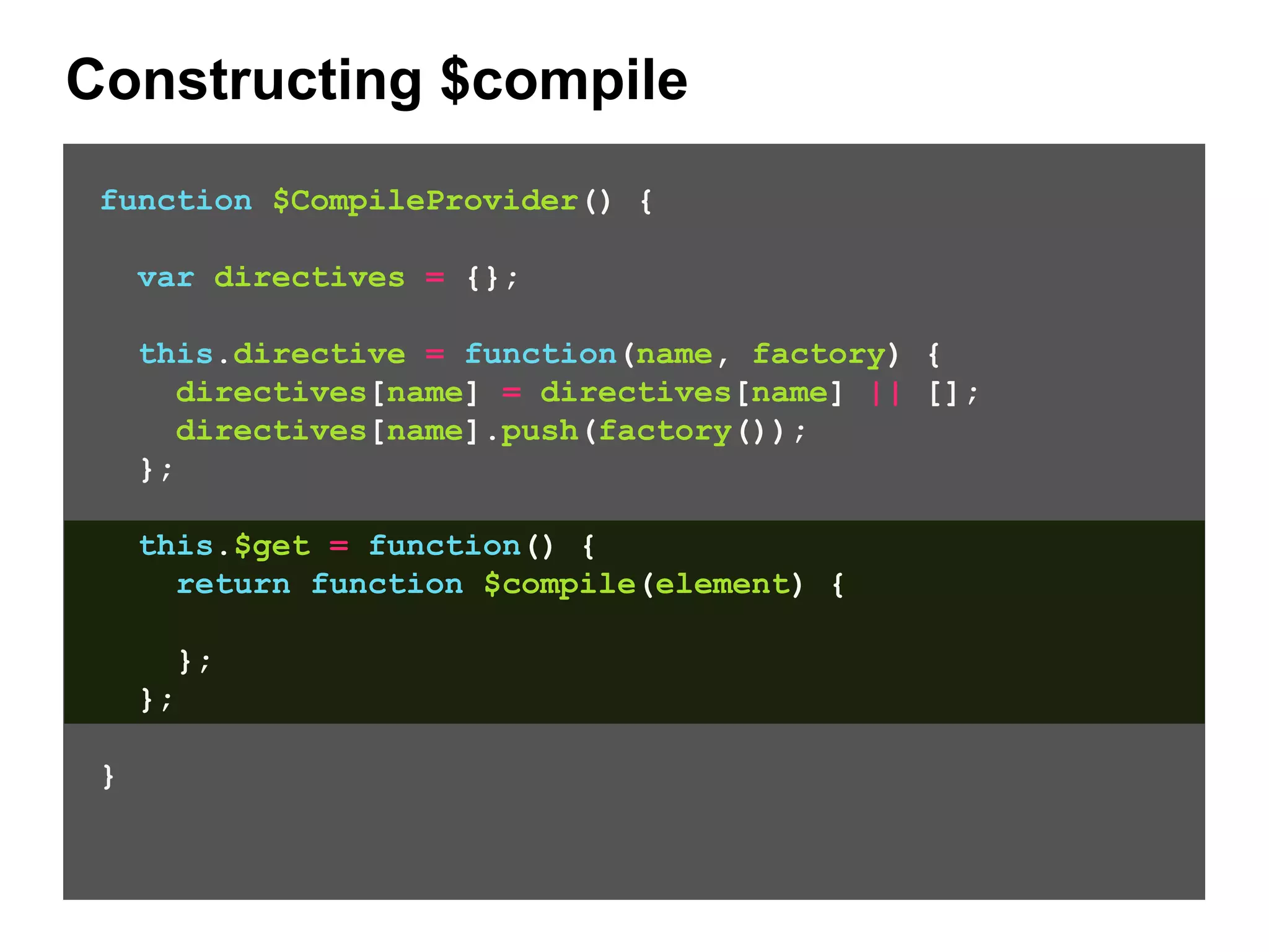

Constructing $compile function $CompileProvider() { var directives = {}; this.directive = function(name, factory) { directives[name] = directives[name] || []; directives[name].push(factory()); }; this.$get = function() { return function $compile(element) { }; }; }

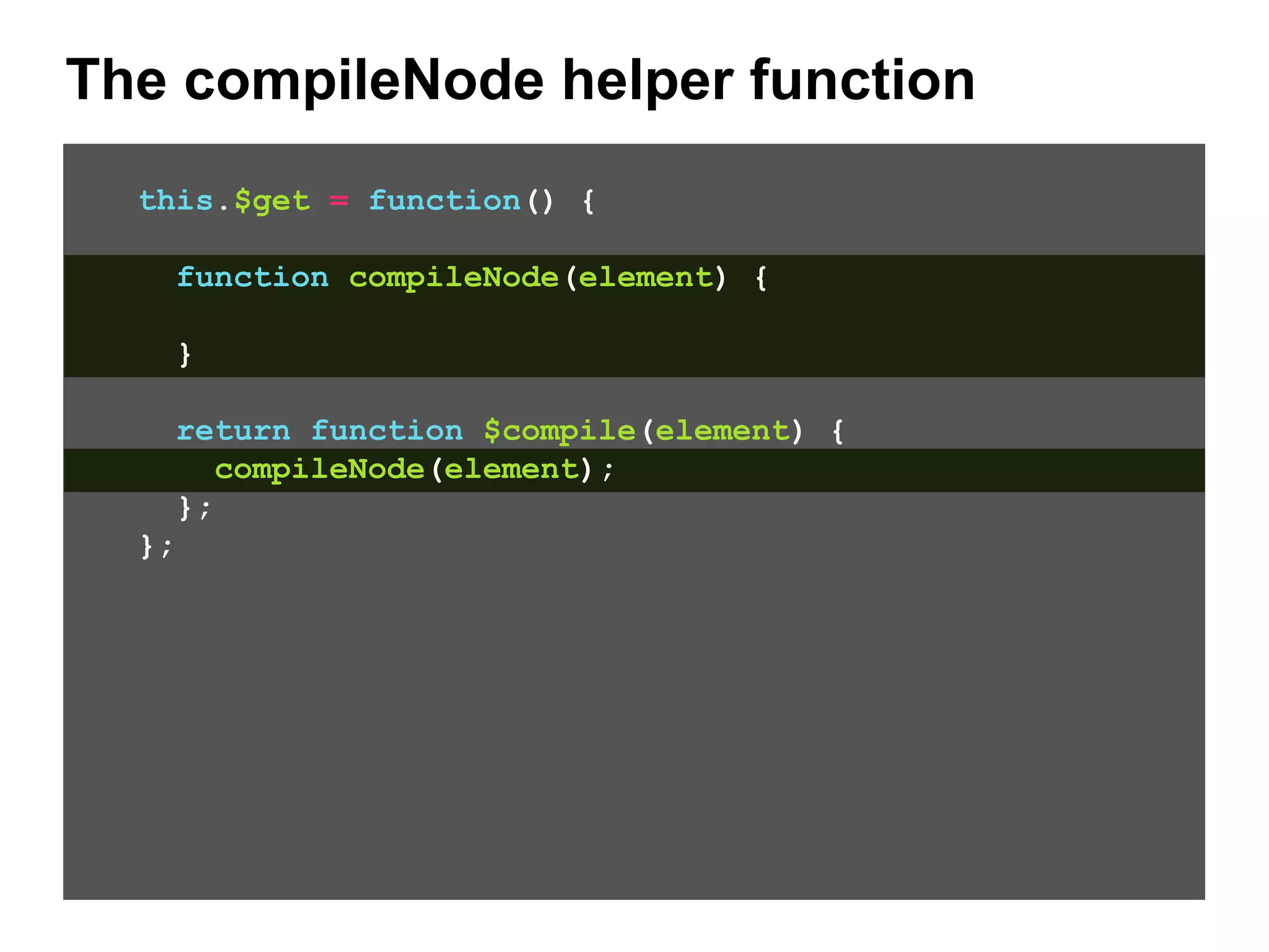

The compileNode helper function this.$get = function() { function compileNode(element) { } return function $compile(element) { compileNode(element); }; };

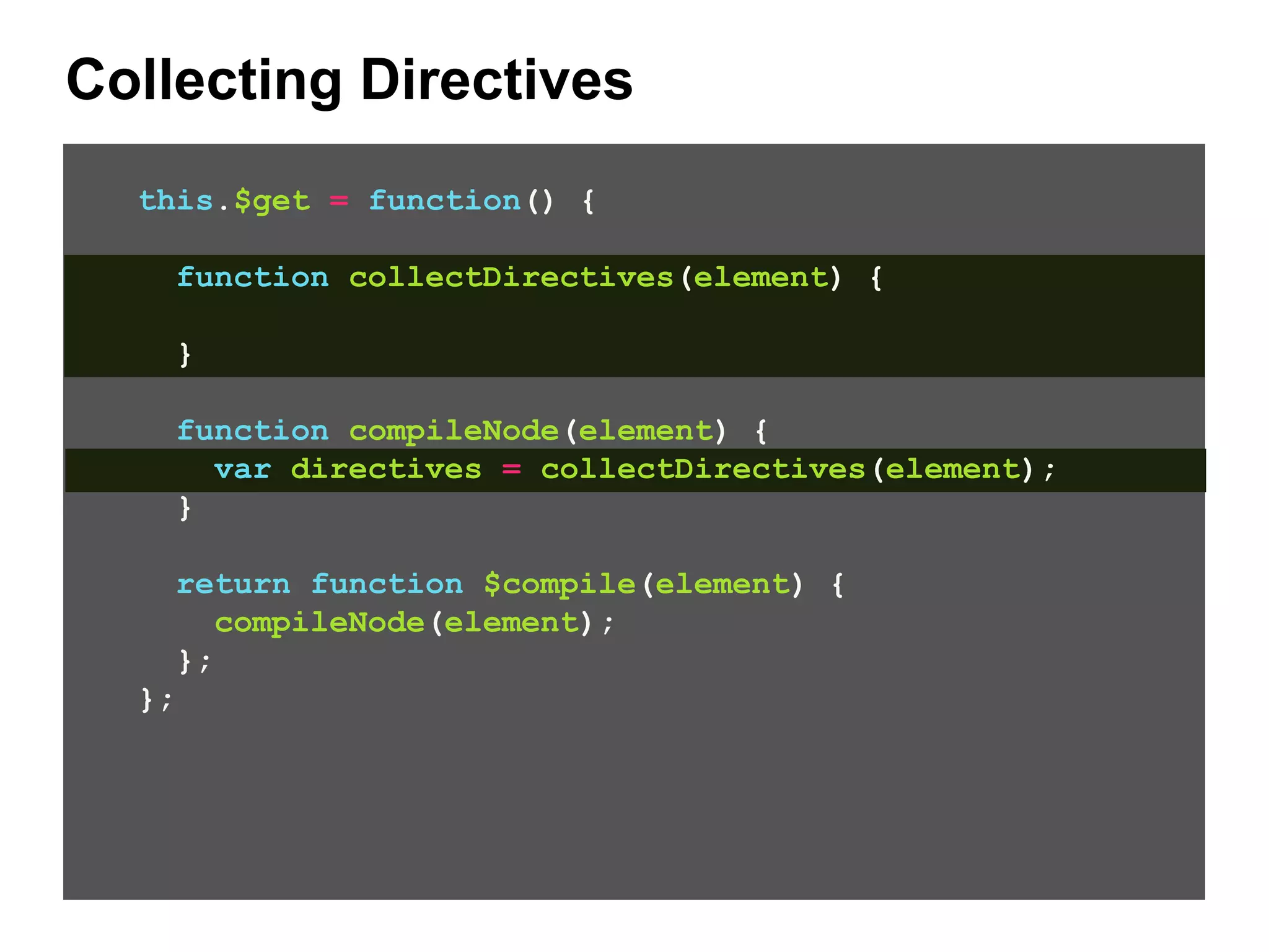

Collecting Directives this.$get = function() { function collectDirectives(element) { } function compileNode(element) { var directives = collectDirectives(element); } return function $compile(element) { compileNode(element); }; };

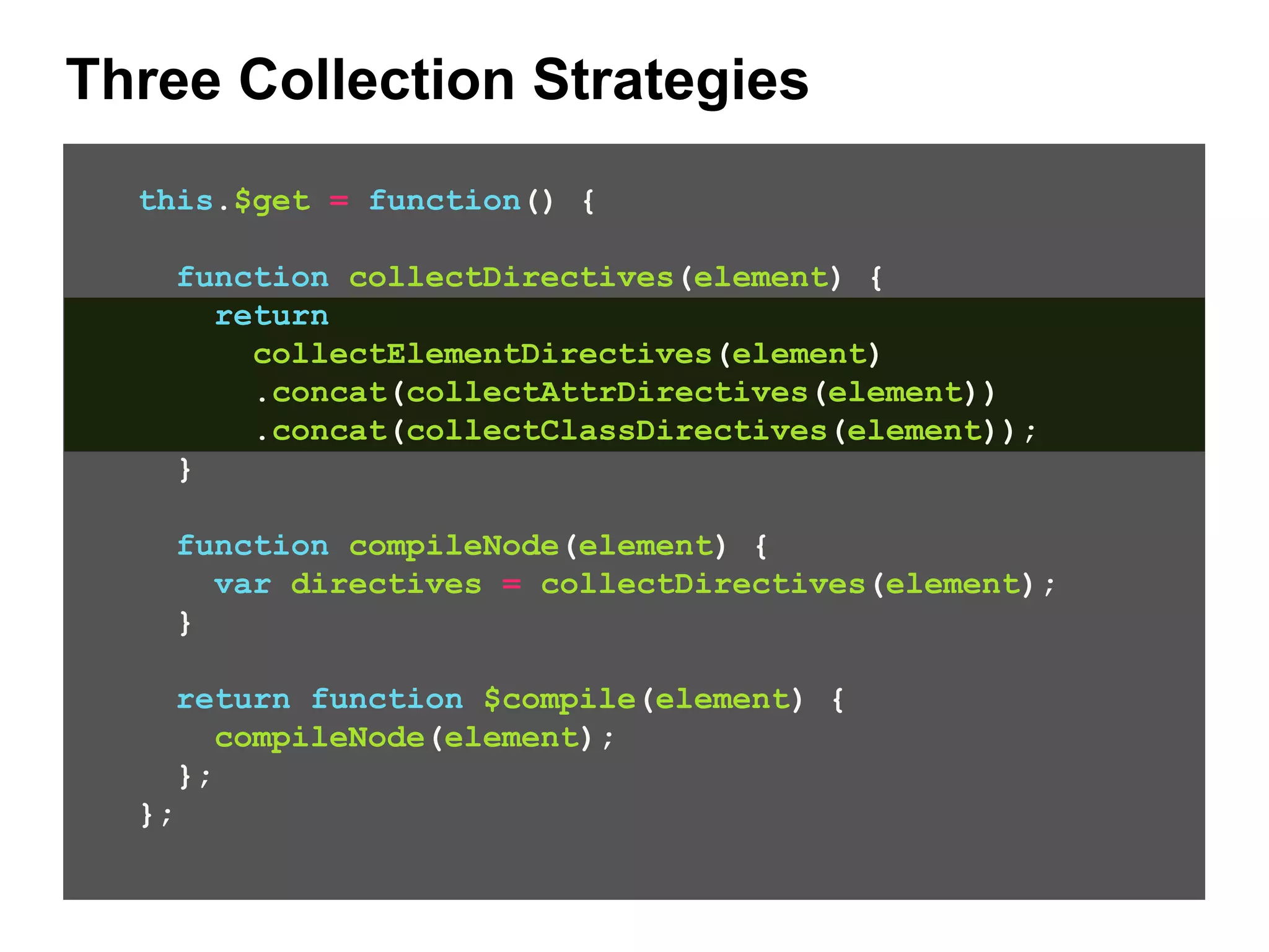

Three Collection Strategies this.$get = function() { function collectDirectives(element) { return collectElementDirectives(element) .concat(collectAttrDirectives(element)) .concat(collectClassDirectives(element)); } function compileNode(element) { var directives = collectDirectives(element); } return function $compile(element) { compileNode(element); }; };

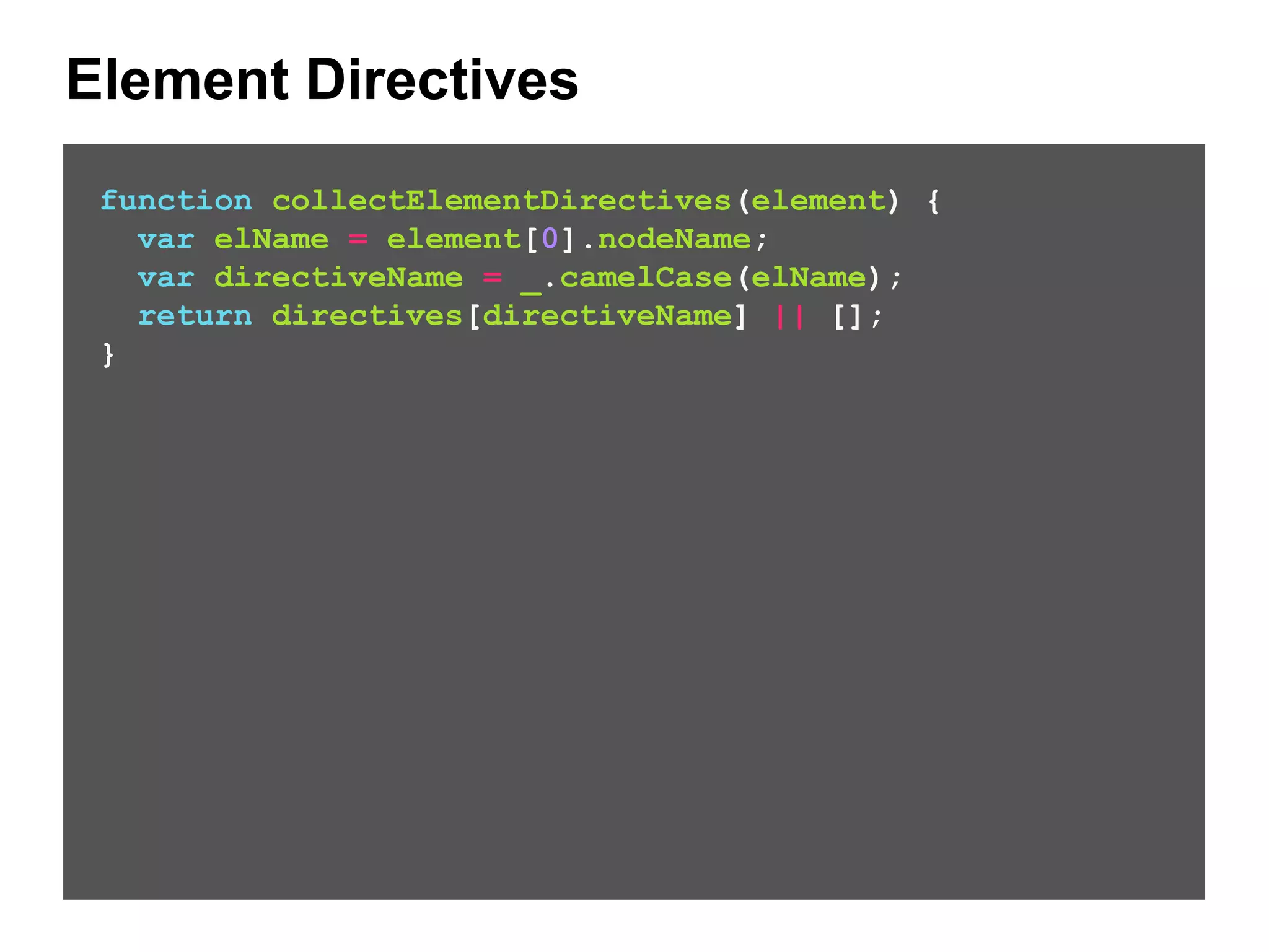

Element Directives function collectElementDirectives(element) { var elName = element[0].nodeName; var directiveName = _.camelCase(elName); return directives[directiveName] || []; }

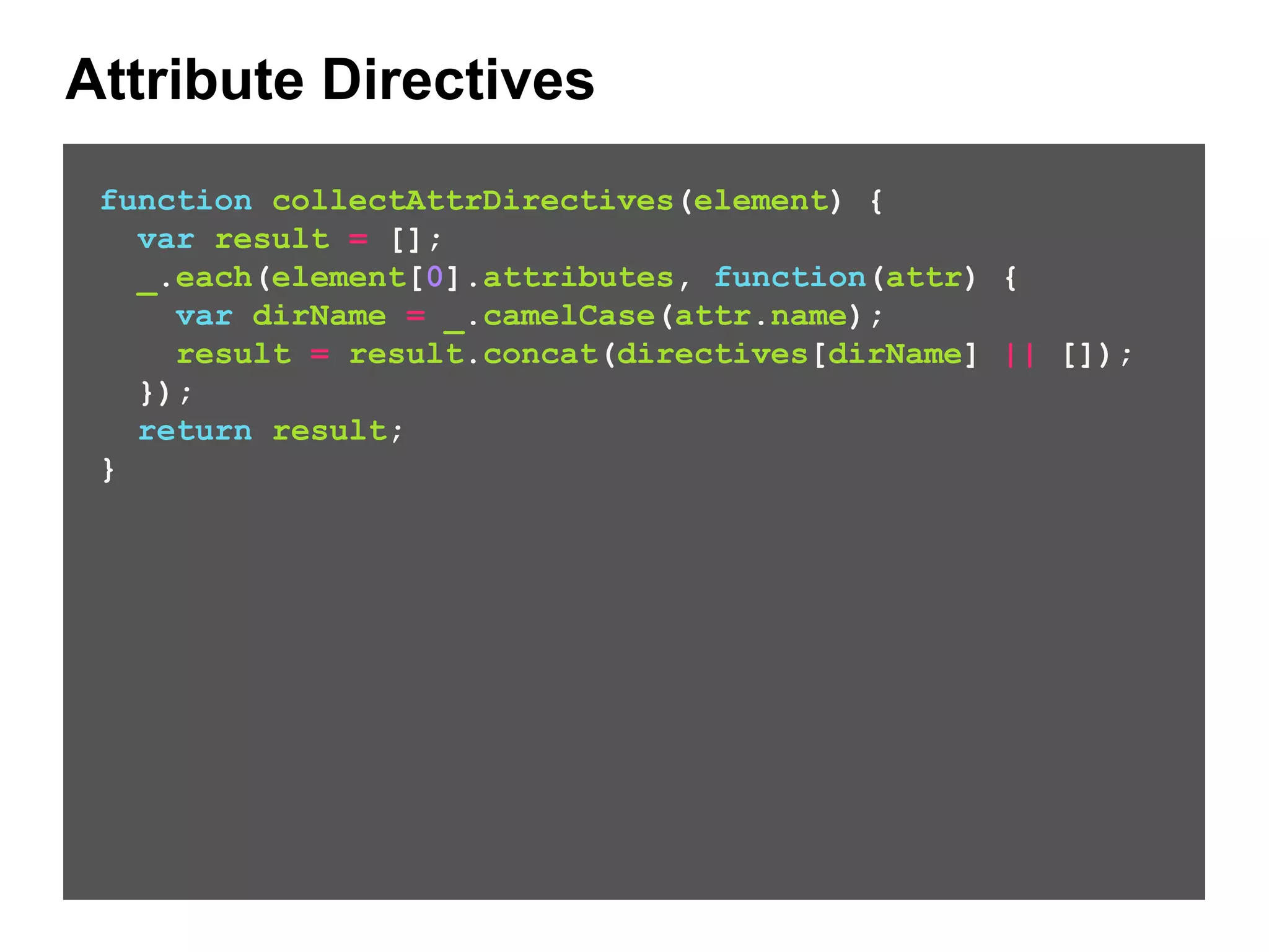

Attribute Directives function collectAttrDirectives(element) { var result = []; _.each(element[0].attributes, function(attr) { var dirName = _.camelCase(attr.name); result = result.concat(directives[dirName] || []); }); return result; }

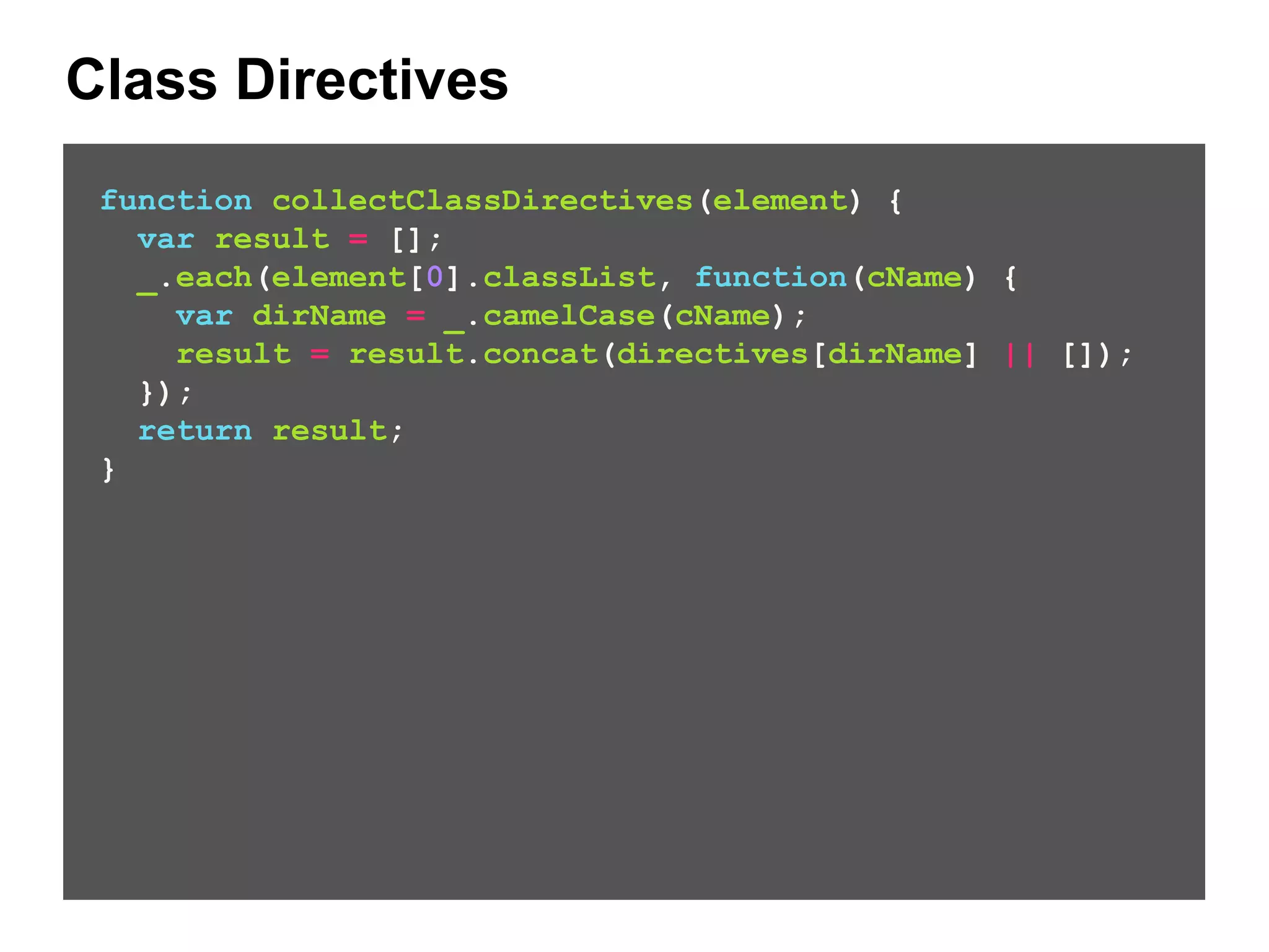

Class Directives function collectClassDirectives(element) { var result = []; _.each(element[0].classList, function(cName) { var dirName = _.camelCase(cName); result = result.concat(directives[dirName] || []); }); return result; }

Applying The Directives function compileNode(element) { var directives = collectDirectives(element); directives.forEach(function(directive) { directive.compile(element); }); }

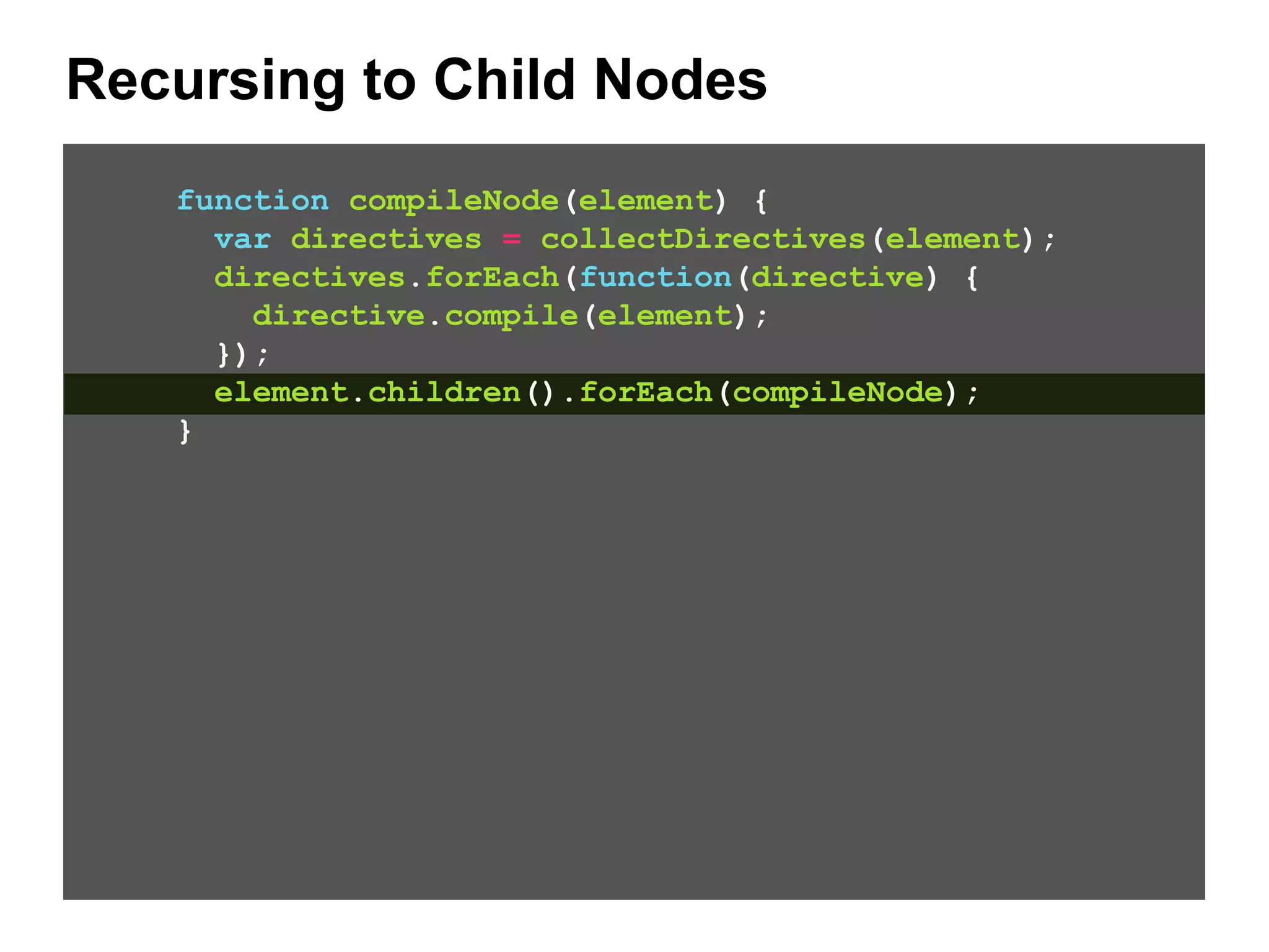

Recursing to Child Nodes function compileNode(element) { var directives = collectDirectives(element); directives.forEach(function(directive) { directive.compile(element); }); element.children().forEach(compileNode); }

Scopes • Application data + behavior • Change detection • Events

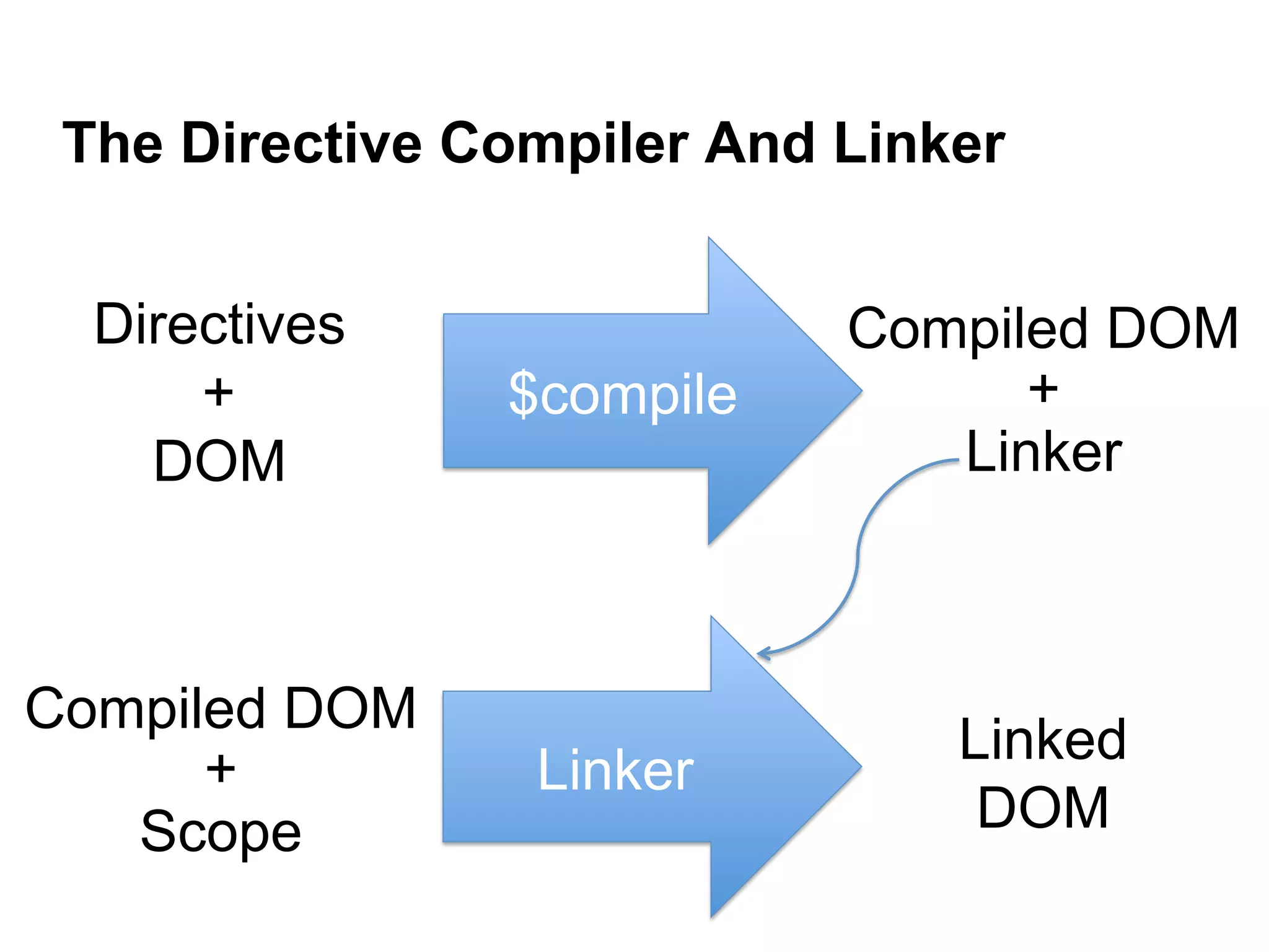

The Directive Compiler And Linker $compile Directives + DOM Compiled DOM + Linker Linker Linked DOM Compiled DOM + Scope

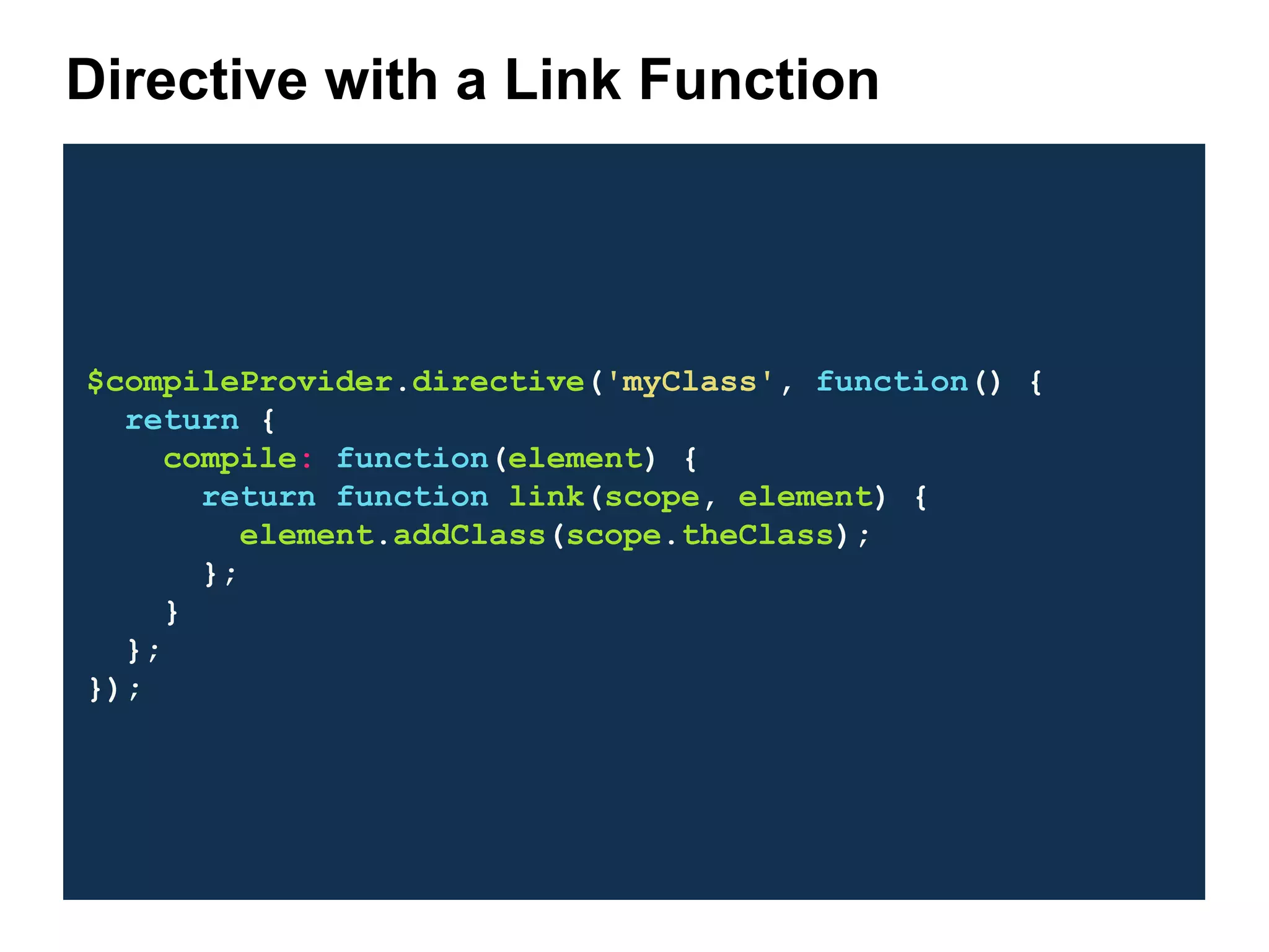

$compileProvider.directive('myClass', function() { return { compile: function(element) { return function link(scope, element) { element.addClass(scope.theClass); }; } }; }); Directive with a Link Function

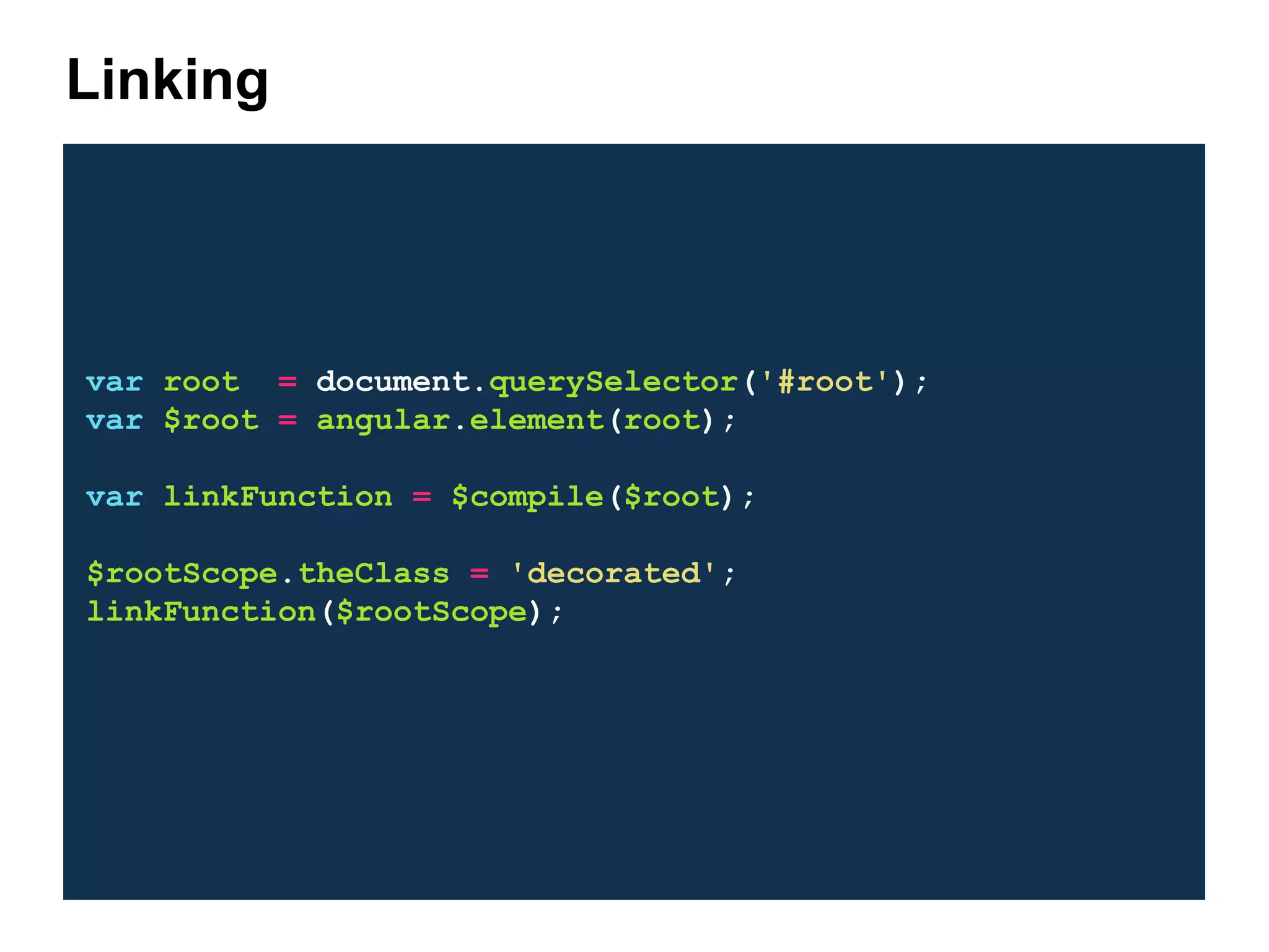

var root = document.querySelector('#root'); var $root = angular.element(root); var linkFunction = $compile($root); $rootScope.theClass = 'decorated'; linkFunction($rootScope); Linking

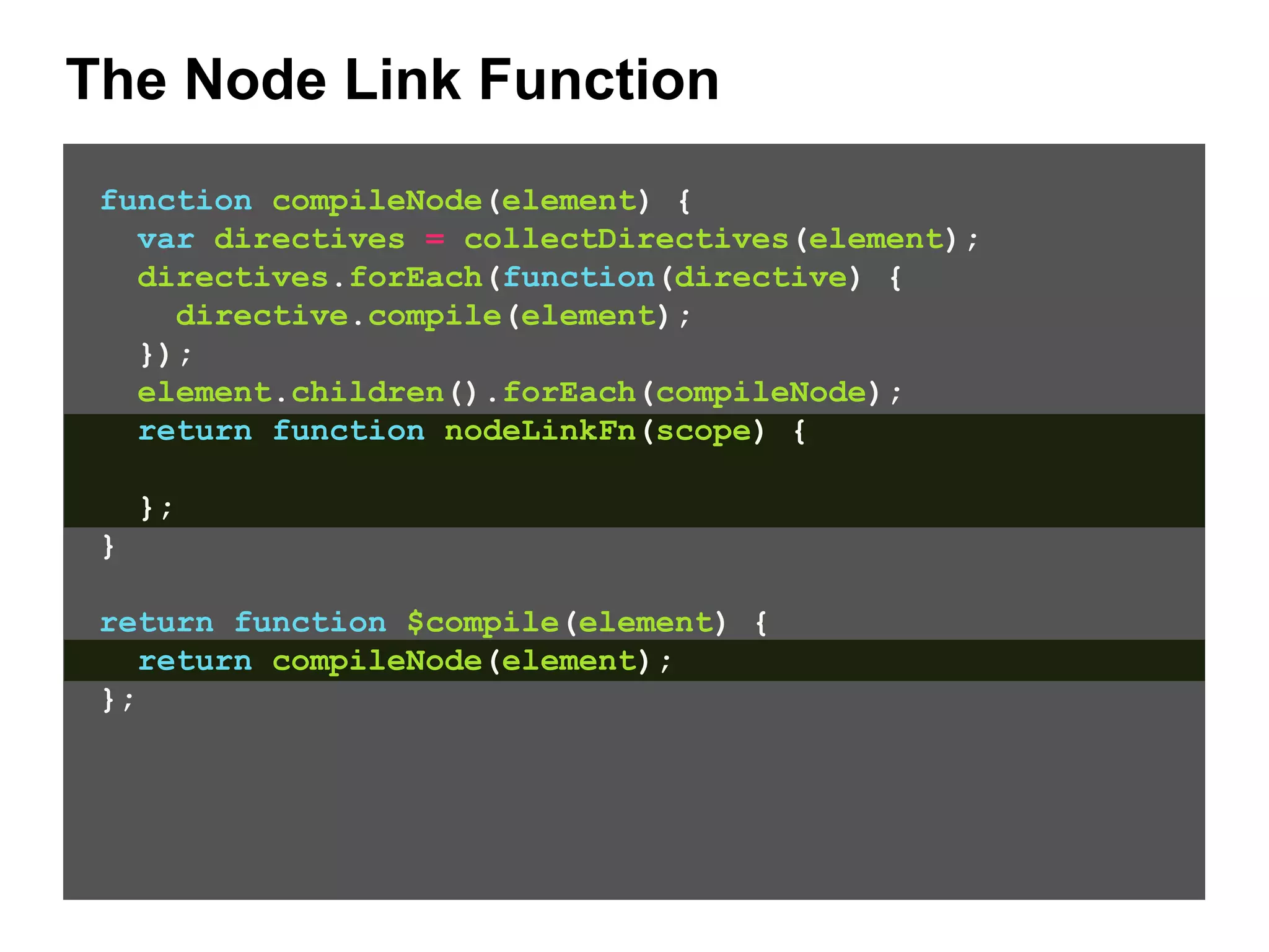

The Node Link Function function compileNode(element) { var directives = collectDirectives(element); directives.forEach(function(directive) { directive.compile(element); }); element.children().forEach(compileNode); return function nodeLinkFn(scope) { }; } return function $compile(element) { return compileNode(element); };

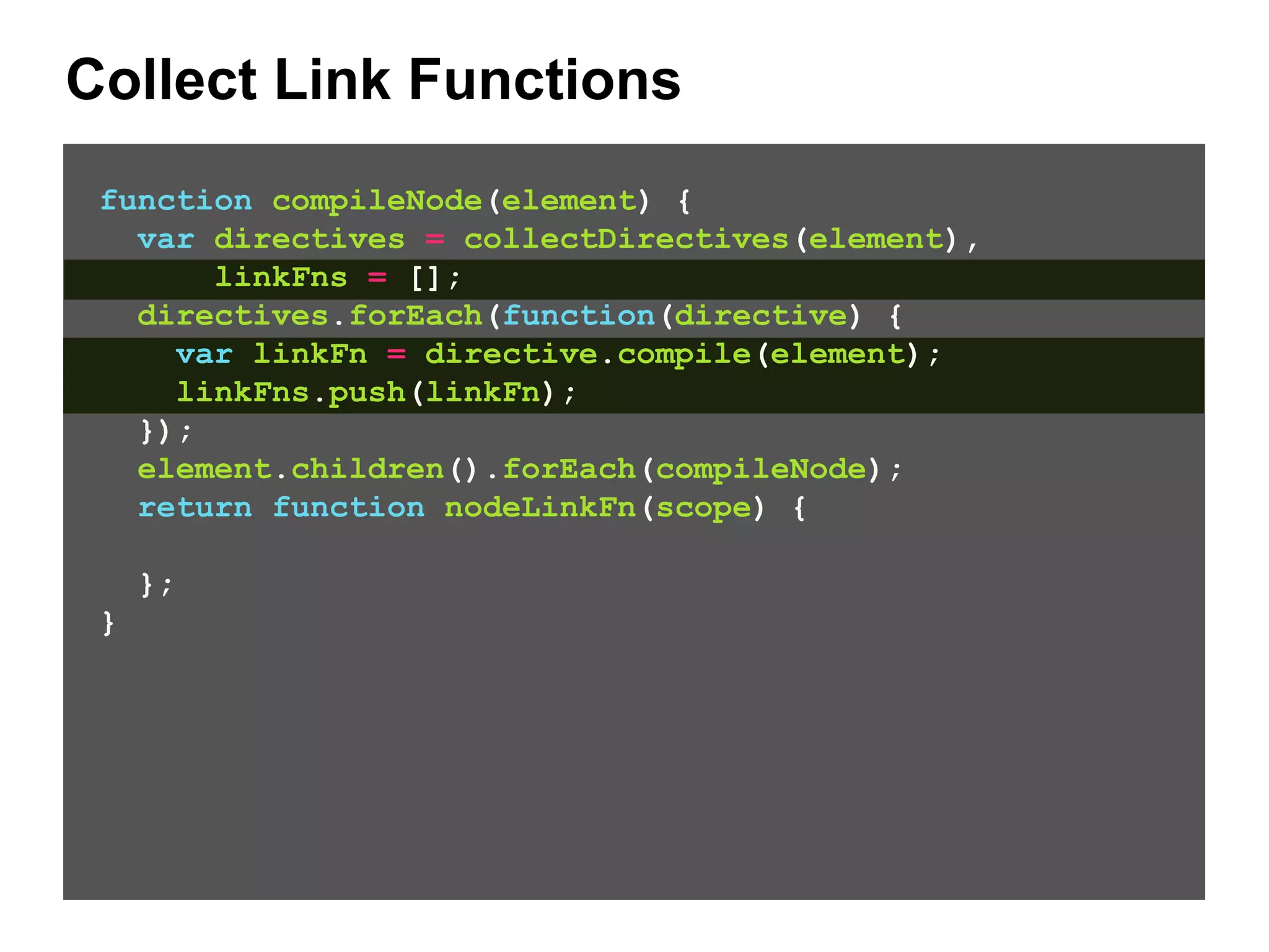

Collect Link Functions function compileNode(element) { var directives = collectDirectives(element), linkFns = []; directives.forEach(function(directive) { var linkFn = directive.compile(element); linkFns.push(linkFn); }); element.children().forEach(compileNode); return function nodeLinkFn(scope) { }; }

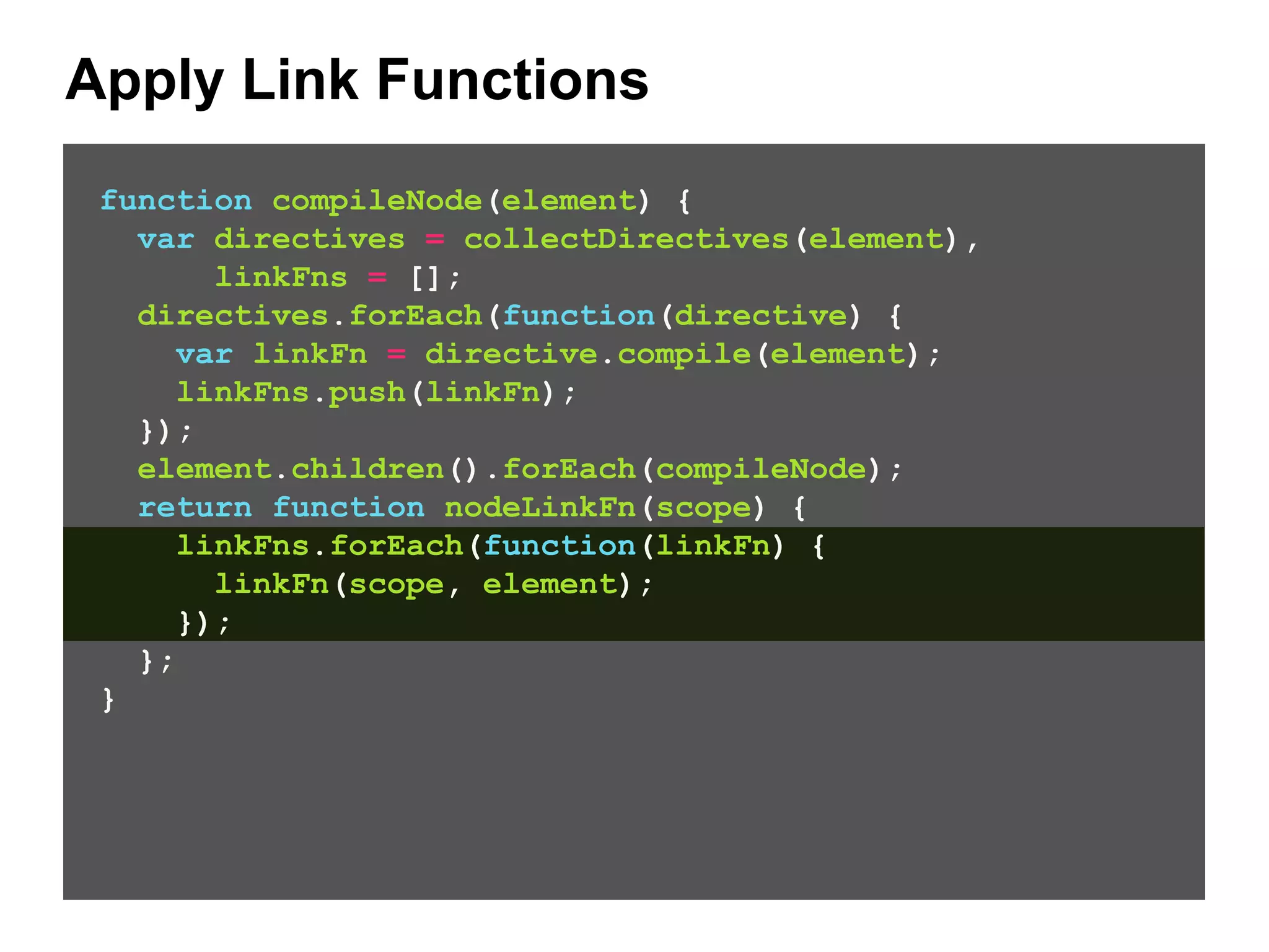

Apply Link Functions function compileNode(element) { var directives = collectDirectives(element), linkFns = []; directives.forEach(function(directive) { var linkFn = directive.compile(element); linkFns.push(linkFn); }); element.children().forEach(compileNode); return function nodeLinkFn(scope) { linkFns.forEach(function(linkFn) { linkFn(scope, element); }); }; }

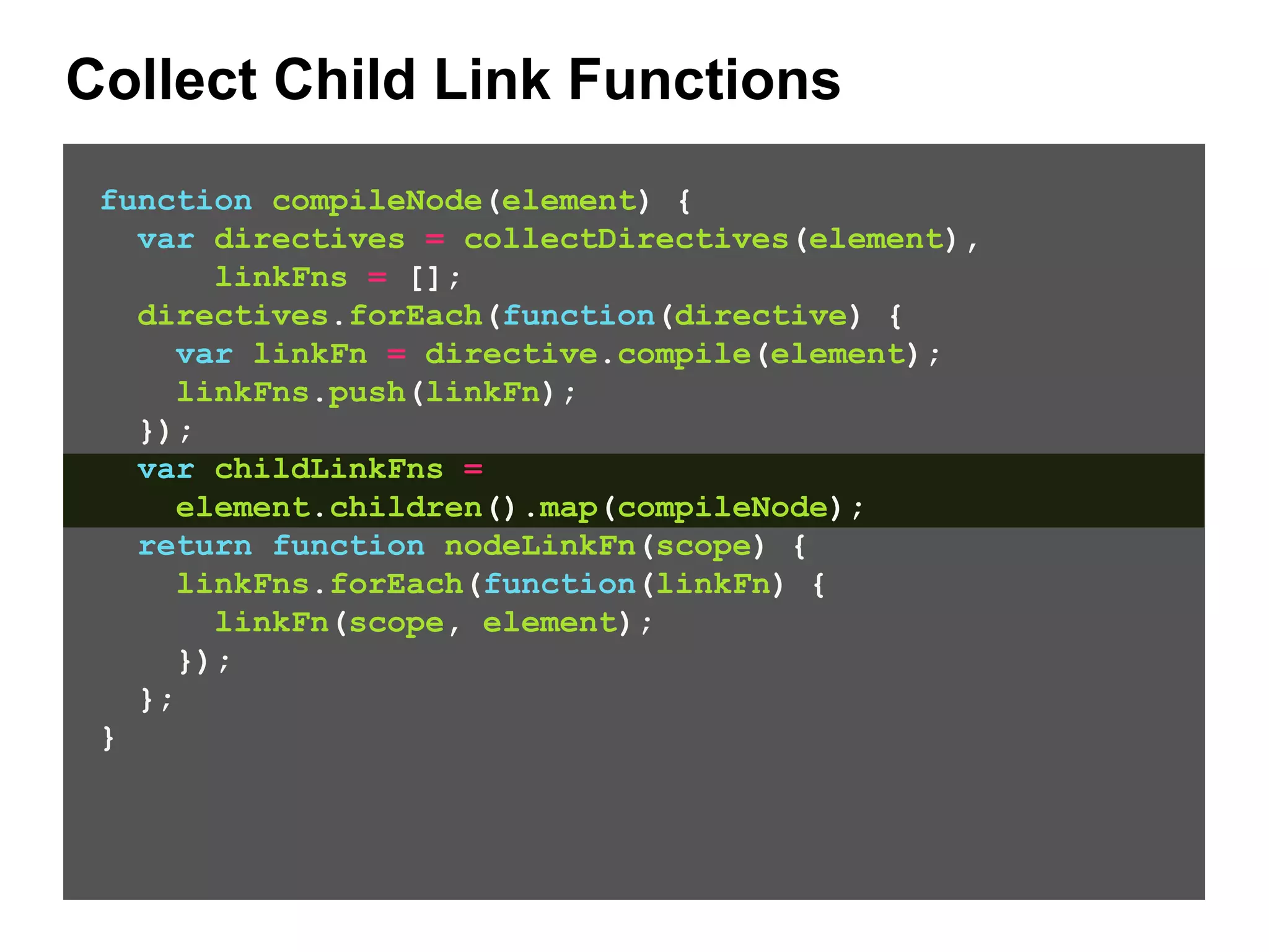

Collect Child Link Functions function compileNode(element) { var directives = collectDirectives(element), linkFns = []; directives.forEach(function(directive) { var linkFn = directive.compile(element); linkFns.push(linkFn); }); var childLinkFns = element.children().map(compileNode); return function nodeLinkFn(scope) { linkFns.forEach(function(linkFn) { linkFn(scope, element); }); }; }

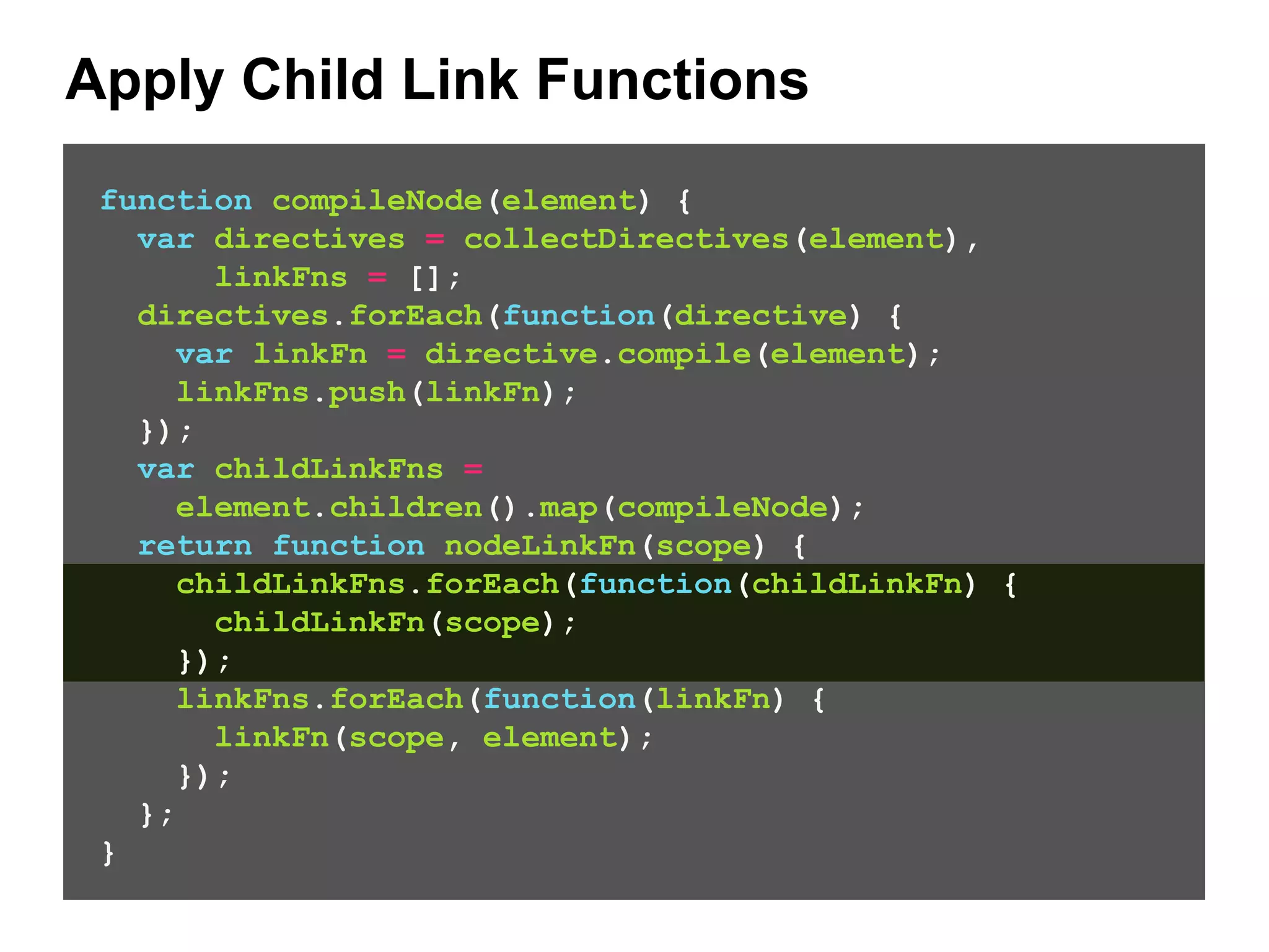

Apply Child Link Functions function compileNode(element) { var directives = collectDirectives(element), linkFns = []; directives.forEach(function(directive) { var linkFn = directive.compile(element); linkFns.push(linkFn); }); var childLinkFns = element.children().map(compileNode); return function nodeLinkFn(scope) { childLinkFns.forEach(function(childLinkFn) { childLinkFn(scope); }); linkFns.forEach(function(linkFn) { linkFn(scope, element); }); }; }

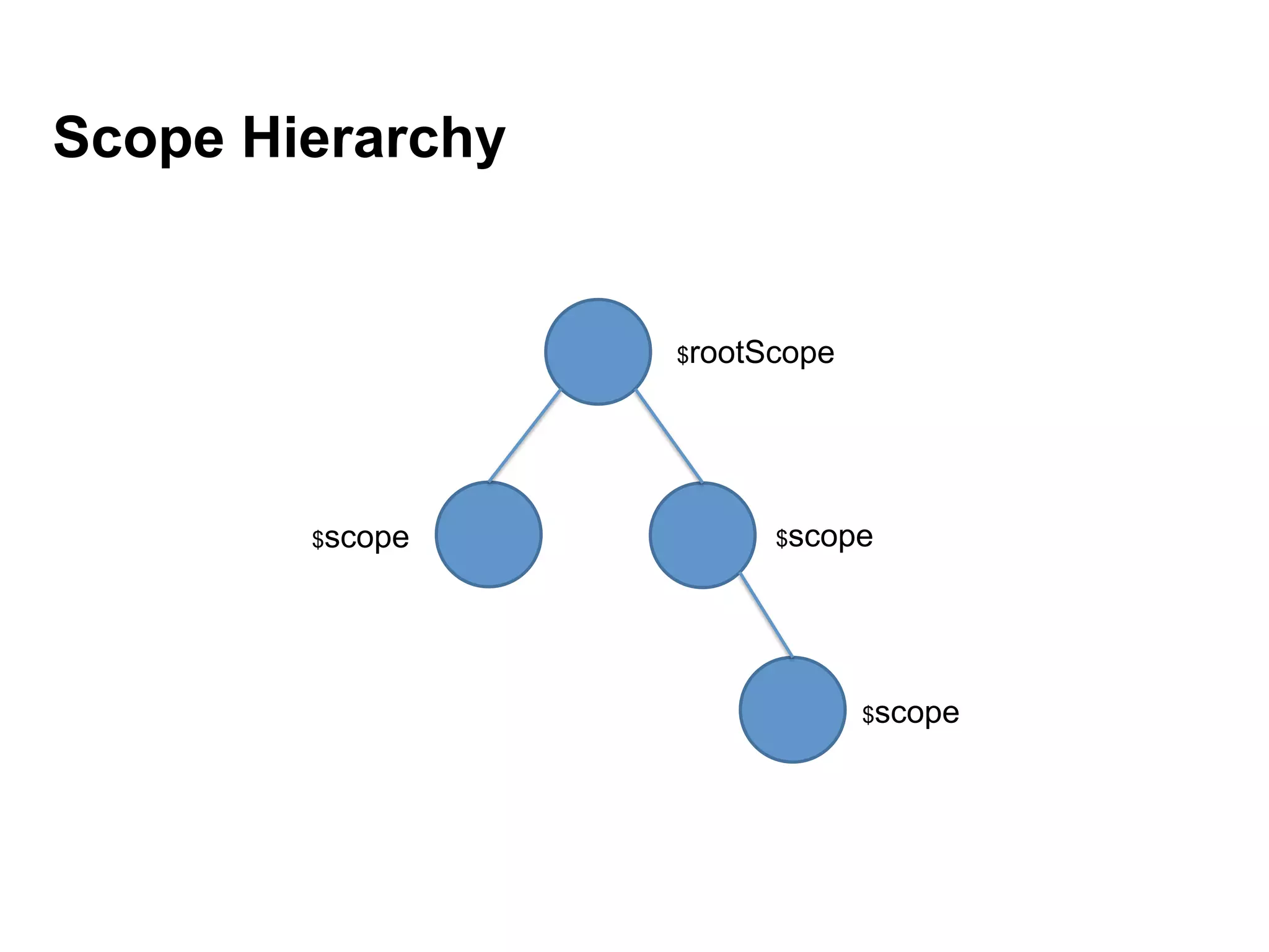

Scope Hierarchy $rootScope $scope $scope $scope

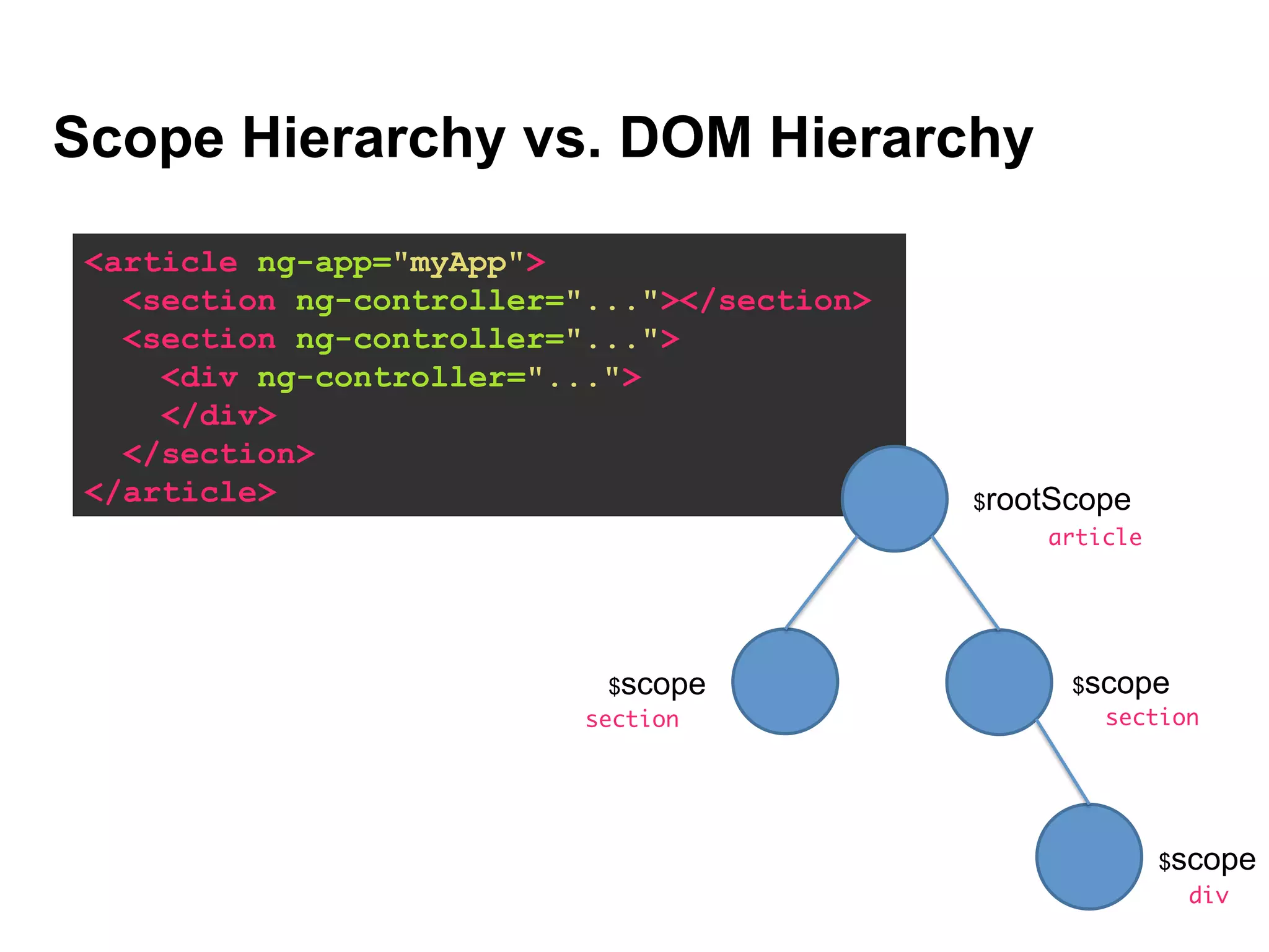

Scope Hierarchy vs. DOM Hierarchy <article ng-app="myApp"> <section ng-controller="..."></section> <section ng-controller="..."> <div ng-controller="..."> </div> </section> </article> $rootScope $scope $scope $scope article section section div

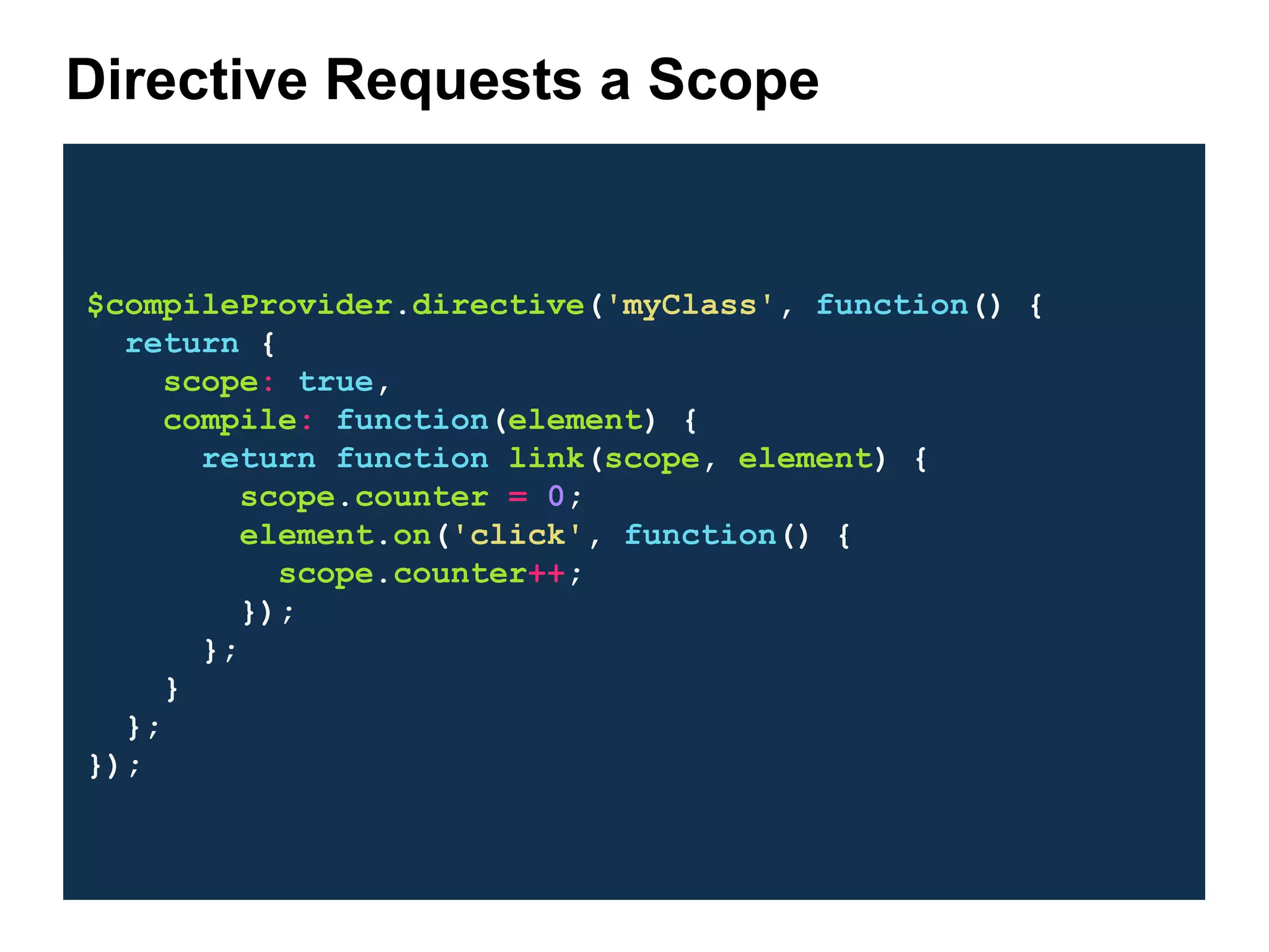

$compileProvider.directive('myClass', function() { return { scope: true, compile: function(element) { return function link(scope, element) { scope.counter = 0; element.on('click', function() { scope.counter++; }); }; } }; }); Directive Requests a Scope

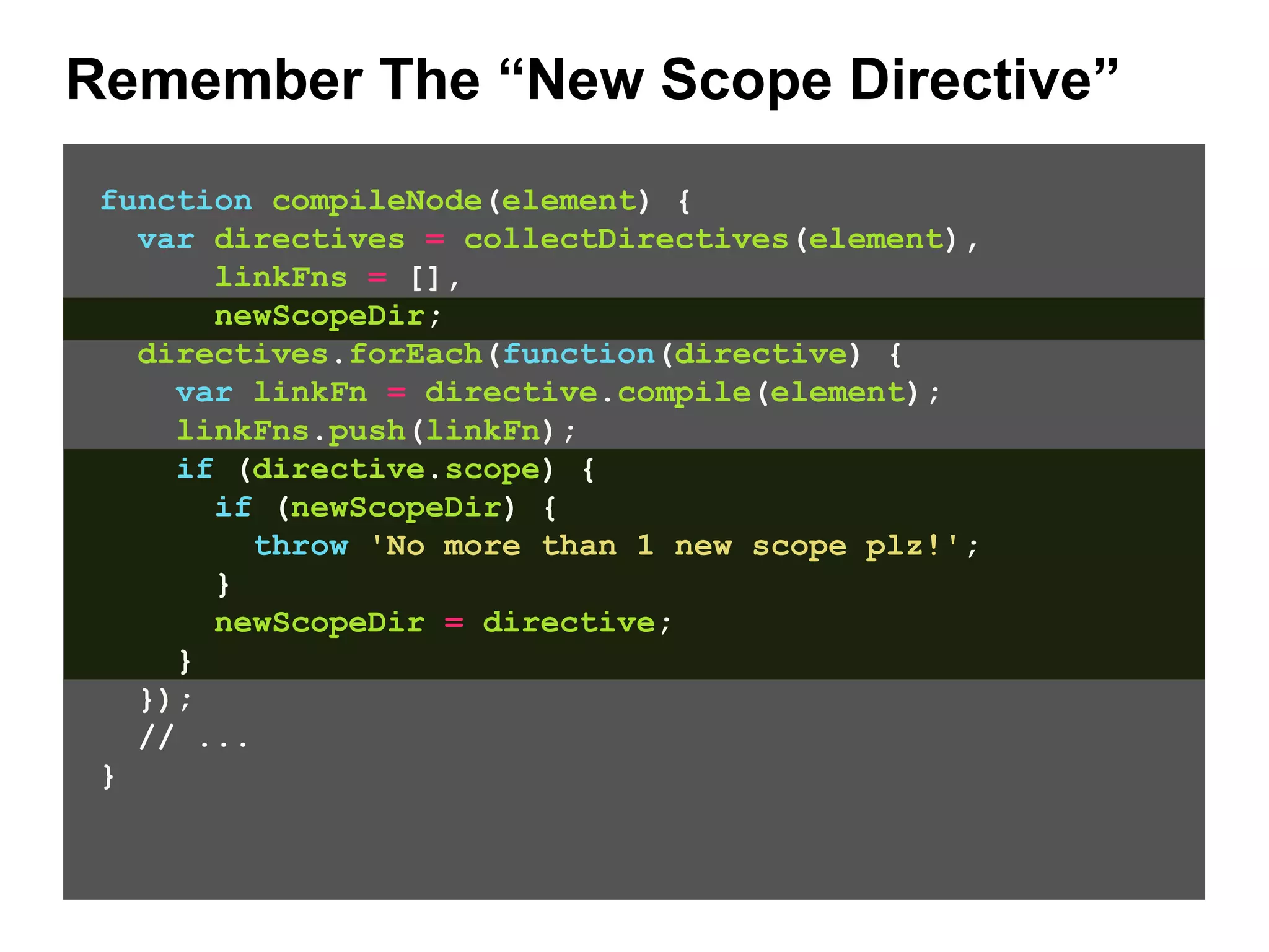

Remember The “New Scope Directive” function compileNode(element) { var directives = collectDirectives(element), linkFns = [], newScopeDir; directives.forEach(function(directive) { var linkFn = directive.compile(element); linkFns.push(linkFn); if (directive.scope) { if (newScopeDir) { throw 'No more than 1 new scope plz!'; } newScopeDir = directive; } }); // ... }

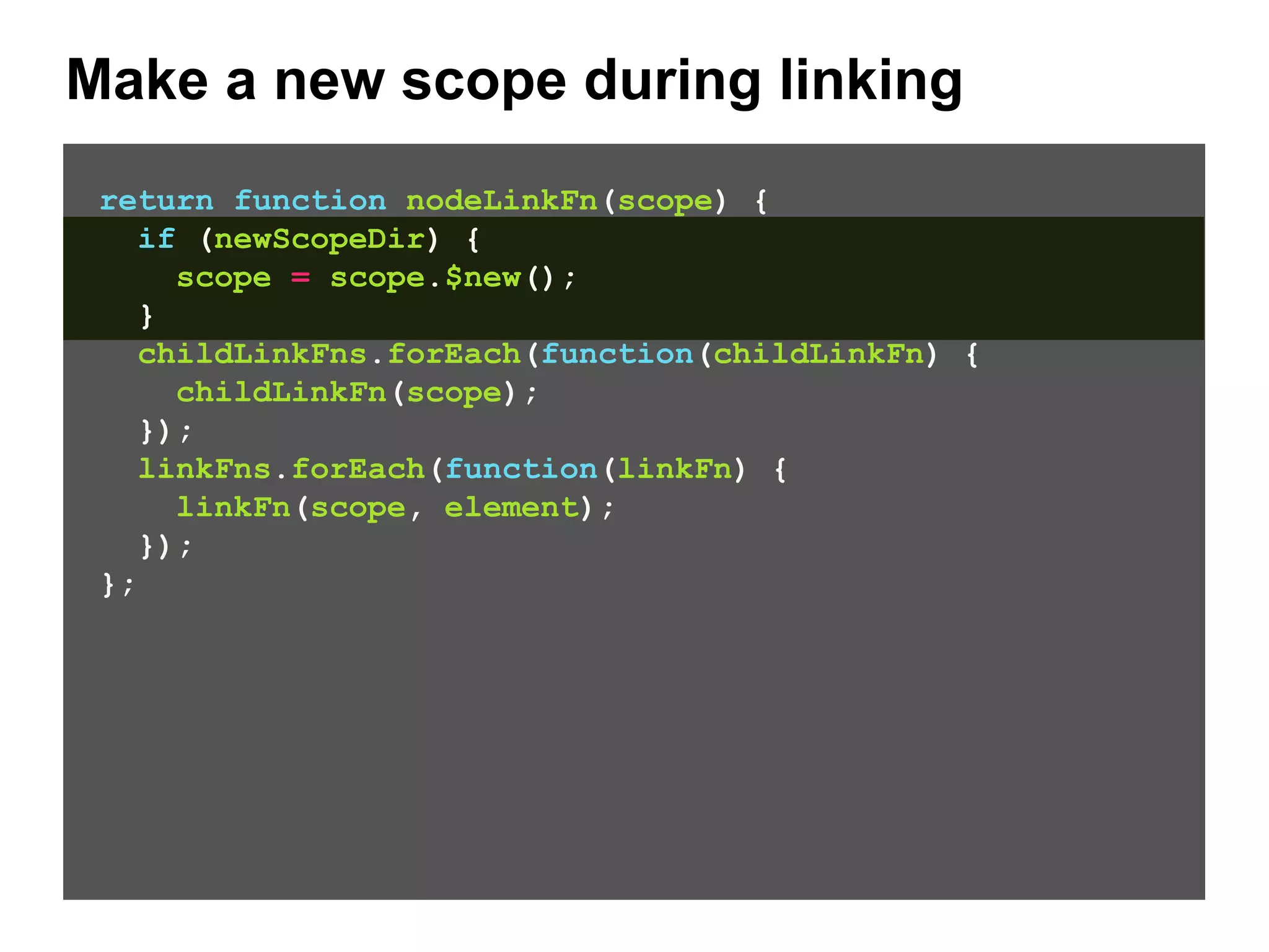

Make a new scope during linking return function nodeLinkFn(scope) { if (newScopeDir) { scope = scope.$new(); } childLinkFns.forEach(function(childLinkFn) { childLinkFn(scope); }); linkFns.forEach(function(linkFn) { linkFn(scope, element); }); };

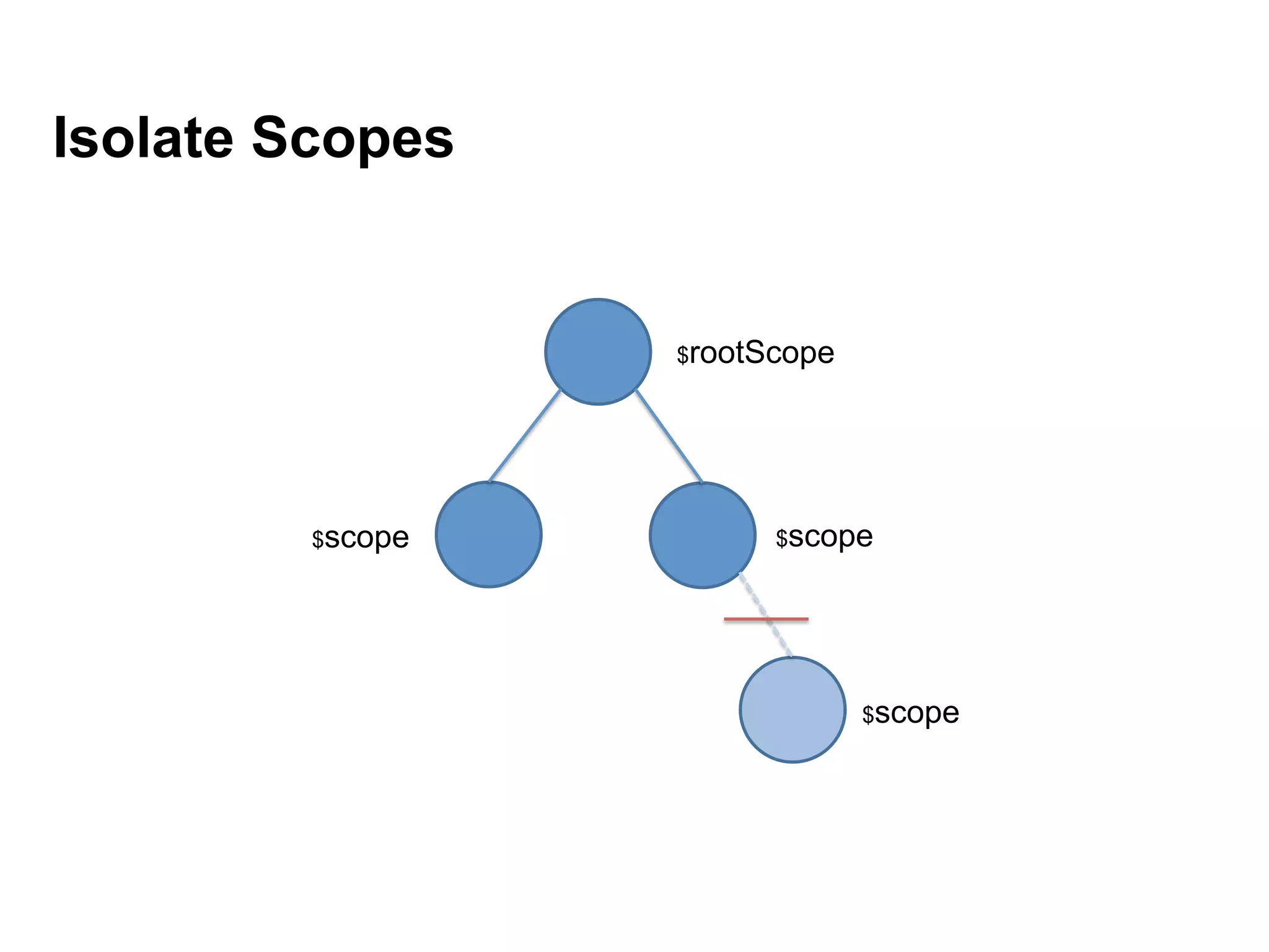

$rootScope $scope $scope $scope Isolate Scopes

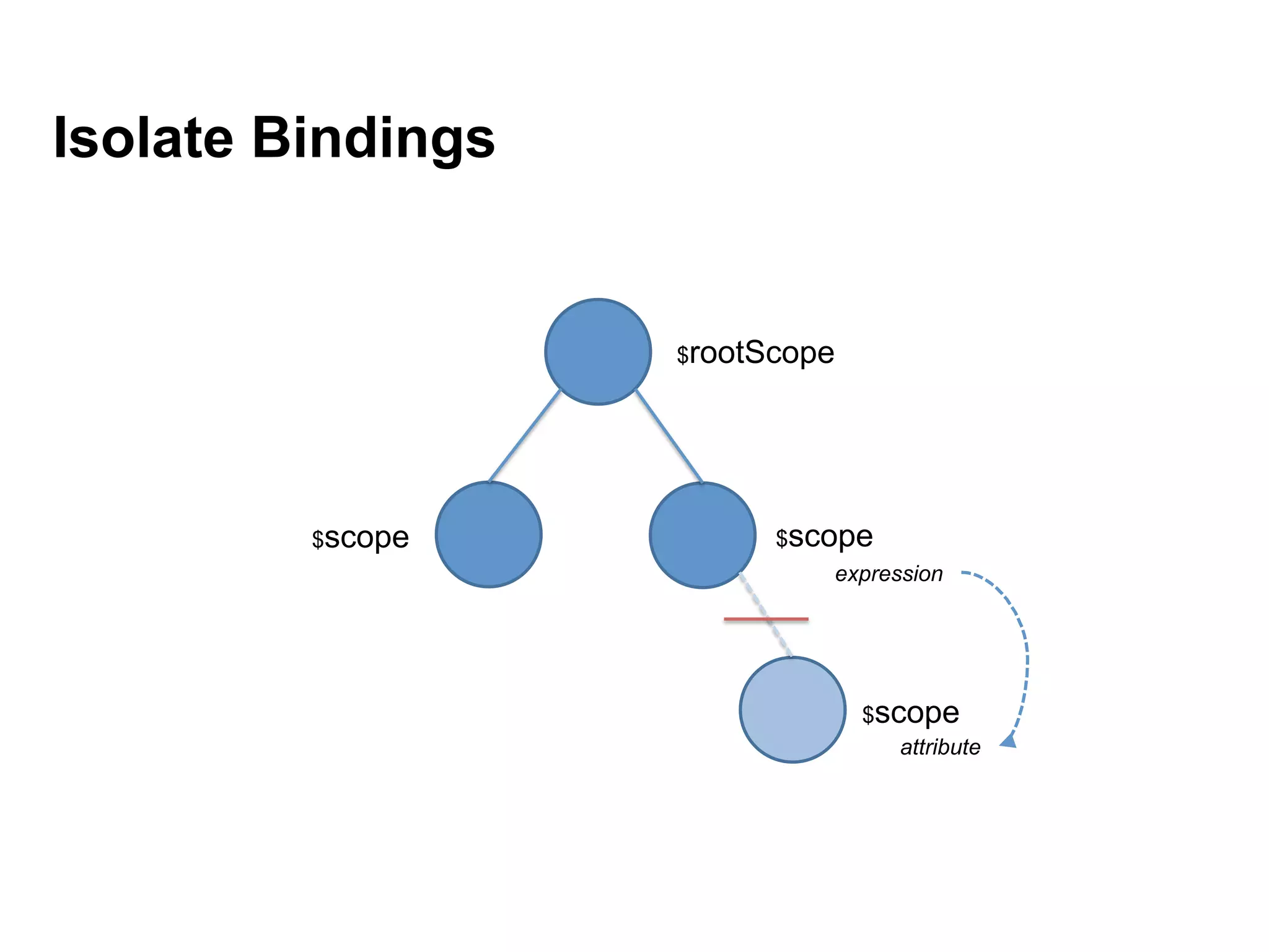

Isolate Bindings $rootScope $scope $scope $scope expression attribute

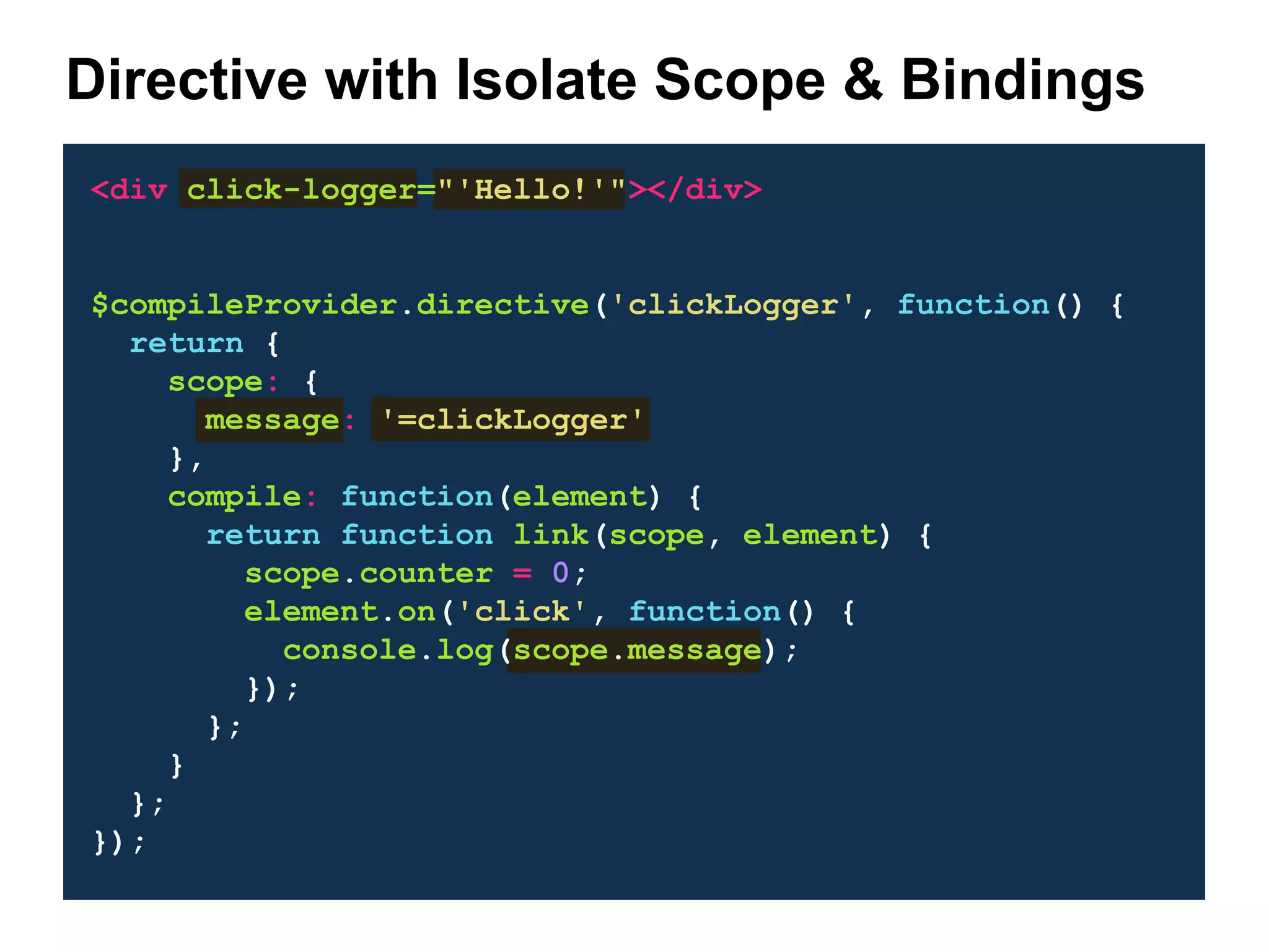

Directive with Isolate Scope & Bindings <div click-logger="'Hello!'"></div> $compileProvider.directive('clickLogger', function() { return { scope: { message: '=clickLogger' }, compile: function(element) { return function link(scope, element) { scope.counter = 0; element.on('click', function() { console.log(scope.message); }); }; } }; });

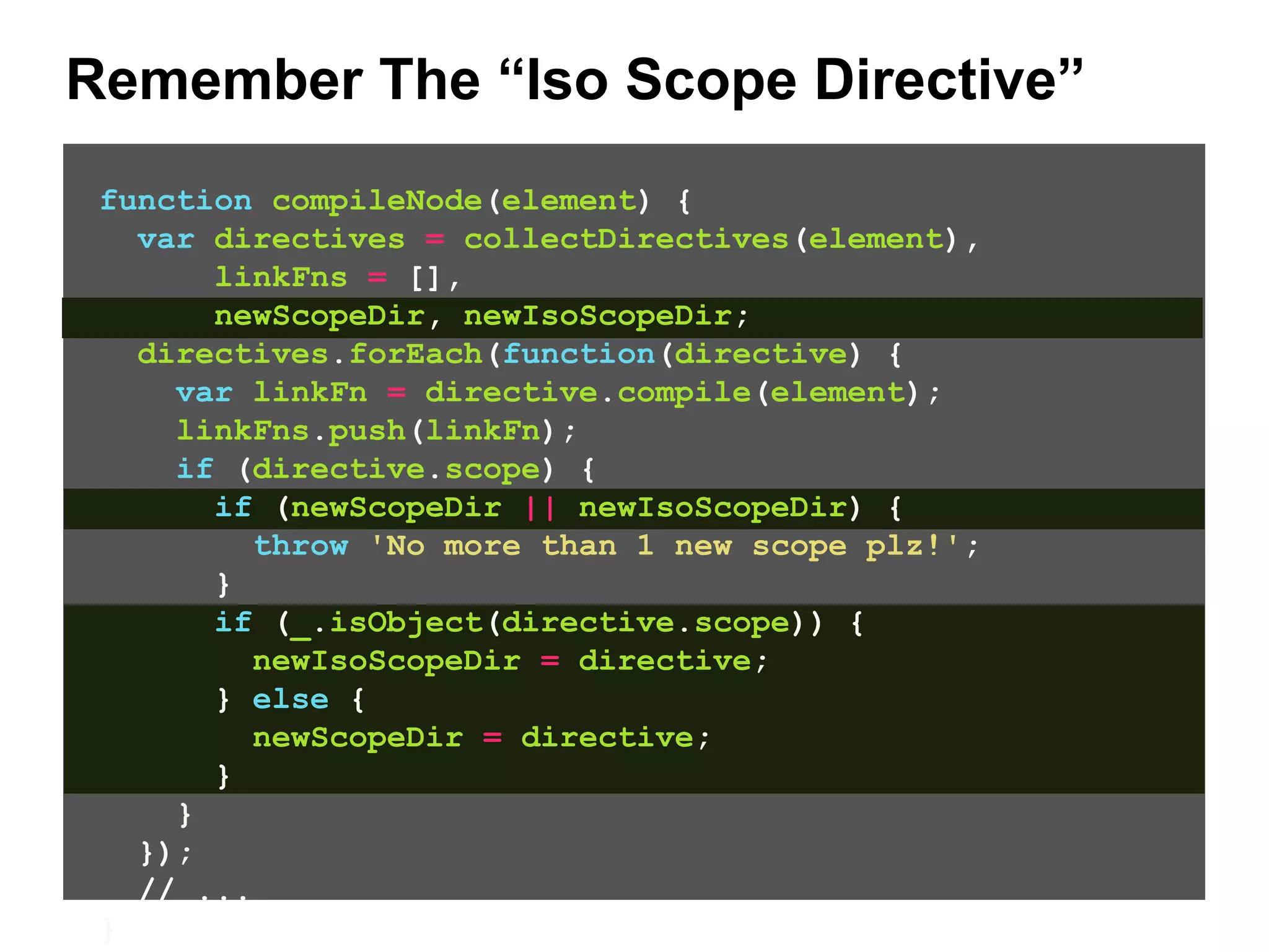

Remember The “Iso Scope Directive” function compileNode(element) { var directives = collectDirectives(element), linkFns = [], newScopeDir, newIsoScopeDir; directives.forEach(function(directive) { var linkFn = directive.compile(element); linkFns.push(linkFn); if (directive.scope) { if (newScopeDir || newIsoScopeDir) { throw 'No more than 1 new scope plz!'; } if (_.isObject(directive.scope)) { newIsoScopeDir = directive; } else { newScopeDir = directive; } } }); // ... }

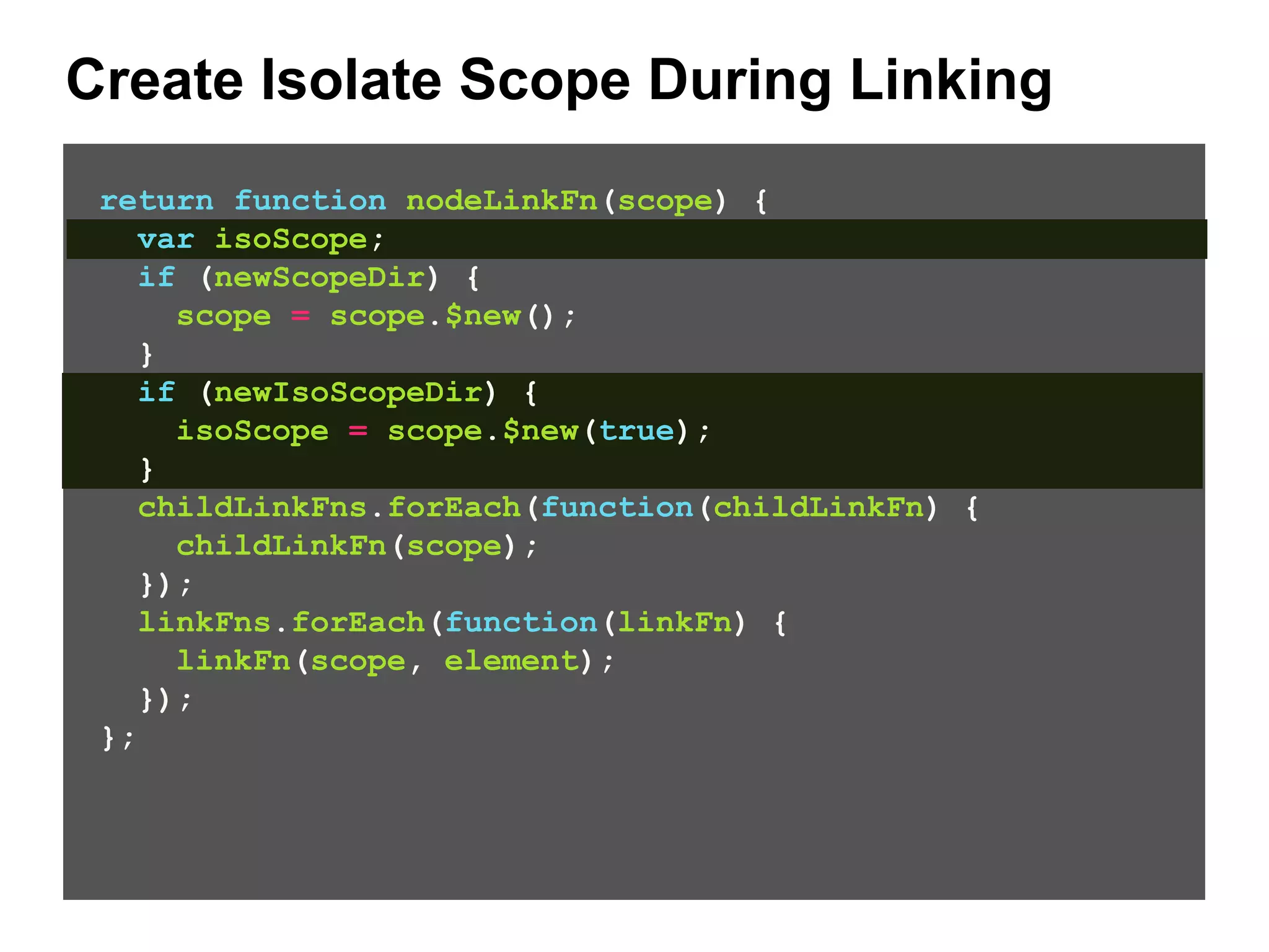

Create Isolate Scope During Linking return function nodeLinkFn(scope) { var isoScope; if (newScopeDir) { scope = scope.$new(); } if (newIsoScopeDir) { isoScope = scope.$new(true); } childLinkFns.forEach(function(childLinkFn) { childLinkFn(scope); }); linkFns.forEach(function(linkFn) { linkFn(scope, element); }); };

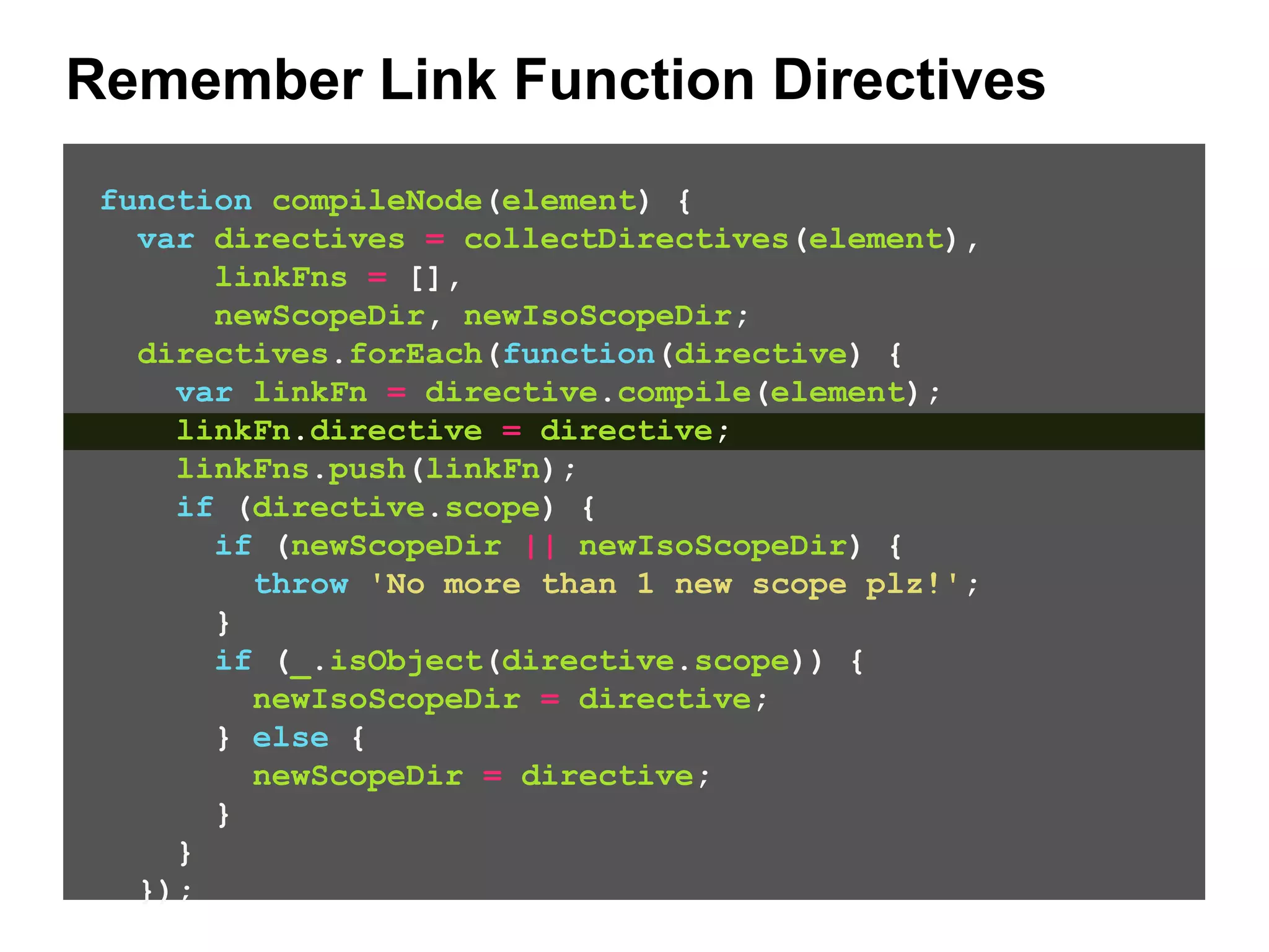

Remember Link Function Directives function compileNode(element) { var directives = collectDirectives(element), linkFns = [], newScopeDir, newIsoScopeDir; directives.forEach(function(directive) { var linkFn = directive.compile(element); linkFn.directive = directive; linkFns.push(linkFn); if (directive.scope) { if (newScopeDir || newIsoScopeDir) { throw 'No more than 1 new scope plz!'; } if (_.isObject(directive.scope)) { newIsoScopeDir = directive; } else { newScopeDir = directive; } } }); // ...

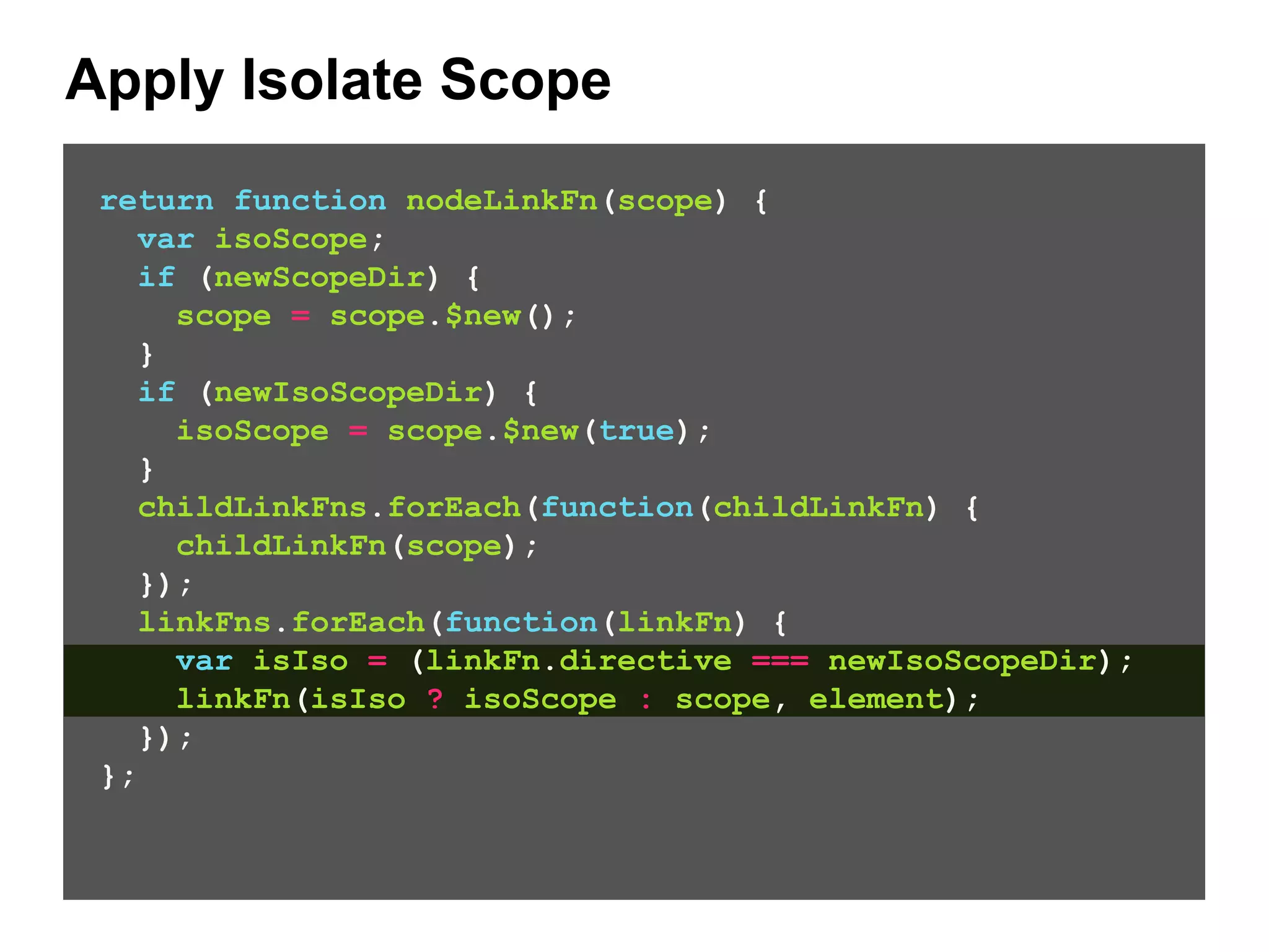

Apply Isolate Scope return function nodeLinkFn(scope) { var isoScope; if (newScopeDir) { scope = scope.$new(); } if (newIsoScopeDir) { isoScope = scope.$new(true); } childLinkFns.forEach(function(childLinkFn) { childLinkFn(scope); }); linkFns.forEach(function(linkFn) { var isIso = (linkFn.directive === newIsoScopeDir); linkFn(isIso ? isoScope : scope, element); }); };

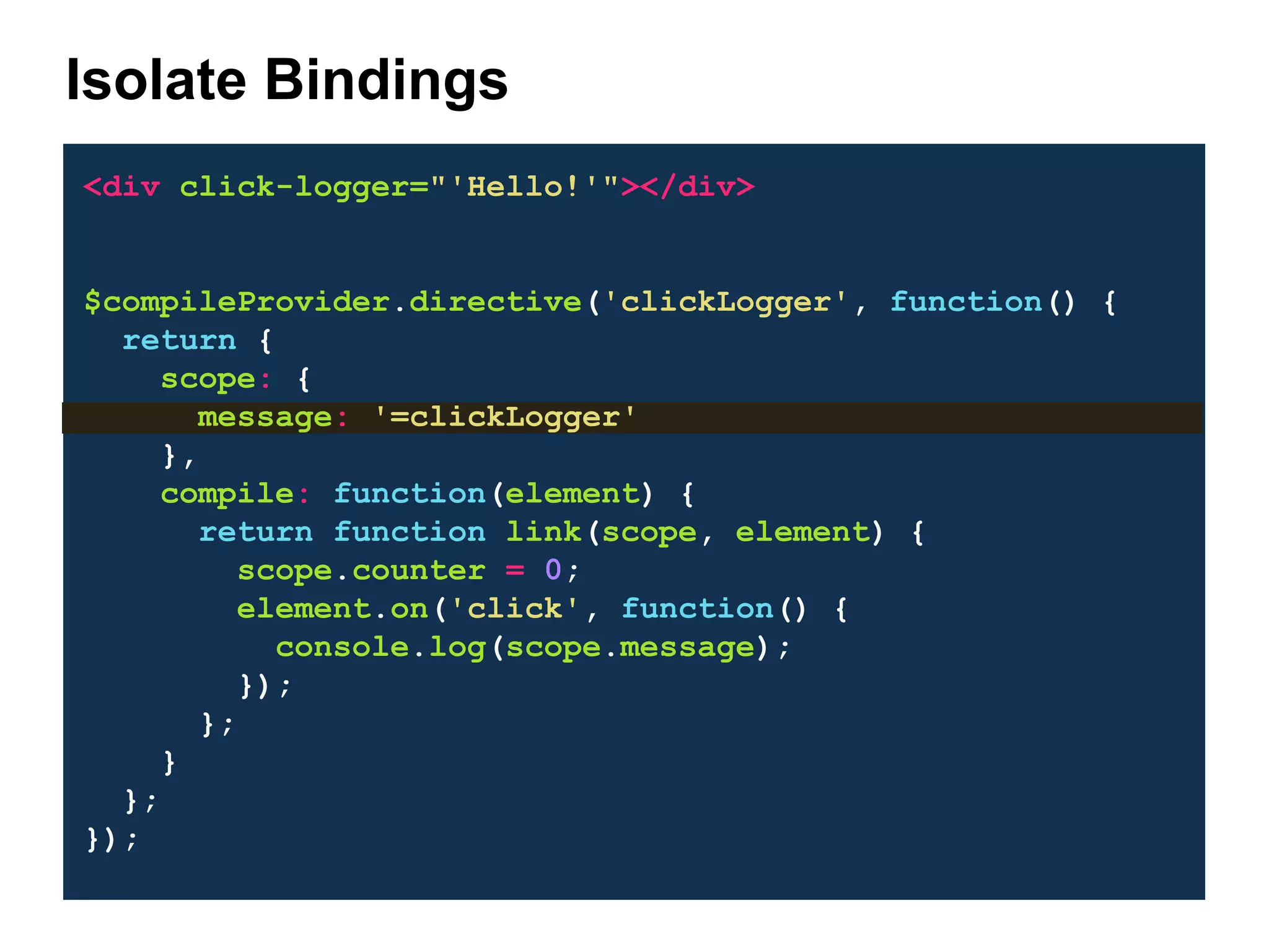

Isolate Bindings <div click-logger="'Hello!'"></div> $compileProvider.directive('clickLogger', function() { return { scope: { message: '=clickLogger' }, compile: function(element) { return function link(scope, element) { scope.counter = 0; element.on('click', function() { console.log(scope.message); }); }; } }; });

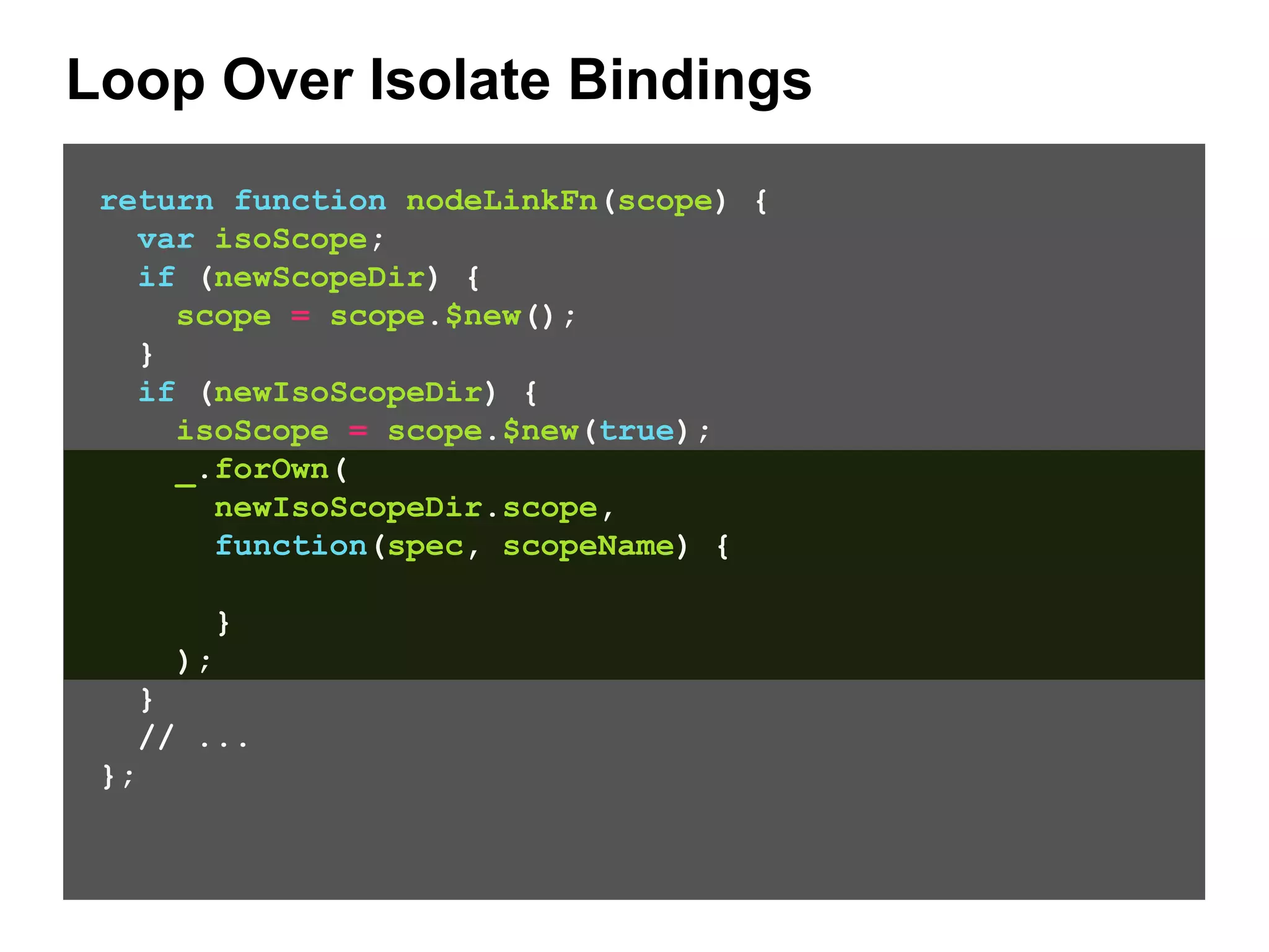

Loop Over Isolate Bindings return function nodeLinkFn(scope) { var isoScope; if (newScopeDir) { scope = scope.$new(); } if (newIsoScopeDir) { isoScope = scope.$new(true); _.forOwn( newIsoScopeDir.scope, function(spec, scopeName) { } ); } // ... };

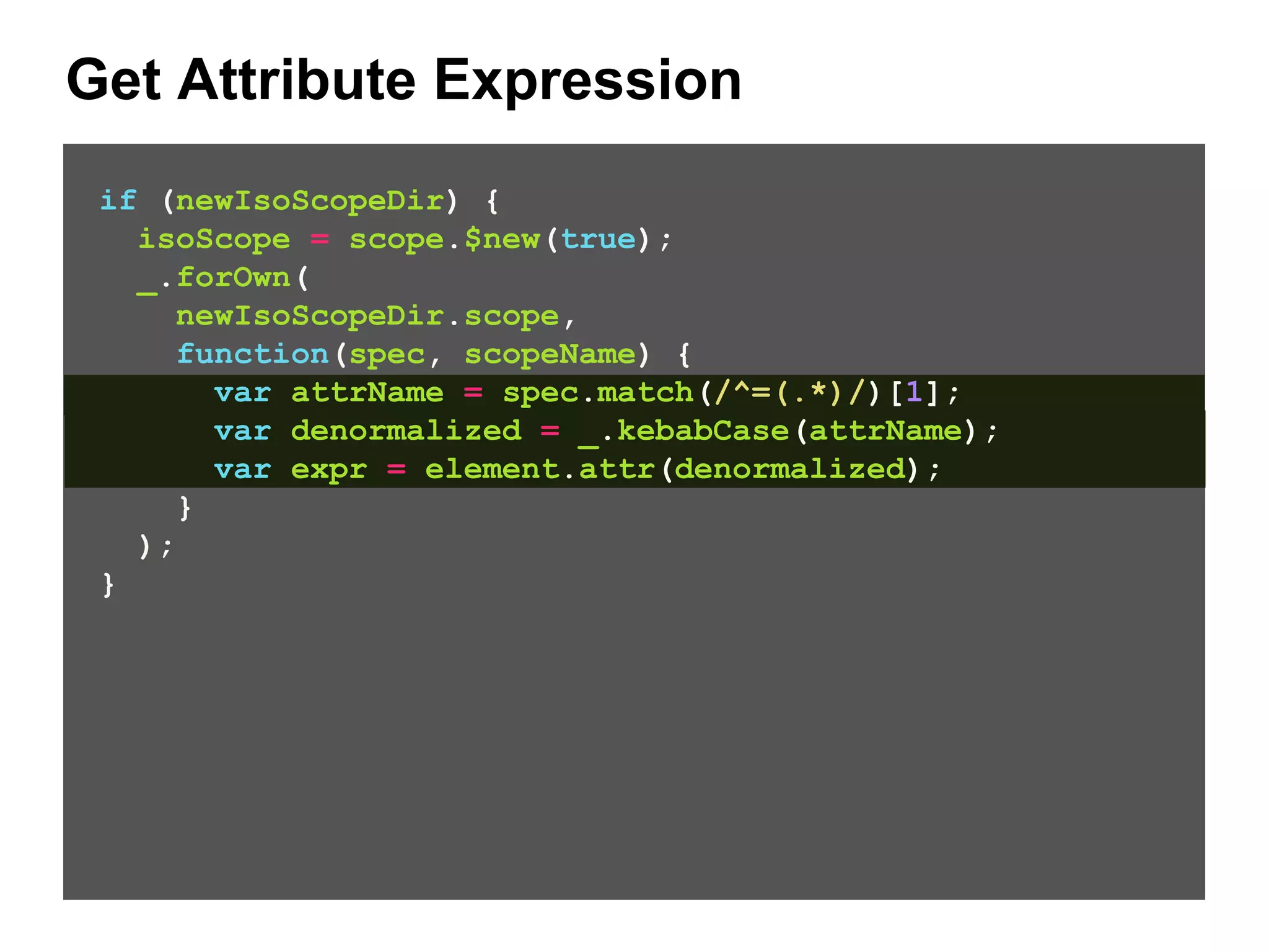

Get Attribute Expression if (newIsoScopeDir) { isoScope = scope.$new(true); _.forOwn( newIsoScopeDir.scope, function(spec, scopeName) { var attrName = spec.match(/^=(.*)/)[1]; var denormalized = _.kebabCase(attrName); var expr = element.attr(denormalized); } ); }

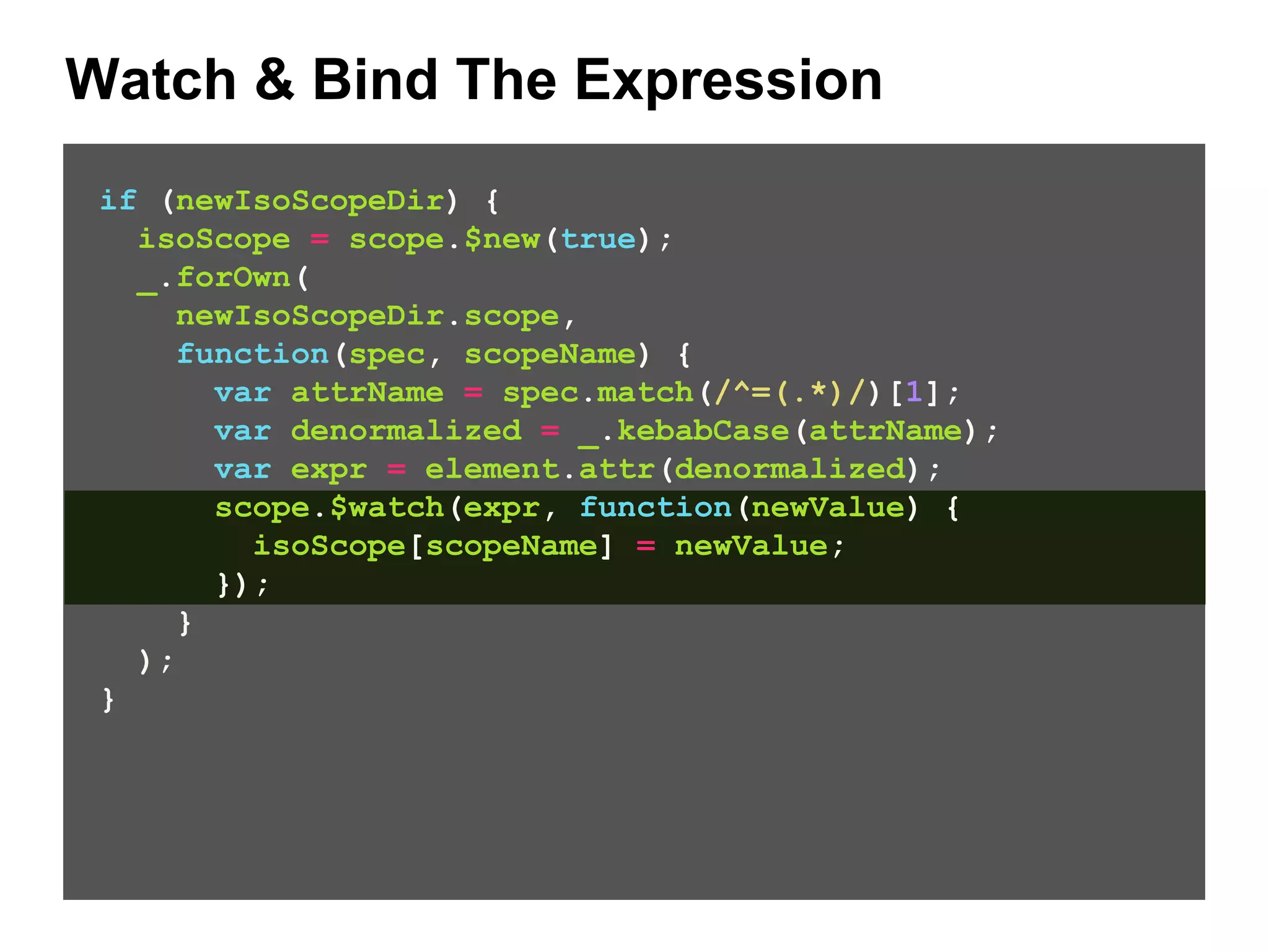

Watch & Bind The Expression if (newIsoScopeDir) { isoScope = scope.$new(true); _.forOwn( newIsoScopeDir.scope, function(spec, scopeName) { var attrName = spec.match(/^=(.*)/)[1]; var denormalized = _.kebabCase(attrName); var expr = element.attr(denormalized); scope.$watch(expr, function(newValue) { isoScope[scopeName] = newValue; }); } ); }

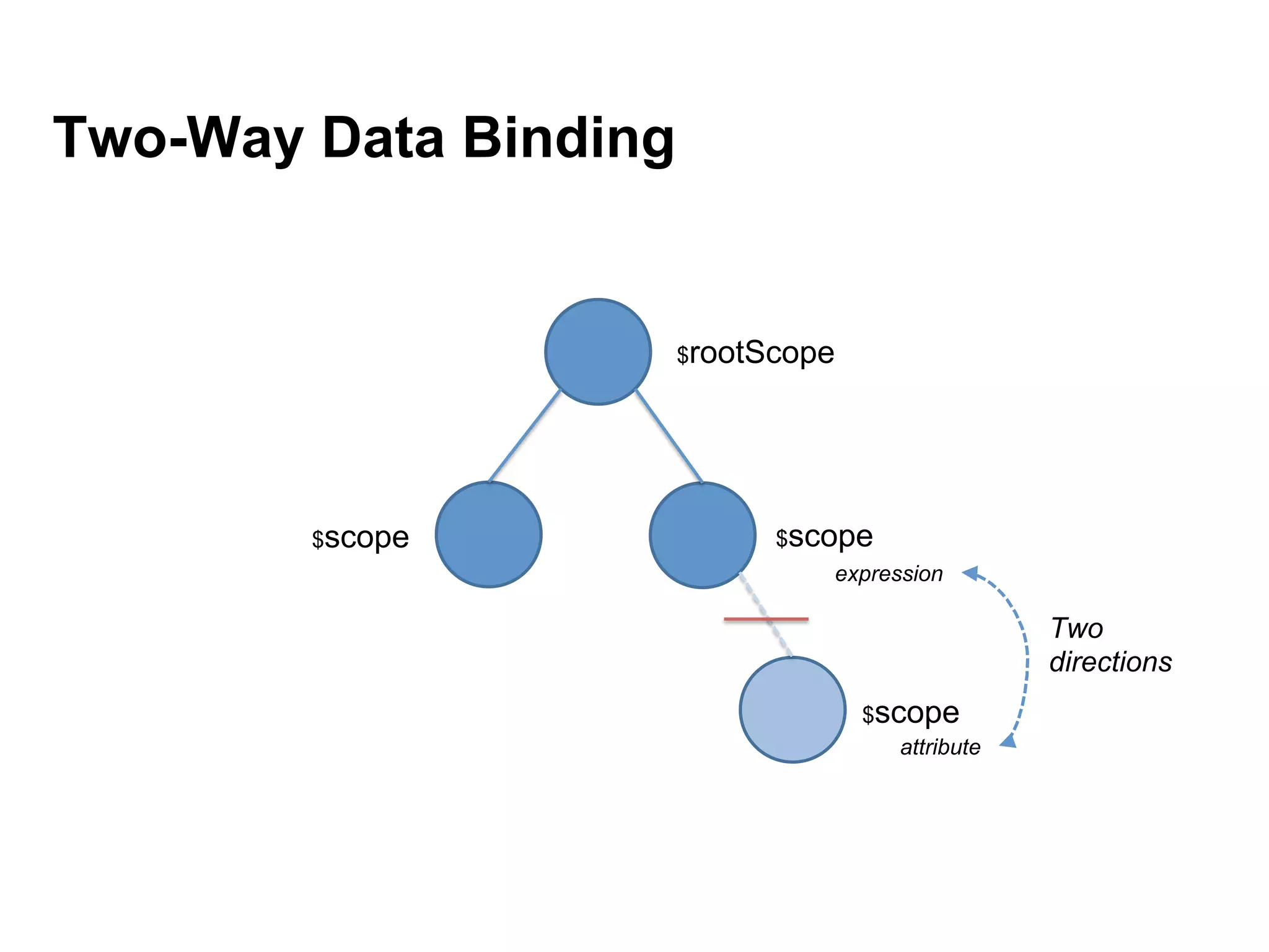

Two-Way Data Binding $rootScope $scope $scope $scope expression attribute Two directions

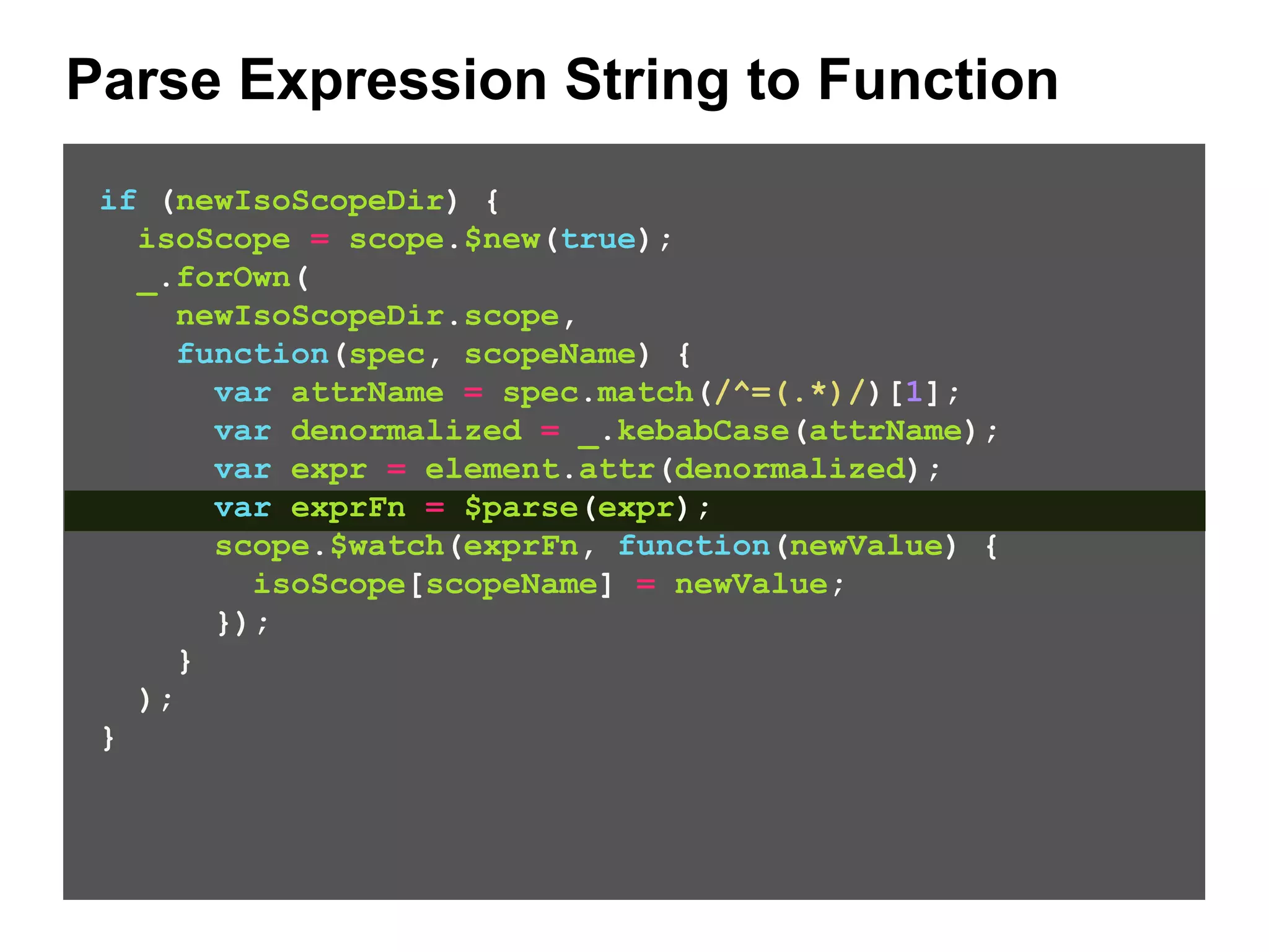

Parse Expression String to Function if (newIsoScopeDir) { isoScope = scope.$new(true); _.forOwn( newIsoScopeDir.scope, function(spec, scopeName) { var attrName = spec.match(/^=(.*)/)[1]; var denormalized = _.kebabCase(attrName); var expr = element.attr(denormalized); var exprFn = $parse(expr); scope.$watch(exprFn, function(newValue) { isoScope[scopeName] = newValue; }); } ); }

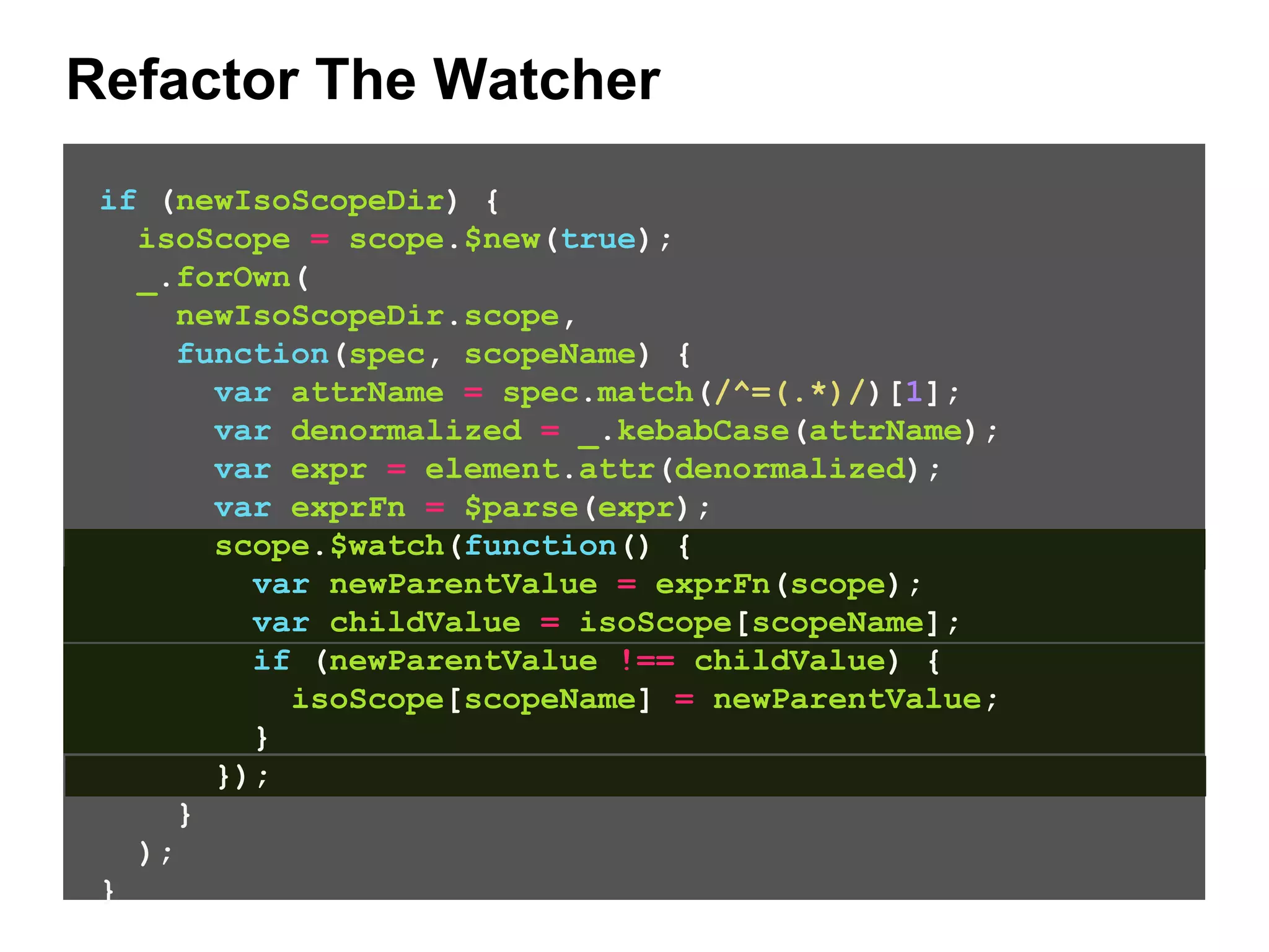

Refactor The Watcher if (newIsoScopeDir) { isoScope = scope.$new(true); _.forOwn( newIsoScopeDir.scope, function(spec, scopeName) { var attrName = spec.match(/^=(.*)/)[1]; var denormalized = _.kebabCase(attrName); var expr = element.attr(denormalized); var exprFn = $parse(expr); scope.$watch(function() { var newParentValue = exprFn(scope); var childValue = isoScope[scopeName]; if (newParentValue !== childValue) { isoScope[scopeName] = newParentValue; } }); } ); }

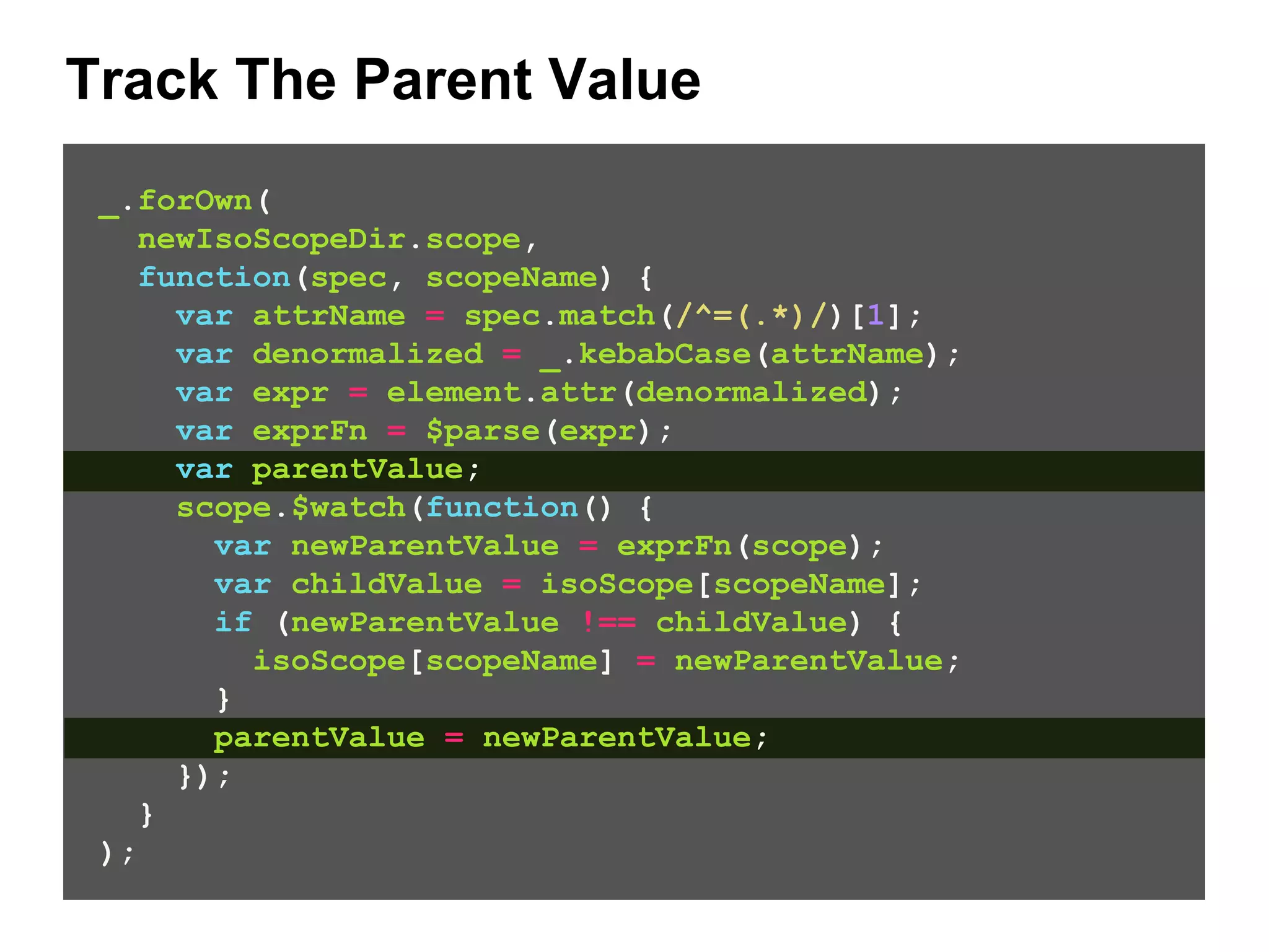

Track The Parent Value _.forOwn( newIsoScopeDir.scope, function(spec, scopeName) { var attrName = spec.match(/^=(.*)/)[1]; var denormalized = _.kebabCase(attrName); var expr = element.attr(denormalized); var exprFn = $parse(expr); var parentValue; scope.$watch(function() { var newParentValue = exprFn(scope); var childValue = isoScope[scopeName]; if (newParentValue !== childValue) { isoScope[scopeName] = newParentValue; } parentValue = newParentValue; }); } );

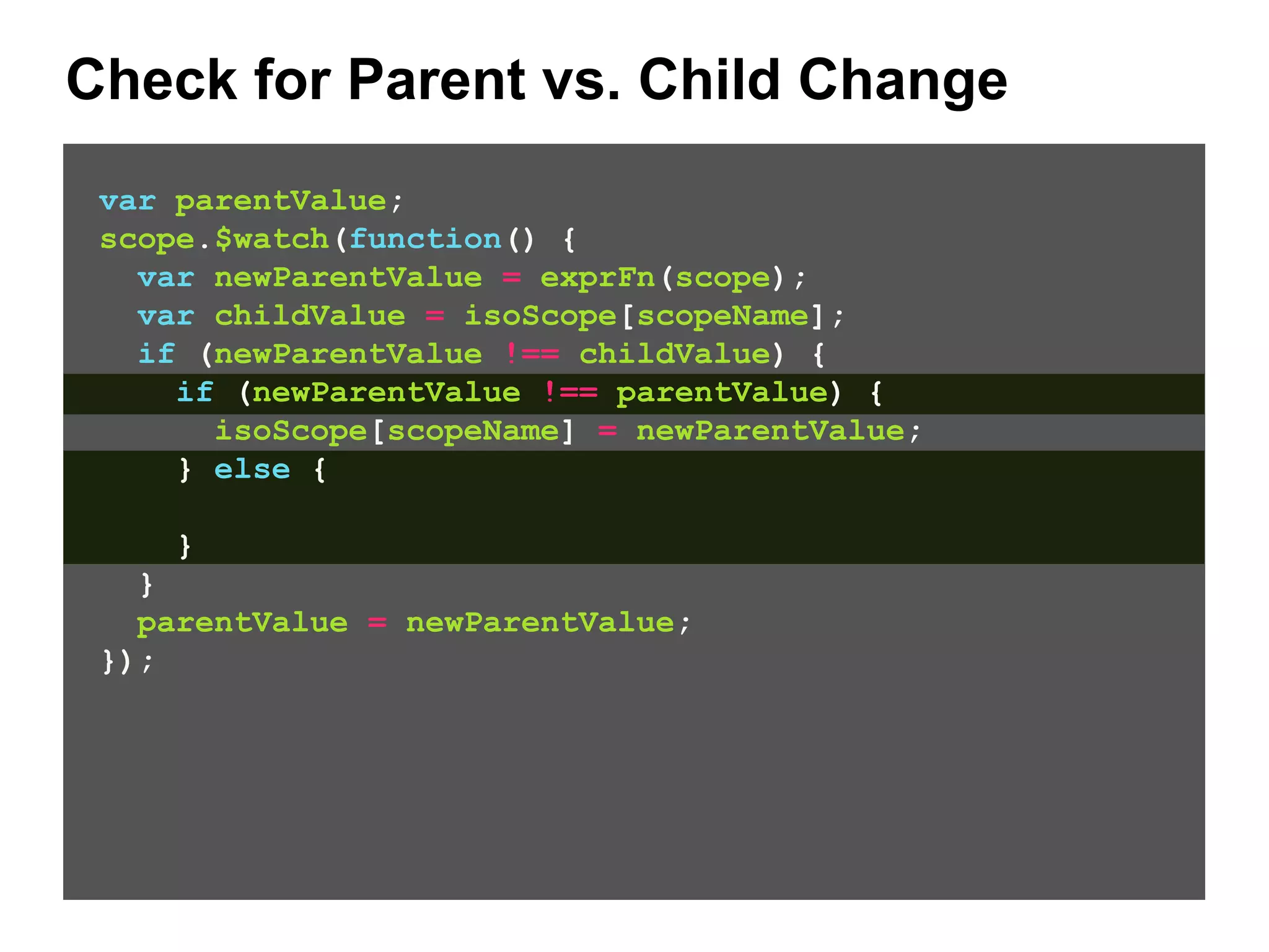

Check for Parent vs. Child Change var parentValue; scope.$watch(function() { var newParentValue = exprFn(scope); var childValue = isoScope[scopeName]; if (newParentValue !== childValue) { if (newParentValue !== parentValue) { isoScope[scopeName] = newParentValue; } else { } } parentValue = newParentValue; });

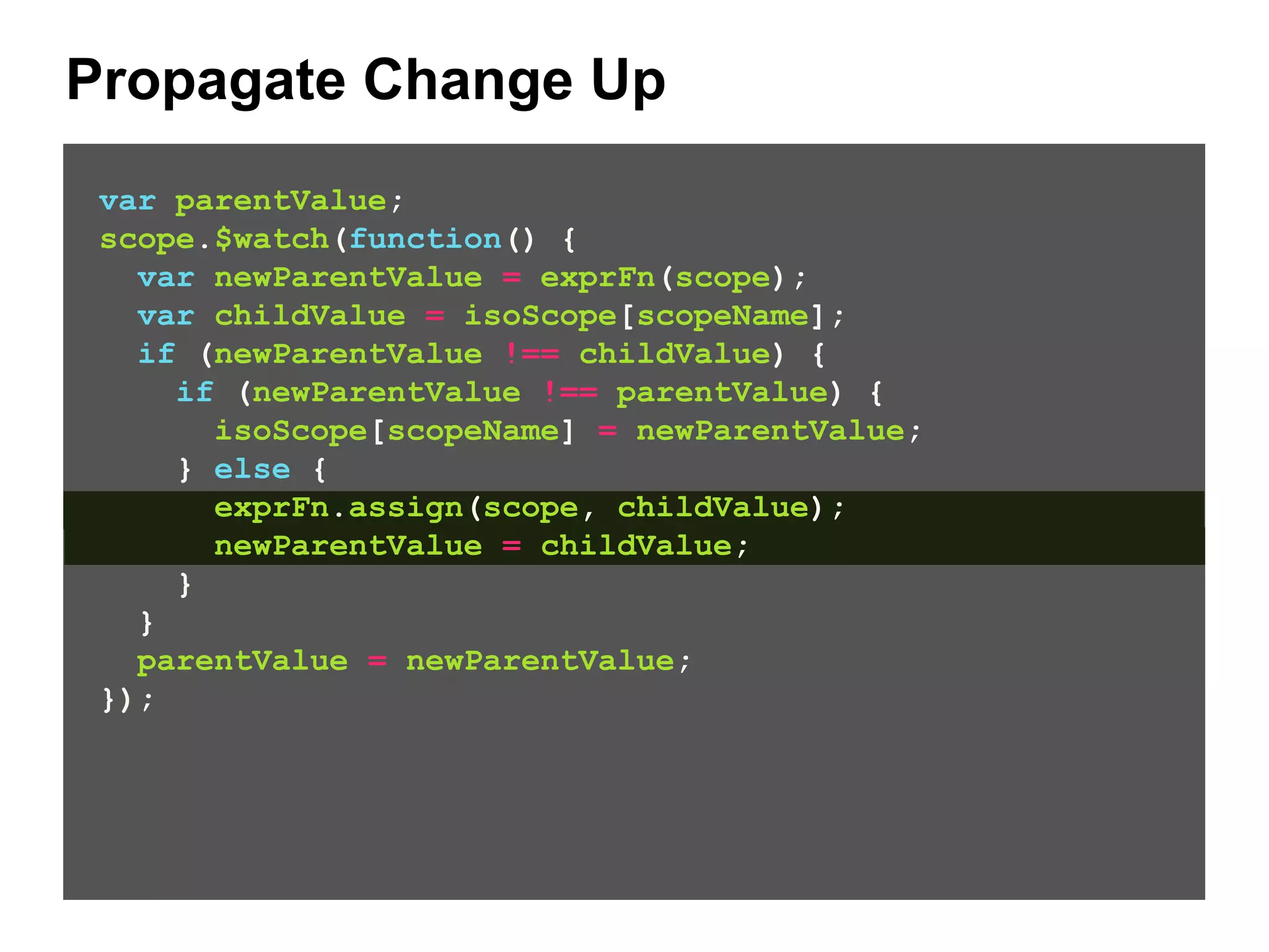

Propagate Change Up var parentValue; scope.$watch(function() { var newParentValue = exprFn(scope); var childValue = isoScope[scopeName]; if (newParentValue !== childValue) { if (newParentValue !== parentValue) { isoScope[scopeName] = newParentValue; } else { exprFn.assign(scope, childValue); newParentValue = childValue; } } parentValue = newParentValue; });

teropa.info -75% off list price with code ”FRAMEWORKSDAYS”
