Intro to AWS Lambda
The document provides an overview of AWS Lambda, highlighting its serverless computing model, automatic scaling, and cost structure based on CPU time. It describes common use cases, execution model, fault tolerance, and the process for setting up Lambda functions using various programming languages. Additionally, it outlines configuration steps, logging, monitoring practices, and integration with continuous deployment tools.
Intro to AWS Lambda
- 1. Intro to AWSLambda Sandra Garcia, Jose San Pedro Data Learning Sessions. 16th March 2017
- 2. What is AWSLambda - Serverless Computing - 100% managed - Scales automatically - Pay per time of CPU - Lambda Functions - Languages: NodeJS / Python / Java / Scala - Stateless - Suitable for quick event-based operations (<5min) - Fast to setup: a basic setup Lambda + trigger + basic function can be done in 1/2h ;)
- 3.
- 4.
- 5.
- 6. ● Inputs ○ Code:Controls what lambda does ○ RAM: Controls the amount of resources provisioned (CPU, etc) ○ Time: Controls the cost ● When a lambda function is triggered ○ AWS launches a container and executes it ○ Container creation is expensive, aws tries to reuse it for subsequent invocations ■ Global environment of the code is preserved ■ /tmp folder persists ○ No control for when containers are reused Execution Model

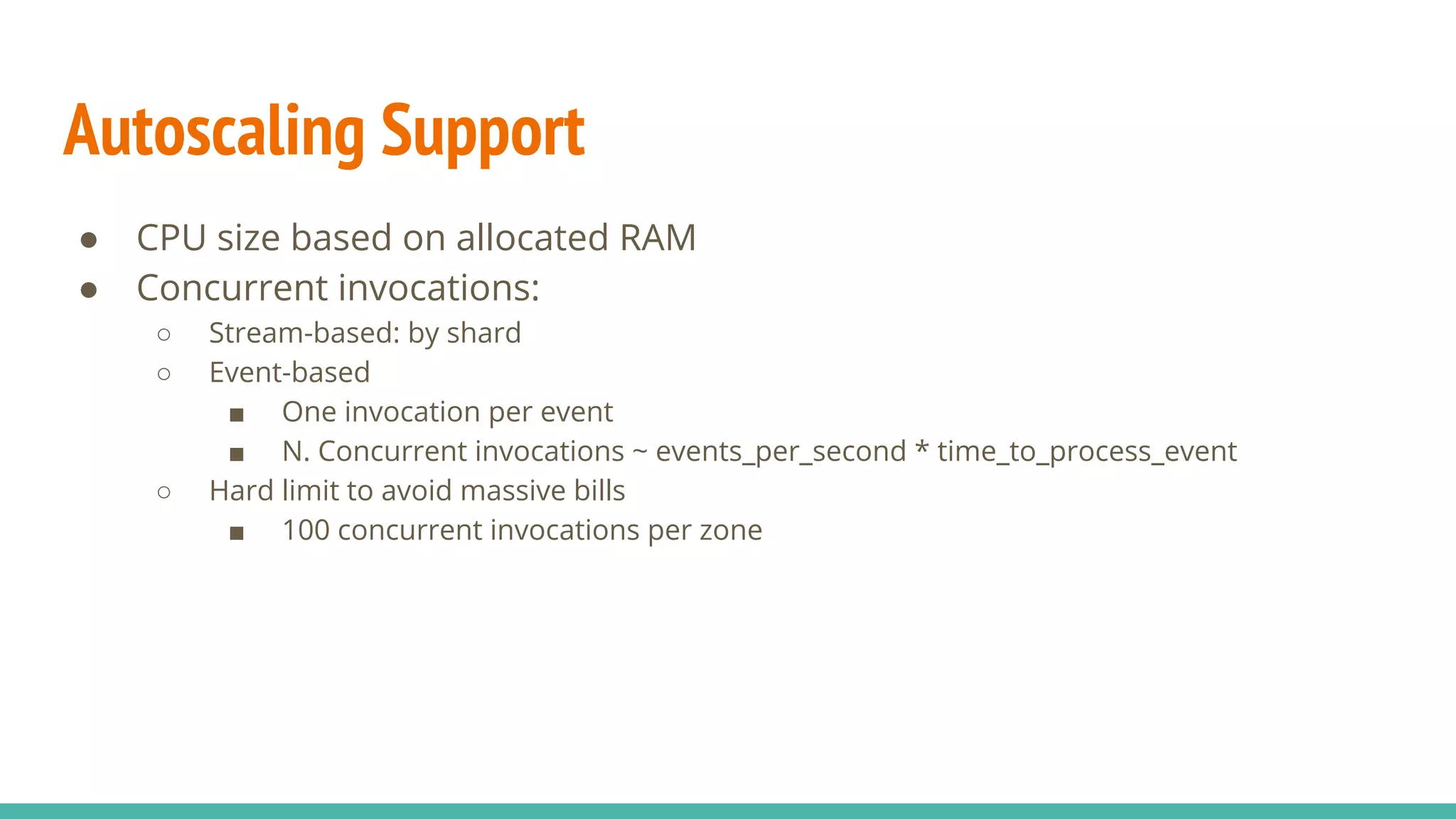

- 7. ● CPU sizebased on allocated RAM ● Concurrent invocations: ○ Stream-based: by shard ○ Event-based ■ One invocation per event ■ N. Concurrent invocations ~ events_per_second * time_to_process_event ○ Hard limit to avoid massive bills ■ 100 concurrent invocations per zone Autoscaling Support

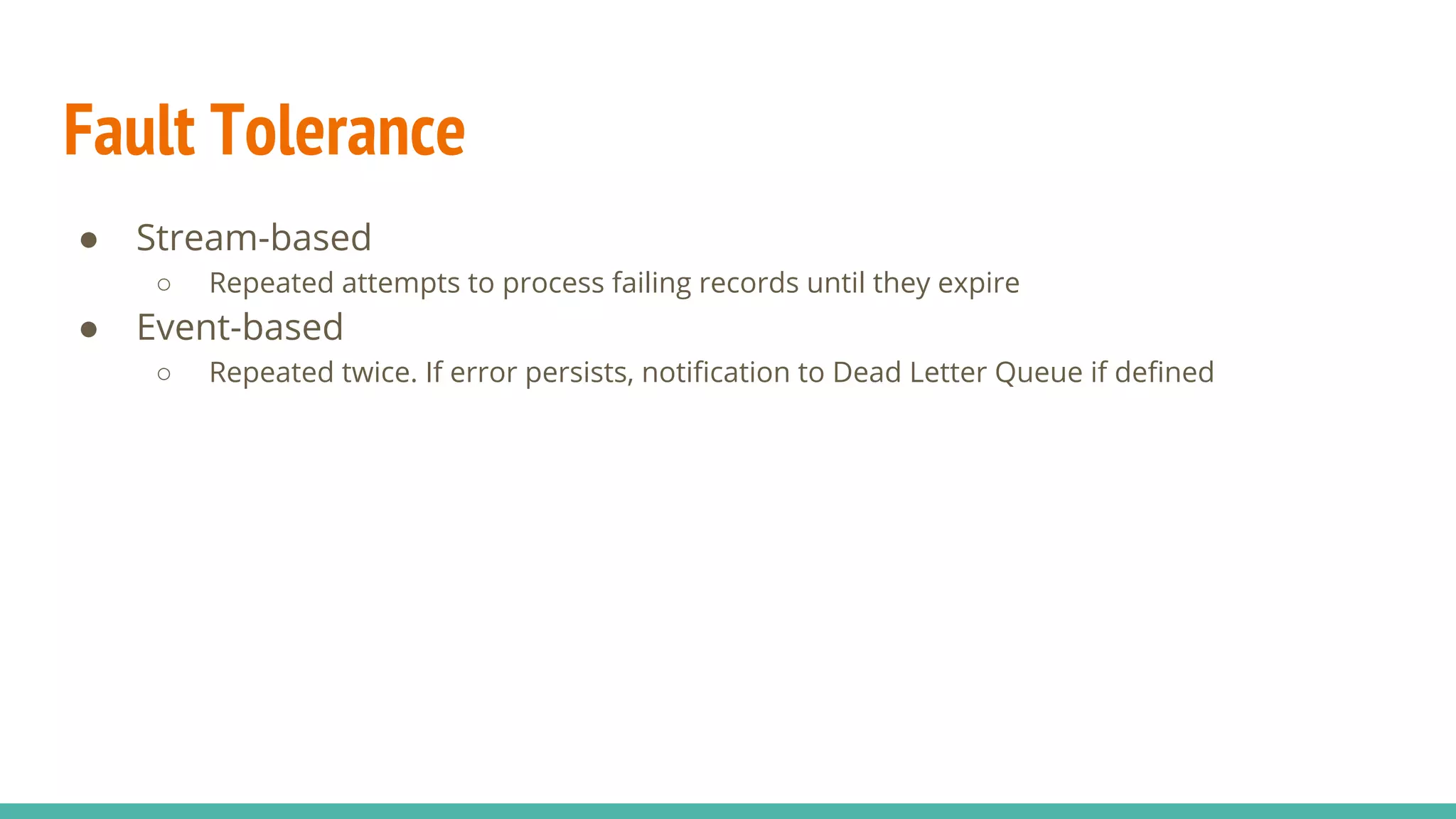

- 8. Fault Tolerance ● Stream-based ○Repeated attempts to process failing records until they expire ● Event-based ○ Repeated twice. If error persists, notification to Dead Letter Queue if defined
- 9.

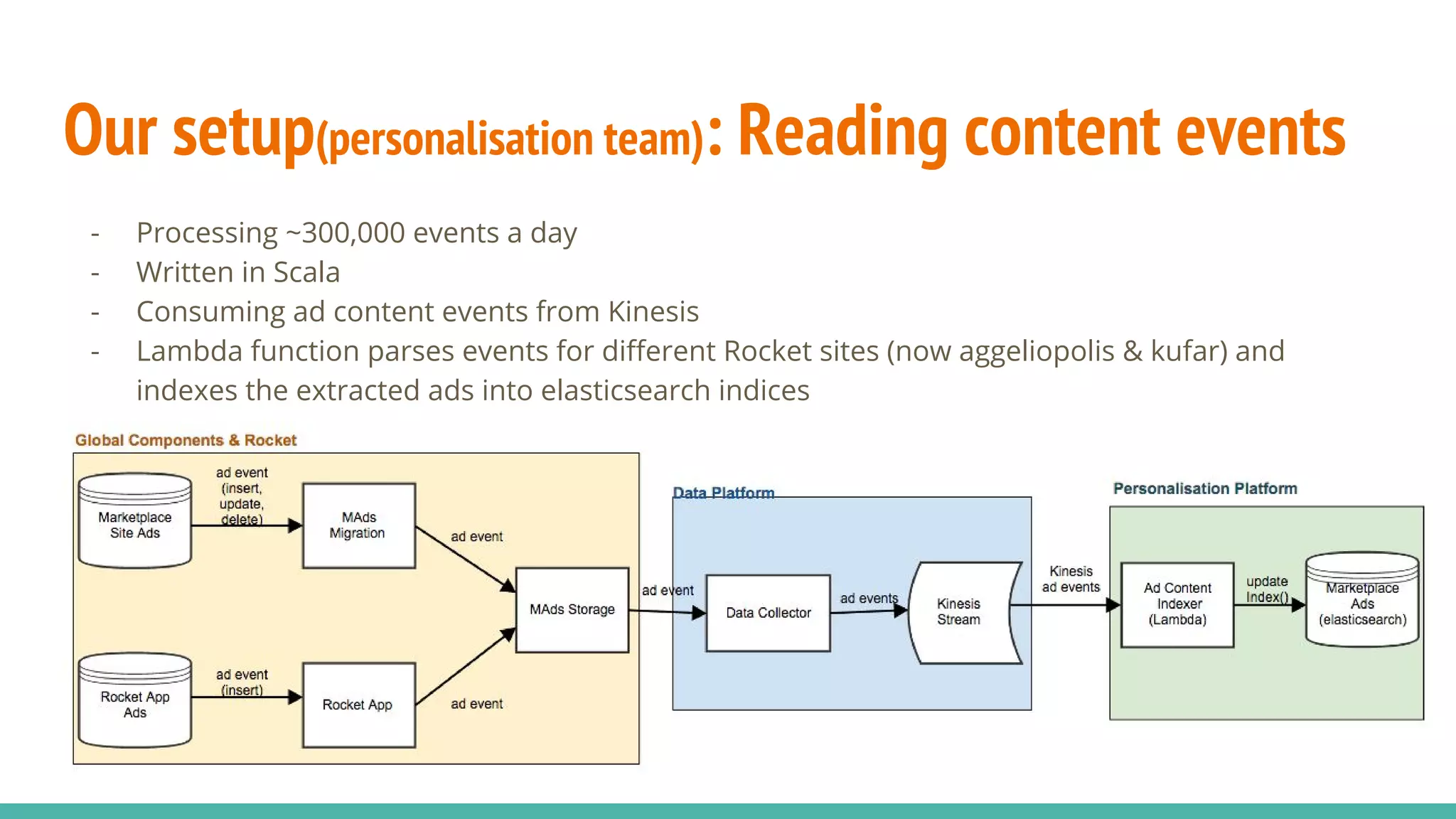

- 10. Our setup(personalisation team):Reading content events - Processing ~300,000 events a day - Written in Scala - Consuming ad content events from Kinesis - Lambda function parses events for different Rocket sites (now aggeliopolis & kufar) and indexes the extracted ads into elasticsearch indices

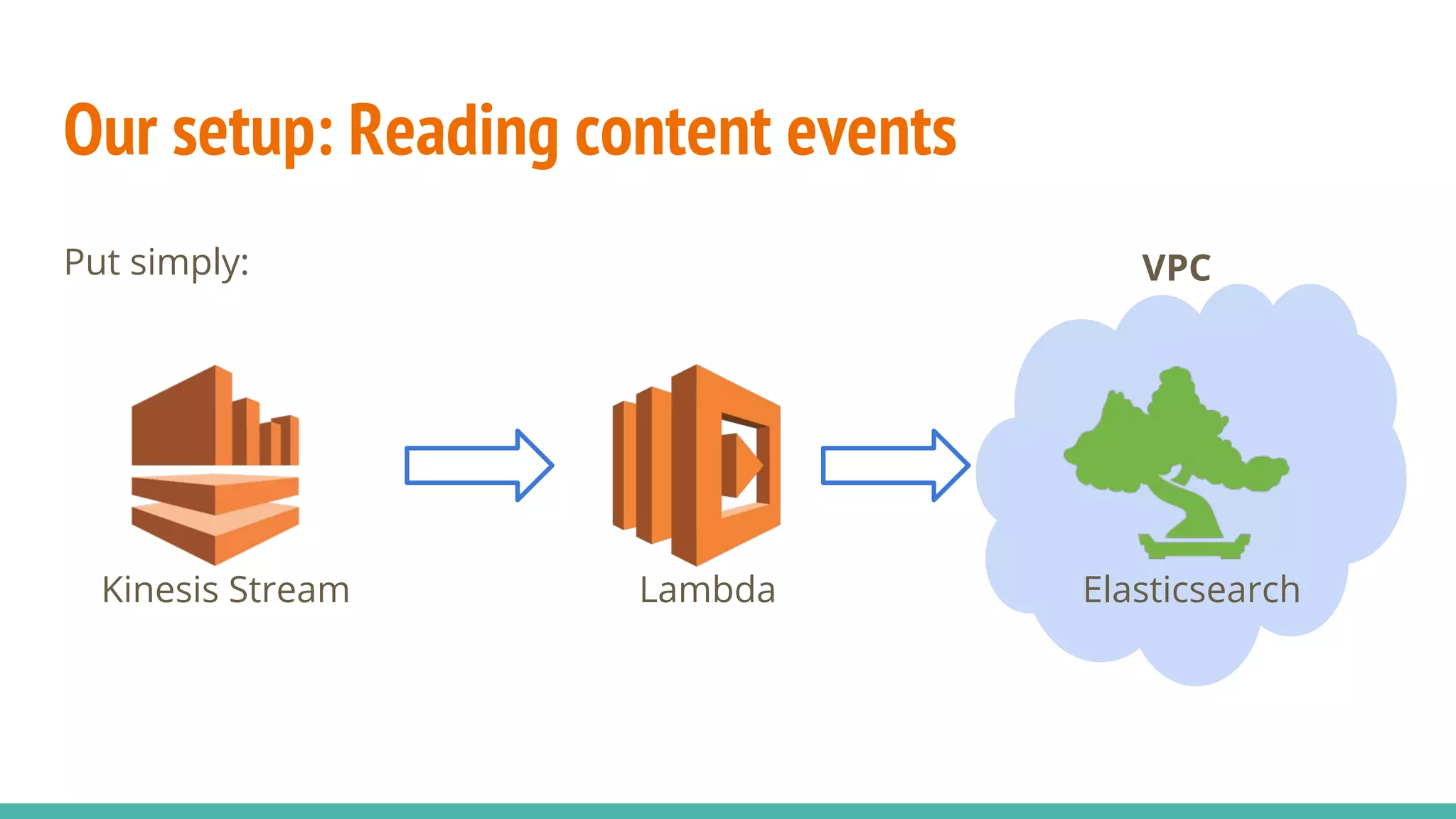

- 11. Our setup: Readingcontent events Put simply: Kinesis Stream Lambda Elasticsearch VPC

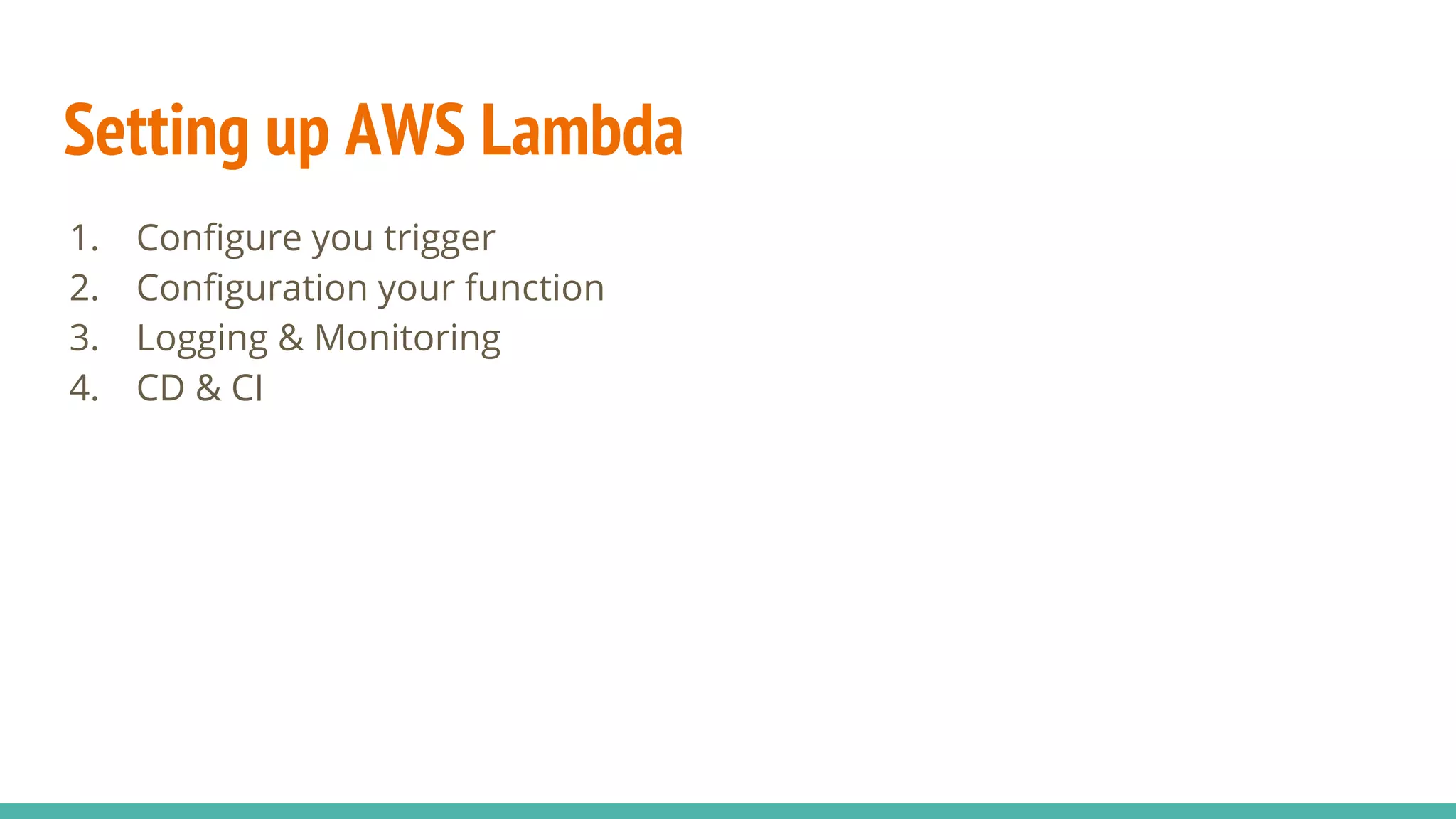

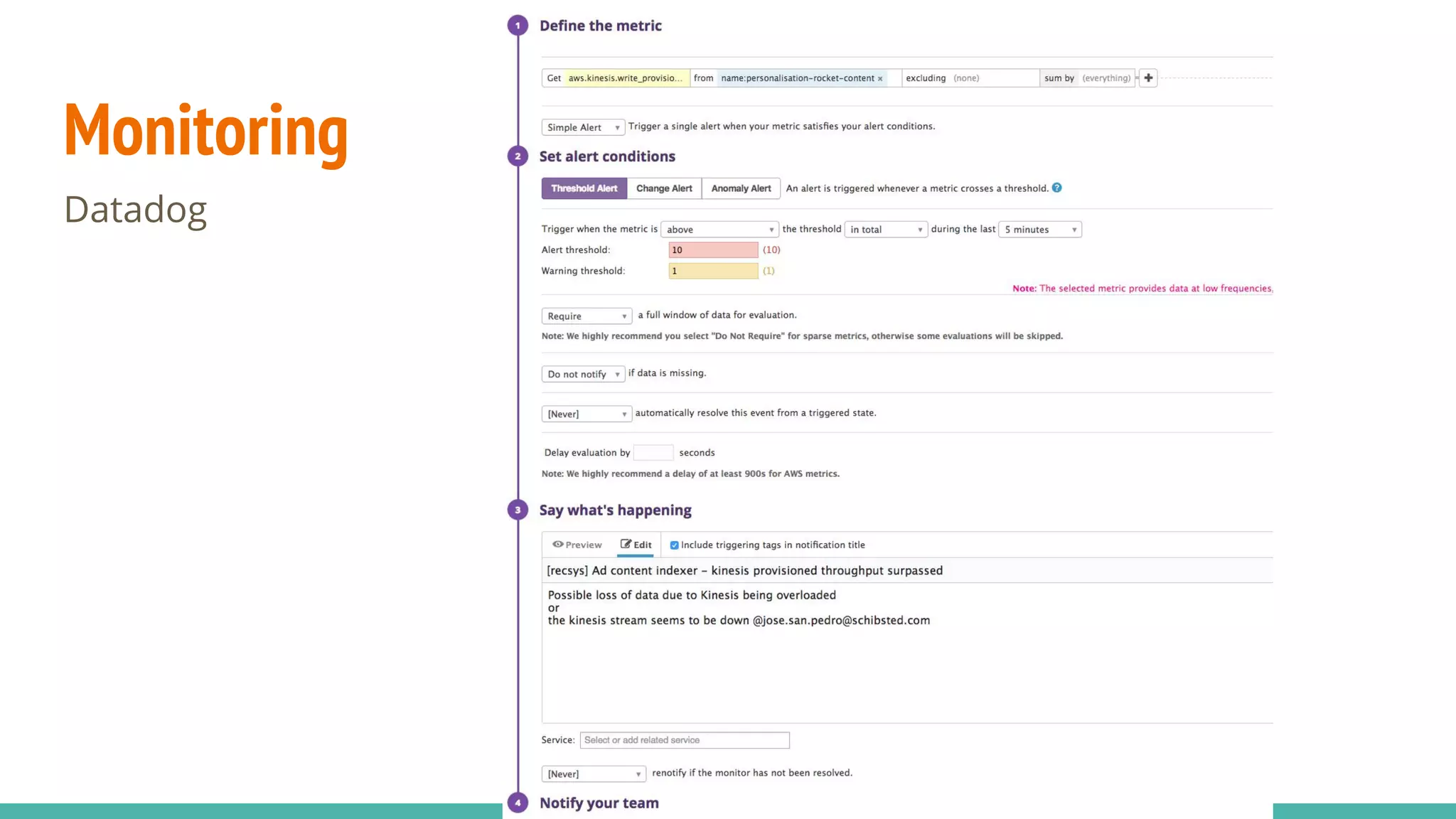

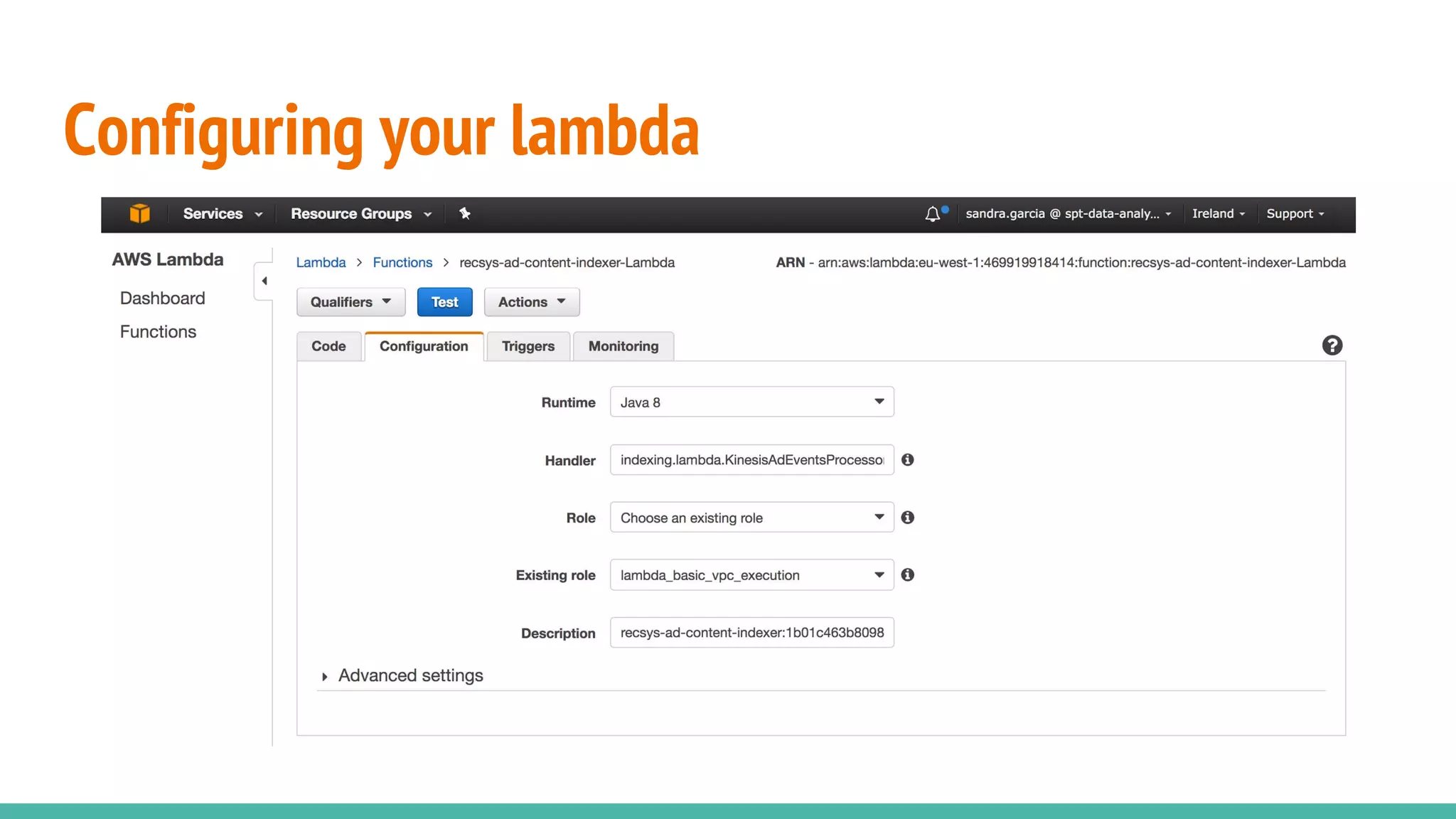

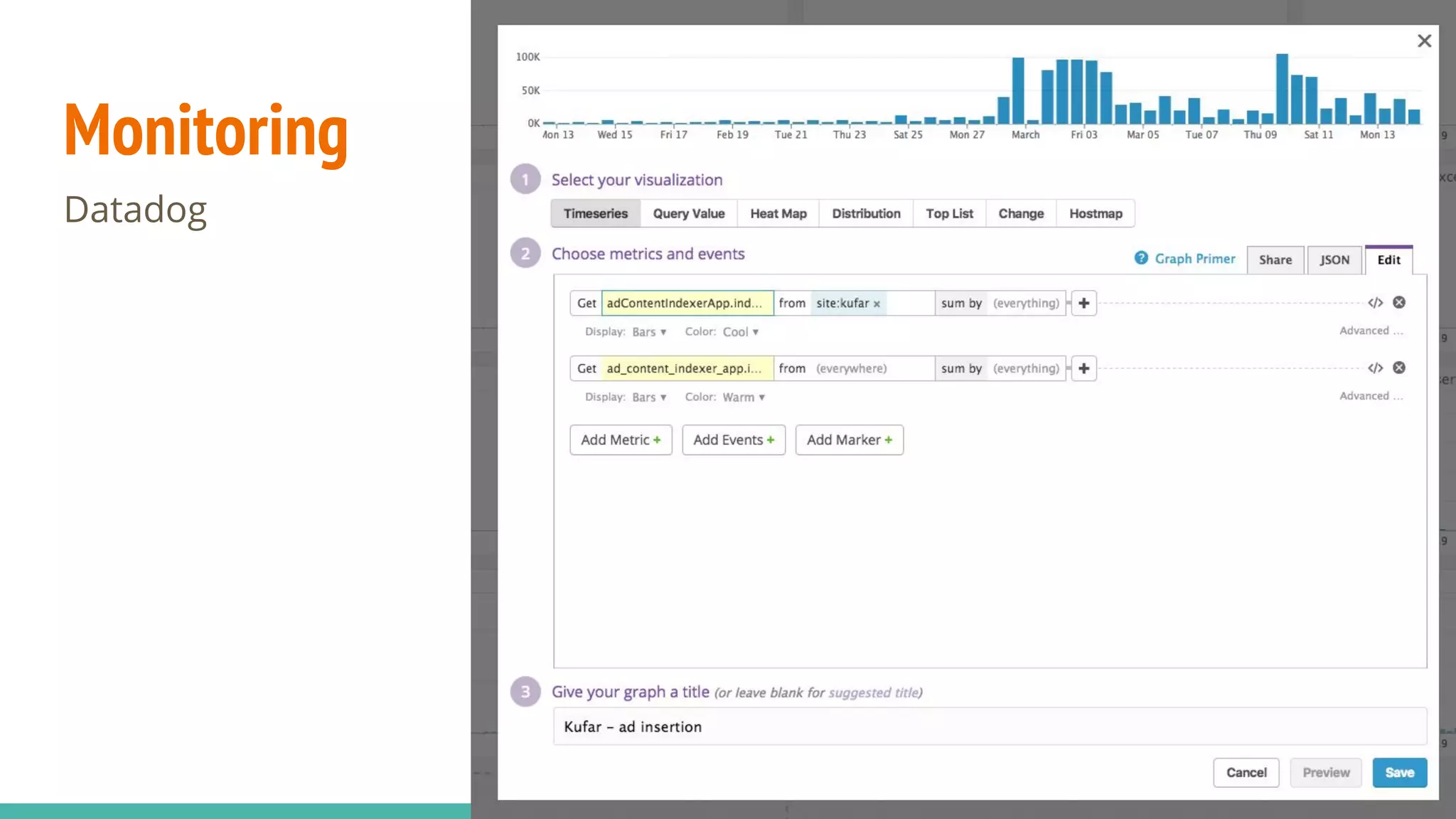

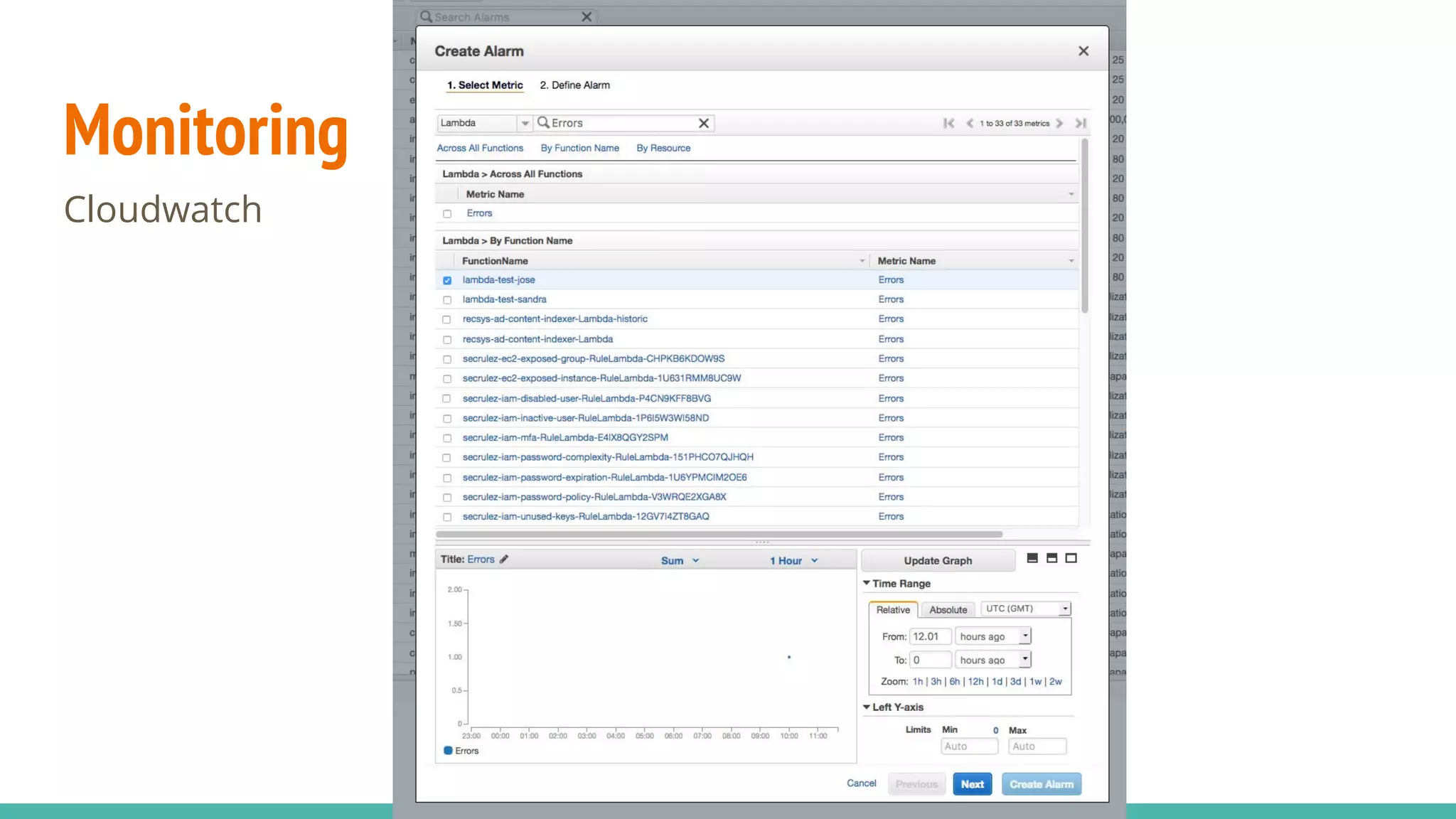

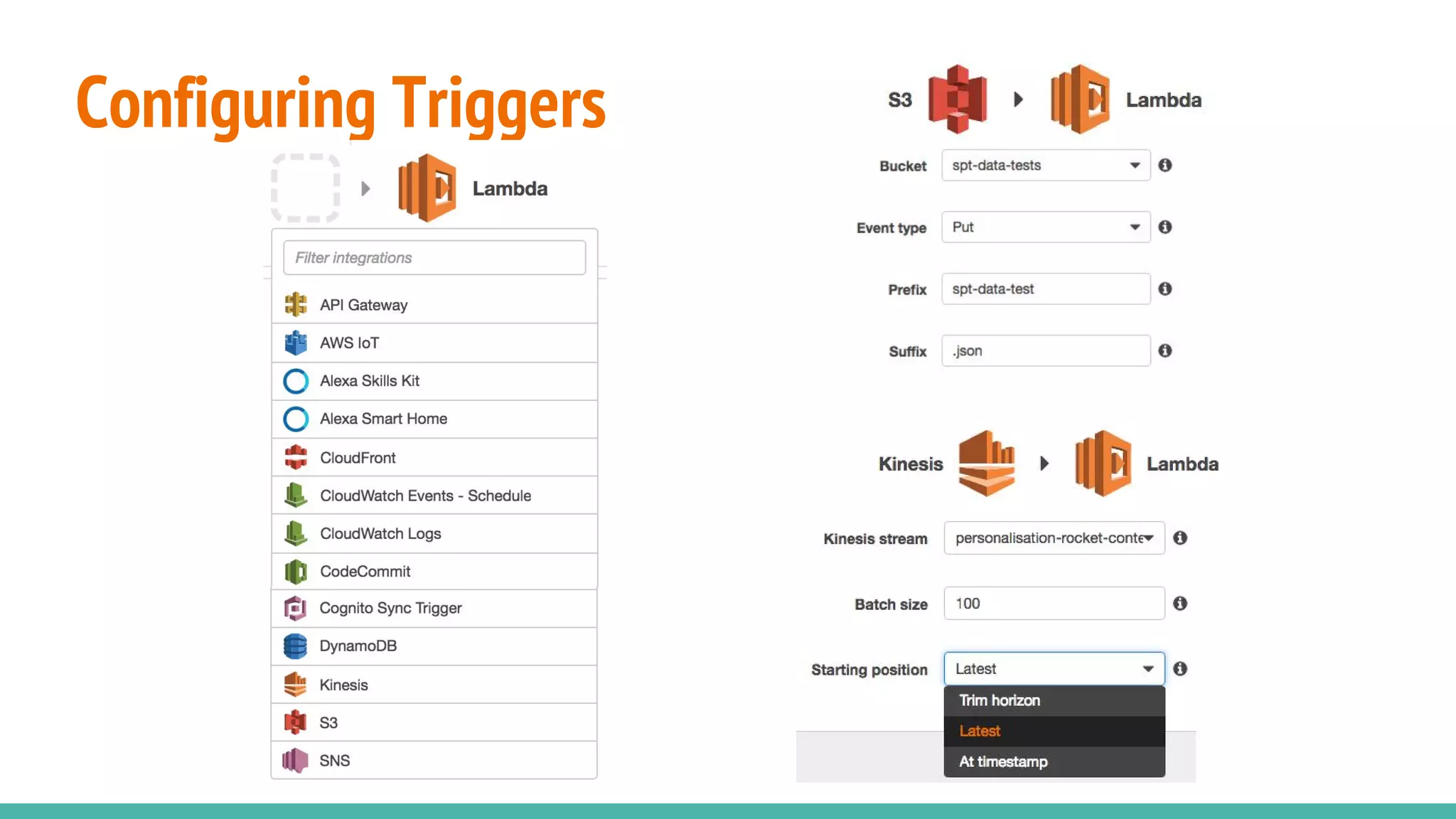

- 12. Setting up AWSLambda 1. Configure you trigger 2. Configuration your function 3. Logging & Monitoring 4. CD & CI
- 13.
- 14.
- 15.
- 16. Setting up Lambdawith awscli ● Full command line support through awscli aws lambda <command> ● Automate deployment aws lambda create-function --function-name ${LAMBDA_FUNCTION_NAME} --runtime java8 --role ${LAMBDA_EXECUTION_ROLE_ARN} --handler "indexing.lambda.KinesisAdEventsProcessor::processAdEvents" --code S3Bucket=${S3BUCKET},S3Key=${EXECUTION_ENVIRONMENT}/${VERSION}/${S3KEY} --description "recsys-ad-content-index:${VERSION}" --environment Variables={commit_hash=${VERSION}} --vpc-config "${LAMBDA_VPC_CONFIG}" --memory-size 512 --timeout 30
- 17. Setting up Lambdawith awscli aws lambda update-function-code --function-name ${LAMBDA_FUNCTION_NAME} --s3-bucket ${S3BUCKET} --s3-key ${EXECUTION_ENVIRONMENT}/${VERSION}/${S3KEY} aws lambda get-function --function-name ${LAMBDA_FUNCTION_NAME} aws lambda list-functions aws lambda update-function-configuration --function-name ${LAMBDA_FUNCTION_NAME} --description "recsys-ad-content-indexer:${VERSION}"

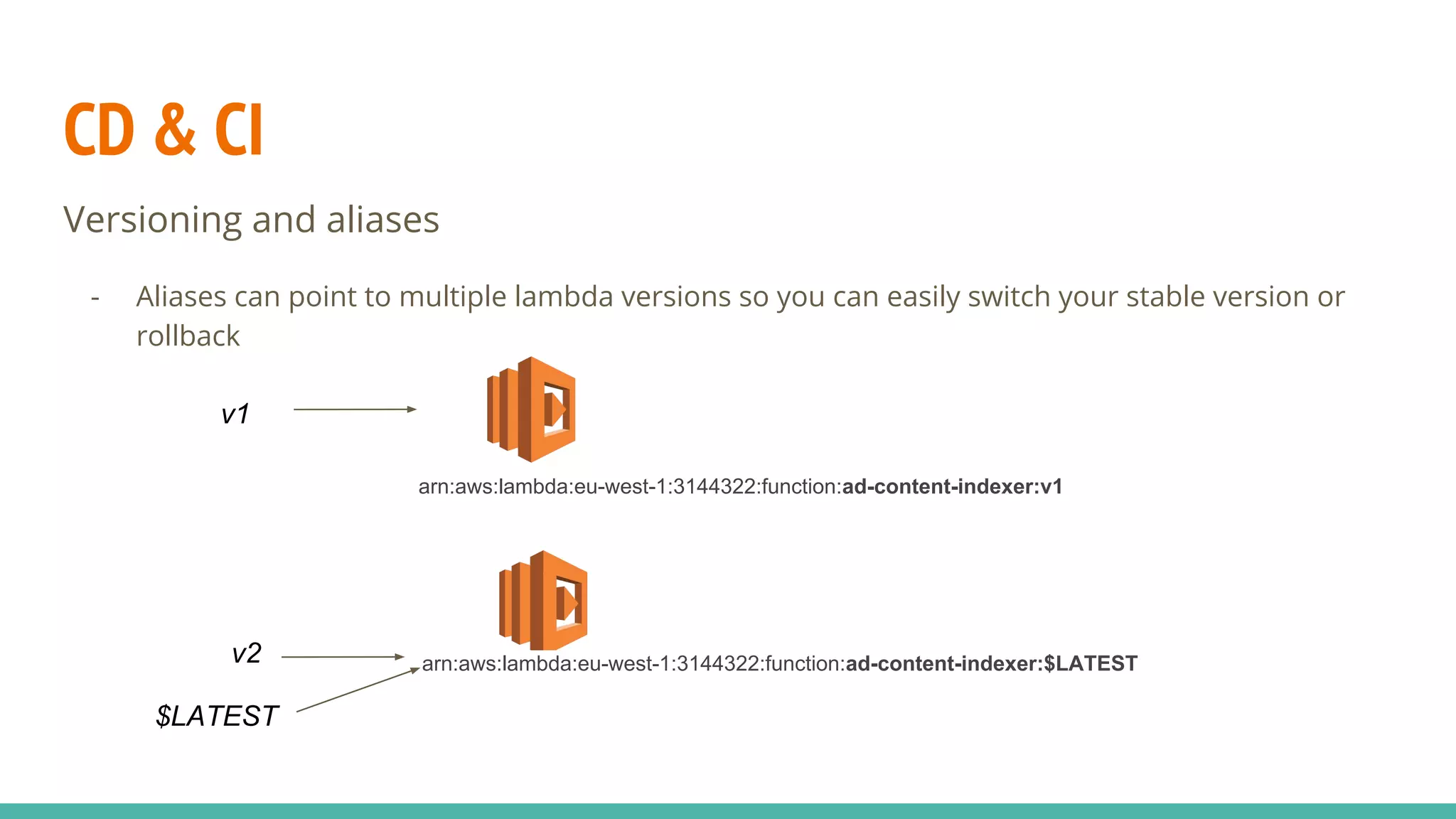

- 18. CD & CI Versioningand aliases - Aliases can point to multiple lambda versions so you can easily switch your stable version or rollback v1 arn:aws:lambda:eu-west-1:3144322:function:ad-content-indexer:v1 v2 $LATEST arn:aws:lambda:eu-west-1:3144322:function:ad-content-indexer:$LATEST

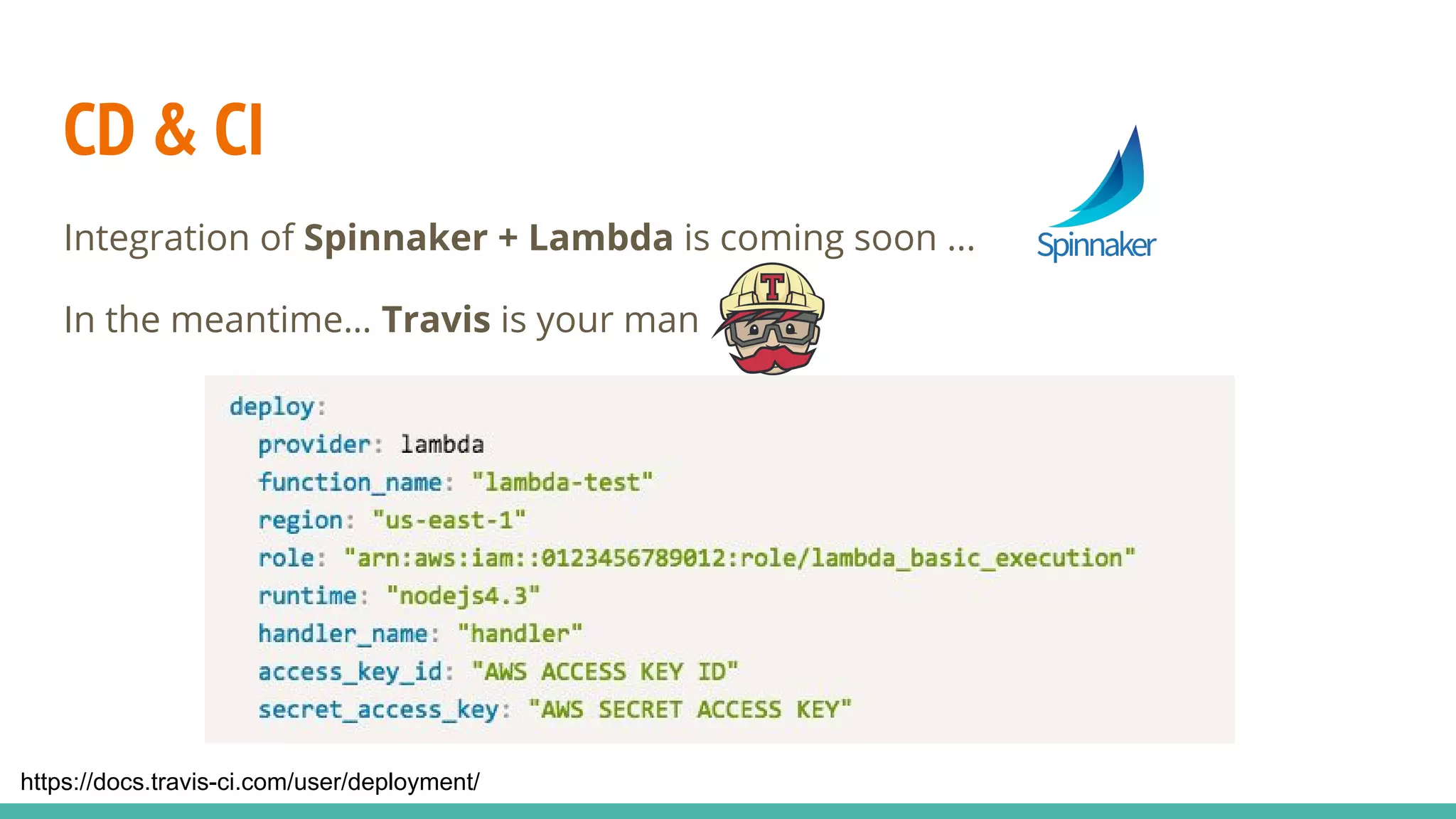

- 19. CD & CI Integrationof Spinnaker + Lambda is coming soon ... In the meantime… Travis is your man https://docs.travis-ci.com/user/deployment/
- 20.
- 21.

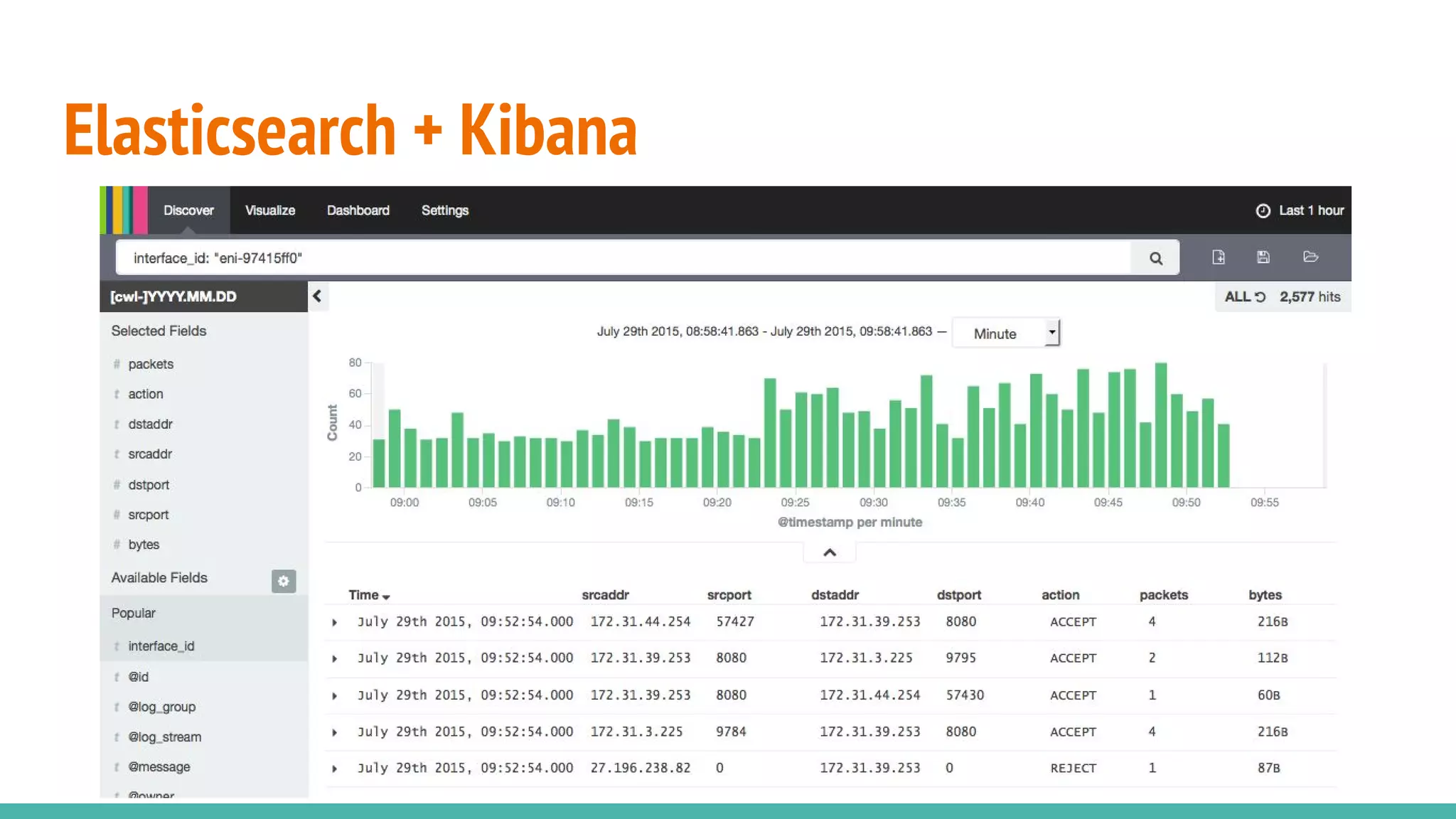

- 22. Logging Alternatives ● Sumologic ●ELK Setup
- 23.
- 24.
- 25.
- 26.
- 27.
- 28.
- 29.
- 30. Practice time! Requirements: - Scala+ sbt - An AWS Account - Download the lambda-example repo: git clone git@github.schibsted.io:sandra-garcia/lambda-example.git sbt assembly
- 31. Practice time! You canfind some sample Pulse events in /lambda-tutorial/data/
- 32. 1. Upload yourcode to S3 a. Create a new bucket under spt-data-tests/lambda-tutorial/<YOUR-NAME> b. Upload your lambda code to S3 aws s3 cp lambda-function.jar s3://spt-data-tests/lambda-tutorial/<YOUR-NAME> c. Format of S3 URL: https://s3-eu-west-1.amazonaws.com/spt-data-tests/lambda-tut orial/<YOUR-NAME>/lambda-function.jar
- 33. 2. Define yourlambda trigger Create your lambda function in https://eu-west-1.console.aws.amazon.com/lambda/ a. Select “blank function” b. Select trigger (s3) i. Select event type: PUT ii. Select bucket: spt-data-tests/ and prefix: lambda-tutorial/<YOUR-NAME>/ http://docs.aws.amazon.com/lambda/latest/dg/intro-permission-model.html#lambda-intro-execution-role

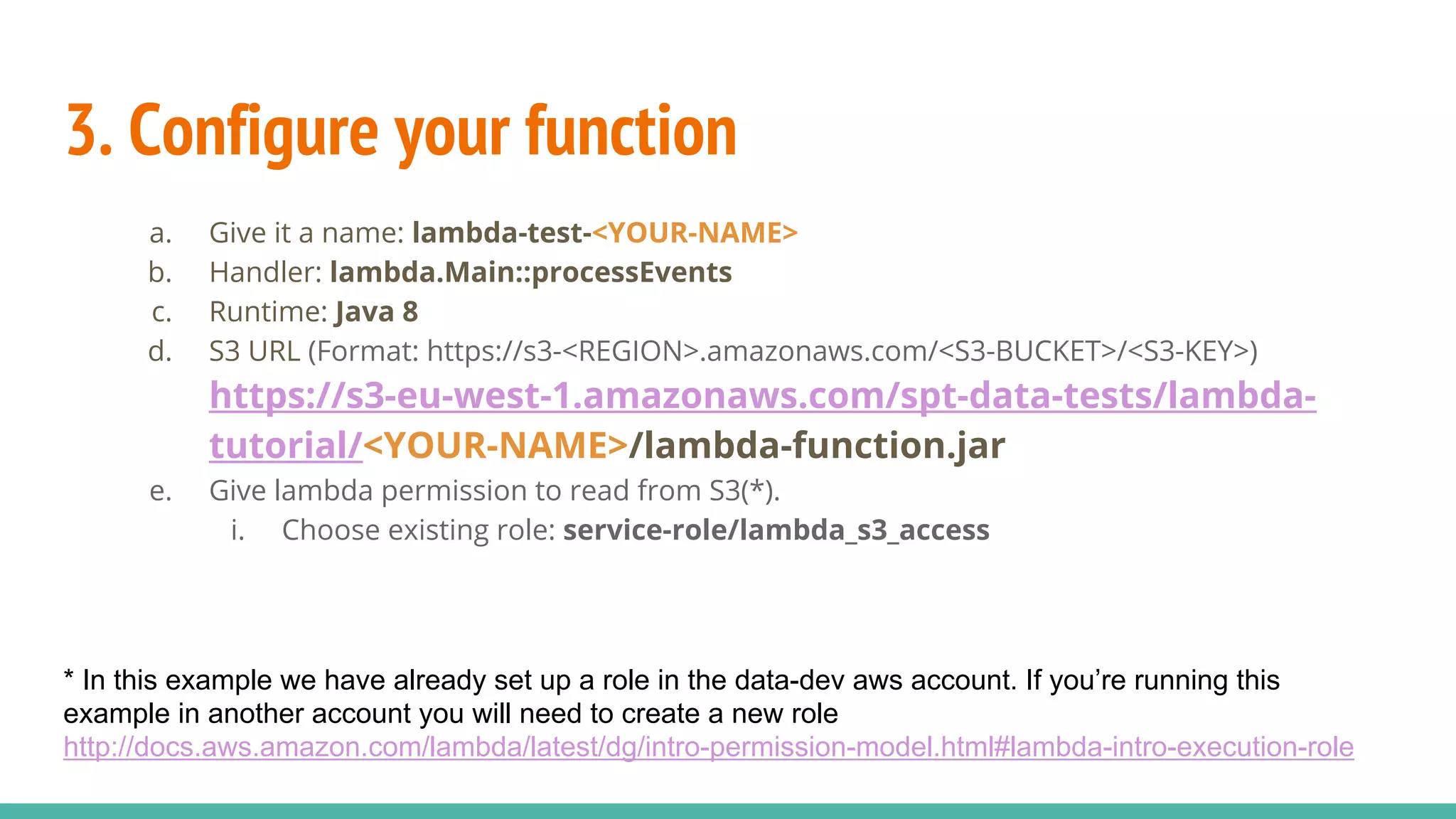

- 34. 3. Configure yourfunction a. Give it a name: lambda-test-<YOUR-NAME> b. Handler: lambda.Main::processEvents c. Runtime: Java 8 d. S3 URL (Format: https://s3-<REGION>.amazonaws.com/<S3-BUCKET>/<S3-KEY>) https://s3-eu-west-1.amazonaws.com/spt-data-tests/lambda- tutorial/<YOUR-NAME>/lambda-function.jar e. Give lambda permission to read from S3(*). i. Choose existing role: service-role/lambda_s3_access * In this example we have already set up a role in the data-dev aws account. If you’re running this example in another account you will need to create a new role http://docs.aws.amazon.com/lambda/latest/dg/intro-permission-model.html#lambda-intro-execution-role

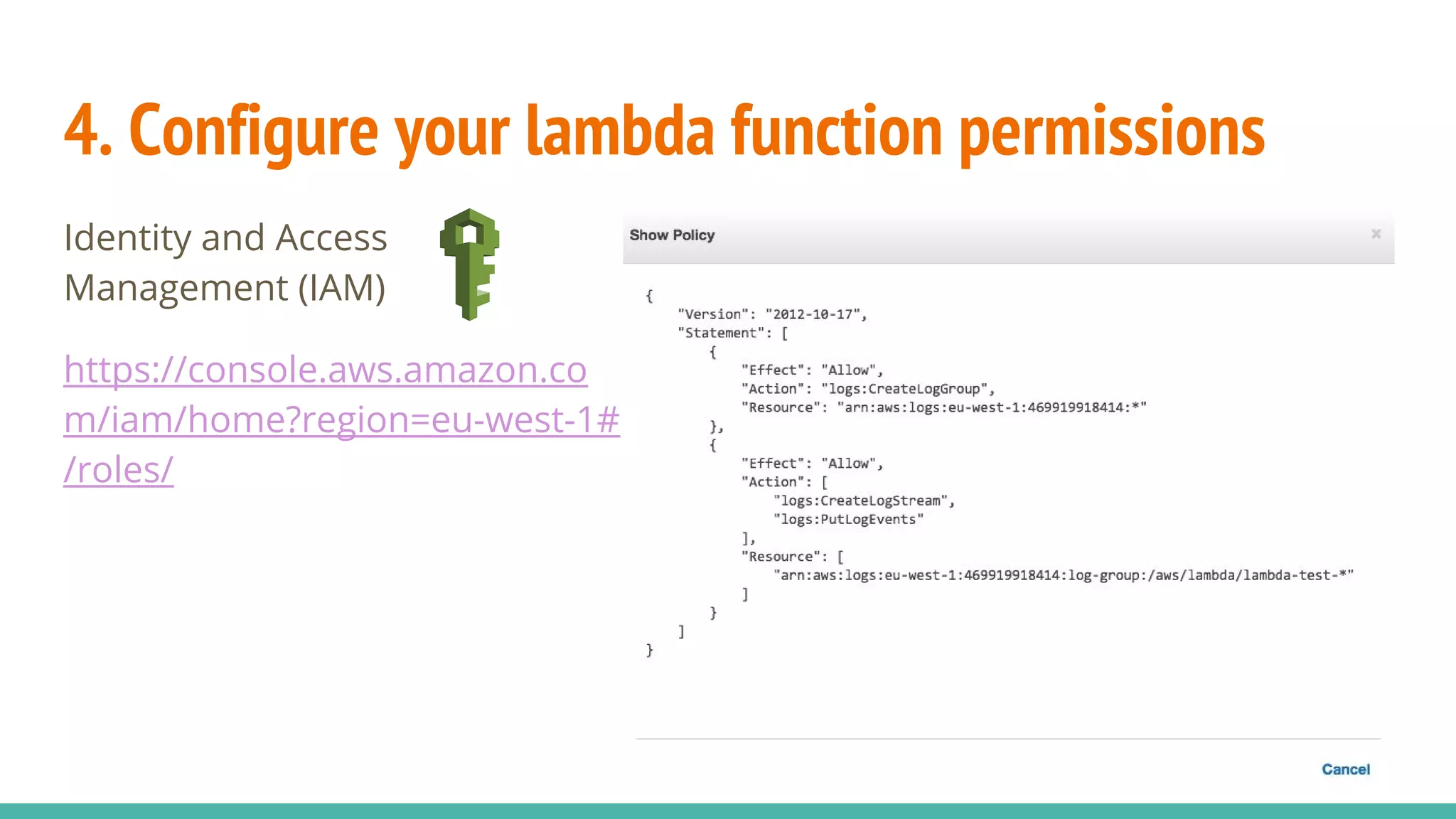

- 35. 4. Configure yourlambda function permissions Identity and Access Management (IAM) https://console.aws.amazon.co m/iam/home?region=eu-west-1# /roles/

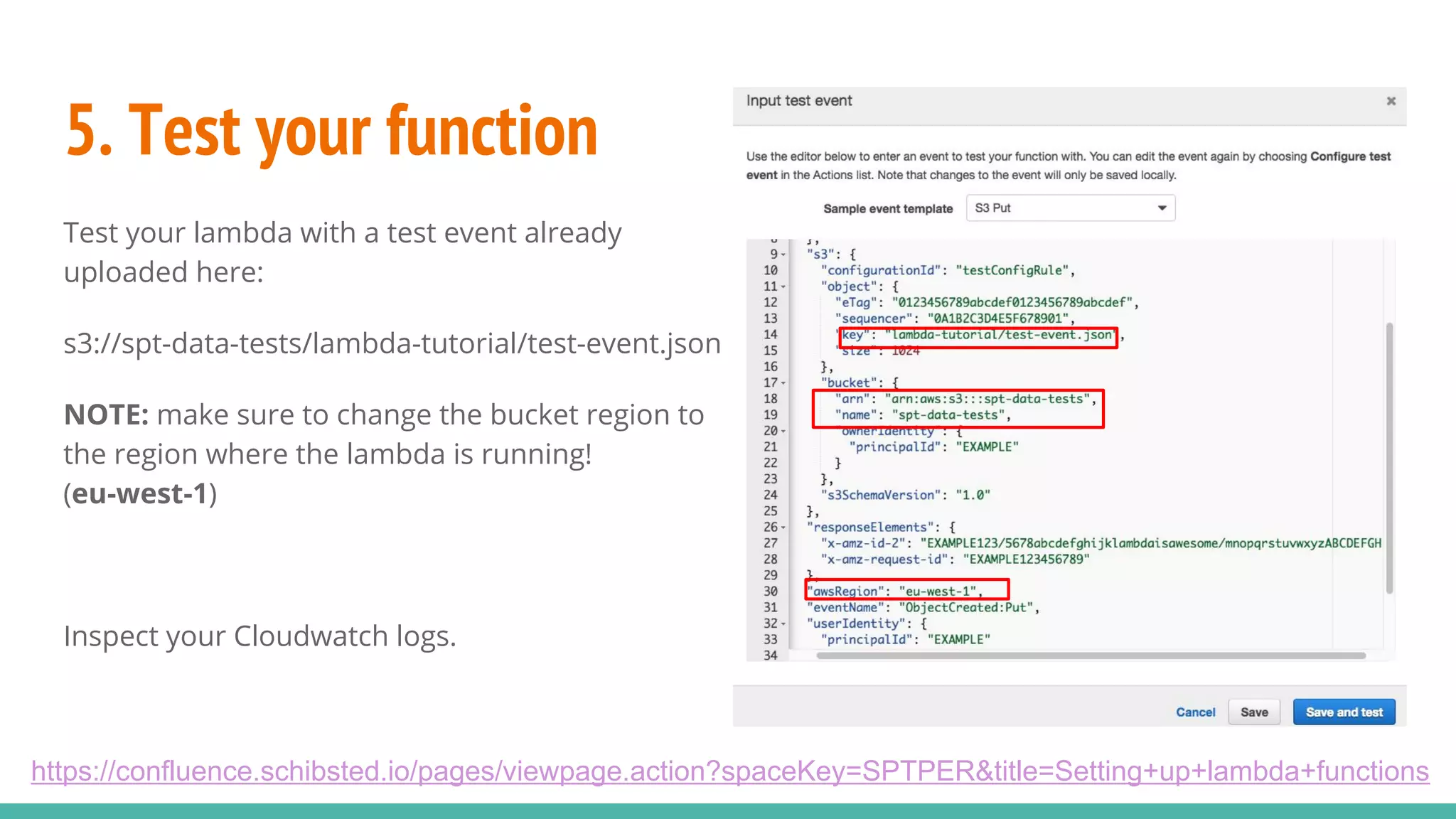

- 36. 5. Test yourfunction Test your lambda with a test event already uploaded here: s3://spt-data-tests/lambda-tutorial/test-event.json NOTE: make sure to change the bucket region to the region where the lambda is running! (eu-west-1) Inspect your Cloudwatch logs. https://confluence.schibsted.io/pages/viewpage.action?spaceKey=SPTPER&title=Setting+up+lambda+functions
- 37. 6. Upload afile to trigger your lambda a. Upload an events file to s3 aws s3 cp lambda-example/data/ad-events.json s3://spt-data-tests/lambda-tutorial/<YOUR-NAME> b. Inspect your Cloudwatch logs C. Check the output file on: aws s3 ls s3://spt-data-tests/results/lambda-tutorial/<YOUR-NAME>/ad-events.json.csv

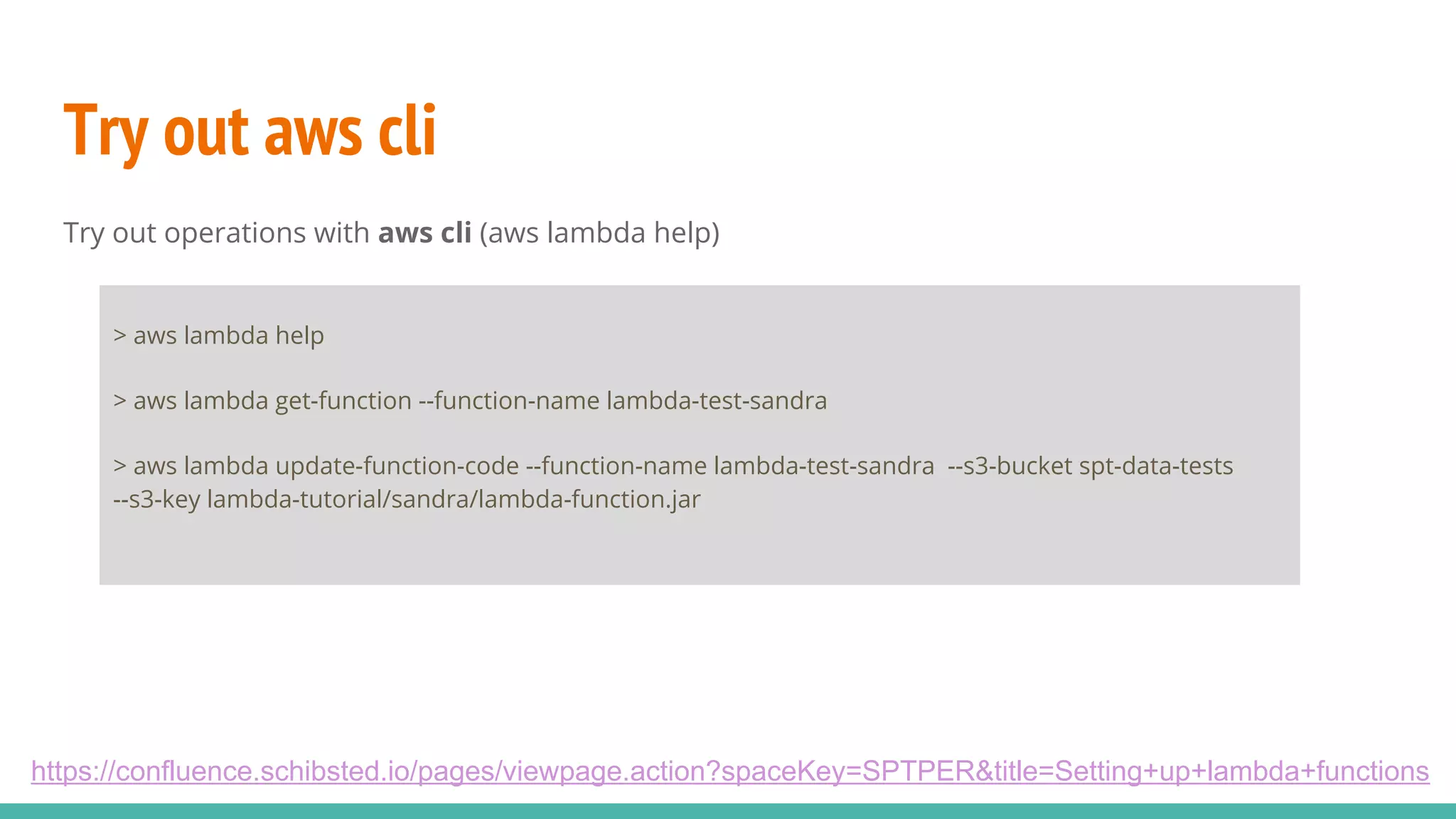

- 38. Try out awscli Try out operations with aws cli (aws lambda help) https://confluence.schibsted.io/pages/viewpage.action?spaceKey=SPTPER&title=Setting+up+lambda+functions > aws lambda help > aws lambda get-function --function-name lambda-test-sandra > aws lambda update-function-code --function-name lambda-test-sandra --s3-bucket spt-data-tests --s3-key lambda-tutorial/sandra/lambda-function.jar
- 39.
