MySQL 5.7 in a Nutshell
MySQL 5.7 introduces significant performance enhancements, including 3x faster speed compared to MySQL 5.6 and improved features such as JSON data type support, robust replication options, and an enhanced optimizer for better query performance. It also incorporates advanced manageability improvements, expanded GIS support, and enhanced security measures. Additionally, new functionalities like dynamic buffer pool resizing and multi-source replication further increase the system's efficiency in managing complex workloads.
MySQL 5.7 in a Nutshell
- 1. MySQL 5.7 ina Nutshell Alexander Rubin Principal Architect, Percona December 6, 2015
- 2. www.percona.com About Me • Workingwith MySQL for over 10 years – Started at MySQL AB, then Sun Microsystems, – then Oracle (MySQL Consulting) – Joined Percona 2 years ago My name is Alexander Rubin https://www.linkedin.com/in/alexanderrubin

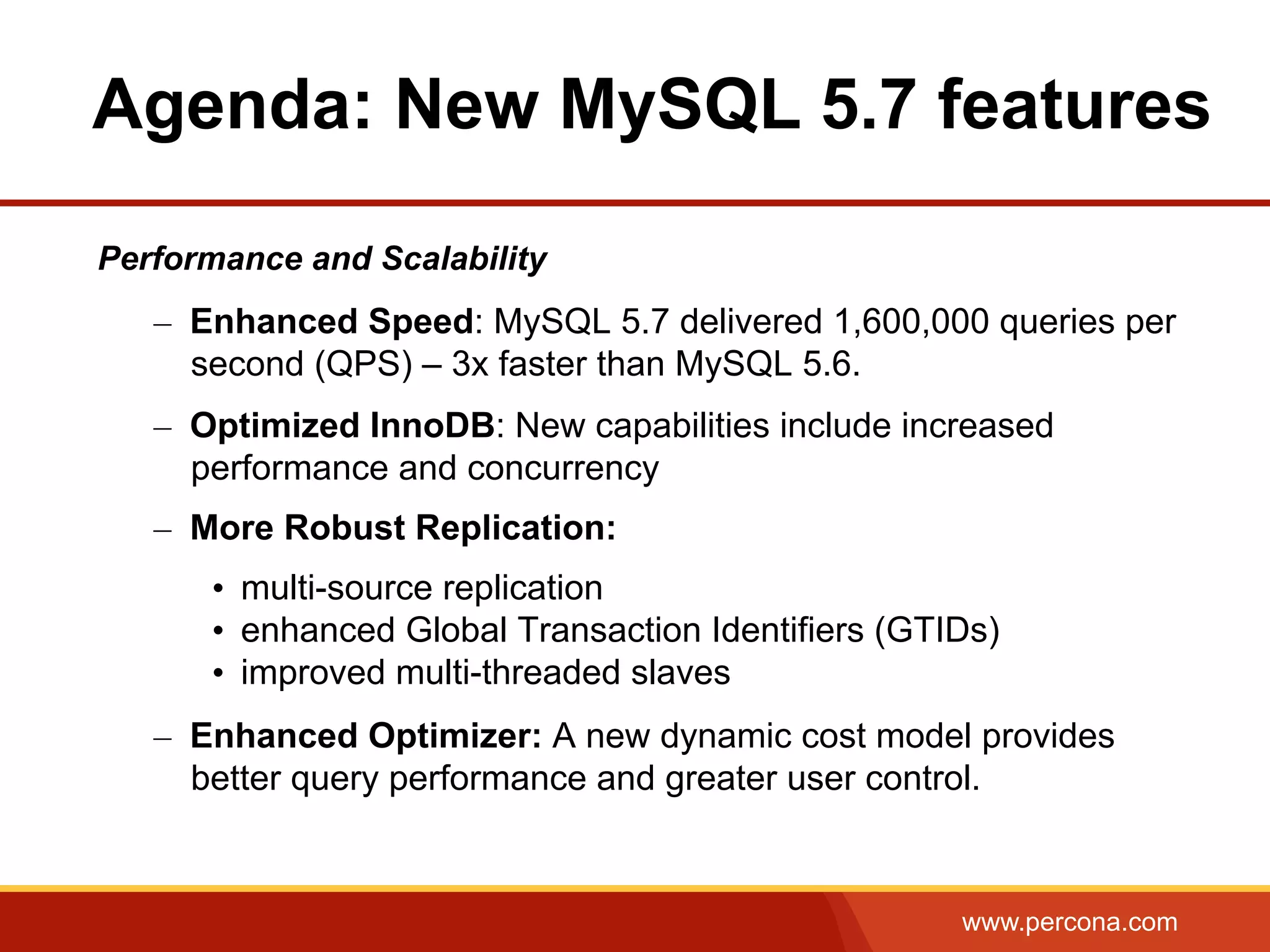

- 3. www.percona.com Performance and Scalability – Enhanced Speed: MySQL 5.7 delivered 1,600,000 queries per second (QPS) – 3x faster than MySQL 5.6. – Optimized InnoDB: New capabilities include increased performance and concurrency – More Robust Replication: • multi-source replication • enhanced Global Transaction Identifiers (GTIDs) • improved multi-threaded slaves – Enhanced Optimizer: A new dynamic cost model provides better query performance and greater user control. Agenda: New MySQL 5.7 features

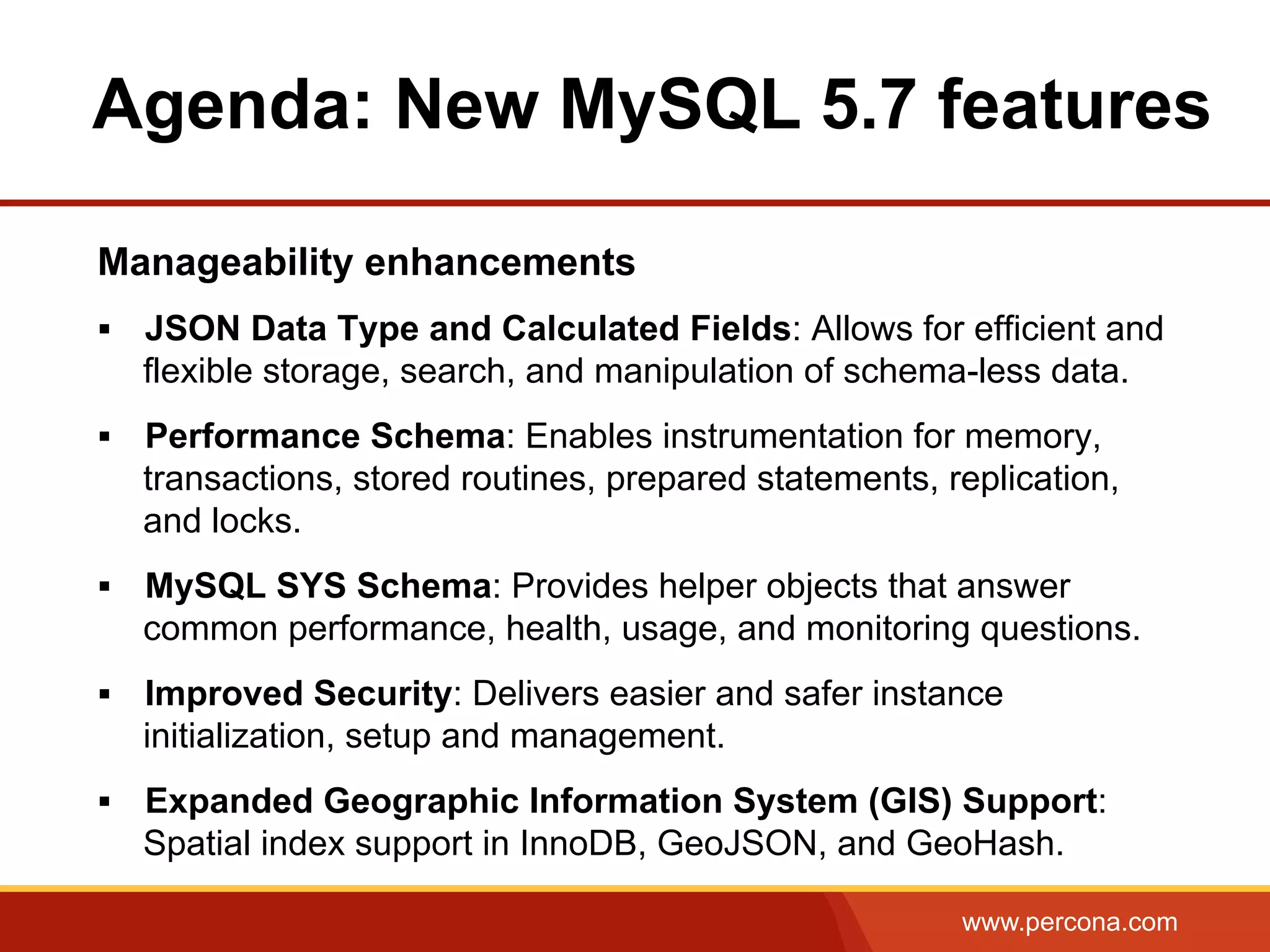

- 4. www.percona.com Manageability enhancements § JSONData Type and Calculated Fields: Allows for efficient and flexible storage, search, and manipulation of schema-less data. § Performance Schema: Enables instrumentation for memory, transactions, stored routines, prepared statements, replication, and locks. § MySQL SYS Schema: Provides helper objects that answer common performance, health, usage, and monitoring questions. § Improved Security: Delivers easier and safer instance initialization, setup and management. § Expanded Geographic Information System (GIS) Support: Spatial index support in InnoDB, GeoJSON, and GeoHash. Agenda: New MySQL 5.7 features

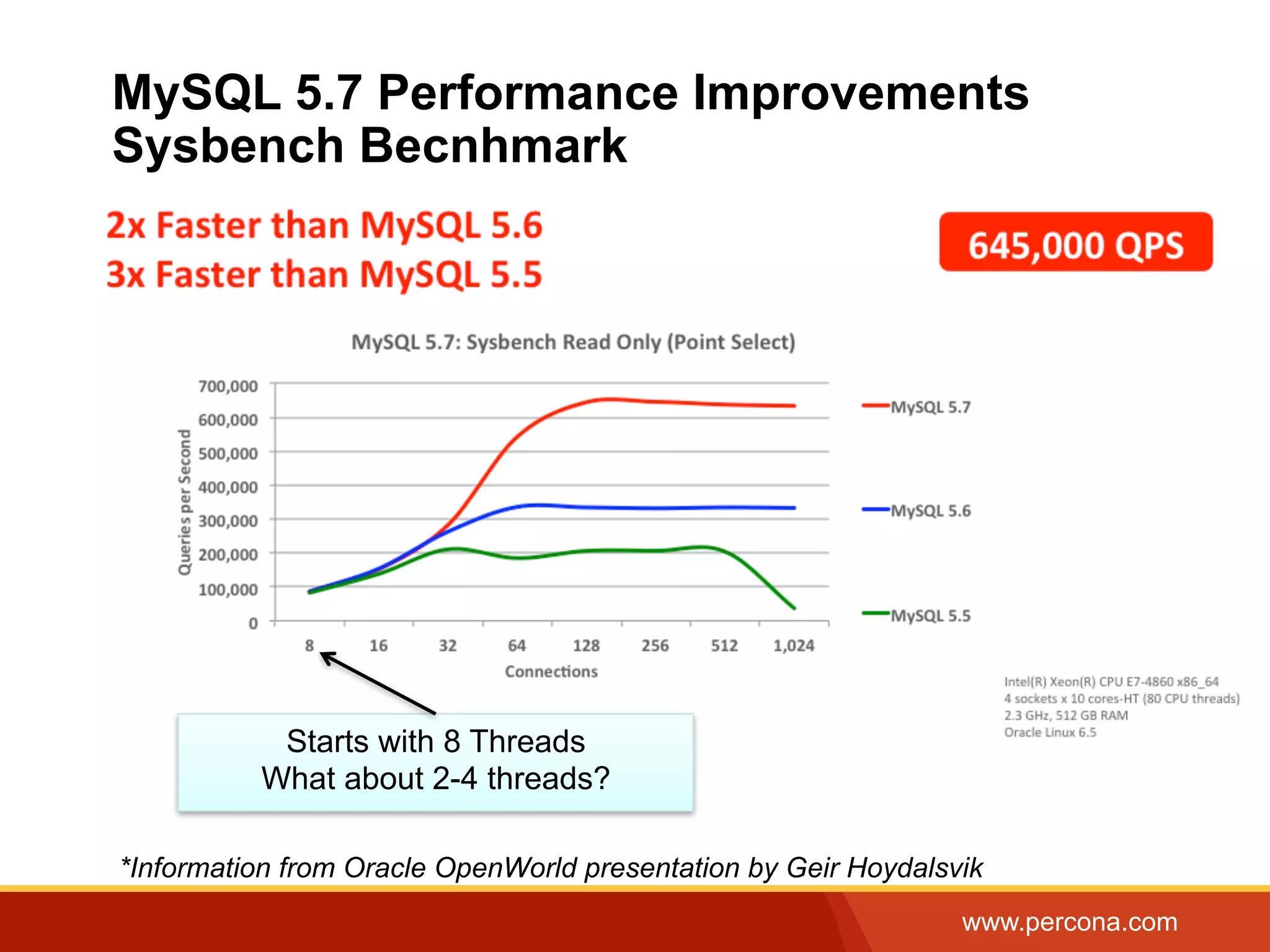

- 5. www.percona.com MySQL 5.7 PerformanceImprovements Sysbench Becnhmark *Information from Oracle OpenWorld presentation by Geir Hoydalsvik Starts with 8 Threads What about 2-4 threads?

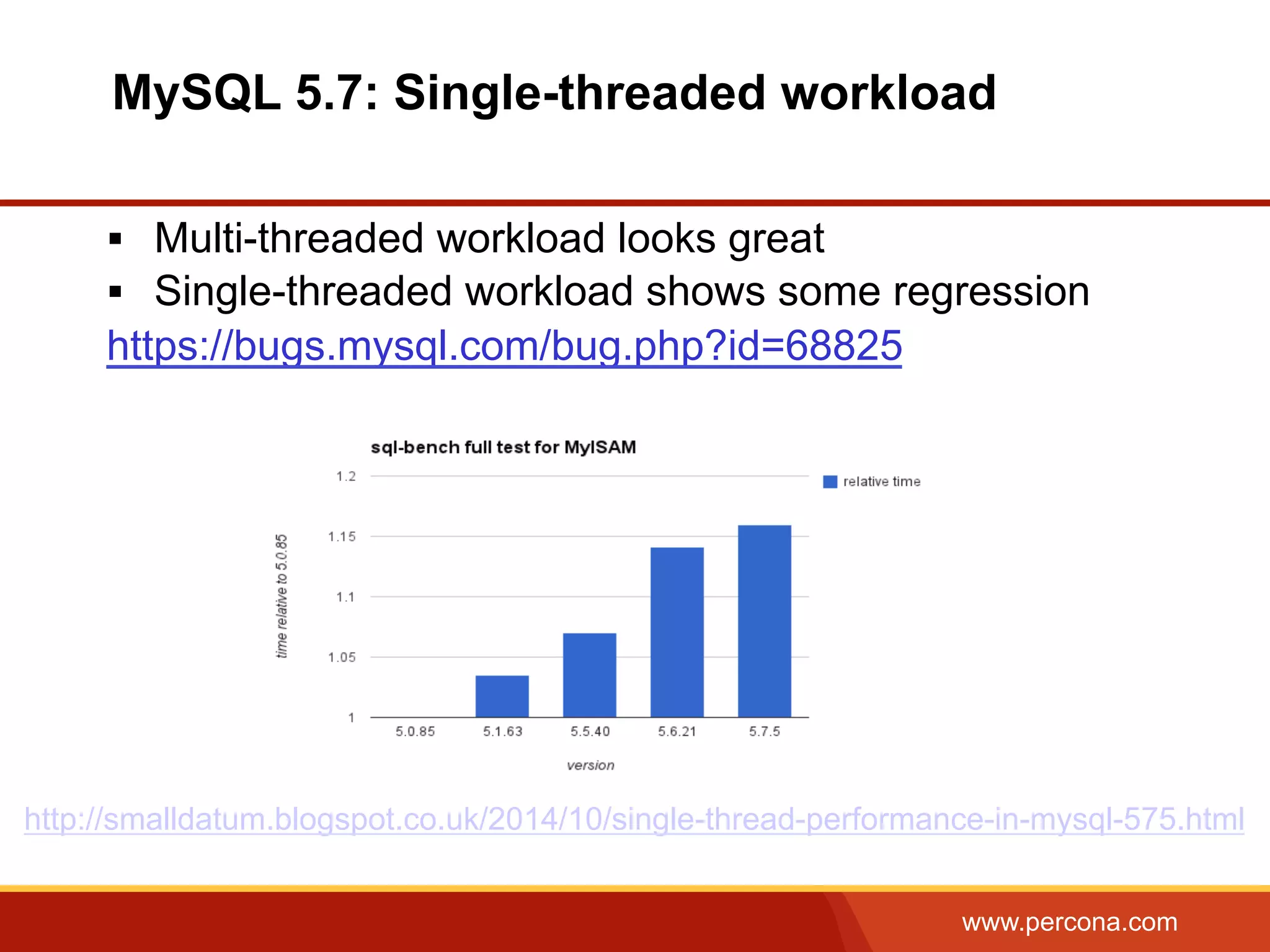

- 6. www.percona.com MySQL 5.7: Single-threadedworkload § Multi-threaded workload looks great § Single-threaded workload shows some regression https://bugs.mysql.com/bug.php?id=68825 http://smalldatum.blogspot.co.uk/2014/10/single-thread-performance-in-mysql-575.html

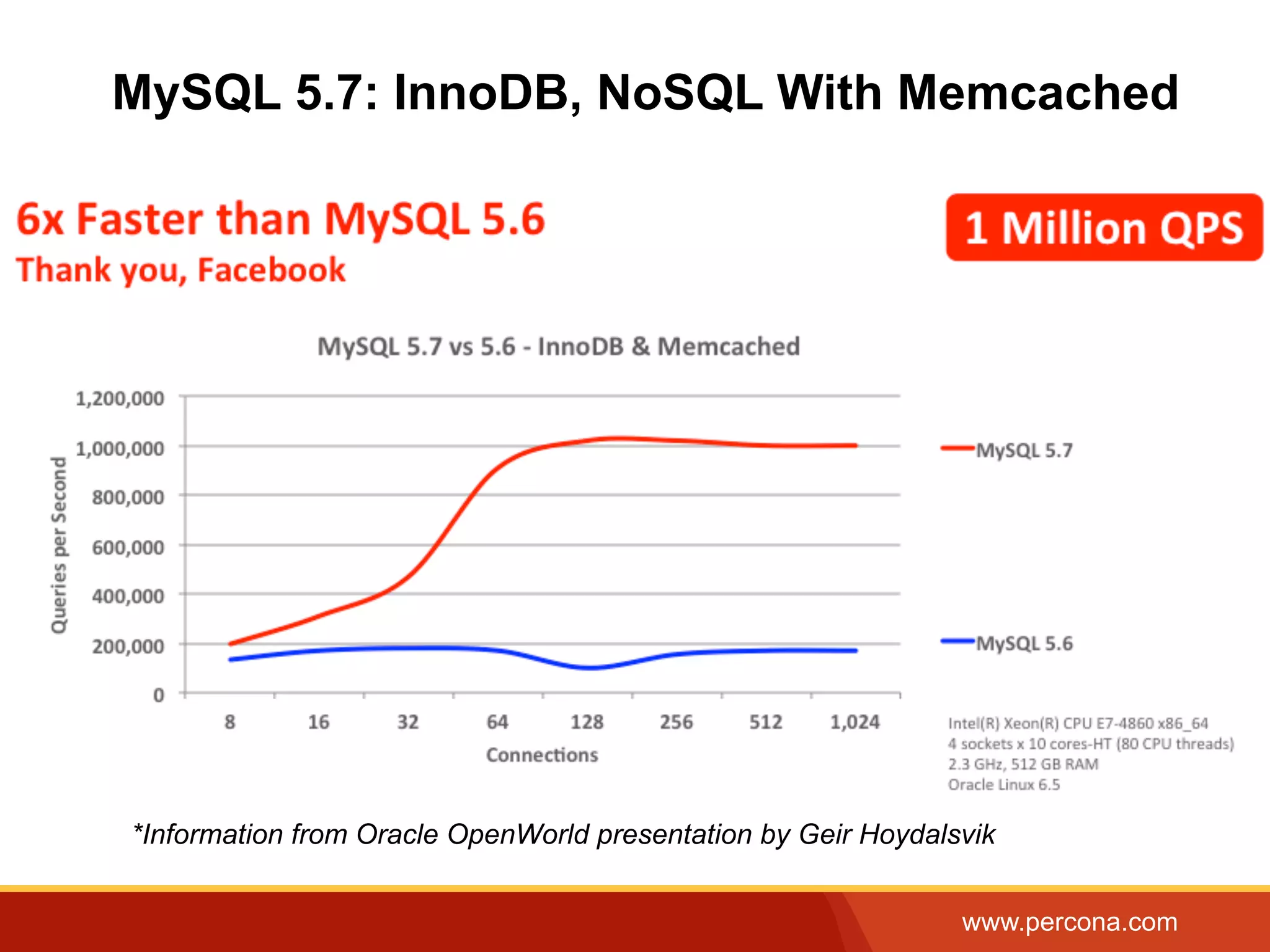

- 7. www.percona.com MySQL 5.7: InnoDB,NoSQL With Memcached *Information from Oracle OpenWorld presentation by Geir Hoydalsvik

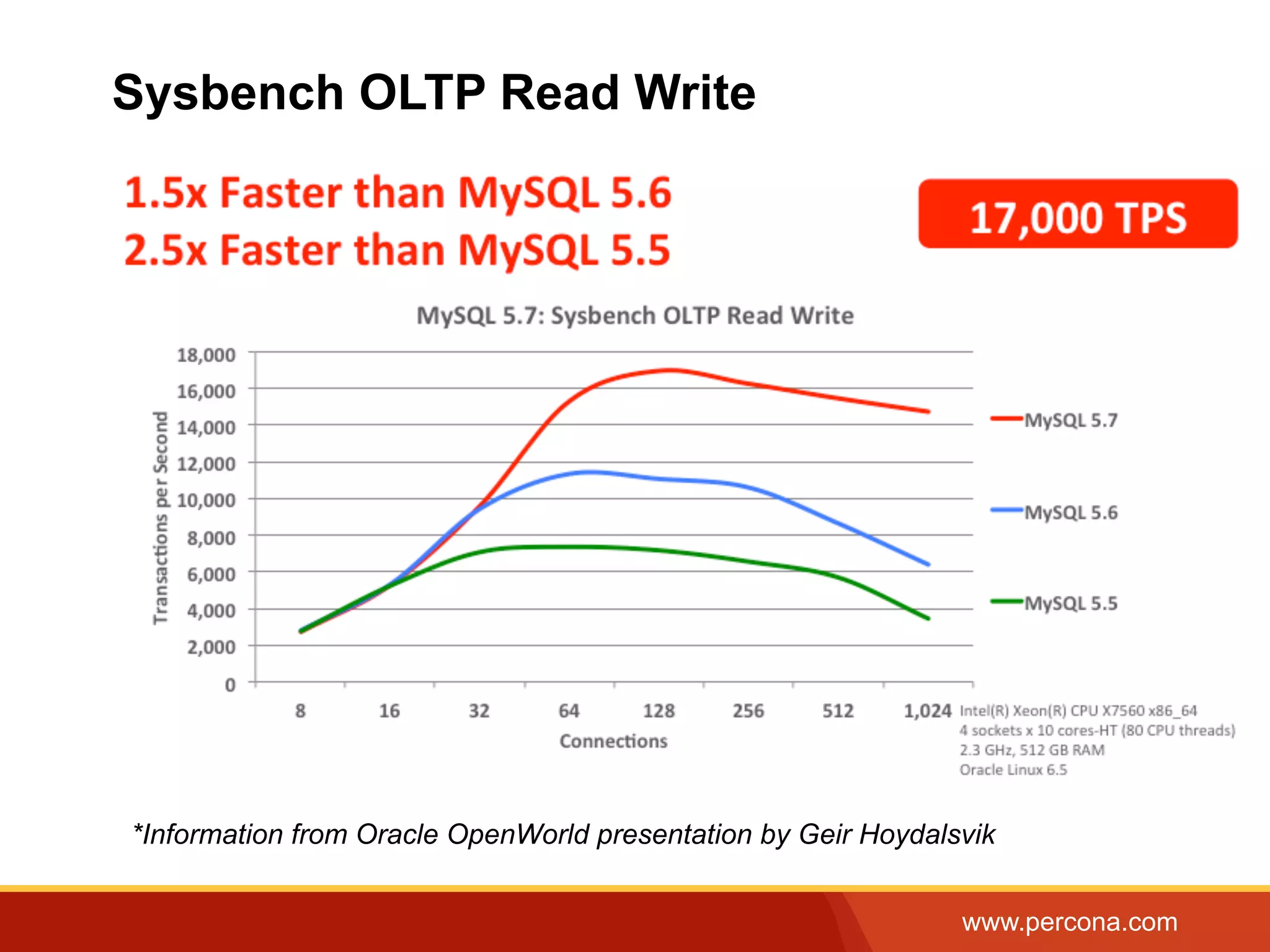

- 8. www.percona.com Sysbench OLTP ReadWrite *Information from Oracle OpenWorld presentation by Geir Hoydalsvik

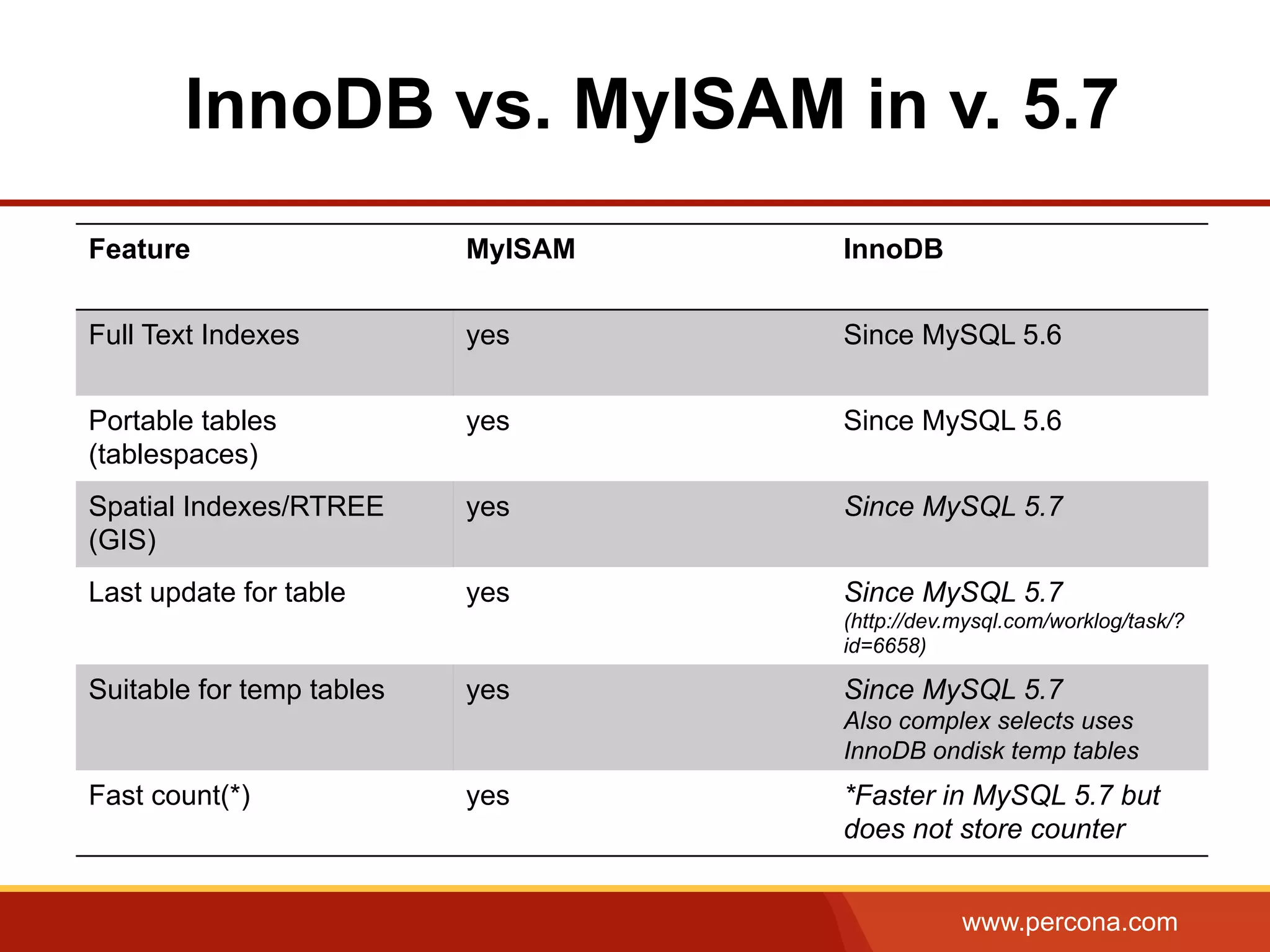

- 9. www.percona.com InnoDB vs. MyISAMin v. 5.7 Feature MyISAM InnoDB Full Text Indexes yes Since MySQL 5.6 Portable tables (tablespaces) yes Since MySQL 5.6 Spatial Indexes/RTREE (GIS) yes Since MySQL 5.7 Last update for table yes Since MySQL 5.7 (http://dev.mysql.com/worklog/task/? id=6658) Suitable for temp tables yes Since MySQL 5.7 Also complex selects uses InnoDB ondisk temp tables Fast count(*) yes *Faster in MySQL 5.7 but does not store counter

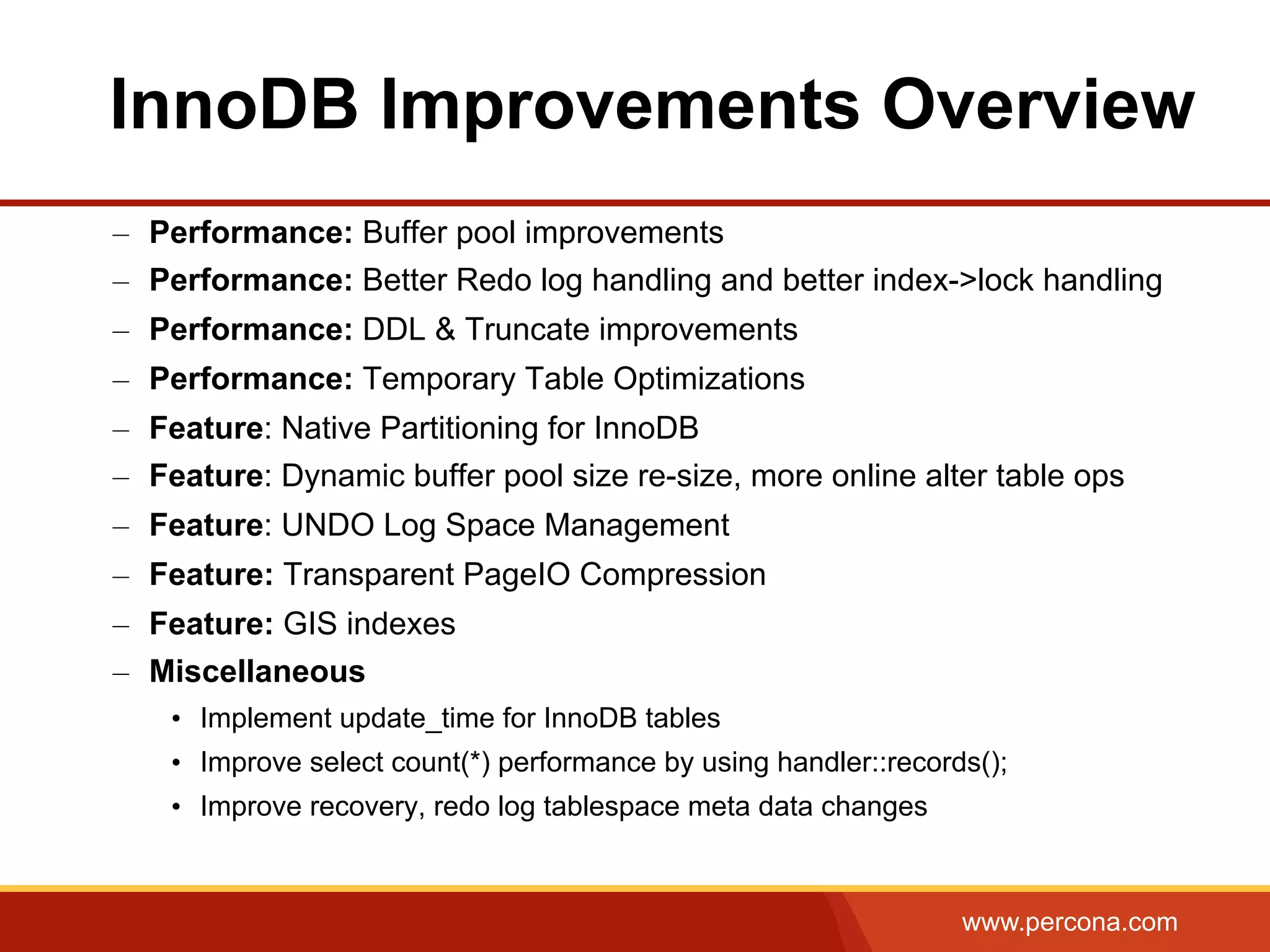

- 10. www.percona.com – Performance: Bufferpool improvements – Performance: Better Redo log handling and better index->lock handling – Performance: DDL & Truncate improvements – Performance: Temporary Table Optimizations – Feature: Native Partitioning for InnoDB – Feature: Dynamic buffer pool size re-size, more online alter table ops – Feature: UNDO Log Space Management – Feature: Transparent PageIO Compression – Feature: GIS indexes – Miscellaneous • Implement update_time for InnoDB tables • Improve select count(*) performance by using handler::records(); • Improve recovery, redo log tablespace meta data changes InnoDB Improvements Overview

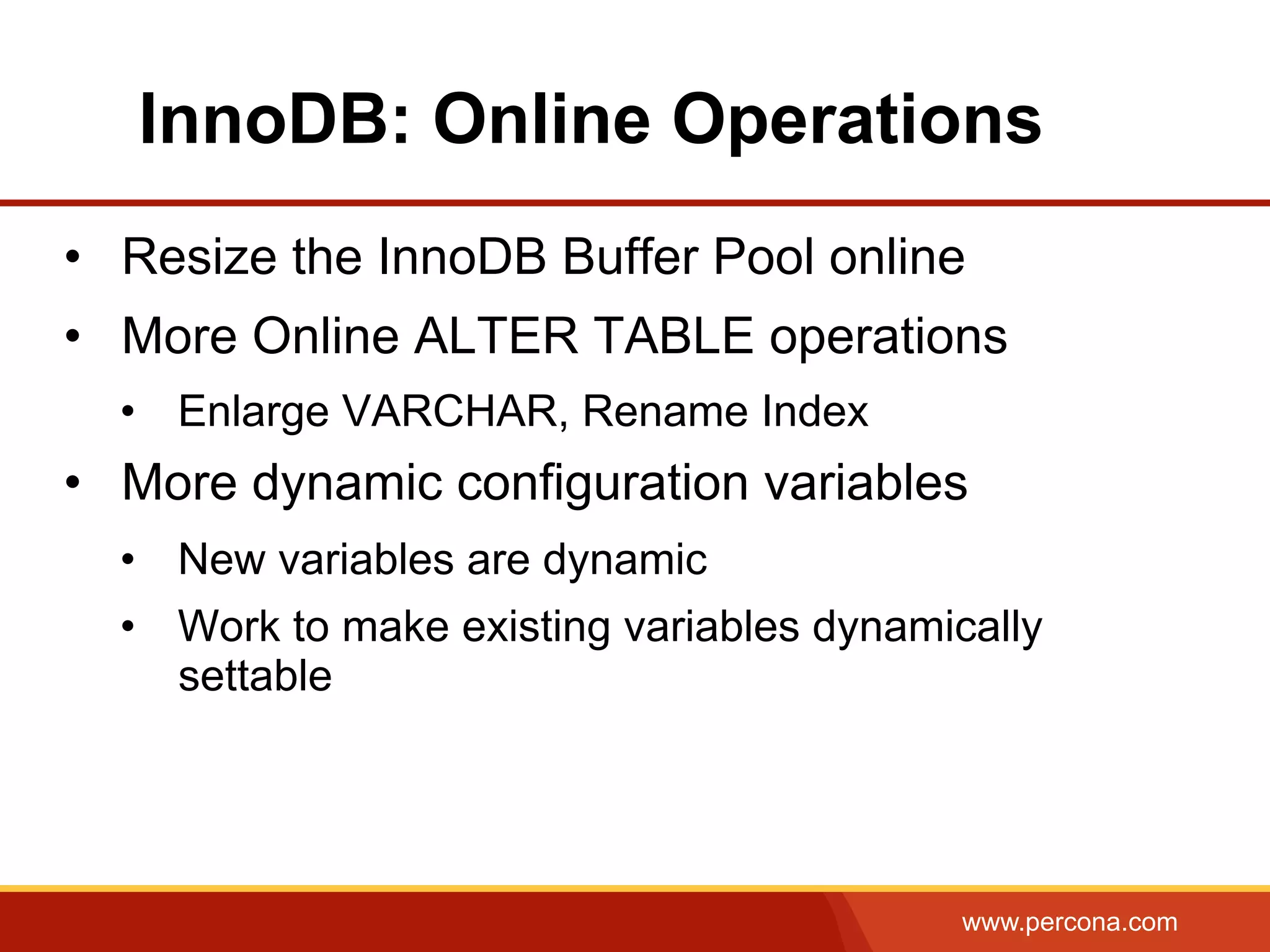

- 11. www.percona.com InnoDB: Online Operations • Resize the InnoDB Buffer Pool online • More Online ALTER TABLE operations • Enlarge VARCHAR, Rename Index • More dynamic configuration variables • New variables are dynamic • Work to make existing variables dynamically settable

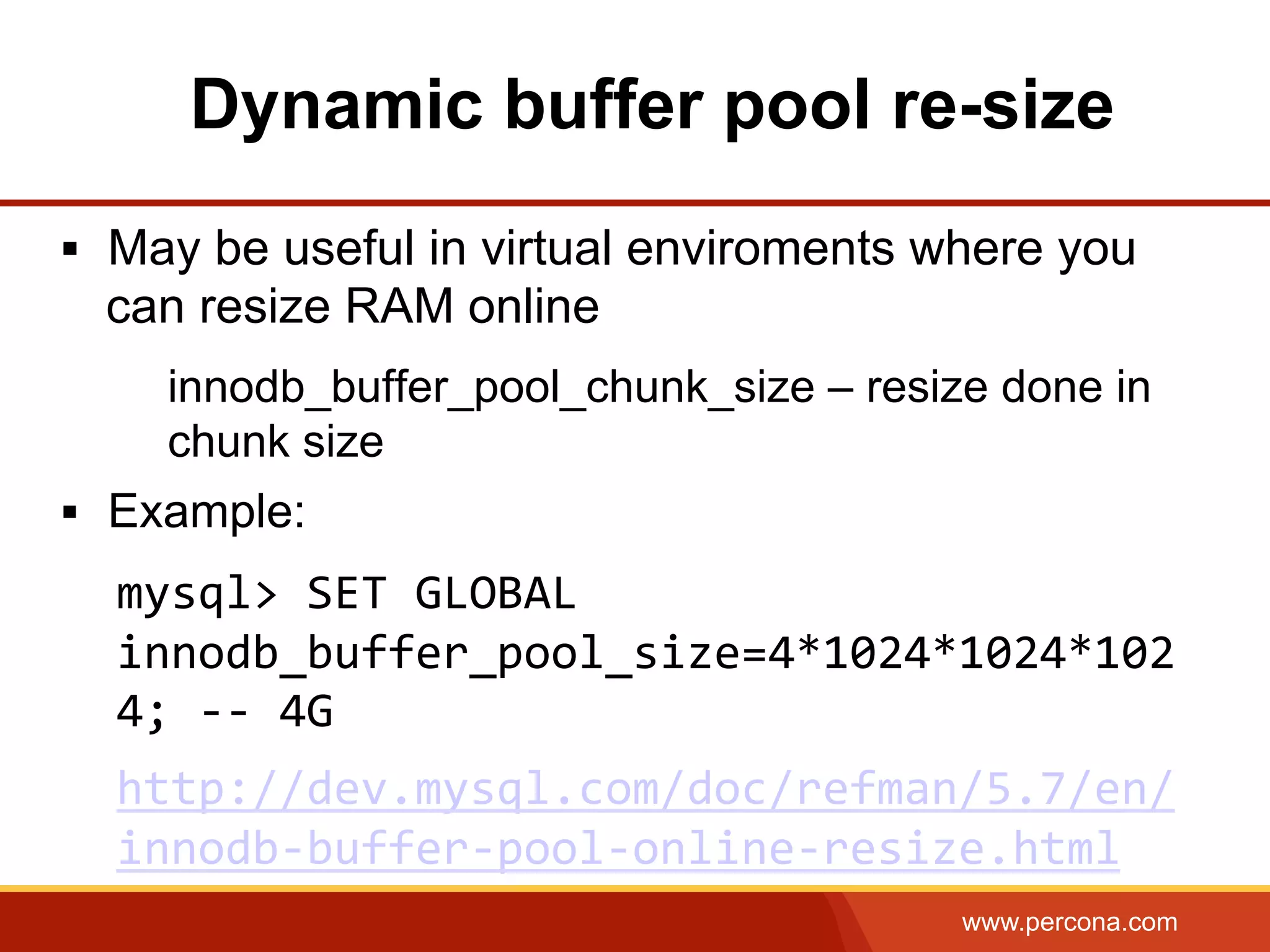

- 12. www.percona.com § May beuseful in virtual enviroments where you can resize RAM online innodb_buffer_pool_chunk_size – resize done in chunk size § Example: mysql> SET GLOBAL innodb_buffer_pool_size=4*1024*1024*102 4; -‐-‐ 4G http://dev.mysql.com/doc/refman/5.7/en/ innodb-‐buffer-‐pool-‐online-‐resize.html Dynamic buffer pool re-size

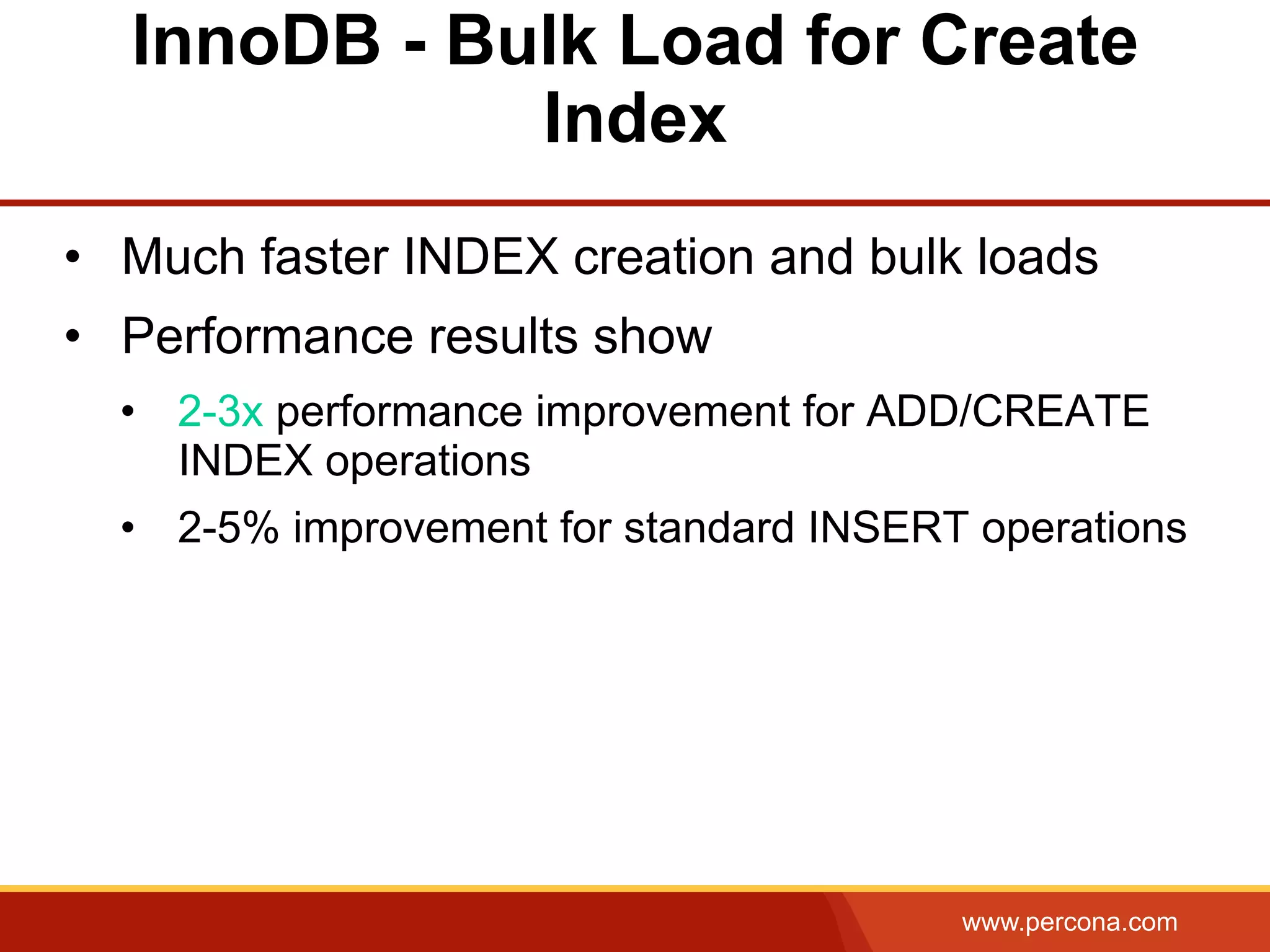

- 13. www.percona.com InnoDB - BulkLoad for Create Index • Much faster INDEX creation and bulk loads • Performance results show • 2-3x performance improvement for ADD/CREATE INDEX operations • 2-5% improvement for standard INSERT operations

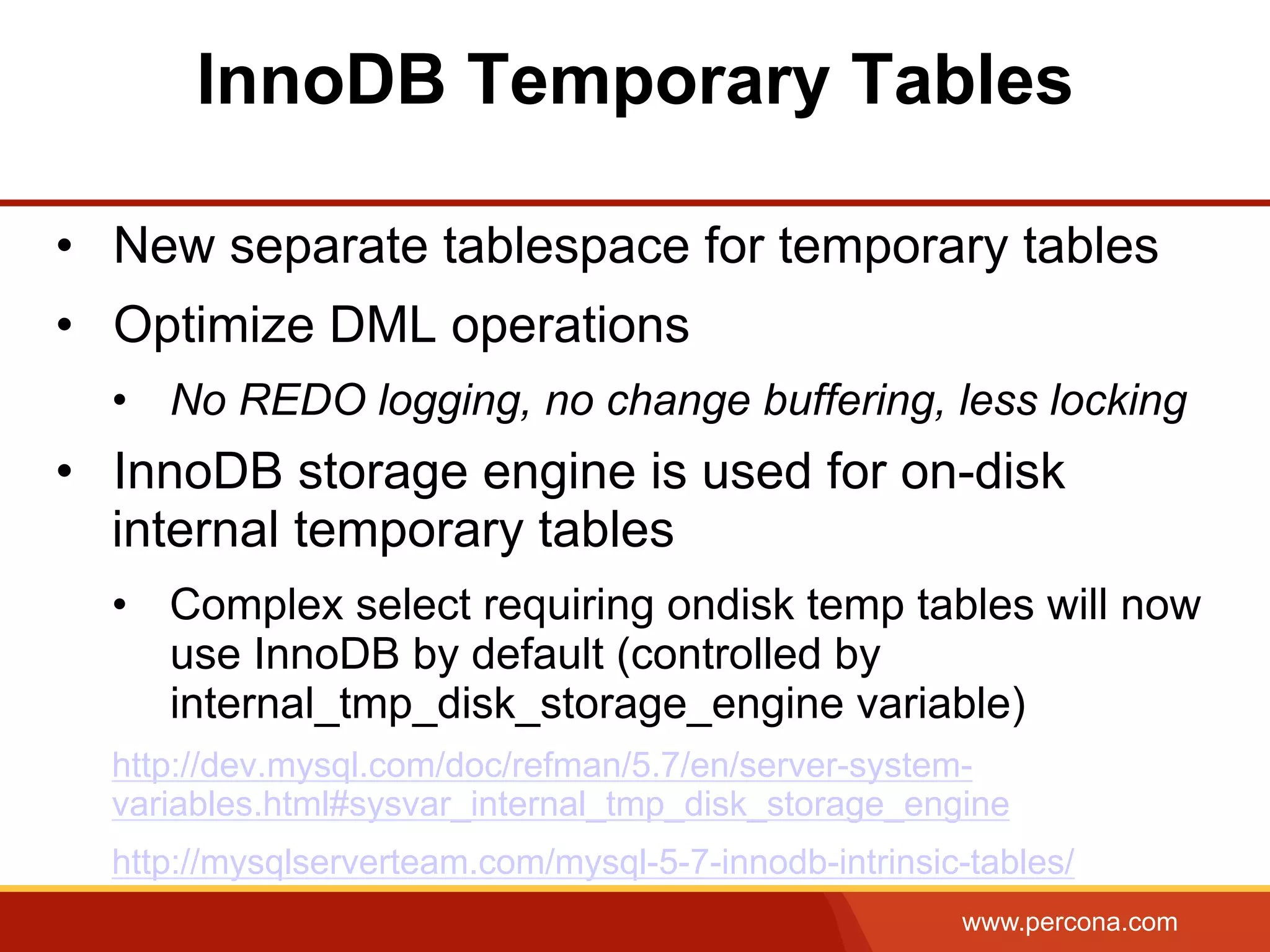

- 14. www.percona.com InnoDB Temporary Tables • New separate tablespace for temporary tables • Optimize DML operations • No REDO logging, no change buffering, less locking • InnoDB storage engine is used for on-disk internal temporary tables • Complex select requiring ondisk temp tables will now use InnoDB by default (controlled by internal_tmp_disk_storage_engine variable) http://dev.mysql.com/doc/refman/5.7/en/server-system- variables.html#sysvar_internal_tmp_disk_storage_engine http://mysqlserverteam.com/mysql-5-7-innodb-intrinsic-tables/

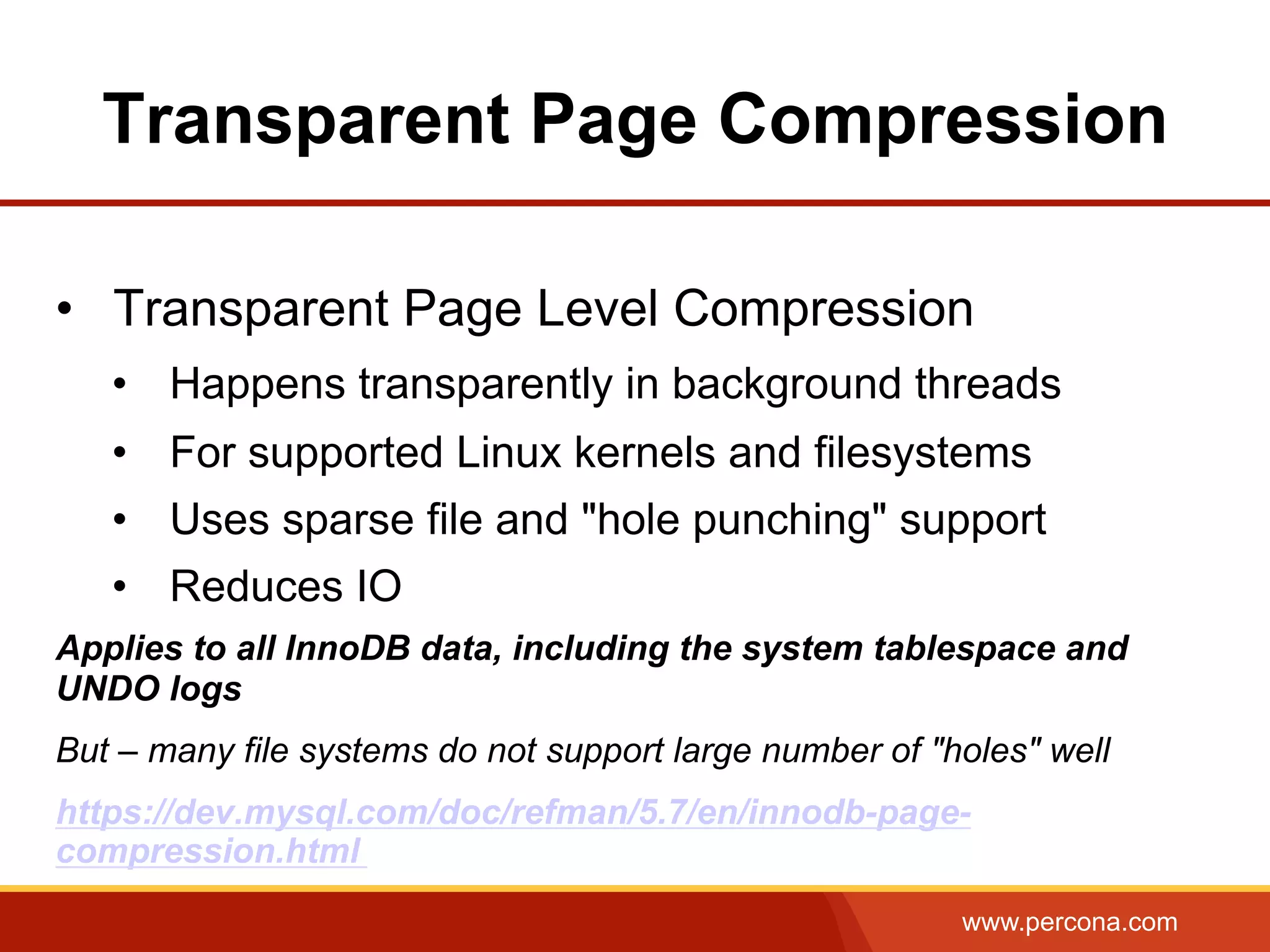

- 15. www.percona.com Transparent Page Compression • Transparent Page Level Compression • Happens transparently in background threads • For supported Linux kernels and filesystems • Uses sparse file and "hole punching" support • Reduces IO Applies to all InnoDB data, including the system tablespace and UNDO logs But – many file systems do not support large number of "holes" well https://dev.mysql.com/doc/refman/5.7/en/innodb-page- compression.html

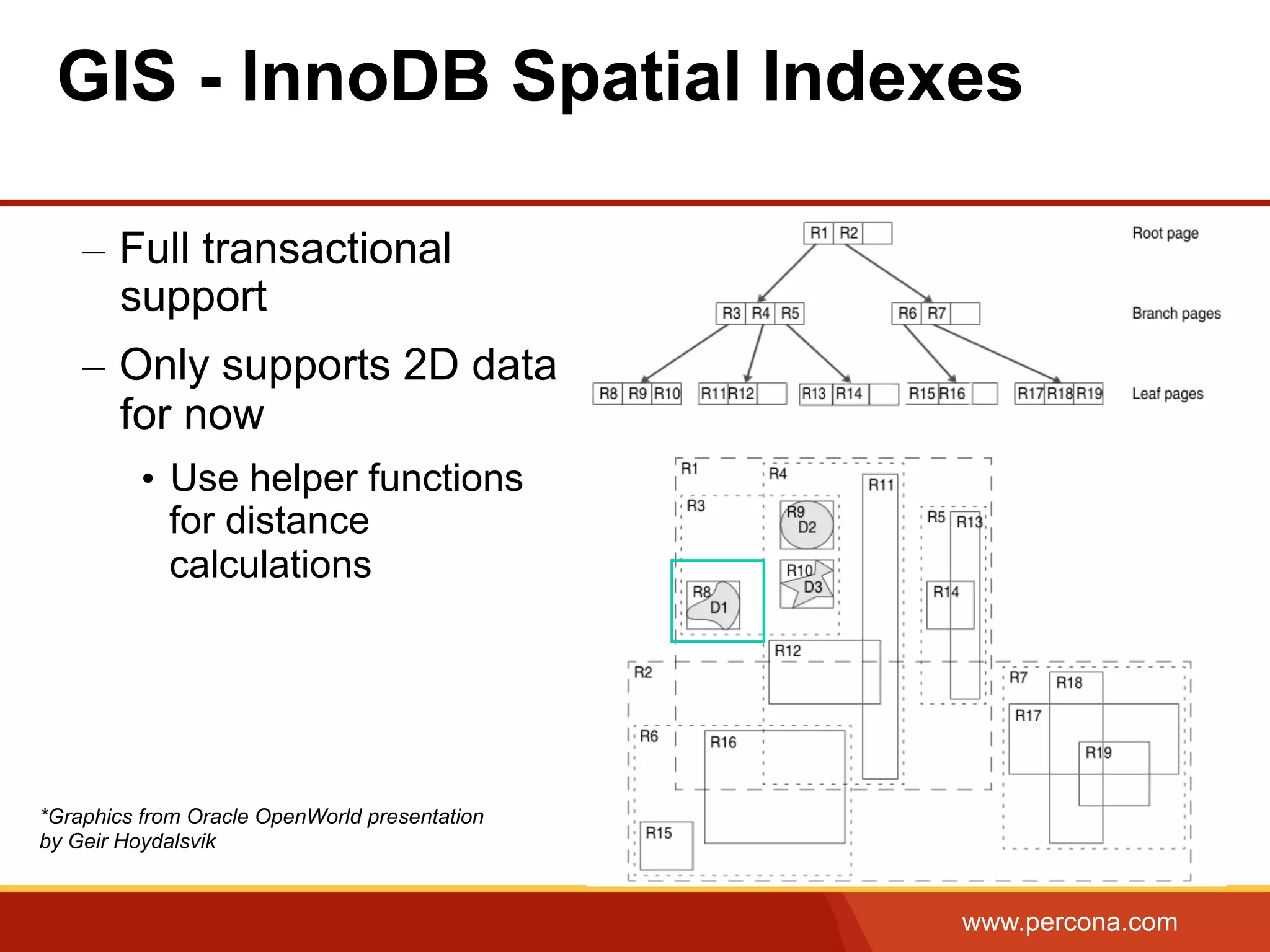

- 16. www.percona.com GIS - InnoDBSpatial Indexes – Full transactional support – Only supports 2D data for now • Use helper functions for distance calculations *Graphics from Oracle OpenWorld presentation by Geir Hoydalsvik

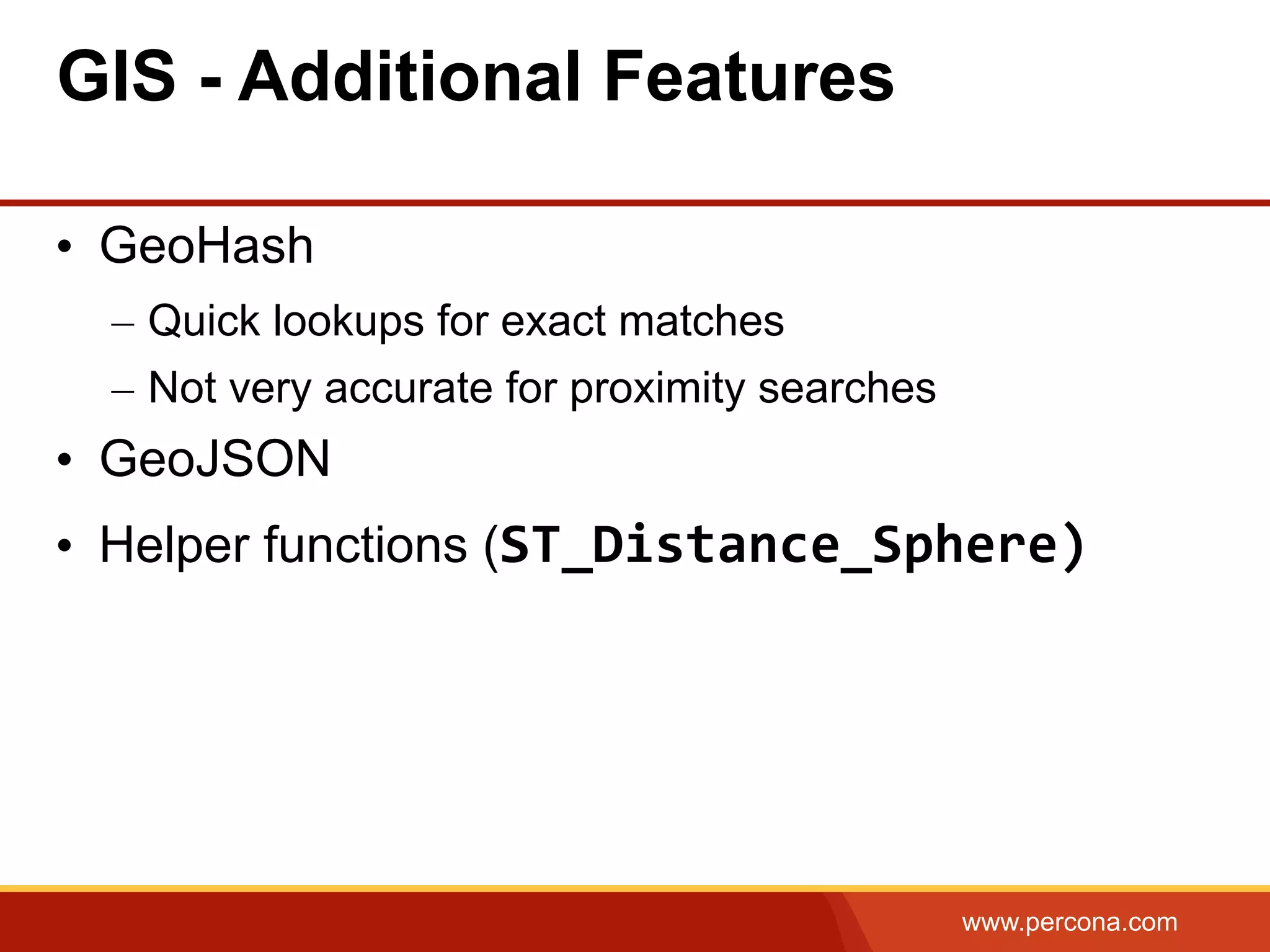

- 17. www.percona.com • GeoHash – Quicklookups for exact matches – Not very accurate for proximity searches • GeoJSON • Helper functions (ST_Distance_Sphere) GIS - Additional Features

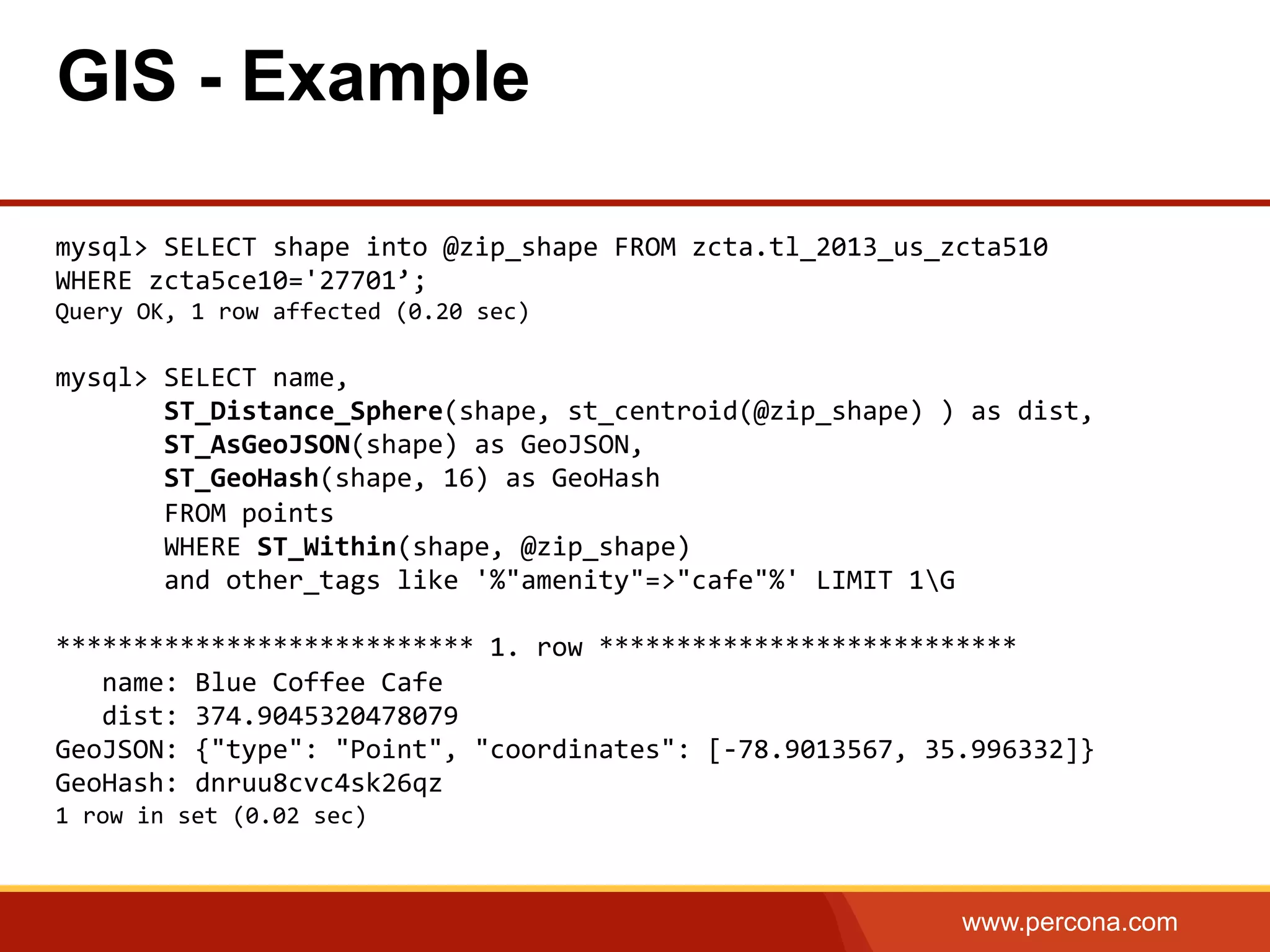

- 18. www.percona.com mysql> SELECT shape into @zip_shape FROM zcta.tl_2013_us_zcta510 WHERE zcta5ce10='27701’; Query OK, 1 row affected (0.20 sec) mysql> SELECT name, ST_Distance_Sphere(shape, st_centroid(@zip_shape) ) as dist, ST_AsGeoJSON(shape) as GeoJSON, ST_GeoHash(shape, 16) as GeoHash FROM points WHERE ST_Within(shape, @zip_shape) and other_tags like '%"amenity"=>"cafe"%' LIMIT 1G *************************** 1. row *************************** name: Blue Coffee Cafe dist: 374.9045320478079 GeoJSON: {"type": "Point", "coordinates": [-‐78.9013567, 35.996332]} GeoHash: dnruu8cvc4sk26qz 1 row in set (0.02 sec) GIS - Example

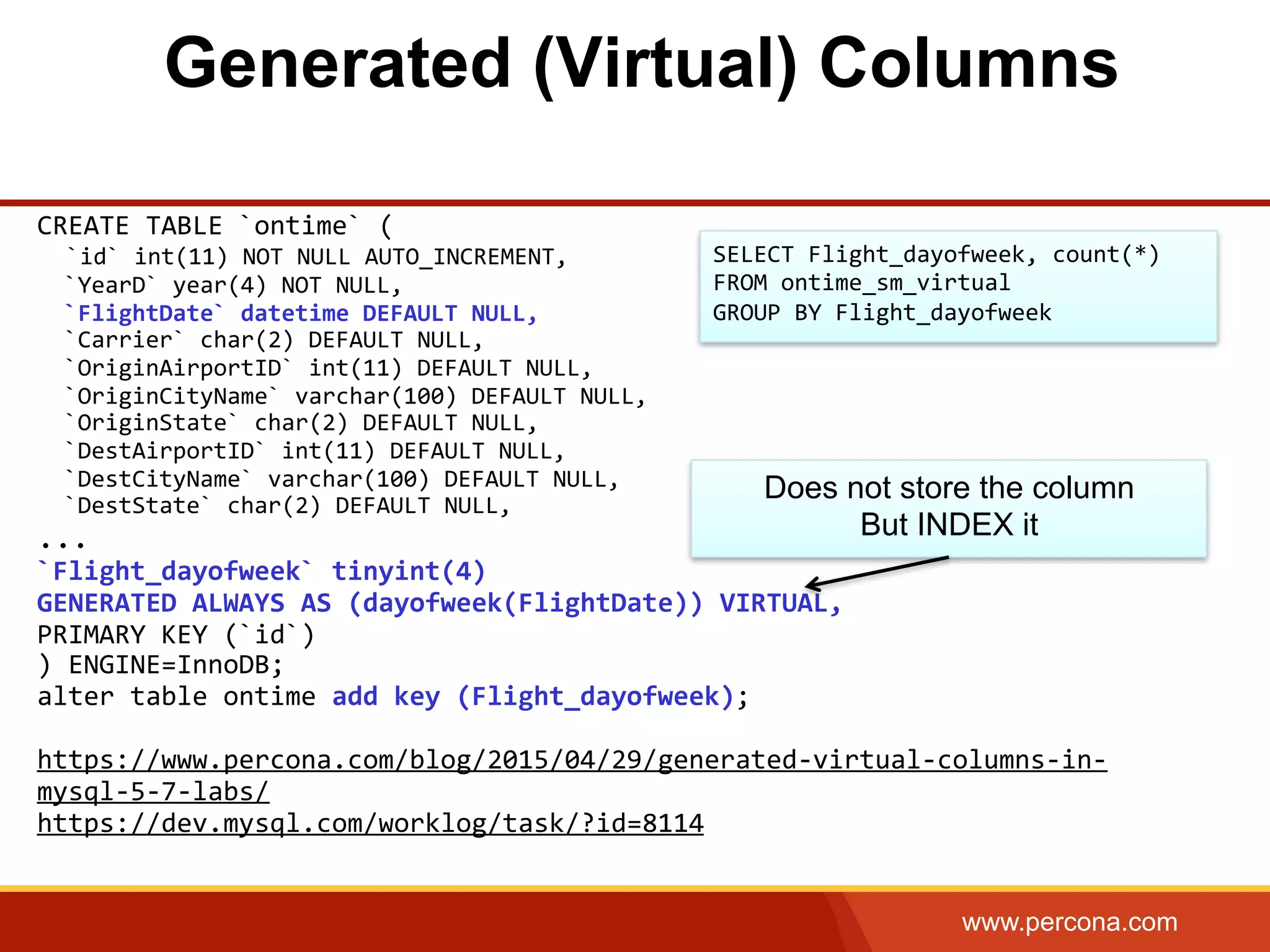

- 19. www.percona.com Generated (Virtual) Columns CREATE TABLE `ontime` ( `id` int(11) NOT NULL AUTO_INCREMENT, `YearD` year(4) NOT NULL, `FlightDate` datetime DEFAULT NULL, `Carrier` char(2) DEFAULT NULL, `OriginAirportID` int(11) DEFAULT NULL, `OriginCityName` varchar(100) DEFAULT NULL, `OriginState` char(2) DEFAULT NULL, `DestAirportID` int(11) DEFAULT NULL, `DestCityName` varchar(100) DEFAULT NULL, `DestState` char(2) DEFAULT NULL, ... `Flight_dayofweek` tinyint(4) GENERATED ALWAYS AS (dayofweek(FlightDate)) VIRTUAL, PRIMARY KEY (`id`) ) ENGINE=InnoDB; alter table ontime add key (Flight_dayofweek); https://www.percona.com/blog/2015/04/29/generated-‐virtual-‐columns-‐in-‐ mysql-‐5-‐7-‐labs/ https://dev.mysql.com/worklog/task/?id=8114 Does not store the column But INDEX it SELECT Flight_dayofweek, count(*) FROM ontime_sm_virtual GROUP BY Flight_dayofweek

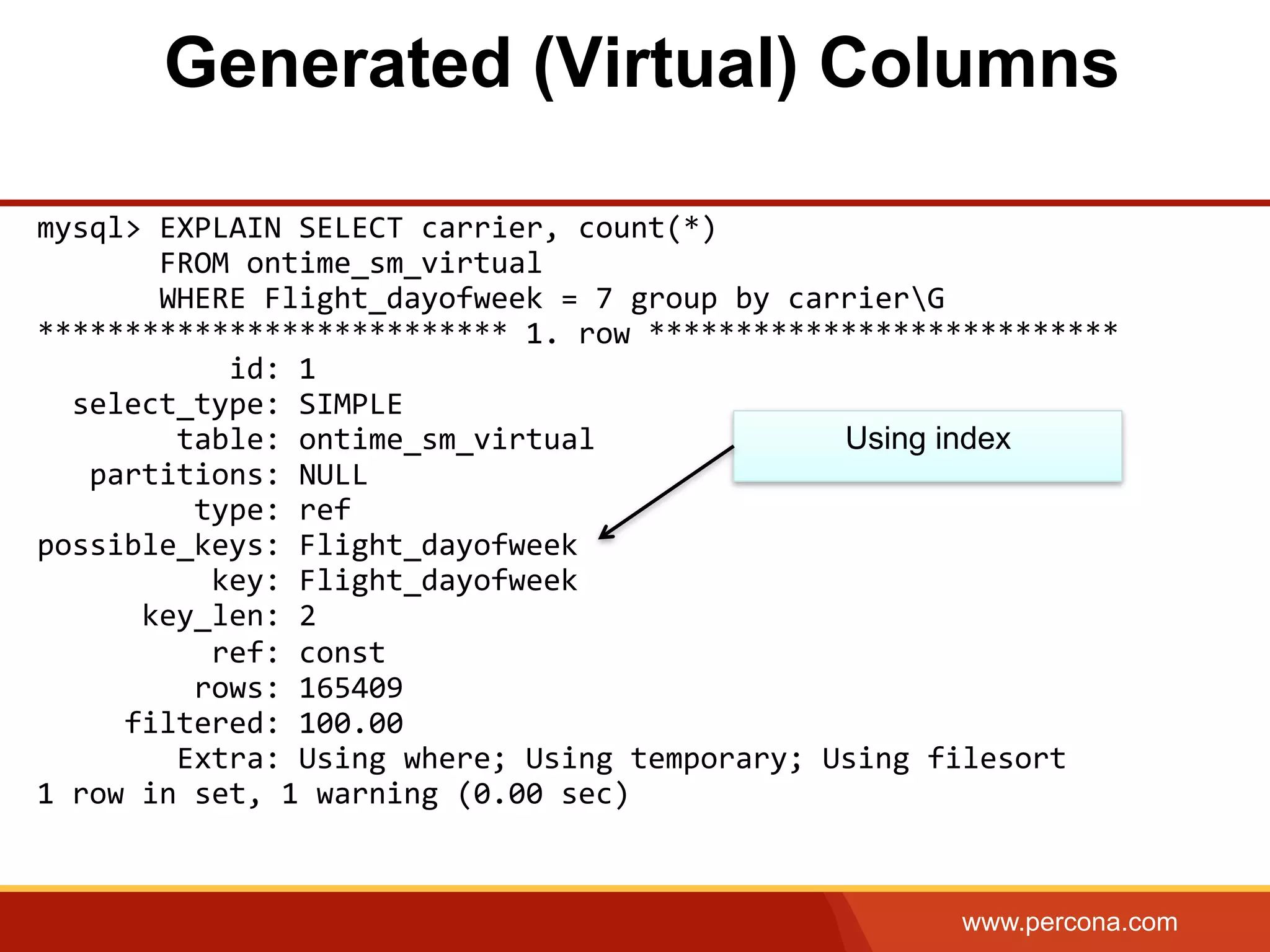

- 20. www.percona.com mysql> EXPLAIN SELECT carrier, count(*) FROM ontime_sm_virtual WHERE Flight_dayofweek = 7 group by carrierG *************************** 1. row *************************** id: 1 select_type: SIMPLE table: ontime_sm_virtual partitions: NULL type: ref possible_keys: Flight_dayofweek key: Flight_dayofweek key_len: 2 ref: const rows: 165409 filtered: 100.00 Extra: Using where; Using temporary; Using filesort 1 row in set, 1 warning (0.00 sec) Using index Generated (Virtual) Columns

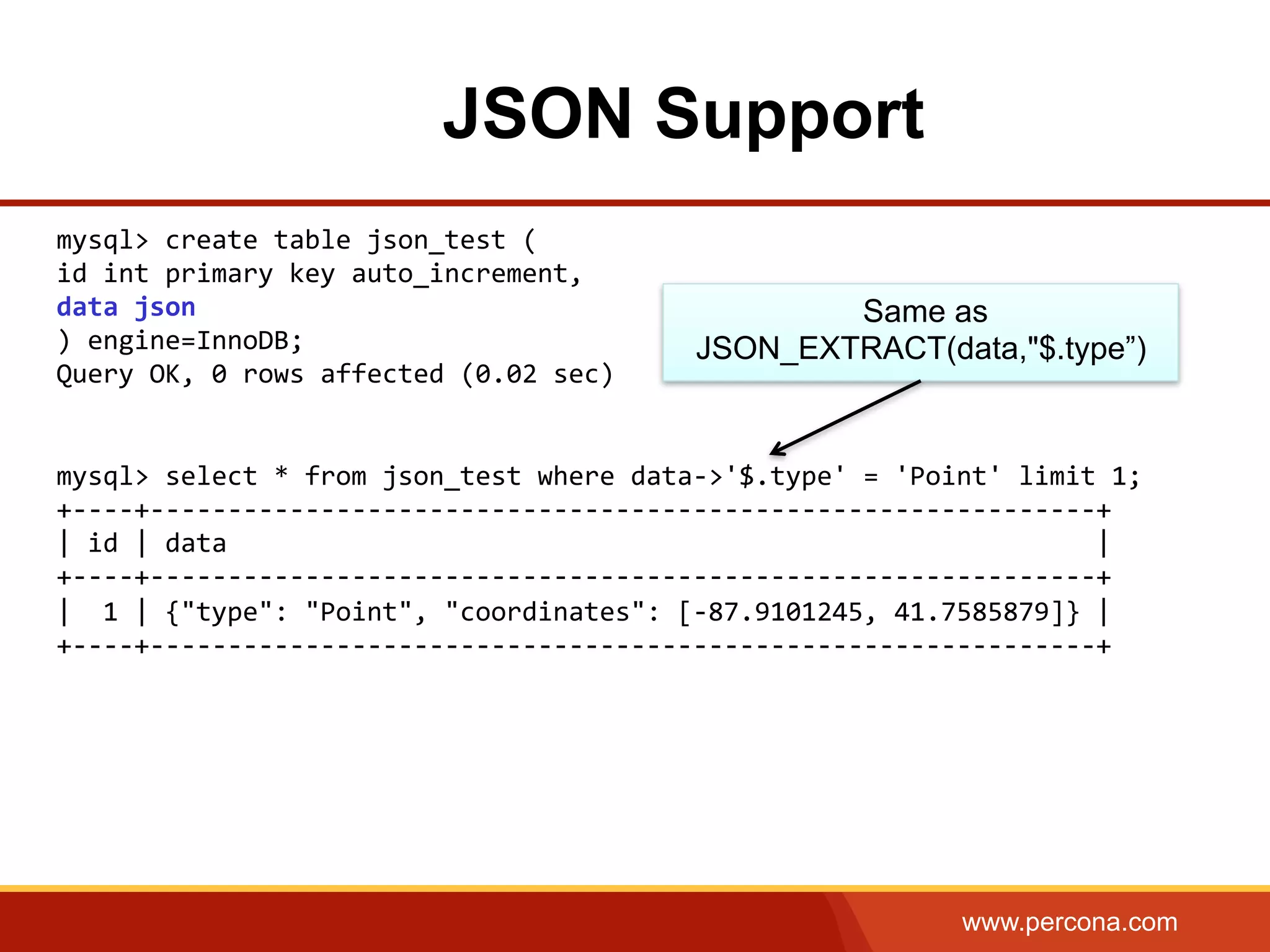

- 21. www.percona.com JSON Support mysql> create table json_test ( id int primary key auto_increment, data json ) engine=InnoDB; Query OK, 0 rows affected (0.02 sec) mysql> select * from json_test where data-‐>'$.type' = 'Point' limit 1; +-‐-‐-‐-‐+-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐+ | id | data | +-‐-‐-‐-‐+-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐+ | 1 | {"type": "Point", "coordinates": [-‐87.9101245, 41.7585879]} | +-‐-‐-‐-‐+-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐-‐+ Same as JSON_EXTRACT(data,"$.type”)

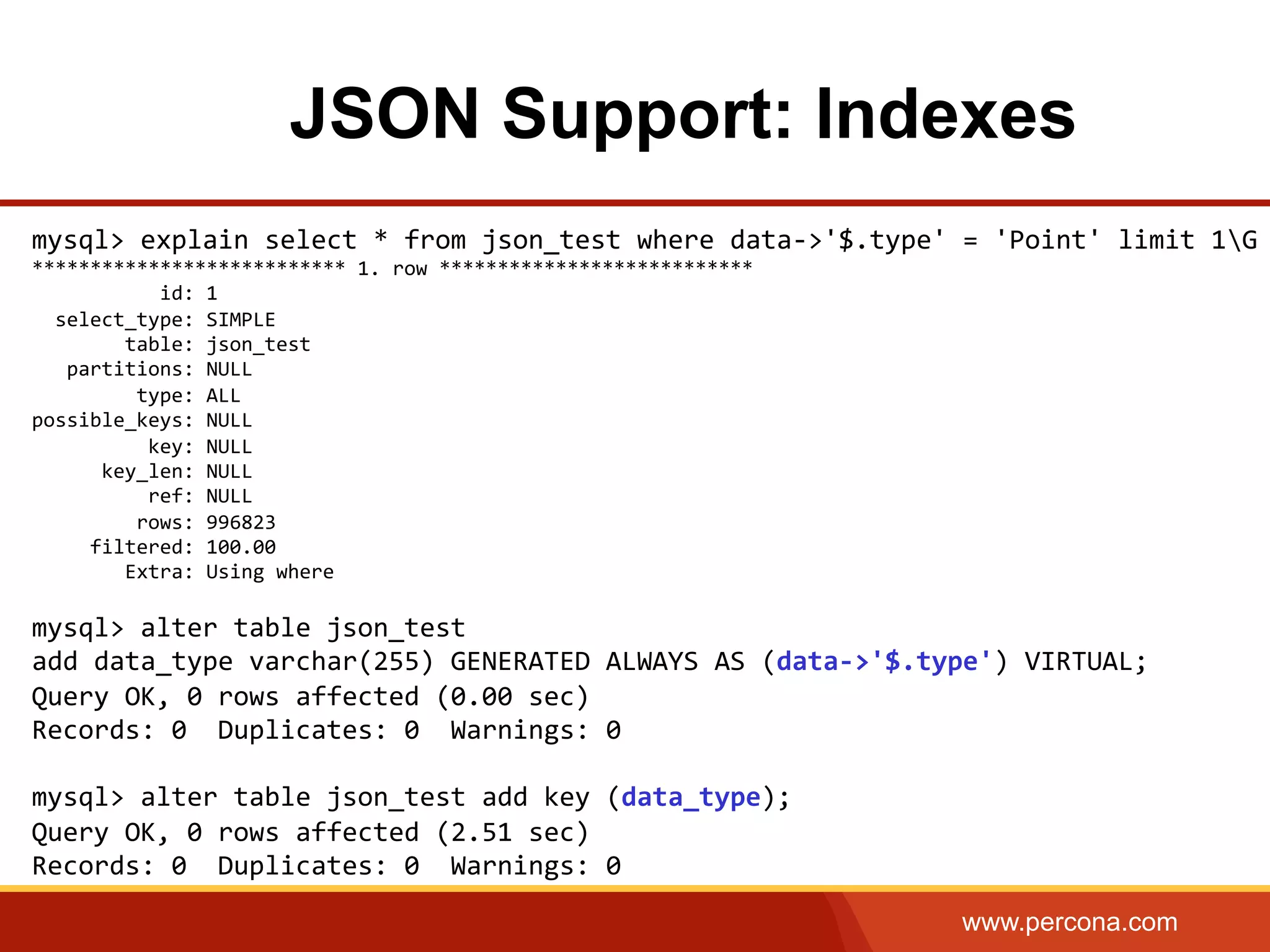

- 22. www.percona.com JSON Support: Indexes mysql> explain select * from json_test where data-‐>'$.type' = 'Point' limit 1G *************************** 1. row *************************** id: 1 select_type: SIMPLE table: json_test partitions: NULL type: ALL possible_keys: NULL key: NULL key_len: NULL ref: NULL rows: 996823 filtered: 100.00 Extra: Using where mysql> alter table json_test add data_type varchar(255) GENERATED ALWAYS AS (data-‐>'$.type') VIRTUAL; Query OK, 0 rows affected (0.00 sec) Records: 0 Duplicates: 0 Warnings: 0 mysql> alter table json_test add key (data_type); Query OK, 0 rows affected (2.51 sec) Records: 0 Duplicates: 0 Warnings: 0

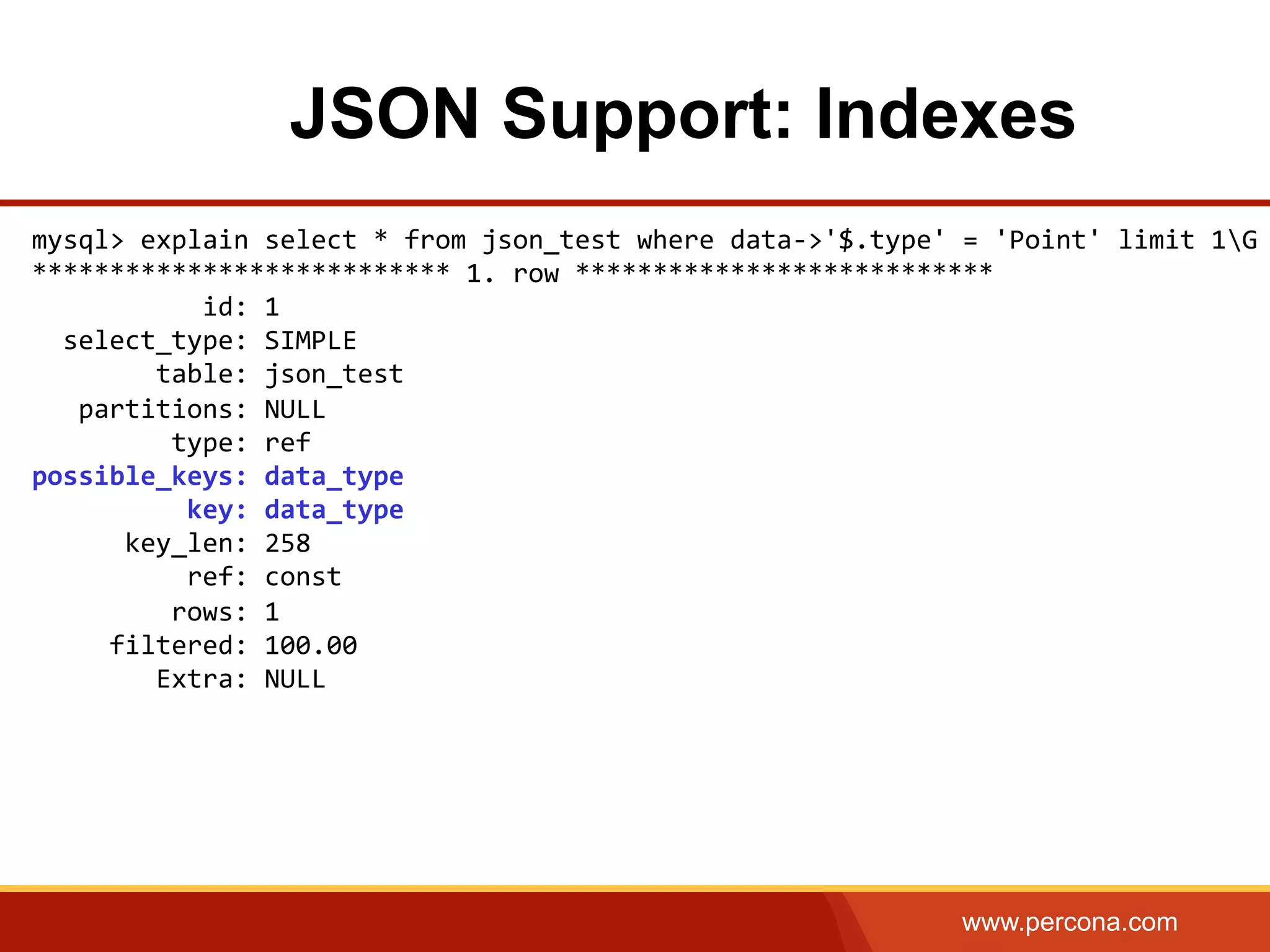

- 23. www.percona.com JSON Support: Indexes mysql> explain select * from json_test where data-‐>'$.type' = 'Point' limit 1G *************************** 1. row *************************** id: 1 select_type: SIMPLE table: json_test partitions: NULL type: ref possible_keys: data_type key: data_type key_len: 258 ref: const rows: 1 filtered: 100.00 Extra: NULL

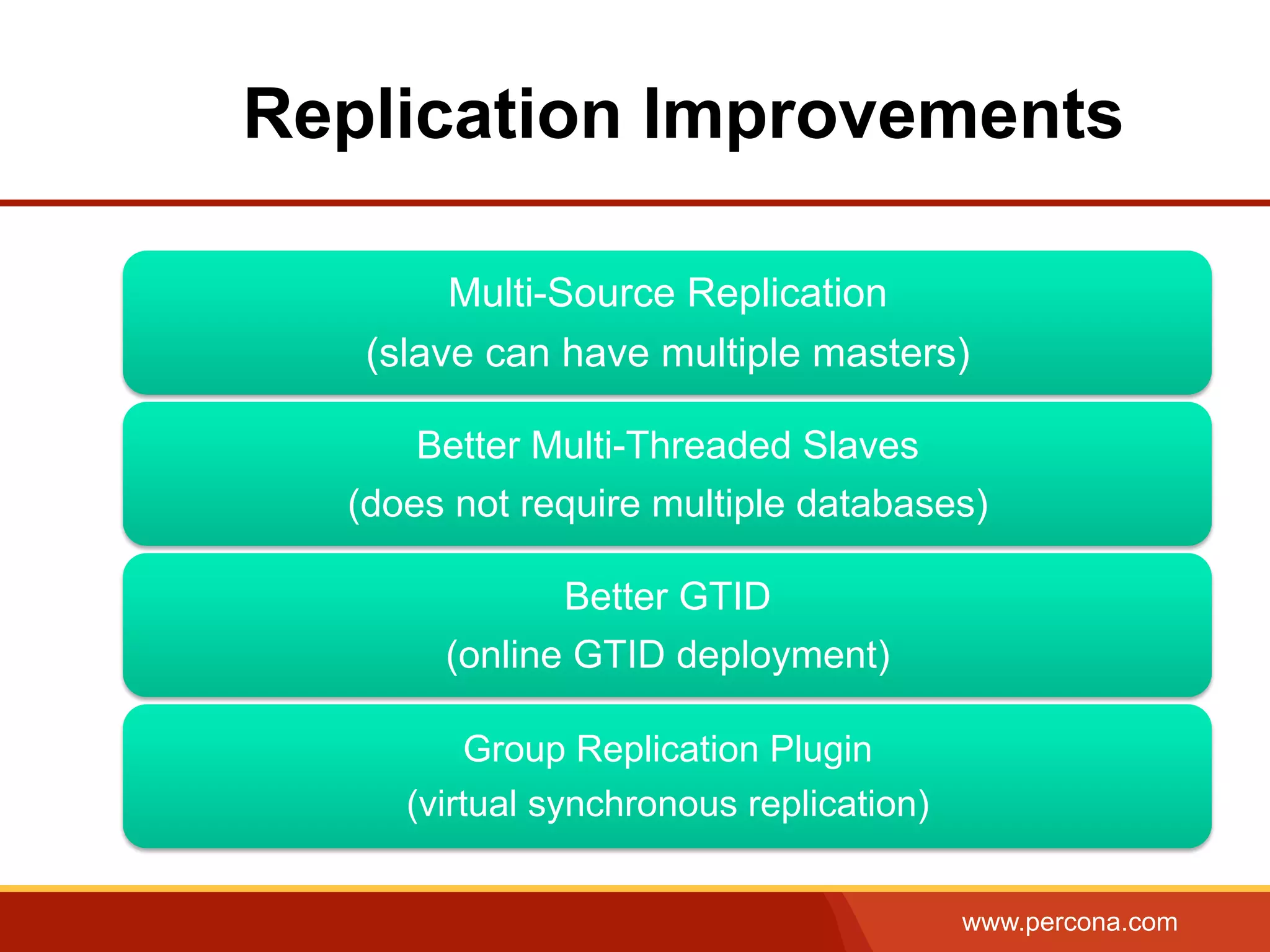

- 24. www.percona.com Replication Improvements Multi-Source Replication (slavecan have multiple masters) Better Multi-Threaded Slaves (does not require multiple databases) Better GTID (online GTID deployment) Group Replication Plugin (virtual synchronous replication)

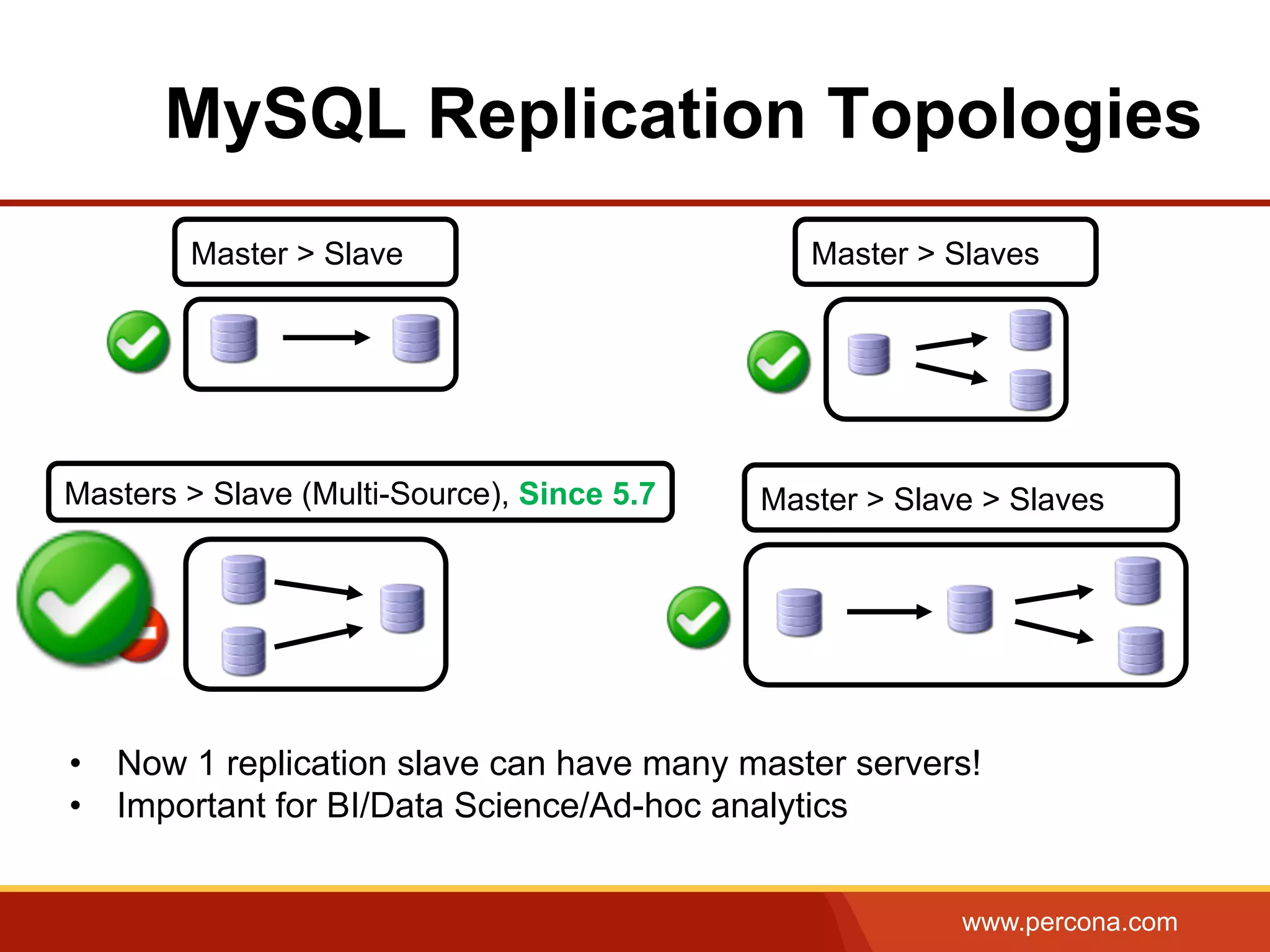

- 25. www.percona.com MySQL Replication Topologies Master> Slave Masters > Slave (Multi-Source), Since 5.7 Master > Slaves Master > Slave > Slaves • Now 1 replication slave can have many master servers! • Important for BI/Data Science/Ad-hoc analytics

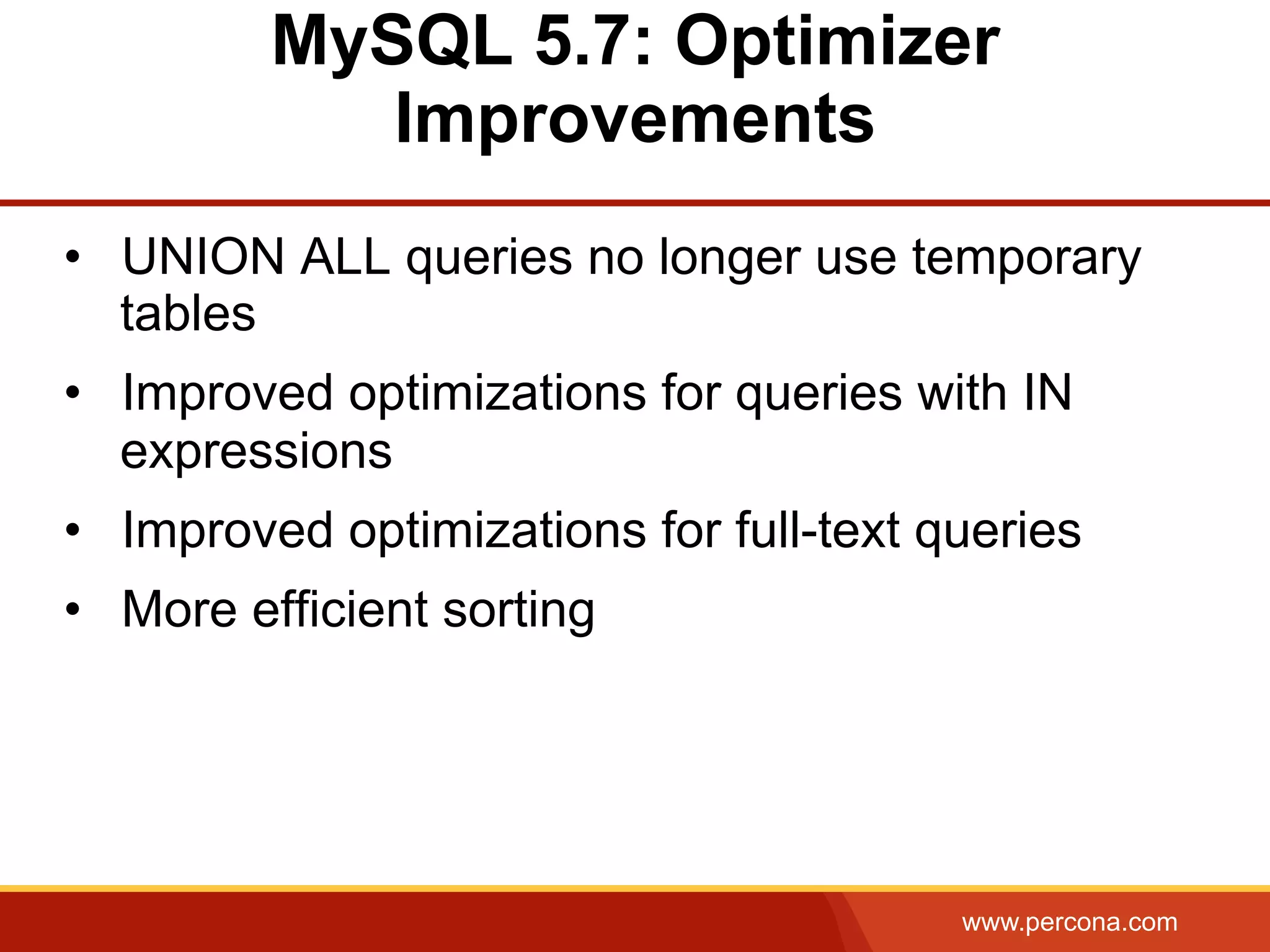

- 26. www.percona.com MySQL 5.7: Optimizer Improvements • UNION ALL queries no longer use temporary tables • Improved optimizations for queries with IN expressions • Improved optimizations for full-text queries • More efficient sorting

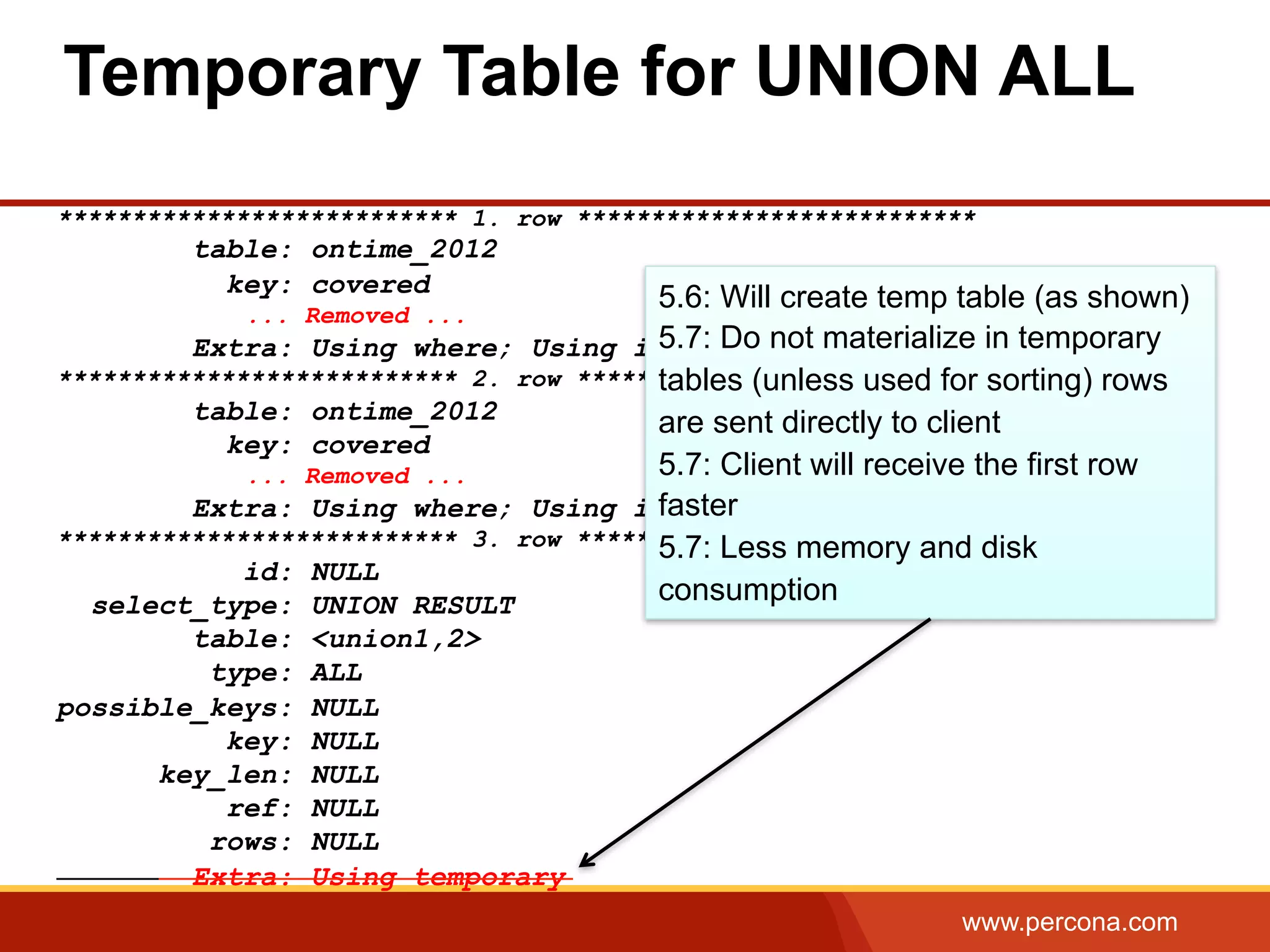

- 27. www.percona.com *************************** 1. row*************************** table: ontime_2012 key: covered ... Removed ... Extra: Using where; Using index *************************** 2. row *************************** table: ontime_2012 key: covered ... Removed ... Extra: Using where; Using index *************************** 3. row *************************** id: NULL select_type: UNION RESULT table: <union1,2> type: ALL possible_keys: NULL key: NULL key_len: NULL ref: NULL rows: NULL Extra: Using temporary Temporary Table for UNION ALL 5.6: Will create temp table (as shown) 5.7: Do not materialize in temporary tables (unless used for sorting) rows are sent directly to client 5.7: Client will receive the first row faster 5.7: Less memory and disk consumption

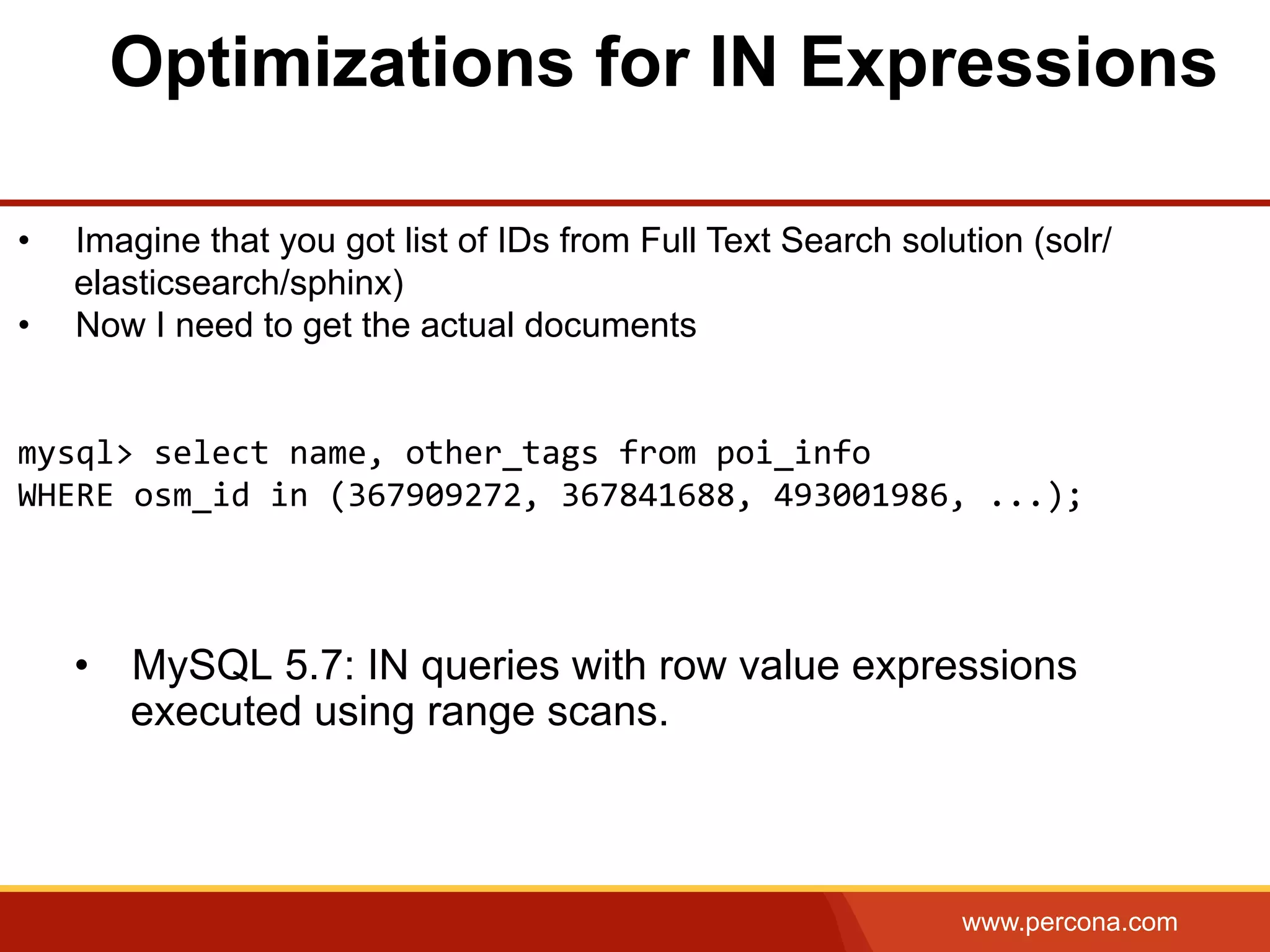

- 28. www.percona.com Optimizations for INExpressions • MySQL 5.7: IN queries with row value expressions executed using range scans. • Imagine that you got list of IDs from Full Text Search solution (solr/ elasticsearch/sphinx) • Now I need to get the actual documents mysql> select name, other_tags from poi_info WHERE osm_id in (367909272, 367841688, 493001986, ...);

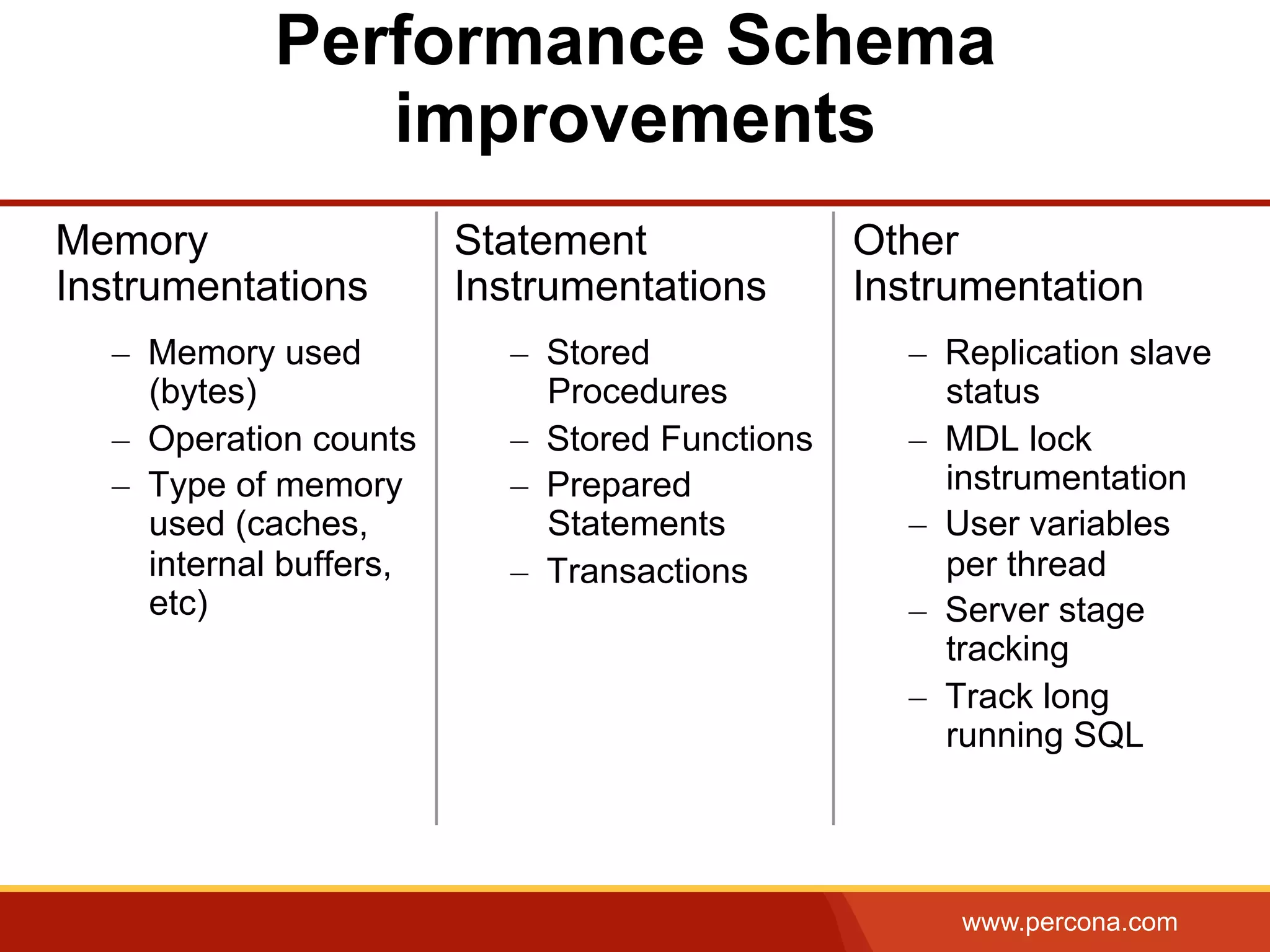

- 29. www.percona.com Performance Schema improvements Memory Instrumentations – Memoryused (bytes) – Operation counts – Type of memory used (caches, internal buffers, etc) Statement Instrumentations – Stored Procedures – Stored Functions – Prepared Statements – Transactions Other Instrumentation – Replication slave status – MDL lock instrumentation – User variables per thread – Server stage tracking – Track long running SQL

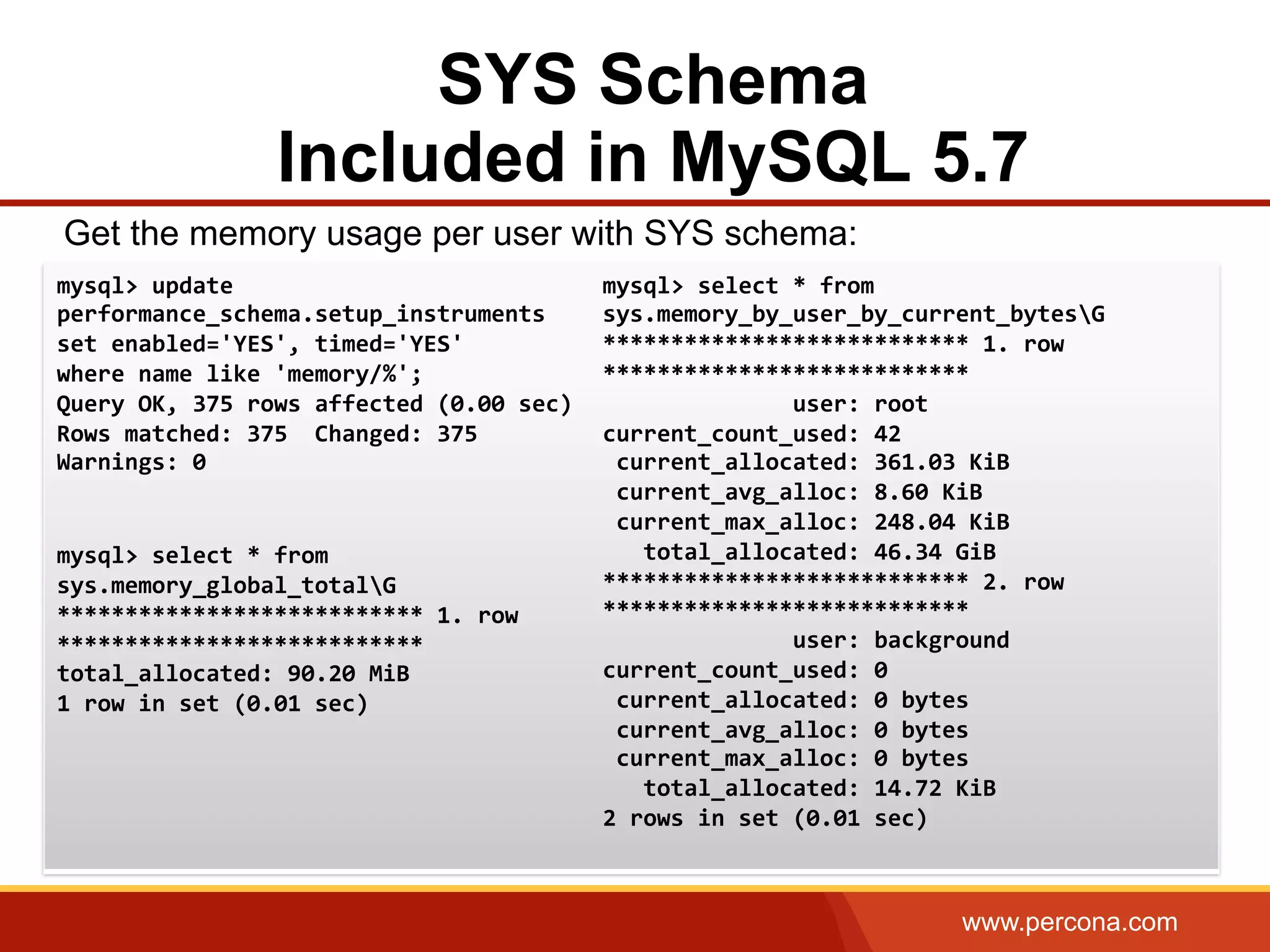

- 30. www.percona.com SYS Schema Included inMySQL 5.7 Get the memory usage per user with SYS schema: mysql> update performance_schema.setup_instruments set enabled='YES', timed='YES' where name like 'memory/%'; Query OK, 375 rows affected (0.00 sec) Rows matched: 375 Changed: 375 Warnings: 0 mysql> select * from sys.memory_global_totalG *************************** 1. row *************************** total_allocated: 90.20 MiB 1 row in set (0.01 sec) mysql> select * from sys.memory_by_user_by_current_bytesG *************************** 1. row *************************** user: root current_count_used: 42 current_allocated: 361.03 KiB current_avg_alloc: 8.60 KiB current_max_alloc: 248.04 KiB total_allocated: 46.34 GiB *************************** 2. row *************************** user: background current_count_used: 0 current_allocated: 0 bytes current_avg_alloc: 0 bytes current_max_alloc: 0 bytes total_allocated: 14.72 KiB 2 rows in set (0.01 sec)

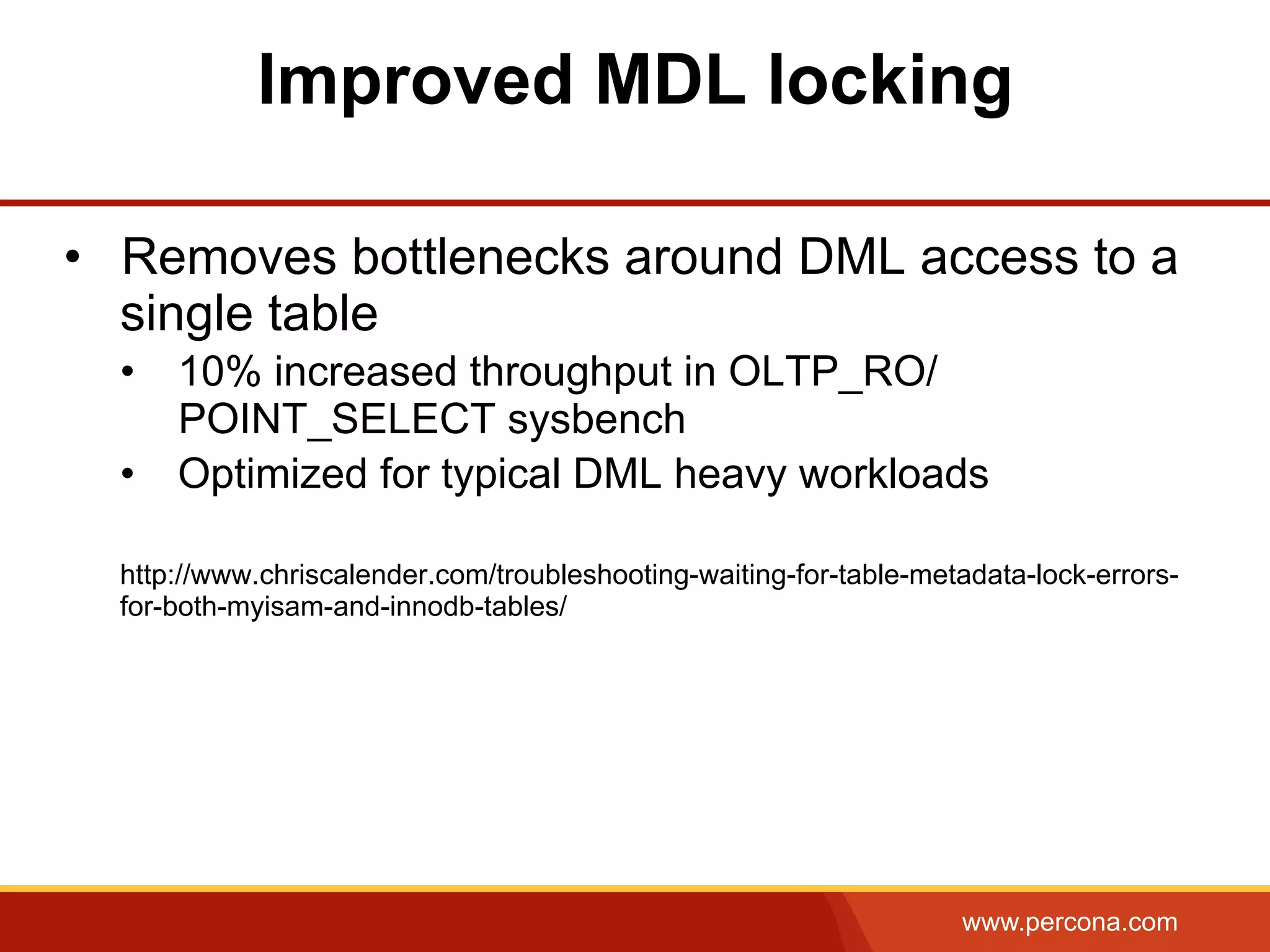

- 31. www.percona.com Improved MDL locking • Removes bottlenecks around DML access to a single table • 10% increased throughput in OLTP_RO/ POINT_SELECT sysbench • Optimized for typical DML heavy workloads http://www.chriscalender.com/troubleshooting-waiting-for-table-metadata-lock-errors- for-both-myisam-and-innodb-tables/

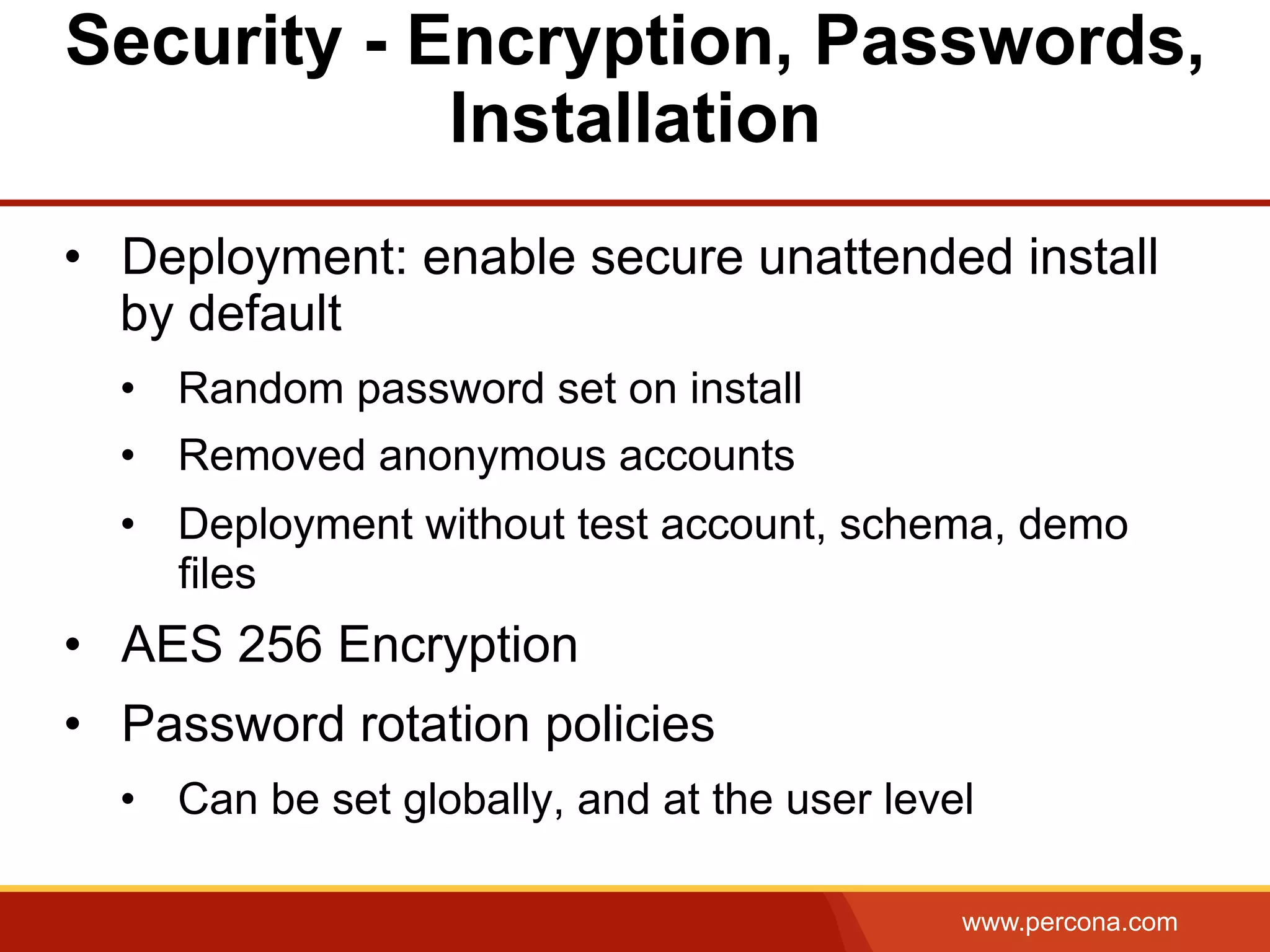

- 32. www.percona.com Security - Encryption,Passwords, Installation • Deployment: enable secure unattended install by default • Random password set on install • Removed anonymous accounts • Deployment without test account, schema, demo files • AES 256 Encryption • Password rotation policies • Can be set globally, and at the user level

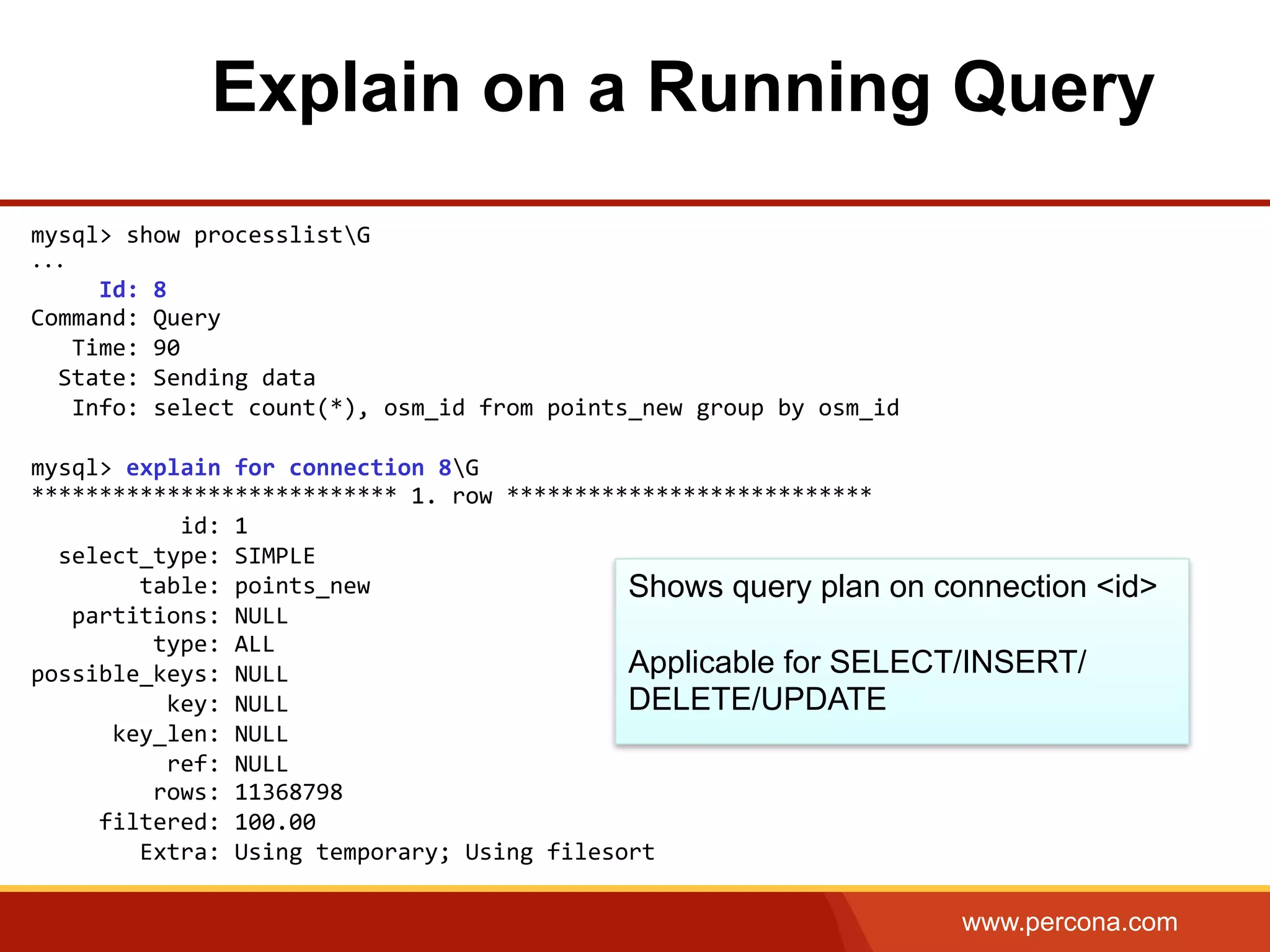

- 33. www.percona.com Explain on aRunning Query mysql> show processlistG ... Id: 8 Command: Query Time: 90 State: Sending data Info: select count(*), osm_id from points_new group by osm_id mysql> explain for connection 8G *************************** 1. row *************************** id: 1 select_type: SIMPLE table: points_new partitions: NULL type: ALL possible_keys: NULL key: NULL key_len: NULL ref: NULL rows: 11368798 filtered: 100.00 Extra: Using temporary; Using filesort Shows query plan on connection <id> Applicable for SELECT/INSERT/ DELETE/UPDATE

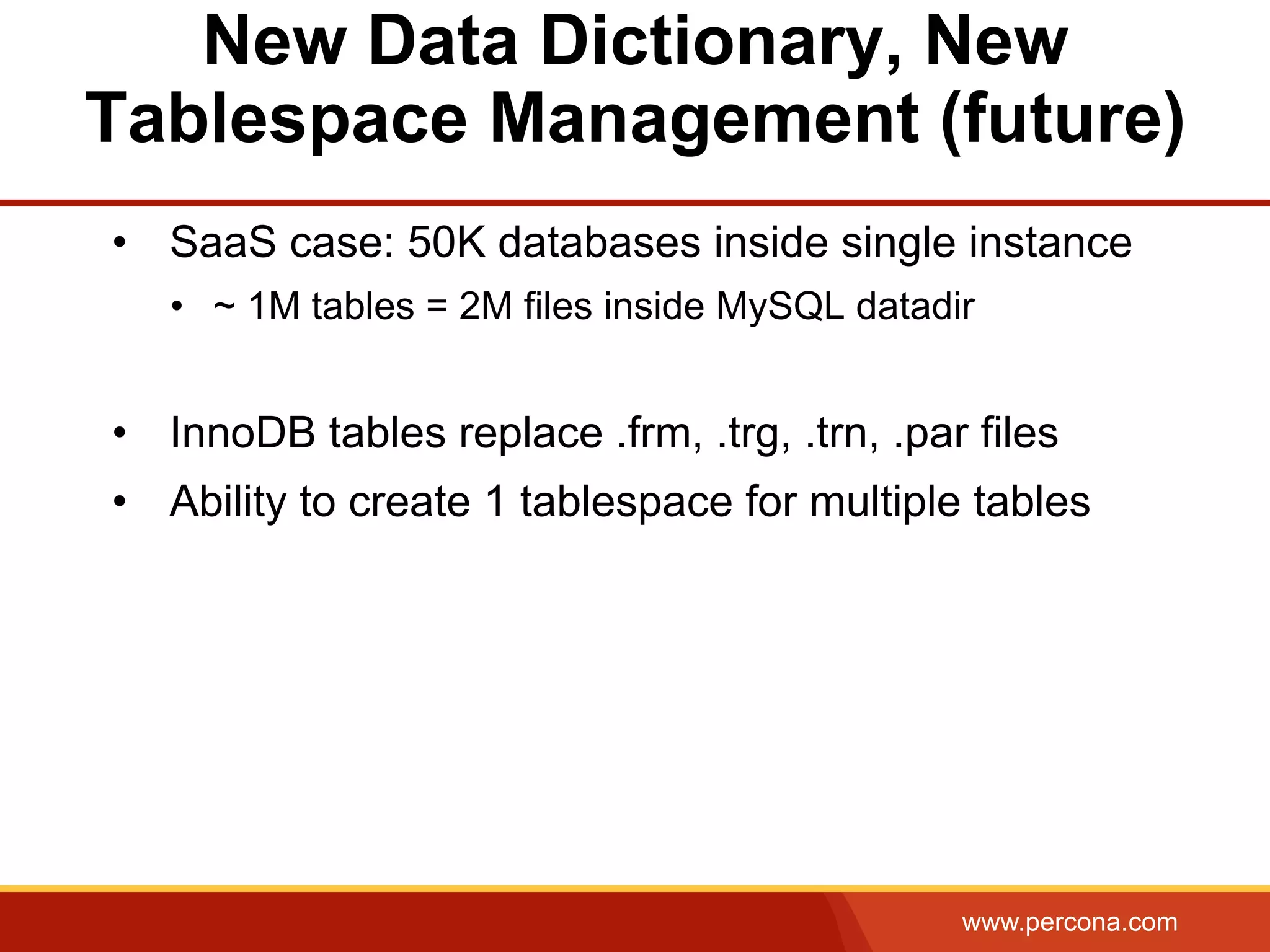

- 34. www.percona.com New Data Dictionary,New Tablespace Management (future) • SaaS case: 50K databases inside single instance • ~ 1M tables = 2M files inside MySQL datadir • InnoDB tables replace .frm, .trg, .trn, .par files • Ability to create 1 tablespace for multiple tables

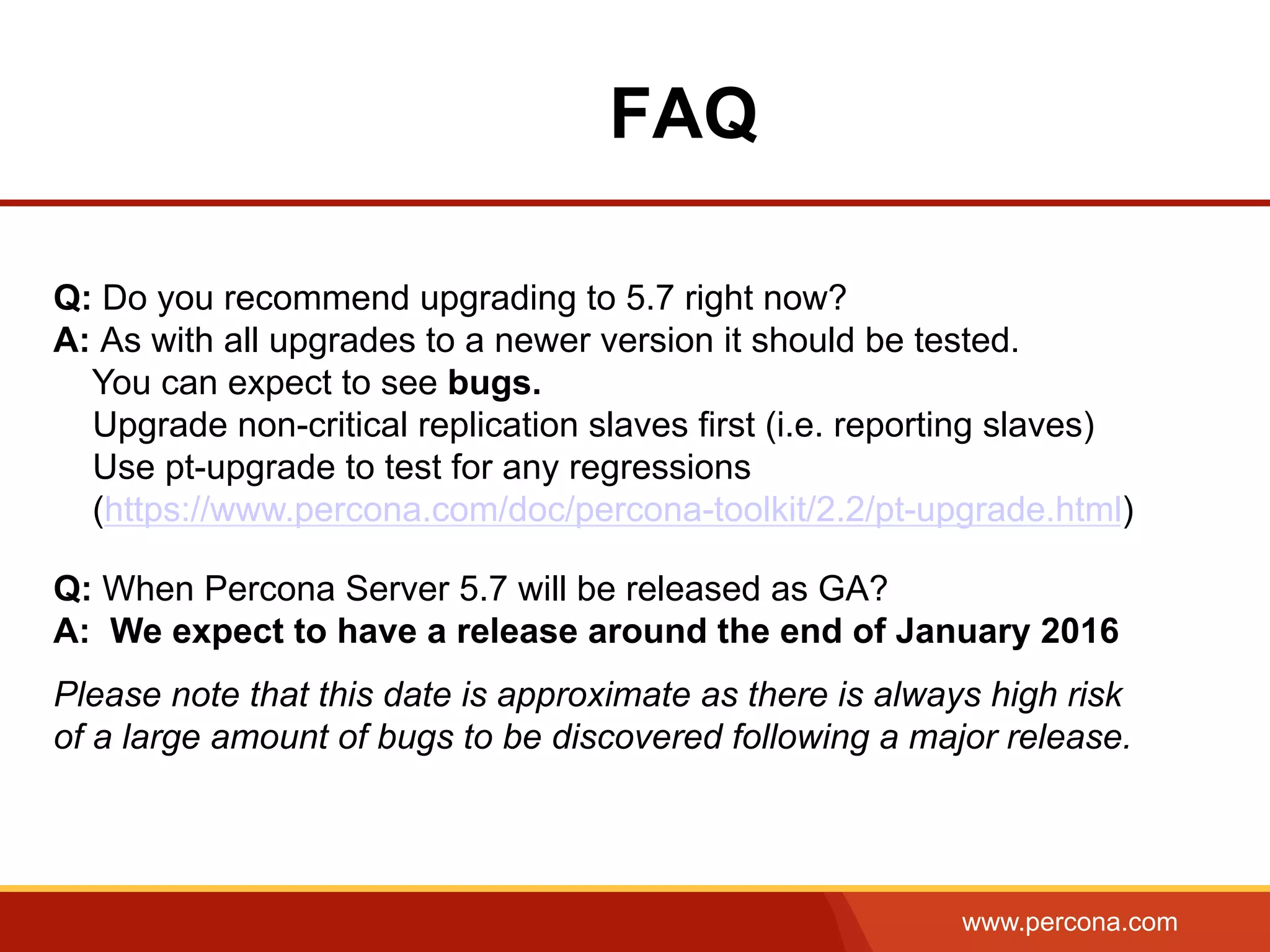

- 35. www.percona.com FAQ Q: Do yourecommend upgrading to 5.7 right now? A: As with all upgrades to a newer version it should be tested. You can expect to see bugs. Upgrade non-critical replication slaves first (i.e. reporting slaves) Use pt-upgrade to test for any regressions (https://www.percona.com/doc/percona-toolkit/2.2/pt-upgrade.html) Q: When Percona Server 5.7 will be released as GA? A: We expect to have a release around the end of January 2016 Please note that this date is approximate as there is always high risk of a large amount of bugs to be discovered following a major release.

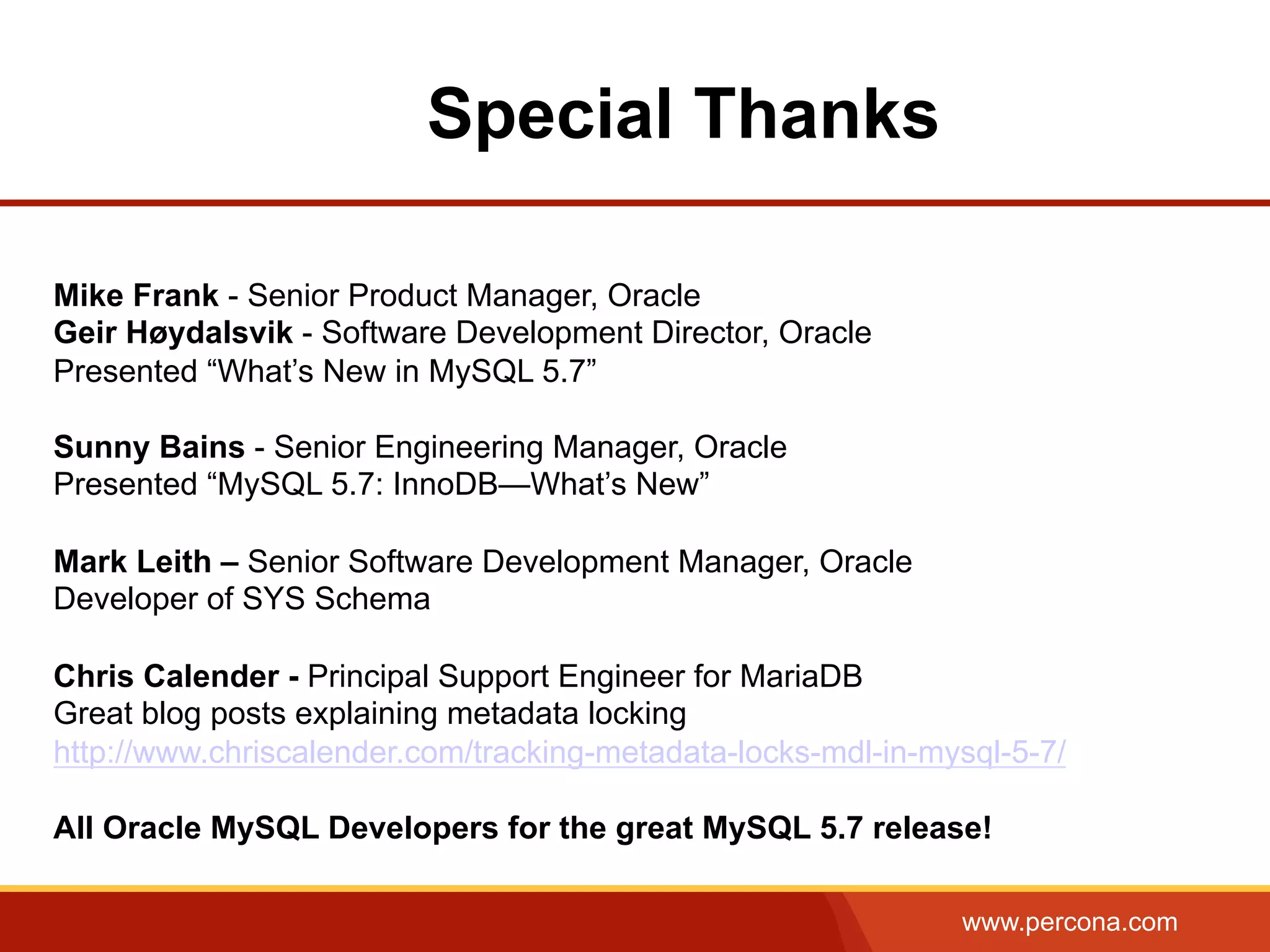

- 36. www.percona.com Special Thanks Mike Frank- Senior Product Manager, Oracle Geir Høydalsvik - Software Development Director, Oracle Presented “What’s New in MySQL 5.7” Sunny Bains - Senior Engineering Manager, Oracle Presented “MySQL 5.7: InnoDB—What’s New” Mark Leith – Senior Software Development Manager, Oracle Developer of SYS Schema Chris Calender - Principal Support Engineer for MariaDB Great blog posts explaining metadata locking http://www.chriscalender.com/tracking-metadata-locks-mdl-in-mysql-5-7/ All Oracle MySQL Developers for the great MySQL 5.7 release!
