RESTful Web Services An Overview RAVI BUDDHARAJU

Agenda  REST Concepts  JAX-RS – Annotations  Sample code  Configure REST in Tomcat  Unit testing the REST services

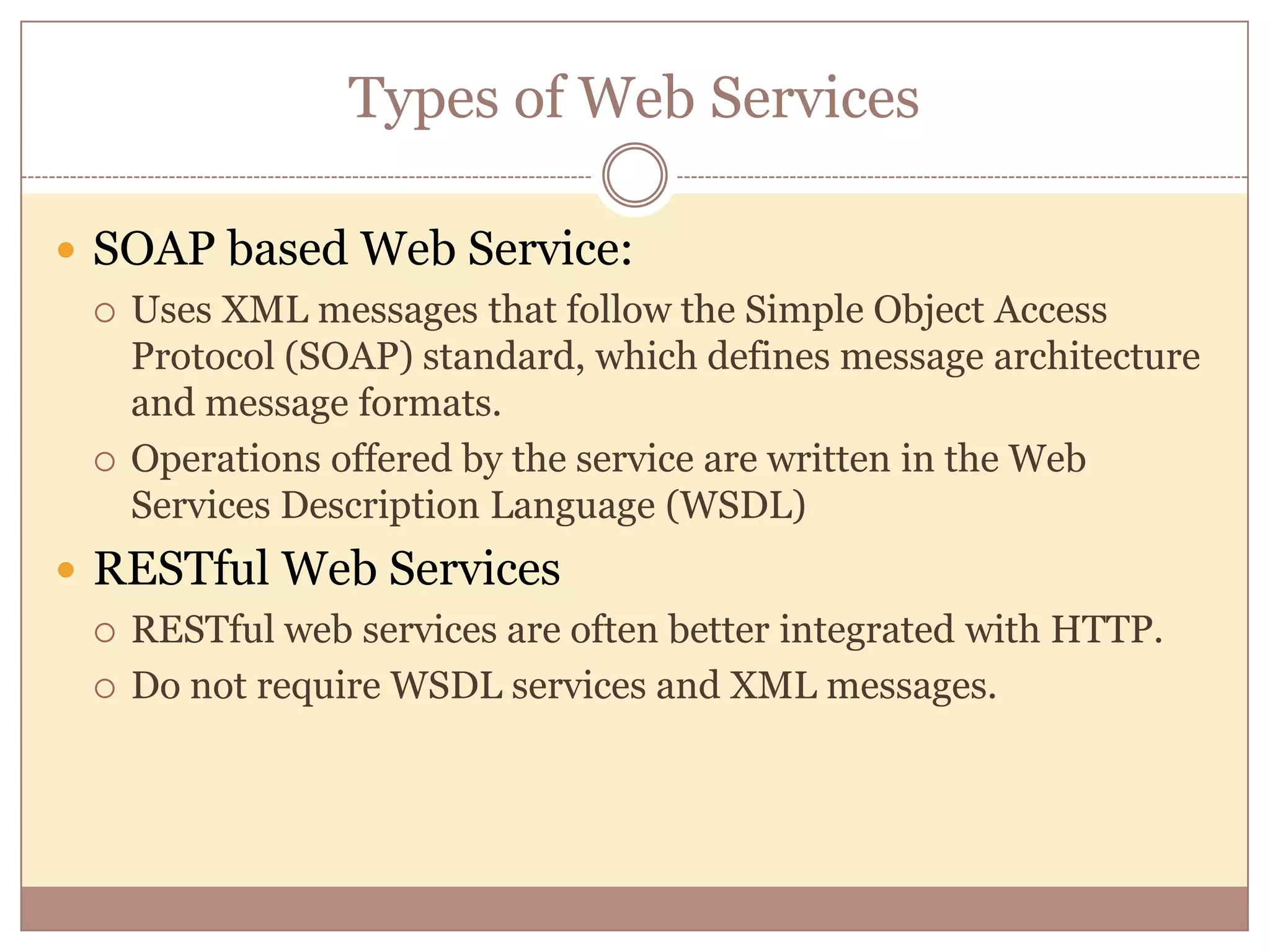

Types of Web Services  SOAP based Web Service:  Uses XML messages that follow the Simple Object Access Protocol (SOAP) standard, which defines message architecture and message formats.  Operations offered by the service are written in the Web Services Description Language (WSDL)  RESTful Web Services  RESTful web services are often better integrated with HTTP.  Do not require WSDL services and XML messages.

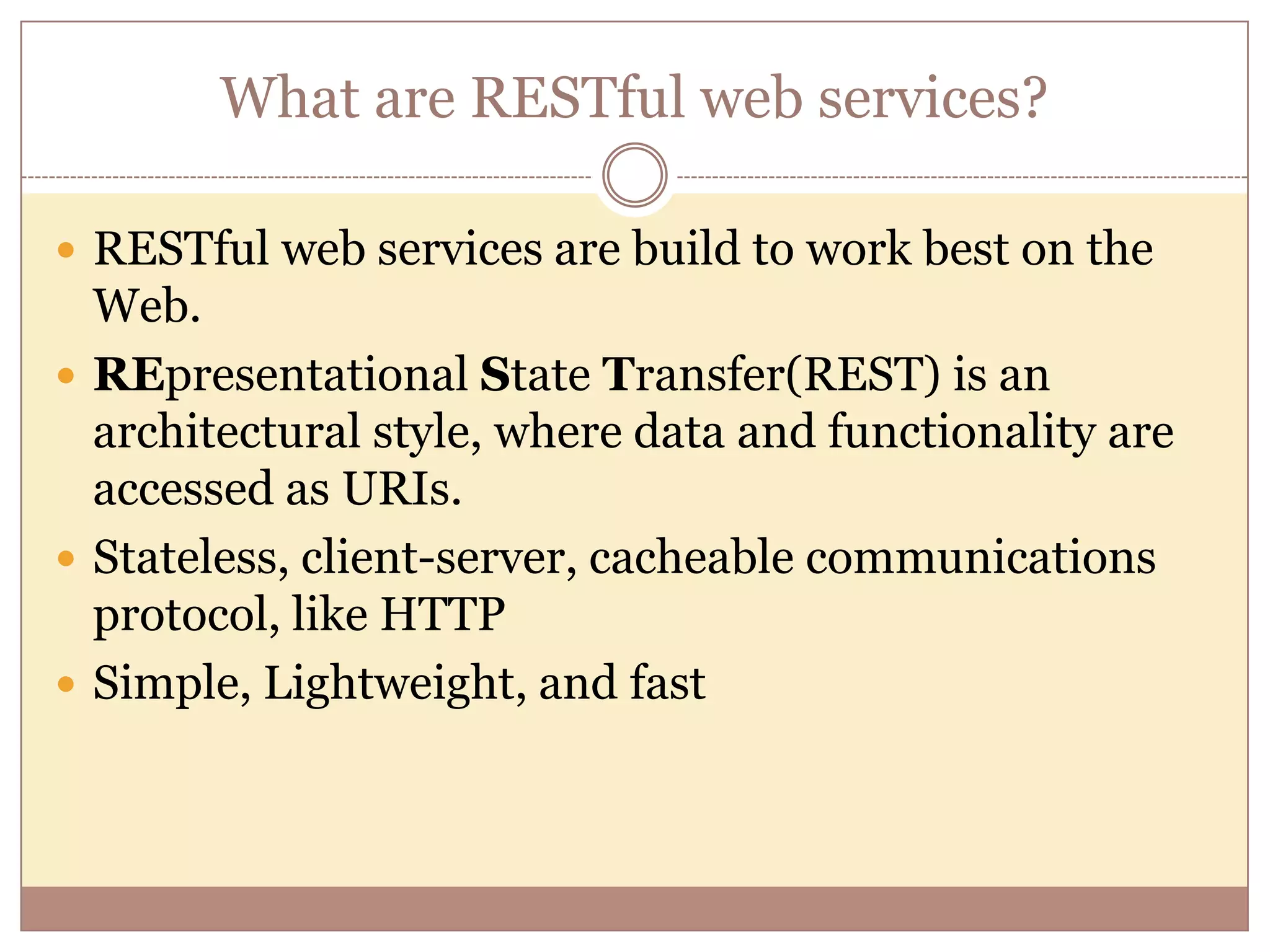

What are RESTful web services?  RESTful web services are build to work best on the Web.  REpresentational State Transfer(REST) is an architectural style, where data and functionality are accessed as URIs.  Stateless, client-server, cacheable communications protocol, like HTTP  Simple, Lightweight, and fast

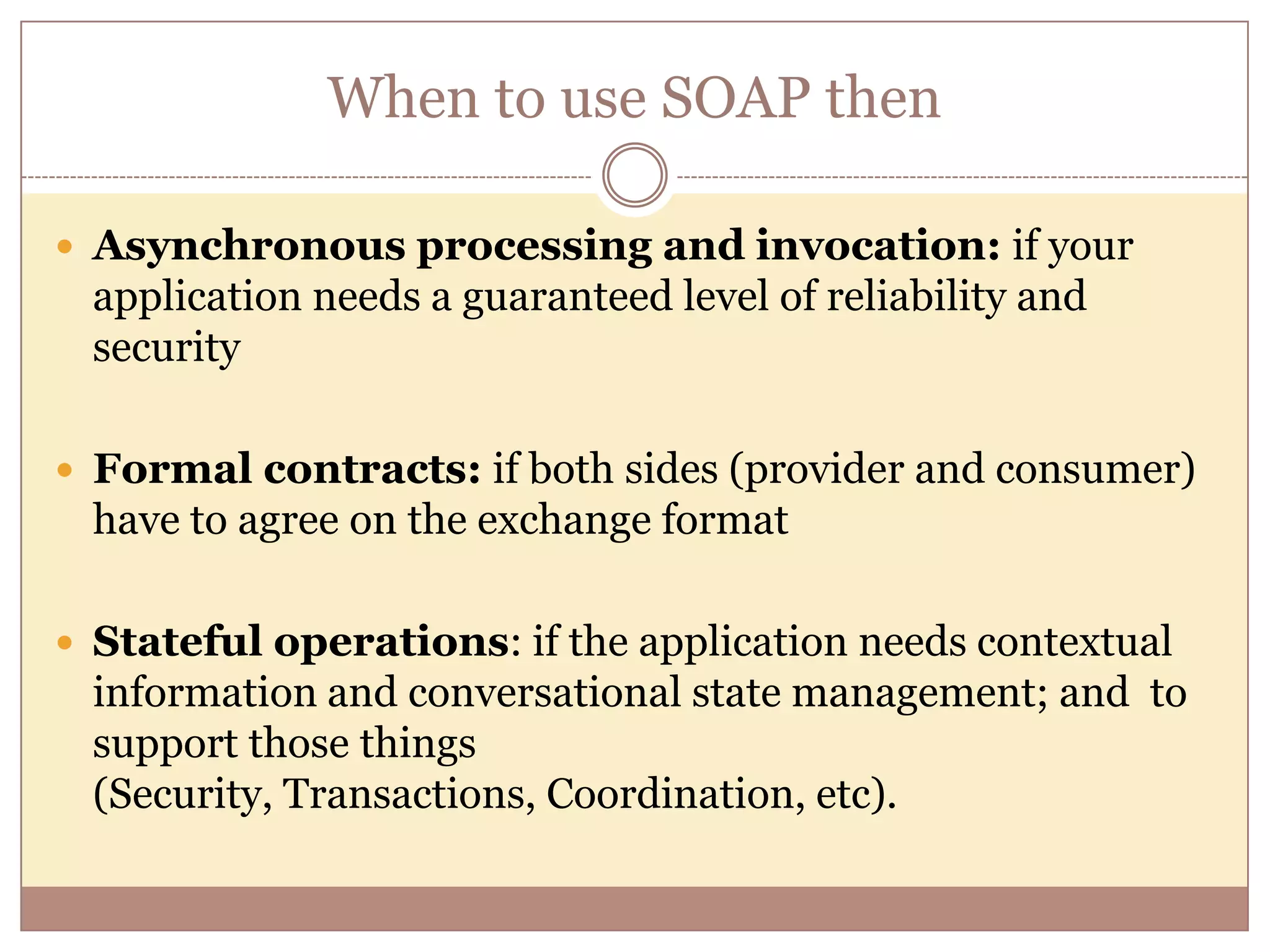

When to use SOAP then  Asynchronous processing and invocation: if your application needs a guaranteed level of reliability and security  Formal contracts: if both sides (provider and consumer) have to agree on the exchange format  Stateful operations: if the application needs contextual information and conversational state management; and to support those things (Security, Transactions, Coordination, etc).

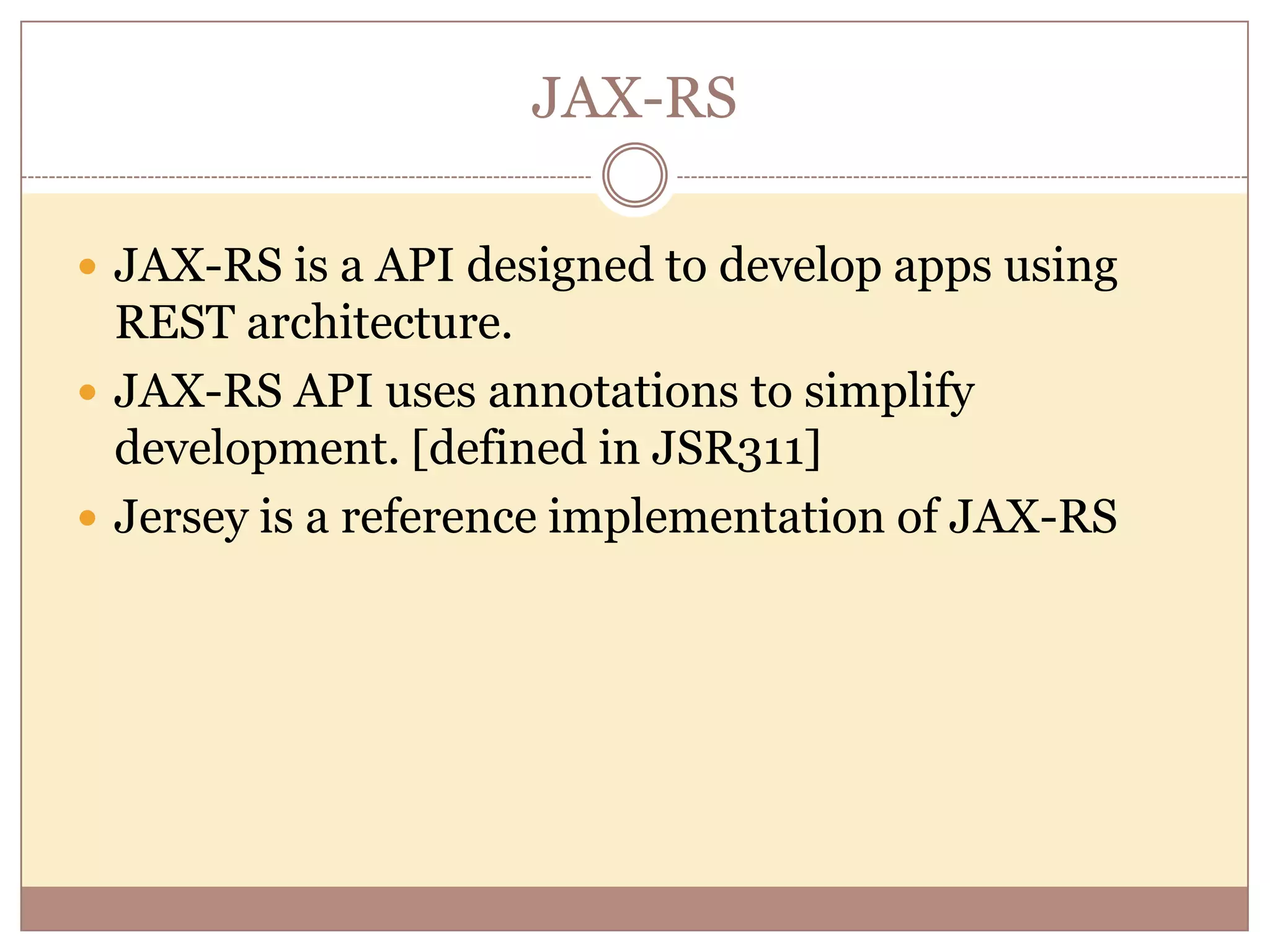

JAX-RS  JAX-RS is a API designed to develop apps using REST architecture.  JAX-RS API uses annotations to simplify development. [defined in JSR311]  Jersey is a reference implementation of JAX-RS

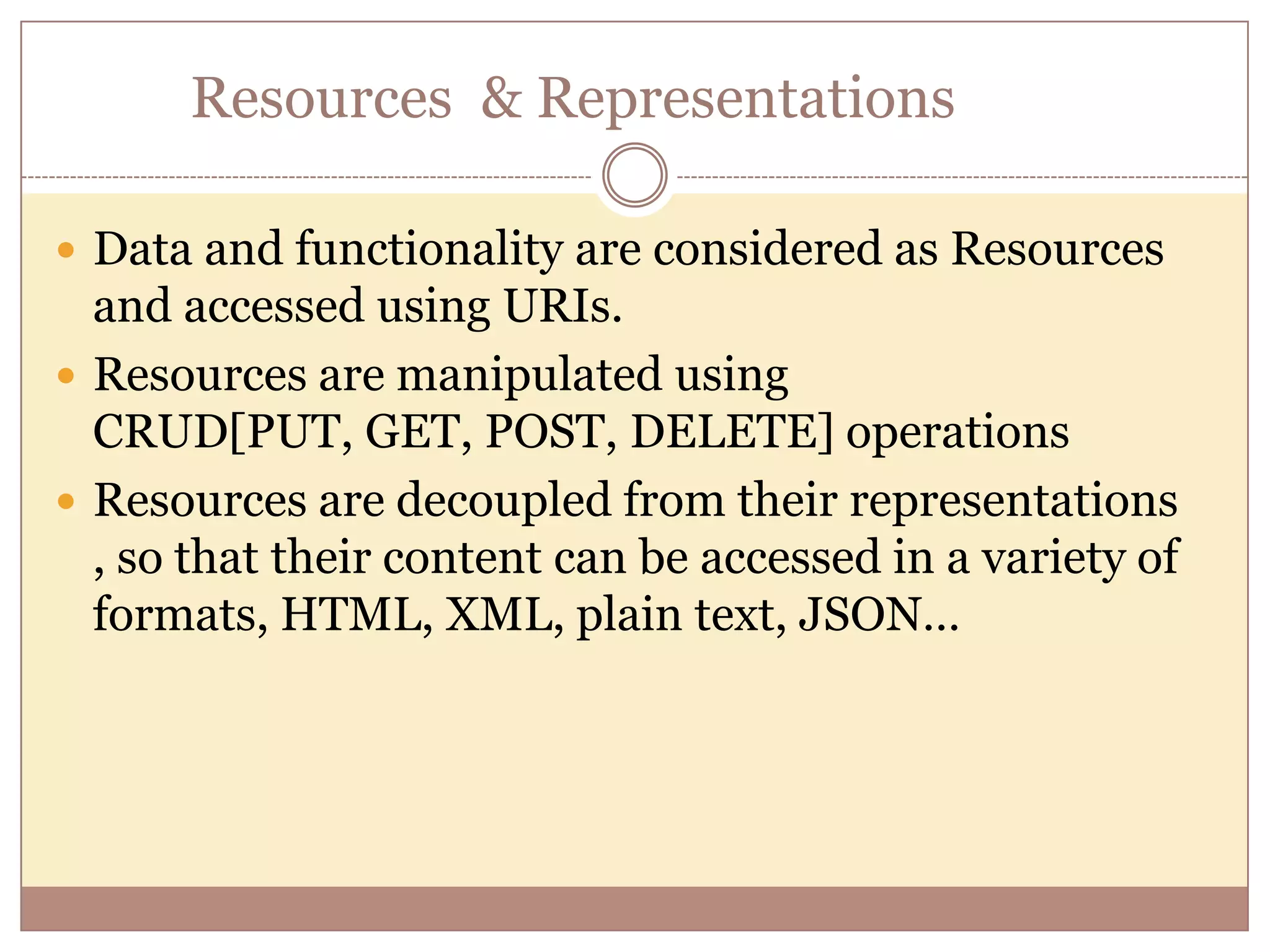

Resources & Representations  Data and functionality are considered as Resources and accessed using URIs.  Resources are manipulated using CRUD[PUT, GET, POST, DELETE] operations  Resources are decoupled from their representations , so that their content can be accessed in a variety of formats, HTML, XML, plain text, JSON…

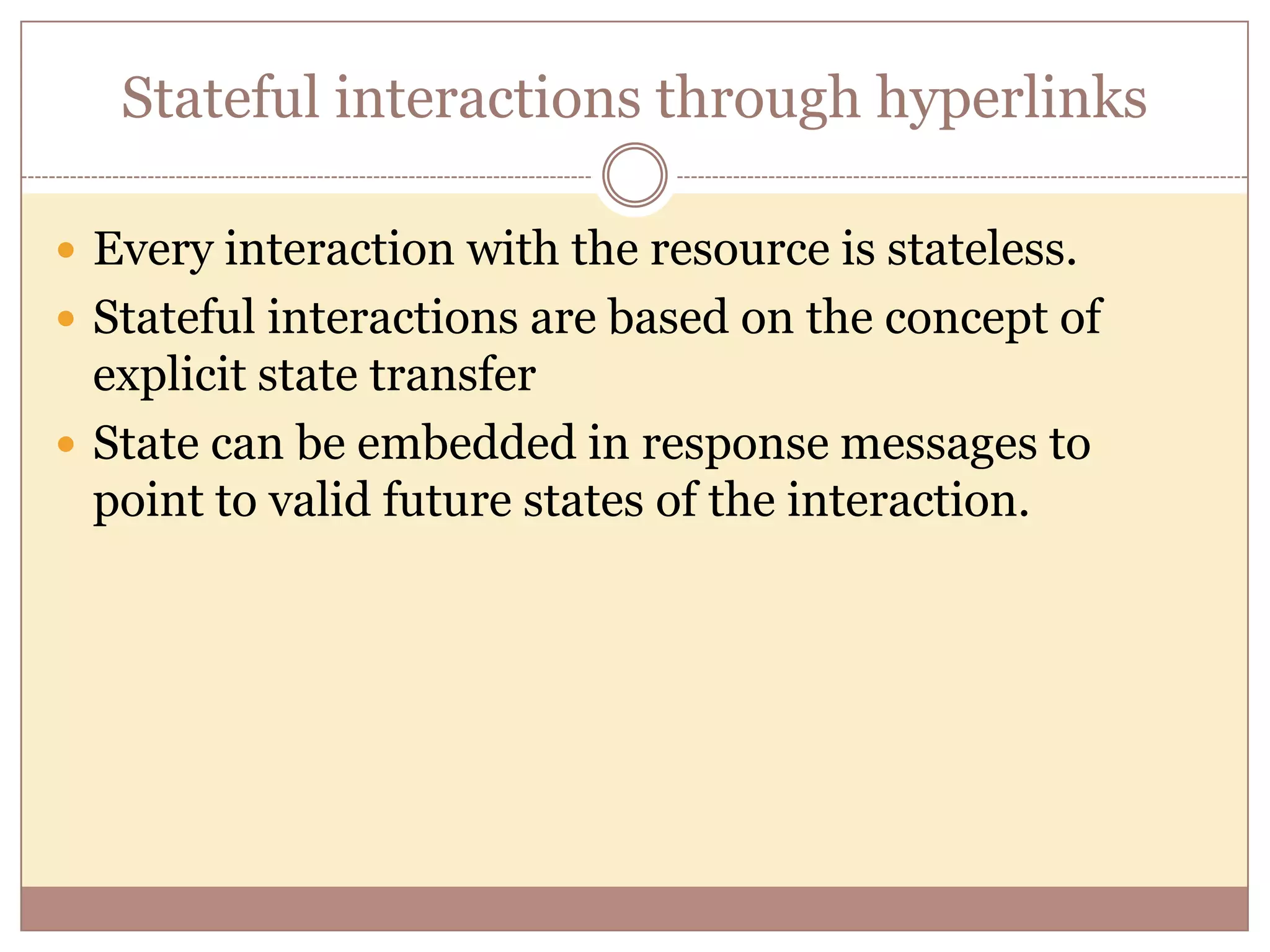

Stateful interactions through hyperlinks  Every interaction with the resource is stateless.  Stateful interactions are based on the concept of explicit state transfer  State can be embedded in response messages to point to valid future states of the interaction.

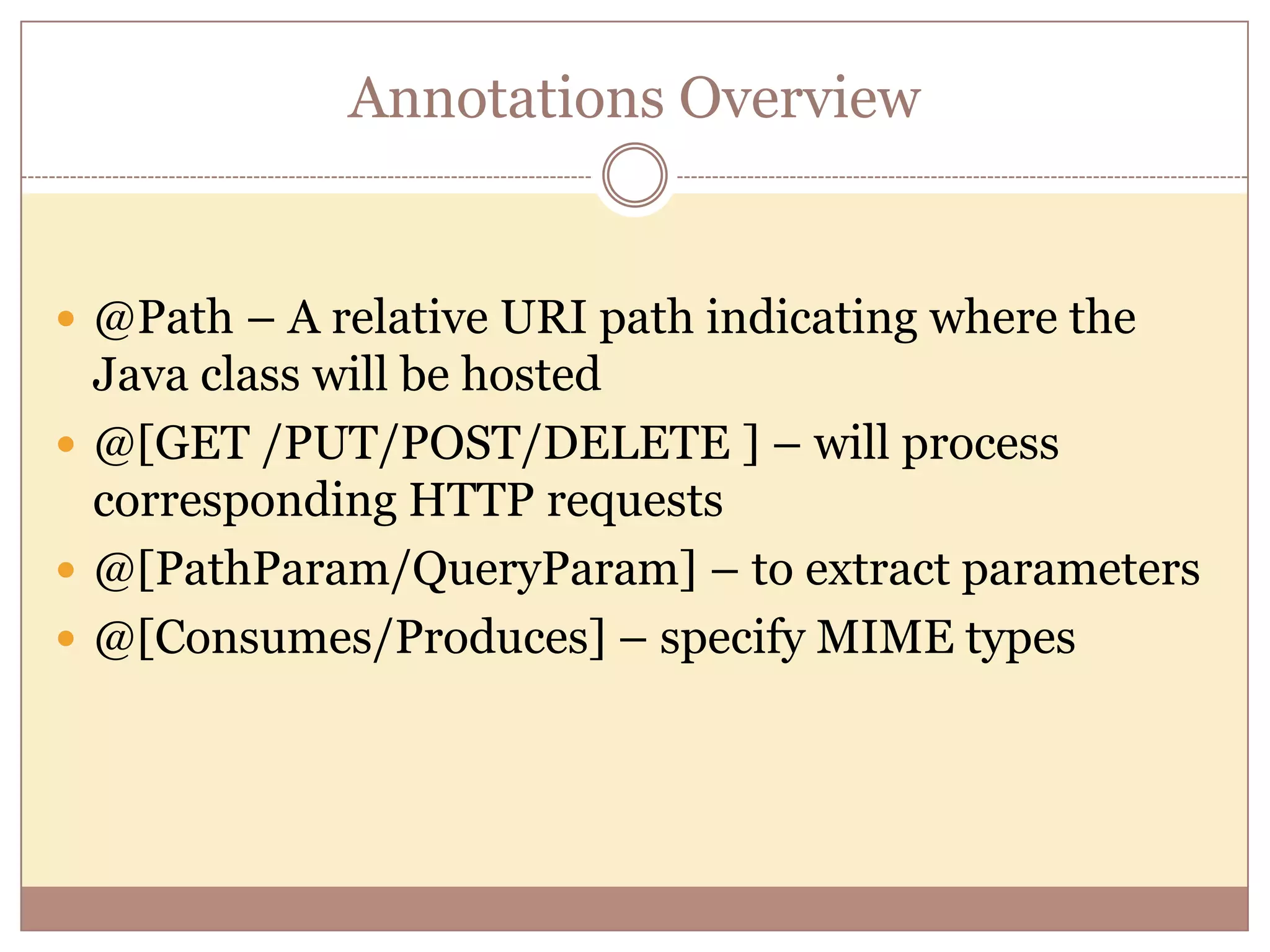

Annotations Overview  @Path – A relative URI path indicating where the Java class will be hosted  @[GET /PUT/POST/DELETE ] – will process corresponding HTTP requests  @[PathParam/QueryParam] – to extract parameters  @[Consumes/Produces] – specify MIME types

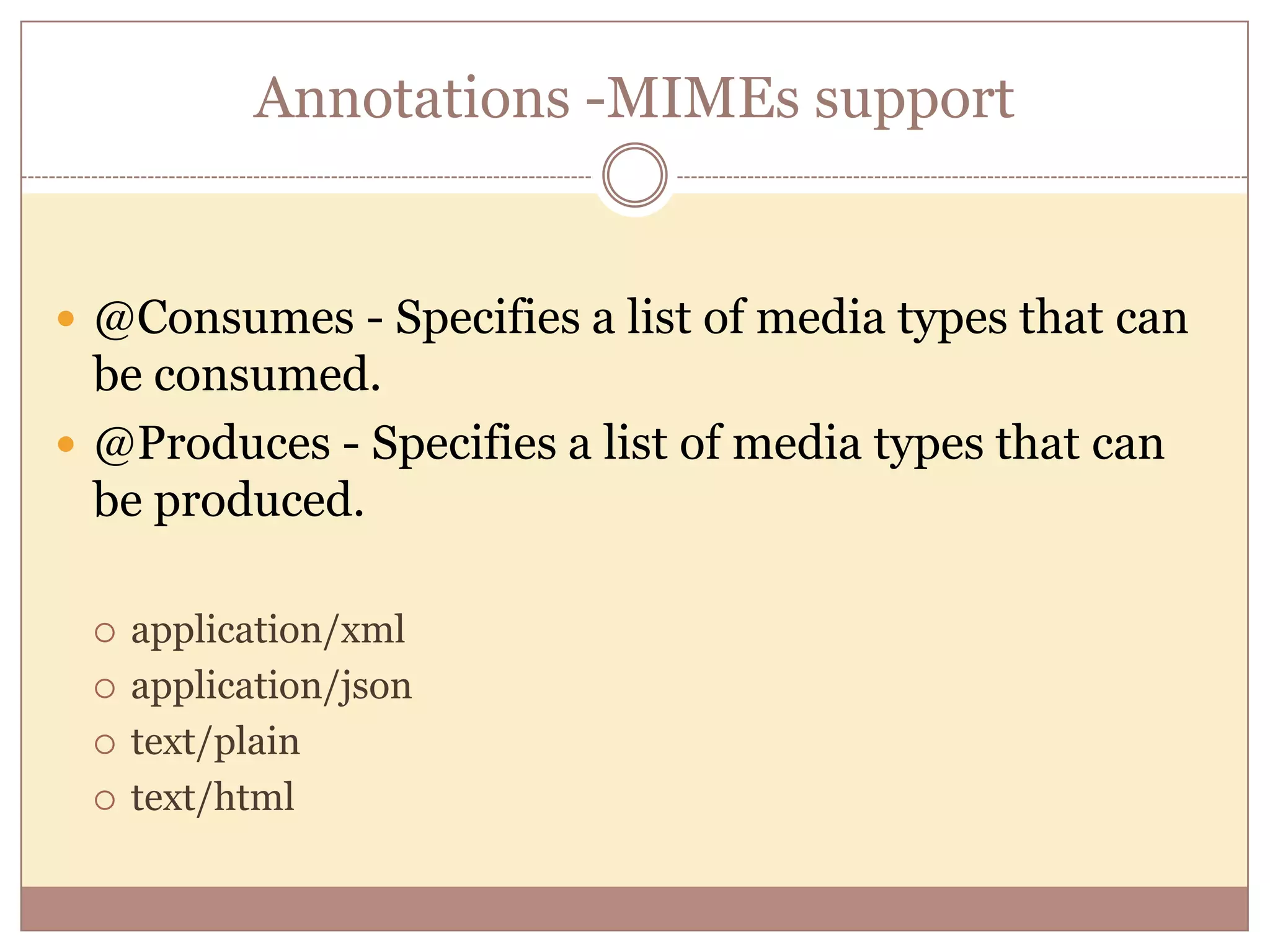

Annotations -MIMEs support  @Consumes - Specifies a list of media types that can be consumed.  @Produces - Specifies a list of media types that can be produced.  application/xml  application/json  text/plain  text/html

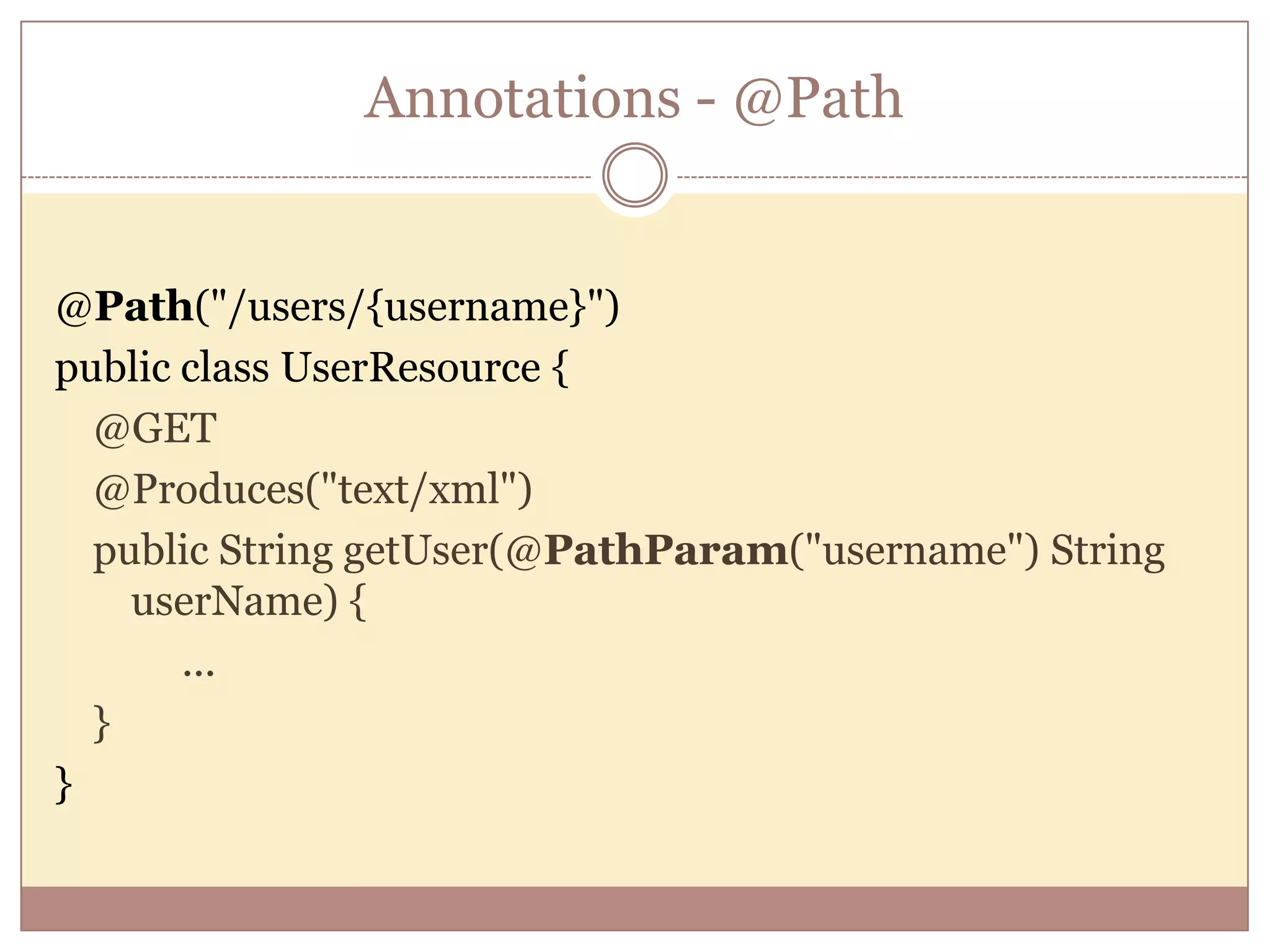

Annotations - @Path @Path("/users/{username}") public class UserResource { @GET @Produces("text/xml") public String getUser(@PathParam("username") String userName) { ... } }

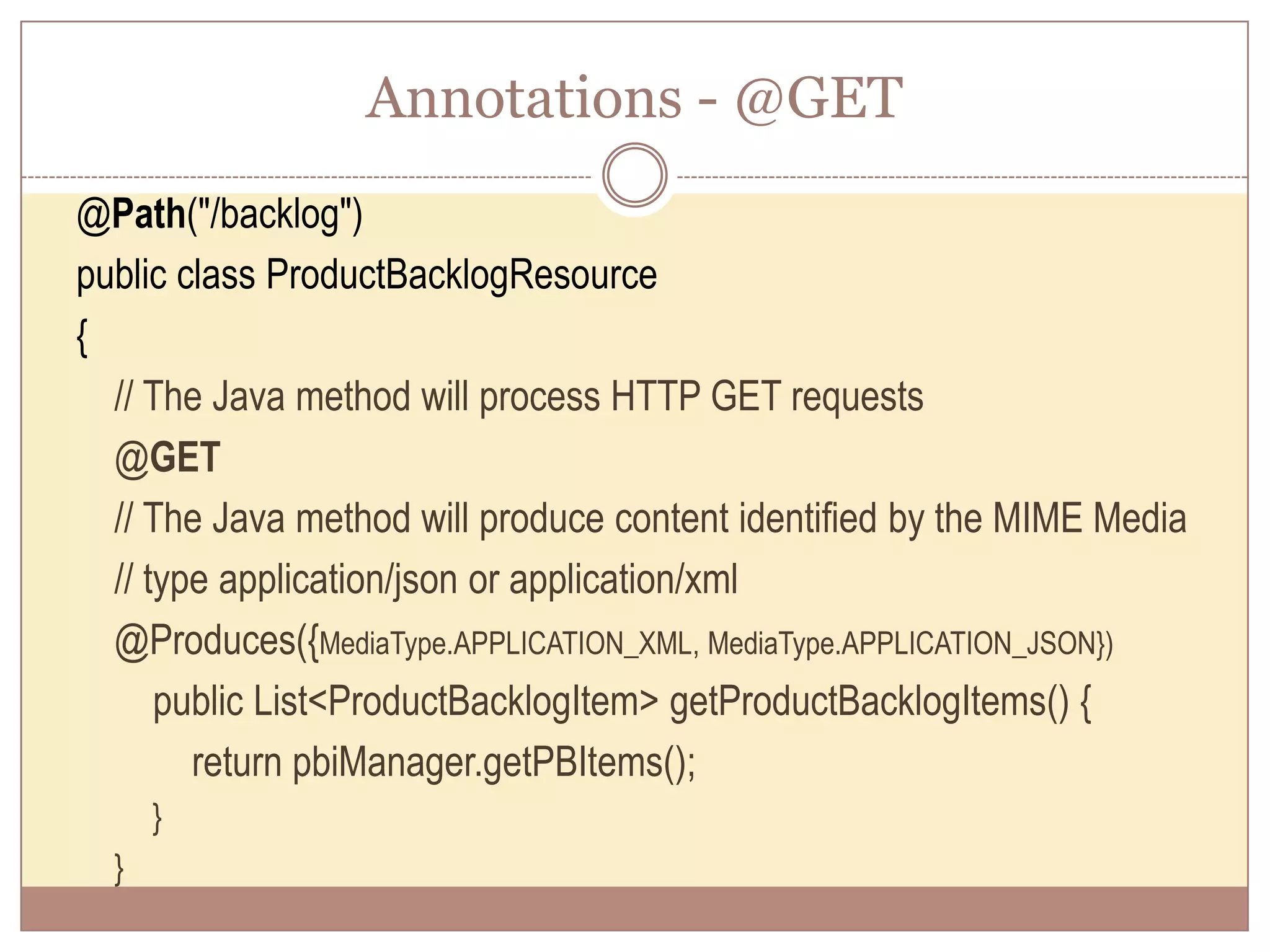

Annotations - @GET @Path("/backlog") public class ProductBacklogResource { // The Java method will process HTTP GET requests @GET // The Java method will produce content identified by the MIME Media // type application/json or application/xml @Produces({MediaType.APPLICATION_XML, MediaType.APPLICATION_JSON}) public List<ProductBacklogItem> getProductBacklogItems() { return pbiManager.getPBItems(); } }

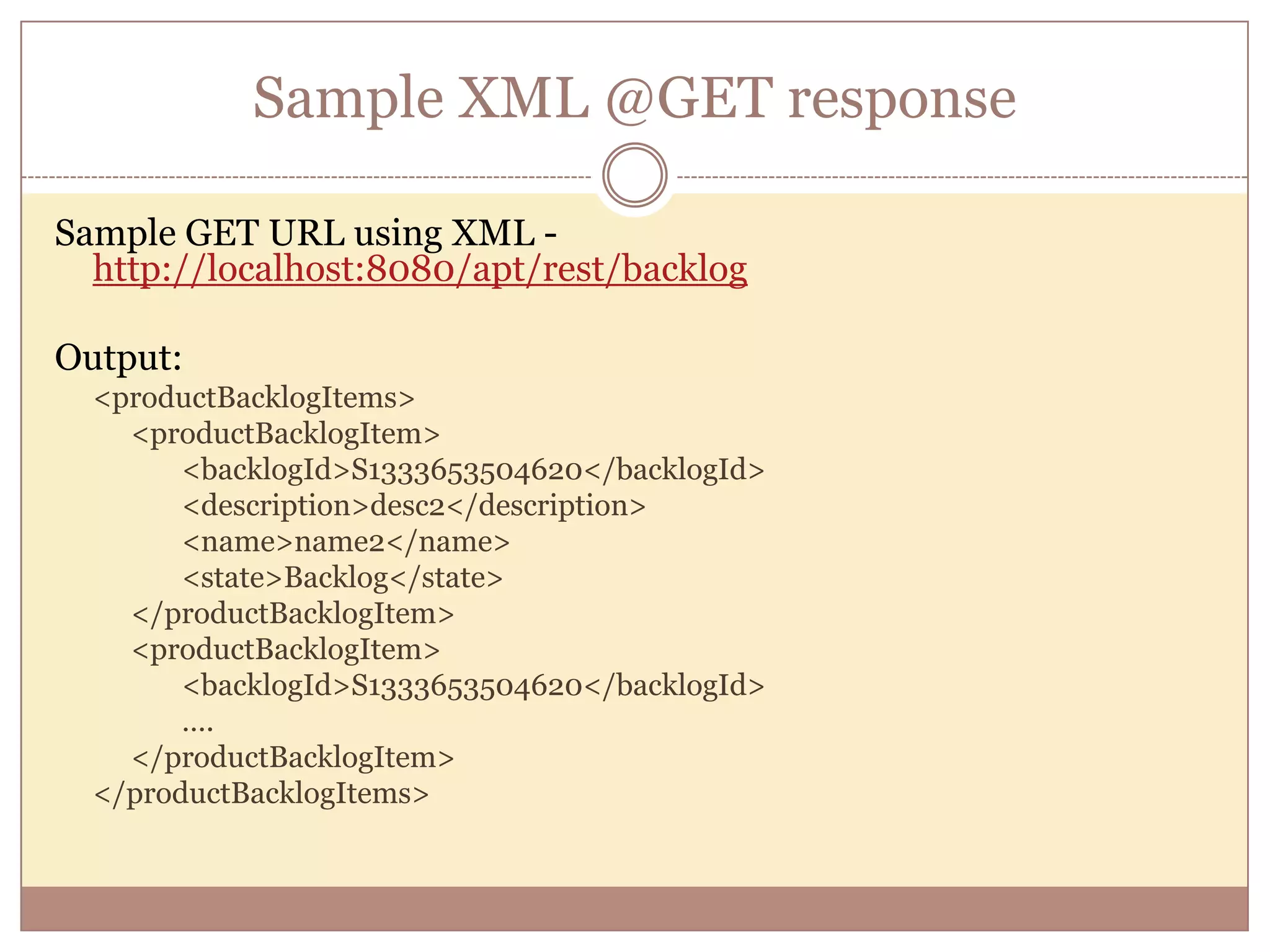

Sample XML @GET response Sample GET URL using XML - http://localhost:8080/apt/rest/backlog Output: <productBacklogItems> <productBacklogItem> <backlogId>S1333653504620</backlogId> <description>desc2</description> <name>name2</name> <state>Backlog</state> </productBacklogItem> <productBacklogItem> <backlogId>S1333653504620</backlogId> …. </productBacklogItem> </productBacklogItems>

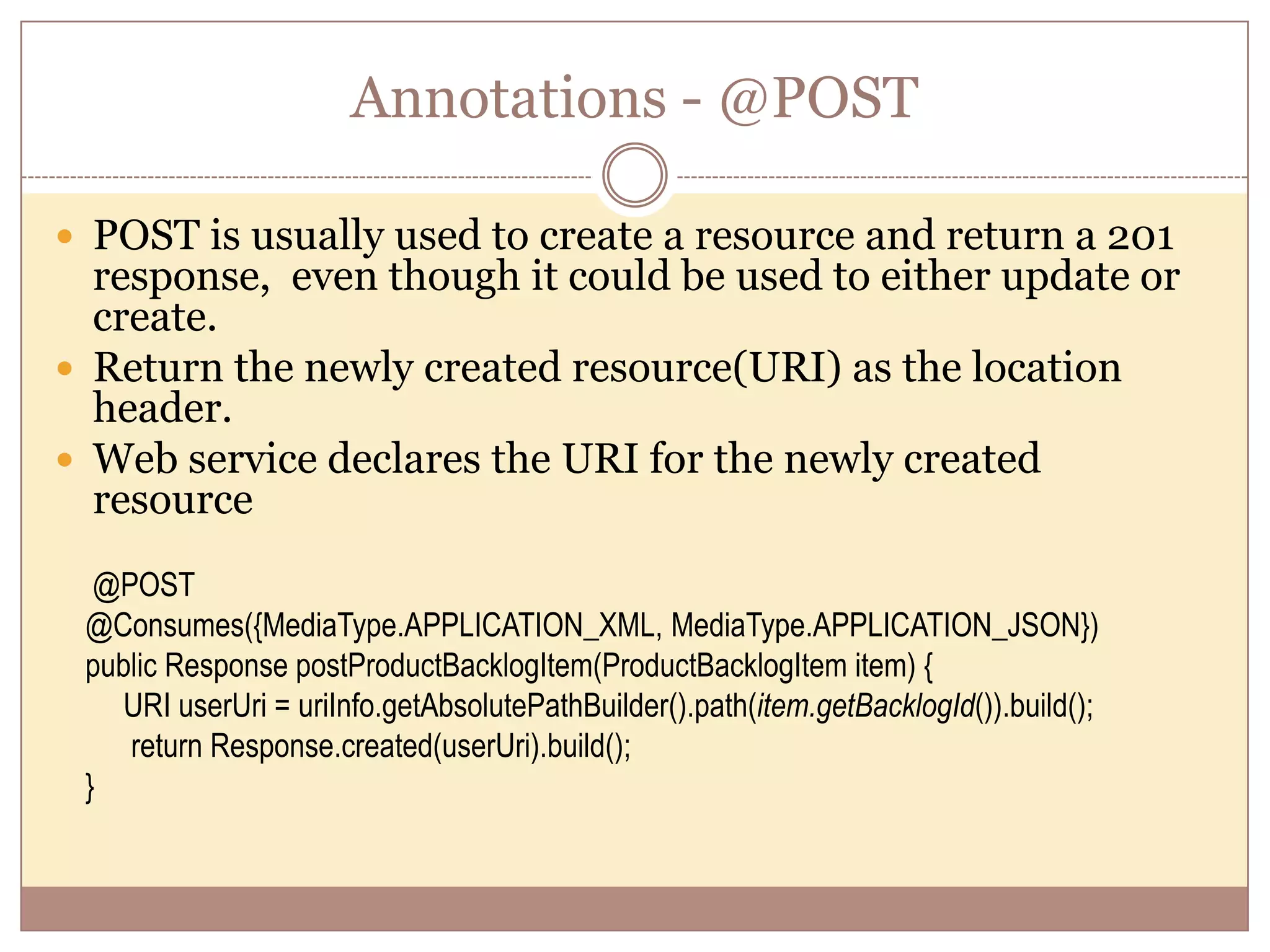

Annotations - @POST  POST is usually used to create a resource and return a 201 response, even though it could be used to either update or create.  Return the newly created resource(URI) as the location header.  Web service declares the URI for the newly created resource @POST @Consumes({MediaType.APPLICATION_XML, MediaType.APPLICATION_JSON}) public Response postProductBacklogItem(ProductBacklogItem item) { URI userUri = uriInfo.getAbsolutePathBuilder().path(item.getBacklogId()).build(); return Response.created(userUri).build(); }

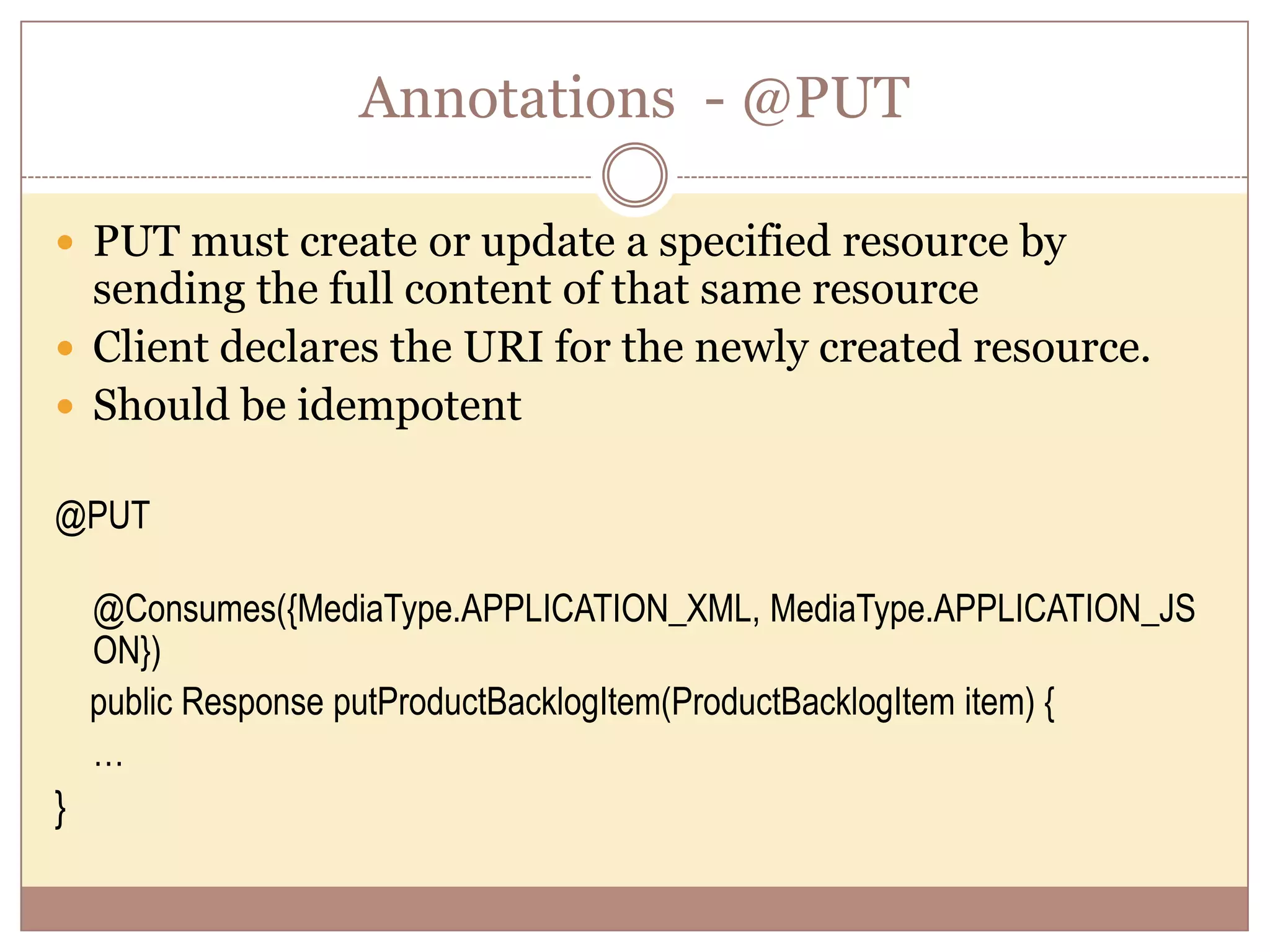

Annotations - @PUT  PUT must create or update a specified resource by sending the full content of that same resource  Client declares the URI for the newly created resource.  Should be idempotent @PUT @Consumes({MediaType.APPLICATION_XML, MediaType.APPLICATION_JS ON}) public Response putProductBacklogItem(ProductBacklogItem item) { … }

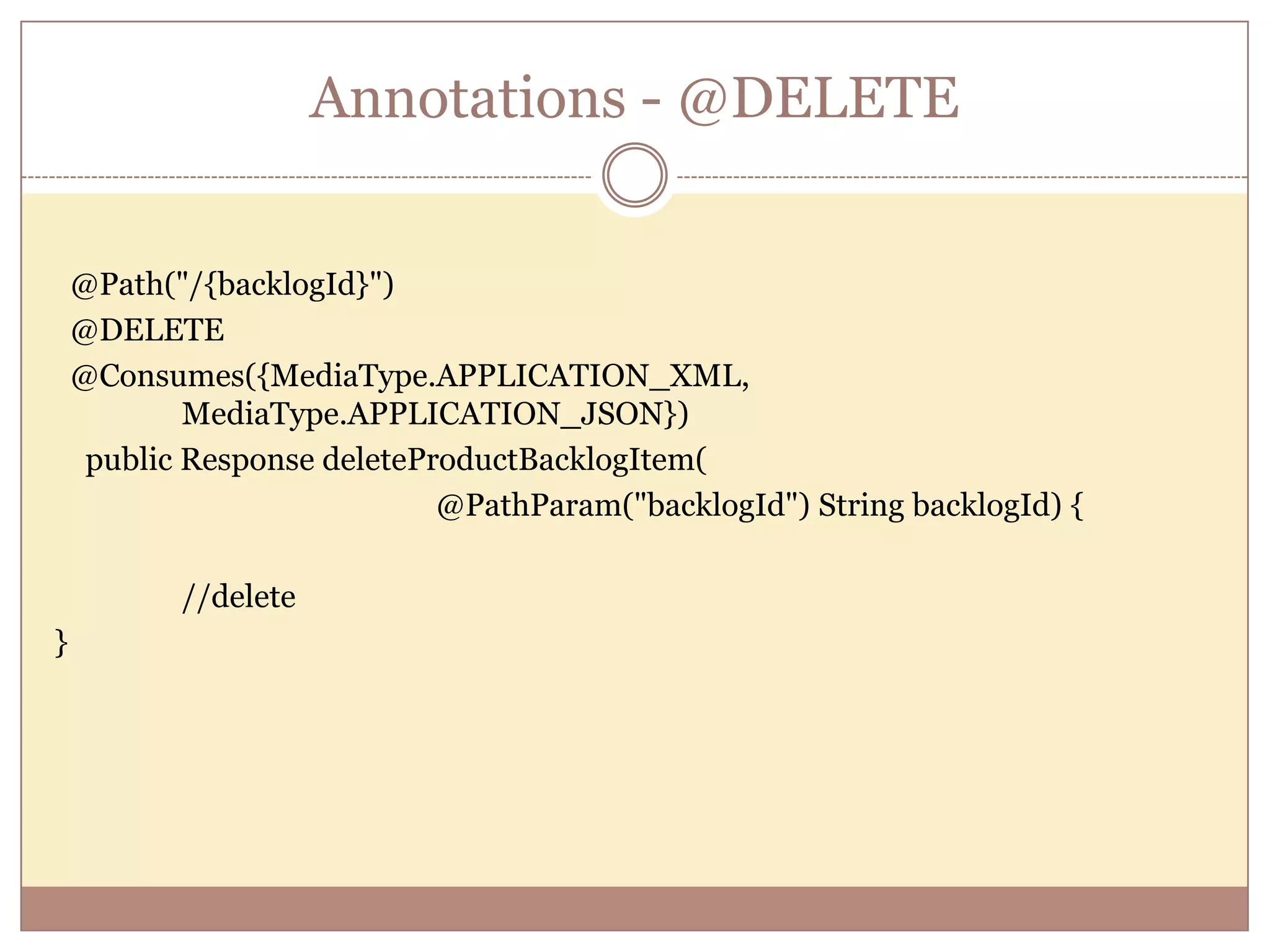

Annotations - @DELETE @Path("/{backlogId}") @DELETE @Consumes({MediaType.APPLICATION_XML, MediaType.APPLICATION_JSON}) public Response deleteProductBacklogItem( @PathParam("backlogId") String backlogId) { //delete }

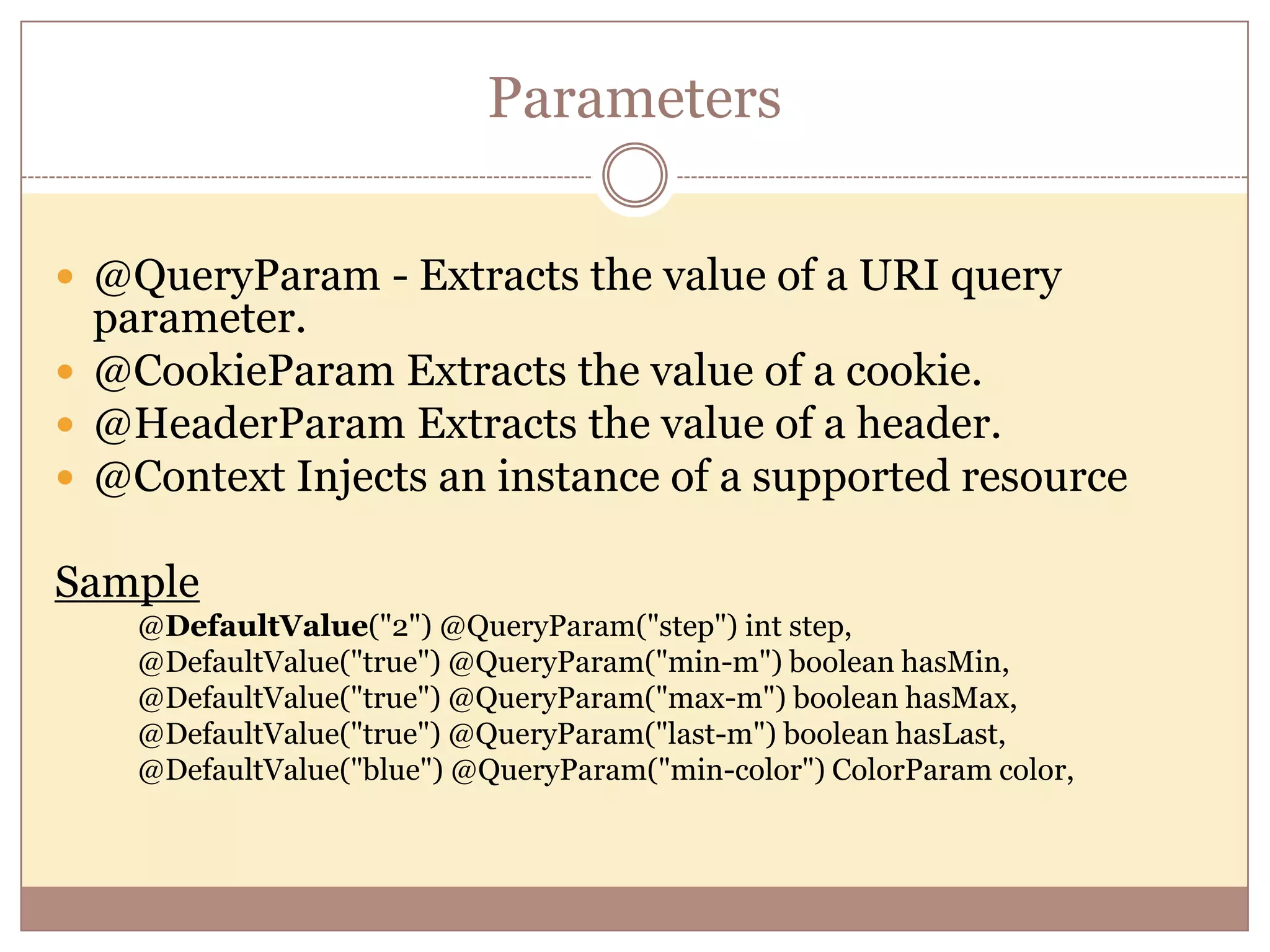

Parameters  @QueryParam - Extracts the value of a URI query parameter.  @CookieParam Extracts the value of a cookie.  @HeaderParam Extracts the value of a header.  @Context Injects an instance of a supported resource Sample @DefaultValue("2") @QueryParam("step") int step, @DefaultValue("true") @QueryParam("min-m") boolean hasMin, @DefaultValue("true") @QueryParam("max-m") boolean hasMax, @DefaultValue("true") @QueryParam("last-m") boolean hasLast, @DefaultValue("blue") @QueryParam("min-color") ColorParam color,

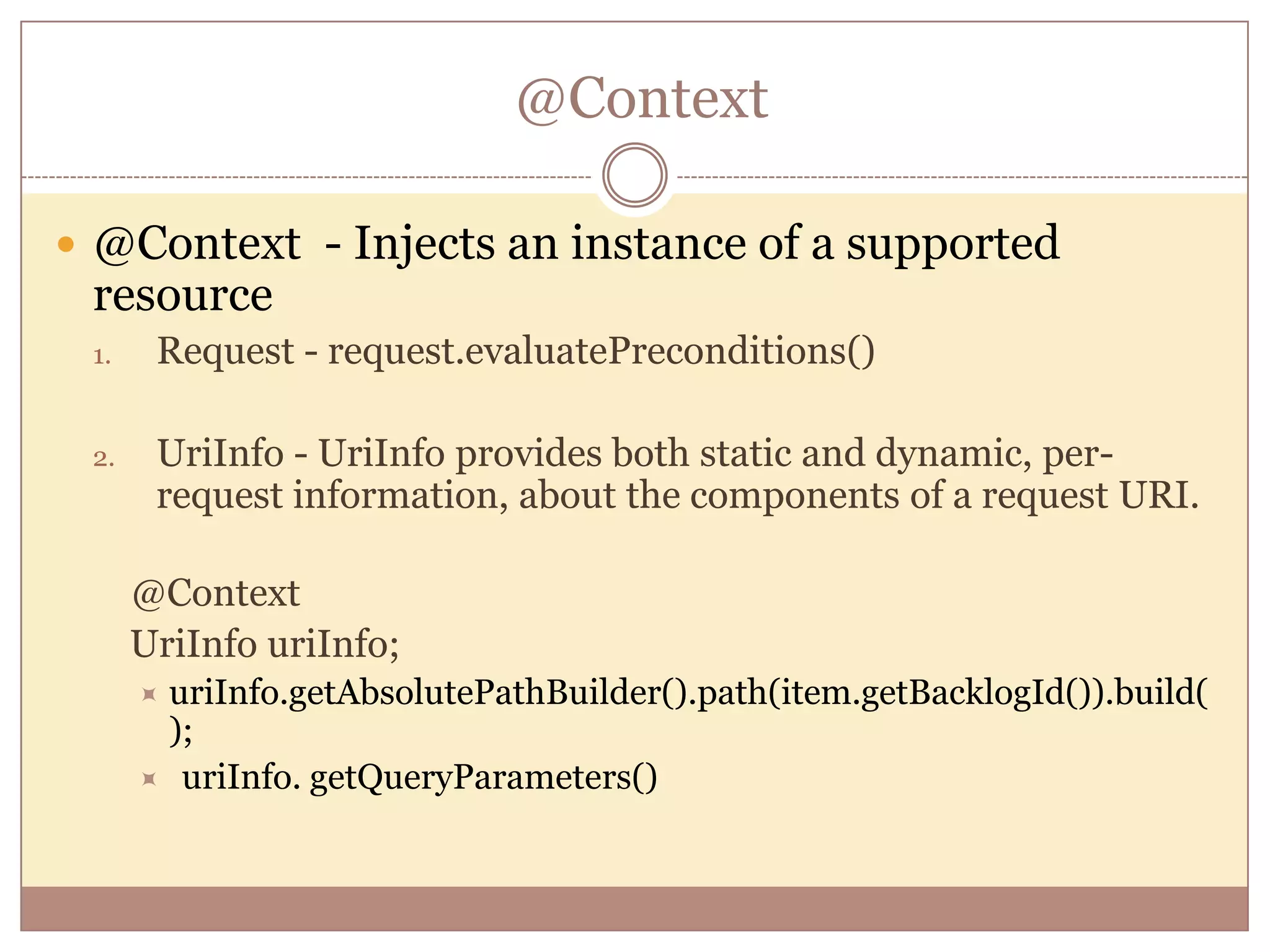

@Context  @Context - Injects an instance of a supported resource 1. Request - request.evaluatePreconditions() 2. UriInfo - UriInfo provides both static and dynamic, per- request information, about the components of a request URI. @Context UriInfo uriInfo; uriInfo.getAbsolutePathBuilder().path(item.getBacklogId()).build( );  uriInfo. getQueryParameters()

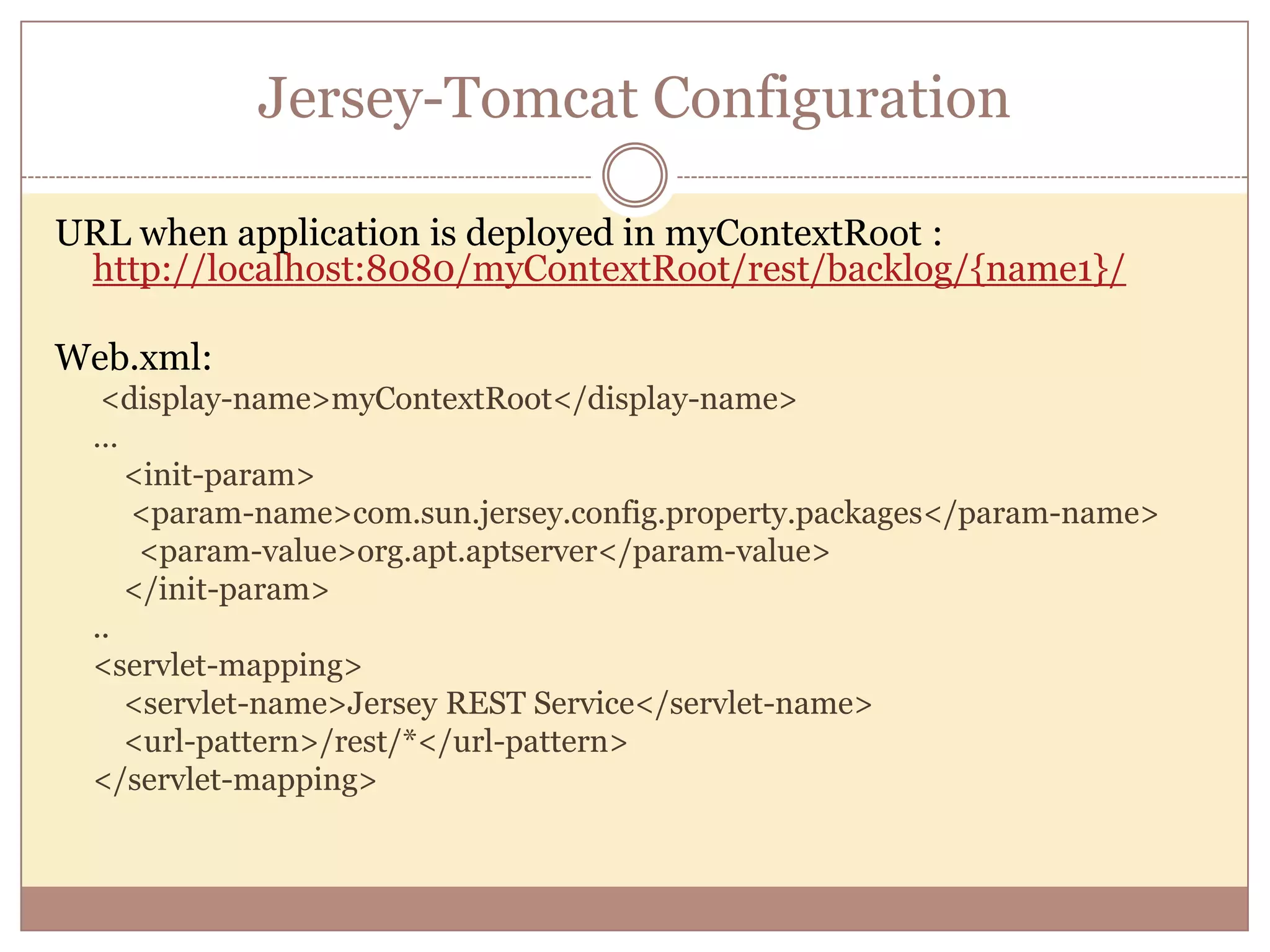

Jersey-Tomcat Configuration URL when application is deployed in myContextRoot : http://localhost:8080/myContextRoot/rest/backlog/{name1}/ Web.xml: <display-name>myContextRoot</display-name> … <init-param> <param-name>com.sun.jersey.config.property.packages</param-name> <param-value>org.apt.aptserver</param-value> </init-param> .. <servlet-mapping> <servlet-name>Jersey REST Service</servlet-name> <url-pattern>/rest/*</url-pattern> </servlet-mapping>

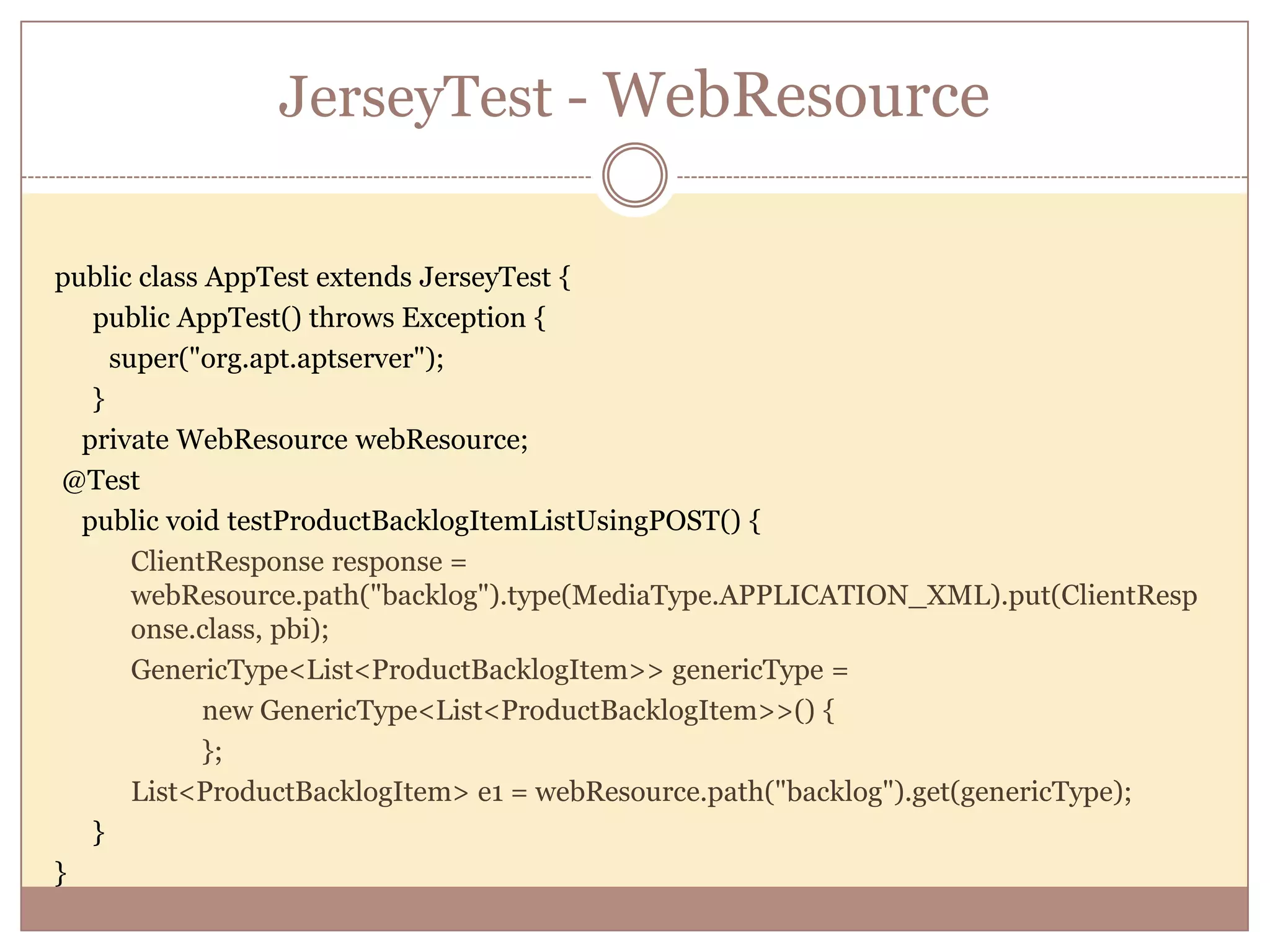

JerseyTest - WebResource public class AppTest extends JerseyTest { public AppTest() throws Exception { super("org.apt.aptserver"); } private WebResource webResource; @Test public void testProductBacklogItemListUsingPOST() { ClientResponse response = webResource.path("backlog").type(MediaType.APPLICATION_XML).put(ClientResp onse.class, pbi); GenericType<List<ProductBacklogItem>> genericType = new GenericType<List<ProductBacklogItem>>() { }; List<ProductBacklogItem> e1 = webResource.path("backlog").get(genericType); } }

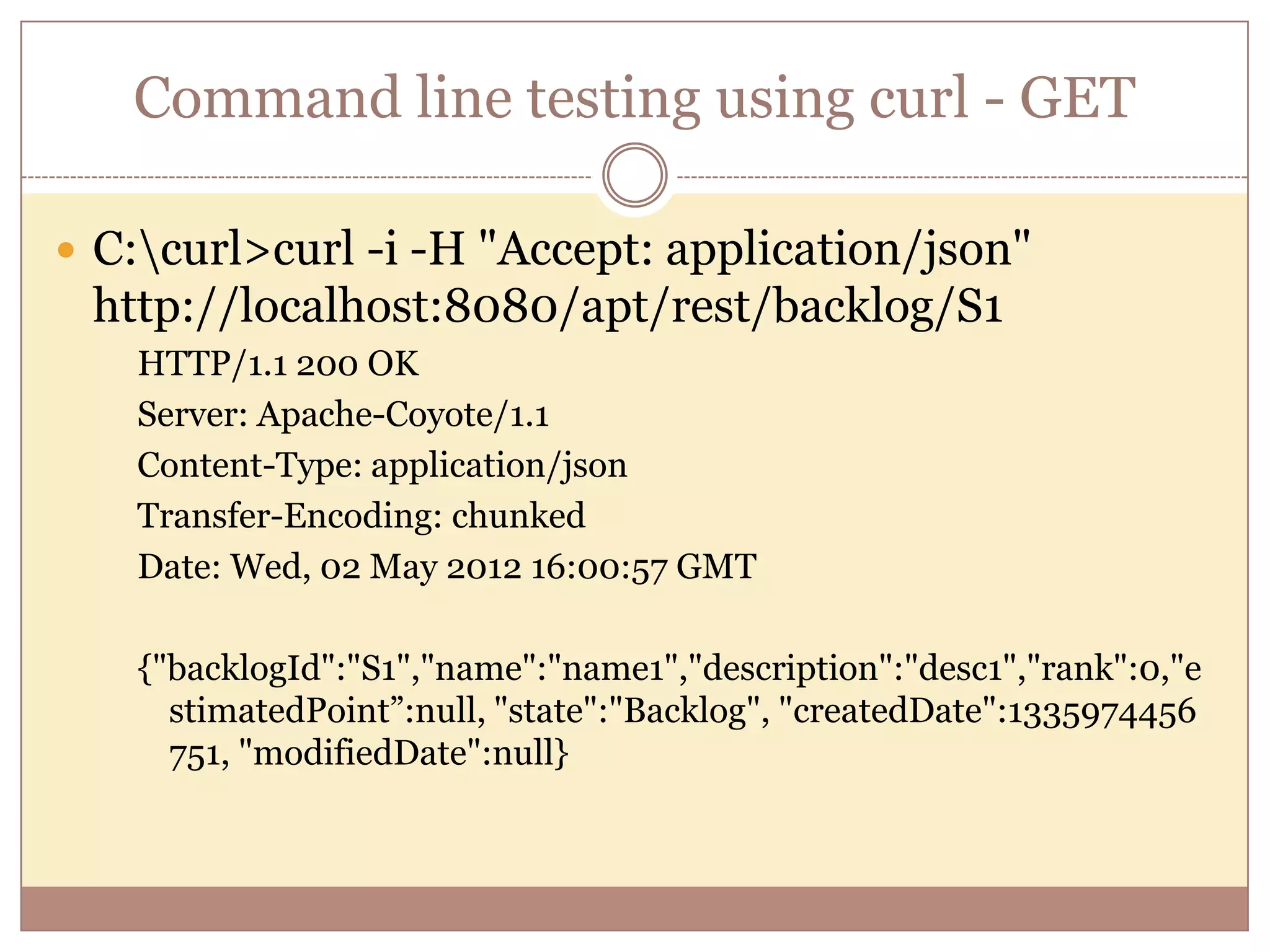

Command line testing using curl - GET  C:curl>curl -i -H "Accept: application/json" http://localhost:8080/apt/rest/backlog/S1 HTTP/1.1 200 OK Server: Apache-Coyote/1.1 Content-Type: application/json Transfer-Encoding: chunked Date: Wed, 02 May 2012 16:00:57 GMT {"backlogId":"S1","name":"name1","description":"desc1","rank":0,"e stimatedPoint”:null, "state":"Backlog", "createdDate":1335974456 751, "modifiedDate":null}

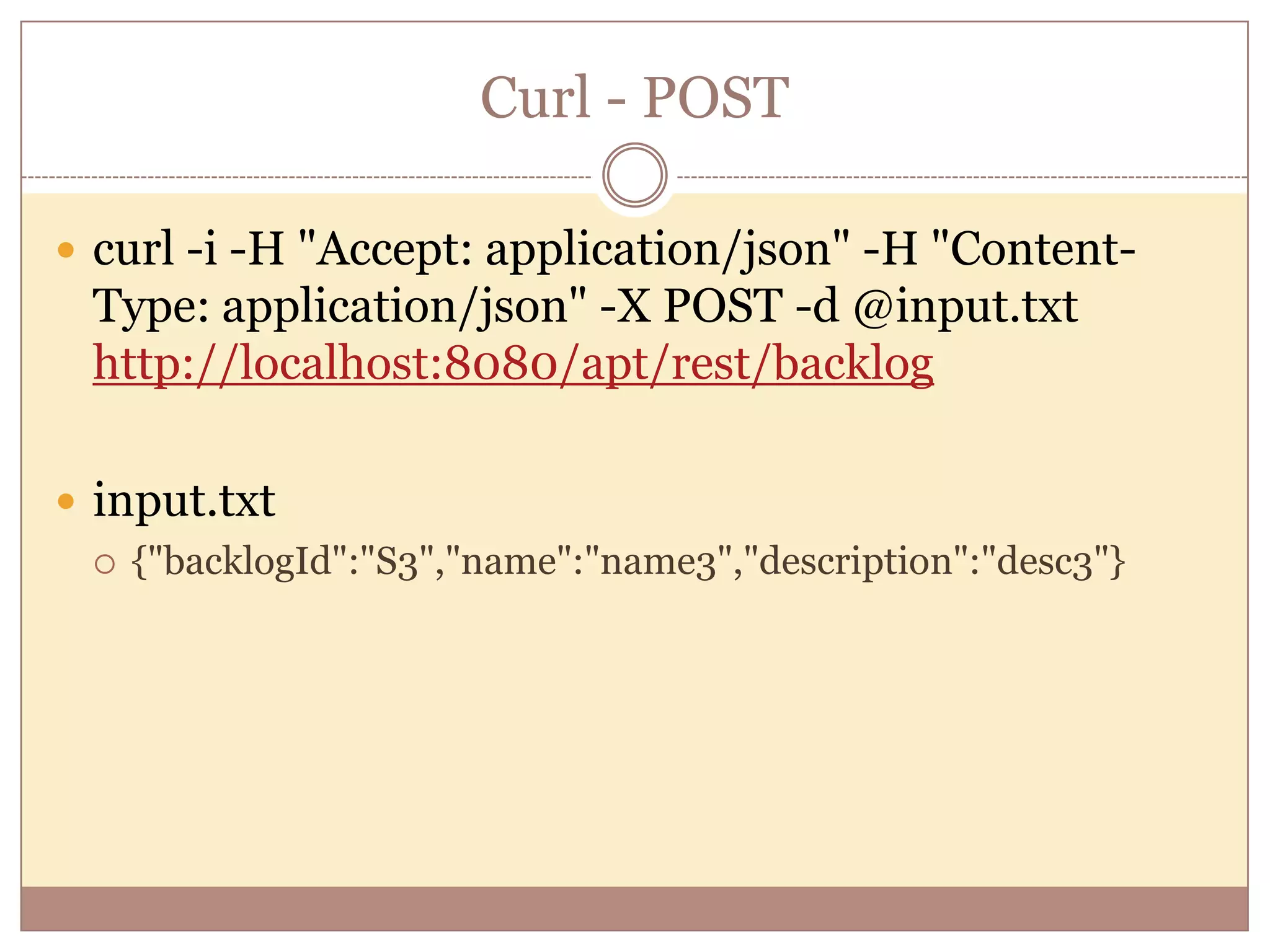

Curl - POST  curl -i -H "Accept: application/json" -H "Content- Type: application/json" -X POST -d @input.txt http://localhost:8080/apt/rest/backlog  input.txt  {"backlogId":"S3","name":"name3","description":"desc3"}

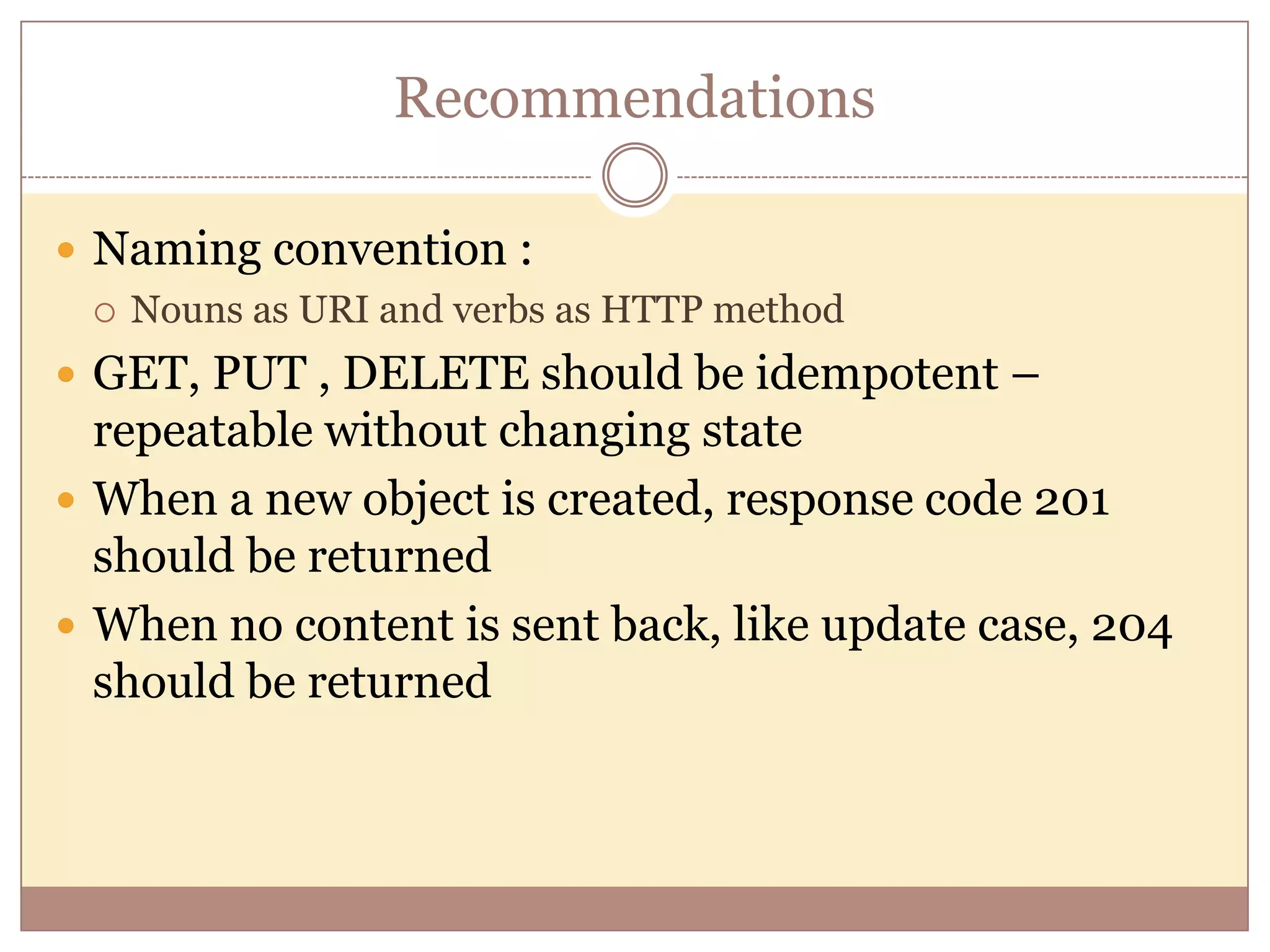

Recommendations  Naming convention :  Nouns as URI and verbs as HTTP method  GET, PUT , DELETE should be idempotent – repeatable without changing state  When a new object is created, response code 201 should be returned  When no content is sent back, like update case, 204 should be returned

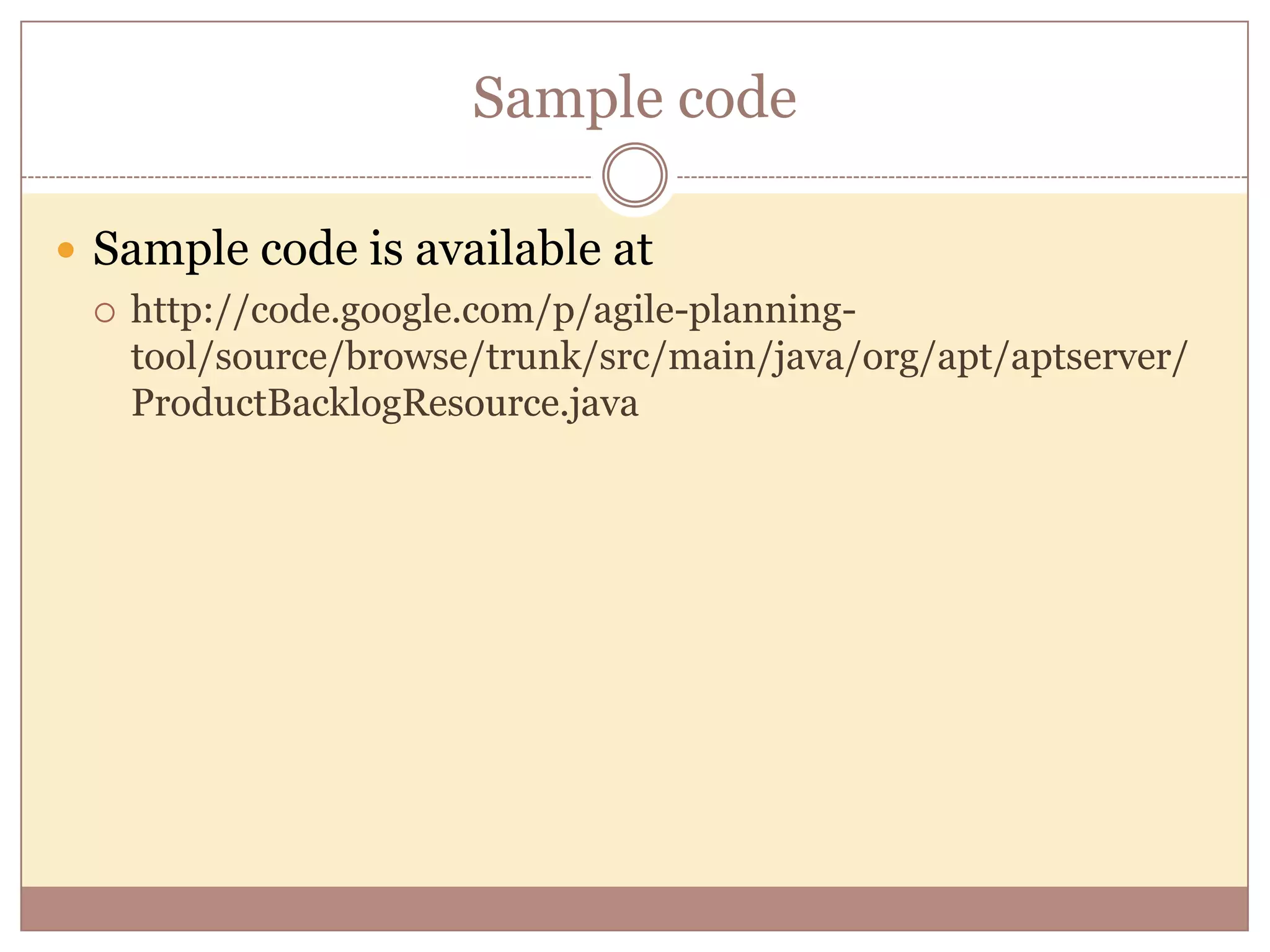

Sample code  Sample code is available at  http://code.google.com/p/agile-planning- tool/source/browse/trunk/src/main/java/org/apt/aptserver/ ProductBacklogResource.java

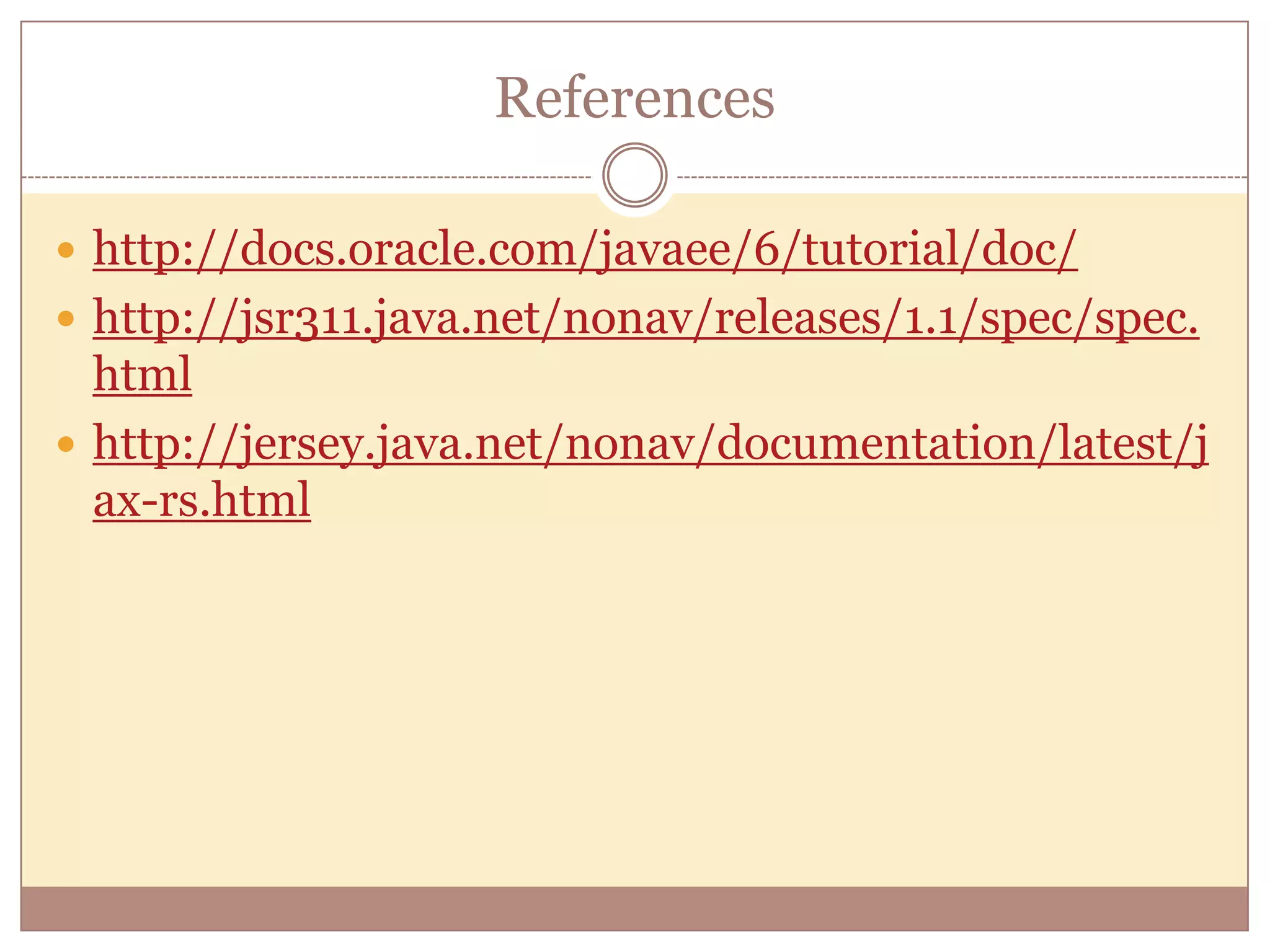

References  http://docs.oracle.com/javaee/6/tutorial/doc/  http://jsr311.java.net/nonav/releases/1.1/spec/spec. html  http://jersey.java.net/nonav/documentation/latest/j ax-rs.html

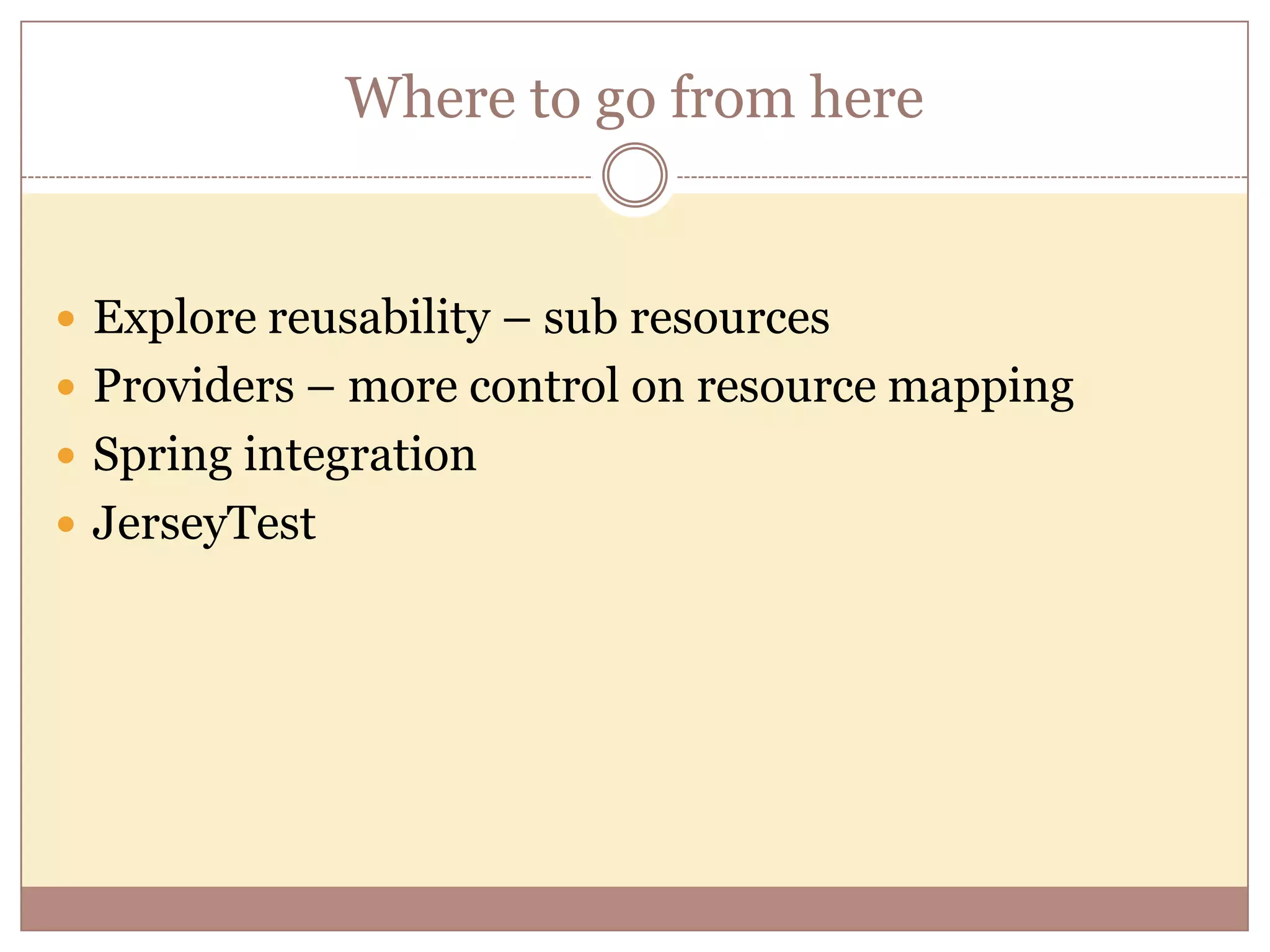

Where to go from here  Explore reusability – sub resources  Providers – more control on resource mapping  Spring integration  JerseyTest

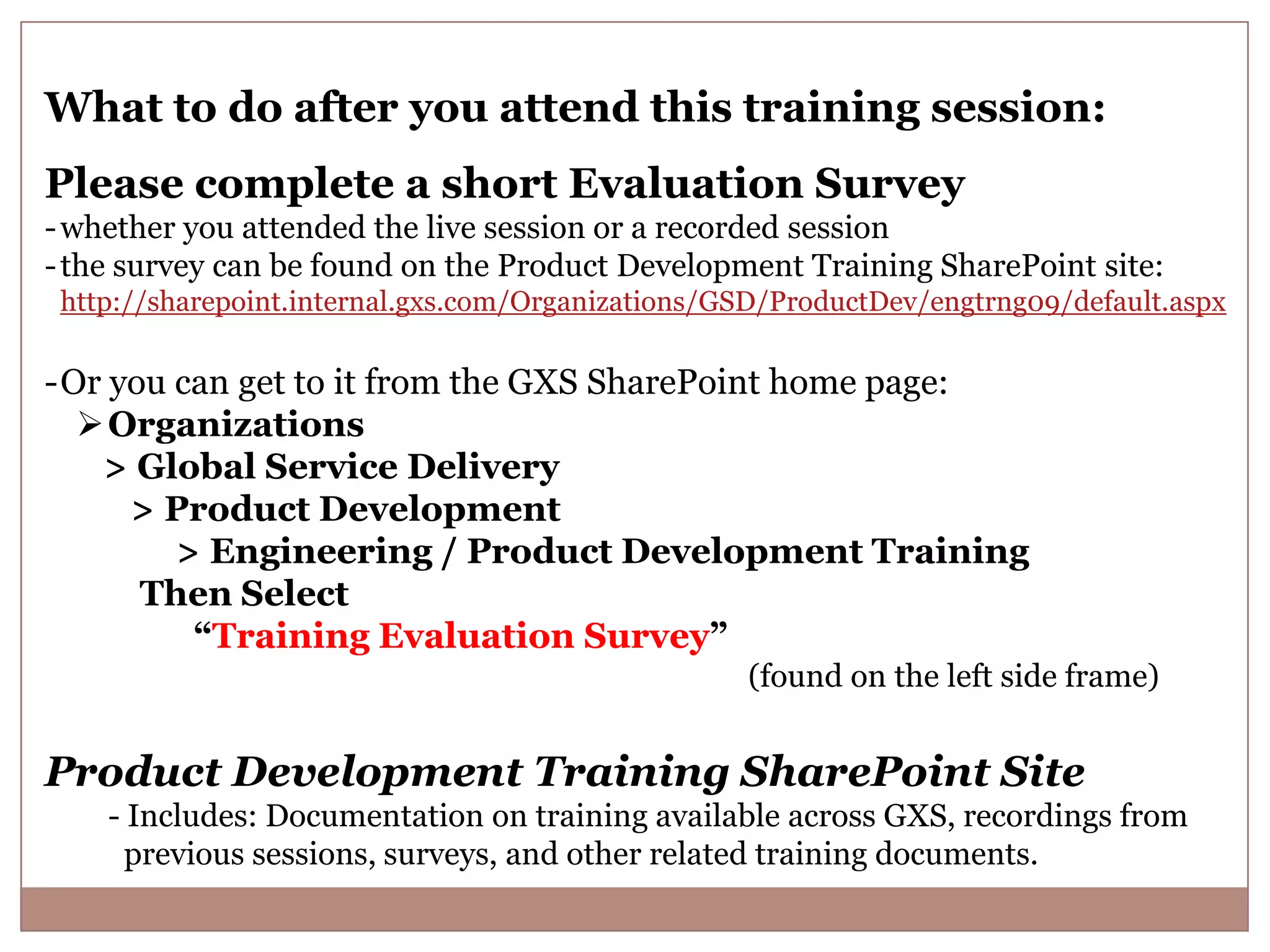

What to do after you attend this training session: Please complete a short Evaluation Survey - whether you attended the live session or a recorded session - the survey can be found on the Product Development Training SharePoint site: http://sharepoint.internal.gxs.com/Organizations/GSD/ProductDev/engtrng09/default.aspx -Or you can get to it from the GXS SharePoint home page:  Organizations > Global Service Delivery > Product Development > Engineering / Product Development Training Then Select “Training Evaluation Survey” (found on the left side frame) Product Development Training SharePoint Site - Includes: Documentation on training available across GXS, recordings from previous sessions, surveys, and other related training documents.
