A pattern language for microservices Chris Richardson @crichardson chris@chrisrichardson.net http://eventuate.io

2.
@crichardson About Chris

3.
@crichardson About Chris

4.
@crichardson About Chris http://learnmicroservices.io

5.
@crichardson Why microservices?

6.

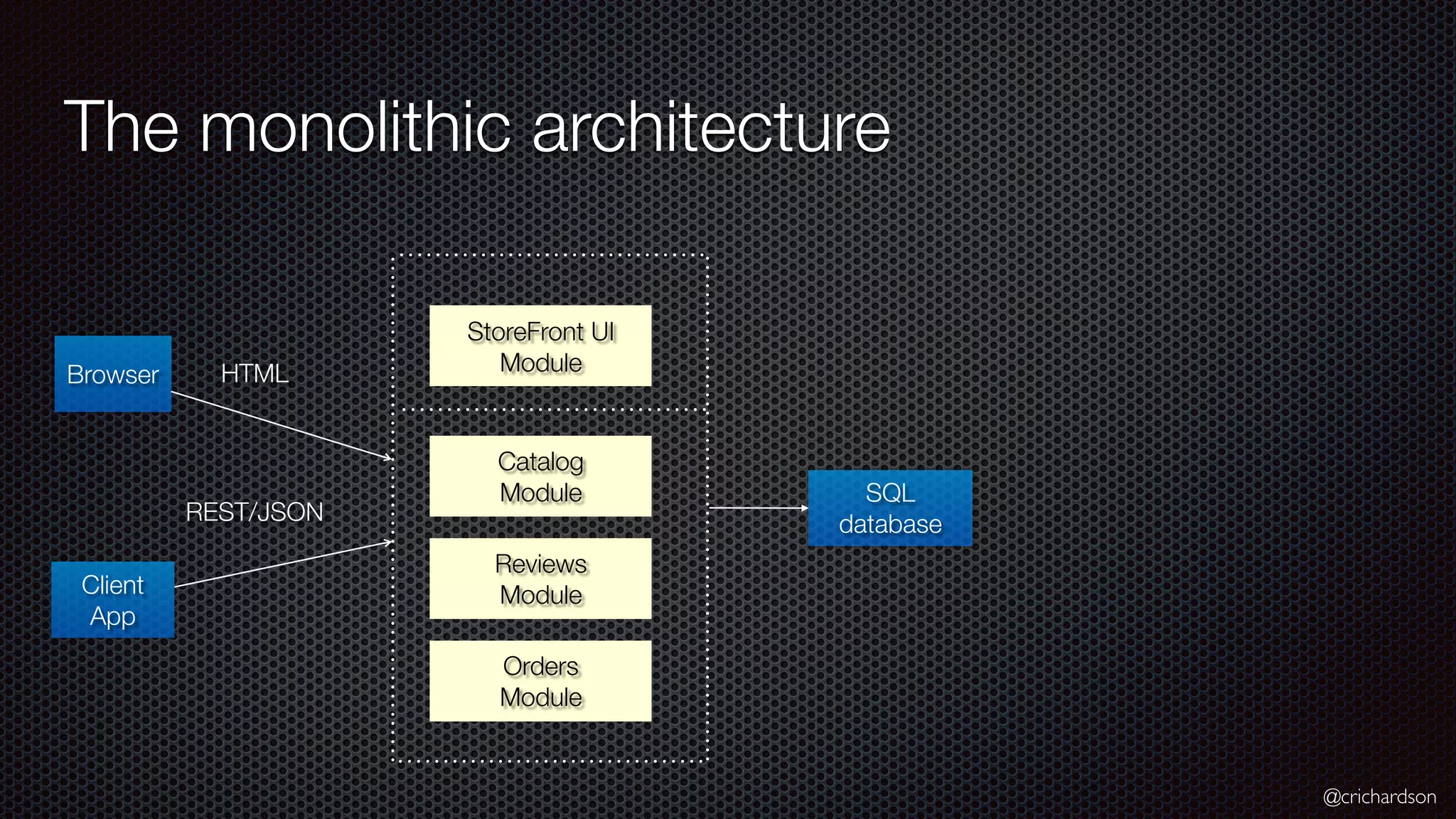

@crichardson The monolithic architecture Browser SQL database HTML REST/JSON Client App Catalog Module Reviews Module Orders Module StoreFrontUI Module

7.

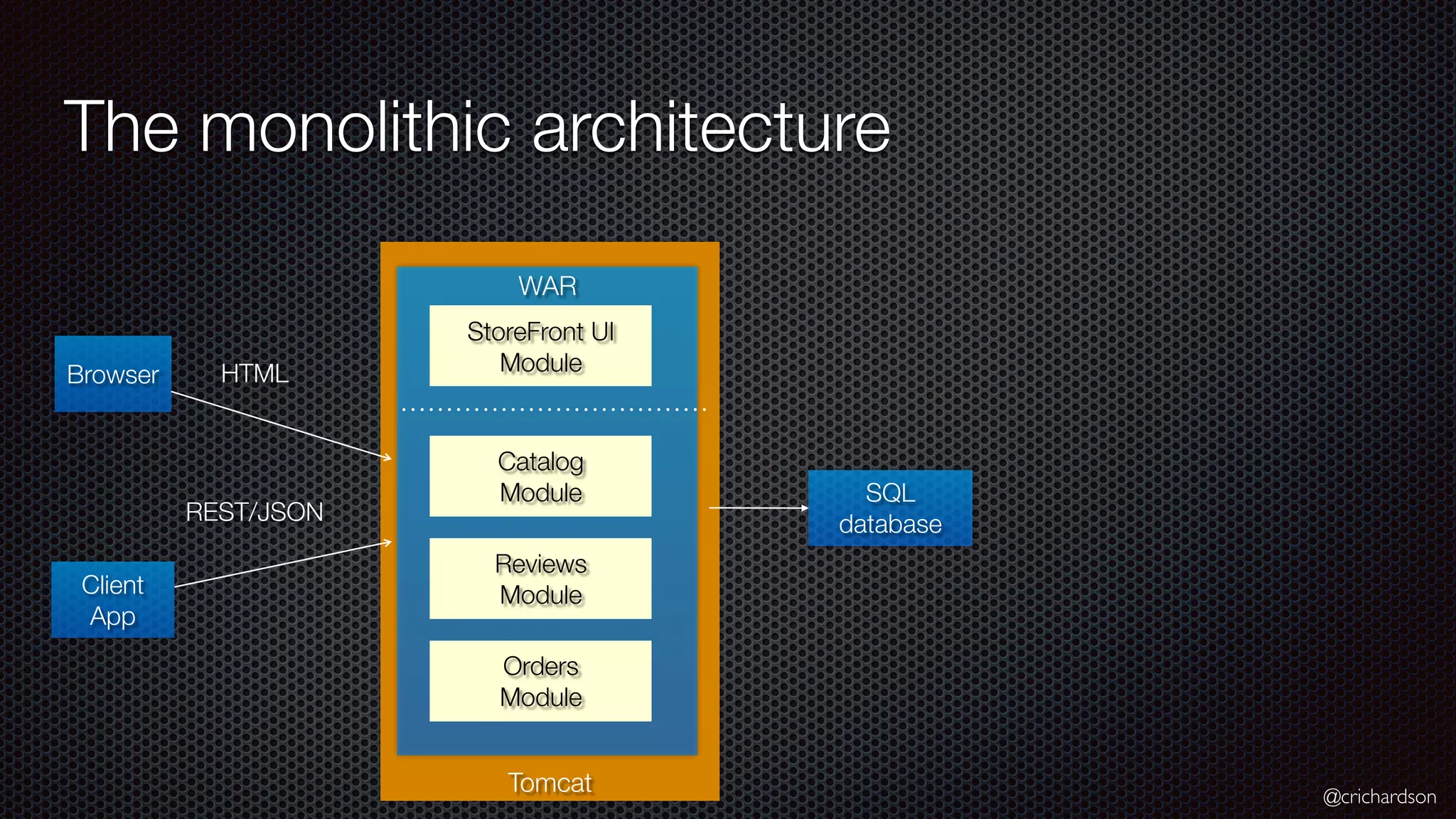

@crichardson The monolithic architecture Tomcat Browser WAR SQL database HTML REST/JSON Client App Catalog Module Reviews Module Orders Module StoreFrontUI Module

8.

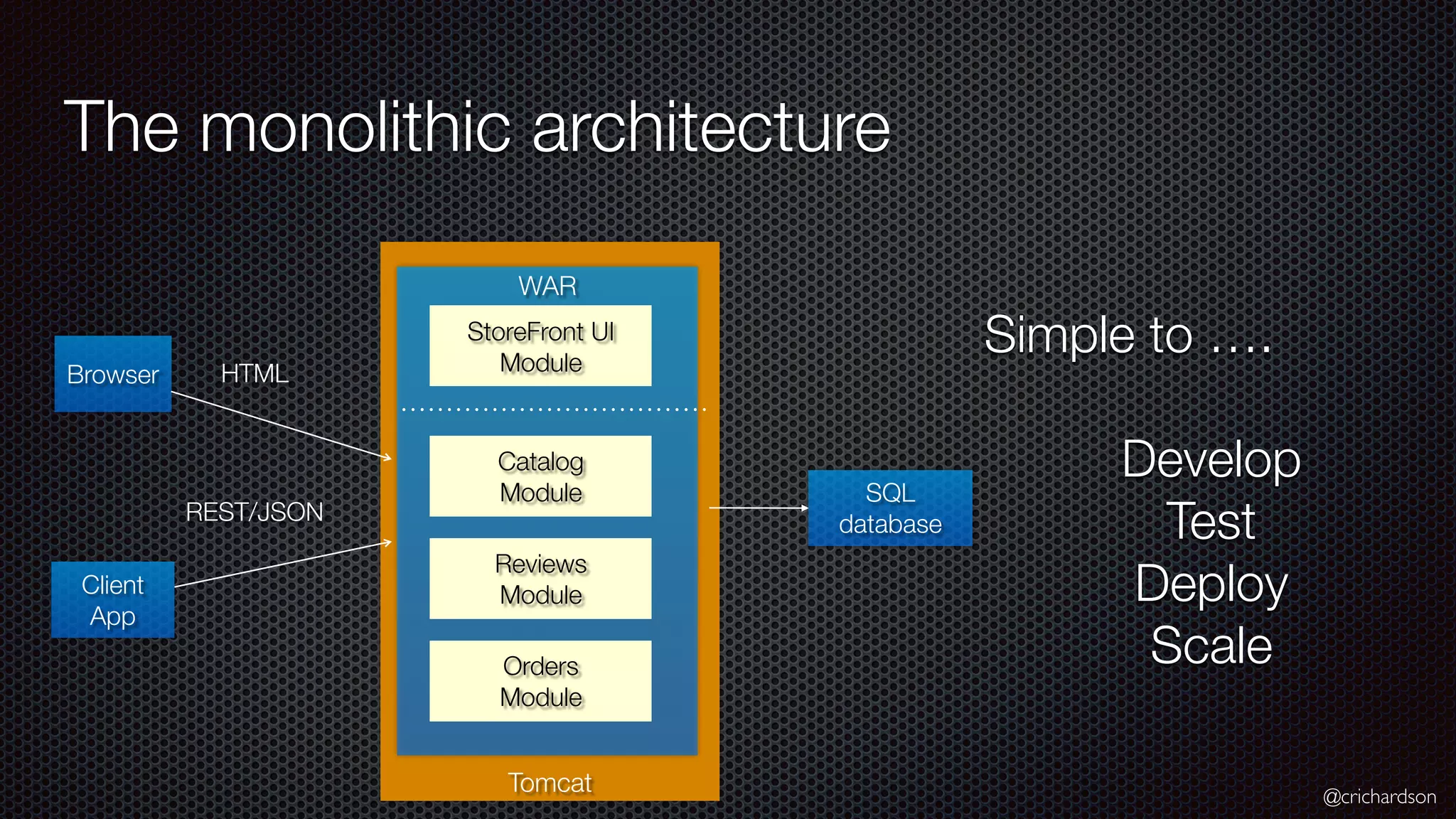

@crichardson The monolithic architecture Tomcat Browser WAR SQL database HTML REST/JSON Client App Simpleto …. Develop Test Deploy Scale Catalog Module Reviews Module Orders Module StoreFront UI Module

9.
@crichardson But successful applications keep growing ….

10.
@crichardson … and modularitybreaks down… http://www.laputan.org/mud/

11.
@crichardson Monolithic hell Agile developmentand deployment becomes impossible Technology stack becomes increasingly obsolete BUT a rewrite is not feasible

12.
The microservice architectureis an architectural style that structures an application as a set of loosely coupled, services organized around business capabilities

13.
@crichardson Microservices tackles complexity*through modularity Division of labor Division of knowledge

14.
@crichardson Microservices tackles complexity*through modularity Division of labor Division of knowledge * might improve scalability too

15.

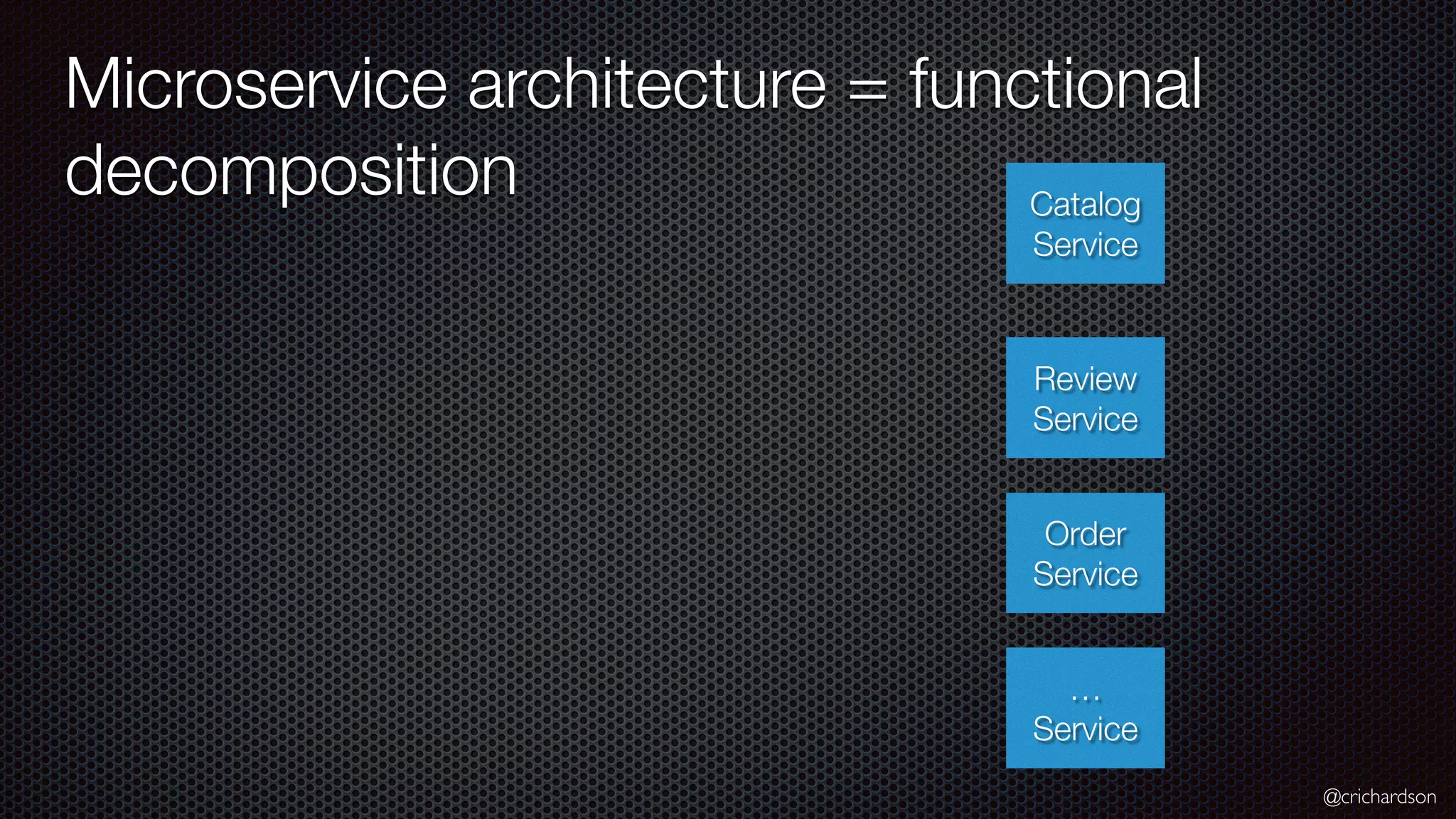

@crichardson Microservice architecture =functional decomposition Catalog Service Review Service Order Service … Service

16.

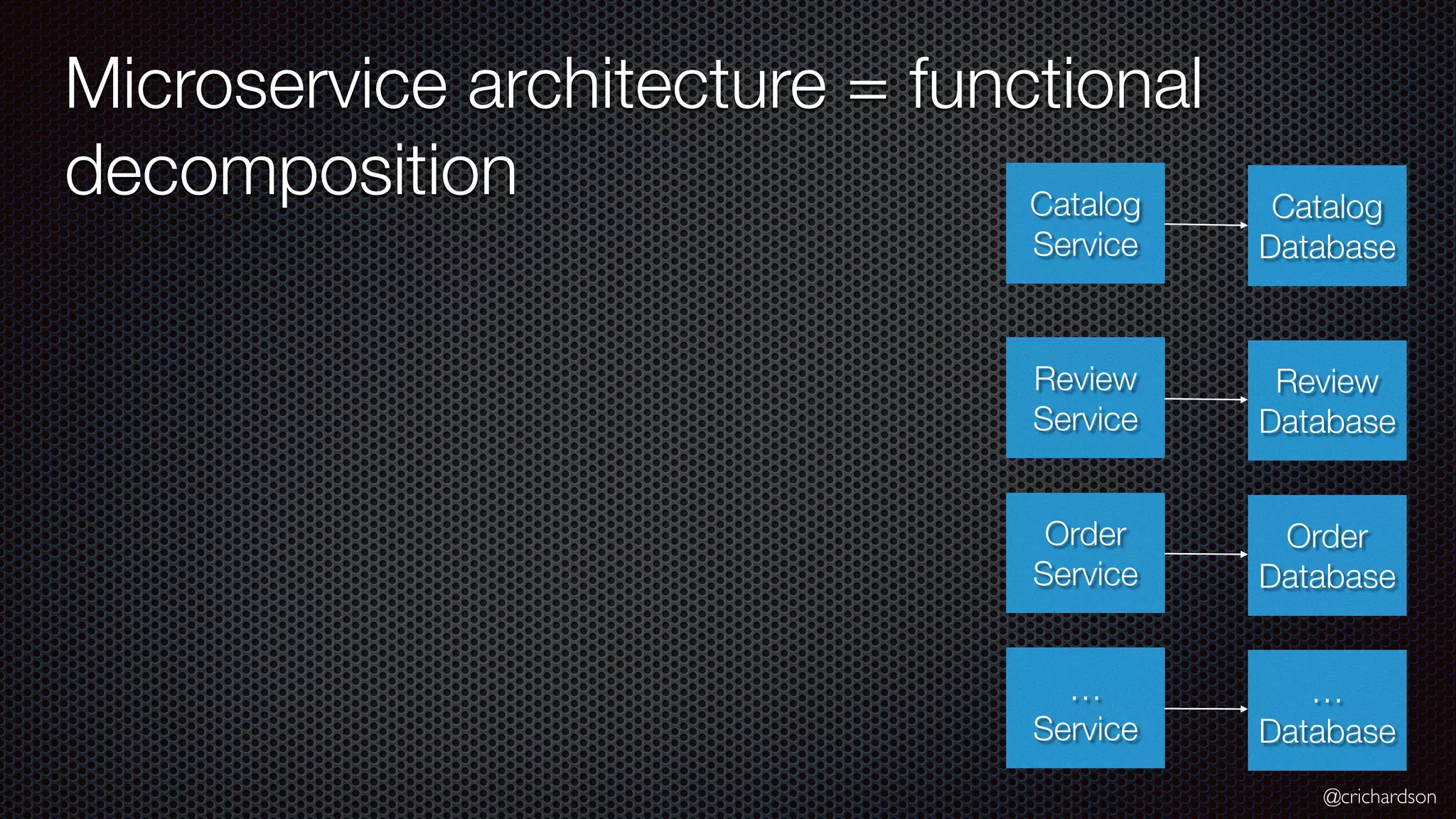

@crichardson Microservice architecture =functional decomposition Catalog Service Review Service Order Service … Service Catalog Database Review Database Order Database … Database

17.

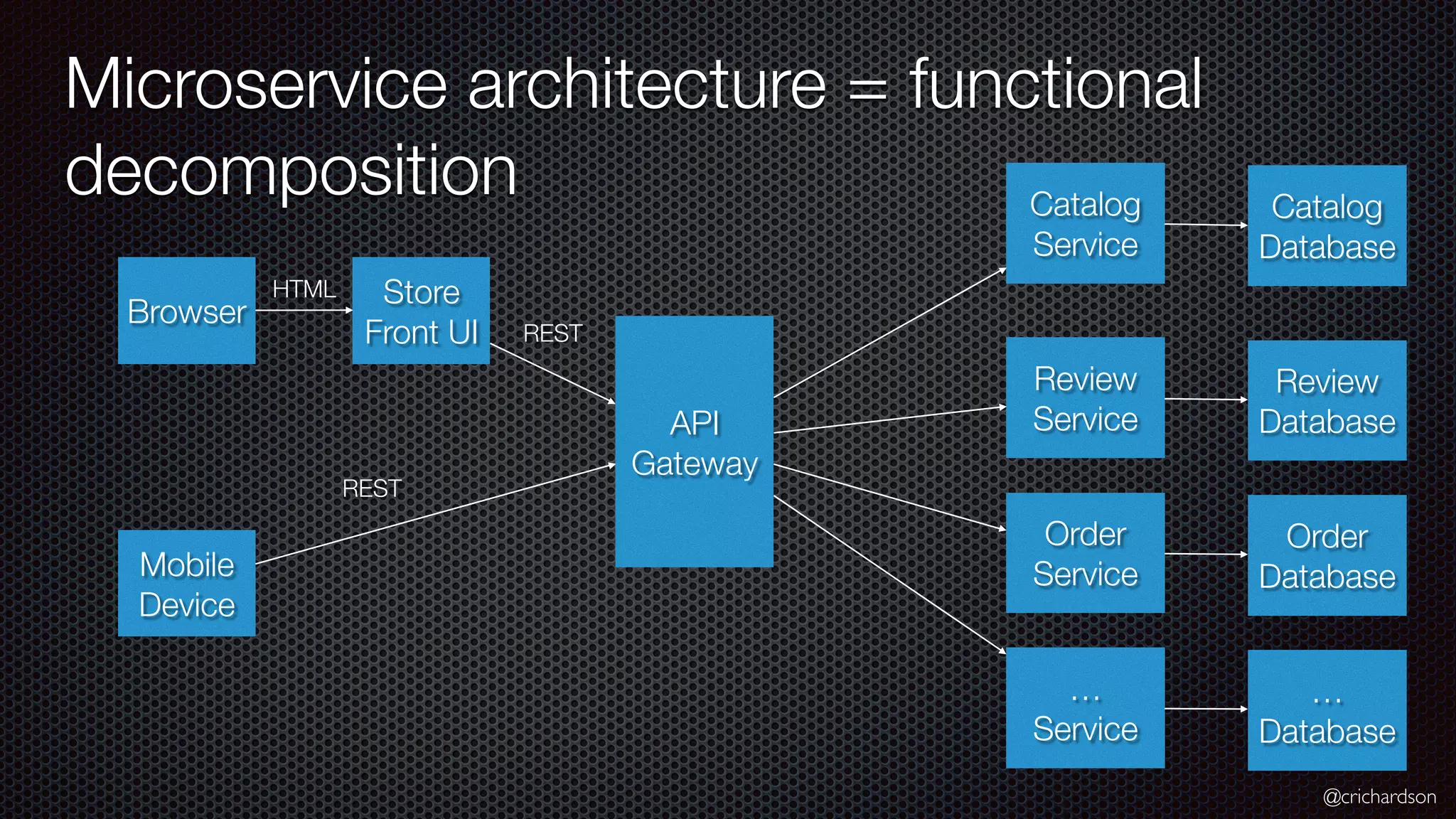

@crichardson Microservice architecture =functional decomposition Browser Mobile Device Store Front UI API Gateway Catalog Service Review Service Order Service … Service Catalog Database Review Database Order Database … Database HTML REST REST

18.

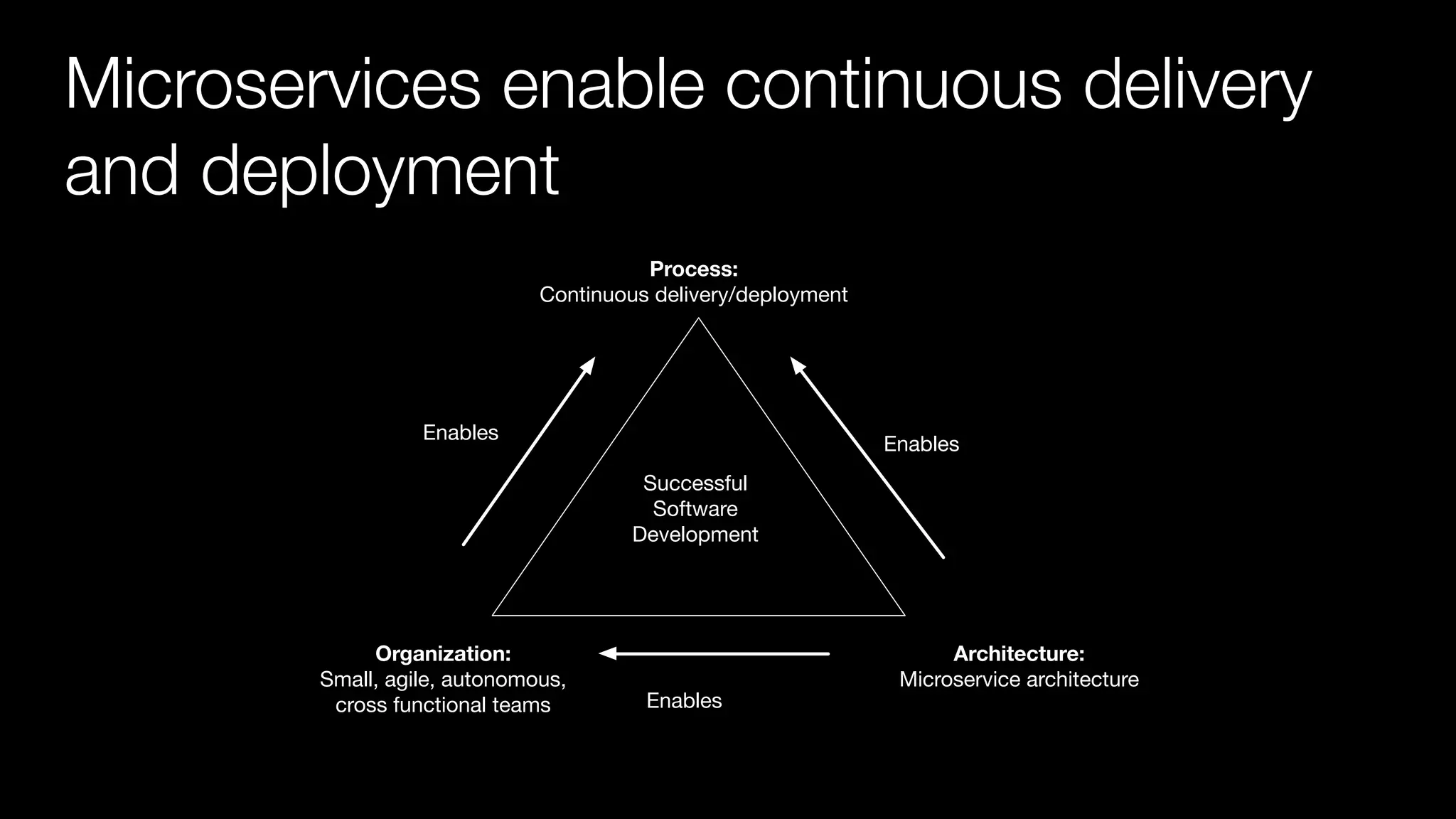

@crichardson Microservices enable continuousdelivery and deployment Process: Continuous delivery/deployment Organization: Small, agile, autonomous, cross functional teams Architecture: Microservice architecture Enables Enables Enables Successful Software Development

19.
@crichardson Microservices enable continuousdelivery and deployment Process: Continuous delivery/deployment Organization: Small, agile, autonomous, cross functional teams Architecture: Microservice architecture Enables Enables Enables Successful Software Development Services improve testability and deployability

20.

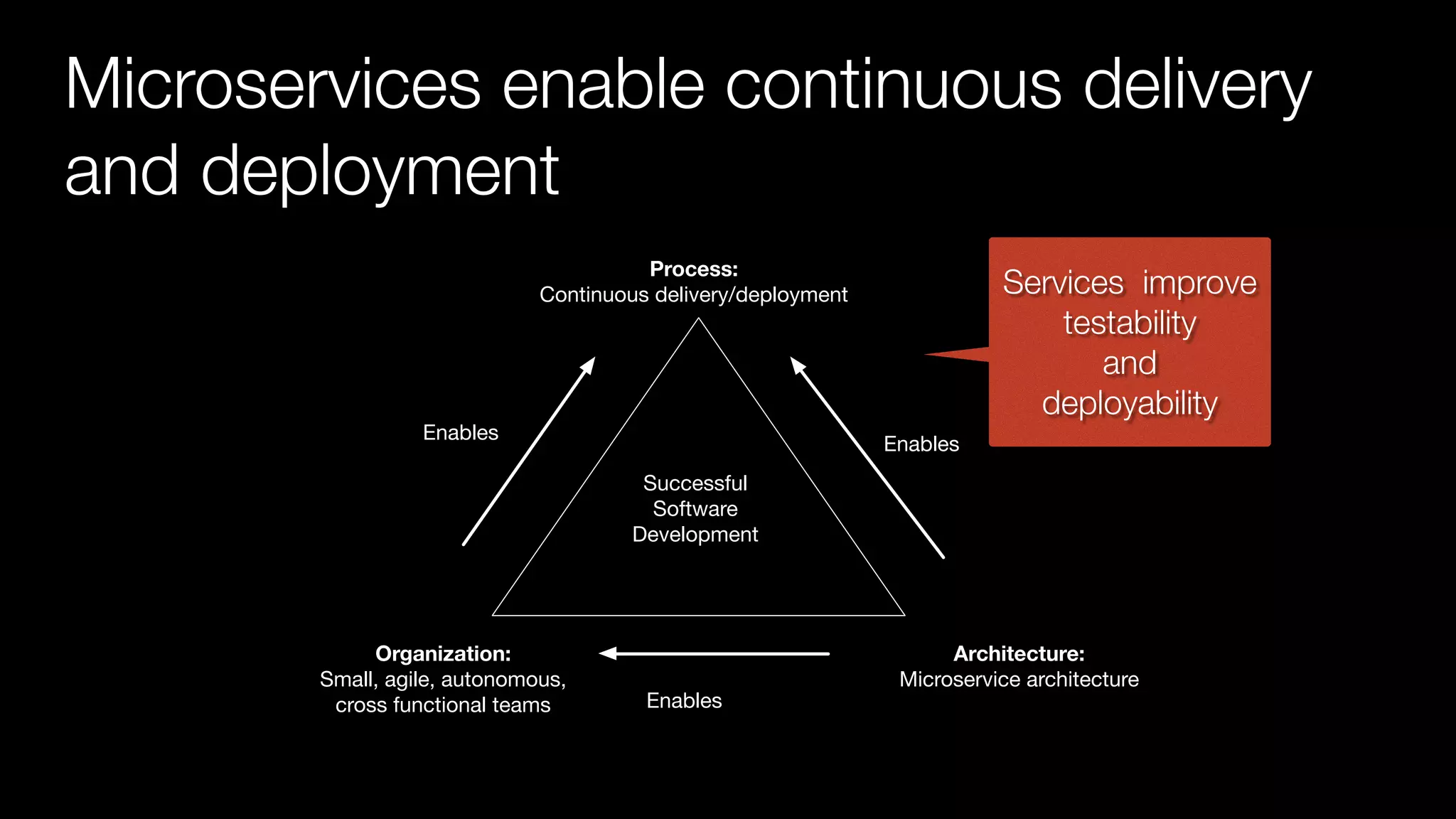

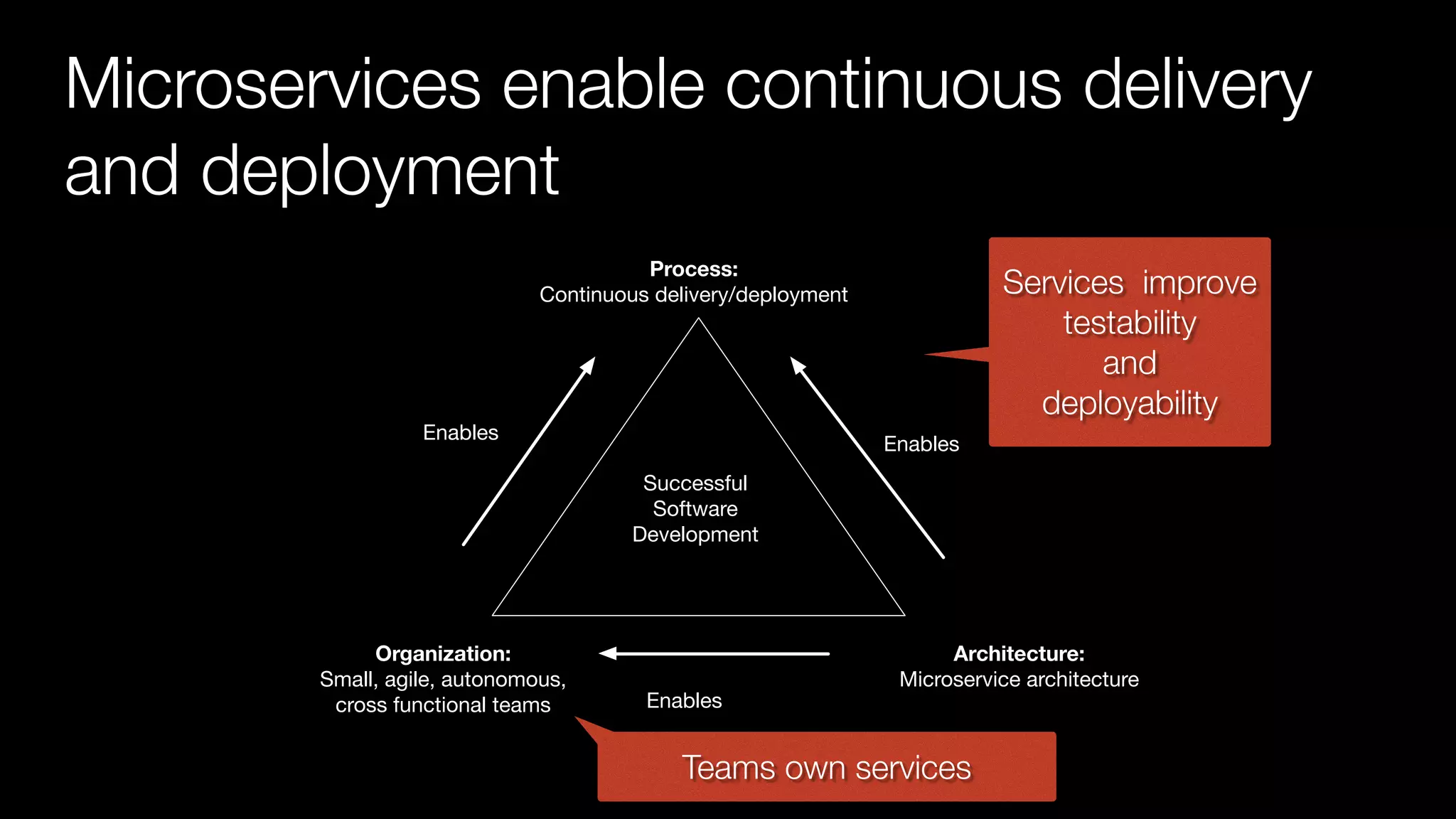

@crichardson Microservices enable continuousdelivery and deployment Process: Continuous delivery/deployment Organization: Small, agile, autonomous, cross functional teams Architecture: Microservice architecture Enables Enables Enables Successful Software Development Services improve testability and deployability Teams own services

21.
@crichardson Easily try othertechnologies

22.
@crichardson Easily try othertechnologies ... and fail safely

23.
@crichardson Where does Redisﬁt in?

24.

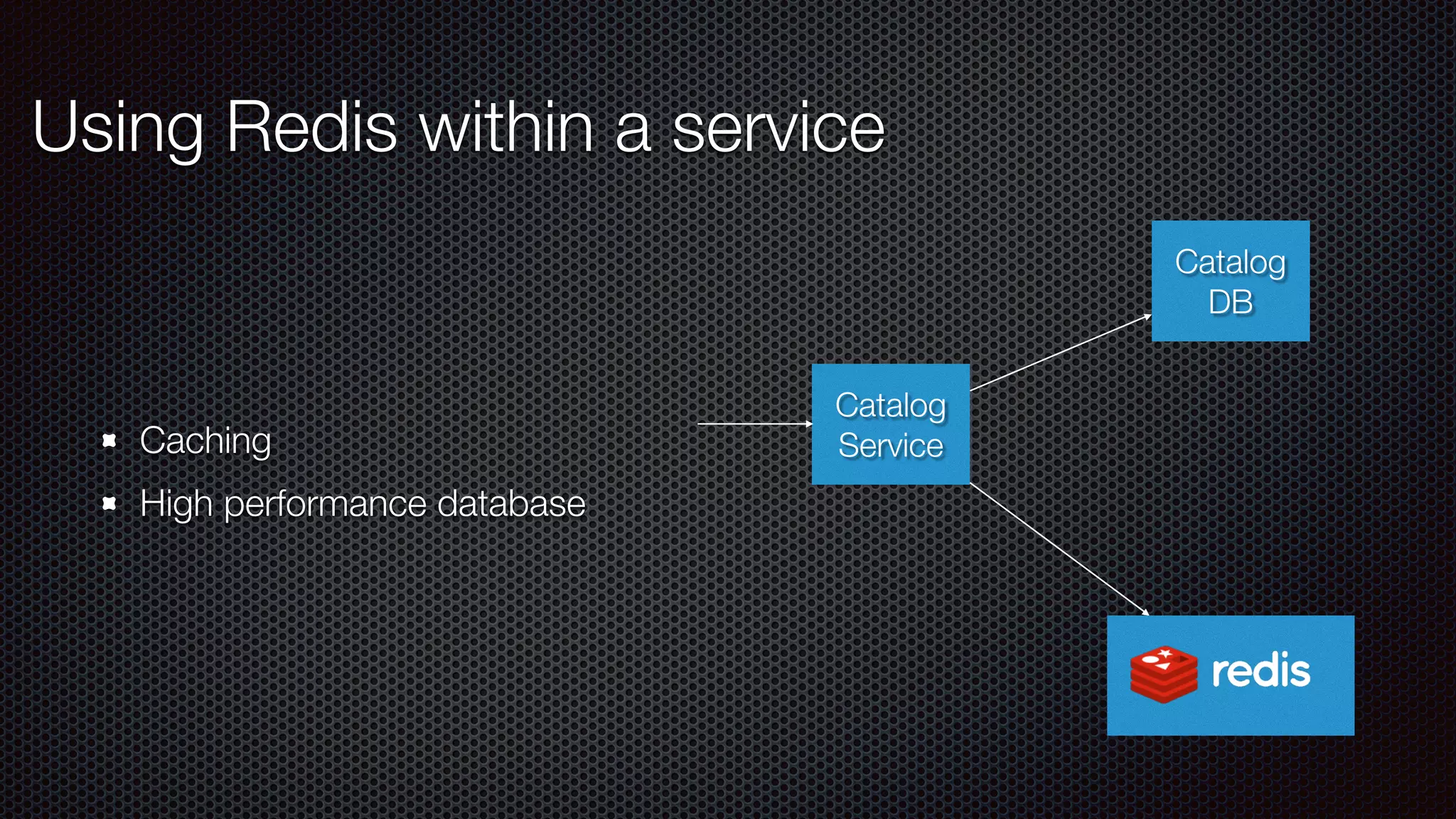

Using Redis withina service Caching High performance database Catalog Service Catalog DB

25.

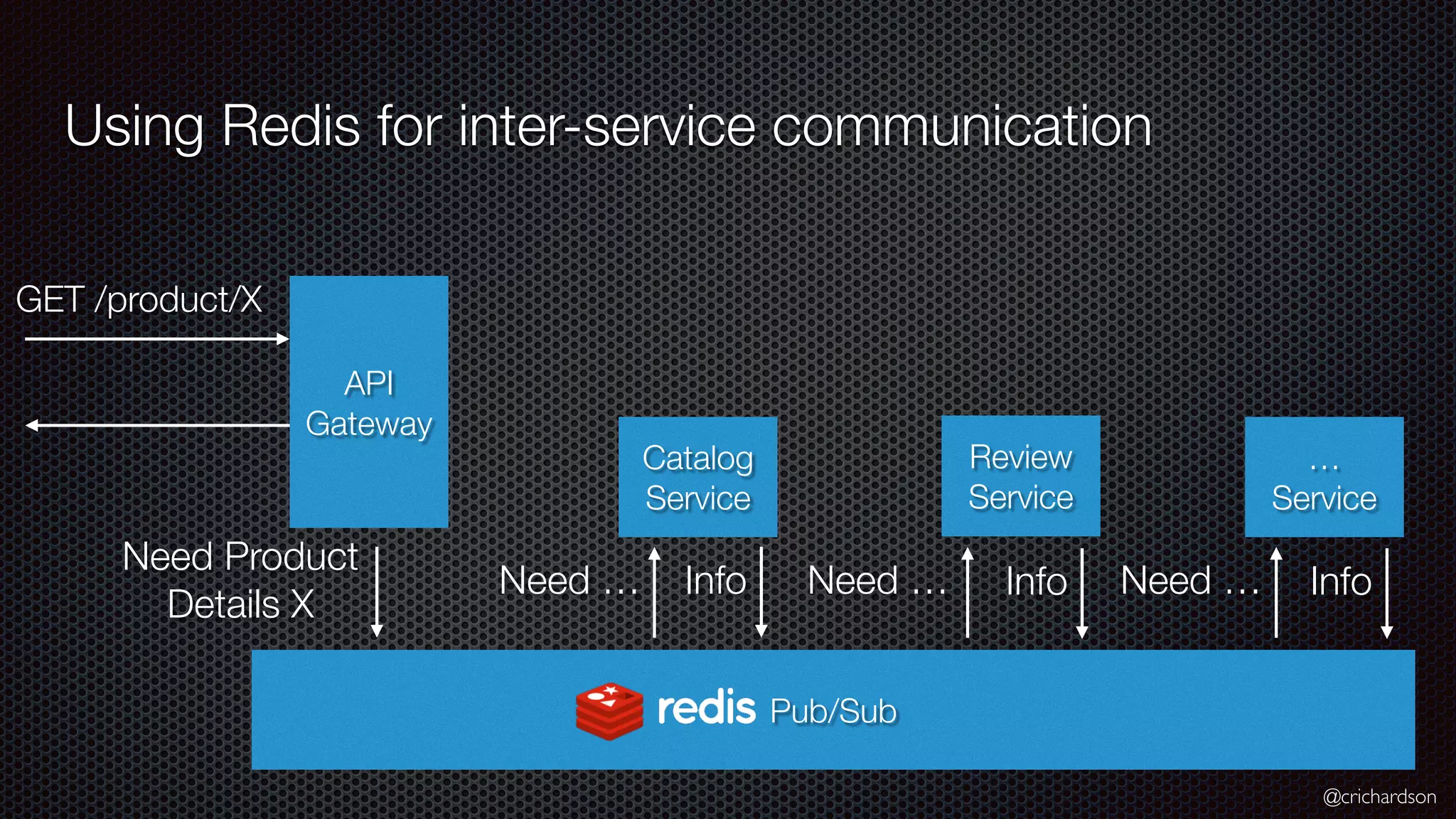

@crichardson Using Redis forinter-service communication API Gateway Catalog Service Review Service … Service Pub/Sub Need Product Details X GET /product/X Need … Need … Need …Info Info Info

26.

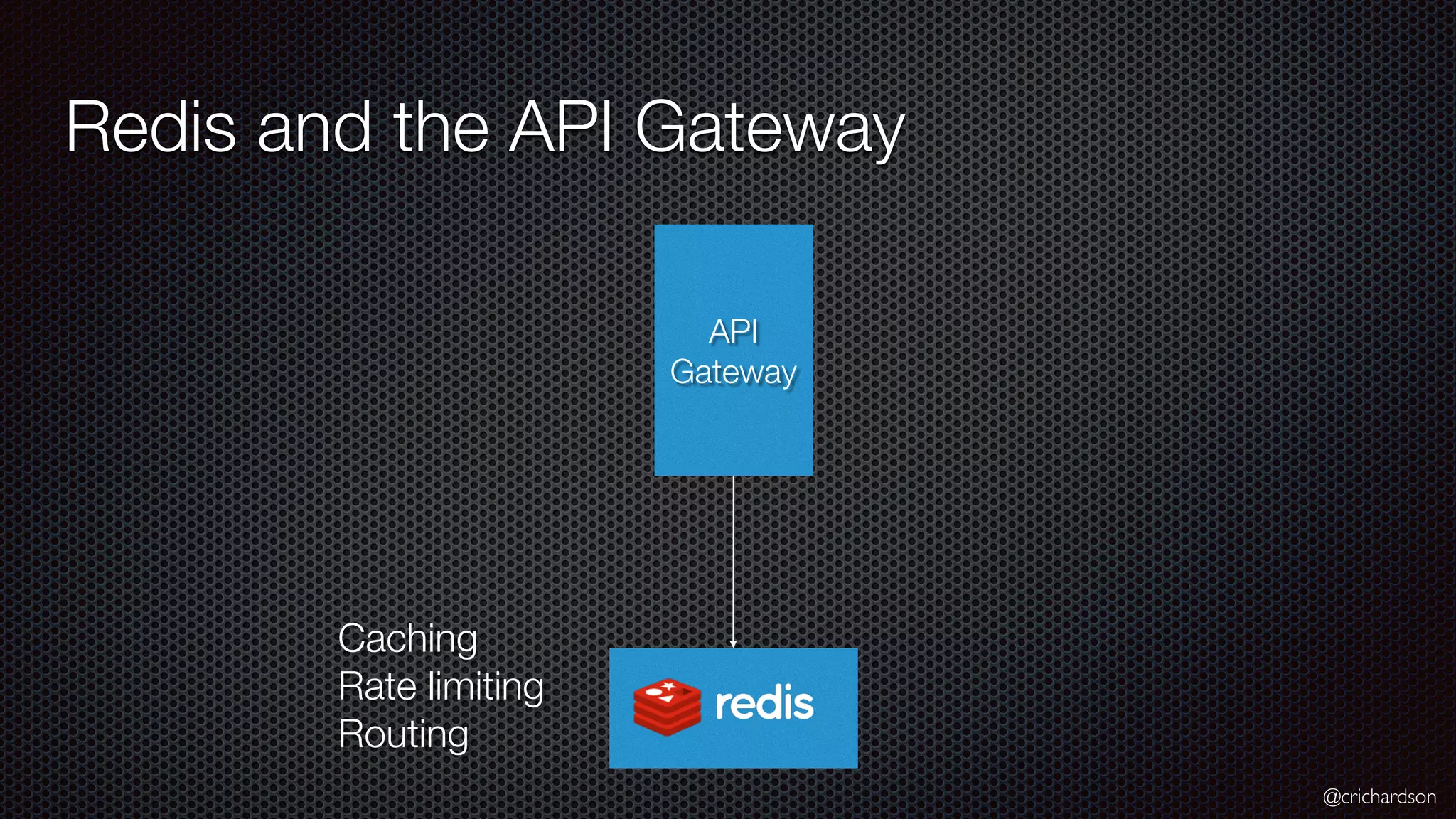

@crichardson Redis and theAPI Gateway API Gateway Caching Rate limiting Routing

27.
@crichardson No silver bullet http://en.wikipedia.org/wiki/Fred_Brooks

28.
@crichardson Drawbacks of microservices Complexity

29.
@crichardson Drawbacks of microservices Complexity Development:IPC, partial failure, distributed data

30.
@crichardson Drawbacks of microservices Complexity Development:IPC, partial failure, distributed data Testing: Integration, end to end, …

31.
@crichardson Drawbacks of microservices Complexity Development:IPC, partial failure, distributed data Testing: Integration, end to end, … Deployment …

32.
@crichardson Are microservices agood ﬁt for my application?

33.
@crichardson When using microservices:

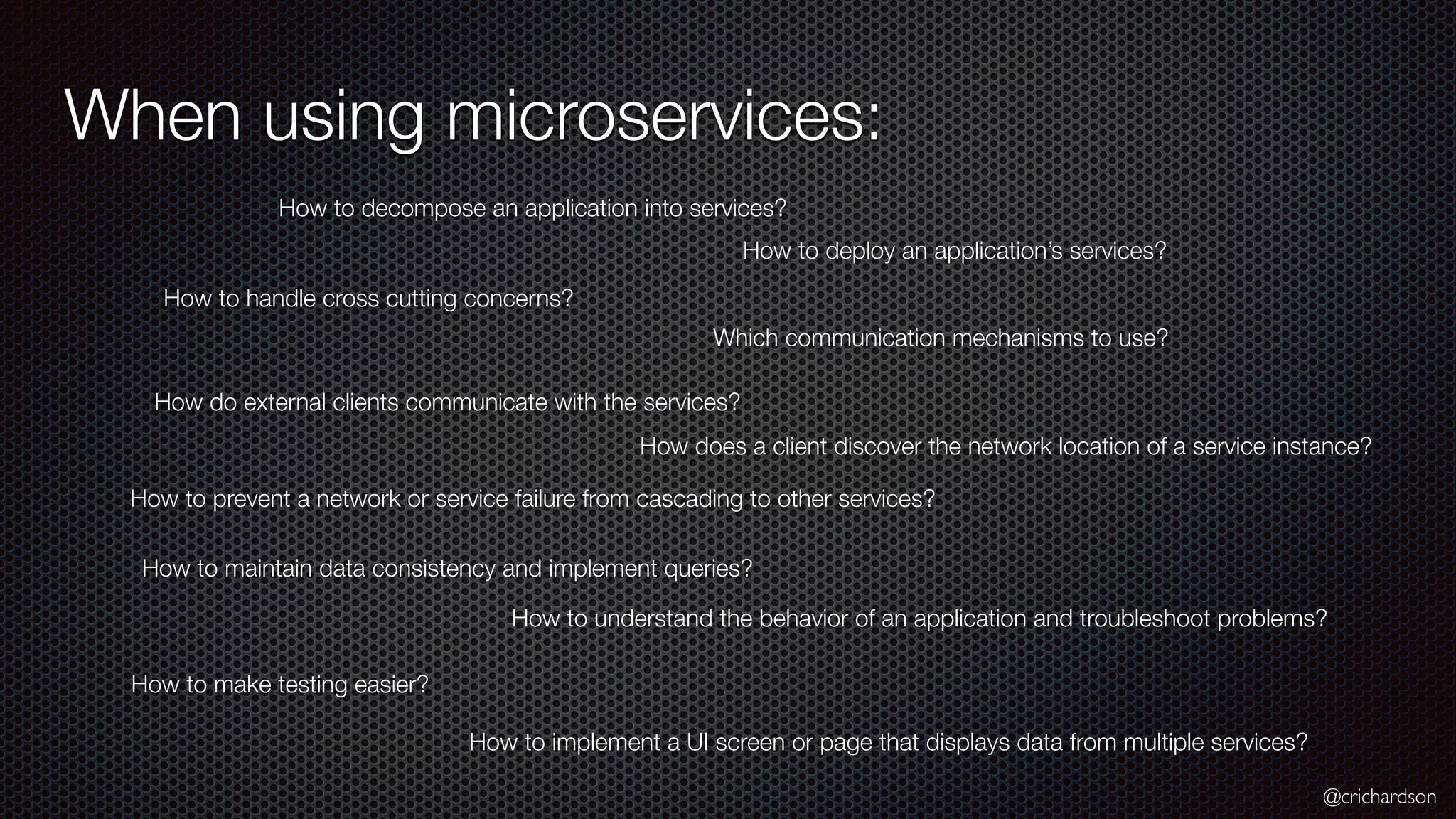

34.
@crichardson When using microservices: Howto decompose an application into services? How to deploy an application’s services? How to handle cross cutting concerns? Which communication mechanisms to use? How do external clients communicate with the services? How does a client discover the network location of a service instance? How to prevent a network or service failure from cascading to other services? How to maintain data consistency and implement queries? How to make testing easier? How to understand the behavior of an application and troubleshoot problems? How to implement a UI screen or page that displays data from multiple services?

35.
@crichardson Patterns = Better decisions

36.
@crichardson What’s a pattern? Reusablesolution to a problem occurring in a particular context

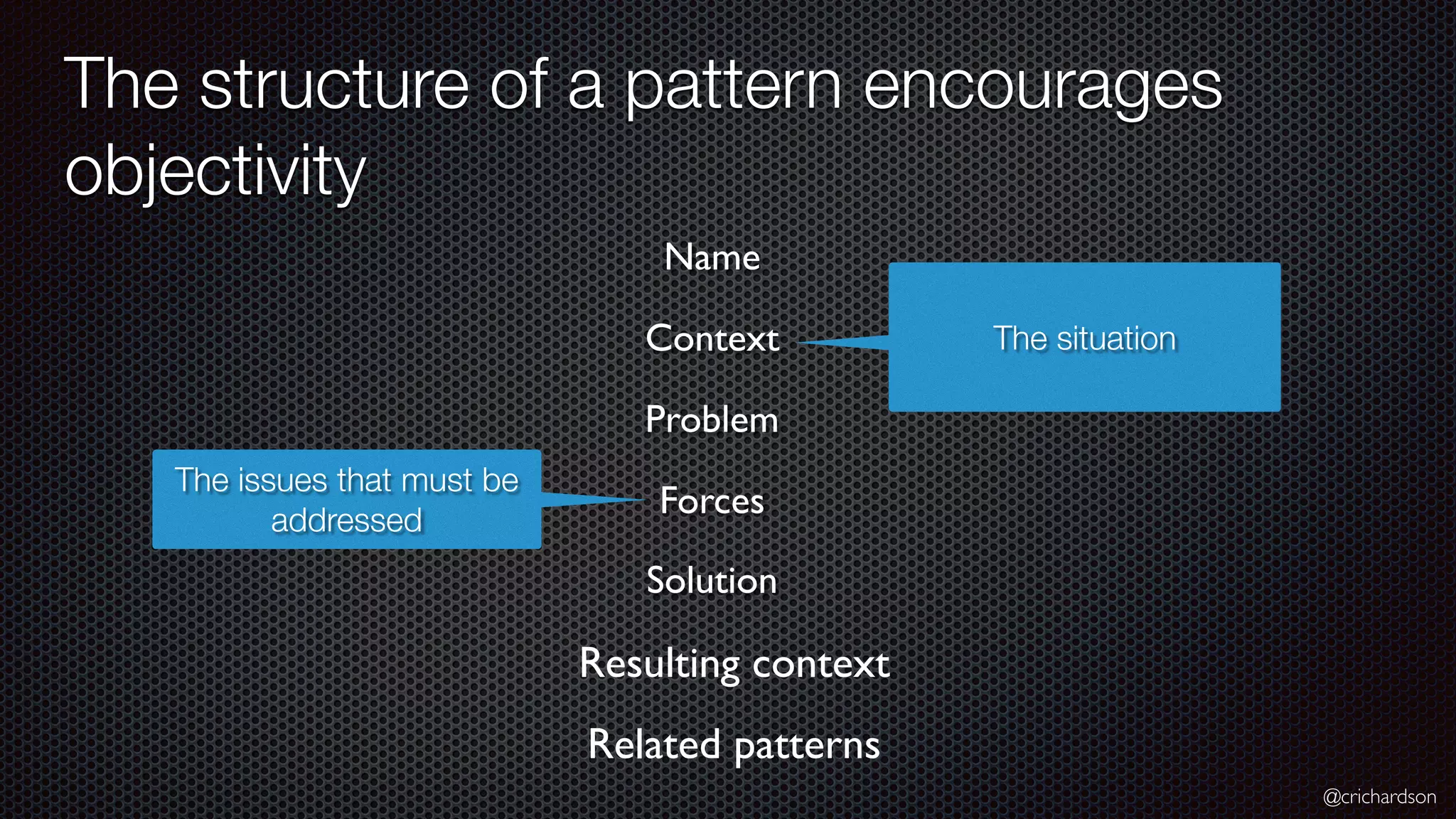

37.

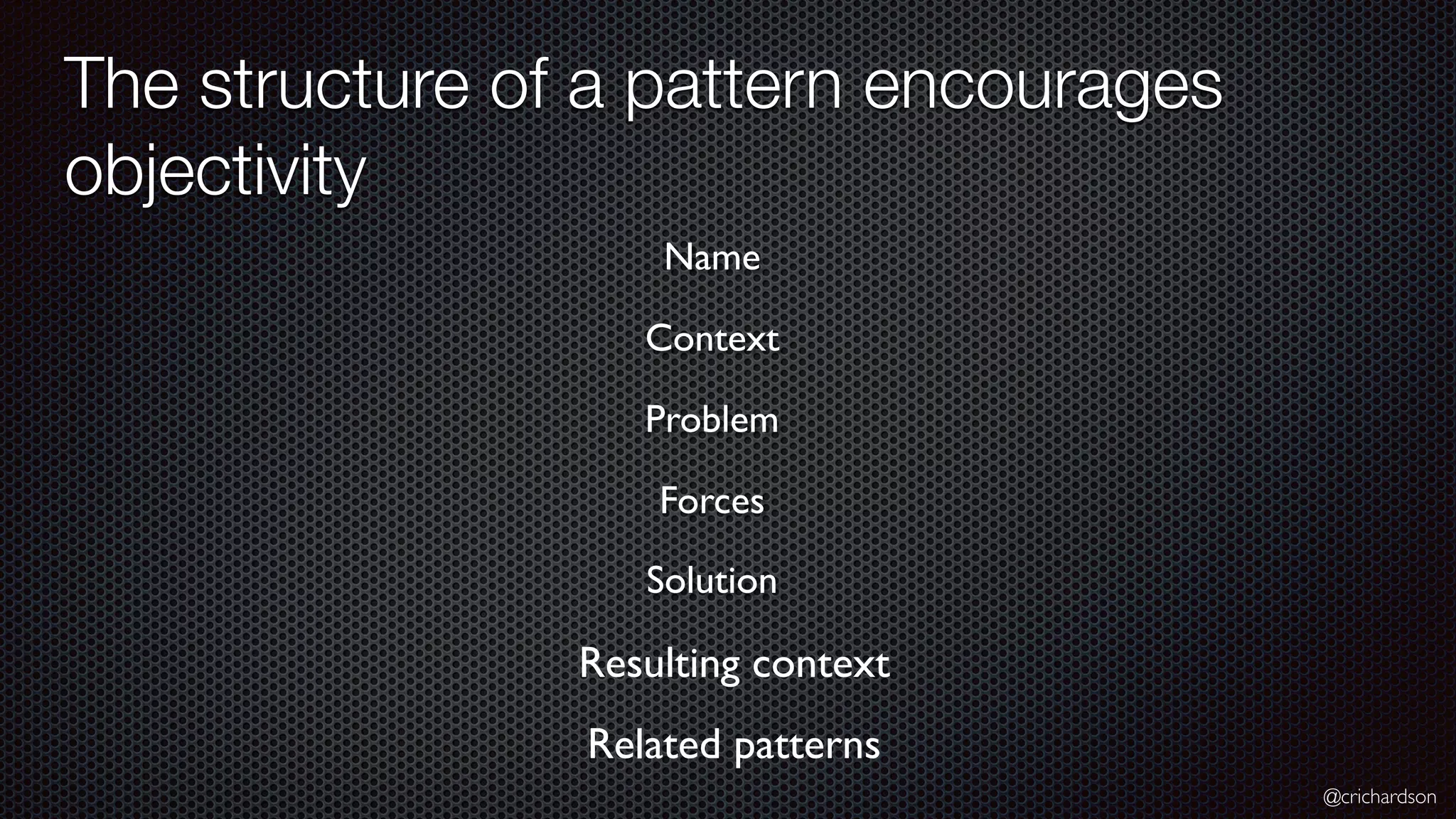

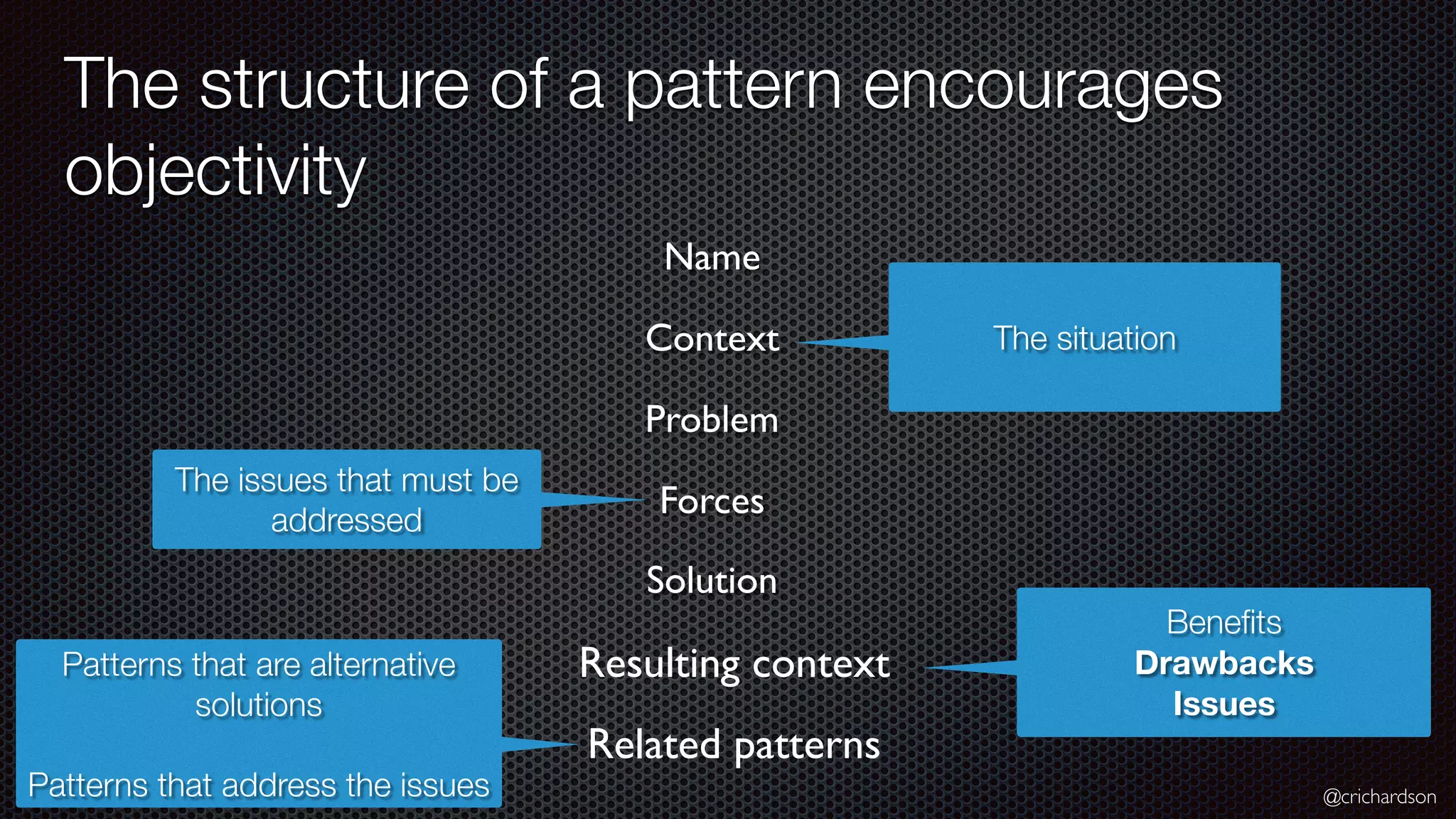

@crichardson The structure ofa pattern encourages objectivity Resulting context Name Context Problem Related patterns Forces Solution

38.

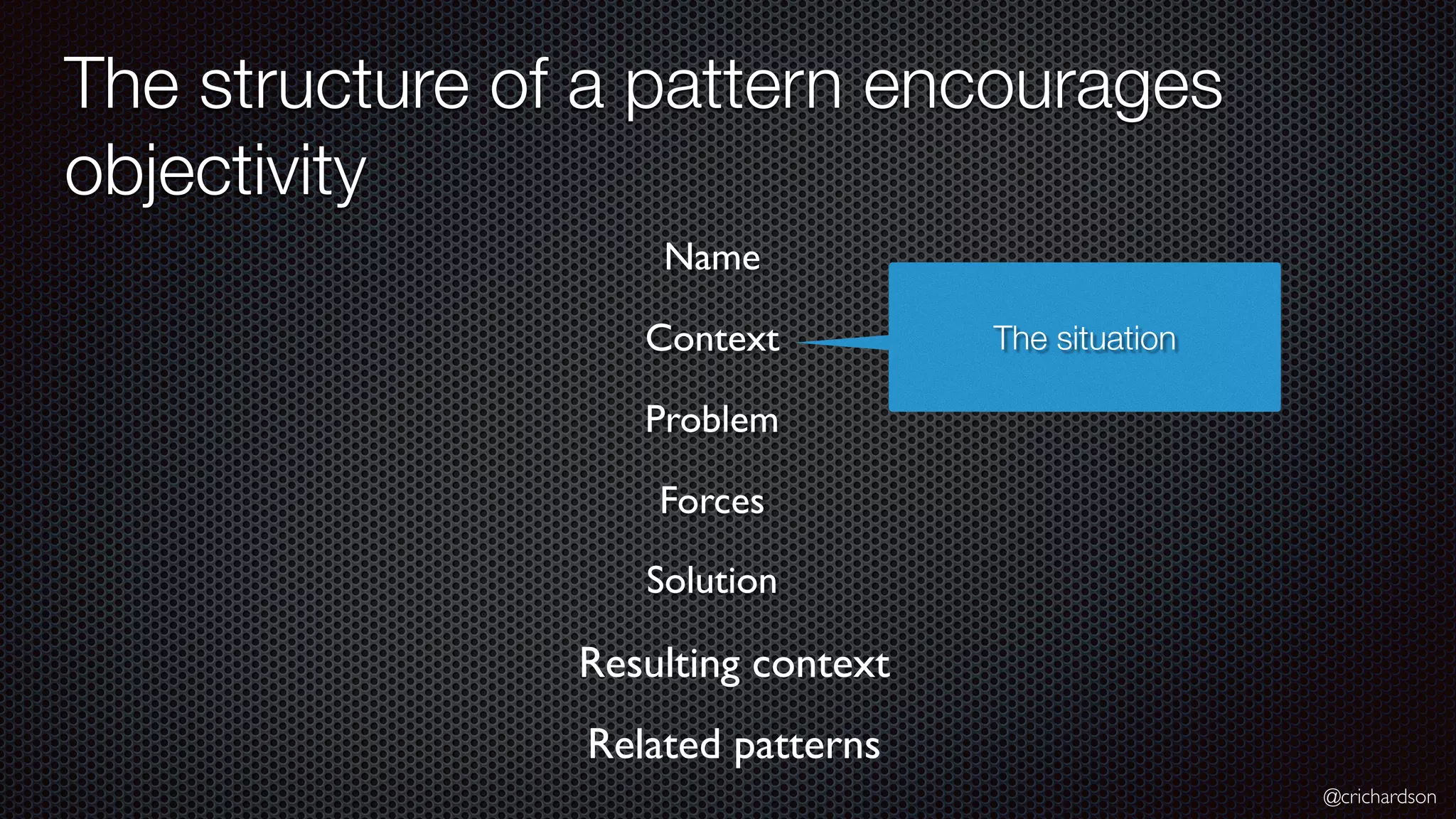

@crichardson The structure ofa pattern encourages objectivity Resulting context The situation Name Context Problem Related patterns Forces Solution

39.
@crichardson The structure ofa pattern encourages objectivity Resulting context The situation Name Context Problem Related patterns The issues that must be addressed Forces Solution

40.

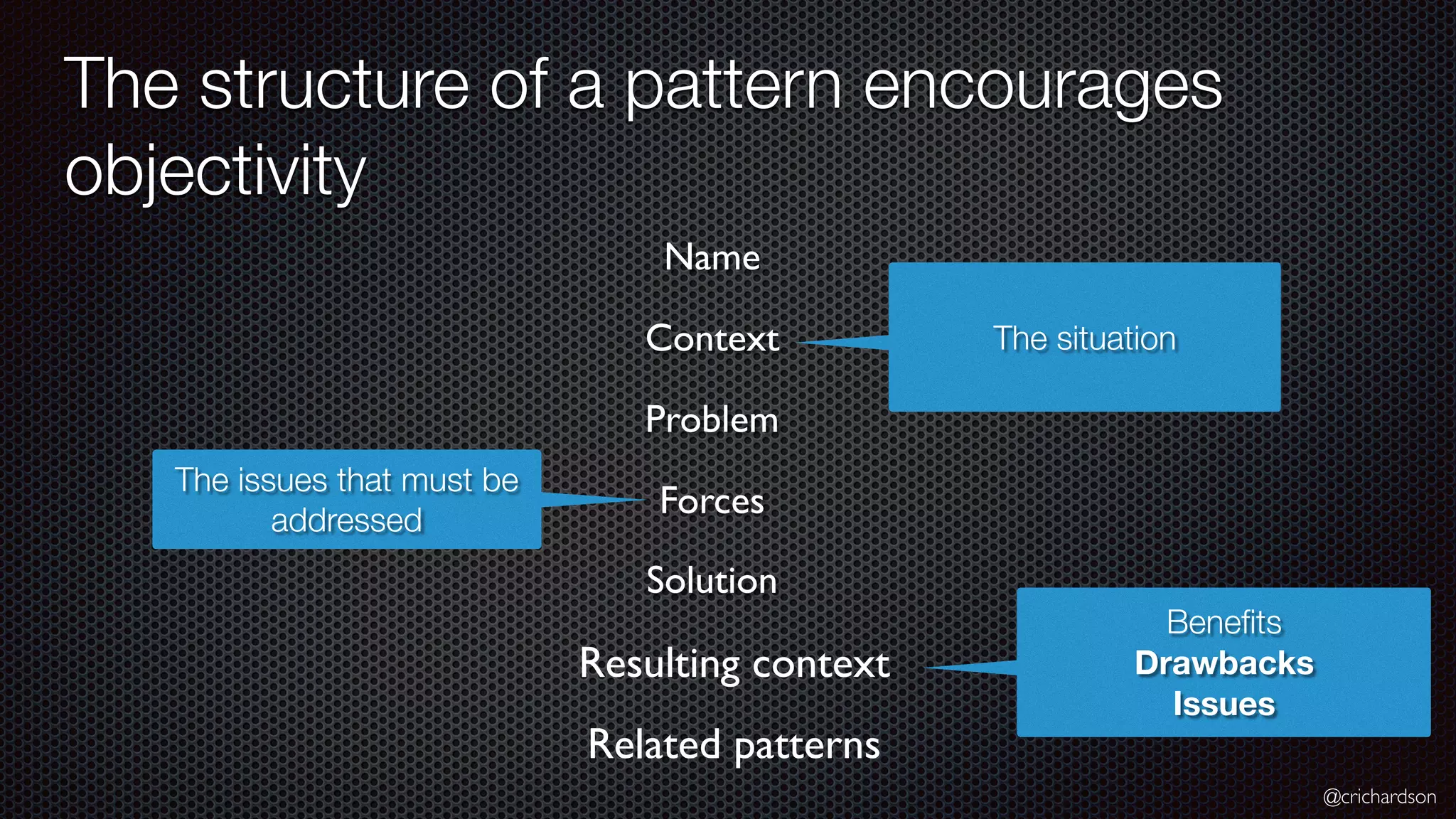

@crichardson The structure ofa pattern encourages objectivity Resulting context The situation Name Context Problem Related patterns The issues that must be addressed Forces Solution Beneﬁts Drawbacks Issues

41.
@crichardson The structure ofa pattern encourages objectivity Resulting context The situation Name Context Problem Related patterns The issues that must be addressed Forces Solution Beneﬁts Drawbacks Issues Patterns that are alternative solutions Patterns that address the issues

42.

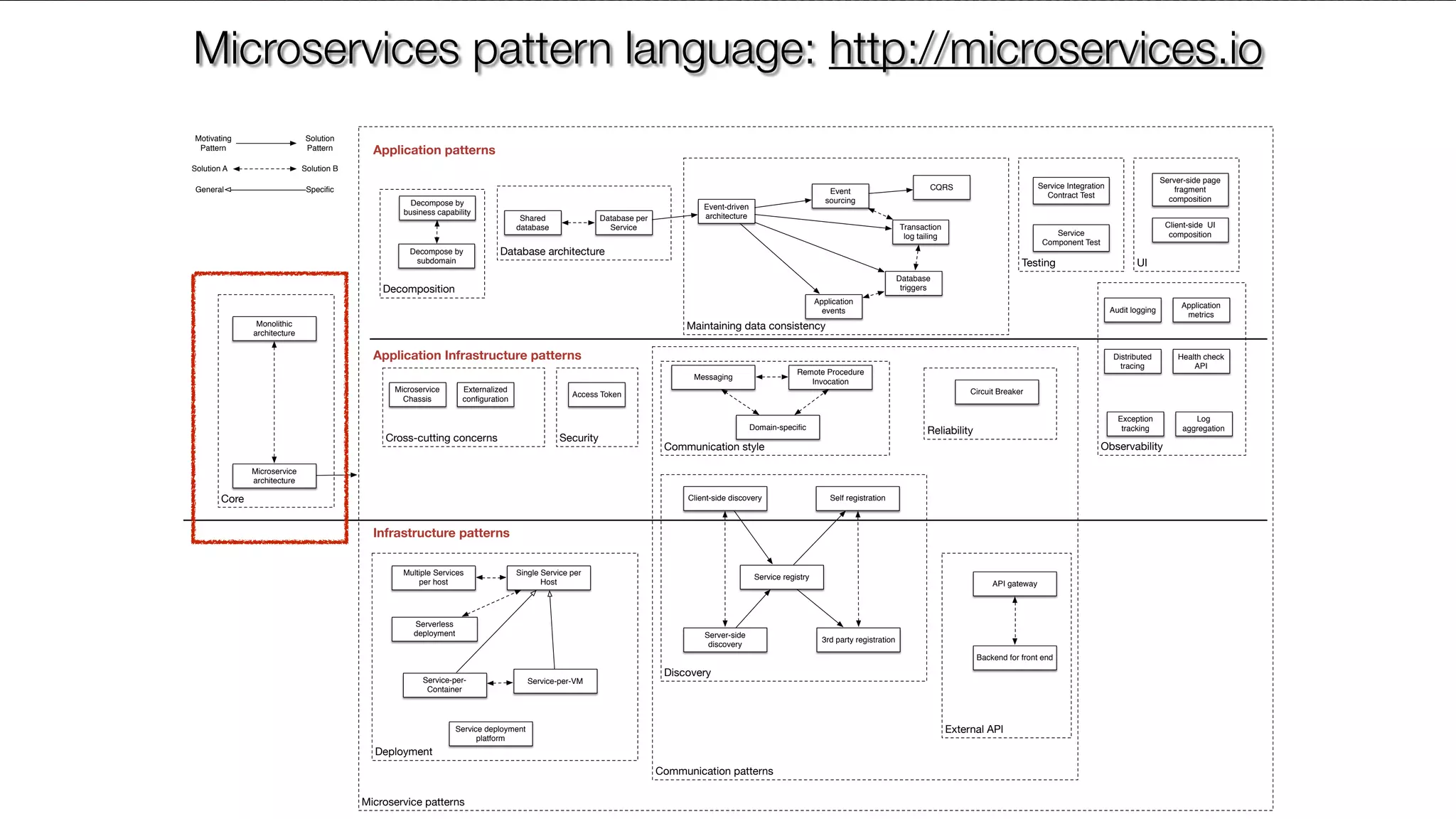

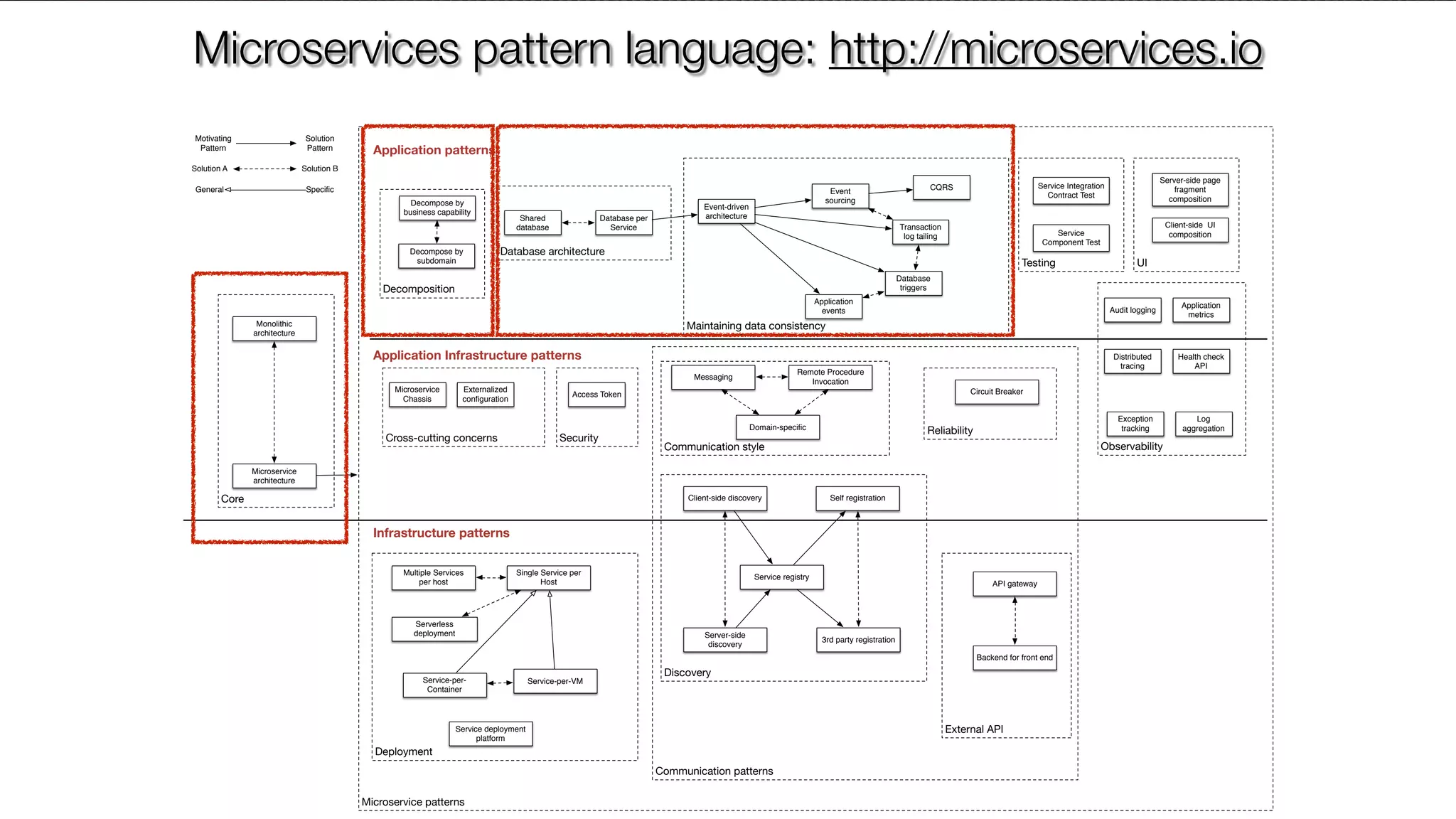

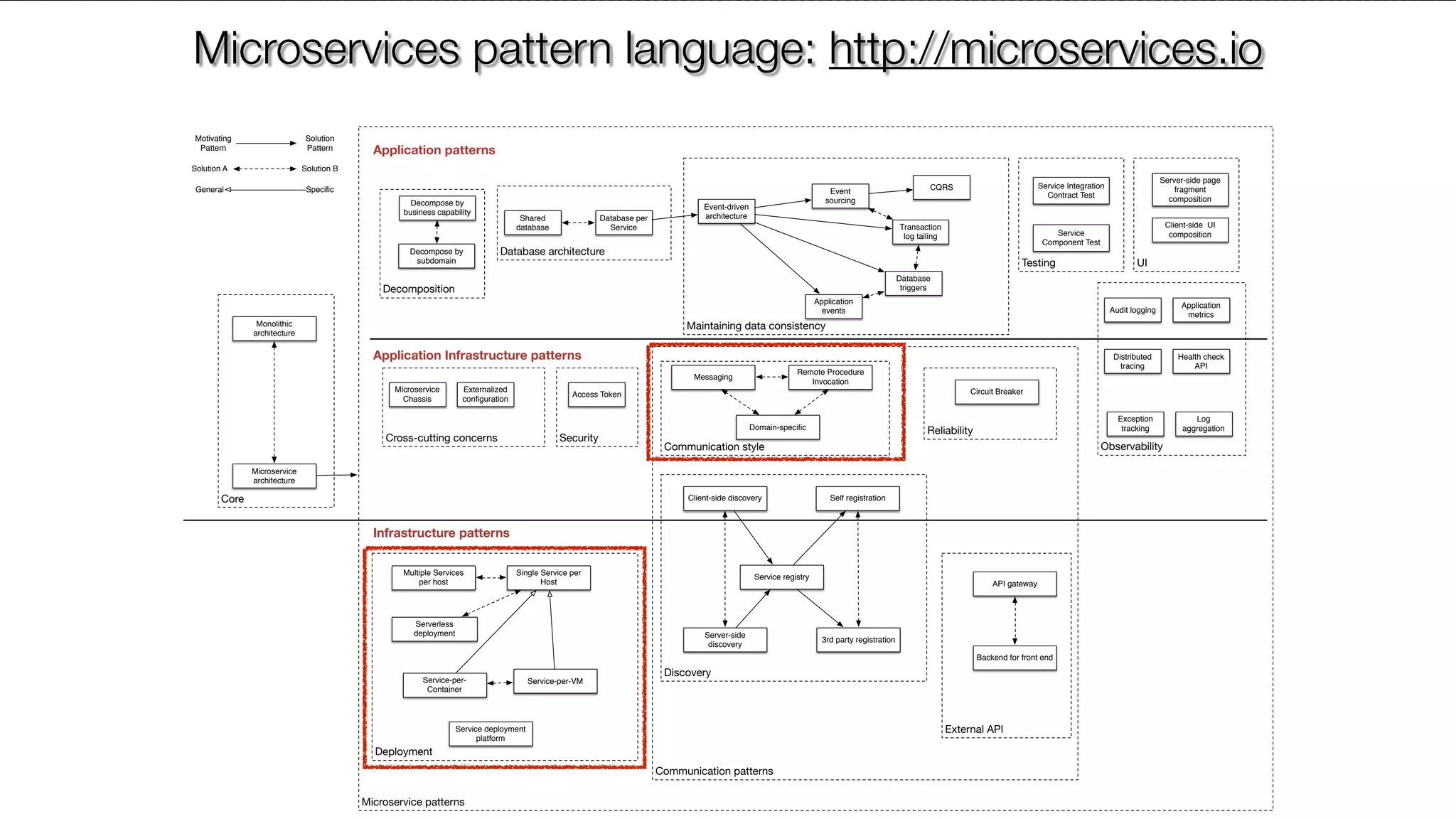

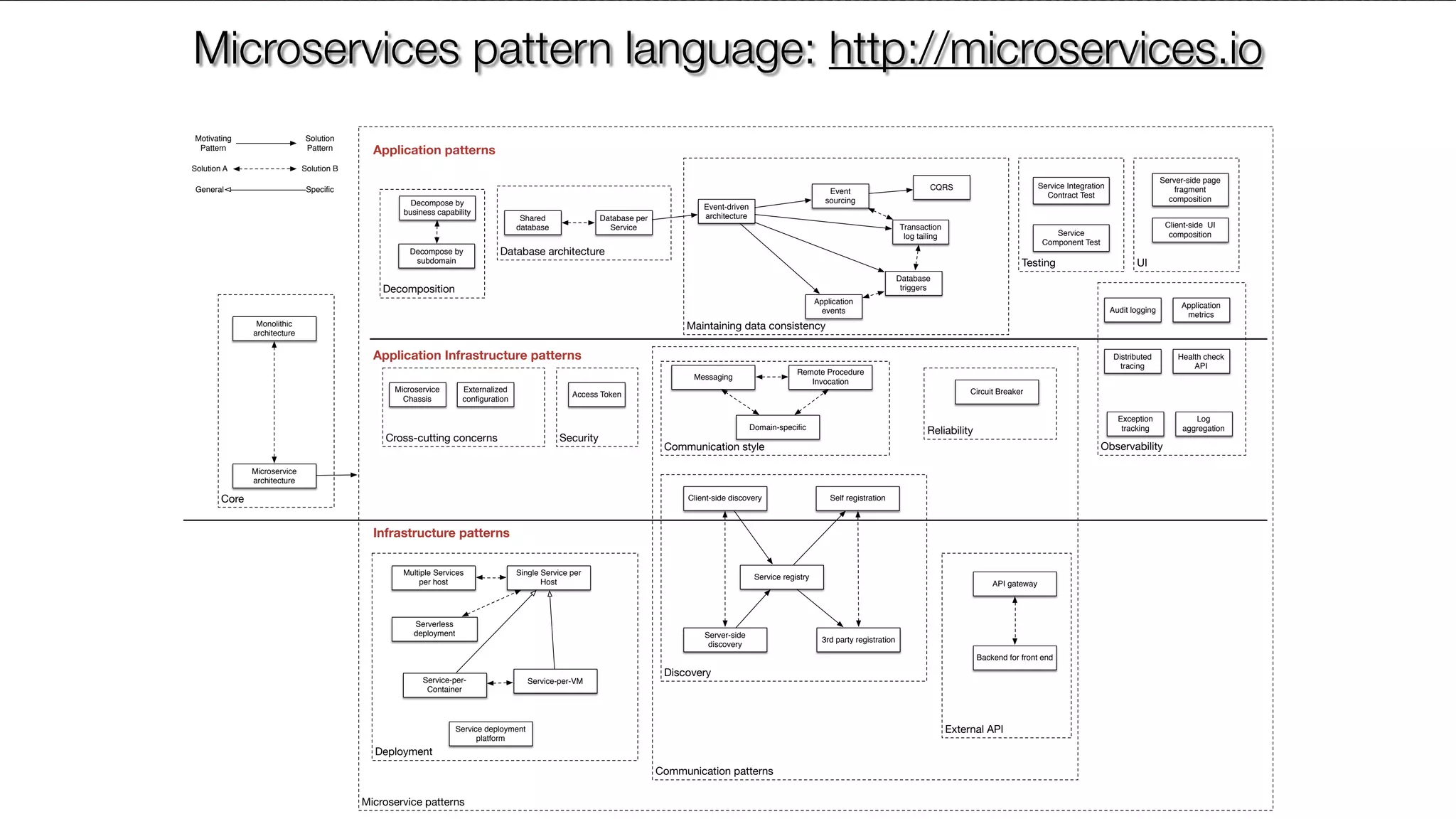

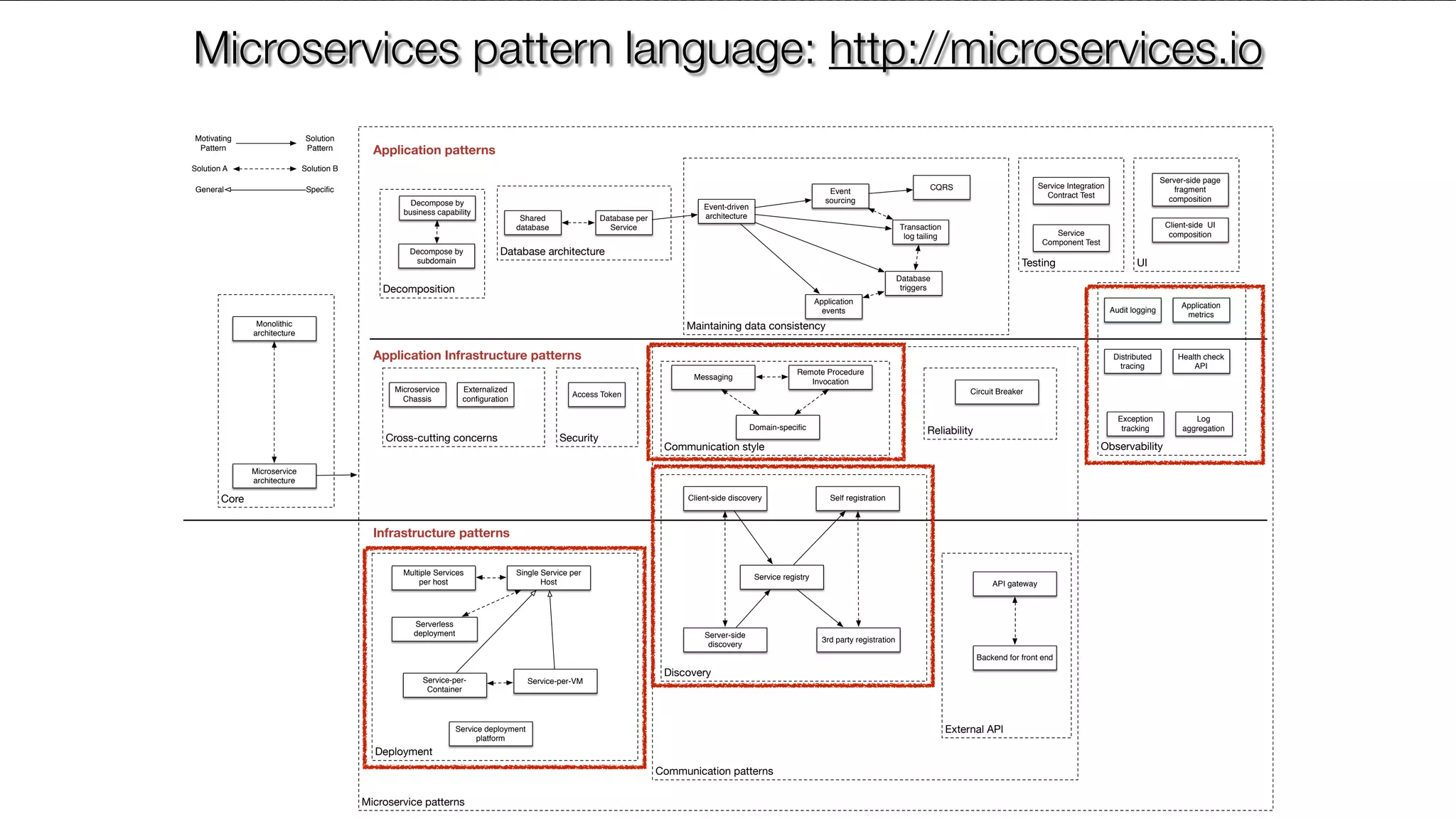

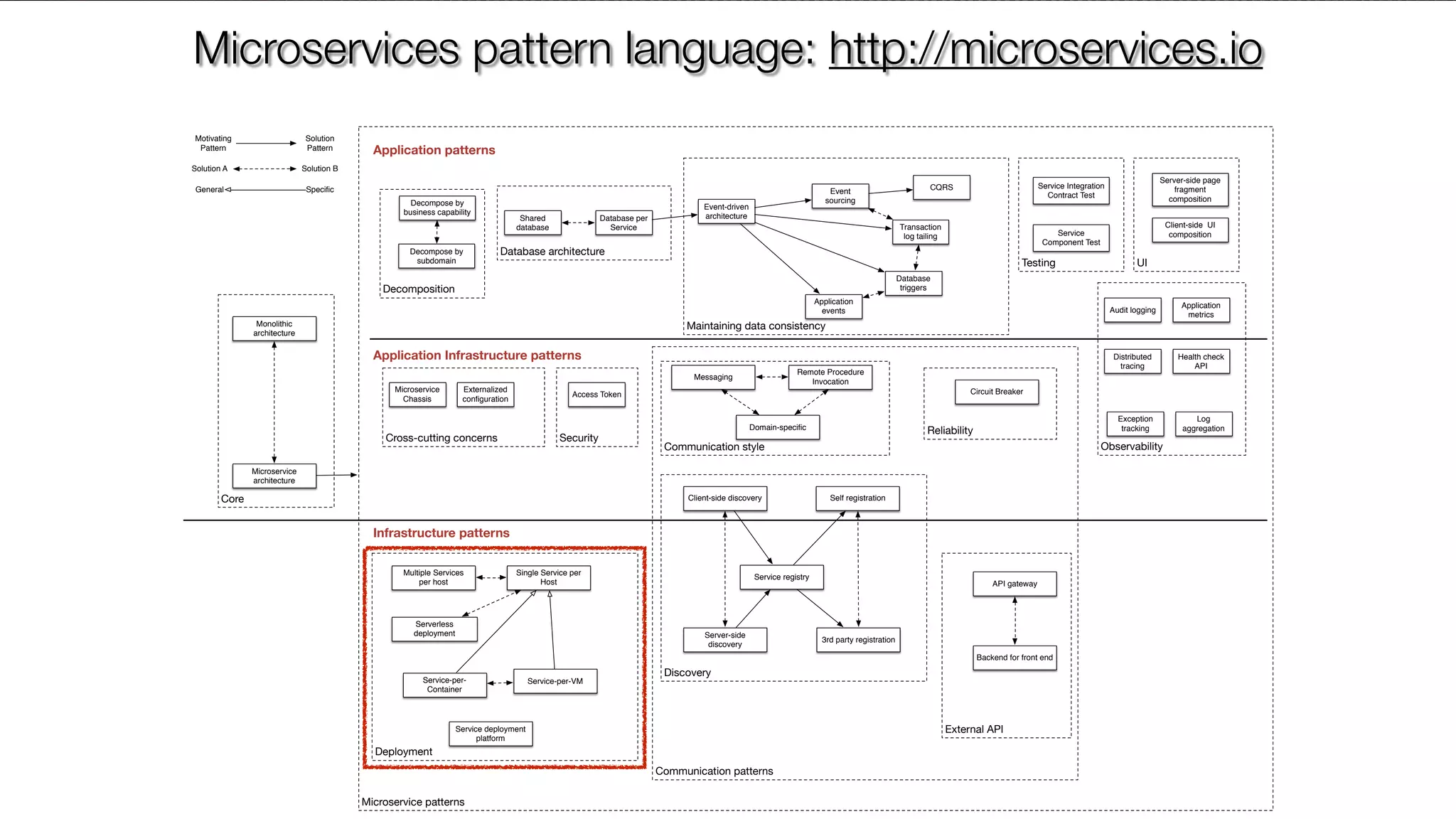

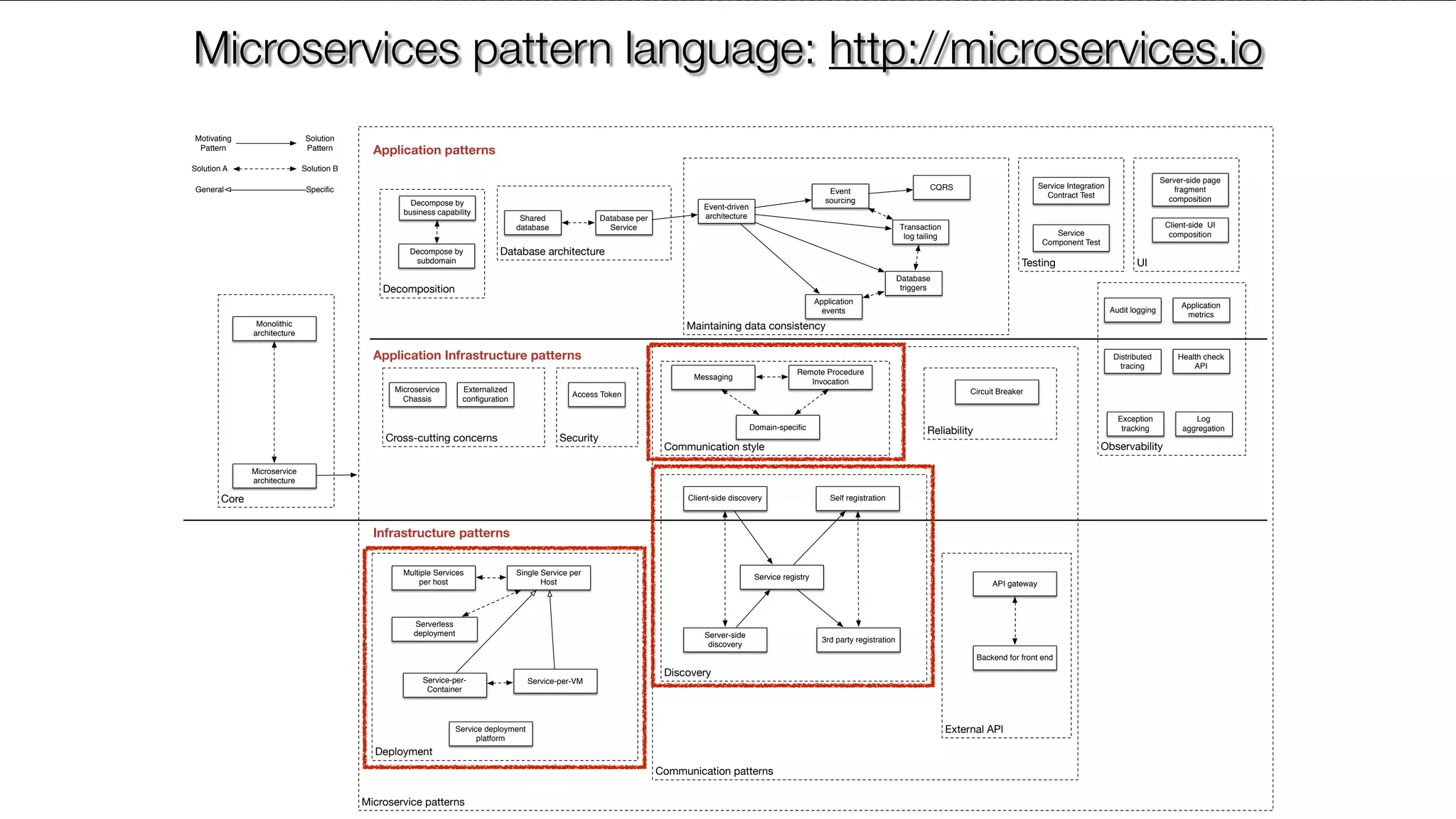

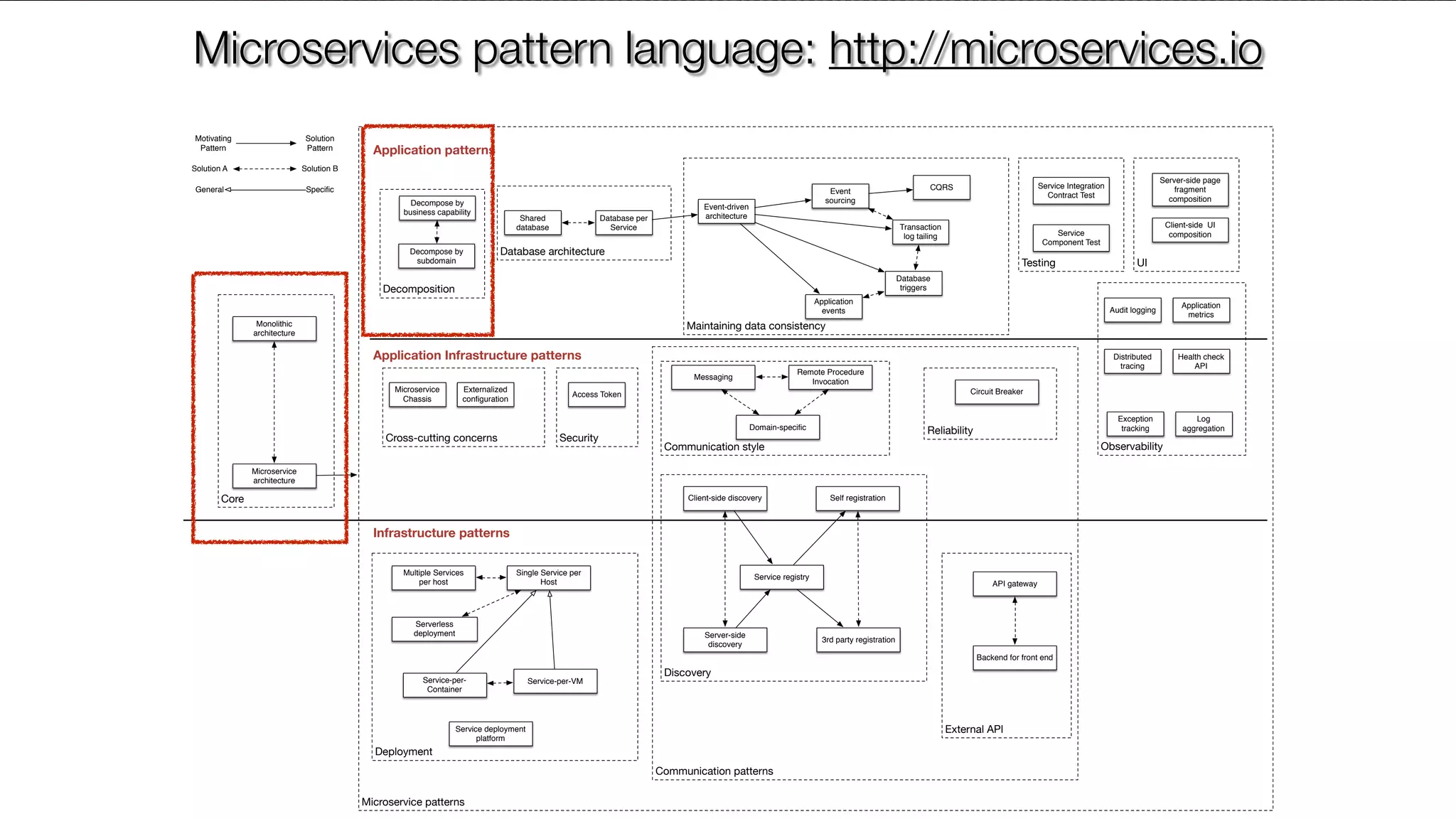

@crichardsonMicroservice patterns Communication patterns Core Cross-cuttingconcerns Security Deployment Maintaining data consistency Database architecture External API Reliability Discovery Communication style Testing Observability UI Decomposition API gateway Client-side discovery Server-side discovery Service registry Self registration 3rd party registration Multiple Services per host Single Service per Host Service-per- Container Service-per-VM Messaging Remote Procedure Invocation Database per Service Event-driven architectureShared database Microservice Chassis Backend for front end Event sourcing Transaction log tailing Database triggers Application events Monolithic architecture Microservice architecture CQRS Motivating Pattern Solution Pattern Solution A Solution B General Specific Serverless deployment Circuit BreakerAccess Token Domain-specific Externalized configuration Service Integration Contract Test Service Component Test Exception tracking Distributed tracing Audit logging Application metrics Log aggregation Health check API Service deployment platform Server-side page fragment composition Client-side UI composition Decompose by business capability Decompose by subdomain Application patterns Infrastructure patterns Application Infrastructure patterns Microservices pattern language: http://microservices.io

43.

44.

45.

46.
@crichardson The rest aregeneric technical architecture patterns = Undifferentiated heavy lifting!

47.

48.

49.

50.

51.

52.
@crichardson Solving distributed datamanagement problems in a microservice architecture

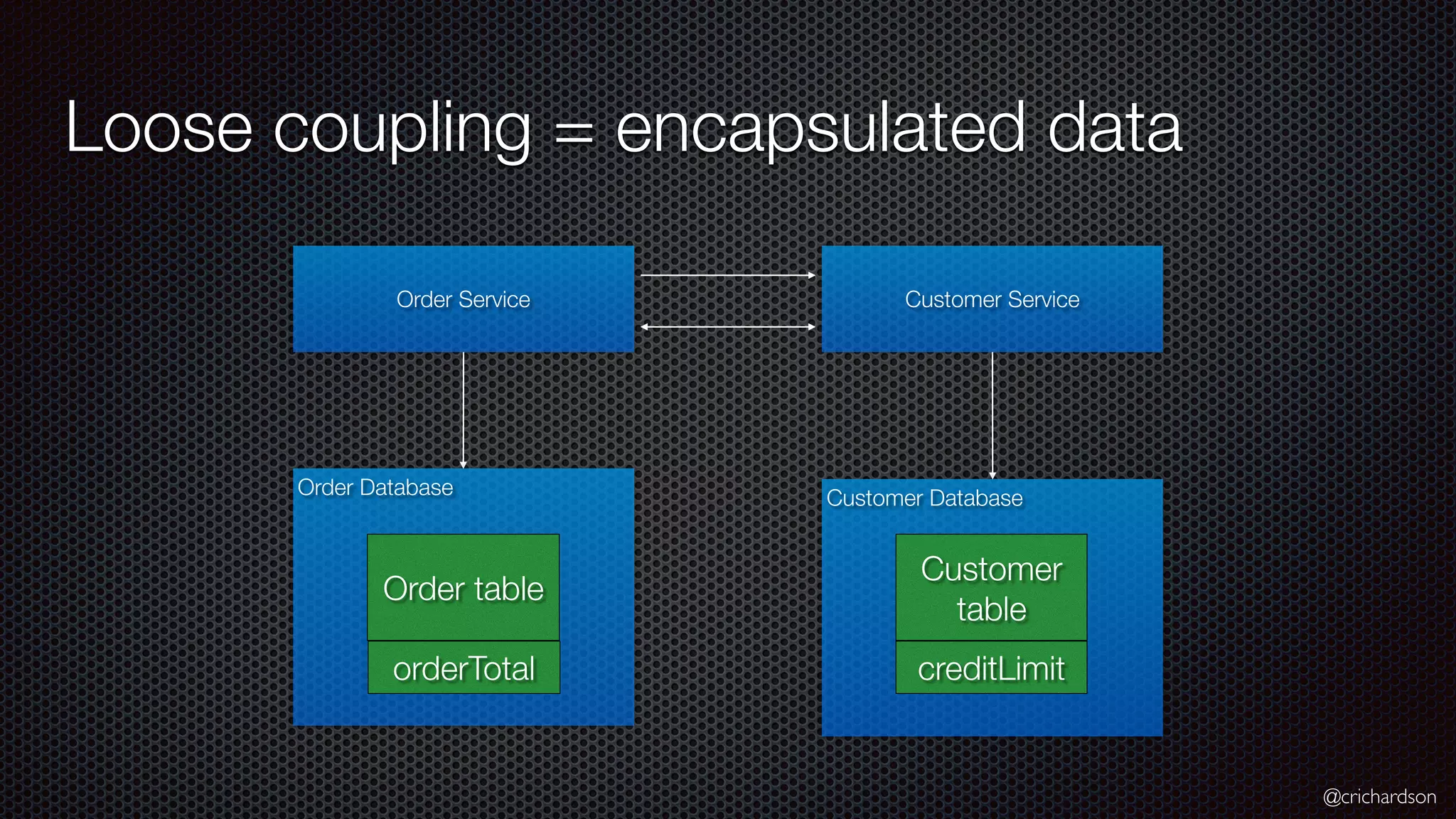

53.
@crichardson Loose coupling =encapsulated data Order Service Customer Service Order Database Customer Database Order table Customer table orderTotal creditLimit

54.
@crichardson How to maintaindata consistency? sum(order.total) <= customer.creditLimit

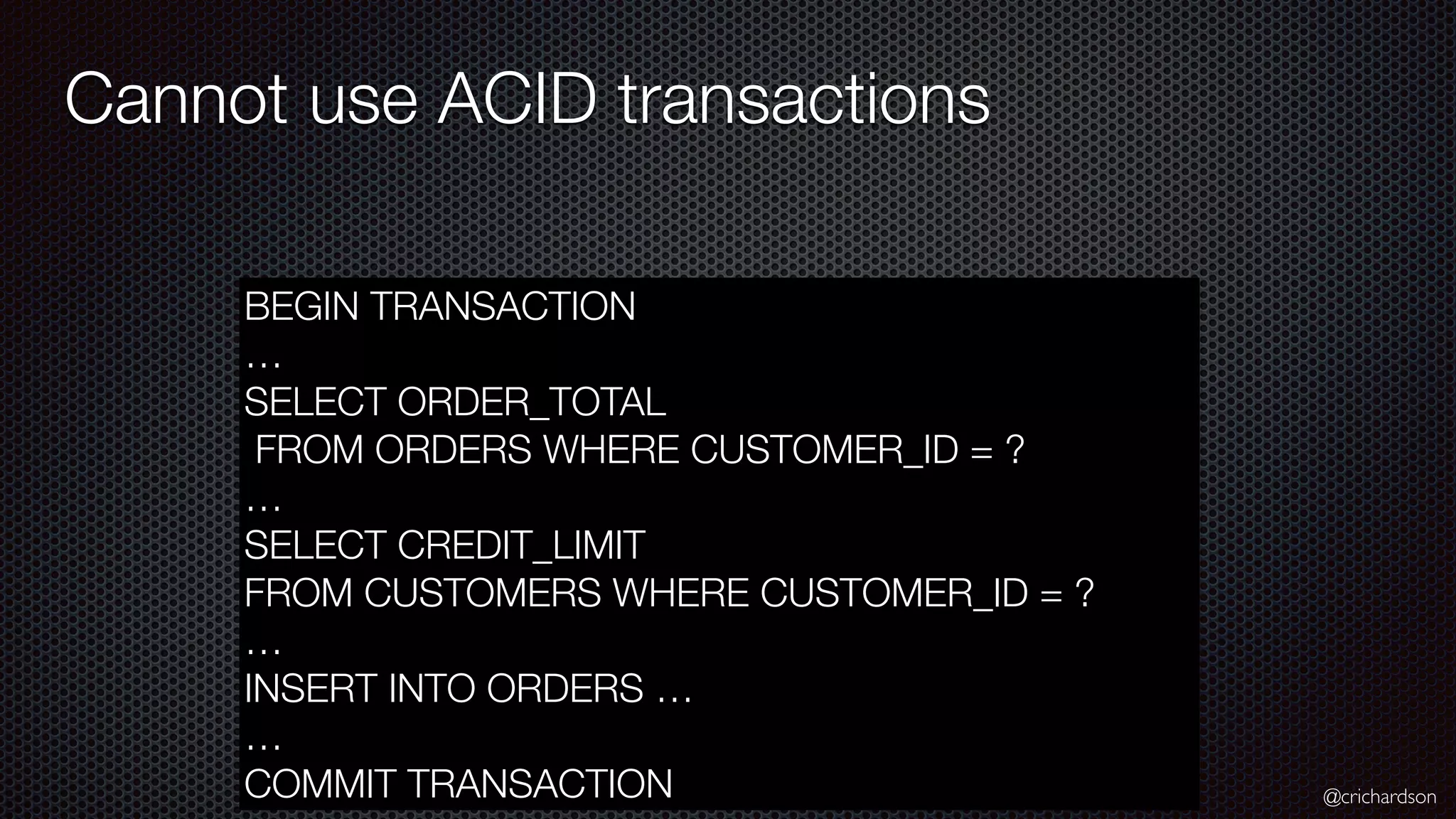

55.

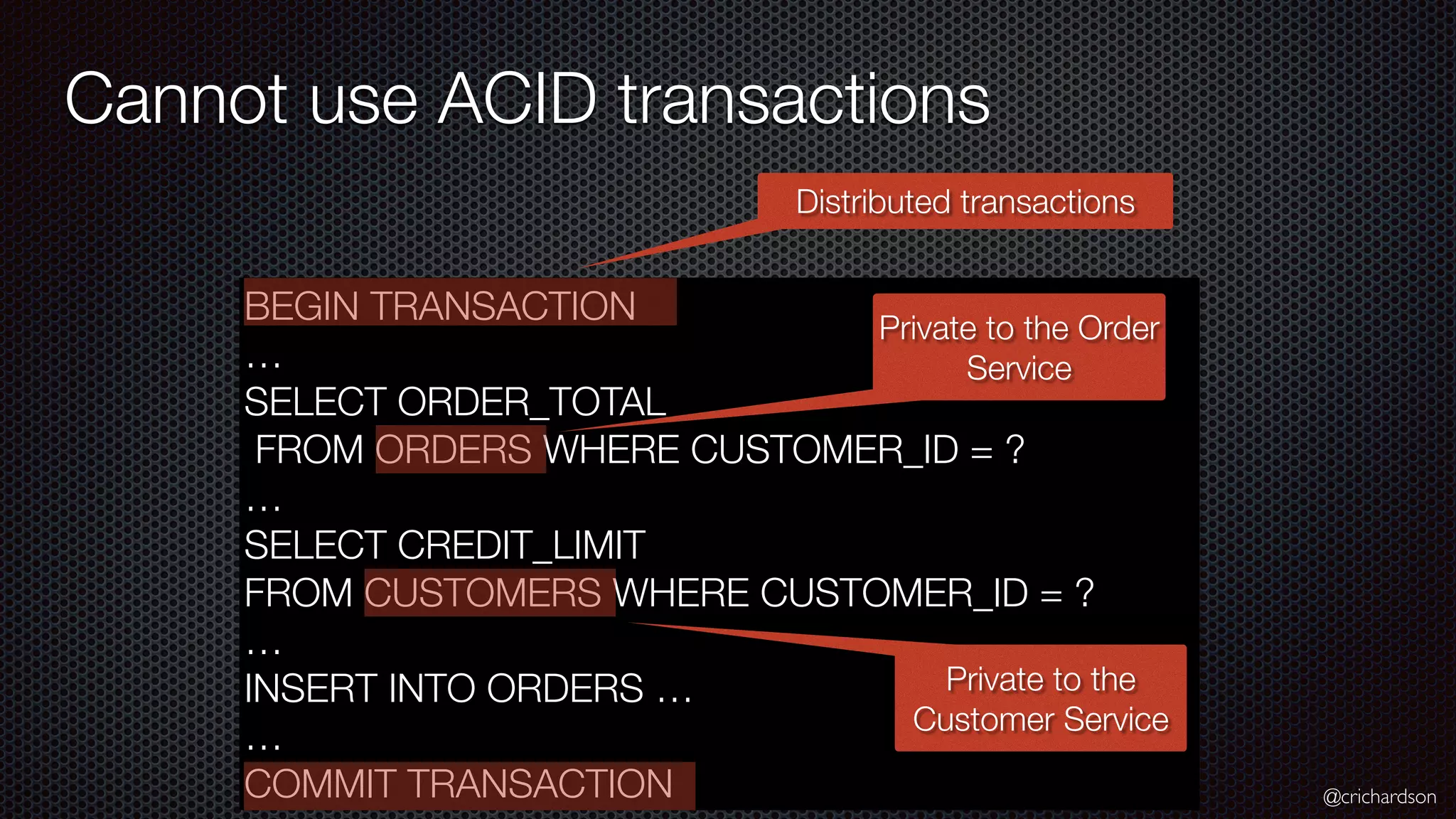

@crichardson Cannot use ACIDtransactions BEGIN TRANSACTION … SELECT ORDER_TOTAL FROM ORDERS WHERE CUSTOMER_ID = ? … SELECT CREDIT_LIMIT FROM CUSTOMERS WHERE CUSTOMER_ID = ? … INSERT INTO ORDERS … … COMMIT TRANSACTION

56.
@crichardson Cannot use ACIDtransactions BEGIN TRANSACTION … SELECT ORDER_TOTAL FROM ORDERS WHERE CUSTOMER_ID = ? … SELECT CREDIT_LIMIT FROM CUSTOMERS WHERE CUSTOMER_ID = ? … INSERT INTO ORDERS … … COMMIT TRANSACTION Private to the Order Service Private to the Customer Service

57.
@crichardson Cannot use ACIDtransactions BEGIN TRANSACTION … SELECT ORDER_TOTAL FROM ORDERS WHERE CUSTOMER_ID = ? … SELECT CREDIT_LIMIT FROM CUSTOMERS WHERE CUSTOMER_ID = ? … INSERT INTO ORDERS … … COMMIT TRANSACTION Private to the Order Service Private to the Customer Service Distributed transactions

58.
@crichardson 2PC is notan option

59.

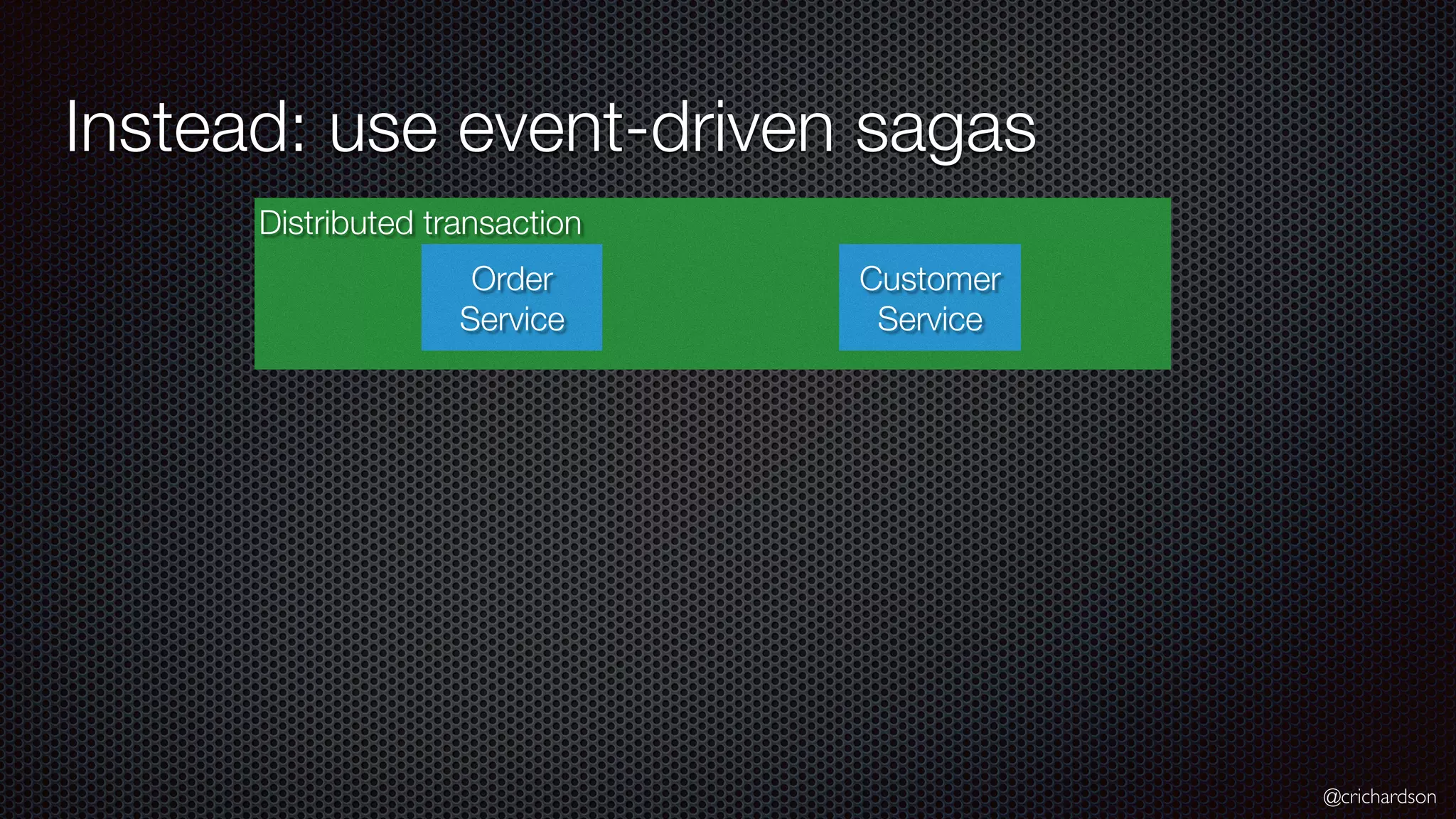

@crichardson Instead: use event-drivensagas Distributed transaction Order  Service Customer  Service

60.

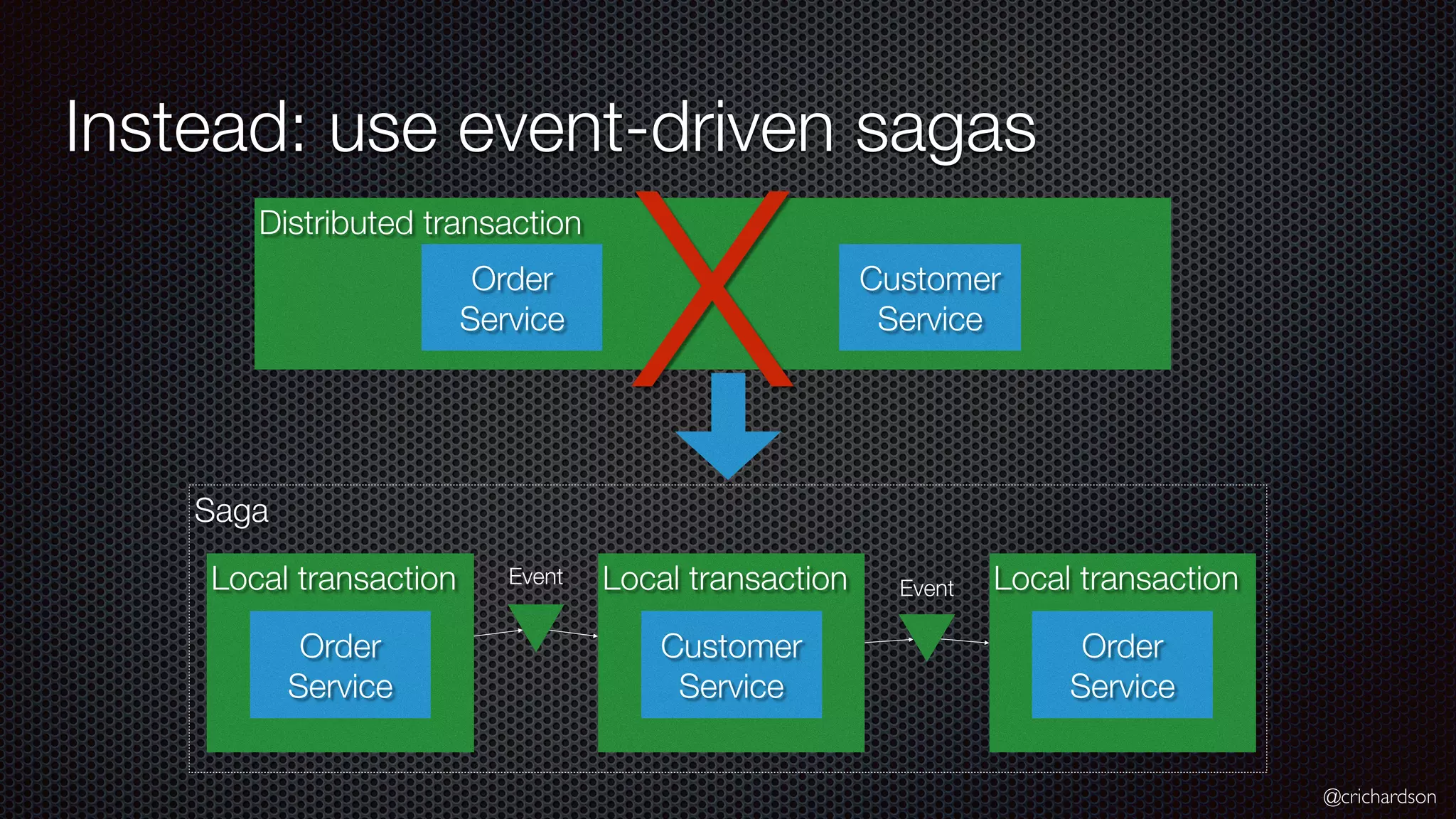

@crichardson Saga Instead: use event-drivensagas Distributed transaction Order  Service Customer  Service Local transaction Order  Service Local transaction Customer  Service Local transaction Order  Service Event Event X

61.

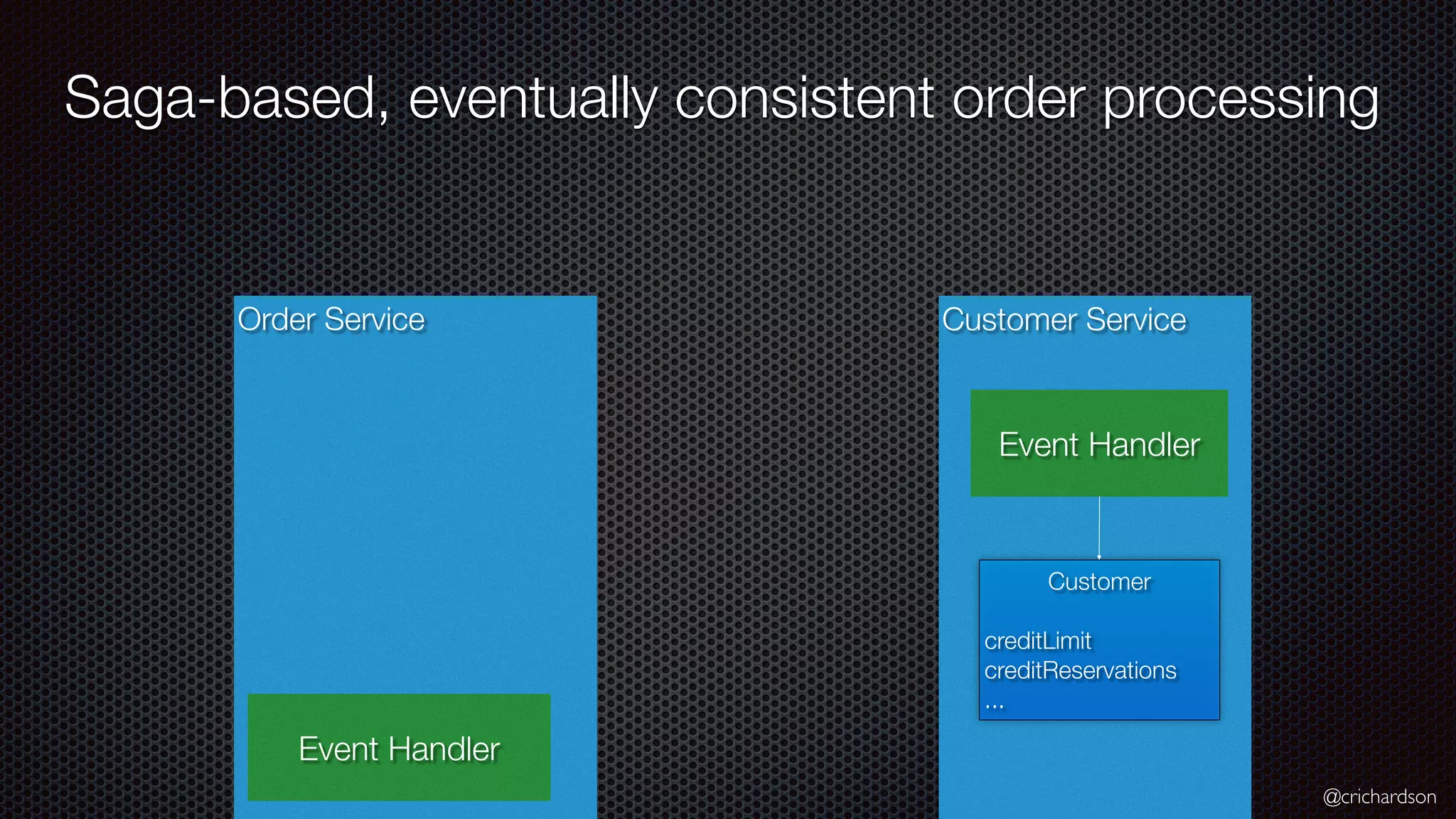

@crichardson Order Service Saga-based, eventuallyconsistent order processing Customer Service Customer creditLimit creditReservations ... Event Handler Event Handler

62.
@crichardson Order Service Saga-based, eventuallyconsistent order processing Customer Service Create Order Customer creditLimit creditReservations ... Event Handler Event Handler

63.
@crichardson Order Service Saga-based, eventuallyconsistent order processing Customer Service Create Order Customer creditLimit creditReservations ... Order state total … Event Handler Event Handler

64.

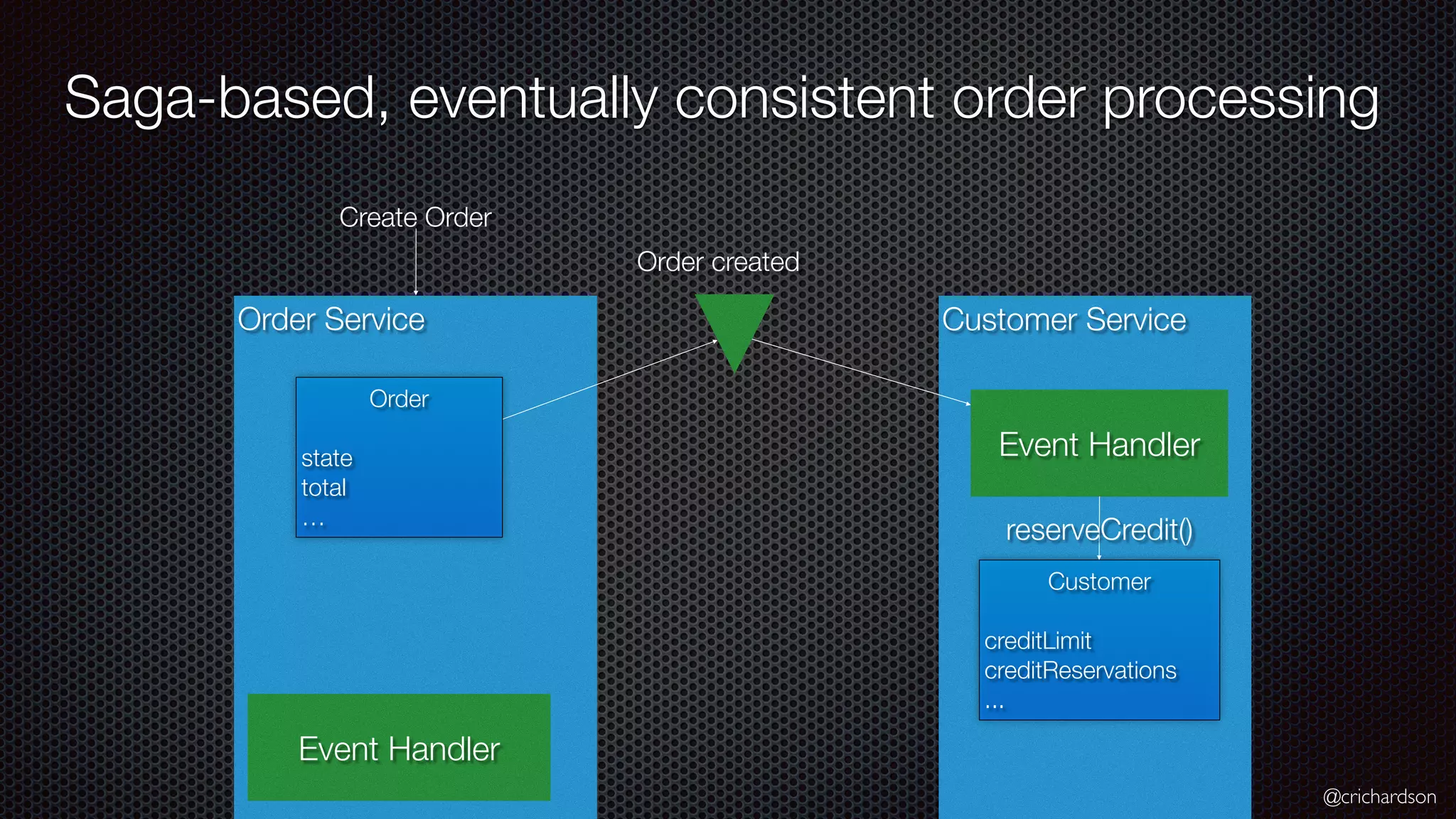

@crichardson Order Service Saga-based, eventuallyconsistent order processing Customer Service Order created Create Order Customer creditLimit creditReservations ... Order state total … Event Handler Event Handler reserveCredit()

65.

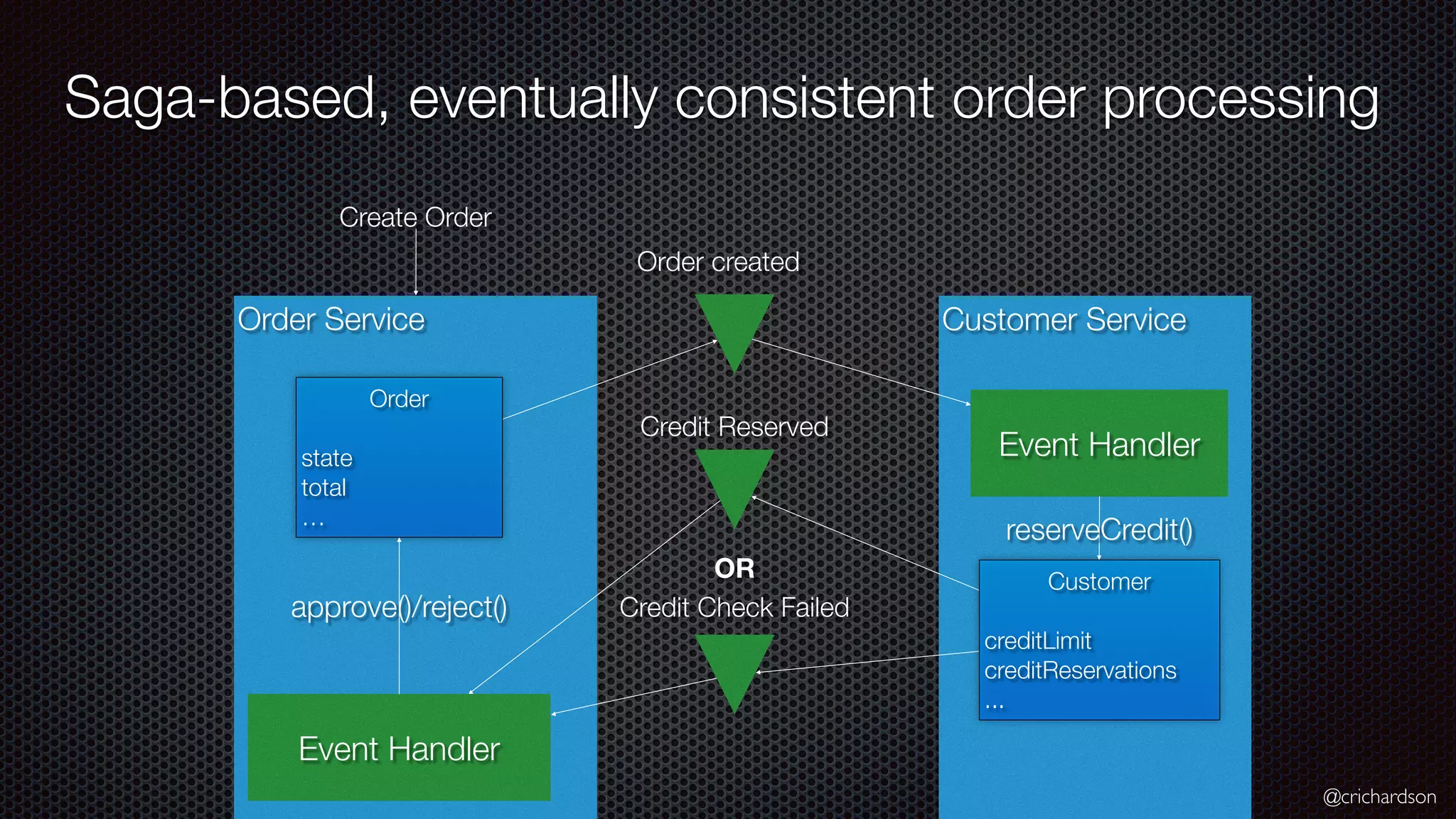

@crichardson Order Service Saga-based, eventuallyconsistent order processing Customer Service Order created Credit Reserved Credit Check Failed Create Order OR Customer creditLimit creditReservations ... Order state total … Event Handler Event Handler reserveCredit()

66.
@crichardson Order Service Saga-based, eventuallyconsistent order processing Customer Service Order created Credit Reserved Credit Check Failed Create Order OR Customer creditLimit creditReservations ... Order state total … approve()/reject() Event Handler Event Handler reserveCredit()

67.

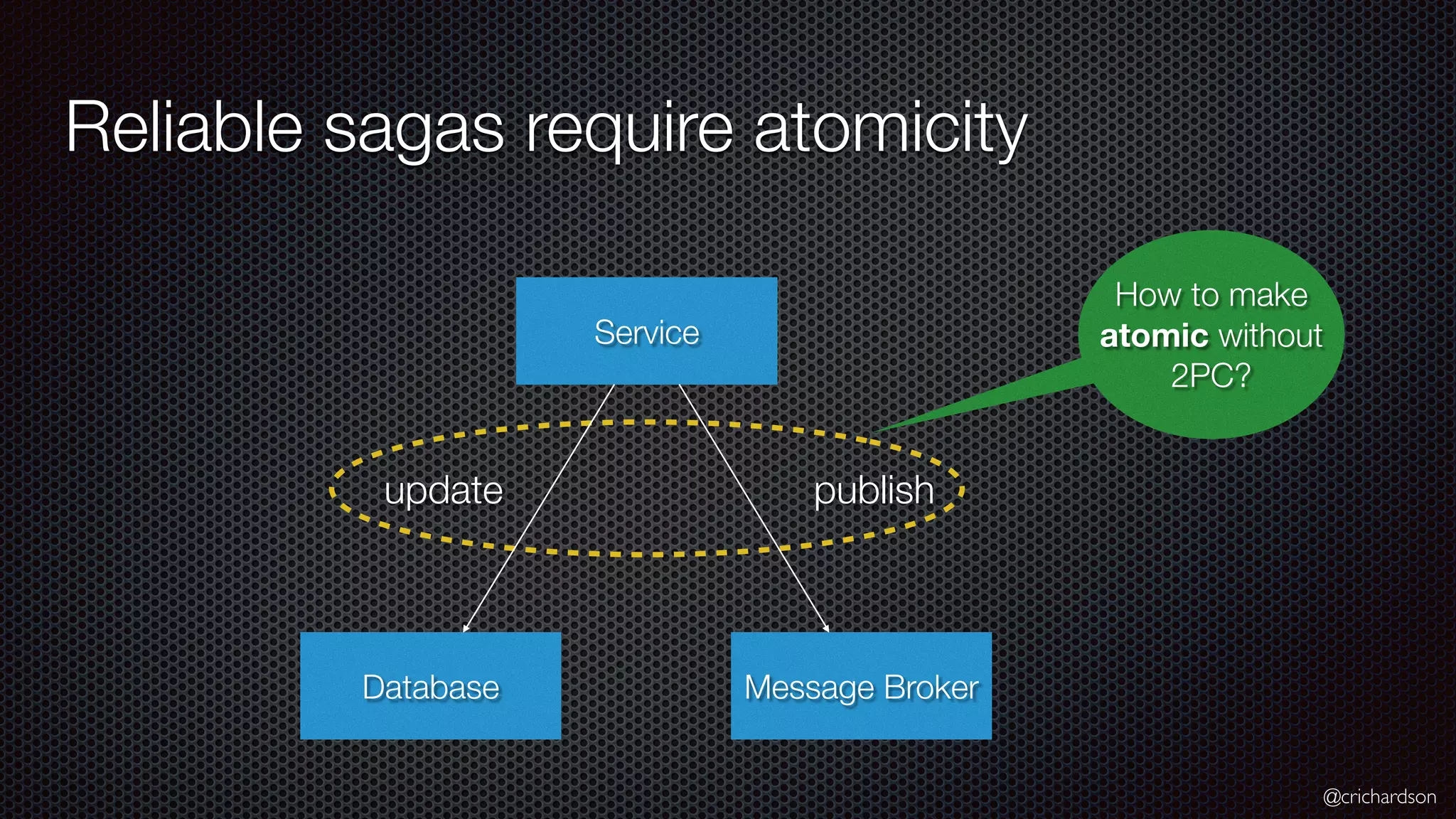

@crichardson Service Reliable sagas requireatomicity Database Message Broker update publish How to make atomic without 2PC?

68.

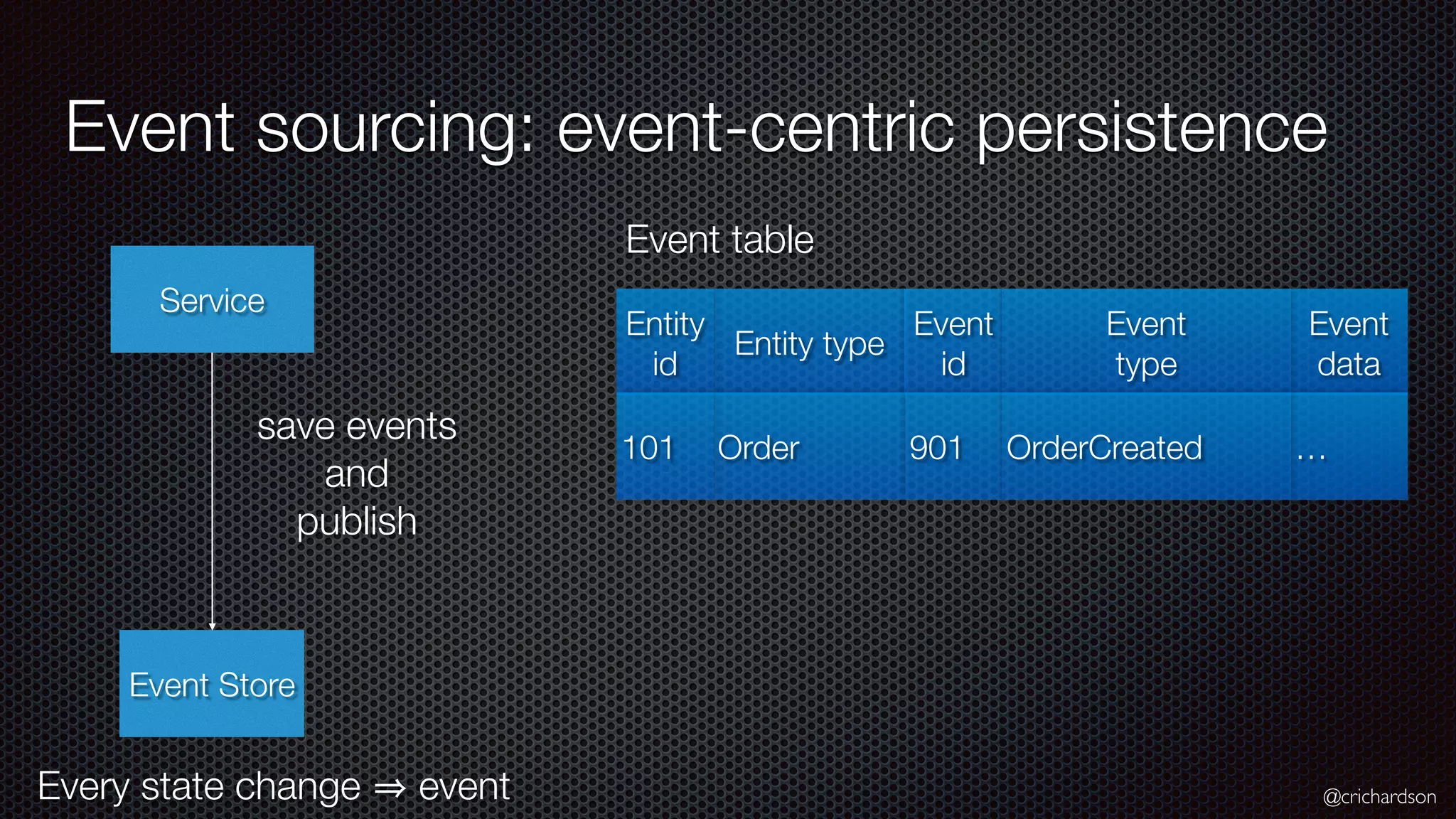

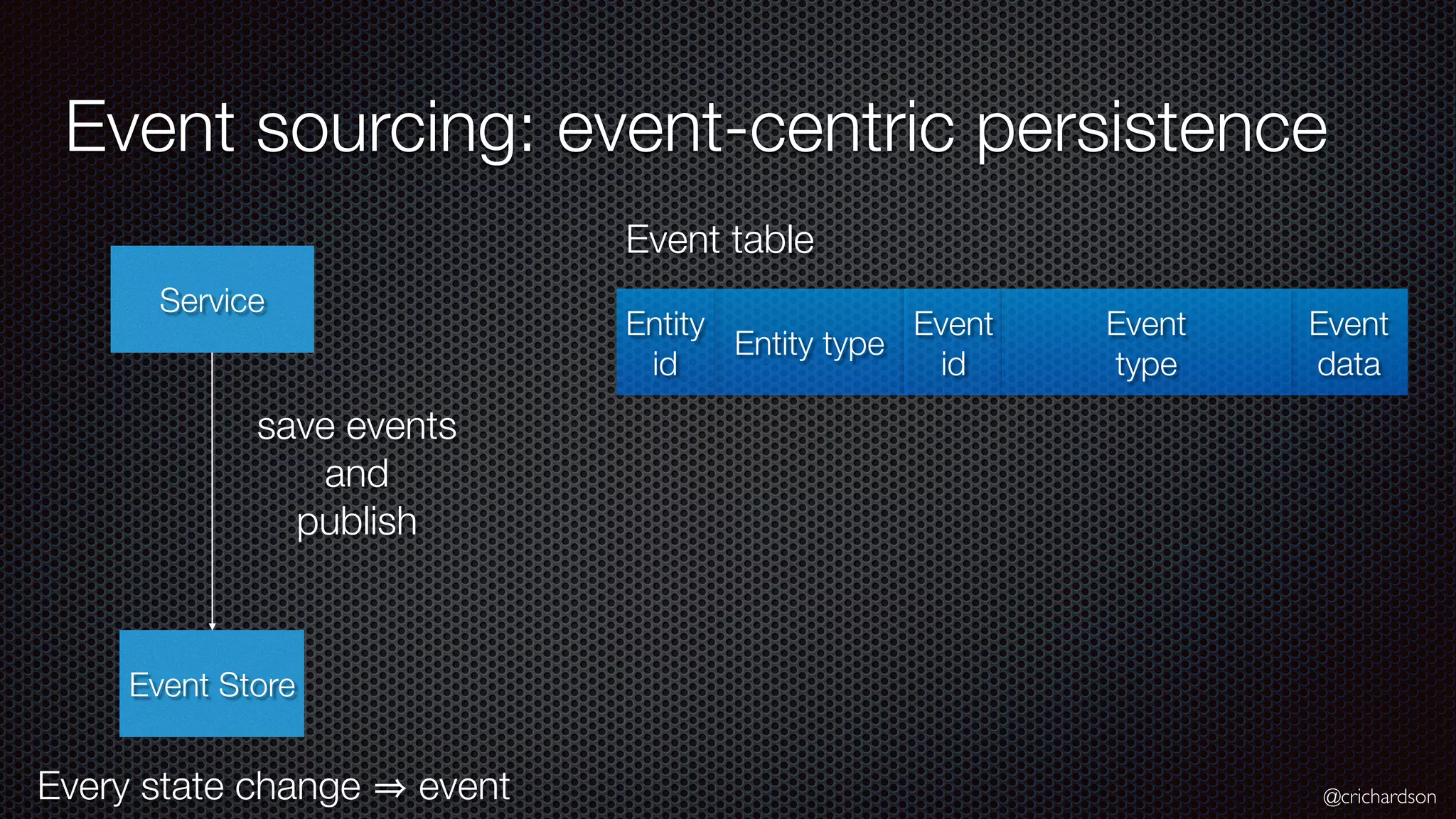

@crichardson Event sourcing: event-centricpersistence Service Event Store save events and publish Event table Entity type Event id Entity id Event data Event type Every state change event

69.
@crichardson Event sourcing: event-centricpersistence Service Event Store save events and publish Event table Entity type Event id Entity id Event data Event type Order 901101 …OrderCreated Every state change event

70.

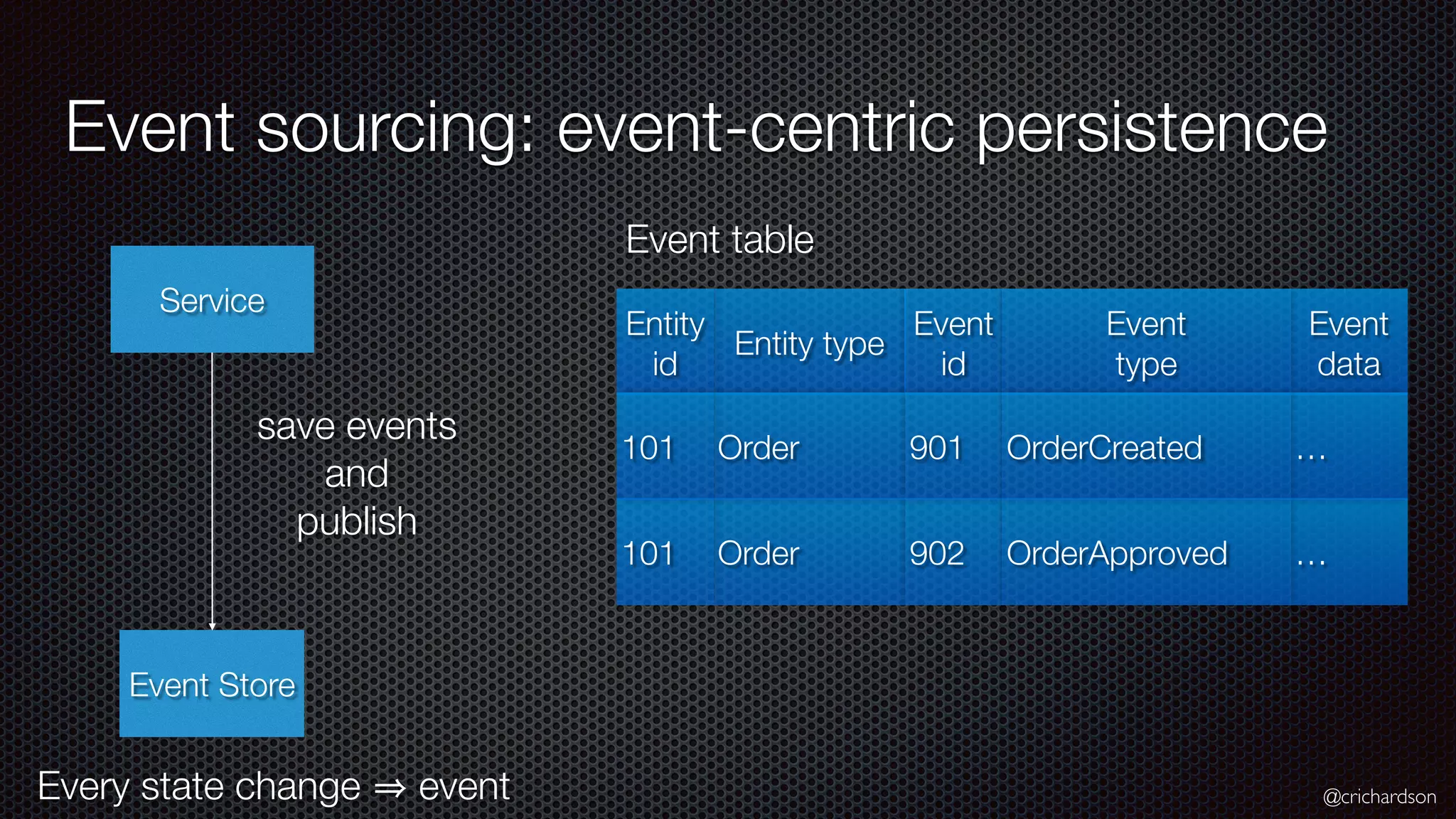

@crichardson Event sourcing: event-centricpersistence Service Event Store save events and publish Event table Entity type Event id Entity id Event data Order 902101 …OrderApproved Event type Order 901101 …OrderCreated Every state change event

71.

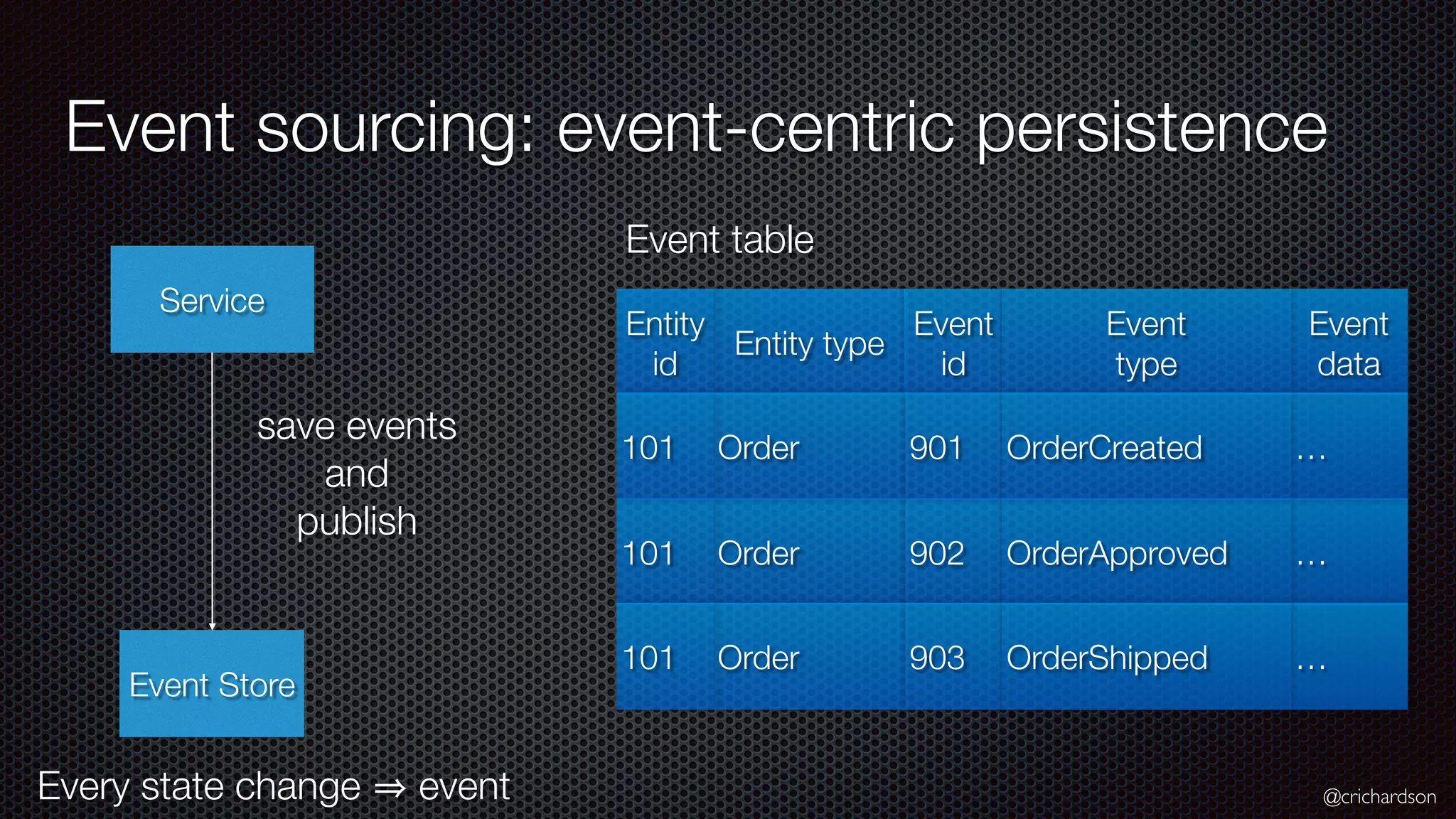

@crichardson Event sourcing: event-centricpersistence Service Event Store save events and publish Event table Entity type Event id Entity id Event data Order 902101 …OrderApproved Order 903101 …OrderShipped Event type Order 901101 …OrderCreated Every state change event

72.
@crichardson How to implementqueries?

73.

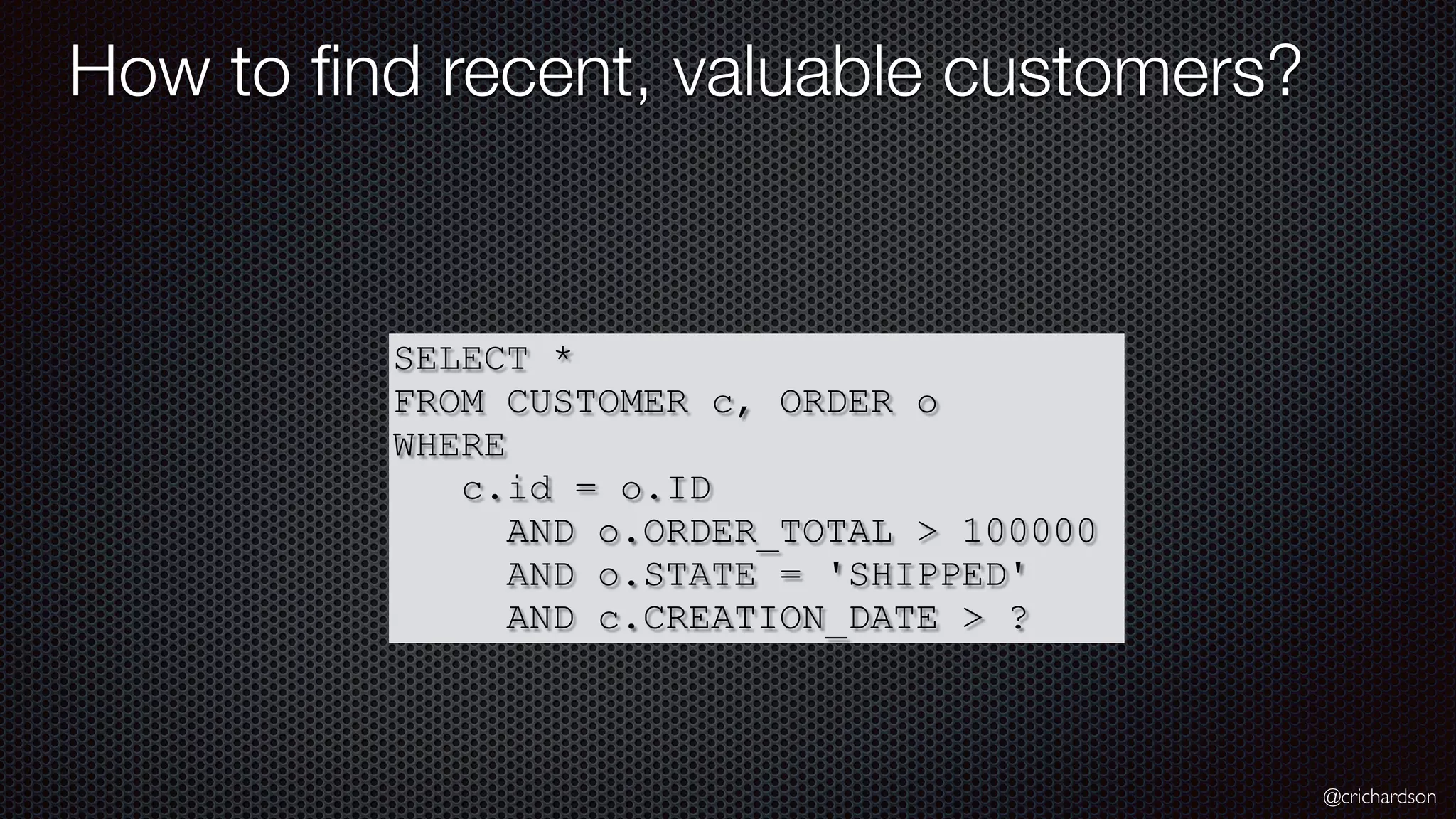

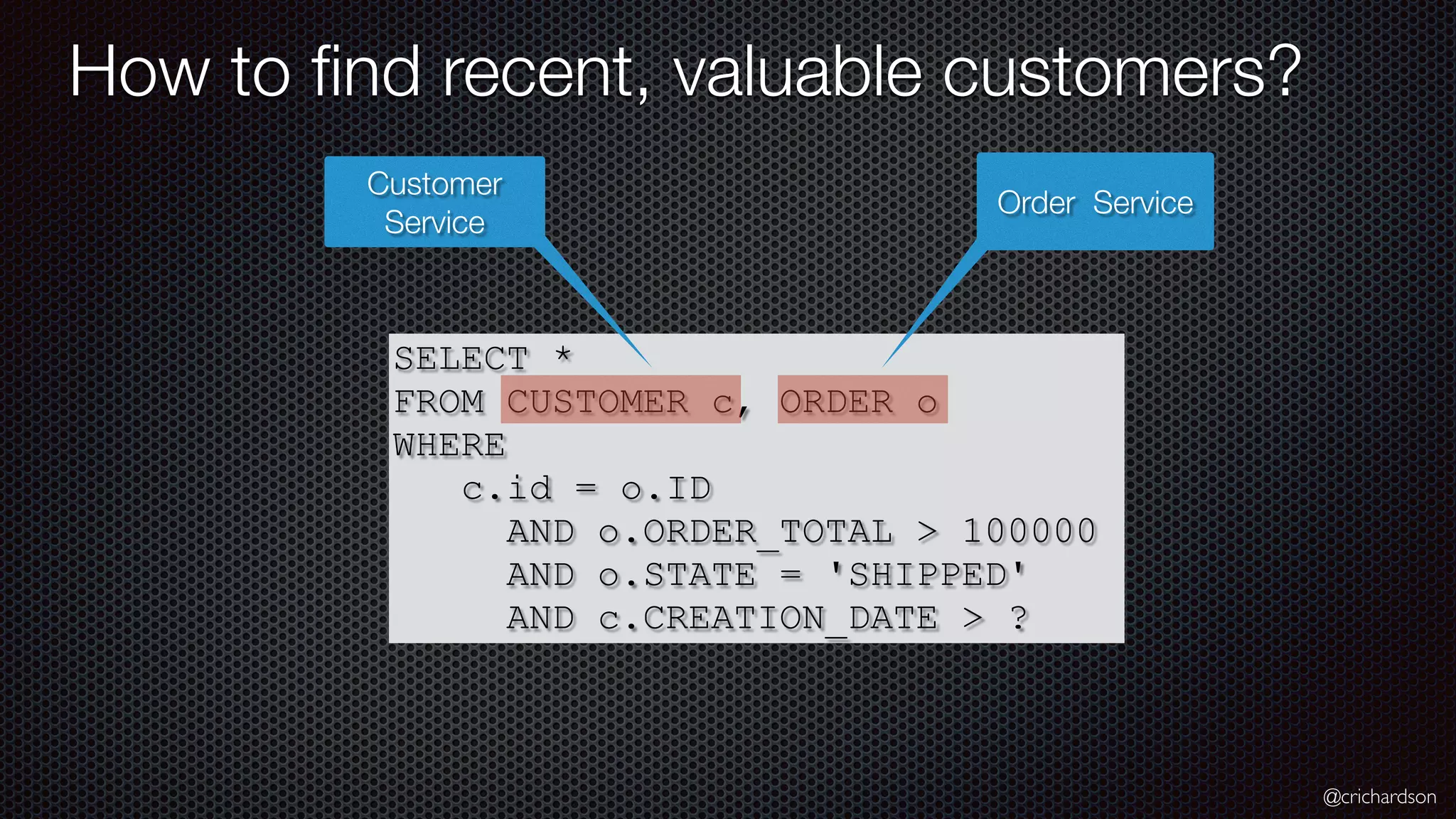

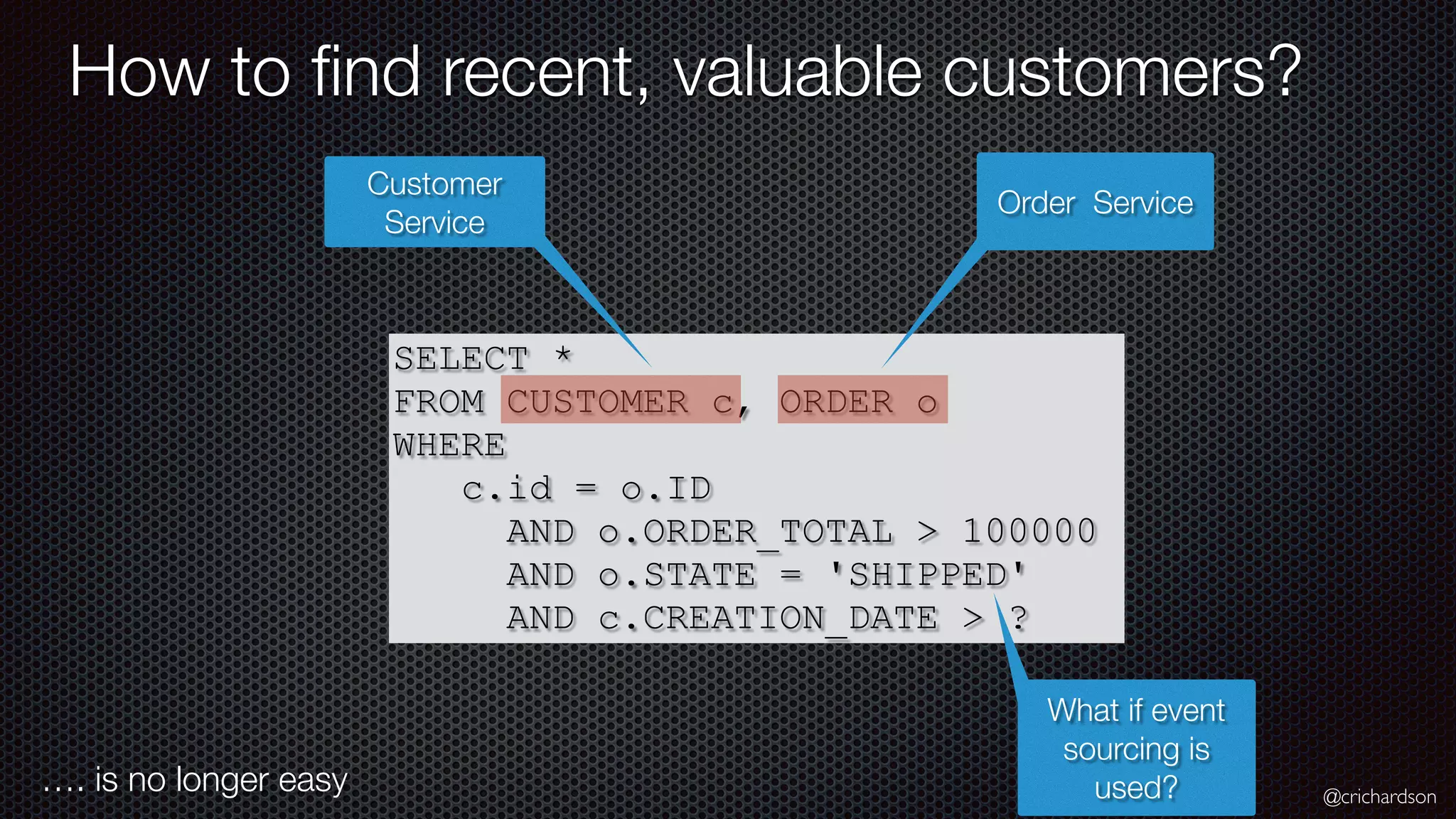

@crichardson How to ﬁndrecent, valuable customers? SELECT * FROM CUSTOMER c, ORDER o WHERE c.id = o.ID AND o.ORDER_TOTAL > 100000 AND o.STATE = 'SHIPPED' AND c.CREATION_DATE > ?

74.
@crichardson How to ﬁndrecent, valuable customers? SELECT * FROM CUSTOMER c, ORDER o WHERE c.id = o.ID AND o.ORDER_TOTAL > 100000 AND o.STATE = 'SHIPPED' AND c.CREATION_DATE > ? Customer Service Order Service

75.
@crichardson How to ﬁndrecent, valuable customers? SELECT * FROM CUSTOMER c, ORDER o WHERE c.id = o.ID AND o.ORDER_TOTAL > 100000 AND o.STATE = 'SHIPPED' AND c.CREATION_DATE > ? Customer Service Order Service What if event sourcing is used?

76.
@crichardson How to ﬁndrecent, valuable customers? SELECT * FROM CUSTOMER c, ORDER o WHERE c.id = o.ID AND o.ORDER_TOTAL > 100000 AND o.STATE = 'SHIPPED' AND c.CREATION_DATE > ? Customer Service Order Service What if event sourcing is used?…. is no longer easy

77.

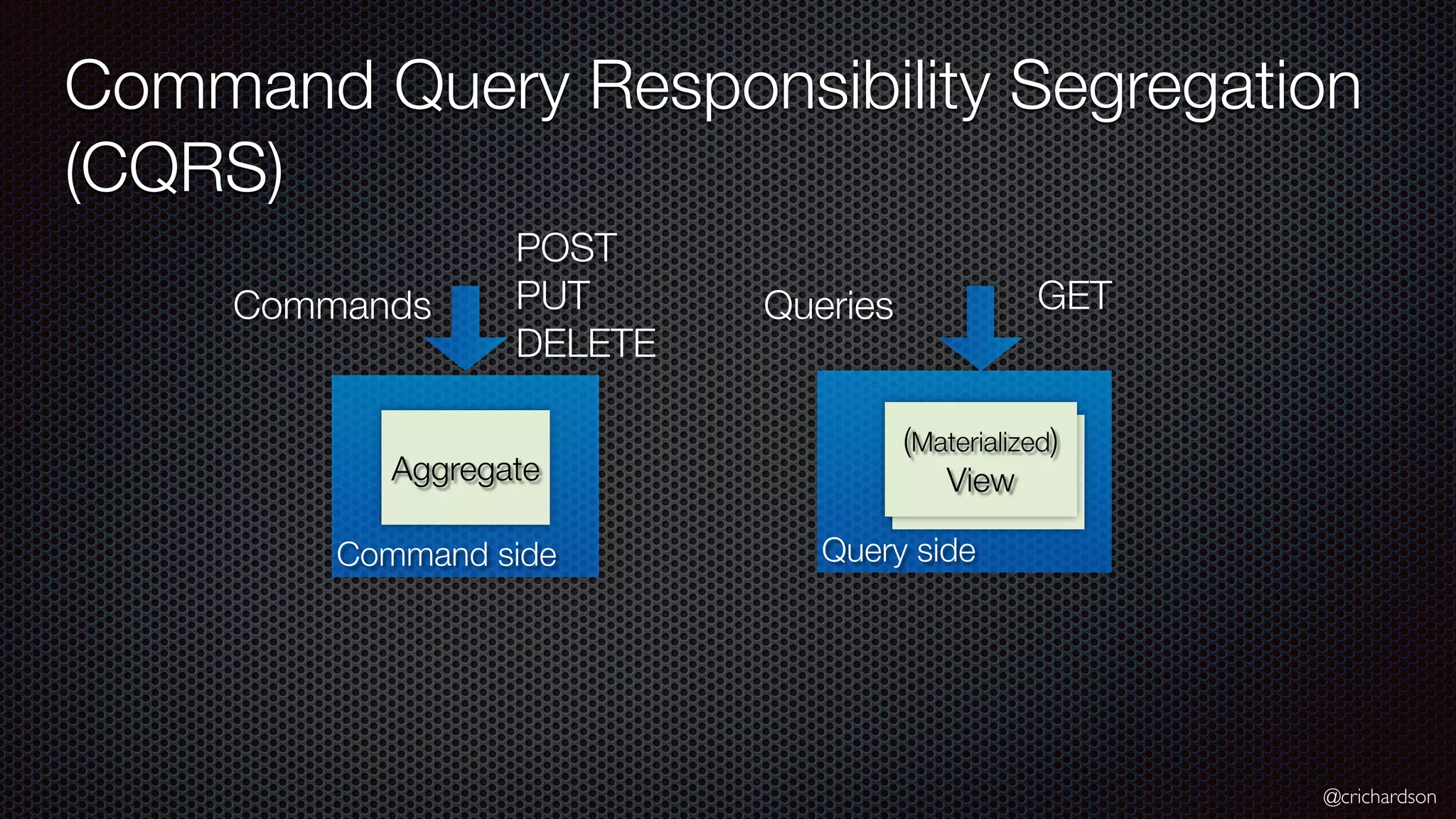

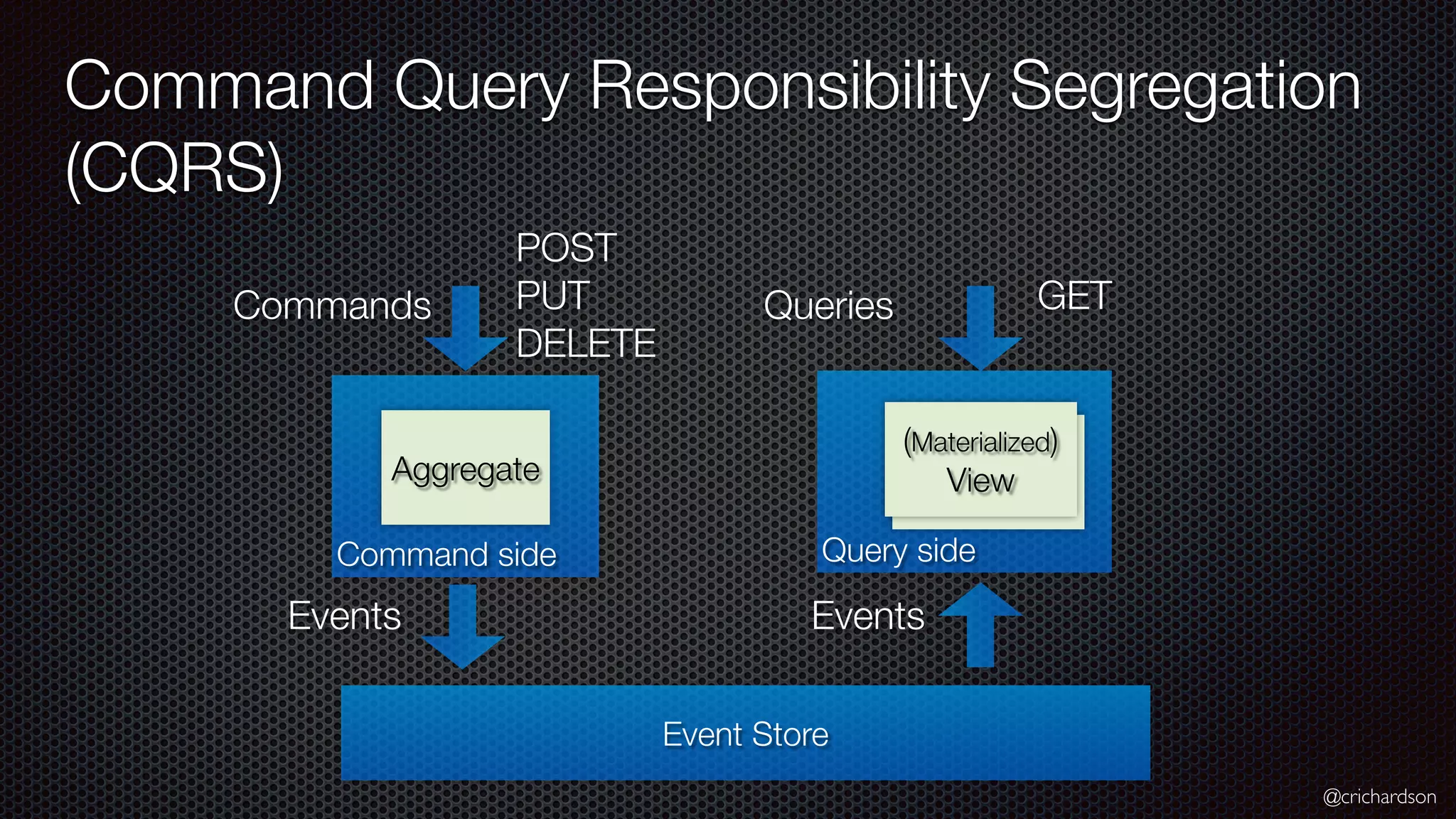

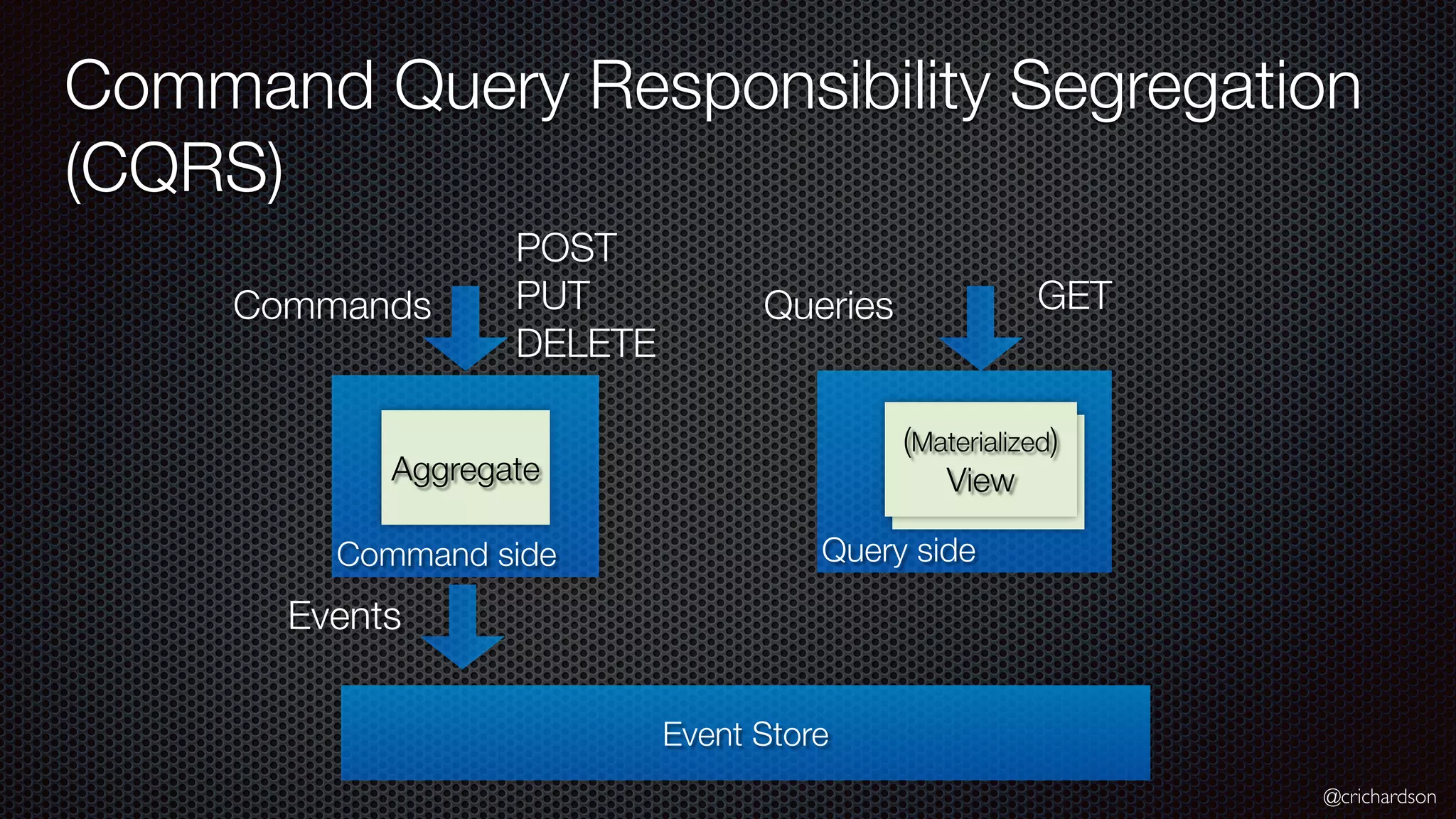

@crichardson Query side (Materialized) View Command QueryResponsibility Segregation (CQRS) Command side Commands Aggregate Queries (Materialized) View POST PUT DELETE GET

78.
@crichardson Query side (Materialized) View Command QueryResponsibility Segregation (CQRS) Command side Commands Aggregate Event Store Events Queries (Materialized) View POST PUT DELETE GET

79.
@crichardson Query side (Materialized) View Command QueryResponsibility Segregation (CQRS) Command side Commands Aggregate Event Store Events Queries (Materialized) View Events POST PUT DELETE GET

80.

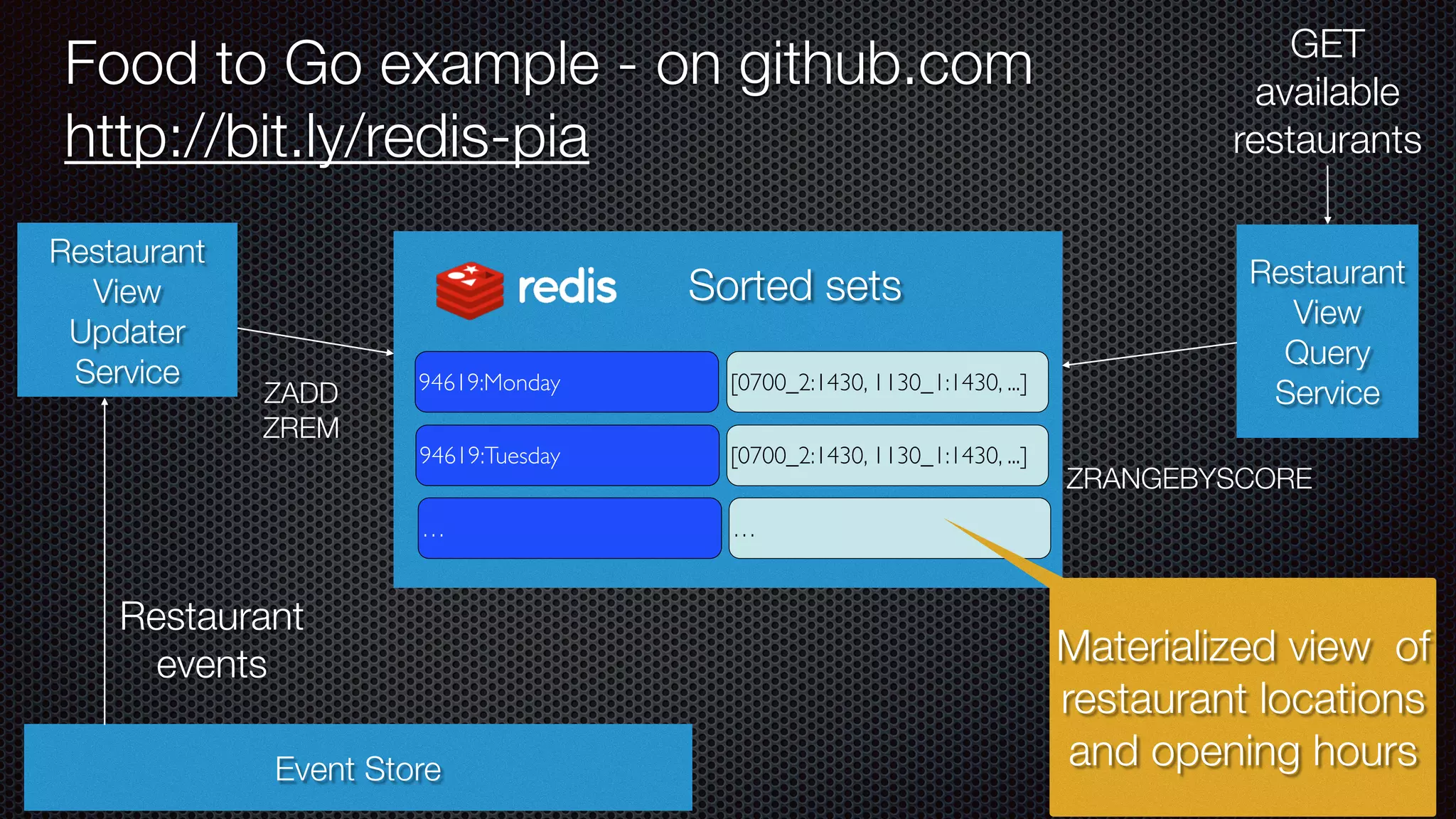

@crichardson Food to Goexample - on github.com http://bit.ly/redis-pia 94619:Monday [0700_2:1430, 1130_1:1430, ...] 94619:Tuesday [0700_2:1430, 1130_1:1430, ...] … … Restaurant View Updater Service Restaurant View Query Service ZRANGEBYSCORE Event Store Restaurant events Materialized view of restaurant locations and opening hours GET available restaurants ZADD ZREM Sorted sets

81.
@crichardson Summary

82.

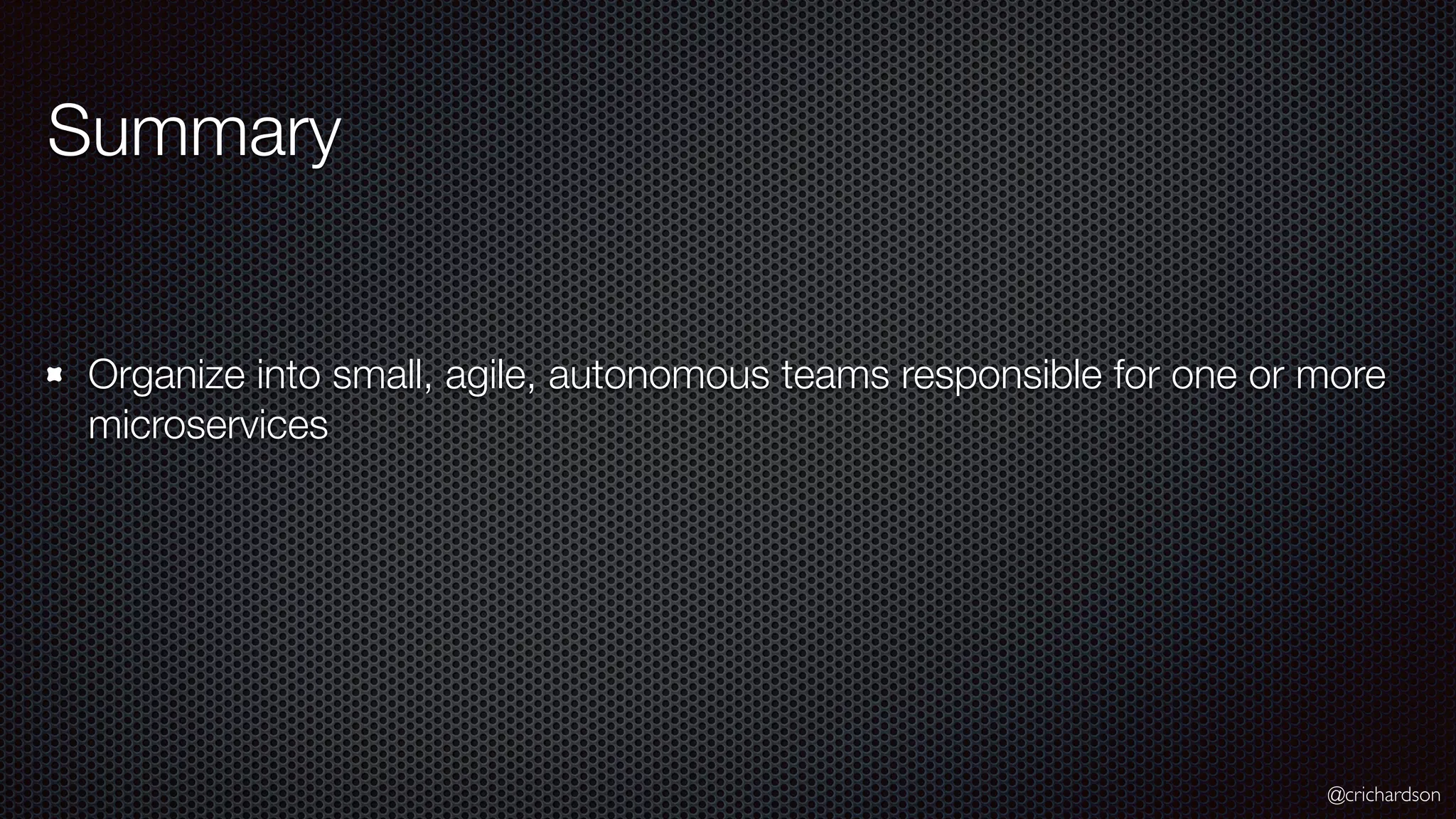

@crichardson Summary Organize into small,agile, autonomous teams responsible for one or more microservices

83.
@crichardson Summary Organize into small,agile, autonomous teams responsible for one or more microservices Use an event-driven architecture based on event sourcing and CQRS

84.
@crichardson Summary Organize into small,agile, autonomous teams responsible for one or more microservices Use an event-driven architecture based on event sourcing and CQRS Use Redis throughout a microservices architecture

85.
Thank You Chris Richardson Founder http://eventuate.io #redisconf17
