12 Introduction to Rails

Deepak H B Full-Stack Developer Gmail: deepakhb2@gmail.com Linkedin: http://in.linkedin.com/in/deepakhb GitHub: https://github.com/deepakhb2

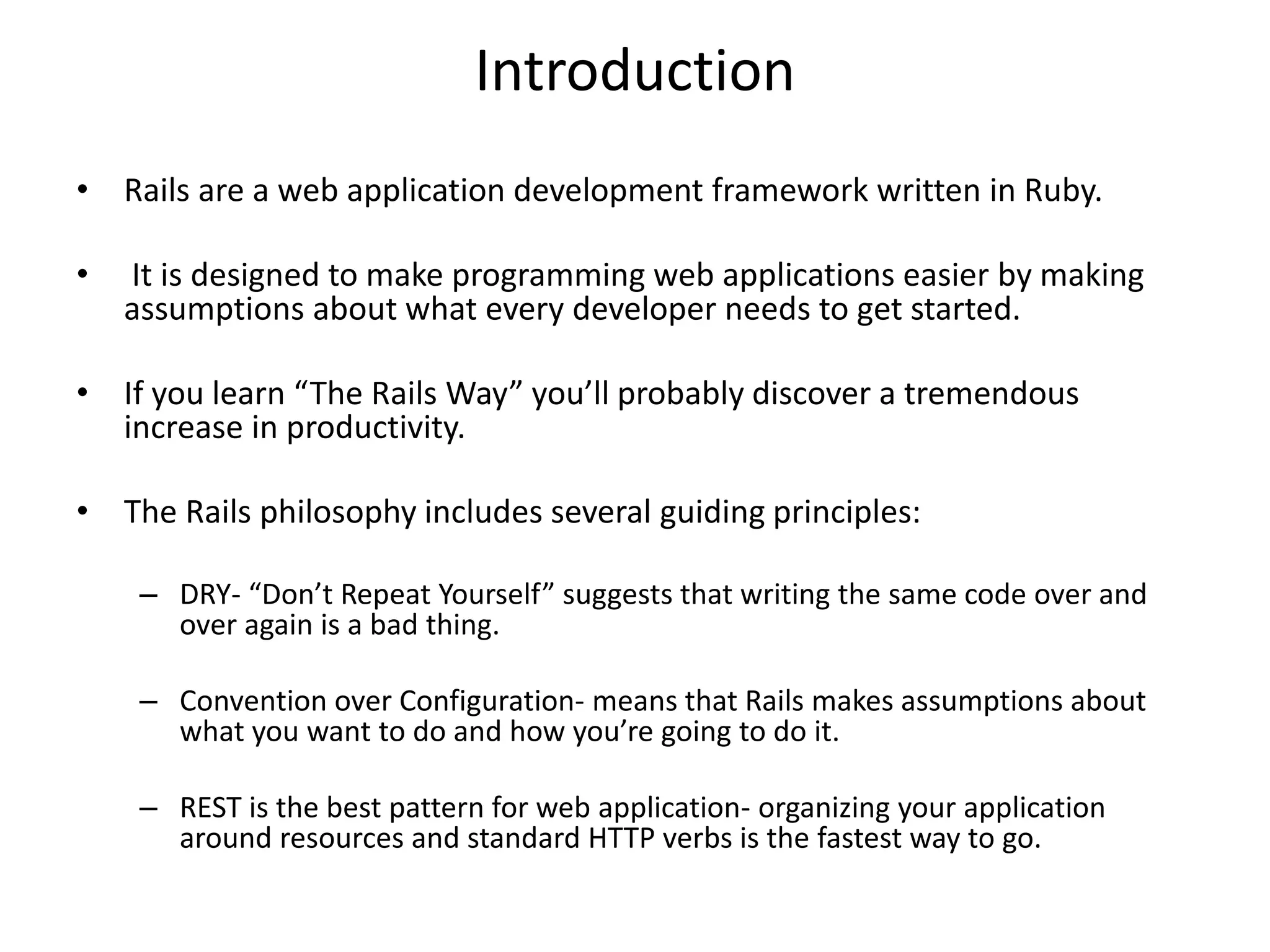

Introduction • Rails are a web application development framework written in Ruby. • It is designed to make programming web applications easier by making assumptions about what every developer needs to get started. • If you learn “The Rails Way” you’ll probably discover a tremendous increase in productivity. • The Rails philosophy includes several guiding principles: – DRY- “Don’t Repeat Yourself” suggests that writing the same code over and over again is a bad thing. – Convention over Configuration- means that Rails makes assumptions about what you want to do and how you’re going to do it. – REST is the best pattern for web application- organizing your application around resources and standard HTTP verbs is the fastest way to go.

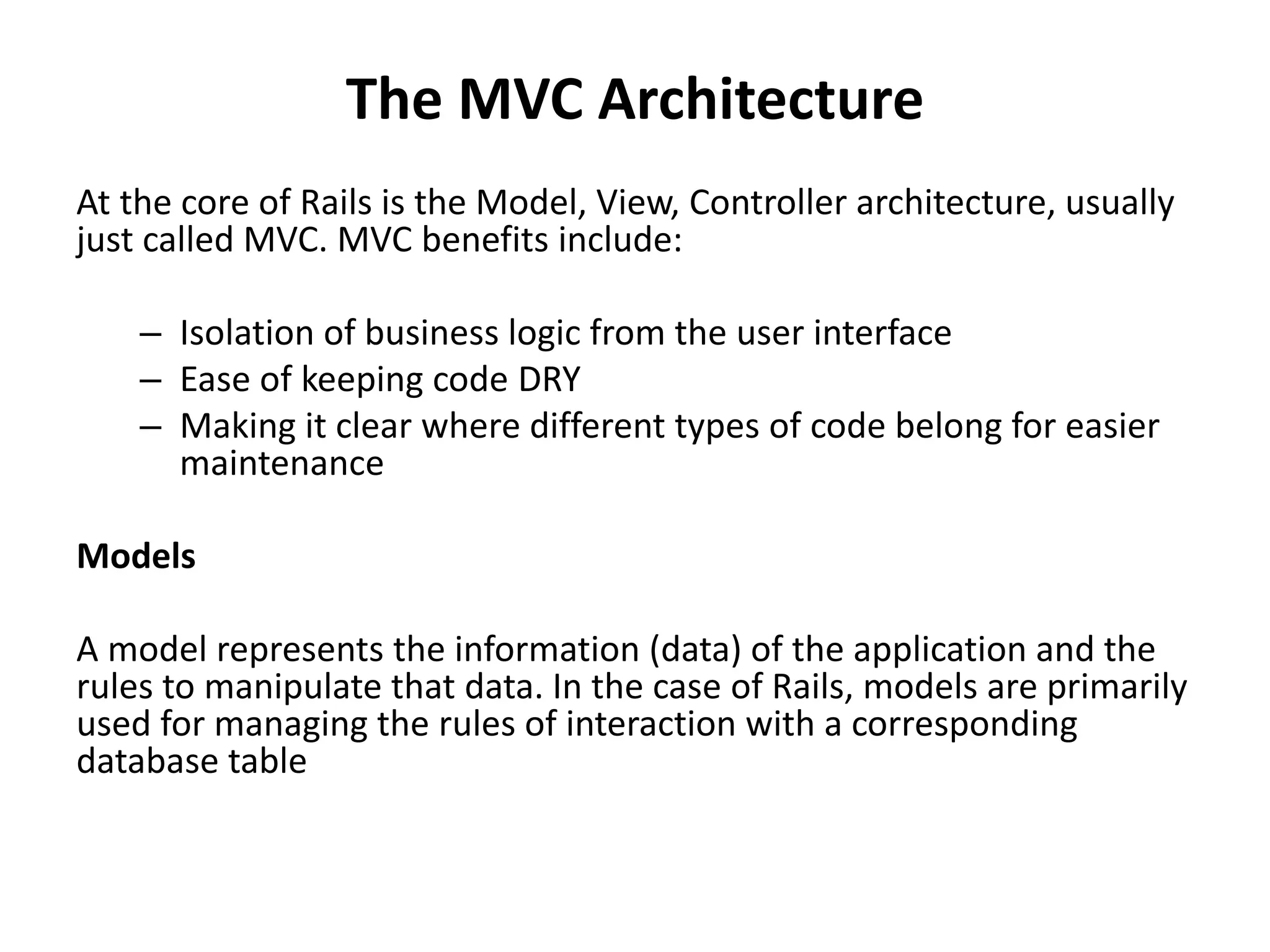

The MVC Architecture At the core of Rails is the Model, View, Controller architecture, usually just called MVC. MVC benefits include: – Isolation of business logic from the user interface – Ease of keeping code DRY – Making it clear where different types of code belong for easier maintenance Models A model represents the information (data) of the application and the rules to manipulate that data. In the case of Rails, models are primarily used for managing the rules of interaction with a corresponding database table

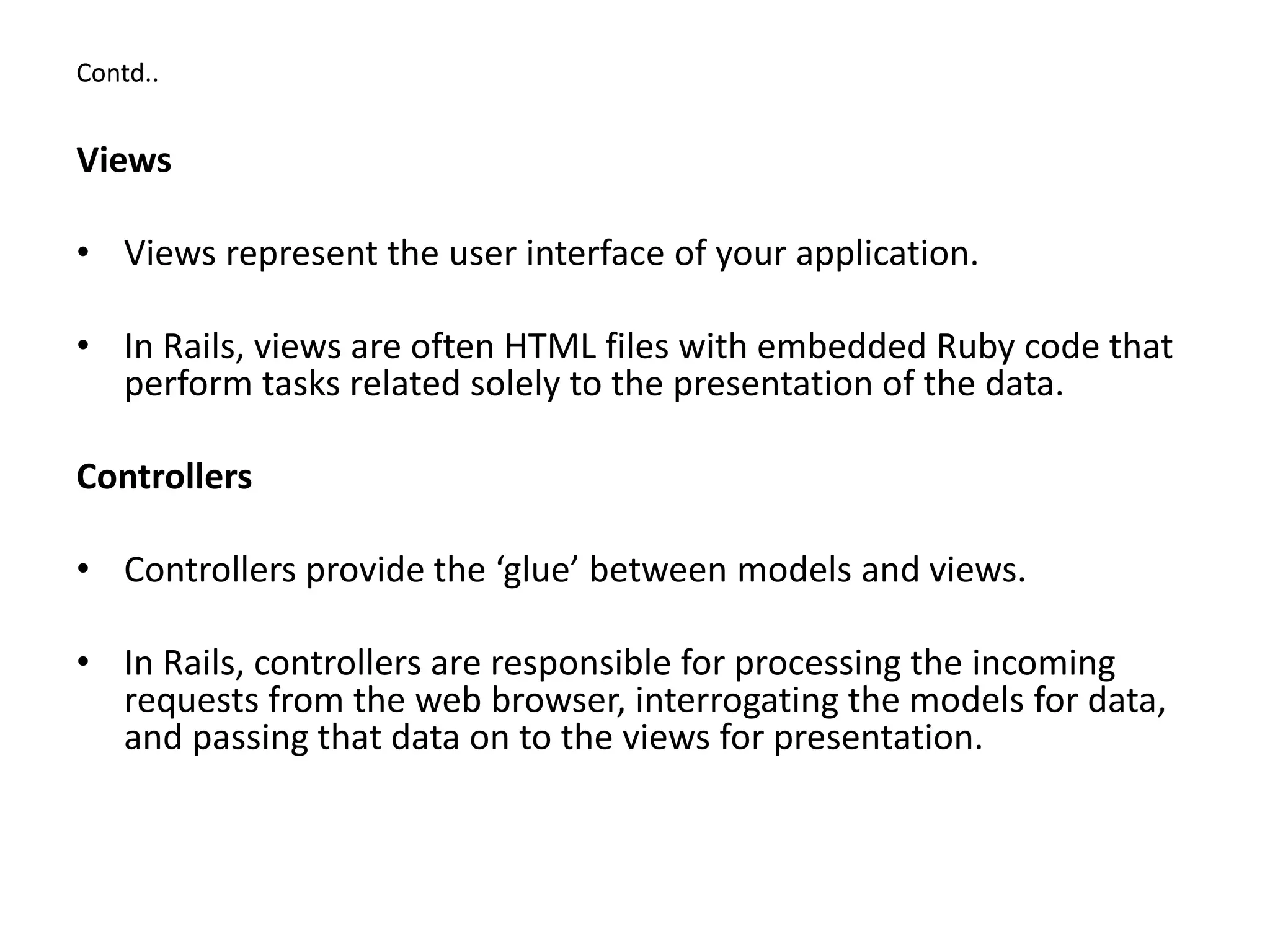

Contd.. Views • Views represent the user interface of your application. • In Rails, views are often HTML files with embedded Ruby code that perform tasks related solely to the presentation of the data. Controllers • Controllers provide the ‘glue’ between models and views. • In Rails, controllers are responsible for processing the incoming requests from the web browser, interrogating the models for data, and passing that data on to the views for presentation.

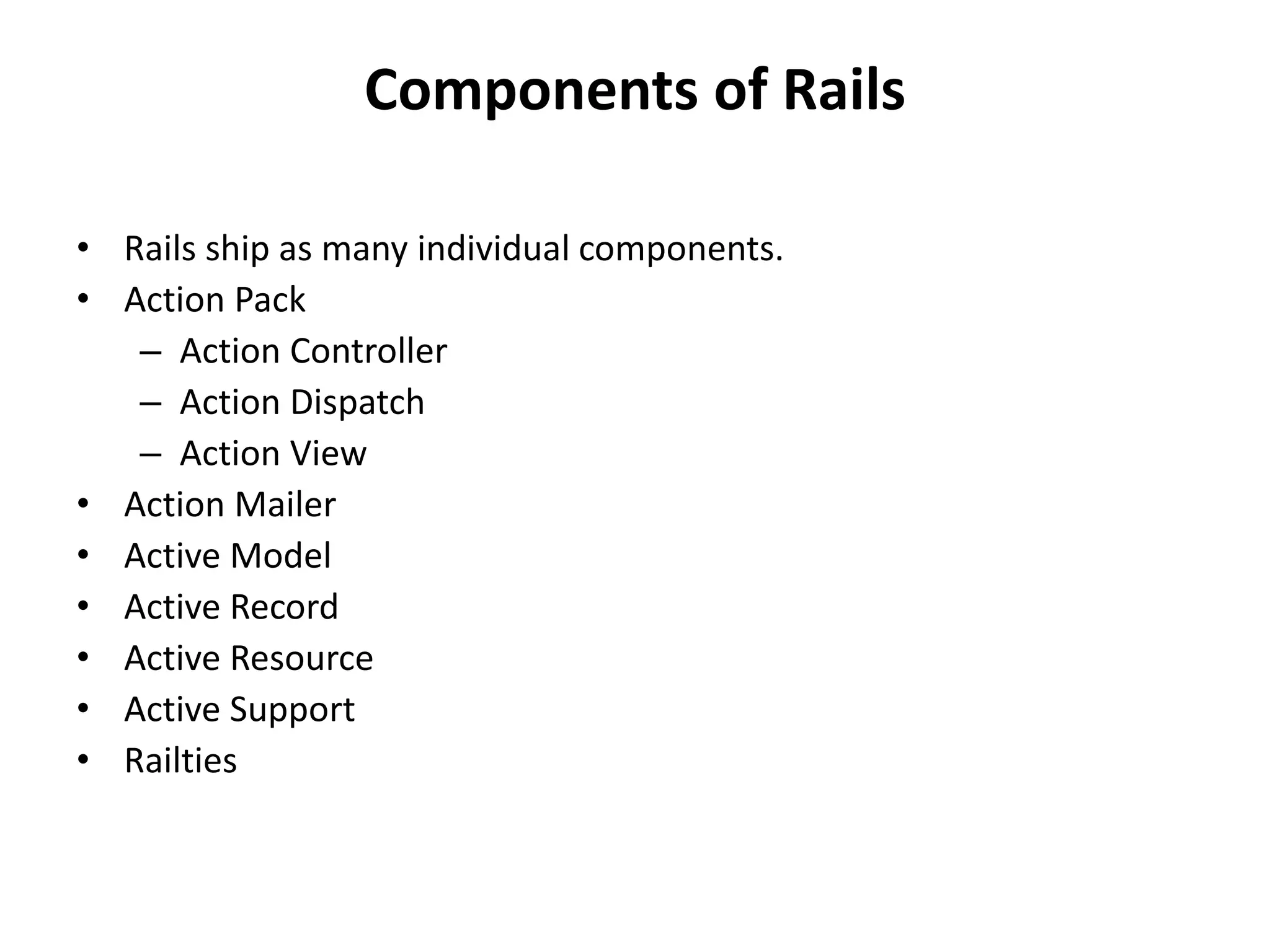

Components of Rails • Rails ship as many individual components. • Action Pack – Action Controller – Action Dispatch – Action View • Action Mailer • Active Model • Active Record • Active Resource • Active Support • Railties

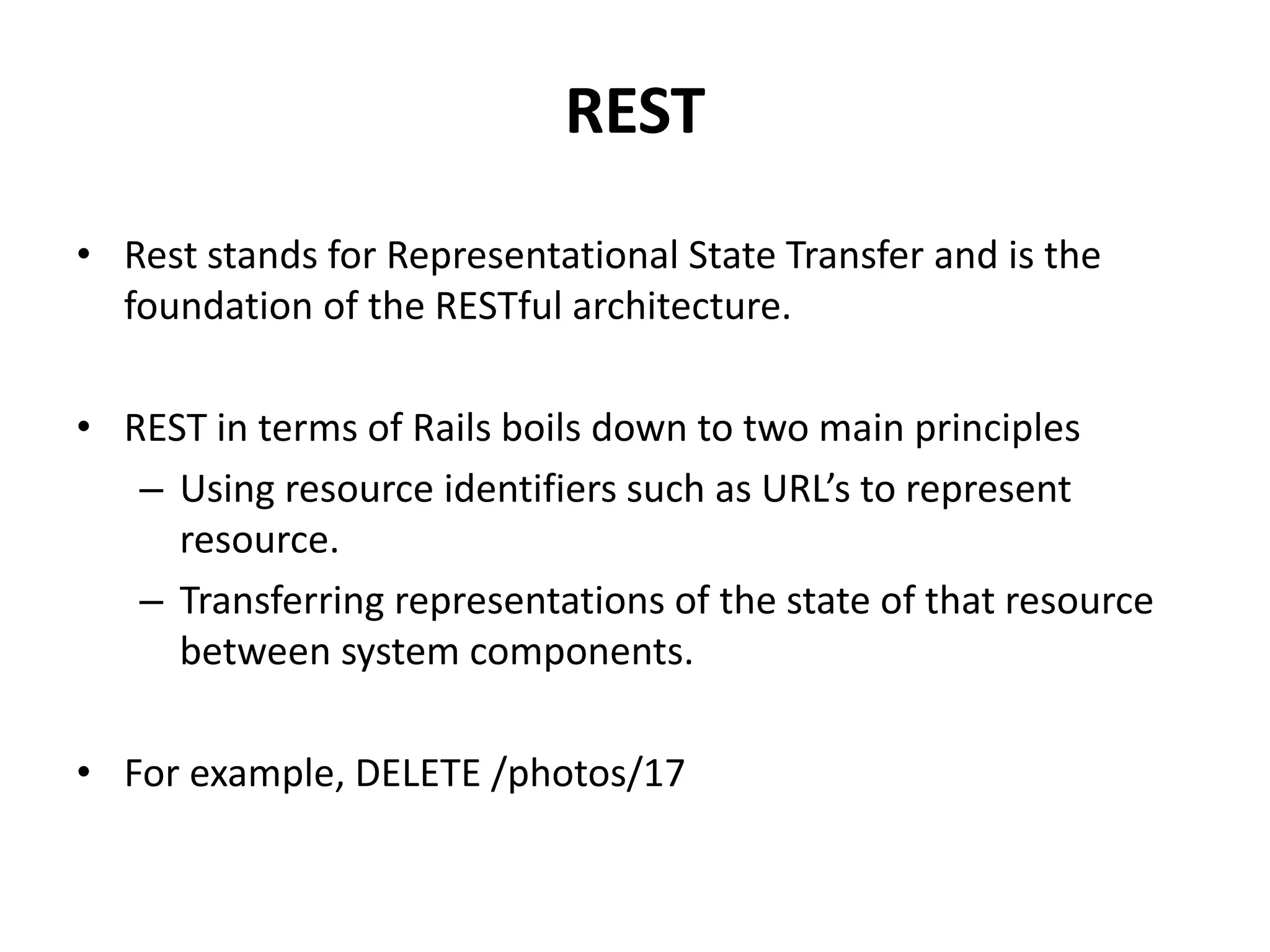

REST • Rest stands for Representational State Transfer and is the foundation of the RESTful architecture. • REST in terms of Rails boils down to two main principles – Using resource identifiers such as URL’s to represent resource. – Transferring representations of the state of that resource between system components. • For example, DELETE /photos/17

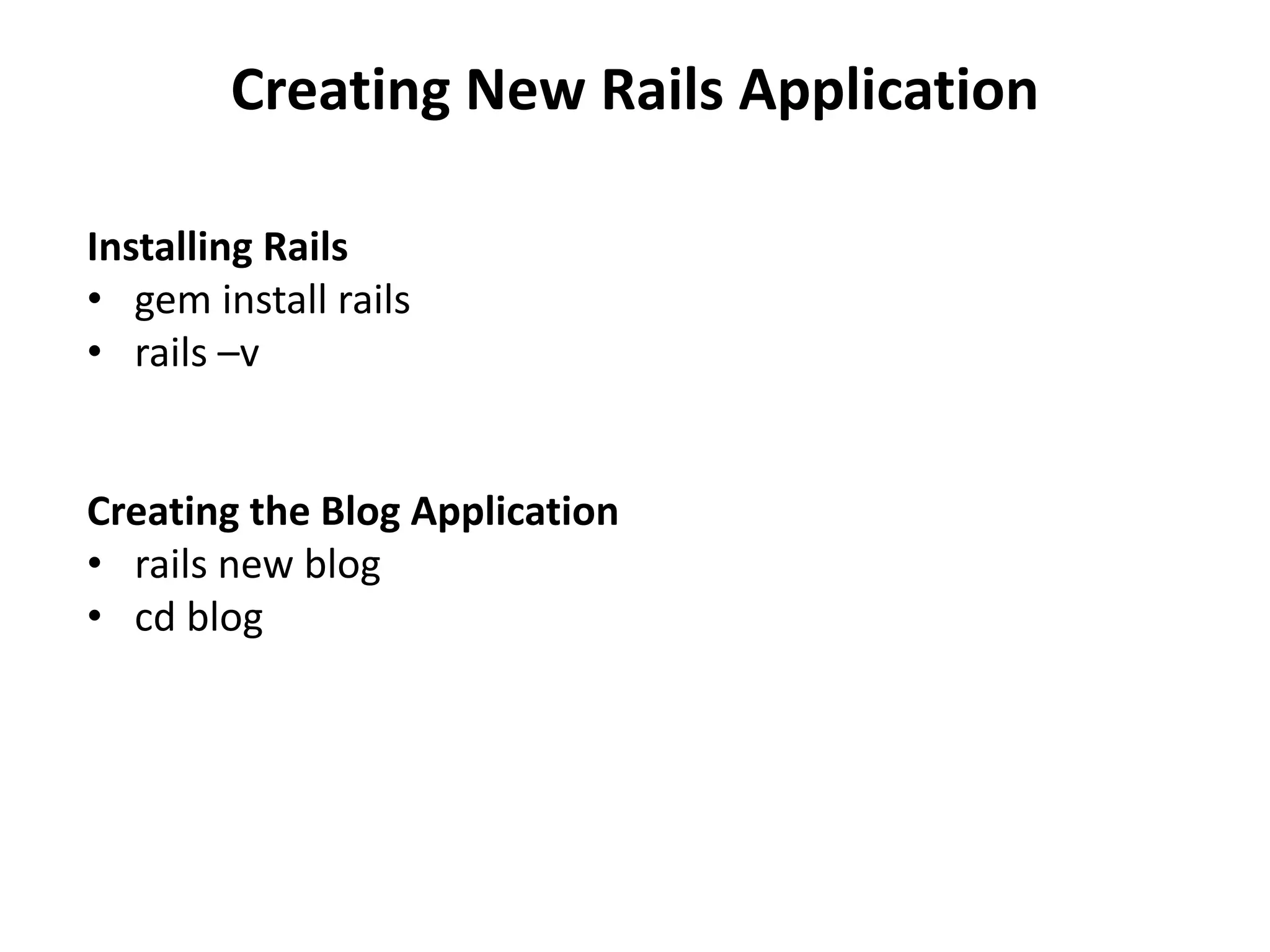

Creating New Rails Application Installing Rails • gem install rails • rails –v Creating the Blog Application • rails new blog • cd blog

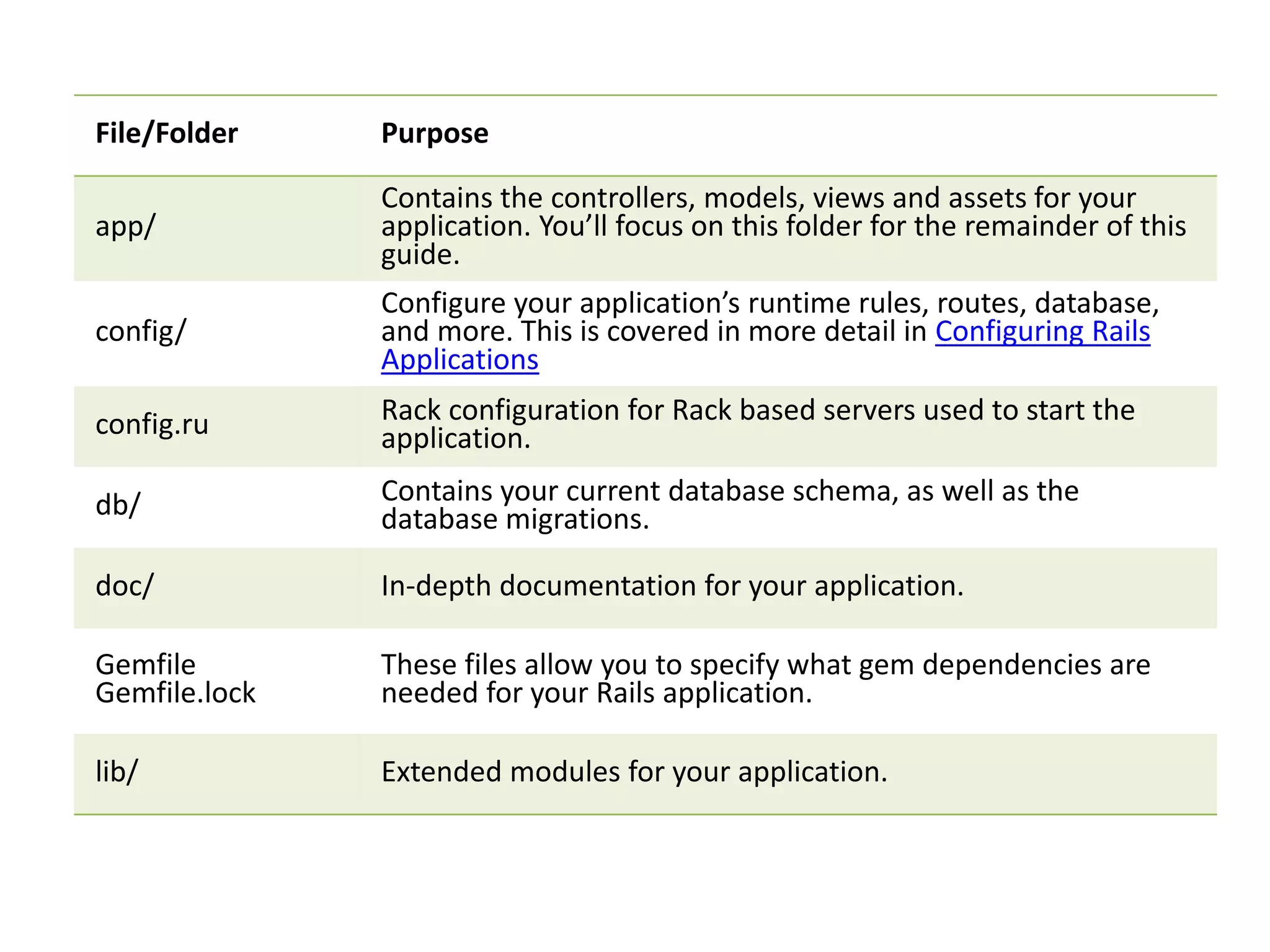

File/Folder Purpose app/ Contains the controllers, models, views and assets for your application. You’ll focus on this folder for the remainder of this guide. config/ Configure your application’s runtime rules, routes, database, and more. This is covered in more detail in Configuring Rails Applications config.ru Rack configuration for Rack based servers used to start the application. db/ Contains your current database schema, as well as the database migrations. doc/ In-depth documentation for your application. Gemfile Gemfile.lock These files allow you to specify what gem dependencies are needed for your Rails application. lib/ Extended modules for your application.

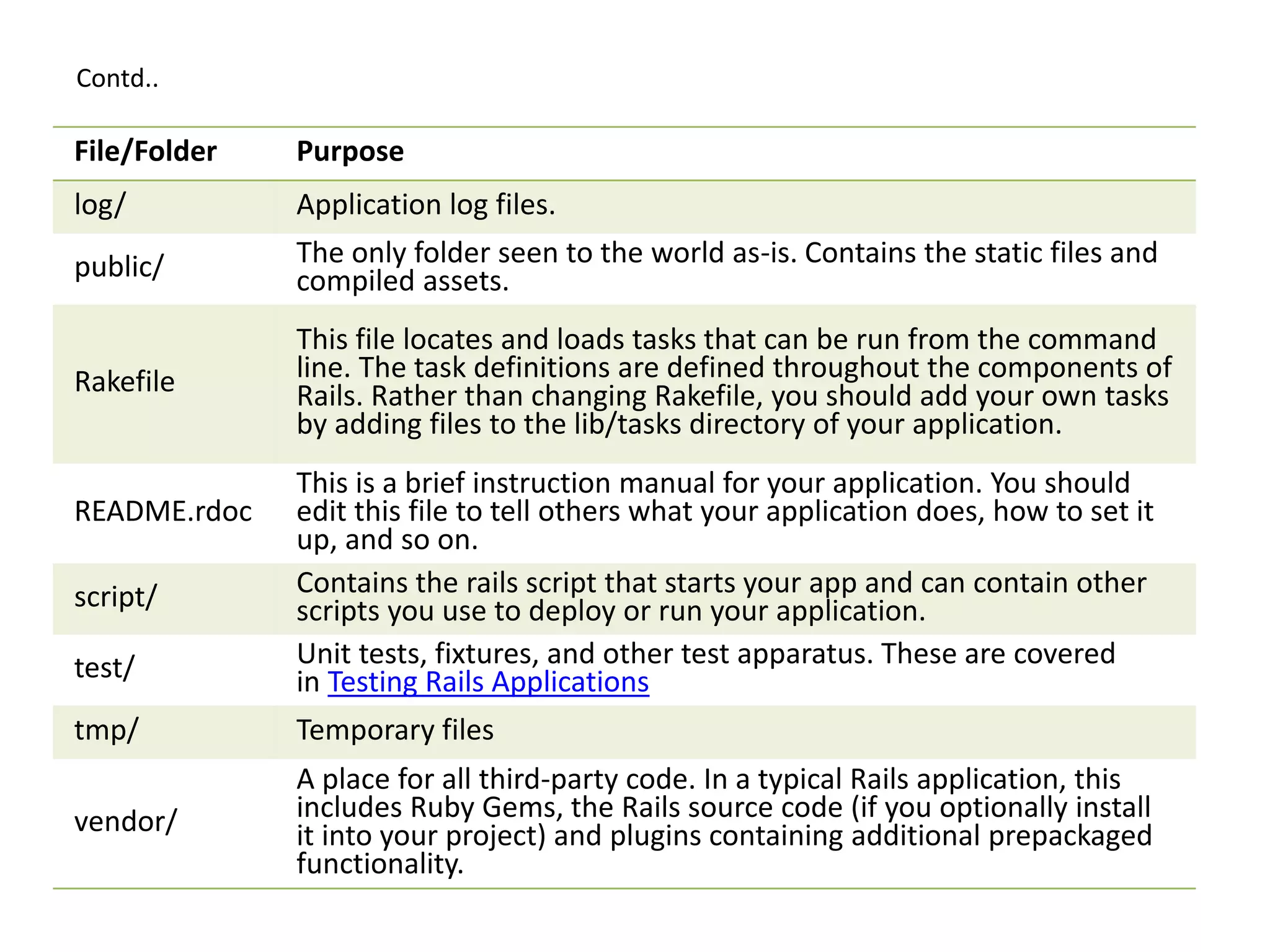

Contd.. File/Folder Purpose log/ Application log files. public/ The only folder seen to the world as-is. Contains the static files and compiled assets. Rakefile This file locates and loads tasks that can be run from the command line. The task definitions are defined throughout the components of Rails. Rather than changing Rakefile, you should add your own tasks by adding files to the lib/tasks directory of your application. README.rdoc This is a brief instruction manual for your application. You should edit this file to tell others what your application does, how to set it up, and so on. script/ Contains the rails script that starts your app and can contain other scripts you use to deploy or run your application. test/ Unit tests, fixtures, and other test apparatus. These are covered in Testing Rails Applications tmp/ Temporary files vendor/ A place for all third-party code. In a typical Rails application, this includes Ruby Gems, the Rails source code (if you optionally install it into your project) and plugins containing additional prepackaged functionality.

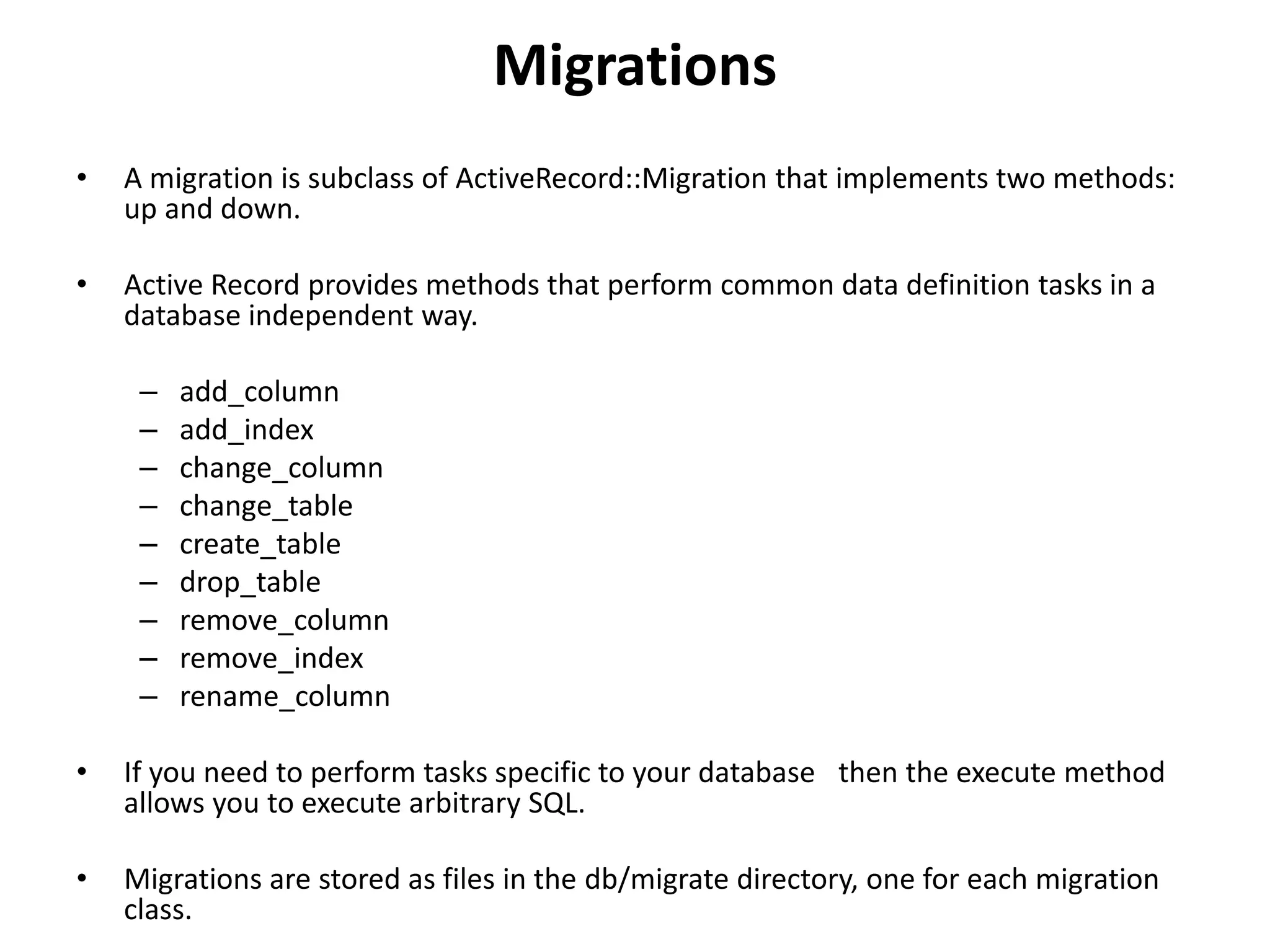

Migrations • A migration is subclass of ActiveRecord::Migration that implements two methods: up and down. • Active Record provides methods that perform common data definition tasks in a database independent way. – add_column – add_index – change_column – change_table – create_table – drop_table – remove_column – remove_index – rename_column • If you need to perform tasks specific to your database then the execute method allows you to execute arbitrary SQL. • Migrations are stored as files in the db/migrate directory, one for each migration class.

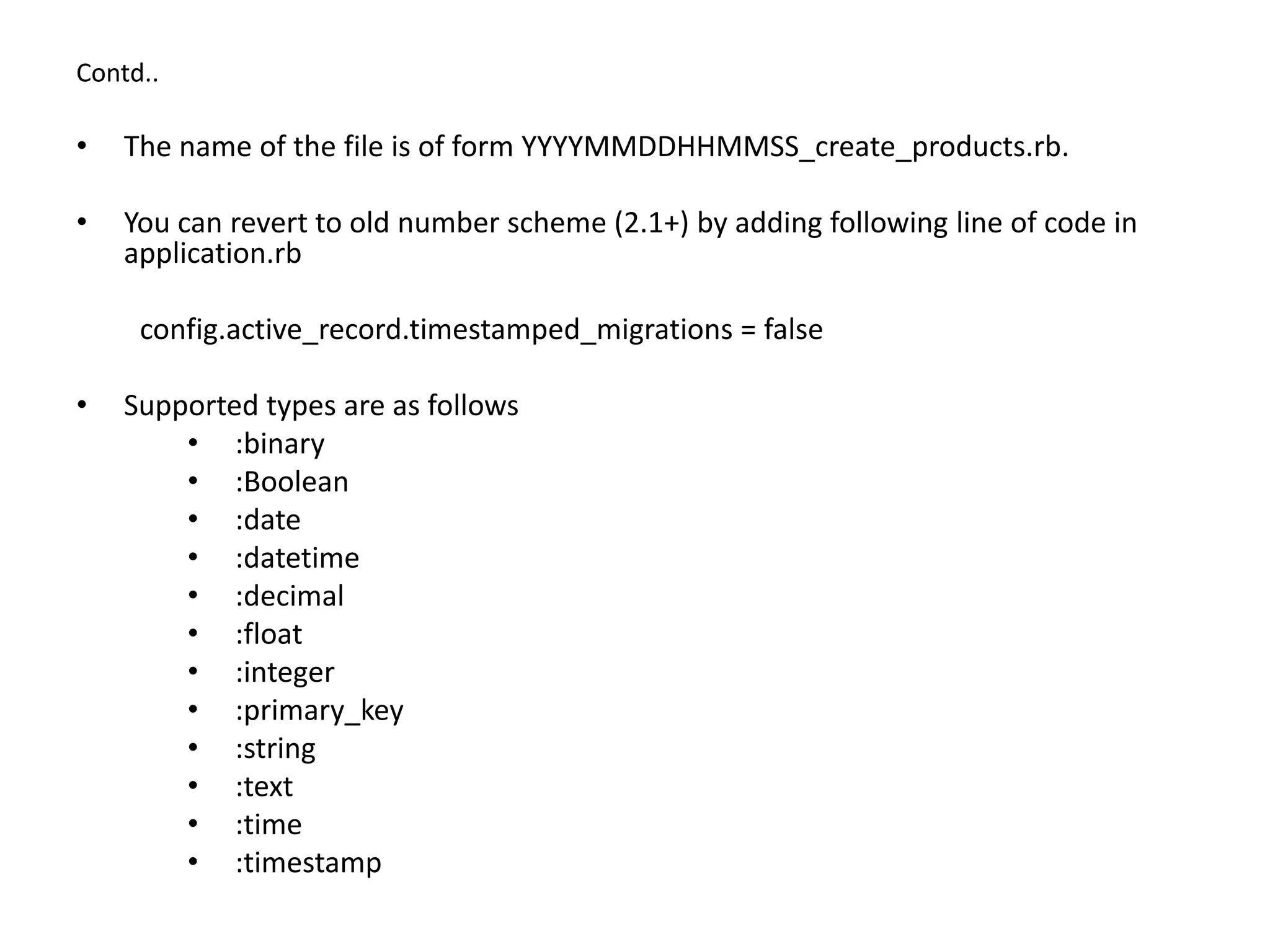

Contd.. • The name of the file is of form YYYYMMDDHHMMSS_create_products.rb. • You can revert to old number scheme (2.1+) by adding following line of code in application.rb config.active_record.timestamped_migrations = false • Supported types are as follows • :binary • :Boolean • :date • :datetime • :decimal • :float • :integer • :primary_key • :string • :text • :time • :timestamp

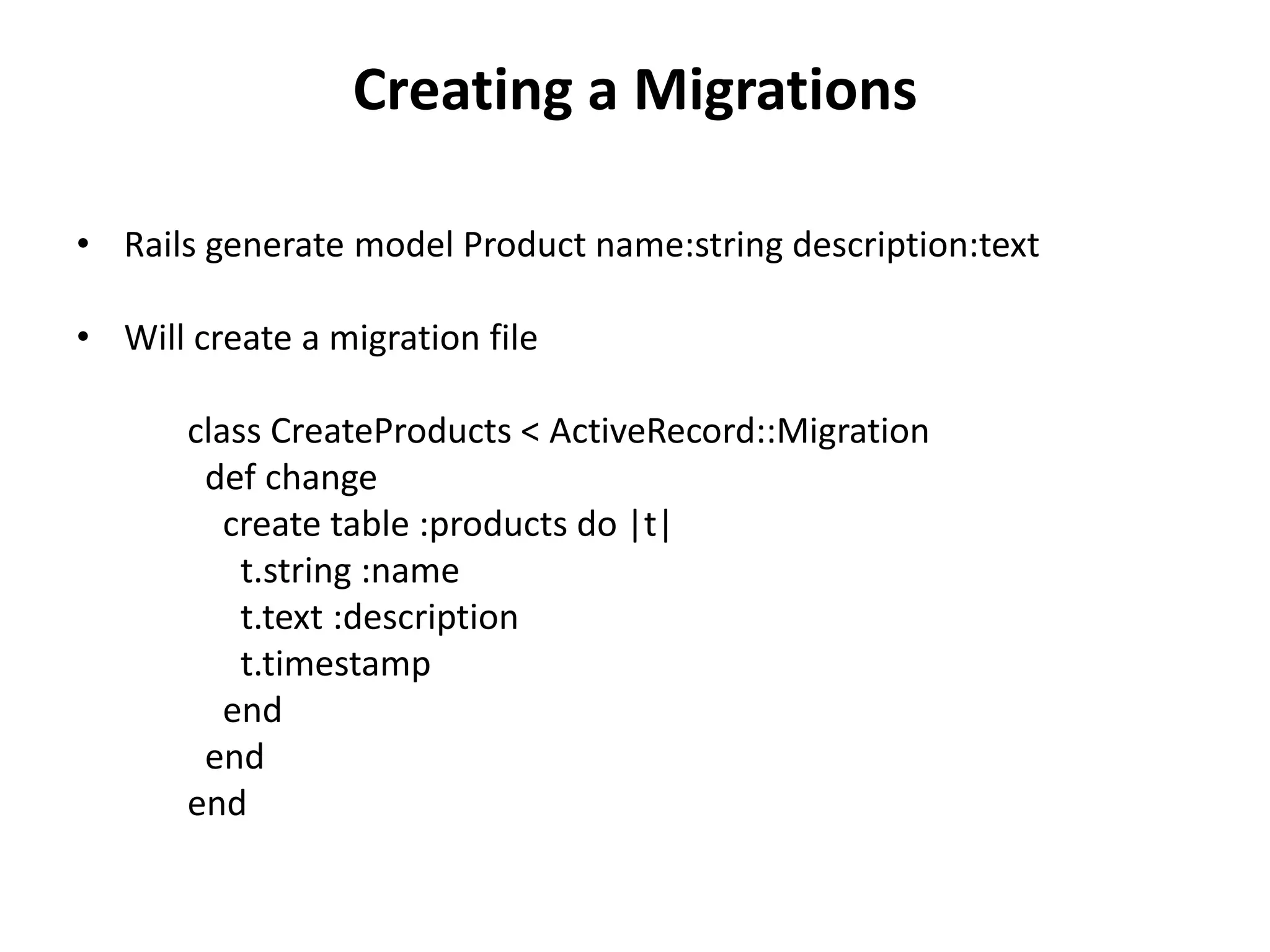

Creating a Migrations • Rails generate model Product name:string description:text • Will create a migration file class CreateProducts < ActiveRecord::Migration def change create table :products do |t| t.string :name t.text :description t.timestamp end end end

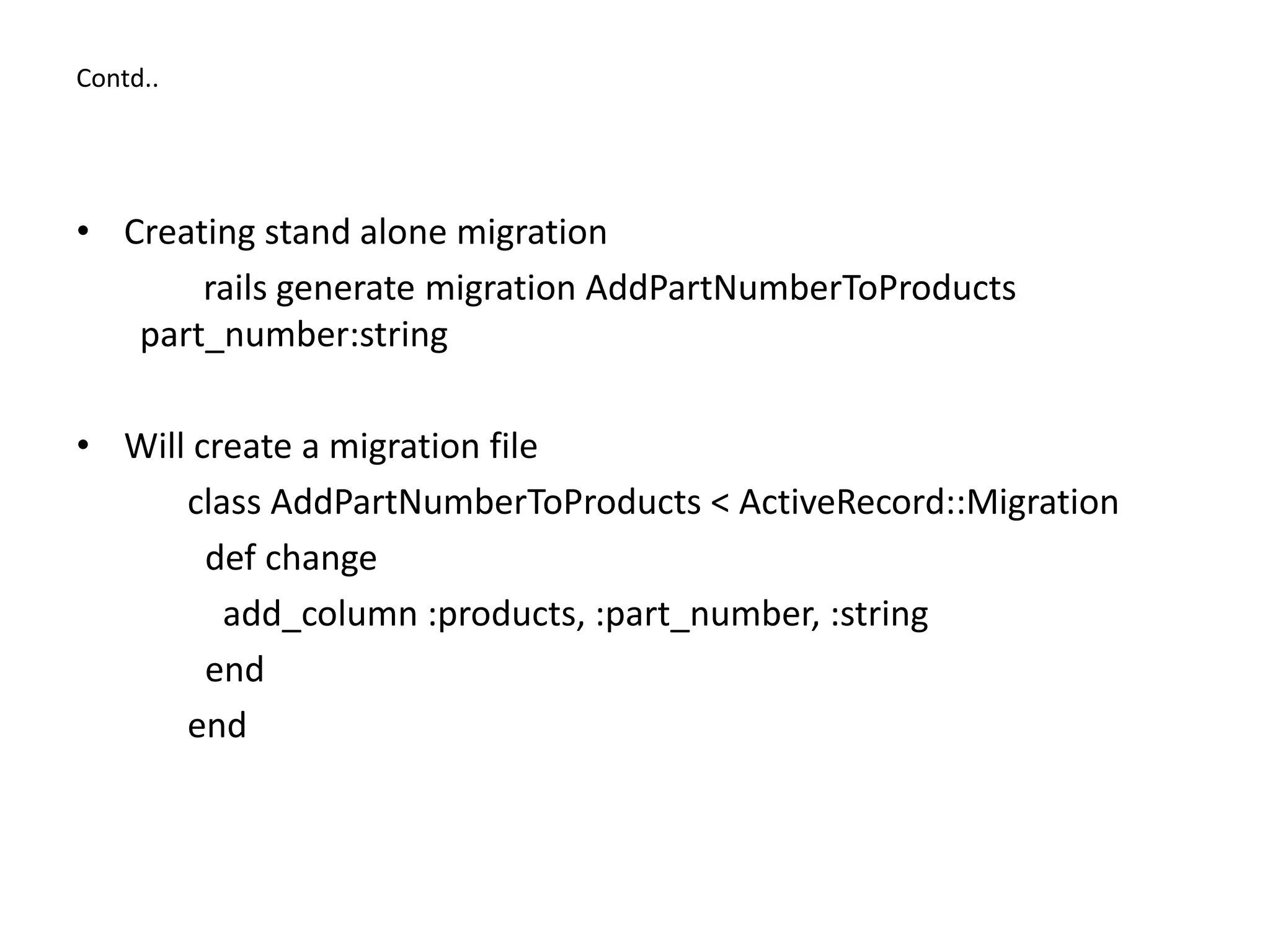

Contd.. • Creating stand alone migration rails generate migration AddPartNumberToProducts part_number:string • Will create a migration file class AddPartNumberToProducts < ActiveRecord::Migration def change add_column :products, :part_number, :string end end

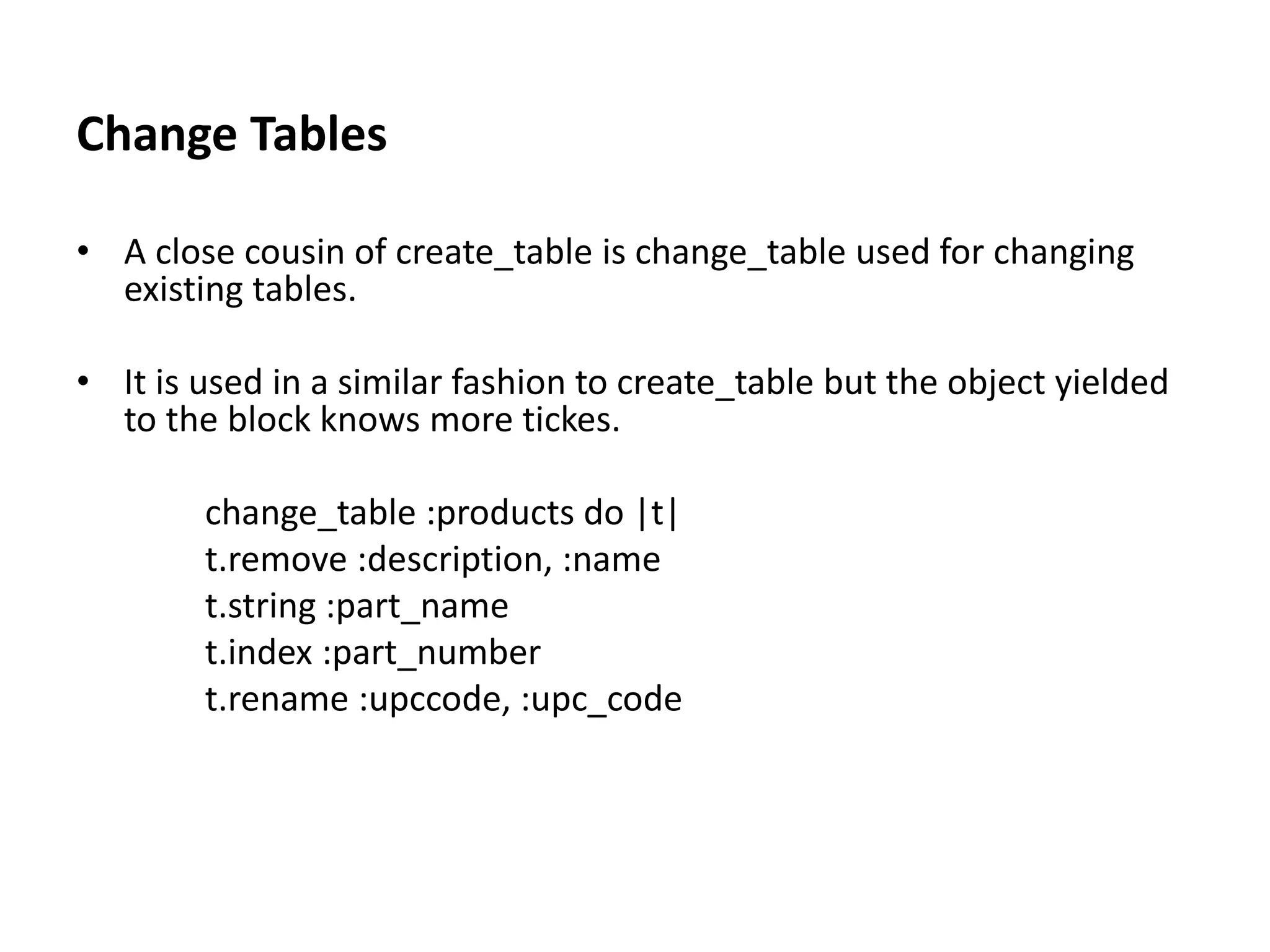

Change Tables • A close cousin of create_table is change_table used for changing existing tables. • It is used in a similar fashion to create_table but the object yielded to the block knows more tickes. change_table :products do |t| t.remove :description, :name t.string :part_name t.index :part_number t.rename :upccode, :upc_code

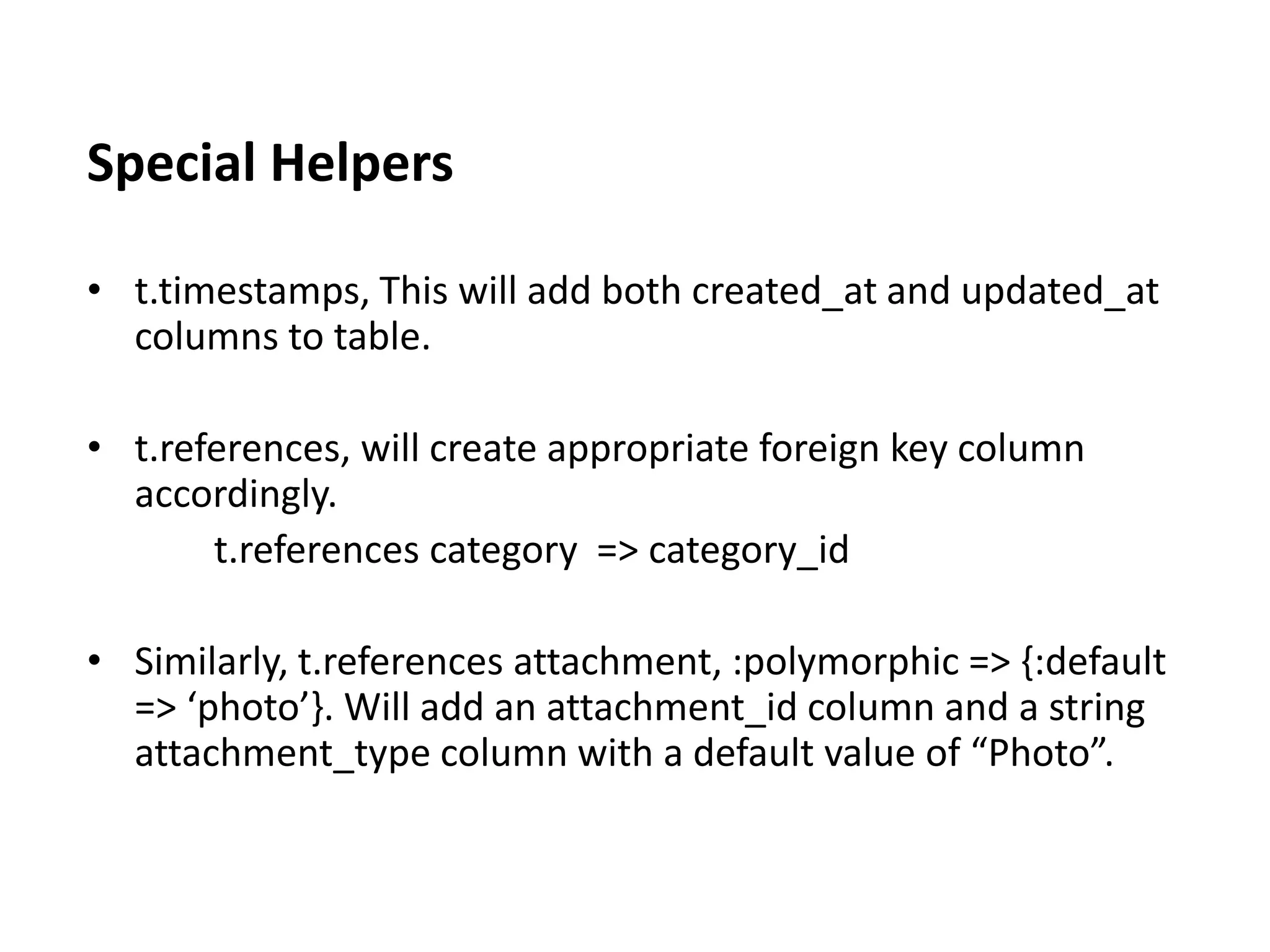

Special Helpers • t.timestamps, This will add both created_at and updated_at columns to table. • t.references, will create appropriate foreign key column accordingly. t.references category => category_id • Similarly, t.references attachment, :polymorphic => {:default => ‘photo’}. Will add an attachment_id column and a string attachment_type column with a default value of “Photo”.

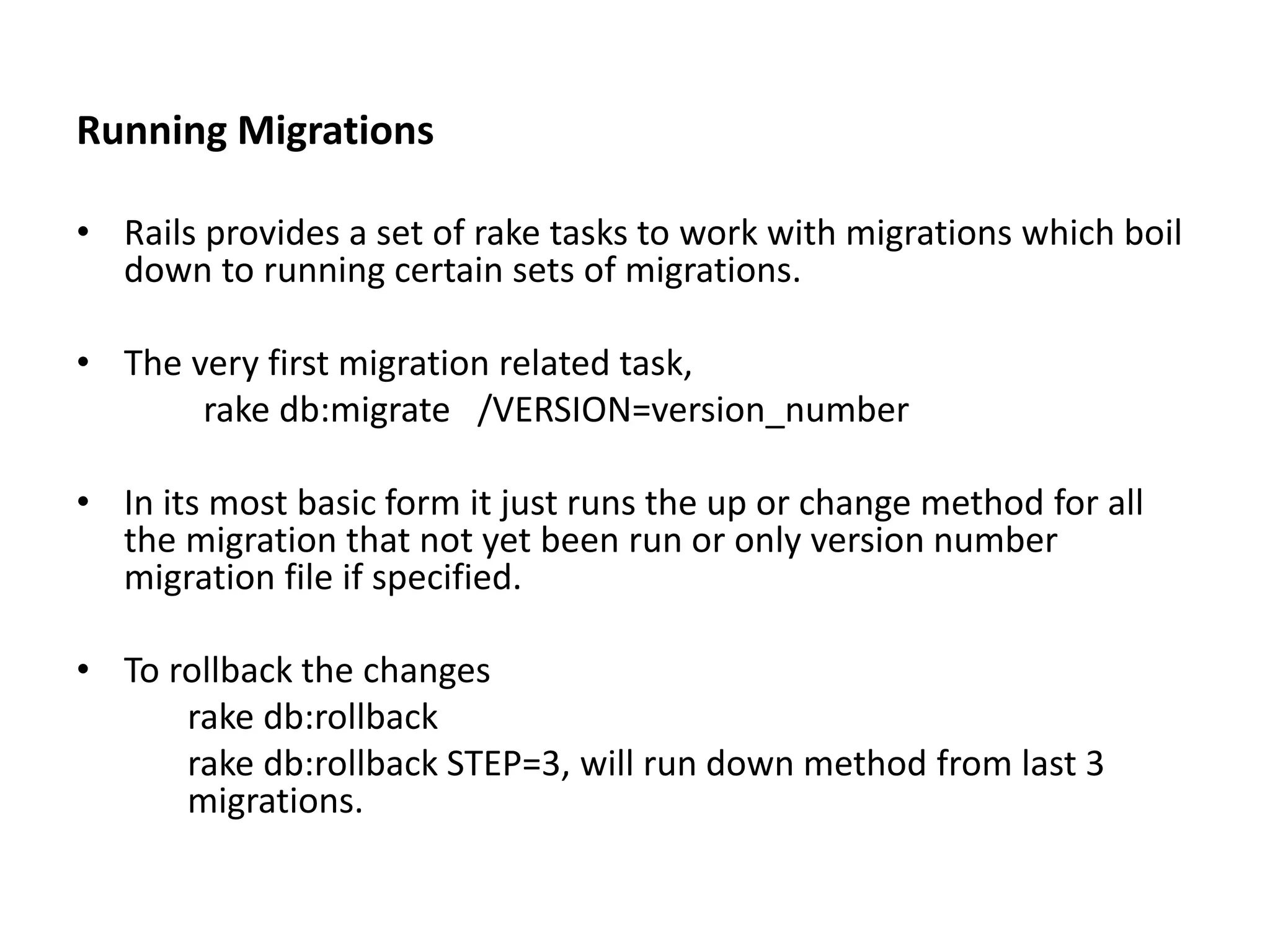

Running Migrations • Rails provides a set of rake tasks to work with migrations which boil down to running certain sets of migrations. • The very first migration related task, rake db:migrate /VERSION=version_number • In its most basic form it just runs the up or change method for all the migration that not yet been run or only version number migration file if specified. • To rollback the changes rake db:rollback rake db:rollback STEP=3, will run down method from last 3 migrations.

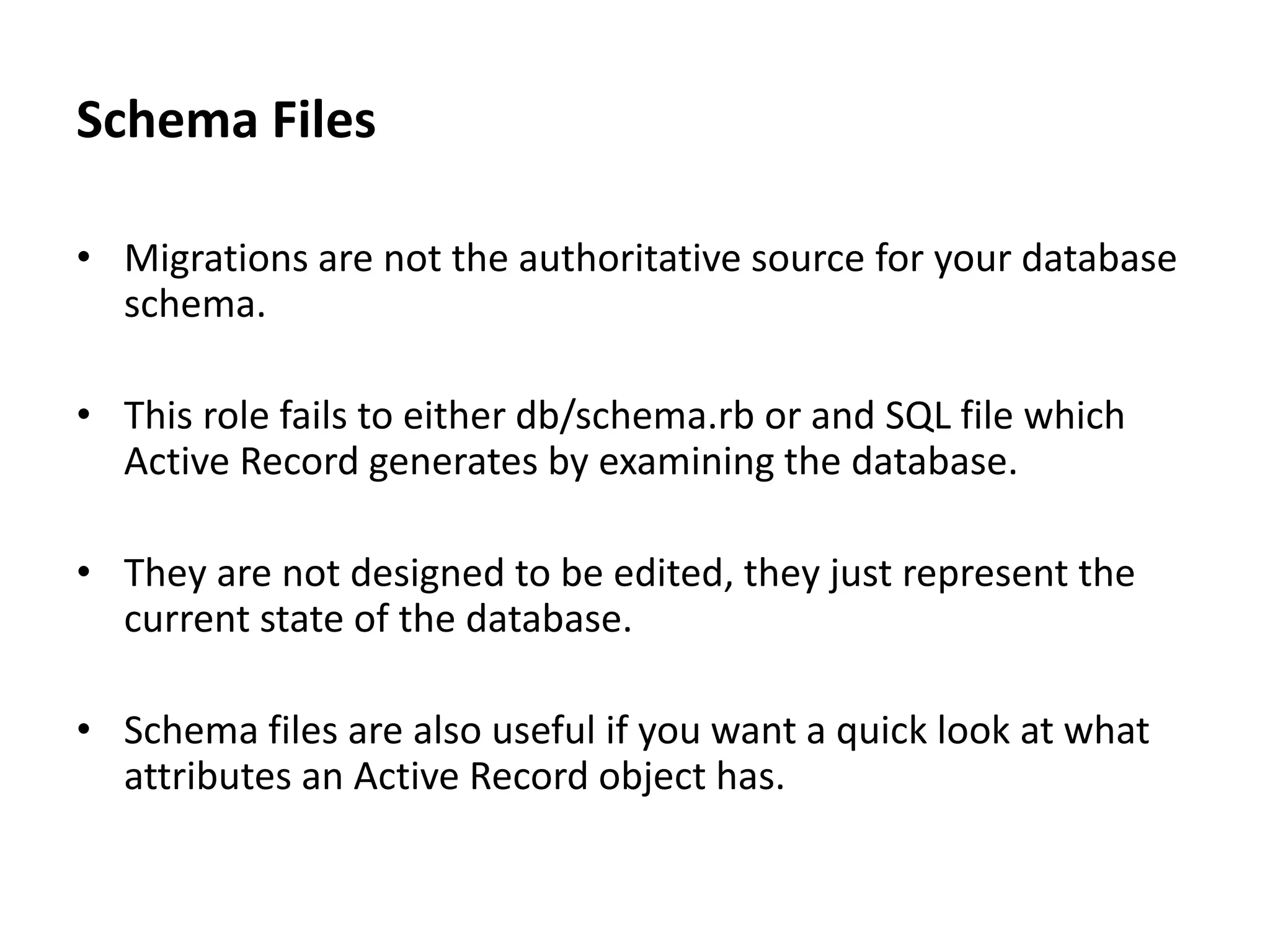

Schema Files • Migrations are not the authoritative source for your database schema. • This role fails to either db/schema.rb or and SQL file which Active Record generates by examining the database. • They are not designed to be edited, they just represent the current state of the database. • Schema files are also useful if you want a quick look at what attributes an Active Record object has.

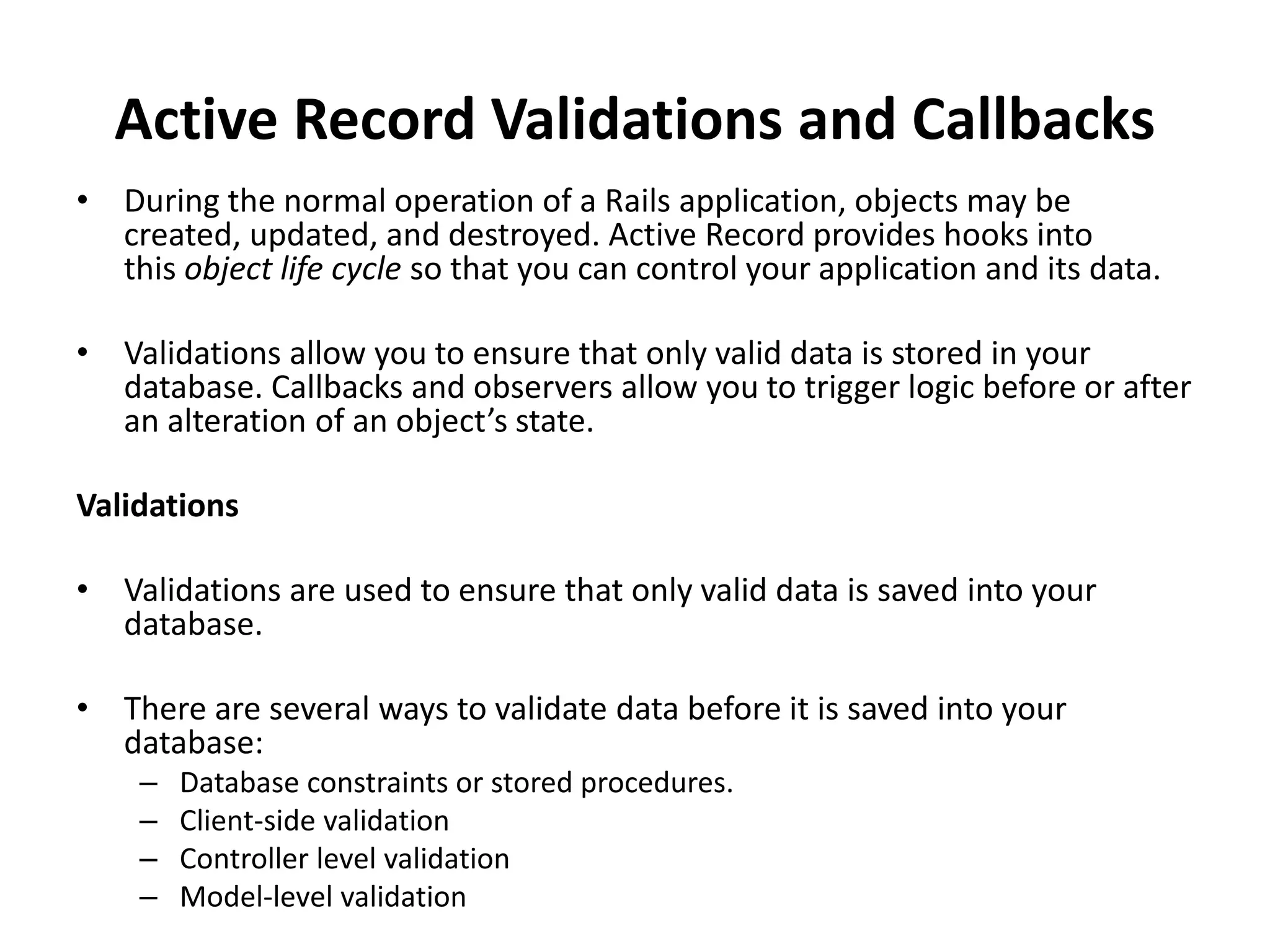

Active Record Validations and Callbacks • During the normal operation of a Rails application, objects may be created, updated, and destroyed. Active Record provides hooks into this object life cycle so that you can control your application and its data. • Validations allow you to ensure that only valid data is stored in your database. Callbacks and observers allow you to trigger logic before or after an alteration of an object’s state. Validations • Validations are used to ensure that only valid data is saved into your database. • There are several ways to validate data before it is saved into your database: – Database constraints or stored procedures. – Client-side validation – Controller level validation – Model-level validation

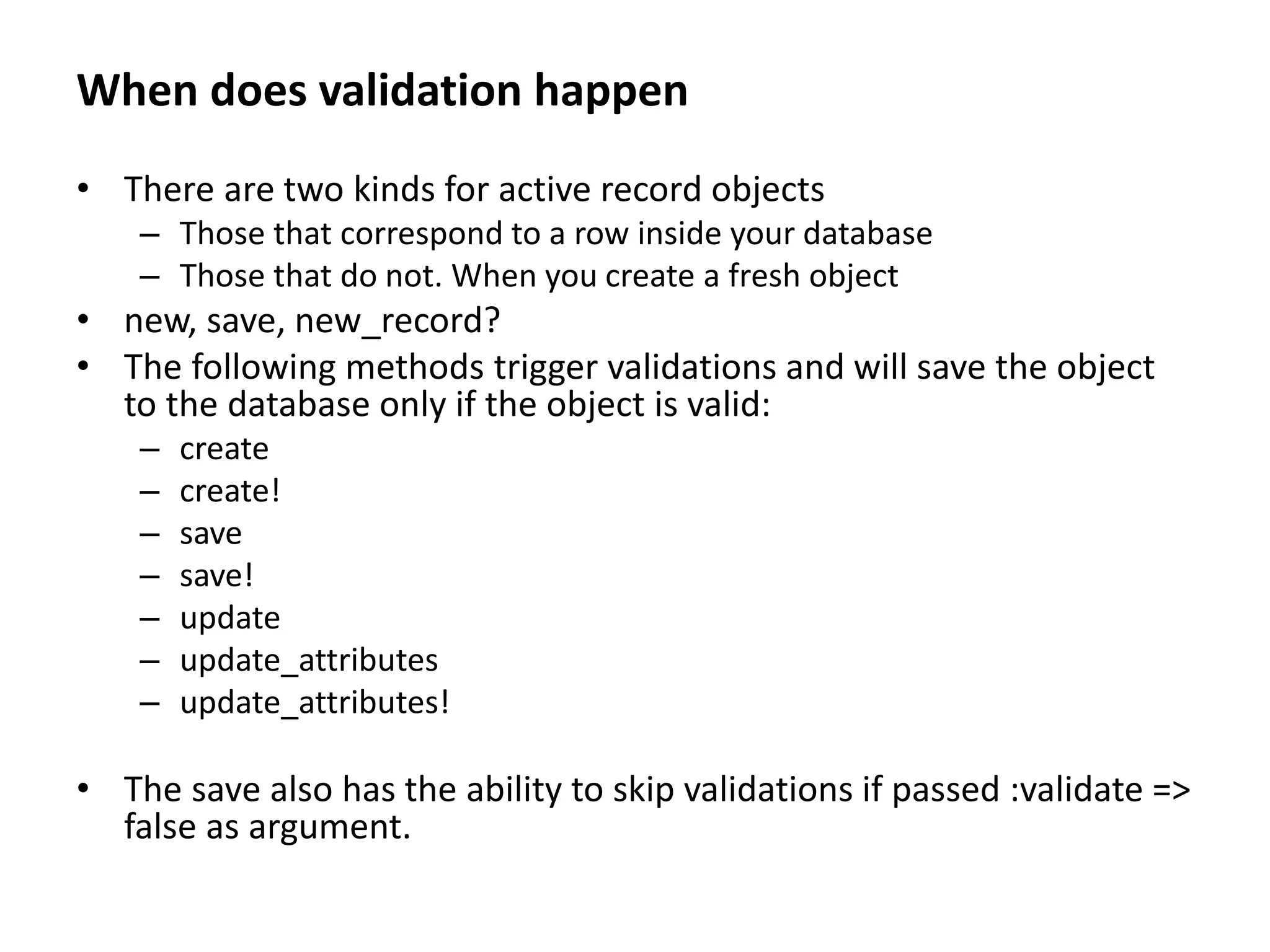

When does validation happen • There are two kinds for active record objects – Those that correspond to a row inside your database – Those that do not. When you create a fresh object • new, save, new_record? • The following methods trigger validations and will save the object to the database only if the object is valid: – create – create! – save – save! – update – update_attributes – update_attributes! • The save also has the ability to skip validations if passed :validate => false as argument.

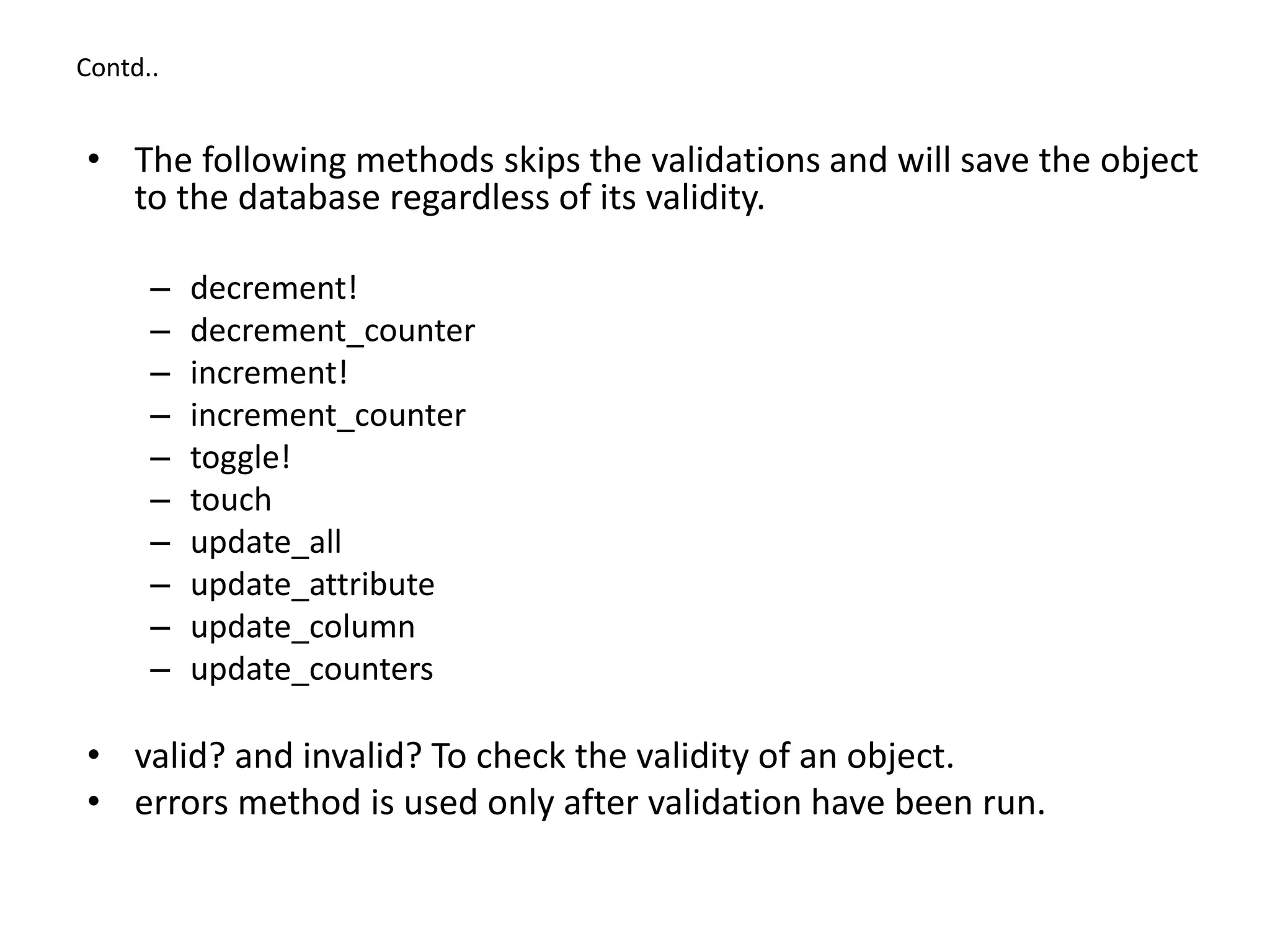

Contd.. • The following methods skips the validations and will save the object to the database regardless of its validity. – decrement! – decrement_counter – increment! – increment_counter – toggle! – touch – update_all – update_attribute – update_column – update_counters • valid? and invalid? To check the validity of an object. • errors method is used only after validation have been run.

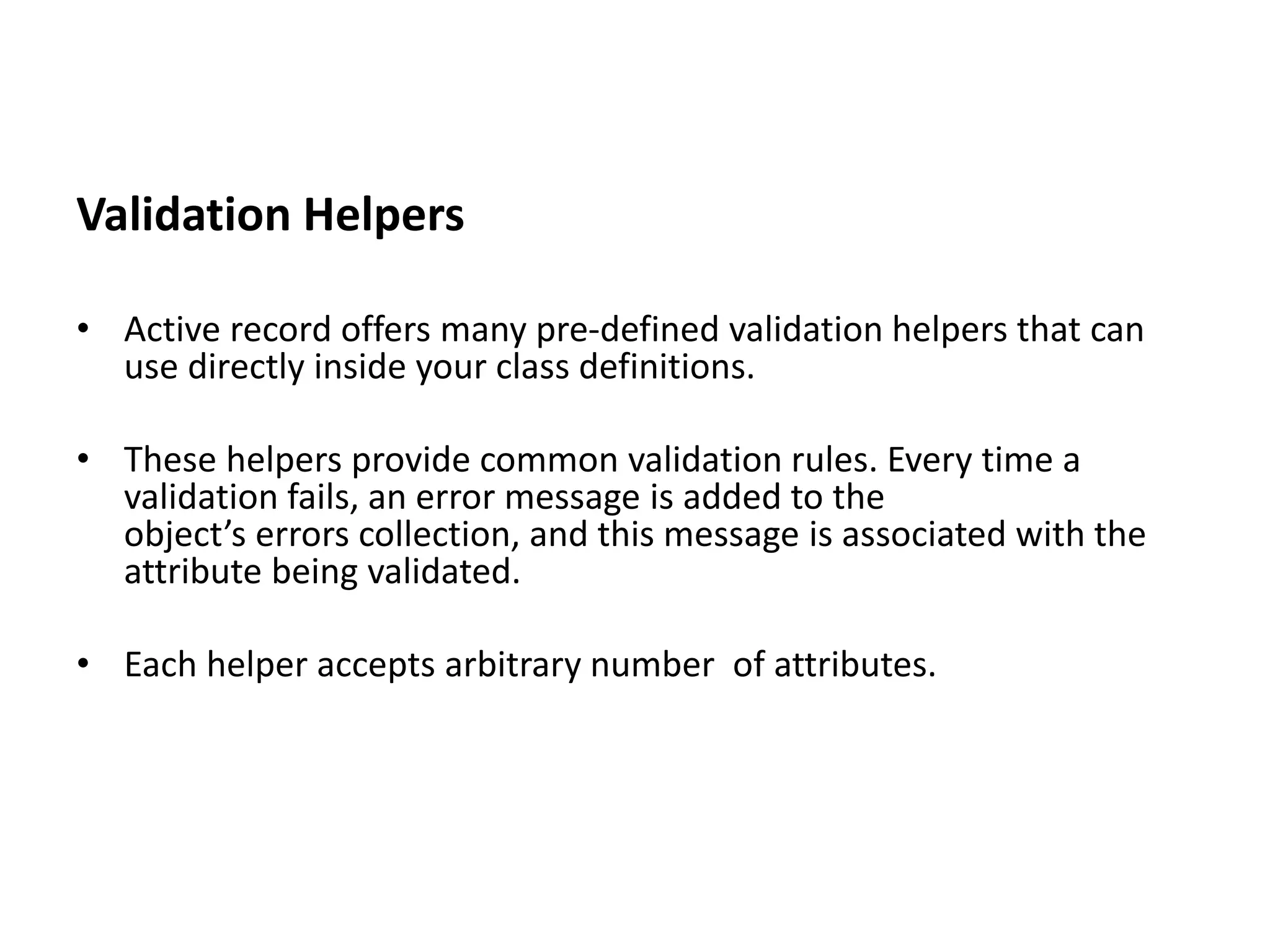

Validation Helpers • Active record offers many pre-defined validation helpers that can use directly inside your class definitions. • These helpers provide common validation rules. Every time a validation fails, an error message is added to the object’s errors collection, and this message is associated with the attribute being validated. • Each helper accepts arbitrary number of attributes.

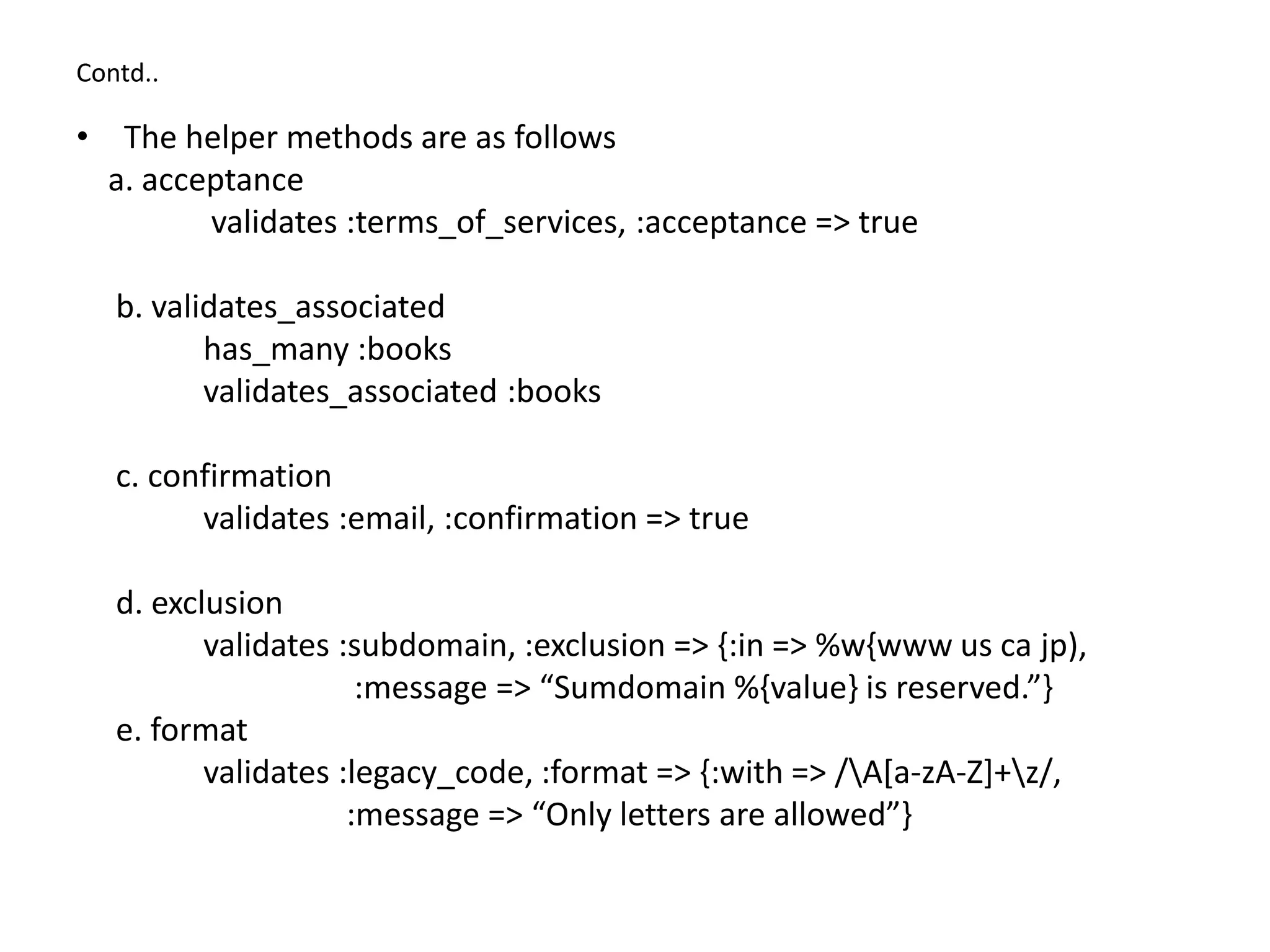

Contd.. • The helper methods are as follows a. acceptance validates :terms_of_services, :acceptance => true b. validates_associated has_many :books validates_associated :books c. confirmation validates :email, :confirmation => true d. exclusion validates :subdomain, :exclusion => {:in => %w{www us ca jp), :message => “Sumdomain %{value} is reserved.”} e. format validates :legacy_code, :format => {:with => /A[a-zA-Z]+z/, :message => “Only letters are allowed”}

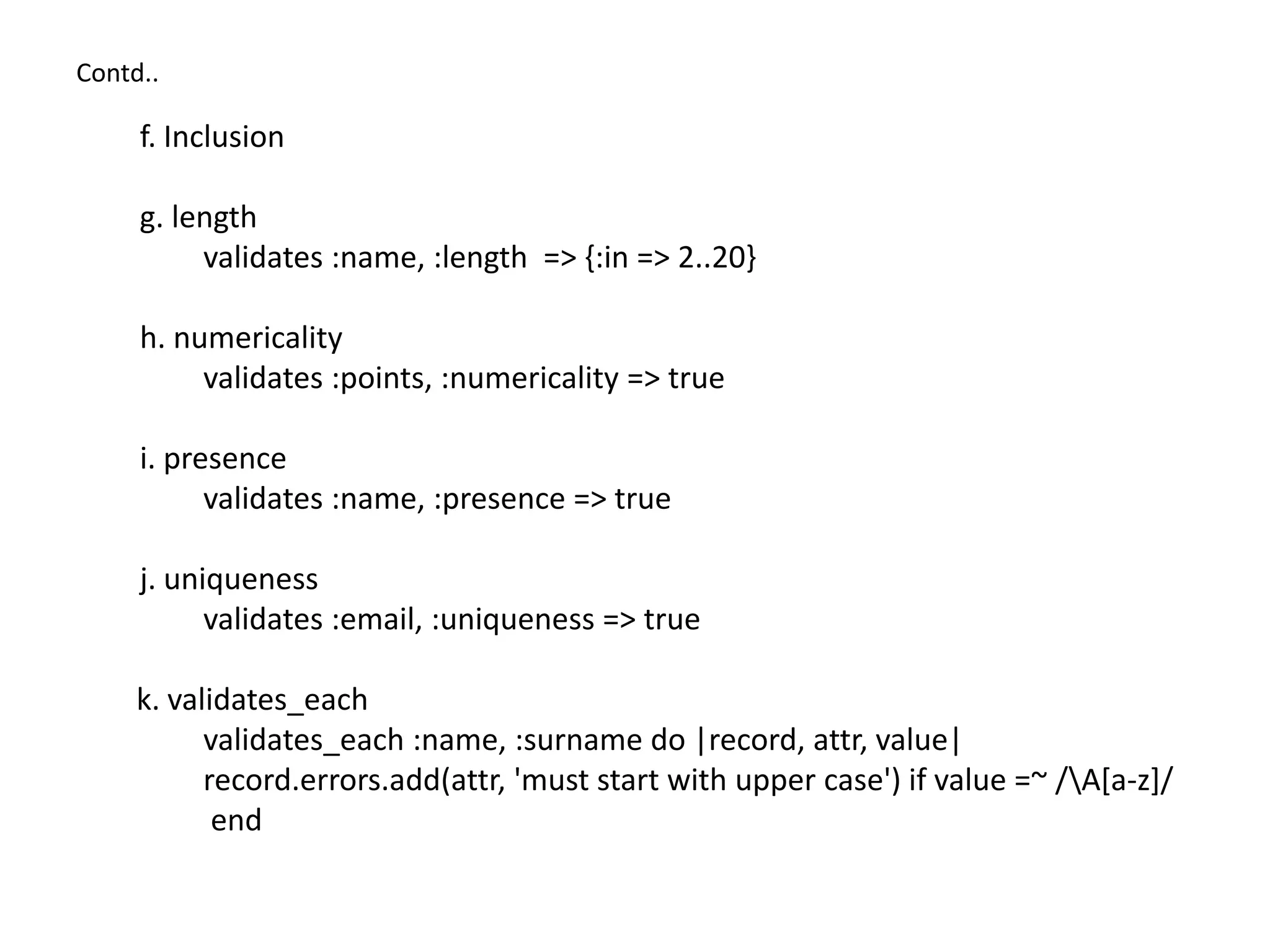

Contd.. f. Inclusion g. length validates :name, :length => {:in => 2..20} h. numericality validates :points, :numericality => true i. presence validates :name, :presence => true j. uniqueness validates :email, :uniqueness => true k. validates_each validates_each :name, :surname do |record, attr, value| record.errors.add(attr, 'must start with upper case') if value =~ /A[a-z]/ end

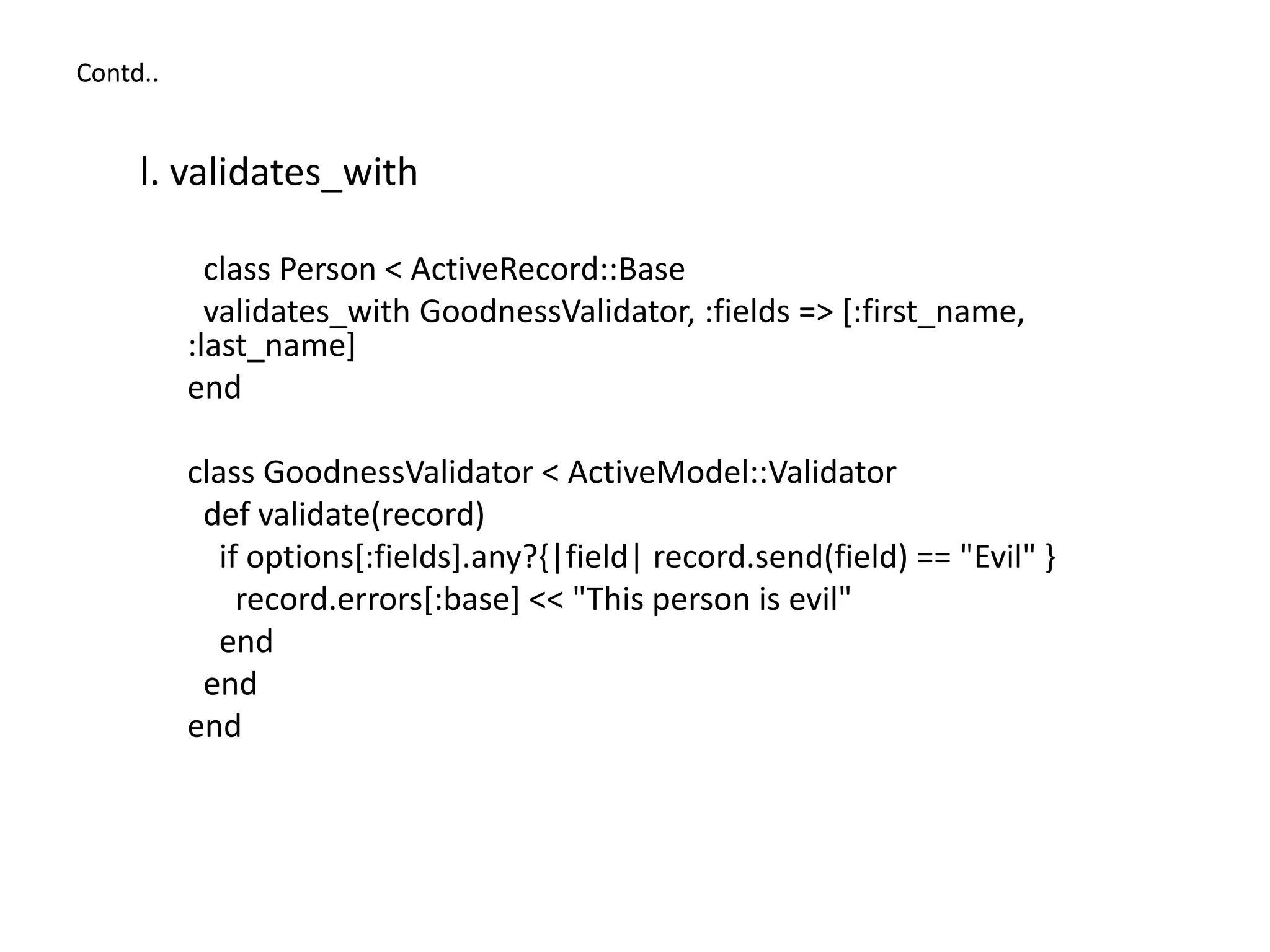

Contd.. l. validates_with class Person < ActiveRecord::Base validates_with GoodnessValidator, :fields => [:first_name, :last_name] end class GoodnessValidator < ActiveModel::Validator def validate(record) if options[:fields].any?{|field| record.send(field) == "Evil" } record.errors[:base] << "This person is evil" end end end

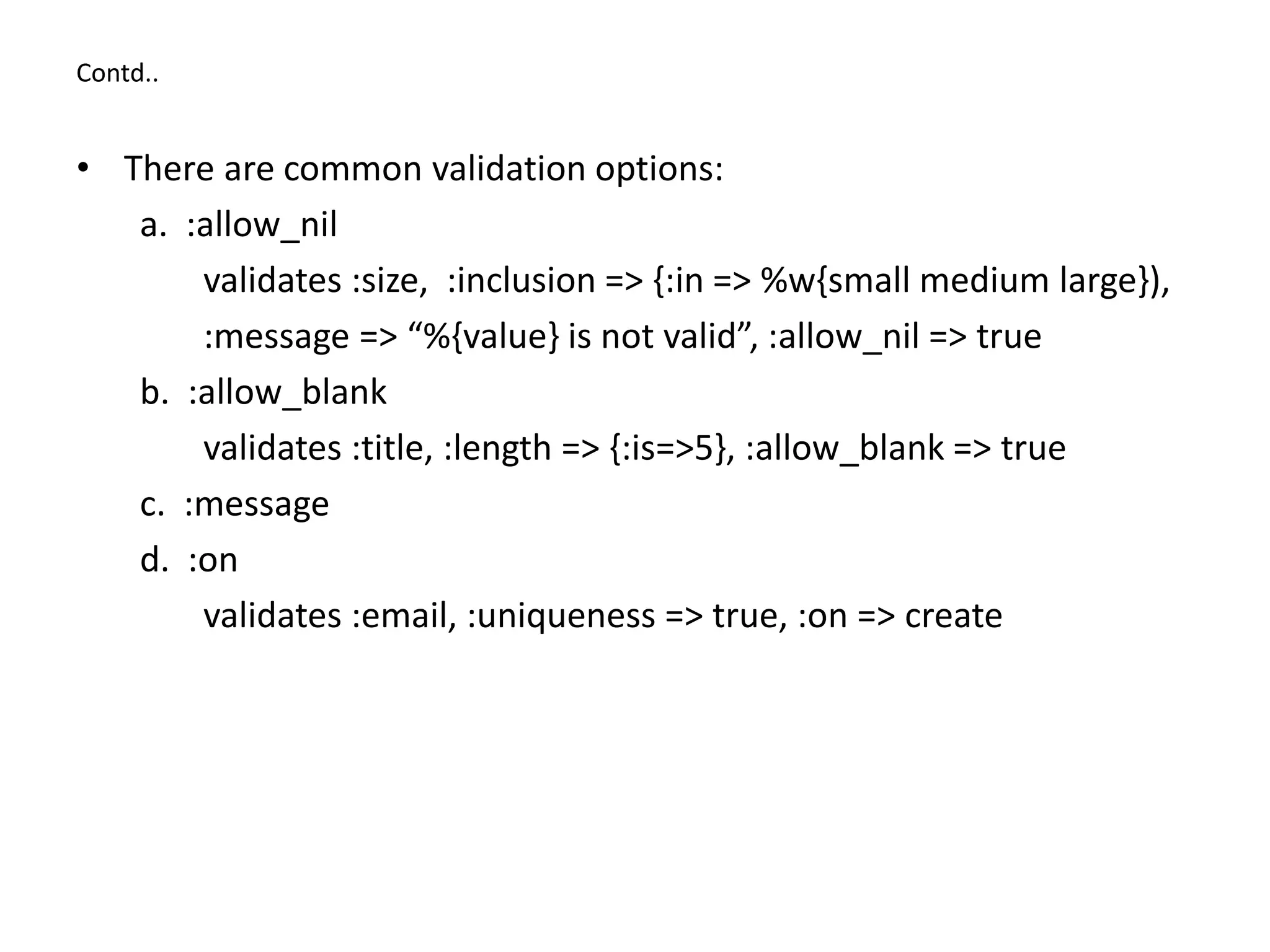

Contd.. • There are common validation options: a. :allow_nil validates :size, :inclusion => {:in => %w{small medium large}), :message => “%{value} is not valid”, :allow_nil => true b. :allow_blank validates :title, :length => {:is=>5}, :allow_blank => true c. :message d. :on validates :email, :uniqueness => true, :on => create

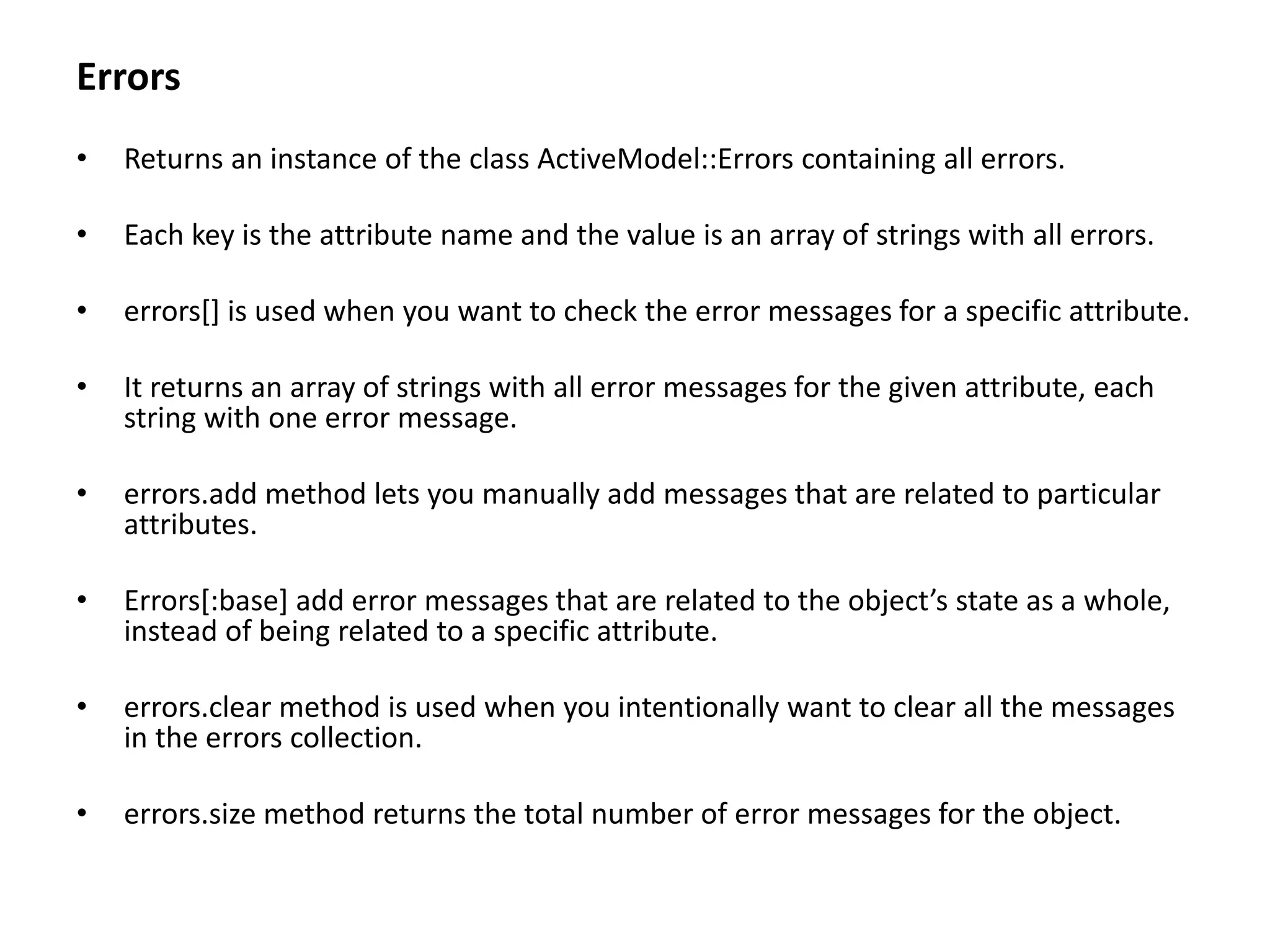

Errors • Returns an instance of the class ActiveModel::Errors containing all errors. • Each key is the attribute name and the value is an array of strings with all errors. • errors[] is used when you want to check the error messages for a specific attribute. • It returns an array of strings with all error messages for the given attribute, each string with one error message. • errors.add method lets you manually add messages that are related to particular attributes. • Errors[:base] add error messages that are related to the object’s state as a whole, instead of being related to a specific attribute. • errors.clear method is used when you intentionally want to clear all the messages in the errors collection. • errors.size method returns the total number of error messages for the object.

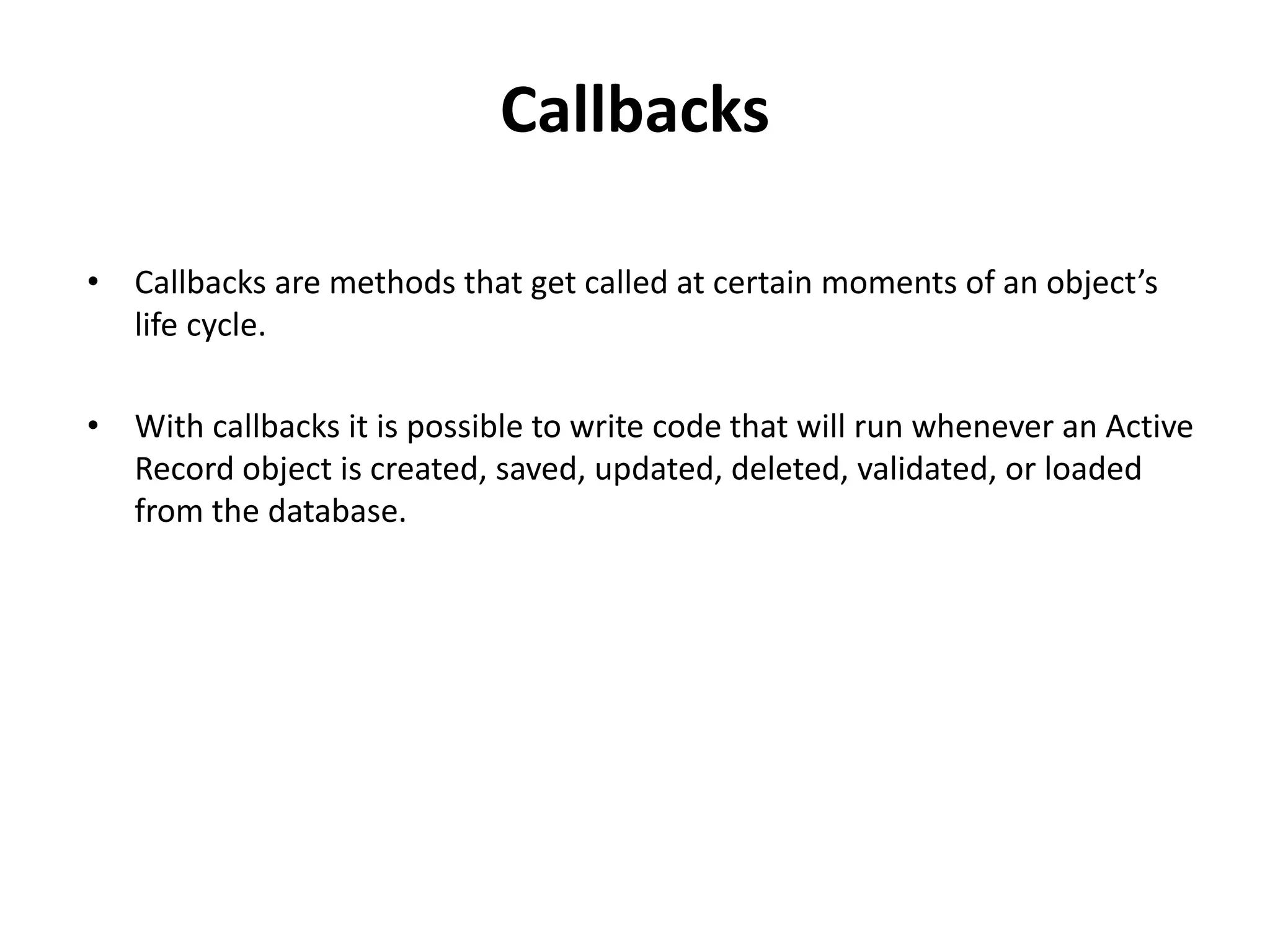

Callbacks • Callbacks are methods that get called at certain moments of an object’s life cycle. • With callbacks it is possible to write code that will run whenever an Active Record object is created, saved, updated, deleted, validated, or loaded from the database.

Contd.. Callback Registration • In order to use available callbacks, you need to register them. before_validation :ensure_login_has_a_value protected def ensure_login_has_a_value if login.nil? self.login = email unless email.blank? end End • You can implement the callbacks as ordinary methods and use a macro- style class method to register them as callback. before_create do |user| user.name = user.login.capitalize if user.name.blank? end

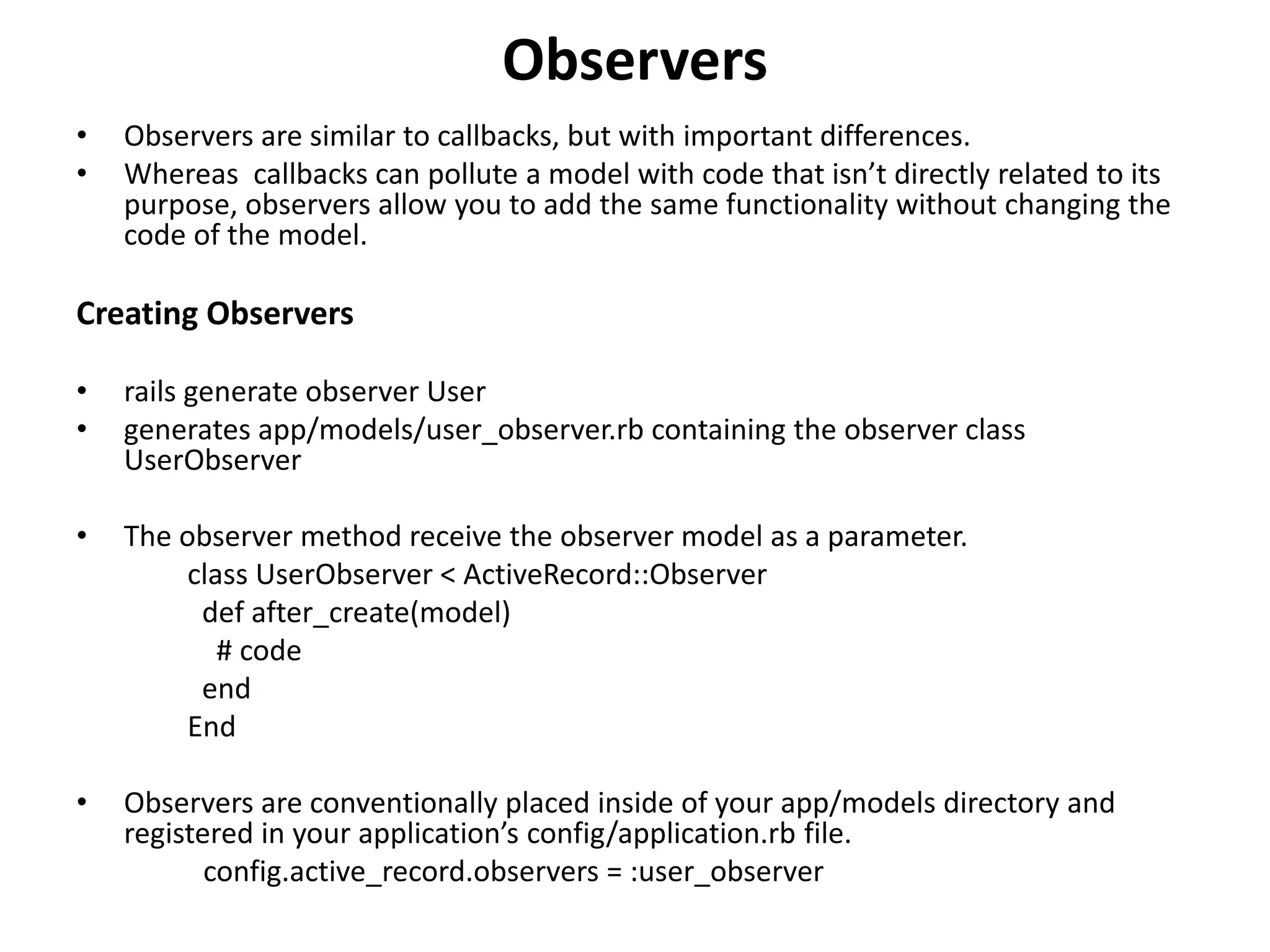

Observers • Observers are similar to callbacks, but with important differences. • Whereas callbacks can pollute a model with code that isn’t directly related to its purpose, observers allow you to add the same functionality without changing the code of the model. Creating Observers • rails generate observer User • generates app/models/user_observer.rb containing the observer class UserObserver • The observer method receive the observer model as a parameter. class UserObserver < ActiveRecord::Observer def after_create(model) # code end End • Observers are conventionally placed inside of your app/models directory and registered in your application’s config/application.rb file. config.active_record.observers = :user_observer

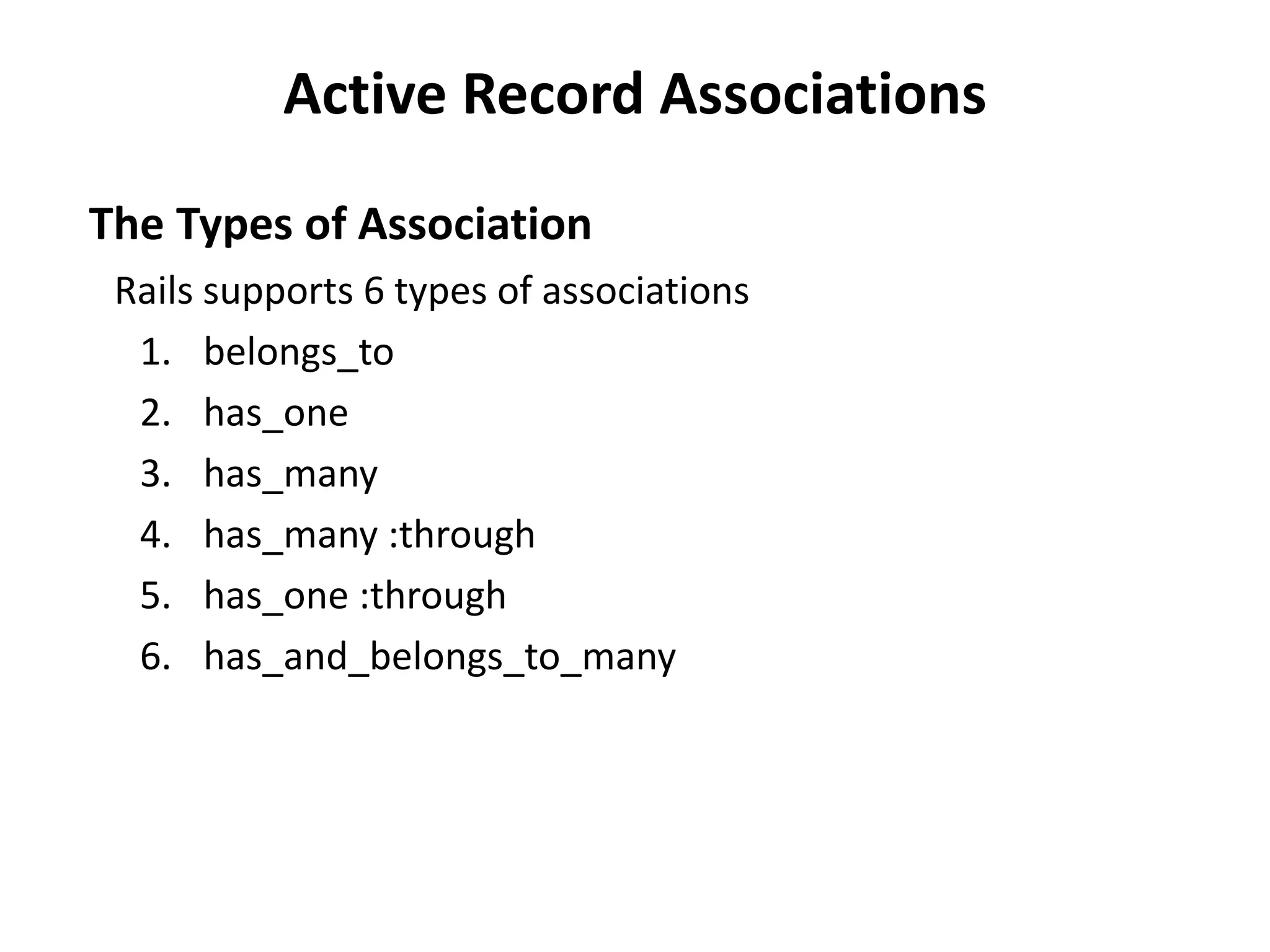

Active Record Associations The Types of Association Rails supports 6 types of associations 1. belongs_to 2. has_one 3. has_many 4. has_many :through 5. has_one :through 6. has_and_belongs_to_many

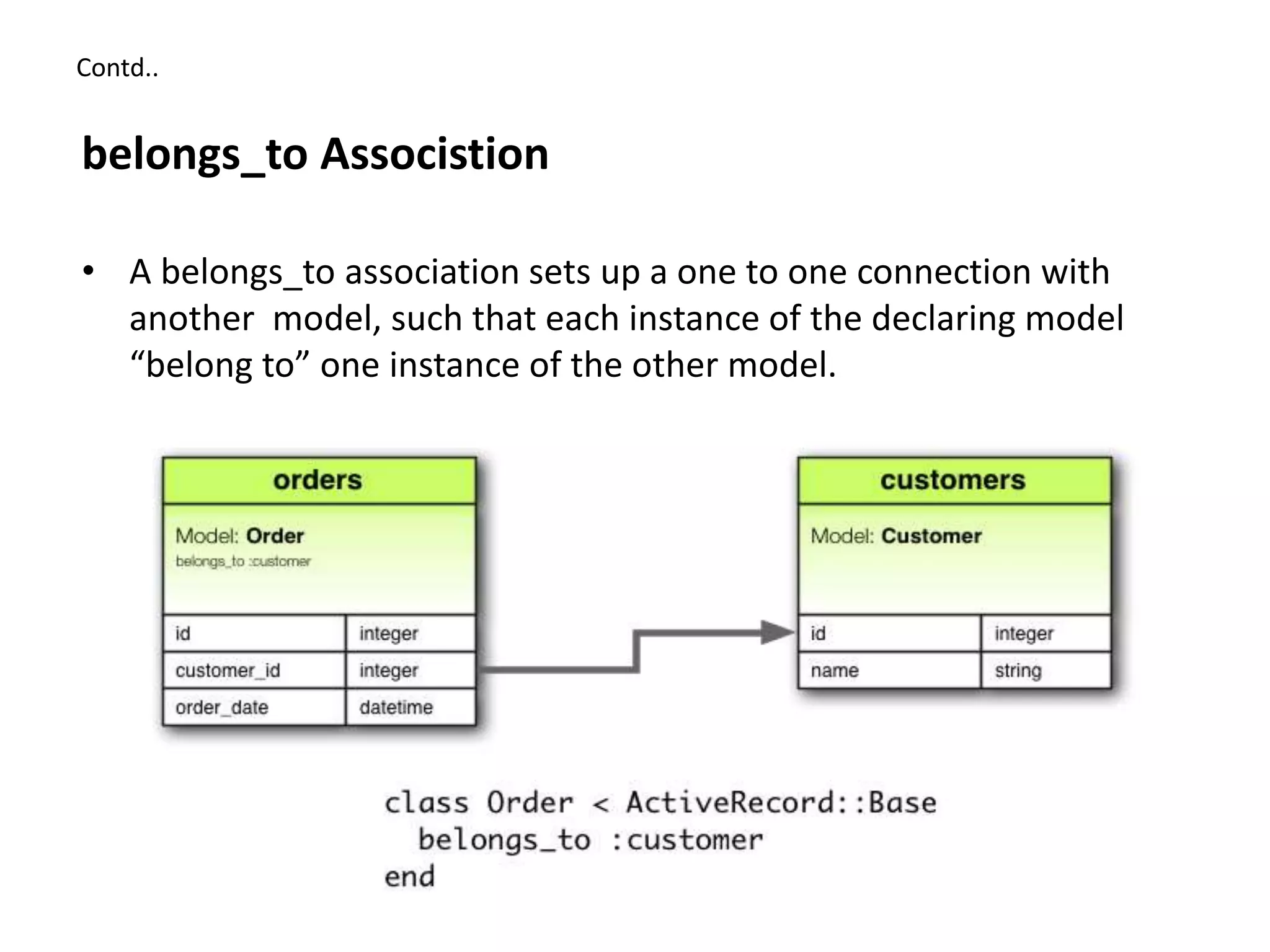

Contd.. belongs_to Associstion • A belongs_to association sets up a one to one connection with another model, such that each instance of the declaring model “belong to” one instance of the other model.

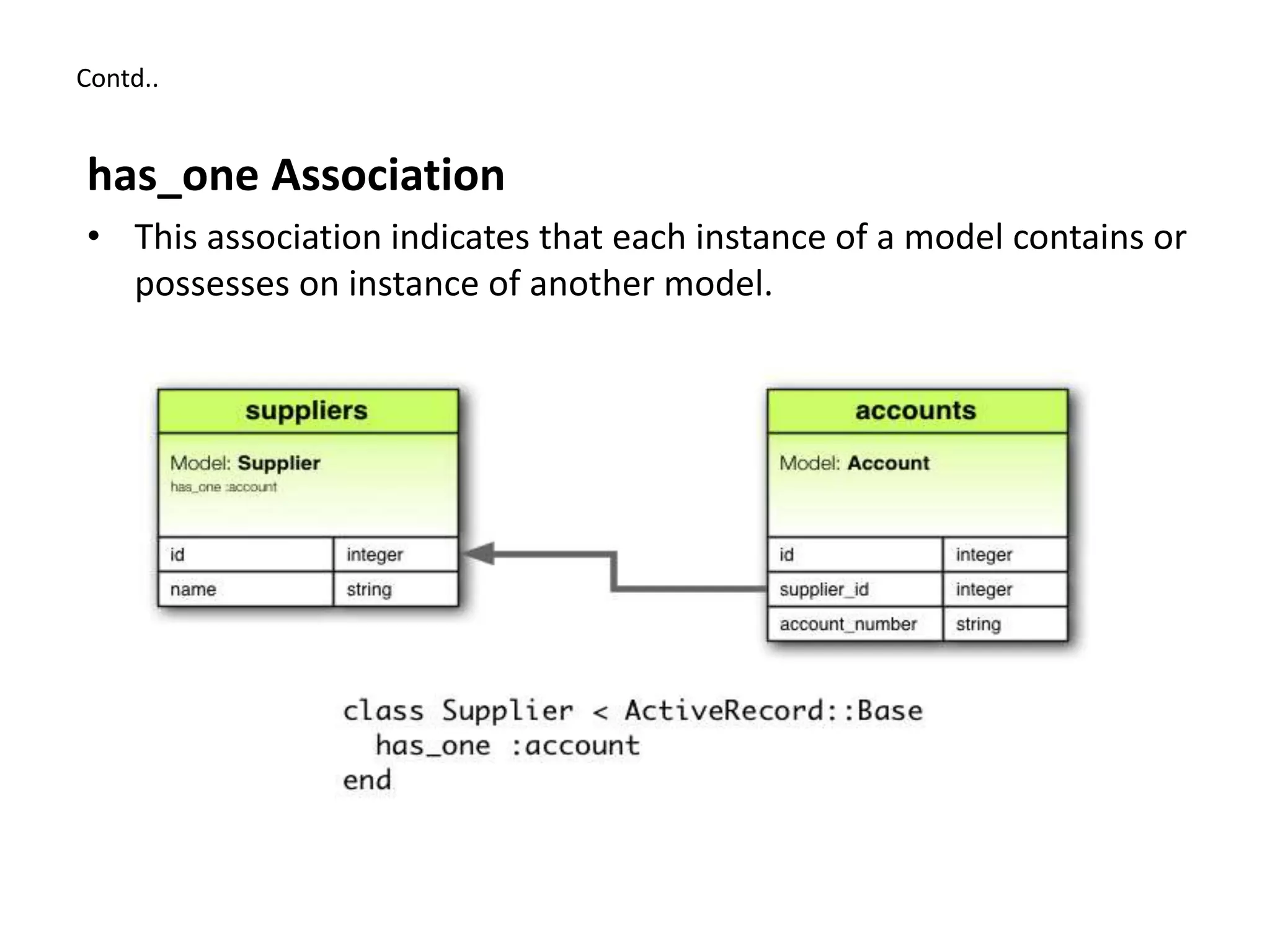

Contd.. has_one Association • This association indicates that each instance of a model contains or possesses on instance of another model.

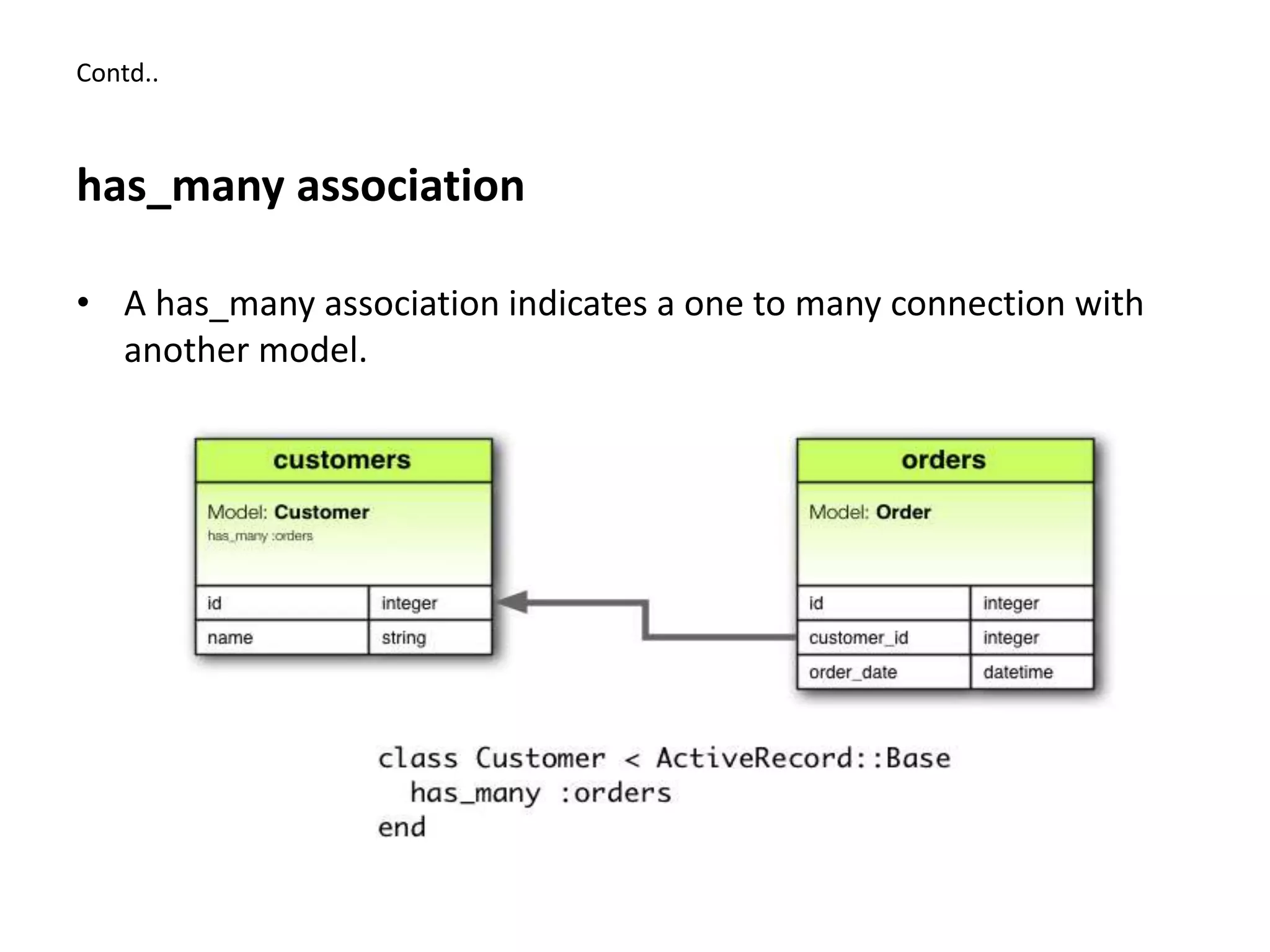

Contd.. has_many association • A has_many association indicates a one to many connection with another model.

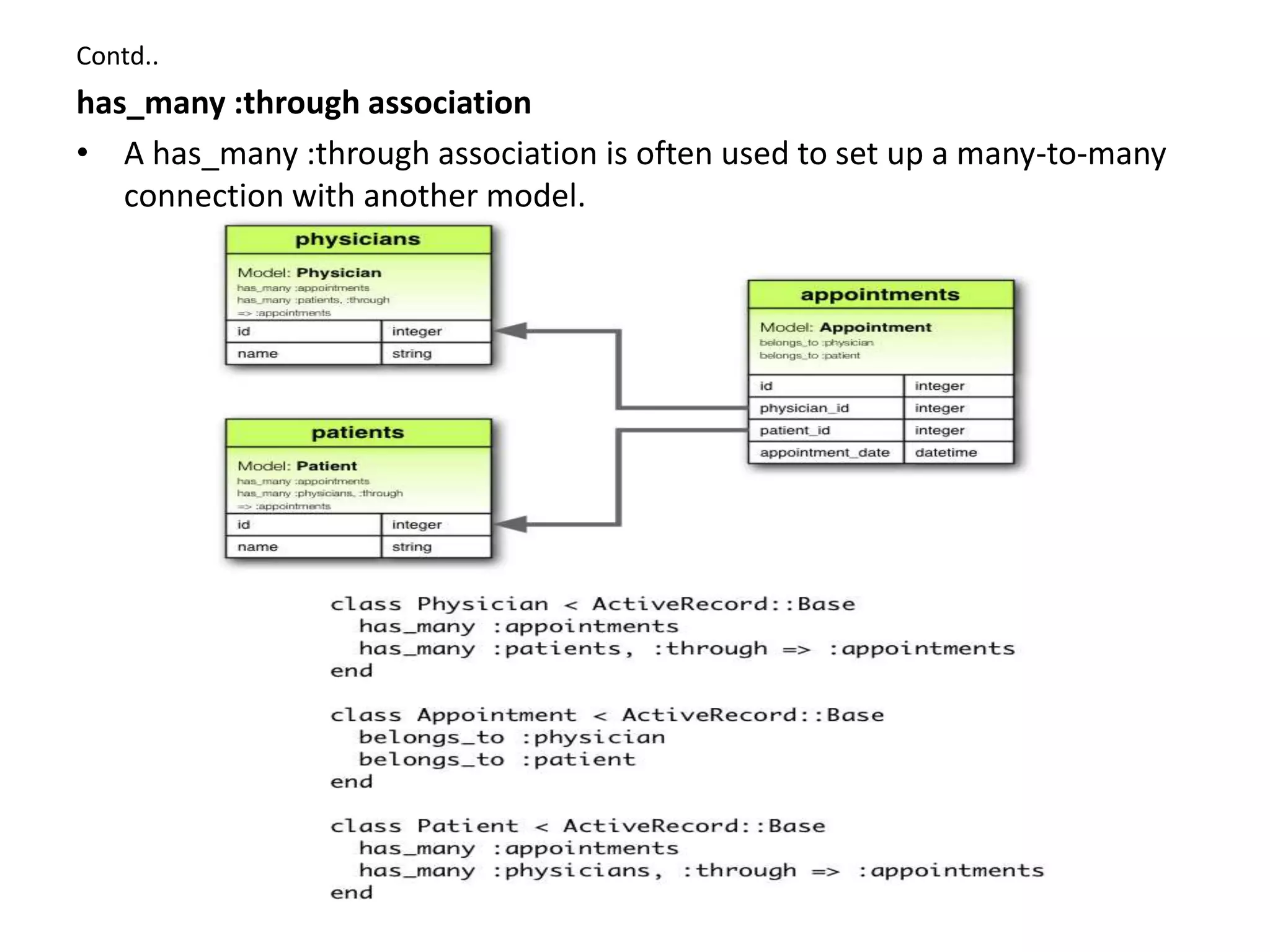

Contd.. has_many :through association • A has_many :through association is often used to set up a many-to-many connection with another model.

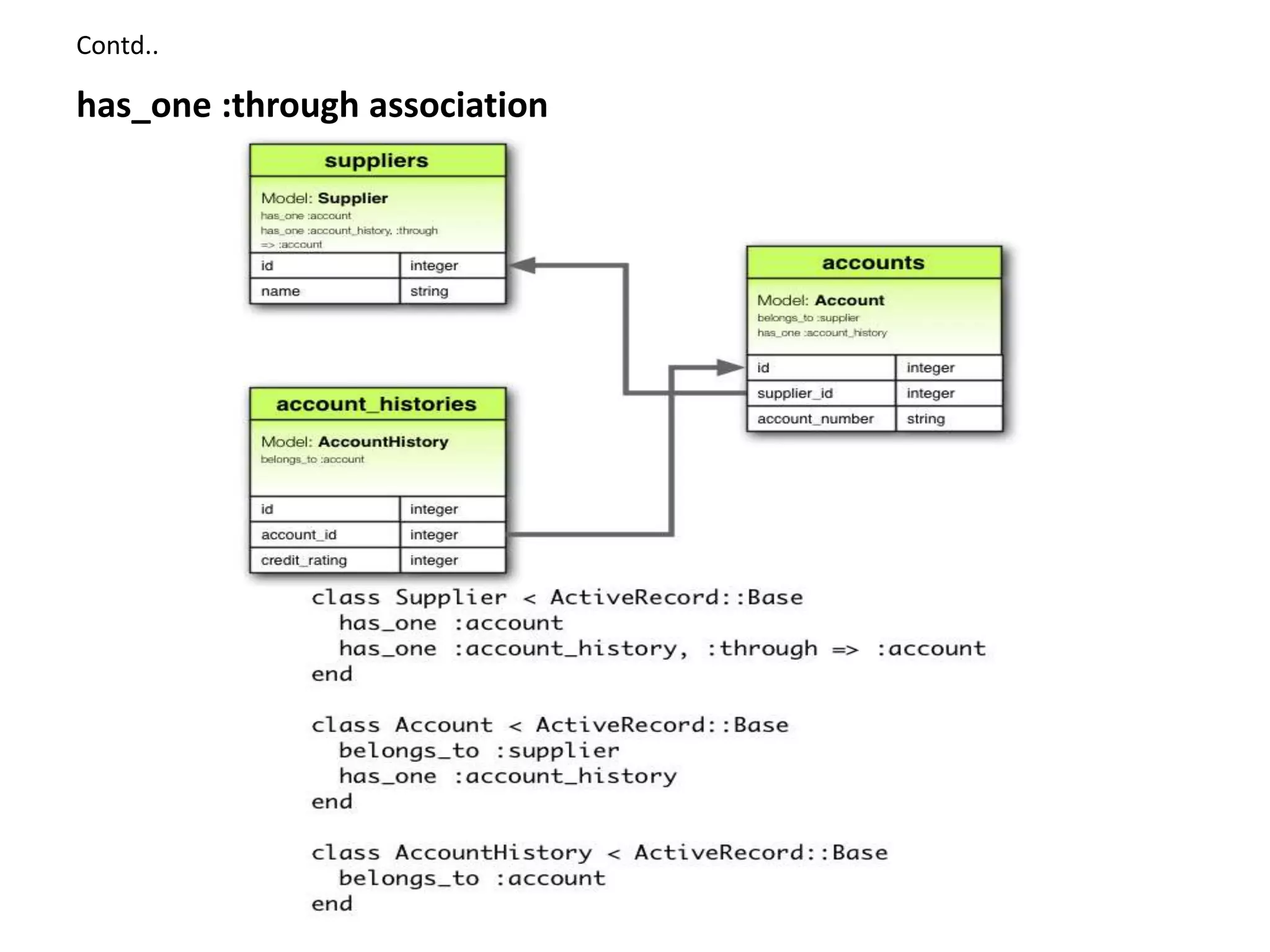

Contd.. has_one :through association

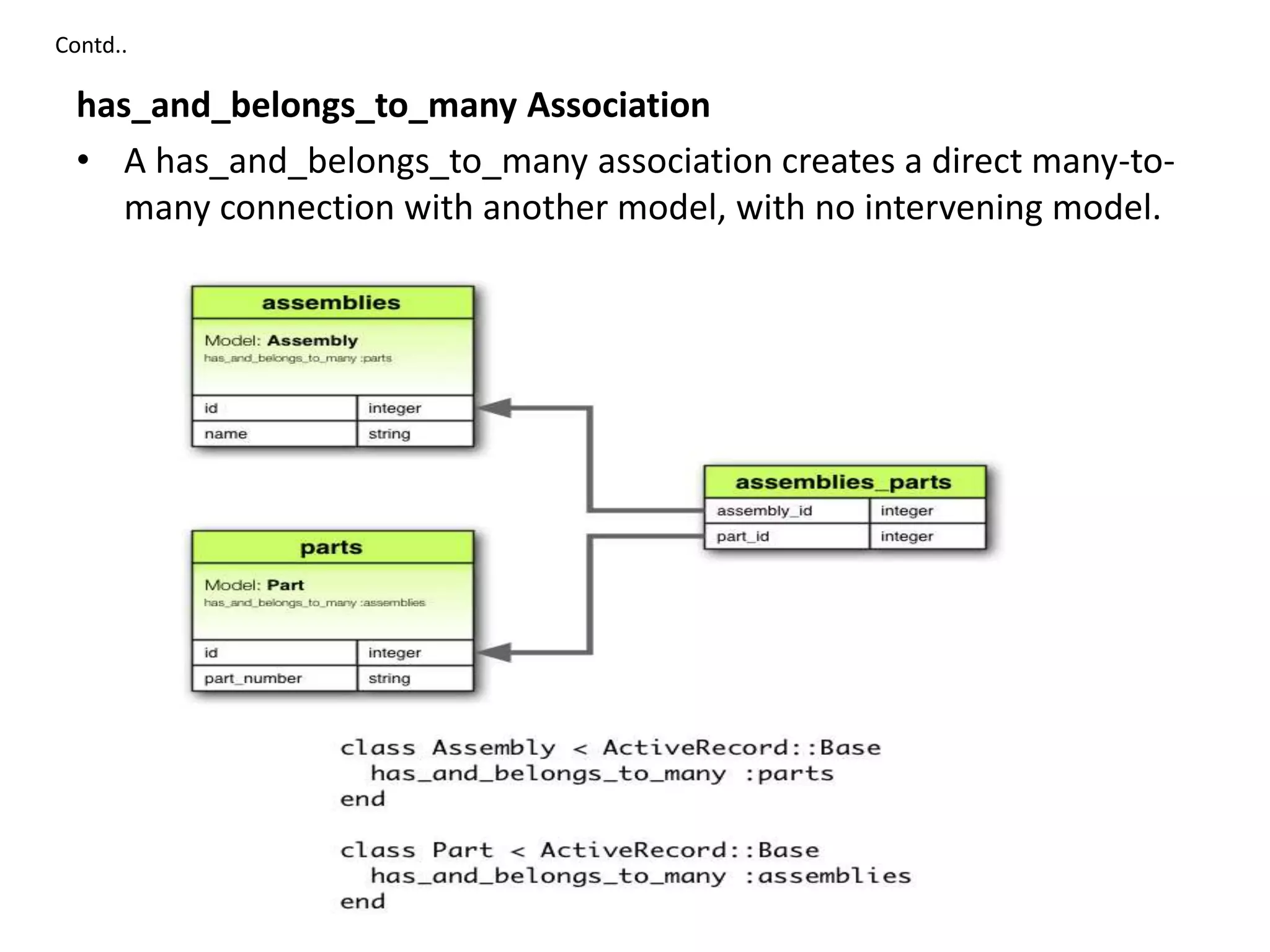

Contd.. has_and_belongs_to_many Association • A has_and_belongs_to_many association creates a direct many-to- many connection with another model, with no intervening model.

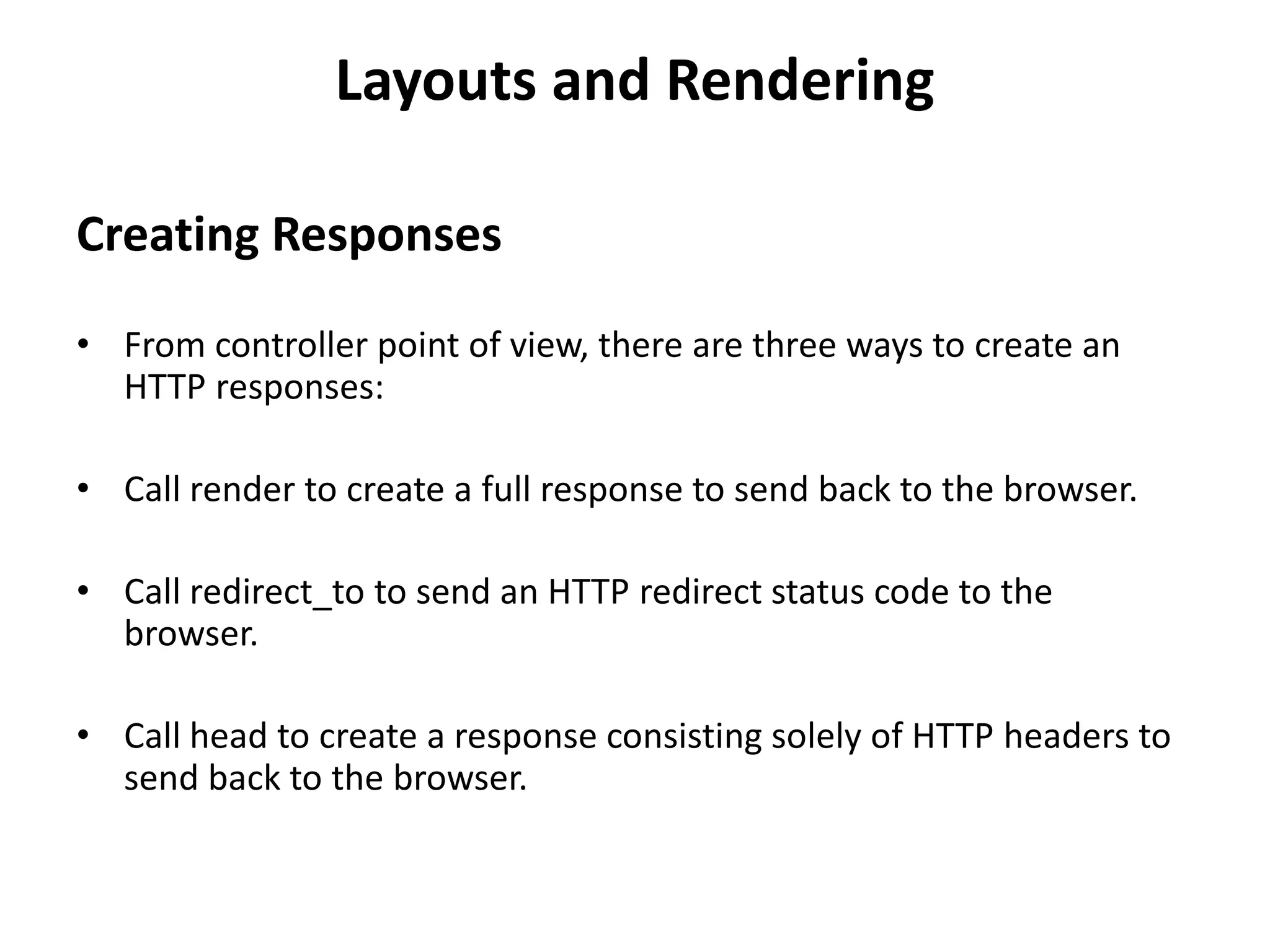

Layouts and Rendering Creating Responses • From controller point of view, there are three ways to create an HTTP responses: • Call render to create a full response to send back to the browser. • Call redirect_to to send an HTTP redirect status code to the browser. • Call head to create a response consisting solely of HTTP headers to send back to the browser.

Contd.. • Rendering by Default: Convention over Configuration • Using render • Render Nothing render :nothing => true • Render an Action view If you want to render the view that corresponds to a different action within the same template. • Rendering actions Template from another controller render ‘products/show’ or render :template => ‘products/show’ • Rendering an Arbitrary file render :file => ‘apps/warehouse/app/views/products/show’ By default, the file is rendered without using the current layout. If you want rails to put the file into the current layout, you need to add the :layout =>true option.

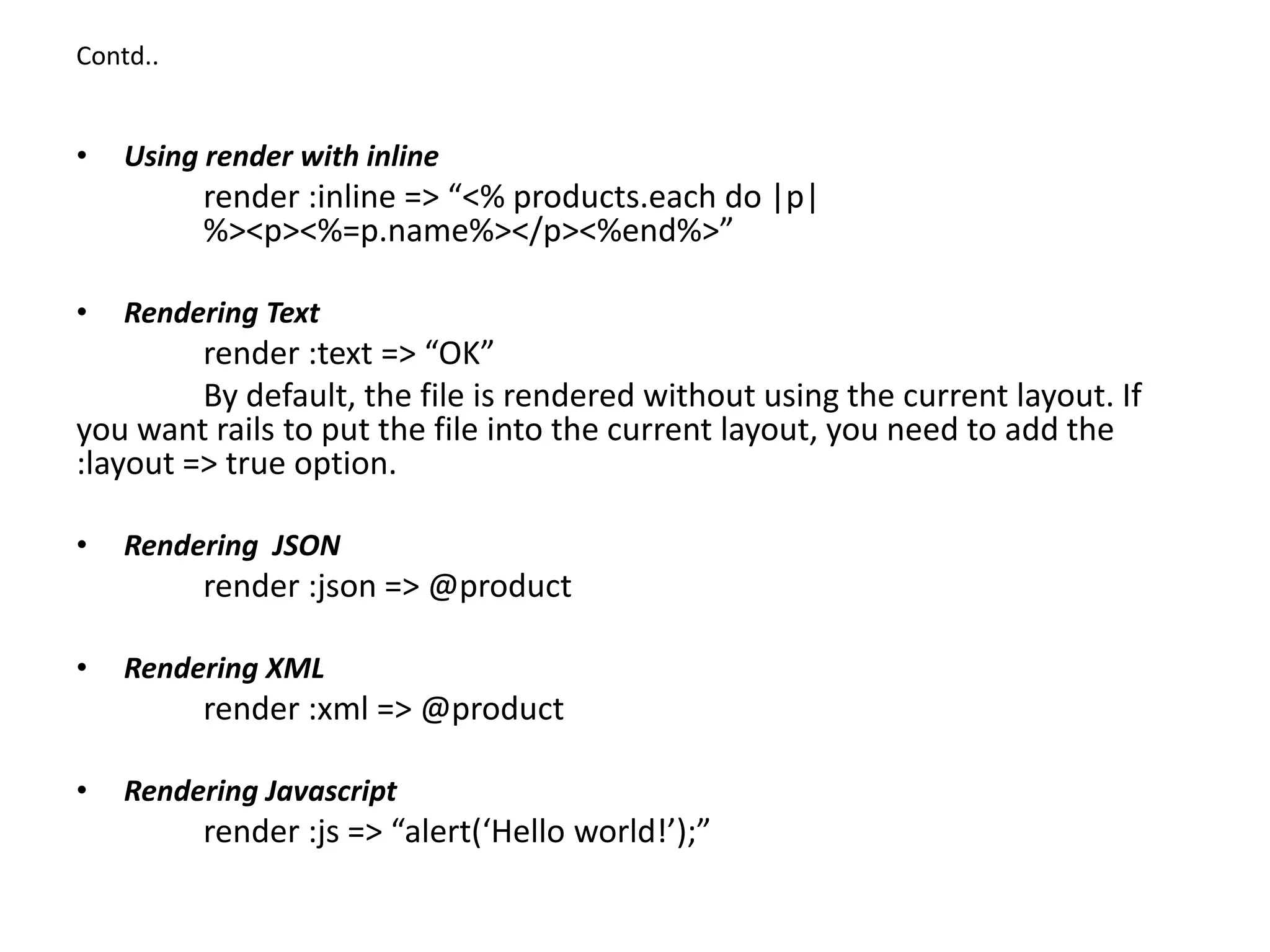

Contd.. • Using render with inline render :inline => “<% products.each do |p| %><p><%=p.name%></p><%end%>” • Rendering Text render :text => “OK” By default, the file is rendered without using the current layout. If you want rails to put the file into the current layout, you need to add the :layout => true option. • Rendering JSON render :json => @product • Rendering XML render :xml => @product • Rendering Javascript render :js => “alert(‘Hello world!’);”

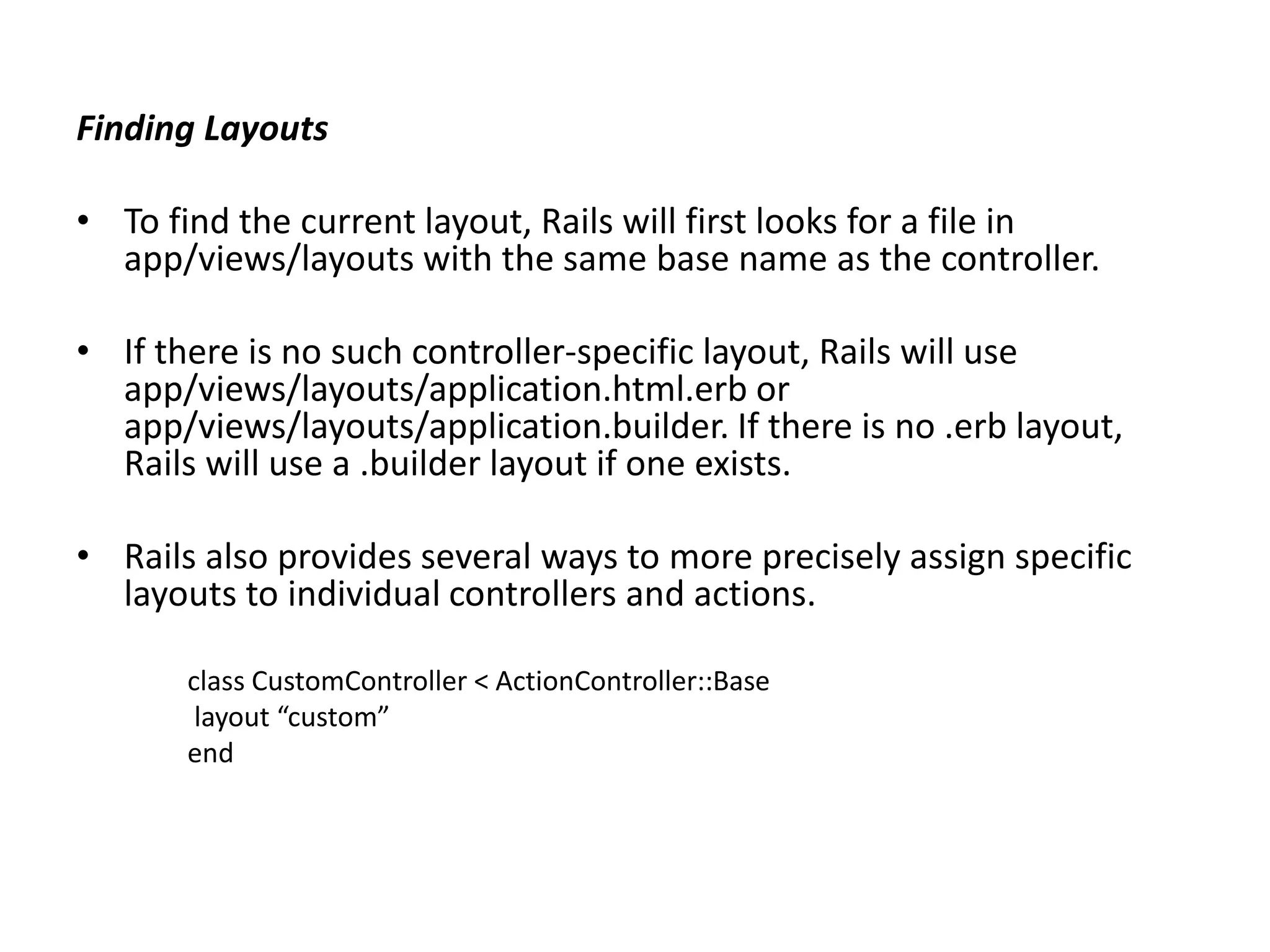

Finding Layouts • To find the current layout, Rails will first looks for a file in app/views/layouts with the same base name as the controller. • If there is no such controller-specific layout, Rails will use app/views/layouts/application.html.erb or app/views/layouts/application.builder. If there is no .erb layout, Rails will use a .builder layout if one exists. • Rails also provides several ways to more precisely assign specific layouts to individual controllers and actions. class CustomController < ActionController::Base layout “custom” end

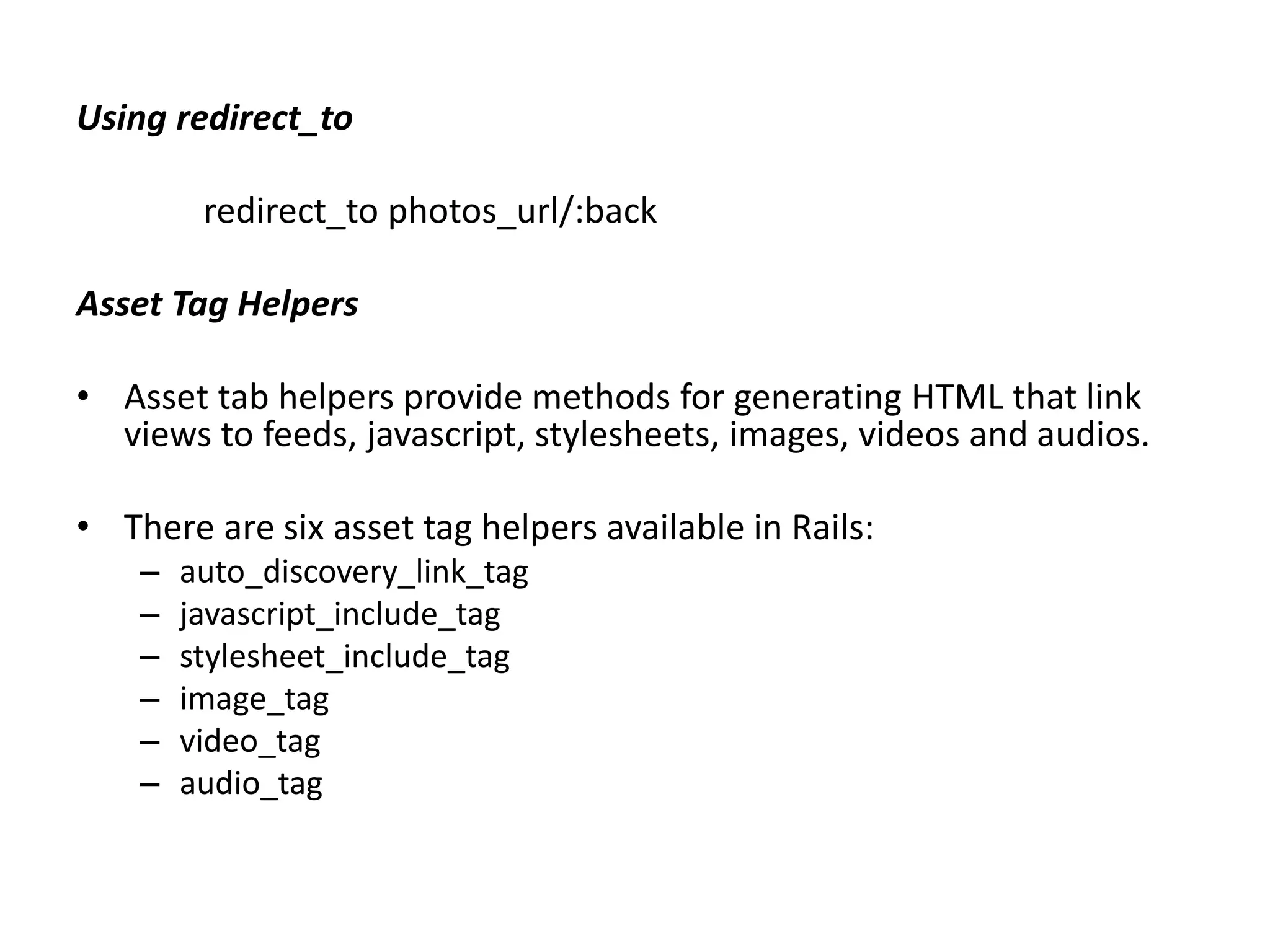

Using redirect_to redirect_to photos_url/:back Asset Tag Helpers • Asset tab helpers provide methods for generating HTML that link views to feeds, javascript, stylesheets, images, videos and audios. • There are six asset tag helpers available in Rails: – auto_discovery_link_tag – javascript_include_tag – stylesheet_include_tag – image_tag – video_tag – audio_tag

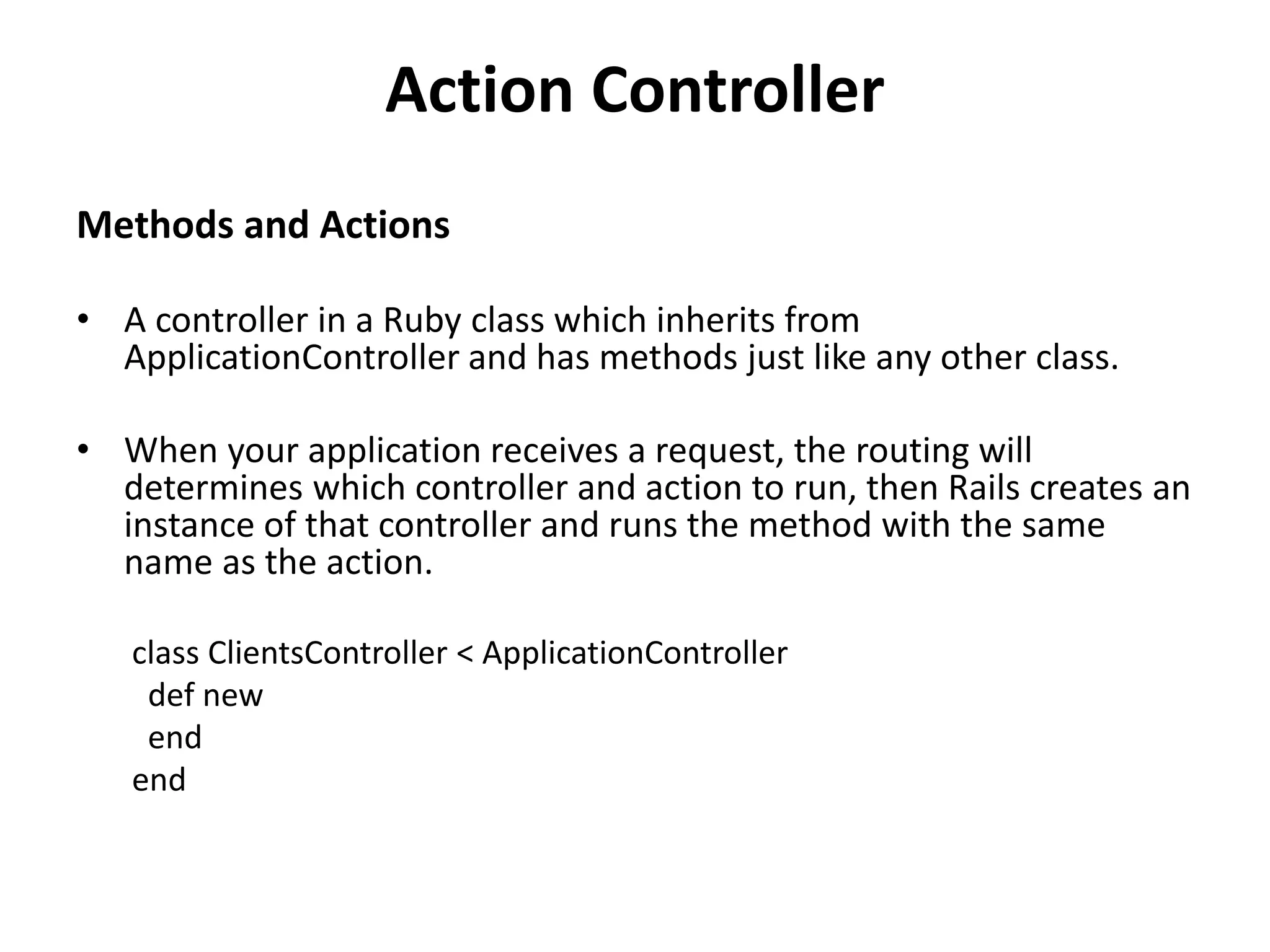

Action Controller Methods and Actions • A controller in a Ruby class which inherits from ApplicationController and has methods just like any other class. • When your application receives a request, the routing will determines which controller and action to run, then Rails creates an instance of that controller and runs the method with the same name as the action. class ClientsController < ApplicationController def new end end

Parameters • You will probably want to access the data sent by the user or other parameters in your controller actions. • There are two types of parameters – Query string parameters – POST data • These parameters are accessible from params. • Hash and Array Pararmeters • JSON/XML Parameters • Routing parameters • ##002#

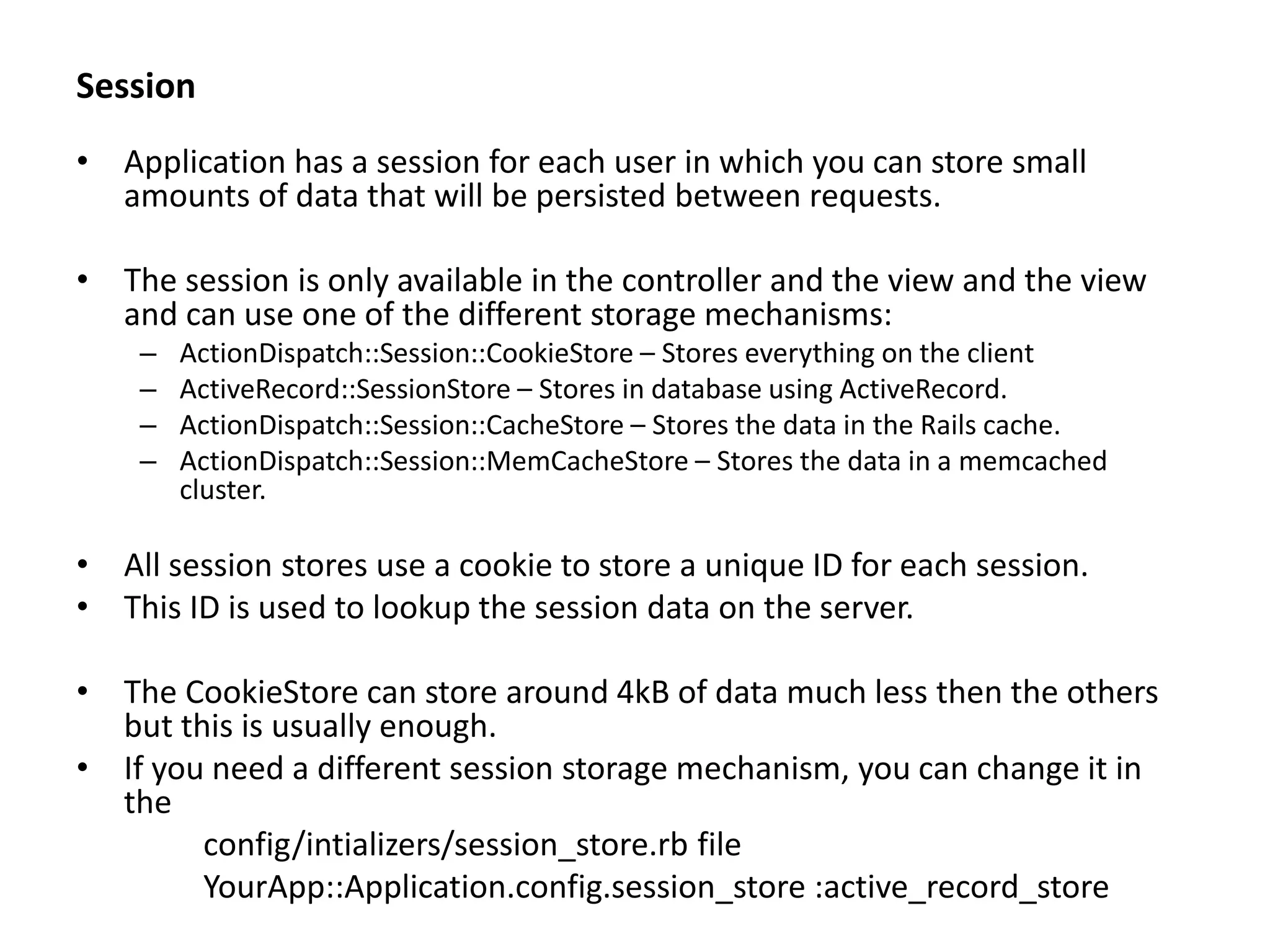

Session • Application has a session for each user in which you can store small amounts of data that will be persisted between requests. • The session is only available in the controller and the view and the view and can use one of the different storage mechanisms: – ActionDispatch::Session::CookieStore – Stores everything on the client – ActiveRecord::SessionStore – Stores in database using ActiveRecord. – ActionDispatch::Session::CacheStore – Stores the data in the Rails cache. – ActionDispatch::Session::MemCacheStore – Stores the data in a memcached cluster. • All session stores use a cookie to store a unique ID for each session. • This ID is used to lookup the session data on the server. • The CookieStore can store around 4kB of data much less then the others but this is usually enough. • If you need a different session storage mechanism, you can change it in the config/intializers/session_store.rb file YourApp::Application.config.session_store :active_record_store

Accessing the session • In controller the sessions can be accessed through the session instance method. • Session values are stored using key/value pairs like a hash class ApplicationController < ActionController::Base private def current_user @current_user ||= session[:current_user_id] && User.find(session[:current_user_id]) end end

The flash • The flash is a special part of the session which is cleared with each request. • This means that values stored there will only be available in the next request, which is useful for storing error messages etc. • It is accessed in much the same way as the session. def destroy session[:current_user_id] = nil flash[:notice] = “You have been logged out successfully” redirect_to root_url End • By default, adding values to flash makes them available to the next request, but sometimes you may want to access those values in the same request.

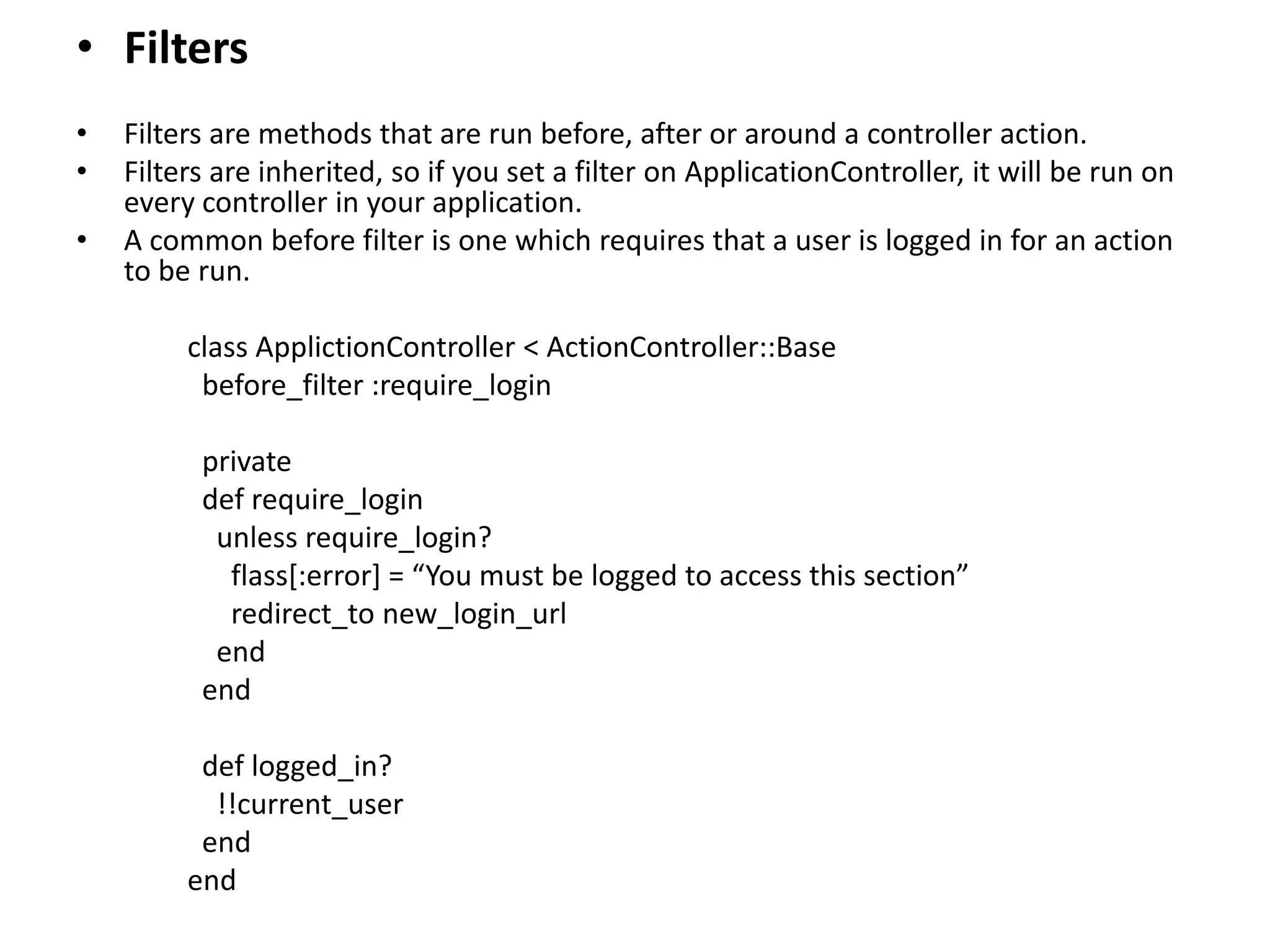

• Filters • Filters are methods that are run before, after or around a controller action. • Filters are inherited, so if you set a filter on ApplicationController, it will be run on every controller in your application. • A common before filter is one which requires that a user is logged in for an action to be run. class ApplictionController < ActionController::Base before_filter :require_login private def require_login unless require_login? flass[:error] = “You must be logged to access this section” redirect_to new_login_url end end def logged_in? !!current_user end end

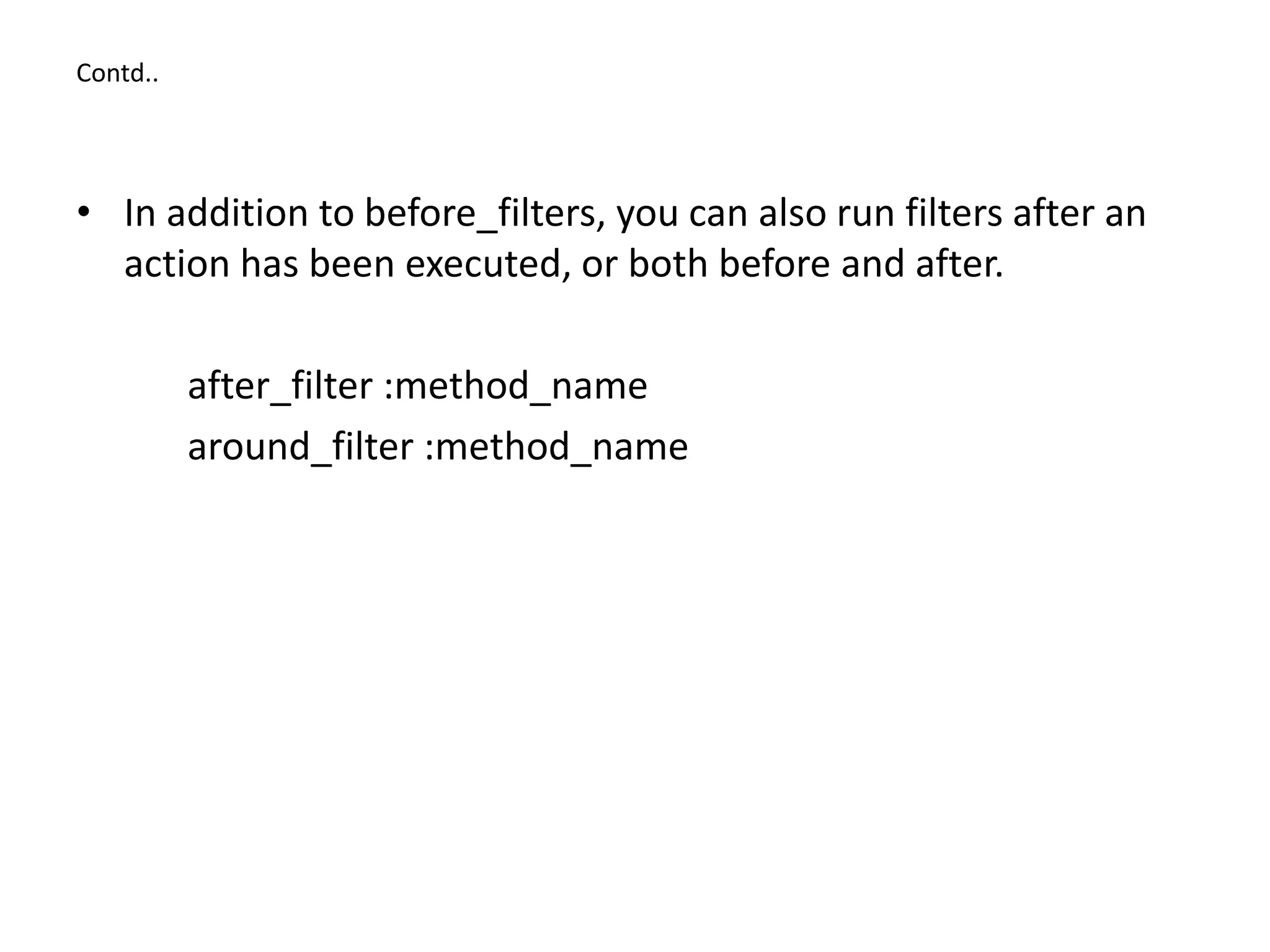

Contd.. • In addition to before_filters, you can also run filters after an action has been executed, or both before and after. after_filter :method_name around_filter :method_name

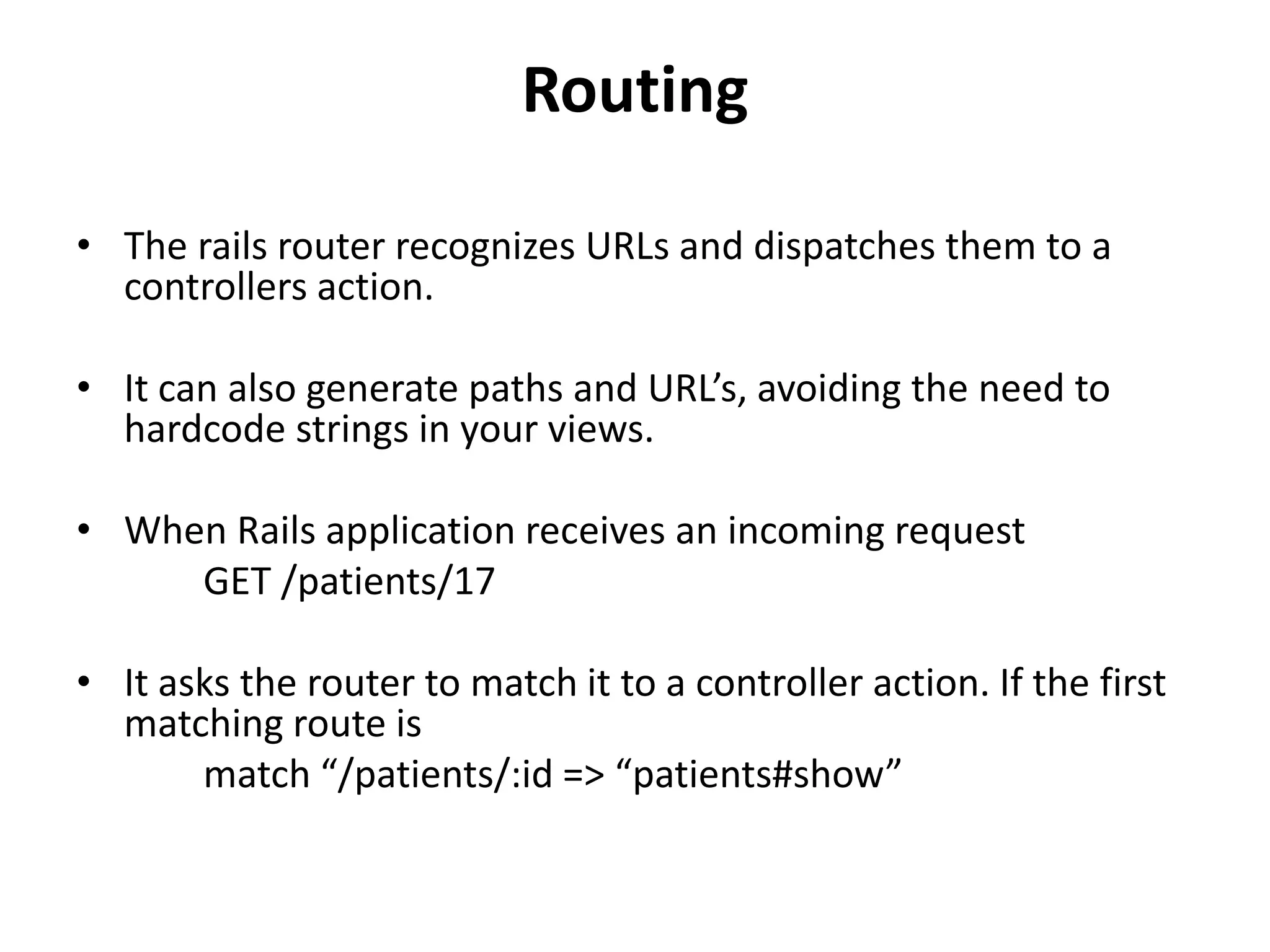

Routing • The rails router recognizes URLs and dispatches them to a controllers action. • It can also generate paths and URL’s, avoiding the need to hardcode strings in your views. • When Rails application receives an incoming request GET /patients/17 • It asks the router to match it to a controller action. If the first matching route is match “/patients/:id => “patients#show”

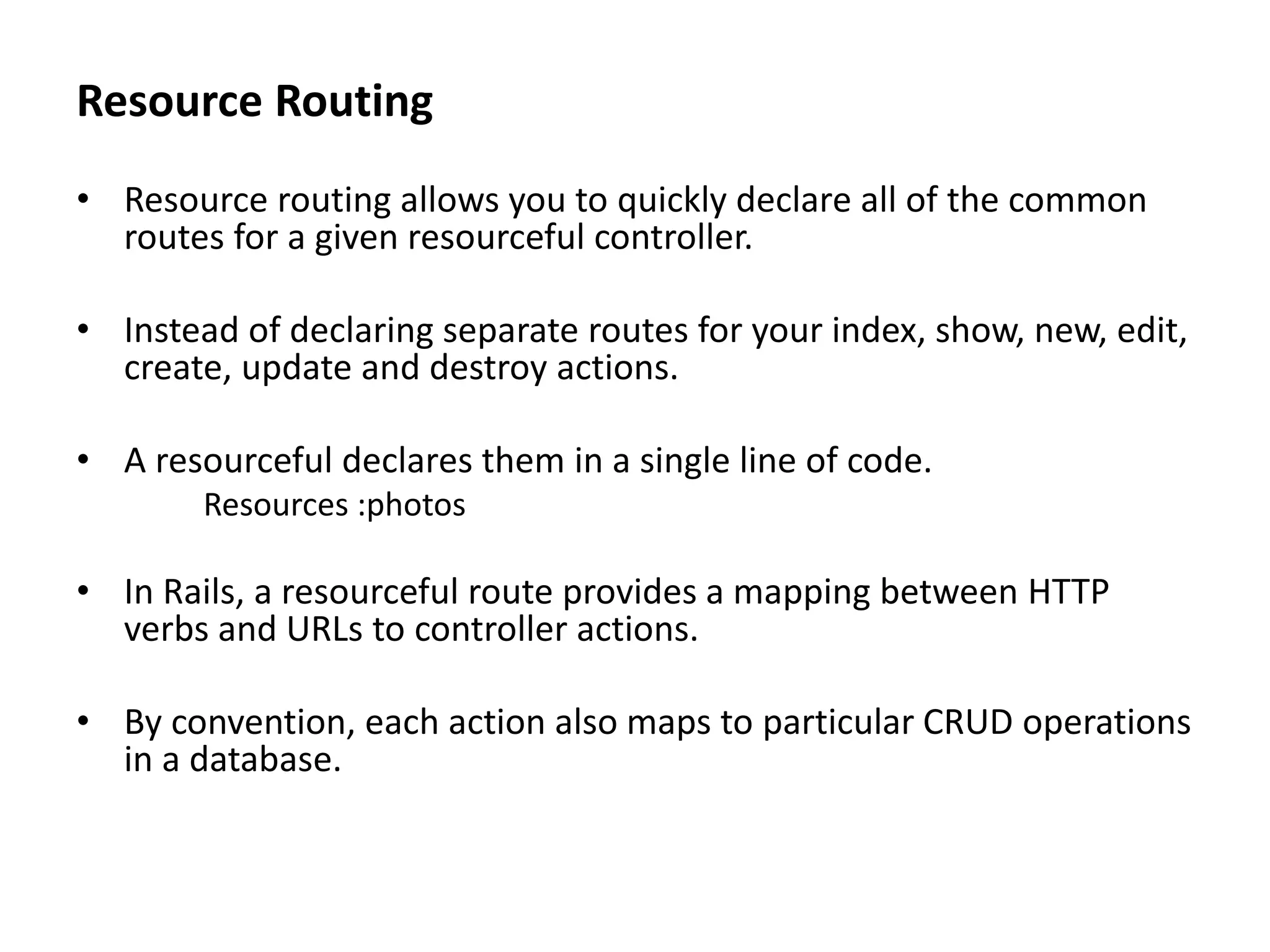

Resource Routing • Resource routing allows you to quickly declare all of the common routes for a given resourceful controller. • Instead of declaring separate routes for your index, show, new, edit, create, update and destroy actions. • A resourceful declares them in a single line of code. Resources :photos • In Rails, a resourceful route provides a mapping between HTTP verbs and URLs to controller actions. • By convention, each action also maps to particular CRUD operations in a database.

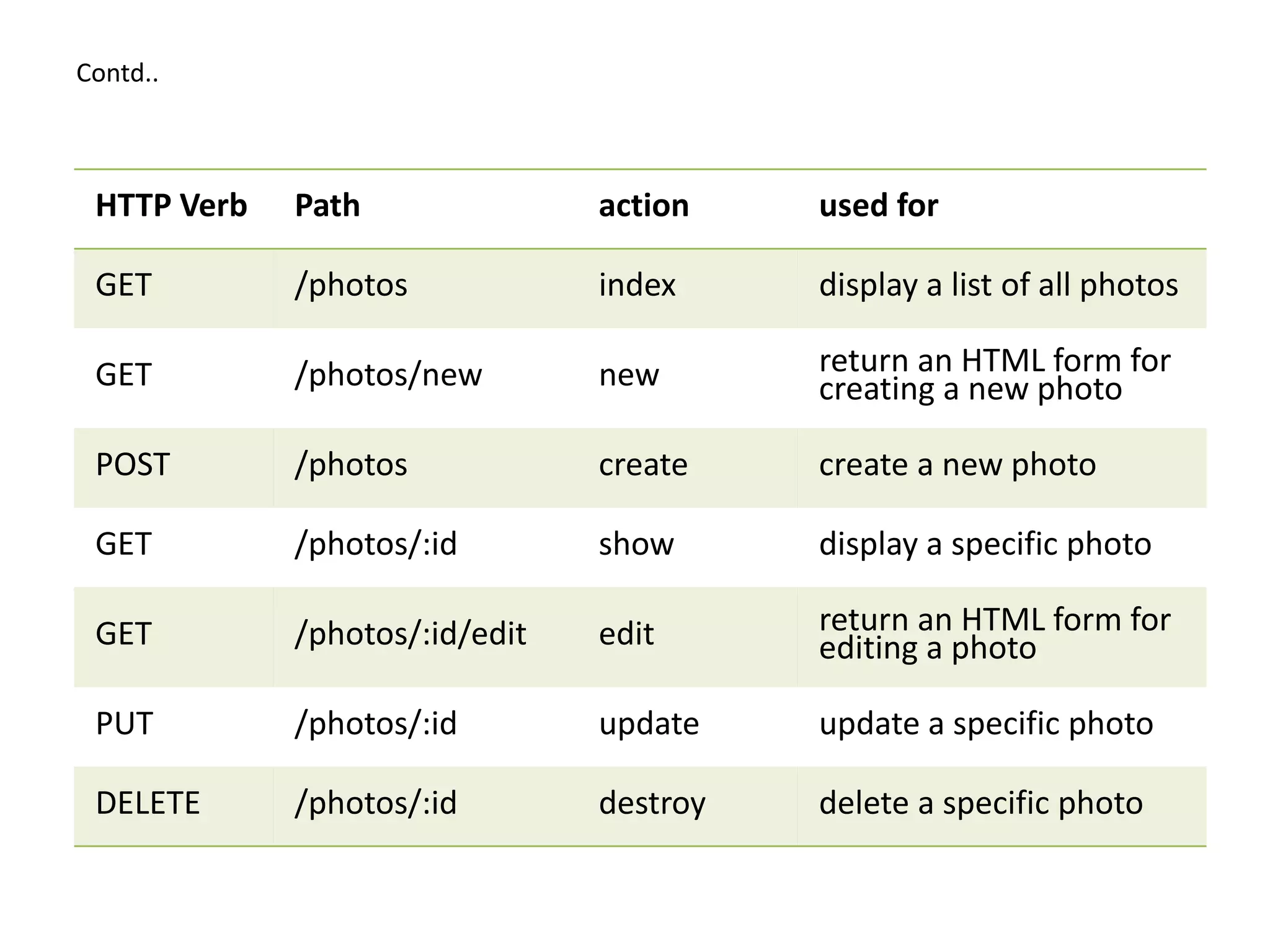

Contd.. HTTP Verb Path action used for GET /photos index display a list of all photos GET /photos/new new return an HTML form for creating a new photo POST /photos create create a new photo GET /photos/:id show display a specific photo GET /photos/:id/edit edit return an HTML form for editing a photo PUT /photos/:id update update a specific photo DELETE /photos/:id destroy delete a specific photo

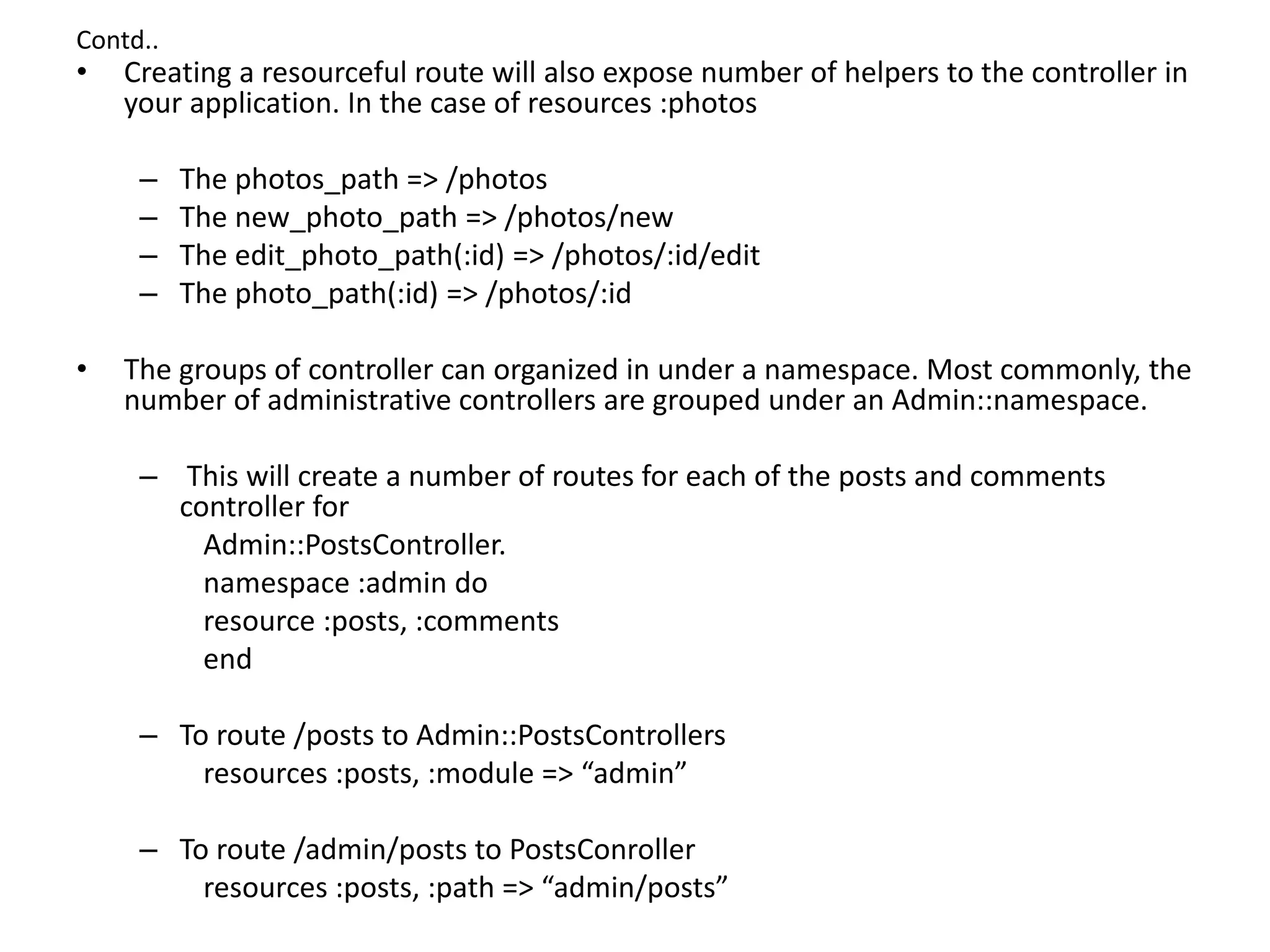

Contd.. • Creating a resourceful route will also expose number of helpers to the controller in your application. In the case of resources :photos – The photos_path => /photos – The new_photo_path => /photos/new – The edit_photo_path(:id) => /photos/:id/edit – The photo_path(:id) => /photos/:id • The groups of controller can organized in under a namespace. Most commonly, the number of administrative controllers are grouped under an Admin::namespace. – This will create a number of routes for each of the posts and comments controller for Admin::PostsController. namespace :admin do resource :posts, :comments end – To route /posts to Admin::PostsControllers resources :posts, :module => “admin” – To route /admin/posts to PostsConroller resources :posts, :path => “admin/posts”

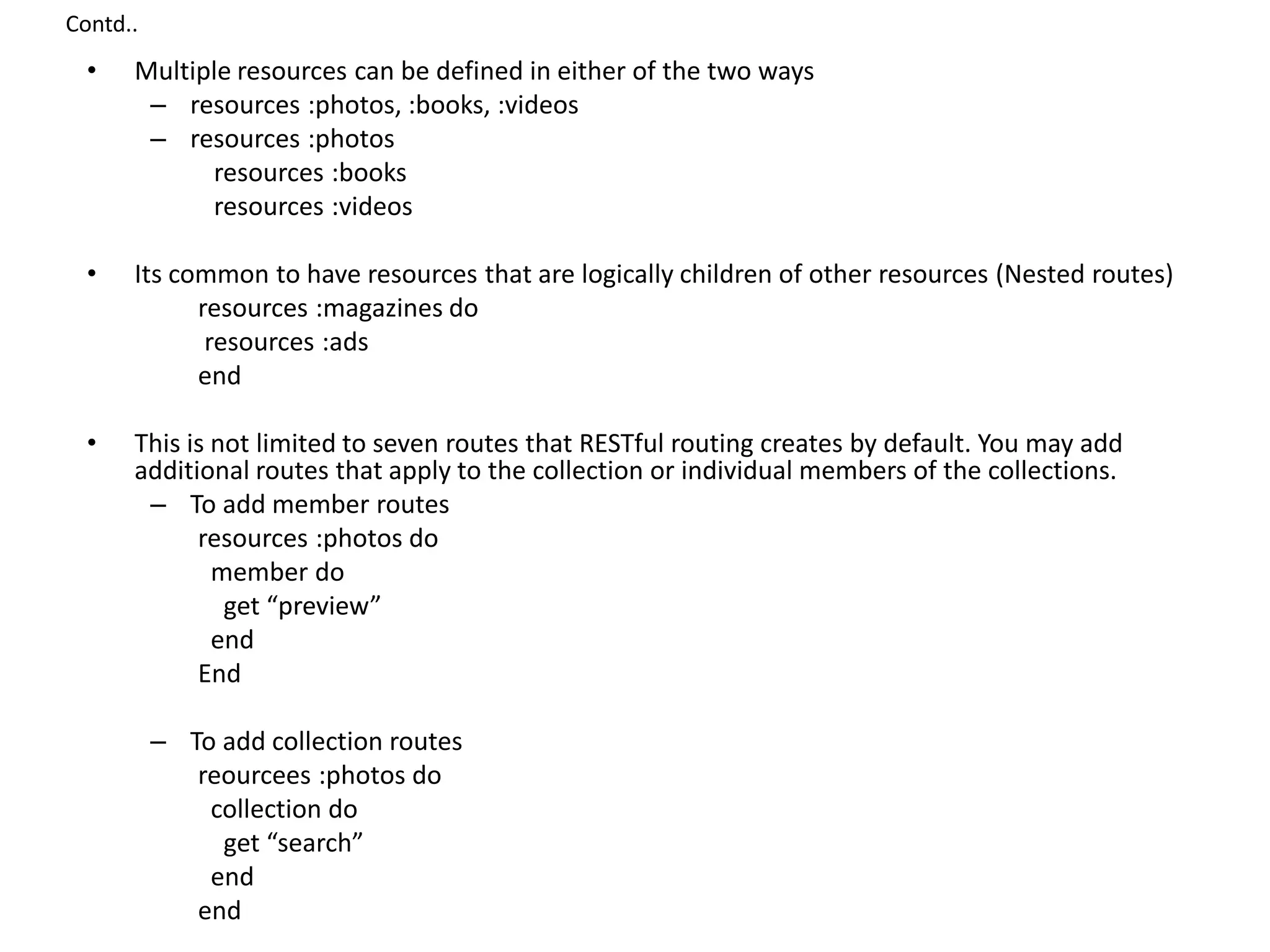

Contd.. • Multiple resources can be defined in either of the two ways – resources :photos, :books, :videos – resources :photos resources :books resources :videos • Its common to have resources that are logically children of other resources (Nested routes) resources :magazines do resources :ads end • This is not limited to seven routes that RESTful routing creates by default. You may add additional routes that apply to the collection or individual members of the collections. – To add member routes resources :photos do member do get “preview” end End – To add collection routes reourcees :photos do collection do get “search” end end

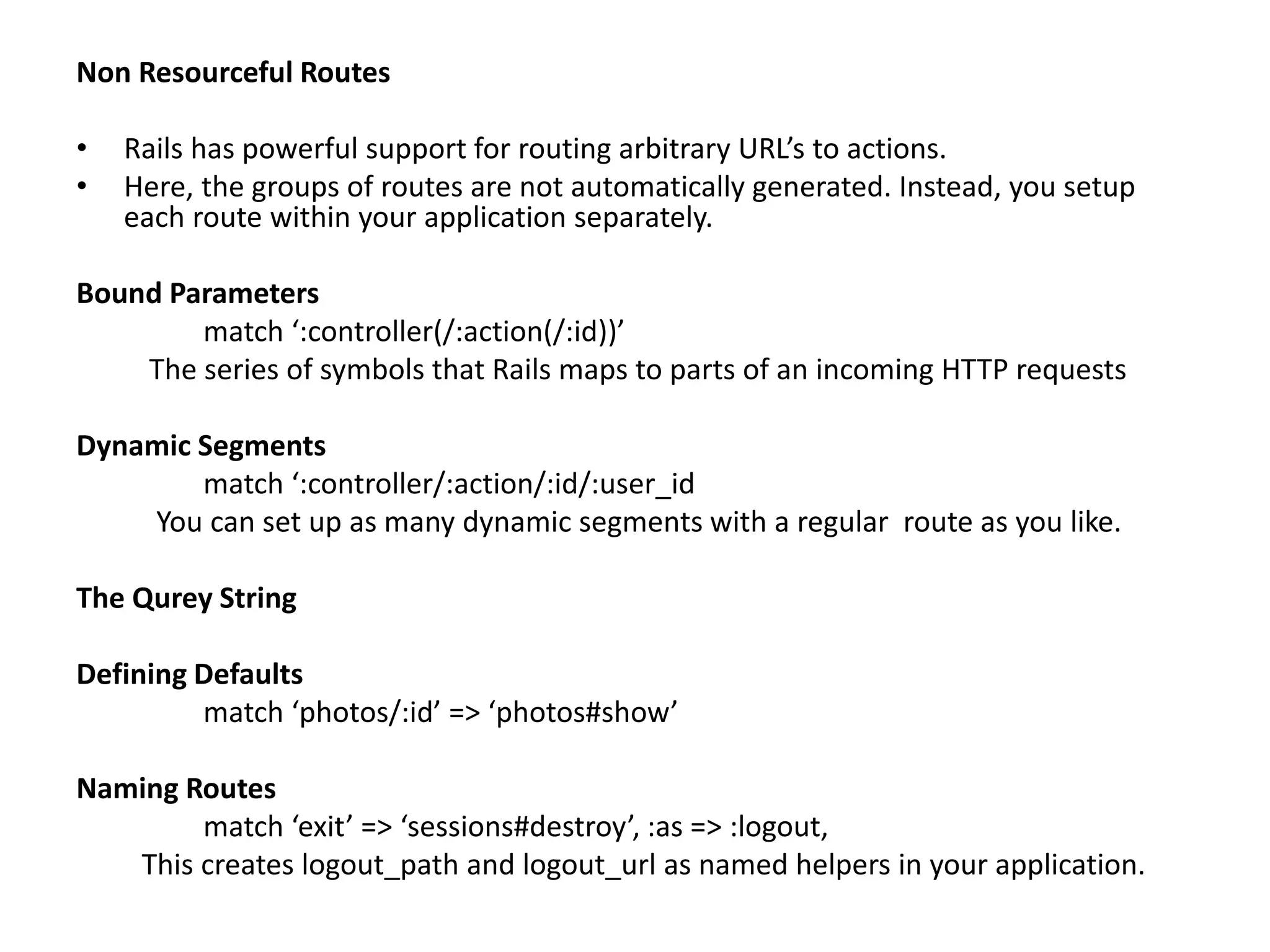

Non Resourceful Routes • Rails has powerful support for routing arbitrary URL’s to actions. • Here, the groups of routes are not automatically generated. Instead, you setup each route within your application separately. Bound Parameters match ‘:controller(/:action(/:id))’ The series of symbols that Rails maps to parts of an incoming HTTP requests Dynamic Segments match ‘:controller/:action/:id/:user_id You can set up as many dynamic segments with a regular route as you like. The Qurey String Defining Defaults match ‘photos/:id’ => ‘photos#show’ Naming Routes match ‘exit’ => ‘sessions#destroy’, :as => :logout, This creates logout_path and logout_url as named helpers in your application.

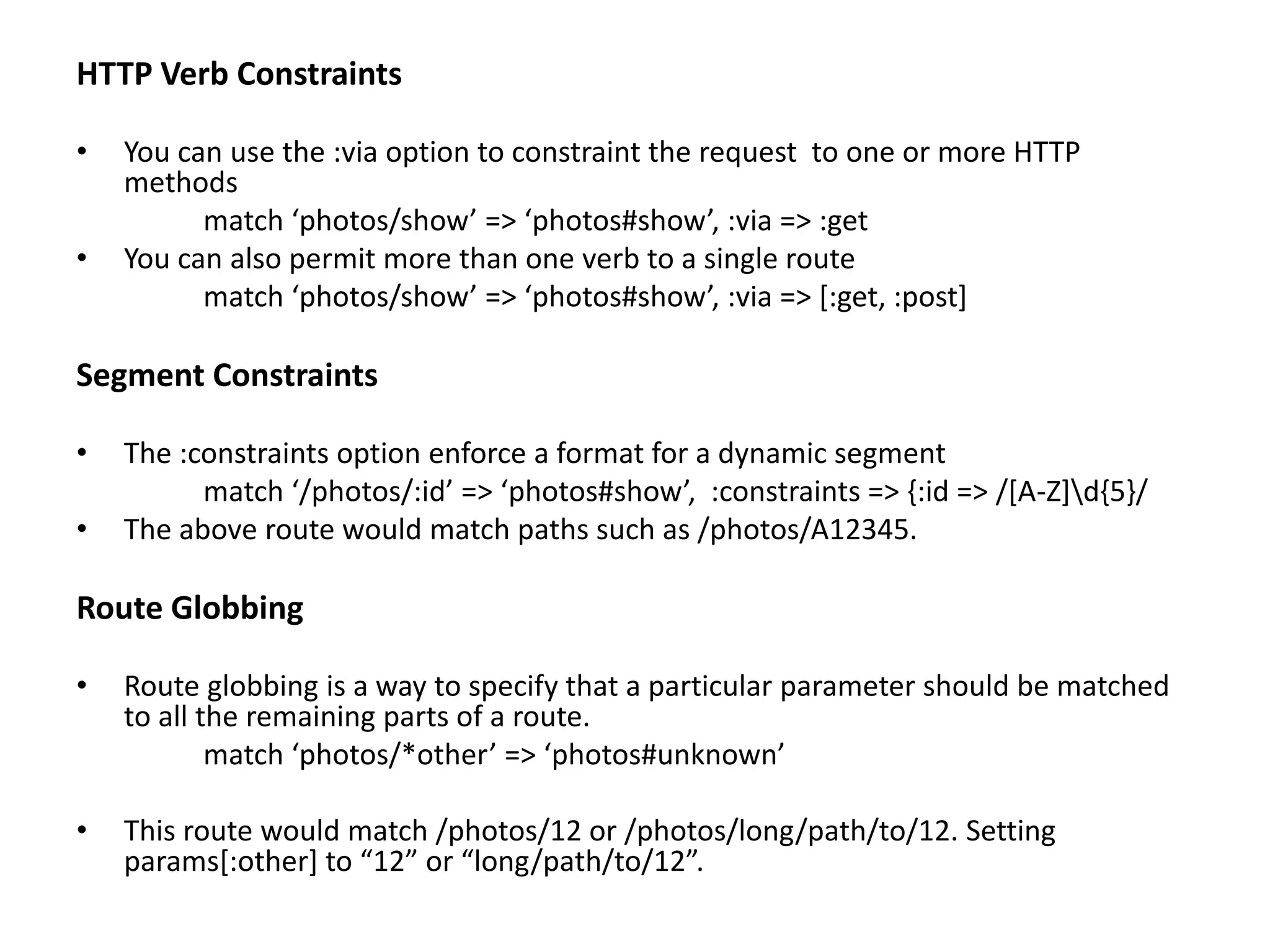

HTTP Verb Constraints • You can use the :via option to constraint the request to one or more HTTP methods match ‘photos/show’ => ‘photos#show’, :via => :get • You can also permit more than one verb to a single route match ‘photos/show’ => ‘photos#show’, :via => [:get, :post] Segment Constraints • The :constraints option enforce a format for a dynamic segment match ‘/photos/:id’ => ‘photos#show’, :constraints => {:id => /[A-Z]d{5}/ • The above route would match paths such as /photos/A12345. Route Globbing • Route globbing is a way to specify that a particular parameter should be matched to all the remaining parts of a route. match ‘photos/*other’ => ‘photos#unknown’ • This route would match /photos/12 or /photos/long/path/to/12. Setting params[:other] to “12” or “long/path/to/12”.

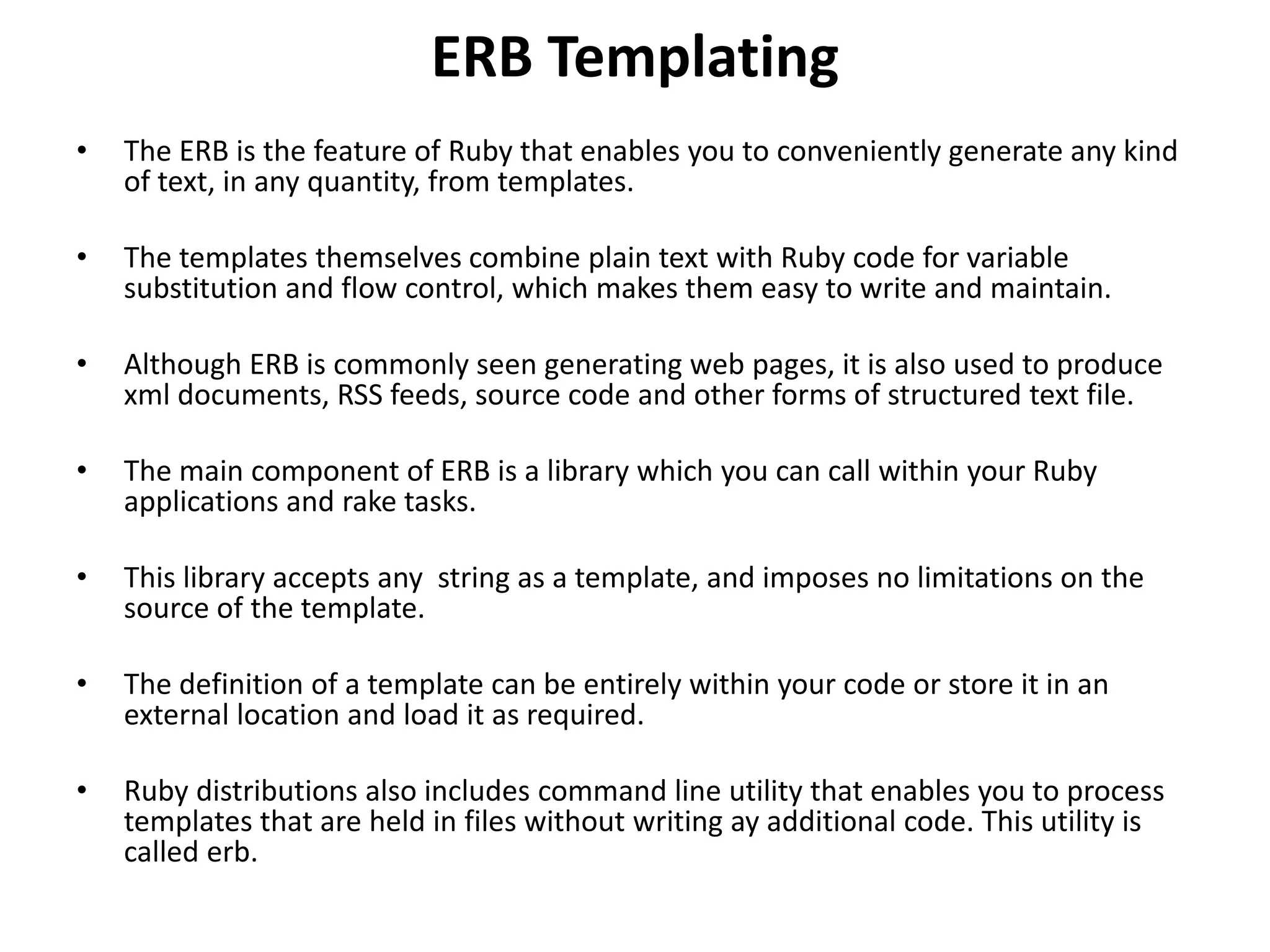

ERB Templating • The ERB is the feature of Ruby that enables you to conveniently generate any kind of text, in any quantity, from templates. • The templates themselves combine plain text with Ruby code for variable substitution and flow control, which makes them easy to write and maintain. • Although ERB is commonly seen generating web pages, it is also used to produce xml documents, RSS feeds, source code and other forms of structured text file. • The main component of ERB is a library which you can call within your Ruby applications and rake tasks. • This library accepts any string as a template, and imposes no limitations on the source of the template. • The definition of a template can be entirely within your code or store it in an external location and load it as required. • Ruby distributions also includes command line utility that enables you to process templates that are held in files without writing ay additional code. This utility is called erb.

Writing Templates • ERB copies the text portions of the template directly to the generated document, and only processes code that is identified by markers. • Most ERB templates only use a combination of two tag markers, each of which cause the enclosed code to be handled in a particular way. • A tag with an equals sign indicates that enclosed code is an expression, and that the renderer should substitute the code element with the result of the code (as a string) when it renders the template. Hello, <%= @name %> Today is <%= Time.now.strftime(“%A”) %>

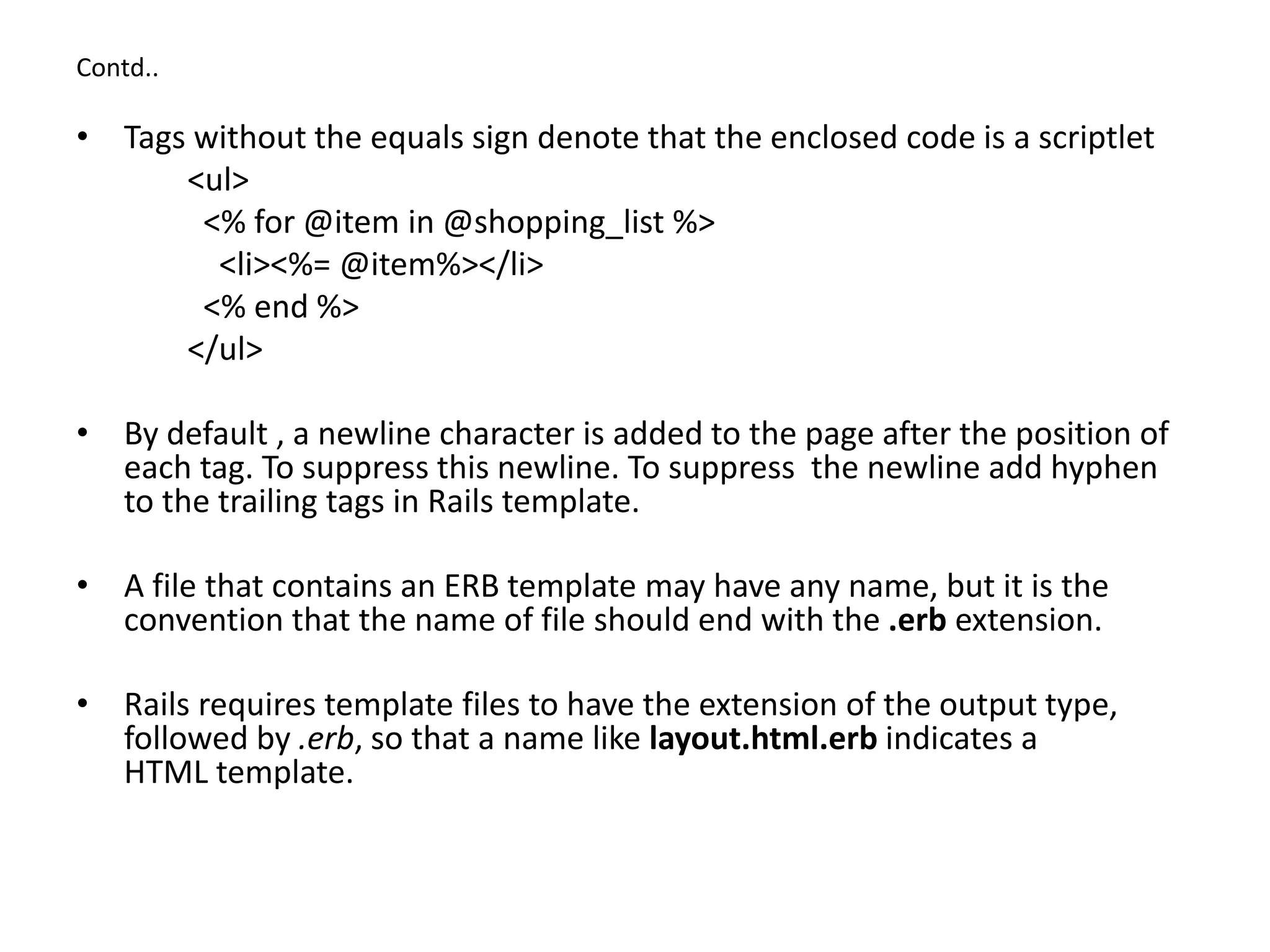

Contd.. • Tags without the equals sign denote that the enclosed code is a scriptlet <ul> <% for @item in @shopping_list %> <li><%= @item%></li> <% end %> </ul> • By default , a newline character is added to the page after the position of each tag. To suppress this newline. To suppress the newline add hyphen to the trailing tags in Rails template. • A file that contains an ERB template may have any name, but it is the convention that the name of file should end with the .erb extension. • Rails requires template files to have the extension of the output type, followed by .erb, so that a name like layout.html.erb indicates a HTML template.

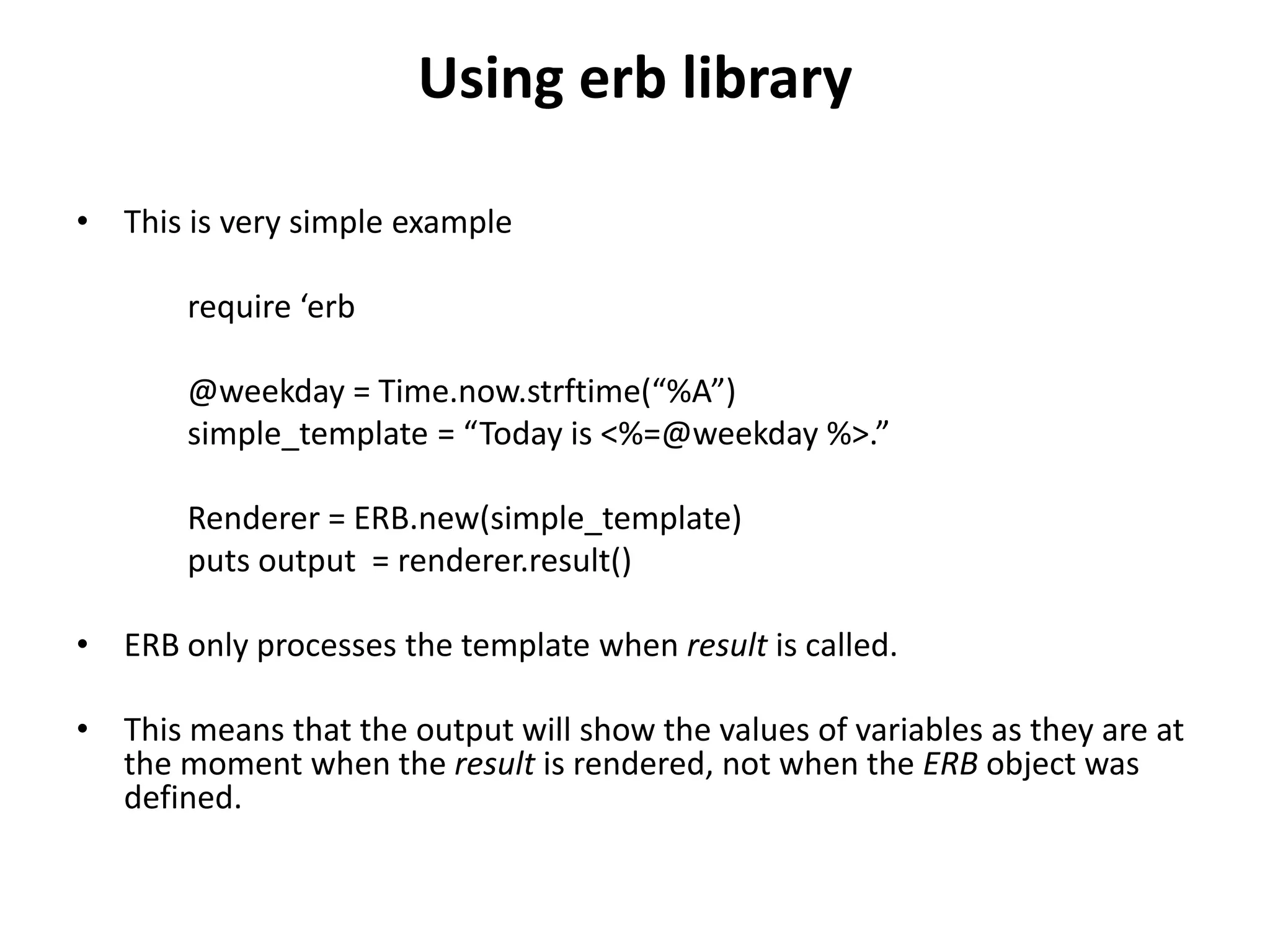

Using erb library • This is very simple example require ‘erb @weekday = Time.now.strftime(“%A”) simple_template = “Today is <%=@weekday %>.” Renderer = ERB.new(simple_template) puts output = renderer.result() • ERB only processes the template when result is called. • This means that the output will show the values of variables as they are at the moment when the result is rendered, not when the ERB object was defined.

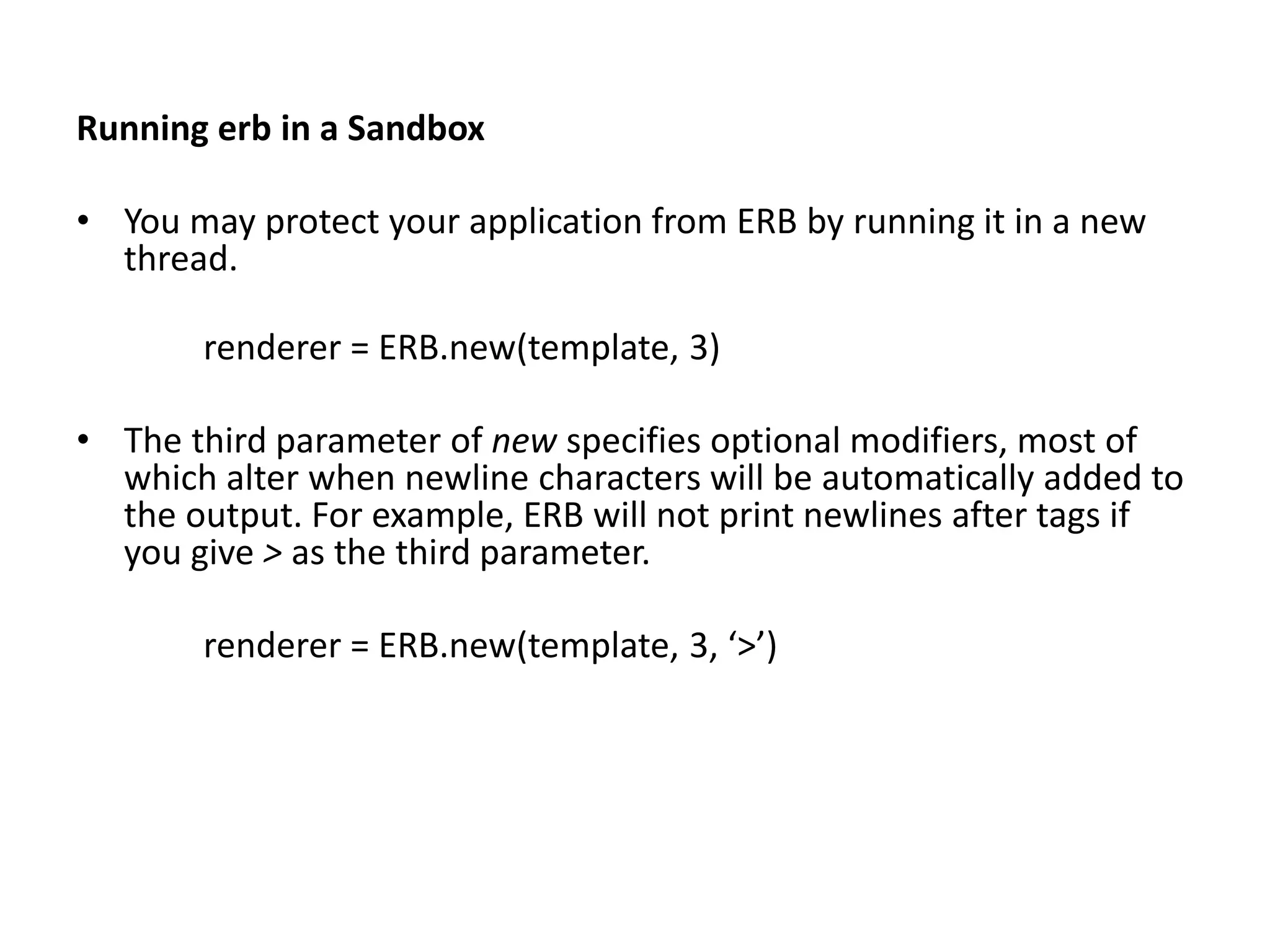

Running erb in a Sandbox • You may protect your application from ERB by running it in a new thread. renderer = ERB.new(template, 3) • The third parameter of new specifies optional modifiers, most of which alter when newline characters will be automatically added to the output. For example, ERB will not print newlines after tags if you give > as the third parameter. renderer = ERB.new(template, 3, ‘>’)

Running erb on commandline • The erb utility processes a given template and sends the result to the standard output. erb my-template.txt.erb > new-file.txt • The template can automatically use built-in Ruby classes, such as String and File. • To allow it to access standard or third-party libraries, use the - r option. This option works in the same way as the require keyword. • The below example processes a template that uses Abbrev and IPAddr libraries erb –r abbrev –r ipaddr my-template.txt.erb > new-file.txt • Use the –S option to specify a safe level that isolates the template processing. erb –S 3 my-template.txt.erb > new-file.txt
