  International Journal ofElectrical and Computer Engineering (IJECE) Vol. 9, No. 4, August 2019, pp. 2451~2459 ISSN: 2088-8708, DOI: 10.11591/ijece.v9i4.pp2451-2459  2451 Journal homepage: http://iaescore.com/journals/index.php/IJECE Crowd recognition system based on optical flow along with SVM classifier Shreedarshan K.1 , S. Sethu Selvi2 Department of Electronics and Communication Engineering, M S Ramaiah Institute of Technology, India Article Info ABSTRACT Article history: Received Nov 11, 2017 Revised Dec 28, 2017 Accepted Mar 4, 2019 The manuscript discusses about abnormalities in a crowded scenario. To prevent the mishap at a public place, there is no much mechanism which could prevent or alert the concerned authority about suspects in a crowd. Usually in a crowded scene, there are chances of some mishap like a terrorist attack or a crime. Our target is finding techniques to identify such activities and to possibly prevent them. If the crowd members exhibit abnormal behavior, we could identify and say that this particular person is a suspect and then the concerned authority would look into the matter. There are various methods to identify the abnormal behavior. The proposed approach is based on optical flow model. It has an ability to detect the sudden changes in motion of an individual among the crowd. First, the main region of motion is extracted by the help of motion heat map. Harris corner detector is used for extracting point of interest of extracted motion area. Based on the point of interest an optical flow is estimated here. After analyzing this optical flow model, a threshold value is fixed. Basically optical flow is an energy level of individual frame. The threshold value is forwarded to SVM classifier, which produces a better result with 99.71% accuracy. This approach is very useful in real time video surveillance system where a machine can monitor unwanted crowd activity. Keywords: Abnormal behaviour Motion heat map Optical flow Copyright © 2019 Institute of Advanced Engineering and Science. All rights reserved. Corresponding Author: Shreedarshan K., Department of Electronics and Communication Engineering, M S Ramaiah Institute of Technology, MSRIT Post, Bangalore -560054, Karnataka, India. Email: shreedarshan.k@msrit.edu 1. INTRODUCTION Density of population in urban areas is much higher compared to rural areas. So, there is a higher occurrence of abnormal activities such as illegal gathering, group fighting etc. These activities may be dangerous for our social public security. To detect such illegal activities, crowd behavior prediction is an interesting topic of a video monitoring system and has a great value for study and research. It is very difficult to analyze individual crowd members whether their behavior is normal or abnormal. There are some factors like number of crowd objects, motion of crowd objects, and segregation of crowd objects, eliminating the background disturbance, catch the variance among crowd object etc., which is required to analyze and predict the outcome. Some scholars have made several achievements in this area. To describe the crowd behavior Wang et al. [1] has implemented an improved spatial-temporal feature with adaptive size. A gradient based spatial model is used to define the motion of objects in scenes and recognize the type of local crowd behavior by Kratz et al. [2]. LBP-TOP algorithm is implemented by Xu et al. [3] to extract the crowd behavior. This algorithm makes a LDA model by the help of training and based on that model it decides the local crowd behavior. The above discussed model mainly implements spatial-temporal feature, gradient feature or training texture feature to determine the local crowd behavior. In all these models there is a lack of providing information of global characteristics of the crowd, and hence the complete information of the crowd cannot be
• 2.
   ISSN: 2088-8708 IntJ Elec & Comp Eng, Vol. 9, No. 4, August 2019 : 2451 - 2459 2452 obtained. So it is important to understand the crowd behavioral of complete scene without knowing the individual action. Recently some models are proposed which are based on Hidden markov model (HMM) [4, 5], Lagrangian Coherent Structures (LCS) [6], Social Force Model (SFM)[7], MAPRM [8], Chaotic Invariants (CI) [9] and Kinematic Feature (KF) [10] .These models can give better performance in detection of crowd behavioral on some given benchmark [7, 9]. But these methods may fail to detect the crowd behavioral in case of low resolution video or if the speed of object is too fast or too slow. In [11], a method is proposed to obtain behavioural recognition which is based on Violence Flows that starts from computation of optical flow between adjacent frames. This method is well suitable for a chosen video set but it needs more enhancements to get more accurate result. In this paper, we have demonstrated an approach that is based on optical flow pattern. Some treatment has been done along with optical flow pattern in order to detect the crowd behavior. To extract the region of motion activity, we take the help of motion heat map in a crowd scene. This heat map reduces the time of processing and gives better result that plays a very important role in real time application. A hot region of the scene gives the point of interest easily. These points of interest make a boundary in hot areas of the scene and based on the marked area, optical flow is computed. Optical flow information makes a multi model optical flow pattern in different time based on the behavioral of the crowd. Variations of motions are estimated to make a distinction in favor of potential abnormal events. We consider that we are in a crowd environment with no restrictions of the number of people. To analyze the optical flow model, we have taken standard UMN dataset and perform the proposed approach. The paper is organized is as follow: In section 2 a brief related work is presented. Section 3 talks about the proposed method. We compare the proposed method with Sparse Reconstruction Cost (SRC) [1], Chaotic Invariants (CI) [12], Social Force Model (SF) [4] and the force field model (FF) [13] on UMN dataset. In section 4 outcome is evaluated and analysis is performed. Last section concludes the paper. 2. RELATED WORK Liu et al. [14] has projected an approach i.e. agent-based motion models (AMMs) which uses multiple exemplar to detect crowd behavior of captured scene trajectory. They proposed an optimization algorithm that correlates between trajectory data and exemplar AMM that is based on KL-divergence and Extended Kalman Smoother. In order to describe the crowd motion, they introduced the novel individual feature along with holistic feature that is based on proposed measurement of correlation. The result proves that the proposed approach is well suitable for recognizing real world crowded scenes. In [15], Bera et al. has proposed an algorithm for low to medium density crowd that uses a trajectory behavior learning process. This algorithm combines tracking algorithm, model of non-linear pedestrian motion and techniques of Bayesian learning to compute the behaviour of each pedestrian individually in the scene. These combinations of features are used to identify the different motion patterns of pedestrian and segment the trajectories. PETS 2016 ARENA dataset has been used for this algorithm. This algorithm is suitable for indoor or outdoor crowd scene and has got a better performance. In [16] author has proposed a novel algorithm to detect abnormal crowd behaviour which is based on the acceleration feature. This algorithm explores the global feature of the current behavioural state and the previous behavioral state unlike previous work that explores only local features. In this paper, author has projected a new global acceleration feature that is based on invariance of three consecutive frames of grey- scale images. It has an ability to match pixels and provides the speed changes precisely. After that, an logarithm of detection is designed with the help of acceleration computation along with a foreground step of extraction. This algorithm is robust because it is independent of detection and segmentation. This algorithm gives the result based on the threshold analysis. Several datasets have been taken and based on that result has been computed. Results obtained are promising. Crowd behavioral detection is an actively researched area where behavioral features are used to differentiate between normal and abnormal activities. In [17], various types of features are summarized in order to capture the behavior of the crowd. These features are projected for encoding the crowd behavior, which may be local or global, either temporal or spatial or both. Position, motion by optical flow [18], foreground object size [19, 20] gradient [21], histogram of (direction, motion, texture, field) [22], texture and temporal spatial features are the different types of features. A latent Dirichlet allocation model is introduced in [23] for crowded scene where motion feature of direction, velocity and position is used. A Markov random field model is proposed by the author in [12] for abnormal detecting activities. At each frame level, optical flow feature was extracted. The detection is based on the probability matrix. These models are well suitable for several scenes. A trajectory is extracted for normal event videos and is compared with abnormal videos in [24], so that the abnormal activities can be differentiated from normal activities. In [25] author has generated a model that is based on mixture of outliers and dynamic textures, which is labelled as anomalies. In [26], a conditional
• 3.

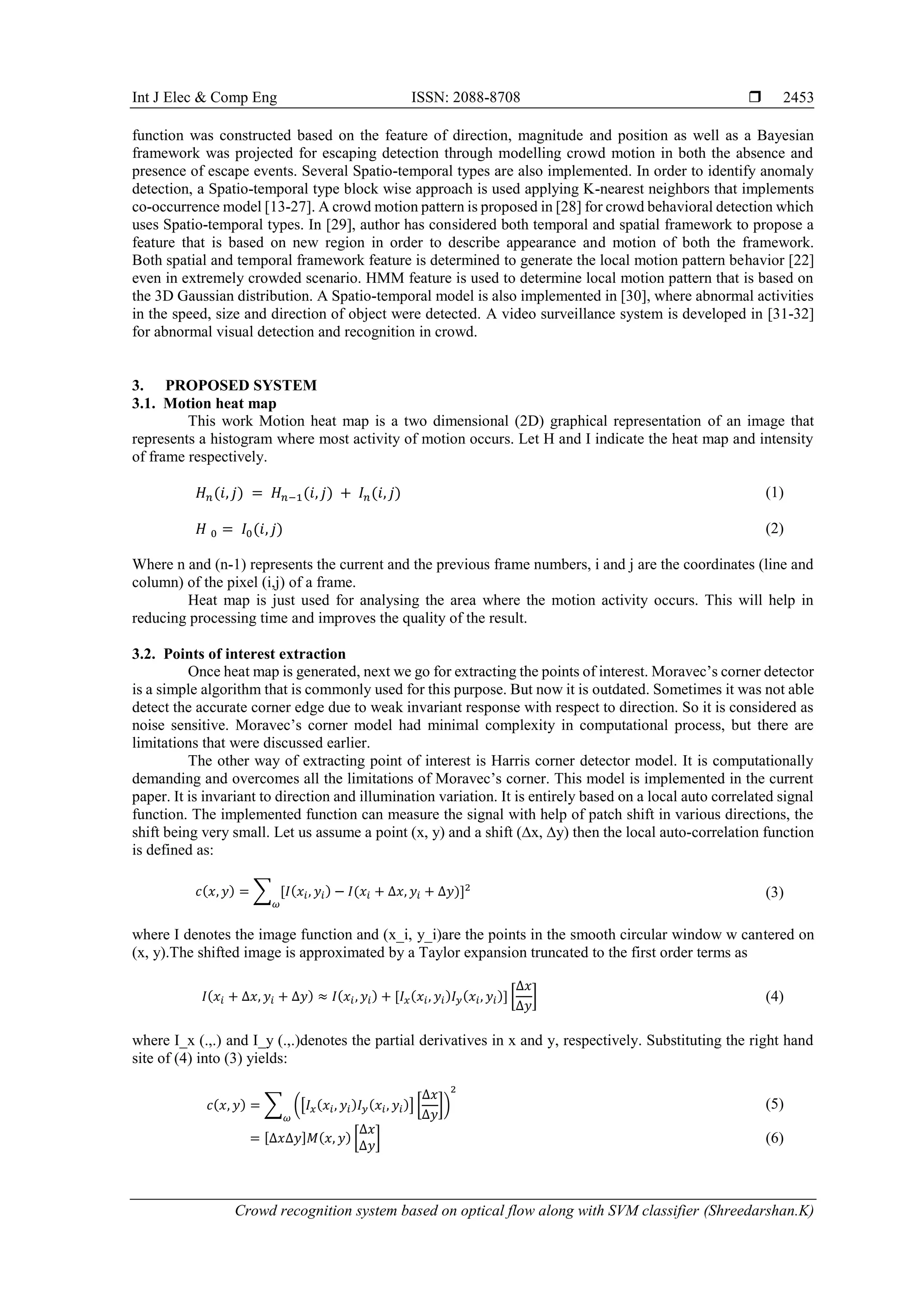

  Int J Elec& Comp Eng ISSN: 2088-8708  Crowd recognition system based on optical flow along with SVM classifier (Shreedarshan.K) 2453 function was constructed based on the feature of direction, magnitude and position as well as a Bayesian framework was projected for escaping detection through modelling crowd motion in both the absence and presence of escape events. Several Spatio-temporal types are also implemented. In order to identify anomaly detection, a Spatio-temporal type block wise approach is used applying K-nearest neighbors that implements co-occurrence model [13-27]. A crowd motion pattern is proposed in [28] for crowd behavioral detection which uses Spatio-temporal types. In [29], author has considered both temporal and spatial framework to propose a feature that is based on new region in order to describe appearance and motion of both the framework. Both spatial and temporal framework feature is determined to generate the local motion pattern behavior [22] even in extremely crowded scenario. HMM feature is used to determine local motion pattern that is based on the 3D Gaussian distribution. A Spatio-temporal model is also implemented in [30], where abnormal activities in the speed, size and direction of object were detected. A video surveillance system is developed in [31-32] for abnormal visual detection and recognition in crowd. 3. PROPOSED SYSTEM 3.1. Motion heat map This work Motion heat map is a two dimensional (2D) graphical representation of an image that represents a histogram where most activity of motion occurs. Let H and I indicate the heat map and intensity of frame respectively. 𝐻 𝑛(𝑖, 𝑗) = 𝐻 𝑛−1(𝑖, 𝑗) + 𝐼 𝑛(𝑖, 𝑗) (1) 𝐻 0 = 𝐼0(𝑖, 𝑗) (2) Where n and (n-1) represents the current and the previous frame numbers, i and j are the coordinates (line and column) of the pixel (i,j) of a frame. Heat map is just used for analysing the area where the motion activity occurs. This will help in reducing processing time and improves the quality of the result. 3.2. Points of interest extraction Once heat map is generated, next we go for extracting the points of interest. Moravec’s corner detector is a simple algorithm that is commonly used for this purpose. But now it is outdated. Sometimes it was not able detect the accurate corner edge due to weak invariant response with respect to direction. So it is considered as noise sensitive. Moravec’s corner model had minimal complexity in computational process, but there are limitations that were discussed earlier. The other way of extracting point of interest is Harris corner detector model. It is computationally demanding and overcomes all the limitations of Moravec’s corner. This model is implemented in the current paper. It is invariant to direction and illumination variation. It is entirely based on a local auto correlated signal function. The implemented function can measure the signal with help of patch shift in various directions, the shift being very small. Let us assume a point (x, y) and a shift (∆x, ∆y) then the local auto-correlation function is defined as: 𝑐(𝑥, 𝑦) = ∑ [𝐼(𝑥𝑖, 𝑦𝑖) − 𝐼(𝑥𝑖 + ∆𝑥, 𝑦𝑖 + ∆𝑦)]2 𝜔 (3) where I denotes the image function and (x_i, y_i)are the points in the smooth circular window w cantered on (x, y).The shifted image is approximated by a Taylor expansion truncated to the first order terms as 𝐼(𝑥𝑖 + ∆𝑥, 𝑦𝑖 + ∆𝑦) ≈ 𝐼(𝑥𝑖, 𝑦𝑖) + [𝐼 𝑥(𝑥𝑖, 𝑦𝑖)𝐼 𝑦(𝑥𝑖, 𝑦𝑖)] [ ∆𝑥 ∆𝑦 ] (4) where I_x (.,.) and I_y (.,.)denotes the partial derivatives in x and y, respectively. Substituting the right hand site of (4) into (3) yields: 𝑐(𝑥, 𝑦) = ∑ ([𝐼 𝑥(𝑥𝑖, 𝑦𝑖)𝐼 𝑦(𝑥𝑖, 𝑦𝑖)] [ ∆𝑥 ∆𝑦 ]) 2 𝜔 (5) = [∆𝑥∆𝑦]𝑀(𝑥, 𝑦) [ ∆𝑥 ∆𝑦 ] (6)
• 4.

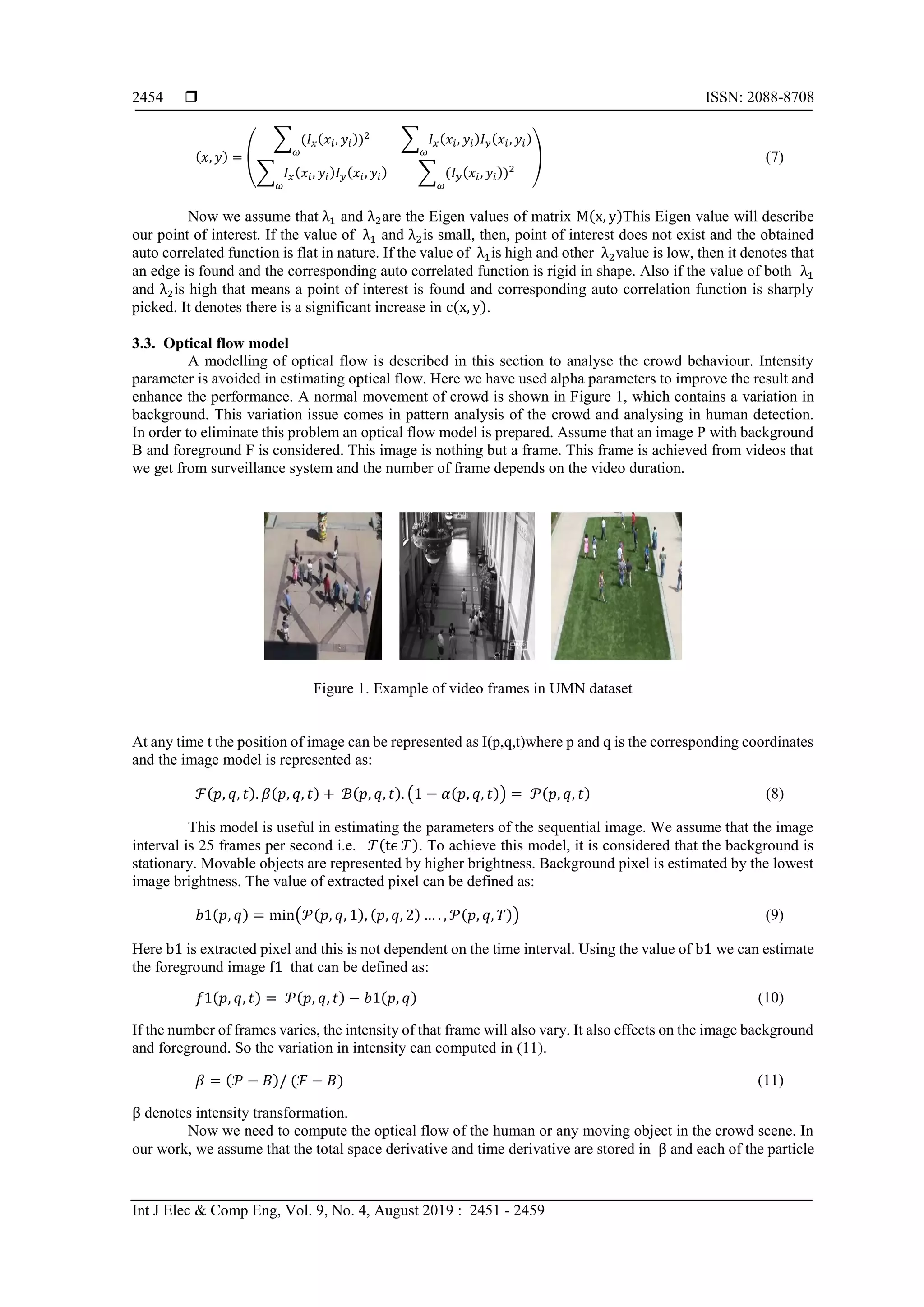

   ISSN: 2088-8708 IntJ Elec & Comp Eng, Vol. 9, No. 4, August 2019 : 2451 - 2459 2454 (𝑥, 𝑦) = ( ∑ (𝐼 𝑥(𝑥𝑖, 𝑦𝑖))2 𝜔 ∑ 𝐼 𝑥(𝑥𝑖, 𝑦𝑖)𝐼 𝑦(𝑥𝑖, 𝑦𝑖) 𝜔 ∑ 𝐼 𝑥(𝑥𝑖, 𝑦𝑖)𝐼 𝑦(𝑥𝑖, 𝑦𝑖) 𝜔 ∑ (𝐼 𝑦(𝑥𝑖, 𝑦𝑖))2 𝜔 ) (7) Now we assume that λ1 and λ2are the Eigen values of matrix M(x, y)This Eigen value will describe our point of interest. If the value of λ1 and λ2is small, then, point of interest does not exist and the obtained auto correlated function is flat in nature. If the value of λ1is high and other λ2value is low, then it denotes that an edge is found and the corresponding auto correlated function is rigid in shape. Also if the value of both λ1 and λ2is high that means a point of interest is found and corresponding auto correlation function is sharply picked. It denotes there is a significant increase in c(x, y). 3.3. Optical flow model A modelling of optical flow is described in this section to analyse the crowd behaviour. Intensity parameter is avoided in estimating optical flow. Here we have used alpha parameters to improve the result and enhance the performance. A normal movement of crowd is shown in Figure 1, which contains a variation in background. This variation issue comes in pattern analysis of the crowd and analysing in human detection. In order to eliminate this problem an optical flow model is prepared. Assume that an image P with background B and foreground F is considered. This image is nothing but a frame. This frame is achieved from videos that we get from surveillance system and the number of frame depends on the video duration. Figure 1. Example of video frames in UMN dataset At any time t the position of image can be represented as I(p,q,t)where p and q is the corresponding coordinates and the image model is represented as: ℱ(𝑝, 𝑞, 𝑡). 𝛽(𝑝, 𝑞, 𝑡) + ℬ(𝑝, 𝑞, 𝑡). (1 − 𝛼(𝑝, 𝑞, 𝑡)) = 𝒫(𝑝, 𝑞, 𝑡) (8) This model is useful in estimating the parameters of the sequential image. We assume that the image interval is 25 frames per second i.e. 𝒯(tϵ 𝒯). To achieve this model, it is considered that the background is stationary. Movable objects are represented by higher brightness. Background pixel is estimated by the lowest image brightness. The value of extracted pixel can be defined as: 𝑏1(𝑝, 𝑞) = min(𝒫(𝑝, 𝑞, 1), (𝑝, 𝑞, 2) … . , 𝒫(𝑝, 𝑞, 𝑇)) (9) Here b1 is extracted pixel and this is not dependent on the time interval. Using the value of b1 we can estimate the foreground image f1 that can be defined as: 𝑓1(𝑝, 𝑞, 𝑡) = 𝒫(𝑝, 𝑞, 𝑡) − 𝑏1(𝑝, 𝑞) (10) If the number of frames varies, the intensity of that frame will also vary. It also effects on the image background and foreground. So the variation in intensity can computed in (11). 𝛽 = (𝒫 − 𝐵)/ (ℱ − 𝐵) (11) β denotes intensity transformation. Now we need to compute the optical flow of the human or any moving object in the crowd scene. In our work, we assume that the total space derivative and time derivative are stored in β and each of the particle
• 5.

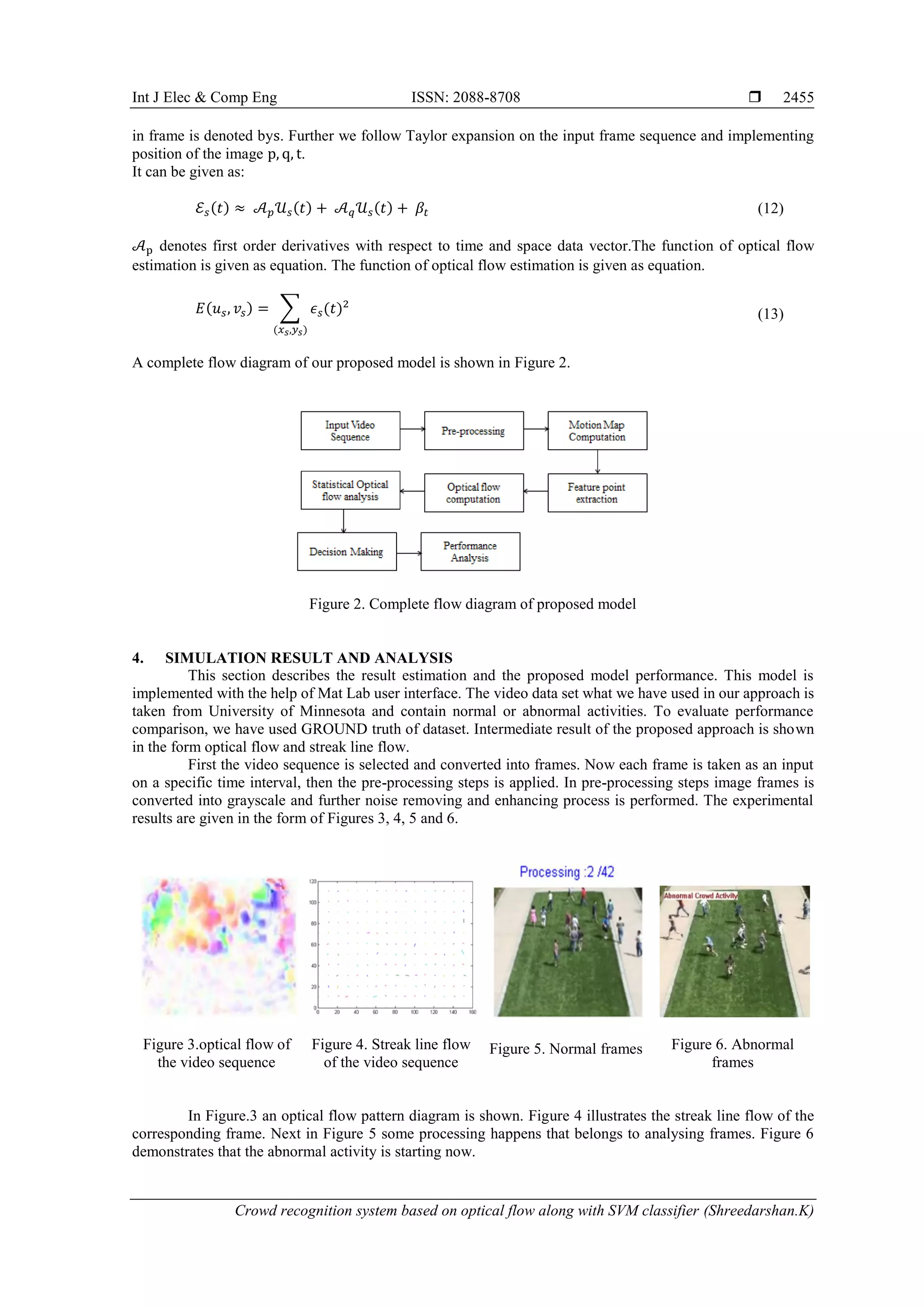

  Int J Elec& Comp Eng ISSN: 2088-8708  Crowd recognition system based on optical flow along with SVM classifier (Shreedarshan.K) 2455 in frame is denoted bys. Further we follow Taylor expansion on the input frame sequence and implementing position of the image p, q, t. It can be given as: ℰ 𝑠(𝑡) ≈ 𝒜 𝑝 𝒰 𝑠(𝑡) + 𝒜 𝑞 𝒰 𝑠(𝑡) + 𝛽𝑡 (12) 𝒜p denotes first order derivatives with respect to time and space data vector.The function of optical flow estimation is given as equation. The function of optical flow estimation is given as equation. 𝐸(𝑢 𝑠, 𝑣𝑠) = ∑ 𝜖 𝑠(𝑡)2 (𝑥 𝑠,𝑦 𝑠) (13) A complete flow diagram of our proposed model is shown in Figure 2. Figure 2. Complete flow diagram of proposed model 4. SIMULATION RESULT AND ANALYSIS This section describes the result estimation and the proposed model performance. This model is implemented with the help of Mat Lab user interface. The video data set what we have used in our approach is taken from University of Minnesota and contain normal or abnormal activities. To evaluate performance comparison, we have used GROUND truth of dataset. Intermediate result of the proposed approach is shown in the form optical flow and streak line flow. First the video sequence is selected and converted into frames. Now each frame is taken as an input on a specific time interval, then the pre-processing steps is applied. In pre-processing steps image frames is converted into grayscale and further noise removing and enhancing process is performed. The experimental results are given in the form of Figures 3, 4, 5 and 6. Figure 3.optical flow of the video sequence Figure 4. Streak line flow of the video sequence Figure 5. Normal frames Figure 6. Abnormal frames In Figure.3 an optical flow pattern diagram is shown. Figure 4 illustrates the streak line flow of the corresponding frame. Next in Figure 5 some processing happens that belongs to analysing frames. Figure 6 demonstrates that the abnormal activity is starting now.
• 6.

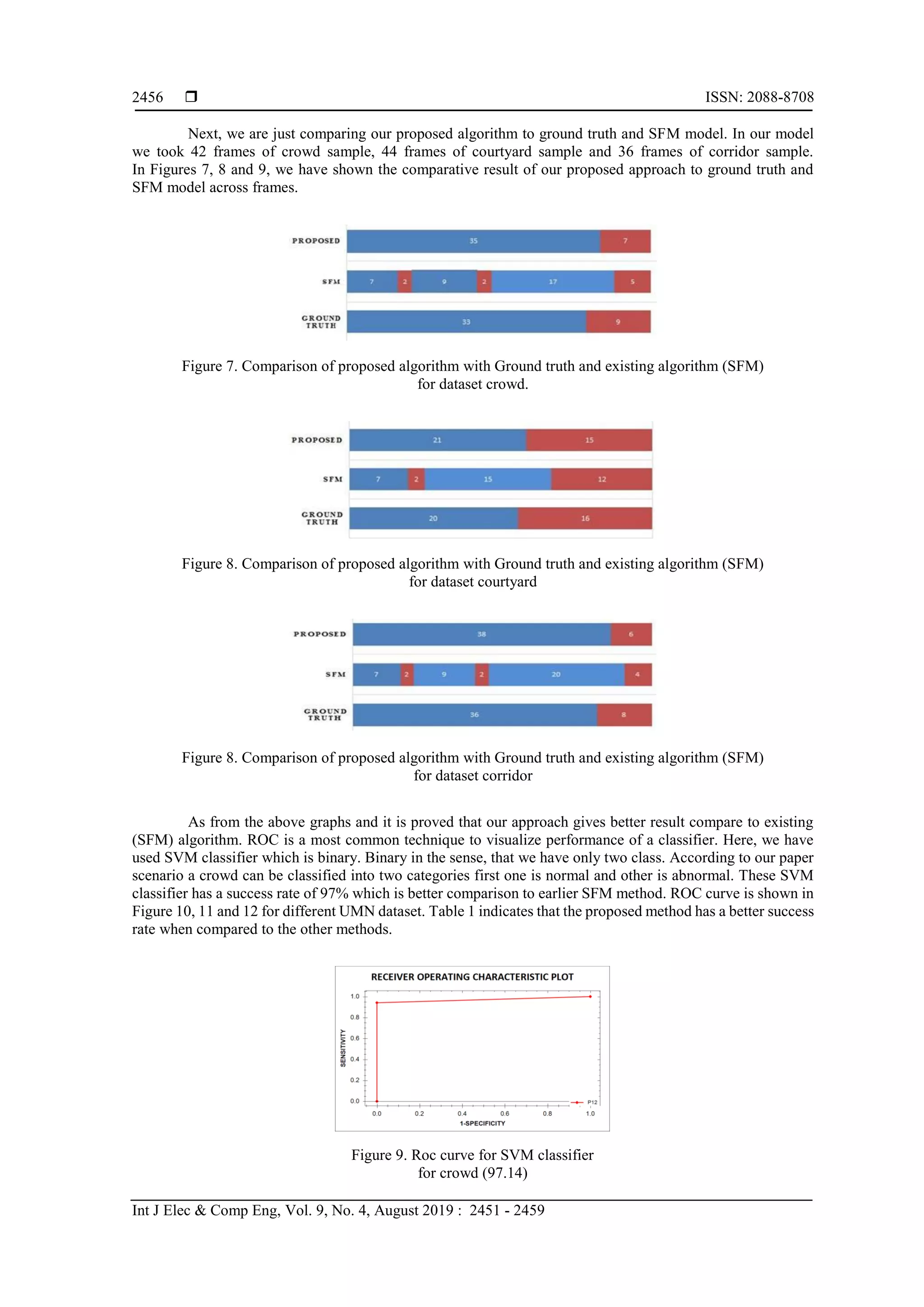

   ISSN: 2088-8708 IntJ Elec & Comp Eng, Vol. 9, No. 4, August 2019 : 2451 - 2459 2456 Next, we are just comparing our proposed algorithm to ground truth and SFM model. In our model we took 42 frames of crowd sample, 44 frames of courtyard sample and 36 frames of corridor sample. In Figures 7, 8 and 9, we have shown the comparative result of our proposed approach to ground truth and SFM model across frames. Figure 7. Comparison of proposed algorithm with Ground truth and existing algorithm (SFM) for dataset crowd. Figure 8. Comparison of proposed algorithm with Ground truth and existing algorithm (SFM) for dataset courtyard Figure 8. Comparison of proposed algorithm with Ground truth and existing algorithm (SFM) for dataset corridor As from the above graphs and it is proved that our approach gives better result compare to existing (SFM) algorithm. ROC is a most common technique to visualize performance of a classifier. Here, we have used SVM classifier which is binary. Binary in the sense, that we have only two class. According to our paper scenario a crowd can be classified into two categories first one is normal and other is abnormal. These SVM classifier has a success rate of 97% which is better comparison to earlier SFM method. ROC curve is shown in Figure 10, 11 and 12 for different UMN dataset. Table 1 indicates that the proposed method has a better success rate when compared to the other methods. Figure 9. Roc curve for SVM classifier for crowd (97.14)
• 7.

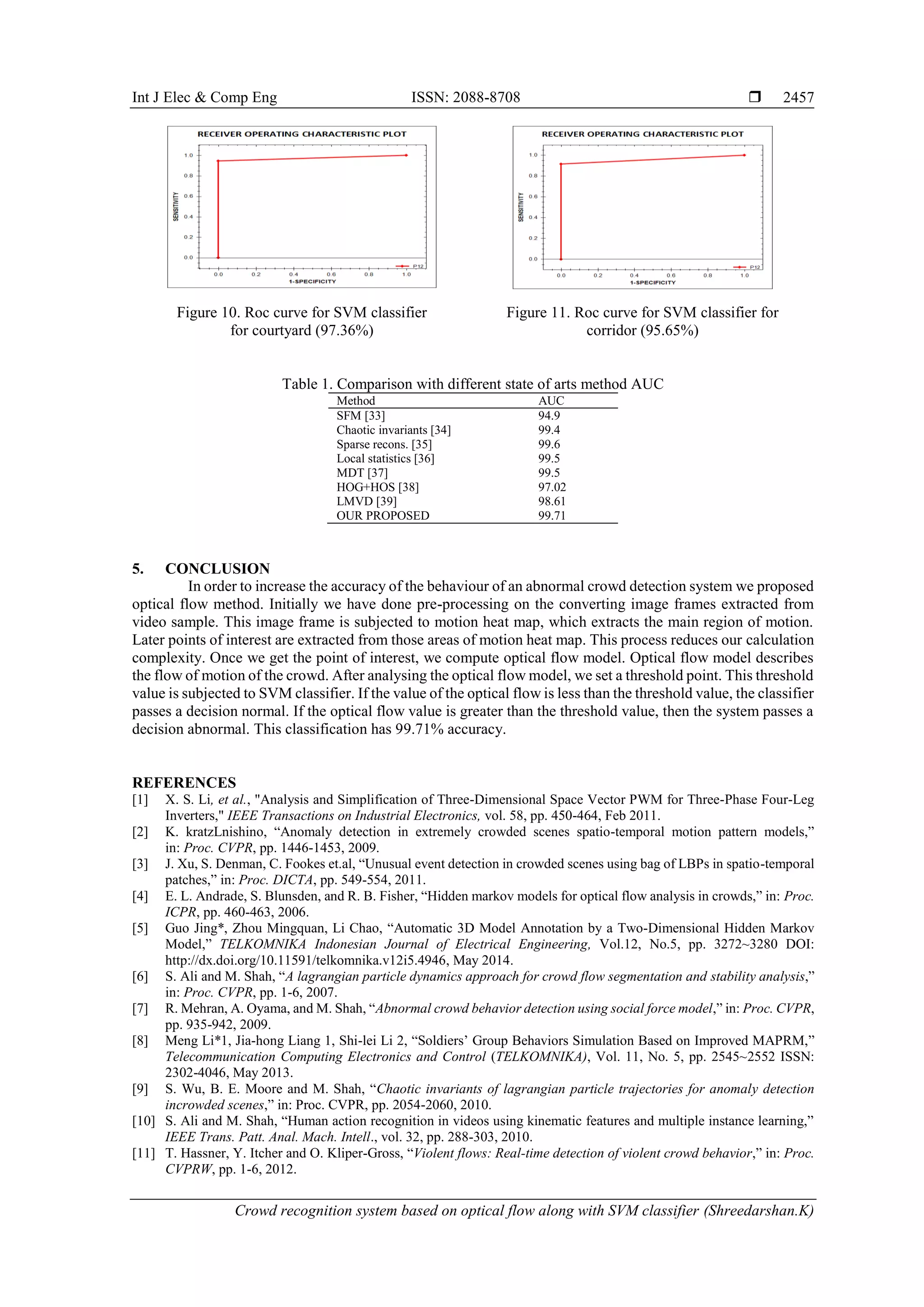

  Int J Elec& Comp Eng ISSN: 2088-8708  Crowd recognition system based on optical flow along with SVM classifier (Shreedarshan.K) 2457 Figure 10. Roc curve for SVM classifier for courtyard (97.36%) Figure 11. Roc curve for SVM classifier for corridor (95.65%) Table 1. Comparison with different state of arts method AUC Method AUC SFM [33] 94.9 Chaotic invariants [34] 99.4 Sparse recons. [35] 99.6 Local statistics [36] 99.5 MDT [37] 99.5 HOG+HOS [38] 97.02 LMVD [39] 98.61 OUR PROPOSED 99.71 5. CONCLUSION In order to increase the accuracy of the behaviour of an abnormal crowd detection system we proposed optical flow method. Initially we have done pre-processing on the converting image frames extracted from video sample. This image frame is subjected to motion heat map, which extracts the main region of motion. Later points of interest are extracted from those areas of motion heat map. This process reduces our calculation complexity. Once we get the point of interest, we compute optical flow model. Optical flow model describes the flow of motion of the crowd. After analysing the optical flow model, we set a threshold point. This threshold value is subjected to SVM classifier. If the value of the optical flow is less than the threshold value, the classifier passes a decision normal. If the optical flow value is greater than the threshold value, then the system passes a decision abnormal. This classification has 99.71% accuracy. REFERENCES [1] X. S. Li, et al., "Analysis and Simplification of Three-Dimensional Space Vector PWM for Three-Phase Four-Leg Inverters," IEEE Transactions on Industrial Electronics, vol. 58, pp. 450-464, Feb 2011. [2] K. kratzLnishino, “Anomaly detection in extremely crowded scenes spatio-temporal motion pattern models,” in: Proc. CVPR, pp. 1446-1453, 2009. [3] J. Xu, S. Denman, C. Fookes et.al, “Unusual event detection in crowded scenes using bag of LBPs in spatio-temporal patches,” in: Proc. DICTA, pp. 549-554, 2011. [4] E. L. Andrade, S. Blunsden, and R. B. Fisher, “Hidden markov models for optical flow analysis in crowds,” in: Proc. ICPR, pp. 460-463, 2006. [5] Guo Jing*, Zhou Mingquan, Li Chao, “Automatic 3D Model Annotation by a Two-Dimensional Hidden Markov Model,” TELKOMNIKA Indonesian Journal of Electrical Engineering, Vol.12, No.5, pp. 3272~3280 DOI: http://dx.doi.org/10.11591/telkomnika.v12i5.4946, May 2014. [6] S. Ali and M. Shah, “A lagrangian particle dynamics approach for crowd flow segmentation and stability analysis,” in: Proc. CVPR, pp. 1-6, 2007. [7] R. Mehran, A. Oyama, and M. Shah, “Abnormal crowd behavior detection using social force model,” in: Proc. CVPR, pp. 935-942, 2009. [8] Meng Li*1, Jia-hong Liang 1, Shi-lei Li 2, “Soldiers’ Group Behaviors Simulation Based on Improved MAPRM,” Telecommunication Computing Electronics and Control (TELKOMNIKA), Vol. 11, No. 5, pp. 2545~2552 ISSN: 2302-4046, May 2013. [9] S. Wu, B. E. Moore and M. Shah, “Chaotic invariants of lagrangian particle trajectories for anomaly detection incrowded scenes,” in: Proc. CVPR, pp. 2054-2060, 2010. [10] S. Ali and M. Shah, “Human action recognition in videos using kinematic features and multiple instance learning,” IEEE Trans. Patt. Anal. Mach. Intell., vol. 32, pp. 288-303, 2010. [11] T. Hassner, Y. Itcher and O. Kliper-Gross, “Violent flows: Real-time detection of violent crowd behavior,” in: Proc. CVPRW, pp. 1-6, 2012.
• 8.

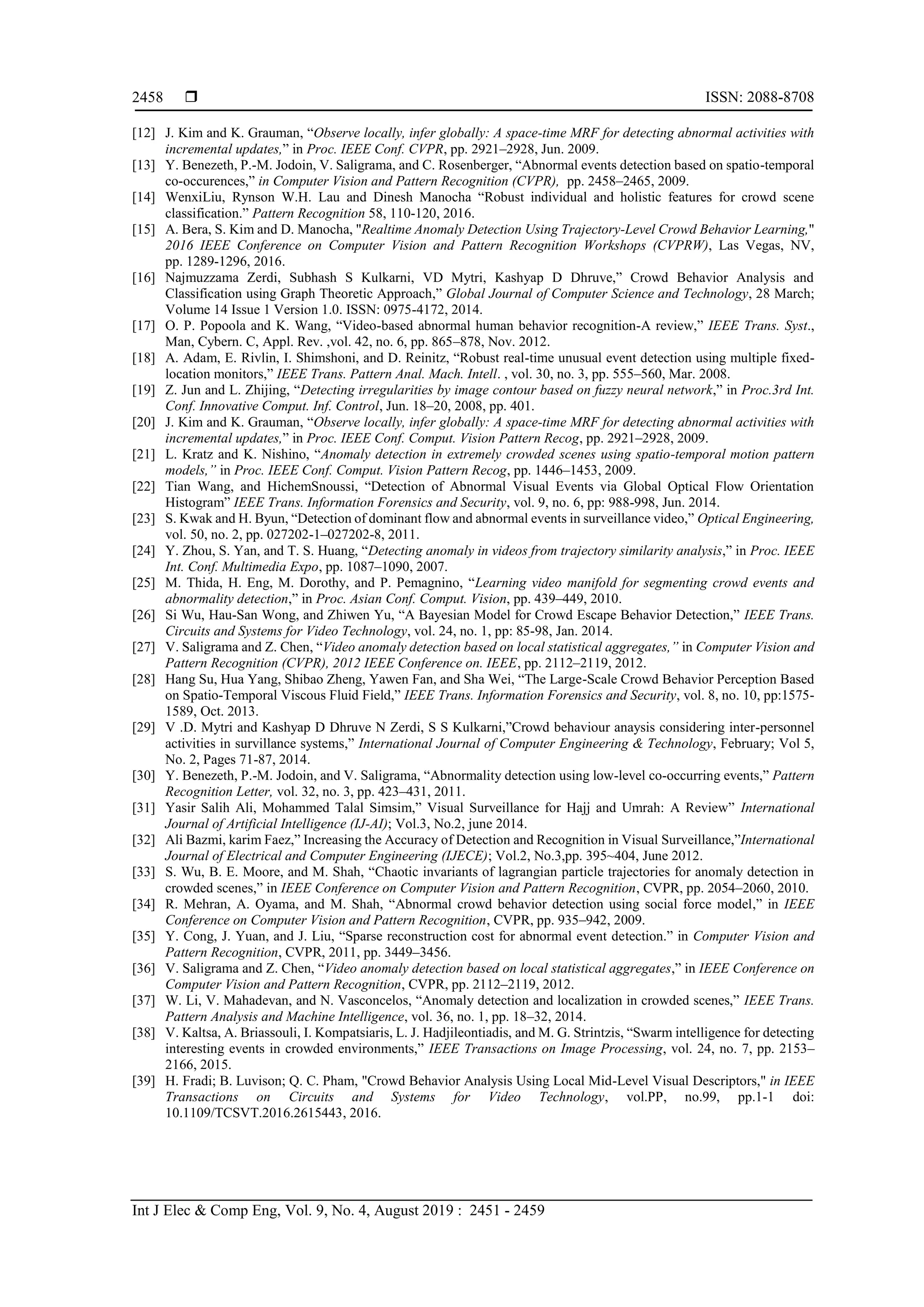

   ISSN: 2088-8708 IntJ Elec & Comp Eng, Vol. 9, No. 4, August 2019 : 2451 - 2459 2458 [12] J. Kim and K. Grauman, “Observe locally, infer globally: A space-time MRF for detecting abnormal activities with incremental updates,” in Proc. IEEE Conf. CVPR, pp. 2921–2928, Jun. 2009. [13] Y. Benezeth, P.-M. Jodoin, V. Saligrama, and C. Rosenberger, “Abnormal events detection based on spatio-temporal co-occurences,” in Computer Vision and Pattern Recognition (CVPR), pp. 2458–2465, 2009. [14] WenxiLiu, Rynson W.H. Lau and Dinesh Manocha “Robust individual and holistic features for crowd scene classification.” Pattern Recognition 58, 110-120, 2016. [15] A. Bera, S. Kim and D. Manocha, "Realtime Anomaly Detection Using Trajectory-Level Crowd Behavior Learning," 2016 IEEE Conference on Computer Vision and Pattern Recognition Workshops (CVPRW), Las Vegas, NV, pp. 1289-1296, 2016. [16] Najmuzzama Zerdi, Subhash S Kulkarni, VD Mytri, Kashyap D Dhruve,” Crowd Behavior Analysis and Classification using Graph Theoretic Approach,” Global Journal of Computer Science and Technology, 28 March; Volume 14 Issue 1 Version 1.0. ISSN: 0975-4172, 2014. [17] O. P. Popoola and K. Wang, “Video-based abnormal human behavior recognition-A review,” IEEE Trans. Syst., Man, Cybern. C, Appl. Rev. ,vol. 42, no. 6, pp. 865–878, Nov. 2012. [18] A. Adam, E. Rivlin, I. Shimshoni, and D. Reinitz, “Robust real-time unusual event detection using multiple fixed- location monitors,” IEEE Trans. Pattern Anal. Mach. Intell. , vol. 30, no. 3, pp. 555–560, Mar. 2008. [19] Z. Jun and L. Zhijing, “Detecting irregularities by image contour based on fuzzy neural network,” in Proc.3rd Int. Conf. Innovative Comput. Inf. Control, Jun. 18–20, 2008, pp. 401. [20] J. Kim and K. Grauman, “Observe locally, infer globally: A space-time MRF for detecting abnormal activities with incremental updates,” in Proc. IEEE Conf. Comput. Vision Pattern Recog, pp. 2921–2928, 2009. [21] L. Kratz and K. Nishino, “Anomaly detection in extremely crowded scenes using spatio-temporal motion pattern models,” in Proc. IEEE Conf. Comput. Vision Pattern Recog, pp. 1446–1453, 2009. [22] Tian Wang, and HichemSnoussi, “Detection of Abnormal Visual Events via Global Optical Flow Orientation Histogram” IEEE Trans. Information Forensics and Security, vol. 9, no. 6, pp: 988-998, Jun. 2014. [23] S. Kwak and H. Byun, “Detection of dominant flow and abnormal events in surveillance video,” Optical Engineering, vol. 50, no. 2, pp. 027202-1–027202-8, 2011. [24] Y. Zhou, S. Yan, and T. S. Huang, “Detecting anomaly in videos from trajectory similarity analysis,” in Proc. IEEE Int. Conf. Multimedia Expo, pp. 1087–1090, 2007. [25] M. Thida, H. Eng, M. Dorothy, and P. Pemagnino, “Learning video manifold for segmenting crowd events and abnormality detection,” in Proc. Asian Conf. Comput. Vision, pp. 439–449, 2010. [26] Si Wu, Hau-San Wong, and Zhiwen Yu, “A Bayesian Model for Crowd Escape Behavior Detection,” IEEE Trans. Circuits and Systems for Video Technology, vol. 24, no. 1, pp: 85-98, Jan. 2014. [27] V. Saligrama and Z. Chen, “Video anomaly detection based on local statistical aggregates,” in Computer Vision and Pattern Recognition (CVPR), 2012 IEEE Conference on. IEEE, pp. 2112–2119, 2012. [28] Hang Su, Hua Yang, Shibao Zheng, Yawen Fan, and Sha Wei, “The Large-Scale Crowd Behavior Perception Based on Spatio-Temporal Viscous Fluid Field,” IEEE Trans. Information Forensics and Security, vol. 8, no. 10, pp:1575- 1589, Oct. 2013. [29] V .D. Mytri and Kashyap D Dhruve N Zerdi, S S Kulkarni,”Crowd behaviour anaysis considering inter-personnel activities in survillance systems,” International Journal of Computer Engineering & Technology, February; Vol 5, No. 2, Pages 71-87, 2014. [30] Y. Benezeth, P.-M. Jodoin, and V. Saligrama, “Abnormality detection using low-level co-occurring events,” Pattern Recognition Letter, vol. 32, no. 3, pp. 423–431, 2011. [31] Yasir Salih Ali, Mohammed Talal Simsim,” Visual Surveillance for Hajj and Umrah: A Review” International Journal of Artificial Intelligence (IJ-AI); Vol.3, No.2, june 2014. [32] Ali Bazmi, karim Faez,” Increasing the Accuracy of Detection and Recognition in Visual Surveillance,”International Journal of Electrical and Computer Engineering (IJECE); Vol.2, No.3,pp. 395~404, June 2012. [33] S. Wu, B. E. Moore, and M. Shah, “Chaotic invariants of lagrangian particle trajectories for anomaly detection in crowded scenes,” in IEEE Conference on Computer Vision and Pattern Recognition, CVPR, pp. 2054–2060, 2010. [34] R. Mehran, A. Oyama, and M. Shah, “Abnormal crowd behavior detection using social force model,” in IEEE Conference on Computer Vision and Pattern Recognition, CVPR, pp. 935–942, 2009. [35] Y. Cong, J. Yuan, and J. Liu, “Sparse reconstruction cost for abnormal event detection.” in Computer Vision and Pattern Recognition, CVPR, 2011, pp. 3449–3456. [36] V. Saligrama and Z. Chen, “Video anomaly detection based on local statistical aggregates,” in IEEE Conference on Computer Vision and Pattern Recognition, CVPR, pp. 2112–2119, 2012. [37] W. Li, V. Mahadevan, and N. Vasconcelos, “Anomaly detection and localization in crowded scenes,” IEEE Trans. Pattern Analysis and Machine Intelligence, vol. 36, no. 1, pp. 18–32, 2014. [38] V. Kaltsa, A. Briassouli, I. Kompatsiaris, L. J. Hadjileontiadis, and M. G. Strintzis, “Swarm intelligence for detecting interesting events in crowded environments,” IEEE Transactions on Image Processing, vol. 24, no. 7, pp. 2153– 2166, 2015. [39] H. Fradi; B. Luvison; Q. C. Pham, "Crowd Behavior Analysis Using Local Mid-Level Visual Descriptors," in IEEE Transactions on Circuits and Systems for Video Technology, vol.PP, no.99, pp.1-1 doi: 10.1109/TCSVT.2016.2615443, 2016.
• 9.

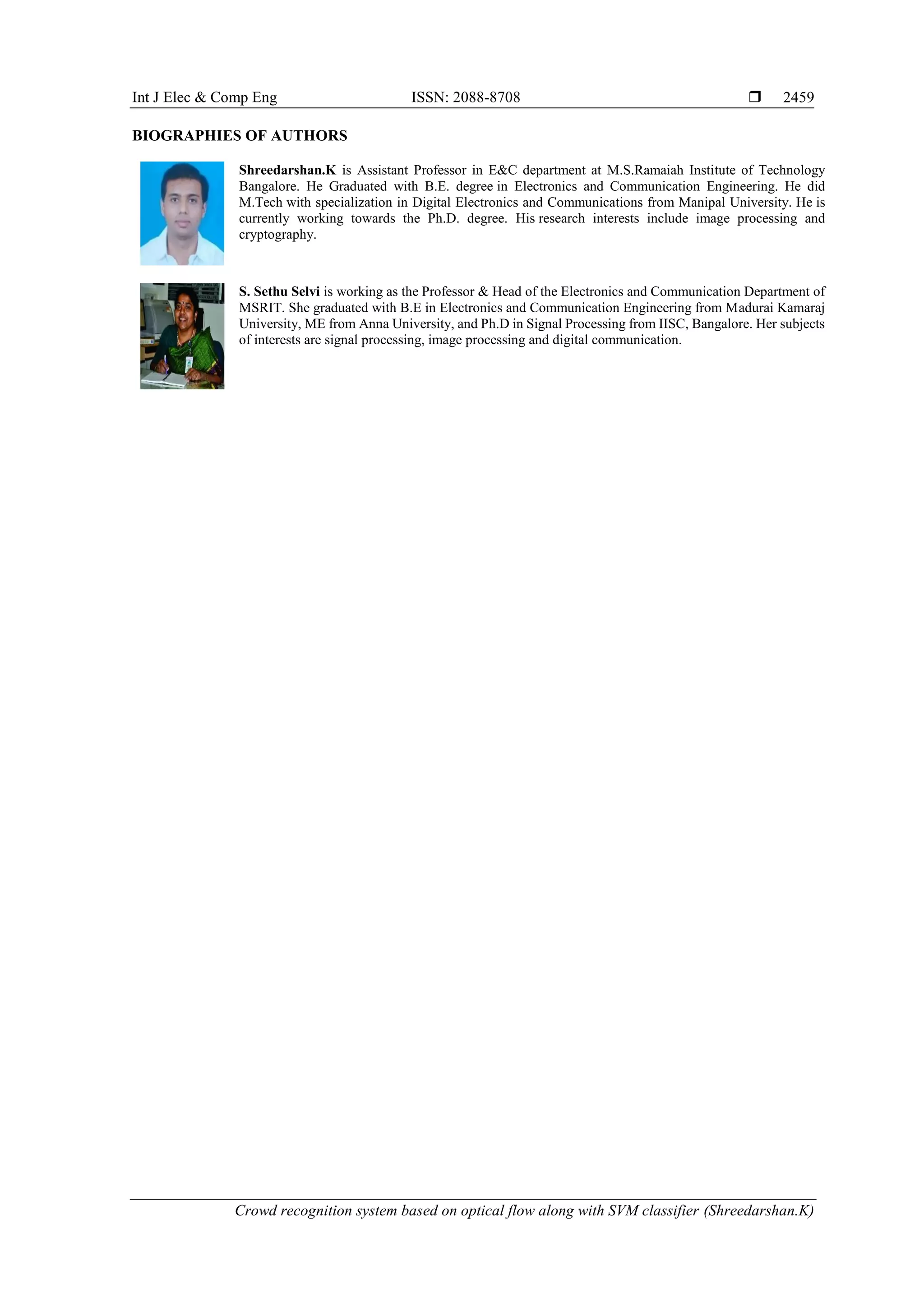

  Int J Elec& Comp Eng ISSN: 2088-8708  Crowd recognition system based on optical flow along with SVM classifier (Shreedarshan.K) 2459 BIOGRAPHIES OF AUTHORS Shreedarshan.K is Assistant Professor in E&C department at M.S.Ramaiah Institute of Technology Bangalore. He Graduated with B.E. degree in Electronics and Communication Engineering. He did M.Tech with specialization in Digital Electronics and Communications from Manipal University. He is currently working towards the Ph.D. degree. His research interests include image processing and cryptography. S. Sethu Selvi is working as the Professor & Head of the Electronics and Communication Department of MSRIT. She graduated with B.E in Electronics and Communication Engineering from Madurai Kamaraj University, ME from Anna University, and Ph.D in Signal Processing from IISC, Bangalore. Her subjects of interests are signal processing, image processing and digital communication.
