Load Balancing Applications on Kubernetes with NGINX

Load Balancing Applications on Kubernetes with NGINX Michael Pleshakov – Platform Integration Engineer, NGINX Inc.

MORE INFORMATION AT NGINX.COM Agenda • Kubernetes and its key features • Application delivery on Kubernetes: Ingress and Ingress controllers (ICs) • Introduce NGINX IC • Demo: Delivering a simple web application using Ingress with NGINX IC. • Advanced configuration of NGINX IC • Summary and Q&A 2 Michael Pleshakov Platform Integration Engineer, NGINX michael@nginx.com

MORE INFORMATION AT NGINX.COM Kubernetes • Kubernetes has become the leading technology for container orchestration • 29% of our users said that Kubernetes was part of their planned technology stack (from 2017 NGINX user survey) • One of the largest open source communities with contributions from thousands of organizations • Vibrant ecosystem of service providers and vendors • All major cloud providers (AWS, Azure and GCP) offer a managed Kubernetes solution

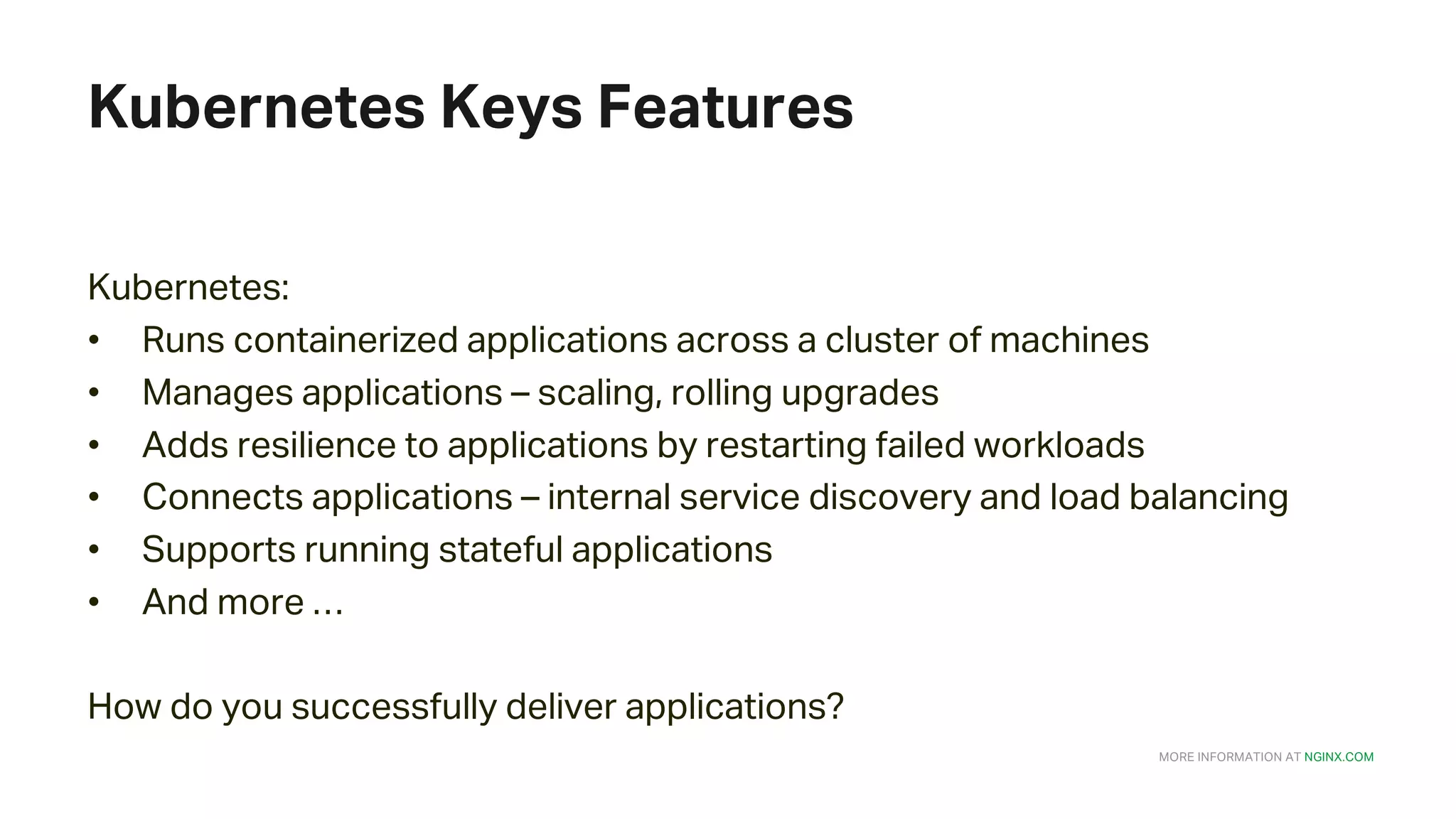

MORE INFORMATION AT NGINX.COM Kubernetes Keys Features Kubernetes: • Runs containerized applications across a cluster of machines • Manages applications – scaling, rolling upgrades • Adds resilience to applications by restarting failed workloads • Connects applications – internal service discovery and load balancing • Supports running stateful applications • And more … How do you successfully deliver applications?

MORE INFORMATION AT NGINX.COM Meet NGINX • NGINX -- open source layer 4/layer 7 load balancing solution, as well as a content- cache and a web server: • 63% of top 10K The busiest sites choose NGINX (W3Techs Web server ranking 23- Jan-2018) • #1 downloaded application image on DockerHub • Releases: • v0.1 - 04 Oct 2004 • v1.13.9 – 20 Feb 2018

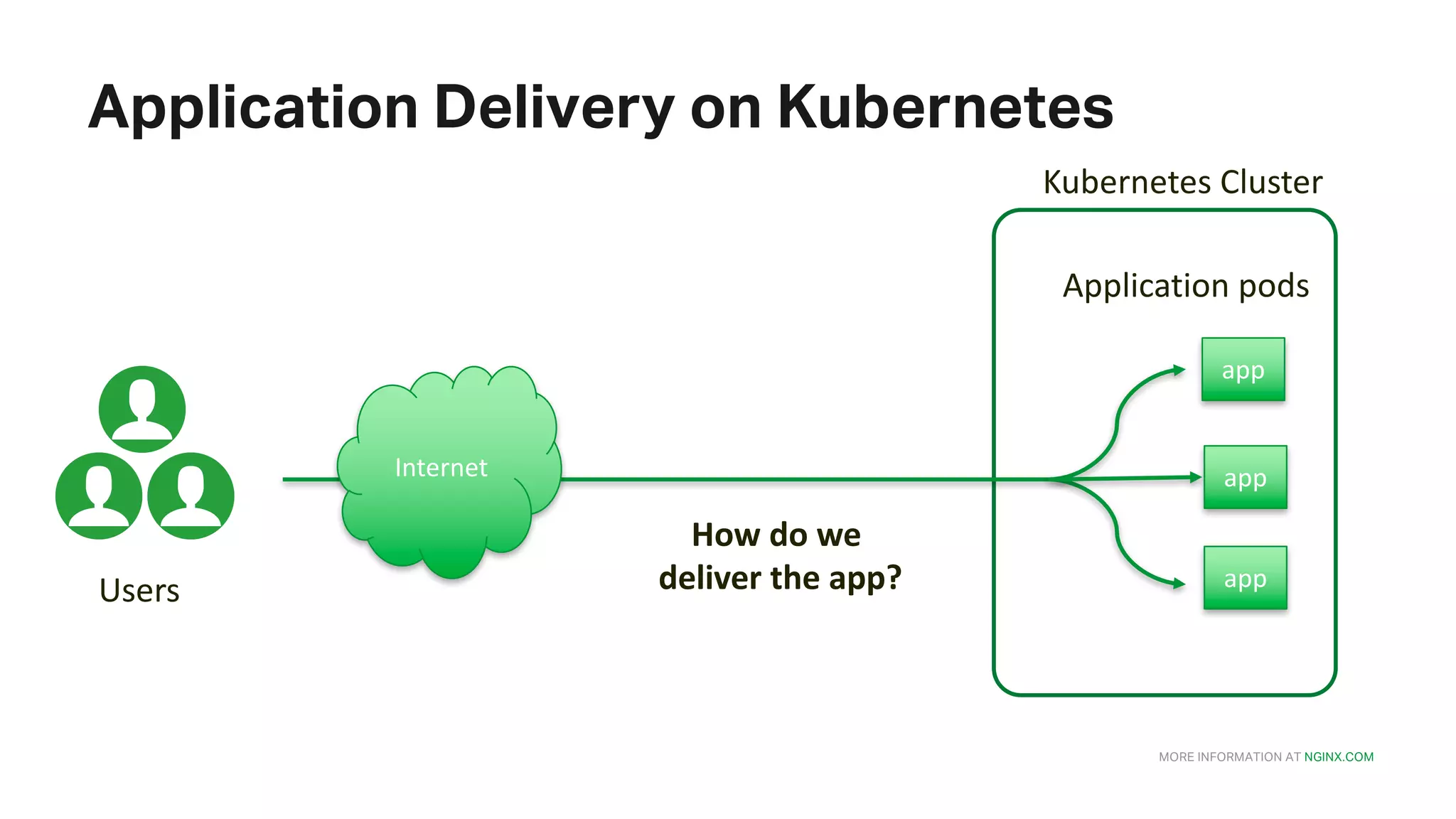

MORE INFORMATION AT NGINX.COM Application Delivery on Kubernetes app app app Kubernetes Cluster Application pods Users Internet How do we deliver the app?

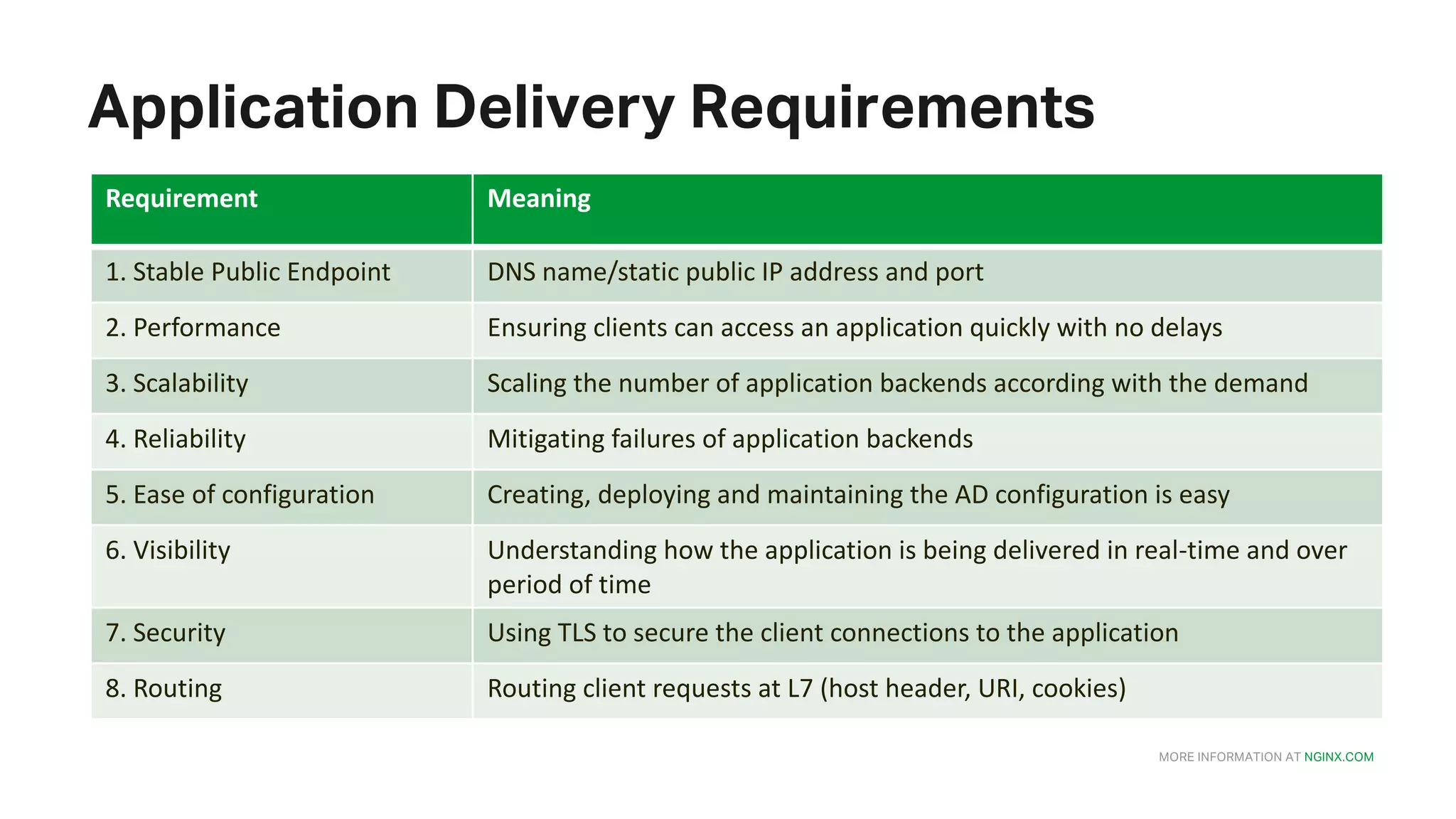

MORE INFORMATION AT NGINX.COM Application Delivery Requirements Requirement Meaning 1. Stable Public Endpoint DNS name/static public IP address and port 2. Performance Ensuring clients can access an application quickly with no delays 3. Scalability Scaling the number of application backends according with the demand 4. Reliability Mitigating failures of application backends 5. Ease of configuration Creating, deploying and maintaining the AD configuration is easy 6. Visibility Understanding how the application is being delivered in real-time and over period of time 7. Security Using TLS to secure the client connections to the application 8. Routing Routing client requests at L7 (host header, URI, cookies)

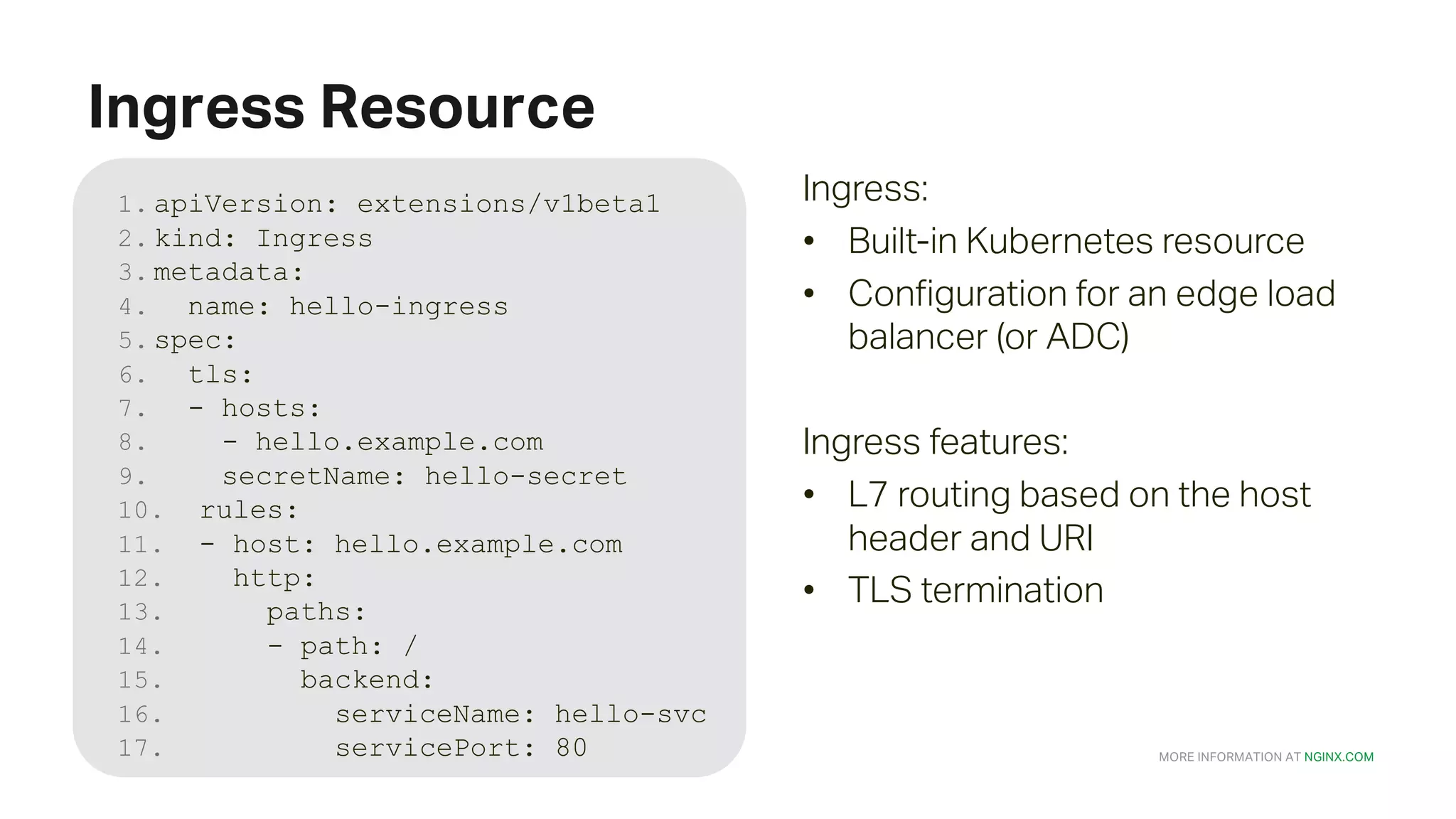

MORE INFORMATION AT NGINX.COM Ingress Resource 1. apiVersion: extensions/v1beta1 2. kind: Ingress 3. metadata: 4. name: hello-ingress 5. spec: 6. tls: 7. - hosts: 8. - hello.example.com 9. secretName: hello-secret 10. rules: 11. - host: hello.example.com 12. http: 13. paths: 14. - path: / 15. backend: 16. serviceName: hello-svc 17. servicePort: 80 Ingress: • Built-in Kubernetes resource • Configuration for an edge load balancer (or ADC) Ingress features: • L7 routing based on the host header and URI • TLS termination

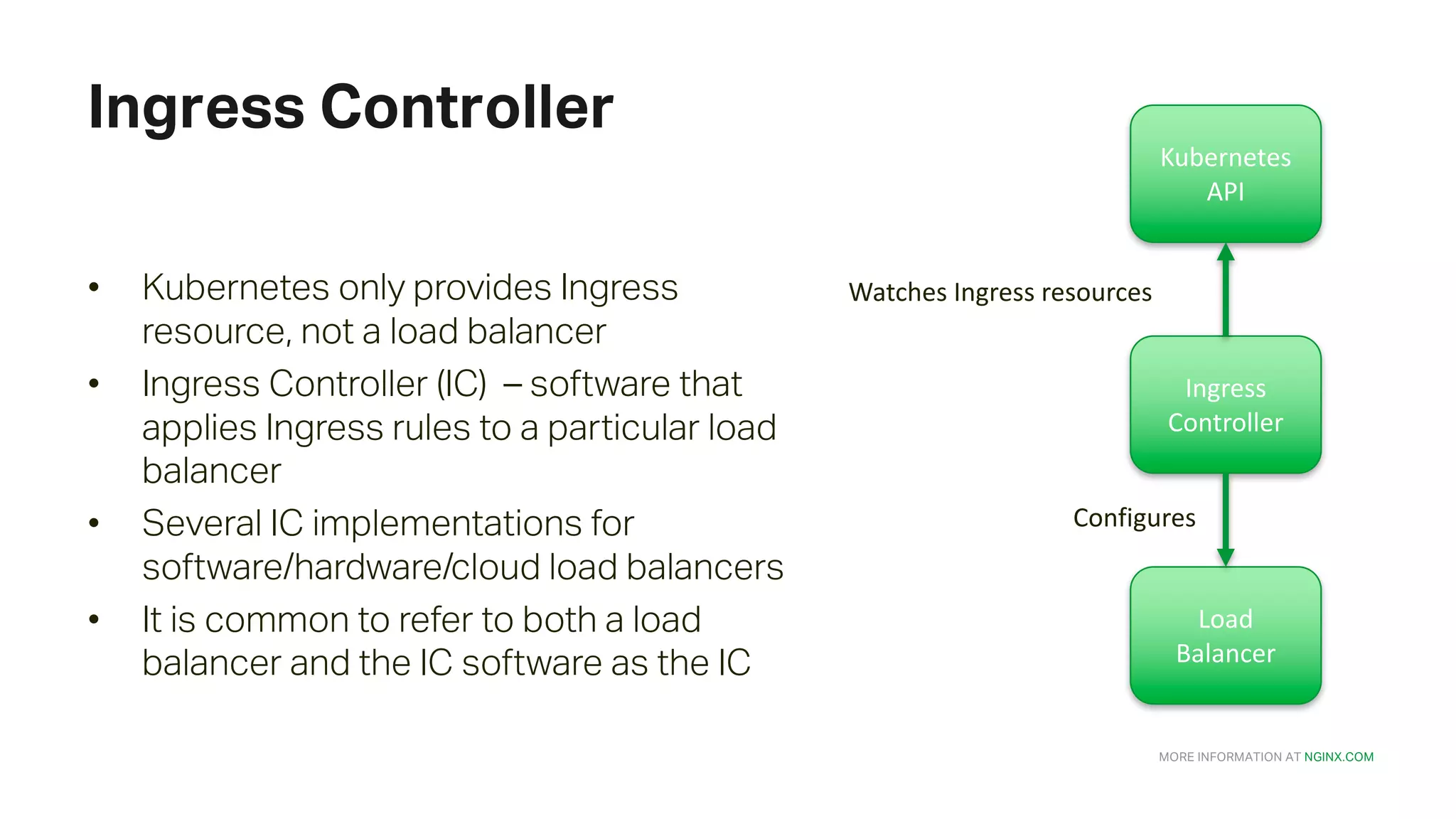

MORE INFORMATION AT NGINX.COM Ingress Controller • Kubernetes only provides Ingress resource, not a load balancer • Ingress Controller (IC) – software that applies Ingress rules to a particular load balancer • Several IC implementations for software/hardware/cloud load balancers • It is common to refer to both a load balancer and the IC software as the IC Kubernetes API Ingress Controller Load Balancer Watches Ingress resources Configures

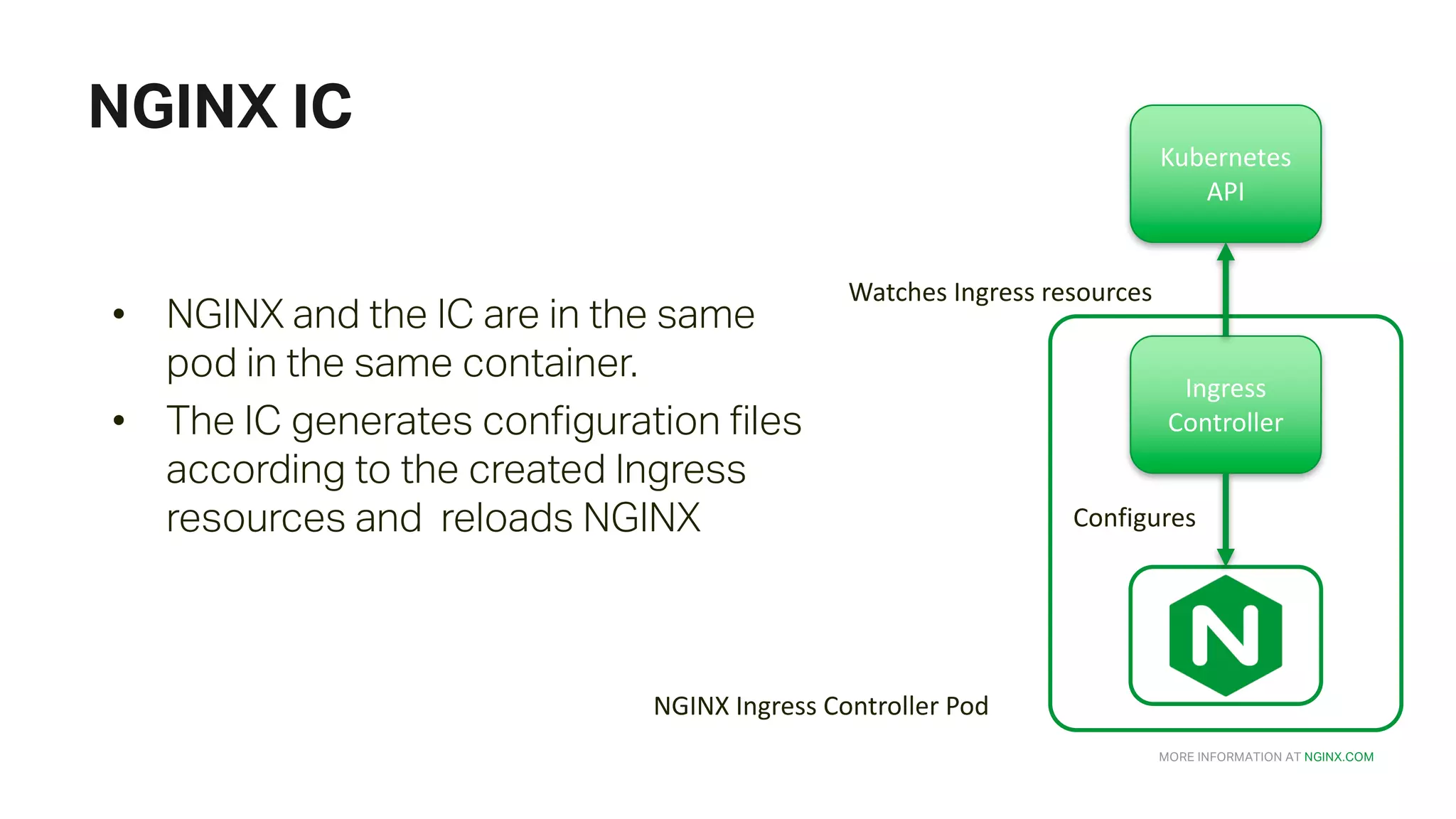

MORE INFORMATION AT NGINX.COM NGINX IC Kubernetes API Ingress Controller Watches Ingress resources Configures • NGINX and the IC are in the same pod in the same container. • The IC generates configuration files according to the created Ingress resources and reloads NGINX NGINX Ingress Controller Pod

MORE INFORMATION AT NGINX.COM Application Delivery on Kubernetes app app app Kubernetes Cluster Application pods Users Internet How do we deliver an app?

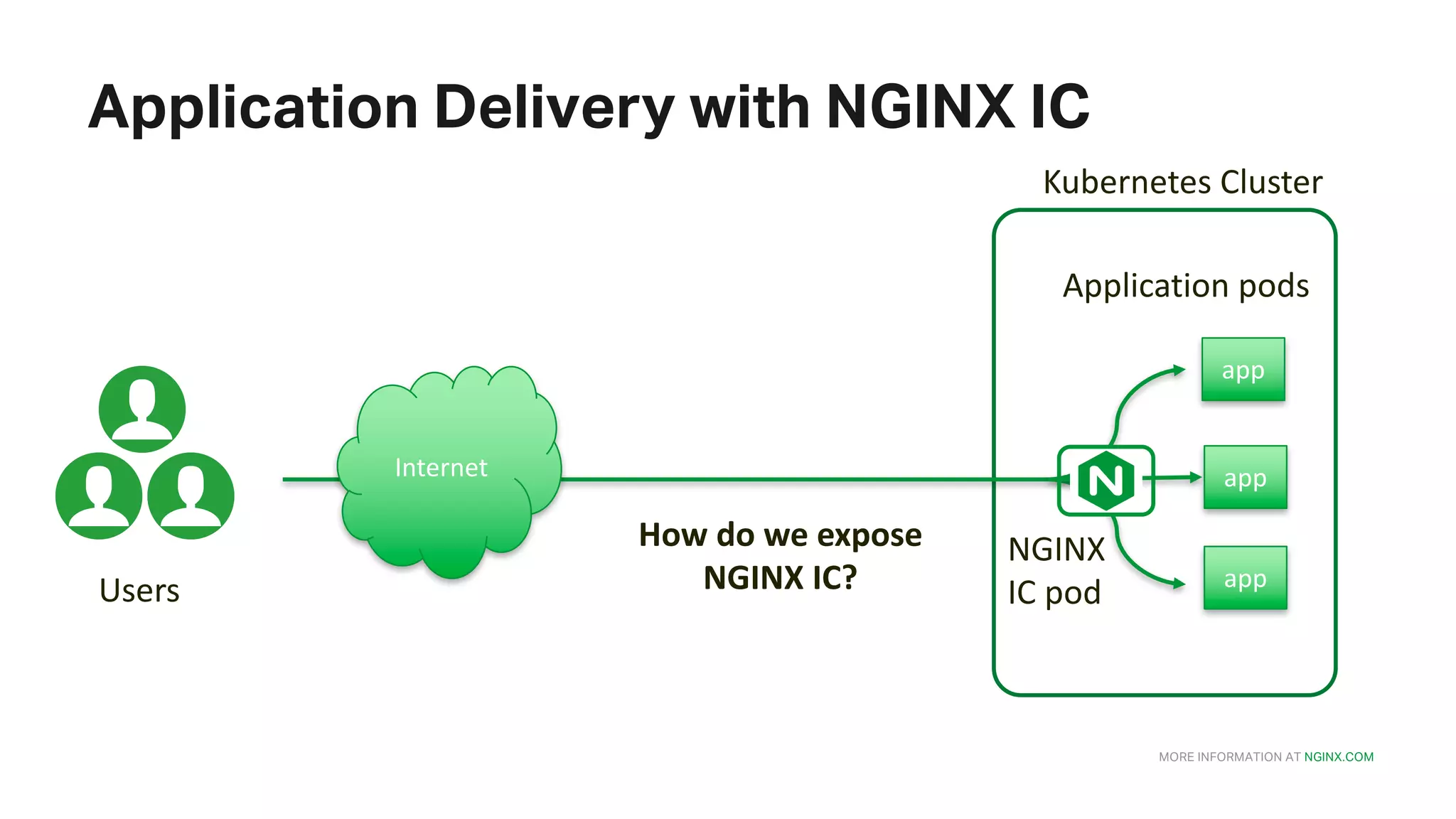

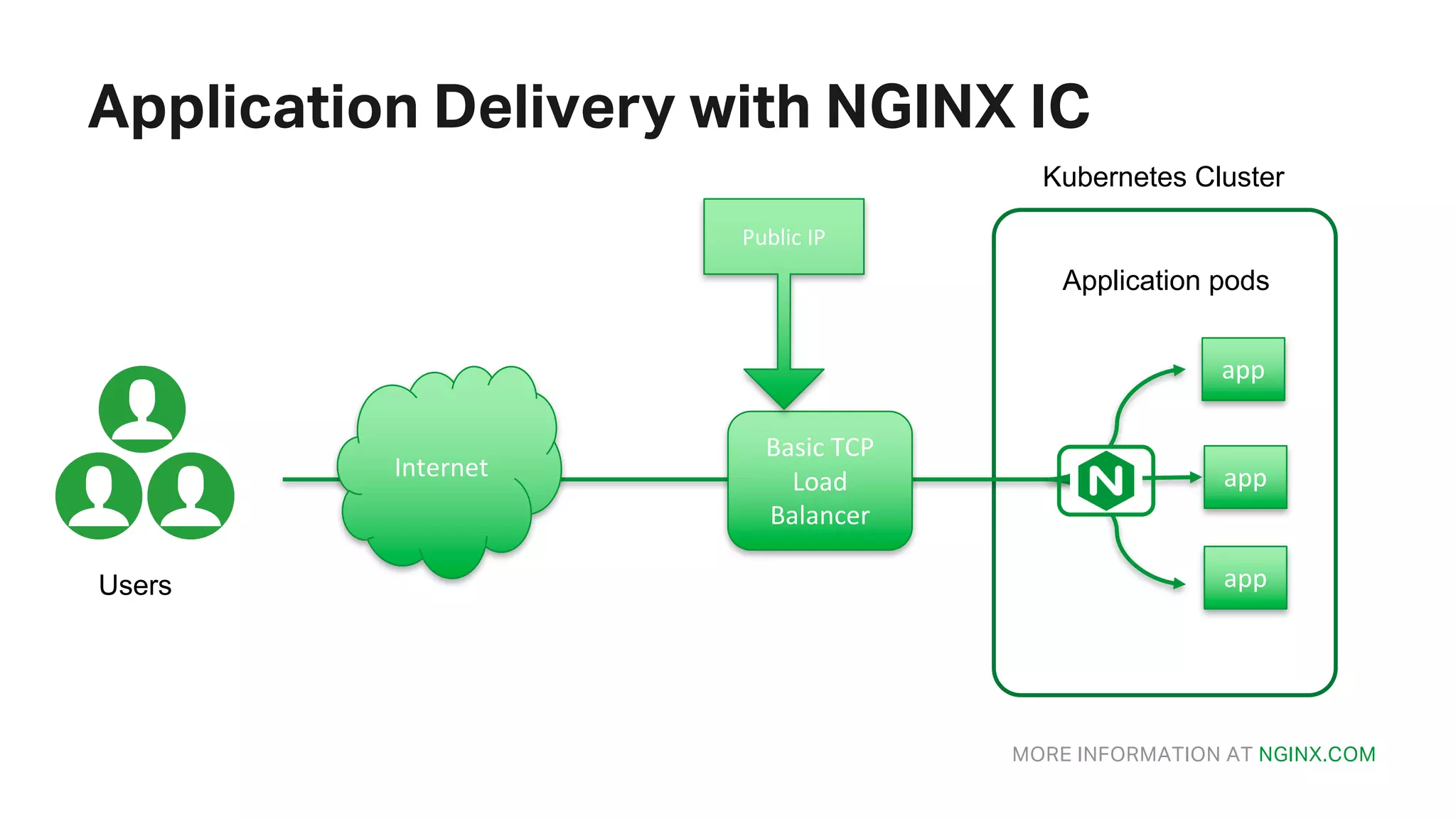

MORE INFORMATION AT NGINX.COM Application Delivery with NGINX IC app app app Kubernetes Cluster Application pods Users Internet How do we expose NGINX IC? NGINX IC pod

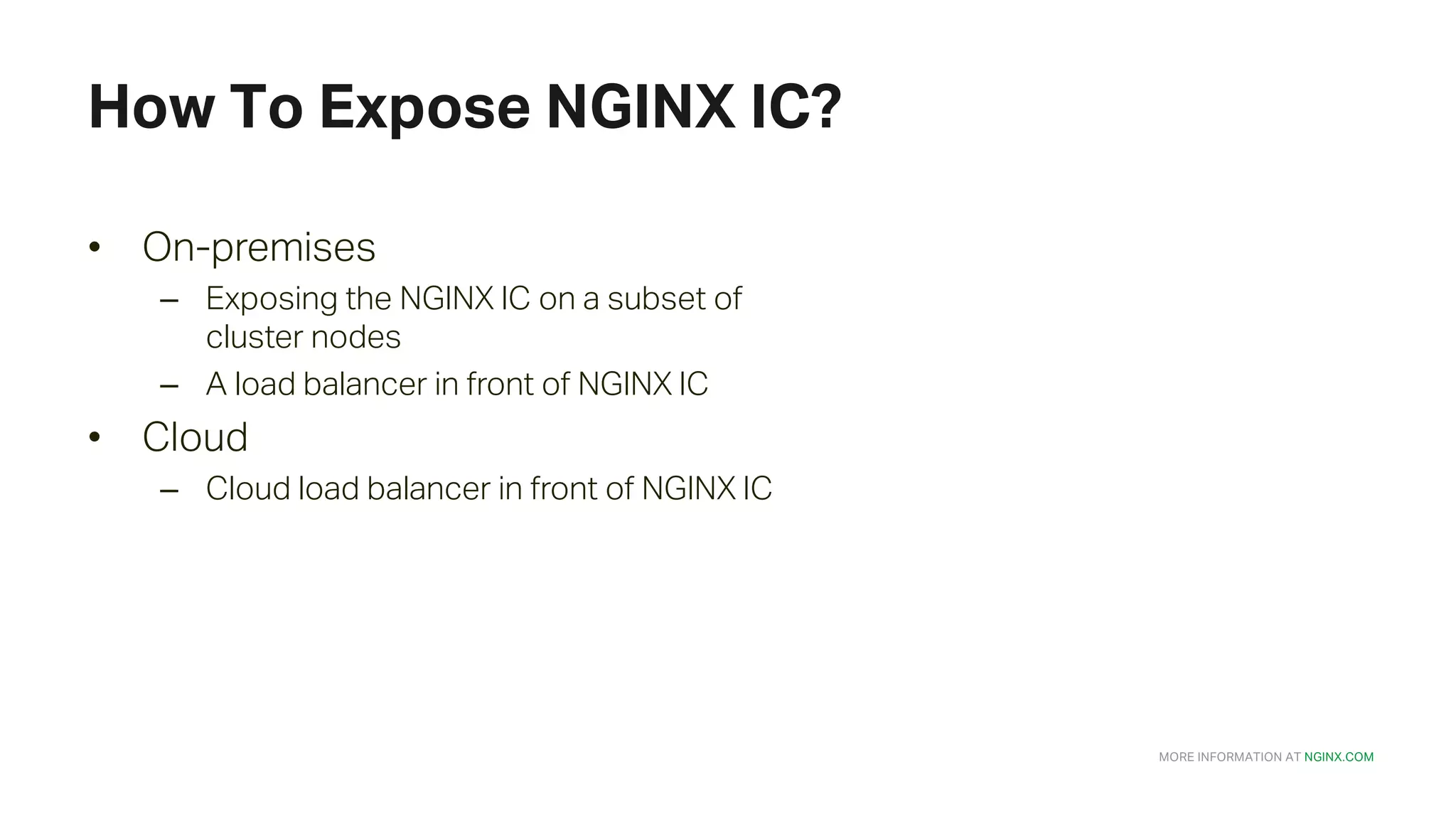

MORE INFORMATION AT NGINX.COM How To Expose NGINX IC? • On-premises – Exposing the NGINX IC on a subset of cluster nodes – A load balancer in front of NGINX IC • Cloud – Cloud load balancer in front of NGINX IC

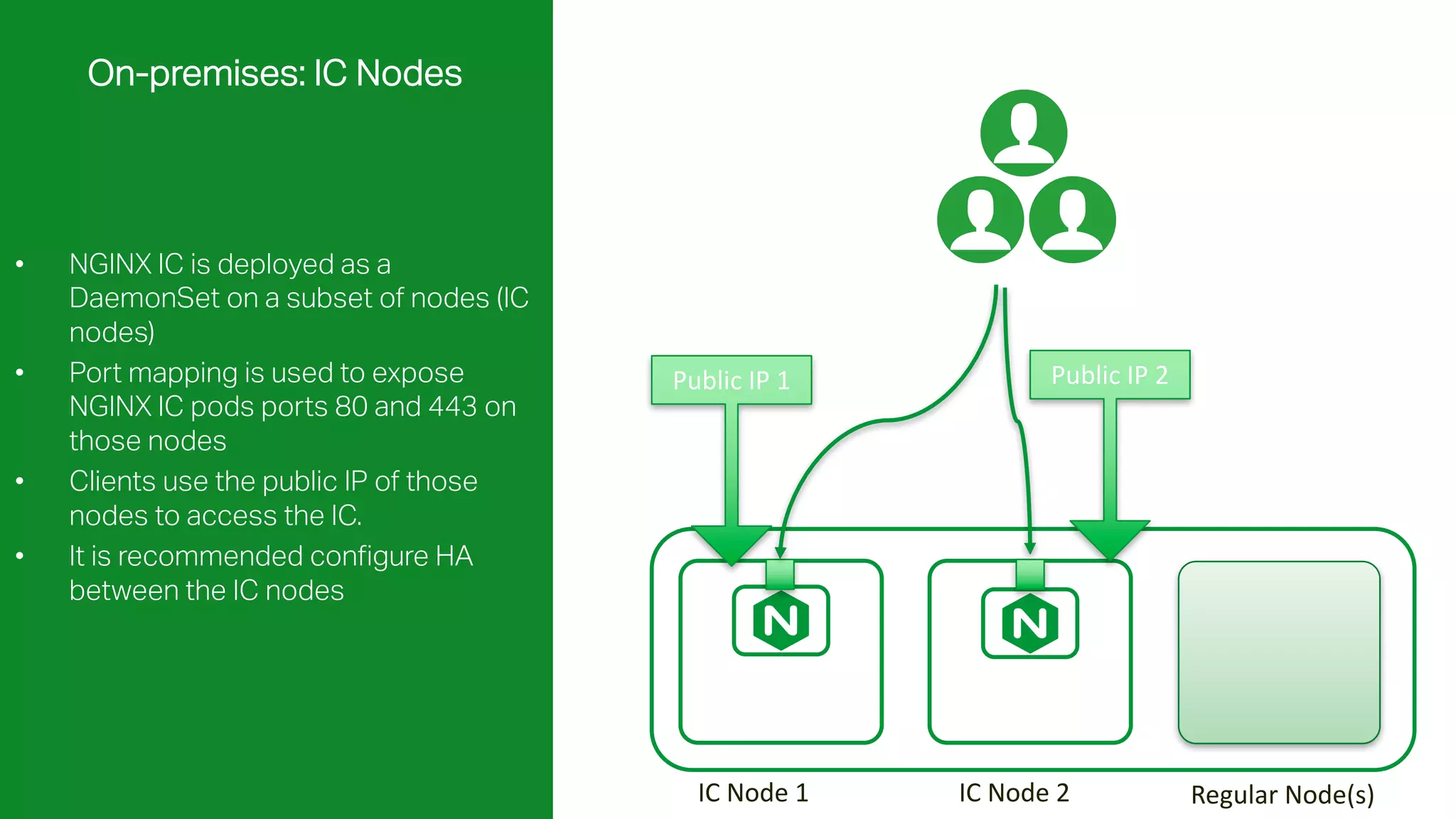

MORE INFORMATION AT NGINX.COM On-premises: IC Nodes • NGINX IC is deployed as a DaemonSet on a subset of nodes (IC nodes) • Port mapping is used to expose NGINX IC pods ports 80 and 443 on those nodes • Clients use the public IP of those nodes to access the IC. • It is recommended configure HA between the IC nodes IC Node 1 IC Node 2 Regular Node(s) Public IP 1 Public IP 2

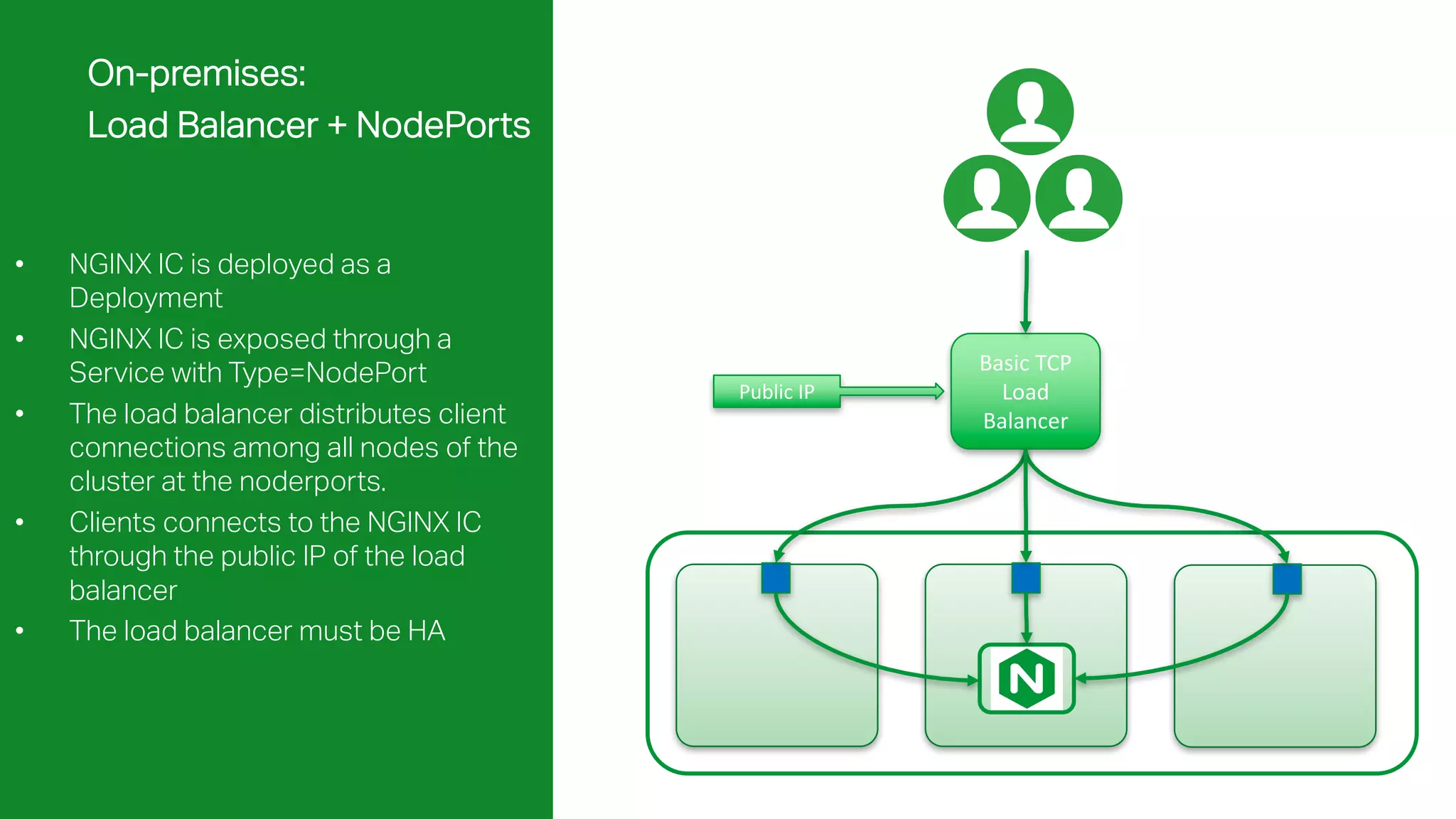

MORE INFORMATION AT NGINX.COM Basic TCP Load Balancer Public IP On-premises: Load Balancer + NodePorts • NGINX IC is deployed as a Deployment • NGINX IC is exposed through a Service with Type=NodePort • The load balancer distributes client connections among all nodes of the cluster at the noderports. • Clients connects to the NGINX IC through the public IP of the load balancer • The load balancer must be HA

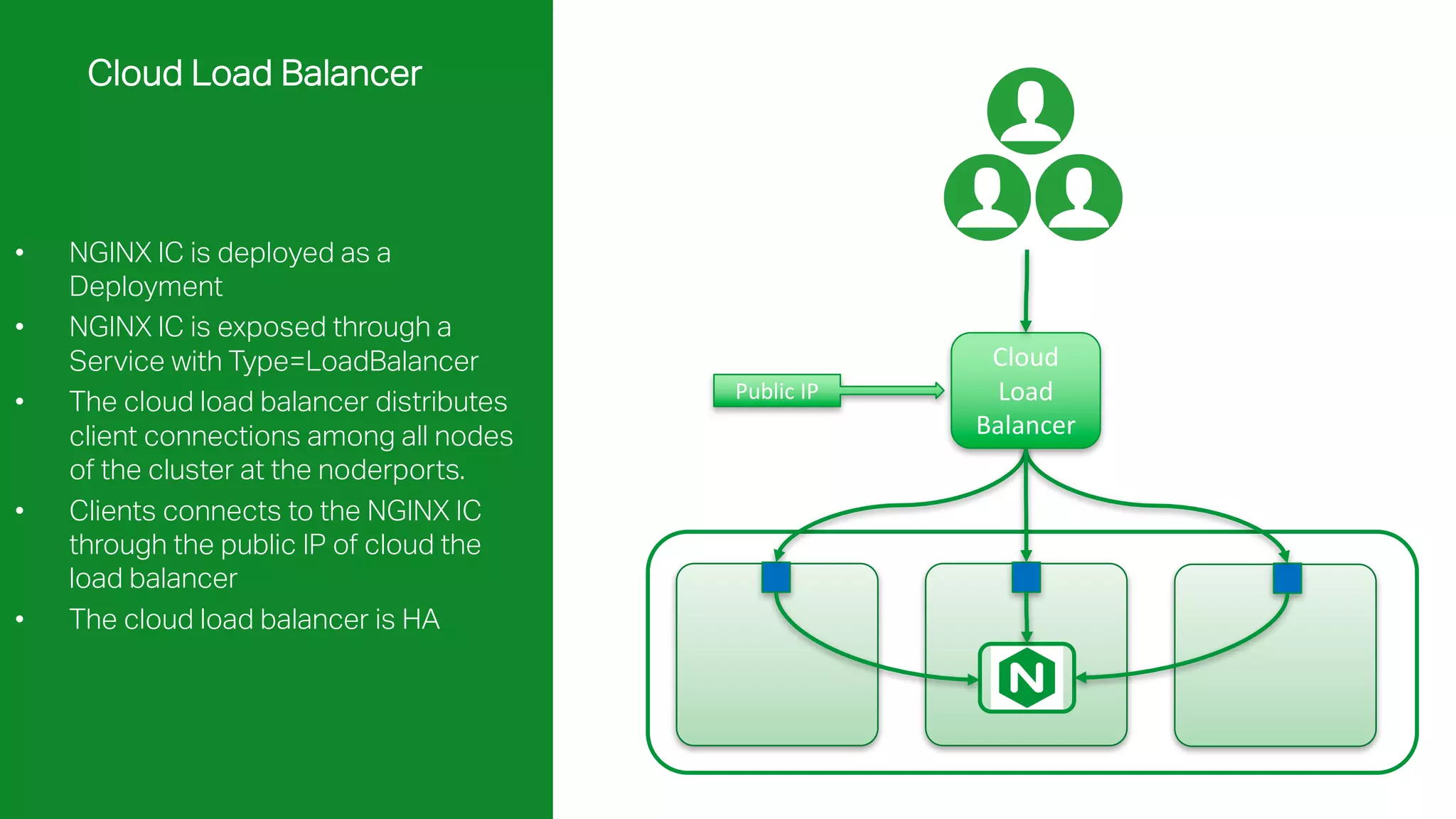

MORE INFORMATION AT NGINX.COM Cloud Load Balancer Public IP Cloud Load Balancer • NGINX IC is deployed as a Deployment • NGINX IC is exposed through a Service with Type=LoadBalancer • The cloud load balancer distributes client connections among all nodes of the cluster at the noderports. • Clients connects to the NGINX IC through the public IP of cloud the load balancer • The cloud load balancer is HA

MORE INFORMATION AT NGINX.COM Application Delivery with NGINX IC app app app Kubernetes Cluster Application pods Users Internet Basic TCP Load Balancer Public IP

MORE INFORMATION AT NGINX.COM Demo Delivering a simple web application using Ingress with NGINX IC.

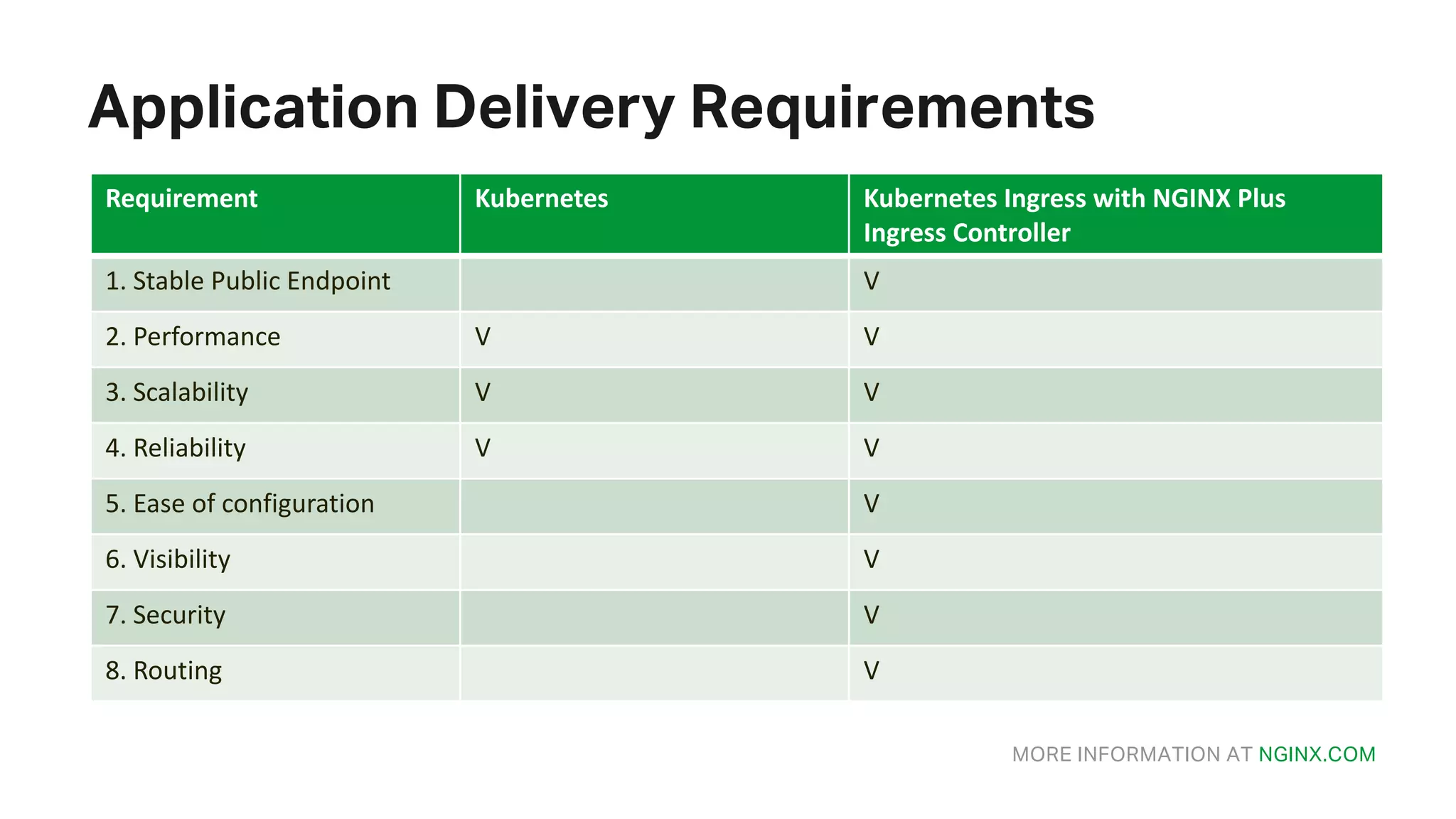

MORE INFORMATION AT NGINX.COM Application Delivery Requirements Requirement Kubernetes Kubernetes Ingress with NGINX Plus Ingress Controller 1. Stable Public Endpoint V 2. Performance V V 3. Scalability V V 4. Reliability V V 5. Ease of configuration V 6. Visibility V 7. Security V 8. Routing V

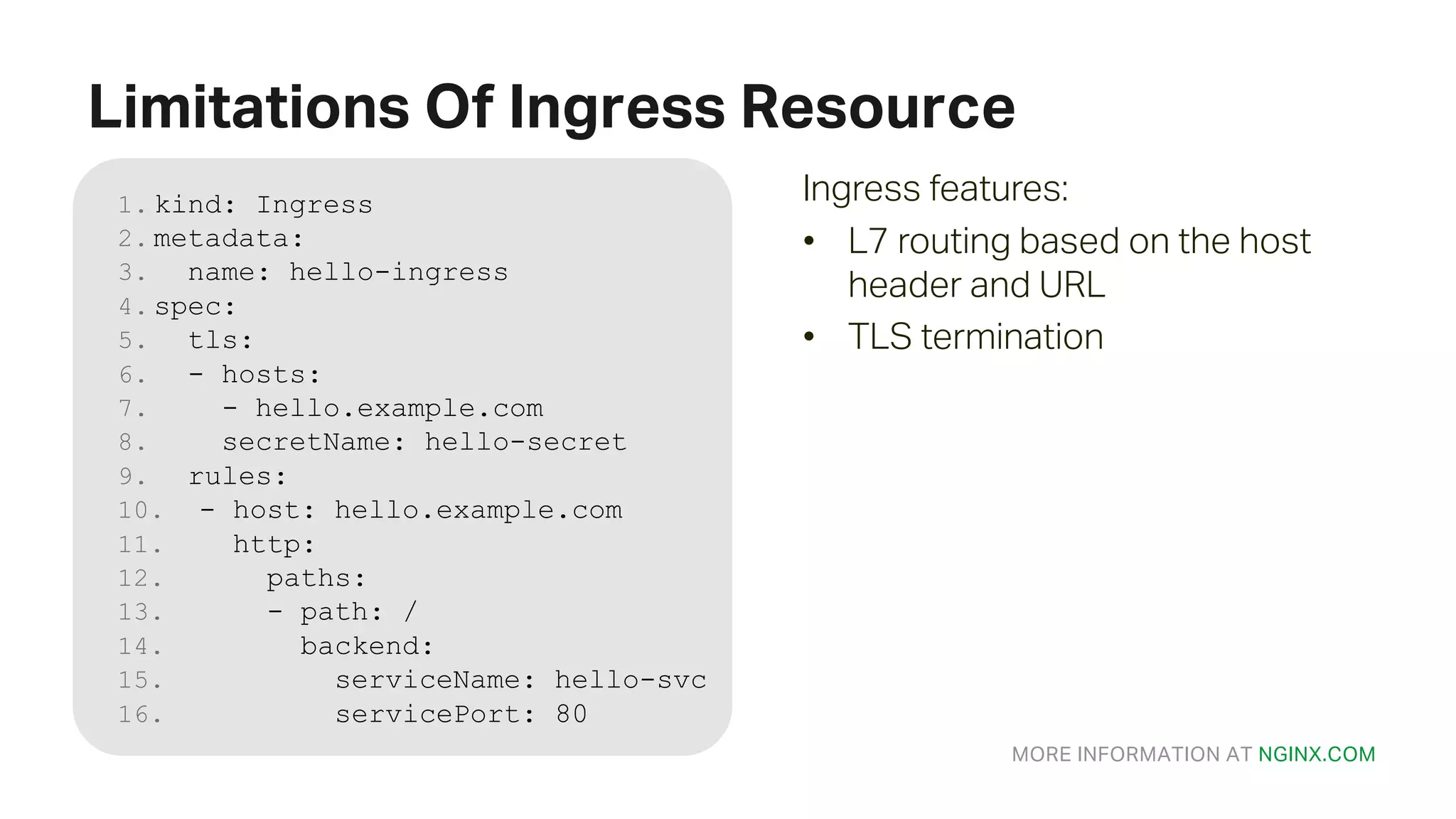

MORE INFORMATION AT NGINX.COM Limitations Of Ingress Resource 1. kind: Ingress 2. metadata: 3. name: hello-ingress 4. spec: 5. tls: 6. - hosts: 7. - hello.example.com 8. secretName: hello-secret 9. rules: 10. - host: hello.example.com 11. http: 12. paths: 13. - path: / 14. backend: 15. serviceName: hello-svc 16. servicePort: 80 Ingress features: • L7 routing based on the host header and URL • TLS termination

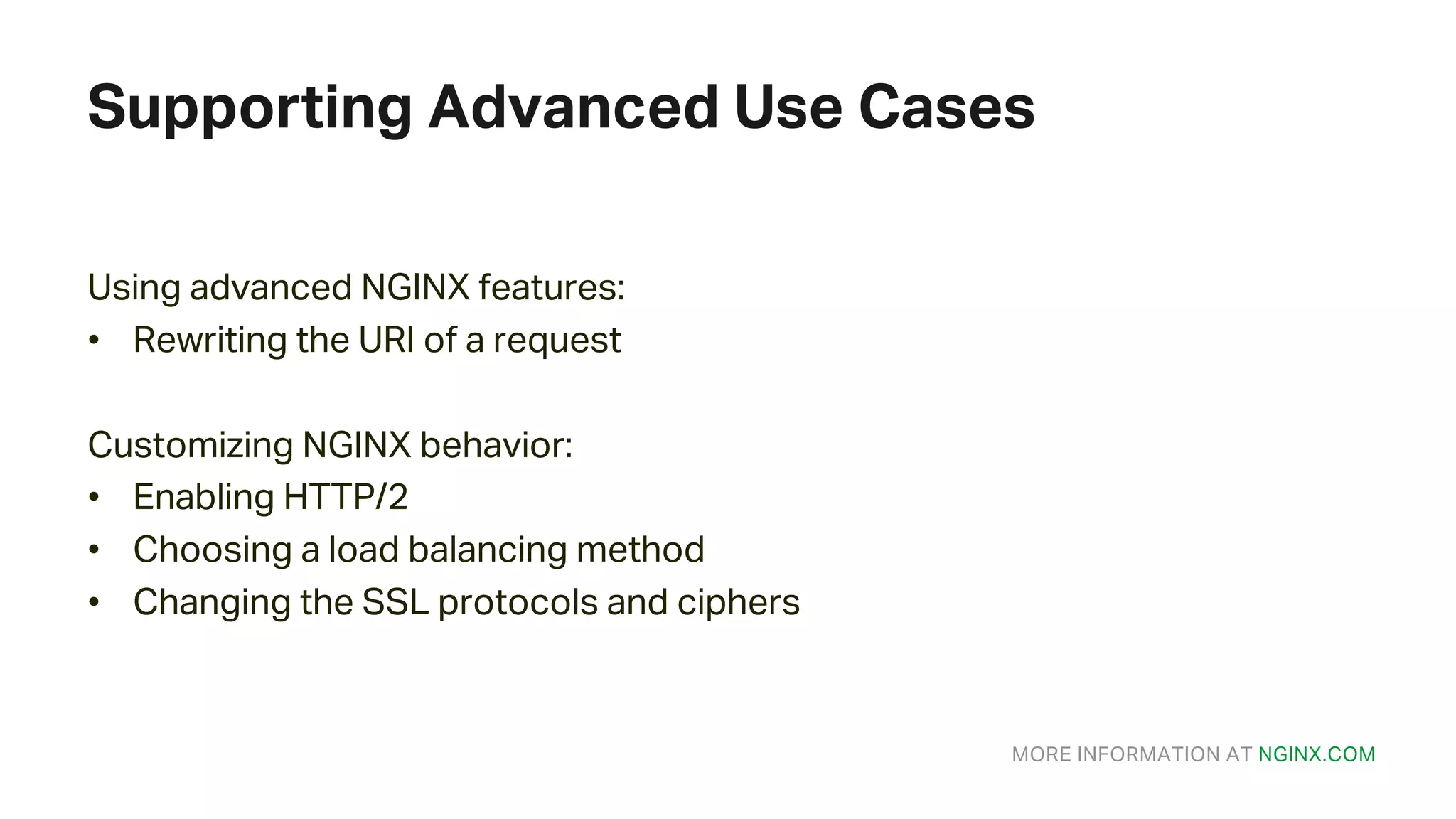

MORE INFORMATION AT NGINX.COM Supporting Advanced Use Cases Using advanced NGINX features: • Rewriting the URI of a request Customizing NGINX behavior: • Enabling HTTP/2 • Choosing a load balancing method • Changing the SSL protocols and ciphers

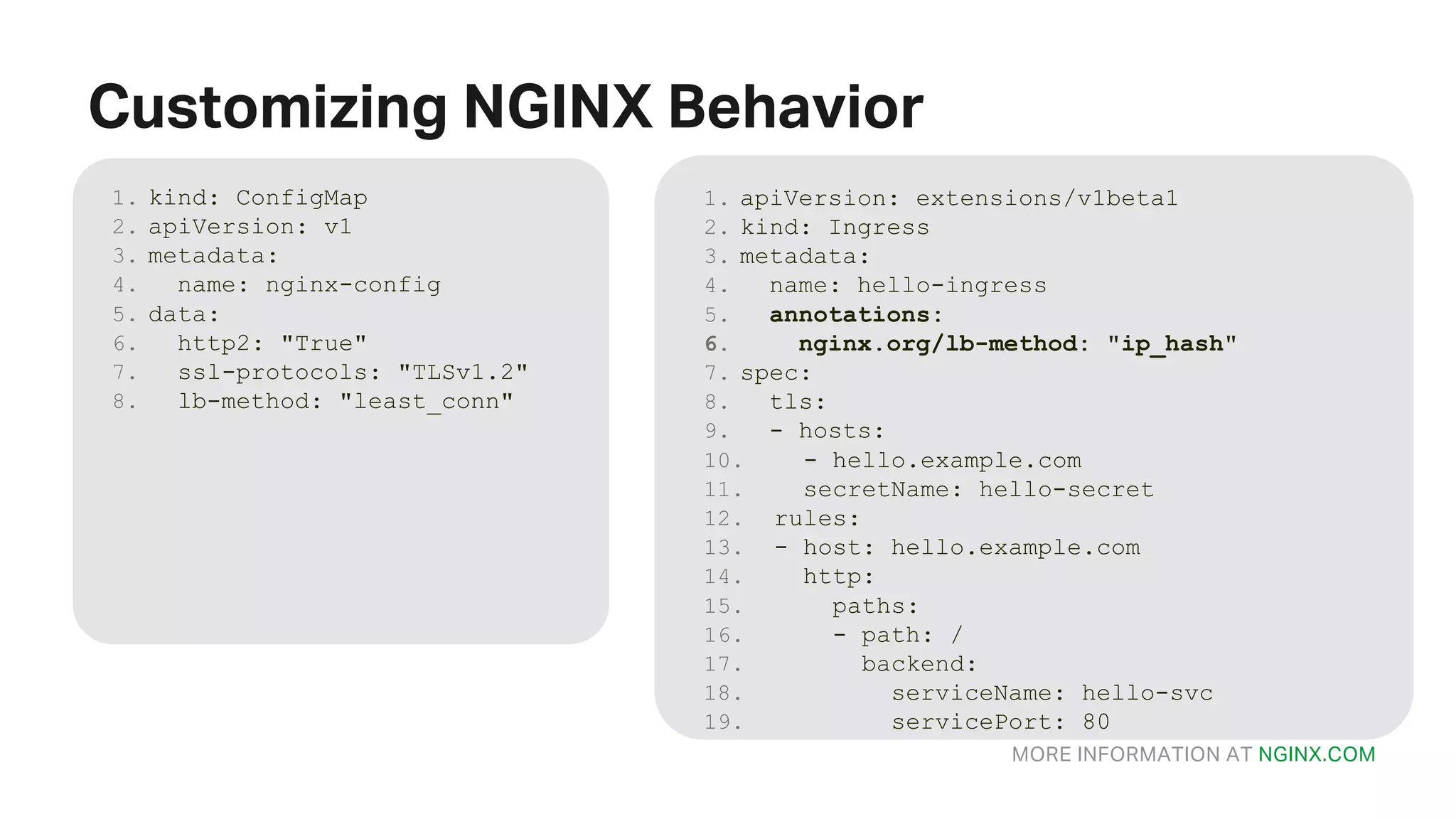

MORE INFORMATION AT NGINX.COM Customizing NGINX Behavior 1. kind: ConfigMap 2. apiVersion: v1 3. metadata: 4. name: nginx-config 5. data: 6. http2: "True" 7. ssl-protocols: "TLSv1.2" 8. lb-method: "least_conn" 1. apiVersion: extensions/v1beta1 2. kind: Ingress 3. metadata: 4. name: hello-ingress 5. annotations: 6. nginx.org/lb-method: "ip_hash" 7. spec: 8. tls: 9. - hosts: 10. - hello.example.com 11. secretName: hello-secret 12. rules: 13. - host: hello.example.com 14. http: 15. paths: 16. - path: / 17. backend: 18. serviceName: hello-svc 19. servicePort: 80

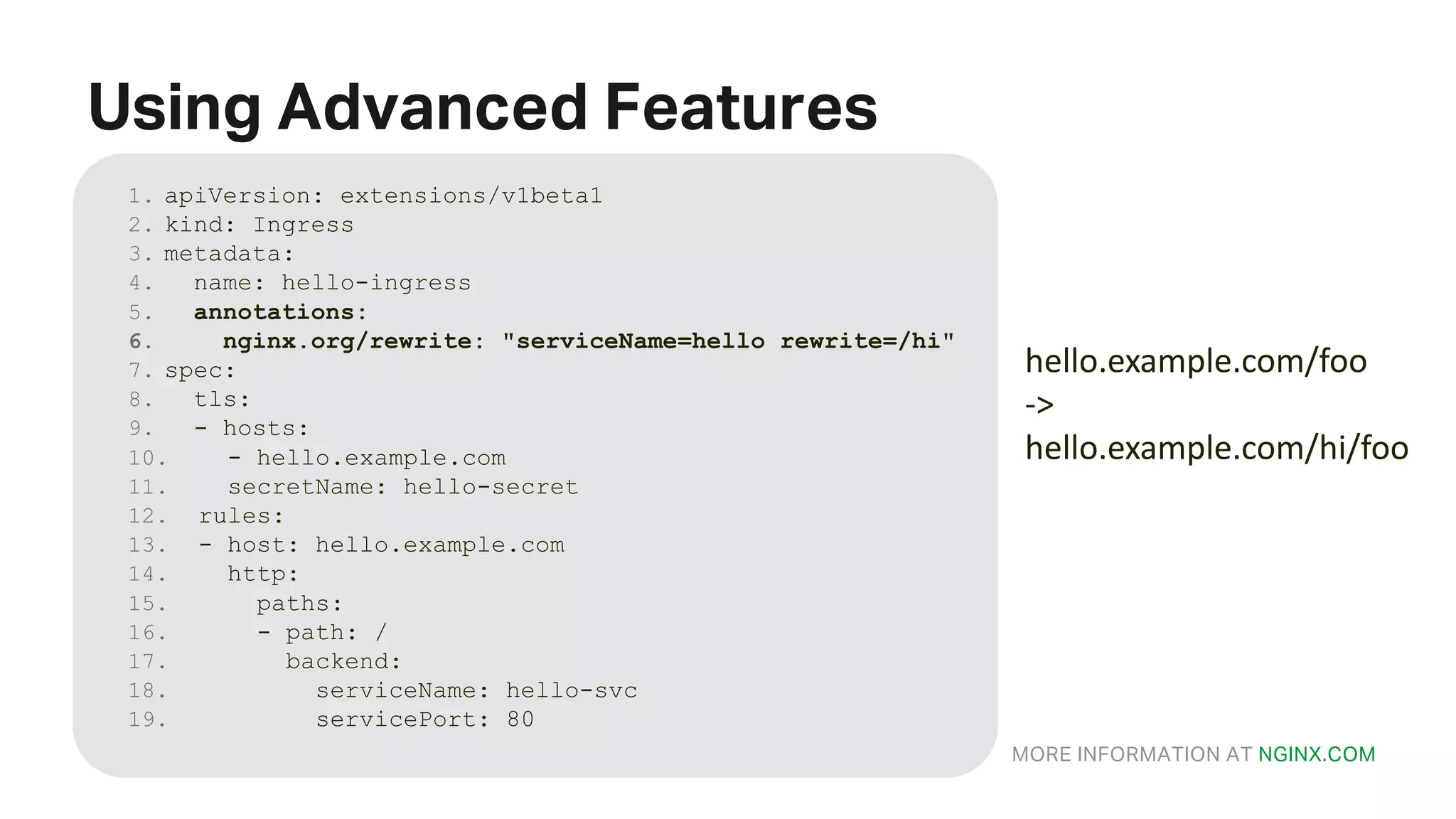

MORE INFORMATION AT NGINX.COM Using Advanced Features 1. apiVersion: extensions/v1beta1 2. kind: Ingress 3. metadata: 4. name: hello-ingress 5. annotations: 6. nginx.org/rewrite: "serviceName=hello rewrite=/hi" 7. spec: 8. tls: 9. - hosts: 10. - hello.example.com 11. secretName: hello-secret 12. rules: 13. - host: hello.example.com 14. http: 15. paths: 16. - path: / 17. backend: 18. serviceName: hello-svc 19. servicePort: 80 hello.example.com/foo -> hello.example.com/hi/foo

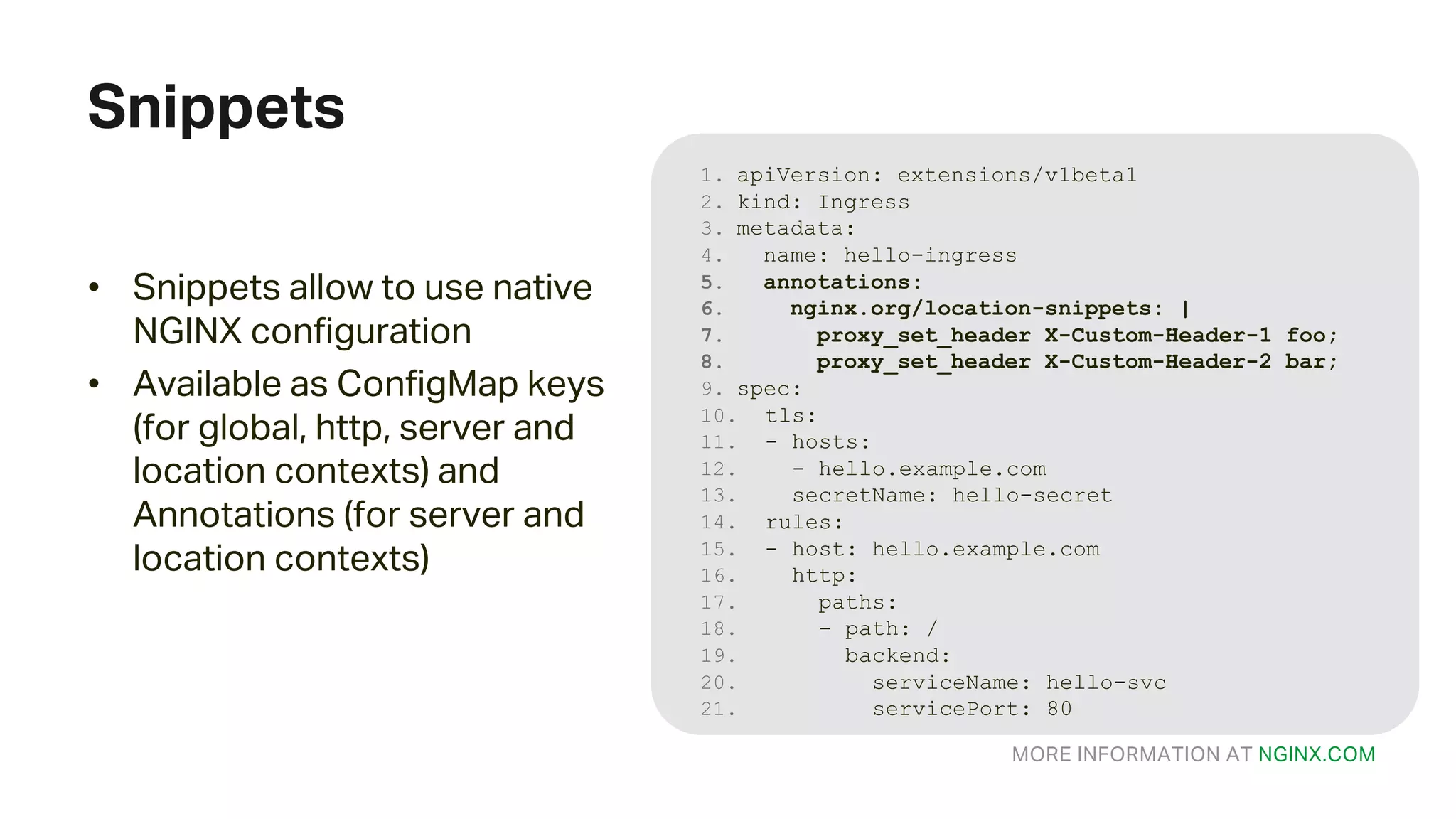

MORE INFORMATION AT NGINX.COM Snippets 1. apiVersion: extensions/v1beta1 2. kind: Ingress 3. metadata: 4. name: hello-ingress 5. annotations: 6. nginx.org/location-snippets: | 7. proxy_set_header X-Custom-Header-1 foo; 8. proxy_set_header X-Custom-Header-2 bar; 9. spec: 10. tls: 11. - hosts: 12. - hello.example.com 13. secretName: hello-secret 14. rules: 15. - host: hello.example.com 16. http: 17. paths: 18. - path: / 19. backend: 20. serviceName: hello-svc 21. servicePort: 80 • Snippets allow to use native NGINX configuration • Available as ConfigMap keys (for global, http, server and location contexts) and Annotations (for server and location contexts)

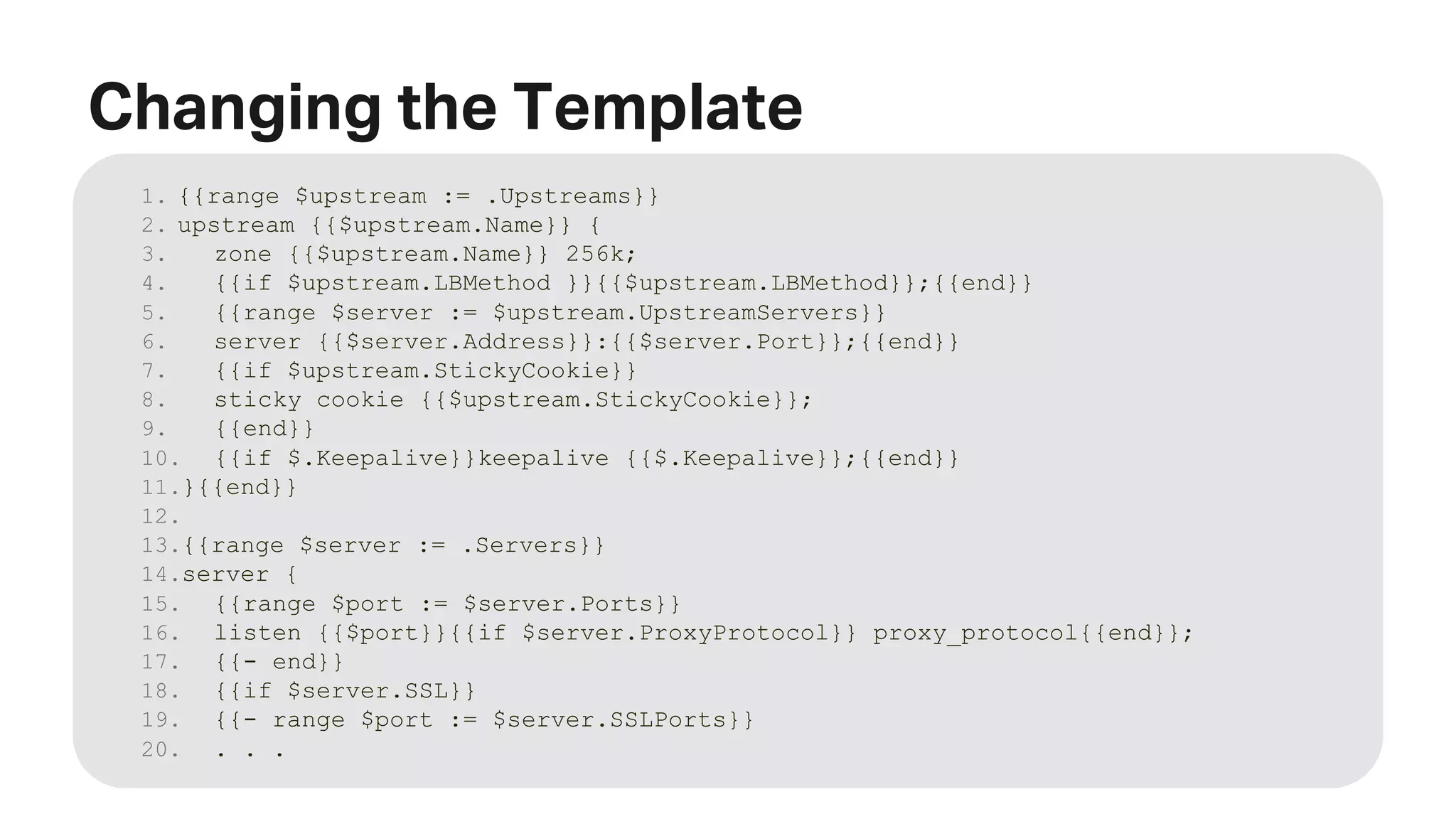

MORE INFORMATION AT NGINX.COM Changing the Template 1. {{range $upstream := .Upstreams}} 2. upstream {{$upstream.Name}} { 3. zone {{$upstream.Name}} 256k; 4. {{if $upstream.LBMethod }}{{$upstream.LBMethod}};{{end}} 5. {{range $server := $upstream.UpstreamServers}} 6. server {{$server.Address}}:{{$server.Port}};{{end}} 7. {{if $upstream.StickyCookie}} 8. sticky cookie {{$upstream.StickyCookie}}; 9. {{end}} 10. {{if $.Keepalive}}keepalive {{$.Keepalive}};{{end}} 11.}{{end}} 12. 13.{{range $server := .Servers}} 14.server { 15. {{range $port := $server.Ports}} 16. listen {{$port}}{{if $server.ProxyProtocol}} proxy_protocol{{end}}; 17. {{- end}} 18. {{if $server.SSL}} 19. {{- range $port := $server.SSLPorts}} 20. . . .

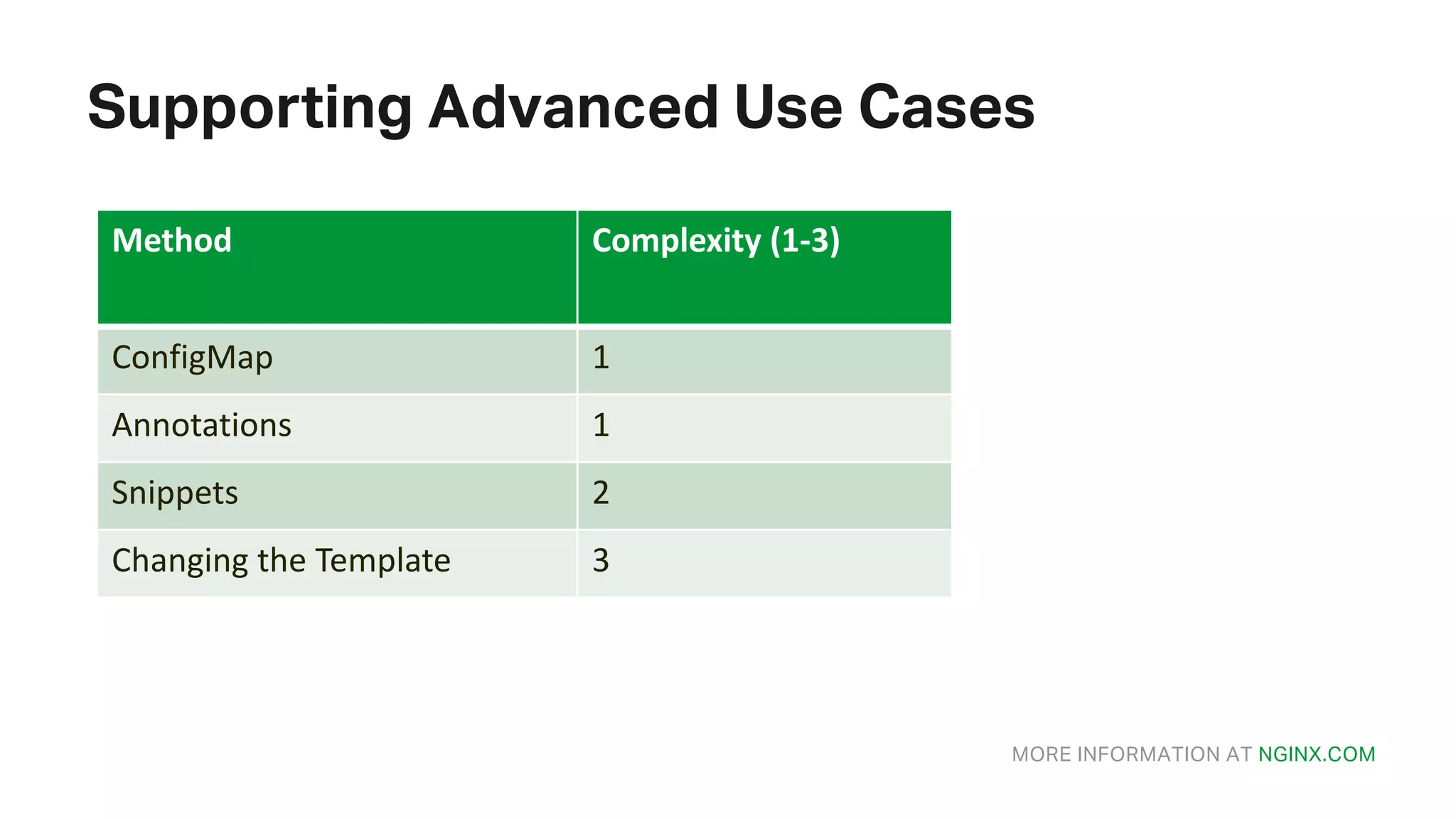

MORE INFORMATION AT NGINX.COM Supporting Advanced Use Cases Method Complexity (1-3) ConfigMap 1 Annotations 1 Snippets 2 Changing the Template 3

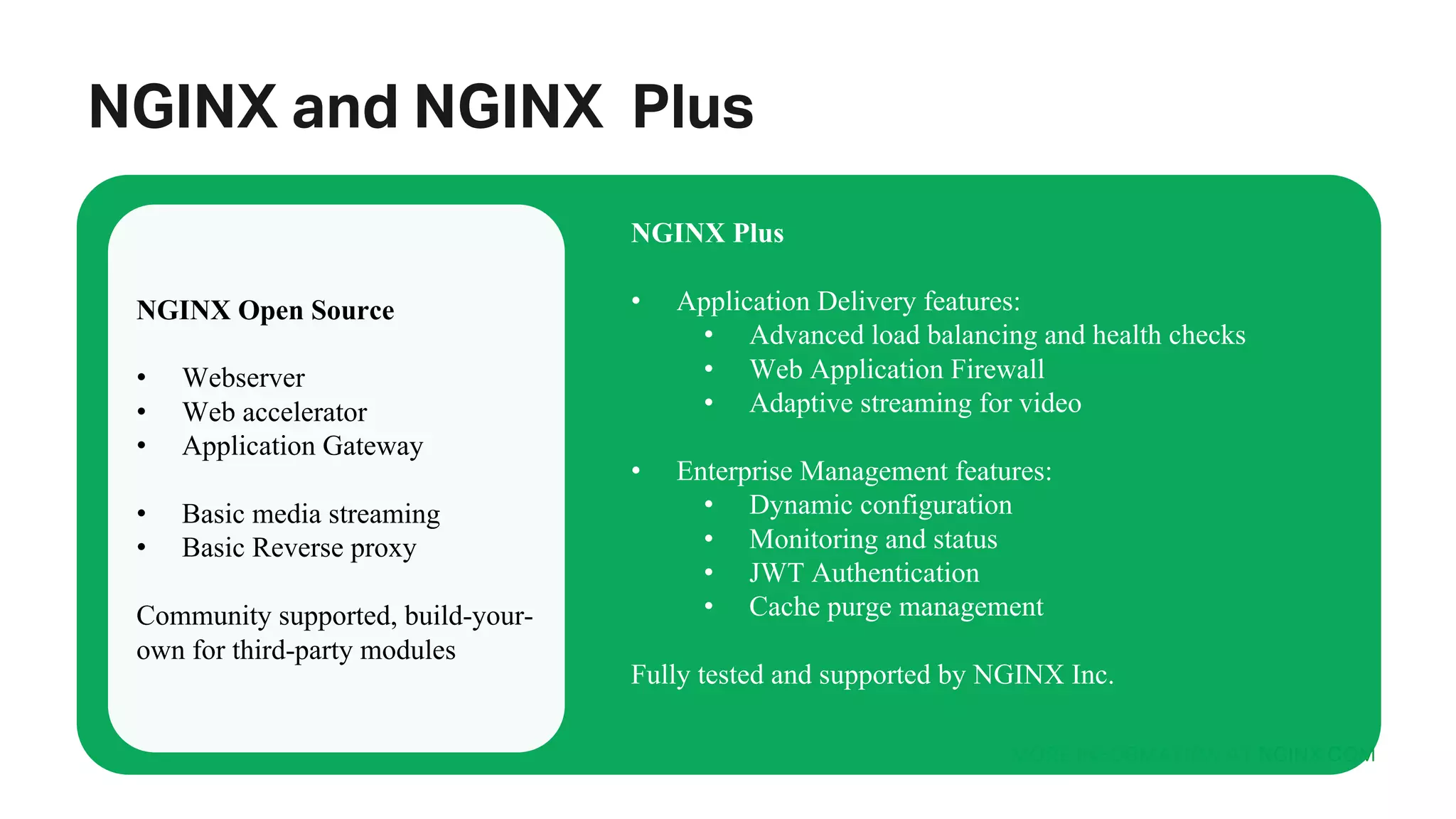

MORE INFORMATION AT NGINX.COM NGINX and NGINX Plus NGINX Open Source • Webserver • Web accelerator • Application Gateway • Basic media streaming • Basic Reverse proxy Community supported, build-your- own for third-party modules NGINX Plus • Application Delivery features: • Advanced load balancing and health checks • Web Application Firewall • Adaptive streaming for video • Enterprise Management features: • Dynamic configuration • Monitoring and status • JWT Authentication • Cache purge management Fully tested and supported by NGINX Inc.

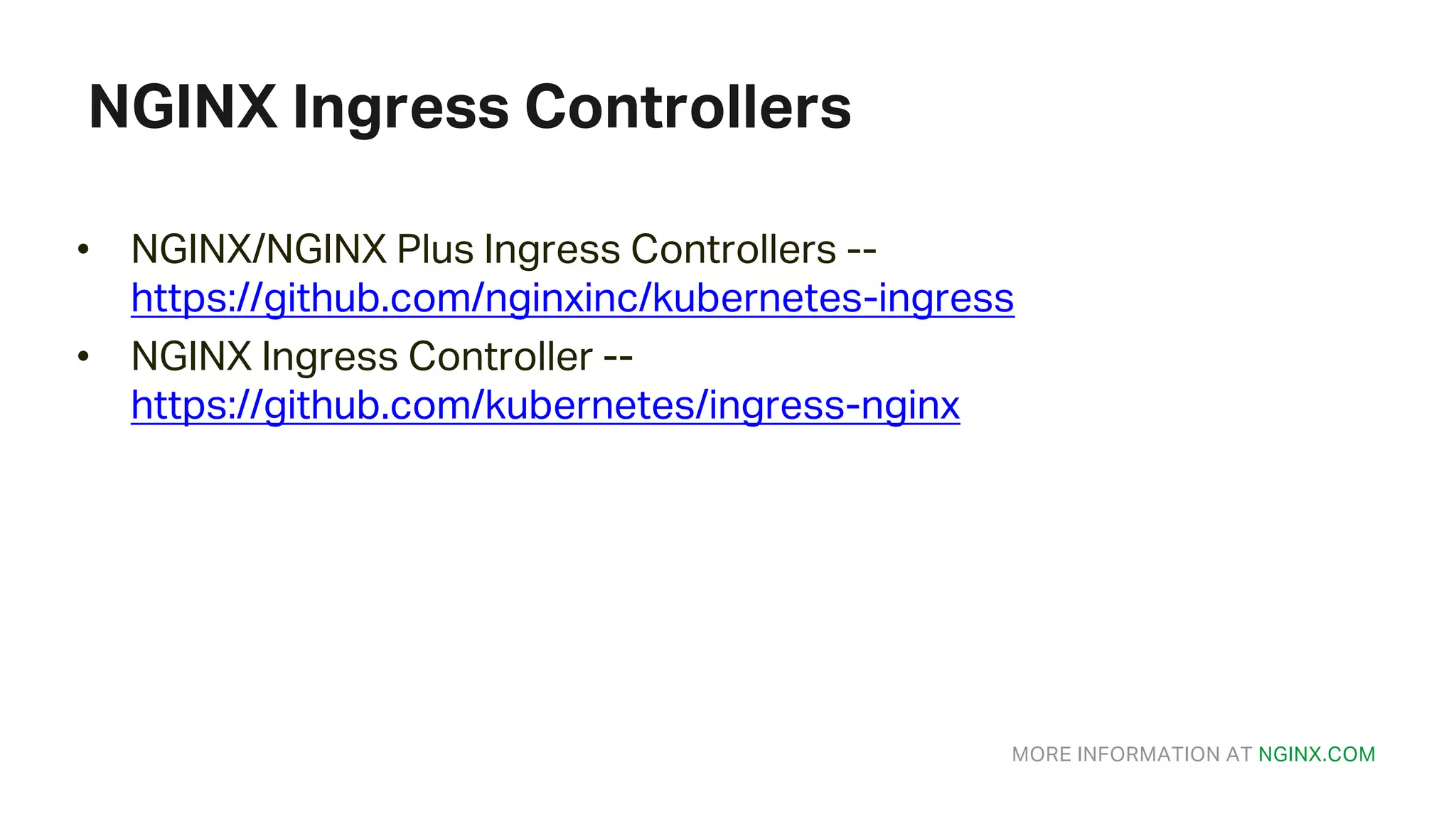

MORE INFORMATION AT NGINX.COM NGINX Ingress Controllers • NGINX/NGINX Plus Ingress Controllers -- https://github.com/nginxinc/kubernetes-ingress • NGINX Ingress Controller -- https://github.com/kubernetes/ingress-nginx

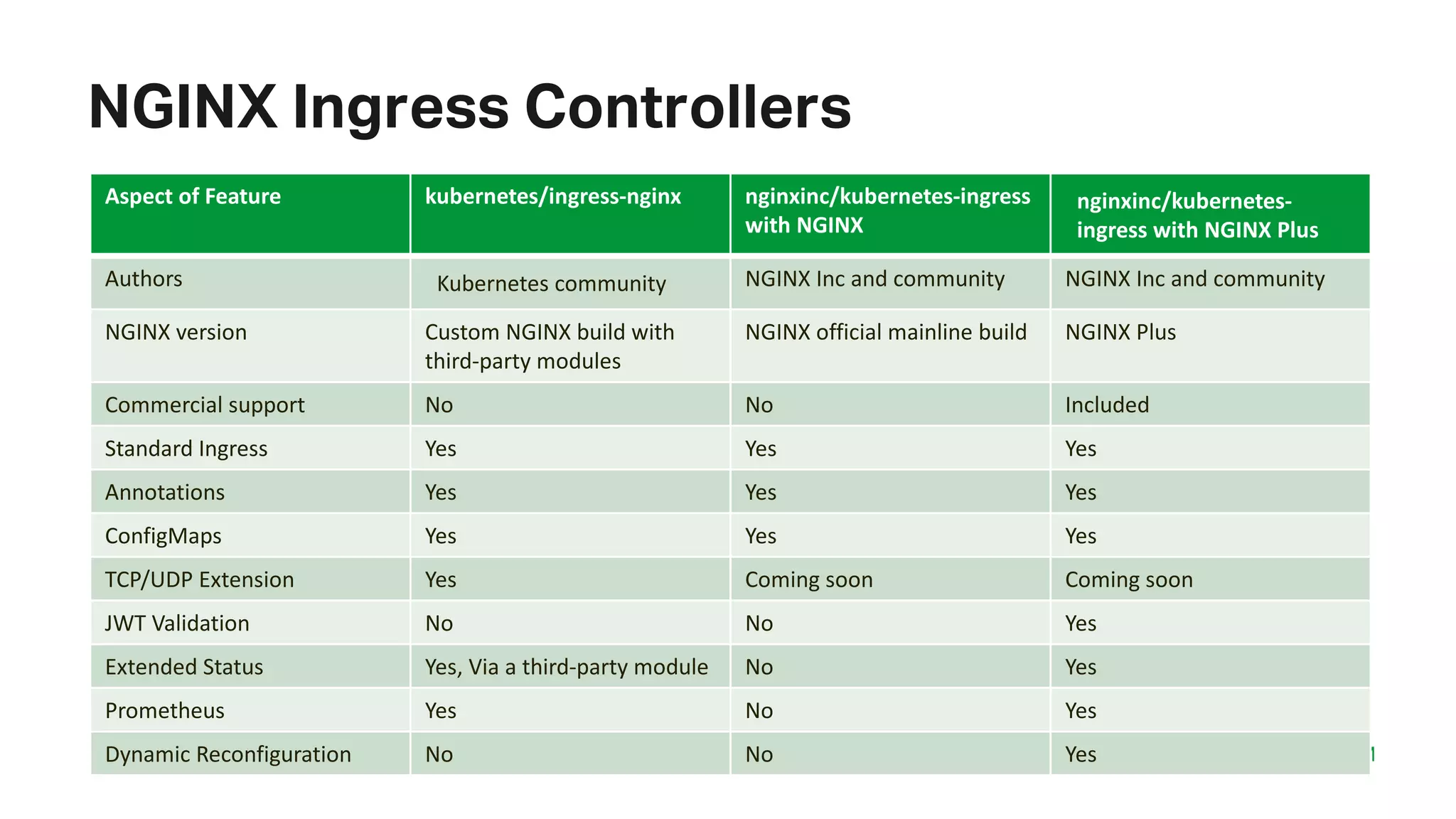

MORE INFORMATION AT NGINX.COM NGINX Ingress Controllers Aspect of Feature kubernetes/ingress-nginx nginxinc/kubernetes-ingress with NGINX nginxinc/kubernetes- ingress with NGINX Plus Authors Kubernetes community NGINX Inc and community NGINX Inc and community NGINX version Custom NGINX build with third-party modules NGINX official mainline build NGINX Plus Commercial support No No Included Standard Ingress Yes Yes Yes Annotations Yes Yes Yes ConfigMaps Yes Yes Yes TCP/UDP Extension Yes Coming soon Coming soon JWT Validation No No Yes Extended Status Yes, Via a third-party module No Yes Prometheus Yes No Yes Dynamic Reconfiguration No No Yes

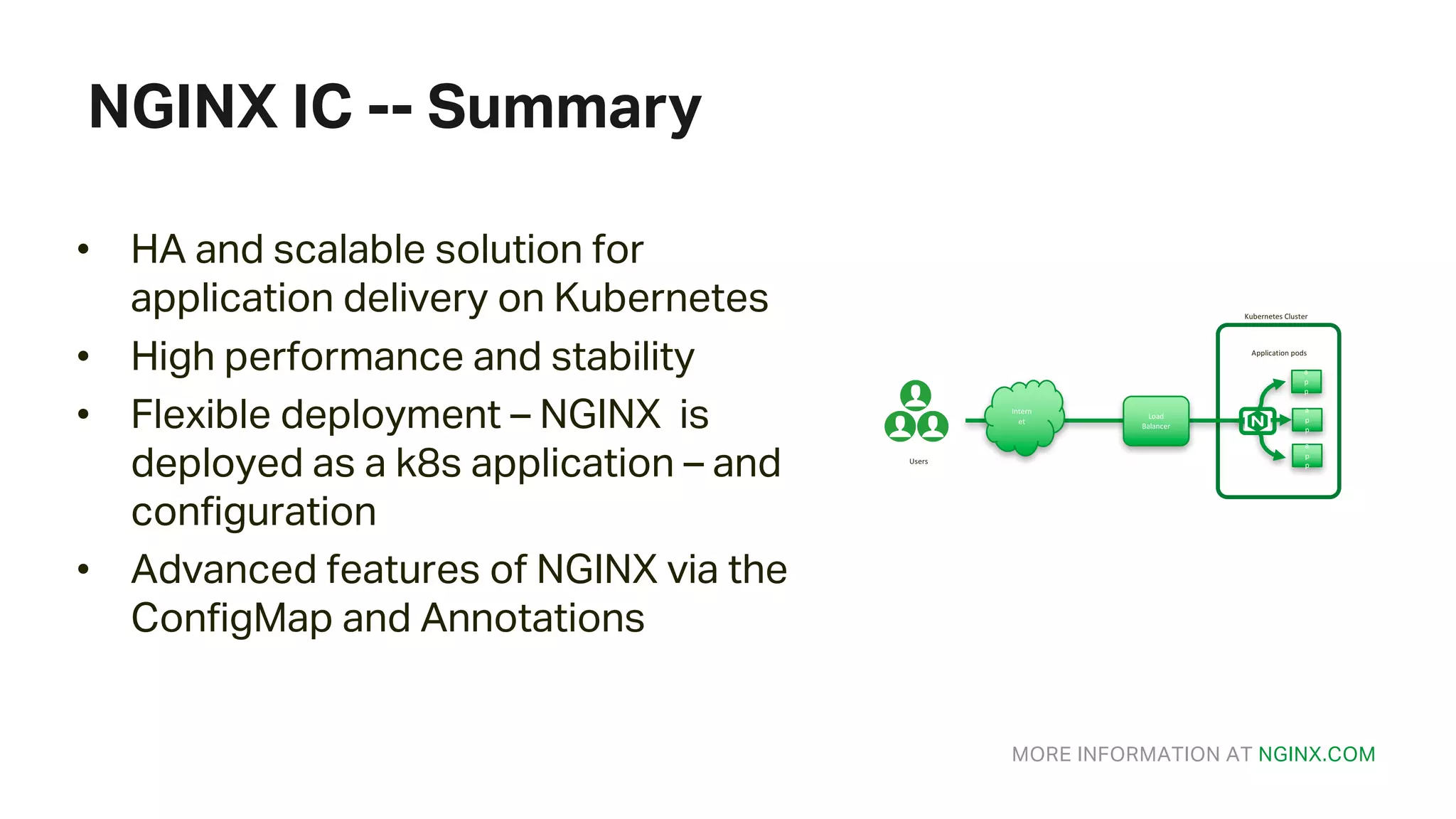

MORE INFORMATION AT NGINX.COM NGINX IC -- Summary a p p a p p a p p Kubernetes Cluster Application pods Users Intern et Load Balancer • HA and scalable solution for application delivery on Kubernetes • High performance and stability • Flexible deployment – NGINX is deployed as a k8s application – and configuration • Advanced features of NGINX via the ConfigMap and Annotations
