NGINX Ingress Controller for Kubernetes
- 1.
- 2. Speaker Info 2 Michael Pleshakov PlatformIntegration Engineer at NGINX michael@nginx.com
- 3. Agenda 1. What is NGINX Ingress Controller? 2. Basic demo 3.Advanced configuration options/demo 4. Custom annotations/demo 5. NGINX and NGINX Plus

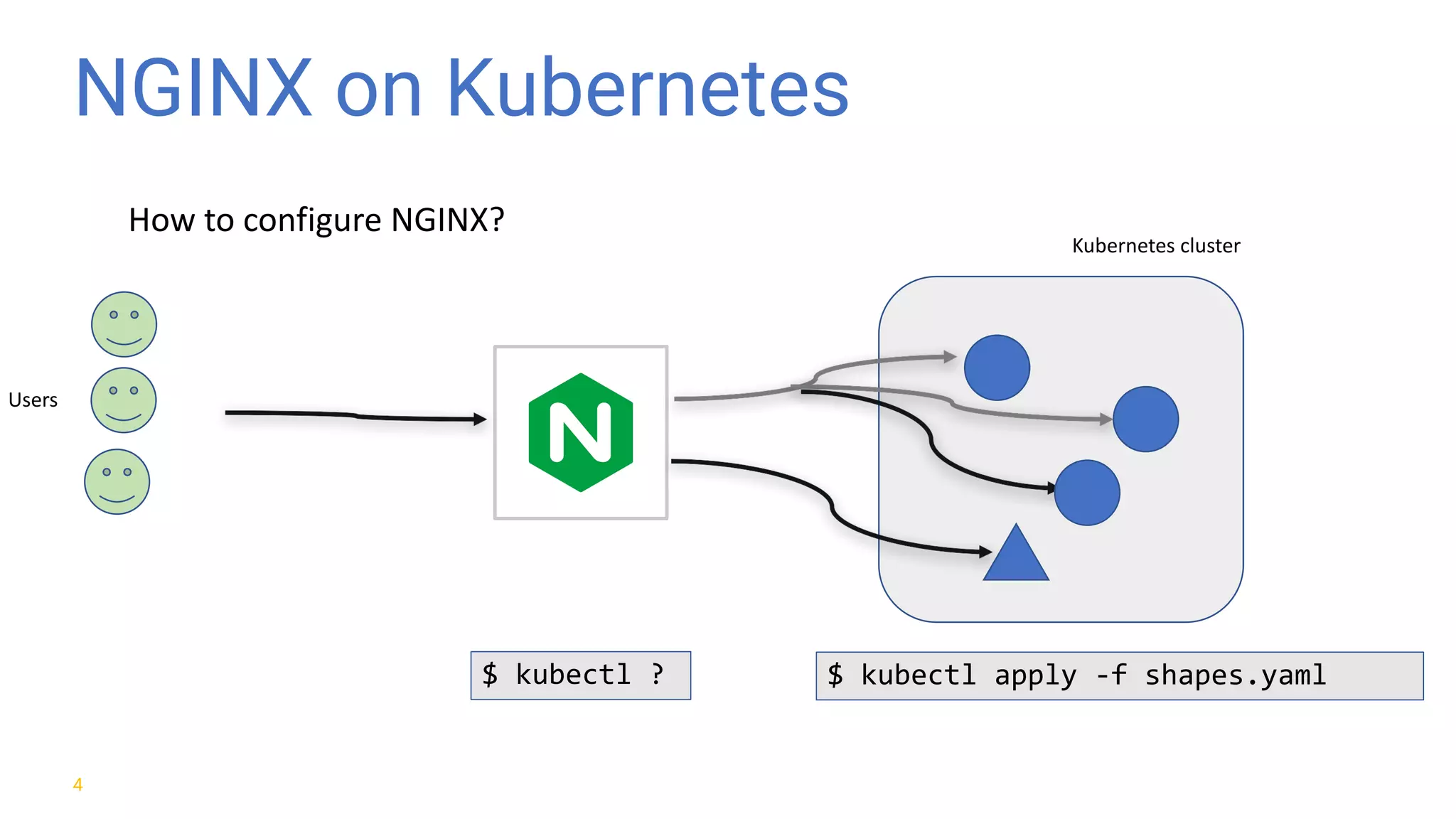

- 4. NGINX on Kubernetes 4 Kubernetes cluster $kubectl apply -f shapes.yaml$ kubectl ? How to configure NGINX? Users

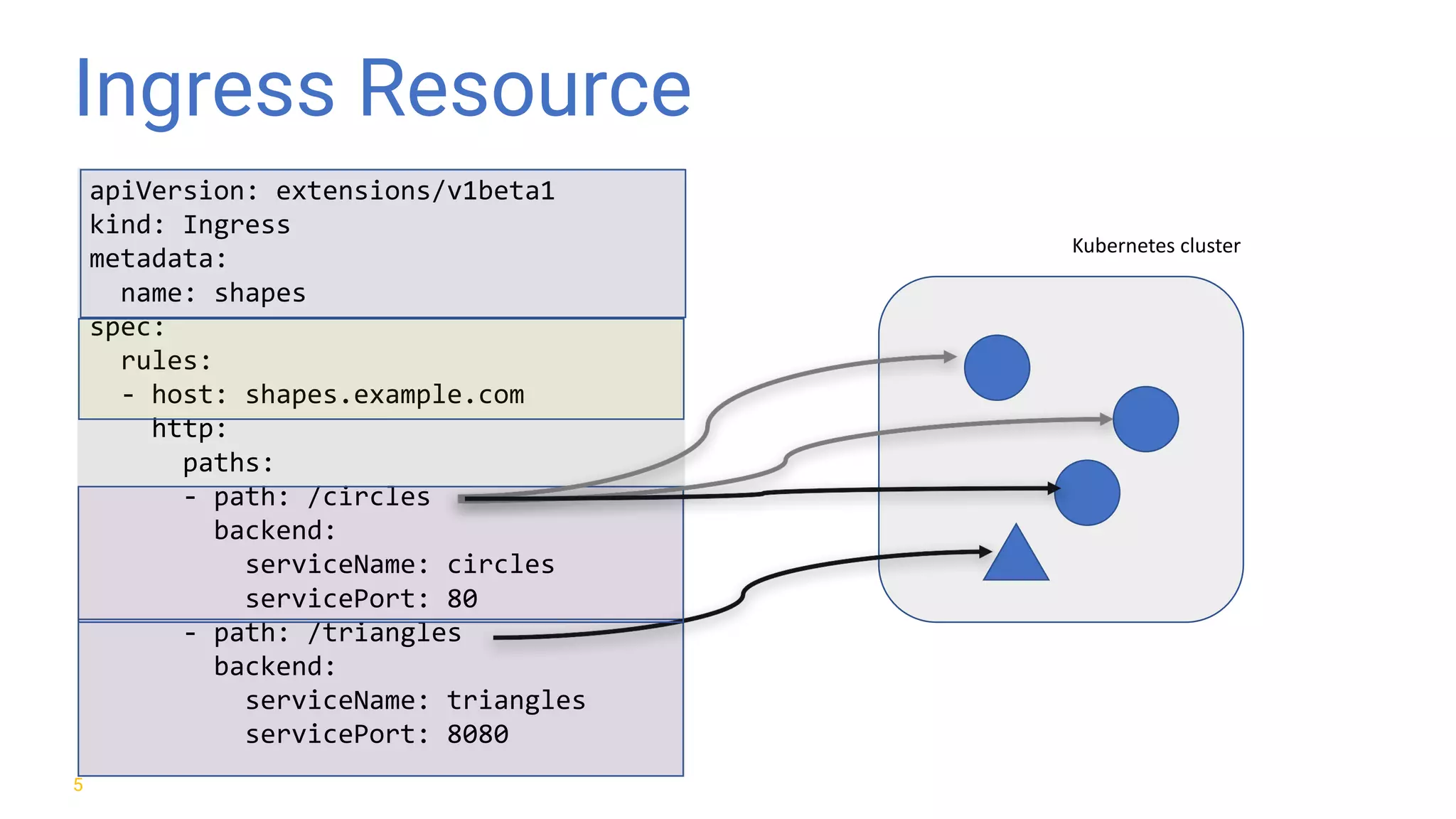

- 5. Ingress Resource 5 Kubernetes cluster apiVersion: extensions/v1beta1 kind:Ingress metadata: name: shapes spec: rules: - host: shapes.example.com http: paths: - path: /circles backend: serviceName: circles servicePort: 80 - path: /triangles backend: serviceName: triangles servicePort: 8080

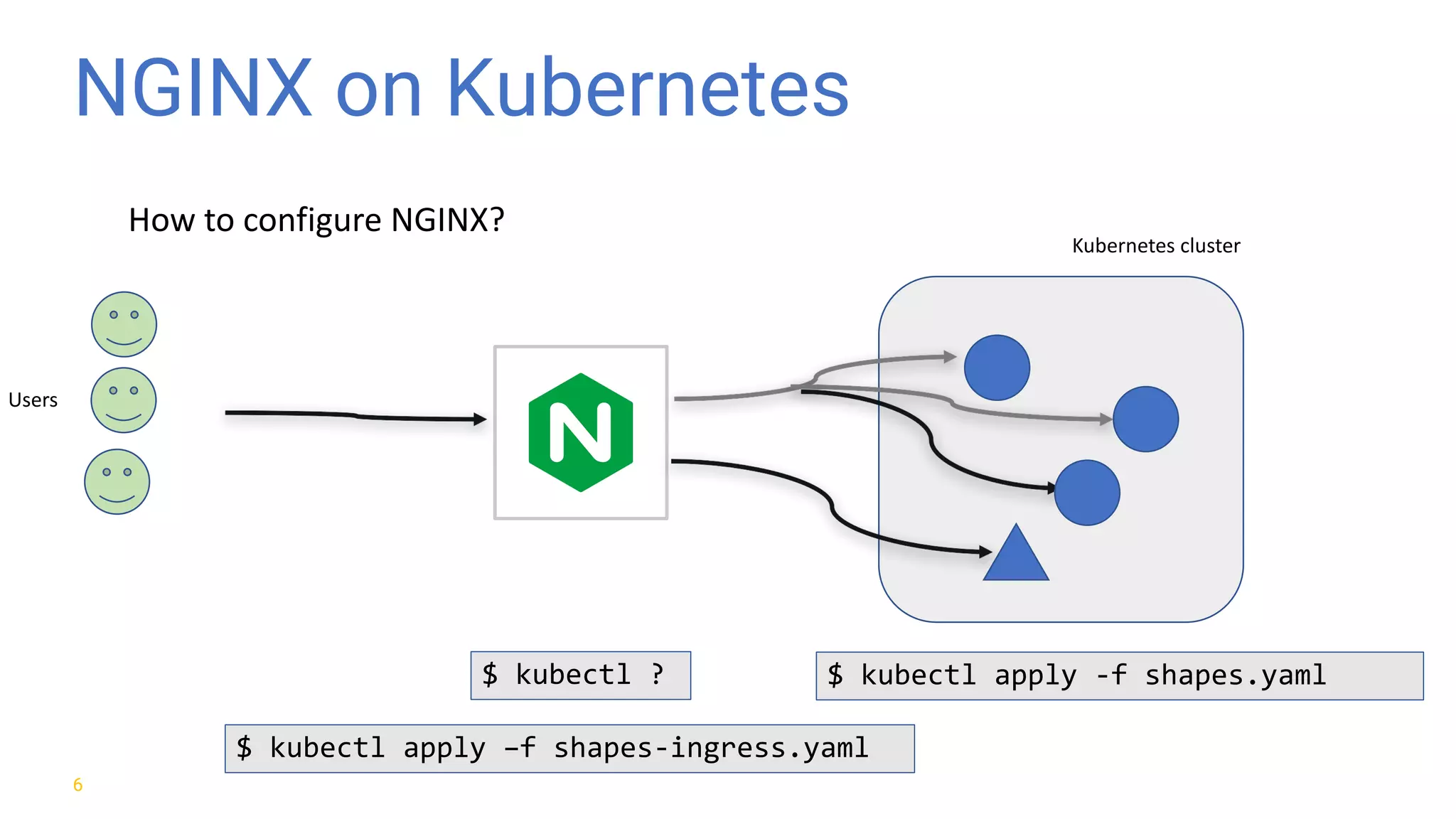

- 6. NGINX on Kubernetes 6 Kubernetes cluster $kubectl apply -f shapes.yaml$ kubectl ? How to configure NGINX? Users $ kubectl apply –f shapes-ingress.yaml
- 7.
- 8.

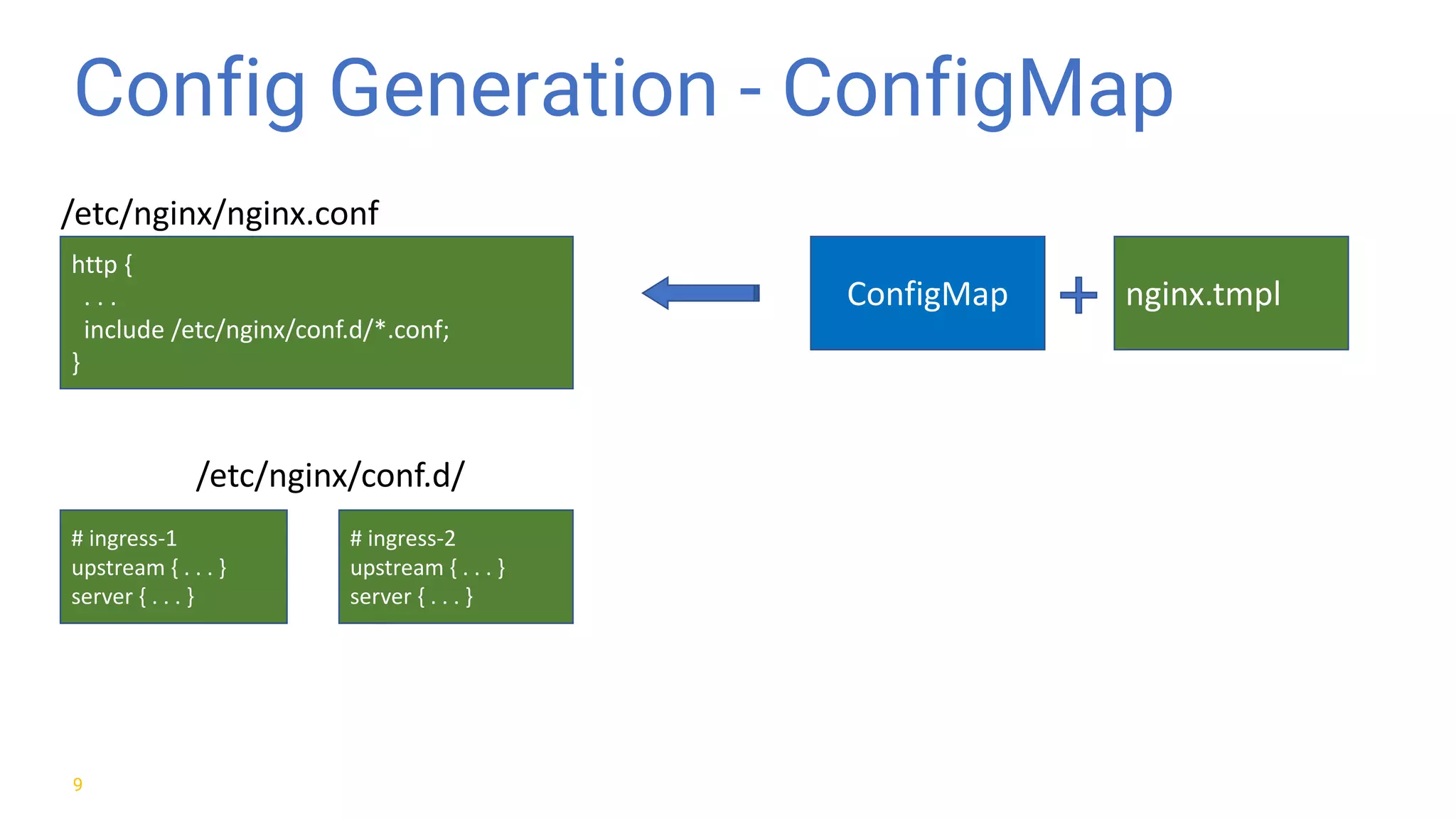

- 9. Config Generation -ConfigMap 9 http { . . . include /etc/nginx/conf.d/*.conf; } # ingress-1 upstream { . . . } server { . . . } # ingress-2 upstream { . . . } server { . . . } nginx.tmplConfigMap /etc/nginx/nginx.conf /etc/nginx/conf.d/

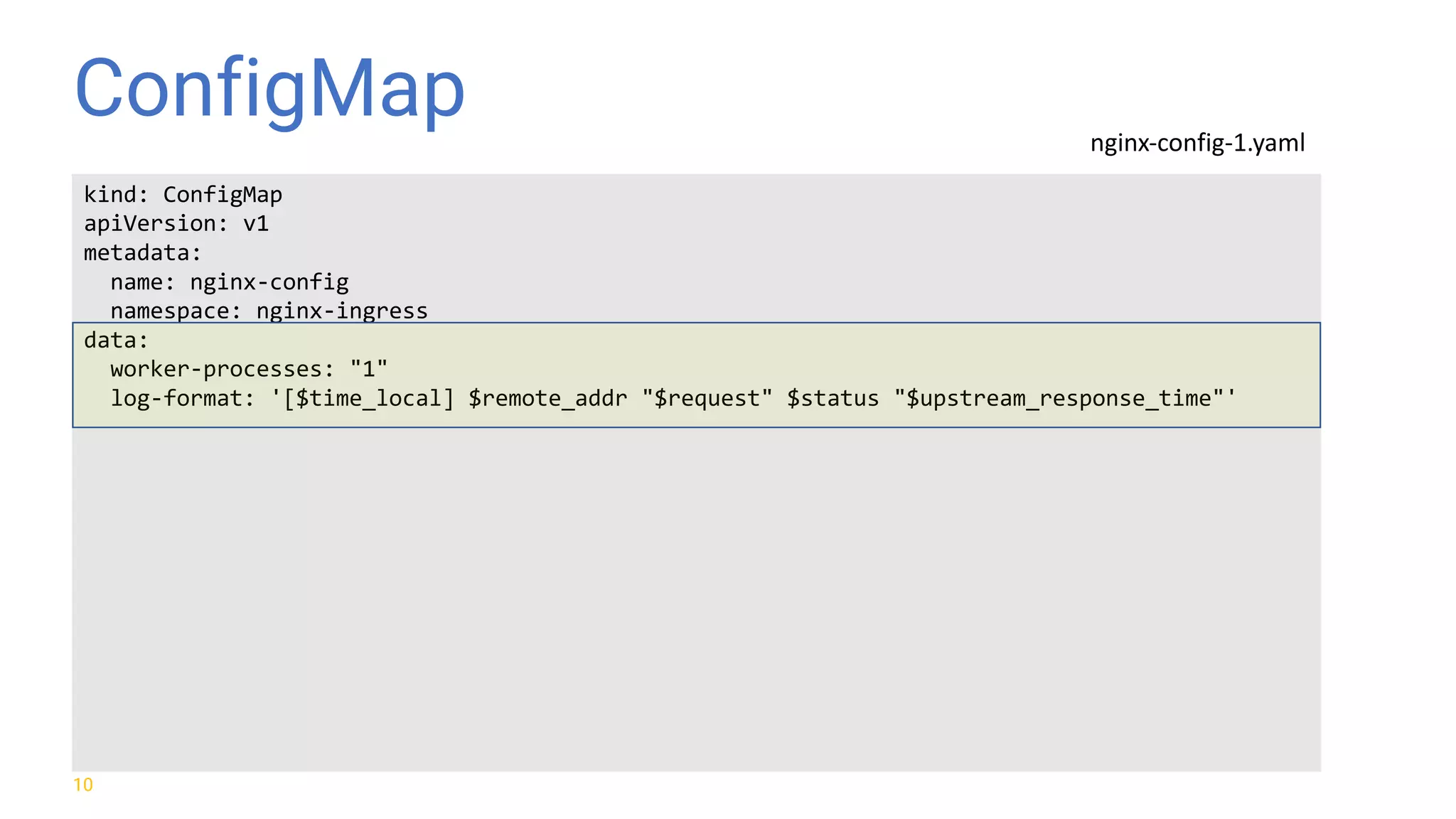

- 10. ConfigMap 10 kind: ConfigMap apiVersion: v1 metadata: name:nginx-config namespace: nginx-ingress data: worker-processes: "1" log-format: '[$time_local] $remote_addr "$request" $status "$upstream_response_time"' nginx-config-1.yaml

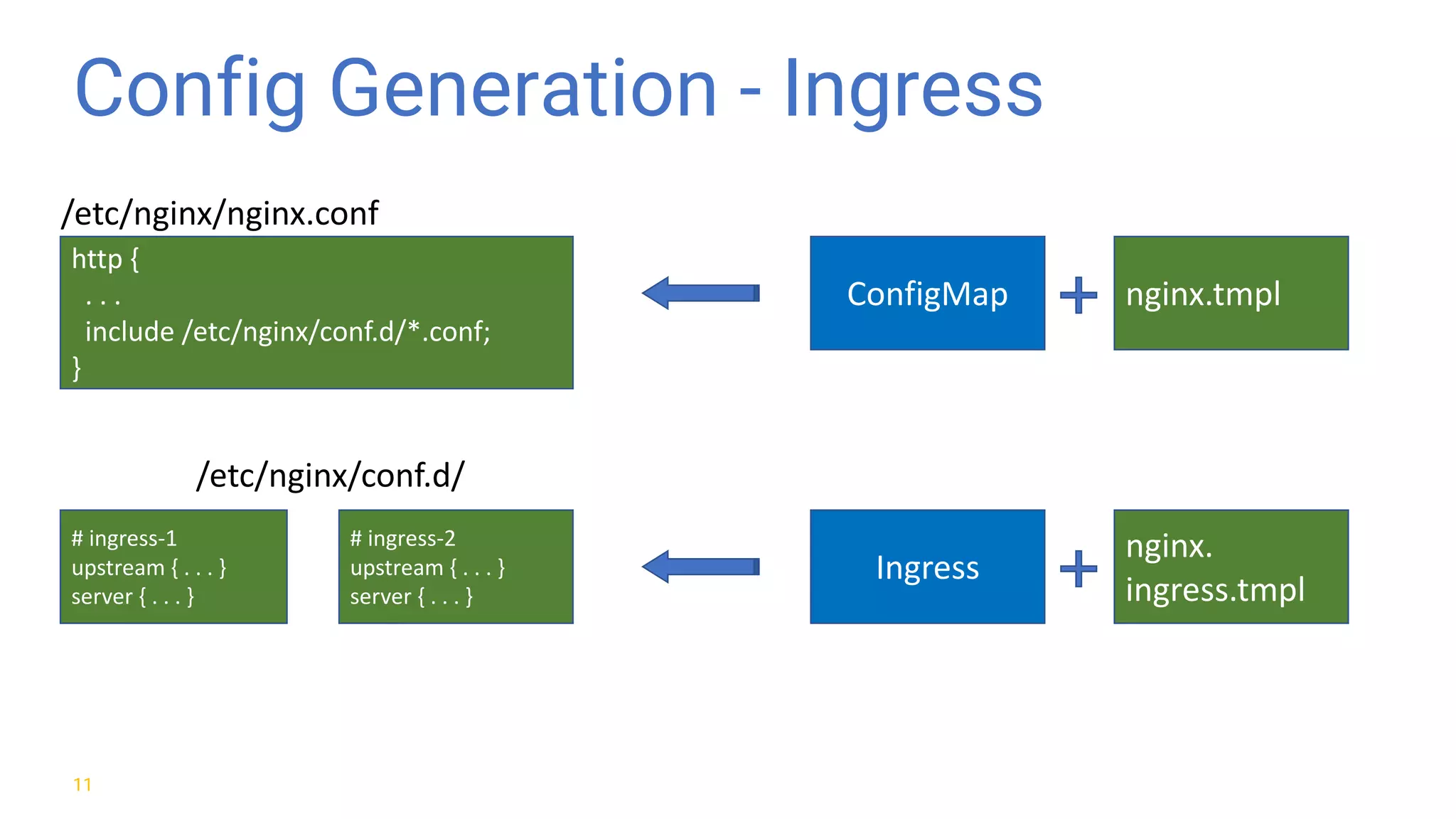

- 11. Config Generation -Ingress 11 http { . . . include /etc/nginx/conf.d/*.conf; } # ingress-1 upstream { . . . } server { . . . } # ingress-2 upstream { . . . } server { . . . } nginx.tmplConfigMap /etc/nginx/nginx.conf /etc/nginx/conf.d/ nginx. ingress.tmpl Ingress

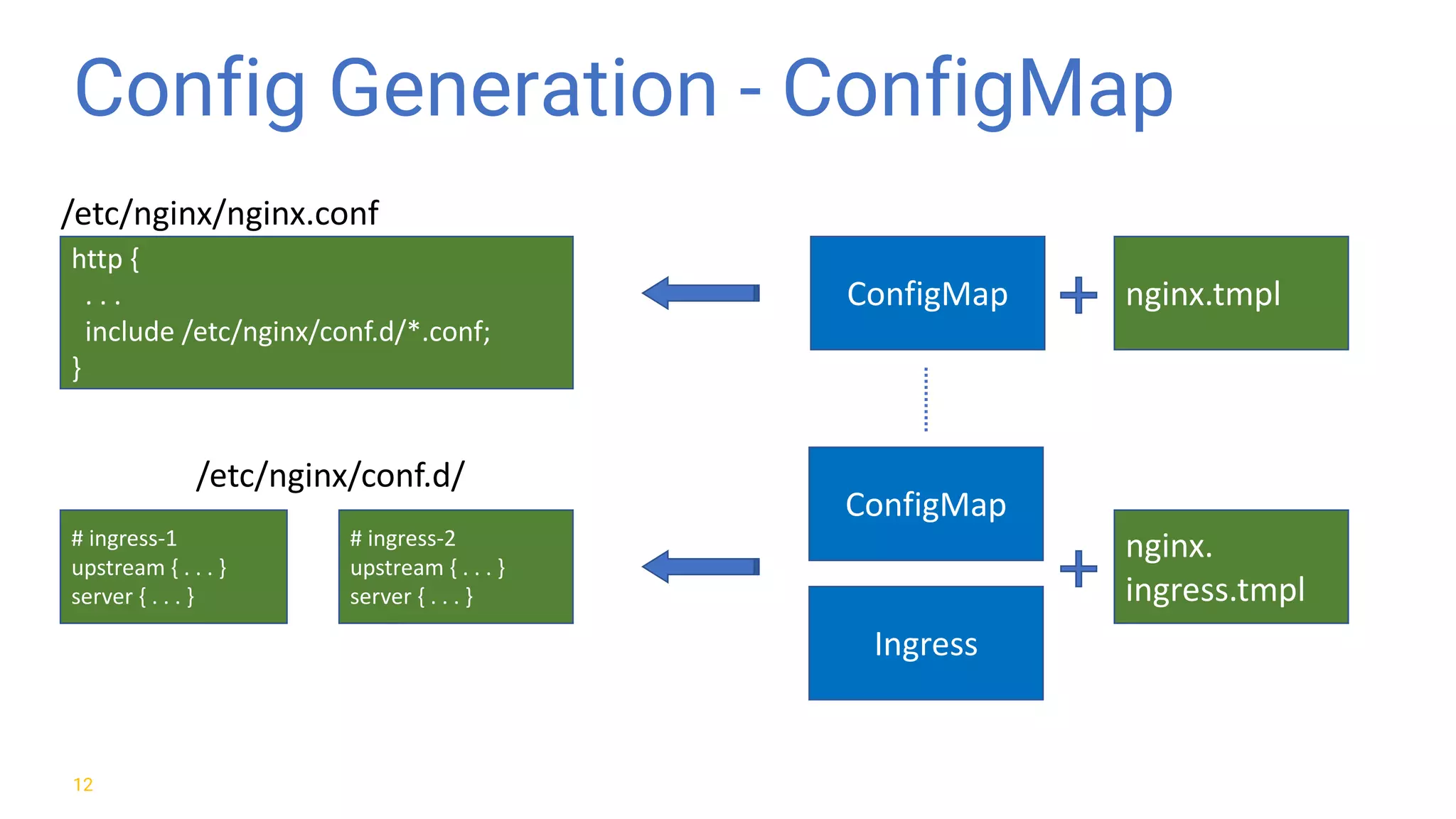

- 12. Config Generation -ConfigMap 12 http { . . . include /etc/nginx/conf.d/*.conf; } # ingress-1 upstream { . . . } server { . . . } # ingress-2 upstream { . . . } server { . . . } nginx.tmplConfigMap /etc/nginx/nginx.conf /etc/nginx/conf.d/ nginx. ingress.tmpl Ingress ConfigMap

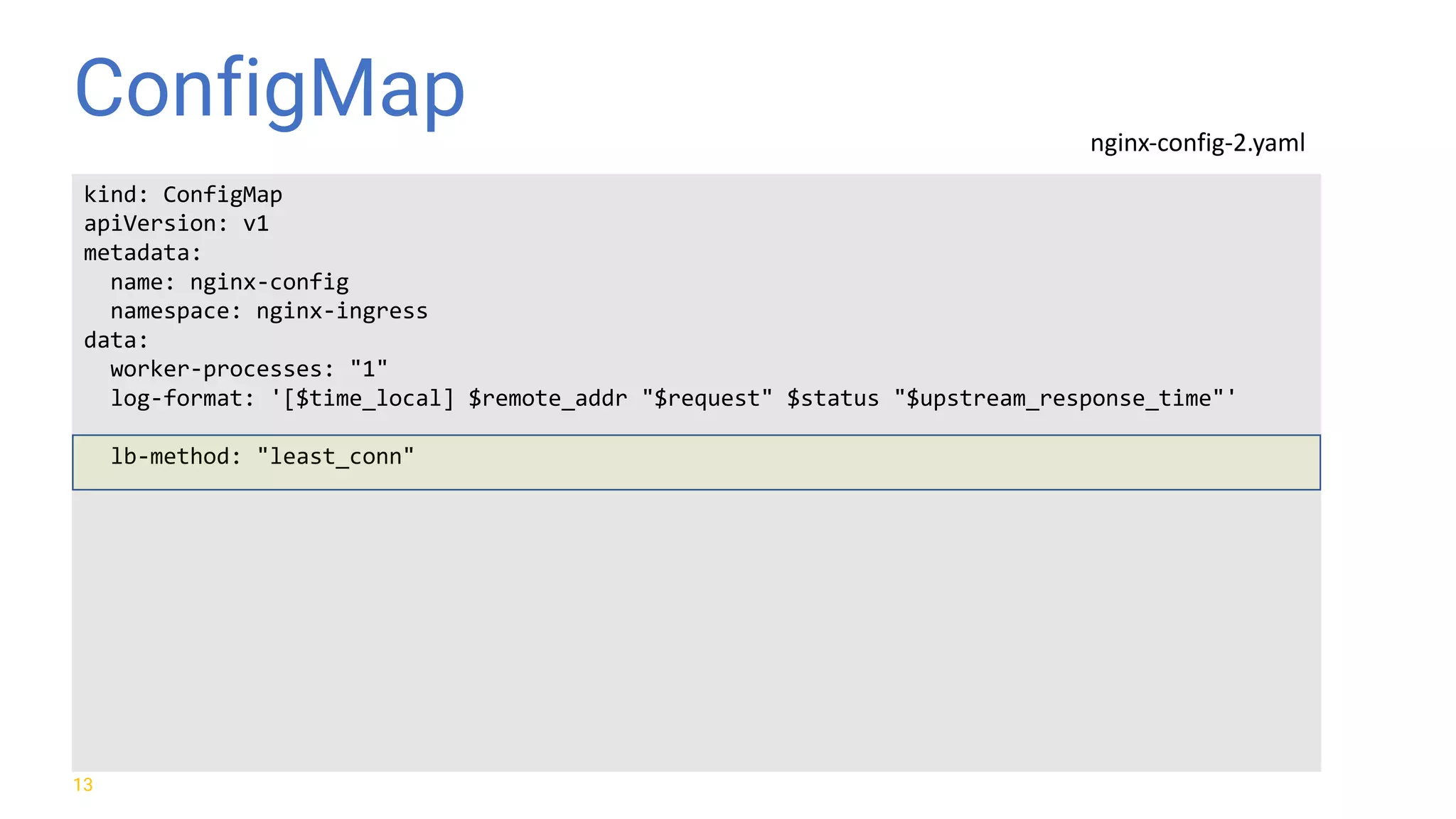

- 13. ConfigMap 13 kind: ConfigMap apiVersion: v1 metadata: name:nginx-config namespace: nginx-ingress data: worker-processes: "1" log-format: '[$time_local] $remote_addr "$request" $status "$upstream_response_time"' lb-method: "least_conn" nginx-config-2.yaml

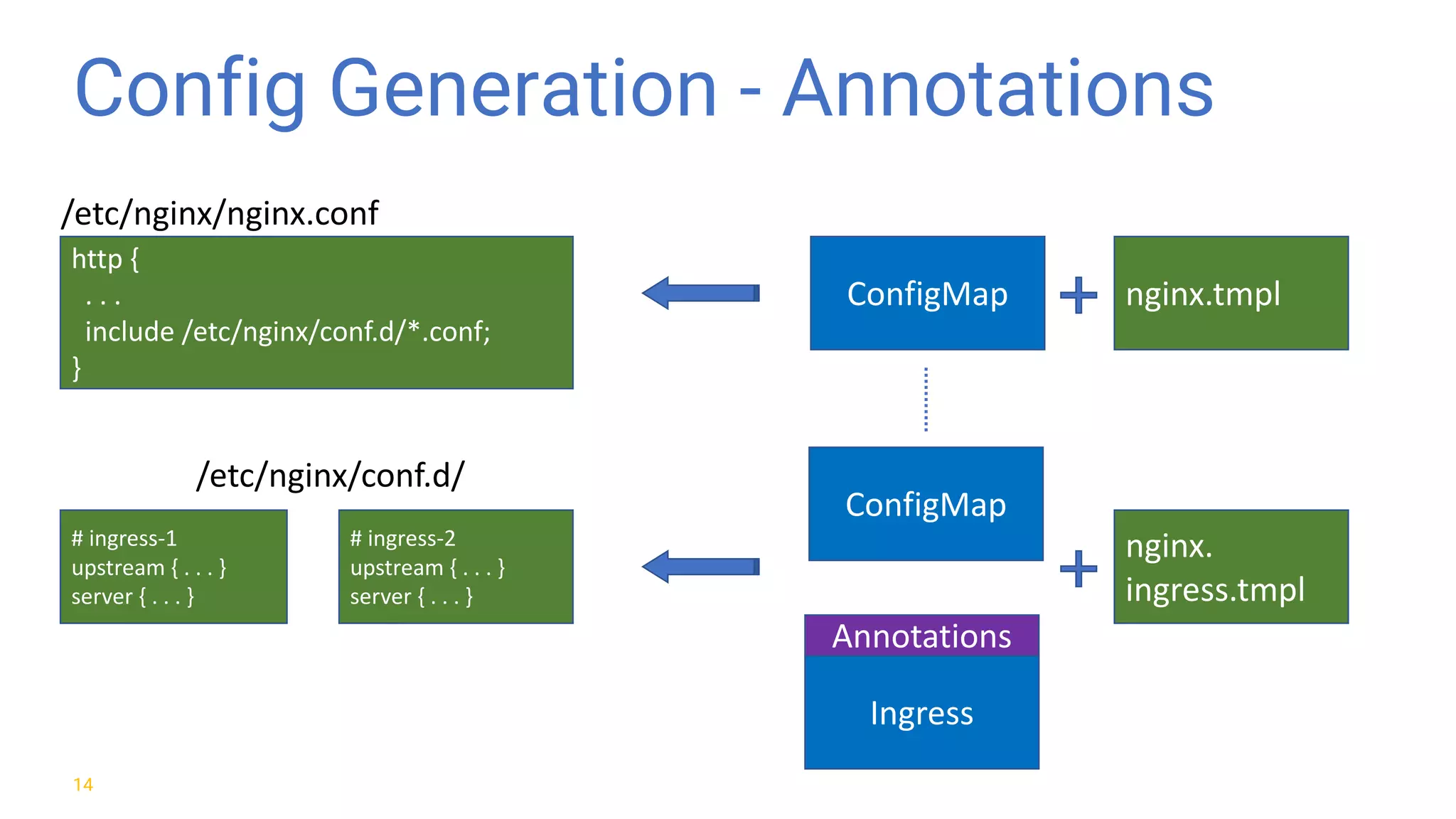

- 14. Config Generation -Annotations 14 http { . . . include /etc/nginx/conf.d/*.conf; } # ingress-1 upstream { . . . } server { . . . } # ingress-2 upstream { . . . } server { . . . } nginx.tmplConfigMap /etc/nginx/nginx.conf /etc/nginx/conf.d/ nginx. ingress.tmpl Ingress ConfigMap Annotations

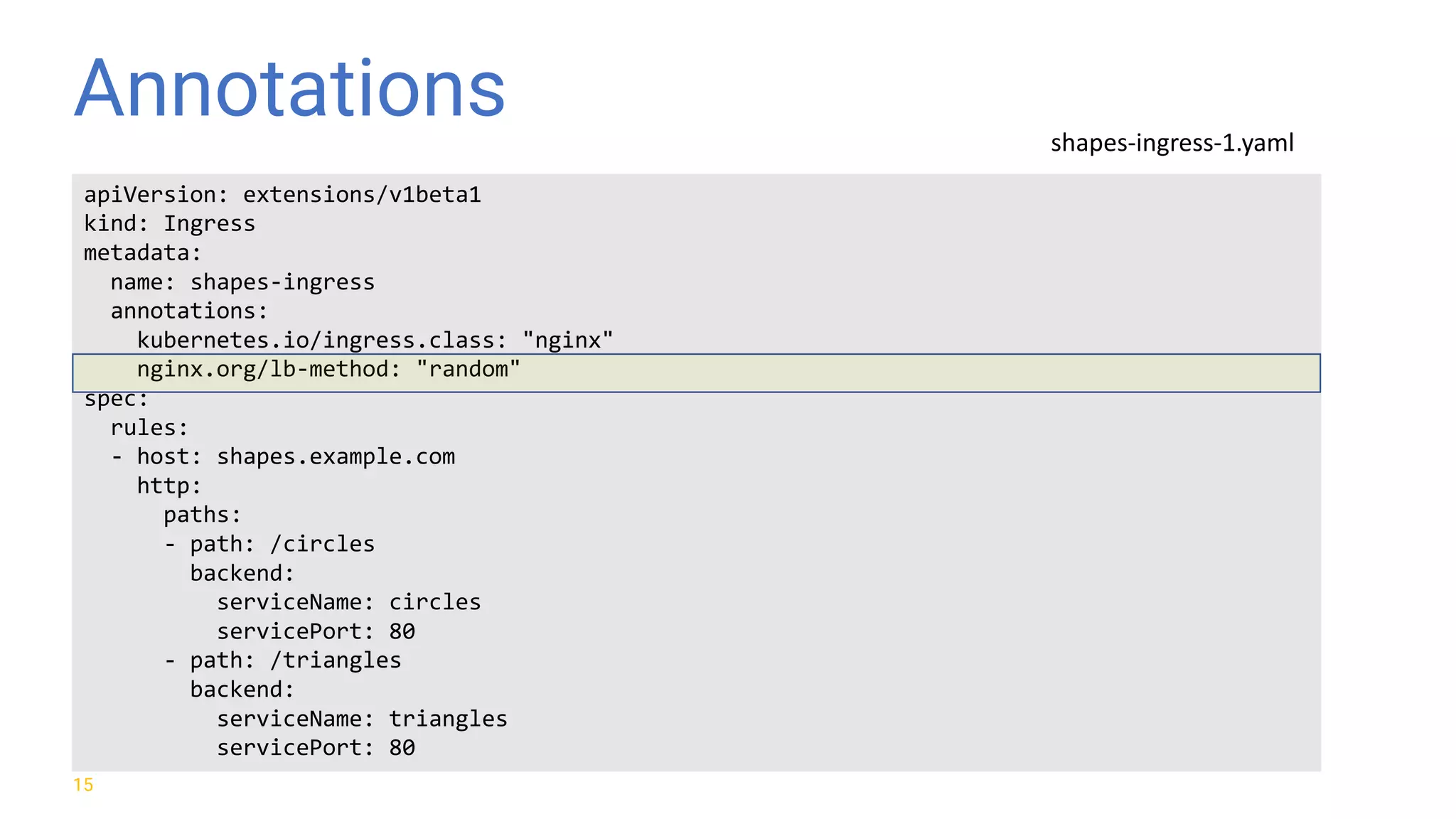

- 15. Annotations 15 apiVersion: extensions/v1beta1 kind: Ingress metadata: name:shapes-ingress annotations: kubernetes.io/ingress.class: "nginx" nginx.org/lb-method: "random" spec: rules: - host: shapes.example.com http: paths: - path: /circles backend: serviceName: circles servicePort: 80 - path: /triangles backend: serviceName: triangles servicePort: 80 shapes-ingress-1.yaml

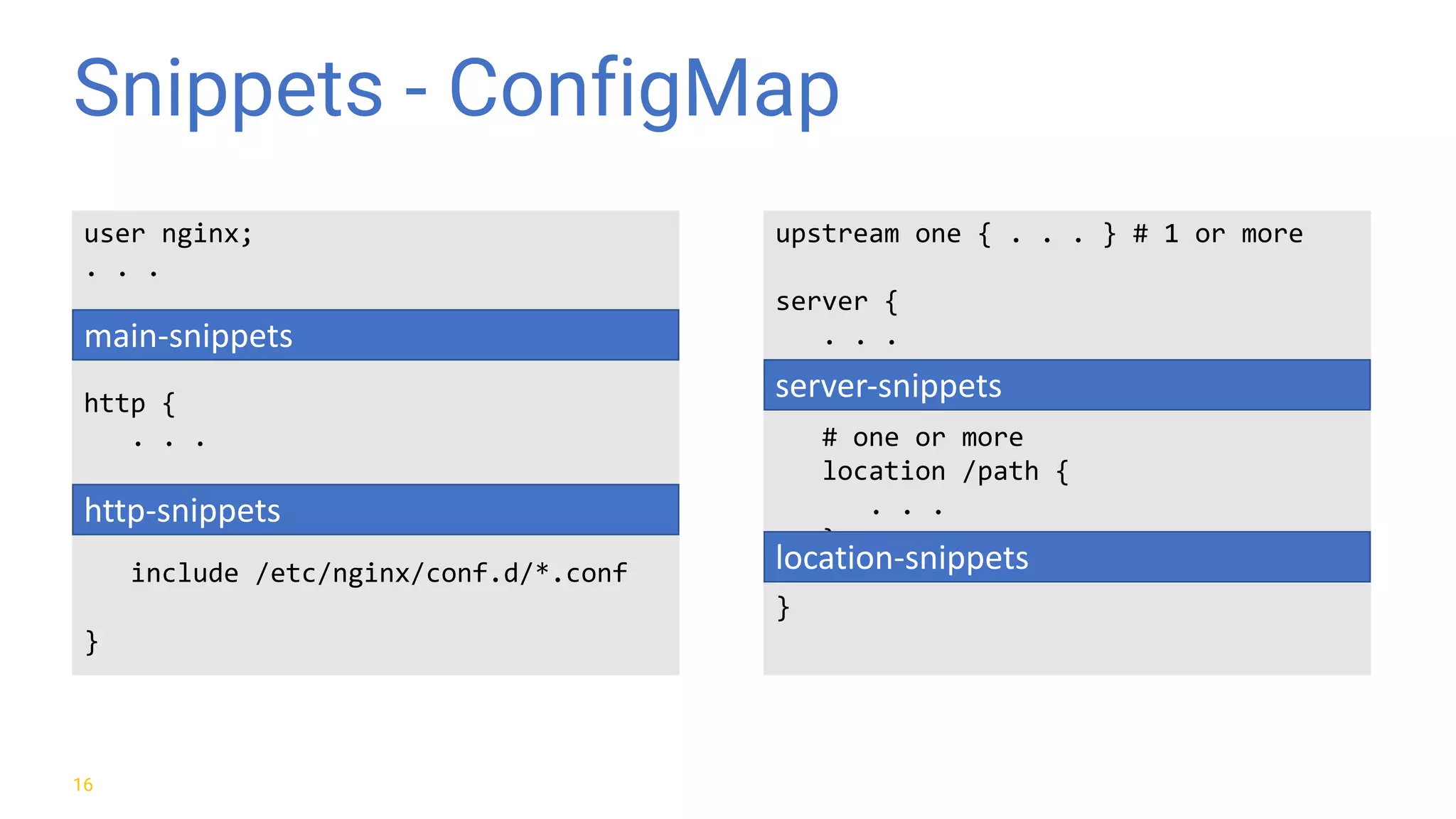

- 16. Snippets - ConfigMap 16 usernginx; . . . http { . . . include /etc/nginx/conf.d/*.conf } main-snippets http-snippets upstream one { . . . } # 1 or more server { . . . # one or more location /path { . . . } } server-snippets location-snippets

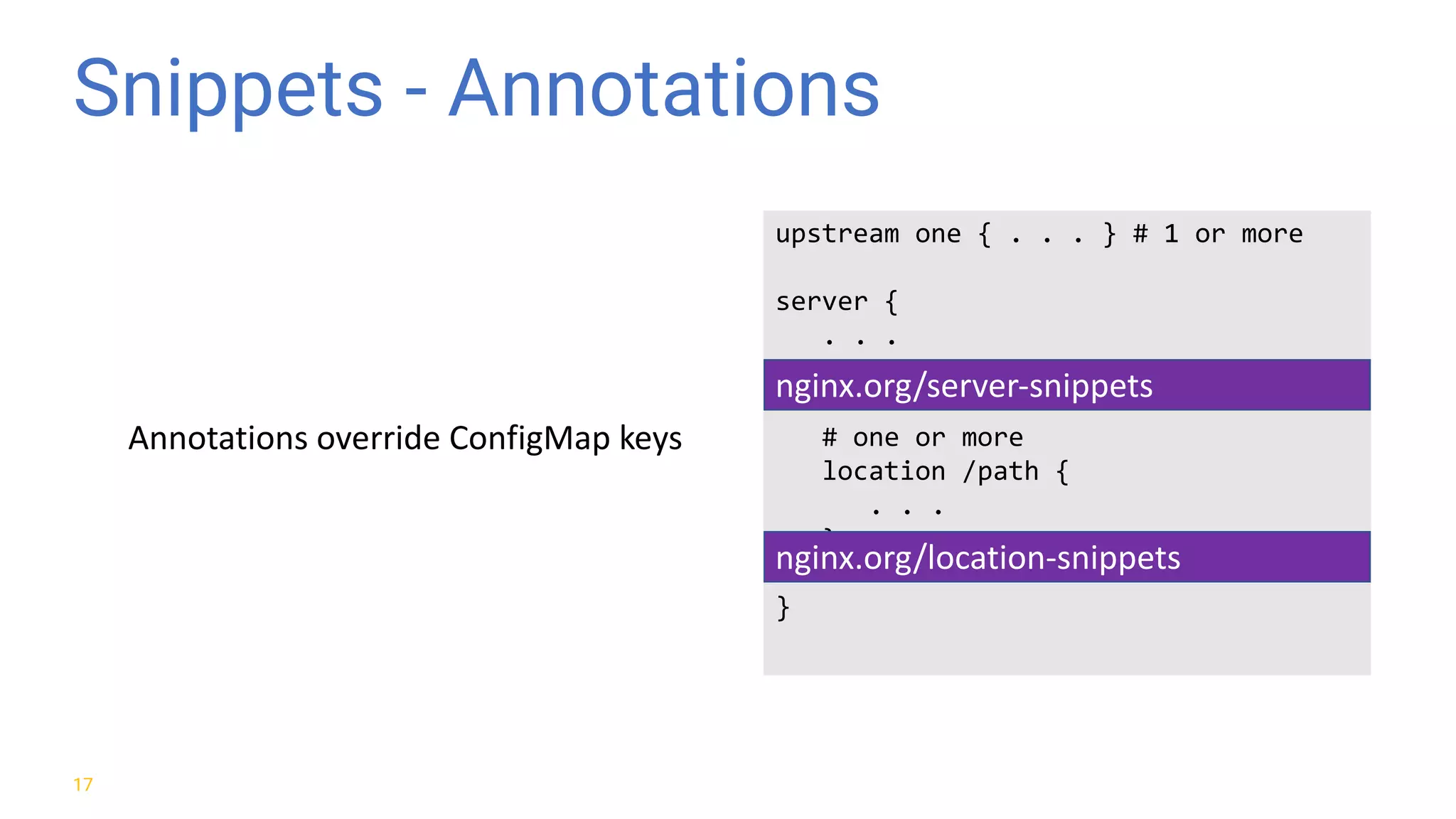

- 17. Snippets - Annotations 17 upstreamone { . . . } # 1 or more server { . . . # one or more location /path { . . . } } nginx.org/server-snippets nginx.org/location-snippets Annotations override ConfigMap keys

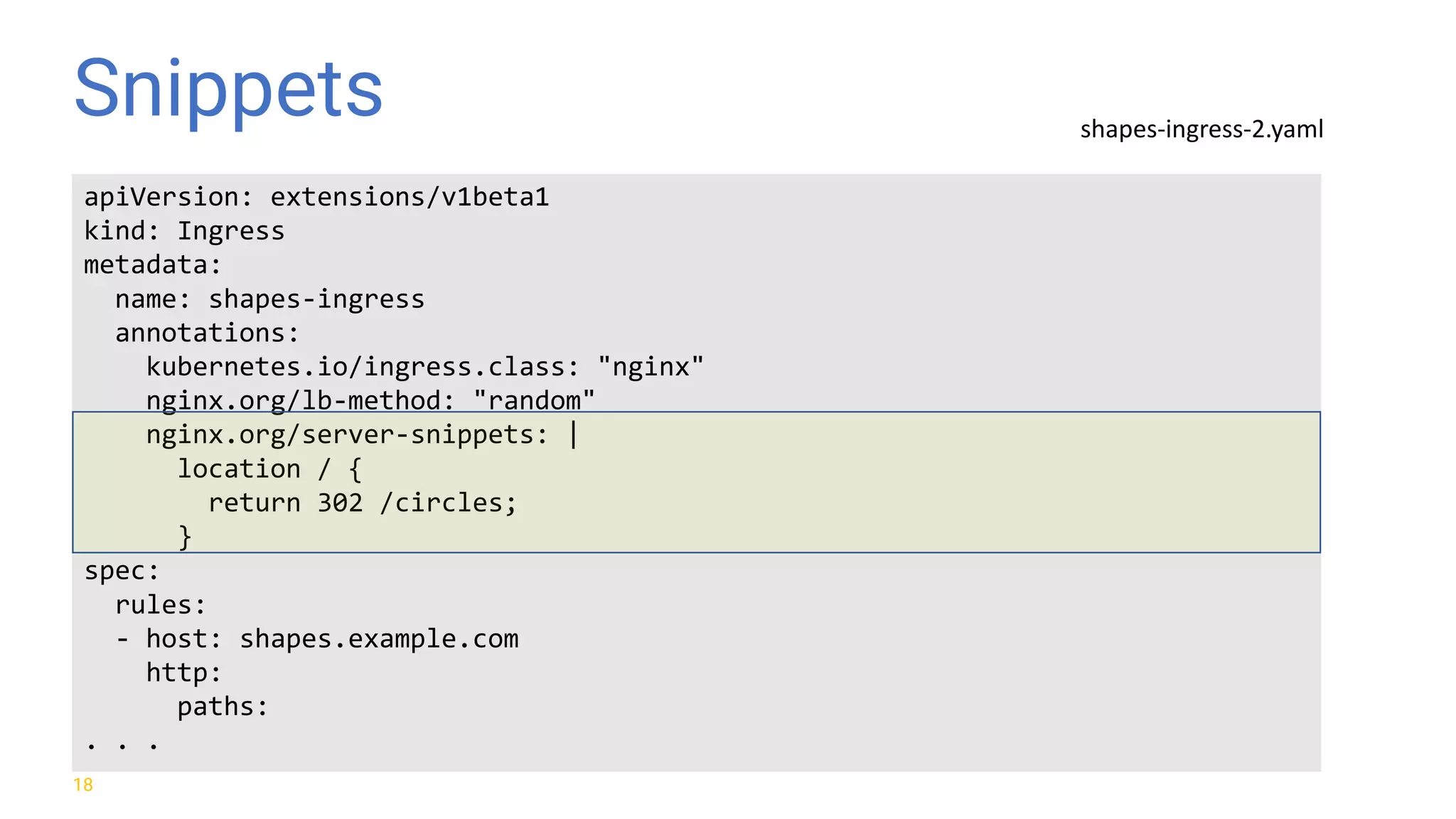

- 18. Snippets 18 apiVersion: extensions/v1beta1 kind: Ingress metadata: name:shapes-ingress annotations: kubernetes.io/ingress.class: "nginx" nginx.org/lb-method: "random" nginx.org/server-snippets: | location / { return 302 /circles; } spec: rules: - host: shapes.example.com http: paths: . . . shapes-ingress-2.yaml

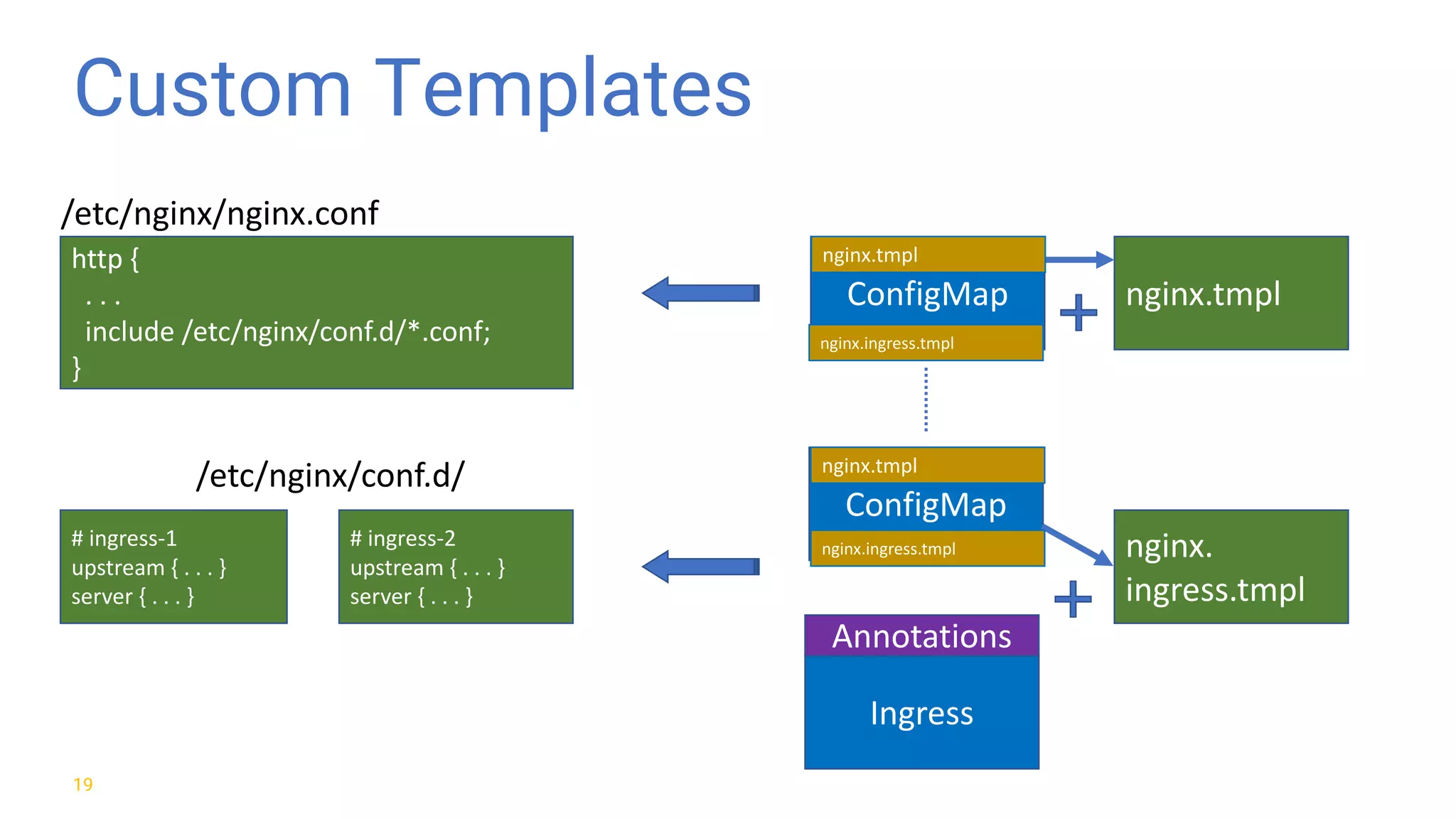

- 19.

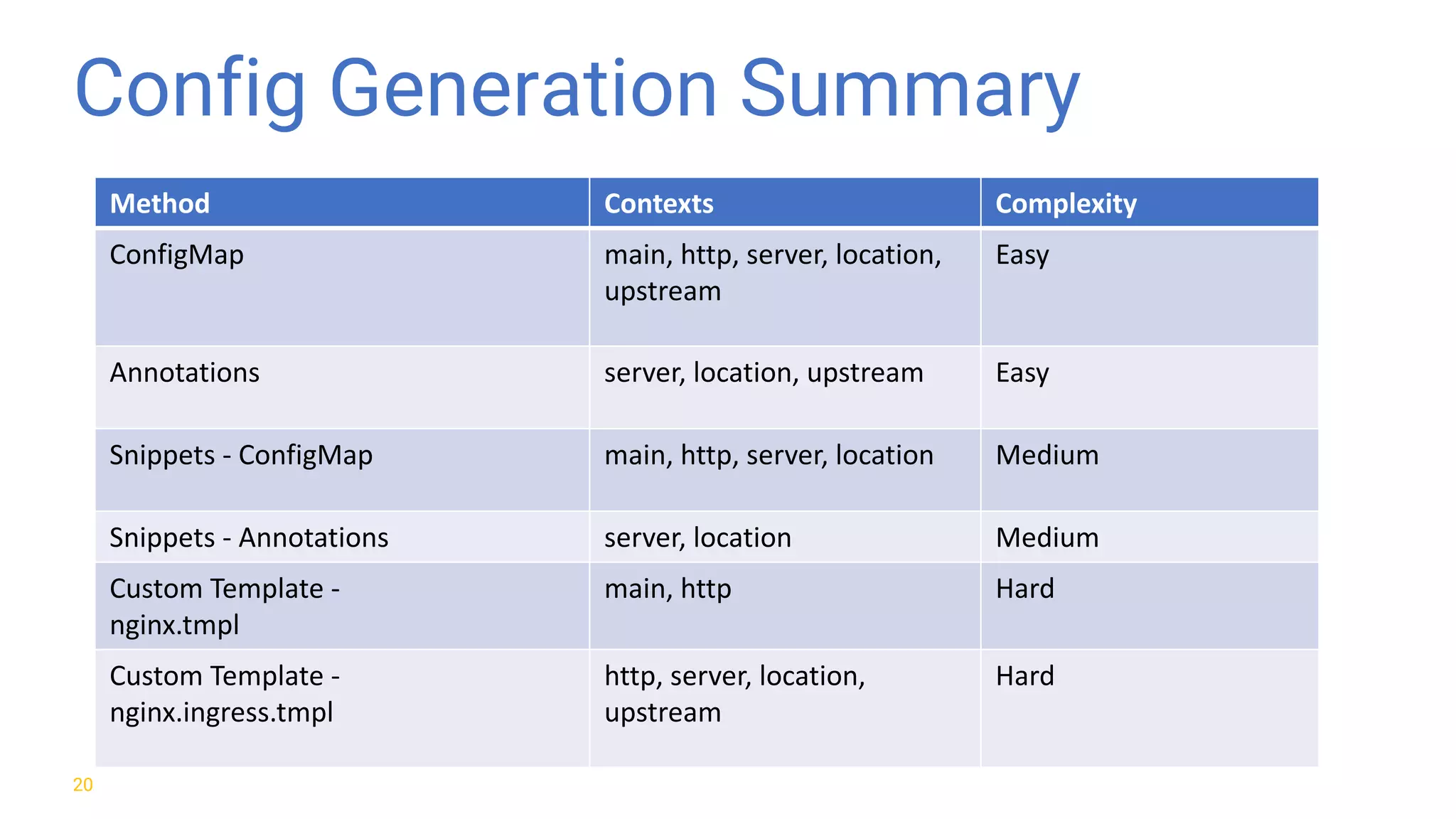

- 20. Config Generation Summary 20 MethodContexts Complexity ConfigMap main, http, server, location, upstream Easy Annotations server, location, upstream Easy Snippets - ConfigMap main, http, server, location Medium Snippets - Annotations server, location Medium Custom Template - nginx.tmpl main, http Hard Custom Template - nginx.ingress.tmpl http, server, location, upstream Hard

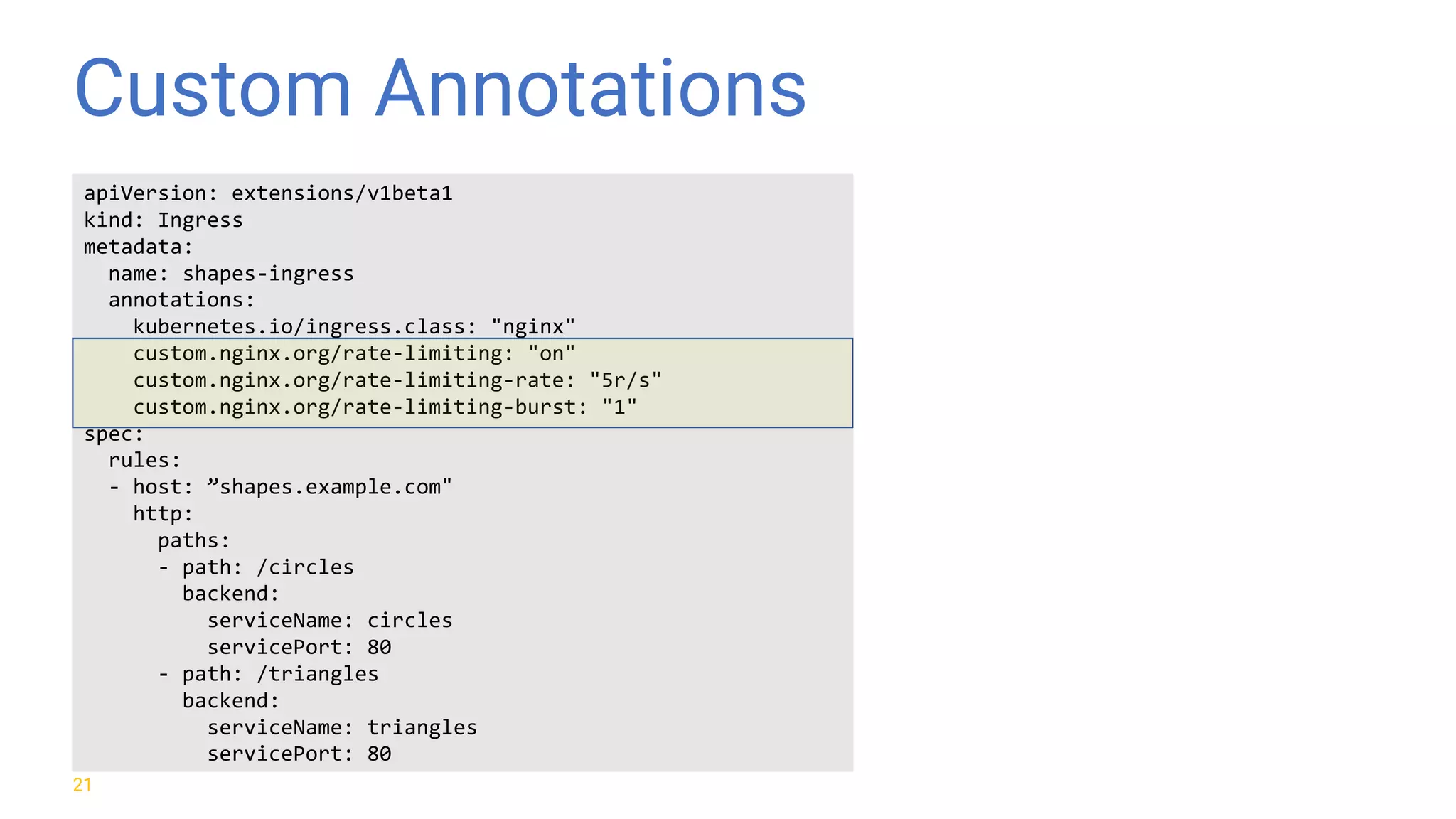

- 21. Custom Annotations 21 apiVersion: extensions/v1beta1 kind:Ingress metadata: name: shapes-ingress annotations: kubernetes.io/ingress.class: "nginx" custom.nginx.org/rate-limiting: "on" custom.nginx.org/rate-limiting-rate: "5r/s" custom.nginx.org/rate-limiting-burst: "1" spec: rules: - host: ”shapes.example.com" http: paths: - path: /circles backend: serviceName: circles servicePort: 80 - path: /triangles backend: serviceName: triangles servicePort: 80

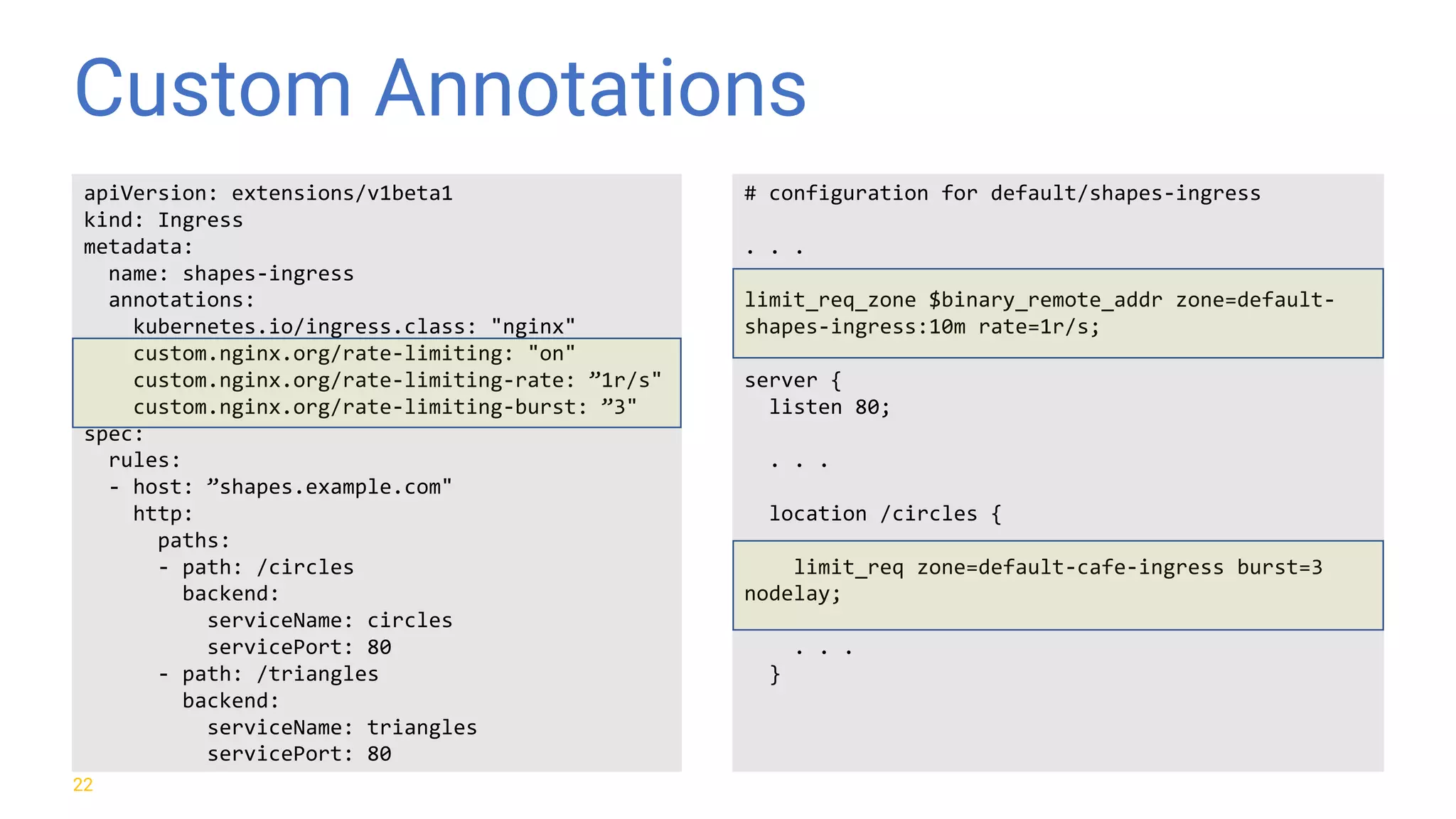

- 22. Custom Annotations 22 apiVersion: extensions/v1beta1 kind:Ingress metadata: name: shapes-ingress annotations: kubernetes.io/ingress.class: "nginx" custom.nginx.org/rate-limiting: "on" custom.nginx.org/rate-limiting-rate: ”1r/s" custom.nginx.org/rate-limiting-burst: ”3" spec: rules: - host: ”shapes.example.com" http: paths: - path: /circles backend: serviceName: circles servicePort: 80 - path: /triangles backend: serviceName: triangles servicePort: 80 # configuration for default/shapes-ingress . . . limit_req_zone $binary_remote_addr zone=default- shapes-ingress:10m rate=1r/s; server { listen 80; . . . location /circles { limit_req zone=default-cafe-ingress burst=3 nodelay; . . . }

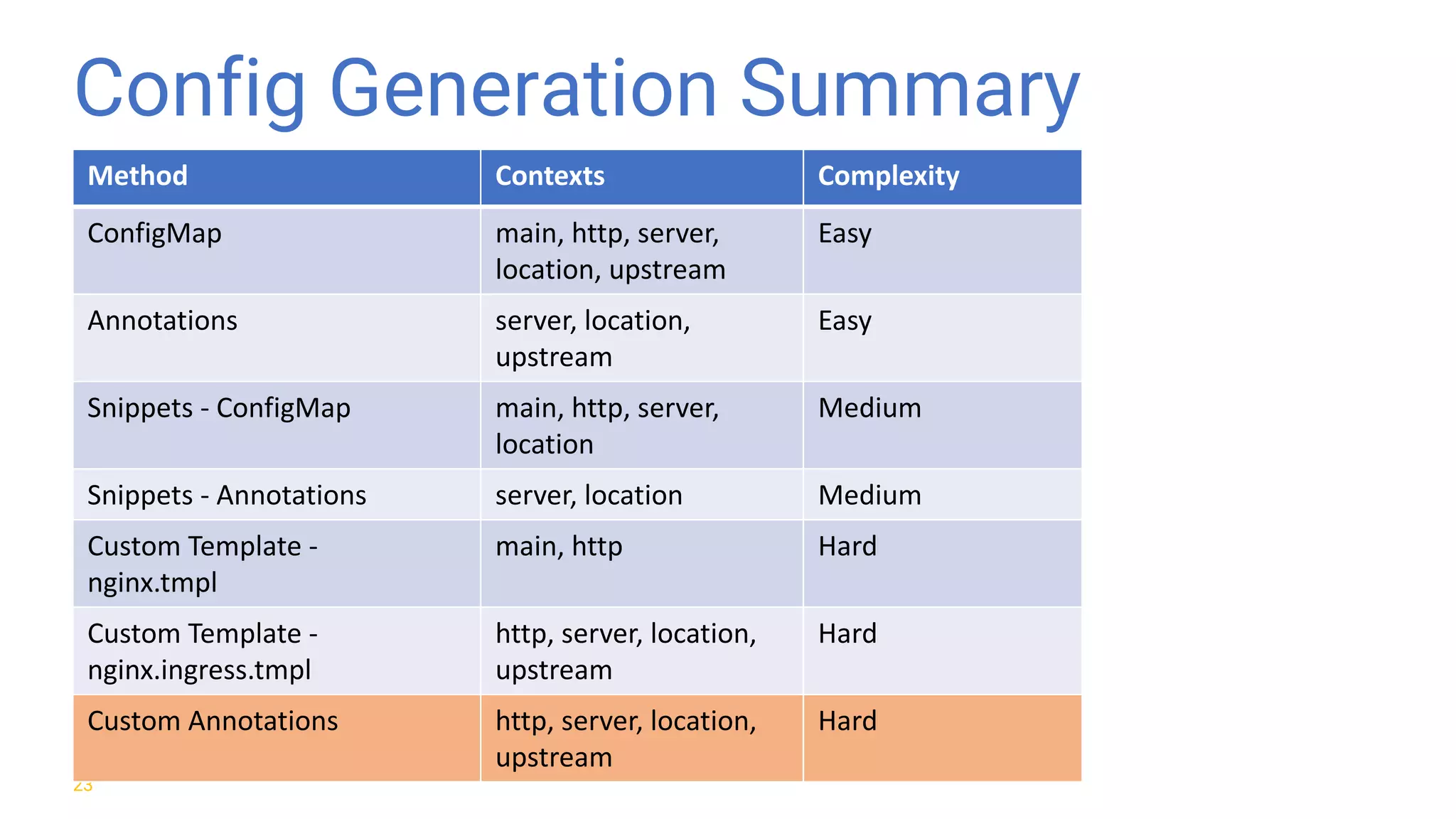

- 23. Config Generation Summary 23 MethodContexts Complexity ConfigMap main, http, server, location, upstream Easy Annotations server, location, upstream Easy Snippets - ConfigMap main, http, server, location Medium Snippets - Annotations server, location Medium Custom Template - nginx.tmpl main, http Hard Custom Template - nginx.ingress.tmpl http, server, location, upstream Hard Custom Annotations http, server, location, upstream Hard
- 24. Config Generation Summary 24 MethodContexts Cmpl for Admin Cmpl for User ConfigMap main, http, server, location, upstream Easy N/A Annotations server, location, upstream Easy Easy Snippets - ConfigMap main, http, server, location Medium N/A Snippets - Annotations server, location Medium Medium Custom Template - nginx.tmpl main, http Hard N/A Custom Template - nginx.ingress.tmpl http, server, location, upstream Hard N/A Custom Annotations http, server, location, upstream Hard Easy
- 25.

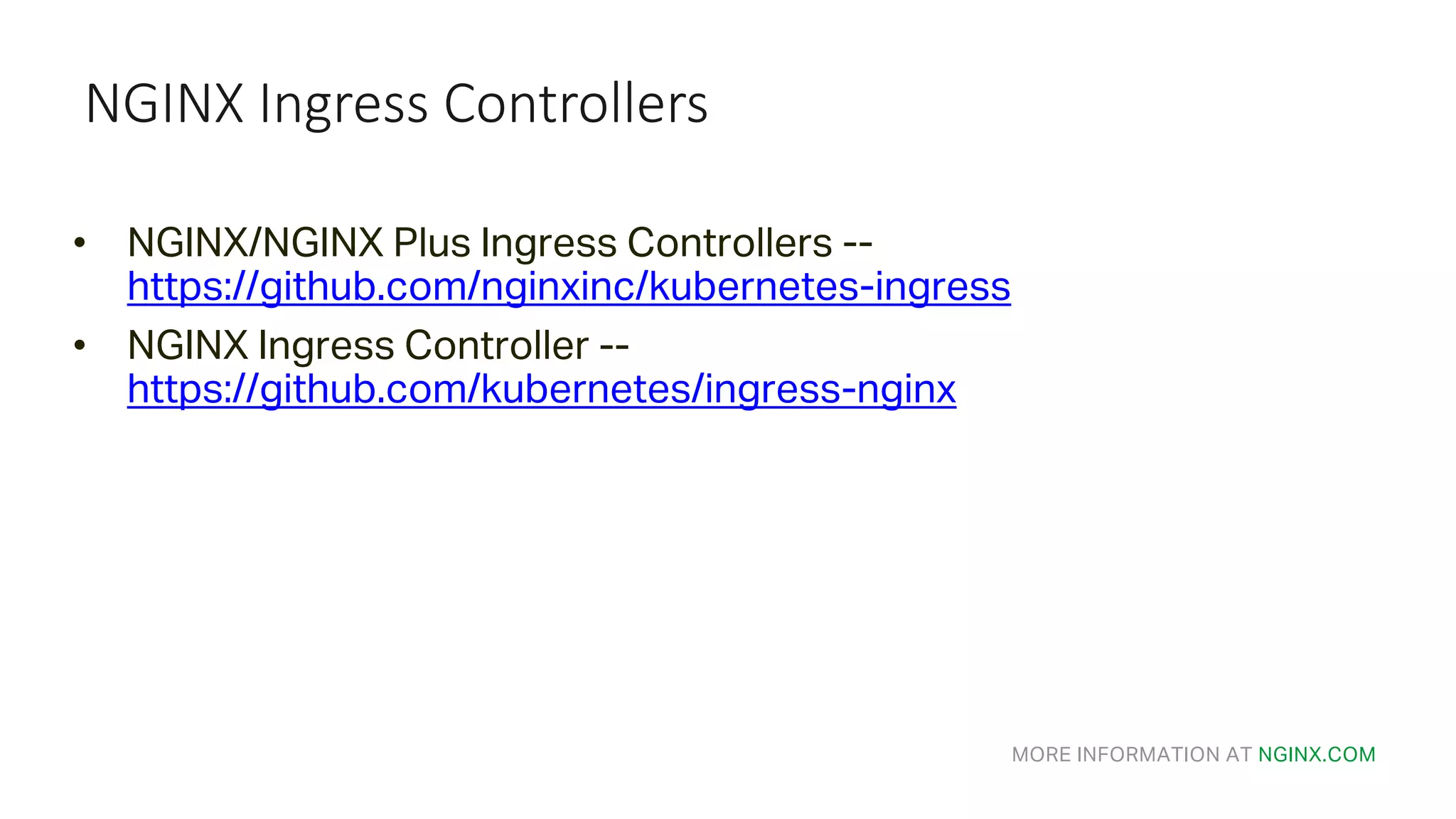

- 26. MORE INFORMATION ATNGINX.COM NGINX Ingress Controllers • NGINX/NGINX Plus Ingress Controllers -- https://github.com/nginxinc/kubernetes-ingress • NGINX Ingress Controller -- https://github.com/kubernetes/ingress-nginx

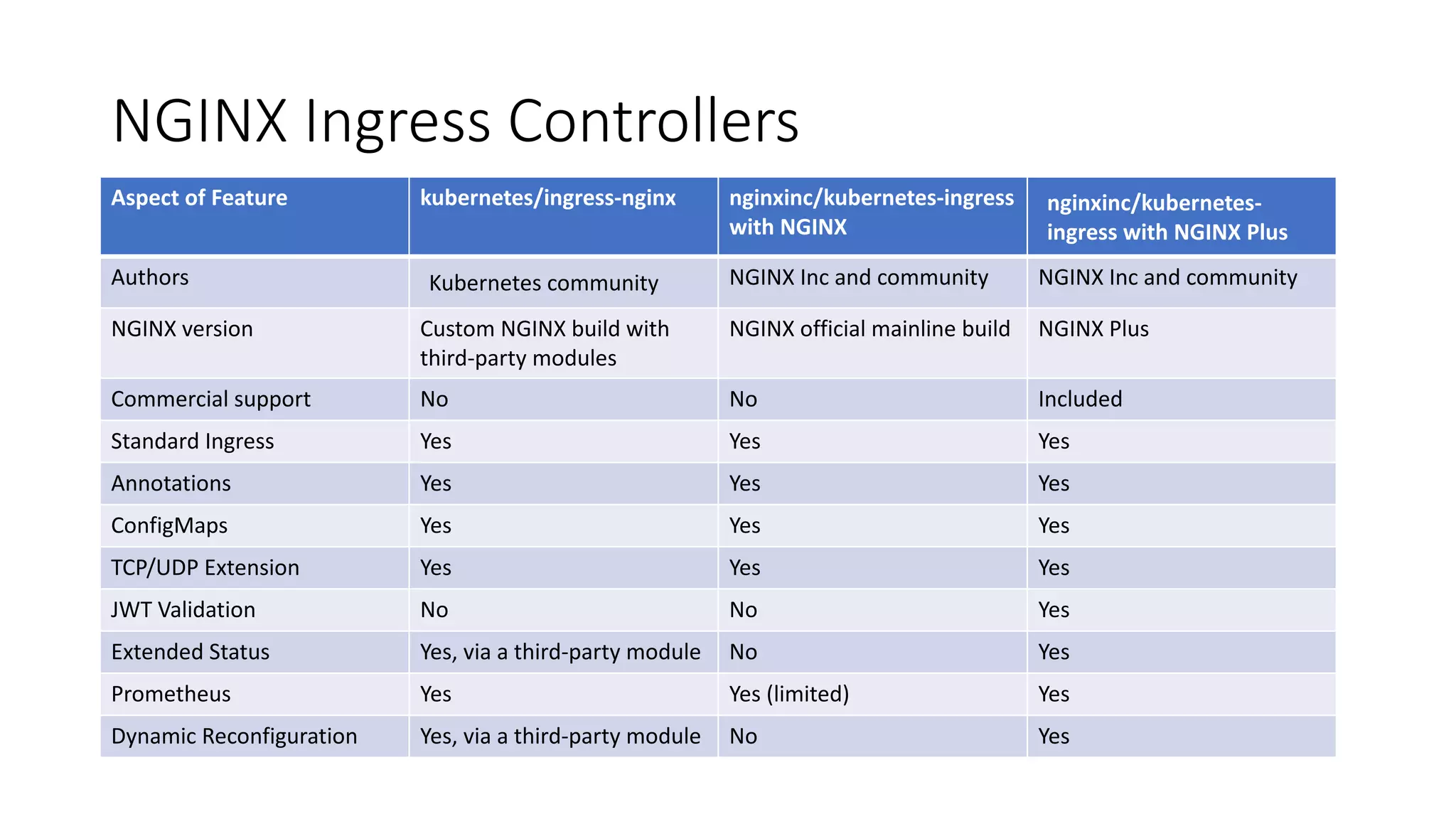

- 27. NGINX Ingress Controllers Aspect of Feature kubernetes/ingress-nginxnginxinc/kubernetes-ingress with NGINX nginxinc/kubernetes- ingress with NGINX Plus Authors Kubernetes community NGINX Inc and community NGINX Inc and community NGINX version Custom NGINX build with third-party modules NGINX official mainline build NGINX Plus Commercial support No No Included Standard Ingress Yes Yes Yes Annotations Yes Yes Yes ConfigMaps Yes Yes Yes TCP/UDP Extension Yes Yes Yes JWT Validation No No Yes Extended Status Yes, via a third-party module No Yes Prometheus Yes Yes (limited) Yes Dynamic Reconfiguration Yes, via a third-party module No Yes
- 28.
